Impact of Blade Ice Coverage on Wind Turbine Power Generation Efficiency: A Combined CFD and Wind Tunnel Study
Abstract
1. Introduction
2. Theory Related to Wind Turbine Airfoil Ice Coverage
2.1. Aerodynamic Theory of Airfoils
2.2. Blade Element Momentum Theory
2.3. Similarity Theory
3. Numerical Simulation of Wind Turbine Blade Surface Ice Coverage
3.1. NACA0012 Airfoil Boundary Conditions and Meshing

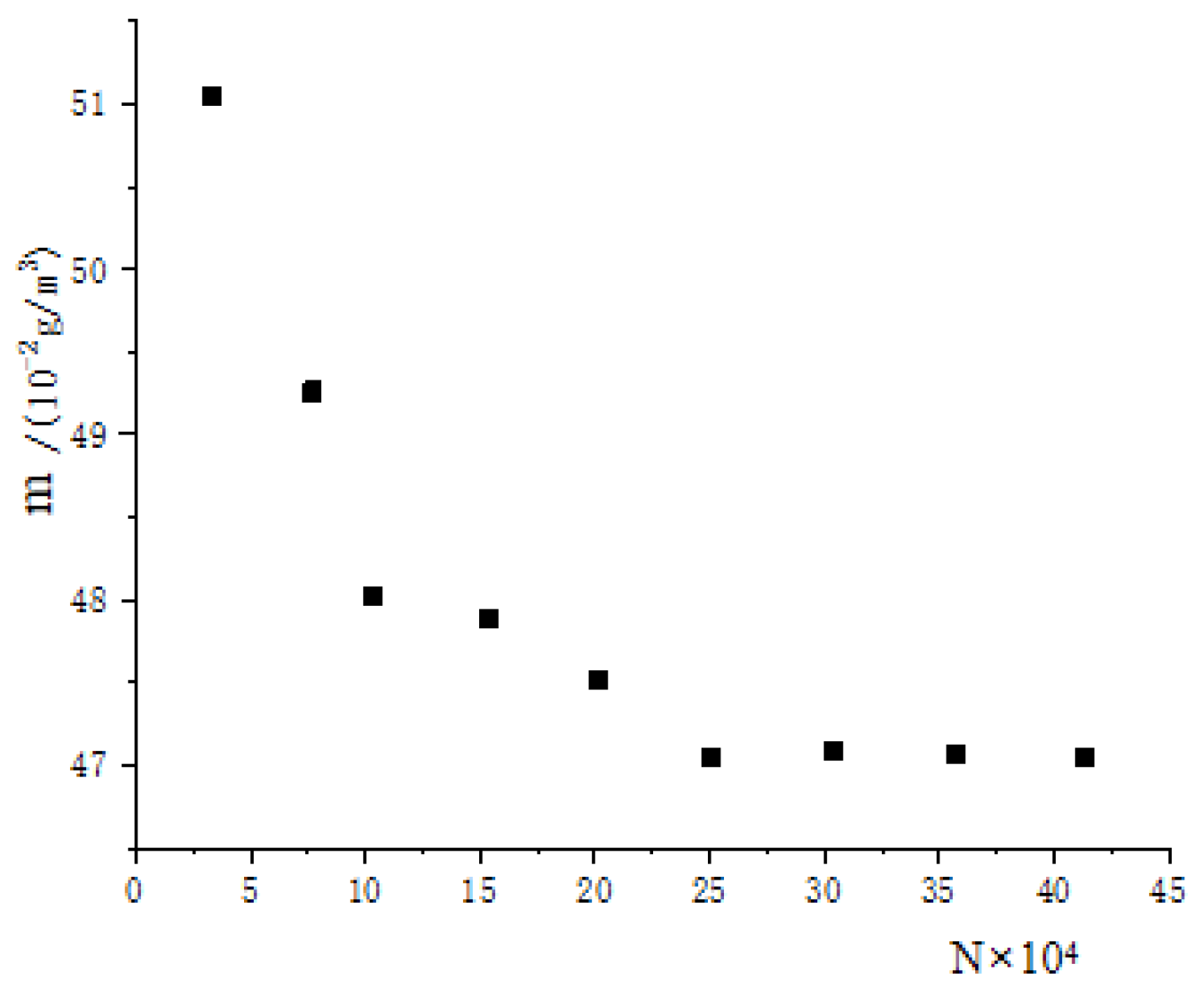

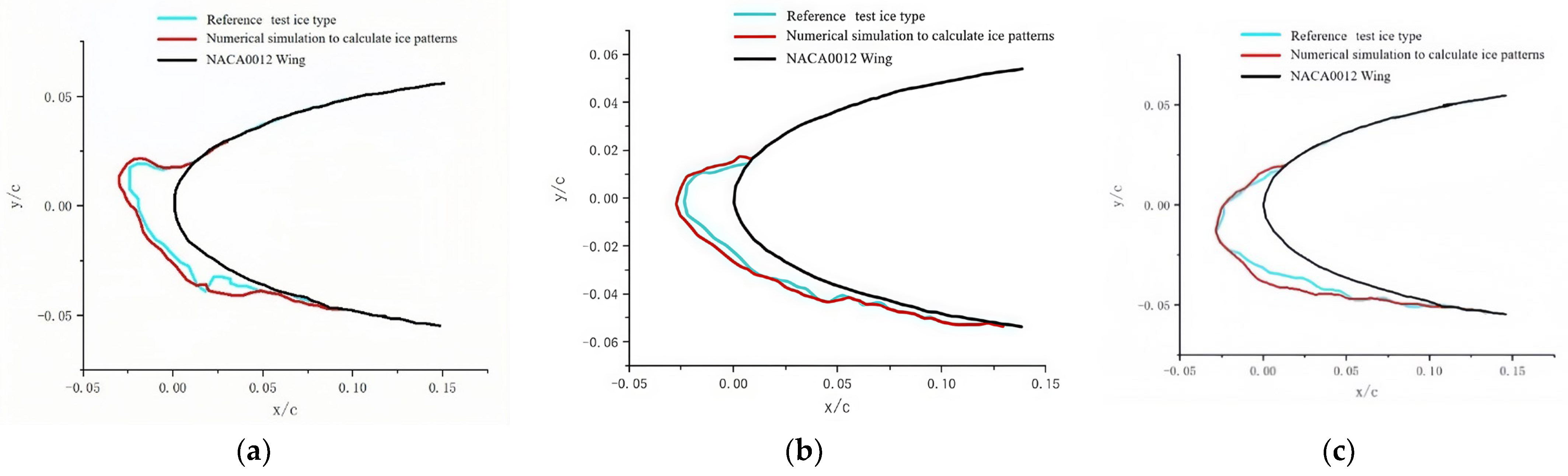

3.2. NACA0012 Wing Ice Cover Simulation Validation Study
4. Experimental Methodology for Aerodynamic Performance Assessment
4.1. Experimental Equipment
- 1.

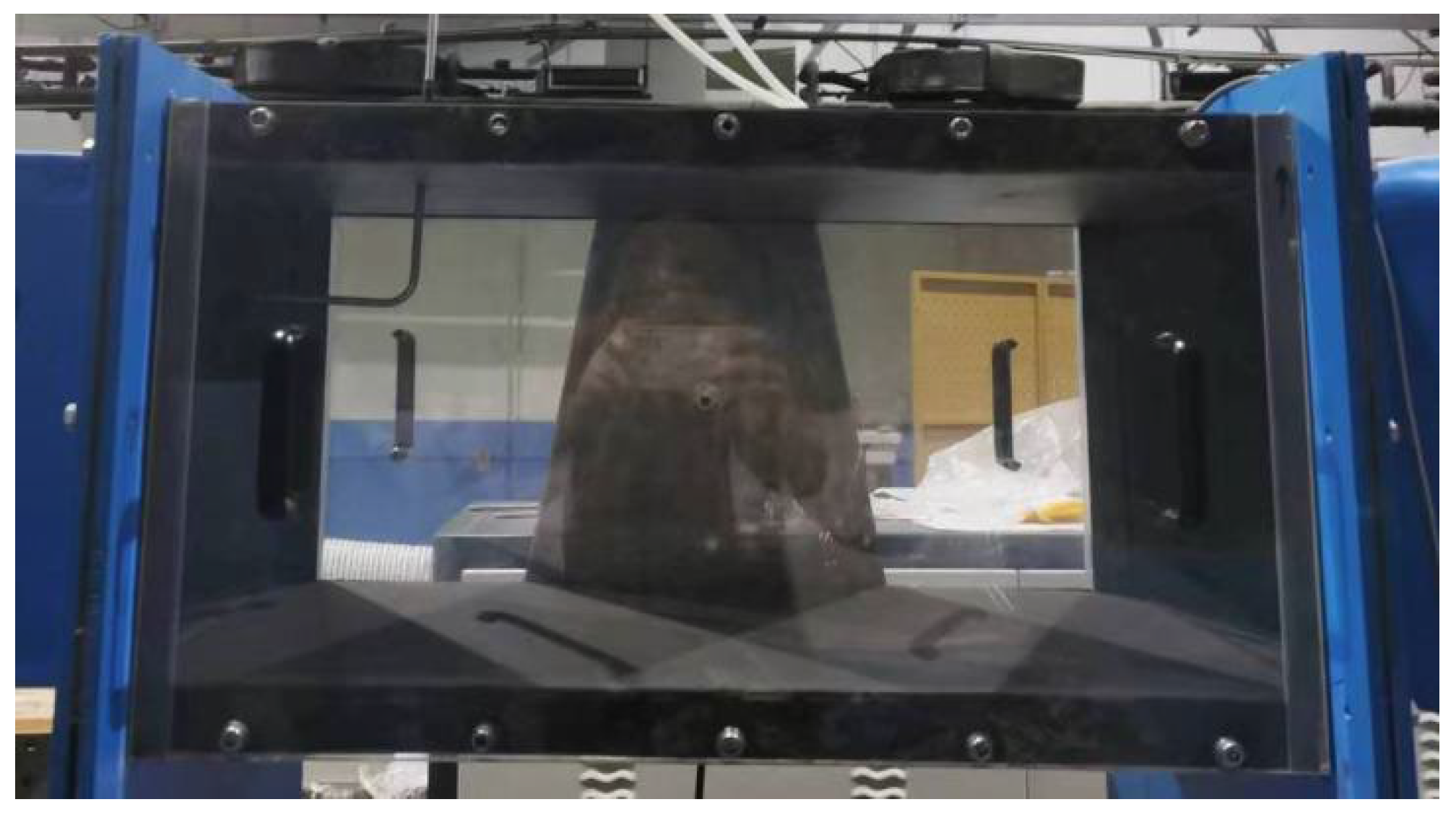

- Test section (1500 × 1000 × 800 mm) with optically transparent walls for flow visualization (Evonik, Germany).
- 2.
- Force measurement: 6-axis transducer (ATI Gamma SI-130-10) with pitch control mechanism (±30°, 0.1° resolution).
- 3.
- PIV system: Dual-cavity Nd: YAG laser (532 nm) (ATI Gamma SI-130-10) and 4MP CCD camera (LaVision Imager Pro X) synchronized via programmable timing unit (LaVision GmbH, Göttingen, Germany).
- 4.
- Data acquisition: NI PXIe-1071 chassis (10 kHz sampling) (National Instruments (NI), Austin, TA, USA).
4.2. Experimental Model

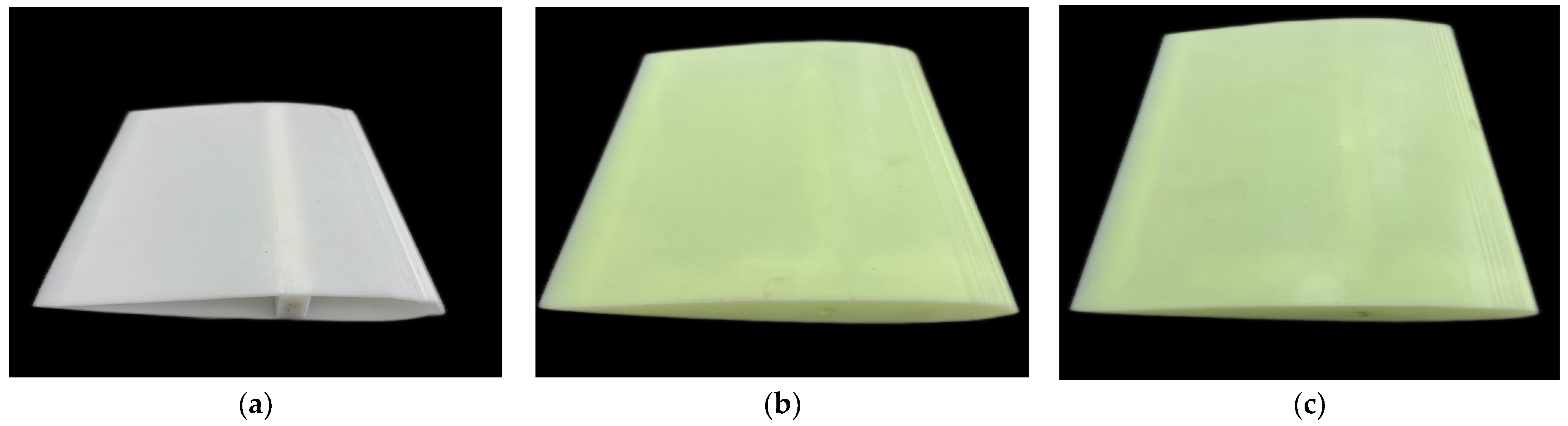

4.3. Design of Experimental Conditions
5. Aerodynamic Performance Analysis Based on Numerical Simulation

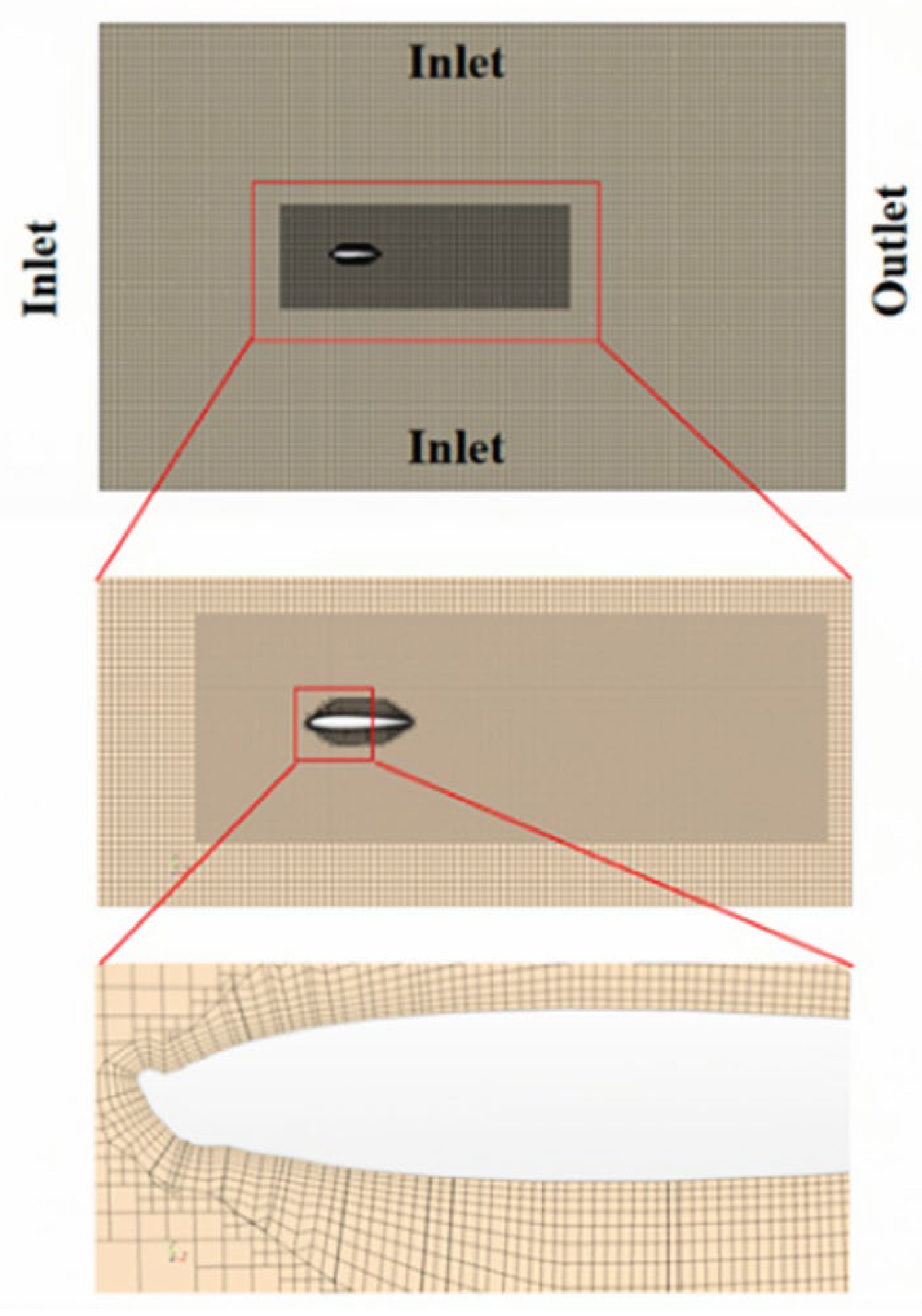

Numerical Methods
6. Effect of Icing on Wind Turbine Output Power

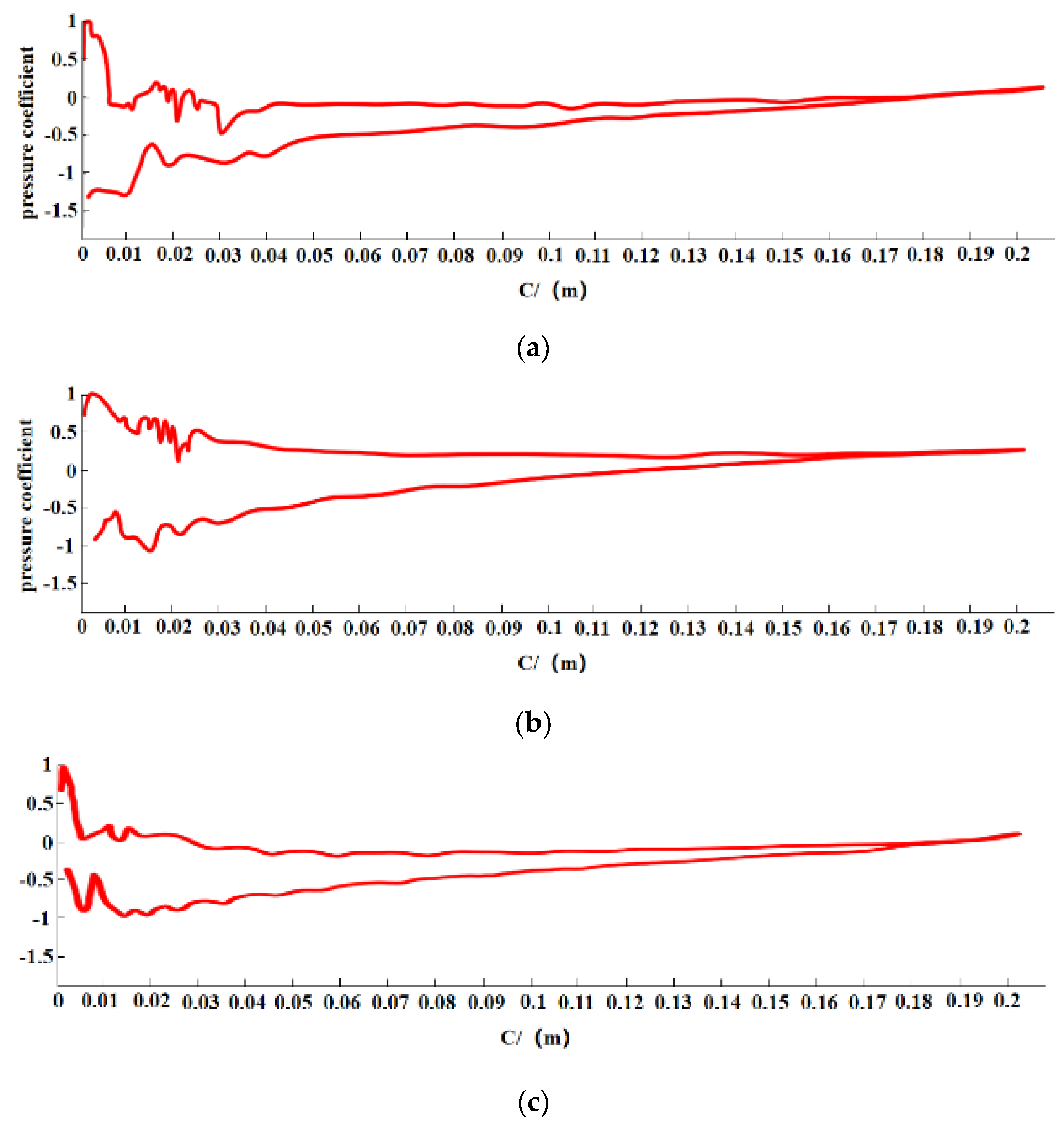

6.1. Effect of Airfoil Ice Cover on Airfoil Surface Pressure Coefficients

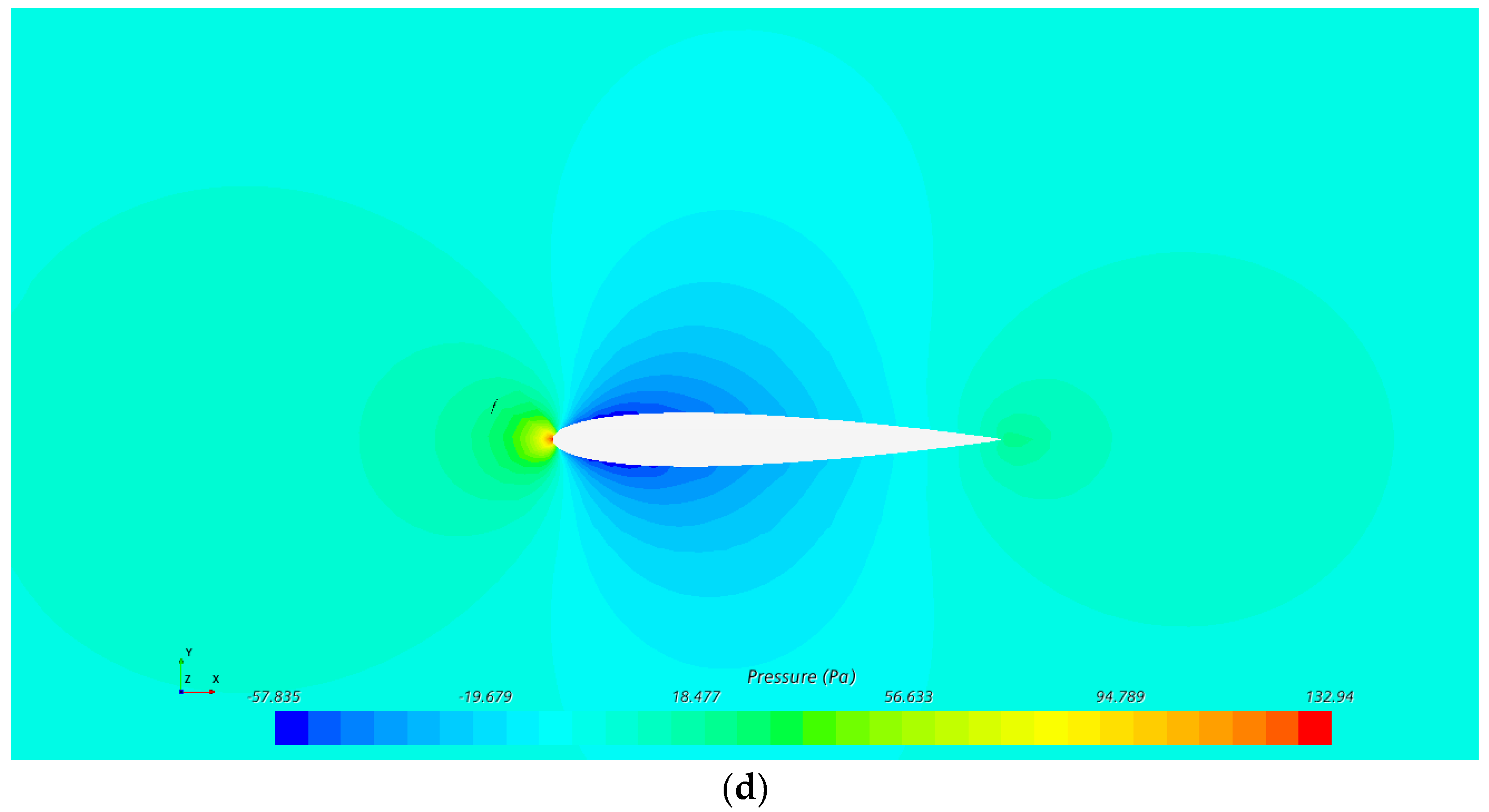

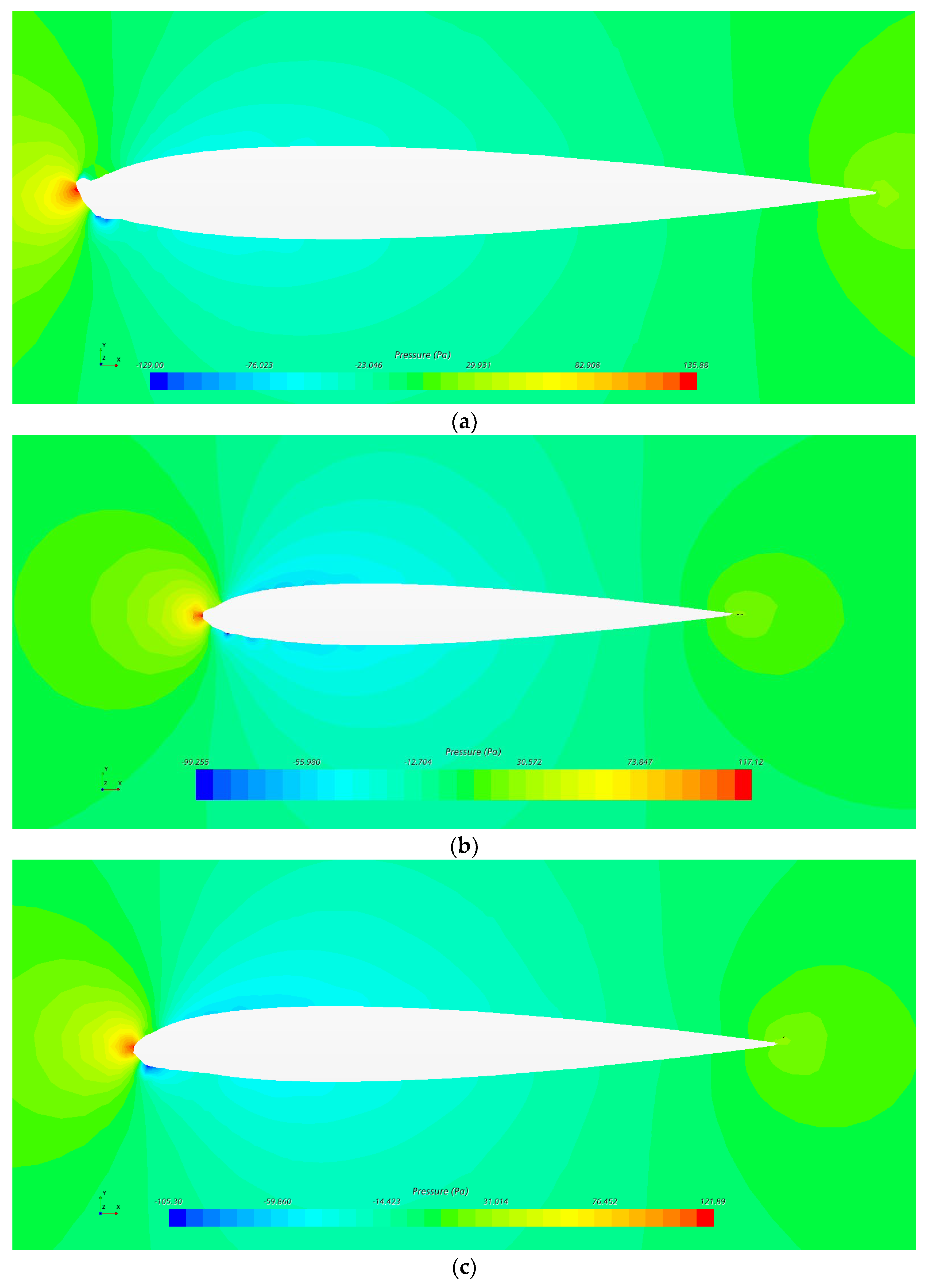

6.2. Effect of Airfoil Ice Cover on Airfoil Flow Field

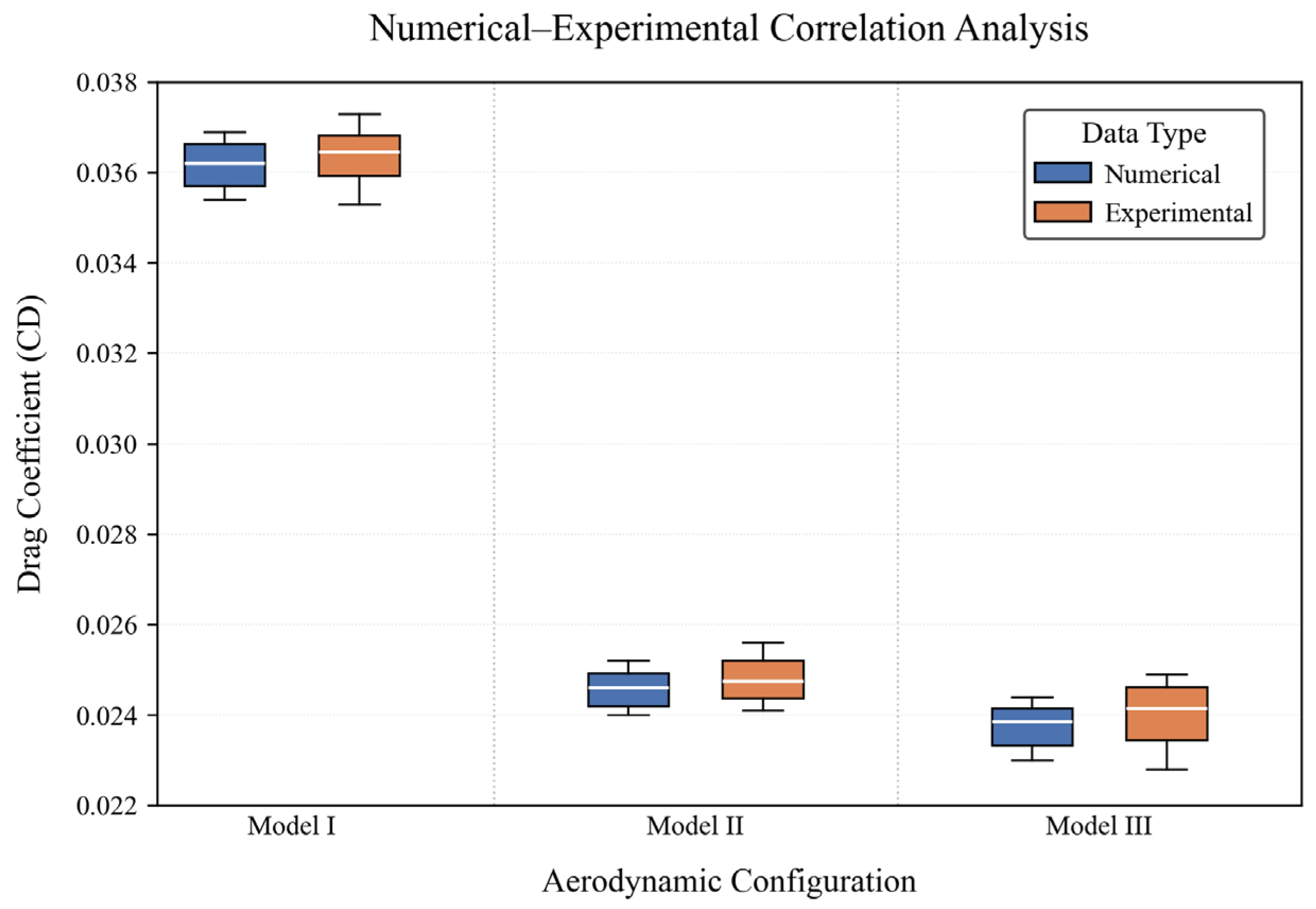

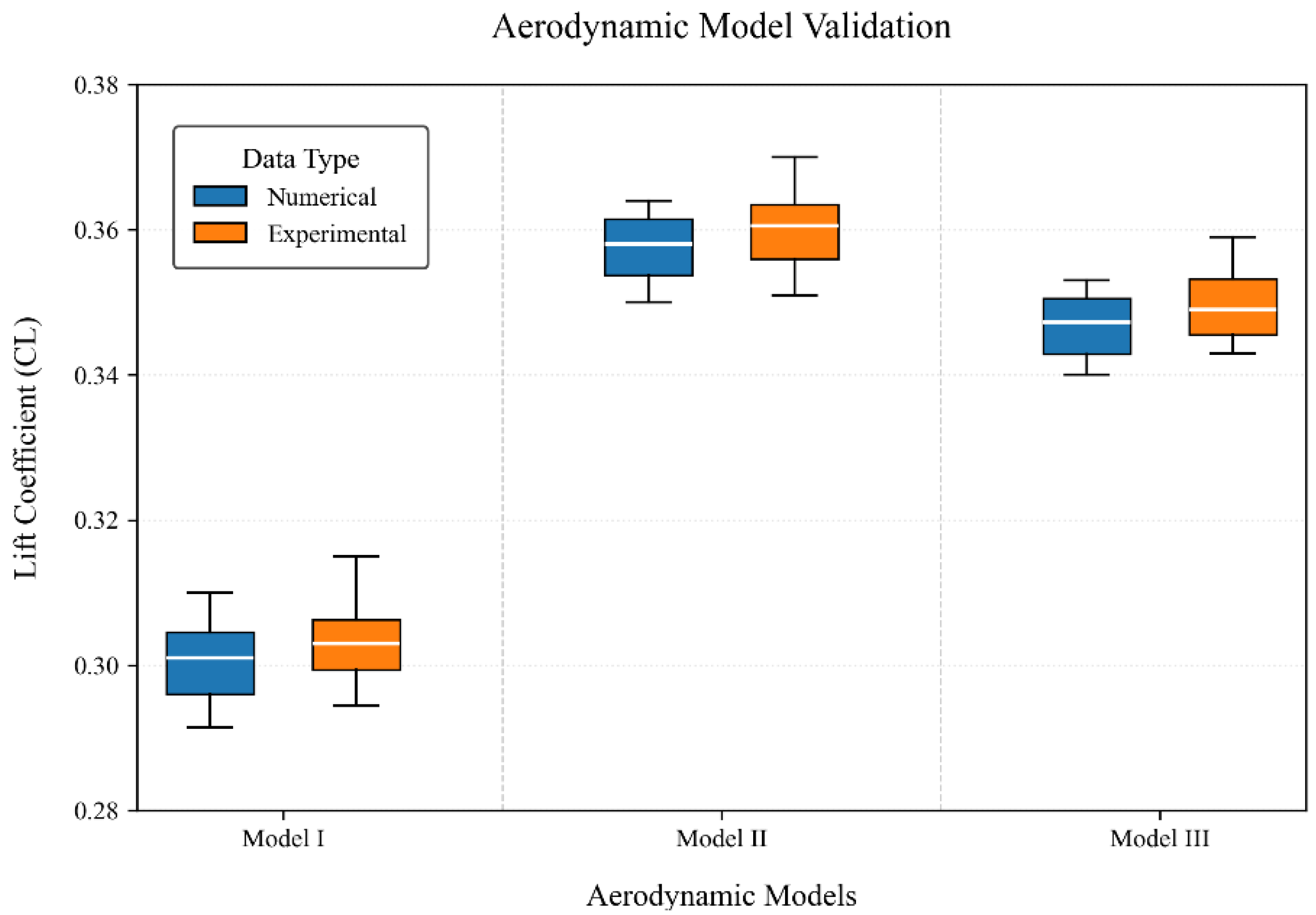

6.3. Effect of Wing Ice Cover on Wing Lift Coefficient of Resistance

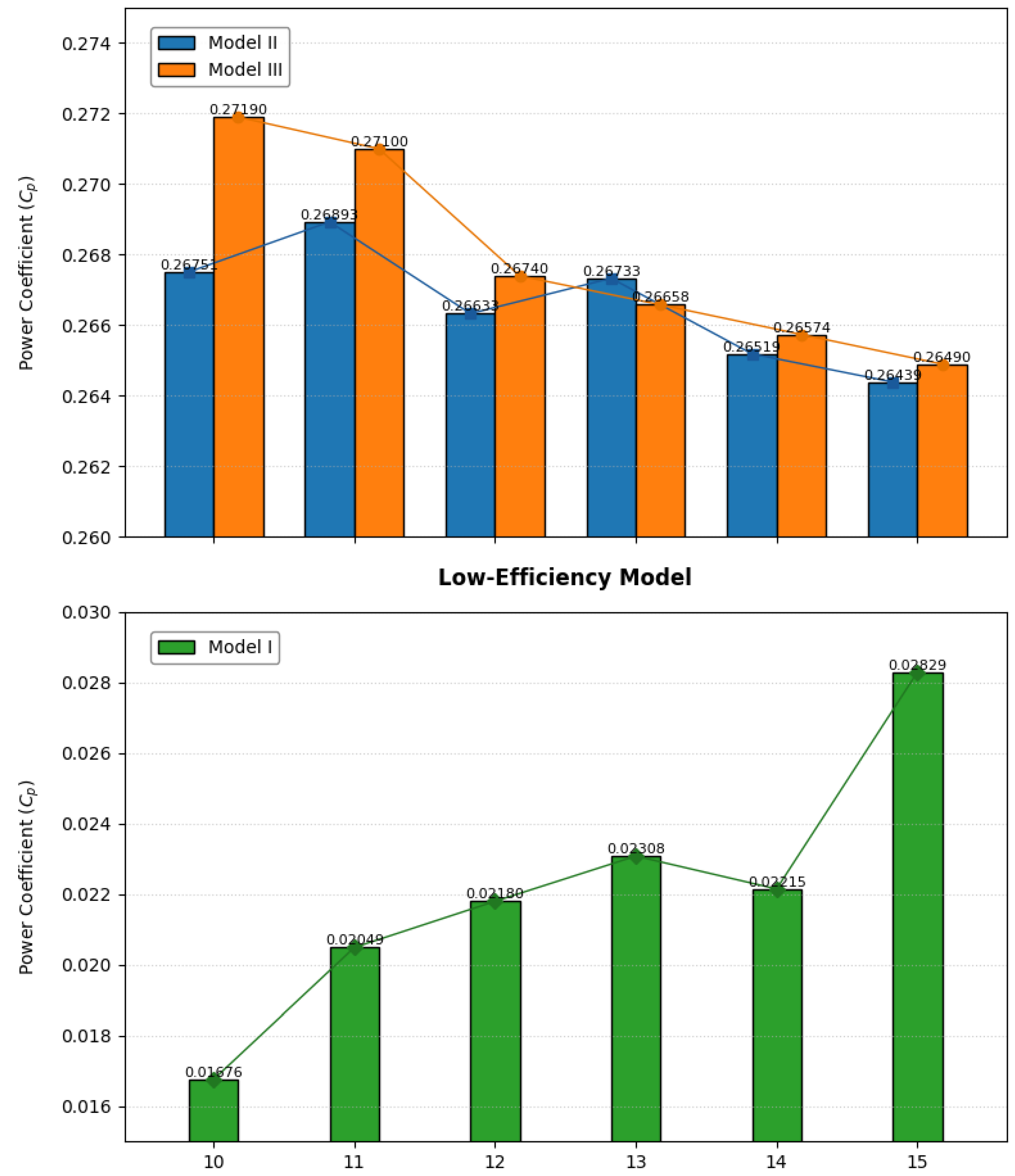

6.4. Effect of Wing Ice Cover on Wind Energy Utilization Factor of Wind Turbines
7. Conclusions
- (1)
- Different types of ice cover have varying effects on airfoil aerodynamic performance, with the most significant impact occurring when ice is attached to the airfoil’s leading edge: at an incoming flow velocity of 10 m/s, glaze ice causes a 34.9% reduction in the airfoil’s lift coefficient and a 97.2% increase in the drag coefficient, accompanied by the most obvious and severe irregular fluctuations in the pressure coefficient at the leading edge due to its angular structure; mixed ice leads to a 33.6% lift coefficient decrease and a 22.7% drag coefficient increase, with moderate pressure coefficient agitation; rime ice results in a 24.1% lift coefficient reduction and a 27.2% drag coefficient increase, with relatively mild pressure coefficient fluctuations. The degree of pressure coefficient irregularity at the leading edge directly correlates with the geometric irregularity of the ice, highlighting that glaze ice with sharp protrusions has the most detrimental effect on aerodynamic performance.
- (2)
- Icing on the airfoil leading edge alters the airflow separation point by modifying the surface geometry, making it easier for airflow to separate from the airfoil surface. This shift in the separation point induces irregular pressure distributions across the airfoil, disrupting its aerodynamic characteristics. The velocity maximum occurs at the ice-covered leading edge—particularly at angular protrusions formed by ice—while separation vortices develop at the trailing edge. Both flow separation and vortex generation diminish lift production by disrupting coherent flow attachment and the pressure differential across the airfoil.
- (3)
- Through an analysis of the wind energy utilization coefficient (Cp) values of three ice-covered airfoils, it was found that under identical environmental conditions, the Cp values were significantly lower for airfoils with glaze ice attached to the leading edge compared to those with rime ice or mixed ice. Specifically, in the wind speed range of 10–15 m/s, the Cp values for airfoils with rime ice and mixed ice on the leading edge were more consistent, stabilizing between 0.26 and 0.28. Notably, the average Cp of airfoils with mixed ice on the leading edge increased by 91.71% compared to those with glaze ice, while the average Cp of airfoils with rime ice increased by 91.74% compared to those with glaze ice. These results highlight the critical impact of ice morphology on the wind energy capture efficiency, with rime and mixed ice demonstrating superior aerodynamic performance over glaze ice in cold-flow environments.
