The Synergy between Methanol M100 and Plasma-Assisted Ignition System PAI to Achieve Increasingly Leaner Mixtures in a Single-Cylinder Engine

Abstract

Currently, conventional spark–ignition engines face challenges in meeting the ever-growing demands of customers and increasingly stringent regulations regarding pollutant emissions. A combination of innovative strategies and carbon-neutral fuels is deemed necessary in order to further reduce fuel consumption and minimize engine emissions. The present work aims to assess the performance of combustion strategies using low-carbon-content fuel, such as methanol M100, ignited by a plasma-assisted igniter (PAI) under ultra-lean conditions. The experimental campaign is conducted on a single-cylinder research engine at 1000 rpm and low loads, moving up to the engine lean stable limits. The specific purpose of this work is to determine the benefits brought by the proposed strategy, referred to as M100–PAI, which compared market gasoline E5 ignited by the PAI system and conventional spark. The synergy between M100 (methanol) and Plasma-Assisted Ignition (PAI) in internal combustion engines yielded notable benefits. This combination significantly improved combustion stability if compared to the other combinations tested, by extending the lean stable limit to λ = 2.0, reducing cycle-to-cycle variability, and facilitating faster flame front acceleration, resulting in enhanced homogeneity. These enhancements, obtained with the combination M100–PAI, contributed to higher fuel efficiency, showing a 10% efficiency gain over the combination E5–gasoline spark ignition. The findings highlight the potential of innovative combustion strategies using low-carbon fuels and advanced ignition systems to meet stringent emissions regulations while improving engine performance.

1. Introduction

The increasingly stringent regulations on emissions of harmful gases—NOx, CO, Unburned Hydrocarbon (UHC), soot, and CO₂—have forced the entire engine research community to improve the thermal efficiency and emission characteristics of spark–ignition (SI) engines [1]. Advanced combustion techniques such as cooled external exhaust gas recirculation (EGR) [2], engine boosting in conjunction with downsizing [3], water injection [4], and lean mixture operations proved to be effective ways to meet these demands. Due to the carbon content of commercial fossil fuels, it is difficult for even the most efficient systems with low emissions to achieve zero CO₂ content [5]. Therefore, the integration of innovative and carbon-neutral strategies is deemed necessary to achieve net-zero emissions targets [6]. The scientific community is currently investigating renewable energy sources (electro-fuels also known as e-fuels [7,8]) and fuels deriving from waste biomass (biofuels [9]) for their low cradle-to-grave carbon impact [10]. Among the others, pure methanol M100 is the simplest liquid synthetic fuel and one of the most promising alternative fuels for replacing petroleum-based fuels [11]. Methanol has the potential to burn easily in the air due to its high volatility [12]. Methanol has a higher Research Octane Number (RON) and a heat of vaporization greater than gasoline [13]. A high heat of vaporization cools down the incoming charge, thus improving volumetric efficiency and power output. A higher RON can increase thermal efficiency as it can increase the compression ratio. This feature renders M100 suitable for small, turbocharged, high-power-density engines [14]. Furthermore, as a liquid fuel, M100 has the advantage over gasoline because its initial boiling point makes it safely stored and distributable with existing infrastructures [15]. In the literature, it has been reported that the use of methanol as an alternative fuel in internal combustion engines has achieved excellent results in terms of engine performance and emissions. Celik et al. [15] studied the effect of increasing the compression ratio of a single-cylinder engine fueled with M100. They found enhancement in engine power and BTE (Brake Thermal Efficiency) of about 14% and 36%, respectively, moving from 6:1 to 10:1. Moreover, CO, CO₂, and NOx emissions were reduced by about 37%, 30%, and 22%, respectively. The methanol combustion process and the presence of a single-carbon molecule (CH₃OH) reduce NOx and PM emissions compared to complex hydrocarbon fuels [16]. Dhaliwal et al. [17] found that using pure methanol instead of compressed natural gas (CNG), liquified petroleum gas (LPG), and M85 drastically decreases the emissions of NOx and PM of both light- and heavy-duty vehicles. The higher the oxygen content in methanol, the faster the flame and the lower the CO and HC emissions [18]. However, at ultra-lean mixture conditions, towards which the research is directed, the lower energy density (LHV_M100 = 19.93 MJ/kg) and the higher heat of vaporization (HoV_M100 = 1160 kJ/kg at 25 °C) of methanol compared to gasoline (LHV_E5 = 44 MJ/kg and HoV_E5 ~ 380 kJ/kg at 25 °C) reduce the mixture ignition capabilities causing slow-burning thermodynamic cycles featured with high variability and partial oxidation products as HC and CO. High ignition energies are consequently deemed necessary under extreme operating conditions to address these issues. Traditional spark-based solutions are inefficient in transferring energy to the gas under challenging conditions [19]. Abidin and Chadwell [20] estimated that only 2.5% of the primary energy reaches the medium. Solutions such as multiple-spark discharge [21] and high-energy discharge [22] improve ignition effectiveness and combustion stability but share limitations with traditional spark plugs, including small plasma volume, electrode heat losses, erosion, and fouling [23]. Advanced ignition concepts aim to enhance discharge energy, efficiency, and volume. Plasma-jet ignition systems [24] and pre-chamber ignition systems [25] enable lean/dilute conditions but involve design complexities and combustion chamber adaptation. In recent years, extensive research has focused on plasma-assisted ignition systems (PAI) [26], also known as low-temperature plasma (LTP) ignition systems. PAI ensures stable combustion under critical conditions by generating non-equilibrium plasma with a significant temperature difference between electrons (hot) and heavy species (cold) in the gas [27]. This volumetric discharge mode, combined with kinetic, transport, and thermal effects, reduces ignition delay, accelerates kernel formation, and its evolution [28]. Electron impact produces excited species and active radicals like hydroxyl radicals OH*, O, O₃, reducing fuel oxidation reaction time [29,30]. Collisions between discharged particles and gas molecules increase turbulence and mixing, while the thermal effect promotes fuel oxidation and accelerates combustion initiation according to Arrhenius law [31].

Present Contribution

The present work evaluates the possibility to exploit the abovementioned benefits of M100 at ultra-lean conditions by using a high-energy PAI, namely a Barrier Discharge Igniter (BDI) [32,33]. Several studies [34,35] have demonstrated the capability of BDI to promote stable combustion processes in conditions of lean mixtures. This is made possible by creating non-equilibrium plasma (or LTP), which uses the combined action of the three abovementioned effects to hasten the development of early flames [29,36]. Therefore, by harnessing the inherent advantages of M100, BDI, and lean blends, this work reports the outcomes of a combustion strategy able to address the challenge of reducing consumption. The test campaign was performed at fixed load and 1000 rpm in a single-cylinder research engine by performing indicating analysis. Comparisons between market gasoline E5 ignited by BDI and traditional spark were realized to estimate the advantages brought by the proposed strategy in terms of engine management, combustion behavior, and ability to extend the engine’s lean stable limit. The results show that the combination of methanol with PAI in ICE offers a compelling array of advantages. This pairing substantially enhances combustion stability by extending the lean stable limit to λ = 2.0. It fosters faster flame front acceleration during the initial combustion phase, leading to reduced cycle-to-cycle variability and greater homogeneity within the air–fuel mixture. These improvements result in higher fuel efficiency, with M100–PAI achieving a remarkable 10% efficiency gain compared to conventional spark ignition with E5. Furthermore, the improved combustion stability under lean conditions provides the potential for reduced emissions of unburned hydrocarbons and carbon monoxide. The smoother rise in CoV_IMEP, when λ values become leaner, indicates enhanced stability and robustness in challenging operating conditions. This combination capitalizes on methanol’s inherent properties, such as its oxygen-rich composition and rapid burning rate, which contribute to a broader flammability range and more consistent combustion. As a result, M100–PAI demonstrates promise not only in improving engine efficiency but also in achieving a higher level of homogeneity within the combustion chamber.

2. Materials and Methods

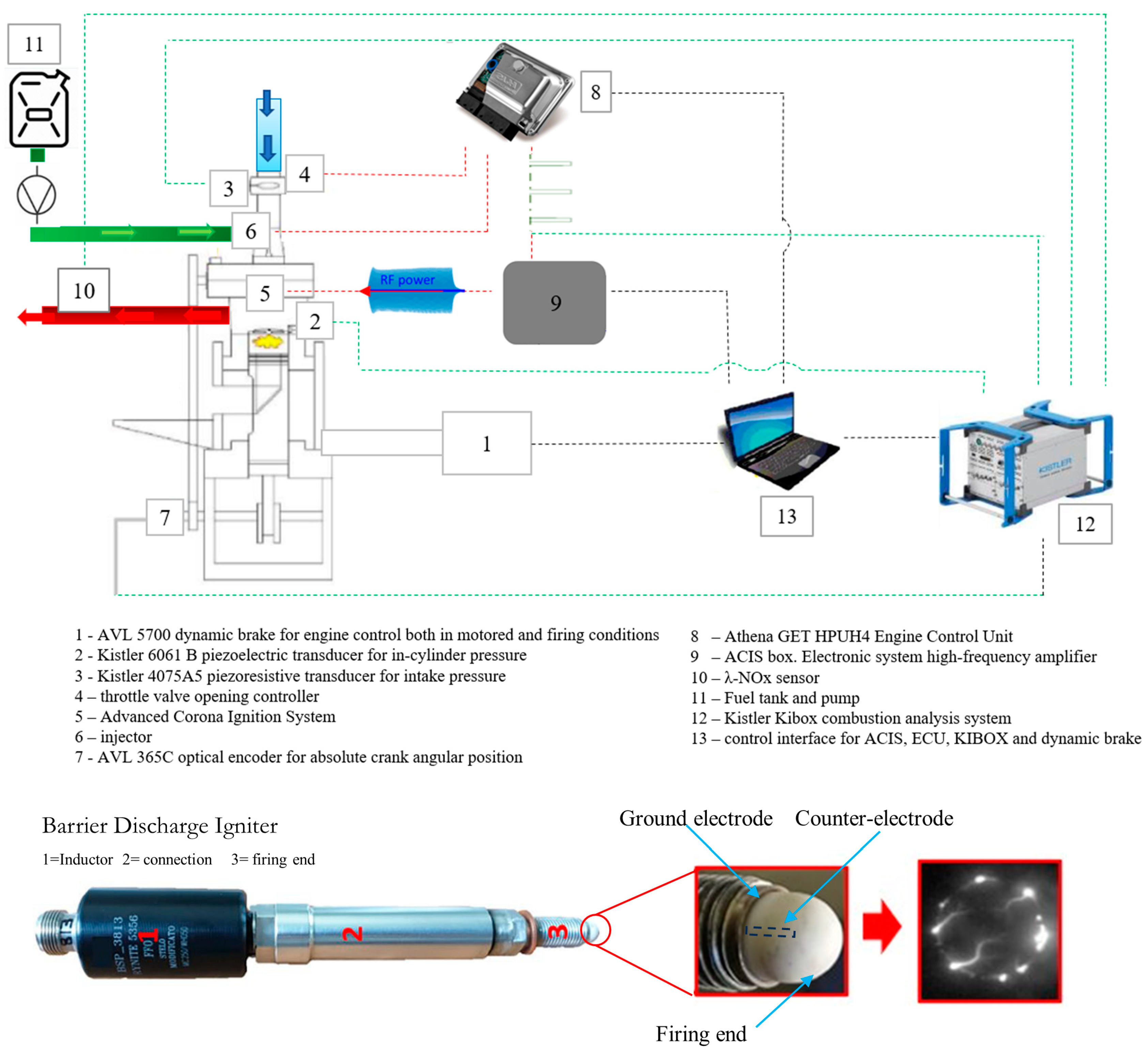

A 500 cc single-cylinder research engine is used to perform the test campaign (

Table 1. Engine data.

Feature	Value
Displaced volume	500 cc
Stroke	88 mm
Bore	85 mm
Connecting Rod	139 mm
Compression ratio	8.8:1
Number of Valves	4
Exhaust Valve Open	13 CAD bBDC
Exhaust Valve Close	25 CAD aTDC
Inlet Valve Open	20 CAD bTDC
Intake Valve Close	24 CAD aBDC

). The engine has four valves, a reverse tumble intake port system, and a pent-roof combustion chamber with the igniter centrally located. Conventional mineral lubricant at 343.0 ± 0.2 K is used for all the other moving parts of the engine to guarantee engine durability and reduced blow-by [37]. Methanol M100 and gasoline E5 are injected in the intake port by a Weber IWP092 port fuel injector at 4.8 bar absolute (

Table 2. Physical properties of the used fuels.

Properties	Gasoline (E5)	Methanol (M100)
C/H ratio [-]	0.54	0.25
O/C ratio [-]	0.03	1
Density [kg/m3]	761.42	792
Lower heating value [MJ/kg]	44	19.93
Heat of vaporization [kJ/kg]	349	1160
Stoichiometric air-to-fuel ratio	14.7	6.4
Research octane number (RON)	95–98	109
Autoignition temperature [K]	536–853	738
Adiabatic Flame Temperature [°C]	2002	1870
Laminar flame speed at the normal temperature and pressure, λ = 1 (cm/s)	28	42
Flammability limit in air (λ)	0.26–1.60	0.23–1.81

). The air–fuel ratio (λ) is modified by varying the fuel amount at fixed throttle position (i.e., 10%, idle mode). A Kistler Kibox combustion analysis system is used to perform indicating analysis, with a temporal resolution of 0.1 CAD. At each operating point tested, 100 consecutive events are recorded. The innovative igniter employed in this work, i.e., the Barrier Discharge Igniter (BDI) [38], is controlled by a dedicated power electronic system (ACIS Box) at 1.04 MHz and its discharge control parameters, i.e., activation time t_on and the driving voltage V_d are managed by a dedicated software [39,40]. The first control parameter, i.e., t_on, defines the discharge duration, while the second one, i.e., V_d, is proportional to the electrode voltage occurring on the igniter firing end and regulates the development of ionization waves, i.e., streamers, around the igniter’s dielectric alumina globe [33]. The firing end contains the counter electrode, and it prevents the streamer-to-arc transition phenomenon which causes the loss of all benefits brought by the non-thermal plasma discharge [41,42] (Figure 1).

3. Case Study

In the first part of the work, the test campaign was carried out with the engine operating in idle mode at 1000 rpm, from λ = 1.2 up to the lean stable limit found for each analyzed case. The performance of the proposed strategy, i.e., M100 and BDI, was compared with the ones resulting from the usage of BDI-E5, spark-M100 and spark-E5. For each λ value, the ignition timing was set to obtain the maximum brake torque (MBT), which can be detected with the in-cylinder peak pressure (AP_max) in a range of 11–17 CAD (Figure 2a). As shown in Figure 2b, using the same ignition timing (IT) with a fixed λ value ensured that all combinations fell within the MBT range. This made it easier to compare how flames formed and developed in these combinations, as they all began from the same in-cylinder conditions. The control parameters of BDI were set at V_d = 60 V, t_on = 1500 µs [34]. For the spark system, only the ignition coil dwell time can be managed, and it was set to 3.1 ms for all tested points. The ignition coil dwell time of the spark system was set to 3.1 ms for all tested points because it is a value consistently used in previous applications of the same research group. This duration strikes a balance between maximizing energy release and preventing malfunctions.

Table 3. Operating point tested.

λ	1.2	1.4	1.6	1.7	1.8	1.9	2.0	2.1
Combination Igniter–Fuel	BDI-M100 BDI-E5 SPARK-M100 SPARK-E5	BDI-M100 BDI-E5 SPARK-M100 SPARK-E5	BDI-M100 BDI-E5 SPARK-M100 SPARK-E5	BDI-M100 BDI-E5 SPARK-M100	BDI-M100 BDI-E5 SPARK-M100	BDI-M100 BDI-E5	BDI-M100	BDI-M100

summarizes all the operating points evaluated in this work.

4. Results and Discussion

4.1. Combustion Stability

Coefficient of Variance (CoV) of the Indicated Mean Effective Pressure (IMEP), i.e., the ratio between IMEP standard deviation and IMEP mean value, is used to evaluate the combustion stability. Each operating point is considered stable if the CoV_IMEP < 4%.

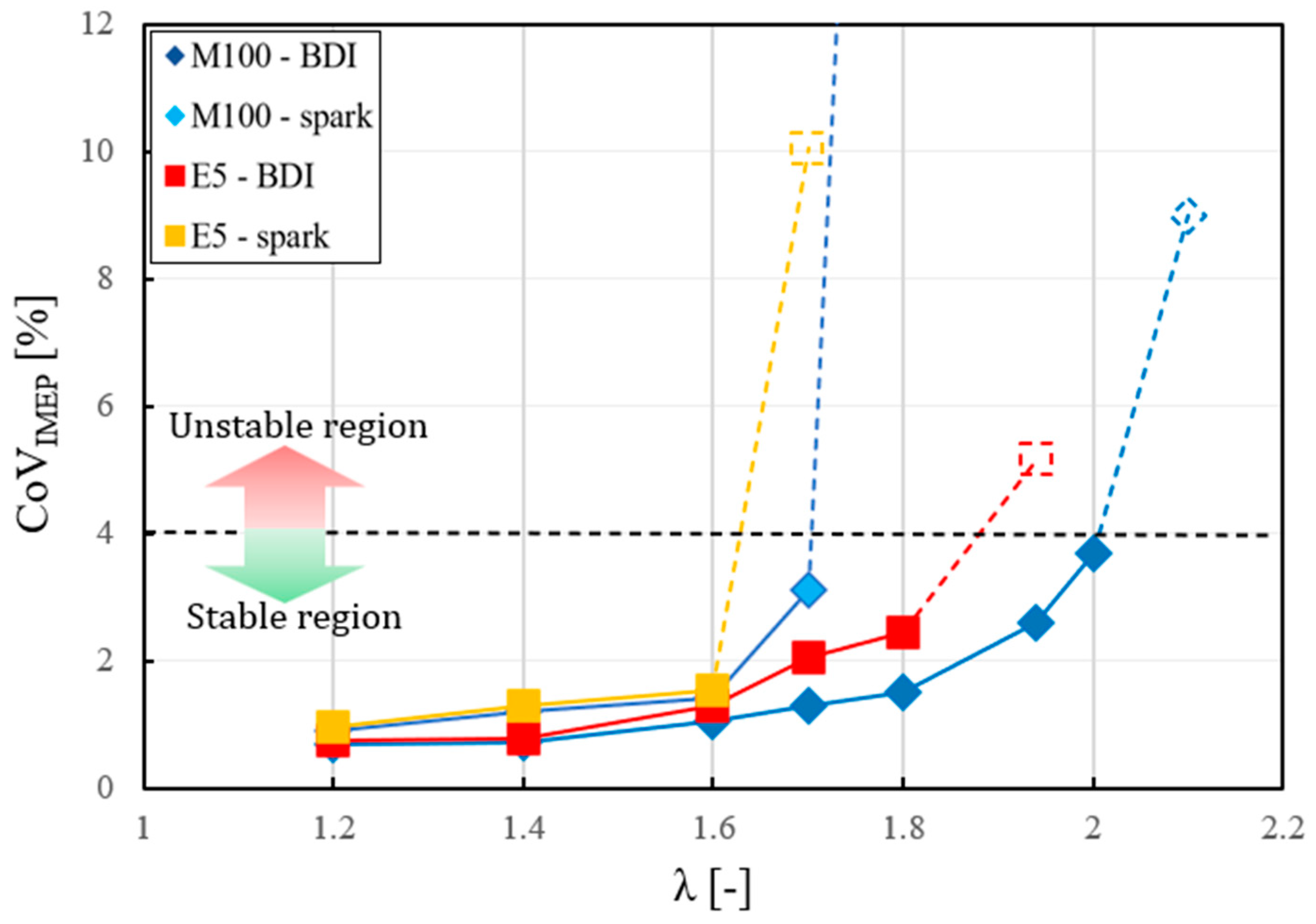

Figure 3 displays the CoV_IMEP (Equation (1)) values for each combination from λ = 1.2 up to the corresponding lean stable limit with the engine operating at 1000 rpm.

$${\mathrm{C}\mathrm{o}\mathrm{V}}_{\mathrm{I}\mathrm{M}\mathrm{E}\mathrm{P}}=\frac{{\mathsf{\sigma }}_{\mathrm{I}\mathrm{M}\mathrm{E}\mathrm{P}}}{{\mathsf{\mu }}_{\mathrm{I}\mathrm{M}\mathrm{E}\mathrm{P}}}\times 100=\frac{\mathrm{s}\mathrm{t}\mathrm{d} \mathrm{d}\mathrm{e}\mathrm{v}\mathrm{i}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n} \mathrm{i}\mathrm{n} \mathrm{I}\mathrm{M}\mathrm{E}\mathrm{P}}{\mathrm{m}\mathrm{e}\mathrm{a}\mathrm{n} \mathrm{I}\mathrm{M}\mathrm{E}\mathrm{P}}\times 100$$

(1)

The combinations are stable, with no remarkable differences, up to λ = 1.6. As the mixture becomes leaner, the probability of ignition decreases due to the absence of available fuel and the decrease in temperature caused by excess air [43]. This leads to an increase in cycle-to-cycle variability [34]. In the richest cases, the availability of fuel to be ignited does not highlight differences between the tested combinations in terms of stability [35].

Starting from the spark results, at λ = 1.7, E5-spark becomes unstable, whereas the combinations of M100-spark operating with oxygenated fuels maintain stable processes up to such λ. The presence of oxygen in the fuel is crucial in keeping the CoV_IMEP below the stability threshold of 4%. The findings of [44], which showed a comparison between M100 and E5 performance on a 4-cylinder PFI SI engine under idle conditions and low speed under diverse air–fuel ratios (λ), can elucidate such a behavior. M100’s higher diffusion rate and elevated oxygen content lead to enhanced uniformity in the air–fuel mixture, resulting in reduced CoV within the intake port compared to gasoline. The greater Heat of Vaporization (HoV) inherent to M100, which might normally hinder the evaporation process, is counterbalanced by the engine’s low speed. Despite M100’s lower LHV, its combustion stability prevails over gasoline due to faster flame propagation facilitated by the heightened homogeneity and oxygen content. Notably, minimizing the initial part of combustion process is an effective method for enhancing combustion stability [41]. Furthermore, in contrast to gasoline’s sharp increase in CoV_IMEP with leaner mixtures (higher λ), methanol exhibits a smoother rise, attributed to its accelerated burning rate and broader flammability range, which enhance stability under lean conditions.

Approaching leaner conditions, at λ = 1.8 all the combinations using the spark-plug igniter fail to guarantee CoV_IMEP below the stability threshold, whereas BDI enables repeatable combustion processes. This finding implies the effect of BDI discharge on combustion robustness and repeatability [33,35]. BDI extends the lean stable limit of E5-spark of 0.2 λ units, i.e., up to λ = 1.8. BDI is dedicated to the production of a high number of chemical species, especially ozone O₃, by involving considerable volume mixture around its firing end [45]. O₃ results in its decomposition into monatomic oxygen, which allows a faster oxidation of the fuels, thus accelerating the chain-branching reactions and consequently increase the burning velocity [46,47]. It has been observed [40] that when operating under conditions close to stoichiometry, BDI’s oxygen impact is most pronounced during the initial combustion phase. However, as the mixture becomes leaner, the kinetic effect appears to diminish. This behavior indicates that the primary influence is thermal, while the presence of radicals plays a secondary role, particularly under lean conditions with advanced ignition timing. These findings suggest that BDI primarily extends the stable operating limit through its high amount of energy release into the medium compared to spark [38], in conjunction with the volumetric characteristics of its discharge which can involve a larger portion of the combustion chamber with respect to traditional thermal ignition [34]. However, when operating with methanol, BDI is capable of extending the engine stable limit to be extended up to λ = 2.0, resulting in 0.2 λ units gain over the E5-BDI and in 0.3 λ units gain over the M100-spark. Therefore, the difference between the λ gain between the BDI-M100 and M100-spark is 0.1 λ higher than the gain between the E5-BDI and E5-spark. This outcome could suggest that the oxygen presence aids in the production of active and radical species as a result of the non-equilibrium plasma discharge interaction with M100, thereby improving kernel formation mechanisms and robustness. Masurier and colleagues [46] demonstrated that the addition of O₃ (a byproduct of a BDI discharge) to methanol fuel accelerates flame front evolution. As previously reported, this acceleration allows to extend the lean stable limit of the engine and could provide an explanation for the higher λ extension when BDI-M100 is employed.

4.2. Combustion Duration

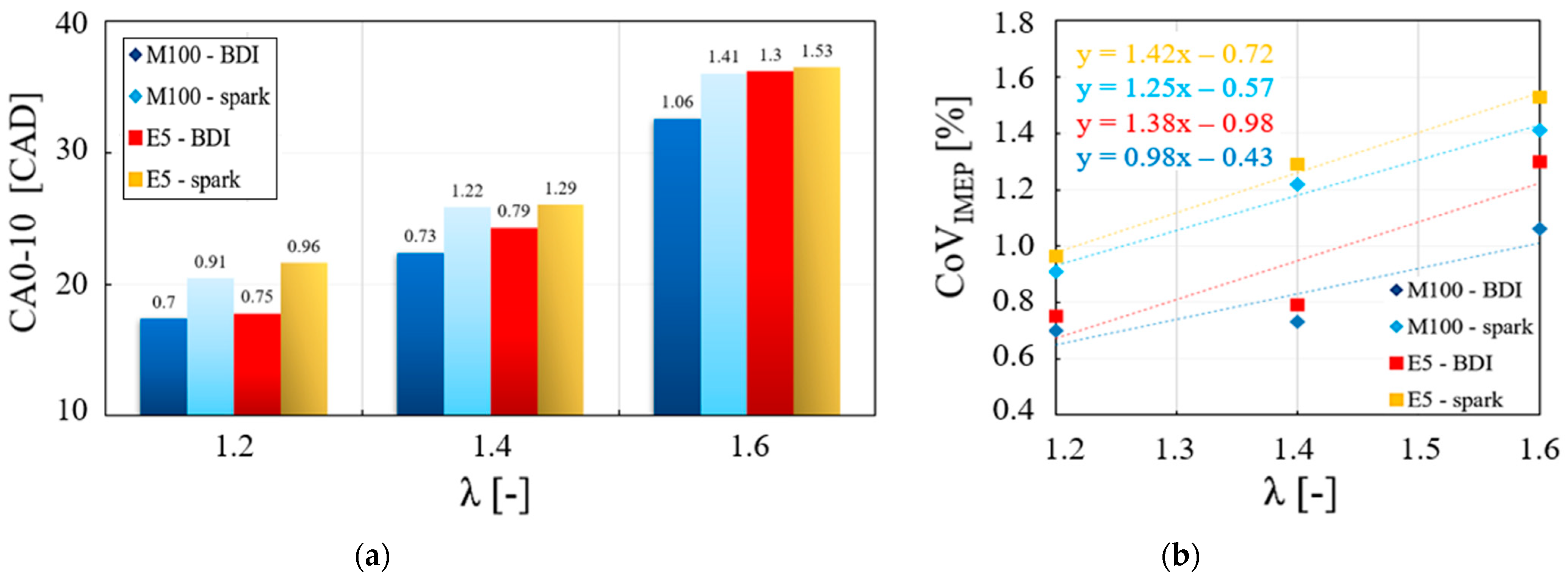

To emphasize these findings, Figure 4a provides insights into the duration of the first part of the combustion process, i.e., CA0-10, which represents the time required by the combustion process to burn 10% of the entire mass, i.e., 10% of MFB (Mass Fraction Burned). For comparison purposes, the operating points up to the limit found with spark-E5 (λ = 1.6) have been considered. As increasingly leaner mixtures are used, the CA0-10 increases due to the lower fuel content, resulting in a lower average in-cylinder temperature [35]. From the graph, it is possible to highlight the findings as previously stated. Considering the same fuel, BDI is capable of accelerating the flame front. This outcome proves again the capability of PAI discharge to enhance the rate of burning through thermal effect and by exploiting the early production of active chemical species combined with a larger volume of mixture involved by the discharge [34]. When using the same ignition system, methanol accelerates the flame front. When an oxygenated fuel is used, the larger disposal of oxygen within the mixture together with the higher homogeneity compared to E5 promotes chemical oxidation, thus reducing the duration of the chain reaction mechanism [36]. The combination of BDI-M100, leveraging the benefits of the PAI discharge and those observed with methanol, produces the fastest acceleration of the flame front. Faster initial combustion corresponds to processes characterized by lower cycle-to-cycle variability. At each compared λ, the lower the CA0-10, the lower the CoV_IMEP (overimposed in grey on the bars of Figure 4a). With M100, it is possible to observe a slower drop in cycle-to-cycle variation, which is even less pronounced when this fuel is ignited by a PAI discharge (refer to the trend line of the curves in Figure 4b). The linear trend line is derived by using the CoV_IMEP as the y-variable and the λ values as the x-variable, considering the three reported lambda values.

Figure 5 provides insights into the entire combustion process CA10-90. To explain the combustion behavior in such a stage, in Figure 5 beside the CA10-90 is reported the trend of the maximum in-cylinder pressure (P_max) and again the CA0-10. In general terms, the CA10-90 exhibits an opposite trend compared to the CA0-10. This trend is consistent for both analyzed fuels and may be somewhat challenging to explain. However, it could be related to the timing of combustion and the somewhat unconventional behavior of blow-by in the optical research engine due to the use of non-standard piston rings [35]. The hypothesis is that if the initial phase of combustion happens more rapidly, it can result in a higher rate of pressure increase and absolute pressure in the entire combustion chamber, including the unburned gas area. This, in turn, could lead to more unburned air–fuel mixture escaping through gaps, avoiding the advancing flame, and consequently slowing down the second phase of combustion. In other words, significant heat dissipation close to the top dead center (TDC) and heightened cylinder leakages may contribute to a decrease in pressure during expansion, consequently extending the combustion duration of the mixture. Apart from singularities, BDI-M100 and BDI-E5 show the fastest CA0-10 (Figure 5a), which gain the maximum in-cylinder pressure at higher level if compared to the other two spark combinations (Figure 5b). This leads, in general, to the slowest CA10-90 in all the three λ cases analyzed. To give an example, at λ = 1.4, BDI shows CA0-10 = 22.4 CAD and CA0-10 = 24.3 CAD with M100 and E5, respectively, whereas spark combinations presenting CA0-10 equal 25.89 and 26.07 CAD when igniting methanol and gasoline. Therefore, BDI gains on average the spark P_max of about 7%. As a consequence of this, spark shows the fastest CA10-90 with both fuels. It is worth highlighting that, despite the similar level of P_max between spark-M100 and spark-E5, the faster CA10-90 shown by gasoline could be related to the higher presence of hydrocarbon, which speeds up the flame in the part final combustion.

4.3. Indicated Work and Efficiency

The indicated fuel conversion efficiency is computed by considering the indicated work per cycle ${\mathcal{L}}_{ind}$, the fuel’s lower heating value LHV, and the injected fuel mass per cycle $m_f$ (Equation (2)).

$${\eta }_{ind}=\frac{{\mathcal{L}}_{ind}}{m_f·LHV}$$

(2)

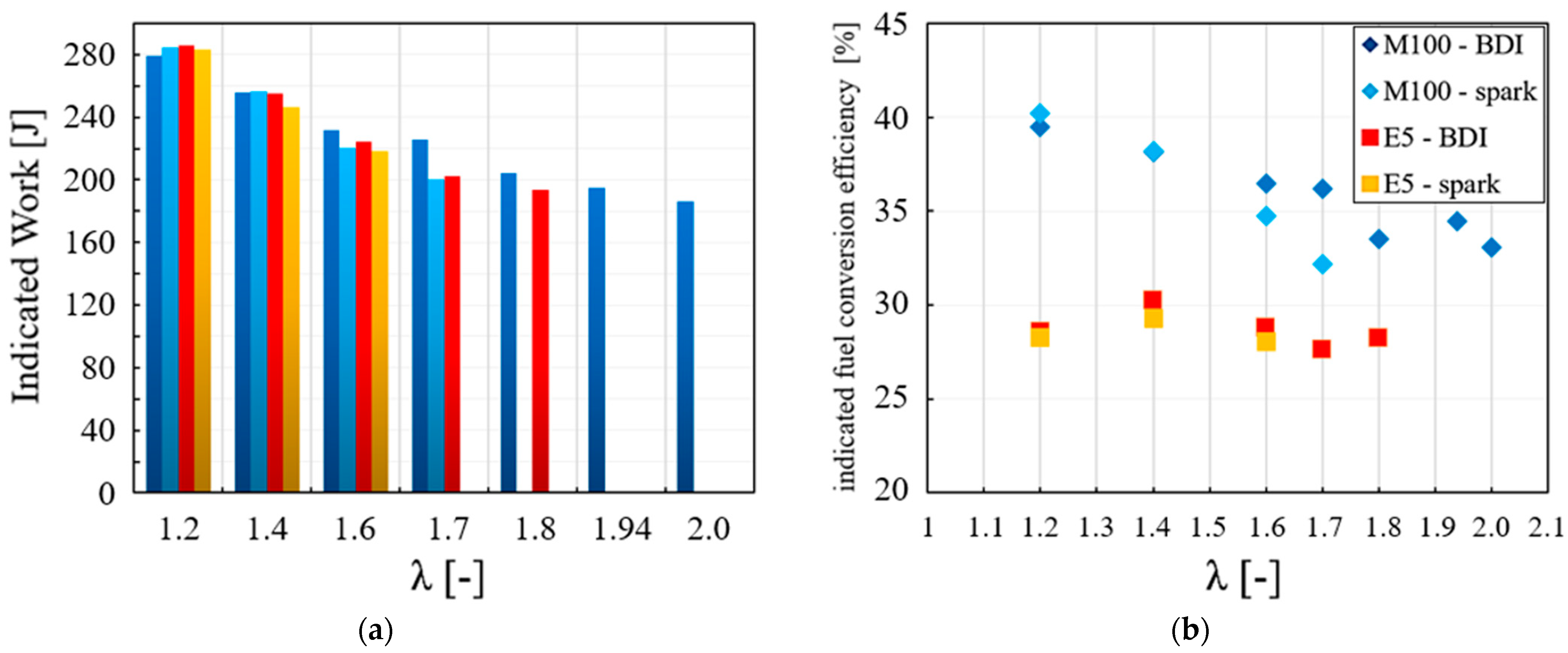

The latter quantities $m_f$ is determined by considering the injector’s mass flow rate curves and injection timing. At the same λ value, all the combinations present similar ${\mathcal{L}}_{ind}$ (Figure 6a) since positioned within the MBT range (see Figure 2b). The indicated work decreases as λ increases due to a lower amount of mixture to be ignited [41]. In other words, the decline in the indicated work is attributed to the lesser amount of fuel injected in comparison to the equivalent amount of air introduced. Consequently, this results in decreased pressure within the cylinder, leading to a reduction in power output.

The higher the capability of the tested combinations to extend the lean stable limit, the less pronounced the reduction on the delivered work. Figure 6b reports the trend of ${\eta }_{ind}$ at each stable lambda analyzed for the different igniter–fuel combinations.

Methanol provides the highest indicated thermal efficiency regardless of the igniter used. For example, at λ = 1.2, M100 guarantees improvements of about 12% over E5. As a result, these findings contribute to the reduction in CO₂ emissions when methanol is employed instead of gasoline [35]. The higher efficiency of M100 can be associated to the additional oxygen content, which fosters combustion initiations and allows for more complete events. Methanol helps enhance emissions performance for hydrocarbons (HC) and carbon monoxide (CO) during idle lean burn conditions by promoting better uniformity in the air–fuel mixture [44]. When considering the same fuel (e.g.,: E5-BDI, E5-spark), BDI exhibits higher efficiencies. Going towards leaner mixtures, BDI achieves higher ${\eta }_{ind}$ presenting, at the same time, marked instability with regards to spark and stable processes, instead, when the PAI discharge is employed. When BDI-M100 is employed, the combined effect of PAI discharge together with the higher oxygen content allows to improve on average: ${\eta }_{ind}$ of about 10%, 9%, and 2.5%, over spark-E5, BDI-E5, and spark-M100, respectively.

4.4. Nitrogen Oxides Emissions

Figure 7 displays a graph where nitrogen oxides emissions are plotted against λ for different igniter/fuel combinations. To make the data easier to visualize, the emissions values have been scaled relative to the highest recorded value (1 on the graph corresponds to approximately 4500 ppm). The emission of NOx from both gasoline and methanol combinations significantly decreased as the excess air coefficient increased, primarily because this led to a reduction in the combustion temperature [34].

When spark is employed, the use of methanol resulted in a lower combustion temperature due to its lower adiabatic flame temperature [44]. This mitigates the effect on the formation of NOx compared to using gasoline.

BDI enhances the NOx production in the lowest λ range, especially with M100. The BDI-E5 combination presents a higher level of emissions compared to spark-E5 due to the local deposition of monoatomic oxygen which can react to NOx. In the BDI-M100 case, when oxygen is sourced not just from the air but also from the fuel itself, its presence both at and behind the flame front undergoes alterations [35]. This led to augmented production of NOx emissions. From another point of view, such results highlight that operating with the combination M100–PAI, the greater presence of oxygen extends the lean stable limit (Figure 3) and the NOx emission trend (Figure 7).

5. Conclusions

By harnessing the inherent advantages of pure methanol (M100), innovative ignition systems such as BDI, and lean blends, the present work evaluated the results of a combustion strategy capable of addressing the challenge of reducing fuel consumption and emission of internal combustion engines. The test campaign was conducted in a single-cylinder research engine at fixed load moving from a slightly lean case to the lean stable limit and at 1000 rpm. Comparisons between market gasoline E5 ignited by BDI and traditional spark were performed to estimate the advantages brought by the proposed strategy. At fixed engine speed (1000 rpm), the comparison between M100 and E5 ignited by a traditional spark and BDI showed that:

Combustion Stability:

CoV_IMEP was used to evaluate combustion stability, with a stability threshold set at 4%. Up to a lean mixture (λ) of 1.6, all combinations showed a stable combustion. Oxygenated fuels, like M100, exhibited better stability due to their higher oxygen content, leading to enhanced uniformity in the air–fuel mixture. The use of a Plasma-Assisted Ignition such as a BDI system extended the lean stable limit significantly, especially when paired with methanol (up to λ = 2.0), demonstrating the effectiveness of BDI in improving combustion stability. Improvements in the lean extension limit of about 25%, 18%, and 11% were obtained when BDI-M100 is compared to Spark-E5, Spark-M100, and BDI-E5, respectively.

Combustion Duration:

The duration of the initial combustion phase (CA0-10) increased with leaner mixtures, reflecting the lower fuel content and reduced in-cylinder temperature. BDI and methanol accelerated the flame front, resulting in faster initial combustion stage (CA0-10 reductions of about 20%, on average) and lower cycle-to-cycle variability when compared to other combinations tested.

Indicated Work and Efficiency:

Indicated fuel conversion efficiency was computed with all combinations showing similar indicated work within the MBT range. Methanol consistently provided the highest thermal efficiency, contributing to reduced CO₂ emissions compared to gasoline.

BDI improved efficiency by extending the lean stable limit and promoting stable processes. Finally, the combination BDI-M100 showed the highest efficiency gains, with improvements of about 15% on average, which can be attributed to the combined effects of PAI discharge and oxygen content.

Nitrogen Oxides Emissions (NOx):

NOx emissions decreased as excess air (λ) increased, primarily due to reduced combustion temperatures. Methanol resulted in lower NOx emissions compared to gasoline when spark ignition was used. BDI enhanced NOx production at lower λ values, especially with M100, due to increased oxygen availability from the fuel and altered oxygen dynamics. However, the ability of M100–PAI to extend the lean stable limit can lead close to zero emissions of NOx (see Figure 7 for λ = 2).

The findings emphasize the potential of exploring inventive combustion strategies, which involve utilizing alternative low-carbon fuels and incorporating advanced ignition systems. These approaches offer promising avenues to effectively address stringent emissions regulations imposed on engines, while concurrently enhancing overall engine performance.

Future research should aim to optimize this combination for both efficiency and emissions control, enabling its potential for reducing greenhouse gas emissions in practical applications.
