Determination of Demand for LNG in Poland

Faculty of Navigation, Maritime University of Szczecin, 1/2 Wały Chrobrego Street, 70-500 Szczecin, Poland
*
Author to whom correspondence should be addressed.
Energies 2024, 17(17), 4414; https://doi.org/10.3390/en17174414
Submission received: 23 July 2024 / Revised: 25 August 2024 / Accepted: 30 August 2024 / Published: 3 September 2024

Abstract

:
This study was aimed at improving the energy efficiency of the distribution of liquefied natural gas (LNG) as shipping fuel in the southern Baltic Sea. The objective of this study was to determine the demand for LNG for maritime shipping by analyzing the distribution of the resource from the water side (ship-to-ship). LNG was chosen due to the location of the LNG terminal in Świnoujście within the analyzed water area, where a problem has arisen in the southern part of the Baltic Sea regarding fuel supply for vessels due to the lack of developed infrastructure along the coast. An analysis was conducted to optimize the size of the LNG fleet and infrastructure facilities. Seeking compliance with Annex VI to the MARPOL 73/78 Convention, adopted by the International Maritime Organization (IMO), shipowners see potential in the switch from conventional fuels to LNG. As one of the alternative solutions, it will contribute to reducing harmful emissions. Determination of the LNG distribution volume requires the identification of LNG storage facility locations, specifying the number of LNG-powered ships (broken down by type) and the number of LNG bunkering ships. The first part of this study contains a detailed analysis of the number of sea-going ships that provide services in the southern part of the Baltic Sea and the world’s number of LNG bunkering ships. The database contains a set of the characteristics required to determine the optimal demand for LNG, where LNG bunkering vessels are capable of supplying fuel within the shortest possible time and covering the shortest possible distance to LNG-powered ships. The characteristics include the type of ship, requested LNG volume, the speed of LNG bunkering ships, the distance between LNG facilities, and the loading rate (the volume of fuel received per time unit). Based on the collected data, the volume of LNG distribution was determined using MATLAB R2019a software. The remainder of this study contains a description of the conducted research and results of an analysis of the traffic density in the Baltic Sea. The results were obtained on the basis of data from the Statistical Yearbook of Maritime Economy and IALA IWRAP Mk2 2020 software. The number of LNG-powered ships and number of LNG bunkering ships were specified, and the demand for LNG for the area under analysis was determined.

1. Introduction

Reducing environmental pollution is at the top of the agenda for many organizations, commissions, and national governments. The use of fossil fuels in transportation is one of the major causes of increased emissions of sulfur oxides (SOx) and nitrogen oxides (NOx); therefore, directives and regulations regarding LNG as fuel for maritime vessels have been introduced (Table 1).
As a major emitter of harmful substances to the atmosphere, the maritime transport industry is required to comply with restrictions on emissions in the ECA. The ECA is a general category that includes the areas of the Baltic Sea, the North Sea, the area around North America (including the US and Canada), and the areas around the US Caribbean Islands (Puerto Rico and the US Virgin Islands), which have stricter emissions regulations for various pollutants, including sulfur oxides (SOx), nitrogen oxides (NOx), particulate matter, and volatile organic compounds (Table 2).
A subcategory of the ECAs are SECAs, which focus solely on regulating SOx emissions. In the SECAs (Baltic Sea, North Sea, and English Channel), ships are required to use ultra-low sulfur fuels or to use technologies such as exhaust-gas-cleaning systems (scrubbers) to meet these standards. Measures aimed to ensure that only marine fuels that meet this requirement are used in the maritime transport have become a priority. Therefore, the creation of an environment fostering the development of alternative fuels followed.
The use of LNG as fuel for maritime vessels is widely viewed as a transitional option to meet the stringent EU and IMO regulations in the context of long-term decarbonization [6]. With the goal of reducing or completely eliminating CO2 production (related to the emissions from fossil fuel use such as oil, hard coal, and lignite) in the shipping industry, the use of LNG as a transitional fuel is associated with the following:
  • Lower CO2 emissions compared to traditional marine fuels;
  • The efficiency of LNG in trapping heat in the atmosphere compared to CO2, which is a very potent greenhouse gas;
  • Alternative technologies and fuels—their ongoing development aims to eliminate CO2 (e.g., ammonia, hydrogen, biofuels, and hybrid propulsion technologies utilizing electricity from renewable sources);
  • Legal regulations.
Expanding LNG infrastructure—maritime vessels must make significant changes to their fuel systems to comply with new regulations. These changes could include the following:
  • Switching to more expensive, lower-sulfur fuels, such as marine diesel oil [7,8,9];
  • Installing scrubbers and other devices on board to reduce sulfur emissions into the atmosphere [10,11];
  • Fully transitioning to LNG [12,13,14].
LNG as a shipping fuel has been gaining supporters worldwide and is considered the most advanced new technology in the shipbuilding industry. Compared to conventional fuels, the use of LNG as marine fuel makes it possible to reduce the following [15,16]:
  • Sulfur oxide emissions by ca. 90–95%;
  • Carbon dioxide emissions by ca. 20–25%.
The most important of the criteria mentioned above is the possibility of bunkering LNG on key shipping routes. The existing LNG-bunkering infrastructure is poorly developed and situated along the coast. The ultimate LNG-bunkering infrastructure should comprise facilities, LNG-powered ships, and LNG bunkering vessels capable of meeting the demand in SECA while adhering to the principles of rational management [17].
The ongoing rapid development in the maritime transport is observed in all its branches. The demand for energy is continuously growing, accompanied by efforts aimed at reducing greenhouse gas emissions causing environmental damage. Consequently, the demand for LNG is on an upward trend and stimulates the development of the LNG distribution network. The LNG distribution network comprises the following components:
  • Infrastructure facilities, such as LNG terminals;
  • LNG-powered ships;
  • LNG carriers;
  • LNG bunkering ships.
LNG is a natural gas in a liquid state. The liquefaction technology reduces its volume and enhances the safety of transport and consumption [18,19,20]. In the process of liquefaction, LNG changes its physical state from a gas to liquid as a result of the application of appropriate pressure and temperature below critical limits [21,22]. During the process, the natural gas is cleansed from water, carbon dioxide, and nitrogen, and any solid particles it contains are removed. Considering its volume, which is ca. 600 times smaller than when it is in the gaseous state, the advantages include low cost and high safety of transport. LNG is not explosive, it is safe [23], and it can be transported from distant locations [24]. Since it can effectively cover energy demand in regions without direct access to a gas infrastructure, the volume of LNG traded globally is growing [25,26,27].
The utilization of LNG in various sectors of the global economy is backed with environmental and security concerns aimed at further diversification of gas supplies [28,29]. Compared to conventional fuels, the use of LNG as marine fuel reduces SOX, CO2, NOX, and PM emissions [30,31,32,33]. An increasing number of newly built LNG-powered ships leaves enterprises with a business opportunity to build LNG facilities and offer fuel supplies.
Considering its common use and the many benefits that it offers, LNG is an active link in the supply chain. A classic supply chain model comprises consecutive stages in a prearranged order, which ensures streamlined and effective flow of goods [34]. A standard LNG supply chain model consists of the following main stages:
  • Extraction and transfer from deposits to liquefaction facilities through a pipeline system in the gas exporting country;
  • Liquefaction, storage, and loading at the loading terminal;
  • Transportation by sea, onboard methane carriers, and in insulated cryogenic tanks [35,36,37];
  • Discharge and regasification at imports terminal [38,39];
  • Delivery to end users through a pipeline system or in tank containers (by rail or road) [40].

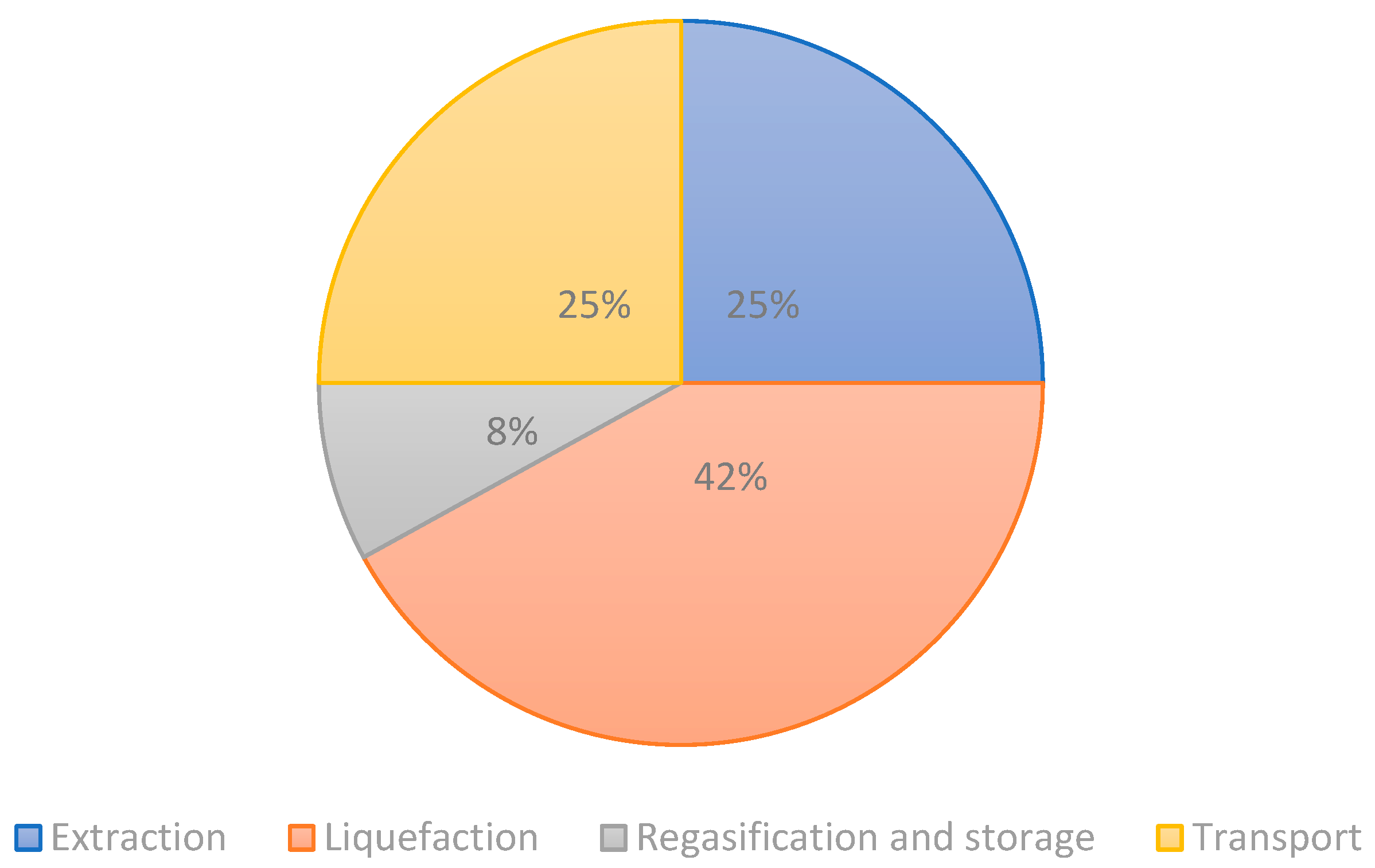

Proper operation of the supply chain and the end user price of LNG, which depends on the structure of costs in the supply chain, are affected by a number of factors, such as the following (Figure 1):
  • Extraction. The price of natural gas varies depending on the geological conditions, characteristics of deposits, distance to the terminal, and labor costs. This factor has a significant impact on the global costs of natural gas extraction [41].
  • Liquefaction. The costs of liquefaction depend on the costs of investments in LNG terminals, the technologies used, and the logistics of natural gas [42].
  • Regasification and storage. The costs of regasification depend on the technologies applied at LNG terminals and the costs of LNG logistics. The storage process, including, without limitation, the location of infrastructure facilities (either offshore or on land) and the manner of storage, has a significant impact on the costs of LNG distribution [43,44].
  • The costs of transportation are a considerable component of the LNG purchase price [45,46,47] as they constitute 10–30% of the end user price. The costs of transportation are determined by many factors, including, inter alia, the costs of chartering a sea-going ship (which depend on the situation on the natural gas market and are closely linked to economic fluctuations), fuel costs, and charter fees, which constitute 80–90% of the costs of LNG transportation. Hence, crude oil prices indirectly influence the prices of LNG through harbor fees, freight charges, canal tolls, and insurance premiums [48].
The technical aspects of the LNG distribution chain are related to the possibility of applying a variety of solutions for LNG-carrier-loading systems [49]. Technical parameters are of key importance in the entire logistic process in terms of hazards to people and the environment [50]. Another important aspect of the LNG distribution process, in view of the development of the infrastructure and sea-going fleet, is the optimization of the supply chain [51,52,53], which is one of the determinants of the end user price of LNG.
Considering its low cost and extraordinary potential to improve the global environmental performance, LNG is a highly valuable product. Investments in LNG terminals and transmission pipelines to ensure LNG supplies from multiple sources contribute to the global diversification of LNG sources and destinations [54]. Construction of LNG terminals is also strategic for the final price of LNG, the process of selection of LNG suppliers, and national economic security, which relies on uninterrupted supplies of energy sources [55].
The unit cost of fuel is of key importance to end users. The import costs determine the end-user price, which is an inherent part of the supply chain [56,57,58].
The growing supply of natural gas is directly driven by demand, which, according to the statistical data (of 2021), is on a global upward trend. Demand for natural gas has risen by 60% and is double that for crude oil [59].
Commodity markets have a great impact on the final price of gas [60]. Trade in natural gas is conducted at virtual trading points (VTPs), and they are characterized by dynamic price fluctuations, with multiple price changes occurring during a trading day. Virtual transactions are settled through the gas supplies in the network of pipelines throughout Europe. The major European VTPs include the Dutch TTF, the German Gaspool, and the British NBP.
Expanding the use of LNG in the maritime economy sector strongly relies on modernization of the existing fleet [61,62]. The forecast for the development of LNG-powered sea-going ships is optimistic. Conversion of the fleet seems to be promising as it will make it possible to conduct the following:
  • Strengthen the reliability of supplies in an emergency, such as in the blockage of trade or the outbreak of a conflict;
  • Operate the sea-going fleet depending on the current demand regardless of the destination;
  • Increase the national energy security through reducing the dependency of supplies on foreign shipping companies;
  • Make savings on freight charges.
A spike in demand for LNG is observed in the SECAs [63,64]. Compliance with environmental regulations requires the implementation of state-of-the-art measures, such as bunkering networks that use the following bunkering methods [65,66,67,68]:
  • Port-to-Ship—the process of loading fuel on to a ship directly from port facilities, such as bunkering in ports, port basins, or on the roads, at favorable weather conditions;
  • Ship-to-Ship—the supply of fuel during the ship’s voyage at sea (which can be used if port facilities are not available);
  • Truck-to-Ship—one of the advantages of this fuel transfer method is mobility since a lorry can access any location within a port, but a downside is that several lorries may be required to fill up a tank;
  • Onshore facility—an inconvenience of this type of fuel transfer lies in the fact that LNG facilities are situated in ports that may not be located at the main fairways where LNG-powered ships operate;
  • Container–ship—the container is connected directly to the ship, and fuel loading method entails using a specially designed container or fuel tank.
LNG bunkering methods have also been discussed in terms of regulations and technical arrangements. The analyses described in the literature cover LNG carriers, LNG bunkering ships, and LNG ports that are already providing or are planning on developing distribution networks to provide bunkers to LNG-powered ships [69].
An analysis of the literature on the distribution of LNG as marine fuel and the related infrastructure facilities shows that little attention has been paid to the following:
  • Solutions related to the LNG distribution model;
  • The size of the LNG fleet in SECAs and other sea areas;
  • Demand for LNG as marine fuel in SECAs and other sea areas;
  • Optimization of LNG distribution in terms of time frames and costs in SECAs and other sea areas;
  • Optimization of the LNG distribution network.
Restrictions imposed by the EU require business entities providing services in SECAs to implement measures aimed at reducing air pollution. As a low-emission fuel, LNG has become a focal point of development in the entire energy sector. The authors will describe the condition of the existing LNG infrastructure and set directions for the development of LNG as shipping fuel.
The remainder of this study is organized as follows. Section 2 provides a review of the literature and the key components of distribution of LNG as a shipping fuel. In Section 3, models and methods of the proposed solution to the problem of LNG distribution are discussed. Section 4 contains a classification of the results obtained from an analysis of the proposed universal distribution model of LNG as shipping fuel for LNG-powered ships in the southern part of the Baltic Sea based on the data from the Statistical Yearbook of Maritime Economy and the IALA IWRAP Mk2 software, which were sampled using MATLAB Mk2 software. In Section 5, the results are discussed and final conclusions are formulated.

2. Materials and Methods

Optimal distribution of LNG as marine fuel in a selected sea area relies on optimal routing, and this is construed as a combination of two interdependent values, namely the routes of sea-going ships and the availability of distribution facilities. In order to find a solution, the size of the LNG fleet and the number of distribution facilities must be defined and arranged in a way that ensures a streamlined operation of the LNG distribution network. Several stages of data analysis must be implemented in order to find the best cost-optimized solution. The problem of routing in the distribution network can be considered in terms of cost effectiveness (e.g., the cost of transportation between locations, the cost of distribution, or the cost of profit); bunkering lead times (frequency of bunkering and time windows); and the sequence of providing bunkers to specific LNG-powered ships, route lengths, and the location and range of service of LNG storage facilities.
A method that can be applied to solve this problem is Mixed Integer Linear Programming (MILP). This method is an optimization tool used in supply chain management [70,71,72]. The LNG supply chain can be analyzed in terms of LNG transportation planning, storage management, distribution planning, cost optimization, or risk management. The implementation of MILP in the MATLAB Mk2 environment allows for the simulation of real input data, enabling the determination of the best solution aligned with the actual situation. The solution can also include economic aspects related to optimal routing, cost minimization, and the timing of LNG distribution operations. This research employed a MILP model that included the following assumptions:

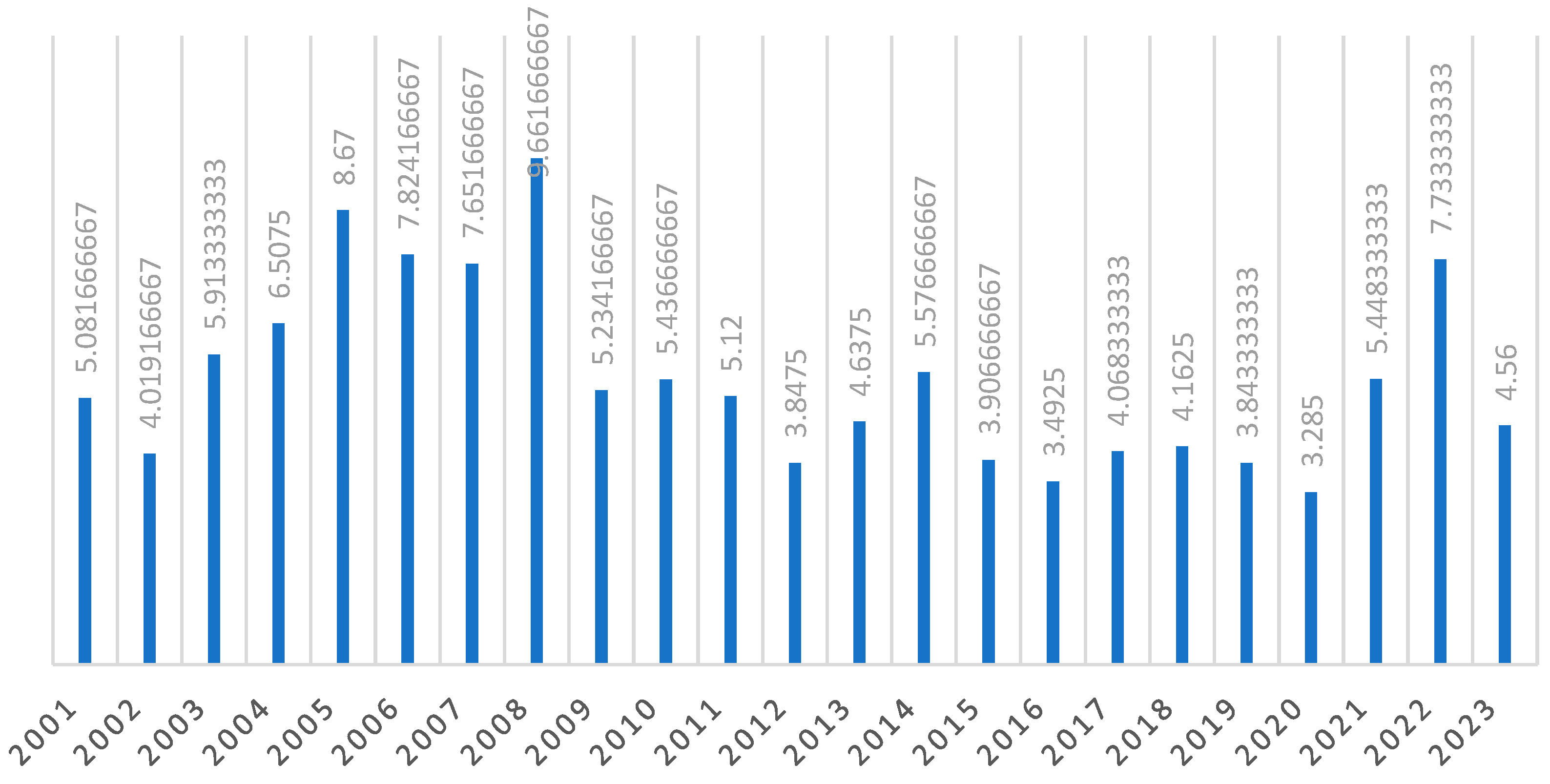

  • The price of LNG in 2023 (Figure 2);
  • A period of 12 × 30 days;
  • The distances from LNG-powered vessels were determined with the anchorage boundary every 0.5 Nm;
  • Distribution was by waterway.
The calculations were conducted in the MATLAB Mk2 environment. For the considered LNG distribution optimization task (i.e., finding the minimum cost), the objective function f(x) was defined over the set f(x) → MIN.
f x = a = 1 N U b = 1 N B v b a , b k b a , b t a , b + c = 1 N P k p c v p c + c = 1 N E E p c e p c M I N ,
where
NU—the number of LNG-powered vessels;
NBv—the number of LNG bunkering vessels;
NPv—the number of ports;
NE—emissions;
vba,u—the quantity of LNG transported from LNG bunker vessel a to LNG-powered vessel b;
kba,u—the cost of transporting LNG from LNG bunker vessel a to LNG-powered vessel b;
ta,b—the time required for LNG bunker vessel a to reach LNG-powered vessel b;
kpc—the cost of storing LNG at port p;
vpc—the quantity of LNG stored at port p;
Epc—the emission cost associated with transportation or operations at port p;
epc—the amount of emissions at port p.
The input data for a selected LNG NP port with capacity c are defined by the following sequence:
NP = {NP1, NP2, …., NPc}.
LNG bunker vessels NBb from Population B were assigned to the selected LNG storage facility NPc from set NP:
NPcNBb.
A probabilistic algorithm was developed, defining the set of LNG-powered vessels NUc,b for the areas served by the LNG bunker vessels NBb in a specified LNG port NPc:
N P c = N U c 1 , b 1 , N U c 2 , b 1 N U c n , b n .
Identification of the minimum number of LNG-powered vessels NU reporting a demand for fuel was calculated as follows:
N U = b K d k v u ,
where
dk—the fuel demand of the LNG-powered vessels;
vu—the cargo capacity of the LNG bunkers.
The capacity vu of LNG bunker vessels was determined by the defined capacity pi of the LNG facilities at ports p. The limit on the capacity of the LNG bunker vessels was that it must not exceed the individual capacity of each LNG bunker vessel (capacity understood as according to their technical parameters):
b ϵ J d k , u b ϵ J x k , u v u                               u ϵ P .
With emission limits calculated as follows:
e p c   E m a x                                                 u ϵ P .
The applied methodology enabled the achievement of the best solution for LNG distribution while optimizing costs and revealing the real demand for the resource.

2.1. Study Area

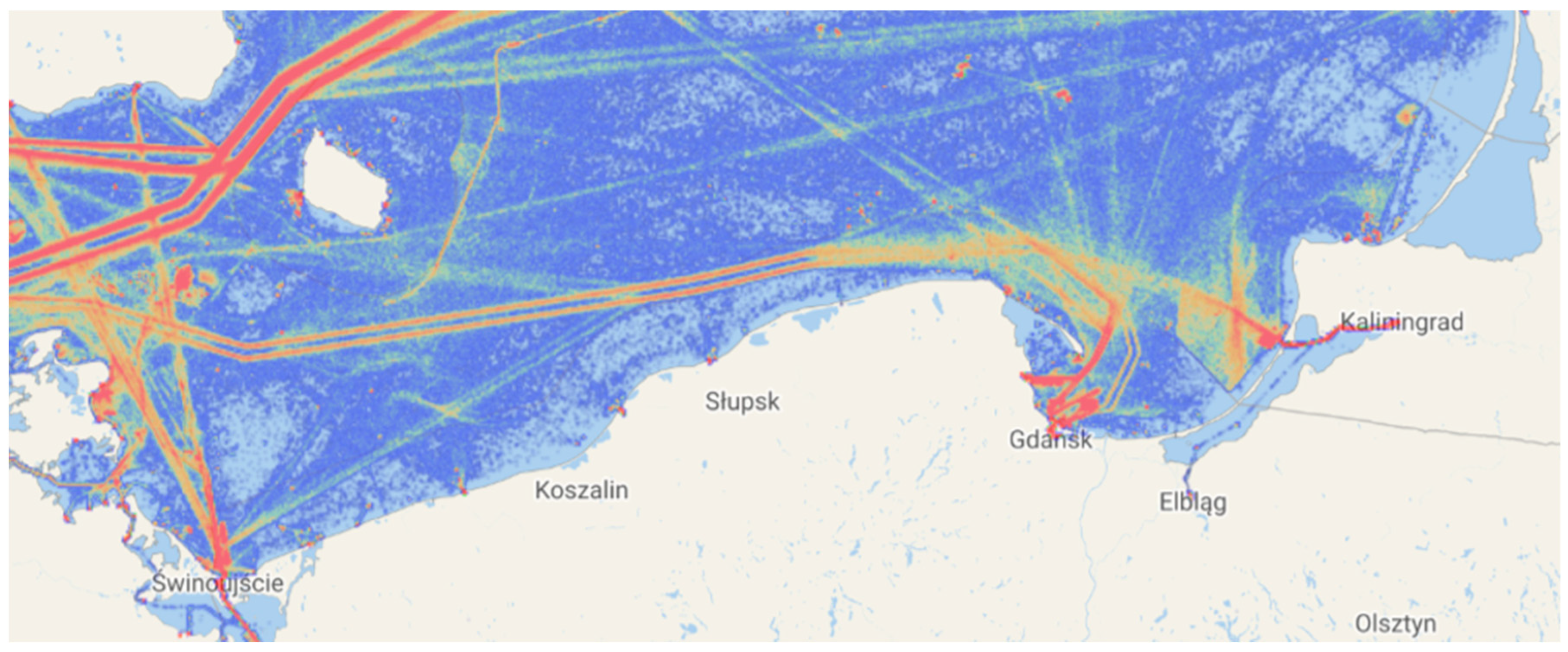

Considering the availability of data on major traffic streams, the study area was limited to the southern coast of the Baltic Sea. The analysis was conducted for the Baltic Proper (Figure 3) using the data available on sea-going vessels that render services in major traffic streams and taking into consideration the fact that there is no bunkering infrastructure along the coast.
For possible locations of LNG storage facilities, 33 seaports situated along the southern Baltic coast were selected, namely Szczecin, Police, Stepnica, Trzebież, Nowe Warpno, Lubin, Wapnica, Przytór, Świnoujście-Karsibór, Świnoujście, Wolin, Sierosław, Kamień Pomorski, Dziwnów, Mrzeżyno, Dźwirzyno, Kołobrzeg, Darłowo, Ustka, Rowy, Łeba, Władysławowo, Hel, Jastarnia, Puck, Gdynia, Gdańsk, Krynica Morska, Kąty Rybackie, Elbląg, Tolkmicko, Frombork, and Nowa Pasłęka. All the seaports located along the analyzed area are listed. The following very small fishing ports were omitted: Mechelinki, Rewa, Kuźnica, Jastarnia Bor, and Chłapowo. An analysis of the ship traffic volume in the southern Baltic Sea (Figure 4) was carried out in IALA IWRAP Mk2 software. This software supports calculations of frequency with which specific types of sea-going ships pass through a certain sea area based on the characteristics of traffic volume.

2.2. LNG Fleet

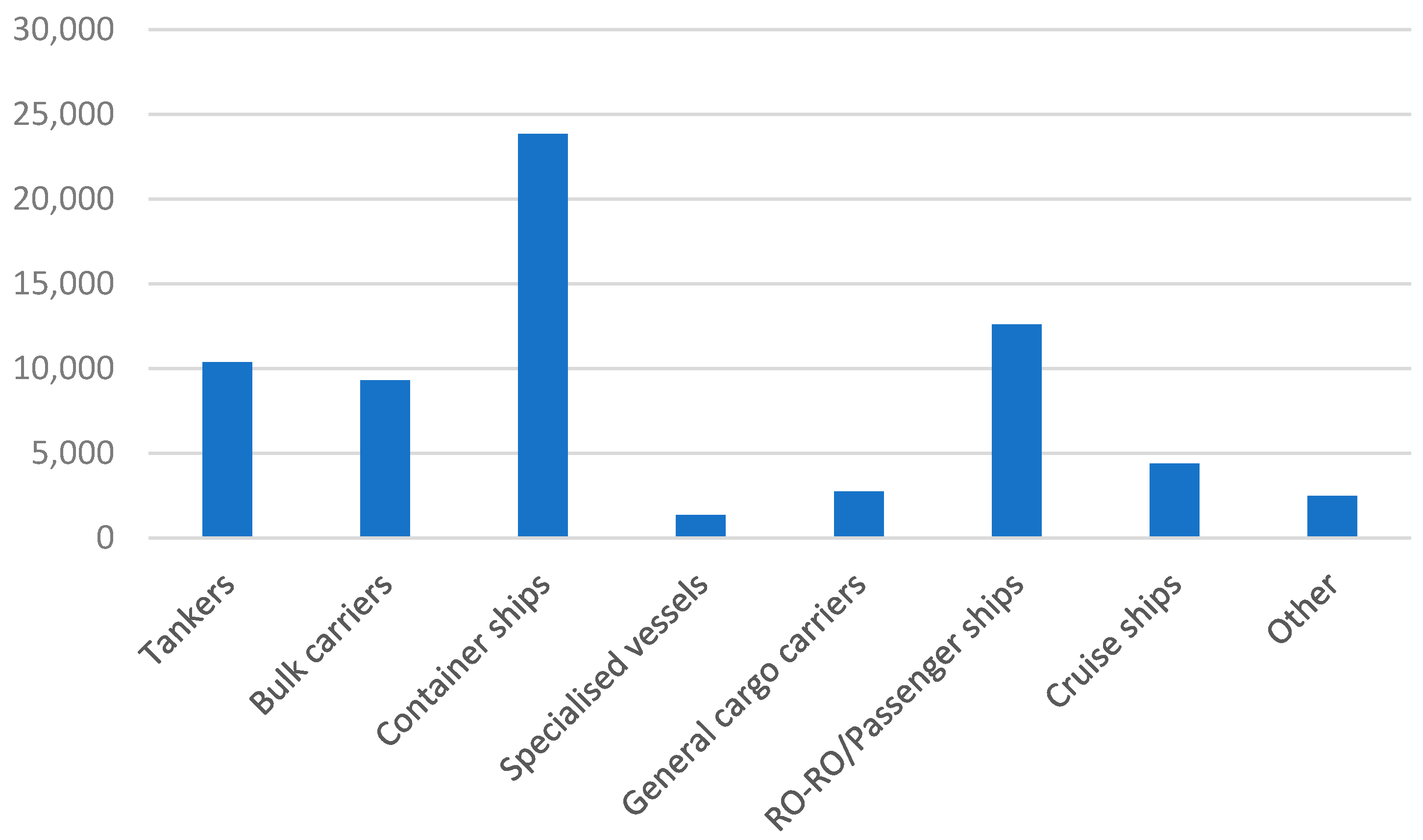

Based on the global number of sea-going ships S1–8, the shares of ships by type SH were worked out (Table 3).
  N S K = N U H N U 1 8 % ,
where
NUH—the number of ships of one type;
NU1–8—the total number of ships by type.
The sea areas along the southern coast of the Baltic Sea are frequented by various types of sea-going ships, which can use the services of 17 Polish ports. The ports were selected on the basis of the number and size of marine units handled.

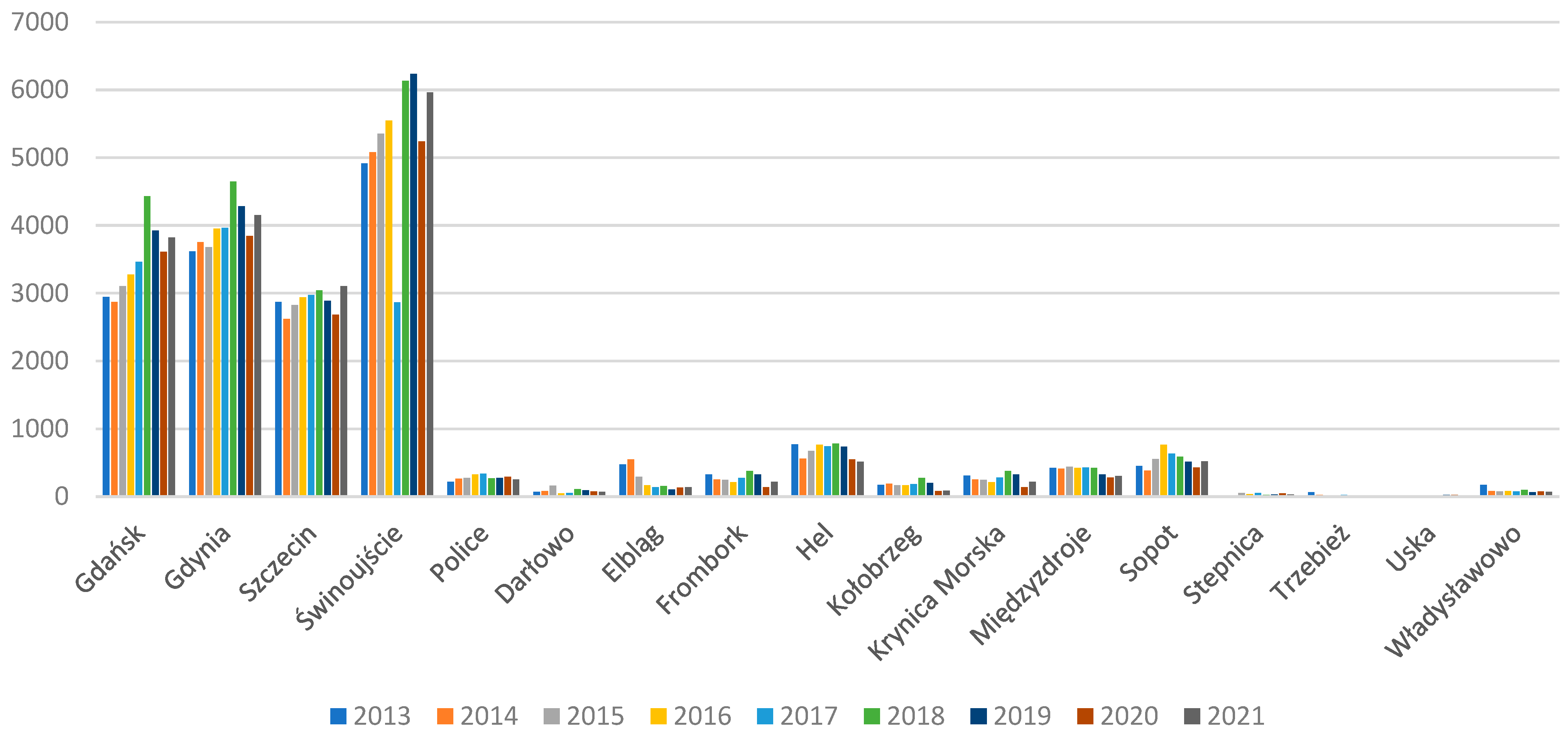

Detailed information on the status quo of the maritime economy for the area under analysis, represented by the number of ships calling at selected ports, is shown in Figure 5 below.
Since the Sulfur Directive came into force, the number of orders for LNG-powered sea-going ships has been on a continuous upward trend [23]. The growth can be especially observed in the SECAs. The number of newly built ships powered mainly with LNG has been increasing year-on-year.
Since 2011, a daily average of two thousand sea-going ships has rendered services in the Baltic Sea, and the number has been on a continuous upward trend compared to the period before 2021. The growth corresponds to the fact that transport services performed in the Baltic Sea account for 15% of the global trade. Slight drops are caused by the withdrawal of ships that have reached the end of operating life [79].
On the basis of the above, a conclusion can be drawn that port infrastructure capable of providing bunkering services to LNG-powered sea-going ships along the Polish coast is absolutely necessary. Investment in LNG distribution will open the door to the development of local LNG transport branches, especially for LNG bunkering services. Construction of facilities suited for LNG operations will contribute to the development of local ports and their cargo handling capacity.
Currently, LNG ship traffic is observed along the southern part of the Baltic Sea. However, it is not as intense compared to other parts of the world, such as the United States coast. The number of LNG vessels in the analyzed area is increasing due to the LNG terminal in Świnoujście and the potential further development of infrastructure. The importance of the region is also growing. The southern part of the Baltic Sea is one of the most important transport corridors. The regularity of ship traffic, which has been adapted to market needs, will increase along with the demand for LNG. Therefore, an increase in the number of ships can be expected in the future. The LNG terminal in Świnoujście is a key piece of infrastructure and the only distribution point in the region and the demand for LNG along the southern Baltic Sea is clearly visible and growing. It is essential to establish a distribution fleet and LNG infrastructure capable of meeting the demand for resources.

3. Results

For the purpose of specifying the best locations for LNG bunkering stations, 33 ports situated along the Polish coast were selected. For each port, 20 Nm, 30 Nm, and 50 Nm ranges of service were set (where 1 nautical mile (NM) is equal to 1852 m), within which LNG bunkering vessels would be able to meet demand for fuel from all LNG-powered vessels in the area.
For further analysis of the ranges of service, 17 ports rendering commercial services were selected, namely Gdańsk, Gdynia, Szczecin, Świnoujście, Police, Darłowo, Elbląg, Frombork, Hel, Kołobrzeg, Krynica Morska, Międzyzdroje, Sopot, Stepnica, Trzebież, Ustka, and Władysławowo (Figure 6). The task was completed using MATLAB R2019a–Mapping Toolbox software. The ports were also analyzed for the number of calling ships, by type: tankers, bulk carriers, container ships, specialized vessels, general cargo ships, dry cargo barges, RO-RO/passenger ships, and cruise ships. The fields that were not covered between individual ports were characterized by the small number and size of marine units served. Consequently, the number of LNG-powered vessels served by these ports will be small and the fuel requirements can be covered within the LNG bunker coverage area of the nearest LNG storage facility.
The analysis shows that, within the range of service of 20 Nm, the optimal locations of the LNG facilities would be in five ports along the southern coast of the Baltic Sea. To summarize, locations of LNG storage facilities or bunkering stations along the southern coast of the Baltic Sea were determined considering the following factors:
  • The number of sea-going ships calling at the ports;
  • The size of ships calling at the ports;
  • The surface area of the overlapping ranges of service.
Further analysis covered five ports, namely the following:
  • Świnoujście;
  • Kołobrzeg;
  • Darłowo;
  • Gdynia;
  • Krynica Morska.
The other ports were discarded due to the characteristics of the calling ships. Considering the small numbers and sizes of ships operating in those sea areas, it can be inferred that the number of LNG-powered ships calling at those ports was insignificant (as the demand for fuel can be met by the closest LNG storage facility in the area).

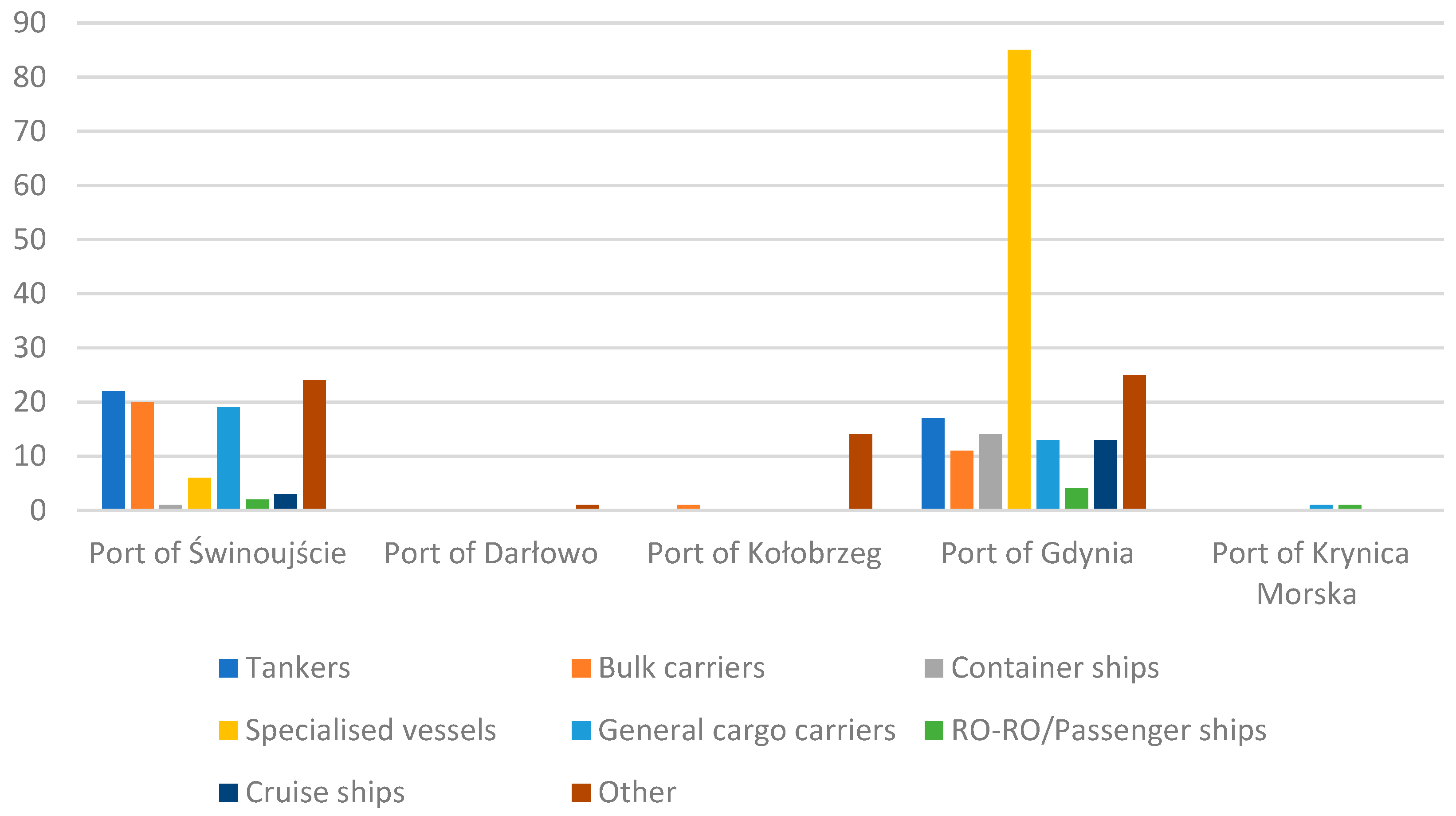

Based on the above, a yearly forecast of the ships that may use LNG as marine fuel was made (Figure 7).
For the purpose of the determination of the yearly demand for LNG, the average yearly LNG consumption by ship type (Figure 8) and the forecast number of LNG-powered ships that can be bunkered in the specified ports were used.
Further analysis, in the form of computer simulations, was carried out in MATLAB R2019a software. It is worth noting that the parameters for the simulations were based on real data, namely the following:
  • Location of seaports;
  • Technical parameters of the LNG-powered ships classified by type (tankers, bulk carriers, container ships, specialized vessels, general cargo carriers, RO-RO/passenger ships, cruise ships, and other) and fuel tank capacity.

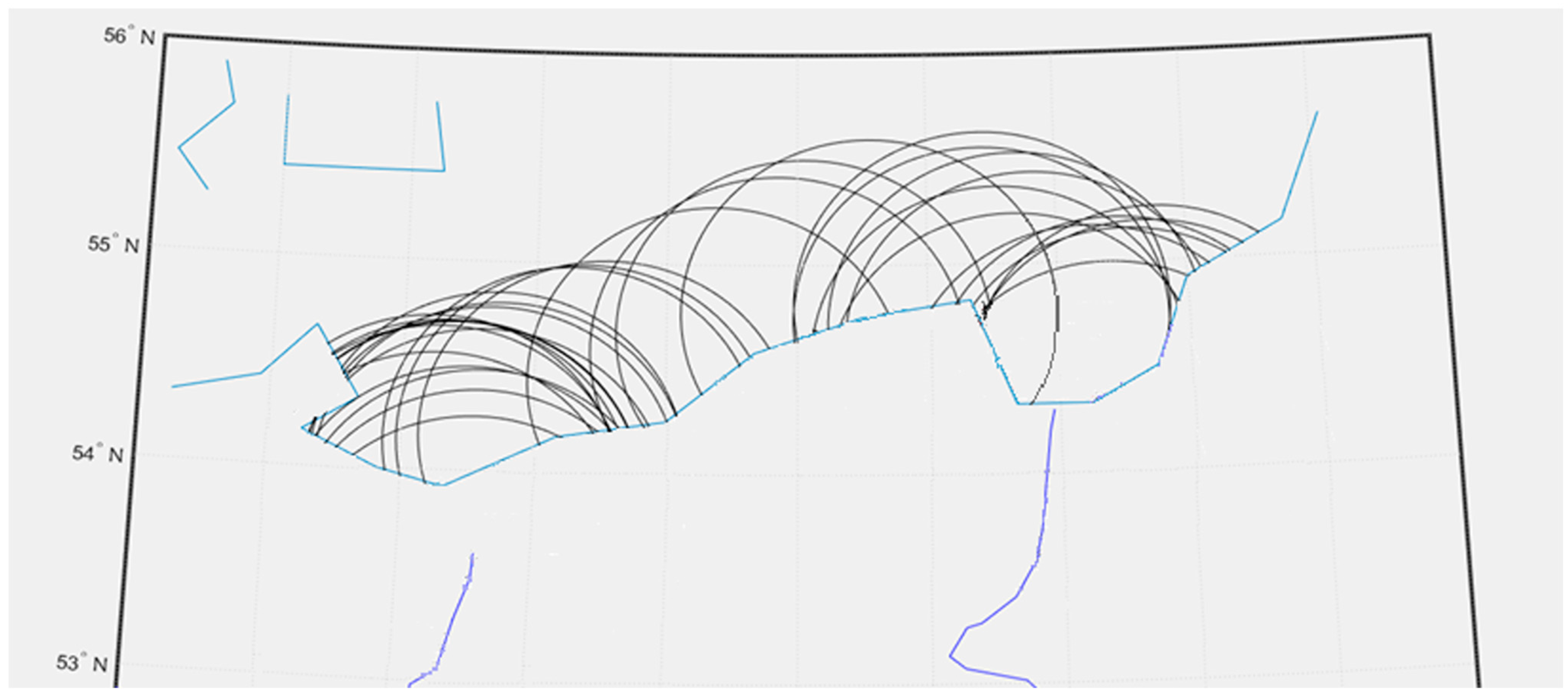

Additionally, a service area was assigned to each port, which extended up to the port’s anchorage perimeter:
  • Świnoujście—up to 11 Nm;
  • Darłowo—up to 2 Nm;
  • Kołobrzeg—up to 1.5 Nm;
  • Gdynia—up to 2.5 Nm;
  • Krynica Morska—up to 1 Nm.
For the purpose of the model, the LNG bunkering position was assumed to be within a radius of 0.5 Nm from the port under analysis. Fifty simulations, performed for each port separately, generated solutions for 365 days (Table 4):
  • The number of LNG-powered ships and their types;
  • The requested volume of LNG;
  • The distance of LNG-powered ships from the LNG terminal (storage facility) under analysis.
For example, on the 10th day, two ships called at the port of Świnoujście with the following characteristics:
  • A bulk carrier requesting 200 m3 of LNG at a distance of 9.5 Nm from the port;
  • A tanker requesting 619 m3 of LNG at a distance of 7.5 Nm from the port.

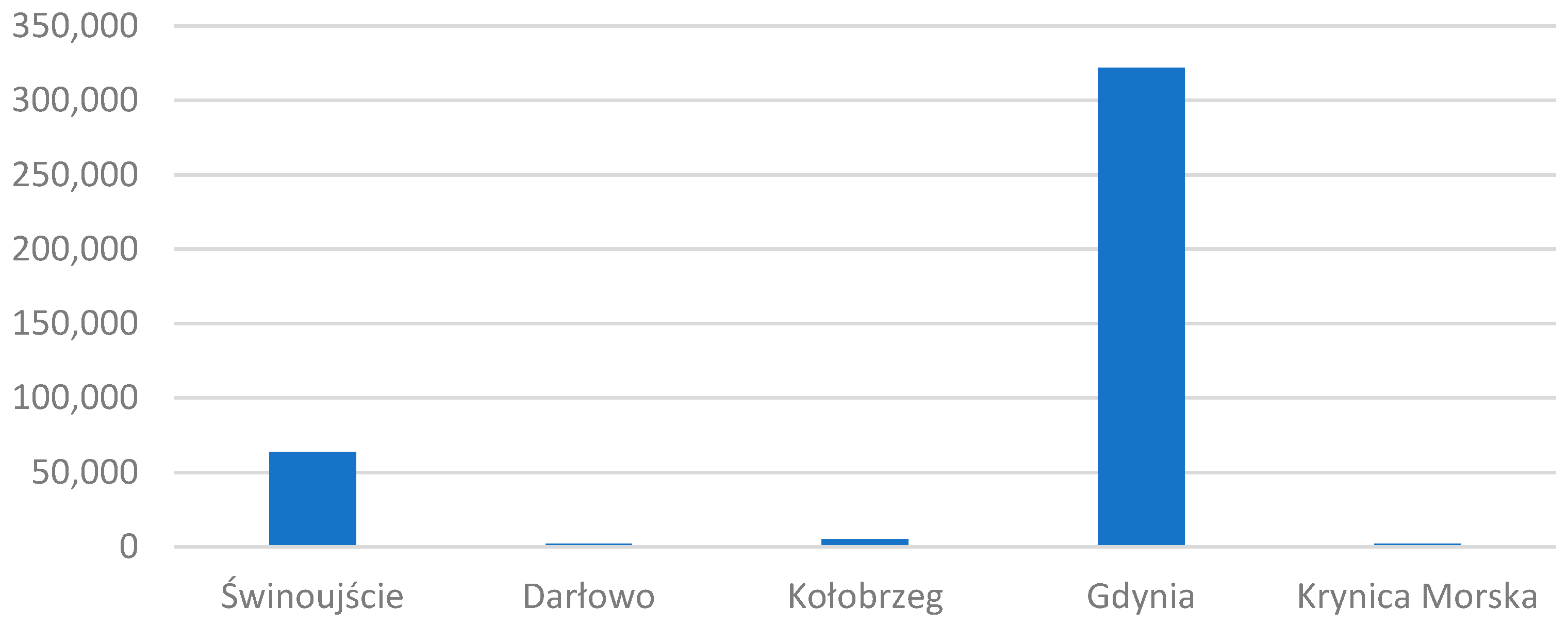

As a result of the analysis, the yearly demand for LNG for each port was worked out (Figure 9).
A conclusion can be drawn that the considerable differences that can be observed in the demand for LNG in specific ports results from the port size, i.e., the number and size of LNG-powered ships calling in a year.
The simulations also permitted determining the bunkering lead time and the distance that an LNG bunkering vessel has to cover for 365 days for each port separately via taking into consideration the following parameters:
  • The type of LNG-powered ship;
  • The requested amount of LNG [m3];
  • The loading rate [m3/h] (amount of fuel received in a time unit);
  • The distance between facilities [Nm];
  • The speed of the LNG bunkering ship [kn].
The bunkering lead time and the highest and lowest requested volume of LNG were determined for the LNG storage facilities located in the ports of Świnoujście (Table 5), Darłowo, Kołobrzeg, Gdynia, and Krynica Morska. The lead time was worked out for one LNG bunkering ship as a function of the loading rate and the volume of fuel received.
The simulations carried out for the specified ports permitted the specification of the capacities of the LNG storage facilities that are required to meet the demand for LNG in their respective areas (Table 6). The size and type of LNG infrastructure in a particular port depends on the services rendered.
These analyses covered the 35 sizes of LNG bunkering ships (Table 7).
Based on the resultant characteristics of the LNG infrastructure, the number of LNG bunkering ships and their sizes were determined for each port under analysis required to meet the total demand for LNG in its respective service area (Table 8).
The above figures permit a specification of the number of LNG bunkering ships required to meet the total demand for LNG from ships operating in the southern Baltic Sea (Table 9).

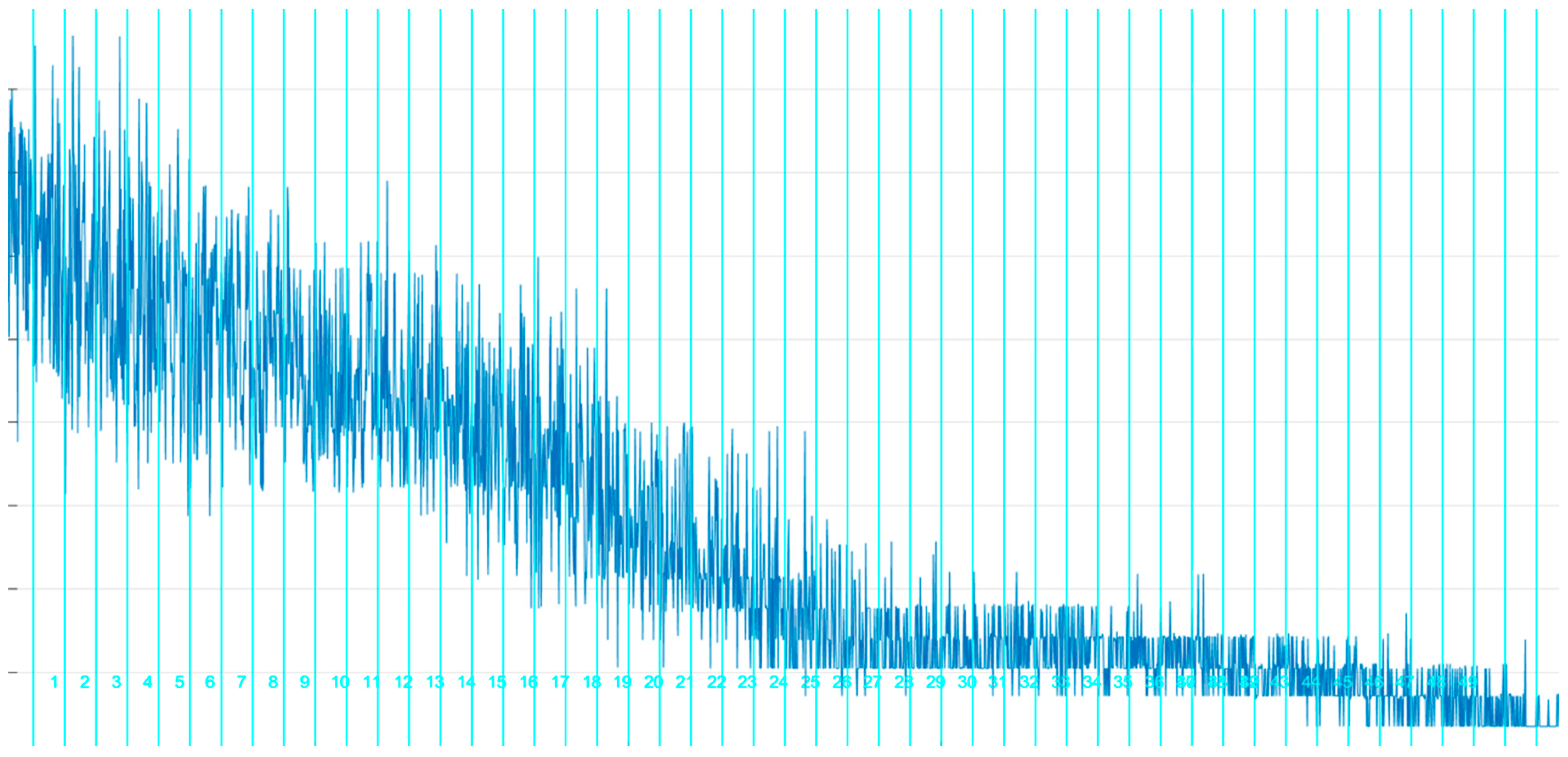

Each simulation generated a graph of the objective function values (Figure 10). The initial values varied because they were generated randomly. The achievement of the best solutions was indicated by a decrease in the objective function value. Any increases suggest the presence of a random factor that does not enhance the solution quality. Consistent and repeating values of the objective function suggest that the best solution has been reached. This means that additional simulations are unlikely to produce substantial improvements in the final result. The optimal solution was identified as suitable and acceptable according to all established criteria.
The correctness of the task solution was determined, categorized by days, based on the distribution of the number of ships entering various ports from 2018 to 2022. The distribution of the port entry frequencies was a normal distribution, indicating that the sample size criterion (N < 100) was met. A Shapiro–Wilk test, with a significance level of α = 0.05, was used to examine the distribution (Table 10).

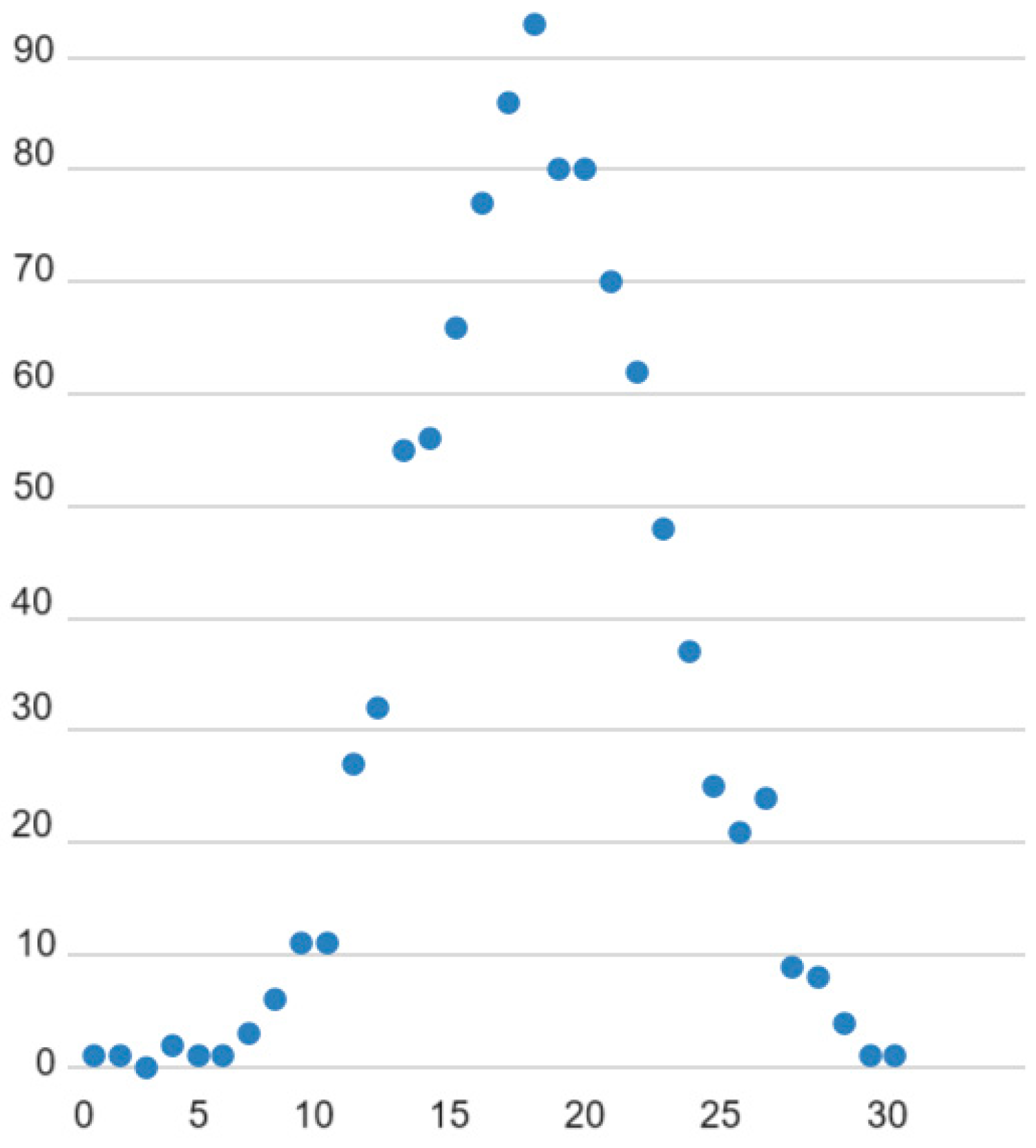

A normal distribution was subsequently fitted to the frequency of the port entries in Świnoujście. It was shown that the expected value and standard deviation could be determined (Figure 11).
Conducting the distribution study was very important for the correctness of the model. This study demonstrated that it is a normal distribution and that it is possible to create a task that will provide solutions for the optimization algorithm. This means that, with knowledge of the distribution of LNG-powered ships entering various ports around the expected value, it is possible to present a solution for the real situation.

4. Discussion

The created model has a universal character. Due to the constantly increasing number of the LNG fleet, it is necessary to forecast the number of LNG ships. The formula for calculating the forecasted number of LNG ships can be based on several variables, including historical growth trends, plans for new ship orders, the rate of decommissioning old ships, and various market and regulatory factors. One of the simpler models that also can be applied is the exponential growth model [80]. Among other things, the exponential growth model is characterized by its ease of implementation. It incorporates a minimum number of variables, which enables predictions to be made quickly. Exponential growth is used to describe situations in which a phenomenon grows at a rate proportional to its current size. This means that, in the case of the number of LNG vessels, if the market is growing rapidly due to increasing demand for LNG, exponential growth may be an appropriate model. As shown above, this formula is useful when forecasting the development of new markets or technologies, where growth in the development phase can be very fast and then stabilizes, which may be the case for LNG infrastructure development, where rapid growth can be expected in the early years.
Simple means that there are no complicated assumptions on variables and a small number of parameters as the formula uses basic variables (initial value, constant growth rate, and time). Above that, its universality is worth noting (phenomena in nature and processes in economics show exponential growth, at least in the initial phases). The exponential growth model is widely used in many fields (biology, accounting, etc.), which demonstrates its adaptability [81,82,83].
F t = F 0 e s t
where
F(t)—the forecasted number of LNG-powered ships at the time t;
F0—the present number of LNG-powered ships;
s—the growth rate of the number of LNG-powered ships;
t—the time (number of years from the starting point);
e—the base of the natural logarithm (approximately 2.71828).
Based on the above formula, it was concluded that the number of LNG-powered ships in the Baltic Sea will increase eightfold within 10 years. Therefore, the construction of appropriate LNG infrastructure in the southern part of the Baltic Sea is essential.
In this study, the LNG distribution model was constructed using MILP, which enabled the identification of a supply chain structure that minimizes economic aspects. The mathematical model is applicable to similar problems, such as the following:
  • The supply chain in the Caribbean [84];
  • The coast of Finland (69 receivers across Finland and 9 ports along the Finnish coastline of the Baltic Sea) [85].
By employing the MILP model (which is adaptable), the LNG supply chain in the Baltic Sea can define decision variables (such as LNG demand, the number of LNG bunker vessel routes, and storage periods) and continuous variables (such as transportation costs, distribution operation time, and the volume of stored material) with constraints like storage capacity or maximum LNG demand. MILP helps determine the efficiency and reliability of the LNG supply chain, which is the basis for a stable and cost-effective resource delivery in the southern part of the Baltic Sea.
The area of the Baltic Sea under analysis shows great development potential regarding the LNG industry. The requirement of diversification of natural gas supplies is met owing to the LNG terminal in Świnoujście, which receives LNG supplies from various parts of the world. In view of establishing an LNG infrastructure along the southern Baltic coast (the research problem), the authors propose a solution using computer implementation of a model built in MATLAB R2019a software. The solution to the research problem is a task that can be classified and presented as an NP-Hard problem with multiple possible solutions. LNG distribution facilities must be situated in locations that ensure that LNG bunkering ships can meet demand for fuel while covering the shortest possible distance within the shortest possible time. Five seaports along the southern coast of the Baltic Sea were selected as the best locations for the LNG infrastructure:
  • Gdynia;
  • Świnoujście;
  • Darłowo;
  • Krynica Morska;
  • Kołobrzeg.
LNG storage facilities in the ports have been located with a view to meeting the total demand for LNG within their respective service areas. The number of LNG-powered ships and demand for LNG were determined, and each of the ports were assigned a specific number of LNG bunkering ships to cover the total demand for LNG. The real locations of LNG storage facilities are specified taking into consideration the number of LNG-powered ships that render services in the respective areas. The distance which the LNG bunkering vessels have to cover from an LNG storage facility to the position of an LNG-powered ship are specified based on radially set routes.
The conclusions comprise calculations that were made based on statistical, as well as forecast, data. Additionally, the solution to the problem includes the shortest bunkering lead time based on data on the capacity of the LNG-powered ship and its distance to the LNG facility.
Precise figures have been provided for the following:
  • The number of LNG bunkering ships used;
  • The demand for LNG as shipping fuel;
  • The distance covered by an LNG bunkering ship;
  • The LNG bunkering lead time.
For each port under analysis, a set of LNG bunkering ships and LNG-powered ships were determined. Significant discrepancies could be observed in the yearly demand for LNG as shipping fuel in the ports under analysis. For example, the port of Świnoujście was on one end of the scale and showed double the demand for the port on the other end of the scale. The discrepancies can be explained by the fact that various sizes and types of ships are provided services within a period of 365 days. A port supplying LNG to large sea-going ships will show the greatest demand.
Last but not least, it is worth noting why ports as tiny as Darłowo and Krynica were not excluded from the analysis. The offshore wind farm investment project, implemented in the Baltic Sea, will certainly intensify vessel traffic in the area and attract new investors from the energy and oil and gas (pipelines) sectors. Construction of offshore wind farms will drive the development of the coastal regions and the entire country on many planes. In the shipping sector, a niche will be created for services such as maintenance, construction, and modernization of the infrastructure [86].
A detailed analysis of the results showed that demand for LNG in the port of Krynica Morska fell between 0.132–0.292 thousand m3, which accounts for 0.37% to 1.21% of the demand for LNG in the port of Gdynia. It was concluded that moving the service of LNG distribution from Krynica Morska to Gdynia will have no impact on the distribution network in the latter port. What is more, the distance between the two ports is only 32.9 Nm, i.e., Gdynia and Krynica Morska provide services in the same sea area. This paper proposes a solution for an optimal LNG distribution network. Therefore, it would be economically justified to discard the port of Krynica Morska from the project.
The problem was solved in terms of the following constraints:
  • Temporal;
  • Individual LNG bunkers, which are assigned a specific LNG bunker;
  • Each LNG-fueled unit, which are assigned to exactly one LNG bunker;
  • The existence of only one start and end point;
  • The capacity of individual LNG bunkering units cannot be exceeded.
Considering the above, the optimal LNG bunkering infrastructure along the southern coast of the Baltic Sea would include the following ports:
  • Gdynia;
  • Świnoujście;
  • Darłowo;
  • Kołobrzeg.
Discarding the port of Krynica Morska as an LNG distribution station is further justified by the fact that a floating storage regasification unit (FSRU) is planned to be constructed in the vicinity of Gdańsk, which will support LNG operations, such as discharge, storage, and regasification. The demand for LNG from the port of Krynica Morska will be fully covered by the port of Gdynia, where, in a future investment project, specialized infrastructure will be built to receive additional supplies of LNG by sea [87].

5. Conclusions

The important role of LNG as an alternative fuel can be explained by, inter alia, its contribution to reducing harmful emissions and ensuring compliance with strict environmental regulations. LNG is an eco-friendly fuel, and its market price has been on a downward trend.
Vehicles designed to be powered by LNG, such as buses or tractor units, are growing in number. LNG is also used as marine fuel, with the LNG fleet expanding and driving the demand for LNG. However, sea-going fleets that use new technologies face the problem of unavailability of LNG at sea and a lack of LNG bunkering infrastructure. Expansion of the LNG-powered fleet is bound to drive the development of LNG handling, storage, and bunkering infrastructure.
The research topics were approached due to the following:
  • LNG distribution issues in the southern part of the Baltic Sea;
  • The projected size of the LNG fleet in the Baltic Sea;
  • The lack of research results determining the real demand for LNG as bunker fuel in the Baltic Sea;
  • The lack of LNG infrastructure in the southern part of the Baltic Sea.
Therefore, this paper proposes the size of the distribution of LNG as a marine fuel using the example of the southern Baltic Sea. This paper presents the distribution network for LNG as a marine fuel in the southern Baltic Sea. An analysis of ship traffic intensity was presented and the demand for LNG as a bunker fuel was determined. As a result, LNG storage locations were identified (Gdynia, Świnoujście, Darłowo, Kołobrzeg, and Krynica Morska) that will be able to supply marine vessels with fuel. Five ports were indicated for which LNG infrastructure should be developed to meet the demand for the resource, along with the adjustment of an appropriate LNG bunkering fleet. LNG is increasing in popularity owing to the safety of its carriage compared to oil products (in the event of a leakage, LNG, being lighter than air, evaporates, whereas conventional fuel fumes sink and may create explosive mixtures). However, it is important to remember that LNG is currently a popular choice in the maritime sector due to its lower emissions compared to traditional fuels and the availability of technology and infrastructure. However, with increasing decarbonization requirements, LNG is considered a temporary solution that will be replaced in the future by more sustainable fuels and technologies.

Author Contributions

Conceptualization, E.O.; Methodology, E.O.; Software, E.O.; Validation, E.O.; Formal analysis, E.O. and M.S.; Investigation, E.O.; Resources, E.O.; Data curation, E.O.; Writing—Original Draft, E.O. and M.S.; Writing—Review and Editing, E.O. and M.S.; Visualization, E.O.; Supervision, E.O.; Project administration, E.O.; Funding acquisition, E.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research and publication was funded by the Maritime University of Szczecin (grant numbers 1/S/RD/WN/24).

Data Availability Statement

Data will be made available upon request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Fitzmaurice, M. International Convention for the Prevention of Pollution from Ships (MARPOL). In Research Handbook on Ocean Governance Law; Edward Elgar Publishing: Cheltenham, UK, 2023. [Google Scholar]
  2. Directive 2012/33/EU of the European Parliament and of the Council of November 21 Amending Council Directive 1999/32/EC as Regards the Sulfur Content of Marine Fuels. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex%3A32012L0033 (accessed on 1 June 2024).
  3. Directive (EU) 2018/2001 on the Promotion of the Use of Energy from Renewable Sources. Renewable Energy Directive II. Available online: https://eur-lex.europa.eu/eli/dir/2018/2001/oj (accessed on 1 June 2024).
  4. Regulation on the Use of Renewable and Low-Carbon Fuels in Maritime Transport and Amending Directive 2009/16/EC. FuelEU Maritime Regulation. Available online: https://eur-lex.europa.eu/eli/reg/2023/1805/oj (accessed on 5 June 2024).
  5. Directive 2003/87/EC of the European Parliament and of the Council Establishing a Scheme for Greenhouse Gas Emission Allowance Trading within the Community and Amending Council Directive 96/61/EC. European Union’s Emissions Trading System. Available online: https://eur-lex.europa.eu/eli/dir/2003/87/oj (accessed on 5 June 2024).
  6. Lindstad, E.; Eskeland, G.S.; Rialland, A.; Valland, A. Decarbonizing Maritime Trans-port: The Importance of Engine Technology and Regulations for LNG to Serve as a Transition Fuel. Sustainability 2020, 12, 8793. [Google Scholar] [CrossRef]
  7. Koziński, M.H. Maritime safety—Legislation problems. Prace Wydziału Nawigacyjnego Akademii Morskiej w Gdyni 2015, 30, 7–22. [Google Scholar] [CrossRef]
  8. Kitada, M.; Ölçer, A. Analyzing the Impact of Low-Sulphur Fuel Regulations on the Maritime Industry. J. Mar. Sci. Eng. 2020, 8, 514. [Google Scholar] [CrossRef]
  9. Luo, M.; Yip, T.L. Economic Assessment of Switching to Low-Sulphur Marine Fuels for Shipping Companies. Marit. Econ. Logist. 2020, 22, 453–472. [Google Scholar]
  10. Hussain, M.; Dincer, I.; Naterer, G.F. Assessment of SOx Scrubber Systems for the Marine Industry. J. Mar. Sci. Eng. 2020, 8, 193. [Google Scholar] [CrossRef]
  11. Cariou, P.; Wolff, F.-C. Environmental and Economic Impacts of Maritime Shipping in the European Union: The Role of Scrubber Systems. Mar. Policy 2019, 100, 59–67. [Google Scholar] [CrossRef]
  12. Autorzy: Pavlenko, N.; Comer, B.; Zhou, Y.; Clark, N.; Rutherford, D. Assessing the Potential of LNG as a Ship Fuel in International Shipping. Transp. Res. Part D Transp. Environ. 2020, 65, 1–13. [Google Scholar]
  13. Dnv, G.L. Decarbonization of Maritime Transport: The Role of LNG and Hydrogen. Energy Policy 2020. Available online: https://www.connaissancedesenergies.org/sites/connaissancedesenergies.org/files/pdf-actualites/DNV_GL_Energy_Transition_Outlook_2020_Executive_Summary.pdf (accessed on 10 June 2024).
  14. Dnv, G.L. Maritime decarbonization efforts propelled as orders for alternative-fueled vessels grow. Energy Policy 2023. Available online: https://www.connaissancedesenergies.org/sites/connaissancedesenergies.org/files/pdf-actualites/DNV_ETO_Main_Report_2023_highres_comp.pdf (accessed on 10 June 2024).
  15. MAN Diesel & Turbo. Costs and Benefits of LNG as Ship Fuel for Container Vessels; MAN Diesel & Turbo: Augsburg, Germany, 2011. [Google Scholar]
  16. Skarżyński, M. Śródlądowe punkty tankowania LNG w polityce energetycznej Unii Europejskiej. Przegląd Polit. 2022, 1, 73–81. [Google Scholar] [CrossRef]
  17. IGU. World LNG Report, 2020 Edition; IGU: Oslo, Norway, 2020. [Google Scholar]
  18. He, T.B.; Ju, Y.L. Design and optimization of natural gas liquefaction process by utilizing gas pipeline pressure Energy. Appl. Therm. Eng. 2013, 57, 1–6. [Google Scholar] [CrossRef]
  19. Zhang, J.; Meerman, H.; Benders, R.; Faaij, A. Comprehensive review of current natural gas liquefaction processes on technical and economic performance. Appl. Therm. Eng. 2020, 166, 114736. [Google Scholar] [CrossRef]
  20. Berle, Ø.; Norstad, I.; Asbjørnslett, B.E. Optimization, risk assessment and resilience in LNG transportation systems. Supply Chain. Manag. 2013, 18, 253–264. [Google Scholar] [CrossRef]
  21. Chenghao, L.; Siyang, Z.; Yufeng, C.; Zhiyong, Z. Proposal and parametric analysis of an innovative natural gas pressure reduction and liquefaction system for efficient exergy recovery and LNG storage. Energy 2021, 223, 120022. [Google Scholar] [CrossRef]
  22. Riaz, A.; Qyyum, M.A.; Min, S.; Lee, S.; Lee, M. Performance improvement potential of harnessing LNG regasification for hydrogen liquefaction process: Energy and exergy perspectives. Appl. Energy 2021, 301, 117471. [Google Scholar] [CrossRef]
  23. Frailey, M. Using LNG as a Fuel in Heavy-Duty Tractors; NREL/SR-540-24146; NREL: Golden, CO, USA, 1999; Available online: https://scholar.google.com/scholar_lookup?title=Using+LNG+as+a+Fuel+in+Heavy-Duty+Tractors&author=Frailey,+M.&publication_year=1999 (accessed on 17 July 2024).
  24. Semaskaite, V.; Bogdevicius, M.; Paulauskiene, T.; Uebe, J.; Filina-Dawidowicz, L. Improvement of Regasification Process Efficiency for Floating Storage Regasification Unit. J. Mar. Sci. Eng. 2022, 10, 897. [Google Scholar] [CrossRef]
  25. Grzegorzewska, J.; Grządzielski, W.; Mróz, T.M. Planning of liquefied natural gas (LNG) supply to urban areas. Źródła Ciepła i Energii Elektrycznej 2014, 6, 10–15. [Google Scholar]
  26. Klimczak, D. Globalny handel LNG. Energetyka 2015, 2, 97–100. [Google Scholar]
  27. World LNG Report—2023 Edition. News, Views and Knowledge on Gas—Worldwide. 2023. Available online: https://www.igu.org/resources/lng2023-world-lng-report/ (accessed on 5 June 2024).
  28. Foss, M.M. LNG Safety and Security; Center for Energy Economics: Houston, TX, USA, 2012. [Google Scholar]
  29. IFC. Environmental, Health, and Safety Guidelines for Liquefied Natural Gas (LNG) Facilities; IFC: Washington, DC, USA, 2017. [Google Scholar]
  30. Tan, R.; Duru, O.; Thepsithar, P.; Stathopoulou, M. Alternative Sources of Energy as Marine Fuels; The Effect on the Environment and the Financial Perspectives for a More Sustainable Future in the Shipping Industry. Master’s Thesis, University of Piraeus, Pireas, Greece, 2021. [Google Scholar] [CrossRef]
  31. Hwang, S.; Jeong, B.; Jung, K.; Kim, M.; Zhou, P. Life Cycle Assessment of LNG Fueled Vessel in Domestic Services. J. Marne Sci. Eng. 2019, 7, 359. [Google Scholar] [CrossRef]
  32. Salarkia, M.; Golabi, S. Liquefied Natural Gas (LNG): Alternative Marine Fuel Restriction and Regulation Considerations, Environmental and Economic Assessment. Energy Eng. Manag. 2021, 10, 44–59. [Google Scholar] [CrossRef]
  33. Pavlenko, N.; Comer, B.; Zhou, Y.; Clark, N.; Rutherford, D. The Climate Implications of Using LNG as a Marine Fuel; Swedish Environmental Protection Agency: Stockholm, Sweden, 2020; Available online: https://scholar.google.com/scholar_lookup?title=The%20climate%20implications%20of%20using%20LNG%20as%20a%20marine%20fuel&publication_year=2020&author=N.%20Pavlenko&author=B.%20Comer&author=Y.%20Zhou&author=N.%20Clark&author=D.%20Rutherford (accessed on 15 June 2024).
  34. Montwidlak, U. Transport LNG drogą morską jako jeden z elementów łańcucha dostaw gazu. Logistyka 2014, 6, 950–954. [Google Scholar]
  35. Dahmani, L. Thermomechanical response of LNG concrete tank to cryogenic temperatures. Strength Mater. 2011, 43, 526–531. [Google Scholar] [CrossRef]
  36. Hanshaw, G.; Pope, G. Liquefied Natural Gas Criteria/Comparative Values for Use as an Automotive Fuel; SAE Technical Paper 0148-7191; SAE: Warrendale, PA, USA, 1996; Available online: https://scholar.google.com/scholar_lookup?title=Liquefied+Natural+Gas+Criteria/Comparative+Values+for+Use+as+an+Automotive+Fuel&author=Hanshaw,+G.&author=Pope,+G.&publication_year=1996 (accessed on 1 August 2024).
  37. Maxwell, D.; Zhu, Z. Natural gas prices, LNG transport costs, and the dynamics of LNG imports. Energy Econ. 2011, 33, 217–226. [Google Scholar] [CrossRef]
  38. Xu, K.; Hu, J.; Dong, S.; Feng, L. Causal Relationship Extraction of LNG Unloading System Under Abnormal Conditions Based on Bidirectional LSTM Network. In Pressure Vessels and Piping Conference; American Society of Mechanical Engineer: New York, NY, USA, 2021; Volume PVP2021-61321, p. V005T07A017. [Google Scholar] [CrossRef]
  39. Łaciak, M.; Sztekler, K.; Szurlej, A.; Włodek, T. Possibilities of Liquefied Natural Gas (LNG) use for power generation. In IOP Conference Series: Earth and Environmental Science, Proceedings of the International Conference on the Sustainable Energy and Environmental Development, Krakow, Poland, 14–17 November 2017; IOP Publishing: Bristol, UK, 2017; Volume 214. [Google Scholar] [CrossRef]
  40. Yang, Z.; Li, X.; Xiang, Q.; He, Q.; Faber, M.F.; Zio, E.; Su, H.; Zhang, J. A resilience evaluation method of natural gas pipeline system based on uncertainty analysis. Process Saf. Environ. Prot. 2023, 177, 891–908. [Google Scholar] [CrossRef]
  41. Park, J.; Lee, I.; You, F.; Moon, I.I. Economic Process Selection of Liquefied Natural Gas Regasification: Power Generation and Energy Storage Applications. Ind. Eng. Chem. Res. 2019, 58, 4946–4956. [Google Scholar] [CrossRef]
  42. Qyyum, M.A.; Qadeer, K.; Lee, M. Comprehensive Review of the Design Optimization of Natural Gas Liquefaction Processes: Current Status and Perspectives. Ind. Eng. Chem. Res. 2018, 57, 5819–5844. [Google Scholar] [CrossRef]
  43. Łaciak, M. Liquefied natural gas storage of variable composition. Arch. Min. Sci. 2015, 60, 225–238. [Google Scholar] [CrossRef]
  44. Fahmy, M.F.M.; Nabih, H.I.; El-Rasoul, T.A. Optimization and comparative analysis of LNG regasification processes. Energy 2015, 91, 371–385. [Google Scholar] [CrossRef]
  45. Langshaw, L.; Ainalis, D.; Acha, S.; Shah, N.; Stettler, M.E.J. Environmental and economic analysis of liquefied natural gas (LNG) for heavy goods vehicles in the UK: A Well-to-Wheel and total cost of ownership evaluation. Energy Policy 2020, 137, 111161. [Google Scholar] [CrossRef]
  46. Wang, C.; Ju, Y.; Fu, Y. Comparative life cycle cost analysis of low pressure fuel gas supply systems for LNG fueled ships. Energy 2021, 218, 119541. [Google Scholar] [CrossRef]
  47. Tan, R.; Duru, O.; Thepsithar, P. Assessment of relative fuel cost for dual fuel marine engines along major Asian container shipping routes. Transp. Res. Part E Logist. Transp. Rev. 2020, 140, 102004. [Google Scholar] [CrossRef]
  48. Navas-Anguita, Z.; García-Gusano, D.; Iribarren, D. A review of techno-economic data for road transportation fuels. Renew. Sustain. Energy Rev. 2019, 112, 11–26. [Google Scholar] [CrossRef]
  49. Matyszczak, M. Nowe rozwiązania techniczne zastosowane w systemach ładunkowych statków do przewozu skroplonego gazu ziemnego (LNG). Nafta Gaz 2012, 18, 123–132. [Google Scholar]
  50. Zajdler, R.; Gałczyński, M. Model wspólnego systemu bezpieczeństwa dostaw gazu ziemnego w Unii Europejskiej. Polityka Społeczeństwo 2014, 12, 35–45. [Google Scholar]
  51. Goela, V.; Sluskyb, M.; van Hoevec, W.J.; Furmand, K.C.; Shaoa, Y. Constraint programming for LNG ship scheduling and inventory management. Eur. J. Oper. Res. 2013, 3, 662–673. [Google Scholar] [CrossRef]
  52. Bittantea, A.; Jokinenb, R.; Krooksc, J.; Petterssona, F. Mixed integer optimization of an LNG supply chain in the Baltic Sea region. In Proceedings of the ECOS 2016-The 29th International Conference on Efficiency, Cost, Optimization, Simulation and Environmental Impact of Energy Systems, Portorož, Slovenia, 19–23 June 2016. [Google Scholar]
  53. Park, J.; You, F.; Mun, H.; Lee, I. Liquefied natural gas supply chain using liquid air as a cold carrier: Novel method for energy recovery. Energy Convers. Manag. 2021, 227, 113611. [Google Scholar] [CrossRef]
  54. Gucma, S. Wybór optymalnej lokalizacji terminalu LNG na wybrzeżu polskim. Inżynieria Morska Geotech. 2008, 2, 98–104. [Google Scholar]
  55. Chłopińska, E.; Gucma, M. Impact of Świnoujście LNG terminal on gas distribution and bunkering network in Poland—MTE/ISIS. Zesz. Nauk. Akad. Morskiej W Szczecinie 2018, 53, 154–160. [Google Scholar]
  56. Biały, R.; Janusz, P.; Łoś, M.; Szurlej, A. Analiza kosztów importu gazu ziemnego do Polski i ich wpływ na strukturę dostaw. Zesz. Nauk. Inst. Gospod. Surowcami Miner. Energią PAN 2014, 87, 83–98. [Google Scholar]
  57. BP. BP Statistical Review of World Energy; BP: London, UK, 2015. [Google Scholar]
  58. Dorigoni, S.; Graziano, C.; Pontoni, F. Can LNG increase competetivness in the natural gas market. Energy Policy 2010, 38, 7653–7664. [Google Scholar] [CrossRef]
  59. Vivoda, V. LNG export diversification and demand security: A comparative study of major exporters. Energy Policy 2022, 170, 113218. [Google Scholar] [CrossRef]
  60. Ialenti, R. Rising US LNG Exports and Global Natural Gas Price Convergence; Bank of Canada Staff Discussion Paper No. 2021-14; Bank of Canada: Ottawa, ON, Canada, 2021. [Google Scholar] [CrossRef]
  61. Behrendt, C. Struktura floty statków do przewozu gazu skroplonego. Logistyka 2015, 3, 297–304. [Google Scholar]
  62. Matczak, M. Wykorzystanie LNG jako paliwa żeglugowego na Morzu Bałtyckim—Przesłanki stosowania, kierunki rozwoju oraz formy wsparcia. Zesz. Nauk. Probl. Transp. Logistyki Uniw. Szczeciński 2015, 30, 73–85. [Google Scholar] [CrossRef]
  63. Grzelak, S. Liquefied Natural Gas—A Strategic Fuel. Poland’s Security with Regard to Gas Fuels. Kontrola Państwowa 2015, 60, 133–145. [Google Scholar]
  64. IGU. World LNG Report, 2022 Edition; IGU: Oslo, Norway, 2022. [Google Scholar]
  65. Peng, Y.; Zhao, X.; Zuo, T.; Wang, W.; Song, X. A systematic literature review on port LNG bunkering station. Transp. Res. Part D Transp. Environ. 2021, 91, 102704. [Google Scholar] [CrossRef]
  66. Uflaz, E.; Sezer, S.I.; Akyuz, E.; Arslan, O.; Kurt, E. A human reliability analysis for ship to ship LNG bunkering process under D-S evidence fusion HEART approach. J. Loss Prev. Process Ind. 2022, 80, 104887. [Google Scholar] [CrossRef]
  67. Iannaccone, T.; Landucci, G.; Scarponi, G.E.; Bonvicini, S.; Cozzan, V. Inherent safety assessment of alternative technologies for LNG ships bunkering. Ocean. Eng. 2019, 185, 100–114. [Google Scholar] [CrossRef]
  68. Calderón, M.; Illing, D.; Veiga, J. Facilities for Bunkering of Liquefied Natural Gas in Ports. Transp. Res. Procedia 2016, 14, 2431–2440. [Google Scholar] [CrossRef]
  69. Herdzik, J. Wstępna analiza opłacalności tworzenia sieci bunkrowania skroplonego gazu naturalnego LNG w portach Morza Bałtyckiego. Logistyka 2014, 3, 2359–2366. [Google Scholar]
  70. Hu, A.; He, Z.; Ding, C.; Zhou, M.; Li, F.; Li, C. Optimization of LNG supply chain based on MILP model. In Proceedings of the 3rd International Conference on Applied Mathematics, Modelling, and Intelligent Computing, Tangshan, China, 24–26 March 2023; Volume 12756. [Google Scholar] [CrossRef]
  71. Bittante, A.; Pettersson, F.; Saxén, H. Optimization of a small-scale LNG supply chain. Energy 2018, 148, 79–89. [Google Scholar] [CrossRef]
  72. Bittante, A.; Saxén, H. Design of Small LNG Supply Chain by Multi-Period Optimization. Energies 2020, 13, 6704. [Google Scholar] [CrossRef]
  73. Independent Statistics and Analysis, Natural Gas Industrial Price, 2024. Available online: https://www.eia.gov/dnav/ng/hist/n3035us3M.htm (accessed on 23 August 2024).
  74. Trading Economics, Natural Gas Price, 2024. Available online: https://tradingeconomics.com/commodity/natural-gas (accessed on 23 August 2024).
  75. Manual for Marine Monitoring in the COMBINE Programme of HELCOM, 31 July 2017. Available online: https://helcom.fi/action-areas/monitoring-and-assessment/monitoring-guidelines/combine-manual/ (accessed on 28 August 2024).
  76. Available online: https://www.marinetraffic.com/en/ais/home/centerx:16.9/centery:54.9/zoom:7 (accessed on 30 April 2024).
  77. 2018. Available online: www.oxfordenergy.org (accessed on 15 April 2024).
  78. Central Statistical Office in Poland—Statistical Office in Szczecin, Statistical Yearbook of Maritime Economy. Warszawa, Szczecin 2016, 2017, 2018, 2019, 2020, 2021, 2022. Available online: https://stat.gov.pl/obszary-tematyczne/roczniki-statystyczne/roczniki-statystyczne/rocznik-statystyczny-gospodarki-morskiej-2023,11,16.html# (accessed on 20 May 2024).
  79. International Energy Agency. World Energy Outlook 2021. 2021. Available online: https://www.iea.org/reports/world-energy-outlook-2021 (accessed on 28 August 2024).
  80. Howard, A.; Bivens, I.C.; Davis, S. Calculus. Early Transcendentals. Global Edition; John Wiley & Sons: Hoboken, NJ, USA, 2022; ISBN 1419172254. [Google Scholar]
  81. Brealey, R.; Myers, S.; Allen, F.; Edmans, A. Principles of Corporate Finance; McGraw-Hill Education: New York, NY, USA, 2022; ISBN 1265074151. [Google Scholar]
  82. Livadiotis, G. Statistical analysis of the impact of environmental temperature on the exponential growth rate of cases infected by COVID-19. PLoS ONE 2020, 15, e0233875. [Google Scholar] [CrossRef] [PubMed]
  83. Muloiwa, M.; Nyende-Byakika, S.; Megersa, D. Comparison of unstructured kinetic bacterial growth models. S. Afr. J. Chem. Eng. 2020, 33, 141–150. [Google Scholar] [CrossRef]
  84. Bittante, A.; Jokinen, R.; Pettersson, F.; Saxén, H. Optimization of LNG Supply Chain. Comput. Aided Chem. Eng. 2015, 37, 779–784. [Google Scholar] [CrossRef]
  85. Jokinen, R.; Pettersson, F.; Saxén, H. An MILP model for optimization of a small-scale LNG supply chain along a coastline. Appl. Energy 2015, 138, 423–431. [Google Scholar] [CrossRef]
  86. Ministry of Infrastructure, Morskie Farmy Wiatrowe Coraz Bliżej, 2023. Available online: https://www.gov.pl/web/infrastruktura/morskie-farmy-wiatrowe-coraz-blizej (accessed on 10 August 2024).
  87. GAZ System, ORLEN Terminal FSRU w Zatoce Gdańskiej, 2023. Available online: https://www.gaz-system.pl/pl/dla-mediow/komunikaty-prasowe/2023/sierpien/18-08-2023-zakonczenie-procesu-rezerwacji-mocy-regazyfikacyjnych-na-terminalu-fsru-w-zatoce-gdanskiej.html (accessed on 12 August 2024).
Figure 1. Costs in the LNG supply chain, broken down by components [%].
Figure 1. Costs in the LNG supply chain, broken down by components [%].
Energies 17 04414 g001
Figure 2. The average price of LNG [zł] [73,74].
Figure 2. The average price of LNG [zł] [73,74].
Energies 17 04414 g002
Figure 3. Map of the Baltic Sea [75].
Figure 3. Map of the Baltic Sea [75].
Energies 17 04414 g003
Figure 4. The major traffic streams under analysis (source: [76]).
Figure 4. The major traffic streams under analysis (source: [76]).
Energies 17 04414 g004
Figure 5. Overall number of the sea-going ships calling at selected Baltic ports in 2013–2021 (source: own study based on [78]).
Figure 5. Overall number of the sea-going ships calling at selected Baltic ports in 2013–2021 (source: own study based on [78]).
Energies 17 04414 g005
Figure 6. Example range of service of LNG bunkering ships—50 Nm.
Figure 6. Example range of service of LNG bunkering ships—50 Nm.
Energies 17 04414 g006
Figure 7. Forecast number of the LNG-powered ships calling at specified ports.
Figure 7. Forecast number of the LNG-powered ships calling at specified ports.
Energies 17 04414 g007
Figure 8. Average LNG consumption [m3] by ship type (source: own study based on [77]).
Figure 8. Average LNG consumption [m3] by ship type (source: own study based on [77]).
Energies 17 04414 g008
Figure 9. Maximum demand for LNG by port [m3/year].
Figure 9. Maximum demand for LNG by port [m3/year].
Energies 17 04414 g009
Figure 10. Example representation of the simulation results.
Figure 10. Example representation of the simulation results.
Energies 17 04414 g010
Figure 11. Fitting of the normal distribution to the number of occurrences of entries to the selected port of Świnoujście in the year 2022.
Figure 11. Fitting of the normal distribution to the number of occurrences of entries to the selected port of Świnoujście in the year 2022.
Energies 17 04414 g011
Table 1. Directives and regulations concerning LNG [1,2,3,4,5].
Table 1. Directives and regulations concerning LNG [1,2,3,4,5].
RegulationDate of AdoptionCharacteristics
MARPOL Annex VI19 May 2005SO2:
  • 0.50% (except Sulphur Emission Control Areas–SECA).
  • 0.10% in SECA.
NOx:
  • Tier I: for engines produced from 1 January 2000; engine power ≤ 130 kW: 17.0 g/kWh and engine power > 130 kW: 14.4 g/kWh.
  • Tier II: produced from 1 January 2011; engine power ≤ 130 kW: 14.4 g/kWh and engine power > 130 kW: 7.7 g/kWh.
  • Tier III produced from 1 January 2016 in ECA (Emission Control Areas); engine power ≤ 130 kW: 3.4 g/kWh and engine power > 130 kW: 2.0 g/kWh.
Particulate matter (PM) emissions from 1 January 2016. Tier III requirements.
Directive 2014/94/UE 22 October 2014SO2 content in fuels used by ships:
  • SECA: limited to 0.10% until 1 January 2015.
  • Non SECA: from 1 January 2020 and limited to 0.50%.
Directive RED II11 December 2018Not directly applicable to LNG, and it promotes the use of renewable energy, which influences the development of alternative fuels, including LNG-related technologies.
FuelEU Maritime25 July 2023A 2% reduction in greenhouse gas (GHG) intensity by 2025.
A 6% reduction by 2030.
A 13% reduction by 2035.
A 26% reduction by 2040.
A 59% reduction by 2045.
A 75% reduction by 2050.
European Union’s Emissions Trading System 1 January 2024From 2024, shipping will be covered by an emissions trading scheme, which means that ships will have to buy emission permits for CO2.
Table 2. Emission control areas.
Table 2. Emission control areas.
AreaDate
Adoption
Effective DateDate of ApplicabilityOxides
Baltic Sea26 September 199719 May 200519 May 2006SOx
North Sea22 July 200522 November 200622 November 2007SOx
US Caribbean Islands26 July 20111 January 20131 January 2014SOx
PM
NOx
The area around North America26 March 20101 August 20111 August 2012SOx
NOx
Table 3. Global sea-going LNG-powered ships by type in 2021 [77].
Table 3. Global sea-going LNG-powered ships by type in 2021 [77].
Type of Ship Number of Ships SH [%]
Tankers12,8020.130
Bulk carriers10,6500.108
Container ships 50090.051
Specialized vessels 30,1930.308
General cargo carriers10,9730.112
RO-RO/Passenger ships22360.023
Cruise ships 52880.054
Other21,0210.214
Total98,1721
Table 4. Results of the simulations for Świnoujście for 10 days.
Table 4. Results of the simulations for Świnoujście for 10 days.
Port of Świnoujście
DayType of Ship *Requested LNG Volume [m3]Distance [Nm]Type of Ship *Requested LNG Volume [m3]Distance [Nm]
1000000
2000000
343996.5000
48247.5100
5117288.5000
6117287.5000
721309.5000
821307.051258.0
9000000
1022009.516197.5
* 1. Tankers, 2. Bulk carriers, 3. Container ships, 4. Specialized vessels, 5. General cargo carriers, 6. RO-RO/Passenger ships, 7. Cruise ships, 8. and Other.
Table 5. The lead time of the LNG bunkering service for the port of Świnoujście.
Table 5. The lead time of the LNG bunkering service for the port of Świnoujście.
Type of ShipRequested LNG Volume [m3]Loading Rate [m3/h]Speed of LNG Bunkering Ship [kn]Bunkering Lead Time [h]
MINMAXMINMAXMINMAXMINMAX
Tankers3252000500120010141.63.0
Bulk carriers11050050050010101.32.2
Container ships49018,600500120010142.117.1
Specialized vessels 7045050050010101.22.0
General cargo carriers 6345050050010101.12.0
RO-RO/Passenger ships2550050050010101.12.0
Cruise ships103400500120010141.13.6
Other25800500100010101.11.9
Table 6. LNG infrastructure in specific ports.
Table 6. LNG infrastructure in specific ports.
FacilityPortBunkeringSize of LNG Storage Tanks
Small handling capacityDarłowo
Krynica Morska
Kołobrzeg
Import terminals capable of bunkering
<10,000 m3/year
1000 m3
Medium handling capacityŚwinoujścieImport terminals capable of bunkering
10,000–100,000 m3/year
25,000 m3
High handling capacityGdyniaImport terminals capable of bunkering
>100,000 m3/year
3 × 25,000 m3
Table 7. Parameters of the LNG bunkering ships under analysis.
Table 7. Parameters of the LNG bunkering ships under analysis.
NameGas Tank Capacity [m3]Speed
[kn]
Loading Rate [m3/h]
DALIAN 1 G8500-1833010.001200
BUNKER BREEZE780010.001200
HYUNDAI MIPO 8250752113.501200
KAIROS752113.501200
SM JEJU LNG1750113.001200
KEPPEL SINGMARINE H410750014.001200
CORAL METHANE740114.001200
KEPPEL SINGMARINE H400735014.001000
KEPPEL SINGMARINE H401735014.001000
NANTONG CIMC SINOPACIFIC S1049735014.001200
NANTONG CIMC SINOPACIFIC S1050735014.001200
SAMSUNG 2234735014.001200
SM JEJU LNG2735014.001200
CARDISSA646910.001200
CORAL ANTHELIA644315.501200
DAMEN GORINCHEM 559014600013.401000
ELENGER600013.40500
ESTI GASS600013.401000
KEPPEL SINGMARINE H414580012.001000
CORALIUS578113.501000
ENGIE ZEEBRUGGE500010.501000
AKEBONO MARU351513.00500
KAGUYA350012.00500
KAWASAKI SAKAIDE 1744
(EX-2020)
350012.00500
LNG LONDON300010.70500
JMU ARIAKE250014.001200
KAKUYU MARU248814.90500
SHINJU MARU 1248712.70500
SHINJU MARU 2248513.00500
NORTH PIONEER246213.30500
CLEAN JACKSONVILLE22008.00500
PIONEER KNUTSEN107814.00500
OIZMENDI6009.30500
FJALIR16712.50500
LNG SE-601300010.001000
Table 8. Characteristics of the LNG bunkering ships.
Table 8. Characteristics of the LNG bunkering ships.
PortLNG Bunkering Ship’s Capacity
ŚwinoujścieLess than 3000 m3
Gdynia5500–8000 m3
DarłowoLess than 3000 m3
Kołobrzeg1000–8000 m3
Krynica Morska1000–3000 m3
Table 9. The number of LNG bunkering ships by port.
Table 9. The number of LNG bunkering ships by port.
PortLNG Bunkering Ships
Gdynia3 × > 5500–8000 m3
Świnoujście3 × ≤ 1000 m3
2 × 1000–3000 m3
Darłowo2 × ≤ 1000 m3
1 × 1000–3000 m3
Krynica Morska1 × 1000–3000 m3
Kołobrzeg1 × 1000–3000 m3
1 × 3500–4000 m3
2 × 5500–8000 m3
Table 10. The Shapiro–Wilk test for the selected port.
Table 10. The Shapiro–Wilk test for the selected port.
Parameter20182019202020212022
Test value0.9680.9690.9690.93890.9391
Critical value0.9530.9580.9590.9590.961
Normal distribution
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Orysiak, E.; Shuper, M. Determination of Demand for LNG in Poland. Energies 2024, 17, 4414. https://doi.org/10.3390/en17174414

AMA Style

Orysiak E, Shuper M. Determination of Demand for LNG in Poland. Energies. 2024; 17(17):4414. https://doi.org/10.3390/en17174414

Chicago/Turabian Style

Orysiak, Ewelina, and Mykhaylo Shuper. 2024. "Determination of Demand for LNG in Poland" Energies 17, no. 17: 4414. https://doi.org/10.3390/en17174414

APA Style

Orysiak, E., & Shuper, M. (2024). Determination of Demand for LNG in Poland. Energies, 17(17), 4414. https://doi.org/10.3390/en17174414

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
