Remote-Sensing-Based Estimation of Rooftop Photovoltaic Power Production Using Physical Conversion Models and Weather Data ^†

Abstract

The global photovoltaic (PV) installed capacity, vital for the electric sector’s decarbonation, reached 1552.3 ${\mathrm{GW}}_p$ in 2023. In France, the capacity stood at 19.9 ${\mathrm{GW}}_p$ in April 2024. The growth of the PV installed capacity over a year was nearly 32% worldwide and 15.7% in France. However, integrating PV electricity into grids is hindered by poor knowledge of rooftop PV systems, constituting 20% of France’s installed capacity, and the lack of measurements of the production stemming from these systems. This problem of lack of measurements of the rooftop PV power production is referred to as the lack of observability. Using ground-truth measurements of individual PV systems, available at an unprecedented temporal and spatial scale, we show that by estimating the PV power production of an individual rooftop system by combining solar irradiance and temperature data, the characteristics of the PV system inferred from remote sensing methods and an irradiation-to-electric power conversion model provides accurate estimations of the PV power production. We report an average estimation error (measured with the pRMSE) of 10% relative to the system size. Our study shows that we can improve rooftop PV observability, and thus its integration into the electric grid, using little information on these systems, a simple model of the PV system, and weather data. More broadly, this study shows that limited information is sufficient to derive a reasonably good estimation of the PV power production of small-scale systems.

1. Introduction

The photovoltaic (PV) installed capacity grows exponentially to meet the decarbonation goals of the electric sector [1]. The global photovoltaic (PV) installed capacity, vital for the electric sector’s decarbonation, reached 1552.3 ${\mathrm{GW}}_p$ in 2023. In France, the capacity stood at 19.9 ${\mathrm{GW}}_p$ in April 2024. The growth of the PV installed capacity over a year was nearly 32% worldwide and 15.7% in France [2,3]. The integration of these amounts of PV electricity into the grid is challenging as transmission system operators (TSOs) lack measurements of the rooftop PV (in this article, “rooftop” PV installations are those with an installed capacity lower than 36 ${\mathrm{kW}}_p$, and we may also refer to these installations as “small-scale” or “distributed”) power production, which currently represents about 20% of the PV installed capacity in France [4]. This so-called problem of poor PV observability threatens the integration of PV into the grid as inaccurate estimations of the PV power measurements could lead to issues in grid management such as imbalances, congestions, or increased power reserve requirements [4,5].

The poor rooftop PV observability originates from two main factors. First, TSOs have little information on the small systems located on the distribution grid (which corresponds to rooftop PV systems [6,7]). Second, they lack ground-truth measurements of the PV power production generated by rooftop PV systems. This prevents them from assessing the accuracy of PV power-generation-estimation methods leveraged by TSOs to estimate the PV power production of installations for which measurements are unavailable.

In recent years, numerous works have proposed using deep learning [8] and airborne or satellite imagery to map rooftop PV systems. Many regions, especially in Europe and in the United States, have been mapped [7,9,10,11,12,13,14,15,16,17]. These mappings are increasingly detailed as recent works such as [13] or [12] construct PV registries by gathering the localization, tilt and azimuth angles, and installed capacities of individual PV systems. Moreover, these characteristics are sufficient to estimate the PV power production using a conversion model and weather data [18].

In this work, we leverage a large dataset of PV power measurements of rooftop PV systems to evaluate whether estimations of the PV power production using information consolidated in remote-sensing-based rooftop PV registries enable an accurate estimation of the rooftop PV power production. Our central contribution is to show that we can derive fair estimations of the PV power production at the individual system scale using the vanilla conversion model PV Watts [19], weather data, and the PV system’s characteristics recorded in remote-sensing-based rooftop PV registries such as those proposed by [12,13]. This work demonstrates that we can overcome the poor rooftop PV observability by combining limited information on the PV systems obtained from Earth observation data and remote sensing techniques with weather data using off-the-shelf conversion models.

2. Background and Related Works

2.1. Background: The Poor Observability of Rooftop Photovoltaic Systems

Wind and solar PV electricity generation is weather-dependent and variable at different time and space scales. Large wind and PV penetration increases the grid’s sensitivity to climate and forecasting uncertainties. To limit the uncertainties they bring to the grid, it is necessary to accurately observe (i.e., accurately measure or estimate) their power production. We define observability as the ability of the TSO to accurately estimate a power unit’s real-time production. We say that a power unit is observable if the TSO can directly measure its production (by having access to real-time telemetry) or derive accurate estimations of the power production, e.g., based on ex post measurements (usually available within a month).

Accurate measurements of renewable power generation at the scale of the power units are the basis for validating short-term forecast models and estimating the power system’s margins necessary to compensate for the variability in effective production. Wind power generation is well observed [4], but this is not the case for all types of PV power production. Indeed, a distinctive feature of PV energy is that PV installations vary in size. The smallest PV power installations have a few ${\mathrm{kW}}_p$ installed capacity. In contrast, the largest plants can have an installed capacity of up to several hundred ${\mathrm{MW}}_p$—the variability in size results in a great diversity in terms of the installations’ technical characteristics (e.g., the PV module efficiency and orientation and the presence of a solar tracker). This diversity in the system’s characteristics makes the extrapolation from larger (and well-measured plants) to smaller plants inaccurate.

Table 1. Installed capacity, number of installations, and corresponding shares of observed PV installation by power class as of September 2023. Numbers in italics correspond to percentages. TN: transport network. DN: distribution network. Source: RTE (the French transmission system operator).

	Observed		Not Observed
Power Class	Installed Capacity	Number of Installations	Installed Capacity	Number of Installations
[kWp]	[MWp]	[-]	[MWp]	[-]
≤36	14.8	405	3030	658,218
(%)	0.5	0.1	99.5	99.9
36–250	4438	40,054	340	2897
(%)	92.9	93.3	7.1	6.7
250–1000	435	748	23.5	47
(%)	94.9	94.1	5.1	5.9
≥1000 (DN)	7586	1531	377	79
(%)	95.3	95.1	4.7	4.9
≥1000 (TN)	827	20	0	0
(%)	100	100	0	0
Total	13,301	42,758	3771	661,241
(%)	77.9	6.1	22.1	93.9

Note: The bolded values highlight the share of PV systems (in terms of installed capacity and total number of installations) that is currently not observed by the TSO.

summarizes the current state of PV observability in France, depending on whether the TSO at least has access to ex post measurements and depending on the categories of the installed power capacity. Overall, about 94% of the PV fleet is not observable, corresponding to 22% of the installed capacity, which is roughly equivalent to four 900 MW nuclear units. The lack of observability primarily concerns small-scale installations with an installed capacity below 36 ${\mathrm{kW}}_p$.

The lack of observability will be increasingly concerning in the context of the quick growth of the PV installed capacity. We expect that the overall French PV installed capacity could reach up to 200 ${\mathrm{GW}}_p$ in 2050 [20]. The Programmation pluriannuelle de l’énergie (PPE, [21] or multiannual energy planning is the French legislative framework that defines energy consumption and generation goals) aims to reach between 35 and 44 ${\mathrm{GW}}_p$ of PV installed capacity by 2029 [21]. These scenarios and objectives assume a constant deployment rate for small-scale and large PV capacities, meaning that up to 40 ${\mathrm{GW}}_p$ (i.e., two-thirds of the current French nuclear park’s capacity) could be unobserved by 2050 with the current practices. Therefore, improving the observability of small-scale rooftop PV systems (i.e., PV installations with an installed capacity below 36 ${\mathrm{kW}}_p$) is crucial.

2.2. Related Works

2.2.1. Regional PV Power Estimation and Forecast

As depicted in Table 1, in September 2023, 661,241 installations, amounting to 3.7 ${\mathrm{GW}}_p$ (i.e., 22% of the French PV installed capacity at that time), were not observed, meaning that we have neither telemetry nor ex post measurements of their production.

The traditional way of estimating the production of PV power units when telemetry is unavailable is to resort to regional PV-power-modeling approaches. The upscaling approach [22] consists of estimating a capacity factor (i.e., a value between 0 and 1 corresponding to the ratio between the actual electric production over a period and the one that would be produced with the total installed capacity over the same period) based on the PV power production of metered neighboring reference plants and imputing this capacity factor to a set of unmetered plants, for which only the installed capacity is known. Regarding their technical characteristics, the reference plants may not represent the target plants, so interpolation errors arise [23]. To overcome this difficulty, the probabilistic approach [18] proposed using a physical PV system model and solar irradiance data instead of neighboring plants. Indeed, only a few parameters are necessary to estimate the PV power production of a system. However, it is necessary to acquire these parameters. Saint-Drenan [18] showed that in addition to its localization, the tilt and azimuth angles and the nameplate capacity (or installed capacity) of the PV installation are sufficient.

The probabilistic approach can be expanded to all power classes of PV power systems and could, in principle, address the lack of observability of rooftop systems. However, contrary to power plants for which the technical characteristics can be accessible or derived from optimal parameters, the characteristics of the rooftop PV power systems (whose installed capacity is lower than 36 ${\mathrm{KW}}_p$) are generally not available [7] and have no reason to be optimal as they depend on the built environment. Also, reference power measurements from these small installations, which are necessary to validate the PV-power-estimation method’s accuracy, are generally unavailable.

2.2.2. Remote Sensing of Rooftop PV Systems

The lack of knowledge regarding the geographical distribution and the technical characteristics of small-scale PV installations is a recurring problem in many countries [6,7]. We refer the reader to the literature reviews of [15,24,25] for an exhaustive presentation of work on the subject. Early works on the topic focused on building databases containing annotations of installations on orthoimages (orthoimages are aerial or satellite images whose geometry is rectified so that each point can be superimposed on a corresponding planar map; in other words, an orthophotograph appears to be taken at the vertical of all the points it features, with these points being located on perfectly flat terrain) [26] and on assessing the feasibility of a remote-sensing-based method to identify PV systems [6,27]. The authors investigated methods involving manually calculating statistics for each pixel and classifying pixels according to these statistics [27,28,29,30,31] and methods using deep convolutional networks [7,32,33,34,35,36]. The performance of these algorithms is evaluated with the F1 score (the F1 score measures the performance of a binary classifier. A perfect classifier has a score of one. It corresponds to the harmonic mean between a classifier’s precision (correct detections among all detections) and recall (correct detections among all targets)), and comparative studies have shown the superior performance of algorithms using convolutional networks over those based on the manual extraction of image statistics. For example, the method of [27] achieves an F1 score of just 0.6 while [7] exceeds 0.8.

The DeepSolar project [9] marked a significant milestone for mapping small-scale PV installations from orthoimagery. This work relied on deep convolutional networks to detect installations and estimate their surface area. This model was deployed across the United States of America, and the authors reported an error in area estimation of less than 5%, using the MRE, defined as $MRE={\displaystyle \frac{{\sum }_{i=1}^{\#\mathrm{true}\mathrm{positives}}{\mathrm{true}\mathrm{area}}_i-{\mathrm{estimated}\mathrm{area}}_i}{{\sum }_{i=1}^{\#\mathrm{true}\mathrm{positives}}{\mathrm{true}\mathrm{area}}_i}}$. DeepSolar and follow-up implementations have been used to map regions and countries, especially in Europe: Sweden [10,11], France [12], northern Italy [15], the Netherlands [37] and western Germany [38].

The latest works on the topic propose methods to construct registries that record the localization and surface area of the PV systems, as well as their tilt and azimuth angles and their installed capacity. Mayer et al. [13,39] leveraged 3D-building data in addition to orthoimagery to estimate the tilt and azimuth angles of the PV systems located in North Rhine-Westphalia. On the other hand, Kasmi et al. [12] leveraged the small-scale PV registry maintained by the non-profit association Asso BDPV and the Python package PyPVRoof [40] to estimate the tilt and azimuth angle over France, without requiring 3D data.

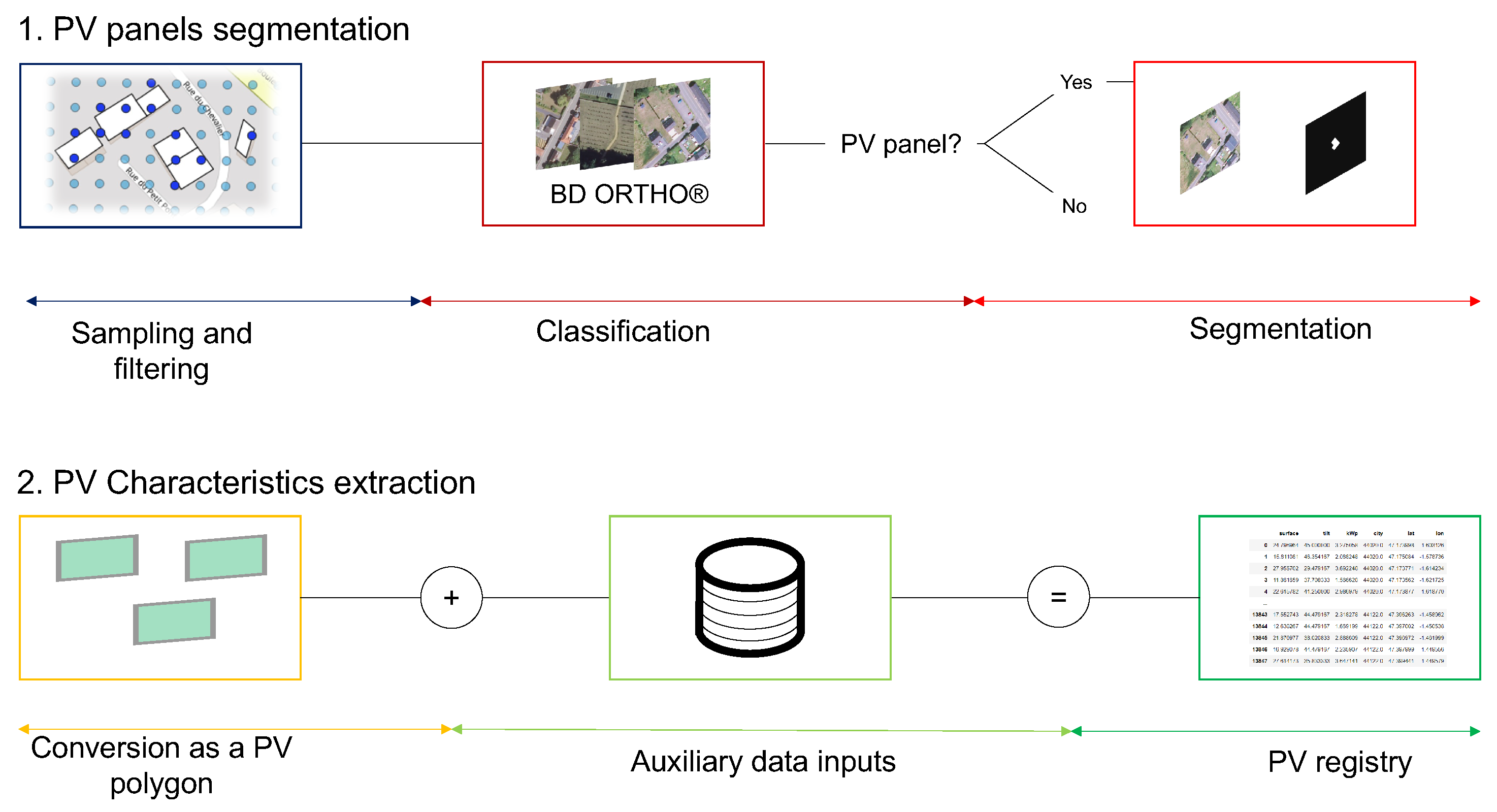

To map PV systems in France, Kasmi et al. [12] leveraged DeepPVMapper [41], a mapping algorithm that improves upon [13] to map and characterize rooftop PV installations. Figure 1 summarizes the workflow of DeepPVMapper. Firstly, geolocated PV installation polygons are extracted from orthoimages using image classification and segmentation models. Second, these polygons and a survey of characteristics of PV installations are used to infer the PV installations’ characteristics (the tilt, azimuth, and installed capacity).

2.2.3. Estimation of the Power Production of Rooftop PV Systems

The registries of rooftop PV systems obtained using Earth observation data and deep learning cannot be directly used to infer the power production of these systems. Indeed, one needs ground-truth power measurements to evaluate the accuracy of the estimation of the PV power production computed using data coming from these registries. Such measurements are not systematically registered, and if they are, they are often kept private for privacy or commercial reasons. Only a few works have had access to individual rooftop PV power curves. For instance, De Hoog et al. [42] used PV system measurements for 740 systems (at a time resolution of 5 min) of businesses and homes in western Australia. Their approach consisted of a spatial polynomial interpolation of the PV power production of measured homes to estimate the PV power production of the unmetered systems, whose locations and sizes were known thanks to PV registries. Saint-Drenan et al. [23] had access to only a few tens of power measurements for systems with an installed capacity lower than 36 ${\mathrm{KW}}_p$.

Perera et al. [43] used Pecan Street’s Dataport [44], which contains measurements at a 1 min resolution for 73 households across the United States of America. Perera et al. [43] focused on forecasting, introduced an ensembling method to forecast the PV power production, and tested their method on the rooftop-PV-power-production forecast. The forecast models included in their ensembling approach are autoregressive models fitted on past power curves.

Finally, Walch et al. [45] leveraged data from IBW, the local utility of Wohlen in Switzerland. This dataset contains PV-power-generation profiles of 15 homes and the PV system’s technical characteristics. They introduced an approach to derive hourly PV generation using the information on the localization and surface area of PV systems.

Walch et al. [45] is the closest work to ours, as their approach does not require prior access to PV power curves for the fitting estimation of forecast models. However, they did not explicitly model the PV systems; they only relied on estimating geographical, physical, and technical potentials, yielding an overestimation of hourly power generation. Our approach shows that by leveraging barely more information on the PV systems, we can accurately estimate the individual rooftop PV power production using proper modeling of the PV systems. Our study also spans a much larger geographic area and leveraged more rooftop PV systems than theirs.

3. Data

3.1. Ground Measurement Data: Individual Rooftop-PV-Yield Time Series

3.1.1. Overview

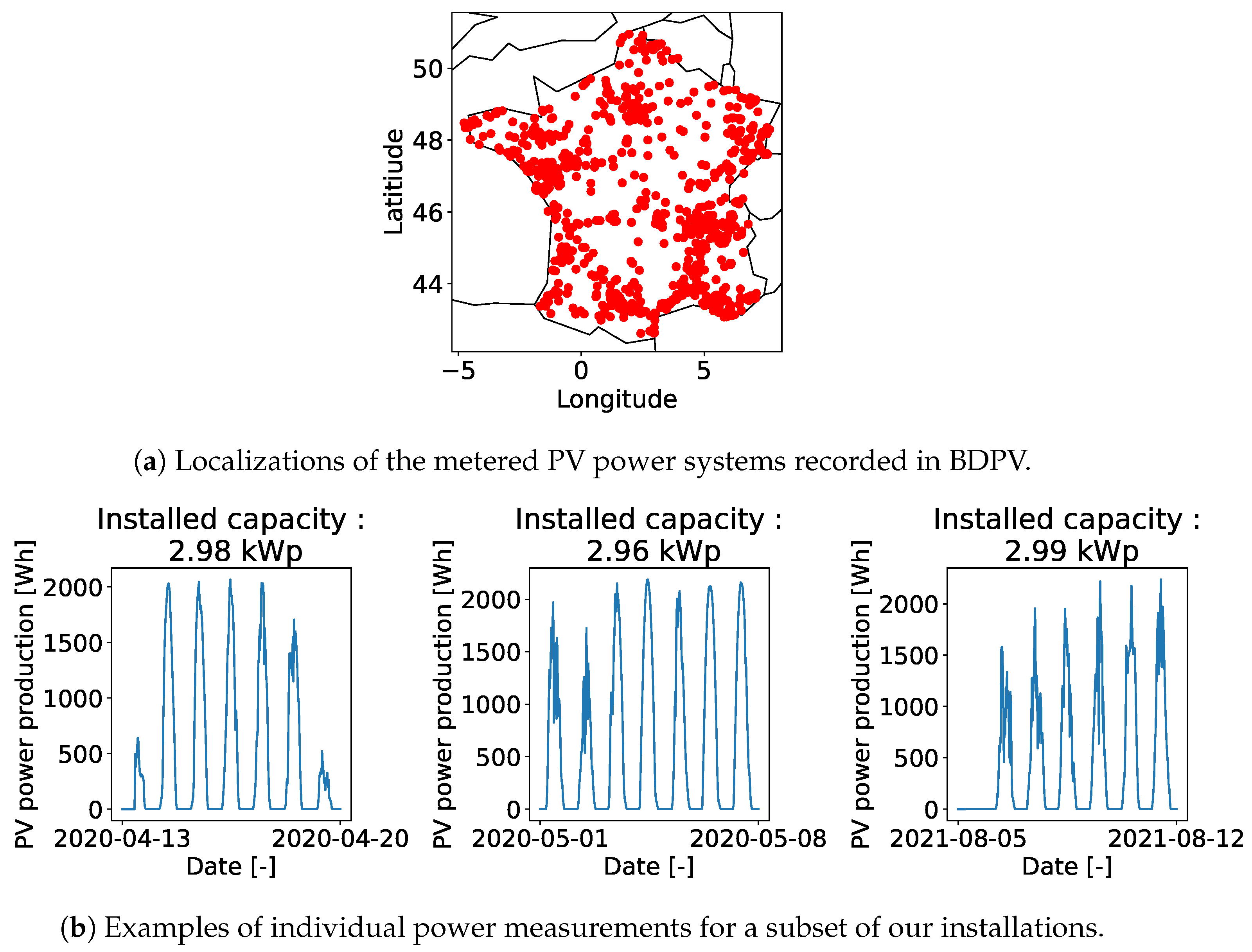

Thanks to the non-profit association Asso BDPV, we had access to the ground-truth PV-power-production measurements of 1793 individual PV systems. These systems correspond to a subset of those featured in the training dataset BDAPPV [46]. These measurements span mainland France and have a time resolution of 30 min.

This means that with these measurements, we have all the necessary information to carry out rooftop PV power estimation, from detecting the installation on aerial images to estimating the accuracy of the power-production estimation. We also know the precise location of the installations, contrary to [42], who relied on postcodes. Figure 2 plots the localization (Figure 2a) of the PV measurements and examples (Figure 2b) of the power-output time series coming from our dataset.

3.1.2. Quality Checks

BDPV enables its users to assess the quality of the production of their PV installation. We refer the reader to [47] for a detailed description. We leveraged this quality assessment report to filter out faulty measurements. In addition to this filtering, we matched the PV-yield time series corresponding to a single installation in the BDAPPV database. Of the 1793 raw installations, 906 passed our quality checks and filters. We refer the reader to Appendix B for examples of production reports leveraged to filter the faulty measurements and to [46] for a description of the matching procedure between the annotations on aerial images and the actual PV systems. An examination of the filtered installation showed that we kept installations spreading over France (see Figure 2a).

On our curated dataset, we have, on average, 27,346 measures per installation, corresponding to an average duration of 569.7 days of observations. The time window spans from 2 December 2020 to 15 February 2023.

3.2. PV Registry

We consider the PV registry generated with DeepPVMapper. At the time of writing, this registry contains more than 100,000 installations. However, in this study, we aim to evaluate the data quality to estimate the rooftop PV power production. Therefore, we focus on detections for which we have ground-truth characteristics. This corresponds to installations coming from BDPV, which are part of the testing dataset of DeepPVMapper. We have 1485 installations in the test set DeepPVMapper, which we intersect with the 904 clean power measurements. We end up with 276 unique installations.

Table 2. Descriptive statistics of the PV system’s characteristics extracted from the PV registry for the systems used in this study.

Variable	Unit	Min	Max	Mean	Median	n
Installed capacity	[${\mathrm{kW}}_p$]	1.29	38.84	3.12	2.68	276
Tilt angle	[°]	11.88	51.63	26.83	26.12	276
Azimuth angle	[°]	−90.00	90.00	4.23	0.00	276

presents some descriptive statistics of the PV registry used in this registry. Note that “ground truth characteristics” refer to the system’s characteristics that were imputed by the owners of the systems registered in the BDPV database.

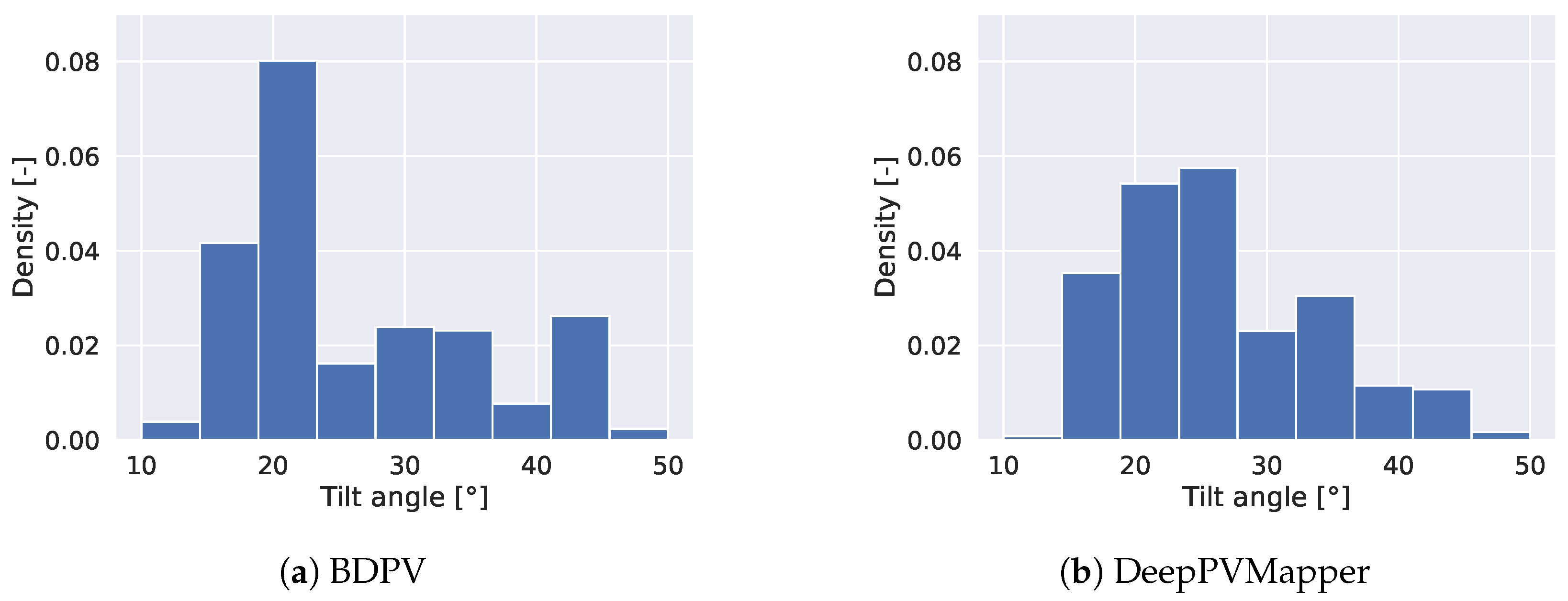

Figure 3 presents the distribution of the tilt angle for these installations, as recorded in BDPV (Figure 3a) and estimated by DeepPVMapper (Figure 3b). We can see that the tilt angle estimation by DeepPVMapper is flatter than the distribution recorded in BDPV. This is because the imputation of the tilt angle by DeepPVMapper is the mean tilt angle around the location of the PV panel.

3.3. Solar Radiation and Temperature Data

3.3.1. Solar Radiation Data

The Copernicus Atmospheric Monitoring Service (CAMS, [48]) solar radiation services provide all-sky historical values (2004 to present) of global (GHI), direct (BHI), and diffuse (DHI) solar irradiation, as well as direct normal irradiation (BNI). The services also provide the coincident clear-sky irradiance components (GHI, DHI, and BNI) for (underlying) clear-sky conditions. Solar radiation is retrieved from the Meteosat Second Generation (MSG) satellite observations (SEVIRI sensor). These clear-sky irradiance estimations are obtained using aerosol, ozone, and water vapor information from the CAMS global forecasting system. The database covers the Field of View of Meteosat ranging from −65° to 65° in the north–south and east–west directions, comprising metropolitan France with a nadir (directly below the satellite) spatial resolution of 3 km and a temporal resolution of 15 min. In the following, we consider the 30 min averaged values for a time interval between 2020 and 2023. The spatial location of the irradiance values encompasses the pointwise location, which is estimated by DeepPVMapper.

3.3.2. Temperature Data

We extract the 2 m air temperature data from ERA5 [49], the fifth reanalysis of the European Centre for Medium-Range Weather Forecasts (ECMWFs), provided via the Copernicus Climate Change Services (C3S). We only use the 2 m air temperature for a single latitude and longitude point and at a temporal resolution of 1 h (linearly interpolated to obtain a temperature value every 30 min).

4. Methods

Our method for estimating rooftop PV power production at the individual installation level relies on the registry, solar irradiation, and air temperature data introduced in Section 3.2 and Section 3.3. The PV system’s characteristics and the weather data are inputs to a conversion model introduced in Section 4.1, which returns an estimation of the DC power production of the PV system.

In Section 4.2, we present our methodology to assess the accuracy of these estimations of the PV power production compared to the ground-truth measurements (introduced in Section 3.1).

4.1. Physically Based Solar-Irradiation-to-Electric-Power Conversion Model

4.1.1. Model Choice

We use the conversion model PV Watts [19]. PV Watts considers a limited set of parameters, as displayed in

Table 3. Set of minimal PV system characteristics for the conversion model. Parameters that we input are bolded, and advanced parameters are in italics. Taken from [19].

Field	Unit	Default Value
System size	kW	4
Module type	{standard, premium, thin film}	Standard
System losses	%	14
Array type	{Fixed open rack, fixed roof mount,	Fixed open rack
	1 axis, backtracked 1 axis, 2 axis}	Fixed open rack
Tilt angle	degrees	Site latitude
Azimuth angle	degrees	180° (Northern Hemisphere),
		0° (Southern Hemisphere)
DC/AC ratio	ratio	1.1
Inverter efficiency	%	96
Ground coverage ratio (1 axis only)	fraction	0.4

. In this study, we considered [19] because it is one of the simplest models from the literature. Remote-sensing-based registries contain little data on the individual PV systems compared to the standards for PV power simulation, so we picked a simple conversion model, which requires very limited information about PV installations.

4.1.2. Formalization

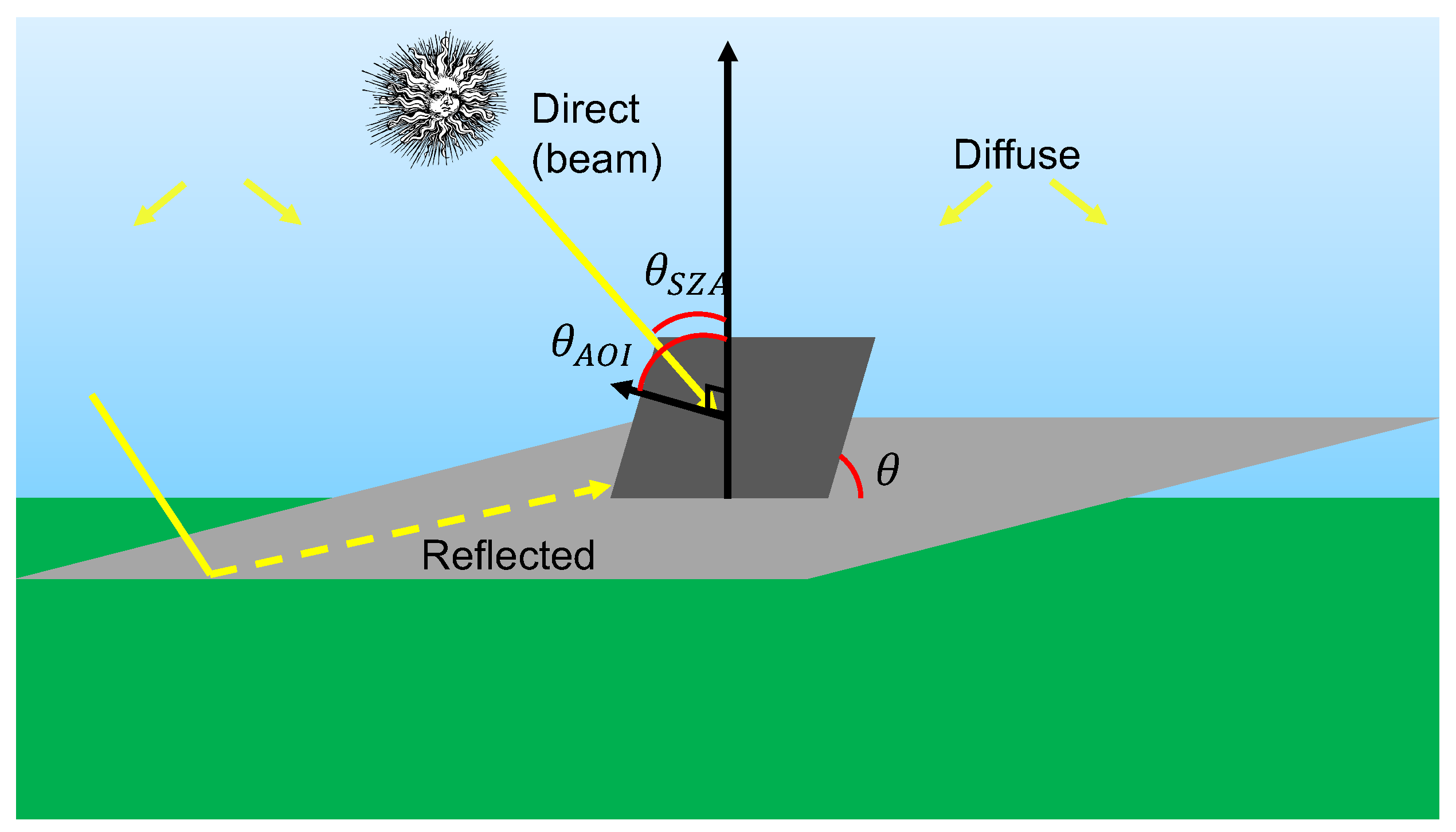

PV Watts takes as input the effective plane-of-array (POA) irradiance $PO{A}_{eff,t}$ and the module temperature $T_{module,t}$ and returns the DC power $p_{PV,t}$ of the module for a given time t. The effective POA irradiance corresponds to the POA irradiance, taking into account the optical losses of the module. These losses are accounted for following the method of [50,51,52]. The computation of the POA irradiance requires knowing the module’s tilt and azimuth angle. We refer the reader to Appendix A for more details on the computation of the POA irradiance, the module temperature, and the effective POA irradiance. Equation (1) summarizes the conversion model:

$$p_{PV,t}={\displaystyle \frac{PO{A}_{eff}\left(\theta ,\varphi \right)}{G_{stc}}}\times P_{PV}\times \left(1+{\gamma }_{pdc}\left(T_{module,t}-T_{stc}\right)\right),$$

(1)

where $PO{A}_{eff}\left(\theta ,\varphi \right)$ is a function of the tilt angle $\theta$ and the azimuth angle $\varphi$ of the installation, $P_{PV}$ is the installation’s installed capacity, and ${\gamma }_{pdc}$ is an efficiency factor that reflects the decrease in the module’s performance with the temperature $T_{module,t}$. $T_{stc}$ corresponds to the temperature under the standard test conditions and is set to 25 °C, and ${\gamma }_{pdc}$ is set to −0.002 K⁻¹. $G_{stc}$ denotes the irradiance under standard test conditions (STCs) and is equal to 1000 W.m⁻².

4.2. Evaluation Criteria

4.2.1. Evaluation Metrics

Quantitative Metrics

Throughout our study, we evaluated the rooftop-PV-power-yield-estimation accuracy using the root mean squared error (RMSE) and the percentage RMSE (pRMSE). We define the RMSE as

$$RMSE=\sqrt{{\displaystyle \frac{1}{n}}\sum _{i=1}^n\left({\widehat{y}}_i-y\right)},$$

(2)

where ${\widehat{y}}_i$ is the estimated target value (e.g., PV power production in W), $y_i$ is the true value, and n is the number of temporal samples. Additionally, we define the pRMSE as

$$pRMS{E}_j={\displaystyle \frac{RMS{E}_j}{p_{PV,j}}}\times 100,$$

(3)

where j is the index of the PV system that we consider. In other words, the pRMSE is the RMSE normalized by the installed capacity. The pRMSE also corresponds to the normalized RMSE (nRMSE). We recall that we do not evaluate the accuracy of the weather data or the accuracy of the rooftop PV mapping model. For the latter, we refer the reader to [12].

Spatio-Temporal Analysis of the Error

In addition to the quantitative evaluation, we qualitatively analyze the behavior of our PV-power-estimation model depending on the time of the day, the moment of the year, and the localization of the PV system.

Regarding the temporal analysis, we define time-of-the-day (TOD) timesteps or indices. TOD timesteps correspond to a 30 min interval. The TOD timestep 0 corresponds to the time interval between 0h00 and 0h29, the timestep 1 corresponds to the time interval between 0h30 and 0h59, and the TOD timestep 47 to the time interval between 23h30 and 23h59. For each TOD timestep and each installation, we compute the pRMSE of the PV power estimation. We end up with a sample of errors for each TOD timestep, enabling us to compute relevant statistics (the mean, median, and interquartile ranges) regarding the evolution of the error in time. To measure the seasonality of the error, we filter the dates to keep only the winter and summer months. The summer months correspond to the months from June to September, and the winter months from December to March (4 months each).

4.2.2. Assessment of the Accuracy and Scalability of Our Proposed Approach

Comparison with the Oracle

The conversion model requires imputing a tilt and an azimuth angle and the installed capacity of the PV system. The conversion model is intended to work with parameters obtained from DeepPVMapper, and we refer to the conversion model parameterized with the system’s characteristics with these estimations as DeepPVMapper. Since we know the true tilt and azimuth angles from the BDPV database, we can compute an Oracle estimation, which reflects the best possible estimation that can be obtained given the conversion model and the weather data.

This comparison with the Oracle aims at assessing the accuracy of the estimation of the PV power production using parameters obtained using DeepPVMapper compared to the best possible accuracy that is possible to attain with our conversion model and the weather data that we chose for this study, and which we considered as given.

Assessment of the Scalability: Behavior of the Error at the Aggregated Level

Our methodology estimates the PV power production at the individual installation level. In practice, the TSOs face hundreds of thousands of such systems. Therefore, evaluating how the estimation error behaves as the number of systems included in the study increases is necessary.

Our primary concern is that DeepPVMapper estimates the parameters of the PV system with a systematic bias (e.g., systematically underestimating the tilt angle or slightly shifting the azimuth angle). Should such cases occur, the estimation error at the aggregated level would no longer decrease with the number of installations as the error terms at the individual installation level would no longer be independent [23]. When considering the “bias”, we focus on biases that could occur when aggregating the estimations, not biases at the individual installation level.

The sources of error identified and discussed by [23] are the irradiation variability and the variability in plant characteristics. Relying on an estimation of the plant’s characteristics adds an additional source of variability: the variability in the characterization error of the PV plants. This source of error should also be independent or negligible compared to the other (independent) sources of error if one wants the RMSE to converge toward the population mean.

We empirically evaluate the behavior of the estimation error as the sample size increases by including an increasing number of installations in our sample and computing the error at the aggregated rather than individual installation level. We compare the behavior of the error with the PV system’s parameters estimated with DeepPVMapper and the behavior of the error of the Oracle.

5. Results

5.1. Our Approach Accurately Estimates the PV Power Production

Our main result, depicted in

Table 4. RMSE [W] and pRMSE [%] (in parentheses) of the estimation of the rooftop PV power production using PV system parameters estimated by DeepPVMapper. The Oracle indicates the best performance attainable given our conversion model and weather data. n indicates the number of installations included in the sample. This number differs from that in Table 2 as we discarded installations for which we could not compute the error.

Case	Min	Max	Mean	Median	n
Oracle	114.61	2137.82	281.53	223.06	255
	(3.90)	(26.49)	(8.36)	(7.66)
DeepPVMapper	119.56	3001.42	332.57	245.33	255
	(4.15)	(43.39)	(10.10)	(8.18)

, is that it is possible to improve rooftop PV observability by deriving rooftop PV power measurements at the installation scale using a simple conversion model, solar irradiance data, and limited information on the PV system. The estimation error, measured by the pRMSE, is about 10%. This approach does not require access to ground-truth PV power measurements and can be used as a first guess to construct or reconstruct rooftop PV power measurements. In Appendix C,

Table A1. Bias estimation metrics of the proposed estimation method for the parameterizations with the ground-truth parameters (“Oracle”) and the parameterization with the parameters estimated with DeepPVMapper (“DeepPVMapper”).

Case	Mean Bias Deviation	Mean Absolute Error	Mean Percentage Error	Mean Absolute Percentage Error
	[W]	[W]	[%]	[%]
Oracle	−73.64	137.03	−2.23	4.07
	−60.07	106.72	−2.02	3.67
DeepPVMapper	−26.39	158.72	−1.44	4.81
	−11.92	116.88	−0.43	4.04

, we analyze the biases of our method and show that it exhibits a slight upward bias (in absolute terms) regarding the estimation of the PV power production.

5.2. Analysis of the Estimation Error

5.2.1. Temporal Trends

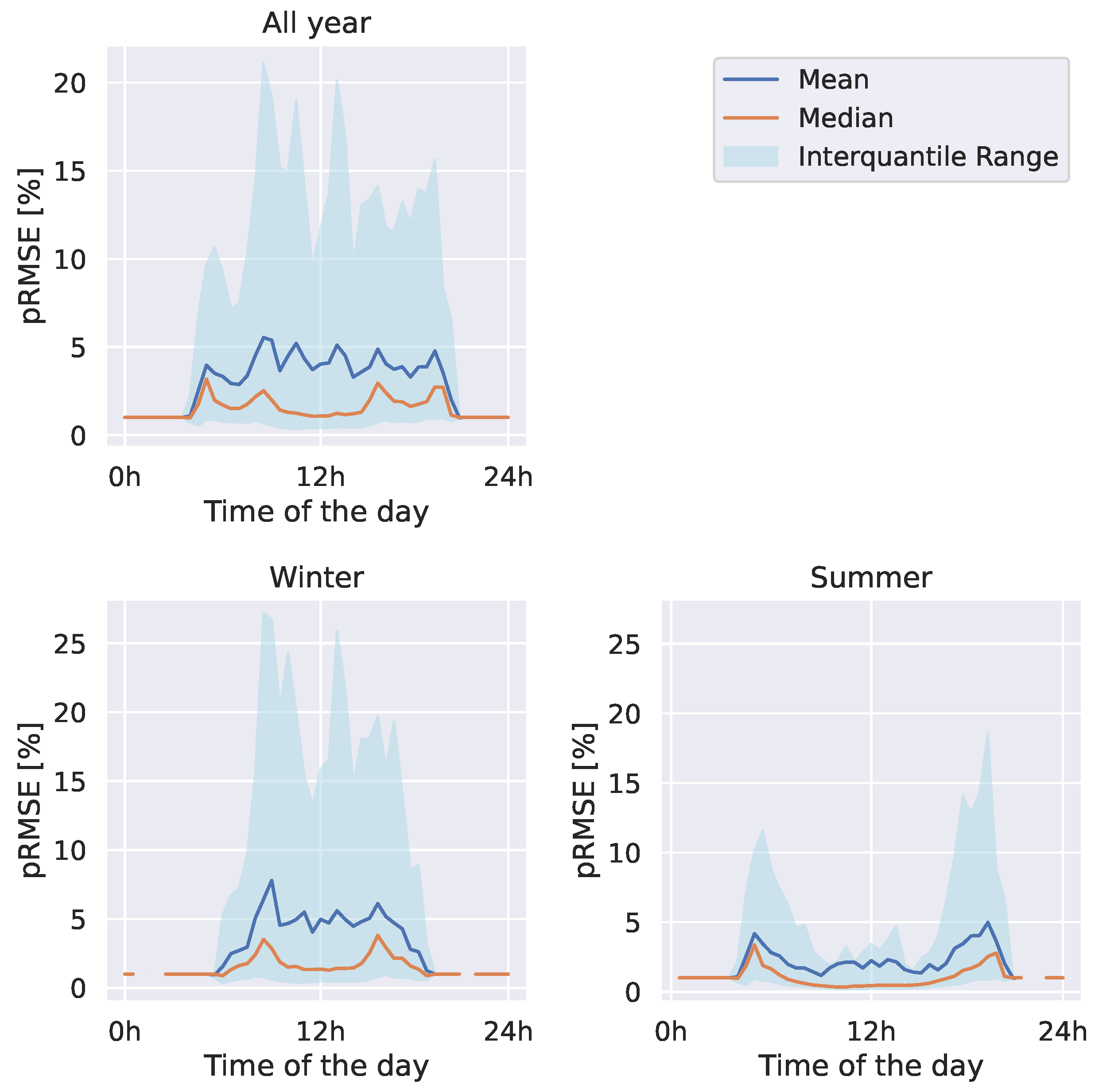

Figure 4 presents the analysis of the temporal variability in the error. The blue curve corresponds to the average error across the systems and estimations, and the orange curve corresponds to the median error. We also plot the interquartile ranges in light blue to highlight the dispersion of the errors as a function of the TOD timestep. In Appendix D, Figure A7, we show that the results are qualitatively the same (with a lower error) when the conversion model is parameterized with the ground-truth parameters.

On the “all year” chart, we only filter dates according to their hour of the day. We can see that the error is null during the night and increases to reach a peak during the day. The bottom charts show that the error variability is larger during the winter and is high throughout the day. On the other hand, during the summer, the error variability is high at dawn and dusk but decreases around noon. The higher uncertainty in the accuracy of our model during winter and summer dawn and dusk may be attributable to the fact that we do not take shadings into account. Indeed, Walch et al. [53] reported a similar behavior with their model, which did not consider shadings. Another possible explanation is that our model neglects the self-consumption of power inverters and the behavior of the modules with low solar irradiance and a high incidence angle. Finally, in the winter, the higher uncertainty could also be caused by the greater difficulty in estimating the GHI [54]. In Appendix D, we further investigate the effect of the parameters on the temporal decomposition of the estimation error.

5.2.2. Spatial Trends

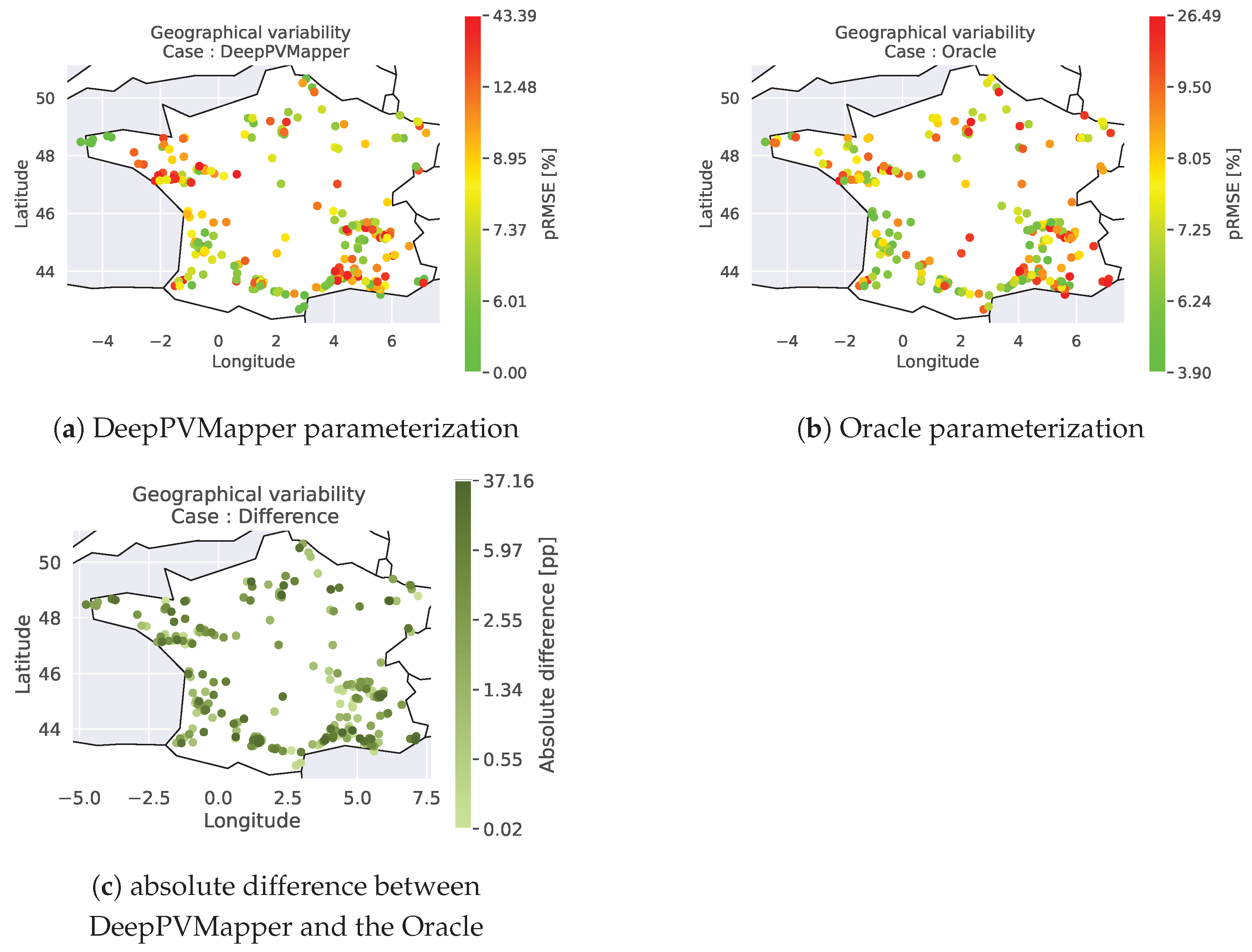

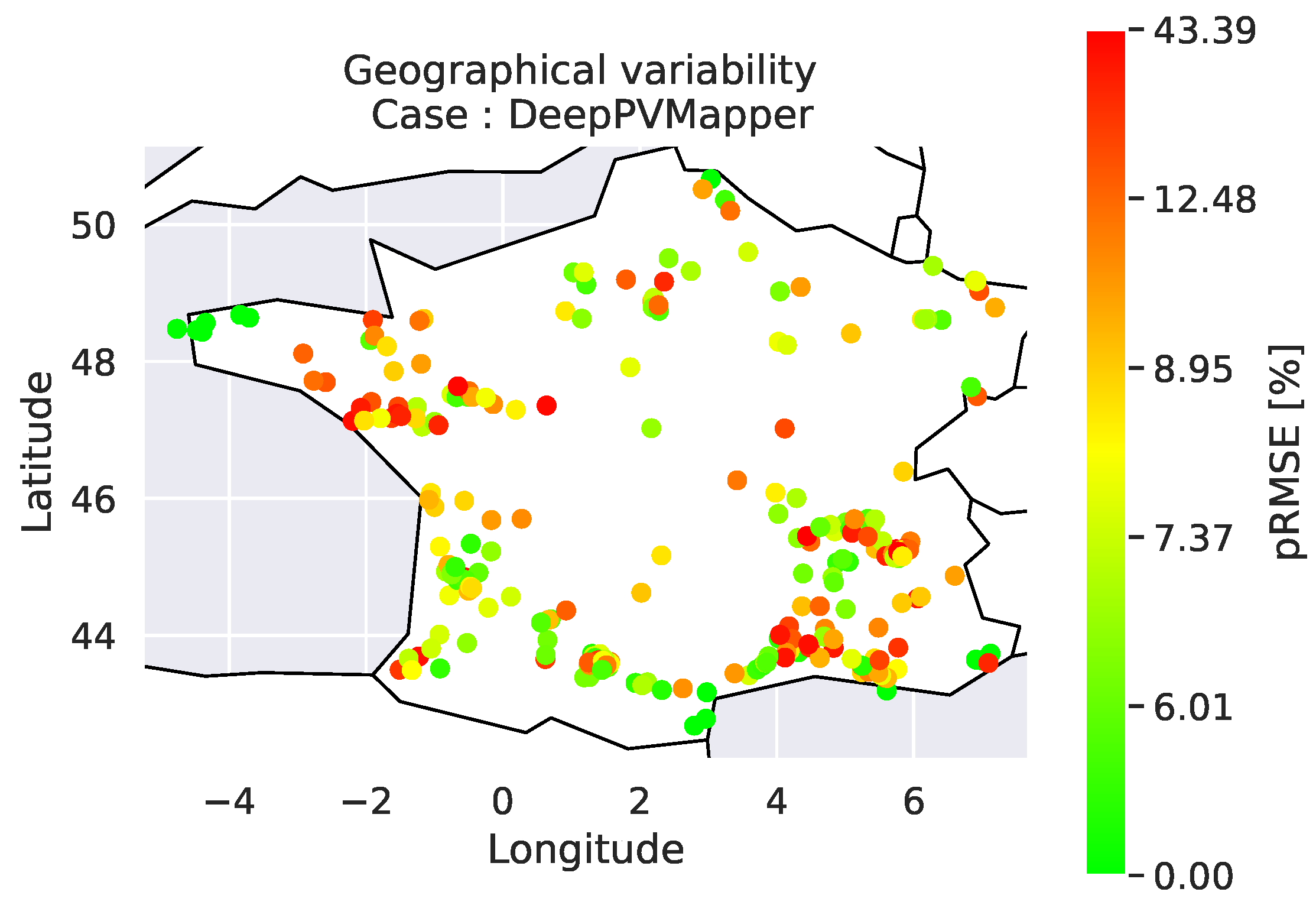

In Figure 5, we investigate the geographical variability in the estimation error with the conversion model with the parameters obtained from DeepPVMapper. We find geographical clusters with larger estimation errors in France’s southeast and the northwest. This could be caused by the fact that the southeast of France is more hilly than western France, so shadings may be more critical. In Appendix E, we compare the geographical distribution of the error with the Oracle parameterization and investigate the difference between the two, showing no evidence of systematic biases in the geographical distribution of the error of DeepPVMapper compared to the Oracle, reinforcing the conclusion that the geographical distribution of the error is mainly due to errors in the estimation of the GHI.

5.3. Scalability of the Proposed Approach

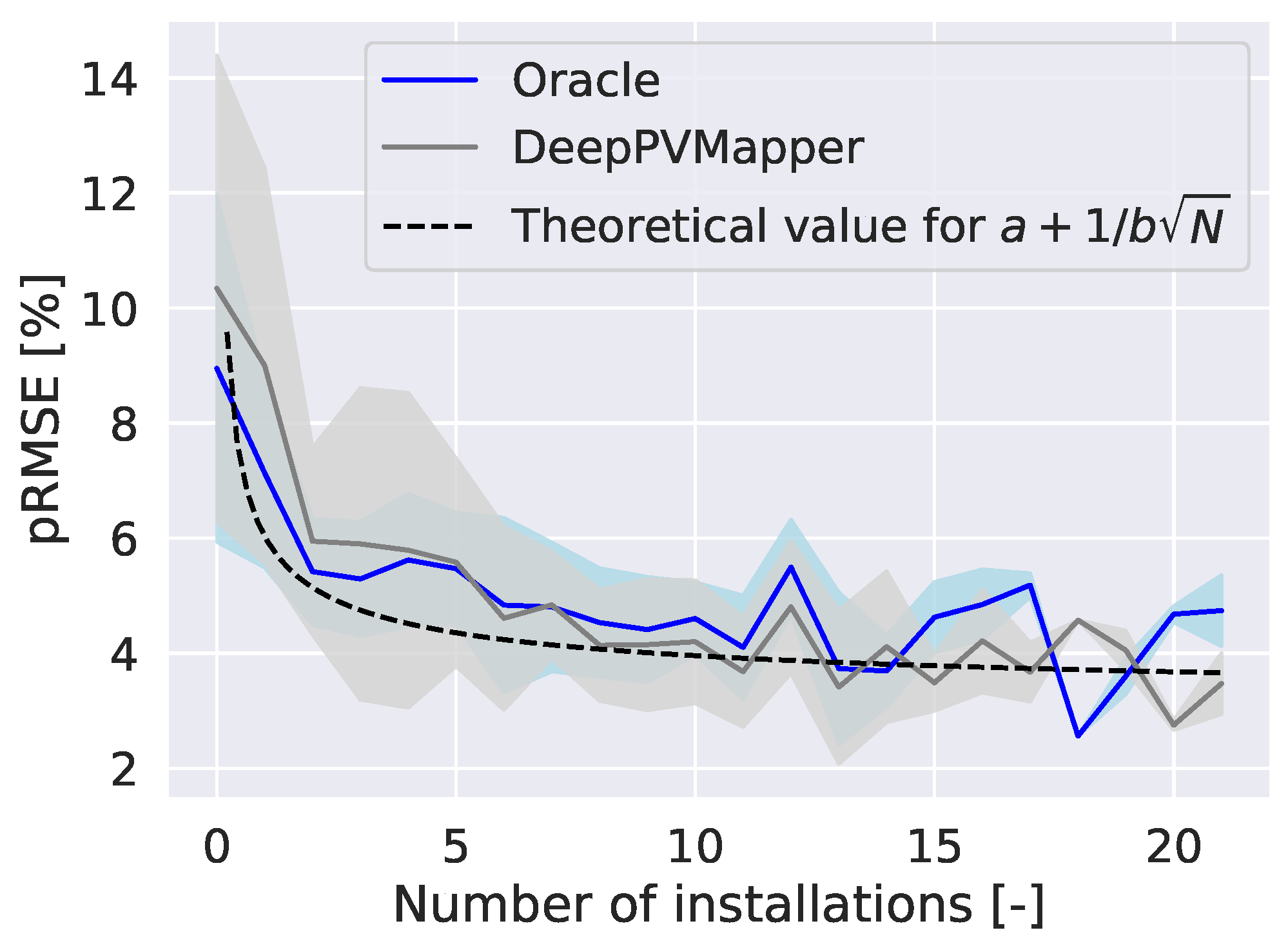

Figure 6 shows the evolution of the estimation error as the number of considered installations increases. We can see that the error behavior when we input the PV system’s parameters from DeepPVMapper follows the same trend as that of the Oracle. We recall that the Oracle estimates PV power production using the parameters supplied by BDPV (i.e., the ground-truth parameters on the PV system).

Figure 6 shows that our approach does not suffer from blatant biases that could threaten its ability to scale to thousands of systems.

6. Conclusions and Discussion

6.1. Conclusions

Transmission system operators (TSOs) lack accurate power measurements stemming from small-scale (less than or equal to 36 ${\mathrm{kW}}_p$) photovoltaic (PV) installations. In France, these installations represent 94% of the connected installations and 22% of the installed capacity. In the context of the sustained growth of the overall installed capacity, ensuring the safe and optimal integration of rooftop PV installations into the grid is crucial to address the poor rooftop PV observability.

This work discusses whether rooftop PV observability can be improved by estimating the PV power production of rooftop PV systems at the individual scale using a physical-based conversion model, solar irradiance data, and rooftop PV characteristics estimated using remote-sensing-based techniques. This method is interesting as it requires little information on the PV systems, and information on small-scale PV systems is often scarce.

Using ground-truth power measurements of individual PV systems located over France, we show that we can derive accurate estimations of the PV power production at the individual level with this method.

We leverage a novel database of ground-truth PV power measurements to demonstrate that PV registry data can be efficiently combined with solar irradiance and temperature data through off-the-shelf conversion models to estimate the rooftop PV power production accurately. Our work shows that we can derive accurate estimations knowing only the PV system’s localization and installed capacity, reaching an estimation error (measured by the pRMSE) of about 10% of the nameplate capacity.

6.2. Limitations and Future Works

The main limitation of our work is that we could not analyze the behavior of our approach when aggregating hundreds of systems. Our analyses were limited to a few dozen systems. Therefore, we cannot correctly compare our approach with the TSO’s existing methods for estimating rooftop PV power production. As we lacked ground-truth measurements to carry out such comparisons, we needed to either gather more data or make assumptions about constructing a PV-power-production reference.

More broadly, our framework focuses on the estimation of PV power curves at the individual installation level. Therefore, we do not consider the discrepancy between the estimated installed capacity and the actual installed capacity, resulting from detection errors of the algorithm used to construct the remote-sensing-based registry.

Future works should further discuss the comparisons with the TSO’s current practice for estimating PV power production, both at the individual installation level and at the aggregated level. Additionally, the benefits of more advanced conversion models could be discussed, e.g., considering shadings. Finally, we are gathering data from more systems to extend the significance of our results.
