Toward Improved Urban Building Energy Modeling Using a Place-Based Approach
Abstract
:1. Introduction
2. Literature Review
- -
- -
- Process-driven tools: based on process-driven models [21] with EnergyPlus as a simulation engine (e.g., CityBES, UMI, and UrbanOPT) or using other dynamic simulation engines (e.g., CitySim and SEMANCO);
- -
- -
- Integrated platforms optimize energy consumption models with RES simulation tools [27] (e.g., SynCity, Epic-hub, EnerGIS, and LEAP).
3. Knowledge Gap and Objectives

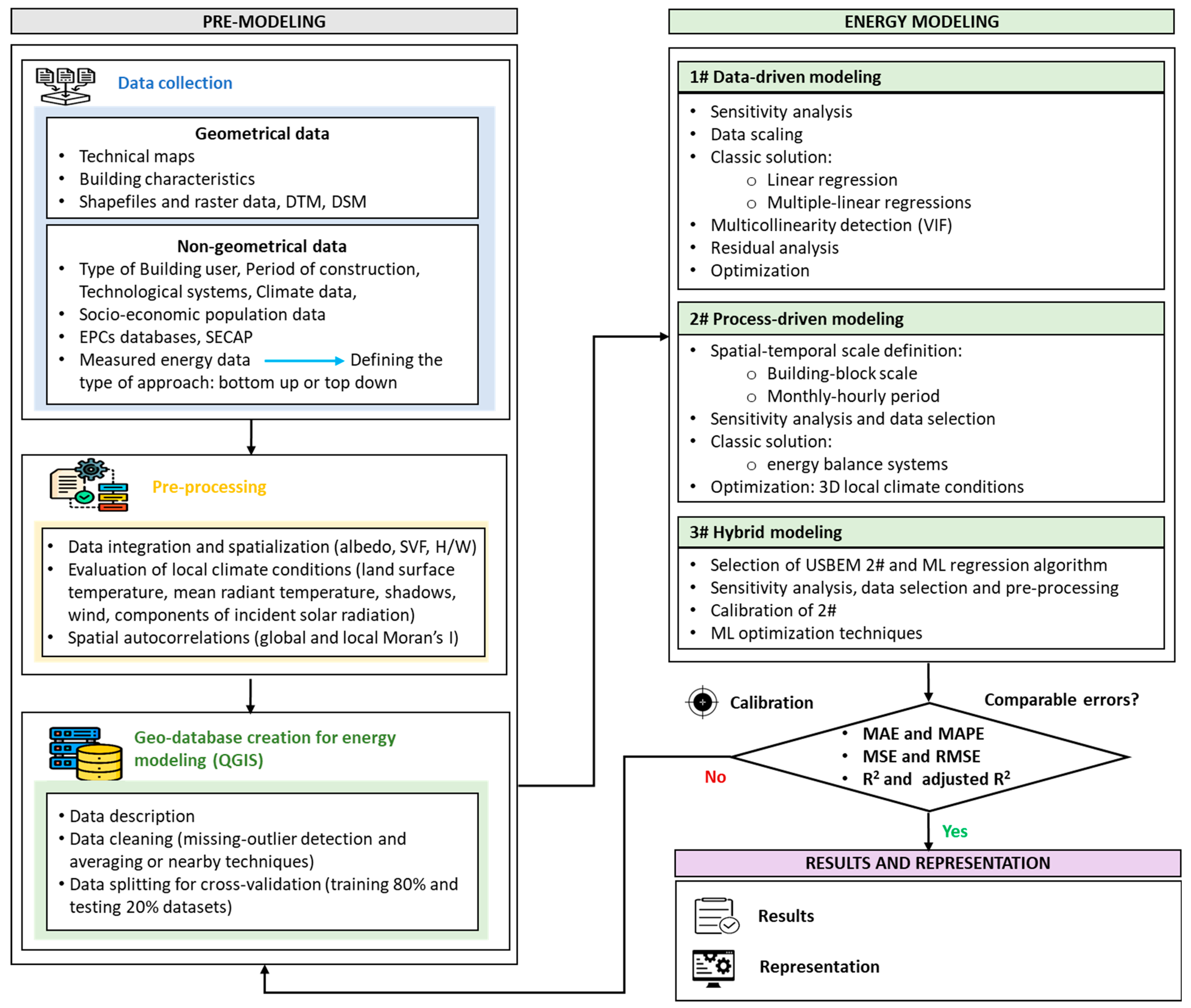

4. Place-Based Urban Building Energy Modeling
- Pre-modeling with:
- -
- Data collection: the collection of input data/geo-databases and geo-localization of urban environment data.
- -
- Pre-processing phase: correction, integration, and spatialization of databases and evaluation of spatial correlations and local climate conditions.
- -
- Geo-database creation: the creation of a complete and accurate geo-database for energy modeling;
- Energy modeling with: USBEM using a place-based approach: application of the place-based approach to data-driven, process-driven, and hybrid modeling;
- Calibration: error evaluation and adjustments to input data to minimize errors between the data measured and calculated by the model, making the model more robust.
4.1. Pre-modeling
4.1.1. Data Collection
- National Geoportal [38];
- ISPRA (Institute for Environmental Protection and Research, Department for the Geological Service of Italy) [39];
- National Territorial Data: [40].
- The official portal for European data [41];
- INfrastructure for SPatial Information (INSPIRE) Geoportal [42];
- European Centre for Disease Prevention and Control [43].
4.1.2. Preprocessing Phase
- -
- acquisition of additional information by utilizing the QGIS tool and plugins; for input data, the geo-localization consents to enrich the set of information even if it uses different scales and accuracies. Moreover, the spatial representation of the data consents to visualizing the superimposition of the data, investigating more aspects;
- -
- allowing a qualitative assessment of the spatial relationships between nearby geometries and features through the calculation of the statistics and indicators that describe spatial autocorrelations (e.g., global and local Moran’s I index). The use of an adjacency matrix and spatial-temporal weights can help calibrate the model by adjusting the energy-related variables, leading to a better explanation of the spatialized results.
4.1.3. Creation of Geo-Database for Energy Modeling
- -
- Data description: an exploratory study of the dataset using basic statistical calculations (e.g., count, null values, mean, standard deviation, etc.) to describe data distribution (e.g., normal or gamma distribution) and data type (e.g., integer, categorical, etc.);
- -
- Data cleaning: detecting and handling missing and outlier values using different methods based on the nature of the dataset (i.e., averaging or nearby techniques);
- -
- Data splitting for cross-validation: the database is split into two datasets, namely training and testing data, to train and test the models. This allows for the generalization and strengthening of the energy modeling [50].
4.2. Energy Modeling

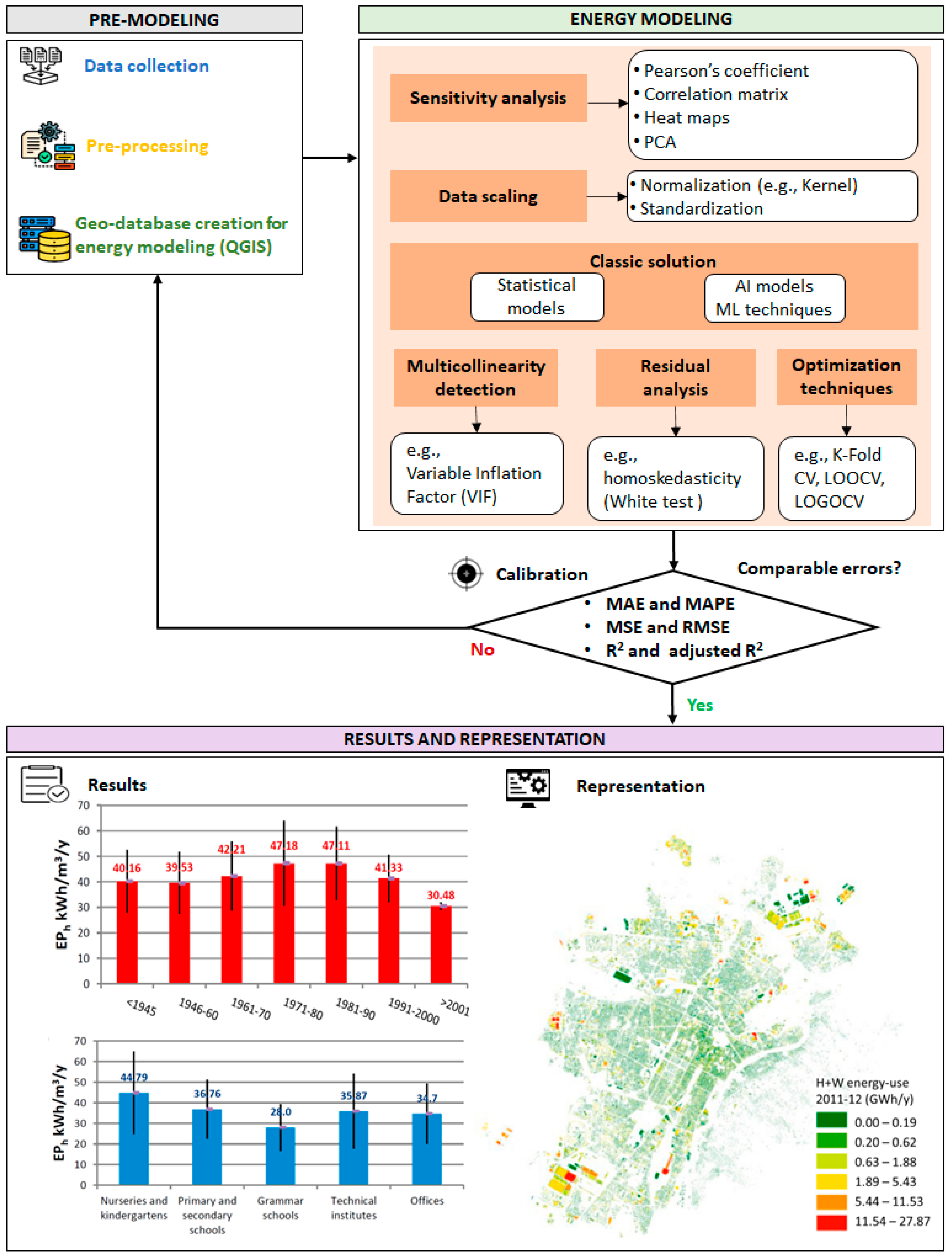

4.2.1. Data-Driven Models
- -
- Sensitivity analysis: this helps to identify the most influential variables on energy consumption. Univariate and multivariate analyses are the most common techniques to investigate the relationship between one or more variables with the outcome; they can be performed by using Pearson’s coefficient, correlation matrices, or heat maps (principal component analysis). For large geo-databases, principal component analysis (PCA) is widely used [18];
- -
- Data scaling: this includes normalization and standardization techniques. The normalization process measures the similarity of two datasets (e.g., Kernel function) and consists of scaling individual samples from 0 to 1; the standardization of datasets is required mainly by ML estimators and when variables have a normal distribution;
- -
- Classic solutions: these include linear regression (LR), multiple linear regression (MLR), or logarithmic regression models. More accurate models can be implemented: polynomial regression (PR), support vector machine (SVM), random forest (RF), decision tree (DT), artificial neural network (ANN), Gaussian process (GP), and gradient-boosted regression trees (GBRT). For the general regression problems in the energy sector, RF, GBRT, ANN, SVM, and GP are the most used models [56,57];
- -
- Multicollinearity detection: this enables the user to test the independence between energy-related variables; the most common technique is VIF (variable inflation factors);
- -
- Residual analysis or homoscedasticity: this concerns the homogeneous variance of the residuals; the variance in the errors should not depend on the variables (e.g., White test).

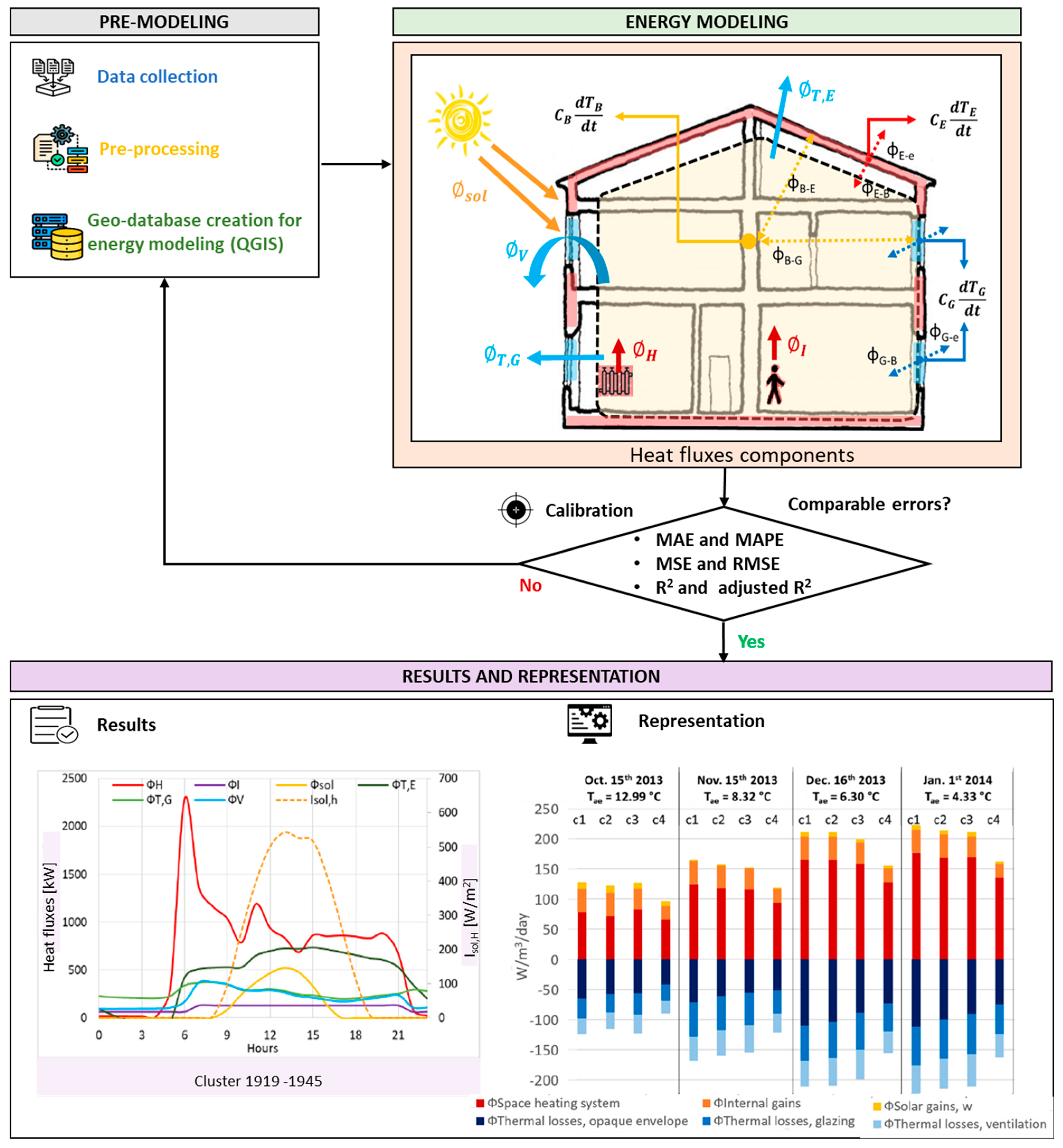

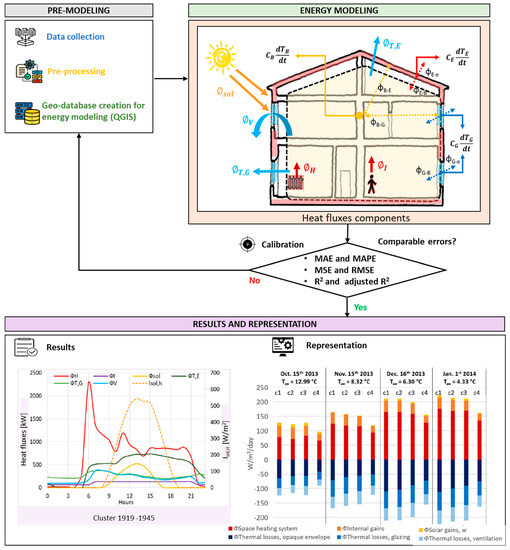

4.2.2. Process-Driven Models
- -
- Spatial-temporal scale definition: this enables the definition of an energy balance system. It is necessary to describe the thermodynamic system and the spatial-temporal scale on which the energy balance equations will be applied (e.g., spatial boundary and temporal period); the spatial boundary of the thermodynamic system could occur at various scales; generally, it is applied at the building scale, and then the results are aggregated at the district and urban scales;
- -
- Sensitivity analysis and data selection: these include the choice of variables and typical data useful for describing the energy balances between heated/cooled built spaces and the outside environment. These data describe the whole characteristics of urban environments considering the operational indoor conditions according to thermal comfort, air quality, and lighting requirements.
- -
- Three-dimensional local climate conditions evaluation: this concerns the definition of a detailed climate database considering the measured data survey. For models using a place-based approach, the evaluation of local climate conditions is required for a three-dimensional environment for an accurate description of the main climate-driven variables in the energy balance equations; research is in progress to develop QGIS plugin tools [56];
- -
- Classic solution: this is represented by an energy balance system that has the aim of evaluating the energy consumption of buildings for different services [52,58]. The energy balance system takes into account various equations for each energy service and their interplay, which is in line with the prevailing standards for assessing building energy performance. Usually, to calculate the energy demand for space heating and cooling, three equations based on an iterative procedure between three thermodynamic systems (TSs) are used (in Figure 3): the opaque envelope, the glazing components, and the indoor building spaces, which include internal partitions, horizontal structures, air, the occupants, and the furniture [56]. Typically, the energy demand for hot water production and electrical use is also incorporated into the energy balance system.

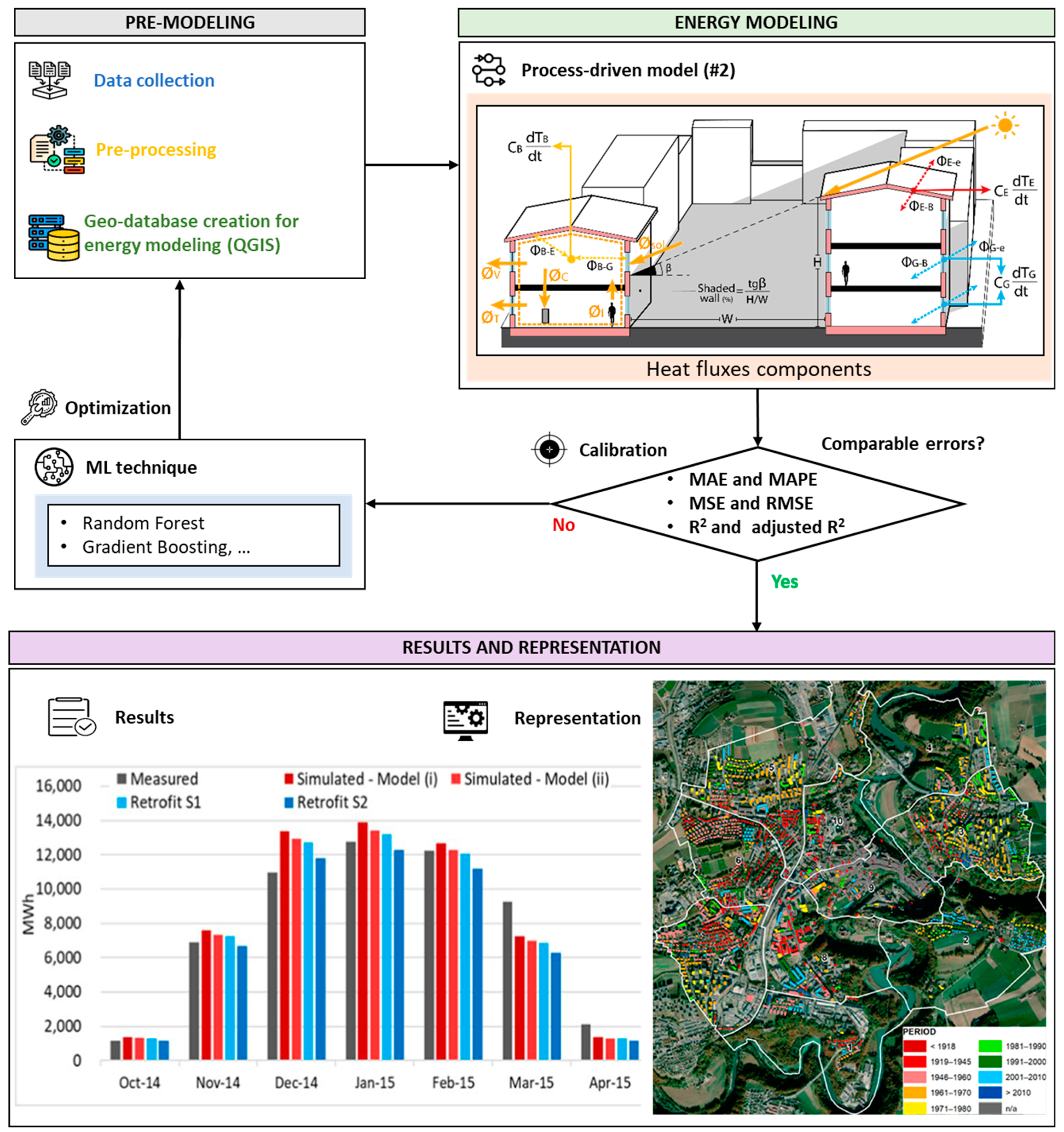

4.2.3. Hybrid Models
- -
- Selection of process-driven model;
- -
- The use of an ML algorithm can improve the accuracy of the results with the optimized use of the energy-related variables and constant data in the energy balance. Some of the most used ML algorithms are RF, GBRT, ANN, SVM, and GP [56,57]. The identification of their hyperparameters entails an overall good balance between modeling performance and accuracy and simulation time.
4.2.4. Calibration
- -
- Mean absolute error (MAE) and mean absolute percentage error (MAPE): these are calculated by the mean value of absolute error or the mean percentage of the absolute error;
- -
- Mean square error (MSE) and root mean square error (RMSE): mean square error is the ratio between the sum of the square error and the number of data (the deviation between the predicted result and the actual value, i.e., the variance). Its square root allows for the evaluation of the standard deviation;
- -
- R square and adjusted R square: R square is calculated via the ratio between the mean square error and the total mean square error (it varies between 0 and 1, a bigger value indicates a better fit); adjusted R square considers the number of independent variables used.
5. Conclusions and Remarks
