# How Applicable Are Turbulence Assumptions Used in the Tidal Energy Industry?

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Review of Models

#### 2.1. Frequency

#### 2.1.1. Turbulence Spectrum

#### 2.1.2. Spatial Coherence

#### 2.1.3. Length Scales

#### 2.1.4. Mean Velocity Profile

#### 2.1.5. Turbulence Intensity

## 3. Literature Review

## 4. Methods

#### 4.1. Measurements

#### 4.2. Data Analysis

#### 4.2.1. Turbulence Spectrum

`pwelch`was used to compute the discrete Fourier transform of each 10-min time series using a fast Fourier transform (fft) algorithm. It allows specification for window size, type and overlap. By default, the time series is divided into the longest possible segments to obtain as close to, but not exceeding, eight segments, with 50% overlap, using a Hamming window. The modified periodograms are averaged to obtain the power spectral density (PSD) estimate. The default number of discrete Fourier transform (DFT) points is the greater of 256 or the next power of 2 greater than the length of the segments. In the PSD format, the area under the spectrum curve represents the variance for the data record.

#### 4.2.2. Coherence

`mscohere`to calculate coherence for each beam. This function finds the magnitude-squared coherence estimate for two input signals. ADCP’s do not provide a direct measurement of the streamwise velocity component, so we applied the coordinate transform to instantaneous beam velocities to obtain the streamwise component (making the assumption of homogeneity across the beam spread). These values were then used in the coherence calculation. Due to the uncertainty relating to the homogeneity assumption, we also calculated coherence using the raw beam velocities for comparison.

#### 4.2.3. Length Scales

#### 4.2.4. Shear Profile

#### 4.2.5. Turbulence Intensity

#### 4.2.6. ADCP Alignment Error

## 5. Results

#### 5.1. Length Scales

#### 5.2. Turbulence Spectrum

#### 5.3. Coherence

#### 5.4. Shear Profile

#### 5.5. Turbulence Intensity Profiles

## 6. Discussion

#### 6.1. Frequency Parameters (Spectrum and Coherence)

#### 6.2. Scaling Parameters (Mean Velocity and Standard Deviation Profiles)

#### 6.3. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

#### Appendix A.1. Derivation of ADCP Misalignment Error

## References

- Frost, C. Cost Reduction Pathway of Tidal Stream Energy in the UK and France. Available online: https://ore.catapult.org.uk/?orecatapultreports=cost-reduction-pathway-of-tidal-stream-energy-in-the-uk-and-france (accessed on 12 February 2023).
- Marine Renewables Canada, Tidal Energy Facts. Available online: https://marinerenewables.ca/facts/tidal-energy/ (accessed on 12 February 2023).
- West, C. Contracts for Difference Allocation Round 4 Results. The Department for Business, Energy and Industrial Strategy. Available online: https://www.gov.uk/government/publications/contracts-for-difference-cfd-allocation-round-4-results (accessed on 7 July 2022).
- European Commission. Ocean Energy Strategic Roadmap: Building Ocean Energy for Europe. In Ocean Energy Forum; European Commission: Brussels, Belgium, 2016; p. 74. [Google Scholar]
- Scarlett, G.T.; Viola, I.M. Unsteady hydrodynamics of tidal turbine blades. Renew. Energy
**2020**, 146, 843–855. [Google Scholar] [CrossRef] - McCann, G.; Thomson, M.; Hitchcock, S.; Hassan, G. Implications of Site-Specific Conditions on the Prediction of Loading and Power Performance of a Tidal Stream Device. In Proceedings of the 2nd International Conference on Ocean Energy (ICOE), Brest, France, 15–17 October 2008; pp. 15–17. [Google Scholar]
- Blackmore, T.; Myers, L.E.; Bahaj, A.S.; Gaurier, B.; Myers, L.; Germain, G. The Effect of Freestream Turbulence on Tidal Turbines. In Proceedings of the 11th European Wave and Tidal Energy Conference, Nantes, France, 6–11 September 2015. [Google Scholar]
- Milne, I.A.; Day, A.H.; Sharma, R.N.; Flay, R.G. Blade loading on tidal turbines for uniform unsteady flow. Renew. Energy
**2015**, 77, 338–350. [Google Scholar] [CrossRef] - Clark, T.; Roc, T.; Fisher, S.; Minns, N. Part 3: Turbulence and turbulent effects in turbine and array engineering. Turbul. Best Pract. Tidal Power Ind.
**2015**, 21. [Google Scholar] - Milne, I.A.; Day, A.H.; Sharma, R.N.; Flay, R.G. The characterisation of the hydrodynamic loads on tidal turbines due to turbulence. Renew. Sustain. Energy Rev.
**2016**, 56, 851–864. [Google Scholar] [CrossRef] - Ortega, A.; Tomy, J.P.; Shek, J.; Paboeuf, S.; Ingram, D. An inter-comparison of dynamic, fully coupled, electro-mechanical, models of tidal turbines. Energies
**2020**, 13, 5389. [Google Scholar] [CrossRef] - PD IEC/TS 62600-2; 2019 BSI Standards Publication Marine Energy—Wave, Tidal and Other Water Current Converters. International Electrotechnical Commission: London, UK, 2019; p. 62.
- DNVGL-ST-0.164; Tidal Turbines. DNV-GL: Bærum, Norway, 2015; p. 230.
- Gualtieri, G.; Emejeamara, F.C.; Tomlin, A.S.; Micallef, D.; Bussel, G.V.; Ishugah, T.F.; Li, Y.; Wang, R.Z.; Kiplagat, J.K.; Millward-Hopkins, J.T.; et al. BSI Standards Publication Wind Energy Generation Systems BS EN IEC 61400-1 2019. Available online: https://standards.iteh.ai/catalog/standards/clc/9027bc84-08bf-485d-b139-0869e8a96b59/en-iec-61400-1-2019 (accessed on 5 April 2019).
- Neil Kelley National Renewable Energy Laboratory. TurbSim User’s Guide: Version 1. 50 TurbSim User’s Guide; Neil Kelley National Renewable Energy Laboratory: Golden, CO, USA, 2009. [Google Scholar]
- Lu, Y.; Lueck, R.G. Using a Broadband ADCP in a Tidal Channel. Part II: Turbulence. J. Atmos. Ocean. Technol.
**1999**, 16, 1568–1579. [Google Scholar] [CrossRef] - Burton, T. Wind Energy Handbook; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2001; p. 368. [Google Scholar]
- Pope, S.B. Turbulent Flows; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar] [CrossRef]
- Jonkman, B.; Kilcher, L. TurbSim User’s Guide; National Renewable Energy Laboratory: Golden, CO, USA, 2012; pp. 1–87. [Google Scholar]
- Khairuzzaman, M.Q. Tidal Bladed Theory Manual. 2016. [Google Scholar]
- McMillan, J. Turbulence Measurements in a High Reynolds Number Tidal Channel. Ph.D. Thesis, Dalhousie University, Halifax, NS, Canada, 2017. [Google Scholar]
- Nezu, I.; Nakagawa, H. Turbulence in Open Channel Flows; IAHR Monograph: Madrid, Spain, 1993. [Google Scholar]
- Sellar, B.G.; Sutherland, D.R. Tidal Energy Site Characterisation At the Fall of Warness, Emec, Uk Energy Technologies Institute Redapt Ma1001 (Md3.8). 2016. 1001. Available online: https://redapt.eng.ed.ac.uk/?p=library_redapt_reports (accessed on 1 February 2023).
- Milne, I.A.; Sharma, R.N.; Flay, R.G. The structure of turbulence in a rapid tidal flow. Proc. R. Soc. A Math. Phys. Eng. Sci.
**2017**, 473. [Google Scholar] [CrossRef] - Walter, R.K.; Nidzieko, N.J.; Monismith, S.G. Similarity scaling of turbulence spectra and cospectra in a shallow tidal flow. J. Geophys. Res. Ocean.
**2011**, 116, 1–14. [Google Scholar] [CrossRef] - Parkinson, S.G.; Collier, W.J. Model validation of hydrodynamic loads and performance of a full-scale tidal turbine using Tidal Bladed. Int. J. Mar. Energy
**2016**, 16, 279–297. [Google Scholar] [CrossRef] - Gunn, K.; Stock-Williams, C. On validating numerical hydrodynamic models of complex tidal flow. Int. J. Mar. Energy
**2013**, 3–4, e82–e97. [Google Scholar] [CrossRef] - Greenwood, C.; Vogler, A.; Venugopal, V. On the variation of turbulence in a high-velocity tidal channel. Energies
**2019**, 12, 672. [Google Scholar] [CrossRef] - McNaughton, J.; Rolfo, S.; Apsley, D.D.; Stallard, T.; Stansby, P.K. CFD power and load prediction on a 1MW tidal stream turbine. In Proceedings of the 10th European Wave and Tidal Energy Conference, Aalborg, Denmark, 2–5 September 2013; Volume 3. [Google Scholar]
- Togneri, M.; Masters, I. Micrositing variability and mean flow scaling for marine turbulence in Ramsey Sound. J. Ocean Eng. Mar. Energy
**2016**, 2, 35–46. [Google Scholar] [CrossRef] - Kelley, N.D.; Jonkman, B.J.J. Overview of the TurbSim Stochastic Inflow Turbulence Simulator: Version 1.21; (Revised 1 February 2001); U.S. Department of Energy Office of Scientific and Technical Information: Kansas City, MI, USA, 2007; pp. 1–13. [CrossRef]
- Harrold, M.; Ouro, P. Rotor loading characteristics of a full-scale tidal turbine. Energies
**2019**, 12, 1035. [Google Scholar] [CrossRef] - Ouro, P.; Stoesser, T. Impact of Environmental Turbulence on the Performance and Loadings of a Tidal Stream Turbine. Flow Turbul. Combust.
**2019**, 102, 613–639. [Google Scholar] [CrossRef] - Integrated Ocean Observing System. Manual for Real-Time Quality Control of Stream Flow Observations (Qartod) v2.1; Integrated Ocean Observing System: Silver Spring, MD, USA, 2019. [CrossRef]
- Nortek. Signature Manual; Principles of Operation; Nortek: Rud, Norway, 2018. [Google Scholar]
- Thomson, J.; Polagye, B.; Durgesh, V.; Richmond, M.C. Measurements of turbulence at two tidal energy sites in puget sound, WA. IEEE J. Ocean. Eng.
**2012**, 37, 363–374. [Google Scholar] [CrossRef] - Sellar, B.G.; Wakelam, G.; Sutherland, D.R.; Ingram, D.M.; Venugopal, V. Characterisation of tidal flows at the european marine energy centre in the absence of ocean waves. Energies
**2018**, 11, 176. [Google Scholar] [CrossRef] - Durgesh, V.; Thomson, J.; Richmond, M.C.; Polagye, B.L. Noise correction of turbulent spectra obtained from acoustic doppler velocimeters. Flow Meas. Instrum.
**2014**, 37, 29–41. [Google Scholar] [CrossRef] - Lu, Y.; Lueck, R.G. Using a broadband ADCP in a tidal channel. Part I: Mean flow and shear. J. Atmos. Ocean. Technol.
**1999**, 16, 1556–1567. [Google Scholar] [CrossRef] - Milne, I.; Graham, J.; Coles, D. On the scaling of turbulence in a high Reynolds number tidal flow. J. Fluid Mech.
**2021**, 915, A104. [Google Scholar] [CrossRef] - Dewey, R.K.; Stringer, S. Reynolds Stresses and Turbulent Kinetic Energy Estimates from Various ADCP Beam Configurations: Theory. J. Phys. Oceanogr.
**2007**, 2, 1–35. [Google Scholar] [CrossRef] - Thomson, J.; Kilcher, L.; Harding, S. Multi-scale Turbulence at Tidal Energy Sites. In Proceedings of the 5th International Conference on Ocean Energy, Halifax, NS, Canada, 4–6 November 2014; pp. 1–6. [Google Scholar]
- Kilcher, L.F.; Thomson, J.; Colby, J. Determining the spatial coherence of turbulence at mhk sites. In Proceedings of the 2nd Marine Energy Technology Symposium, Seattle, WA, USA, 15–18 April 2014; pp. 1–7. [Google Scholar]
- Schlipf, D.; Trabucchi, D.; Bischoff, O. Testing of Frozen Turbulence Hypothesis for Wind Turbine Applications with a Scanning LIDAR System. Univ. Stuttg.
**2010**, 12, 5410. [Google Scholar] - Clark, T.; Black, K.; Ibrahim, J.; Hernon, J.; White, R.; Minns, N.; Fisher, S. Part 2: Data processing, classification and characterisation of turbulent flows. Turbul. Best Pract. Tidal Power Ind.
**2015**. [Google Scholar] - Guerra, M.; Thomson, J. Turbulence measurements from five-beam acoustic doppler current profilers. J. Atmos. Ocean. Technol.
**2017**, 34, 1267–1284. [Google Scholar] [CrossRef] - Thiébaut, M.; Filipot, J.F.; Maisondieu, C.; Damblans, G.; Duarte, R.; Droniou, E.; Guillou, S. Assessing the turbulent kinetic energy budget in an energetic tidal flow from measurements of coupled ADCPs. Phil. Trans. R. Soc
**2020**, 378, 20190496. [Google Scholar] [CrossRef] - Vermeulen, B.; Hoitink, A.J.; Sassi, M.G. Coupled ADCPs can yield complete Reynolds stress tensor profiles in geophysical surface flows. Geophys. Res. Lett.
**2011**, 38, 2–7. [Google Scholar] [CrossRef] - Milne, I.A.; Sharma, R.N.; Flay, R.G.; Bickerton, S. Characteristics of the turbulence in the flow at a tidal stream power site. Philos. Trans. R. Soc. A Math. Phys. Eng. Sci.
**2013**, 371, 0120196. [Google Scholar] [CrossRef] - Nevalainen, T.M.; Johnstone, C.M.; Grant, A.D. A sensitivity analysis on tidal stream turbine loads caused by operational, geometric design and inflow parameters. Int. J. Mar. Energy
**2016**, 16, 51–64. [Google Scholar] [CrossRef] [Green Version]

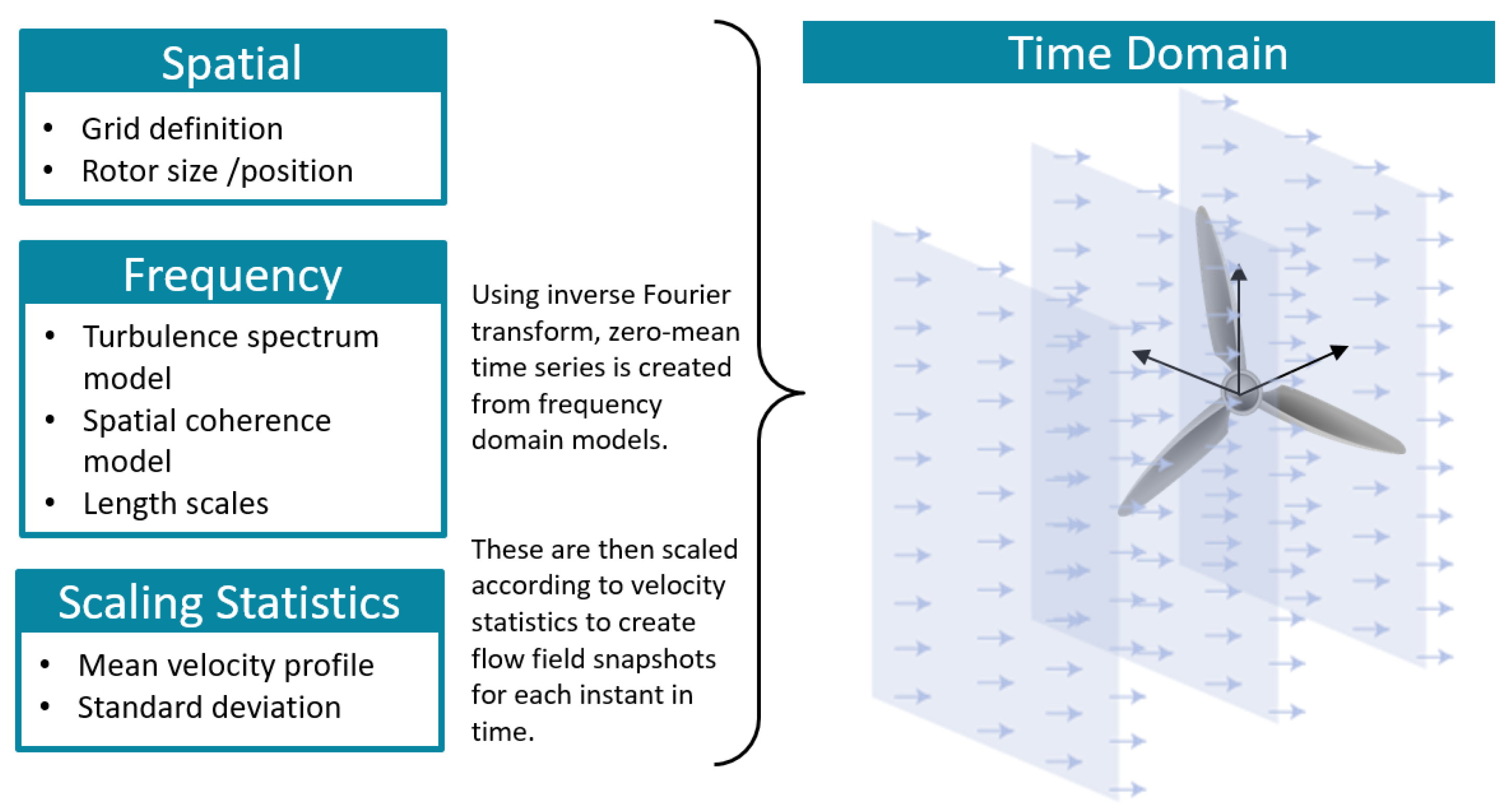

**Figure 1.**Simplified illustration of input parameters required to construct flow fields in Tidal Bladed and TurbSim, adapted from TurbSim user’s guide [15].

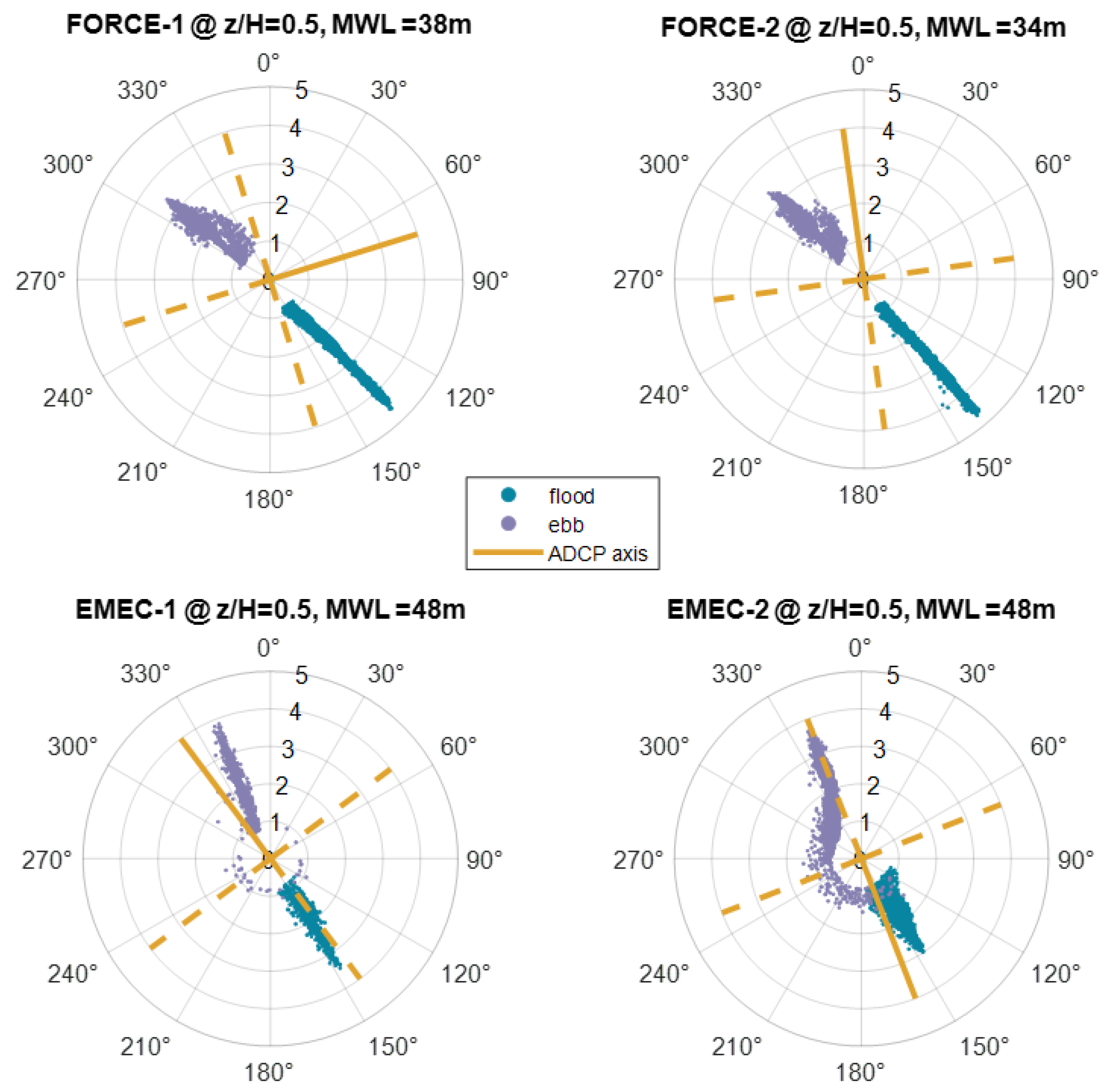

**Figure 3.**Tidal rose plots showing flow direction as well as ADCP orientation. Solid yellow line corresponds to the instrument heading.

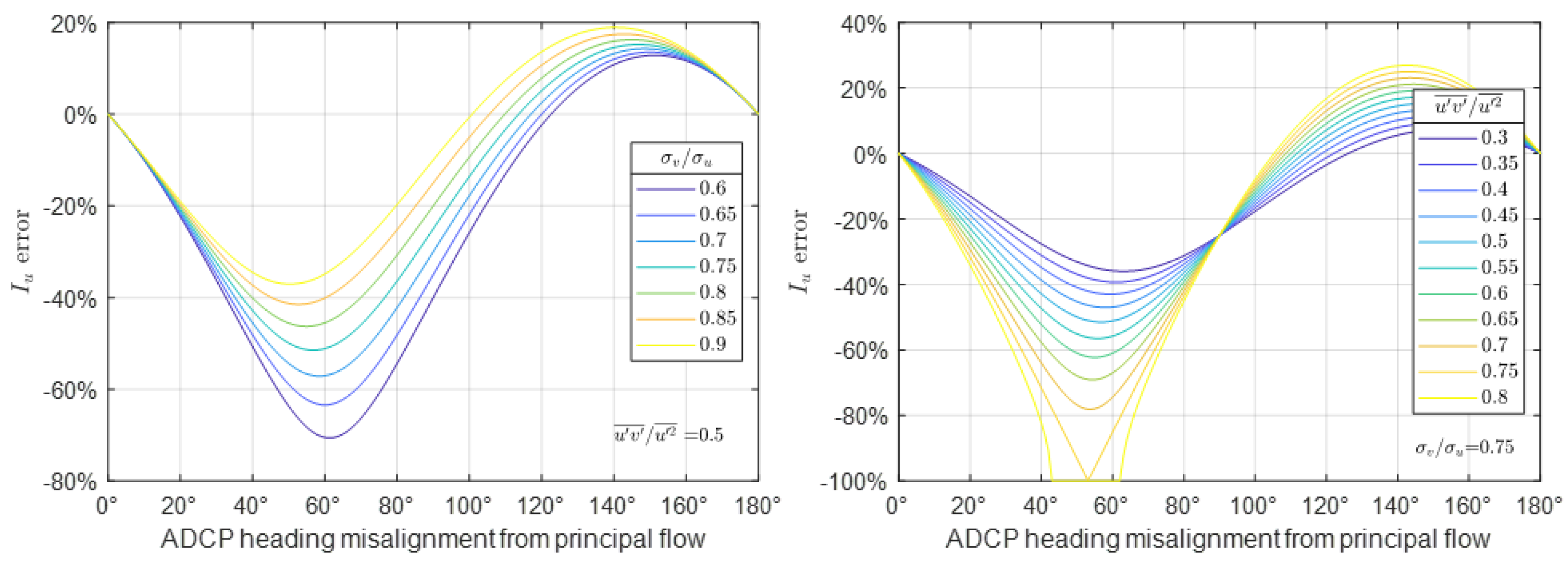

**Figure 4.**Error-ranges for streamwise turbulence intensity calculated from misaligned ADCP data. The ratio ${\sigma}_{v}/{\sigma}_{u}$ was found to be 0.75 at the Sound of Islay tidal site [24]; the ratio $\overline{{u}^{\prime}{v}^{\prime}}/\overline{{u}^{\prime}{}^{2}}$ ranged between 0.3–0.75 at Mahakam River, East Kalimantan, Indonesia [48].

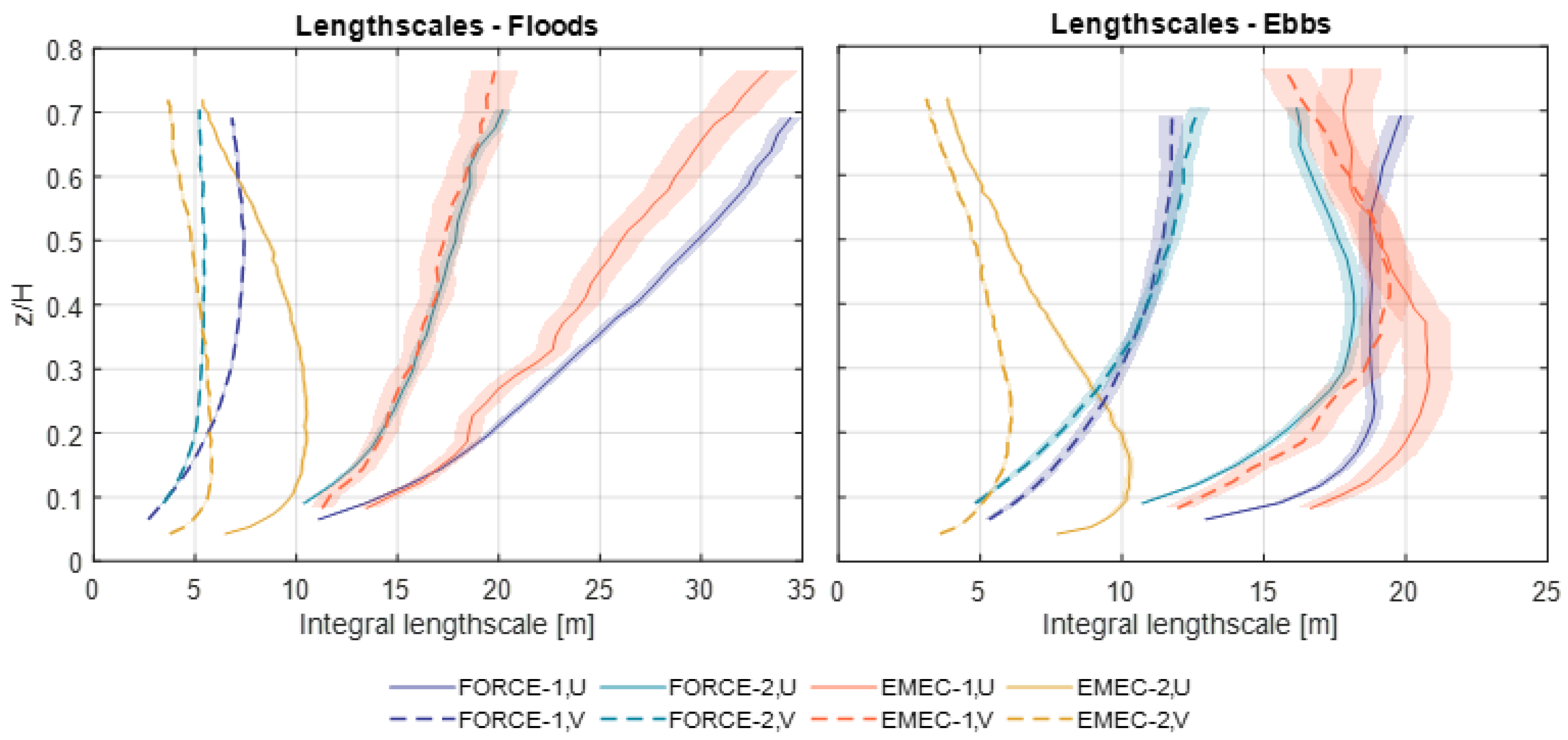

**Figure 5.**Length scales calculated using time-correlation method on rotated instantaneous velocity data. Shaded areas show standard error, which is larger for EMEC-1 due to a shorter dataset.

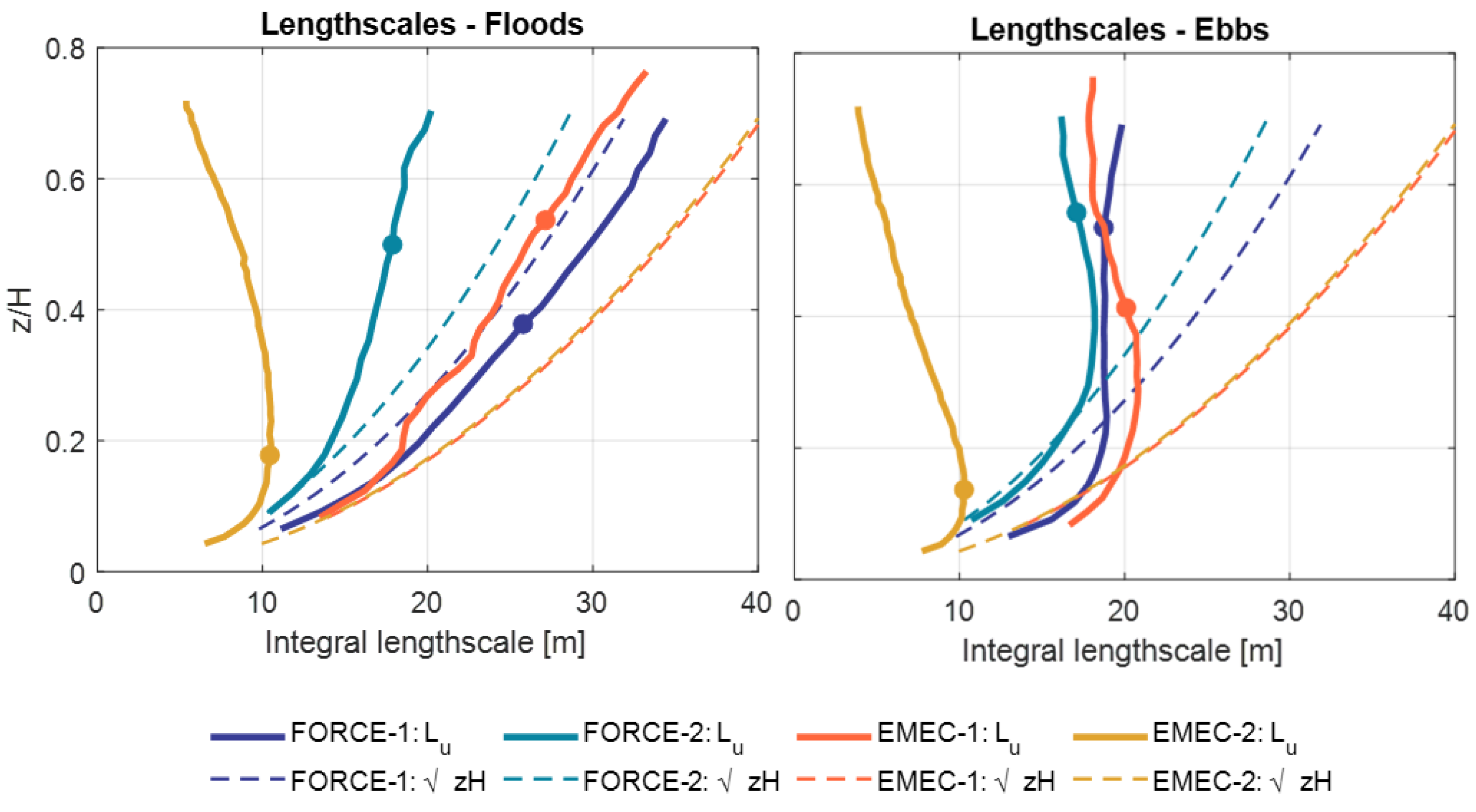

**Figure 6.**Streamwise length scales calculated by time-correlation method on instantaneous streamwise velocity data. The dashed lines indicate a theoretical streamwise length scale based on open-channel theory, ${L}_{u}=\sqrt{zH}$. The bold dot indicates the point above which the beam spread is larger than the length scales.

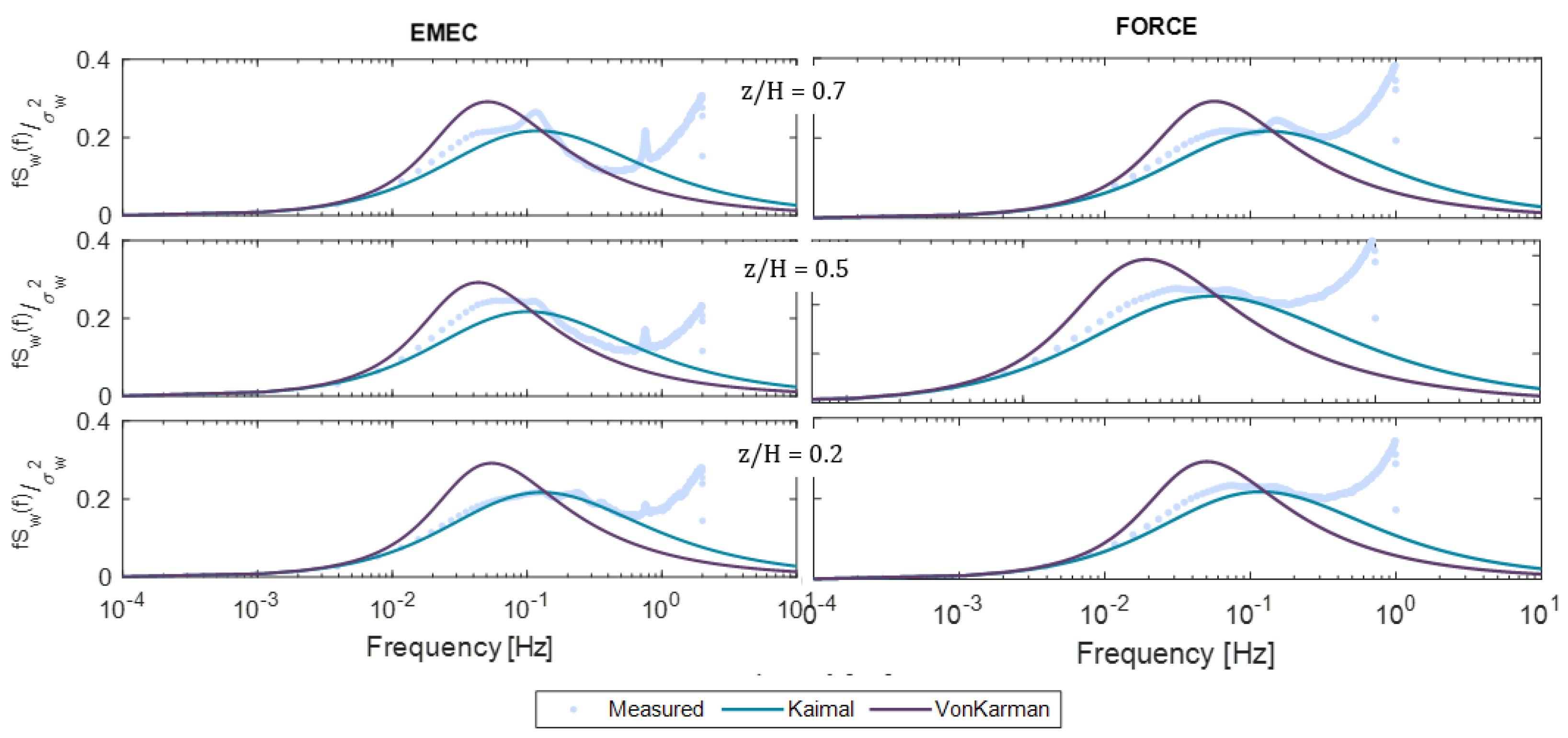

**Figure 7.**Comparison of vertical Kaimal and von Kármán models (based on measured length scale) to measured variance normalised spectra for flood cycles. The 10-min spectra are averaged across all flood cycles for velocities 1–3 m/s.

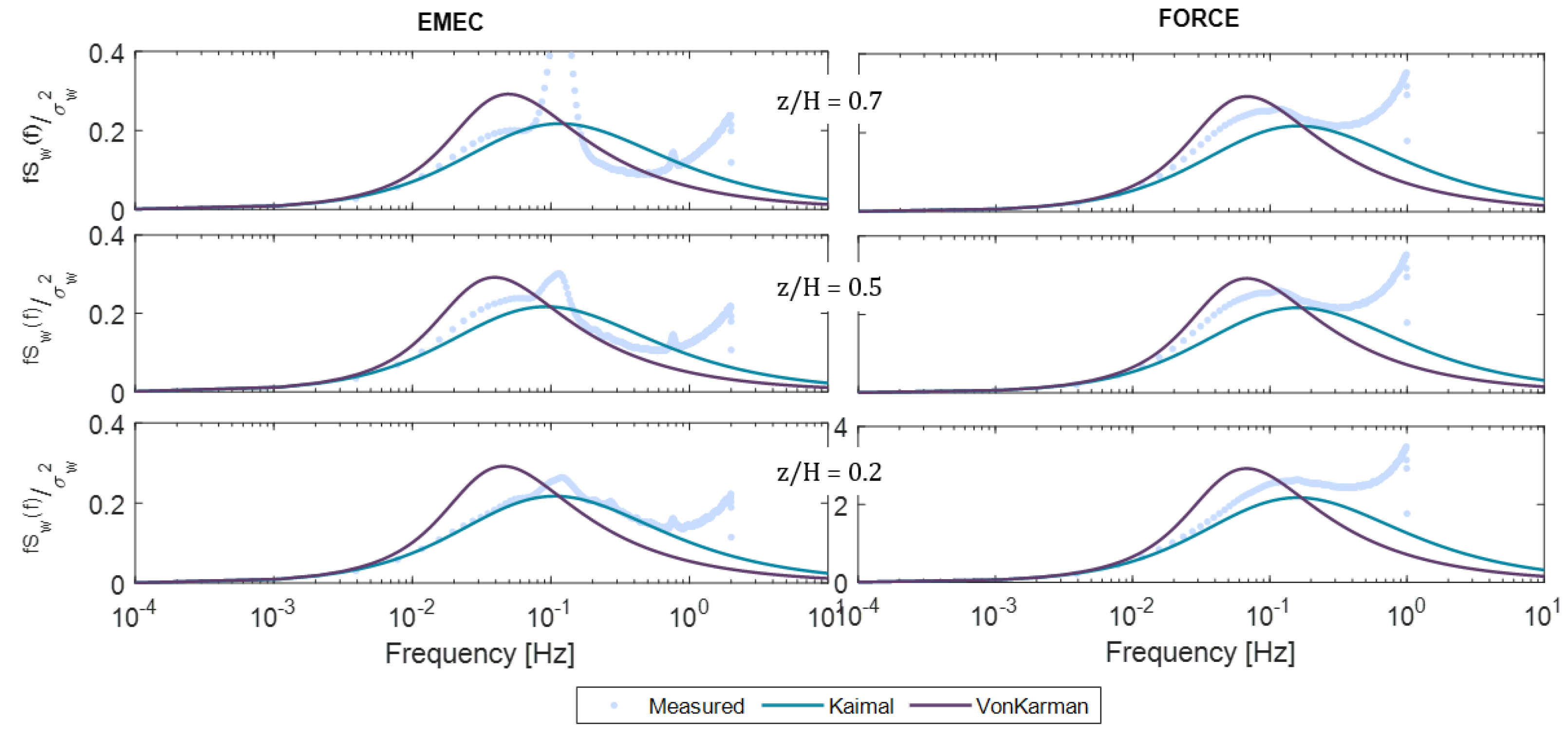

**Figure 8.**Comparison of vertical Kaimal and von Kárm’an models (based on measured length scale) to measured variance normalised spectra for ebb cycles. The 10-min spectra are averaged across all ebb cycles for velocities 1–3 m/s.

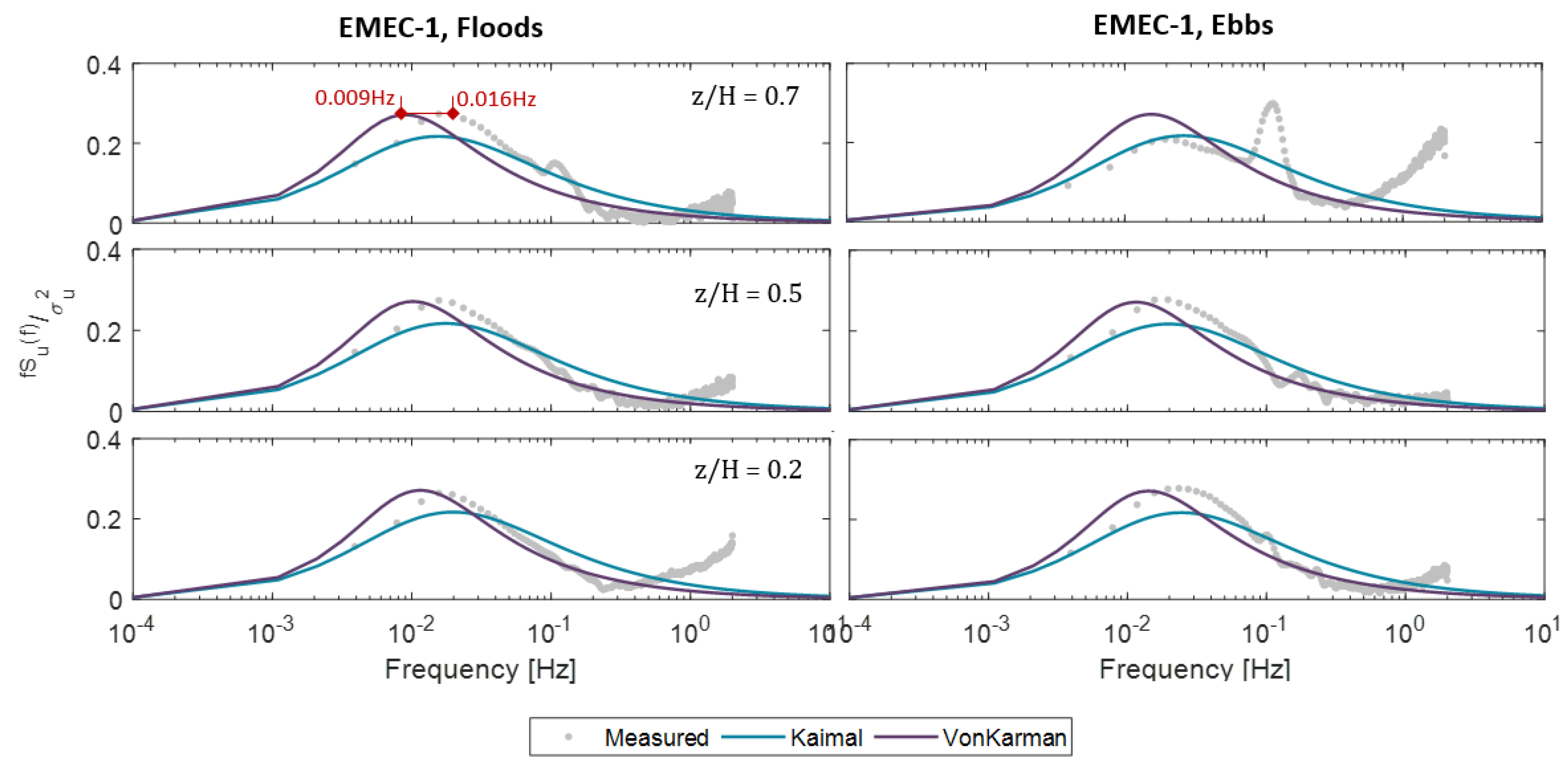

**Figure 9.**Comparison of the streamwise Kaimal and Von Kármán models (based on measured length scale) to variance-normalised spectra, measured at EMEC-1 location. The 10-min spectra are averaged across flood and ebb cycles with velocities 1–3 m/s.

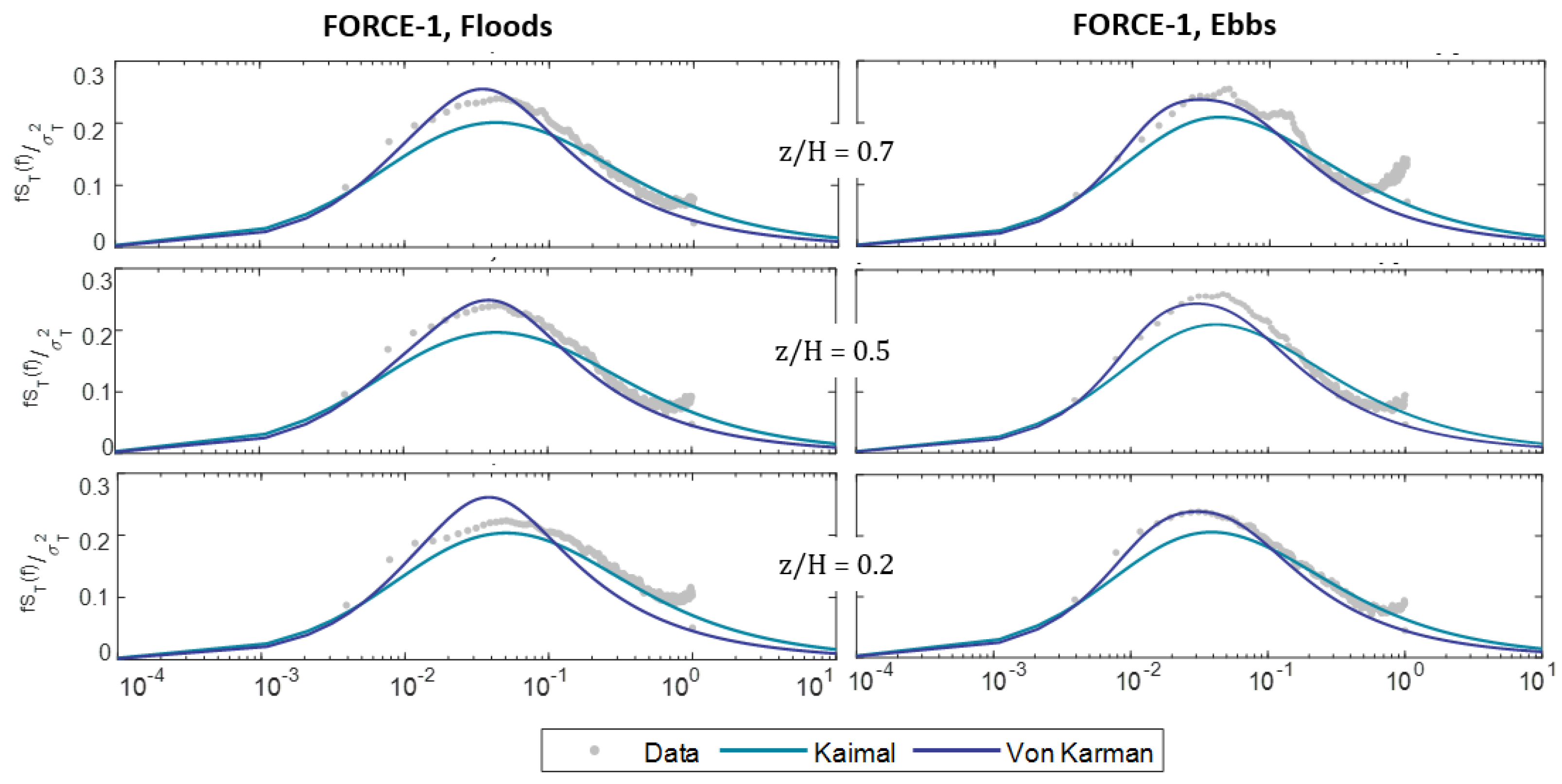

**Figure 10.**Comparison of the total Kaimal and von Kármán models (based on measured length scale) to variance-normalised spectra, measured at FORCE-1 location. The 10-min spectra are averaged across flood and ebb cycles for velocities 1–3 m/s.

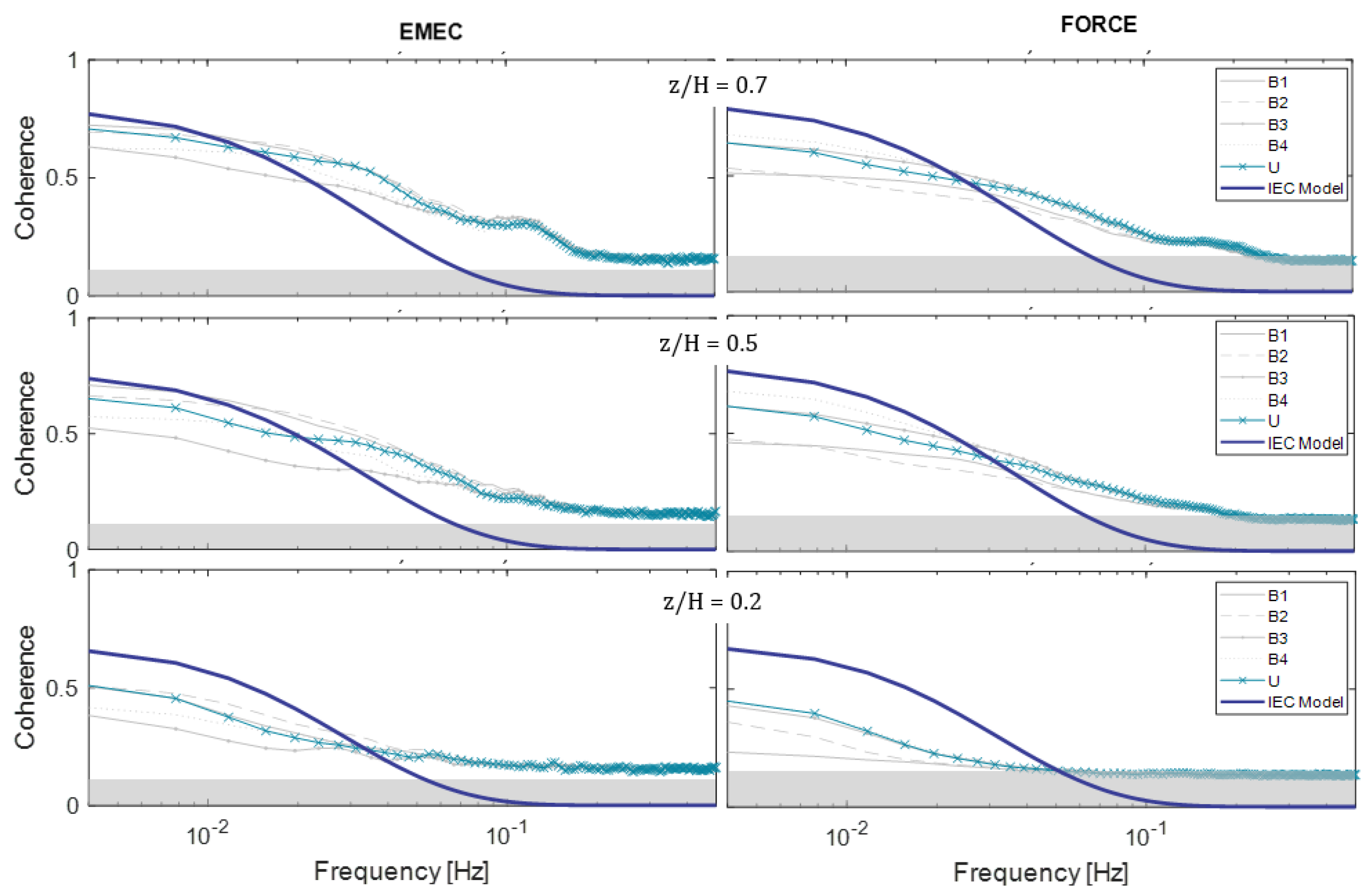

**Figure 11.**Measured coherence compared to the general IEC coherence model for flood cycles, velocities 1–3 m/s. The shaded area shows the 95% confidence level for measured coherence.

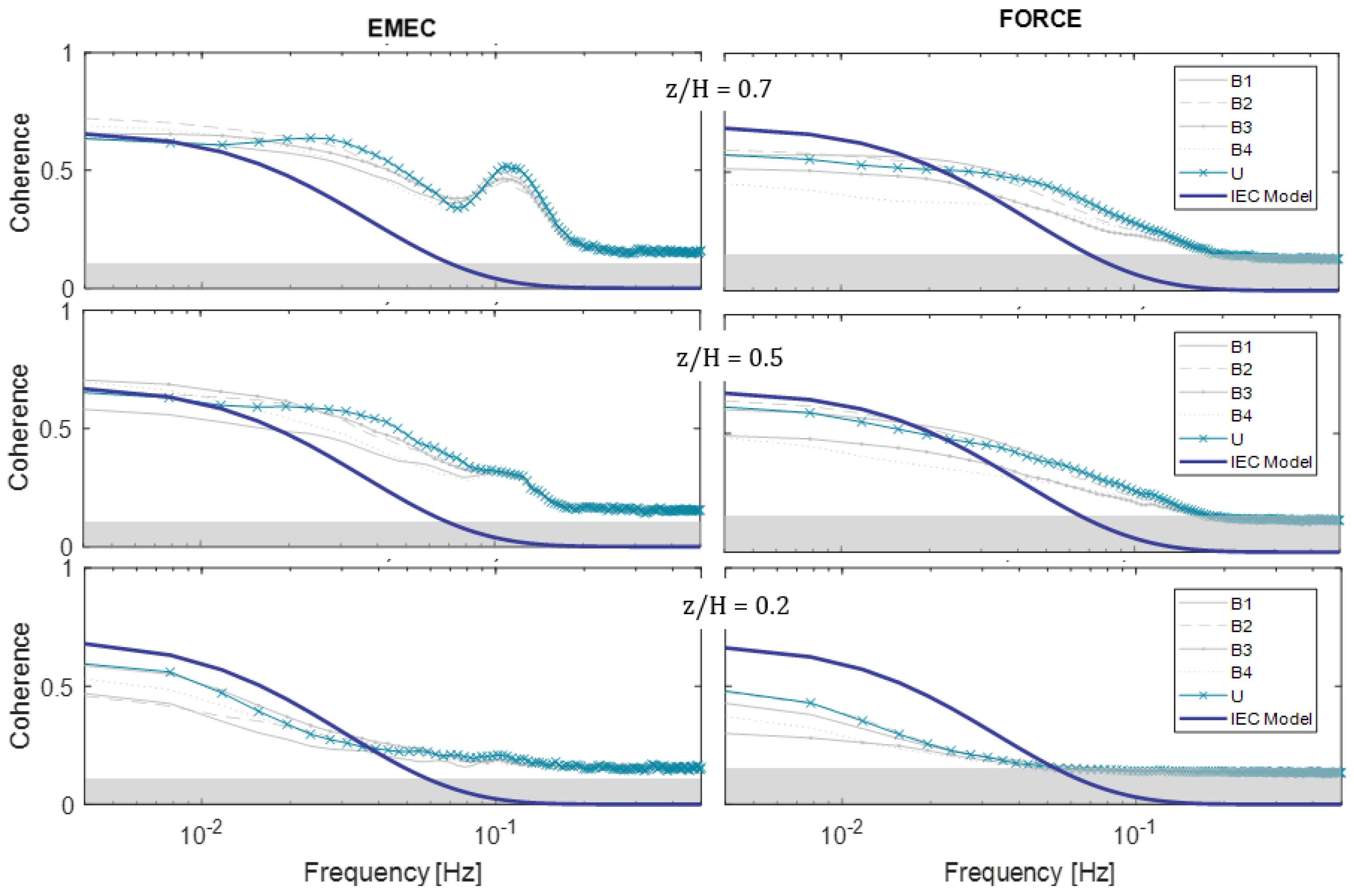

**Figure 12.**Measured coherence compared to the general IEC coherence model for ebb cycles, velocities 1–3 m/s. The shaded area shows the 95% confidence level for measured coherence.

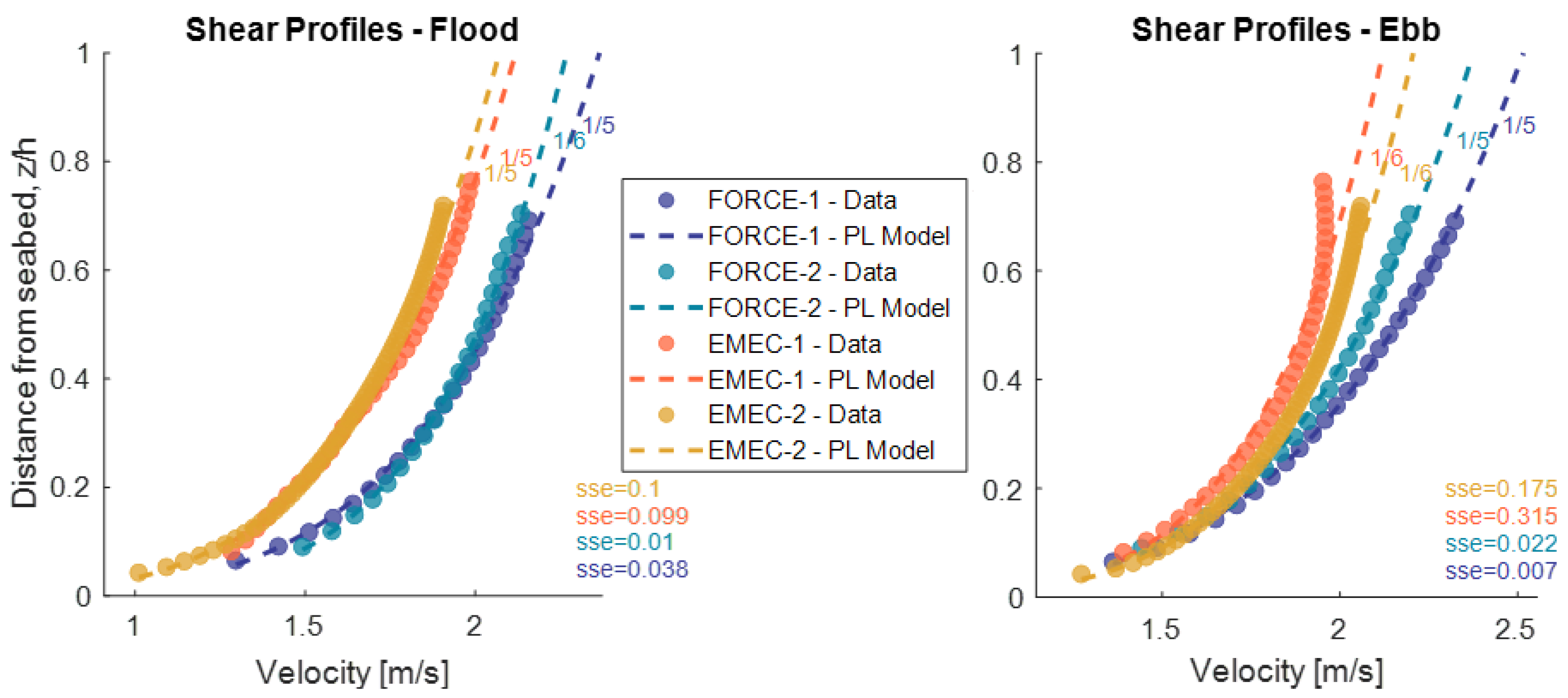

**Figure 13.**Shear profiles for velocities 1–3 m/s. The best-fit power-law exponents and sum squared errors (sse) are displayed for each case.

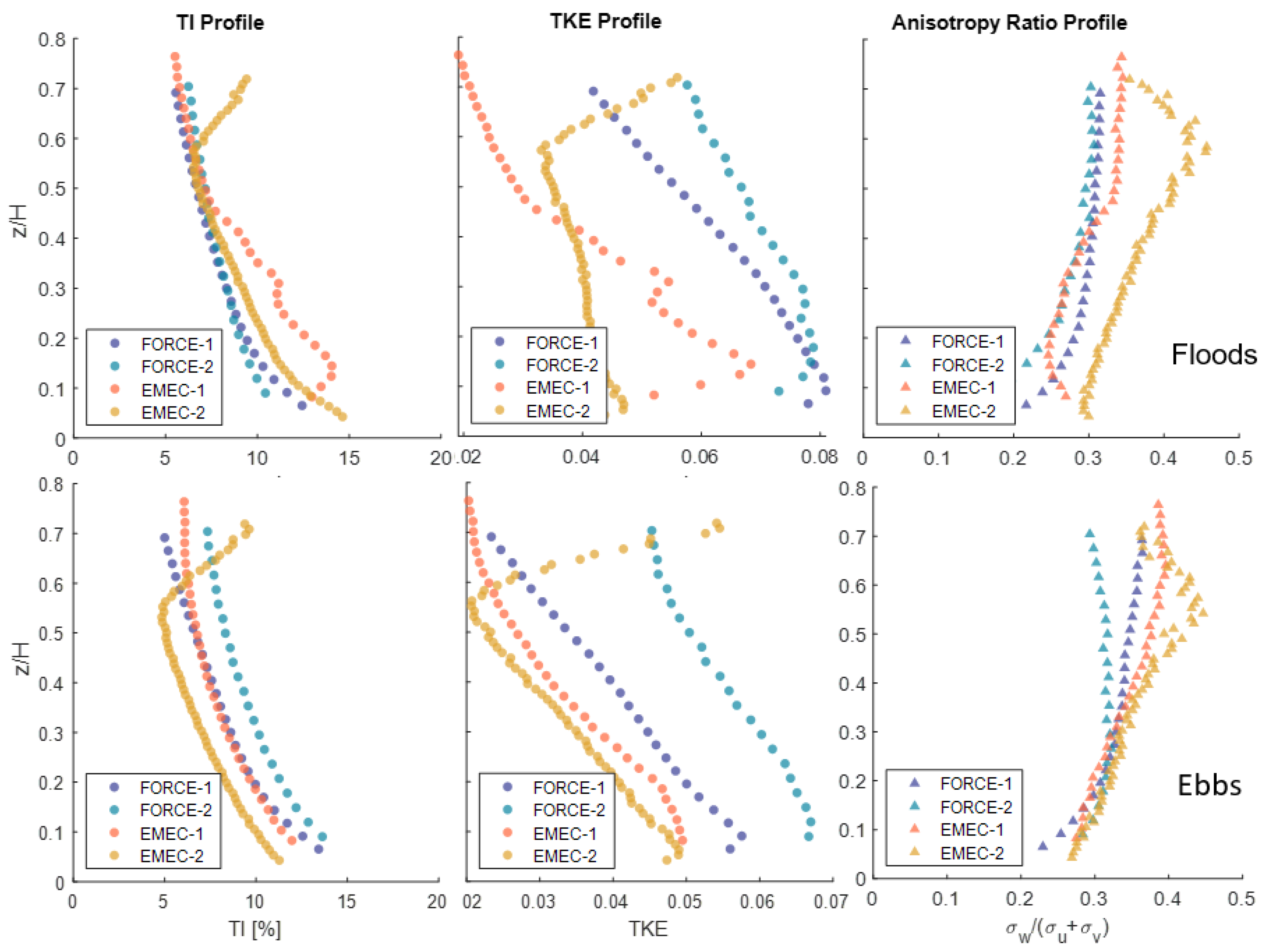

**Figure 14.**Total turbulence intensity, TKE and anisotropy ratios for all measurement sites for flood (

**top row**) and ebb (

**bottom row**) tides with flows 1–3 m/s.

Reference | Instrument | Sample Rate | Bin Size | Measurement Period | Peak Flow | Depth |
---|---|---|---|---|---|---|

EMEC-1 | Nortek Signature 500 | 4 Hz | 1 m | 10 Apr 2020–22 Apr 2020 | 3.8 m/s | 48 m |

EMEC-2 | Sentinel V50 | 1 Hz | 1 m | 8 Nov 2019–19 Dec 2019 | 3.7 m/s | 48 m |

FORCE-1 | Nortek Signature 500 | 2 Hz | 1 m | 27 Jan 2022–2 Apr 2022 | 4.6 m/s | 38 m |

FORCE-2 | Sentinel V100 | 1 Hz | 0.5 m | 29 Jun 2018–29 Aug 2018 | 4.7 m/s | 34 m |
