# Numerical Study of Wall Heat Transfer Effects on Flow Separation in a Supersonic Overexpanded Nozzle

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

^{2}K) was applied to the nozzle wall to incorporate the cooling effect for different gas inlet temperatures ranging from 1000 to 1500 K. The impact of the cooling effect was analyzed based on nozzle wall temperature and wall static pressure. The wall static pressure distribution also characterizes movement of the separation point. For an inlet temperature of 1000 K, a detailed heat transfer study was carried out for four different nozzle pressure ratios (14, 22, 30 and 40). Significant amount of heat transfer was observed for pressure ratio 14, which in turn had an impact on flow separation. The wall cooling resulted in a shift of the point of separation towards the nozzle exit. For the nozzle pressure ratio of 14, this shift was by about 8.8%, indicating that the flow separation can be delayed by way of cooling for the considered inlet temperature. For higher inlet temperatures, the effect of heat transfer on flow separation seems to be negligible. The current study concludes that the separation point can be controlled by convective cooling for inlet gas temperatures below 1500 K so that the optimal performance of the nozzle can be achieved.

## 1. Introduction

_{c}/P

_{a}), which lies between sea level and high-altitude pressure. For off-design conditions, the nozzle flow will be overexpanded (P

_{e}< P

_{a}) at low altitude and underexpanded (P

_{e}> P

_{a}) at high altitude where Pe is the exit pressure [1]. During the atmospheric flight, the exhaust flow adapts to the ambient pressure through a system of oblique shock and expansion waves. The adverse pressure rise associated with the shock leads to the detachment of the boundary layer from the wall inducing flow separation within the nozzle. In highly overexpanded nozzles, the shockwave boundary layer interaction (SWBLI) shows strong unsteadiness, which triggers symmetrical or asymmetrical flow separations leading to side loads [2]. In order to control the effects of flow separation and to improve the nozzle efficiency, understanding the origin and fundamental physics of this phenomenon is essential which continues to motivate both fundamental and applied research in the field.

## 2. Materials and Methods

_{κ}and σ

_{ω}) [35], were modified to accurately capture the flow separation, which was extracted from the study by Allamprabhu et al. [13]. The compressible form of steady Navier–Stokes equations was solved using a density-based approach [35]. The governing equations [24] used in the numerical analysis are mentioned below.

_{t}turbulent viscosity; $\rho $ density; µ viscosity; ${C}_{p}$ specific heat; R gas constant; T temperature; k thermal conductivity; C turbulent Prandtl number; P pressure; u

_{i}and u

_{j}mean velocity components; $\overline{{u}_{i}{u}_{j}}$ averaged fluctuating velocity components.

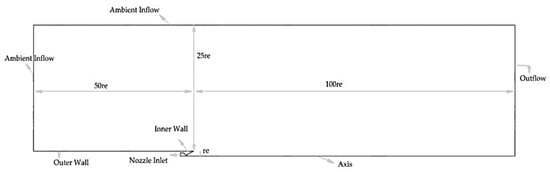

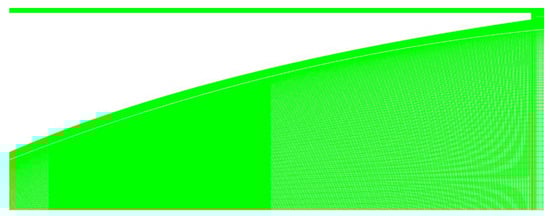

#### 2.1. Computational Domain and Boundary Conditions

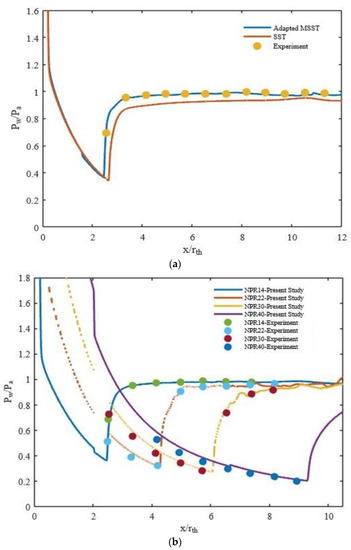

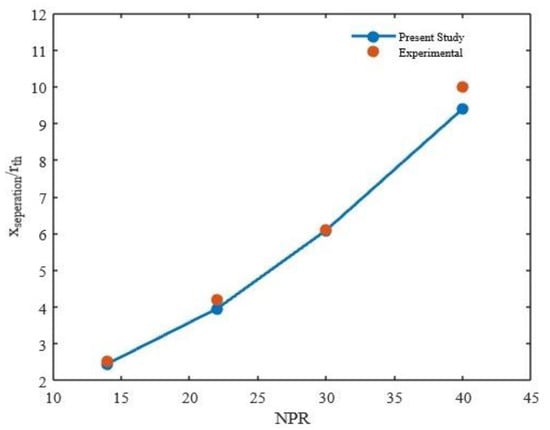

#### 2.2. Validation

## 3. Results

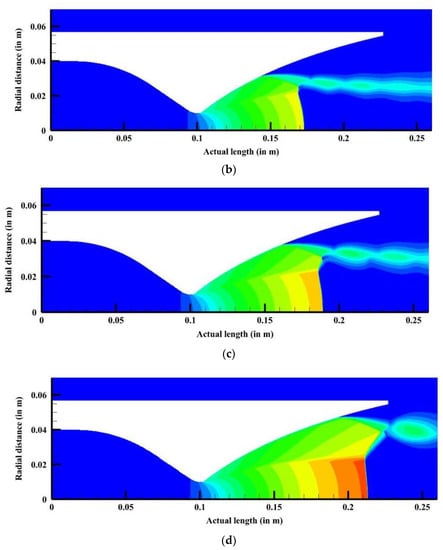

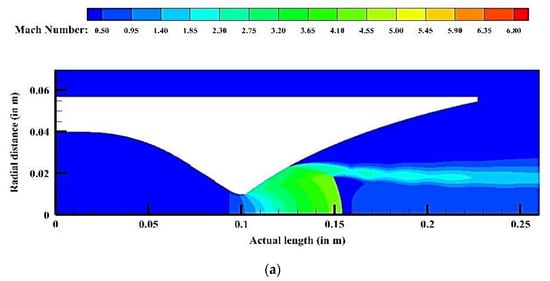

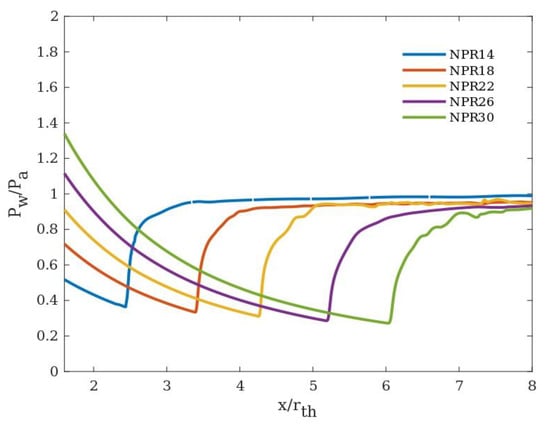

#### 3.1. Effect of Nozzle Pressure Ratio (NPR)

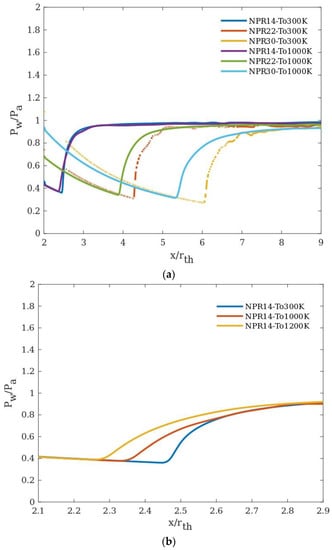

#### 3.2. Effect of Inlet Temperatures

_{ft}/R

_{th}= 0.08 when the inlet temperature increases from 300 K to 1000 K. For NPR = 30, the corresponding delay (in separation for the same temperature range) is found to be X

_{ft}/R

_{th}= 0.72. The pressure difference between the initialization of separation and the actual occurrence of separation is smaller for higher NPRs.

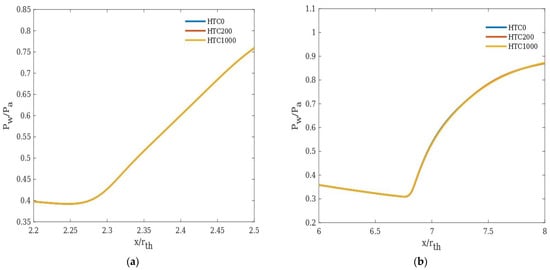

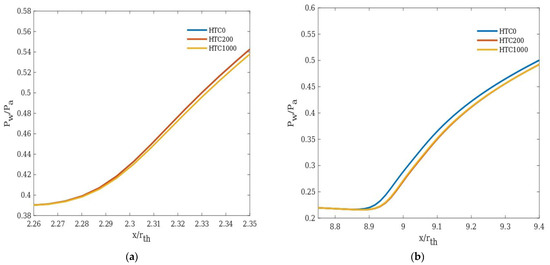

#### 3.3. Effect of Heat Transfer Coefficients

^{2}K, and 1000 w/m

^{2}K) were considered. The inlet temperatures used for the simulations were 1000 K, 1200 K, and 1500 K. A quadratic surface, at a distance y = 0.0015 m, parallel to the nozzle contour was created to study the heat transfer effects on the flow outside the boundary layer.

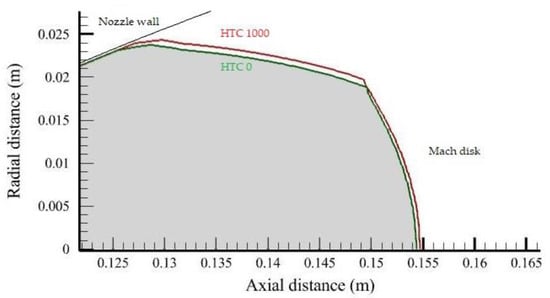

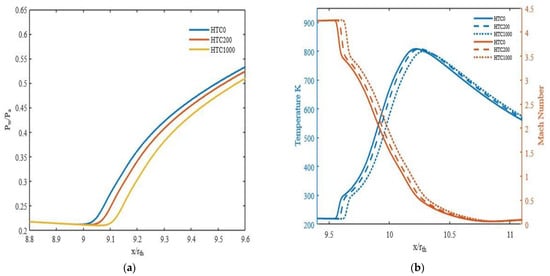

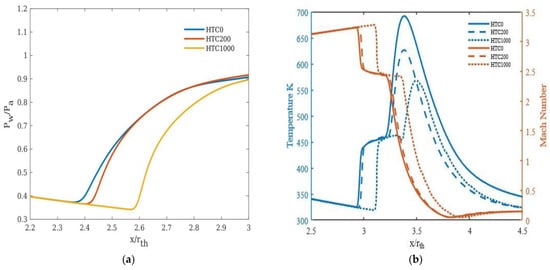

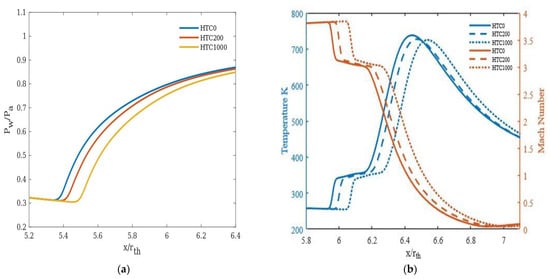

^{2}K along the quadratic surface is around 20.8% for NPR 14 and around 1 to 2% for other considered NPRs (Figure 8b, Figure 9b, Figure 10b and Figure 11b), justifying the above observation. The drop in Mach number across the region of the shock and the concomitant increase in static temperature are shown in Figure 8b, Figure 9b, Figure 10b and Figure 11b. The minor advancement of the Mach disk towards the exit is shown in Figure 12.

## 4. Conclusions

- Increasing the inlet gas temperature results in early occurrence of separation, and for higher NPRs, the separation occurs much earlier than the lower NPRs, i.e., for NPR 14 the separation was delayed by X
_{ft}/R_{th}= 0.08 and the corresponding delay for NPR 30 was X_{ft}/R_{th}= 0.72. - Wall cooling (modelled in the study by way of heat transfer boundary condition) is found to delay the separation significantly under certain inlet conditions, under which the separation moves towards the nozzle exit plane further with an increase in wall heat transfer. For NPR 14 at an inlet temperature of 1000 K, the separation point moves towards the nozzle exit by 8.8% with cooling and 1.5 to 2.5% for other NPRs.
- At an inlet temperature of 1000 K, the effect of heat transfer appears to be significant for NPR 14 compared to the other NPRs considered in the study.
- With an increase in inlet temperature, the effect of heat transfer on flow separation progressively diminishes over the pressure ratios considered.
