# Multi-Point Surrogate-Based Approach for Assessing Impacts of Geometric Variations on Centrifugal Compressor Performance

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

_{2}) systems, seem to be interesting solutions for improving the efficiency of energy cycles and mitigating the effects of climate change [4]. Furthermore, an ever-growing use of centrifugal compressors in sCO2 [5], organic Rankine cycle (ORC) [6], and hydrogen [7] plants emphasizes how these turbomachines are pivotal for the current energy transition [8]. In this context, the rapid and continuous evolution of markets is forcing centrifugal compressor designers to maximize the performance of these machines in ever shorter timescales [9]. The scientific literature has recently shown an increased interest in optimization techniques for turbomachine designs [10,11]. Considering the preliminary design of centrifugal compressors, several optimization techniques were combined with low order models. To this end, Du et al. [12] used a mono-dimensional (1D) model and a genetic algorithm (GA) for the optimization of a sCO

_{2}centrifugal compressor, whereas Bicchi et al. [11] provided a design method based on artificial intelligences (AI) and a 1D single-zone model for fast development of new centrifugal compressor families. Similarly, Massoudi et al. [13] defined an approach for designing centrifugal compressors by means of the combined use of a 1D model and an artificial neural network (ANN). Another example was provided by Li et al. [14], who optimized a low-pressure centrifugal compressor by combining a simulated annealing algorithm with a 1D model. Finally, Wang et al. [15] showed the use of a 1D model and a GA for designing a sCO

_{2}centrifugal compressor. However, the scientific literature does not only report examples of preliminary design optimization. Indeed, advanced three-dimensional (3D) optimization techniques are also provided, while computational fluid dynamics (CFD) often provide a higher level of accuracy in optimizing performance. Omini et al. [16] proposed a hybrid design procedure of a new centrifugal compressor based on CFDs and GA. Ekradi and Madadi [17] presented a procedure for the 3D optimization of a transonic centrifugal compressor impeller with splitter blades by integrating GA, ANN, and a CFD solver. Finally, Ma et al. [18] developed an AI framework to achieve multi-objective optimization of the centrifugal compressor impeller.

## 2. Materials and Methods

#### 2.1. Step 1: Selection of Geometric Parameters

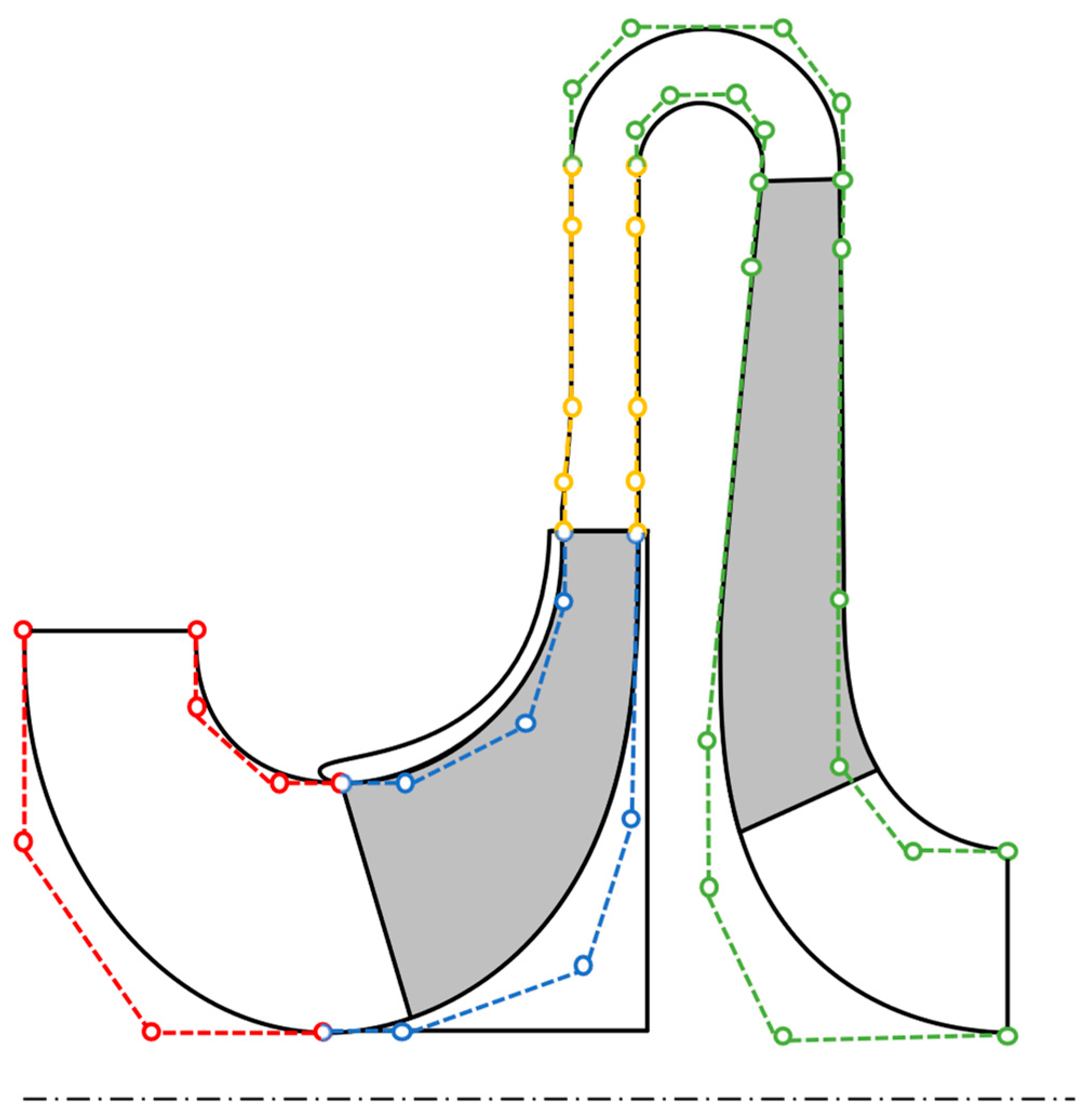

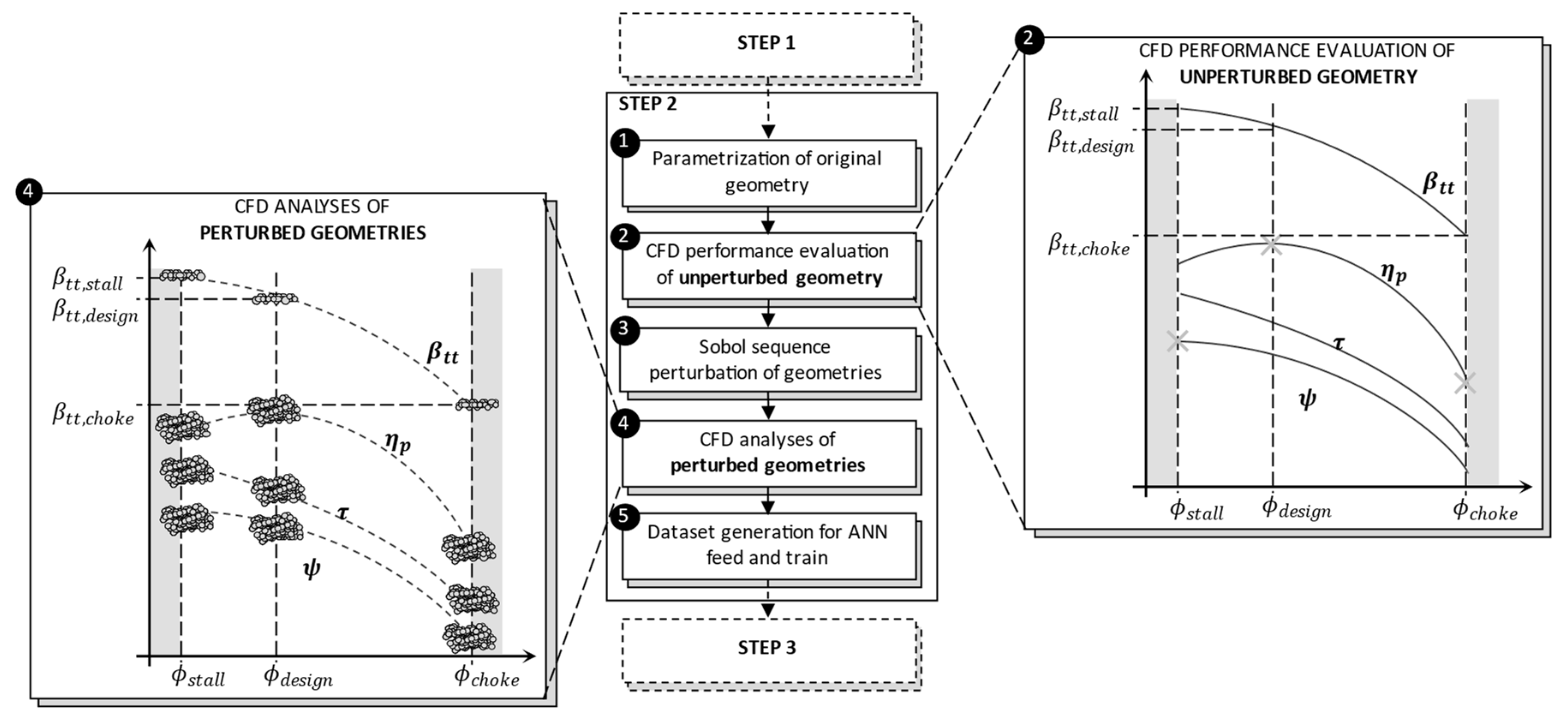

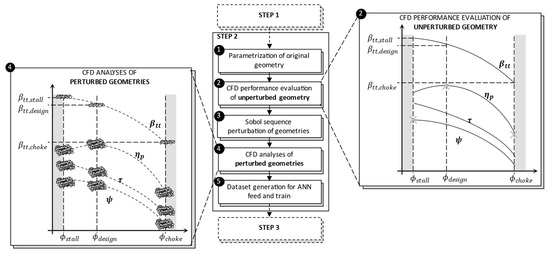

#### 2.2. Step 2: Parametrization of Centrifugal Compressor Stage and Parametric Analysis

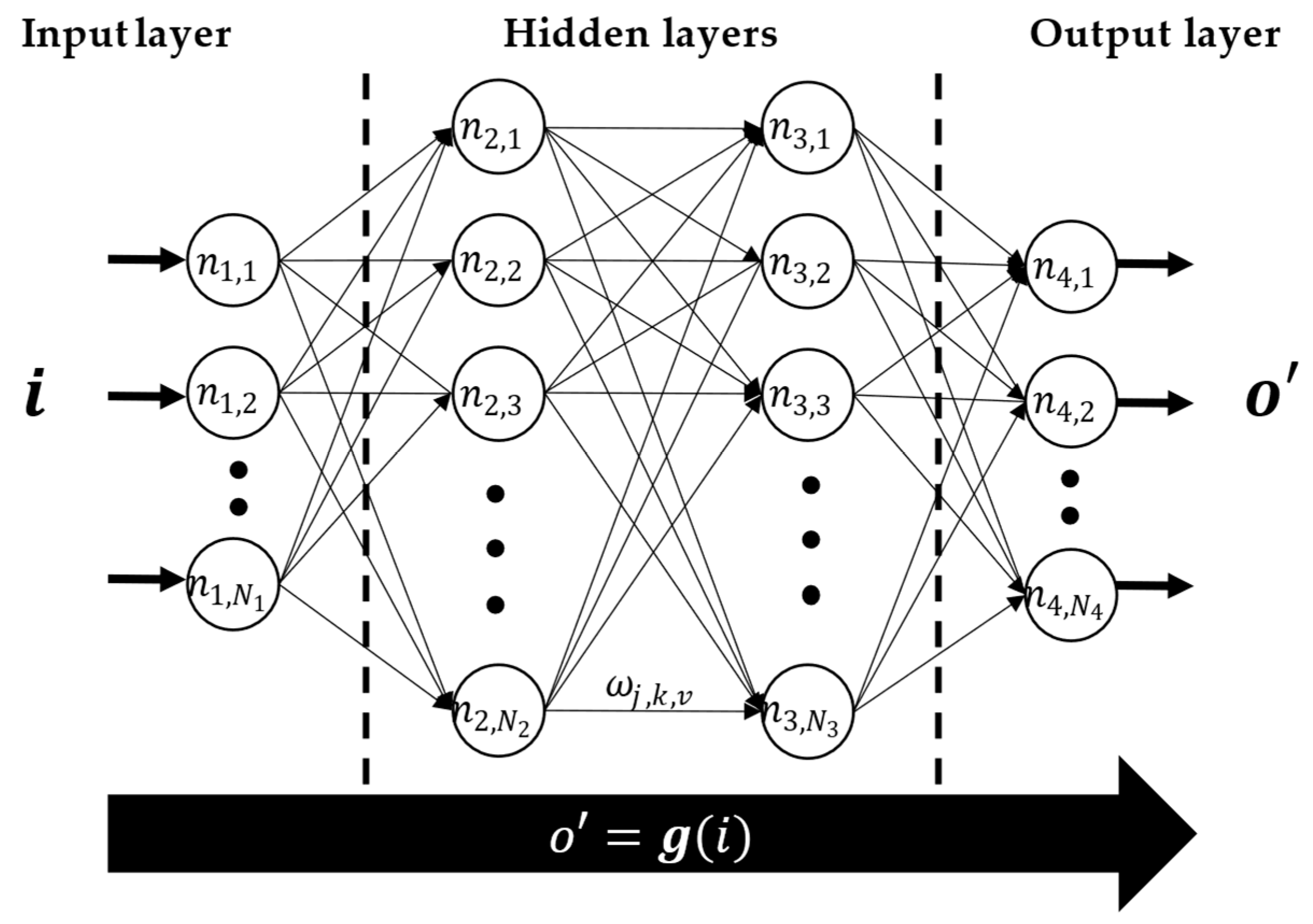

#### 2.3. Step 3: Feed, Train, and Validation of Artificial Neural Network

## 3. Results and Discussion

#### 3.1. Experimental Validation

#### 3.2. Results of the Proposed Approach

_{p}/η

_{p}*) reached a maximum value of 1.01 (a relative +1% percentage increase from baseline), with a flow coefficient (ϕ/ϕ*) shifted to 1.09 (+9% from baseline). For the same perturbed geometry, the stall condition gains a η

_{p}/η

_{p}* value of 0.99 (+2.1%) with ϕ/ϕ* of 0.93 (+10.7%), whereas, for the choke condition, a value of 0.91 (+1.1%) is obtained for η

_{p}/η

_{p}* with a ϕ/ϕ* of 1.58 (+5.3%). From these results, since the CFD analyses were performed with an imposed pressure ratio, it can be stated that this perturbed geometry is suitable for working with higher mass flow rates. Indeed, the same pressure ratios are reached in this stage with higher mass flow rates compared to the baseline. Therefore, in case this perturbed geometry will work with the same mass flow rates as the baseline stage, a reduction in polytropic efficiency will be obtained. Moreover, the same perturbed stage geometry, in terms of work coefficient (τ/τ*), exhibits a −1.9%, −1.0%, and −0.1% decrease at stall, design, and choke conditions, respectively.

_{p}/η

_{p}* of about 0.99 (−1.0% from baseline) with a ϕ/ϕ* of 0.96 (−4.0% from baseline) and a τ/τ* of 1.00 (+0.0%). The same perturbed stage exhibits, at stall condition, a −2.0% reduction in η

_{p}/η

_{p}*, a gain of +1.9% for τ/τ*, and a shift to lower mass flow rates of −10.6% (ϕ/ϕ* of 0.76 instead 0.85). At choke condition, instead, the perturbed geometry compared to the baseline shows a reduction in η

_{p}/η

_{p}* of about −2.2%, the same value of τ/τ*, and a shift in ϕ/ϕ* of −2.9%. Therefore, this perturbed stage achieved the same pressure ratios of the baseline stage with lower mass flow rates.

_{p}/η

_{p}*) varies from 0.99 to 1.01 at stall (from −1.0% to +1.0% in terms of relative percentage variation respect to baseline), from 0.99 to 1.01 at design (from −1.0% to +1.0%), and from 0.88 to 0.92 at choke condition (from −2.2% to +2.2%). Moreover, the work coefficient (τ/τ*) varies from 1.04 to 1.06 at stall (from −1.0% to +1.0%), from 0.99 to 1.01 at design (from −1.0% to +1.0%), and from a value of 0.81 to 0.86 at choke (from −3.6% to +2.4%). Finally, the flow coefficient (ϕ/ϕ*) varies from 0.82 to 0.97 at stall (from −5.7% to +11.5%), from 0.96 to 1.08 at design (from −4.0% to +8.0%), and from 1.23 to 1.37 at choke condition (from −3.9% to +7.0%).

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Friedlingstein, P.; O’sullivan, M.; Jones, M.W.; Andrew, R.M.; Hauck, J.; Olsen, A.; Peters, G.P.; Peters, W.; Pongratz, J.; Sitch, S. Global Carbon Budget 2020. Earth Syst. Sci. Data
**2020**, 12, 3269–3340. [Google Scholar] [CrossRef] - World Energy Trilemma Index. Available online: https://www.worldenergy.org/transition-toolkit/world-energy-trilemma-index (accessed on 12 September 2022).
- Heidari, M.; Parra, D.; Patel, M.K. Physical Design, Techno-Economic Analysis and Optimization of Distributed Compressed Air Energy Storage for Renewable Energy Integration. J. Energy Storage
**2021**, 35, 102268. [Google Scholar] [CrossRef] - Liu, Y.; Wang, Y.; Huang, D. Supercritical CO
_{2}Brayton Cycle: A State-of-the-Art Review. Energy**2019**, 189, 115900. [Google Scholar] [CrossRef] - Li, X.; Zhao, Y.; Yao, H.; Zhao, M.; Liu, Z. A New Method for Impeller Inlet Design of Supercritical CO
_{2}Centrifugal Compressors in Brayton Cycles. Energies**2020**, 13, 5049. [Google Scholar] [CrossRef] - Rizzi, D.; Rossetti, N. Rethinking the Role of O&G Companies Towards Decarbonisation: How ORC Technology and Gas-Expanders Can Increase the Sustainability of the Sector. In Proceedings of the OMC Med Energy Conference and Exhibition; OnePetro, Ravenna, Italy, 28–30 September 2021. [Google Scholar]
- Corbò, S.; Wolfler, T.; Banchi, N.; Furgiuele, I.; Farooq, M. The Role of Turbomachinery in Enabling the Hydrogen Economy. In Proceedings of the Abu Dhabi International Petroleum Exhibition & Conference, Abu Dhabi, United Arab Emirates, 15–18 November 2021. [Google Scholar]
- Rockström, J.; Gaffney, O.; Rogelj, J.; Meinshausen, M.; Nakicenovic, N.; Schellnhuber, H.J. A Roadmap for Rapid Decarbonization. Science
**2017**, 355, 1269–1271. [Google Scholar] [CrossRef] [PubMed] - Xu, C.; Amano, R.S. Empirical Design Considerations for Industrial Centrifugal Compressors. Int. J. Rotating Mach.
**2012**, 2012, 184061. [Google Scholar] [CrossRef] - Li, Z.; Zheng, X. Review of Design Optimization Methods for Turbomachinery Aerodynamics. Prog. Aerosp. Sci.
**2017**, 93, 1–23. [Google Scholar] [CrossRef] - Bicchi, M.; Biliotti, D.; Marconcini, M.; Toni, L.; Cangioli, F.; Arnone, A. An AI-Based Fast Design Method for New Centrifugal Compressor Families. Machines
**2022**, 10, 458. [Google Scholar] [CrossRef] - Du, Y.; Yang, C.; Wang, H.; Hu, C. One-Dimensional Optimisation Design and off-Design Operation Strategy of Centrifugal Compressor for Supercritical Carbon Dioxide Brayton Cycle. Appl. Therm. Eng.
**2021**, 196, 117318. [Google Scholar] [CrossRef] - Massoudi, S.; Picard, C.; Schiffmann, J. Robust Design Using Multiobjective Optimisation and Artificial Neural Networks with Application to a Heat Pump Radial Compressor. Des. Sci.
**2022**, 8, e1. [Google Scholar] [CrossRef] - Li, P.-Y.; Gu, C.-W.; Song, Y. A New Optimization Method for Centrifugal Compressors Based on 1D Calculations and Analyses. Energies
**2015**, 8, 4317–4334. [Google Scholar] [CrossRef] - Wang, J.; Guo, Y.; Zhou, K.; Xia, J.; Li, Y.; Zhao, P.; Dai, Y. Design and Performance Analysis of Compressor and Turbine in Supercritical CO
_{2}Power Cycle Based on System-Component Coupled Optimization. Energy Convers. Manag.**2020**, 221, 113179. [Google Scholar] [CrossRef] - Omidi, M.; Liu, S.-J.; Mohtaram, S.; Lu, H.-T.; Zhang, H.-C. Improving Centrifugal Compressor Performance by Optimizing the Design of Impellers Using Genetic Algorithm and Computational Fluid Dynamics Methods. Sustainability
**2019**, 11, 5409. [Google Scholar] [CrossRef] - Ekradi, K.; Madadi, A. Performance Improvement of a Transonic Centrifugal Compressor Impeller with Splitter Blade by Three-Dimensional Optimization. Energy
**2020**, 201, 117582. [Google Scholar] [CrossRef] - Ma, C.; Yang, Z.; Jiao, K.; Liu, Z.; Du, Q. Multi-Objective Optimization of the Centrifugal Compressor Impeller in 130 KW PEMFC through Coupling SVM with NSGA-III Algorithms. Int. J. Green Energy
**2021**, 18, 1383–1395. [Google Scholar] [CrossRef] - Panizza, A.; Valente, R.; Rubino, D.; Tapinassi, L. Impact of Manufacturing Variability on the Aerodynamic Performance of a Centrifugal Compressor Stage with Curvilinear Blades. In Proceedings of the Turbo Expo: Power for Land, Sea, and Air, Seoul, Republic of Korea, 13–17 June 2016; American Society of Mechanical Engineers: New York, NY, USA; Volume 49712, p. V02CT45A027. [Google Scholar]
- Javed, A.; Pecnik, R.; Van Buijtenen, J.P. Optimization of a Centrifugal Compressor Impeller for Robustness to Manufacturing Uncertainties. J. Eng. Gas Turbines Power
**2016**, 138, 112101. [Google Scholar] [CrossRef] - Liu, Y.; Qin, R.; Ju, Y.; Spence, S.; Zhang, C. Impact of Realistic Manufacturing Uncertainties on the Aerodynamic Performance of a Transonic Centrifugal Impeller. In Proceedings of the Turbo Expo: Power for Land, Sea, and Air, Seoul, Republic of Korea, 13–17 June 2016; American Society of Mechanical Engineers: New York, NY, USA, 2020; Volume 84096, p. V02DT38A012. [Google Scholar]
- Zhu, R.; Ju, Y.; Zhang, C. Effects of Geometric and Operational Uncertainties on Aerodynamic Performance of Centrifugal Compressor Stage. Proc. Instit. Mech. Eng. Part A J. Power Energy
**2022**, 236, 490–505. [Google Scholar] [CrossRef] - Li, S.; Huang, M.; Liu, X. Geometric Uncertainty Analysis of a Centrifugal Compressor Using Kriging Model. In Proceedings of the IOP Conference Series: Materials Science and Engineering, Shaanxi, China, 8–11 October 2020; IOP Publishing: Bristol, UK, 2021; Volume 1043, p. 052041. [Google Scholar]
- Ju, Y.; Liu, Y.; Jiang, W.; Zhang, C. Aerodynamic Analysis and Design Optimization of a Centrifugal Compressor Impeller Considering Realistic Manufacturing Uncertainties. Aerosp. Sci. Technol.
**2021**, 115, 106787. [Google Scholar] [CrossRef] - Tang, X.; Gu, N.; Wang, W.; Wang, Z.; Peng, R. Aerodynamic Robustness Optimization and Design Exploration of Centrifugal Compressor Impeller under Uncertainties. Int. J. Heat Mass Transf.
**2021**, 180, 121799. [Google Scholar] [CrossRef] - Lüdtke, K.H. Process Centrifugal Compressors: Basics, Function, Operation, Design, Application; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2004. [Google Scholar]
- Casey, M.; Robinson, C. Radial Flow Turbocompressors; Cambridge University Press: Cambridge, UK, 2021. [Google Scholar]
- Mosdzien, M.; Enneking, M.; Hehn, A.; Grates, D.; Jeschke, P. Influence of Blade Geometry on Secondary Flow Development in a Transonic Centrifugal Compressor. J. Glob. Power Propuls. Soc.
**2018**, 2, 429–441. [Google Scholar] [CrossRef] - Du, W.; Li, Y.; Li, L.; Lorenzini, G. A Quasi-One-Dimensional Model for the Centrifugal Compressors Performance Simulations. Int. J. Heat Technol.
**2018**, 36, 391–396. [Google Scholar] [CrossRef] - Jiang, H.; Dong, S.; Liu, Z.; He, Y.; Ai, F. Performance Prediction of the Centrifugal Compressor Based on a Limited Number of Sample Data. Math. Prob. Eng.
**2019**, 2019, 5954128. [Google Scholar] [CrossRef] - Li, Y.; Qiu, Z.; Fan, L.; Tan, X.; Qiu, T. State Evaluation of Centrifugal Compressor Unit Based on Parameter Distribution. In Proceedings of the 13th International Conference on Damage Assessment of Structures, Porto, Portugal, 9–10 July 2019; Springer: Singapore, 2020; pp. 386–401. [Google Scholar]
- Cantini, A.; De Carlo, F.; Tucci, M. Application of the Lean Layout Planning System in a Leather Bags Manufacturing Plant and Proposal of an Approach to Engage the Company’s Staff in the Research of the Layout Solution. Proc. Summer Sch. Web Bergamo Italy
**2020**, 1, 9–11. [Google Scholar] - Casey, M.V. A Computational Geometry for the Blades and Internal Flow Channels of Centrifugal Compressors. J. Eng. Gas Turbines Power
**1983**, 105, 288–295. [Google Scholar] [CrossRef] - Kim, J.-H.; Choi, J.-H.; Husain, A.; Kim, K.-Y. Multi-Objective Optimization of a Centrifugal Compressor Impeller through Evolutionary Algorithms. Proc. Inst. Mech. Eng. Part A J. Power Energy
**2010**, 224, 711–721. [Google Scholar] [CrossRef] - Cho, S.-Y.; Ahn, K.-Y.; Lee, Y.-D.; Kim, Y.-C. Optimal Design of a Centrifugal Compressor Impeller Using Evolutionary Algorithms. Math. Prob. Eng.
**2012**, 2012, 752931. [Google Scholar] [CrossRef] - Sobol’, I.M.; Asotsky, D.; Kreinin, A.; Kucherenko, S. Construction and Comparison of High-Dimensional Sobol’generators. Wilmott
**2011**, 2011, 64–79. [Google Scholar] [CrossRef] - Cantini, A.; Peron, M.; De Carlo, F.; Sgarbossa, F. A Decision Support System for Configuring Spare Parts Supply Chains Considering Different Manufacturing Technologies. Int. J. Prod. Res.
**2022**, 1–21. [Google Scholar] [CrossRef] - Arnone, A. Viscous Analysis of Three-Dimensional Rotor Flow Using a Multigrid Method. J. Turbomach.
**1994**, 116, 435–445. [Google Scholar] [CrossRef] - Bicchi, M.; Pinelli, L.; Marconcini, M.; Gaetani, P.; Persico, G. Numerical Study of a High-Pressure Turbine Stage with Inlet Distortions. AIP Conf. Proc.
**2019**, 2191, 020020. [Google Scholar] - Wilcox, D.C. Turbulence Modeling CFD; DCW industries: La Canada, CA, USA, 1998; Volume 2. [Google Scholar]
- Giovannini, M.; Marconcini, M.; Arnone, A.; Dominguez, A. A Hybrid Parallelization Strategy of a Cfd Code for Turbomachinery Applications. In Proceedings of the 11th European Conference on Turbomachinery Fluid Dynamics & Thermodynamics, Madrid, Spain, 23–27 March 2015. [Google Scholar]
- Riccietti, E.; Bellucci, J.; Checcucci, M.; Marconcini, M.; Arnone, A. Support Vector Machine Classification Applied to the Parametric Design of Centrifugal Pumps. Eng. Optim.
**2018**, 50, 1304–1324. [Google Scholar] [CrossRef] - GitHub—Keras-Team/Keras: Deep Learning for Humans. Available online: https://github.com/keras-team/keras (accessed on 19 September 2022).
- TensorFlow. 2021. Available online: https://www.tensorflow.org/ (accessed on 19 September 2022).
- Agnolucci, A.; Marconcini, M.; Arnone, A.; Toni, L.; Grimaldi, A.; Giachi, M. Centrifugal Compressor Stage Efficiency and Rotor Stiffness Augmentation via Artificial Neural Networks. In Proceedings of the Turbo Expo: Power for Land, Sea, and Air, Online, 7–11 June 2021; American Society of Mechanical Engineers: New York, NY, USA, 2021; Volume 84935, p. V02DT37A014. [Google Scholar]

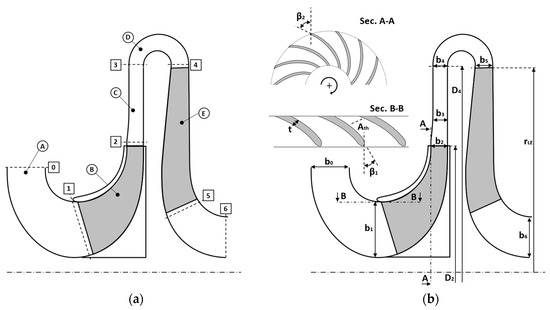

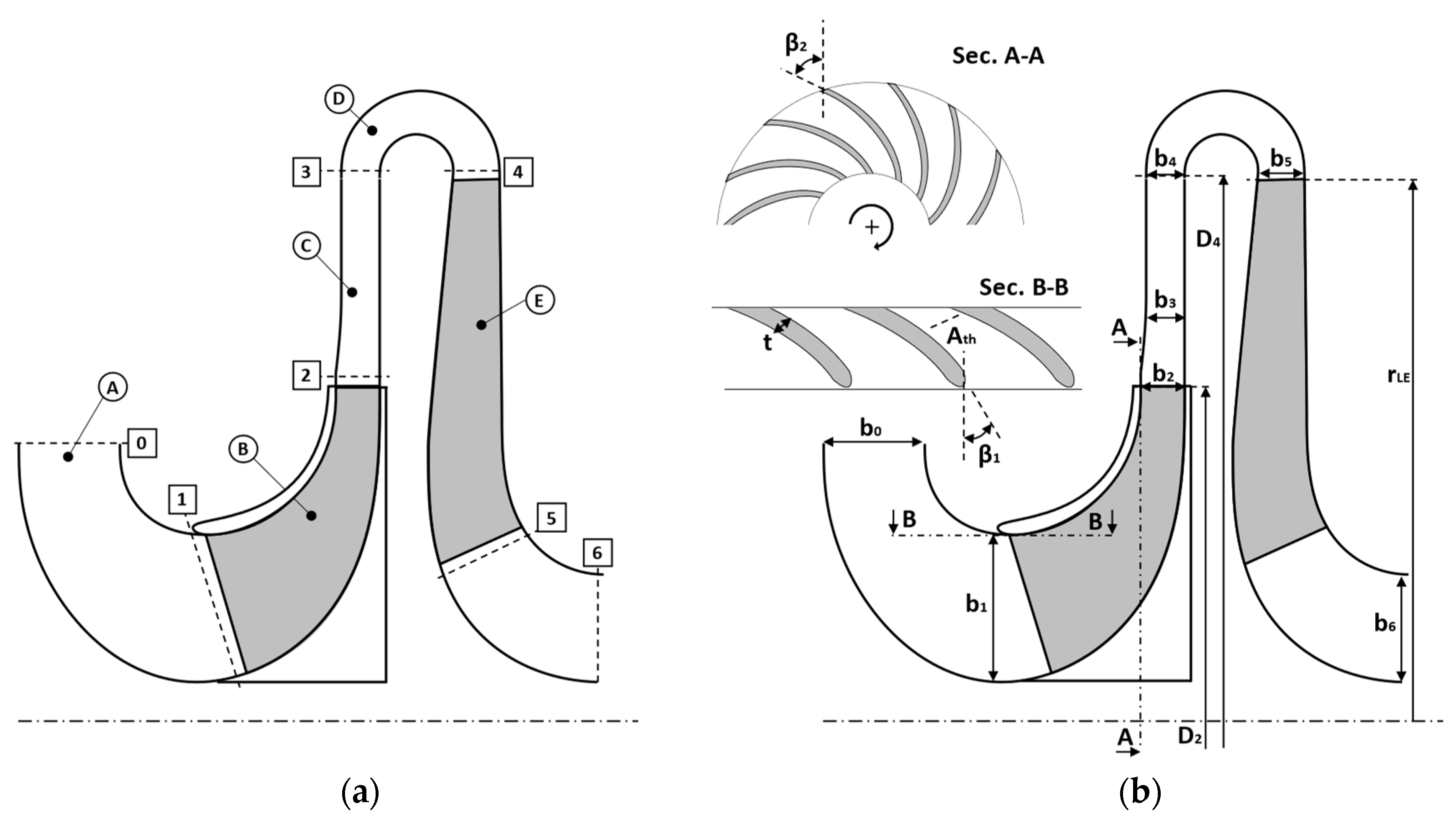

**Figure 1.**Meridional view of a centrifugal compressor stage (

**a**) composed of the inlet duct (A), impeller (B), vaneless diffuser (C), crossover bend (D), and return vane channel (E), as well as independent/dependent geometrical parameters of the stage (

**b**).

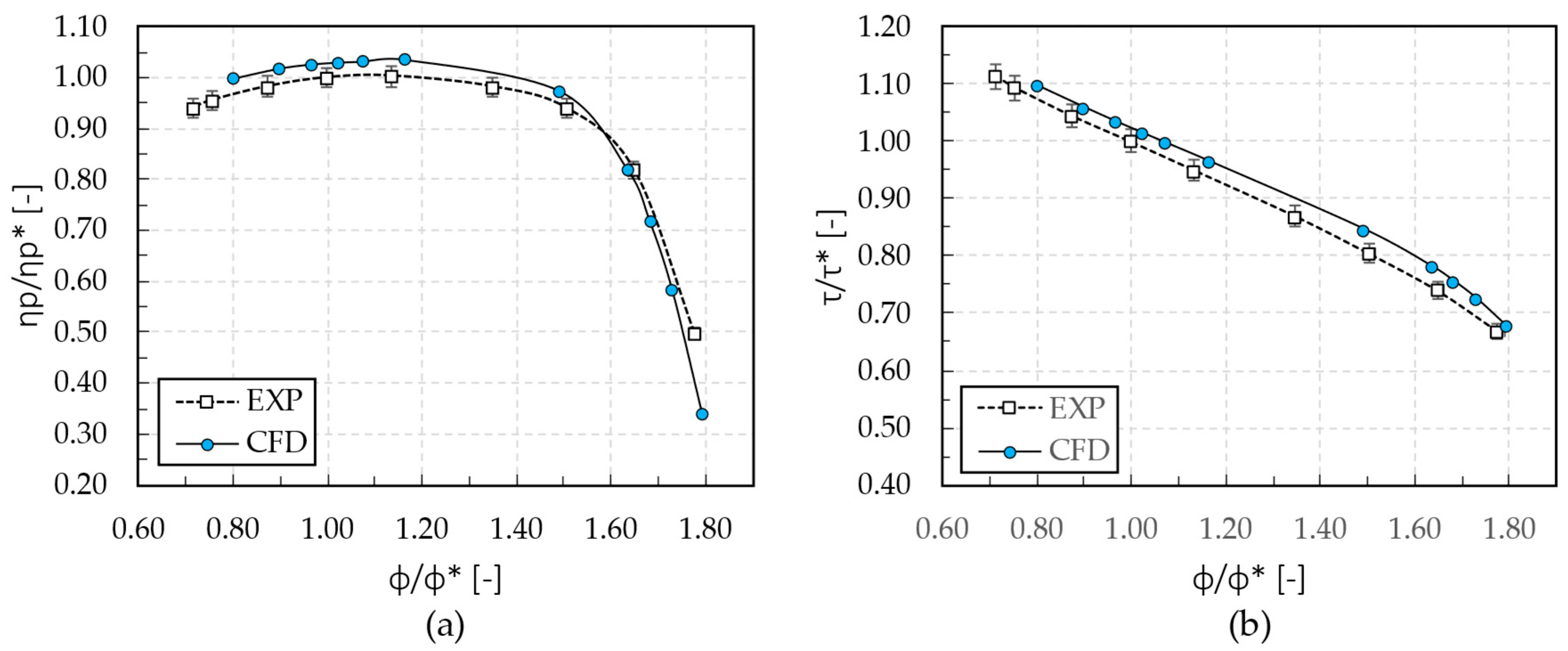

**Figure 6.**Experimental validation of CFD predictions, in terms of polytropic efficiency (

**a**) and work coefficient (

**b**), at section 6 of the low mass flow stage.

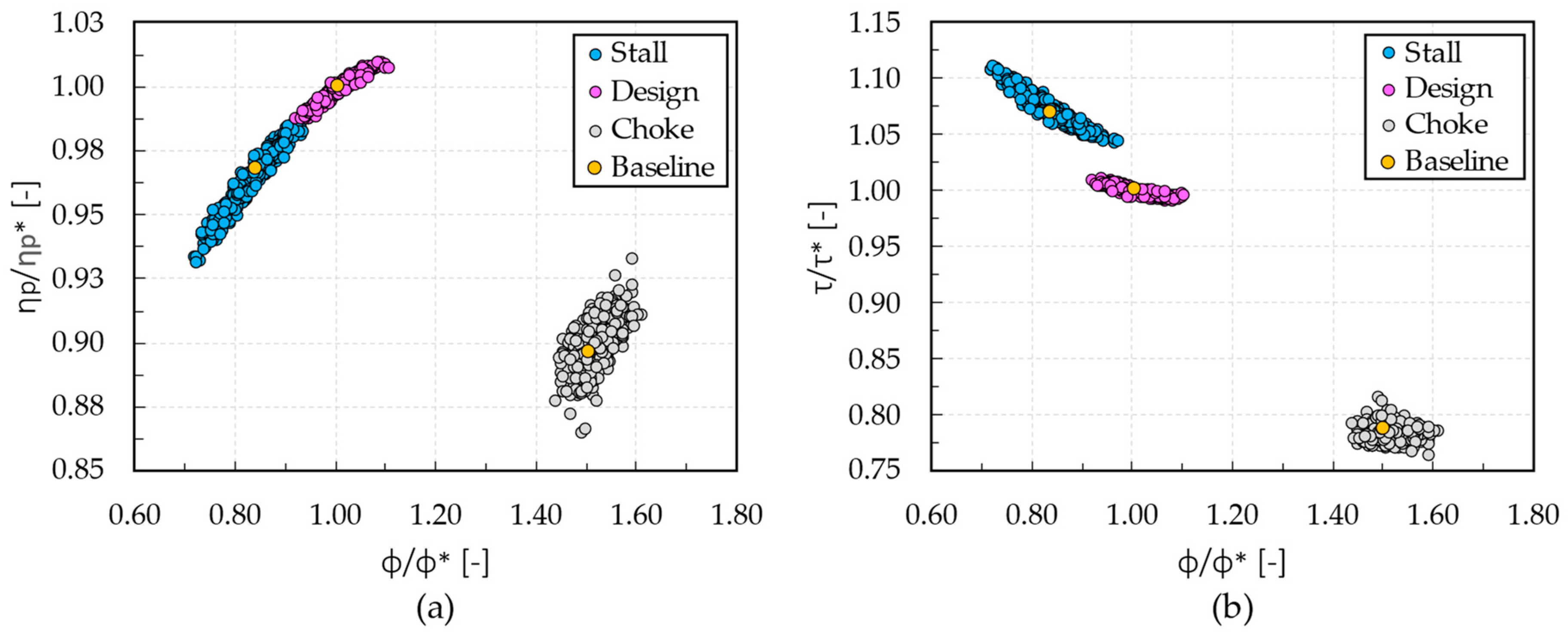

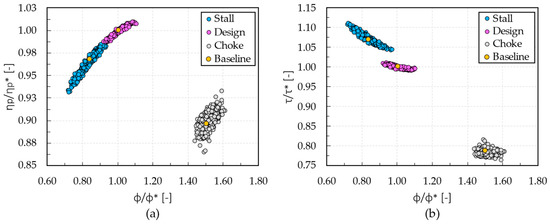

**Figure 7.**Polytropic efficiency (

**a**) and work coefficient (

**b**) at section 6 derived from parametric analysis on the low mass flow stage.

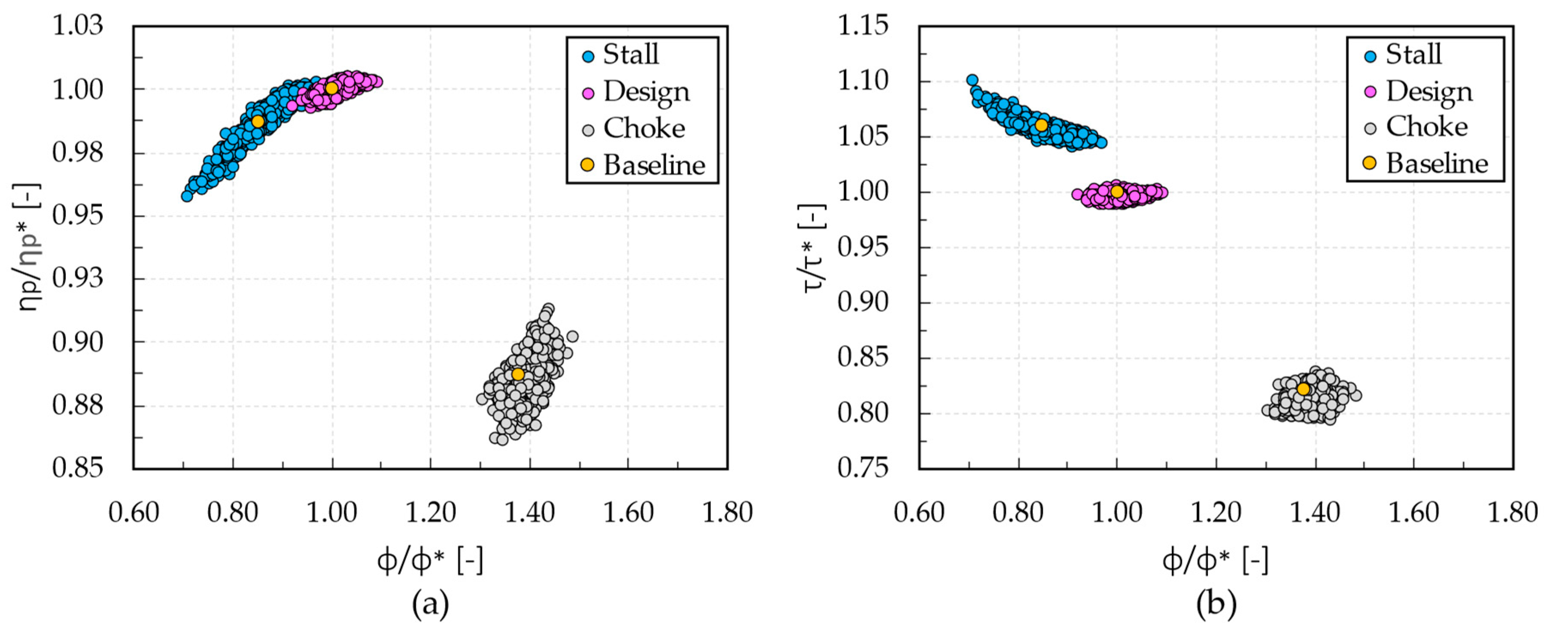

**Figure 8.**Polytropic efficiency (

**a**) and work coefficient (

**b**) at section 6 derived from parametric analysis on the medium mass flow stage.

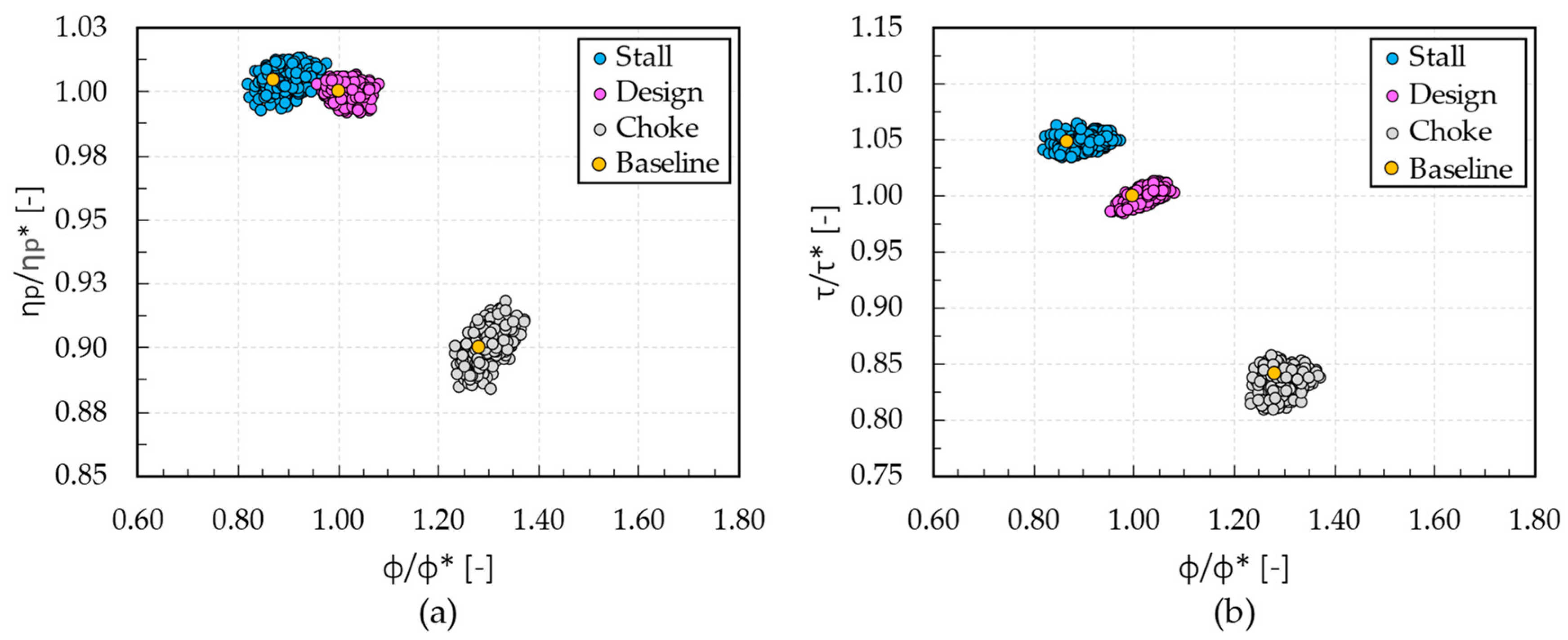

**Figure 9.**Polytropic efficiency (

**a**) and work coefficient (

**b**) at section 6 derived from parametric analysis on the high mass flow stage.

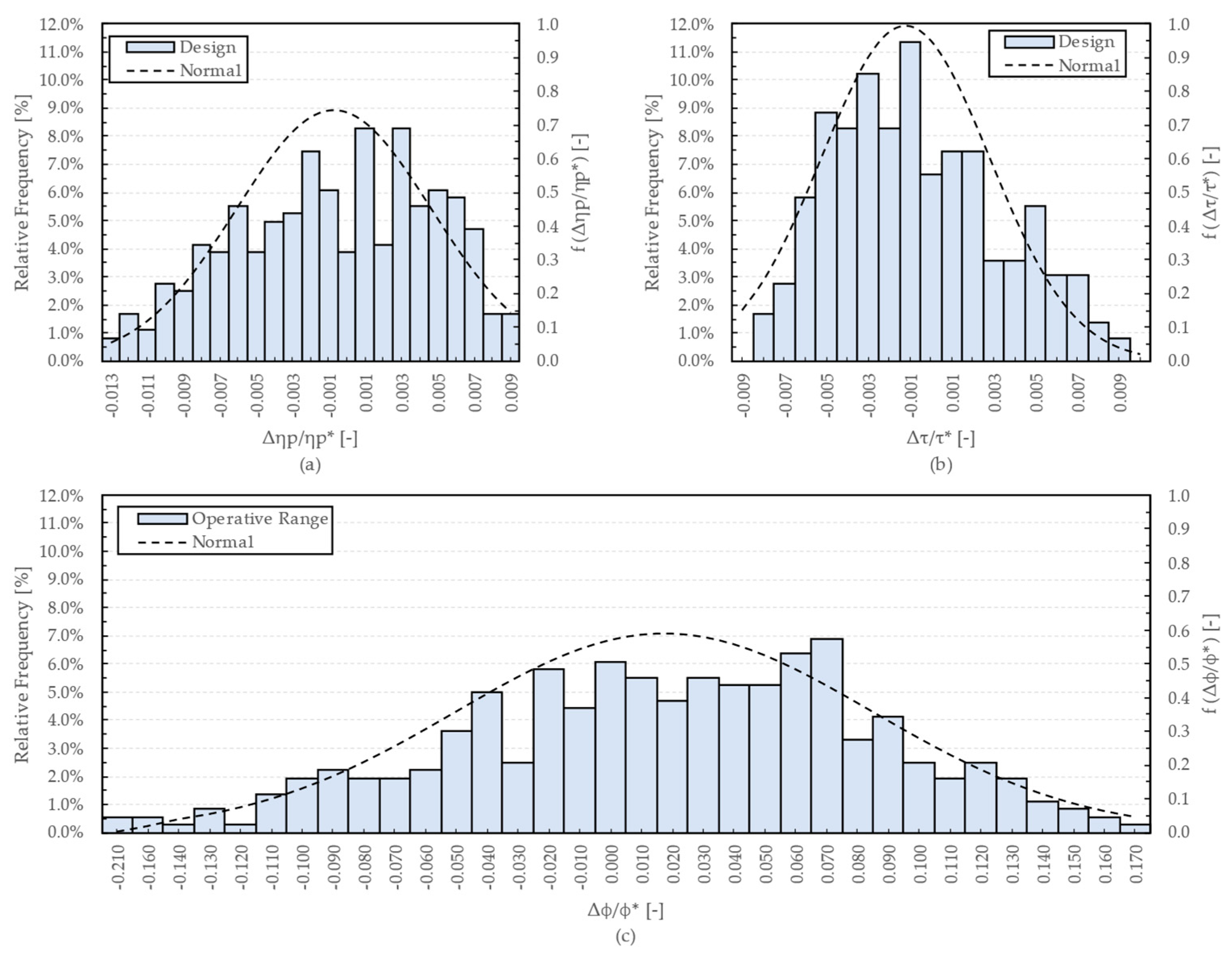

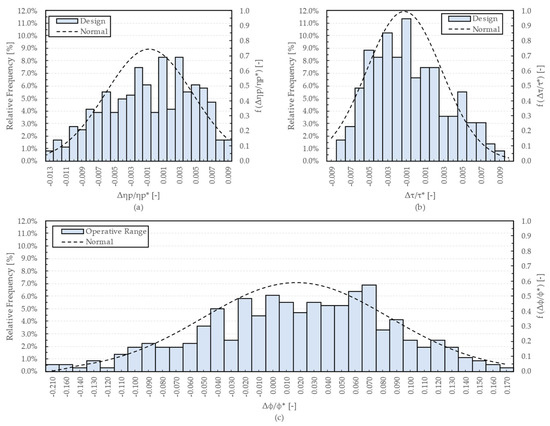

**Figure 10.**Low flow stage graphs describing the relative frequencies of $\mathsf{\Delta}{\eta}_{p}$ (

**a**) and $\mathsf{\Delta}\tau $ (

**b**) variations in design condition at section 6, as well as the relative frequency of choke-to-stall operating range variations $\mathsf{\Delta}\varphi $ (

**c**) with their comparable Gaussian distributions.

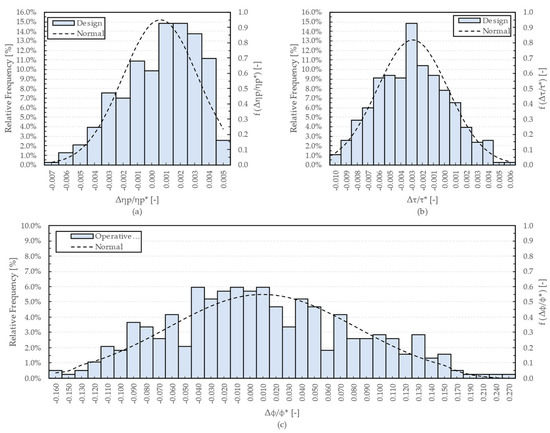

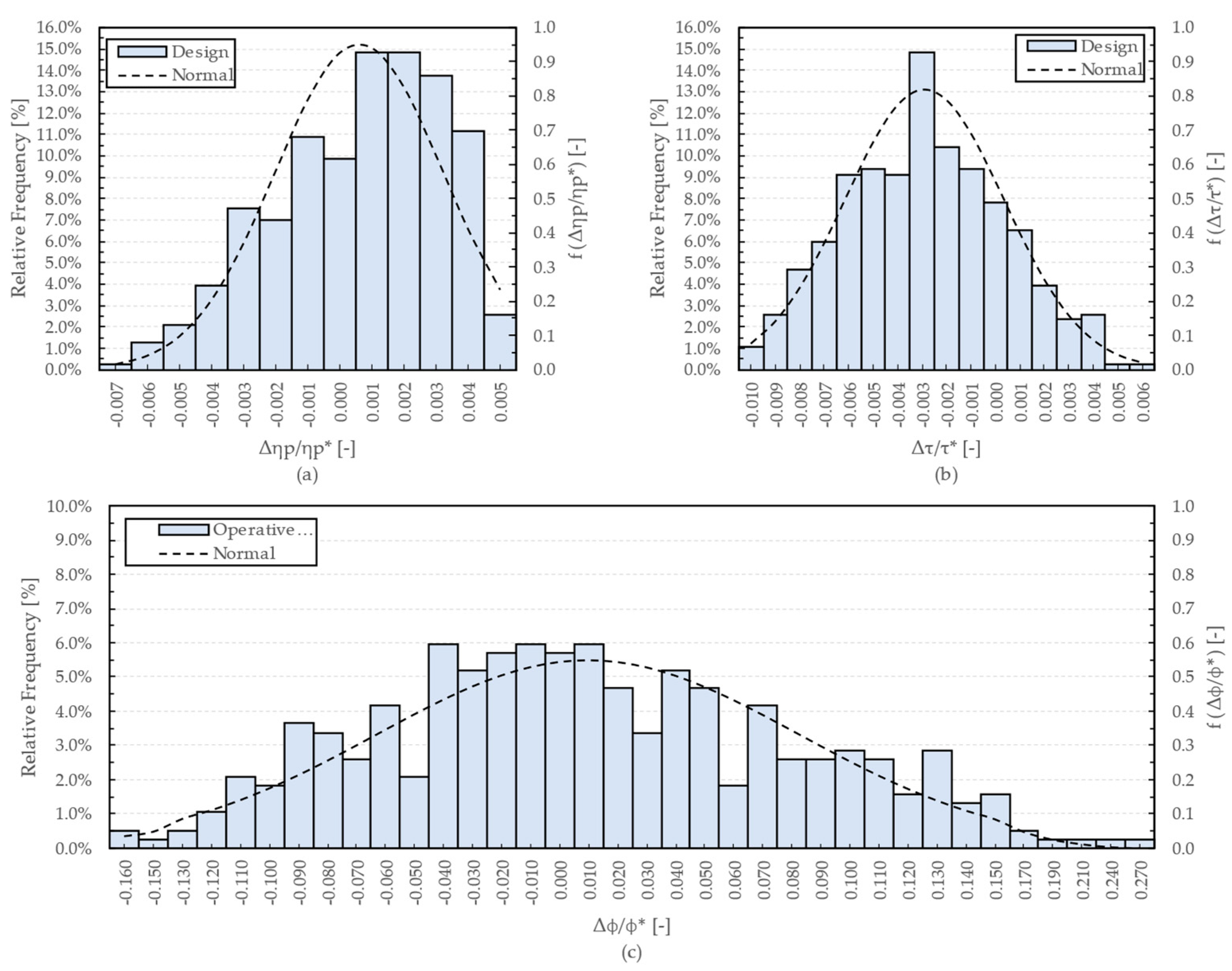

**Figure 11.**Medium flow stage graphs describing the relative frequencies of $\mathsf{\Delta}{\eta}_{p}$ (

**a**) and $\mathsf{\Delta}\tau $ (

**b**) variations at design condition at section 6, as well as the relative frequency of choke-to-stall operating range variations $\mathsf{\Delta}\varphi $ (

**c**) with their comparable Gaussian distributions.

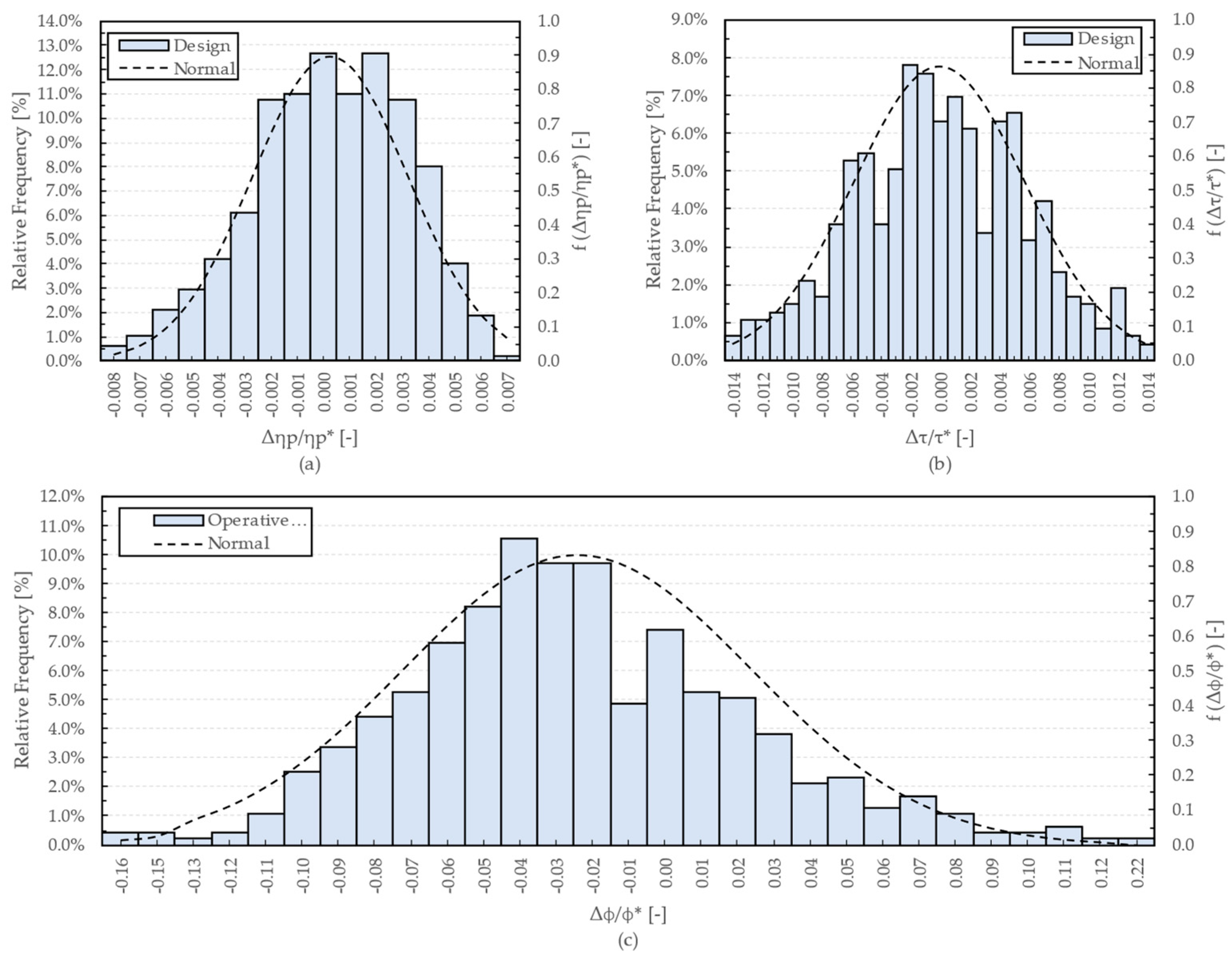

**Figure 12.**High flow stage graphs describing the relative frequencies of $\mathsf{\Delta}{\eta}_{p}$ (

**a**) and $\mathsf{\Delta}\tau $ (

**b**) variations at design condition at section 6, as well as the relative frequency of choke-to-stall operating range variations $\mathsf{\Delta}\varphi $ (

**c**) with their comparable Gaussian distributions.

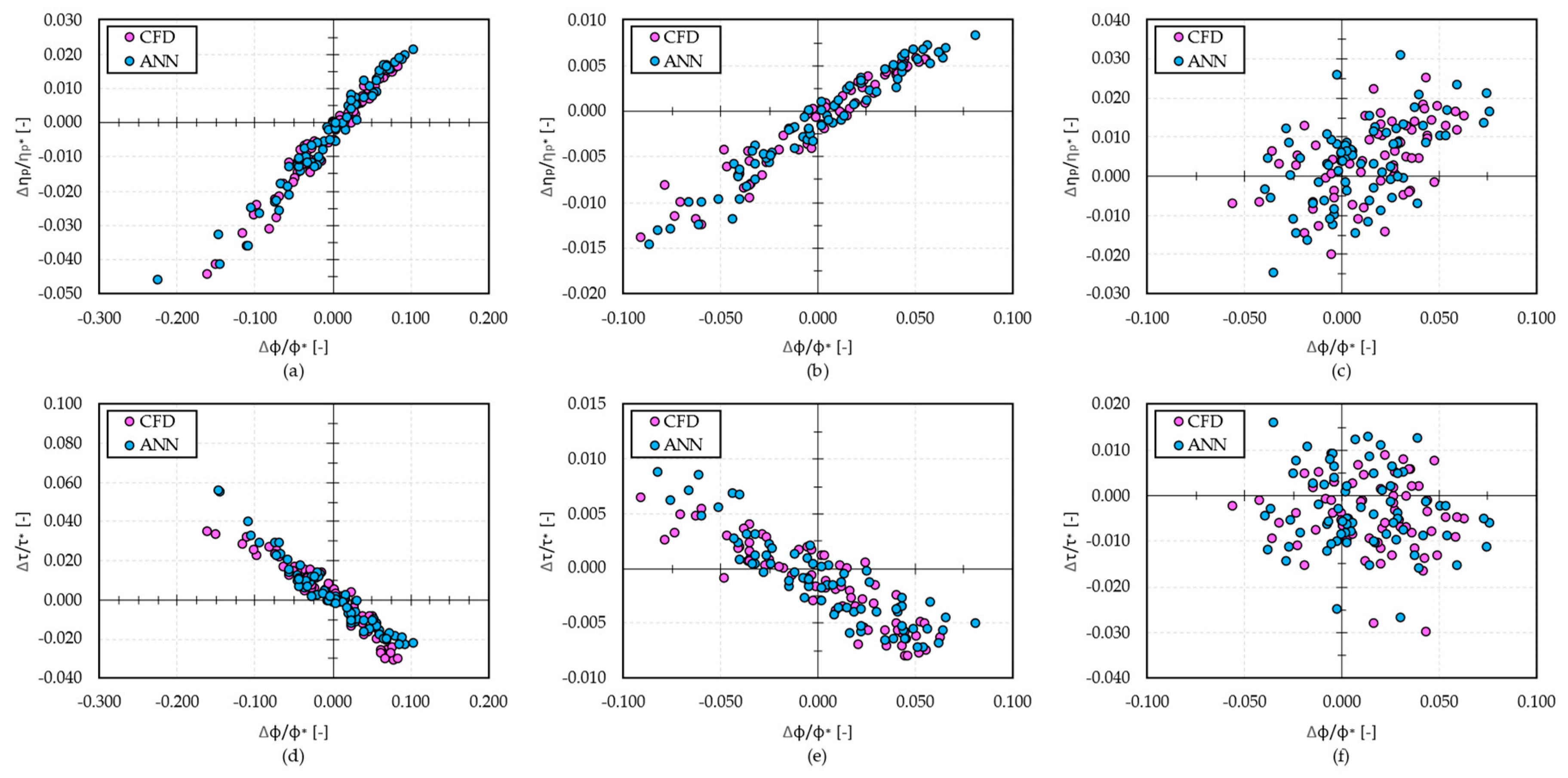

**Figure 13.**Comparison of ANN forecasts (cyan dots) and CFD evaluations (magenta dots) at section 6 under stall (

**a**,

**d**), design (

**b**,

**e**), and choke (

**c**,

**f**) conditions for the low flow stage.

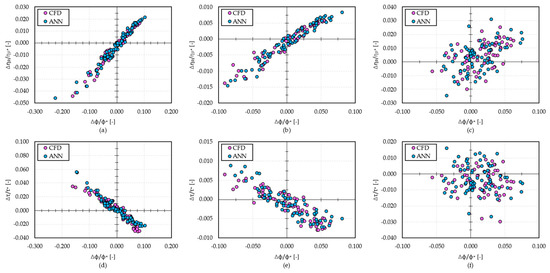

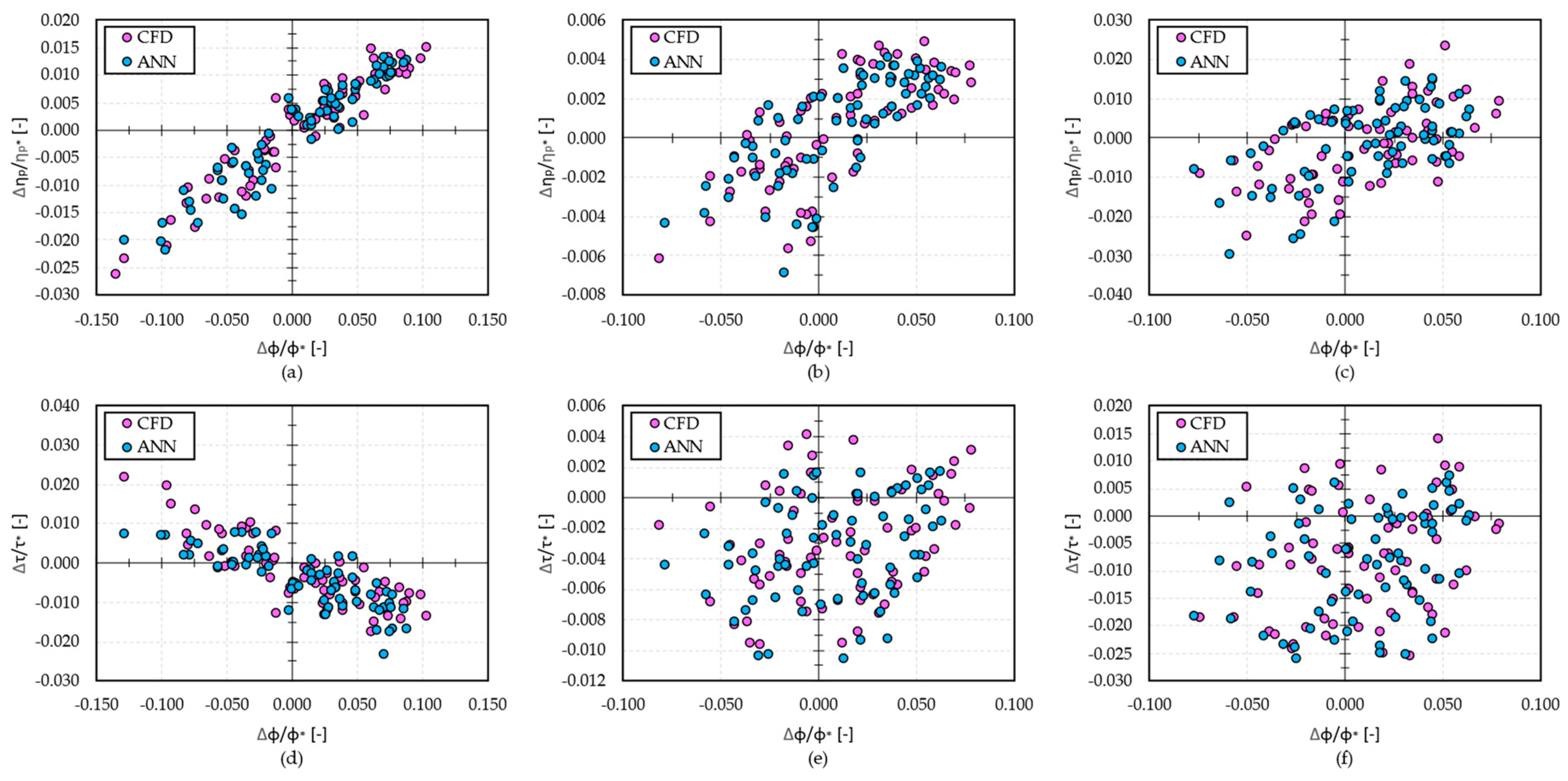

**Figure 14.**Comparison of ANN forecasts (cyan dots) and CFD evaluations (magenta dots) at section 6 under stall (

**a**,

**d**), design (

**b**,

**e**), and choke (

**c**,

**f**) conditions for the low medium stage.

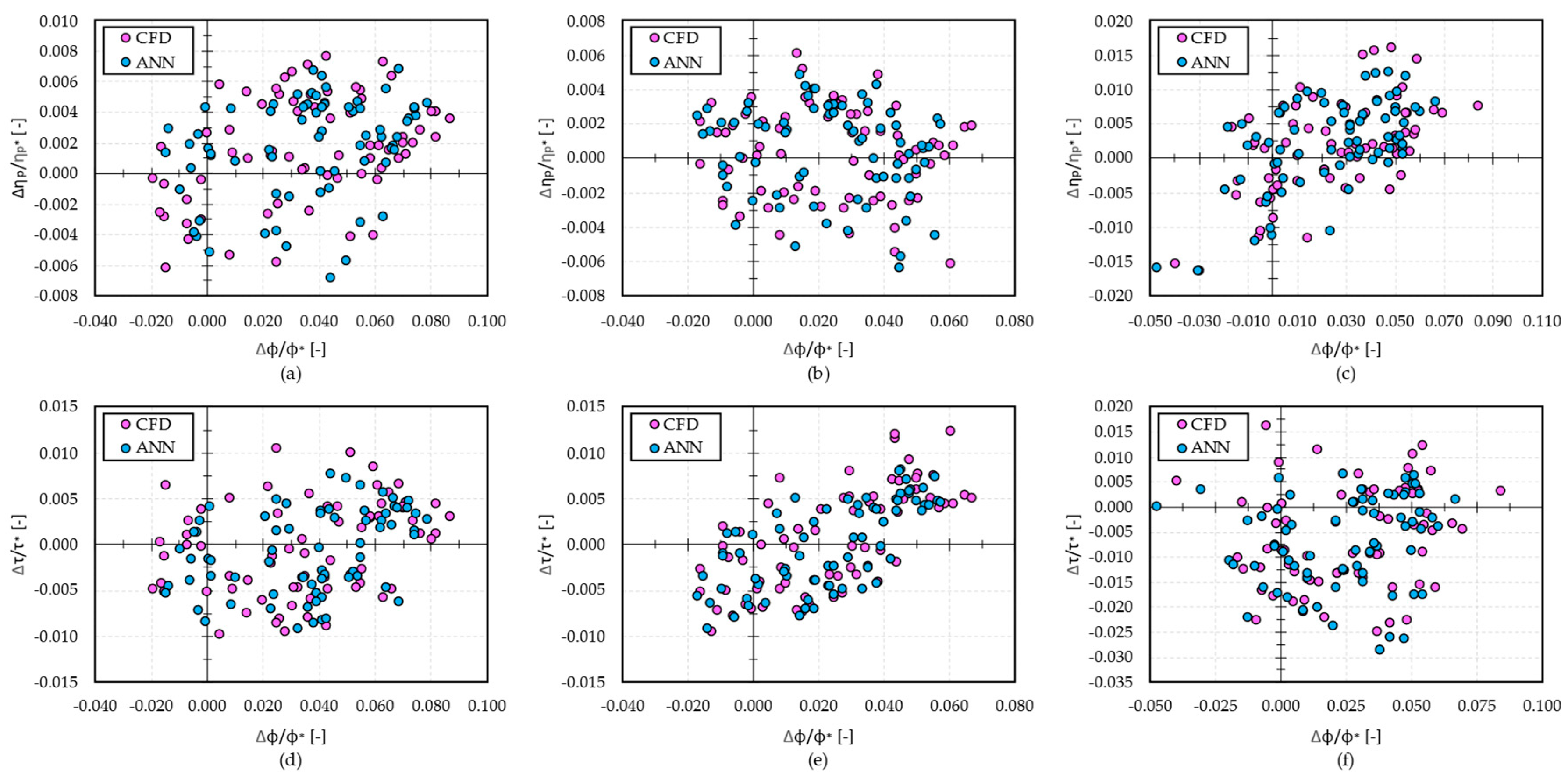

**Figure 15.**Comparison of ANN forecasts (cyan dots) and CFD evaluations (magenta dots) at section 6 under stall (

**a**,

**d**), design (

**b**,

**e**), and choke (

**c**,

**f**) conditions for the high flow stage.

Parameter | Unit | Range of Variation |
---|---|---|

Impeller inlet blade angle ${\beta}_{1}$ | deg | [−2.0; 2.0] |

Impeller outlet blade angle ${\beta}_{2}$ | deg | [−2.0; 2.0] |

Blade thickness $t$ | % | [−7.5; 7.5] |

Outlet impeller width ${b}_{2}$ | % | [−5.0; 5.0] |

Impeller throat area ${A}_{th}$ | % | [−4.0; 7.5] |

Diffusion ratio of diffuser $DR={D}_{4}/{D}_{2}$ | - | [−1.6; 1.84] |

Parameter | Reason |
---|---|

Inlet width of inlet duct ${b}_{0}$ | Fix inlet width of inlet duct |

$\mathrm{Inlet}\mathrm{width}\mathrm{of}\mathrm{impeller}{b}_{1}$ | Fix inlet width of impeller |

Inlet width of crossover bend ${b}_{4}$ | Preserve ${b}_{3}/{b}_{4}$ ratio |

Inlet width of return vane channel ${b}_{5}$ | Preserve ${b}_{4}/{b}_{5}$ ratio |

Radial position of return channel blade LE ${r}_{LE}$ | Preserve the ratio between return channel blade length and diffuser $DR$ |

Outlet width of return vane channel TE ${b}_{6}$ | Preserve TE width |

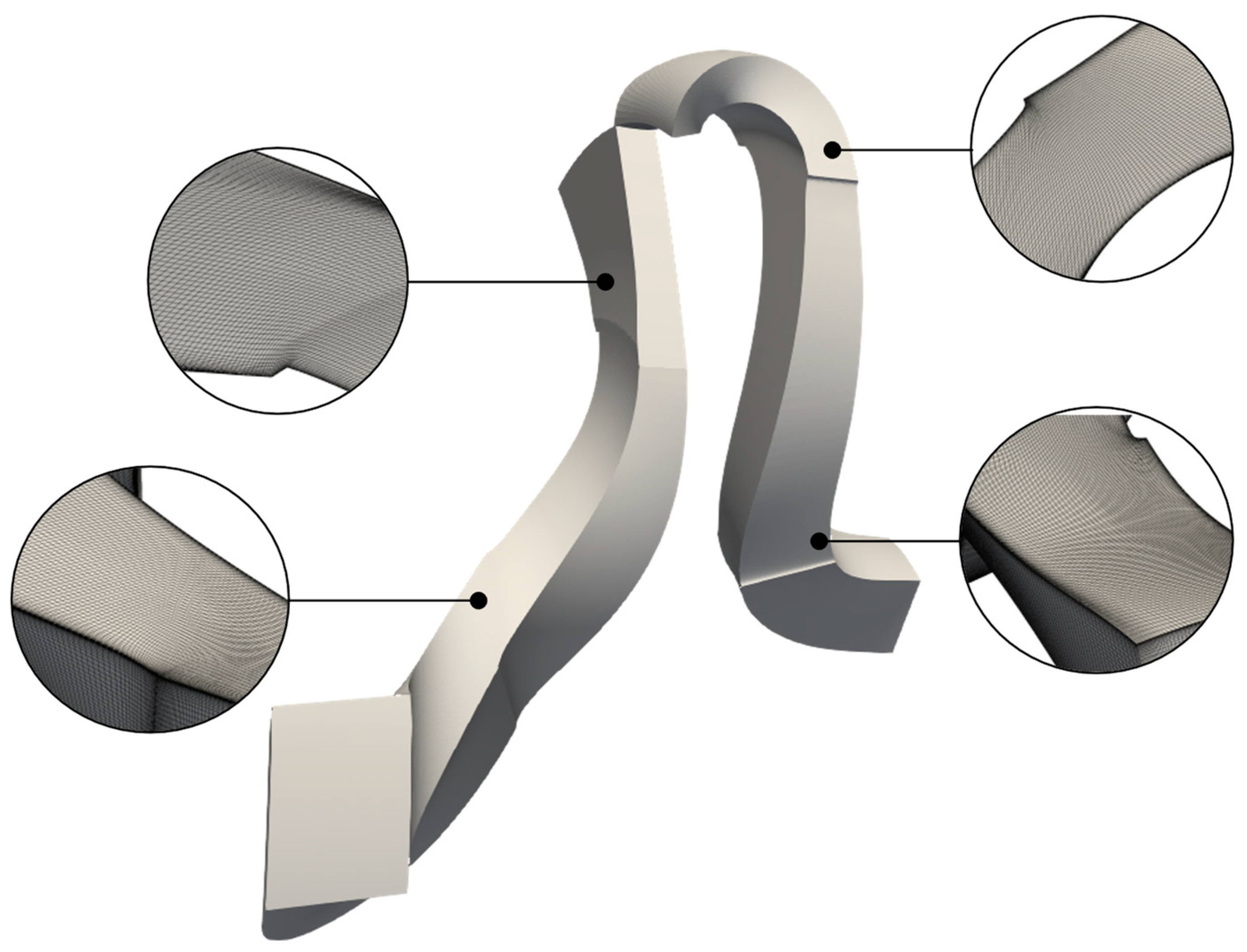

Grid | No. of Elements | Polytropic Efficiency | Work Coefficient | ||
---|---|---|---|---|---|

Value | Error with G5 [%] | Value | Error with G5 [%] | ||

G1 | 3.4 million | 0.991 | −0.9 | 1.009 | 0.9 |

G2 | 3.8 million | 0.995 | −0.5 | 1.005 | 0.5 |

G3 | 4.3 million | 0.998 | −0.2 | 1.001 | 0.1 |

G4 | 4.8 million | 1.000 | 0.0 | 1.000 | 0.0 |

G5 | 5.3 million | 1.000 | - | 1.000 | - |

Numerical Setup for CFD Computations | |
---|---|

Analysis type | RANS with adiabatic walls |

Grid type | H-type |

No. of Elements | 4.8 million |

Convective flux discretization | 2nd order TVD-MUSCL with Roe’s upwind scheme |

Viscous flux discretization | Central difference scheme |

Turbulence closure | Wilcox’s k-ω model |

Parallelization | Hybrid OpenMP/MPI architecture |

Wall treatment | Full resolution |

Near wall grid refinement | First element of 1.0 × 10^{−5} mm (y+ ≤ 1) |

**Table 5.**ANN mean absolute error in predicting polytropic efficiency ${\delta}_{{\eta}_{p}},$ work coefficient ${\delta}_{\tau}$, and operative range ${\delta}_{\Delta \varphi}$.

Stall | Design | Choke | Operative Range | ||||
---|---|---|---|---|---|---|---|

${\mathit{\delta}}_{{\mathit{\eta}}_{\mathit{p}}}$ | ${\mathit{\delta}}_{\mathit{\tau}}$ | ${\mathit{\delta}}_{{\mathit{\eta}}_{\mathit{p}}}$ | ${\mathit{\delta}}_{\mathit{\tau}}$ | ${\mathit{\delta}}_{{\mathit{\eta}}_{\mathit{p}}}$ | ${\mathit{\delta}}_{\mathit{\tau}}$ | ${\mathit{\delta}}_{\mathbf{\Delta}\mathit{\varphi}}$ | |

Low flow stage | 0.15% | 0.30% | 0.07% | 0.08% | 0.20% | 0.14% | 0.03% |

Medium flow stage | 0.09% | 0.17% | 0.04% | 0.05% | 0.19% | 0.11% | 0.04% |

High flow stage | 0.10% | 0.08% | 0.06% | 0.06% | 0.12% | 0.12% | 0.07% |
