Surface Modification of Ga-Doped-LLZO (Li7La3Zr2O12) by the Addition of Polyacrylonitrile for the Electrochemical Stability of Composite Solid Electrolytes

by
Hyewoo Noh
1,2,†,
Daeil Kim
1,†,
Wooyoung Lee
1,
Boyun Jang
1,*,
Jeong Sook Ha
2,* and
Ji Haeng Yu
1,*
1
Korea Institute of Energy Research, Daejeon 34129, Republic of Korea
2
Department of Chemical and Biological Engineering, Korea University, Seoul 02841, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Energies 2023, 16(23), 7695; https://doi.org/10.3390/en16237695
Submission received: 24 October 2023 / Revised: 11 November 2023 / Accepted: 15 November 2023 / Published: 21 November 2023
(This article belongs to the Topic Electrochemical Energy Storage Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Composite solid electrolytes (CSEs), often incorporating succinonitrile (SCN), offer promi I confirm sing solutions for improving the performance of all-solid-state batteries. These electrolytes are typically made of ceramics such as Li7La3Zr2O12 (LLZO) and polymers such as poly(vinylidene fluoride-co-hexafluoropropylene) (PVDF-HFP). Garnet-applied polymer–ceramic electrolyte (g-PCE) is composed of PVDF-HFP, SCN, and LLZO. However, the interface between SCN and LLZO is reportedly unstable owing to the polymerization of SCN. This polymerization could cause two serious problems: (1) gelation during the mixing of LLZO and SCN and (2) degradation of ionic performance during charge and discharge. To prevent this catalytic reaction, polyacrylonitrile (PAN) can be added to the g-PCE (g-PPCE). PAN blocks the polymerization of SCN through a cyclization process involving La ions which occurs more rapidly than SCN polymerization. In this study, the enhanced chemical stability of the garnet-applied PAN-added polymer ceramic electrolyte (g-PPCE) was achieved by using an impregnation process which added SCN with 5 wt.% of PAN. The resulting CSE has an ionic conductivity of ~10-⁴ S/cm at room temperature. Coin-type cells assembled with LFP (LiFePO4) and LNCM (LiNi0.6Co0.2Mn0.2O2) cathodes with Li-metal anodes show specific discharge capacities of 150 and 167 mAh/g at 0.1 C, respectively, and stable cycle performance. Additionally, a pouch-type cell with a discharge capacity of 5 mAh also exhibits potential electrochemical performance.

1. Introduction

As the global consumption of electricity increases, electricity storage, not merely generation, has become increasingly important because of fluctuations in levels of electricity generation from renewable sources [1,2,3]. Recently, all-solid-state lithium batteries have been widely studied owing to their potential to offer higher energy density, extended cycle life, and enhanced safety compared to conventional lithium-ion batteries [2,3,4,5]. Among the solid-state electrolytes, oxide-based solid-state electrolytes have attracted attention owing to their high ionic conductivity and thermal and mechanical stability, along with sulfide electrolytes [6,7,8,9,10]. Oxide-based solid electrolytes are primarily employed in the form of pellets or sheets, which results in various limitations, such as excessive electrolyte thickness or susceptibility to external impacts [11]. To overcome these limitations, composite solid electrolytes (CSEs) based on oxide-based and polymer electrolytes have been actively studied [12,13,14,15,16,17].
CSEs containing Li7La3Zr2O12 (LLZO), an oxide-based electrolyte, along with succinonitrile (SCN) serving as a plasticizer in a polymer electrolyte, have been proposed. Vanita et al. prepared a ceramic-rich (50 wt.%) composite electrolyte with Li6.4La3Zr1.4Ta0.6O12 (LLZTO), polyethylene oxide (PEO), lithium bis(trifluoromethanesulfonyl)imide (LiTFSI), and SCN using solvent-free cryomilling. The mixture of SCN and LiTFSI (20:1), called plastic-crystal electrolyte (PCE), exhibits high room-temperature conductivity (5.26 × 10−3 S/cm at 298 K). When it was mixed with LLZTO, it was observed that the mixture promoted lithium-ion transport at the grain boundary. Moreover, the addition of PEO at 5 wt.% reduces the brittleness/hardness of the CSE, thus overcoming the electrode–electrolyte interfacial resistance [18]. Kumlachew et al. fabricated a tri-layer composite polymer electrolyte (Tri-CPE) by uniformly dispersing Ga/F-doped LLZO into a poly(vinyl fluoride) (PVDF)/polyacrylonitrile (PAN)/LiTFSI/SCN matrix using a simple solution-casting method. The top and bottom membranes did not contain LLZO, and the Tri-CPE exhibited an ionic conductivity at room temperature of 4.5 × 10−4 S/cm, with a high Li+ ion transfer number (0.84). The cell with the LMO@T-LNCM811-based composite cathode showed a Coulombic efficiency of 99.4% and capacity retention of 89.8% at 1 C over 300 cycles [19]. Despite the good performance shown in the above studies, problems such as the coordination or dehydrogenation of SCN with transition metals in ceramic electrolytes have been reported [20]. The primary issue lies in the gelation of the electrolytes during the mixing of SCN and Li6.25Ga0.25 La3Zr2O12 (LGLZO), rendering the fabrication of CSEs challenging.
Various methods have been developed to address above issues. Cheng et al. fabricated a flexible Al-LLZO sheet with a thickness of approximately 75 μm through a tape-casting method and impregnated the sheet with an ionic liquid, Li(G4)FSI, which consists of a lithium bis(fluorosulfonyl)-imide (LiFSI) and tetraglyme (G4) in an equimolar complex. [21]. The impregnated ionic liquid yielded positive results by bridging the gap between the LLZO particles, thereby creating an effective Li-ion pathway. Consequently, the impregnated electrolyte film exhibited a high ionic conductivity (approximately 0.1 mS/cm) and good cycling performance, owing to the excellent interfacial stability with the electrode. Because the electrolyte is fabricated through a tape-casting method, mass production is possible, which considerably improves processability. Shen et al. fabricated LLZO scaffolds with a porosity of 75% using an aqueous freeze tape-casting method [22]. Using this method, LLZO scaffolds with constant pore size and shape can be fabricated. A porous LLZO scaffold impregnated with PEO/LiTFSI exhibited excellent ionic conductivity. However, these studies did not consider the side reactions of the impregnated SCN.
Recently, a sharp increase in resistance during the charge and discharge of cells with these composite electrolytes was reported, which was attributed to the polymerization of SCN during the side reaction of SCN with La in LGLZO [23,24]. Yang et al. confirmed the coordination between the nitrile groups of SCN and the La atoms of LLZTO [23]. More specifically, Fourier-transform infrared spectroscopy (FTIR) and x-ray photoelectron spectroscopy (XPS) analyses indicated that the -C≡N groups of SCN transform into C=N groups, which suggests that SCN is polymerized. This phenomenon increases CSE resistance and decreases cell performance. To address this issue, they dissolved 20 wt.% of PAN in the PCE and applied the solution as a coating on the prepared LLZTO substrate (~800 μm). The cell with the PAN-modified electrolyte exhibited a conductivity of approximately 10−4 S/cm as well as excellent Coulombic efficiency (95.6%) and capacity retention (99% at 0.1 C, 25 °C) after 250 cycles [23]. In addition, Zhang et al. reported the reaction of the nitrile group of SCN with LLZTO to decrease the ionic conductivity of SCN. They applied a PAN coating on LLZTO and subsequently dissolved it in SCN to obtain an electrolyte with a thickness of approximately 13 μm using the tape-casting method. The SCN/PAN-coated LLZTO exhibited a conductivity of ~10−4 S/cm at room temperature. In cell applications, it demonstrated a capacity of 163 mAh/g and an 87% capacity retention after 500 cycles at 0.2 C [24]. However, these studies primarily focus on the interface between the LLZTO substrate and the SCN layer, while investigations into the interfacial behavior of SCN and LLZO particles during the impregnation process remain insufficient.
To overcome these problems, we designed a process, electrolyte materials, and a structure that can solve the gelation problem during the mixing process as well as the difficulties incurred by the polymerization of SCN during charging and discharging. By using a simple tape-casting and impregnation process, three-layer g-PCE consisting of a PVDF-HFP-based SPE-LGLZO was successfully fabricated without gelation during the process. As mentioned above, however, the SCN-LLZO interface poses a risk of unstable electrochemical performance due to the polymerization of SCN during the charge/discharge process. Also, the interface area between SCN and LGLZO in this study is much higher than that reported previously [25]. SCN’s polymerization is much more severe and critical to electrochemical performance. Therefore, the effect of added PAN on SCN’s polymerization and the electrochemical performance of a solid-state Li-metal battery was carefully investigated. At first, polymerization of SCN with LGLZO and the role of PAN were described with diagrams. To visualize the polymerization, polymerization behaviors of SCN in a composite of LGLZO and SCN were studied by a thermal aging experiment. Additionally, the optimization of the amount of added PAN was conducted by measuring basic ionic-conducting properties. Finally, electrochemical performance levels with LFP||Li-metal and NCM||Li-metal batteries were evaluated to confirm the role of PAN by comparing those with and without PAN in CSE.

2. Materials and Methods

2.1. Synthesis of Li6.25Ga0.25La3Zr2O12 Powders

The LGLZO was synthesized via a solid-state reaction. Li2CO3 (Sigma-Aldrich, Saint Louis, MO, USA, 99%), La2O3 (Sigma-Aldrich, 99.99%), ZrO2 (Terio Co., Qingdao, China, 99.9%) and Ga2O3 (Sigma-Aldrich, >99.99%) were weighed stoichiometrically. La2O3 was dried at 900 °C for 6 h before weighing to remove moisture. A 10 mol% excess of Li2CO3 was added to compensate for the Li loss during the subsequent heat treatment of LGLZO. The mixture was ball-milled for 24 h with ethanol and first-calcined at 900 °C for 6 h in an alumina crucible under ambient atmosphere to obtain an LGLZO powder. The heating rate was 5 °C/min. After the first calcination stage, the LGLZO powder was ball-milled in a zirconia jar for 24 h. The powder was subsequently sintered at 1200 °C for 12 h with a heating rate of 5 °C/min.

2.2. Preparation of LGLZO Sheets

The tape-casting method was used to produce LGLZO green sheets. The LGLZO powder was heated at 900 °C for 1 h in dry air before use. The average particle size of the LGLZO powder was 5–7 µm. To create a slurry, we added 3 wt.% of BYK 103 dispersant (BYK), 8 wt.% of dioctyl phthalate plasticizer (DoP, Sigma Aldrich), and 11 wt.% of ethyl cellulose binder (10 cP, Sigma Aldrich). Ethanol and propyl acetate (38 wt.%) were used as solvents. All concentrations were relative to the weighed LGLZO powder. The tape slurry was ball-milled for 48 h at room temperature. After that, the slurry was casted on the polyester (PET) film with a comma coater. The gap of the coater was 150 μm and the temperature of the plate was 40 °C. The speed of the coater was 3.6 mm/s. Lastly, the sheet was dried at 50 °C for 1 h after casting.

2.3. Preparation of the SPE

A PVDF-HFP-based polymer electrolyte was prepared from PVDF-HFP (Mw = 400, 000, Sigma-Aldrich), SCN (Sigma-Aldrich, 99%), LiTFSI (Sigma-Aldrich), and 4-fluoro ethylenecarbonate (FEC) (Sigma-Aldrich). First, a PCE, which is essential for Li ion conductivity, was prepared by mixing SCN and LiTFSI in a molar ratio of 19:1. The solution was stirred at 50 °C for 12 h to ensure homogeneous dispersion. For the SPE solution, 1.5 g of PVDF-HFP, 2.5 g of PCE, 0.12 g of FEC and 6 g of acetone (Daejung, Nonsan, Republic of Korea, 99.5%) were mixed at 80 °C for 12 h. The incorporation of 3 wt.% of FEC served as a beneficial electrolyte additive, effectively causing the formation of LiF and enhancing the stability of the solid electrolyte interphase (SEI) on the lithium metal anodes [26]. The solution was cast onto a glass plate using the doctor blade method to form a film with a thickness of 15 µm.

2.4. Synthesis of g-PCE and g-PPCE

2.4.1. g-PCE (Garnet-Applied Polymer–Ceramic Electrolyte)

The g-PCE is a garnet-applied polymer–ceramic electrolyte. It is composed of PVDF-HFP, SCN, LiTFSI, and LGLZO. To prepare the g-PCE, 3 ml of the prepared SPE solution was cast onto a glass plate using the doctor blade method and dried at 50 °C for 10 min in a glove box. The cast SPE films were punched into disks 20 and 18 mm in diameter. Disks of 20 mm diameter were used at the bottom of the electrolyte. Then, 10 μL of liquid-phase PCE was pipetted onto the SPE disks. An LGLZO sheet (16 mm in diameter) was placed at the center of the SPE disk. Subsequently, 10 μL of PCE was pipetted onto the LGLZO green sheet. Finally, an 18 mm diameter SPE disk was placed on top of the second PCE aliquot. The prepared g-PCE was covered with PET film to prevent SCN volatilization and heated on a hot plate at 50 °C for 5 h to uniformly impregnate the LGLZO green sheet with the PCE.

2.4.2. g-PPCE (Garnet-Applied PAN Added Polymer–Ceramic Electrolyte)

The g-PPCE is a garnet-applied PAN-added polymer–ceramic electrolyte. It is composed of PVDF-HFP, SCN, LiTFSI, LGLZO and PAN. PPCE was prepared by adding 5 wt.% PAN to the PCE and stirring at 120 °C for 24 h to obtain a homogeneous solution. This solution was impregnated onto a green sheet using the same process as described above in Section 2.4.1.

2.5. Material Characterizations

Field emission scanning electron microscopy (FE-SEM, Hitachi S-4800, Tokyo, Japan) and environmental scanning electron microscopy (ESEM, QuattroS, London, UK) were used to analyze the microstructures of the LGLZO green sheet and g-PPCE. Additionally, an energy-dispersive spectrometer (EDS, QuattroS, London, UK) was used to determine the elemental distribution of the electrolyte. X-ray diffraction (XRD) patterns were measured from 20° to 50° using a Rigaku Smart Lab (Houston, TX, USA) to reveal the crystal structure of the electrolyte. The thermal stability of each electrolyte in the g-PPCE was analyzed by thermogravimetry analysis (TGA, Labsys Evo TG-DTA, Pennsauken, NJ, USA) in an air atmosphere, with a ramp-up condition of 10 °C/min and a temperature range of 25–800 °C. The chemical structure of the electrolyte was characterized, and the mechanism for the competitive coordination protection of SCN with PAN was analyzed using Fourier Transform Infrared Spectroscopy (FTIR spectroscopy, Bruker Alpha II., Billerica, MA, USA)

2.6. Preparation of Cells

LFP/CSE/Li cells were used to evaluate the charge and discharge performance levels. The cathode was made of LFP/carbon black/PVDF (80:10:10). The cathode was punched into circular pieces with diameters of 14 mm. The active substance was loaded at a density of approximately 2.4 mg/cm2. Additionally, NCM/CSE/Li cells were fabricated, with the cathode consisting of NCM/carbon black/PVDF (94:3:3). The cathode was punched into the circular pieces with a diameter of 14 mm. The active substance was loaded at a density of approximately 7 mg/cm2.
Moreover, the electrochemical properties of CSE were determined using a 3450 sized pouch cell. First, the cathode LFP with a density of 3.3 mg/cm2 was cut into a 3 × 4 cm2 size. Li metal with 100 μm thickness was also cut into the same dimensions and hot-pressed with copper foil. The g-PCE and g-PPCE were prepared with 3.4 × 4.4 cm2-sized SPE and a 3.2 × 4.2 cm2-sized LGLZO sheet, and the electrodes and electrolytes were stacked carefully. The pouch cells with g-PCE and g-PPCE were prepared with cutting and sealing processes. The pouch cells received uniform pressure using the cold isostatic press (CIP) after production (100 bar, 5 min). During the process, stacking three layers of electrolytes accurately was not easy, but the items were successfully prepared. Although the solid electrolyte was investigated for solid-state battery, an additional solid electrolyte, also known as catholyte, was needed to gain a stable interface inside of the cathode. Because this research was only focused on controlling interfaces in a solid electrolyte, the effect of a cathode–electrolyte interface in cathode should be eliminated. A small amount of gel electrolyte was added to form a gel state, but only on the inside of the electrode. Specifically, 10 μL of PVA-CN-based gel electrolyte (3 wt.% of PVA-CN-added liquid electrolyte; the liquid electrolyte was 1 M LiPF6 in EC:DEC(1:1 vol.%)) was dropped on the cathode’s surface and aged at 50 °C for 12 hrs for gelation after cell assembly. All of the incorporation of the gel electrolyte for cathode preparation was performed according to previously reported research [26,27,28].

2.7. Electrochemical Performance Measurements

Electrochemical impedance spectroscopy (EIS, WonATech) was performed on SS|g-PCE|SS and SS|g-PPCE|SS shaped in a sandwich structure. The measurement conditions were fixed in the frequency range between 1 MHz and approximately 0.1 mHz at 25 °C. The ionic conductivity (σ) was calculated by Equation (1).
σ = L R S
where R is the bulk resistance, S is the area of the electrode, and L is the thickness of the electrolyte. Linear sweep voltammetry (LSV) was performed using a cell with the SS/g-PCE/Li and SS/g-PPCE/Li structure. The voltage range was 3–5.3 V, at a scan rate of 1 mV/s at 25 °C. Cyclic voltammetry (CV) was performed using a cell with the SS/g-PCE/Li structure. The voltage range was 1–6 V, at a scan rate of 1 mV/s at 25 °C. SS/g-PCE/Li and SS/g-PPCE/Li cells were required to measure the Li+ transference number. The Li+ transference number is calculated using Equation (2), where ∆V is 10 mV; Io and Iss represent the initial and steady-state currents, respectively; and Ro and Rss are the initial and steady-state interfacial resistances between the Li metal and the electrolyte.
t L i + = I s s Δ V − I o R o I o Δ V − I s s R s s
The activation energy Ea for the conduction of Li+ can be obtained from the Nernst equation (Equation (3)).
ln σ · T = ln (N · q · e · D0) − (Ea/k · T)
where σ is the conductivity, N is the charge carrier density, q is the electric charge, e is the elementary-charge constant, D0 is temperature-independent pre-exponential constant, k is the Boltzmann constant, and T is the temperature. The electrochemical properties of the g-PPCE were analyzed using a CR2032 coin cell. LFP/g-PPCE/Li cells were tested at 25 °C with a voltage range of 3–4 V and a C-rate of 0.1 C. Additionally, NCM/g-PCE/Li and NCM/g-PPCE/Li cells were tested at 25 °C with a voltage range of 3–4.25 V and a C-rate of 0.1 C. Moreover, the electrochemical properties of g-PPCE as shown were determined using 3450 sized pouch cells. The LFP/g-PPCE/Li cell was tested at 25 °C with a voltage range of 3–4 V and a C-rate of 0.1 C.

3. Results

Figure 1 shows a schematic of the SPE-LGLZO CSE and the chemical reaction between SCN and PAN on the LGLZO surface with and without PAN. Specifically, the structure on the left shows a three-layer CSE using a ceramic middle layer and two polymer top/bottom layers. The ceramic layer is brittle and has a rough surface due to its high ceramic content (~80 wt.%). There are two main weaknesses of this application as a solid electrolyte. First, it is difficult to handle during cell preparation. Secondly, large interface resistance levels with the electrodes are unavoidable. Therefore, we have designed a three-layered ceramic–polymer composite electrolyte. The ceramic layer was an LGLZO sheet impregnated with PCE. Two solid polymer electrolyte (SPE) layers consisted of poly(vinylidene fluoride-co-hexafluoropropylene) (PVDF-HFP) and PCE positioned on the top and bottom, and a PCE-impregnated LGLZO sheet was positioned in the middle. SPEs on the top and bottom were sufficiently flexible and strong to form a good interface with the electrode and exhibited a high ionic conductivity (~1 mS/cm) owing to the inclusion of PCE [29]. In Figure S1, the Nyquist impedance plots of PCEs with various ratios of LiTFSI and SCN are shown. The PCE with a specific ratio of LiTFSI:SCN = 1:19 mol% was selected due to its solid-state nature at that particular ratio and its excellent conductivity. The LGLZO sheet in the middle had an LGLZO content of approximately 80%, which provided the main ionic conduction paths through the ceramics. In addition, the impregnation of the LGLZO sheet with PCE increased the mobility of Li-ions and reduced the interfaces between the LGLZO powders.
During the preparation of SPE-LGLZO CSEs, the La of LGLZO and the nitrile groups of SCN reacted chemically, resulting in the polymerization of SCN. The structure at the top right of Figure 1 shows the chemical structures of the species involved in SCN polymerization, which entailed the reaction between SCN and LGLZO in g-PCE. The coordination between La on the surface of LGLZO and the nitrile group of SCN leads to the conversion of the triple bond in -C≡N into a double bond, forming a -C=N- group. This was observed in the chemical structure of the resulting polymer. Additionally, the polymerization of the surrounding SCN was observed. This reaction occurred due to the π-back donation effect, in which the nitrile group donated an electron to the unoccupied d-orbital of the La ion, while the inner orbital electrons of the La ion transferred to the nitrile group. Eventually, an overall charge transfer occurred from LGLZO to the nitrile group. As a result, electrons accumulated on the nitrile groups of SCN, increasing the charge density and creating a Lewis alkaline environment, thereby causing the polymerization of the nitrile group. The polymerized nitrile groups manifested as a continuous decrease in ionic conductivity due to loss of its original gauche-trans conformations [24]. A more serious problem is that the Lewis alkaline environment causes polymerization of not only the SCN on the LGLZO surface, but also the surrounding SCN away from the surface, which keeps reducing the electrochemical functionality of the SCN during the charge/discharge process [23]. The bottom-right structure in Figure 1 represents the reaction between La and PAN on the surface of LGLZOs in the g-PPCE, which is a CSE containing PAN. The introduction of PAN, which has a strong polarity, caused La on the surface of LGLZO to react with PAN more readily than with SCN. During the coordination of the La in LGLZO and PAN, the conversion of the -C≡N in PAN into -C=N- induced PAN cyclization. [30,31] Owing to the strong polarity of cyclized PAN, free SCN in the vicinity remained unpolymerized. Therefore, PAN prevented the polymerization of SCN, both on the LGLZO surface and in the surroundings, which retained its electrochemical function during cell cycles. It is certain that, because the cyclized PAN cannot cover LGLZO particle perfectly, there were still Li-ion conducting paths from the plastic crystal electrolyte (LiTFSI-added SCN) into the bulk LGLZO, as the simply drawn images in Figure S2 depict.
As to the gelation during the mixing of LGLZO and SPE, photo images of the SPE/LGLZO and SPE/PAN/LGLZO slurry before and after mixing were obtained, as shown in Figure S3a,b. Without PAN, the slurry gelled, along with a severe color change. On the other hand, slurry with PAN exhibited no gelation, but still evinced a color change. The photo images of fabricated sheets are also given. With slurry without PAN, it was impossible to gain a film due to the gelation, while with the slurry with PAN, it was possible to fabricate a sheet. Even though there was no gelation, the color change still indicated a part-polymerization of SCN. Therefore, we have developed a different fabrication, one with tape-casting of a ceramic sheet and impregnation of PCE, as in the following description. Figure 2 shows a schematic of the fabrication of SPE, LGLZO sheets and CSE, along with SEM images of each electrolyte. The SEM image of the SPE fabricated through blade coating reveals small pores distributed on the surface. The cross-sectional SEM image of the LGLZO sheet prepared using the tape-casting method reveals a constant thickness, suggesting that a constant interface can be achieved by placing the SPEs at the top and bottom of the LGLZO sheet. Also, Figure S4 shows a cross-sectional SEM image of g-PPCE along with the corresponding EDS mapping results. Notably, the nitrogen (N) content originating from SCN exhibits an even distribution within both the SPE and the LGLZO sheets. Similarly, the fluorine (F) content from PVDF-HFP and LiTFSI is uniformly distributed, with a higher concentration found in the SPE. Finally, lanthanum (La), a constituent of LGLZO, is primarily concentrated within, and uniformly distributed across, the LGLZO sheet. The SEM image and the XRD pattern of the LGLZO particles are shown in Figure S5. The SEM image reveals the constant particle size of the LGLZO, whereas XRD demonstrates its absolute cubic phase. The average particle size of the LGLZO is 5–7 μm. Numerous research studies focusing on polymer–ceramic composite solid electrolytes employ nano-scale ceramic particles to increase specific surface area, thereby preventing polymer crystallization and consequently improving ionic conductivities [32,33,34]. These studies suppose an increase in the particle volumetric distribution. However, as the ceramic content in the composite solid electrolyte increases, aggregation of ceramic particles occurs [35]. In our research, we employ micro-sized ceramic materials to mitigate particle aggregation, a common issue when using nano-sized particles. This approach allows us to substantially enhance the ceramic content, creating a predominant pathway for lithium ions within the ceramic structure. [36,37]. Cubic-phase LGLZO has an ionic conductivity that is approximately 10 times higher than that of the tetragonal phase [7]. The XRD patterns of the LGLZO green sheet, SPE, and CSE are shown in Figure S6. The XRD pattern of the CSE also showed the same cubic phase of LGLZO. In addition, the existence of pores in the cross-sectional image demonstrates an effective PCE impregnation. The surface of the three-layer CSE closely resembles that of the SPE. Furthermore, the cross-sectional image evidenced an electrolyte thickness of approximately 75 μm in total. Additionally, a smooth and constant connection between the SPE and LGLZO was demonstrated. It should be mentioned that there were no differences in the microstructures between samples with and without PAN, because only a small amount of PAN, lower than 10 wt.%, was substituted for SCN. Moreover, to prove the role of PAN, electrochemical performance levels as well as the chemical change of g-PCE was precisely observed, as described in the following.
It is well-known that the color of PCE continuously changes from ivory to brown, and finally to dark brown, with the proceeding of polymerization of SCN [38,39,40]. To effectively illustrate the browning phenomenon, wherein the slurry turns brown, a simple thermal aging experiment was conducted with beaker cells. To quantify the alterations in ionic conductivity resulting from the reaction between SCN and LGLZO and the influence of PAN, EIS measurements were conducted on the PCE/LGLZO and PPCE/LGLZO slurries. The left inset image of Figure 3a shows the beaker cell. After aging at 80 °C for 1 h, the color of the slurry changed from ivory to dark brown, as shown in the right inset image, which clearly indicates polymerization of SCN. As shown in EIS results of the PCE/LGLZO slurry before and after aging, its resistance increased from 425 Ω to 1395 Ω. This can be attributed to the reaction between SCN with LGLZO, which led to the polymerization of SCN, resulting in the browning and gelling of the slurry.
Figure 3b shows the images and EIS measurements of the PPCE/LGLZO slurry before and after aging. After aging at 80 °C for 1 h, the resistance value increased from 503 Ω to 601 Ω. The pristine PPCE/LGLZO slurry shows a higher series resistance than that of PCE/LGLZO slurry due to the effect of PAN, which does not aid the dissociation of Li-salts compared to SCN. The browning progressed less, compared to the case without PAN. In addition, no additional color change was detected after the initial change into bright brown. This color change is surely attributed to cyclization of PAN on the LGLZO surface [41]. Nevertheless, the inclusion of PAN prevented the severe reaction between SCN and LGLZO. The chemical instability of SCN toward LGLZO was corroborated by FTIR analysis to validate the alteration in the chemical structure of SCN with adding PAN.
In Figure 3c, FTIR spectra of the g-PCE and g-PPCE samples aged at 80 °C for 1 h are shown. FTIR analysis was performed to confirm the reaction with SCN on the surface of LGLZO. Peaks at 1694, 1625, and 1550 cm−1 were observed in the FTIR spectrum of g-PCE. The peak at 1694 cm−1 represents the vibration mode of the carbonyl group (C=O) [42], the peak at 1625 cm−1 represents C=N bonds, and the peak at 1550 cm−1 represents C=C bonds [23,24]. In the case of g-PCE, as it contains SCN, C=N and C=C bonds should not be observed. However, peaks corresponding to these bonds were observed in the FTIR spectrum of g-PCE, indicating that -C≡N changed to C=N and C=C. This phenomenon is attributed to the nitrile group of SCN reacting with LGLZO and the resulting polymerization. As shown in bottom graph of Figure 3c, however, the FTIR spectrum of g-PPCE did not show polymerization peaks at 1550 and 1625 cm−1. The peaks at 1730 cm−1 and 1682 cm−1 represent the stretching vibration absorption of the free and hydrogen-bonded C=O [43,44]. These peaks originated from the end of the chemical structure of PAN. The peak at 1628 cm−1 represents the vibration mode of the C=C bond of the cyclized PAN, and the peak at 1582 cm−1 represents the cyclic C=N group [30,45]. As PAN also contains a C≡N bond, the FTIR results of g-PPCE should not present a C=N or C=C bond. This suggests that the triple bond of PAN breaks and transforms into double bonds, including C=C and C=N. Consequently, PAN reacts with LGLZO more readily than SCN in the g-PPCE, effectively preventing its polymerization. The full range of FTIR data is presented in Figure S7. To compare the thermal properties, TGA graphs of the LGLZO green sheet, SPE, PPCE-impregnated green sheet, and g-PPCE are shown in Figure S8. After heat treatment at 800 °C, the LGLZO remains about 26 wt.% of g-PPCE.
To further verify the results of FTIR analysis, Raman analyses of g-PCE and g-PPCE were performed (Figure 3d). The Raman measurements exhibit peaks at 1550 and 1625 cm−1 in g-PCE, representing the C=N and C=C bonds, respectively. This indicates that the triple bonds of C and N in the nitrile groups of SCN changed to double bonds as the SCN polymerization progressed. However, in the case of g-PPCE, no peaks at 1550 and 1625 cm−1, which would have indicated polymerization, appear. Conversely, a peak at 1582 cm−1 appears, demonstrating the presence of a cyclic C=N bond. This confirms the cyclization phenomenon of PAN and demonstrates that SCN polymerization is prevented because PAN readily reacts with LGLZO.
In order to optimize the amount of added PAN and evaluate its effects, we measured basic ionic conducting properties. Figure 4a displays the Nyquist plots of the measured EIS spectra for the three-layer CSE samples with different ratios of wt.% of PAN. The inset shows a magnified view of the high-frequency region. The Nyquist plot of each electrolyte consisted of a semicircle representing the interface resistance and a Warburg plot representing Li-ion diffusion. The series resistance among the electrolytes is similar, approximately 10 Ω, indicating that the addition of PAN does not change the resistance of the electrolyte itself. The interface resistance of g-PPCE with 0, 5, and 10 wt.% PAN is 27, 31, and 104 Ω, respectively. Figure S9 shows that the interface resistance levels of g-PPCE with 2.5 and 7.5 wt.% PAN are 28 Ω and 41 Ω, respectively. Except for the electrolyte containing 10 wt.% PAN, the resistance was 15–20 times higher than that of the liquid electrolyte [46,47]. The diameter of the semicircle increased as the wt.% of PAN increased. Even if there is no PAN addition, there is still a semicircle observed in this Nyquist plot. In addition, no semicircles were observed in beaker cell experiment, both with and without PAN, as described in Figure 3. From the above results, this presence of a semicircle in the Nyquist plot is attributed to the interface between LGLZO and PCE (or PPCE). Specifically, applying a ceramic sheet for impregnation of PCE resulted in insufficient contact between ceramic powders and PCE (or PPCE). Another clue is that there is no semicircle detected in three-layer CSE fabricated by blade coating of mixture of LGLZO and PCE solution, even though the result is not shown in this research. Adding PAN might make for more difficulty in formation of contacts between LGLZO and PCE by increasing the viscosity of PCE. Consequently, PAN is not critical to ionic conductivity of PCE itself, but the impregnation condition should be carefully applied to ensure sufficient contact between LGLZO and PCE.
Figure 4b illustrates the ionic conductivities of the g-PPCEs with different ratings of wt.% of PAN, including error bars. In addition to the CSE, Figure S10 shows a Nyquist plot of an LGLZO pellet. The inset of the graph shows a photo image of an LGLZO pellet. The conductivity of the LGLZO pellet was 1.4 mS/cm. A Nyquist plot of the SPE is shown in Figure S11. The SPE exhibited a conductivity of 0.7 mS/cm. With PAN contents of 0, 2.5, and 5 wt.%, the g-PPCE exhibited similar conductivities (0.23 mS/cm, 0.22 mS/cm, and 0.20 mS/cm, respectively). However, the resistance of the g-PPCE with a 7.5 wt.% PAN content increased to 41 Ω and exhibited an ionic conductivity of 0.15 mS/cm. The resistance of the g-PPCE with 10 wt.% PAN increased significantly to 104 Ω and exhibited an ionic conductivity of 0.06 mS/cm. In addition, the error rate increased by more than 10 wt.% of PAN content. This suggests that PAN, as a minor conductor, did not significantly affect the resistance of the CSE up to 5 wt.% and reacted first with LGLZO to prevent the polymerization of the nitrile group of SCN. However, when g-PPCE contained more than 5 wt.% of PAN, the resistance significantly increased because of the reduced proportion of SCN, resulting in a reduction in Li+ conductivity [24]. As a result, g-PPCE containing 5 wt.% PAN demonstrates that PAN blocks the polymerization of SCN while having no significant effect on conductivity. Thus, all the g-PPCE have 5 wt.% of PAN content for the following evaluations of electrochemical properties.
Figure 4c depicts the Arrhenius curves of the temperature-dependent conductivities of g-PCE and g-PPCE, both exhibiting two zones with distinct slopes. The turning point indicating a change in slope in the Arrhenius curves corresponds to the melting point of PCE. The melting point of SCN is 58 °C; With the addition of LiTFSI, however, its melting point was reduced, enabling it to partially exist as a liquid at 40 °C [48]. This leads to a change in the slope at 40 °C. Consequently, the Ea values for g-PCE and g-PPCE were 0.40 and 0.59 eV, respectively, below 40 °C. However, the Ea decreased to 0.27 eV for both electrolytes above 40 °C, indicating an enhancement of the ion transport capacity of the CSE during the solid-to-liquid transition. This is attributed to SCN reducing the crystallinity of the polymer, serving as a Li-ion carrier and promoting Li-ion transfer. The activation energy of an LGLZO pellet is 0.30 eV [49,50], and that of PCE is 0.23 eV below 40 °C and 0.16 eV above 40 °C [51]. From above results, the activation energy levels of g-PCE and g-PPCE approximated those of LGLZO pellets (0.30 eV) rather than that of PCE. This suggests that LGLZO serves as the primary pathway for Li-ion conduction in the g-PCE and g-PPCE.
A wide potential window for the electrolyte is essential to drive batteries at high voltages. The graph in Figure 4d shows the LSV (linear sweep voltammetry) curves of g-PCE and g-PPCE. As the voltage changed, both g-PCE and g-PPCE exhibited virtually no increase in current, up to 5.0 V. However, g-PPCE exhibited a slightly faster current increase above 5.0 V, reaching 0.2 mA for g-PCE and 0.46 mA for g-PPCE at 5.3 V. Consequently, there was no obvious oxidative degradation of either g-PCE or g-PPCE over Li+/Li, at least within operating voltages of up to 5.0 V.
For a deeper understanding of the Li-ion conduction, the polarization curves and steady-state impedance diagrams (insets) of g-PCE and g-PPCE are shown in Figure 4e and 4f, respectively. First, the polarization curve of g-PCE shows that the initial current (I0) was 207 μA and reached a stable region after approximately 180 min, with a steady-state current (Iss) of 133 μA. The inset shows the steady-state impedance diagram of g-PCE, where Rb represents the bulk resistance, Ri is the interfacial resistance, and Rb+Ri shows the charge-transfer resistance. In the steady state, g-PCE exhibited a Rb of 28 Ω; Rb+Ri was 84 Ω. The charge-transfer resistance increased after the polarization test. The calculated Li+ transfer number of g-PCE was 0.64, which is higher than the 0.5 of conventional polymer electrolytes [52,53]. With the same polarization procedure, the calculated Li+ transfer number of g-PPCE was 0.82, which is higher than that of g-PCE. Better Li-ion transport ability in g-PPCE containing PAN is obtained because PAN reacts with LGLZO first and prevents the severe polymerization of SCN. Moreover, the higher tLi+ values of g-PCE and g-PPCE, both higher than 0.5, demonstrate that g-PCE and g-PPCE are single-ion conducting materials and that LGLZO in the electrolyte dominates the Li-ion conduction process [54,55]. Consequently, g-PPCE is a promising CSE, in spite of its relatively low ionic conductivity due to its higher Li+ transference number.
The electrochemical compatibility of g-PCE and g-PPCE with the metallic Li anode was assessed through the use of Li/g-PCE/Li and Li/g-PPCE/Li symmetric cells. As shown in Figure 5, galvanostatic cycling curves of the symmetric cells of g-PCE and g-PPCE are gained with current density and capacity of 0.1 mA/cm2 and 0.1 mAh/cm2, respectively. The voltage of the g-PCE cell gradually increased after 350 h due to the formation of dead Li. Furthermore, the sudden short circuit was detected after 500 h, which was obviously due to Li-dendrite. However, no indication of a short circuit event was detected in the cycle of g-PPCE within 500 h cycling; nevertheless, the voltage was gradually increased. Cyclic voltammetry of g-PPCE (as shown in Figure S12) also shows no noticeable peaks up to 5 V, which also indicates voltage stability of the solid electrolyte. All of the results confirm that the g-PPCE has stable interface properties which are superior to those of the g-PCE with Li-metal. Consequently, the stable electrochemical performance of solid electrolyte due to PAN addition also guarantees a stable interface with the Li-metal anode, which is critical to the electrochemical performance levels of the battery.
To compare the electrochemical performance levels of g-PCE and g-PPCE in Li-metal batteries, confirming the effect of PAN, LFP||g-PCE||Li and LFP||g-PPCE||Li cells were fabricated. First of all, excellent rate capability is an essential feature of all-solid-state batteries. The rate-performances of g-PCE and g-PPCE are shown in Figure 6a. The specific capacities of g-PCE were 147, 130, 115, 104, and 90 mAh/g at 0.1, 0.3, 0.5, 0.7, and 1 C, respectively. However, the specific capacities of g-PPCE were 150, 141, 138, 134, and 127 mAh/g under the same conditions, higher than those of g-PCE. At a current density of 0.1 C, no significant difference existed between the capacities with and without PAN. However, as the C-rate increased, g-PPCE maintained a good discharge capacity 1.5 times higher than that exhibited by g-PCE at 1 C. This suggests that the SCN in g-PCE reacted with LGLZO and was polymerized, leading to the gelation of the electrolyte and an increase in resistance. Conversely, in the g-PPCE, PAN prevented the polymerization of the nitrile groups of SCN, preventing battery degradation and maintaining stability at a high current density. The graph also illustrates a gradual decrease in current density. Upon restoring the current density to 0.1 C, the reversible capacities of both g-PCE and g-PPCE remained stable. The Coulombic efficiencies of g-PCE and g-PPCE were high (~99%). However, changes in C-rate caused instability at some points. This was considered an instrument operating error in the measurement process, as the CE values were stable after the changes in current density.
The discharge curves of the LFP||g-PCE||Li and LFP||g-PPCE||Li cells at different C rates are shown in Figure 6b,c. The g-PPCE curves showed clear potential plateaus, indicating a reversible cycling process [56,57]. Contrastingly, the discharge curve exhibited by g-PCE was non-linear, with a leftward slant at current densities exceeding 0.5 C. This variation in voltage plateau is generally related to battery degradation, indicating changes in the structure and composition of the electrode materials [58]. The curves with unstable potential plateaus also suggest that the polymerization of the nitrile groups of SCN in the g-PCE may have caused some degradation reactions at high cycle rates, leading to stability issues between the electrolyte and electrode.
Secondarily, cyclic performance levels of g-PCE and g-PPCE were compared. Figure 7a displays the charge and discharge curves of the LFP||g-PCE||Li cell at a rate of 1 C and 25 °C. The initial polarization voltage of the g-PCE cell was 0.2 V and the capacities at cycles number 1, 2, 50 and 100 were 118, 118, 95, and 85 mAh/g, respectively. The discharge graph sloped slightly after 50 cycles, indicating a significant decrease in capacity. Figure 7b illustrates the charge and discharge curves of the LFP||g-PPCE||Li cell at a rate of 1 C and 25 °C. The initial polarization voltage of the g-PPCE cell was 0.19 V, and the capacities at cycles number 1, 2, 50 and 100 were 132, 132, 131 and 116 mAh/g, respectively. The discharge capacity was 130 mAh/g up to the 50th cycle and reduced subsequently. The charge/discharge curves of the g-PPCE show flat and reversible plateaus, indicating minimal polarization. Moreover, the Nyquist plots of LFP||g-PPCE||Li cell before and after galvanostatic cycling at 1 C and 25 °C are shown in Figure S9. These Nyquist plots were subsequently analyzed by fitting them to the equivalent circuits presented in Figure S10. Following 100 cycles, a stable formation of the solid electrolyte interface (SEI) with the increased charge transfer resistance is observed, showing the appearance of two semicircles. Figure 7c shows the cycle performance levels of LFP||g-PCE||Li and LFP||g-PPCE||Li cells (1 C, 25 °C). The capacity of g-PCE decreases continuously, resulting in a Coulombic efficiency of 98% and specific capacity of 92 mAh/g at 100 cycles, corresponding to 69% of the initial capacity. Conversely, the capacity of g-PPCE remained constant; the CE was 99% and the specific capacity was 117 mAh/g at 100 cycles, 89% of the initial capacity. In terms of performance over 100 cycles, g-PPCE exhibited a higher capacity retention rate than g-PCE. This indicates that the unstable cycling performance of g-PCE at high current densities is due to the coordination of SCN and LGLZO in g-PCE, leading to gelation of the electrolyte and increased resistance. In contrast, the stable cycling performance of g-PPCE can be attributed to PAN reacting with LGLZO more readily than SCN, preventing SCN polymerization and, consequently, performance degradation.
For a higher voltage operation of solid-state Li-metal battery, NCM was applied as a cathode active material. Figure 8a displays the charge and discharge curves of the NCM||g-PCE||Li cell at 0.1 C and 25 °C. The capacities at cycles number 1, 2, and 20 were 151, 149, and 119 mAh/g, respectively, with overcharging occurring at the 28th cycle. This suggests that cells with g-PCE undergo micro-short-circuits as the Li dendrites grow. SCN polymerization appears to induce gelation of the electrolyte and locally change its resistance distribution, leading to the growth of Li dendrites. Figure 8b depicts the cycling performance of the NCM||g-PCE||Li cell. The Coulombic efficiency at the 27th cycle (before overcharging) was 94%, and the discharge capacity was 94 mAh/g, indicating a 62% capacity retention. The unstable data at the 15th cycle is considered to be due to instrument errors. In addition, the charge and discharge curves of the NCM||g-PPCE||Li cell at 0.1 C and 25 °C are displayed in Figure 8c. The capacities at cycles number 1, 2, 20, and 50 were 167, 167, 164, and 155 mAh/g, respectively. Figure 8d shows the cycle performance of the same cell. The Coulombic efficiency at the 50th cycle was 97%, and the discharge capacity was 92% of the initial one. The Coulombic efficiencies around the 12th, 35th, and 42nd cycles exhibited fluctuations. This was attributed to operational errors in the device and recovery in later cycles. The g-PPCE exhibited stable cycle performance with no side reactions at high voltages.
Finally, a pouch cell was fabricated with a g-PPCE and cell tests were conducted to verify the feasibility of large-area battery processing. Figure 9a illustrates the charge/discharge curves of a 3450 size-pouch cell assembled with an LFP||g-PPCE||Li structure. The cell exhibited an initial capacity of 5 mAh at 0.1 C and 25 °C, and the capacities at the 2nd, 5th, and 10th cycles were 5.0, 4.9, and 4.8 mAh/g, respectively. Figure 9b depicts the cycling performance of the pouch cell. After 10 cycles, the Coulombic efficiency was 98% and the capacity was 4.9 mAh, with a 98% capacity retention. This indicated that the electrolyte/electrode interface was stable even in the pouch cell configuration.

4. Conclusions

CSE with SCN are known to have two serious problems with LLZO ceramics, in spite of SCN’s superior performance as a solid plasticizer: (1) gelation during the mixing process, and (2) polymerization during the charge/discharge process. By using a tape-casting and impregnation process, we successfully fabricated a PVDF-HFP-based SPE-LGLZO CSE without gelation. To solve the second problem, we simply added PAN to SCN prior to the impregnation process. By an aging test with a beaker cell, it was proved that the addition of PAN to SCN provided a protection mechanism for the coordination between the nitrile groups of SCN and La in LGLZO. Even though the interface area is high, PAN effectively prevents SCN polymerization via the rapid coordination with LGLZO due to its higher dielectric constant. The g-PPCE with 5 wt.% of PAN shows an ionic conductivity of 2 × 10−4 S/cm at 25 °C with a high Li+ transference number of 0.85. The Li-metal cell (LFP||Li) assembled using the g-PPCE exhibited a high discharge capacity of 113 mAh/g at 1 C and cycle stability over 100 cycles. With a high-loading (~7 mg/cm2) NCM cathode, Li-metal cell exhibited stable cycle performance, with a capacity of 167 mAh/g. Moreover, the g-PPCE was more durable than the g-PCE at high current densities. The preparation of a pouch cell with a g-PPCE and a cell capacity of 5 mAh demonstrated the potential for large-scale production. Consequently, adding PAN is key to enhancing the electrochemical performance levels of solid-state Li-metal battery with CSE containing LLZO and SCN. As for future work, a more effective impregnation process will be developed to overcome the increased interface resistance due to the higher viscosity of PPCE.

Supplementary Materials

The following supporting information can be downloaded from: https://www.mdpi.com/article/10.3390/en16237695/s1, Figure S1. Nyquist impedance plots of LiTFSI/ SCN(PCE) with various ratios of concentration. Figure S2. The schematic image and the real image of LGLZO particle that is protected by the cyclized PAN. Figure S3. Images of SPE/LGLZO and SPE/PAN/LGLZO slurry before and after 80 °C, 2 h mixing and the image of aged slurry after fabrication. Figure S4. The cross-section SEM image of g-PPCE and the corresponding EDS mappings of N, F and La. Figure S5. SEM image of LGLZO and XRD pattern of LGLZO. Figure S6. XRD graphs of LGLZO green sheet, SPE, impregnated green sheet and g-PPCE samples. Figure S7. FT-IR analysis. Figure S8. TGA graphs of LGLZO green sheet, SPE, g-PPCE and g-PPCE samples. Figure S9. Nyquist impedance plots of SSllg-PPCEllSS with different percent of PAN. Figure S10. Nyquist impedance plot and the image of the LGLZO pellet(inset), and the conductivity of LGLZO pellet. Figure S11. Nyquist impedance plot of SPE. Figure S12. Cyclic voltammetry curves of g-PPCE. Figure S13. Nyquist impedance plots of a LFP||g-PPCE||Li-metal cell before and after galvanostatic cycling at 1C and 25 °C. Figure S14. The equivalent circuits of Nyquist impedance plots of a LFP||g-PPCE||Li-metal cell before and after galvanostatic cycling at 1C and 25 °C.

Author Contributions

Conceptualization, J.S.H.; Methodology, J.H.Y.; Investigation, W.L.; Writing—original draft, H.N. and D.K.; Writing—review & editing, B.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partly supported by the research and development program of the Korea Institute of Energy Research (C3-2405) and the Technological innovation R&D program of MSS [S3143178].

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, C.; Wang, Z.-y.; He, Z.-j.; Li, Y.-j.; Mao, J.; Dai, K.-h.; Yan, C.; Zheng, J.-c. An Advance Review of Solid-State Battery: Challenges, Progress and Prospects. Sustain. Mater. Technol. 2021, 29, e00297. [Google Scholar] [CrossRef]
  2. Xiao, Y.; Wang, Y.; Bo, S.H.; Kim, J.C.; Miara, L.J.; Ceder, G. Understanding Interface Stability in Solid-State Batteries. Nat. Rev. Mater. 2020, 5, 105–126. [Google Scholar]
  3. Manthiram, A.; Yu, X.; Wang, S. Lithium Battery Chemistries Enabled by Solid-State Electrolytes. Nat. Rev. Mater. 2017, 2, 16103. [Google Scholar]
  4. Park, K.; Yu, B.C.; Jung, J.W.; Li, Y.; Zhou, W.; Gao, H.; Son, S.; Goodenough, J.B. Electrochemical Nature of the Cathode Interface for a Solid-State Lithium-Ion Battery: Interface between LiCoO2 and Garnet-Li7La3Zr2O12. Chem. Mater. 2016, 28, 8051–8059. [Google Scholar] [CrossRef]
  5. Janek, J.; Zeier, W.G. Challenges in Speeding up Solid-State Battery Development. Nat. Energy 2023, 8, 230–240. [Google Scholar]
  6. Kim, D.H.; Kim, M.Y.; Yang, S.H.; Ryu, H.M.; Jung, H.Y.; Ban, H.J.; Park, S.J.; Lim, J.S.; Kim, H.S. Fabrication and Electrochemical Characteristics of NCM-Based All-Solid Lithium Batteries Using Nano-Grade Garnet Al-LLZO Powder. J. Ind. Eng. Chem. 2019, 71, 445–451. [Google Scholar] [CrossRef]
  7. Yang, S.H.; Kim, M.Y.; Kim, D.H.; Jung, H.Y.; Ryu, H.M.; Han, J.H.; Lee, M.S.; Kim, H.S. Ionic Conductivity of Ga-Doped LLZO Prepared Using Couette–Taylor Reactor for All-Solid Lithium Batteries. J. Ind. Eng. Chem. 2017, 56, 422–427. [Google Scholar] [CrossRef]
  8. Delluva, A.A.; Kulberg-Savercool, J.; Holewinski, A. Decomposition of Trace Li2CO3 during Charging Leads to Cathode Interface Degradation with the Solid Electrolyte LLZO. Adv. Funct. Mater. 2021, 31, 2103716. [Google Scholar] [CrossRef]
  9. Krauskopf, T.; Dippel, R.; Hartmann, H.; Peppler, K.; Mogwitz, B.; Richter, F.H.; Zeier, W.G.; Janek, J. Lithium-Metal Growth Kinetics on LLZO Garnet-Type Solid Electrolytes. Joule 2019, 3, 2030–2049. [Google Scholar] [CrossRef]
  10. Ohta, S.; Komagata, S.; Seki, J.; Saeki, T.; Morishita, S.; Asaoka, T. Short Communication All-Solid-State Lithium Ion Battery Using Garnet-Type Oxide and Li3BO3 Solid Electrolytes Fabricated by Screen-Printing. J. Power Sources 2013, 238, 53–56. [Google Scholar] [CrossRef]
  11. Costa, C.M.; Lee, Y.H.; Kim, J.H.; Lee, S.Y.; Lanceros-Méndez, S. Recent Advances on Separator Membranes for Lithium-Ion Battery Applications: From Porous Membranes to Solid Electrolytes. Energy Storage Mater. 2019, 22, 346–375. [Google Scholar]
  12. Wang, W.; Yi, E.; Fici, A.J.; Laine, R.M.; Kieffer, J. Lithium Ion Conducting Poly(Ethylene Oxide)-Based Solid Electrolytes Containing Active or Passive Ceramic Nanoparticles. J. Phys. Chem. C 2017, 121, 2563–2573. [Google Scholar] [CrossRef]
  13. He, K.; Chen, C.; Fan, R.; Liu, C.; Liao, C.; Xu, Y.; Tang, J.; Li, R.K.Y. Polyethylene Oxide/Garnet-Type Li6.4La3Zr1.4Nb0.6O12 Composite Electrolytes with Improved Electrochemical Performance for Solid State Lithium Rechargeable Batteries. Compos. Sci. Technol. 2019, 175, 28–34. [Google Scholar] [CrossRef]
  14. Chen, W.P.; Duan, H.; Shi, J.L.; Qian, Y.; Wan, J.; Zhang, X.D.; Sheng, H.; Guan, B.; Wen, R.; Yin, Y.X.; et al. Bridging Interparticle Li+Conduction in a Soft Ceramic Oxide Electrolyte. J. Am. Chem. Soc. 2021, 143, 5717–5726. [Google Scholar] [CrossRef]
  15. Nguyen, V.A.; Kuss, C. Review—Conducting Polymer-Based Binders for Lithium-Ion Batteries and Beyond. J. Electrochem. Soc. 2020, 167, 065501. [Google Scholar] [CrossRef]
  16. Kumar, B.; Scanlon, L.G. POWEA Polymer-Ceramic Composite Electrolytes. J. Power Sources 1994, 52, 261–268. [Google Scholar] [CrossRef]
  17. Merrill, L.C.; Chen, X.C.; Zhang, Y.; Ford, H.O.; Lou, K.; Zhang, Y.; Yang, G.; Wang, Y.; Wang, Y.; Schaefer, J.L.; et al. Polymer-Ceramic Composite Electrolytes for Lithium Batteries: A Comparison between the Single-Ion-Conducting Polymer Matrix and Its Counterpart. ACS Appl. Energy Mater. 2020, 3, 8871–8881. [Google Scholar] [CrossRef]
  18. Vanita, V.; Waidha, A.I.; Yadav, S.; Schneider, J.J.; Clemens, O. Conductivity Enhancement within Garnet-Rich Polymer Composite Electrolytes via the Addition of Succinonitrile. Int. J. Appl. Ceram. Technol. 2023, 20, 236–250. [Google Scholar] [CrossRef]
  19. Walle, K.Z.; Musuvadhi Babulal, L.; Wu, S.H.; Chien, W.C.; Jose, R.; Lue, S.J.; Chang, J.K.; Yang, C.C. Electrochemical Characteristics of a Polymer/Garnet Trilayer Composite Electrolyte for Solid-State Lithium-Metal Batteries. ACS Appl. Mater. Interfaces 2021, 13, 2507–2520. [Google Scholar] [CrossRef]
  20. Fu, C.; Ma, Y.; Zuo, P.; Zhao, W.; Tang, W.; Yin, G.; Wang, J.; Gao, Y. In-Situ Thermal Polymerization Boosts Succinonitrile-Based Composite Solid-State Electrolyte for High Performance Li-Metal Battery. J. Power Sources 2021, 496, 229861. [Google Scholar] [CrossRef]
  21. Cheng, E.J.; Kimura, T.; Shoji, M.; Ueda, H.; Munakata, H.; Kanamura, K. Ceramic-Based Flexible Sheet Electrolyte for Li Batteries. ACS Appl. Mater. Interfaces 2020, 12, 10382–10388. [Google Scholar] [CrossRef]
  22. Shen, H.; Yi, E.; Heywood, S.; Parkinson, D.Y.; Chen, G.; Tamura, N.; Sofie, S.; Chen, K.; Doeff, M.M. Scalable Freeze-Tape-Casting Fabrication and Pore Structure Analysis of 3D LLZO Solid-State Electrolytes. ACS Appl. Mater. Interfaces 2020, 12, 3494–3501. [Google Scholar] [CrossRef]
  23. Yang, Y.N.; Jiang, F.L.; Li, Y.Q.; Wang, Z.X.; Zhang, T. A Surface Coordination Interphase Stabilizes a Solid-State Battery. Angew. Chem.-Int. Ed. 2021, 60, 24162–24170. [Google Scholar] [CrossRef]
  24. Gao, Y.; Sun, Z.; Cui, C.; Wang, H.; Cao, W.; Hou, Z.; Zhu, D.; Yang, Y.; Zhang, T. An Ultrathin, Flexible Solid Electrolyte with High Ionic Conductivity Enhanced by a Mutual Promotion Mechanism. ACS Appl. Mater. Interfaces 2022, 14, 45373–45381. [Google Scholar] [CrossRef]
  25. Tran, H.K.; Truong, B.T.; Zhang, B.R.; Jose, R.; Chang, J.K.; Yang, C.C. Sandwich-Structured Composite Polymer Electrolyte Based on PVDF-HFP/PPC/Al-Doped LLZO for High-Voltage Solid-State Lithium Batteries. ACS Appl. Energy Mater. 2023, 6, 1475–1487. [Google Scholar] [CrossRef]
  26. Hou, T.; Yang, G.; Rajput, N.N.; Self, J.; Park, S.W.; Nanda, J.; Persson, K.A. The Influence of FEC on the Solvation Structure and Reduction Reaction of LiPF6/EC Electrolytes and Its Implication for Solid Electrolyte Interphase Formation. Nano Energy 2019, 64, 103881. [Google Scholar] [CrossRef]
  27. Kim, Y.S.; Cho, Y.G.; Odkhuu, D.; Park, N.; Song, H.K. A Physical Organogel Electrolyte: Characterized by in Situ Thermo-Irreversible Gelation and Single-Ion-Predominent Conduction. Sci. Rep. 2013, 3, 1917. [Google Scholar] [CrossRef]
  28. Zhou, D.; He, Y.B.; Liu, R.; Liu, M.; Du, H.; Li, B.; Cai, Q.; Yang, Q.H.; Kang, F. In Situ Synthesis of a Hierarchical All-Solid-State Electrolyte Based on Nitrile Materials for High-Performance Lithium-Ion Batteries. Adv. Energy Mater. 2015, 5, 1500353. [Google Scholar] [CrossRef]
  29. Xu, K.; Xu, C.; Jiang, Y.; Cai, J.; Ni, J.; Lai, C. Sandwich Structured PVDF-HFP-Based Composite Solid Electrolytes for Solid-State Lithium Metal Batteries. Ionics 2022, 28, 3243–3253. [Google Scholar] [CrossRef]
  30. Zhang, X.; Xu, B.Q.; Lin, Y.H.; Shen, Y.; Li, L.; Nan, C.W. Effects of Li6.75La3Zr1.75Ta0.25O12 on Chemical and Electrochemical Properties of Polyacrylonitrile-Based Solid Electrolytes. Solid State Ion. 2018, 327, 32–38. [Google Scholar] [CrossRef]
  31. Xu, H.; Zhang, X.; Jiang, J.; Li, M.; Shen, Y. Ultrathin Li7La3Zr2O12@PAN Composite Polymer Electrolyte with High Conductivity for All-Solid-State Lithium-Ion Battery. Solid State Ion. 2020, 347, 115227. [Google Scholar] [CrossRef]
  32. Tong, R.A.; Chen, L.; Fan, B.; Shao, G.; Liu, R.; Wang, C.A. Solvent-Free Process for Blended PVDF-HFP/PEO and LLZTO Composite Solid Electrolytes with Enhanced Mechanical and Electrochemical Properties for Lithium Metal Batteries. ACS Appl. Energy Mater. 2021, 4, 11802–11812. [Google Scholar] [CrossRef]
  33. Li, Z.; Huang, H.-M.; Zhu, J.-K.; Wu, J.-F.; Yang, H.; Wei, L.; Guo, X. Supporting Information Ionic Conduction in Composite Polymer Electrolytes: Case of PEO:Ga-LLZO Composites. ACS Appl. Mater. Interfaces 2019, 11, 784–791. [Google Scholar] [CrossRef]
  34. Li, S.; Zhang, S.Q.; Shen, L.; Liu, Q.; Ma, J.B.; Lv, W.; He, Y.B.; Yang, Q.H. Progress and Perspective of Ceramic/Polymer Composite Solid Electrolytes for Lithium Batteries. Adv. Sci. 2020, 7, 1903088. [Google Scholar] [CrossRef]
  35. Chen, L.; Li, Y.; Li, S.P.; Fan, L.Z.; Nan, C.W.; Goodenough, J.B. PEO/Garnet Composite Electrolytes for Solid-State Lithium Batteries: From “Ceramic-in-Polymer” to “Polymer-in-Ceramic”. Nano Energy 2018, 46, 176–184. [Google Scholar] [CrossRef]
  36. Bonilla, M.R.; García Daza, F.A.; Ranque, P.; Aguesse, F.; Carrasco, J.; Akhmatskaya, E. Unveiling Interfacial Li-Ion Dynamics in Li7La3Zr2O12/PEO(LiTFSI) Composite Polymer-Ceramic Solid Electrolytes for All-Solid-State Lithium Batteries. ACS Appl. Mater. Interfaces 2021, 13, 30653–30667. [Google Scholar] [CrossRef]
  37. Isaac, J.A.; Devaux, D.; Bouchet, R. Dense Inorganic Electrolyte Particles as a Lever to Promote Composite Electrolyte Conductivity. Nat. Mater. 2022, 21, 1412–1418. [Google Scholar] [CrossRef]
  38. Zhu, D.M.; Bai, F.; Zhang, Y.N.; Yang, Y.N.; Sun, Z.; Deng, J.W.; Zhang, T. A Solid-State Lithium-Oxygen Battery Operating at Ambient Temperature and Full Charge-Discharge. J. Energy Storage 2022, 56, 105790. [Google Scholar] [CrossRef]
  39. Zhang, X.; Fu, C.; Cheng, S.; Zhang, C.; Zhang, L.; Jiang, M.; Wang, J.; Ma, Y.; Zuo, P.; Du, C.; et al. Novel PEO-Based Composite Electrolyte for Low-Temperature All-Solid-State Lithium Metal Batteries Enabled by Interfacial Cation-Assistance. Energy Storage Mater. 2023, 56, 121–131. [Google Scholar] [CrossRef]
  40. Hara, K. High pressure and high temperature reactions in the organic solid state: Polymerization of Nitrites. Rev. Phys. Chem. Jpn. 1970, 40, 73–92. [Google Scholar]
  41. Jin, S.Y.; Kim, M.H.; Jeong, Y.G.; Yoon, Y.I.; Park, W.H. Effect of Alkaline Hydrolysis on Cyclization Reaction of PAN Nanofibers. Mater. Des. 2017, 124, 69–77. [Google Scholar] [CrossRef]
  42. Haque, N.; Biswas, S.; Basu, P.; Haque Biswas, I.; Khatun, R.; Khan, A.; Islam, S.M. Triazinetriamine-Derived Porous Organic Polymer-Supported Copper Nanoparticles (Cu-NPs@TzTa-POP): An Efficient Catalyst for the Synthesis of: N -Methylated Products via CO2fixation and Primary Carbamates from Alcohols and Urea. New J. Chem. 2020, 44, 15446–15458. [Google Scholar] [CrossRef]
  43. Liu, W.; Lu, G.; Xiao, B.; Xie, C. Potassium Iodide-Polyethylene Glycol Catalyzed Cycloaddition Reaction of Epoxidized Soybean Oil Fatty Acid Methyl Esters with CO2. RSC Adv. 2018, 8, 30860–30867. [Google Scholar] [CrossRef]
  44. Lu, F.; Song, B.; He, P.; Wang, Z.; Wang, J. Electrochemical Impedance Spectroscopy (EIS) Study on the Degradation of Acrylic Polyurethane Coatings. RSC Adv. 2017, 7, 13742–13748. [Google Scholar] [CrossRef]
  45. Dang, W.; Liu, J.; Wang, X.; Yan, K.; Zhang, A.; Yang, J.; Chen, L.; Liang, J. Structural Transformation of Polyacrylonitrile (PAN) Fibers during Rapid Thermal Pretreatment in Nitrogen Atmosphere. Polymers 2020, 12, 63. [Google Scholar] [CrossRef]
  46. Lundgren, H.; Behm, M.; Lindbergh, G. Electrochemical Characterization and Temperature Dependency of Mass-Transport Properties of LiPF 6 in EC:DEC. J. Electrochem. Soc. 2015, 162, A413–A420. [Google Scholar] [CrossRef]
  47. Zhang, S.S.; Xu, K.; Jow, T.R. EIS Study on the Formation of Solid Electrolyte Interface in Li-Ion Battery. Electrochim. Acta 2006, 51, 1636–1640. [Google Scholar] [CrossRef]
  48. Echeverri, M.; Kim, N.; Kyu, T. Ionic Conductivity in Relation to Ternary Phase Diagram of Poly(Ethylene Oxide), Succinonitrile, and Lithium Bis(Trifluoromethane)Sulfonimide Blends. Macromolecules 2012, 45, 6068–6077. [Google Scholar] [CrossRef]
  49. Pesci, F.M.; Bertei, A.; Brugge, R.H.; Emge, S.P.; Hekselman, A.K.O.; Marbella, L.E.; Grey, C.P.; Aguadero, A. Establishing Ultralow Activation Energies for Lithium Transport in Garnet Electrolytes. ACS Appl. Mater. Interfaces 2020, 12, 32806–32816. [Google Scholar] [CrossRef]
  50. Zhang, Y.; Chen, F.; Li, J.; Zhang, L.; Gu, J.; Zhang, D.; Saito, K.; Guo, Q.; Luo, P.; Dong, S. Regulation Mechanism of Bottleneck Size on Li+ Migration Activation Energy in Garnet-Type Li7La3Zr2O12. Electrochim. Acta 2018, 261, 137–142. [Google Scholar] [CrossRef]
  51. Fan, L.Z.; Hu, Y.S.; Bhattacharyya, A.J.; Maier, J. Succinonitrile as a Versatile Additive for Polymer Electrolytes. Adv. Funct. Mater. 2007, 17, 2800–2807. [Google Scholar] [CrossRef]
  52. Pożyczka, K.; Marzantowicz, M.; Dygas, J.R.; Krok, F. Ionic conductivity and lithium transference number of poly(ethylene oxide):LiTFSI system. Electrochim. Acta 2017, 227, 127–135. [Google Scholar] [CrossRef]
  53. Wang, Y.; Huang, K.; Zhang, P.; Li, H.; Mi, H. PVDF-HFP Based Polymer Electrolytes with High Li+ Transference Number Enhancing the Cycling Performance and Rate Capability of Lithium Metal Batteries. Appl. Surf. Sci. 2022, 574, 151593. [Google Scholar] [CrossRef]
  54. Buschmann, H.; Dölle, J.; Berendts, S.; Kuhn, A.; Bottke, P.; Wilkening, M.; Heitjans, P.; Senyshyn, A.; Ehrenberg, H.; Lotnyk, A.; et al. Structure and Dynamics of the Fast Lithium Ion Conductor “Li7La3Zr2O12”. Phys. Chem. Chem. Phys. 2011, 13, 19378–19392. [Google Scholar] [CrossRef]
  55. Jia, M.; Khurram Tufail, M.; Guo, X. Insight into the Key Factors in High Li+ Transference Number Composite Electrolytes for Solid Lithium Batteries. ChemSusChem 2023, 16, e202201801. [Google Scholar] [CrossRef]
  56. Xu, D.; He, Y.B.; Chu, X.; Ding, Z.; Li, B.; He, J.; Du, H.; Qin, X.; Kang, F. Synthesis of Lithium Iron Phosphate/Carbon Microspheres by Using Polyacrylic Acid Coated Iron Phosphate Nanoparticles Derived from Iron(III) Acrylate. ChemSusChem 2015, 8, 1009–1016. [Google Scholar] [CrossRef]
  57. Zhou, D.; Liu, R.; He, Y.B.; Li, F.; Liu, M.; Li, B.; Yang, Q.H.; Cai, Q.; Kang, F. SiO2 Hollow Nanosphere-Based Composite Solid Electrolyte for Lithium Metal Batteries to Suppress Lithium Dendrite Growth and Enhance Cycle Life. Adv. Energy Mater. 2016, 6, 1502214. [Google Scholar] [CrossRef]
  58. Yao, X.; Olsson, E.; Zhao, J.; Feng, W.; Luo, W.; Tan, S.; Huang, M.; Zhao, Y.; Huang, J.; Cai, Q.; et al. Voltage Plateau Variation in a Bismuth-Potassium Battery. J. Mater. Chem. A Mater. Energy Sustain. 2022, 10, 2917–2923. [Google Scholar] [CrossRef]
Energies 16 07695 g001
Figure 1. Schematic illustration of SPE-LGLZO composite solid electrolyte and the chemical reactions on the LGLZO particles of g-PCE and g-PPCE.
Figure 1. Schematic illustration of SPE-LGLZO composite solid electrolyte and the chemical reactions on the LGLZO particles of g-PCE and g-PPCE.
Energies 16 07695 g001
Energies 16 07695 g002

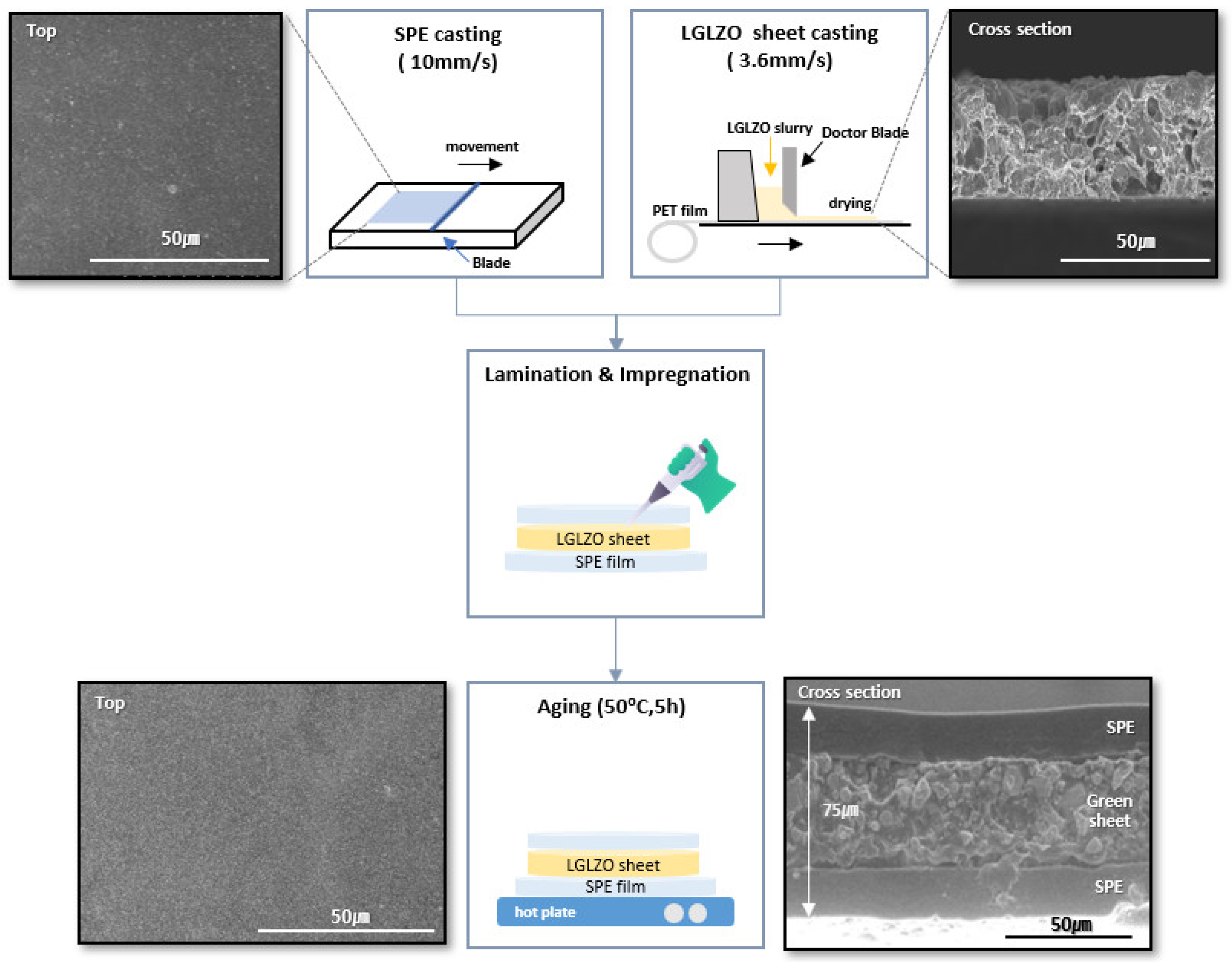

Figure 2. Schematic diagram of preparing g-PPCE and SEM images of the SPE, LGLZO sheet, and g-PPCE membrane.
Figure 2. Schematic diagram of preparing g-PPCE and SEM images of the SPE, LGLZO sheet, and g-PPCE membrane.
Energies 16 07695 g002
Energies 16 07695 g003

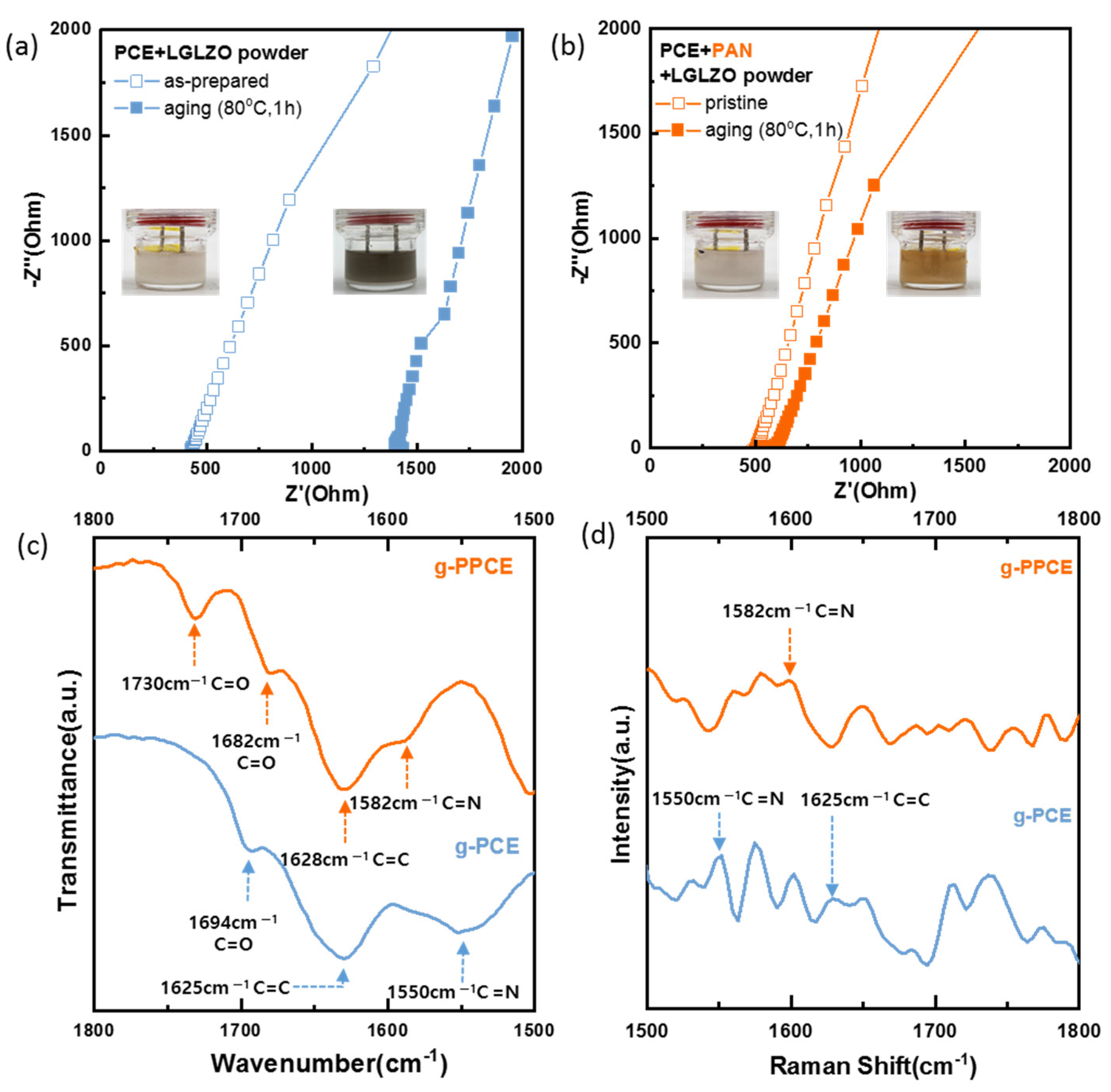

Figure 3. (a) Nyquist impedance spectra and the images (inset) of the beaker cell of PCE/LGLZO slurry before and after aging at 80 °C, 1 h; (b) Nyquist impedance spectra and the images (inset) of the beaker cell of PPCE/LGLZO slurry before and after aging at 80 °C, 1 h; (c) FTIR images of g-PCE and g-PPCE samples; and (d) Raman spectroscopy of g-PCE and g-PPCE samples.
Figure 3. (a) Nyquist impedance spectra and the images (inset) of the beaker cell of PCE/LGLZO slurry before and after aging at 80 °C, 1 h; (b) Nyquist impedance spectra and the images (inset) of the beaker cell of PPCE/LGLZO slurry before and after aging at 80 °C, 1 h; (c) FTIR images of g-PCE and g-PPCE samples; and (d) Raman spectroscopy of g-PCE and g-PPCE samples.
Energies 16 07695 g003
Energies 16 07695 g004

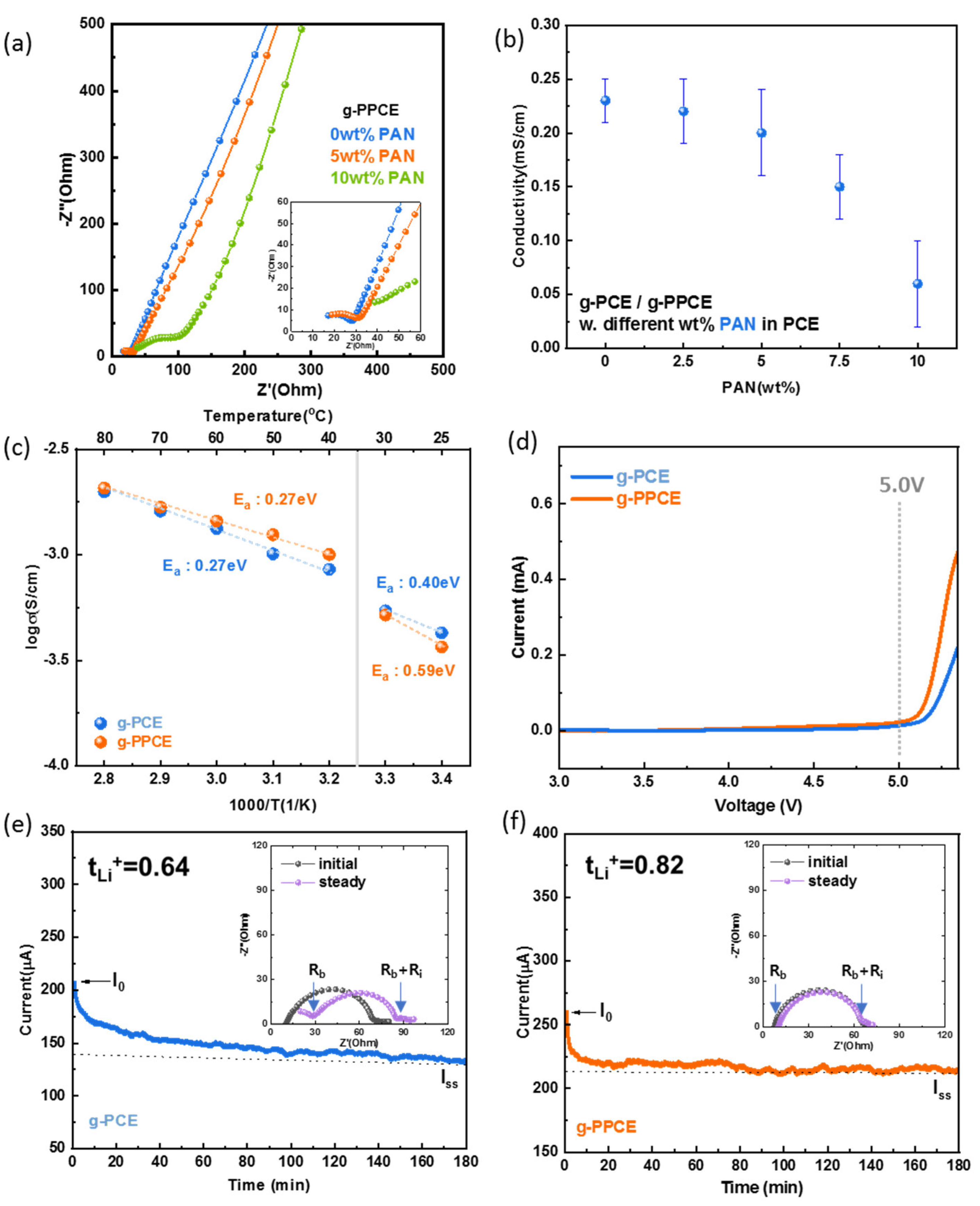

Figure 4. Electrochemical properties of the g-PCE and g-PPCE samples. (a–c) Nyquist impedance spectra, ionic conductivities and Arrhenius plots of the SS||g-PCE||SS and SS||g-PPCE||SS samples; (d) LSV curves of the SS||g-PCE||Li and SS||g-PPCE||Li samples; (e,f) polarization curves (inset) and steady-state impedance diagram of the Li||g-PCE||Li and Li||g-PPCE||Li samples, respectively.
Figure 4. Electrochemical properties of the g-PCE and g-PPCE samples. (a–c) Nyquist impedance spectra, ionic conductivities and Arrhenius plots of the SS||g-PCE||SS and SS||g-PPCE||SS samples; (d) LSV curves of the SS||g-PCE||Li and SS||g-PPCE||Li samples; (e,f) polarization curves (inset) and steady-state impedance diagram of the Li||g-PCE||Li and Li||g-PPCE||Li samples, respectively.
Energies 16 07695 g004
Energies 16 07695 g005

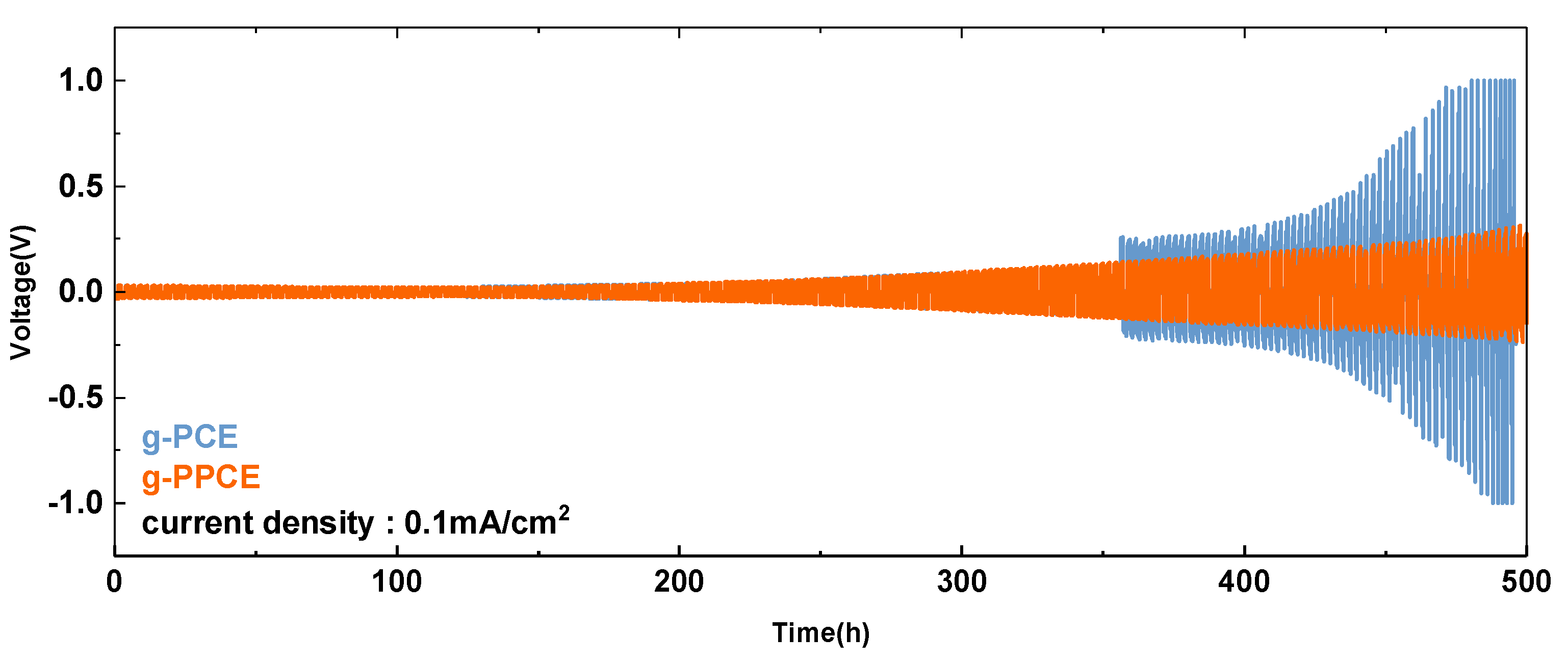

Figure 5. Galvanostatic cycling curves of the Li symmetric cells of g-PCE and g-PPCE at 0.1 mA /cm2.
Figure 5. Galvanostatic cycling curves of the Li symmetric cells of g-PCE and g-PPCE at 0.1 mA /cm2.
Energies 16 07695 g005
Energies 16 07695 g006

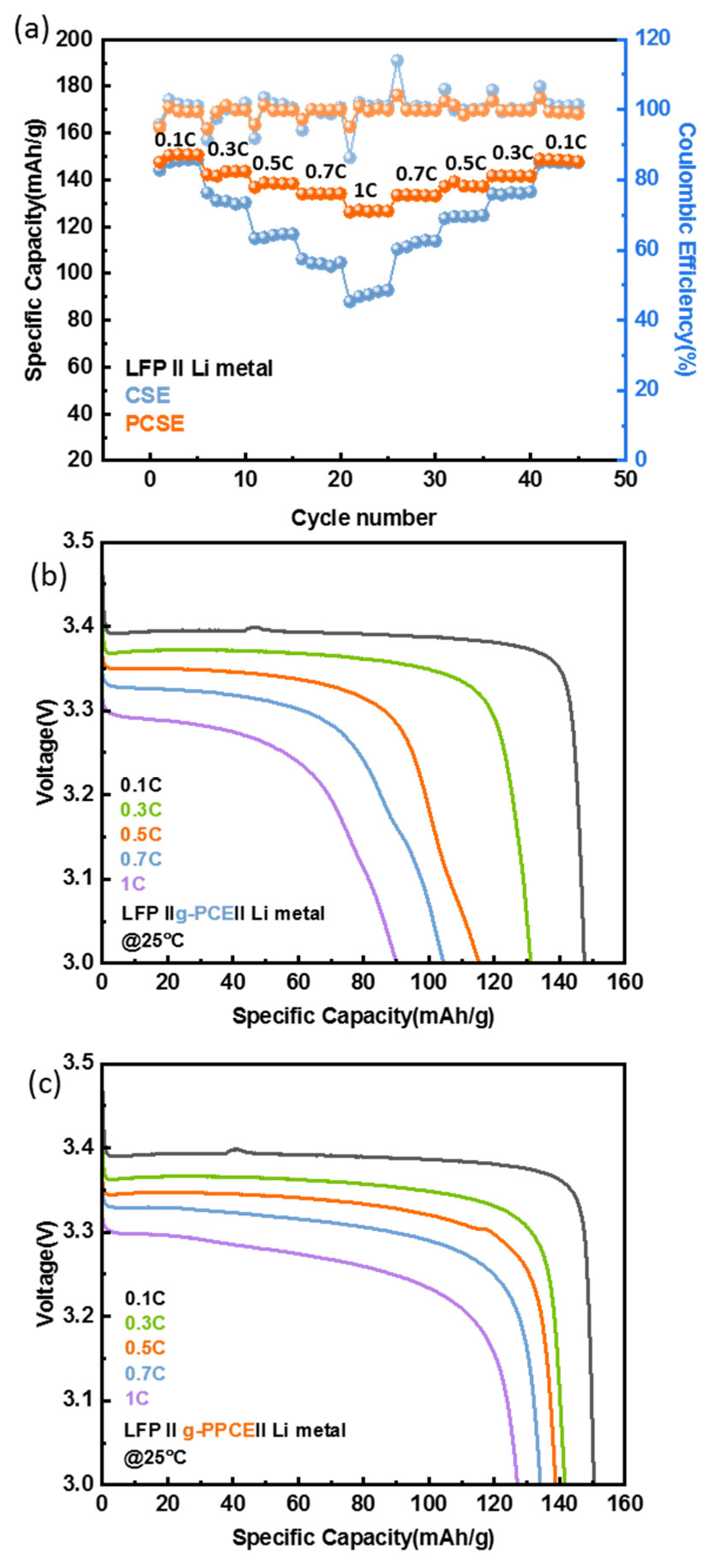

Figure 6. (a) The rate performance of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at room temperature. (b,c) The discharge curves of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at different rates at 25 °C.
Figure 6. (a) The rate performance of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at room temperature. (b,c) The discharge curves of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at different rates at 25 °C.
Energies 16 07695 g006
Energies 16 07695 g007

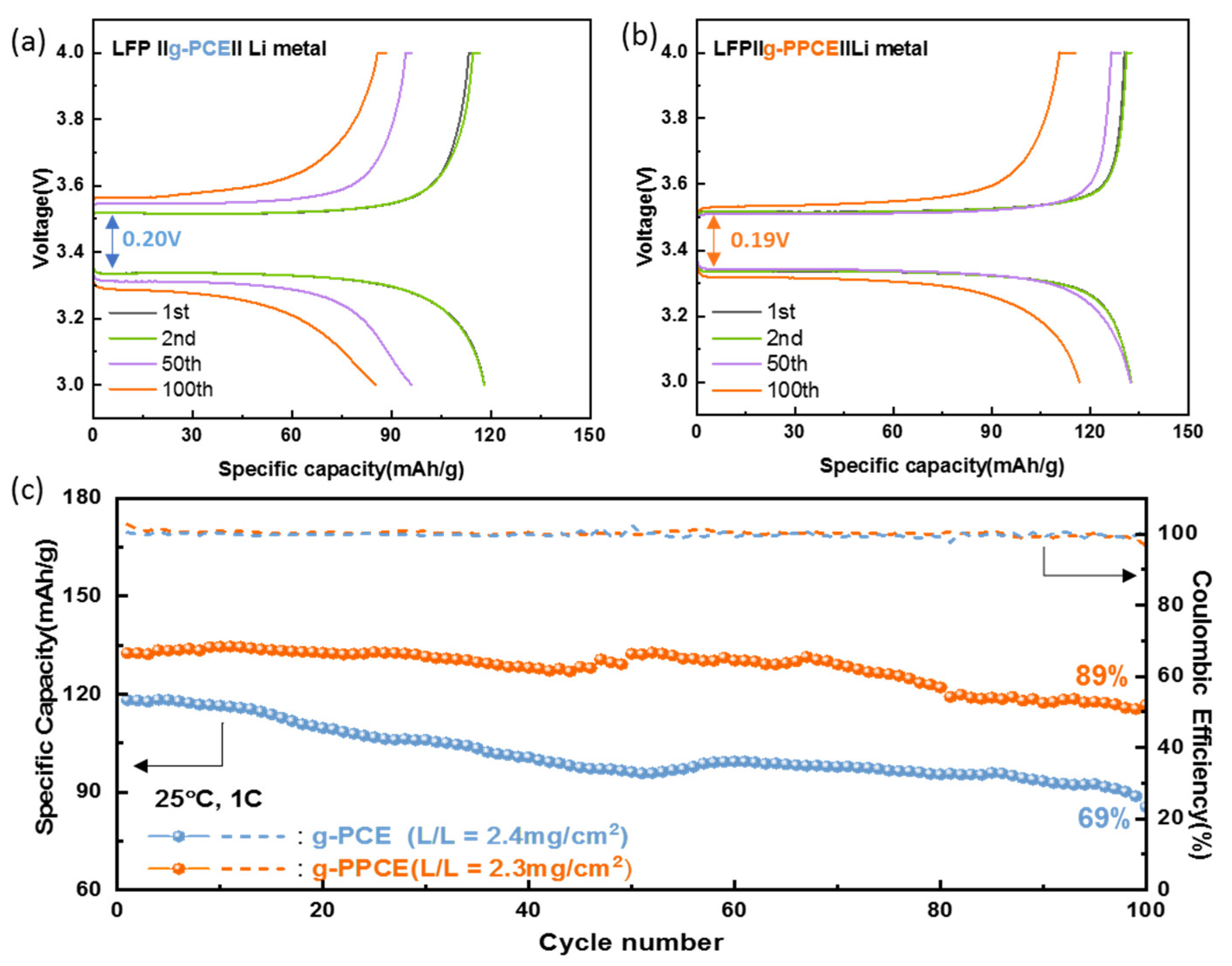

Figure 7. (a,b) The charge and discharge curves of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at 1 C and 25 °C; (c) The cycle performance levels of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at 1 C and 25 °C.
Figure 7. (a,b) The charge and discharge curves of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at 1 C and 25 °C; (c) The cycle performance levels of the LFP||g-PCE||Li and LFP||g-PPCE||Li batteries at 1 C and 25 °C.
Energies 16 07695 g007
Energies 16 07695 g008
Figure 8. (a) The charge and discharge curves of the NCM||g-PCE||Li battery at 0.1 C and 25 °C. (b) The cycle performance of the NCM||g-PCE||Li and batteries at 0.1 C and 25 °C. (c) The charge and discharge curves of the NCM||g-PPCE||Li battery at 0.1 C and 25 °C. (d) The cycle performance of the NCM||g-PPCE||Li and batteries at 0.1 C and 25 °C.
Figure 8. (a) The charge and discharge curves of the NCM||g-PCE||Li battery at 0.1 C and 25 °C. (b) The cycle performance of the NCM||g-PCE||Li and batteries at 0.1 C and 25 °C. (c) The charge and discharge curves of the NCM||g-PPCE||Li battery at 0.1 C and 25 °C. (d) The cycle performance of the NCM||g-PPCE||Li and batteries at 0.1 C and 25 °C.
Energies 16 07695 g008
Energies 16 07695 g009

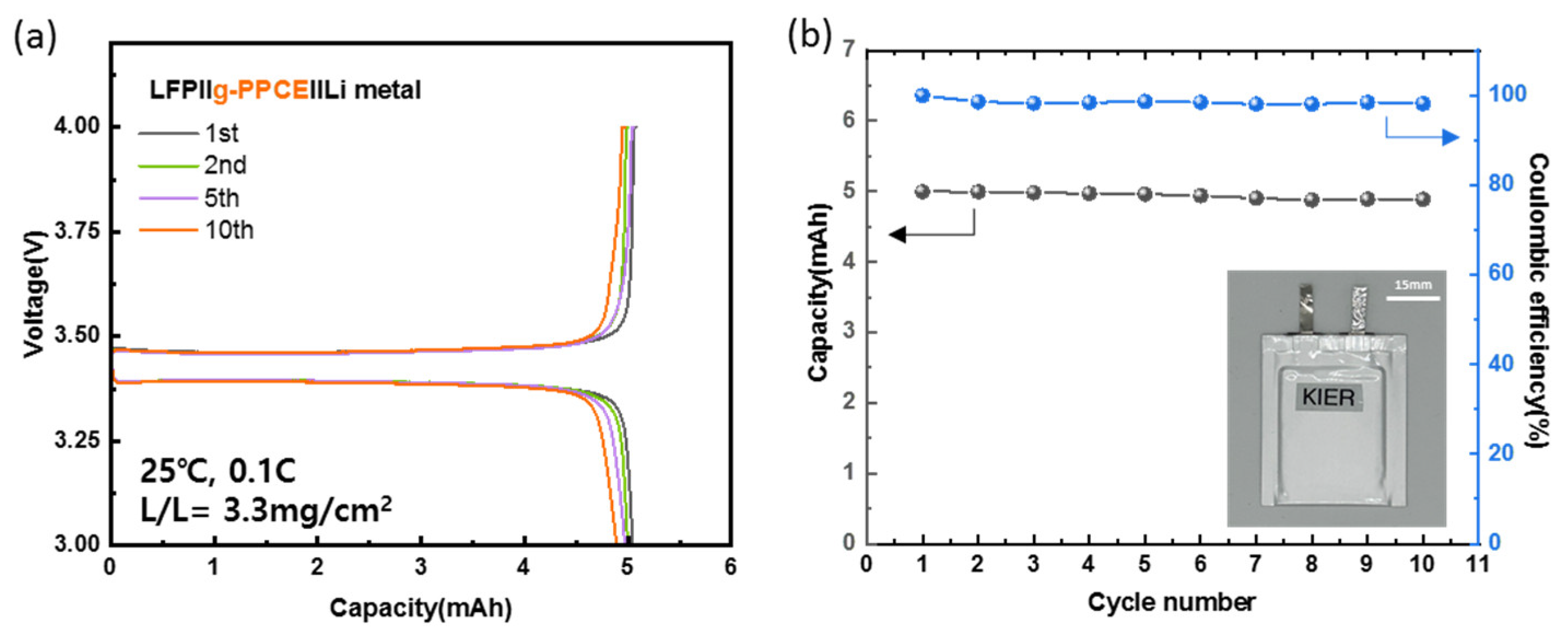

Figure 9. (a) The charge and discharge curves of the LFP||g-PPCE||Li battery at 0.1 C and 25 °C (b) The cycle performance of 3450 sized solid state-pouch cell with g-PPCE at 0.1 C and 25 °C and photographic image of the pouch cell with LFP||g-PPCE||Li.
Figure 9. (a) The charge and discharge curves of the LFP||g-PPCE||Li battery at 0.1 C and 25 °C (b) The cycle performance of 3450 sized solid state-pouch cell with g-PPCE at 0.1 C and 25 °C and photographic image of the pouch cell with LFP||g-PPCE||Li.
Energies 16 07695 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Noh, H.; Kim, D.; Lee, W.; Jang, B.; Ha, J.S.; Yu, J.H. Surface Modification of Ga-Doped-LLZO (Li7La3Zr2O12) by the Addition of Polyacrylonitrile for the Electrochemical Stability of Composite Solid Electrolytes. Energies 2023, 16, 7695. https://doi.org/10.3390/en16237695

AMA Style

Noh H, Kim D, Lee W, Jang B, Ha JS, Yu JH. Surface Modification of Ga-Doped-LLZO (Li7La3Zr2O12) by the Addition of Polyacrylonitrile for the Electrochemical Stability of Composite Solid Electrolytes. Energies. 2023; 16(23):7695. https://doi.org/10.3390/en16237695

Chicago/Turabian Style

Noh, Hyewoo, Daeil Kim, Wooyoung Lee, Boyun Jang, Jeong Sook Ha, and Ji Haeng Yu. 2023. "Surface Modification of Ga-Doped-LLZO (Li7La3Zr2O12) by the Addition of Polyacrylonitrile for the Electrochemical Stability of Composite Solid Electrolytes" Energies 16, no. 23: 7695. https://doi.org/10.3390/en16237695

APA Style

Noh, H., Kim, D., Lee, W., Jang, B., Ha, J. S., & Yu, J. H. (2023). Surface Modification of Ga-Doped-LLZO (Li7La3Zr2O12) by the Addition of Polyacrylonitrile for the Electrochemical Stability of Composite Solid Electrolytes. Energies, 16(23), 7695. https://doi.org/10.3390/en16237695

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
