Key Issues and Strategies of Aqueous Zinc-Ion Batteries

Abstract

With the rapid growth of the world population and the further industrialization of modern society, the demand for energy continues to rise sharply. Hence, the development of alternative, renewable, and clean energy sources is urgently needed to address the impending energy crisis. Rechargeable aqueous zinc-ion batteries are drawing increased attention and are regarded as the most promising candidates for large-scale energy storage systems. However, some challenges exist for both the anode and cathode, severely restricting the practical application of ZIBs. In this review, we focus on the issues related to the anode (such as dendrites growth, hydrogen evolution, and surface passivation). We discuss the causes of these challenges and summarize the strategies (such as surface engineering, electrolyte modification, and 3D structural skeleton and alloying) to overcome them. Finally, we discuss future opportunities and challenges of ZIBs regarding the Zn anode.

1. Introduction

The research focused on the generation of clean energy has been boosted over the past decades, but the intermittent nature of these renewable resources requires an effective energy storage system (ESS) to store the generated energy. Among the various ESS technologies, rechargeable batteries have been considered the most feasible and reliable, and they already play a prominent role in our lives today. Among them, rechargeable lithium-ion batteries (LIBs) have dominated the application fields of portable devices, electric vehicles, and large-scale energy storage. But, limited lithium resources and the increasing prices of LIBs have aroused great concerns. Therefore, some cheaper rechargeable batteries have received a lot of attention, such as sodium-ion batteries (SIBs), potassium-ion batteries (KIBs), and so on. Despite the significant advancements in SIBs and KIBs, the widespread adoption of organic-based electrolytes, which are toxic, volatile, and flammable, continues to make batteries encounter safety and environmental hurdles. In contrast, aqueous rechargeable batteries offer the advantages of affordability, heightened safety, superior ionic conductivity, and simplified manufacturing. These attributes position aqueous batteries as the most auspicious contender for the forthcoming era of large-scale ESS.

Until now, a variety of aqueous metal-ion batteries, including monovalent (Li⁺, Na^+, and K⁺) [1,2,3], as well as multivalent charge carriers (Zn²⁺, Mg²⁺, Ca²⁺, and Al³⁺) [4,5,6,7,8] have been investigated. This research trajectory began with Dahn et al.’s initial report in 1994 on the VO₂||LiMn₂O₄ aqueous battery based on the insertion/extraction mechanism [1]. Compared with other metal anodes, the biggest advantage of metallic zinc is its relative stability and reversible redox reaction in aqueous electrolytes. Table 1 shows the physical and chemical property comparison of monovalent and multivalent metals. According to this comparison and the Pourbaix diagram in Figure 1A,B, we can find that only metallic zinc has the proper redox potential (−0.763 V vs. standard hydrogen electrode (SHE)), which allows Zn to be used directly as an anode in aqueous electrolytes. Combining its high theoretical capacity, low redox potential, nontoxicity, and abundant reserve in the Earth’s crust, metallic zinc has been considered the most promising anode material for a large-scale energy storage system. Therefore, Zn-based batteries with mild electrolytes have attracted considerable research interest in the past ten years as a promising aqueous battery.

Table 1. Comparison of monovalent and multivalent metals as electrodes. Reproduced with permission [9], Copyright 2019, Elsevier.

Element	Atomic Mass	Standard Potential (V) vs. SHE	Gravimetric Capacity (mAh/g)	Volumetric Capacity (mAh/cm3)	Ionic Radius (Å)
Li	6.94	−3.040	3680	2061	0.76
Na	23.00	−2.713	1165	1129	1.02
K	39.1	−2.924	685	610	1.38
Mg	24.31	−2.356	2206	3834	0.72
Ca	40.08	−2.840	1337	2072	1.00
Zn	65.41	−0.763	820	5855	0.75
Al	26.98	−1.676	2980	8046	0.53

Table 1. Comparison of monovalent and multivalent metals as electrodes. Reproduced with permission [9], Copyright 2019, Elsevier.

Element	Atomic Mass	Standard Potential (V) vs. SHE	Gravimetric Capacity (mAh/g)	Volumetric Capacity (mAh/cm3)	Ionic Radius (Å)
Li	6.94	−3.040	3680	2061	0.76
Na	23.00	−2.713	1165	1129	1.02
K	39.1	−2.924	685	610	1.38
Mg	24.31	−2.356	2206	3834	0.72
Ca	40.08	−2.840	1337	2072	1.00
Zn	65.41	−0.763	820	5855	0.75
Al	26.98	−1.676	2980	8046	0.53

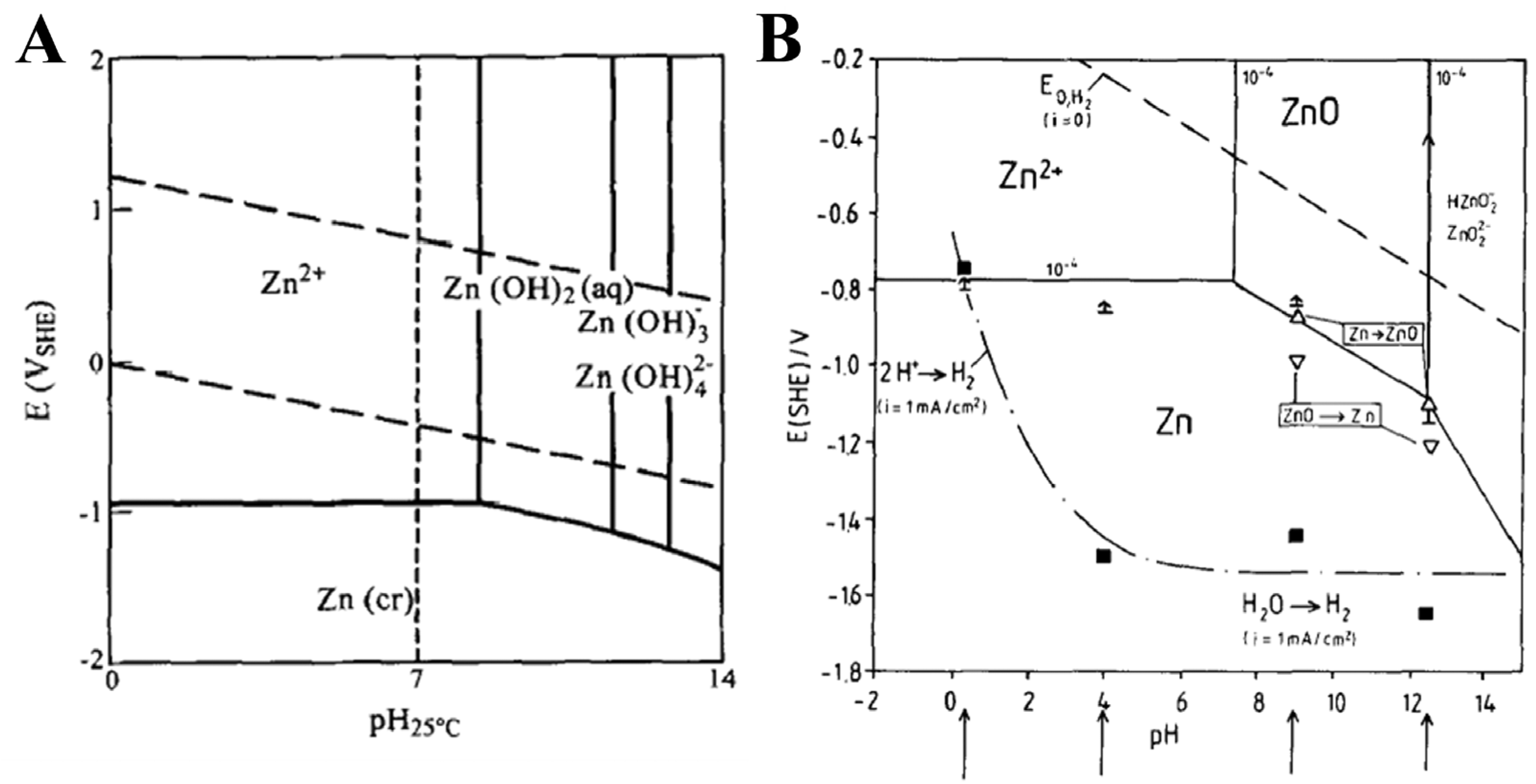

Figure 1. (A) Pourbaix diagram of the Zn/H₂O system. Reproduced with permission [10]. Copyright 1997, Elsevier. (B) Hydrogen evolution reaction overpotential considerations. Reproduced with permission [11]. Copyright 1991, Elsevier.

Figure 1. (A) Pourbaix diagram of the Zn/H₂O system. Reproduced with permission [10]. Copyright 1997, Elsevier. (B) Hydrogen evolution reaction overpotential considerations. Reproduced with permission [11]. Copyright 1991, Elsevier.

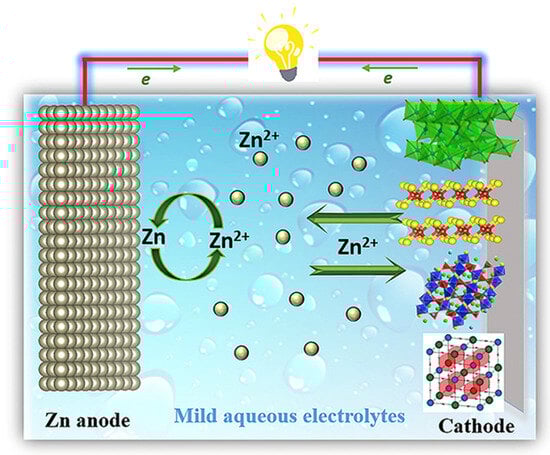

The energy storage mechanism of the Zn-ion battery is based on the movement of Zn²⁺ ions between the cathode and anode, while the electrolyte can be an acidic, neutral, or alkaline solution, depending on the cathode requirement. The operating mechanism of the rechargeable aqueous Zn-ion batteries (ZIBs) is demonstrated in Figure 2. The metal Zn anode undergoes oxidation and reduction (Zn ⇄ Zn²⁺ + 2e⁻) during the charge/discharge process. While the reaction mechanism of the cathode is intricate and subject to controversy, it remains a topic of ongoing discussion and is not fully understood. So far, the redox reactions on the cathode side mainly involve three mechanisms: Zn²⁺ insertion/extraction [7,12], chemical conversion reaction [13], and H⁺/Zn²⁺ insertion/extraction [14,15]. Taking the MnO₂ cathode as an example, the redox reaction in the Zn²⁺ insertion/extraction mechanism is

$${\mathrm{Z}\mathrm{n}}^{2+}+2{\mathrm{e}}^{-}+2\mathsf{\alpha }{\mathrm{M}\mathrm{n}\mathrm{O}}_2\rightleftarrows {\mathrm{Z}\mathrm{n}\mathrm{M}\mathrm{n}}_2{\mathrm{O}}_4$$

(1)

while the reaction process in the chemical conversion reaction mechanism is as follows:

$${\mathrm{M}\mathrm{n}\mathrm{O}}_2+{\mathrm{H}}^{+}+{\mathrm{e}}^{-}\rightleftarrows \mathrm{M}\mathrm{n}\mathrm{O}\mathrm{O}\mathrm{H}$$

(2)

$$\frac{1}{2}{\mathrm{Z}\mathrm{n}}^{2+}+{\mathrm{O}\mathrm{H}}^{-}+\frac{1}{6}{\mathrm{Z}\mathrm{n}\mathrm{S}\mathrm{O}}_4+\frac{5}{6}{\mathrm{H}}_2\mathrm{O}\rightleftarrows \frac{1}{6}{\mathrm{Z}\mathrm{n}\mathrm{S}\mathrm{O}}_4{{\left[\mathrm{Z}\mathrm{n}\right(\mathrm{O}\mathrm{H})}_2]}_3·5{\mathrm{H}}_2\mathrm{O}$$

(3)

Thus, the reaction mechanism of highly promising Mn-based cathode materials should be further investigated, and more characterization methods are expected to be adopted to reveal further details of the reaction.

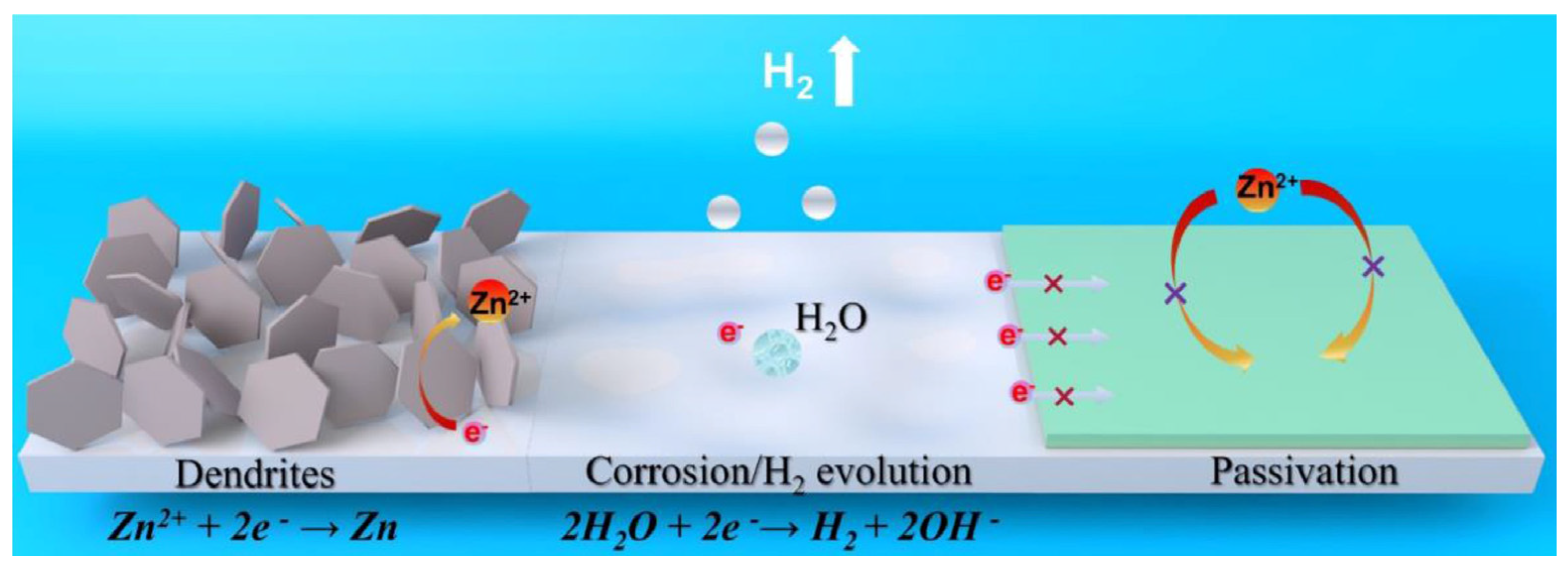

2. The Challenges of the Zinc Anode

Even though the research on high-performance ZIBs has achieved great progress, the widespread commercial implementation of metallic zinc anodes in secondary batteries has encountered substantial limitations. Generally, the limitations of ZIB development mainly come from the zinc anode side. The poor rechargeability and low Zn utilization are ascribed to dendrite growth [16,17,18], hydrogen evolution [19,20,21], and surface passivation [22,23,24] occurring on the Zn anodes during the repetitive plating and stripping processes (Figure 3). These factors significantly impede its progress in practical applications in next-generation batteries.

2.1. Dendrites and Protrusion

Currently, commercial zinc foils are used as the anode in the ZIBs. However, in practical scenarios, the Zn anodes consistently exhibit uneven and non-uniform surface morphology at the micro- or nanoscale, leading to heterogeneous current distribution and nucleation barriers. During the charge/discharge process, the factors that are responsible for the formation of dendrites are uneven Zn²⁺ concentration distribution and non-uniform electric field distribution. It is always preferred for the nucleation to occur in locations that have high Zn²⁺ concentration and a high electric field [24,26]. The formed needle-like protrusion will further promote the growth of zinc dendrites because of the so-called “tip effect”. With repeated charge/discharge cycling, the dendrites will even puncture the separator and give rise to a short circuit during further cycling. In addition, the zinc dendrites will increase the number of Zn anode surface active sites, which further facilitate the corrosion process and hydrogen evolution reaction, leading to low Coulombic efficiency (CE) and speeding up battery deterioration.

2.2. Hydrogen Evolution Reaction

In most of the studies, metallic Zn is employed as an anode material in ZIBs directly. However, as a relatively active transition metal, metallic Zn is easily affected by side reactions between Zn electrodes and aqueous electrolytes during the battery operation, which has severely hindered the practical applications of ZIBs. The hydrogen evolution reaction (HER) is the most frequent side reaction during the charge/discharge process in the battery operation. The electrochemical reaction which occurred on the surface of Zn anode is as follows:

$${\mathrm{Z}\mathrm{n}}^{2+}+{2\mathrm{e}}^{-}\rightleftarrows \mathrm{Z}\mathrm{n}$$

(4)

$${2\mathrm{H}}_2\mathrm{O}+{2\mathrm{e}}^{-}\rightleftarrows {\mathrm{H}}_2\uparrow +{\mathrm{O}\mathrm{H}}^{-}$$

(5)

The HER not only consumes the fresh electrolyte and Zn anode but also produces H₂ gas, which will lead to the battery swelling. Interestingly, according to ref. [27], a high current density will alleviate the HER during the charge–discharge process. This is because the electrodeposited Zn crystal at high current density has a smaller specific surface area, which is critical for HER activity. As a result, the HER is significantly reduced at high current density.

Furthermore, since most commercial zinc foil is not 100% pure, when the zinc anode is in contact with electrolytes, the impurities present within the anode will combine to create a primary cell with Zn [28]. This micro-cell on the zinc anode will lead to corrosion and H₂ evolution on the surface, which will further push the deterioration of the anode.

2.3. Passivation Layer

The surface passivation process is always accompanied by the hydrogen evolution reaction and surface corrosion during the repeated plating/stripping cycling. With the hydrogen evolution, the local pH will be increased dramatically since the OH⁻ concentration increases rapidly [29,30,31], and the generated OH⁻ will react with Zn²⁺ and H₂O to form the passivation layer on the zinc surface. The non-conductive inactive and insoluble byproducts (such as ZnO and Zn₄SO₄(OH)₆‧xH₂O) precipitate onto the surface of the zinc anode. This cuts down the reversibility of the plating/stripping process, increases internal resistance, and limits zinc utilization. The accumulation of the non-conductive passivation layer will further reduce the reversibility and enhance the polarization, ultimately leading to the diminished recharging performance of the Zn anode.

3. The Strategies of Zinc Anode Protection

The preparation of highly stable and reversible zinc anodes is urgently needed and can provide a high zinc utilization, high CE, and durable cycling life. To solve the problems mentioned in Section 2, tremendous research has been performed, and some effective strategies have been proposed to mitigate the detrimental issues, prolong the lifespan, increase Zn utilization, and improve reversibility. The most promising methods to enhance the lifetime and improve the reversibility of zinc anode are divided into four main categories: surface engineering, electrolyte optimization, structural design, and alloy strategies. For surface engineering, stable and ultrathin artificial protective layers should be well designed to prevent corrosion.

3.1. Surface Engineering

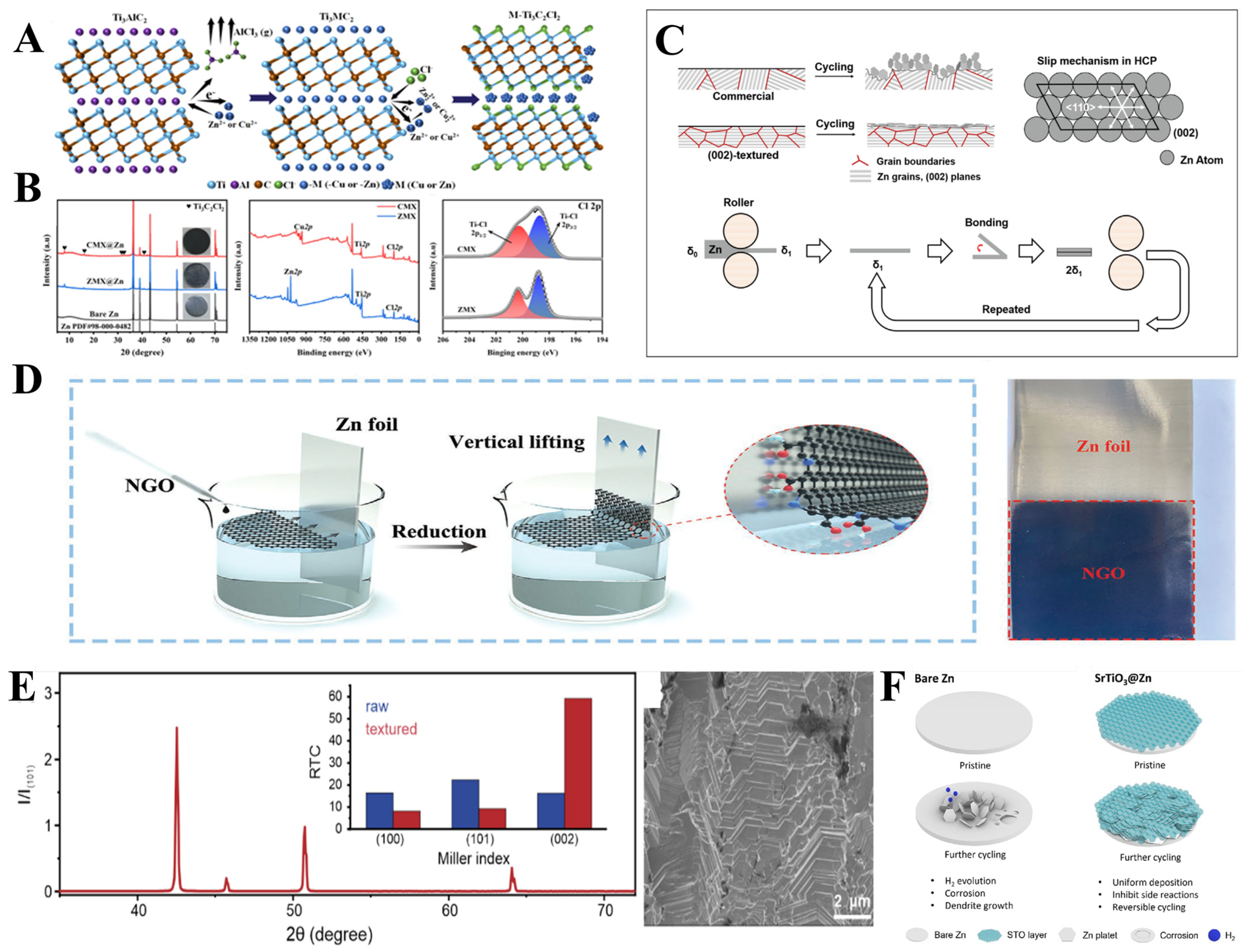

Surface engineering appears to be the most direct and effective method to mitigate the degradation of Zn anodes (Figure 4). Two approaches to improve the reversibility of zinc anode via surface engineering are included in this section.

The first is constructing an artificial protecting layer that can work similarly to the SEI in ZIBs. If the commercial zinc foil is directly used as the anode without any modification, it leads to the occurrence of both dendrite growth and side reaction on the surface of the zinc surface. Therefore, an engineered surface layer is constructed to protect the anode from contacting the aqueous electrolyte, effectively curbing dendrite growth and the HER. Hence, building an artificial protection layer on the surface of the zinc anode, whether by an ex situ or in situ method, seems to be essential. Inorganic coating layers, such as CaCO₃, [37] TiO₂, [38,39] montmorillonite [40,41], carbon materials [42], and other materials [32,43,44,45,46] are extensively studied as the protecting layer. The porous nano-CaCO₃ coating layer worked as a buffer layer, which can guide the deposition of Zn during the plating/stripping process [37]. The porous nature of the coating layer can confine the Zn plating reaction beneath the buffer layer, guide uniform electrolyte flux, and control the Zn plating rate, resulting in a uniform and dense Zn deposition layer that can effectively inhibit dendrite formation. In addition, porous nano-SiO₂ and acetylene black were also tested and obtained similar results as the porous nano-CaCO₃. The TiO₂ insulating layers are also studied as the protecting layer on the Zn anode surface. By avoiding the direct contact between zinc anode and electrolyte, the undesired hydrogen evolution and corrosion process are significantly suppressed. This protective layer leads to an enhanced electrochemical performance of ZIBs. The protective layer prepared via ALD with (001) facet can effectively prevent the Zn dendrites from vertical growth and stabilize the interface between the electrode and electrolyte; hence, it exhibits a long-term cycle life in the test of plating/stripping performance [38]. The role of crystal orientation of the TiO₂ protective layer was also studied in the paper, and DFT was used to calculate the interaction between Zn and different facets of TiO₂. The calculation results show that the TiO₂ coating layer with the (001) and (101) facets exposed possesses a relatively low Zn affinity [39]. In addition to the inorganic substances, such as zinc metal anode armor, polymer-based coating layers (such as polyacrylamide, polyamide, poly(vinyl butyral), polyvinylidene fluoride, and others) can serve as barriers to shield against H₂O/O₂ in the electrolyte and exhibit high protective performance in recent studies [47,48,49,50,51,52]. The polar functional groups contained in the polymers, such as C=O and -N-H₂ bonds, can provide abundant adsorption or coordination sites and transfer Zn²⁺ to the reaction interface along the polymer chains, which can achieve the regulation of Zn²⁺ distribution from the molecular scale through the fast ion pathway. In addition, the polymer layers are water-insoluble and exhibit strong adhesion and excellent flexibility on the Zn surface. With the help of a protective layer, the side reactions with water can be significantly suppressed since the water from the Zn solvation shell was effectively removed during the penetration process, and dendrite growth was remarkably inhibited because of the electrostatic shield effect to avoid the accumulation of Zn²⁺/electrons on local regions.

Even though the inorganic and polymer-protecting layers have their unique features, they also have some shortcomings. The inorganic coating layer has less mechanical flexibility, and the polymer coating layer shows relatively slow kinetics of Zn²⁺ transference. Therefore, hybrid coating layers that contain two or more components were also studied [51,53,54,55], in which the hybrid was designed to use the synergistic effects of different components to enhance the electrochemical performance. For example, Wang et al. [56] fabricate a hybrid coating layer that has carbon black and nano-fibrous cellulose binder; the carbon black can work as the electrically conductive network that can greatly enlarge the electroactive surface area, and the nano-fibrous cellulose can act as an electrolyte reservoir to facilitate the charge transport. However, the gravimetric and volumetric capacity of complete ZIBs will be inevitably influenced by the introduction of protective layers.

The second method, manipulating the crystallographic orientation of zinc deposition, can effectively get rid of this problem. According to previously published articles [57,58], the (002) plane of metal Zn shows 0~30° alignment to the substrate, while the (100) and (110) planes have a higher angle of 70~90°. Hence, the (002) facet of Zn metal is less likely to facilitate the growth of dendrites when compared with the (100) and (110) planes. In addition, the (002) plane is the closest in hexagonal close-packed (hcp) metal, which has lower thermodynamic free energy than other planes. The decrease in activation energy of the (002) plane enhances the ability of Zn metal to exhibit strong resistance against surface corrosion. Therefore, controlling the growth of deposited zinc during the plating/stripping process is also regarded as one effective method to enhance Zn reversibility [35,59,60,61,62,63,64]. For example, since graphene possesses the advantage of low lattice mismatch with Zn for the electrodeposition process [65], Zn was preferentially deposited on the graphene substrate with a locked (002) crystallographic orientation during the plating process. The epitaxially electrodeposited Zn exhibits exceptional reversibility over thousands of cycles, whether at moderate or high rates. The (002) enhanced Zn metal can also be prepared via the metal forging method [33,59]. An accumulative roll bonding (ARB) methodology was introduced to prepare the (002) plane preferred Zn foil [33]. The strongly (002)-textured Zn foil was well prepared after a severe plastic deformation process, and the cell cycling test shows that the (002)-textured electrode can still survive for hundreds of charge/discharge cycles even under harsh testing conditions (4 mAh/cm² at 40 mA/cm²). The Zn (002)-textured surface can also be reached via an acid etching method [66]. After being etched by H₃PO₄ for 4 min, the ratio of I₍₀₀₂₎/I_(100), which exhibits a (002) plane preference, can reach up to 3.8, and a zinc phosphate protecting layer also forms simultaneously. Owing to the synergistic effect of the enhanced (002) plane and the existence of the Zn₃(PO₄)₂ coating layers, the modified electrode exhibits superior electrochemical performance both in the symmetric cell and full battery test. Obviously, the preferred orientation of Zn metal can also be prepared by other methods, and manipulating the crystallographic orientation of zinc deposition during the plating process also can be recognized as an effective way to prolong the lifetime of ZIBs.

3.2. Electrolyte Modification

The use of water as an electrolyte solvent enabled the ZIBs to have the advantage of being affordable and nonflammable, with high ionic conductivity and enhanced kinetics. But similar to how every coin has two sides, the water molecules that serve as the solvent will be consumed during the charge/discharge process, and the decomposition of water is the root of the undesired side reaction. In addition, the byproduct and corrosion process will lead to the acceleration of Zn anode deterioration in the following galvanostatic charge/discharge (GCD) process. Due to the tendency of Zn²⁺ ions to predominantly exist as hydrated [Zn(H₂O)₆]²⁺ species in the electrolyte, the aqueous electrolyte exhibits an acidic nature. Additionally, the metal zinc is not thermodynamically stable when exposed to these electrolytes. Therefore, modifying the electrolyte to control the decomposition of water molecules and the behavior of Zn²⁺ during the plating/stripping process is also an important strategy to prolong the lifespan of the Zn anode. The most common strategies to improve the batteries’ electrochemical performance and suppress the undesired side reaction derived from the electrolyte are mainly categorized into three approaches: highly concentrated electrolyte, hydrogel electrolyte, and functional additives.

3.2.1. Highly Concentrated Electrolyte

The “Water-in-salt” (WiS) electrolyte refers to the electrolyte in which the dissolved salt outnumbers the solvent by both weight and volume; the number of available water molecules that can participate in the ion solvation shell in the WiS electrolyte is far below that in conventional electrolyte [67]. With the limited water content in the electrolyte, the undesired side reactions triggered by the decomposition of H₂O that happened on the surface of the zinc anode were highly reduced [68]. In addition, the interaction of the metal ions in the WiS electrolyte replaces the hydrogen bonds with interionic attractions. The high de-solvation energy related to the metal ions with water molecules was significantly reduced, which can facilitate the plating/stripping process [69]. The WiS electrolyte was first proposed in the field of aqueous lithium batteries by Suo et al. in 2015 [70]. With the limited water molecules and improved interionic attractions, the highly concentrated lithium bis(trifluoromethanesulfonyl)imide (LiTFSI)-based WiS electrolyte exhibits a wide electrochemical stable window up to 3.0 V and nearly 100% coulombic efficiency at both low and high charge–discharge rates. When this concept is transferred to ZIBs, super-concentrated electrolytes (such as 1 m Zn(TFSI)₂ with 20 m LiTSFI [71], 1 m Zinc trifluoromethanesulfonate (Zn(CF₃SO₃)) with 21 m LiTFSI [72], and 30 m ZnCl₂ [73]) were investigated, and all of these WiS electrolytes exhibit high suppression of dendrite growth and improved zinc anode performance. In addition, the high-concentration electrolyte can also alleviate the dissolution problem of cathode-active materials [68]. But, the introduction of highly concentrated electrolytes will also increase the cost, which will hinder their practical applications.

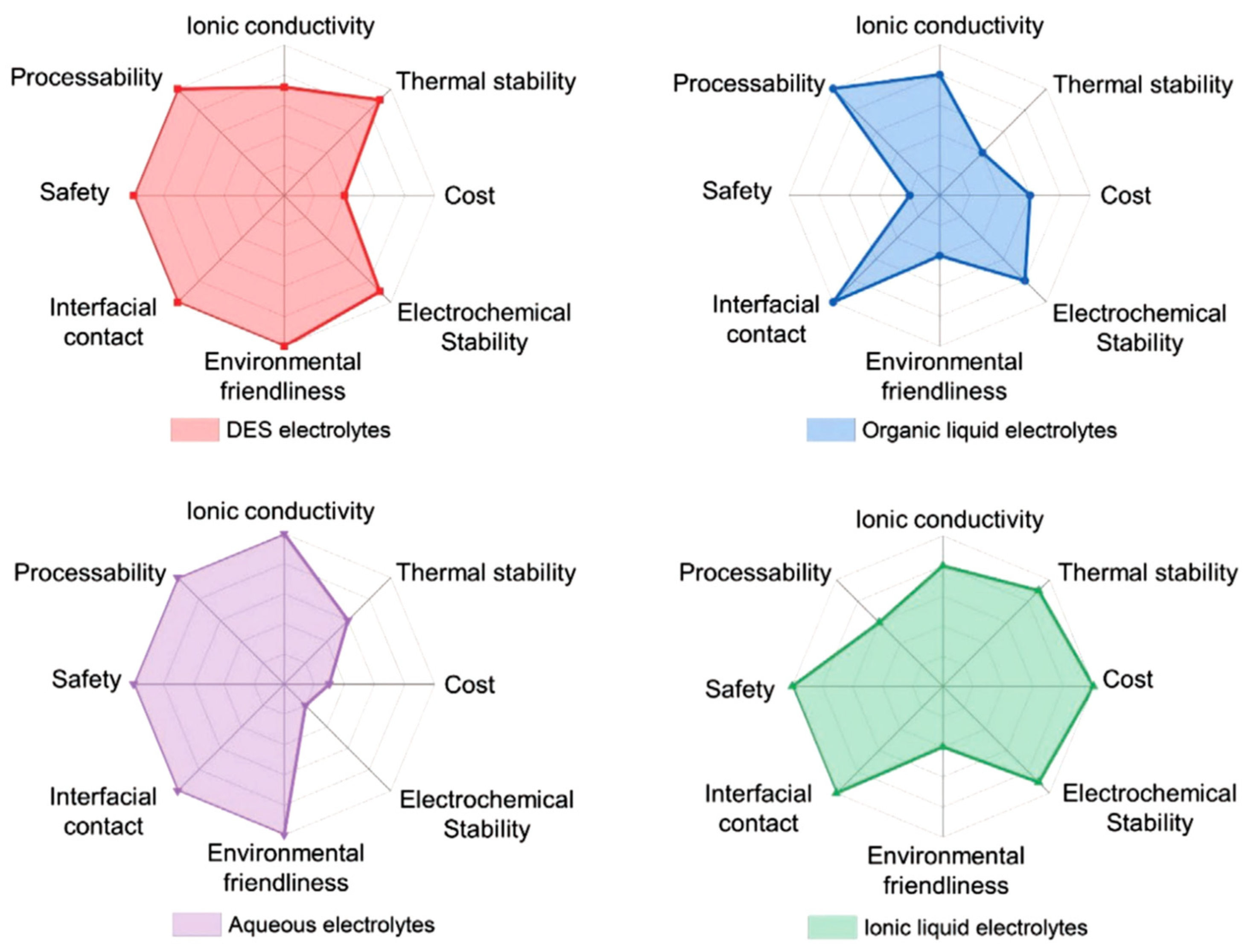

In addition to the WiS electrolyte, deep eutectic solvents (DESs) also attracted many researchers’ attention in the field of energy storage applications due to the merits of low cost, high safety, high ionic conductivity, electrochemical stability, thermal stability, renewability, biodegradable, and easy preparation [74,75,76]. The radar plots of the properties of DES electrolytes, aqueous electrolytes, and organic liquid electrolytes are demonstrated in Figure 5. Generally, DESs contain large, nonsymmetric ions that have low lattice energy and low melting points, and they are usually prepared by simply combining two or three kinds of inexpensive and safe chemicals [76,77].

These DES solutions are receiving more and more attention in ZIBs as electrolytes to improve the full battery performance, and DES electrolytes endow the ZIBs processes with excellent electrochemical performance even at extremely low temperatures. For example, Shi et al. prepared one kind of DES electrolyte by simply introducing and manipulating the molar ratio of water molecules into a ZnCl₂-acetamide electrolyte [78]. The solvation structure of Zn²⁺ in the electrolyte was changed, and the de-solvation energy barrier of Zn²⁺ was reduced, which can facilitate uniform zinc nucleation during the plating process. With an optimal ratio of ZnCl₂/acetamide/H₂O = 1:3:1, the zinc anode shows a highly improved electrochemical performance, with the CE reaching 98% even after 1000 cycles, and the full battery can achieve high-capacity retention of 85.7% even cycled for 10,000 cycles. They also developed one kind of DES electrolyte composed of 3.5 M Mg(ClO₄)₂ and 1 M Zn(ClO₄)_2, which can be used at ultra-low temperatures [79]. With the introduction of oxygen-containing ligand-coordinated Mg²⁺ ions and hydrogen ligand ${\mathrm{ClO}}_4^{-}$ ions, the hydrogen bonds between the number of water molecules that can drive the formation of ice crystals are significantly decreased and lower the solidifying point to −121 °C. The DES electrolyte shows high ionic conductivity, low viscosity, and activation even at −70 °C. The full battery, which was tested at −70 °C, can still exhibit a high discharge capacity of 101.5 mAh/g at 0.2 A/g and excellent rate performance of 71 mAh/g at 1.2 A/g. Yang et al. reported hydrated eutectic Zn electrolytes by coupling succinonitrile and Zn(ClO₄)₂·6H₂O with different molar ratios, which also display excellent performance when tested at low temperatures [80]. The participation of succinonitrile in the unique aqueous Zn²⁺ solvation shell enables stabilization of the Zn plating/stripping process, and the coulombic efficiency of Zn/Zn²⁺ reversibility can achieve 98.4%. Moreover, all of the water molecules participated in the formation of a eutectic, which delayed the oxidation process and suppressed solvation. When this DES electrolyte was used in the Zn-organic battery, the battery showed an unprecedented cycle ability with a low capacity decay rate (0.004% per cycle over 3500 cycles) and superior low-temperature performance. Since the studies on DESs for ZIBs are still in the very beginning stage, rapid development can be expected because of the merits of DESs [81,82,83].

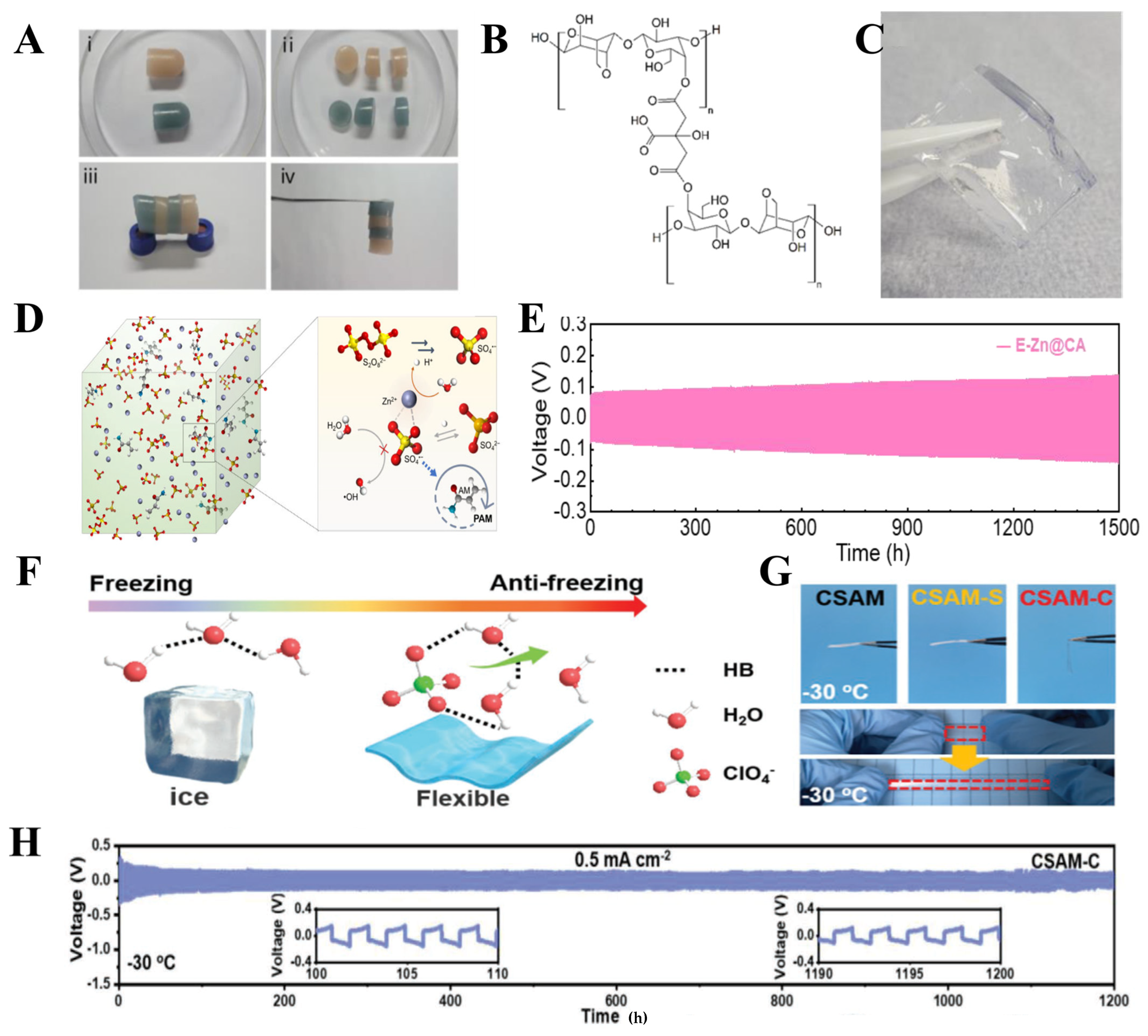

3.2.2. Hydrogel Electrolytes

Hydrogel electrolytes, which can serve both as electrolytes and separators, have attracted significant attention because of their numerous functional groups, good mechanical properties, and notably constrained active water content in comparison to WiS or DES electrolytes (Figure 6). For this type of electrolyte, zinc salt-containing electrolytes are embedded in the network of polymer chains. The possibility of electrolyte leakage, which always happens in liquid electrolytes, can be highly reduced. These features promote the hydrogel electrolyte to be the most promising candidate for flexible energy storage devices. Gel electrolytes based on polyvinyl alcohol (PVA) [84], xanthan gum [85], and carboxymethyl cellulose (CMC) [86] have been investigated a lot, and all of them have shown an inhibition of dendrite formation and improvement in long-term cycling stability. But, the drawback of zinc salt selectivity and poor mechanical properties restrained their further application. However, the hydrogel electrolytes with cross-linking can effectively solve these problems. Gelatin-based hydrogel electrolyte exhibits much stronger mechanical properties compared with the abovementioned gel electrolytes with the help of hydrogen bonds between -OH, -CO, and -NH₂ functional groups [87]. But, the thermodynamic stability of these gel electrolytes is unsatisfactory. The gel electrolytes with chemical cross-linking possess a more stable network structure, such as polyacrylamide (PAM) [88] and polyacrylic acid (PAA) based gel electrolytes. PAM-based gel electrolytes with 2 M ZnSO₄ and 0.1 M MnSO₄ can display a tensile strength of up to 273 kPa and stretch strain higher than 3000% [89].

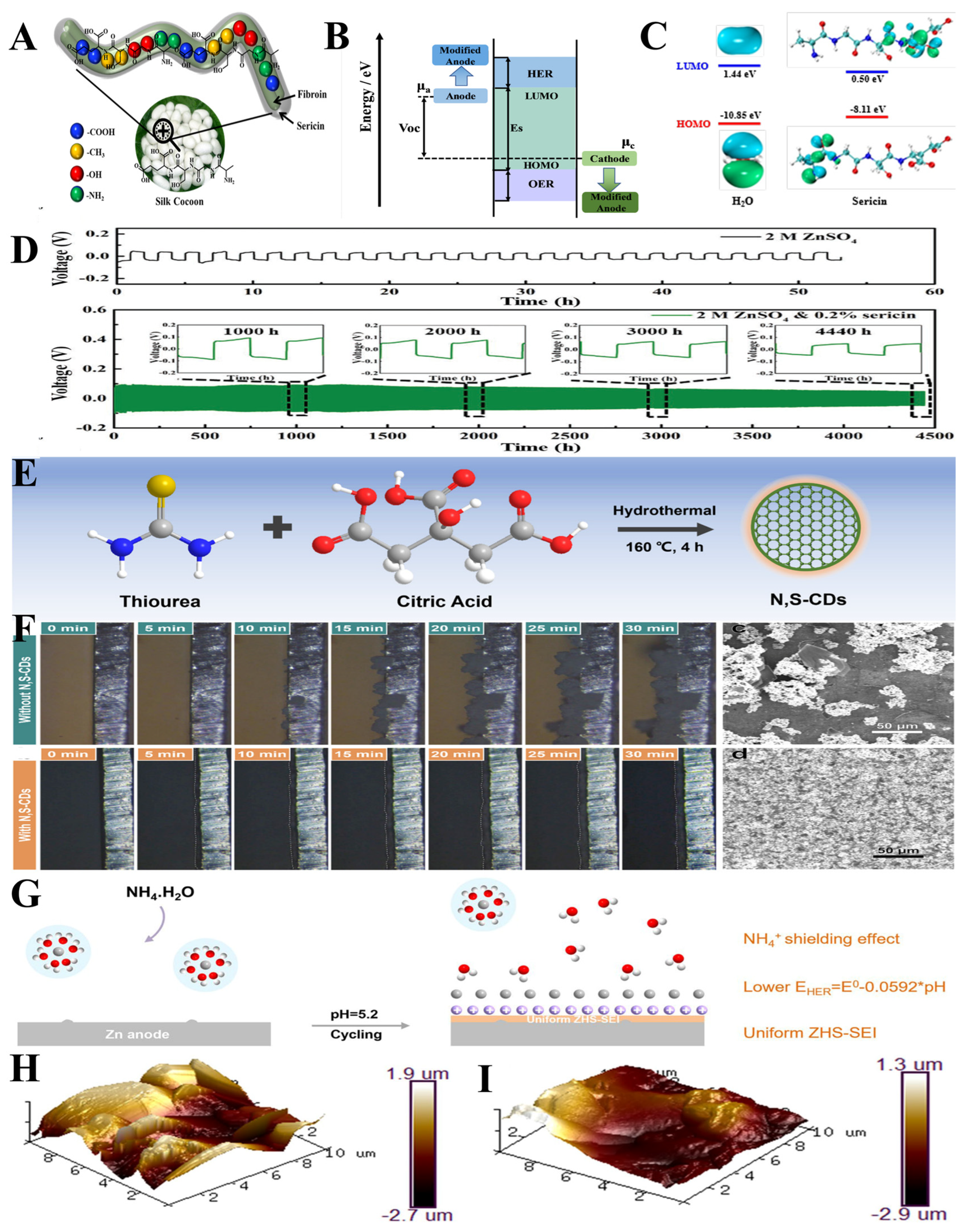

3.2.3. Functional Additives

The introduction of functional additives was recognized to be an economical and effective method to improve the Zn reversibility in ZIBs, and it has been proven that even a very small amount of additives can significantly change the morphology of deposited Zn [90]. The additives can confine the 2D zinc-ion diffusion, regulate the local current distribution, and lower the electrolyte freezing point. According to recent reports, both inorganic ions and organic molecules introduced into electrolytes have shown high efficiency in inhibiting dendrite growth and alleviating the side reaction during the charge/discharge process. The inorganic additives, such as InSO₄, [91] Boric acid, [91] SnO₂, [91] SnCl₂, [92] Na₂SO₄, [15,93], and LiCl [94] were used to tune the Zn²⁺ deposition process during the plating/stripping cycles (Figure 7). Specifically, the inorganic additives improve the Zn reversibility in the following ways: (1) Manipulating the crystallographic orientation. As discussed in Section 3.1, the (002) plane has lower thermodynamic free energy and moderate angle alignment to the substrate compared with other planes. During the plating/stripping process, the Zn ions can be deposited uniformly, and the battery will show high electrochemical performance. (2) Electrostatic shielding. Due to the low reduction potential of Li⁺ and Na⁺, they were adsorbed or accumulated much easier than Zn²⁺ ions in the local region with high current density. The first adsorbed metal ions will form an electrostatic shielding layer, and this layer will inhibit the tip effect that prevents the Zn²⁺ ions from aggregating at these nuclei. Asf organic additives and many chemicals such as tetrabutylammonium sulfate (TBA₂SO₄) [95], polyethylene oxide (PEO) [96], polyacrylamide (PAM) [97], and dimethyl sulfoxide (DMSO) [98] were used to prolong the lifetime of ZIBs. Some of these kinds of functional additives can be adsorbed onto the tip of Zn protrusions at the very beginning of the plating process so that the tip effect can be highly suppressed, preventing subsequent deposition of Zn²⁺ onto the protrusion. As a result, a consistent and uniform zinc deposition can be facilitated. In addition, some organic additives can decrease the energy barrier of the Zn²⁺ de-solvation process, which can accelerate the plating/stripping process and enhance the Zn reversibility. Some of these organic additives possess functional groups that can form a strong bond with a water molecule, which can highly depress the deposition of H₂O and then suppress the HER and side reactions. In addition, some organic additives have special functional groups that can damage the hydrogen bonds when coordinated with a water molecule. With the help of these additives, the freezing point of the electrolyte can be lowered, which can broaden the way to fabricate the aqueous zinc battery at a low temperature.

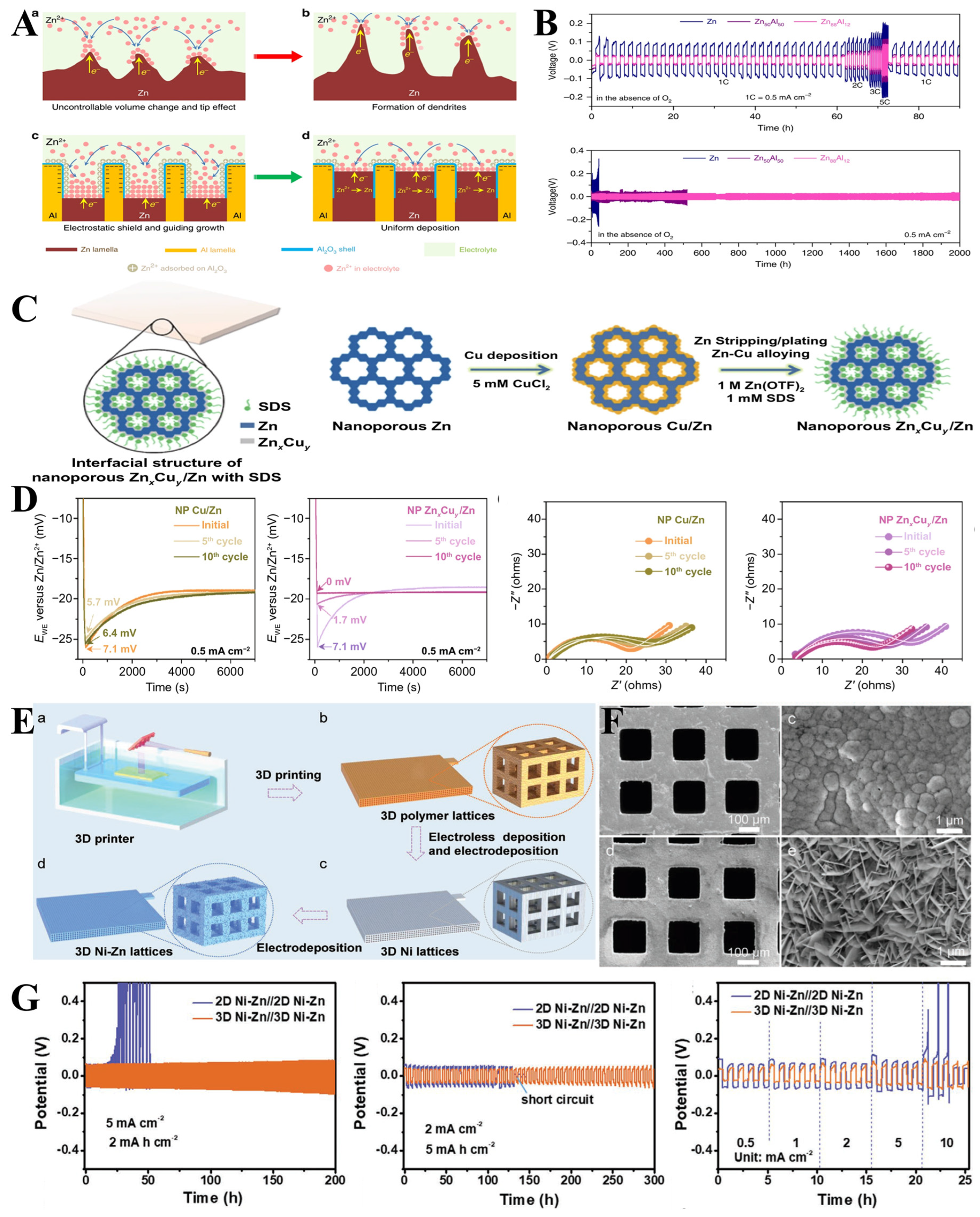

3.3. Three-Dimensional Structural Skeleton and Alloy Strategies

Building a 3D structural skeleton is another way to effectively restrict dendrite growth and increase the lifetime of the anode [101,102]. Since Zn dendrites are mostly derived from the uneven local current density distribution, the 3D electrode or current collector can provide much more electroactive nucleation sites and homogeneous electrical field distribution when compared with the 2D planar electrode (Figure 8). However, certain conditions need to be met for the design of a 3D electrode or current collector. First, the as-prepared 3D substrate should have the advantages of a highly open architecture, high electronic conductivity, high electrochemical stability, and high corrosion resistance. Then, the 3D structure should also possess high hydrogen evolution overpotential. Based on these rules, metal substrates such as Cu [97] and Ni [103] have been employed in this strategy because they have excellent electronic conductivity and high HER overpotentials. For example, Kang et al. prepared a 3D porous copper-supported Zn anode via a simple electrodeposition method [104]. The Zn was deposited on the pre-etched porous copper foil; the excellent electrical conductivity and open architecture of the pre-etched copper foil ensure the compact and uniform deposition of Zn during the charge/discharge process, further reducing the polarization and stabilizing the cycling performance. In consideration of the application of ZIBs in the field of portable and wearable devices, the substrates with lightweight, flexible, and elastic conductive carbon-based materials were attempted to be used as current collectors. Therefore, large amounts of carbon-based materials, such as carbon cloth (CC) [105,106], carbon felt (CF) [107], carbon nanotubes (CNTs) [108], and MXene paper [109], were tested as the current collector in recent reports. Most of the carbon-based substrates have hydrophilic groups, which afford the substrate an excellent electrolyte wettability. In addition, the 3D skeletons should have good structural stability to accommodate the zinc metal volume change during the plating/stripping process.

Alloying zinc with other metals, such as Ga/In [110], Sn [111], Cu [112], P [113], and Al [102], was proposed to be an effective method to improve the lifespan of Zn anode. The introduced foreign metal can work as the 3D current collector during the charge/discharge process; the high electronic conductivity, enlarged electroactive surface, and even electrical field distribution make the alloy anode remarkably effective in suppressing dendrite growth and alleviating the high hydrogen evolution. In addition, the eutectic alloy anodes also have high corrosion resistance, which can highly alleviate the side reaction and corrosion on the electrode. For example, a lamellar-structured Zn/Al eutectic alloy that is composed of alternative zinc and aluminum sheets was reported by Wang et al. [101]. During the plating/stripping process, the Al lamella worked as the 2D skeleton to host the deposited Zn, and the electrostatic shield effect can guide the Zn²⁺ to be deposited uniformly; in addition, the aluminum will be oxidized into Al₂O₃ that can protect the alloy from further dissolution in the electrolyte. Taking advantage of these merits, the eutectic alloy can extend the lifespan of the symmetric cell to 2000 h with a stable overpotential and high coulombic efficiency.

4. Outlook

In this work, the challenges facing zinc metal anodes in mild aqueous ZIBs are discussed, such as zinc dendrites and protrusions, the hydrogen evolution reaction, and the passivation layer existing on the zinc anode surface, and the formation mechanisms are discussed. The strategies to overcome or alleviate these challenges are also provided, for example, the ultra-thin and electrochemically stable protective coating, which should be well designed for high-performance ZIBs, electrolyte modification, and 3D structural skeleton and alloy strategies. Specifically, (1) for the surface engineering, a stable and ultrathin artificial protective layer and surface Zn crystallographic orientation should be well designed to prevent corrosion and the HER and also alleviate dendrite growth; (2) for the electrolyte modification, highly concentrated electrolyte, the hydrogel electrolyte, and functional additives are three promising approaches to enhance ZIBs’ electrochemical performance and suppress the undesired side reaction; (3) for the 3D structural skeleton and alloys, the new 3D configuration with more electroactive nucleation sites and homogeneous electrical field distribution should be further investigated. Hence, intensive research with systematic and in-depth comprehension still needs to be performed in this field to elucidate the mechanism of battery failure and to optimize strategies to overcome the drawbacks. We hope this mini-review will accelerate the development of ZIBs in the laboratory and industry, further investigate their potential commercialization value, and leverage already established manufacturing processes and know-how from the current rechargeable battery industry.
