An Economic Approach to Size of a Renewable Energy Mix in Small Islands

Department of Engineering, University of Palermo, 90128 Palermo, Italy
School of Engineering and Physics, University of South Pacific, Suva P.O. Box 1168, Fiji
Author to whom correspondence should be addressed.
Energies 2022, 15(6), 2005;
Submission received: 28 January 2022 / Revised: 5 March 2022 / Accepted: 7 March 2022 / Published: 9 March 2022
(This article belongs to the Collection Feature Papers on Wind, Wave and Tidal Energy)


The importance of renewable energy exploitation reduces the energy dependence on fossil fuels. Despite technological progress, in several remote areas and small islands the energy production is nowadays dominated by the utilization of fossil fuels. With new, increasingly stringent laws on polluting emissions and the need to lower production costs, it is necessary to exploit as many renewable sources as possible. In order to implement these considerations, it was decided to study renewable energy production. The study was carried out by estimating the energy production on a monthly and annual basis considering a mix of three plants, namely marine, solar, and wind. Simulations on wave production were carried out on a new device developed by the research team at the University of Palermo. In order to be able to perform these simulations, input climate data are required. These data are normally available in literature or obtainable by using specific GIS tools. As criterium, the Levelized Cost of Energy, normally applied to a single technology, is extended to the entire energy mix. Minimizing this parameter, the best solution is individuated, and capable of supplying 50% of the summer electrical load with renewable energy sources. The results carried out from a case study based in aeolian islands show that the solar production reaches 10.2%, the wind production reaches 45.47% and sea wave production reaches 3.04%. In this way, the diesel production decreases to 41.29%. This method can be easily applied for several small islands, estimating for several sites the ability to reduce the energy production from fossil fuels.

1. Introduction

After Kyoto Protocol, the European Union promoted the installation of plants supplied by Renewable Energy Sources (RES), introducing specific policies [1]. With the recent ratification of the “Paris agreement”, the signatory countries agreed on common goals to preserve the environment, limiting the CO2 emissions in order to contain the global warming below 1.5 °C [2].
Due to the diffusion of RES, the unitary cost for the installation of power plants has been progressively reduced, assuming nowadays the same range of fossil fuels plants [3]. From an environmental point of view, the adoption of RES reduces the emissions of pollutants and greenhouse gases, improves the air quality, and decreases the energy dependence on fossil fuels [4].
The main results are linked to the electrical sector, since most of the RES technologies are designed to produce energy (like photovoltaic panels, wind, and hydro turbines) [5]. Secondly, RES plants are also spreading in the indoor heating sector (for example, solar thermal panels or low temperature geotherm) and in the transport sector (essentially biofuel).
Analyzing the energy sector in one European Country, in 2019 the Italian Energy production was satisfied with the following mix: 46.32 TWh hydropower, 20.20 TWh wind power, 23.69 TWh solar, 176.17 TWh fossil fuels, 6.08 TWh geotherm, and 38.14 TWh imported from other countries, thus renewable energy sources covered 35.1% of the Italian energy demand [6].
Despite the progress for the exploitation of RES, reaching important results around the world, small islands and remote regions are affected by an energy production entrusted to old technologies, powered by fossil fuels [7,8]. In the world, a lot of small islands have proposed RES plants to supply the energy demand. In Canary Island a study has been carried out to produce 100% of energy from RES [9]. In Pico and Faial islands, Azores have been studied to perform a 100% power energy supply by RES. In this context, the mixed scenario is composed of wind, solar, hydro, and biomass generation [10]. The Faroe Islands are another example of fossil-dependent islands being transformed into full-powered RES islands, with an energy mix composed of wind, solar, and hydro power production [11]. This paper highlines a particular lack in some similar simulations. The software often used for this aim is “homer”. This tool does not allow the calculation of wave energy production. For this reason, the research team wanted to implement simulations that would allow this energy source to be taken into account. Jones Silva and Alexandre Beluco similarly performed possible simulations with homer and then integrated the studies by considering wave energy production separately [12].
Focusing on small islands, these places show several common peculiarities [7,13]:
  • High seasonal variation of inhabitants and therefore energy consumption.
  • Significant annual growth of the energy demand.
  • Lack of innovation and development of the local grid.
  • Low use of renewable energy sources.
  • High fuel cost due to the small size of the plants and importation from mainland.
  • Limited freshwater resources.
  • Tourist–environmental priorities.
Therefore, energy production on small islands can no longer be tied to fossil fuels alone. In this context, the adoption of RES represents a valid solution, making the most of small islands being energetically autonomous.
In this specific context, a few years ago (14 February 2017) the Italian Government, through the Economy Ministry, published a new law to support renewable energy sources in small islands. The central idea is the transformation of small Italian islands into open air laboratories where sustainable and innovative energy solutions can be tested [14].
The decree promotes the introduction of renewable energy sources in 20 small Italian islands, indicating the current energy demand, the targets of energy production from RES by 31 December 2020, and the financial incentives [15].
As an example, in the case of Lampedusa (a small island at south of Sicily), Annex I of the decree indicates a current energy demand of 37.66 GWh/y (based on diesel engines) and sets the installation of 2.14 MW of RES electrical power plant. For the thermal energy production, the decree prescribes the installation of 2370 m2 of solar thermal panels. In addition, Article 6 introduces the possibility to realize “Integrated innovative projects”, including in this group the offshore plants supplied by RES and in particular the exploitation of oceanic energies.
The decree has been in force for more than a year, but it was only at the beginning of 2018 that the Authority published guidelines regarding methods and timing. However, since the objectives are also retroactive (the already installed and functioning plants contribute to the target), it is interesting to monitor where each island is compared to the targets by 2020.

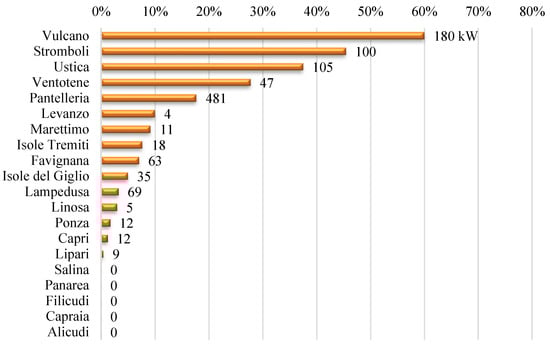

Table A1 in Appendix B and Figure 1 display data about electrical plants supplied by RES for each small island, considering the actual number and target set.
The island of Vulcano is the only one that reached half of the target for installation of RES (using photovoltaic panels), while all the others are well below 50%. For example, the islands of Salina, Panarea, Filicudi, and Alicudi do not have any RES plant.
Very recently, the European Union created the Clean Energy for EU Islands Secretariat in order to facilitate the energy transition from fossil fuels to RES. In this project, 26 European islands have been selected, three of which are Italian (Favignana, Salina, and Pantelleria) [16].
In conclusion, the aim of this work is the proposal of a renewable energy mix in order to satisfy the environmental target imposed by the decree 14 February 2017 in Aeolian Islands. With this purpose, a simplified approach is presented. This method can be easily replied in other small islands, thanks to the limited number of inputs. These data are normally available in literature or obtainable by using specific GIS tools. The results show that it is possible to exploit the solar source for a total of 10%, wind source 45.5%, and 3% tidal source, reducing fossil consumption by 41%. These results support the avoidance of fossil fuel production as emissions of pollutants are simultaneously reduced. Some similar studies have been carried out. In this way, Tran et al. stated that the LCOE study is influenced by life cycle carbon, the assessment of which is considered [17].
The paper is divided in the following parts: Section 2 presents the simplified approach adopted and developed by the authors, used to estimate the monthly and annual energy production. From an economic point of view, the best energy mix is determined, introducing the Levelized Cost of Energy as an indicator. Section 3 presents the technologies selected for the exploitation of renewable energy sources. Section 4 analyses the As-Is scenario of the case study. Finally, Section 5 reports the proposal of the renewable energy mix for Aeolian archipelago, analyzing the economic and environmental benefits.

2. Methods

With the goal being to size a renewable energy mix, a simplified approach is required, evaluating the potential energy production from each source. In this section, the authors report the main equations used to estimate the monthly energy production from solar, wind, and sea wave sources using climatic data.
To individuate the optimal energy mix, a Levelized Cost of Energy (LCOE) is introduced. As is better defined in the following section, the authors express through this parameter the minimal selling price of energy able to cover the initial investments and the annual operative and maintenance costs for the renewable energy plants and the annual operative and maintenance costs of existing power plants, supplied by fossil fuels [3].

2.1. Solar Source

If all photovoltaic (PV) plants have the same specifics (installed power, orientation, etc.), the annual energy production solar radiation E P V is given by the product of the annual energy production of a single PV plant and the number of operating PV plants n P V :
E P V = n P V e P V = n P V i = 1 12 e P V , i = n P V i = 1 12 H ¯ T , i S P V η P V d i
The annual energy production of a PV plant can be expressed by the sum of the monthly energy production e P V , i . In more detail, the equation considers the perpendicular component of the monthly average daily solar radiation H ¯ T , i into the plane of photovoltaic panels, the surface of photovoltaic panels S P V , the average energy efficiency η P V of the system, and the number of days d i per month.
Climate data of solar radiation normally refers to the horizontal plane, considering the average conditions of cloudiness and atmospheric clarity. In the case of unshaded tilted surface, solar radiation can be evaluated by Equation (2), according to the model proposed by Liu Jordan [18]:
H ¯ T , i = H ¯ b R ¯ b + H ¯ d ( 1 + cos β 2 ) + H ¯ ρ ( 1 cos β 2 )
where R ¯ b represents the monthly average of the ratio between the direct solar radiation to the tilted surface and the solar radiation H ¯ b to the horizontal surface, H ¯ d is the diffused solar radiation to the horizontal surface, β is the tilt angle of surface, H ¯ ρ is the solar radiation diffusely reflected from the ground, given by Equation (3) [19].
H ¯ ρ = ρ g ( H ¯ b + H ¯ d )
where ρ g is the ground albedo. In the simplified case of surface sloped to equator and installed in the northern hemisphere, the term R ¯ b is given by [20]:
R ¯ b = cos ( ψ β ) cos δ + sin ( ψ β ) sin δ cos ψ cos δ cos ( w s ) + sin ψ sin δ
where ψ is the latitude of the place where the device is installed, δ is the solar declination, ω s is the sunset hour angle for the tilted surface, determined by the following condition:
ω s = min [ cos 1 ( tan ψ tan δ ) cos 1 ( tan ( ψ β ) tan δ ) ]

2.2. Wind Source

The availability of wind source is usually described through the Weibull distribution, reported in Equation (6) [21]:
f ( v ) = k λ ( v λ ) k 1 exp [ ( v λ ) k ]
where the term f ( v ) represents the probability that the wind speed v is measured. The Weibull distribution introduces two coefficients: k is the dimensionless shape parameter, λ is the scale parameter, having the same unit of a wind speed. These constants are deeply related to the morphology of the measuring site and the height above the ground. Typically, the term λ ranges between 1.2 and 2.75 in most conditions around the world [21,22].
In the case of preliminary energy assessment, several GIS (Geographic Information System) tools can be used, obtaining results from data collected over a long period in a few measuring stations.
Since the Weibull distribution is normally used to model the annual availability of wind source, in this case an alternative approach is preferred [23].
In detail, the availability of wind source can be reported by introducing a discretized number of wind speed classes and reporting each of them as the corresponding number of hours when that speed class was measured [24].
In this case, Equation (7) can be introduced to evaluate the annual electrical energy production E W from a wind farm:
E W = n W e W = n W i = 1 12 e W , i = n W i = 1 12 j = 1 n h j , i c p ( v j )
where e W is the annual energy production from a wind turbine, e W , i represents the energy production in i-th month from the same turbine, n W is the number of installed wind turbines, h j , i is the number of hours when the j-th wind class v j . is measured, and c p ( v ) represents the power output of a chosen wind turbine as function of wind speed.

2.3. Sea Wave Source

To describe sea wave energy exploitation, it is necessary to introduce the wave power flux φ m . that represents the average power produced by a length unit of wave front. Considering off-shore sea wave exploitation, the wave power flux can be calculated by Equation (8) [25]:
φ m = ρ g 2 64 π H s 2 T e
where H s represents the significant wave height (though to crest), T e is the energy period, and ρ is the seawater density. In detail, H s is the mean wave height of the highest third of the waves [26]. A more recent definition considers the significant wave as four times the standard deviation of the surface elevation or equivalently as four times the square root of the zeroth-order moment of the wave spectrum [27]. As regards the wave energy period, it is defined as the variance-weighted mean period of the one-dimensional period variance density spectrum [28]. Analytically,
T e = m 1 m 0 =   f 1 S ( f ) d f   S ( f ) d f
The energy period is usually evaluated from the peak period T p , multiplying for a coefficient α . This parameter is function of the wave spectrum shape. A common value is 0.86, obtained in the case of Pierson Moskowitz spectrum [29].
In conclusion, the production of energy generated by a set of devices installed at the same site ( E S W ) can be evaluated by using Equation (10):
E S W = n S W e S W = n S W i = 1 12 e S W , i = n S W i = 1 12 φ ¯ m , i D C η S W h m , i
The terms in this equation are the monthly average sea wave energy flux φ m , i , the equivalent hydraulic diameter D C of the wave energy converter, the average energy efficiency η S W of the device, the number of devices n S W   installed in the wave farm, and the number of hours in the i-th month h m , i . In the equation, the term e S W , i represents the monthly electrical production from a sea wave energy converter, while e S W represents the annual electrical production.

2.4. Levelized Cost of Energy

In the previous paragraphs, a simplified approach was reported in order to evaluate the potential energy production from different renewable energy sources. In this section, the authors introduce an economic approach usable to individuate the optimal energy mix.
In detail, a Levelized Cost of Energy (LCOE) for an energy mix is presented [30,31]. As introduced before, this parameter expresses the minimal selling price of electricity, covering the initial investments and the annual operative and maintenance costs for the new installed capacity supplied by renewable energy sources and the annual operative and maintenance costs of existing power plants supplied by fossil fuels [32,33].
Equation (11) suggests the general definition of LCOE, introducing the Total Life Cycle Cost (TLCC) that represents the sum of the initial investment and the annual operative and maintenance costs of the system [34]. The term E i represents the energy output in the i-th year due to the realization of power plant.
L C O E × i = 1 n E i = T L C C
This equation can be analyzed in any power generation system [3,31,32,35,36,37]. The authors extend this approach to an entire energy mix, composed by different technologies. Therefore, in this case the parameter LCOE can be obtained from the following economic balance, where the discounted cash flow is introduced. Equation (12) has been adapted to the specific case study, where three renewable energy sources are considered.
L C O E i = 1 n E d = E F c F i = 1 n ( 1 + ε 1 + τ ) i + I 0 + ( C m , R + C m , F ) i = 1 n 1 ( 1 + τ ) i where { E F = E d ( E S W + E W + E P V ) I 0 = I 0 , S W + I 0 , W + I 0 , P V C m , R = C m , S W + C m , W + C m , P V
Several parameters are introduced in Equation (12). In detail, is the annual energy demand, E F is the annual electricity production from existing power plant (fossil fuel) in the renewable energy mix scenario. This term represents the difference between the annual energy demand and the annual energy production from the renewable energy sources E S W , E w , E P V (sea wave, wind, and solar sources). The specific cost for the energy production from fossil fuel is expressed by the term c F .
The parameters ε and τ are the inflation rate for energy sector and the monetary interest rate, respectively. The initial investment I 0 is expressed as a sum of the initial investment for sea wave I 0 , W F , wind I 0 , W , and photovoltaic panels I 0 , P V . The same approach can be applied to the annual operative and maintenance costs for the renewable energy mix C m , R . Finally, the term C m , F represents the annual operative and maintenance cost for the existing diesel engines (do not considering the fuel expenditure). To simplify Equation (12), the authors introduced the following assumptions:
  • The initial investment is assumed to be directly proportional to the installed capacity, introducing a unitary cost for each technology ( c 0 , S W for sea wave converter, c 0 , W for wind turbine, and c 0 , P V for PV plant).
  • The annual operative and maintenance costs can be expressed as fraction of the initial investment, introducing the parameters μ S W , μ W , μ P V .
In these hypotheses, the Levelized Cost of Energy can be evaluated through Equation (13):
L C O E = E F c f i = 1 n ( 1 + ε 1 + τ ) i + I 0 + ( C m , R + C m , F ) i = 1 n 1 ( 1 + τ ) i n   E d where { E F = E d ( n S W e S W + n W e W + n P V e P V ) I 0 = n S W p S W c S W + n W p W c W + n P V p P V c P V C m , r e n = n S W p S W c S W μ S W + n W p W c W μ W + n P V p P V c P V μ P V
The equation introduces the rated power of the wave energy converter ( p S W ), the wind turbine ( p W ), and PV plant ( p P V ).
According to Equation (13), it is easy to observe that LCOE is linearly dependent on the numbers of wave converters, wind turbines, and PV plants. Indeed, the energy production of each technology depends only on climatic data and the rated power of the selected technologies.
Thus, the terms n S W , n W , and n P V can be variated in order to minimize the LCOE of the entire energy mix. However, some constrains are required:
  • Each source must annually produce almost 5% of the total renewable energy production.
  • n S W , n W , and n P V must be natural numbers and bounded above according to the size of the island.
In order to repay the maintenance of the existing power plant, the monthly electricity production from renewable sources must be limited to 90%. In this way, producing 10% of the demand will allow the necessary earnings for maintenance purposes. Therefore, in conclusion the proposed approach is a case of constrained multivariable single objective optimization problem [38].

3. Technologies for the Renewable Energy Mix

3.1. Wave Energy Converter

This article was developed with the intention of promoting the production of energy from renewable sources in small districts such as the Aeolian Islands. In particular, it demonstrates that producing energy from wave power is possible. For this reason, the engineering department of the University of Palermo decided to optimize a system called point absorber. This machine is called this because it consists of two buoys that run in relative motion independently of the direction of the wave. Since the device is essentially composed of buoys, the environmental impact is very limited [39,40]. Its geometric and technical structure means that most of the components are submerged and not visible. This aspect allows the device to be considered unobtrusive to the eye. In addition, it is possible to use the upper surfaced buoy as a normal signaling buoy, with the addition that it is capable of producing electricity.

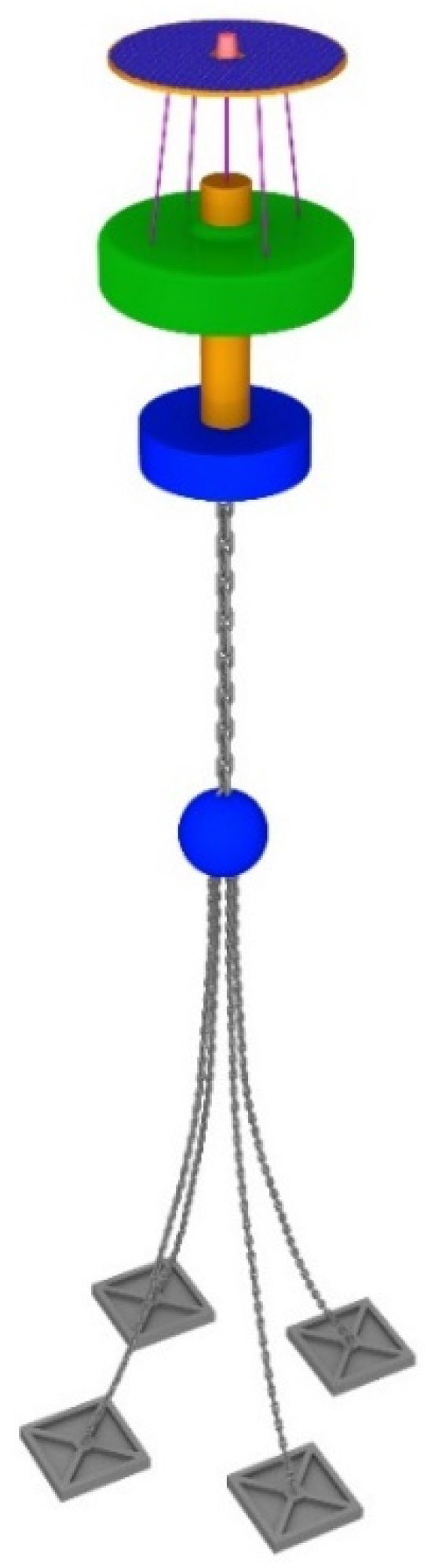

The external buoy (green in Figure 2) has the task of transferring the vertical motion caused by wave movement to the central buoy to which it is mechanically connected (yellow buoy in Figure 2). The central buoy is characterized by high inertia, due to a weight installed at the bottom of the machine. In addition, the entire device is anchored to the seabed, using a chain connected to another buoy, known as a jumper, and finally four moorings resting on the seabed to prevent the system from drifting.
The tests underlying the paper were carried out on a device consisting of the outer buoy with a diameter of ten meters and the inner buoy with a diameter of two meters. The conversion from mechanical to electrical energy is handled by linear generators located in the central buoy. The working stroke is equal to four meters. The maximal power output is equal to 80 kW. In order to comply with the rules at sea, a flashing signal light has been installed at the top of the point absorber to be recognizable by all vessels encountering it.

3.2. Wind and Solar

In the case of the devices required to harness wind and solar power, a decision was made to opt for commercially available solutions. The wind turbines chosen are of the three-axis horizontal type with a power of 30 kW, 60 kW, and 200 kW. The graphs of power output as wind speed function are reported in Figure A1 in Appendix A. Main data are reported in Table A1 and Table A2.
The technology using solar exploitation is provided by monocrystalline silicon panels whose technical data are shown in Table A3 [41].

4. The Case Study

In the Mediterranean Sea, most of the small Italian islands are equipped with standalone electrical grids, not linked to the mainland, as the local energy demand is limited. Despite the technological progress in the energy generation from renewable energy sources, small islands are supplied by diesel engines. Big fuel tanks are periodically refilled, using boats from the mainland. Prolonged bad weather conditions represent a significant risk for energy security.

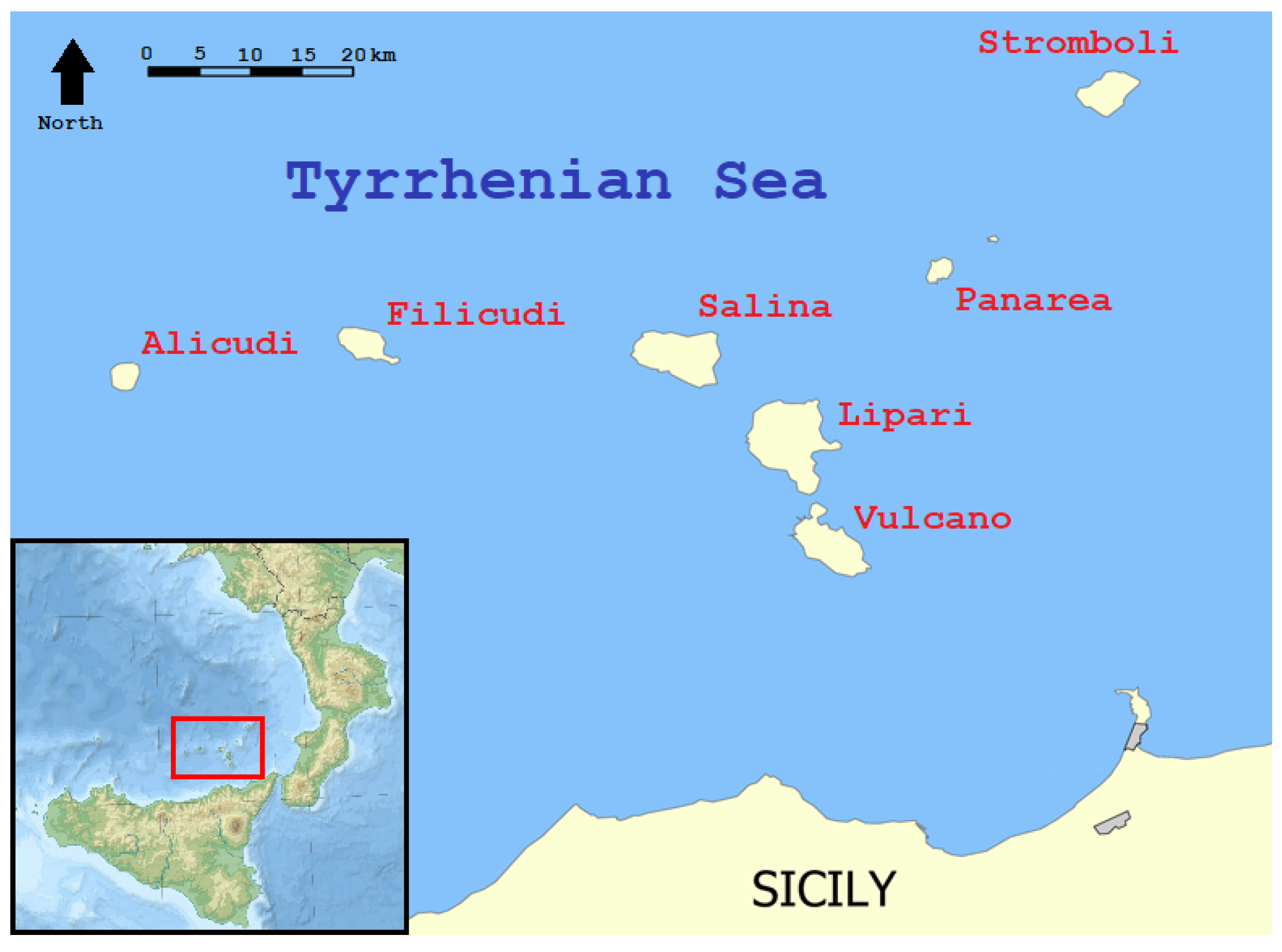

As example, the authors analyze the Aeolian Islands. It is an Italian archipelago, situated in the Tyrrhenian Sea (north of Sicily) and composed of different islands, of which the largest are Alicudi, Filicudi, Lipari, Panarea, Salina, Stromboli, and Vulcano (see Figure 3). The last two islands are famous active volcanos, characterized by sulfurous fumaroles, hot springs, and volcanic muds. Eruptions occasionally occur.
From an economic point of view, the Aeolian Islands live on tourism, especially in summer, attracting up to 200,000 visitors. A ferry service connects the Aeolian Islands to Sicily.
The archipelago presents a Mediterranean climate, characterized by a mild winter, dry summer, and temperate middle seasons.
As regards the administration, all islands are part of Lipari’s municipality, expect the island of Salina, which is divided in three municipalities (Leni, Malfa, and Santa Marina Salina).
Some statistics on Aeolian islands are reported in Table A4 [42]. As shown, Lipari is the most populated island. All islands are affected by water scarcity, and for this reason some of them are equipped with desalination plants. Fresh water is also transported by boat from Sicily.
As introduced before, the electrical energy production is realized through diesel engines. In Lipari, the power plant is owned by the private society “Società Elettrica Liparese S.r.l.”, producing about 34.8 GWh/y. In the other islands, the power stations are owned by the Italian company “Enel Produzione S.p.A.”, producing about 25.3 GWh/y in Aeolian Islands. Given the high costs for energy production, an incentive is paid to electrical energy producers in small islands by all Italian consumers through the item ARIM in energy bills. In detail, the energy producer in Lipari receives an incentive equal to 284.40 €/MWh for the electrical energy production [43]. In the case of “Enel Produzione” the incentive mechanism is more complex, as the incentive is contained in the general item “dispatching charge” (“Oneri di Dispacciamento” in Italian).
The utilization of renewable energy sources is very limited in the Aeolian Islands, and instead they have availability of solar and wind sources. To increase the energy sustainability of the archipelago, the Majors of the Aeolian Islands signed specific agreements, such as the SEAP (Sustainable Energy Action Plan), the Islands Plan (“Patto delle Isole” in Italian), and Mayors Plan (“Patto dei Sindaci” in Italian) [44]. These actions are encouraged by the European Union with the goal to increase the energy efficiency in small islands, reduce the energy dependence from fossil fuels, and consequently the emissions of CO2.
In this context, the paper proposes a renewable energy mix, tailored to the case of the Aeolian Islands, considering the local energy demand and three different energy sources: wind, solar, and sea wave. As introduced in the previous sections, the exploitation of wind and solar sources is entrusted to commercial technologies (wind turbines and photovoltaic panels), while for the utilization of sea wave source, an innovative device has been presented. As known from literature, sea wave shows several peculiarities, like [45,46]:
  • a more regular energy production in comparison with other aleatoric renewable energy sources.
  • limited visual impact, promoting the installation along the coastline (in Italy offshore wind turbines are absent, as the visual impact could discourage local tourism) [47].
  • high energy potential in comparison with the local demand, especially in small islands.
According to the national objectives for the promotion of energy production from renewable, Table A5 shows the targets imposed to the Aeolian Islands and the current installed plants.

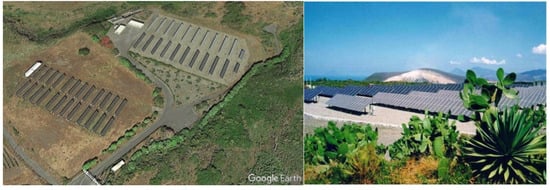

As the limited extension of the electrical grid, pilot plants have been tested in the Aeolian Islands. As shown in Figure 4, in 1984 a photovoltaic park (monocrystalline silicon) was installed in Vulcano, having a rated power of 180 kW and an energy efficiency of 9% [48].
On the other volcanic island (Stromboli), a hybrid power system (HPS) was installed in 2004 [48]. The system comprises a 100 kW PV plant and a diesel generator (160 kW), both connected to the local grid at Ginostra, suppling 140 homes. The energy overproduction during autumn is used by the local desalination plant.

5. Results

The above-mentioned mathematical model has been applied to the Aeolian islands, taking into account the electrical production from renewable energy sources like solar photovoltaic, wind, and sea wave [49]. The better solution is based on the evaluation of LCOE as a function of the number of the devices installed for the utilization of wind, solar, and sea wave energies. GIS software made it possible to retrieve climate data to study the energy production of islands [23].

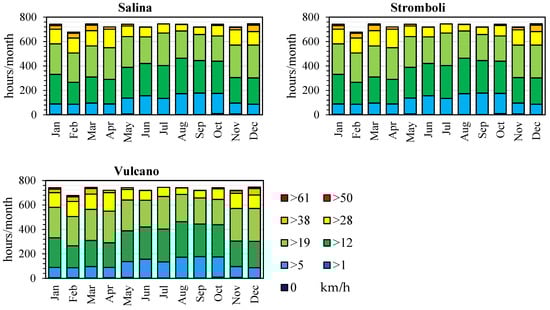

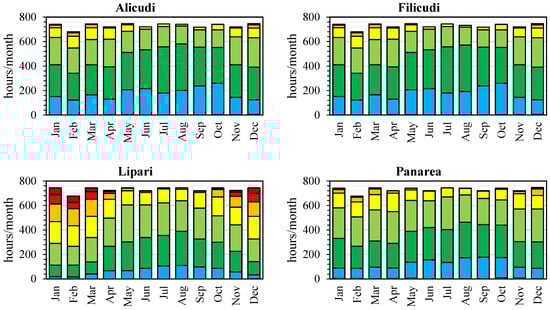

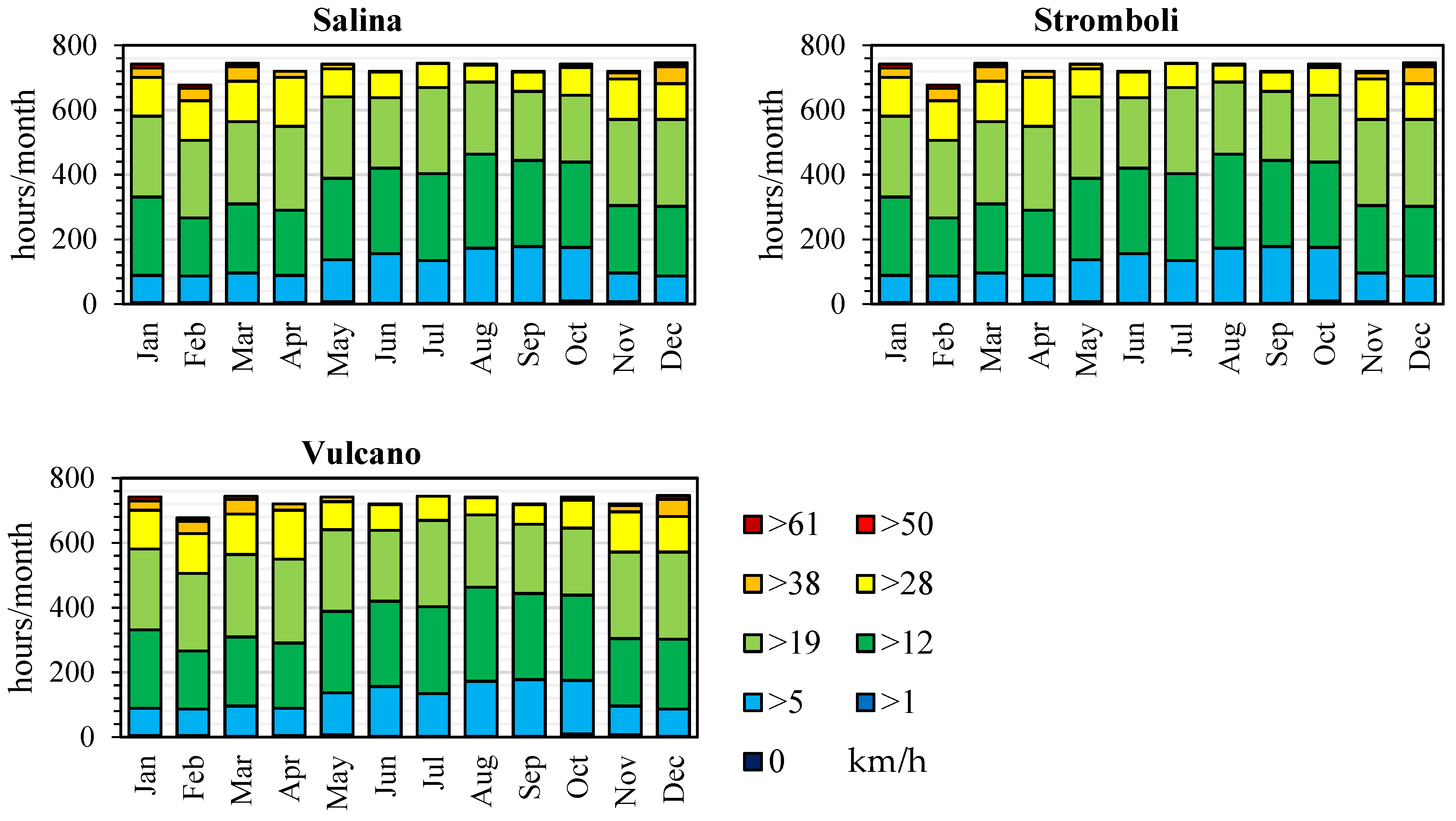

Figure A2 shows the annual availability of wind source for the main Aeolian Islands. According to the data reported above, wind speed assumes greater values during winter and summer.
Table A7 shows the monthly solar radiation data [50]. Finally, Table A8 reports the average values of wave energy flux and the location of the measuring point with respect the island [51].
The authors designed the renewable energy mix based on wind, solar, and sea wave, considering the availability of these sources (described in the Figure and Table above reported) and applying the mathematical model reported in the previous sections.

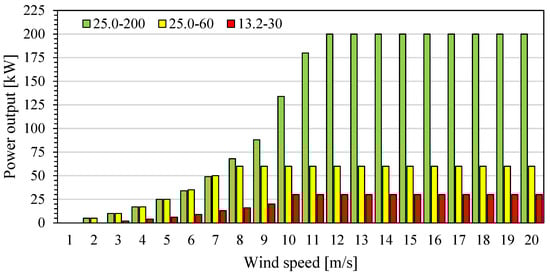

For solar photovoltaic and wind conversion [52], the authors considered commercial devices with power curve and efficiency noted, while wave energy potential is calculated using the prototypal devices (Point Absorber) realized by the University of Palermo [53,54].

The Evaluation of LCOE in the Case Study

The mathematical model reported above has been used to evaluate the Levelized Cost of Energy (LCOE) as a function of the numbers of installed sea wave converters n S W , wind turbines n W , and photovoltaic plants n P V . The best solution is obtained by the minimization of LCOE, considering all constrains introduced above.
The method can be implemented in an Excel sheet. The input data are represented by climatic data and parameters related to the chosen technologies, like rated power, extension, energy efficiency, etc. The optimization can be performed by a GRG nonlinear solver.
This method was applied to the Aeolian islands. Focusing the attention on Lipari island, it is possible to show, using data from the literature, that energy consumption is equal to 34.8 GWh [15]. With regard to the cost for energy production through diesel engines, it assumed equal to the sum of PUN (National Single Price, in Italian “Prezzo Unico Nazionale”) [55] and the incentive established by the Italian Authority for Energy [43].
As the mathematical model considers the cost for energy production and operative and maintenance cost, the first term is assumed equal to the 90% of the total annual expenditure. In conclusion, the energy cost by diesel engines is reduced by the same amount with respect to the sum of PUN and the incentive. The maintenance cost for diesel engines is assumed to be independent by the annual energy production from fossil fuel and equal to 10% of the current annual expenditure for the energy production by diesel engines. All economic parameters are reported in Table A8.
In detail, the unitary cost for the installation of photovoltaic panels and wind turbines and the related annual operative and maintenance cost are extrapolated by recent reports of IRENA [3]. The economic consideration related to sea wave exploitation has been focused on by authors in other papers [56].

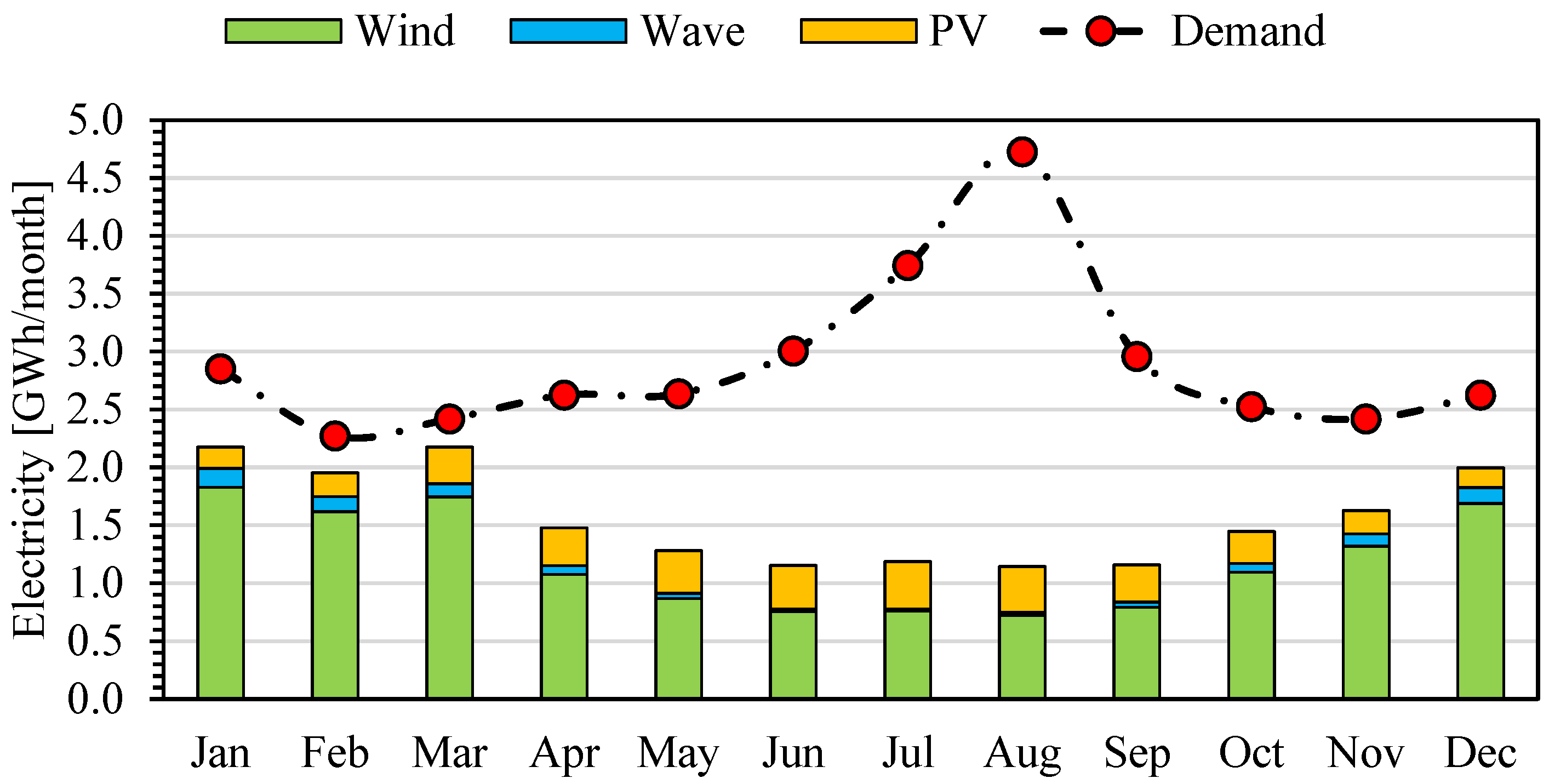

Figure 5 shows the potential energy production from the proposed energy mix in comparison with the energy demand, whose trend has been modelled in similitude using the annual trend of other Aeolian Islands [42].
The graph demonstrates that the meeting of energy demand and energy production from renewable energy sources is very complex. Not considering the installation of energy storage system, the renewable energy mix capacity is limited by the energy demand during winter, according to the conditions imposed above.
Given the significant increase of energy demand during summer, three solutions could be applied if the share of renewable energy production is further increased:
  • Increase the installed power and introduce of an energy storage, saving the energy surplus during winter and exploiting it during summer (for example, hydrogen storage).
  • Increase the installed power from RES, accepting to stop a part during winter.
  • Interconnect all small islands to Sicily. In this way, the energy produced and consumed is managed by a larger and more secure grid, reducing balancing problems.
The LCOE approach has been applied to the other Aeolian Islands. The results are reported in Table A9. The authors considered the realization of building integrated photovoltaic plants (each one with a rated power of 3.3 kWp), the utilization of 200 kW wind turbines in Lipari, 30 kW in Alicudi, and 60 kW in the other islands, and finally, the installation of several wave energy converters. As regards the economic parameters, the Aeolian Islands have used the same unitary costs as Lipari, as more accurate data are not available.
In the cases of Alicudi and Filicudi, sea wave energy source is not considered, as a single wave converter is too big in comparison with the desired share of energy production. The annual energy production from the proposed energy mix is reported in Figure 6, considering each island.

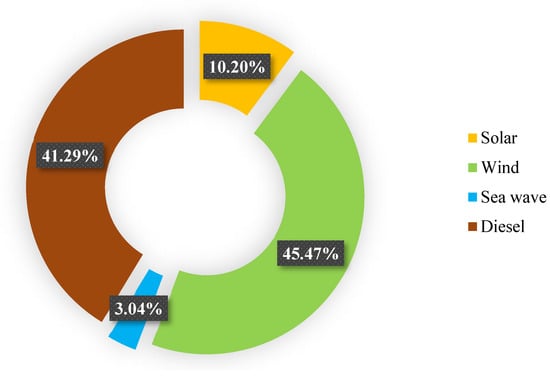

Figure 7 shows the annual average share of energy production in the Aeolian Islands for each energy source. The proposed mix is able to cover 58.7% of the energy demand by using RES.
The application of the renewable energy mix, above reported, can produce an annual economic saving equal to 6.5 million of euros in all Italian energy bills and avoid the emission of 25,593 tons of CO2 per year. Thus, the introduction of a RES mix in Aeolian Islands can generate economic and environmental benefits. It is important to evaluate that the LCOE approach is a study that underlines the feasibility of RES installation considering the only power generation depending on the cost of energy. The study presented, focusing on this aspect, carried out a renewable energy production using an energy mix. A lot of problems related to this kind of energy production, such as studying grid stability and energy storage systems, are not included in the LCOE study. Therefore, it must be emphasized that they are processed separately.

6. Conclusions

An algorithm has been presented in order to individuate the best renewable energy mix, considering economic aspects. This technique is able to estimate, in a simplified way, the monthly and annual electrical energy production from each renewable energy source.
The method has been applied to the Aeolian Islands, a small Italian archipelago in the Mediterranean Sea. The case study is an example of standalone electrical systems, entrusted to diesel engines. The authors proposed a renewable energy mix based on solar, wind, and sea wave in order to increase the environmental sustainability of the energy sector.
The renewable share has been chosen according to the current legislations, in particular the decree 14 February 2017 that obligated small Italian islands to produce a significant share of energy from RES.
The mathematical model identified the best choice from an economic point of view thanks to the minimization of the LCOE associated with the entire energy mix.
The authors estimated an annual avoided expenditure for the energy generation in Aeolian Islands equal to 6.5 million of euros if the proposed RES mix is realized. From an environmental point of view, 25,593 tons of CO2 per year can be avoided.
In conclusion, the model can be improved with other terms like the addition of other renewable energy sources or energy storage systems.
The case study shows an interesting problem for the sizing of renewable energy mix. As the energy demand is mainly concentrated during summer, the installed capacity should be oversized if a greater share of the energy demand must be covered by RES. Three scenarios can be identified:
  • Stop several plants supplied by RES during winter.
  • Add a seasonal energy storage in order to store the energy surplus produced during winter and consume it during summer (for example, using hydrogen as an energy carrier).
  • Interconnect the Aeolian Island to Sicily in order to simplify the balancing problem of local energy demand and production.
In future works, the authors desire to analyze these three scenarios in order to demonstrate the optimal solution. In any case, results reported in this paper can easily be applied to the other small islands in the Mediterranean Sea, as they have similar climatic and economic conditions. This approach will be implemented by modifying the boundary conditions of the islands considered. In this way, it is simply to estimate the power plant mix, which could be installed according to the needs of the site.

Author Contributions

Conceptualization, D.C. and V.F.; methodology, D.M. and M.C.; software, D.C. and A.M.; validation, V.F., D.C. and A.G.; writing—original draft preparation, D.C. and A.M.; writing—review and editing, A.G. and D.C.; project administration and funding acquisition V.F. All authors have read and agreed to the published version of the manuscript.


This research received FFR_D26_PREMIO_GRUPPO_RICERCA_2020_ DI_UNIPA_funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.


The work presented is carried out thanks the technical and operational support of Engosys Enterprise. The research on sea wave harvesting is promoted by the Italian project “Ondaflex” (PO FESR Sicilia 2014/2020), financed by Sicilian Region.

Conflicts of Interest

The authors declare no conflict of interest.


CapexCapital Expenditure
EUEuropean Union
FERFonti di Energia Rinnovabile, Italian acronym equivalent to RES
GISGeographic Information System
HPSHybrid Power System
IRENAInternational Renewable Energy Agency
LCOELevelized Cost OfEnergy
OpexOperating Expense
PUNPrezzo Unico Nazionale, Italian acronym of National Single Price
PVPhotovoltaic panel
RESRenewable Energy Sources
SEAPSustainable Energy Action Plan
SELSocietà Elettrica Liparese S.r.l.
TLCCTotal Life Cycle Cost
Latin SymbolsDescription
c F Electricity cost from diesel engines
c m , F Operative and maintenance cost diesel engines (except fuel expenditure)
c m , P V Operative and maintenance cost for photovoltaic plants
c m , R Total operative and maintenance cost for the renewable energy mix
c m , W Total operative and maintenance cost for wind farm
c m , S W Total operative and maintenance cost for wave energy farm
c p ( v ) Power output function of wind speed
c p , m a x Maximal power output from a wind turbine
c P V Unitary cost to install 1 kW of photovoltaic panels
c w Unitary cost to install 1 kW of wind turbines
c S W Unitary cost to install 1 kW of wave energy farm
D C Hydraulic equivalent diameter of the external buoy of DEIM point absorber
d i Number of days per month
E d Annual energy demand
E i Annual energy production in the i-th year
E F Annual energy production from diesel engines
E P V Annual electrical production from photovoltaic plants
e P V Annual electrical production from a photovoltaic plant
e P V , i Monthly electrical production from a photovoltaic plant
E w Annual electrical production from wind
e W Annual electrical production from a wind turbine
e W , i Monthly electrical production from a wind turbine
E S W Annual electrical production from a sea wave farm
e S W Annual electrical production from a sea wave energy converter
e S W , i Monthly electrical production from a sea wave energy converter
f Wave frequency
f ( v ) Probability density function of wind speed
g Standard acceleration due to gravity
H ¯ b Monthly average of direct daily solar radiation
H ¯ d Monthly average of diffused daily solar radiation
h m , i Number of hours in the i-th month
H ¯ ρ Monthly average of daily solar radiation diffusely reflected from the ground
H s Significant wave height
H ¯ T , i Monthly average of total daily solar radiation
h j , i Number of hour when the j-th wind class is measured
I 0 Total initial investment for the new energy mix
I 0 , P V Initial investment for photovoltaic plants
I 0 , W Initial investment for the wind farm
I 0 , S W Initial investment for the sea wave energy farm
k Dimensionless shape parameter of Weibull distribution
L C O E Levelized Cost of Energy
m 1 Spectral moment of order −1
m 0 Spectral moment of order 0
n S W Number of DEIM points absorbers
n P V Number of photovoltaic plants
n W Number of wind turbines
P P V Total installed power from photovoltaic panels
P W Total installed power from wind source
P S W Total installed power from sea wave source
p P V Rated power of a single photovoltaic plant
p W Rated power of a wind turbine
p S W Rated power of a sea wave energy converter
R ¯ b Monthly average of the ratio between the direct solar radiation to the tilted surface and the solar radiation
S ( f ) Variance of wave frequency, function of frequency
S P V Generic photovoltaic plant surface
t Observing period in wind measurement
T e Wave energy period
T L C C Total Life Cycle Cost
T p Wave peak period
v Wind speed
v j Wind speed class
Greek SymbolsDescription
α Conversion factor of peak period to energy period
β Tilt angle of photovoltaic panels
δ Solar declination
ε Inflation rate for energy
η P V Average electrical efficiency of photovoltaic plant
η S W Average energy efficiency of DEIM point absorber
λ Scale parameter of Weibull distribution
μ P V Ratio of annual O&M cost on initial investment for photovoltaic plants
μ W Ratio of annual O&M cost on initial investment for wind turbines
μ S W Ratio of annual O&M cost on initial investment for wave energy farm
π Pi constant
ρ Seawater density
ρ g Ground albedo
τ Monetary interest rate
φ m Sea wave power flux
φ ¯ m , i Monthly average of sea wave power flux
ψ Latitude of the considered place
ω s Sunset hour angle for the tilted surface

Appendix A

Figure A1. Power output of wind turbine as function of wind speed [57,58,59].
Figure A1. Power output of wind turbine as function of wind speed [57,58,59].
Energies 15 02005 g0a1
Figure A2. Availability of wind source for each island during the year.
Figure A2. Availability of wind source for each island during the year.
Energies 15 02005 g0a2aEnergies 15 02005 g0a2b

Appendix B

Table A1. Target for the electrical capacity in each Italian small island.
Table A1. Target for the electrical capacity in each Italian small island.
IslandsTarget Set (Electrical Capacity) Defined by MISEIslandsTarget Set (Electrical Capacity) Defined by MISE
Isole Tremiti240Filicudi80
Isole del Giglio700Alicudi20
Table A2. Main data of selected wind turbine [57,58,59].
Table A2. Main data of selected wind turbine [57,58,59].
H13.2–30 KW
H25.0–60 KW
H25.0–200 KW
Cut-in wind speed3.0 m/s2.5 m/s2.5 m/s
Rated wind speed10 m/s7.5 m/s11.5 m/s
Cut-off wind speed25 m/s20 m/s20 m/s
Survival wind speed50 m/s50 m/s50 m/s
Rated power30 kW60 kW200 kW
Rotor diameter13.2 m25 m25 m
Rotor area136.85 m2490.9 m2490.9 m2
Table A3. Photovoltaic panels datasheet [41].
Table A3. Photovoltaic panels datasheet [41].
Number of cells per panel120
Maximum power rating255 Wp
Open circuit voltage37.8 V
Short circuit current8.89 A
Module efficiency15.4%
Dimensions1625 × 1019 × 46 mm
Weight20 kg
Table A4. Main data of Aeolian Island.
Table A4. Main data of Aeolian Island.
IslandWater Supply/Wastewater TreatmentInhabitantsArea [km2]Electrical Consumption (MWh/y)Electrical Society
AlicudiBoat/No1055.1400Enel Produzione
FilicudiBoat/No2359.51400Enel Produzione
LipariDesalination/Yes11,38637.634,800SEL SNC Lipari
PanareaBoat/No2413.43140Enel Produzione
SalinaBoat/No230026.49160Enel Produzione
StromboliBoat/No40012.63870Enel Produzione
VulcanoDesalination/Yes733217280Enel Produzione
Table A5. Installed plants and targets for Aeolian Archipelago.
Table A5. Installed plants and targets for Aeolian Archipelago.
IslandPV Plants
Thermal Solar Plants
Target of Energy by RES
Target Thermal Solar Plants (m2)
Table A6. Monthly solar radiation data [kWh/m2] for each island [50].
Table A6. Monthly solar radiation data [kWh/m2] for each island [50].
Jan.Feb.Mar.Apr.May Jun.Jul.Aug.Sep.Oct.Nov.Dec.
Table A7. Wave energy flux [kW/m] [51].
Table A7. Wave energy flux [kW/m] [51].
Point: Lat./Long.Jan.–Mar.Apr.–Jun.Jul.–Sep.Oct.–Dec.
Alicudi38.56° N/14.32° E7.132.171.375.39
Filicudi38.57° N/14.51° E6.832.081.325.12
Lipari38.45° N/18.88° E4.421.420.793.33
Panarea38.66° N/15.07° E5.851.801.154.35
Salina38.60° N/14.78° E5.851.781.164.38
Stromboli38.83° N/15.17° E6.371.991.214.74
Vulcano38.36° N/14.87° E4.601.470.853.48
Table A8. Values of main parameters used in the evaluation on Lipari Island.
Table A8. Values of main parameters used in the evaluation on Lipari Island.
Annual energy demand E d 34.8 GWh/y
Electricity cost by diesel engines c F 0.311 €/kWh
Inflation rate for energy ε 5%
Monetary interest rate τ 1.75%
Unitary cost to install 1 kW of PV panels c P V 1231 €/kW
Unitary cost to install 1 kW of wind turbines c W 1310 €/kW
Unitary cost to install 1 kW of sea wave c S W 5000 €/kW
Ratio of annual O&M cost on investment for PV μ P V 0.013
Ratio of annual O&M cost on investment for wind μ W 0.034
Ratio of annual O&M cost on investment for wave μ S W 0.010
Annual O&M cost of diesel engines C m , F 1,824,912 €
Table A9. Proposal of energy mix for the Aeolian Islands.
Table A9. Proposal of energy mix for the Aeolian Islands.
n. PV plants(-)307452183956537
Total PV power(kW)992441719274314215122
PV production(MWh/y)198.6522.63552.8559.0614.0419.5257.3
n. wind turbines(-)1626518715
Total wind power(kW)3018052003001080420900
Wind production(MWh/y)62.4374.3 1401.75046.31962.44205.2
n. wave converters(-)00111313
Total wave power(kW)008808024080240
Total wave prod.(MWh/y)0.00.0961.8115.4346.8125.6273.9
Total RES prod.(MWh/y)261.0896.918,767.32076.26007.12507.64736.4
RES share(%)65.2564.0653.9366.1265.5864.8065.06


  1. Meleddu, M.; Pulina, M. Public spending on renewable energy in Italian regions. Renew. Energy 2018, 115, 1086–1098. [Google Scholar] [CrossRef]
  2. Liobikienė, G.; Butkus, M. The European Union possibilities to achieve targets of Europe 2020 and Paris agreement climate policy. Renew. Energy 2017, 106, 298–309. [Google Scholar] [CrossRef]
  3. IRENA. Renewable Power Generation Costs in 2017; International Renewable Energy Agency: Abu Dhabi, United Arab Emirates, 2018. [Google Scholar]
  4. Ritschel, A.; Esan, O. Renewable energy desalination for small islands. In Proceedings of the IRENA—MARTINIQUE Conference on Island Energy Transitions: Pathways for Accelerated Uptake of Renewables, Martinique, France, 22–24 June 2015; pp. 8–10. [Google Scholar]
  5. IEA. World Energy Outlook Special Report-Energy and Climate Change; IEA Publicantion: Paris, France, 2015. [Google Scholar]
  6. Terna Driving Energy. Publicazioni Statistiche. Available online: (accessed on 16 September 2021).
  7. Liu, J.; Mei, C.; Wang, H.; Shao, W.; Xiang, C. Powering an island system by renewable energy—A feasibility analysis in the Maldives. Appl. Energy 2018, 227, 18–27. [Google Scholar] [CrossRef]
  8. Cannistraro, G.; Cannistraro, M.; Trovato, G. Islands “Smart Energy” for eco-sustainable energy a case study “Favignana Island”. Int. J. Heat Technol. 2017, 35, S87–S95. [Google Scholar] [CrossRef]
  9. Gils, H.C.; Simon, S. Carbon neutral archipelago—100% renewable energy supply for the Canary Islands. Appl. Energy 2017, 188, 342–355. [Google Scholar] [CrossRef] [Green Version]
  10. Alves, M.; Segurado, R.; Costa, M. Increasing the penetration of renewable energy sources in isolated islands through the interconnection of their power systems. The case of Pico and Faial islands, Azores. Energy 2019, 182, 502–510. [Google Scholar] [CrossRef]
  11. Al Katsaprakakis, D.; Thomsen, B.; Dakanali, I.; Tzirakis, K. Faroe Islands: Towards 100% R.E.S. penetration. Renew. Energy 2019, 135, 473–484. [Google Scholar] [CrossRef]
  12. Silva, J.S.; Beluco, A.; de Almeida, L.E.B. Simulating an ocean wave power plant with Homer. Int. J. Energy Environ. 2014, 5, 619–630. [Google Scholar] [CrossRef]
  13. Beccali, M.; Bonomolo, M.; Di Pietra, B.; Ippolito, M.G.; La Cascia, D.; Leone, G.; Lo Brano, V.; Monteleone, F.; Zizzo, G. Characterization of a small Mediterranean island end-users’ electricity consumption: The case of Lampedusa. Sustain. Cities Soc. 2017, 35, 1–12. [Google Scholar] [CrossRef]
  14. Greenpeace Onlus. 100% Rinnovabili: Un Nuovo Futuro per le Piccole Isole; Exalto Energy & Innovation: Rome, Italy, 2015. [Google Scholar]
  15. dello Sviluppo Economico, M. Decreto 14 Febbraio 2017. Disposizioni per la Progressiva Copertura del Fabbisogno Delle Isole Minori Non Interconnesse Attraverso Energia da Fonti Rinnovabili; Ministero dello Sviluppo Economico: Rome, Italy, 2017. [Google Scholar]
  16. Clean Energy for EU Islands 26 Islands Launch Clean Energy Transition with EU Islands Secretariat Support. Available online: (accessed on 18 August 2020).
  17. Tran, T.T.D.; Smith, A.D. Incorporating performance-based global sensitivity and uncertainty analysis into LCOE calculations for emerging renewable energy technologies. Appl. Energy 2018, 216, 157–171. [Google Scholar] [CrossRef]
  18. Liu, B.Y.H.; Jordan, R.C. The Interrelationship and Characteristic Distribution of Direct, Diffuse and Total Solar Radiation. Sol. Energy 1960, 4, 1–19. [Google Scholar] [CrossRef]
  19. Yadav, A.K.; Chandel, S.S. Tilt angle optimization to maximize incident solar radiation: A review. Renew. Sustain. Energy Rev. 2013, 23, 503–513. [Google Scholar] [CrossRef]
  20. Shukla, K.N.; Rangnekar, S.; Sudhakar, K. Comparative study of isotropic and anisotropic sky models to estimate solar radiation incident on tilted surface: A case study for Bhopal, India. Energy Rep. 2015, 1, 96–103. [Google Scholar] [CrossRef] [Green Version]
  21. Dinler, A.; Akdag, S.A. A new method to estimate Weibull parameters for wind energy applications. Energy Convers. Manag. 2009, 50, 1761–1766. [Google Scholar] [CrossRef]
  22. Mostafaeipour, A.; Khayyami, M.; Sedaghat, A.; Mohammadi, K.; Shamshirband, S.; Sehati, M.A.; Gorakifard, E. Evaluating the wind energy potential for hydrogen production: A case study. Int. J. Hydrog. Energy 2016, 41, 6200–6210. [Google Scholar] [CrossRef]
  23. Meteoblue Clima Isole Eolie. Available online: (accessed on 8 September 2021).
  24. Curto, D.; Franzitta, V.; Viola, A.; Cirrincione, M.; Mohammadi, A.; Kumar, A. A renewable energy mix to supply small islands. A comparative study applied to Balearic Islands and Fiji. J. Clean. Prod. 2019, 241, 118356. [Google Scholar] [CrossRef]
  25. Emmanouil, G.; Galanis, G.; Kalogeri, C.; Zodiatis, G.; Kallos, G. 10-year high resolution study of wind, sea waves and wave energy assessment in the Greek offshore areas. Renew. Energy 2016, 90, 399–419. [Google Scholar] [CrossRef]
  26. Holthuijsen, L.H. Waves in Oceanic and Coastal Waters; Cambridge University Press: New York, NY, USA, 2007; ISBN 978-0-511-27021-5. [Google Scholar]
  27. Reguero, B.G.; Losada, I.J.; Méndez, F.J. A global wave power resource and its seasonal, interannual and long-term variability. Appl. Energy 2015, 148, 366–380. [Google Scholar] [CrossRef]
  28. Cornett, A.M. A global wave energy resource assessment. In Proceedings of the Eighteenth International Offshore and Polar Engineering Conference, Vancouver, BC, Canada, 6–11 July 2008; pp. 1–9. [Google Scholar]
  29. Sierra, J.P.; Martín, C.; Mösso, C.; Mestres, M.; Jebbad, R. Wave energy potential along the Atlantic coast of Morocco. Renew. Energy 2016, 96, 20–32. [Google Scholar] [CrossRef]
  30. González-Roubaud, E.; Pérez-Osorio, D.; Prieto, C. Review of commercial thermal energy storage in concentrated solar power plants: Steam vs. molten salts. Renew. Sustain. Energy Rev. 2017, 80, 133–148. [Google Scholar] [CrossRef]
  31. Branker, K.; Pathak, M.J.M.; Pearce, J.M. A review of solar photovoltaic levelized cost of electricity. Renew. Sustain. Energy Rev. 2011, 15, 4470–4482. [Google Scholar] [CrossRef] [Green Version]
  32. Ouyang, X.; Lin, B. Levelized cost of electricity (LCOE) of renewable energies and required subsidies in China. Energy Policy 2014, 70, 64–73. [Google Scholar] [CrossRef]
  33. Ueckerdt, F.; Hirth, L.; Luderer, G.; Edenhofer, O. System LCOE: What are the Costs of Variable Renewables? SSRN Electron. J. 2013, 63, 61–75. [Google Scholar] [CrossRef]
  34. Short, W.; Packey, D.J.; Holt, T. A Manual for the Economic Evaluation of Energy Efficiency and Renewable Energy Technologies; National Renewable Energy Laboratory: Golden, CO, USA, 1995. [Google Scholar]
  35. Parrado, C.; Girard, A.; Simon, F.; Fuentealba, E. 2050 LCOE (Levelized Cost of Energy) projection for a hybrid PV (photovoltaic)-CSP (concentrated solar power) plant in the Atacama Desert, Chile. Energy 2016, 94, 422–430. [Google Scholar] [CrossRef]
  36. Pawel, I. The cost of storage—How to calculate the levelized cost of stored energy (LCOE) and applications to renewable energy generation. Energy Procedia 2014, 46, 68–77. [Google Scholar] [CrossRef] [Green Version]
  37. Lai, C.S.; McCulloch, M.D. Levelized cost of electricity for solar photovoltaic and electrical energy storage. Appl. Energy 2017, 190, 191–203. [Google Scholar] [CrossRef]
  38. Abou-Jeyab, R.A.; Gupta, Y.P.; Gervais, J.R.; Branchi, P.A.; Woo, S.S. Constrained multivariable control of a distillation column using a simplified model predictive control algorithm. J. Process Control 2001, 11, 509–517. [Google Scholar] [CrossRef]
  39. Curto, D.; Neugebauer, S.; Viola, A.; Traverso, M.; Franzitta, V.; Trapanese, M. First Life Cycle Impact Considerations of Two Wave Energy Converters. In Proceedings of the 2018 OCEANS—MTS/IEEE Kobe Techno-Oceans (OTO), Kobe, Japan, 28–31 May 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 1–5. [Google Scholar]
  40. Viola, A.; Franzitta, V.; Curto, D.; Di Dio, V.; Milone, D.; Rodono, G. Environmental Impact Assessment (EIA) of Wave Energy Converter (WEC). In Proceedings of the OCEANS 2015—Genova, Genova, Italy, 18–21 May 2015; IEEE: Piscataway, NJ, USA, 2015; pp. 1–4. [Google Scholar]
  41. Mitsibishi Electric. Photovoltaic Modules. MLU Series. 255 Wp PV-MLU255HC; Mitsubishi Electric: Cypress, CA, USA, 2017. [Google Scholar]
  42. Andaloro, A.P.F.; Salomone, R.; Andaloro, L.; Briguglio, N.; Sparacia, S. Alternative energy scenarios for small islands: A case study from Salina Island (Aeolian Islands, Southern Italy). Renew. Energy 2012, 47, 135–146. [Google Scholar] [CrossRef]
  43. ARERA. Deliberation 15 June 2017 n. 428/2017/R/EEL (in Italian “Deliberazione 15 Giugno 2017 n. 428/2017/R/EEL”); ARERA: Milano, Italy, 2017; p. 2. [Google Scholar]
  44. Studio di Ingegneria Ing. Filippo Martines. In Piano di Azione per l’Energia Sostenibile. PAES; Comune di LENI: Isola di Salina, Italy, 2014. [Google Scholar]
  45. Iglesias, G.; Carballo, R. Wave energy and nearshore hot spots: The case of the SE Bay of Biscay. Renew. Energy 2010, 35, 2490–2500. [Google Scholar] [CrossRef]
  46. Monteforte, M.; Lo Re, C.; Ferreri, G.B.B. Wave energy assessment in Sicily (Italy). Renew. Energy 2015, 78, 276–287. [Google Scholar] [CrossRef]
  47. Riefolo, L.; Lanfredi, C.; Azzellino, A.; Tomasicchio, G.R.; D’Alessandro, F.; Penchev, V.; Vicinanza, D. Offshore Wind Turbines: An Overview of the Effects on the Marine Environment. In Proceedings of the Twenty-Sixth (2016) International Ocean and Polar Engineering Conference, Rhode, Greece, 26 June–1 July 2016; pp. 427–434. [Google Scholar]
  48. Ciriminna, R.; Pagliaro, M.; Meneguzzo, F.; Pecoraino, M. Solar energy for Sicily’s remote islands: On the route from fossil to renewable energy. Int. J. Sustain. Built Environ. 2016, 5, 132–140. [Google Scholar] [CrossRef] [Green Version]
  49. Vicinanza, D.; Cappietti, L.; Ferrante, V.; Contestabile, P. Estimation of the wave energy in the Italian offshore. J. Coast. Res. 2011, 64, 613–617. [Google Scholar]
  50. JRC European Commission Photovoltaic Geographical Information System—Interactive Maps. Available online: (accessed on 8 September 2021).
  51. ENEA Waves Energy WebGIS. Available online: (accessed on 18 September 2021).
  52. Sahin, A.D. Progress and recent trends in wind energy. Prog. Energy Combust. Sci. 2004, 30, 501–543. [Google Scholar] [CrossRef]
  53. Chai, H.; Guan, W.; Wan, X.; Li, X.; Zhao, Q.; Liu, S. A Wave Power Device with Pendulum Based on Ocean Monitoring Buoy. IOP Conf. Ser. Earth Environ. Sci. 2018, 108, 052013. [Google Scholar] [CrossRef]
  54. Guillou, N.; Chapalain, G. Numerical modelling of nearshore wave energy resource in the Sea of Iroise. Renew. Energy 2015, 83, 942–953. [Google Scholar] [CrossRef] [Green Version]
  55. GME. 2018 MGP Historical Data (in Italian “Dati Storici MGP. Anno 2018”). Available online: (accessed on 18 September 2021).
  56. Franzitta, V.; Curto, D.; Milone, D.; Viola, A. The desalination process driven by wave energy: A challenge for the future. Energies 2016, 9, 1032. [Google Scholar] [CrossRef] [Green Version]
  57. HUMMER. H25.0-200KW—Introduction for Hummer Pitch-Controlled System. Available online: (accessed on 18 September 2021).
  58. HUMMER. H25.0-60KW—Introduction for Hummer Pitch-Controlled System. Available online: (accessed on 18 September 2021).
  59. HUMMER. H13.2-30KW—Introduction for Hummer Pitch-Controlled System. Available online: (accessed on 18 September 2021).
Figure 1. Finalization of target MISE 2020.
Figure 1. Finalization of target MISE 2020.
Energies 15 02005 g001
Figure 2. Point absorber device.
Figure 2. Point absorber device.
Energies 15 02005 g002
Figure 3. Aeolian Islands in the Tyrrhenian Sea (Italy).
Figure 3. Aeolian Islands in the Tyrrhenian Sea (Italy).
Energies 15 02005 g003
Figure 4. PV plants in Vulcano [48].
Figure 4. PV plants in Vulcano [48].
Energies 15 02005 g004
Figure 5. Energy demand and potential renewable energy production in Lipari Island.
Figure 5. Energy demand and potential renewable energy production in Lipari Island.
Energies 15 02005 g005
Figure 6. Total electrical production from RES in the Aeolian Islands.
Figure 6. Total electrical production from RES in the Aeolian Islands.
Energies 15 02005 g006
Figure 7. Share of each source in Aeolian Islands Energy Scenario.
Figure 7. Share of each source in Aeolian Islands Energy Scenario.
Energies 15 02005 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Milone, D.; Curto, D.; Franzitta, V.; Guercio, A.; Cirrincione, M.; Mohammadi, A. An Economic Approach to Size of a Renewable Energy Mix in Small Islands. Energies 2022, 15, 2005.

AMA Style

Milone D, Curto D, Franzitta V, Guercio A, Cirrincione M, Mohammadi A. An Economic Approach to Size of a Renewable Energy Mix in Small Islands. Energies. 2022; 15(6):2005.

Chicago/Turabian Style

Milone, Daniele, Domenico Curto, Vincenzo Franzitta, Andrea Guercio, Maurizio Cirrincione, and Ali Mohammadi. 2022. "An Economic Approach to Size of a Renewable Energy Mix in Small Islands" Energies 15, no. 6: 2005.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
