# MGRIT-Based Multi-Level Parallel-in-Time Electromagnetic Transient Simulation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Parallel-in-Time (PinT) Approach

#### Multigrid Reduction in Time

Algorithm 1: 2-level MGRIT algorithm |

1: repeat |

2: Propagate approximate solution ${\mathit{x}}^{\left(l\right)}$, cf. Equation (3) |

3: Compute residual $\mathit{R}\left(l\right)$ on coarse grid, cf. Equation (6) |

4: Solve coarse grid correction problem, cf. Equation (7) |

5: Correct approximate solution $\mathit{X}(l+1)$ at C-points, cf. Equation (8) |

6: until norm of residual $\mathit{R}$ is sufficiently small. |

7: Update solution $\mathit{x}(l+1)$ at F-points, cf. Equation (3) |

## 3. Implementation

#### 3.1. Special Considerations for the Solver

#### 3.2. Modeling of Converters

## 4. Evaluation

#### 4.1. Pi-Model Line

#### 4.2. Converter

#### 4.3. Microgrid

#### 4.4. Multi-Level Scaling Advantage

#### 4.5. Scalability of the Test Case

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Lin, N.; Dinavahi, V. Dynamic Electro-Magnetic-Thermal Modeling of MMC-Based DC–DC Converter for Real-Time Simulation of MTDC Grid. IEEE Trans. Power Deliv.
**2018**, 33, 1337–1347. [Google Scholar] [CrossRef] - Xu, J.; Zhao, C.; Liu, W.; Guo, C. Accelerated Model of Modular Multilevel Converters in PSCAD/EMTDC. IEEE Trans. Power Deliv.
**2013**, 28, 129–136. [Google Scholar] [CrossRef] - Montano, F.; Ould-Bachir, T.; David, J.P. An Evaluation of a High-Level Synthesis Approach to the FPGA-Based Submicrosecond Real-Time Simulation of Power Converters. IEEE Trans. Ind. Electron.
**2018**, 65, 636–644. [Google Scholar] [CrossRef] - Marti, J.R.; Linares, L.R. Real-time EMTP-based transients simulation. IEEE Trans. Power Syst.
**1994**, 9, 1309–1317. [Google Scholar] [CrossRef] - Devaux, O.; Levacher, L.; Huet, O. An advanced and powerful real-time digital transient network analyser. IEEE Trans. Power Deliv.
**1998**, 13, 421–426. [Google Scholar] [CrossRef] - Hollman, J.A.; Marti, J.R. Real time network simulation with PC-cluster. IEEE Trans. Power Syst.
**2003**, 18, 563–569. [Google Scholar] [CrossRef] - Lok-Fu, P.; Faruque, M.O.; Xin, N.; Dinavahi, V. A versatile cluster-based real-time digital simulator for power engineering research. IEEE Trans. Power Syst.
**2006**, 21, 455–465. [Google Scholar] [CrossRef] - Zhou, Z.; Dinavahi, V. Parallel Massive-Thread Electromagnetic Transient Simulation on GPU. IEEE Trans. Power Deliv.
**2014**, 29, 1045–1053. [Google Scholar] [CrossRef] - Le-Huy, P.; Woodacre, M.; Guérette, S.; Lemieux, É. Massively Parallel Real-Time Simulation of Very-Large-Scale Power Systems. In Proceedings of the IPST Conference IPST2017, Seoul, Korea, 26–29 June 2017. [Google Scholar]
- Benigni, A.; Monti, A. A parallel approach to real-time simulation of power electronics systems. IEEE Trans. Power Electron.
**2014**, 30, 5192–5206. [Google Scholar] [CrossRef] - Razik, L. High-Performance Computing Methods in Large-Scale Power System Simulation. Ph.D. Thesis, RWTH Aachen University, Aachen, Germany, 2020. [Google Scholar]
- Ou, K.; Rao, H.; Cai, Z.; Guo, H.; Lin, X.; Guan, L.; Maguire, T.; Warkentin, B.; Chen, Y. MMC-HVDC Simulation and Testing Based on Real-Time Digital Simulator and Physical Control System. IEEE J. Emerg. Sel. Top. Power Electron.
**2014**, 2, 1109–1116. [Google Scholar] [CrossRef] - Leiserson, C.E.; Thompson, N.C.; Emer, J.S.; Kuszmaul, B.C.; Lampson, B.W.; Sanchez, D.; Schardl, T.B. There’s plenty of room at the Top: What will drive computer performance after Moore’s law? Science
**2020**, 368, eaam9744. [Google Scholar] [CrossRef] [PubMed] - Nievergelt, J. Parallel methods for integrating ordinary differential equations. Commun. ACM
**1964**, 7, 731–733. [Google Scholar] [CrossRef] - Gander, M.J. 50 Years of Time Parallel Time Integration. In Multiple Shooting and Time Domain Decomposition Methods; Carraro, T., Geiger, M., Körkel, S., Rannacher, R., Eds.; Springer International Publishing: Cham, Switzerland, 2015; pp. 69–113. [Google Scholar]
- Lions, J.L. Résolution d’EDP par un schéma en temps “pararéel” A “parareal” in time discretization of PDE’s. CRASM
**2001**, 332, 661–668. [Google Scholar] - Dutt, A.; Greengard, L.; Rokhlin, V. Spectral deferred correction methods for ordinary differential equations. BIT Numer. Math.
**2000**, 40, 241–266. [Google Scholar] [CrossRef] [Green Version] - Canuto, C.; Hussaini, M.Y.; Quarteroni, A.; Thomas, A., Jr. Spectral Methods in Fluid Dynamics; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012. [Google Scholar]
- Vlassenbroeck, J.; Van Dooren, R. A Chebyshev technique for solving nonlinear optimal control problems. IEEE Trans. Autom. Control
**1988**, 33, 333–340. [Google Scholar] [CrossRef] - Reddien, G. Collocation at Gauss points as a discretization in optimal control. SIAM J. Control Optim.
**1979**, 17, 298–306. [Google Scholar] [CrossRef] - Speck, R.; Ruprecht, D.; Emmett, M.; Minion, M.; Bolten, M.; Krause, R. A multi-level spectral deferred correction method. BIT Numer. Math.
**2015**, 55, 843–867. [Google Scholar] [CrossRef] [Green Version] - Minion, M.L.; Williams, S.A. Parareal and spectral deferred corrections. In AIP Conference Proceedings; American Institute of Physics: Melville, NY, USA, 2008; Volume 1048, pp. 388–391. [Google Scholar]
- Minion, M. A hybrid parareal spectral deferred corrections method. Commun. Appl. Math. Comput. Sci.
**2011**, 5, 265–301. [Google Scholar] [CrossRef] - Emmett, M.; Minion, M. Toward an efficient parallel in time method for partial differential equations. Commun. Appl. Math. Comput. Sci.
**2012**, 7, 105–132. [Google Scholar] [CrossRef] - Trottenberg, U.; Oosterlee, C.W.; Schuller, A. Multigrid; Elsevier: Amsterdam, The Netherlands, 2000. [Google Scholar]
- Hackbusch, W. Parabolic multigrid methods. In Computing Methods in Applied Sciences and Engineering; Glowinski, R., VI, Lions, J.-L., Eds.; North-Holland Publishing Co.: Amsterdam, The Netherlands, 1984. [Google Scholar]
- Gander, M.J.; Vandewalle, S. Analysis of the parareal time-parallel time-integration method. SIAM J. Sci. Comput.
**2007**, 29, 556–578. [Google Scholar] [CrossRef] [Green Version] - Bolten, M.; Moser, D.; Speck, R. A multigrid perspective on the parallel full approximation scheme in space and time. Numer. Linear Algebra Appl.
**2017**, 24, e2110. [Google Scholar] [CrossRef] - Falgout, R.D.; Friedhoff, S.; Kolev, T.V.; MacLachlan, S.P.; Schroder, J.B. Parallel time integration with multigrid. SIAM J. Sci. Comput.
**2014**, 36, C635–C661. [Google Scholar] [CrossRef] [Green Version] - Horton, G.; Vandewalle, S. A space-time multigrid method for parabolic partial differential equations. SIAM J. Sci. Comput.
**1995**, 16, 848–864. [Google Scholar] [CrossRef] - Gander, M.J.; Neumuller, M. Analysis of a new space-time parallel multigrid algorithm for parabolic problems. SIAM J. Sci. Comput.
**2016**, 38, A2173–A2208. [Google Scholar] [CrossRef] [Green Version] - Vandewalle, S.; Van de Velde, E. Space-time concurrent multigrid waveform relaxation. Ann. Numer. Math.
**1994**, 1, 335–346. [Google Scholar] - Lubich, C.; Ostermann, A. Multi-grid dynamic iteration for parabolic equations. BIT Numer. Math.
**1987**, 27, 216–234. [Google Scholar] [CrossRef] - Falgout, R.D.; Manteuffel, T.A.; O’Neill, B.; Schroder, J.B. Multigrid reduction in time for nonlinear parabolic problems: A case study. SIAM J. Sci. Comput.
**2017**, 39, S298–S322. [Google Scholar] [CrossRef] [Green Version] - Friedhoff, S.; Hahne, J.; Schöps, S. Multigrid-reduction-in-time for Eddy Current problems. PAMM
**2019**, 19, e201900262. [Google Scholar] [CrossRef] - Cheng, T.; Duan, T.; Dinavahi, V. Parallel-in-Time Object-Oriented Electromagnetic Transient Simulation of Power Systems. IEEE Open Access J. Power Energy
**2020**, 7, 296–306. [Google Scholar] [CrossRef] - Pels, A.; Kulchytska-Ruchka, I.; Schöps, S. Parallel-in-Time Simulation of Power Converters Using Multirate PDEs. In Scientific Computing in Electrical Engineering; van Beurden, M., Budko, N., Schilders, W., Eds.; Springer International Publishing: Cham, Switzerland, 2021; pp. 33–41. [Google Scholar]
- Cheng, T.; Lin, N.; Liang, T.; Dinavahi, V. Parallel-in-time-and-space electromagnetic transient simulation of multi-terminal DC grids with device-level switch modelling. IET Gener. Transm. Distrib.
**2022**, 16, 149–162. [Google Scholar] [CrossRef] - Cheng, T.; Lin, N.; Dinavahi, V. Hybrid Parallel-in-Time-and-Space Transient Stability Simulation of Large-Scale AC/DC Grids. In IEEE Transactions on Power Systems; IEEE: New York, NY, USA, 2022; p. 1. [Google Scholar] [CrossRef]
- Lyu, C.; Lin, N.; Dinavahi, V. Device-Level Parallel-in-Time Simulation of MMC-Based Energy System for Electric Vehicles. IEEE Trans. Veh. Technol.
**2021**, 70, 5669–5678. [Google Scholar] [CrossRef] - Park, B.; Sun, K.; Dimitrovski, A.; Liu, Y.; Simunovic, S. Examination of Semi-Analytical Solution Methods in the Coarse Operator of Parareal Algorithm for Power System Simulation. IEEE Trans. Power Syst.
**2021**, 36, 5068–5080. [Google Scholar] [CrossRef] - Cai, M.; Mahseredjian, J.; Kocar, I.; Fu, X.; Haddadi, A. A parallelization-in-time approach for accelerating EMT simulations. Electr. Power Syst. Res.
**2021**, 197, 107346. [Google Scholar] [CrossRef] - Schroder, J.B.; Falgout, R.D.; Woodward, C.S.; Top, P.; Lecouvez, M. Parallel-in-time solution of power systems with scheduled events. In Proceedings of the 2018 IEEE Power & Energy Society General Meeting (PESGM), Portland, OR, USA, 5–10 August 2018; pp. 1–5. [Google Scholar]
- Cheng, C.K.; Ho, C.T.; Jia, C.; Wang, X.; Zen, Z.; Zha, X. A Parallel-in-Time Circuit Simulator for Power Delivery Networks with Nonlinear Load Models. In Proceedings of the 2020 IEEE 29th Conference on Electrical Performance of Electronic Packaging and Systems (EPEPS), San Jose, CA, USA, 5–7 October 2020; pp. 1–3. [Google Scholar] [CrossRef]
- Friedhoff, S.; Falgout, R.D.; Kolev, T.V.; MacLachlan, S.P.; Schroder, J.B. A Multigrid-in-Time Algorithm for Solving Evolution Equations in Parallel. In Proceedings of the Sixteenth Copper Mountain Conference on Multigrid Methods, Copper Mountain, CO, USA, 17–22 March 2013. [Google Scholar]
- Dobrev, V.A.; Kolev, T.; Petersson, N.A.; Schroder, J.B. Two-Level Convergence Theory for Multigrid Reduction in Time (MGRIT). SIAM J. Sci. Comput.
**2017**, 39, S501–S527. [Google Scholar] [CrossRef] - Günther, S.; Gauger, N.R.; Schroder, J.B. A Non-Intrusive Parallel-in-Time Adjoint Solver with the XBraid Library. Comput. Vis. Sci.
**2018**, 19, 85–95. [Google Scholar] [CrossRef] [Green Version] - Hessenthaler, A.; Southworth, B.S.; Nordsletten, D.; Röhrle, O.; Falgout, R.D.; Schroder, J.B. Multilevel convergence analysis of multigrid-reduction-in-time. SIAM J. Sci. Comput.
**2020**, 42, A771–A796. [Google Scholar] [CrossRef] [Green Version] - Beilina, L.; Karchevskii, E.; Karchevskii, M. Numerical Linear Algebra: Theory and Applications; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar]
- Hackbusch, W. Multi-Grid Methods and Applications; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2013; Volume 4. [Google Scholar]
- Dommel, H.W. Digital computer solution of electromagnetic transients in single-and multiphase networks. In IEEE Transactions on Power Apparatus and Systems; IEEE: New York, NY, USA, 1969; pp. 388–399. [Google Scholar]
- XBraid: Parallel Multigrid in Time. Available online: https://github.com/XBraid/xbraid (accessed on 24 August 2022).
- Wu, B.; Dougal, R.; White, R.E. Resistive companion battery modeling for electric circuit simulations. J. Power Sources
**2001**, 93, 186–200. [Google Scholar] [CrossRef] - Guennebaud, G.; Steiner, B.; Larsen, R.M.; Sánchez, A.; Hertzberg, C.; Zhulenev, E.; Goli, M.; Tellenbach, D.; Jacob, B.; Margaritis, K.; et al. Eigen v3. 2010. Available online: http://eigen.tuxfamily.org (accessed on 25 January 2022).
- Friedhoff, S.; Southworth, B.S. On “Optimal” h-independent convergence of Parareal and multigrid-reduction-in-time using Runge-Kutta time integration. Numer. Linear Algebra Appl.
**2021**, 28, e2301. [Google Scholar] [CrossRef]

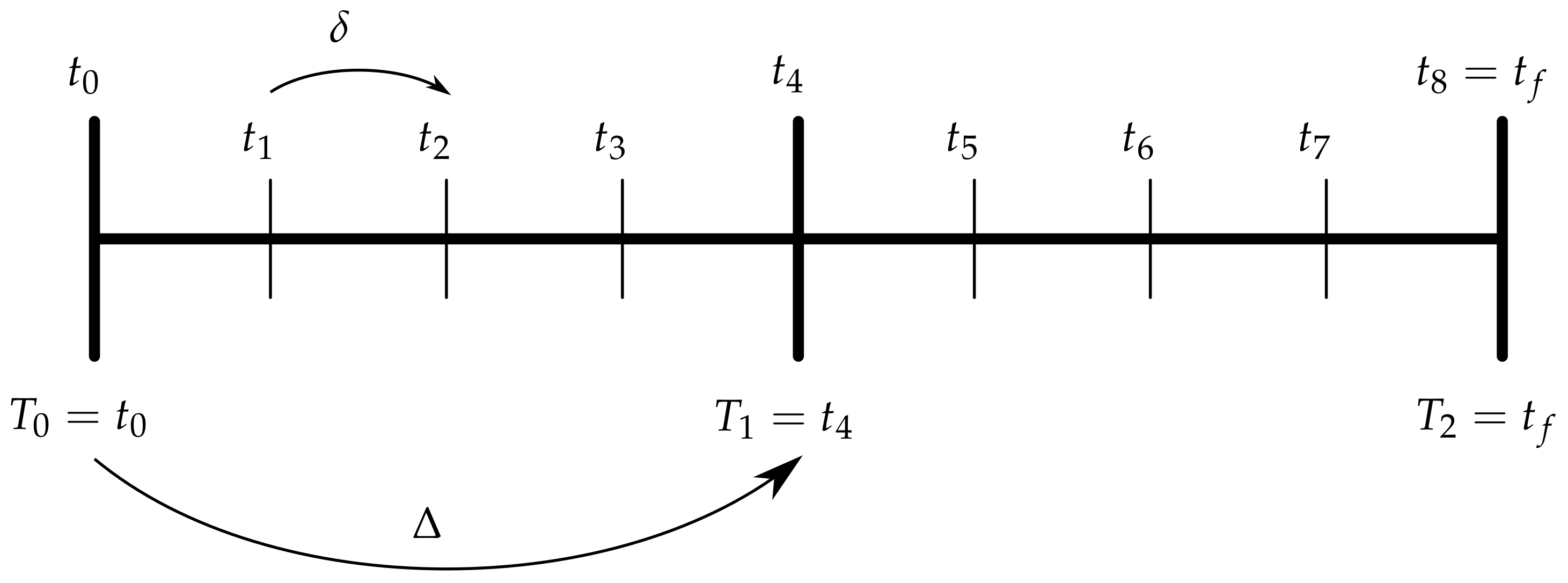

**Figure 1.**Visualization of the time interval $[{t}_{0},{t}_{f}]$ and notation for two different time grids. Step sizes are $\delta $ (fine grid) and $\mathrm{\Delta}$ (coarse grid), the coarsening factor is $\mathrm{cf}=4$. C-points (F-points) are drawn as long (short) vertical lines which define the time grids ${\mathrm{\Theta}}_{\mathrm{\Delta}}$ (${\mathrm{\Theta}}_{\delta}$).

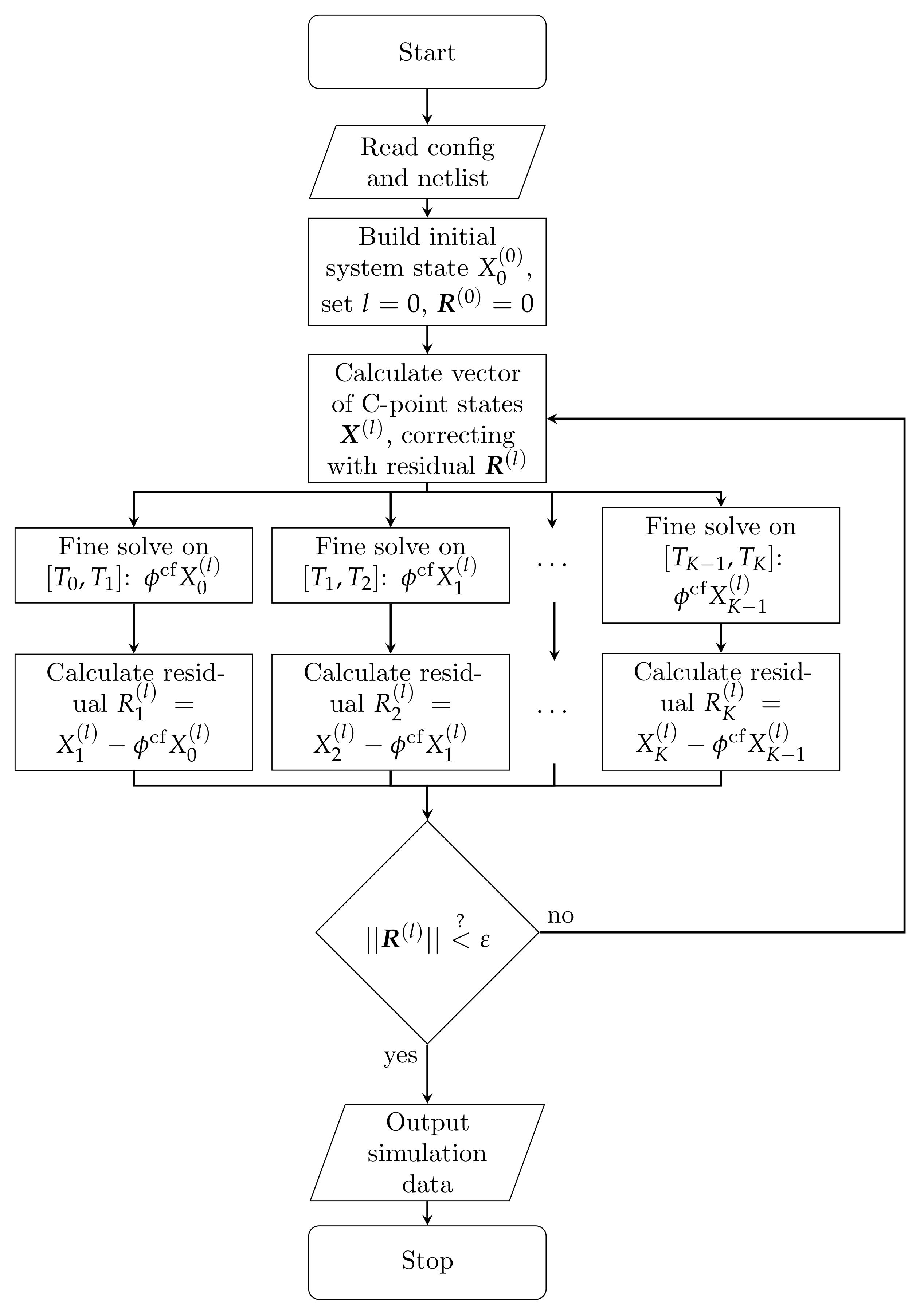

**Figure 2.**Execution flowchart of the implemented PinT version of the resistive-companion type solver in the two-level version.

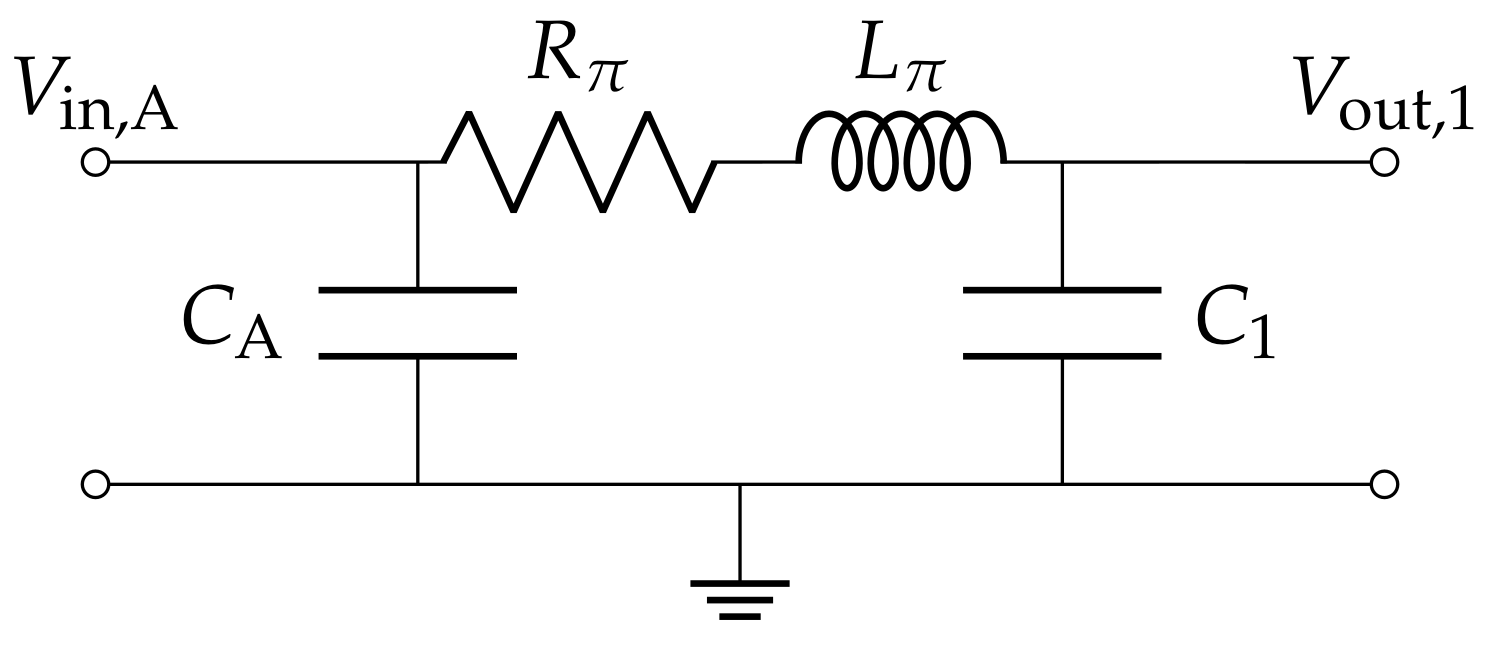

**Figure 3.**Schematic of the pi-line. For testing the components individually in a simple test case, voltage source and resistive load were added at the respective terminals.

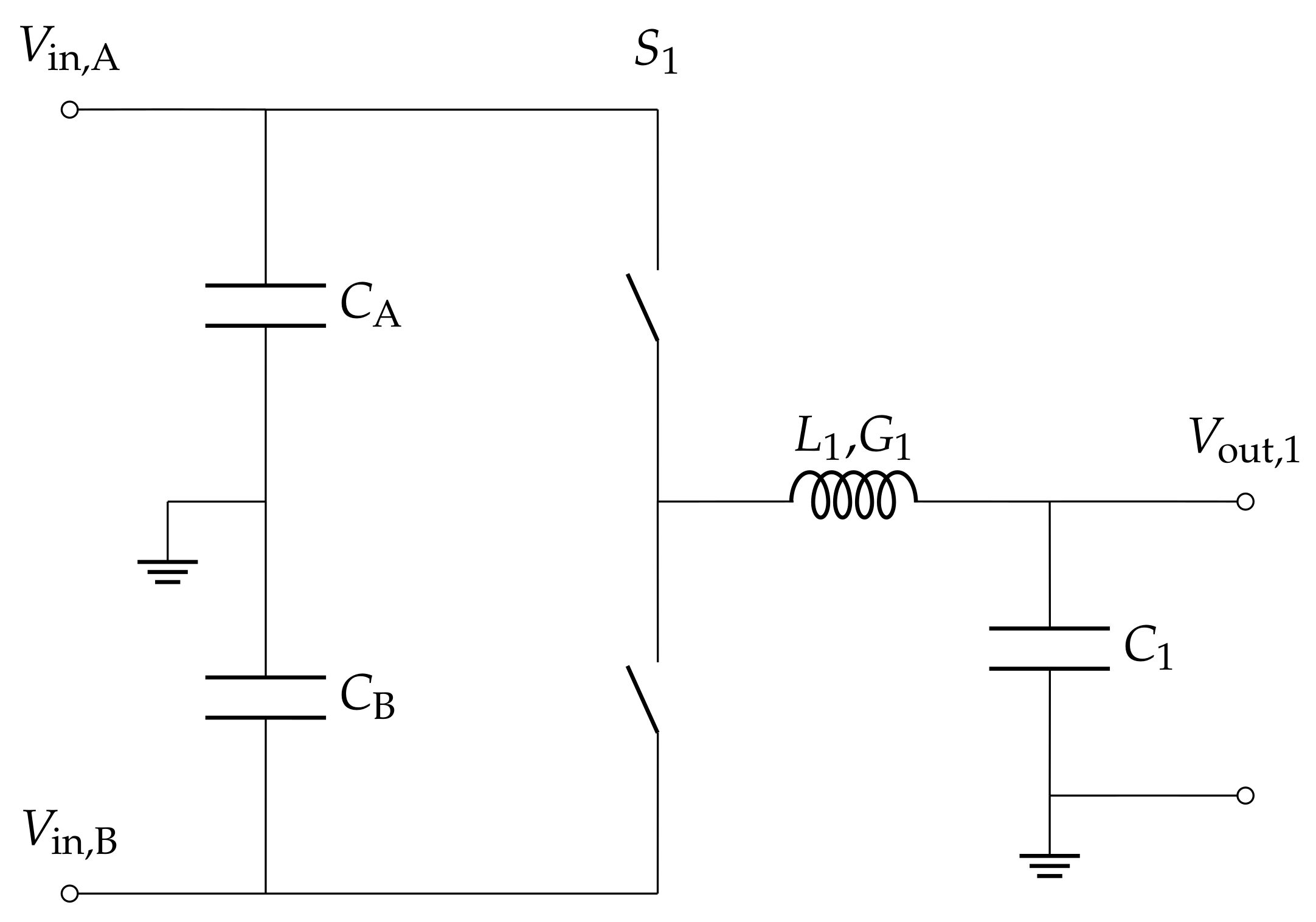

**Figure 4.**Schematic of the converter with output LC-filter. For testing the components individually in a simple test case, voltage source and resistive load were added at the respective terminals.

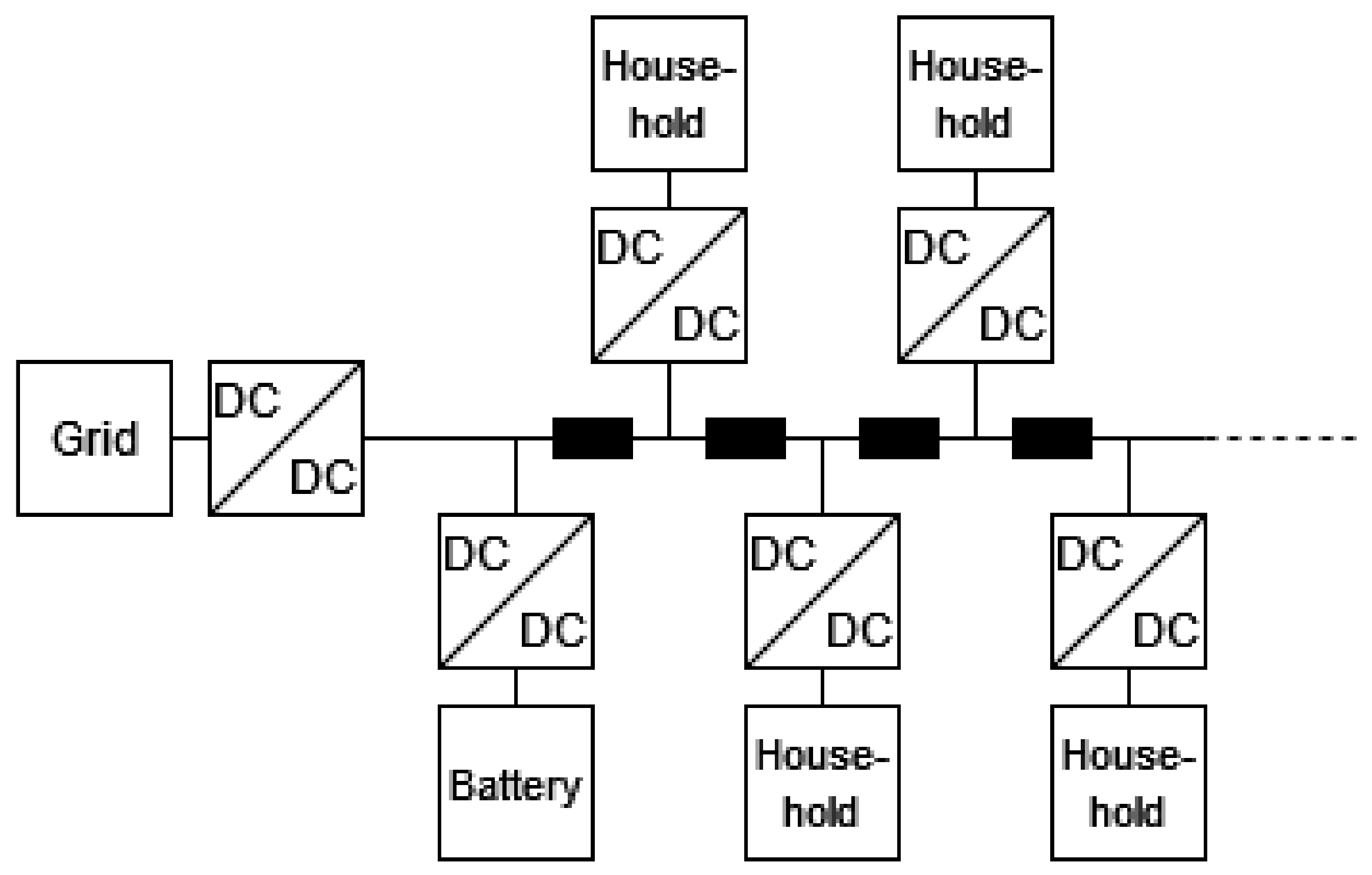

**Figure 5.**Schematic of the microgrid. Converters are marked by the label “DC/DC”, while the labels “Grid”, “Battery”, and “Household” represent simple models of the given elements. Black boxes represent a pi-model line, as described in Section 4.1.

**Figure 6.**Simulation results of a 16-household microgrid with ramps in each household for (

**a**) PinT and (

**b**) sequential execution. The simulation was performed with a cold-start (all voltages and currents equal to zero). The initial transient of the main bus voltage is shown in the lower left plots, respectively. The development of the current over the whole simulation interval is shown in the respective upper left plots (note the shift of the abscissa by the target voltage, $1000\mathrm{V}$). The main bus voltage stays well within an error interval of $(1000\pm 0.1)\mathrm{V}$. The currents in the households are summarized in the right-hand side plots. Each household ramps up its power consumption from zero to $8.450\mathrm{kW}$ over one second, with randomly chosen switch-on times. (

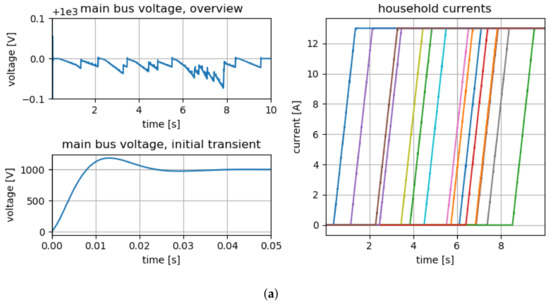

**a**) Results of PinT simulation. Some minor artifacts resulting from iterating only until the chosen error tolerance was reached are visible. (

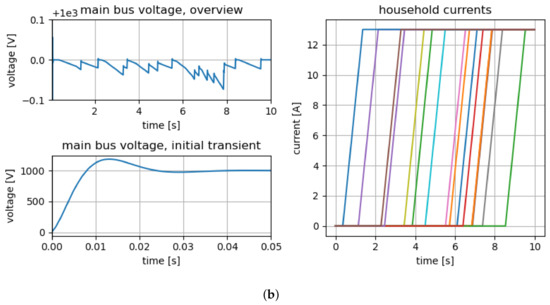

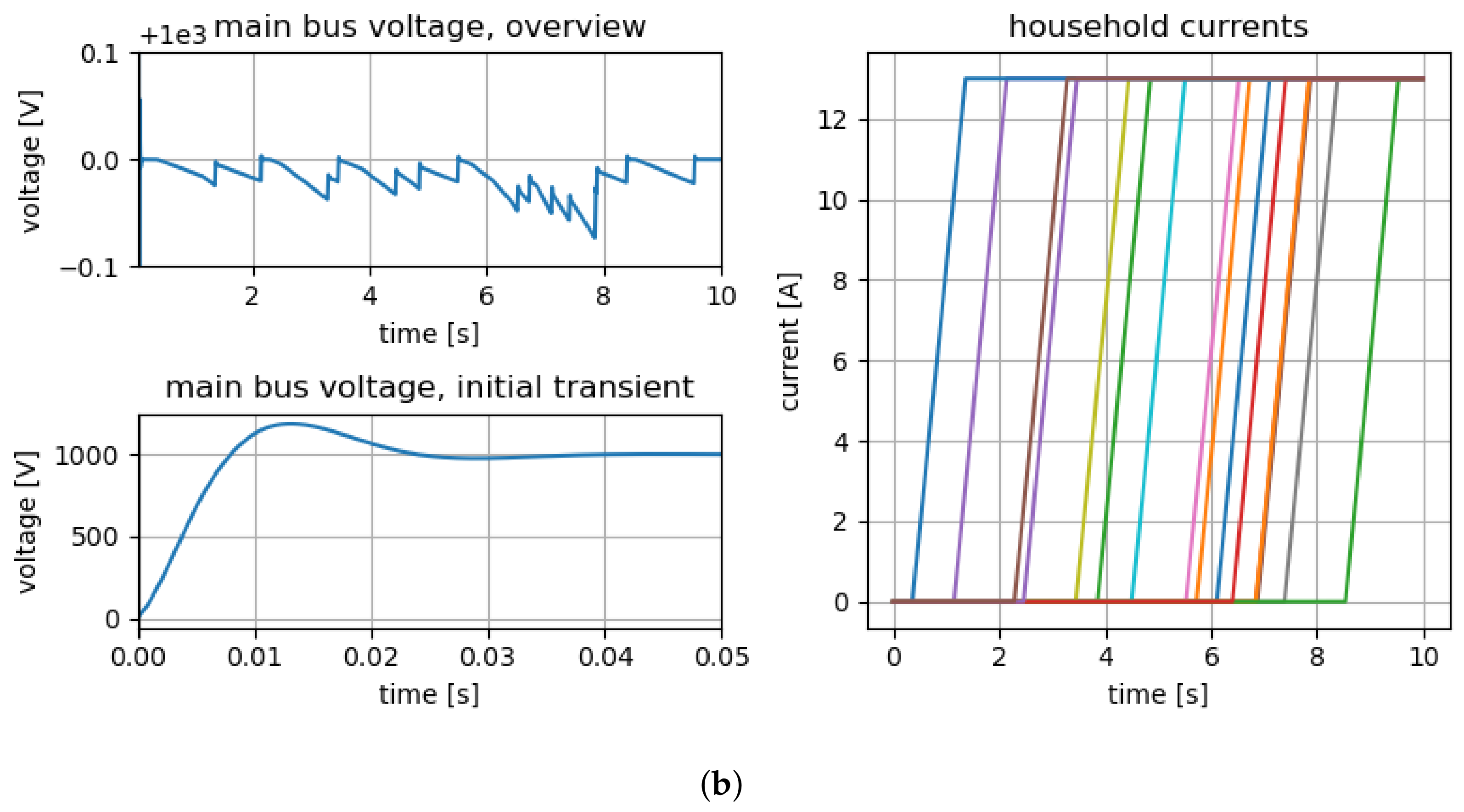

**b**) Results of sequential simulation for comparison.

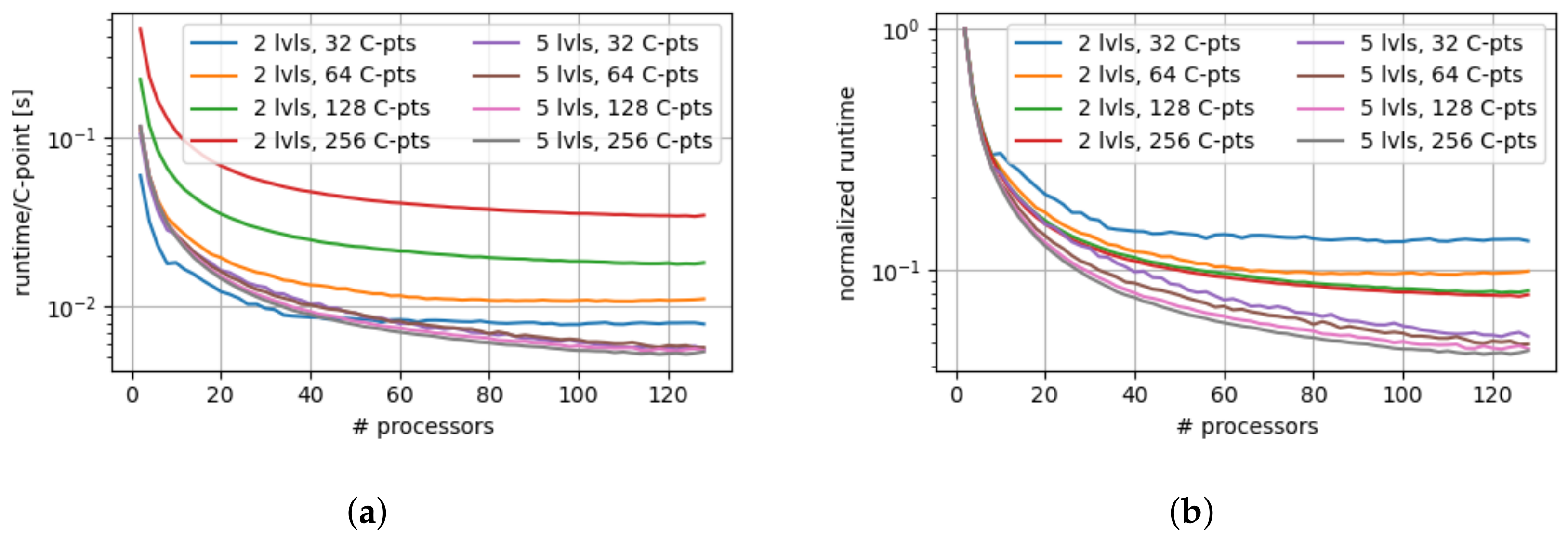

**Figure 7.**Multi-level allows for higher rates of parallelism, resulting in more speed-up in case the available resources are already exhausted by a two-level PinT algorithm. The plots illustrate this comparing speed-ups between the two-level and five-level versions of the MGRIT algorithm for 64, 96, 128, and 256 time-steps on the coarsest level. In all cases, a microgrid with four household-type elements was simulated with a coarsest time-step of $\mathrm{\Delta}t=12.5\phantom{\rule{0.166667em}{0ex}}\mathsf{\mu}\mathrm{s}$ and a fine time-step of $\delta t=0.78125\phantom{\rule{0.166667em}{0ex}}\mathsf{\mu}\mathrm{s}$. For the five-level version, three intermediate coarsening levels with uniform coarsening factor $\mathrm{cf}=2$ were added, resulting in time-steps of $\mathrm{\Delta}{t}_{\mathrm{lvl}}=\delta t\phantom{\rule{0.166667em}{0ex}}\xb7\phantom{\rule{0.166667em}{0ex}}{\mathrm{cf}}^{\mathrm{lvl}}$. (

**a**) Absolute runtime per coarse step. For all cases, the multi-level version scales better with increasing number of processors. (

**b**) Illustration of speed-up only resulting from adding processors. Relative runtime compared to that of the first datapoint.

**Table 1.**Runtime of multi-level PinT compared to two-level and sequential time-stepping for the pi-line test case.

Simulated timespan${t}_{f}\phantom{\rule{0.166667em}{0ex}}\left[s\right]$ | 1 | 10 | 100 | |

Sequential runtime$\left[\mathrm{s}\right]$ | 0.01055 | 0.08173 | 0.7922 | |

Parallel runtime and number of iterations | ||||

[% of sequential time/% of 2-lvl time/#iter] | ||||

${N}_{\mathrm{lvl}}=2$ | $\mathrm{cf}=2$ | 73.82/-/3 | 50.24/-/3 | 42.94/-/3 |

$\mathrm{cf}=4$ | 50.38/-/3 | 30.95/-/3 | 22.66/-/3 | |

$\mathrm{cf}=10$ | 50.58/-/4 | 20.43/-/4 | 12.95/-/4 | |

${N}_{\mathrm{lvl}}=3$ | $\mathrm{cf}=2$ | 50.89/68.94/3 | 30.30/60.31/3 | 23.59/54.94/3 |

$\mathrm{cf}=4$ | 47.65/94.58/4 | 16.62/53.70/4 | 11.70/51.63/4 | |

$\mathrm{cf}=10$ | 52.21/103.2/4 | 13.58/66.47/5 | 11.63/89.81/9 | |

${N}_{\mathrm{lvl}}=4$ | $\mathrm{cf}=2$ | 55.76/75.54/5 | 25.60/50.96/4 | 18.14/42.24/4 |

$\mathrm{cf}=4$ | — | 13.25/42.81/5 | 12.16/53.66/6 | |

$\mathrm{cf}=10$ | — | — | 9.567/73.88/8 |

**Table 2.**Runtime of multi-level PinT compared to two-level and sequential time-stepping for the converter test case. Deterioration in convergence occurs for cases in which the coarsest time-step and switching period of the converter are not well-aligned.

Simulated timespan${t}_{f}\phantom{\rule{0.166667em}{0ex}}\left[s\right]$ | 0.1 | 1 | 10 | |

Sequential runtime$\left[\mathrm{s}\right]$ | 3.909 | 39.27 | 394.3 | |

Parallel runtime and number of iterations | ||||

[% of sequential time/% of 2-lvl time/#iter] | ||||

${N}_{\mathrm{lvl}}=2$ | $\mathrm{cf}=2$ | 136.0/-/3 | 133.8/-/3 | 133.8/-/3 |

$\mathrm{cf}=5$ | 76.26/-/3 | 74.00/-/3 | 73.89/-/3 | |

$\mathrm{cf}=10$ | 41.83/-/4 | 38.82/-/4 | 38.70/-/4 | |

${N}_{\mathrm{lvl}}=3$ | $\mathrm{cf}=2$ | NC | NC | NC |

$\mathrm{cf}=5$ | 24.21/31.75/6 | 19.86/26.84/6 | 19.67/26.62/6 | |

$\mathrm{cf}=10$ | NC | NC | NC | |

${N}_{\mathrm{lvl}}=4$ | $\mathrm{cf}=2$ | NC | NC | NC |

$\mathrm{cf}=5$ | NC | NC | NC | |

$\mathrm{cf}=10$ | NC | NC | NC |

**Table 3.**Runtime of multi-level PinT compared to two-level and sequential time-stepping for the microgrid test case with four household-type elements. The results summarized here display the expected behavior of no convergence whenever the coarsest time-step does not align with the switching period. On the other hand, when alignment is given, the algorithm converges and, for higher coarsening factors and amounts of levels, speeds up the simulation somewhat.

Simulated timespan${t}_{f}\phantom{\rule{0.166667em}{0ex}}\left[s\right]$ | 0.1 | 1 | 10 | |

Sequential runtime$\left[s\right]$ | 10.10 | 100.4 | 1000 | |

Parallel runtime and number of iterations | ||||

[% of sequential time/% of 2-lvl time/#iter] | ||||

${N}_{\mathrm{lvl}}=2$ | $\mathrm{cf}=2$ | 184.2/-/4 | 184.7/-/4 | 186.0/-/4 |

$\mathrm{cf}=5$ | 95.93/-/6 | 95.99/-/6 | 96.74/-/6 | |

$\mathrm{cf}=10$ | 61.59/-/20 | 60.83/-/20 | 61.32/-/20 | |

${N}_{\mathrm{lvl}}=3$ | $\mathrm{cf}=2$ | NC | NC | NC |

$\mathrm{cf}=5$ | 32.84/34.23/8 | 36.69/38.22/8 | 36.97/38.22/8 | |

$\mathrm{cf}=10$ | NC | NC | NC | |

${N}_{\mathrm{lvl}}=4$ | $\mathrm{cf}=2$ | NC | NC | NC |

$\mathrm{cf}=5$ | NC | NC | NC | |

$\mathrm{cf}=10$ | NC | NC | NC |

**Table 4.**Runtimes for sufficiently small time-step to allow convergence in the microgrid test case. Time-steps of this size would usually not be used in applications, but the results prove that better speed-ups are possible if the alignment of coarse step size and switching period is respected.

Timestep $\mathit{\delta}\mathit{t}\phantom{\rule{0.166667em}{0ex}}\left[\mathbf{s}\right]$ | Sim. Time ${\mathit{t}}_{\mathit{f}}\phantom{\rule{0.166667em}{0ex}}\left[\mathbf{s}\right]$ | Seq. Runtime $\mathbf{\left[}\mathbf{s}\mathbf{\right]}$ | Par. Runtime [% Seq. Time/#iter] | ||
---|---|---|---|---|---|

${\mathit{N}}_{\mathbf{lvl}}=4$ | |||||

$\mathbf{cf}=2$ | $\mathbf{cf}=5$ | $\mathbf{cf}=10$ | |||

2.0$\phantom{\rule{3.33333pt}{0ex}}\times \phantom{\rule{3.33333pt}{0ex}}{10}^{-7}$ | 0.1 | 51.63 | NC | 15.04/33 | NC |

2.5$\phantom{\rule{3.33333pt}{0ex}}\times \phantom{\rule{3.33333pt}{0ex}}{10}^{-9}$ | 0.1 | 4109 | 25.45/3 | 13.49/4 | 13.05/7 |

**Table 5.**Microgrid: Runtime Comparison Between PinT and Sequential Timestepping for Different Grid Sizes.

Households | Runtime | |
---|---|---|

Seq. [s] | PinT [% Seq.] | |

4 | 29.71 | 33.24 |

8 | 57.23 | 32.86 |

16 | 148.8 | 33.72 |

32 | 545.0 | 34.63 |

64 | 2798 | 35.31 |
