# Continuous Adjoint Topology Optimization of Duct Flow Configurations with Explicit Volume Constraint for Design Variable Update

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Background

^{®}version 1906 [17,18]. Acknowledging its limitations and restrictions, this solver has been selected for its accessible structure which allows for a transparent implementation of the presented method. The solver is developed from the simpleFoam (standard steady-state solver for incompressible isothermal turbulent flow of Newtonian fluids) by deploying the frozen turbulence assumption in the adjoint equations, adopting the duct flow configuration (the boundaries comprising the inlet, outlet, and wall surfaces $\mathsf{\Gamma}={\mathsf{\Gamma}}_{inlet}\cup {\mathsf{\Gamma}}_{outlet}\cup {\mathsf{\Gamma}}_{walls}$, according to the sketch in Figure 1a), and taking the total pressure loss between the inlet and outlet as the objective function to be minimized:

## 3. Explicit Volume Constraint Update

^{®}the step function is available as $pos\left(s\right)$, which evaluates to 1 if the scalar expression s yields a non-negative value, or 0 otherwise [17]. Finally, by suitably selecting the coefficients of the sigmoid function, it can be turned into the step function $pos\left(s\right)=pos(x-{x}_{L})$ to mark for blocking the part of the domain where the calculated sensitivity is greater than the limiting sensitivity value.

## 4. Topology Optimization Results

## 5. Conclusions and Discussion

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

$\alpha $ | design variable |

$\mathbf{v}$ | primal velocity vector |

p | primal kinematic pressure |

${\nu}_{eff}$ | kinematic turbulent viscosity |

$\mathbf{u}$ | adjoint velocity vector |

q | adjoint kinematic pressure |

${d}_{\alpha}$ | Darcy porosity coefficient |

J | objective function |

$\mathsf{\Gamma}$ | flow domain boundary |

$\mathsf{\Omega}$ | flow domain interior |

$sens$ | objective function sensitivity |

$vo{l}_{T}$ | target volume of blocking cells |

${n}_{loops}$ | number of search loops |

${n}_{cycles}$ | number of design cycles |

${C}_{0},{C}_{1},{C}_{2}$ | sigmoid function coefficients |

$\lambda $ | steepest gradient descent step |

## References

- Giles, M.B.; Pierce, N.A. An Introduction to the Adjoint Approach to Design. Flow Turbul. Combust.
**2000**, 65, 393–415. [Google Scholar] [CrossRef] - Giannakoglou, K.C.; Papadimitriou, D.I.; Papoutsis-Kiachagias, E.M.; Othmer, C. Adjoint methods in CFD-based optimization—Gradient computation and beyond. In Proceedings of the Sixth European Congress on Computational Methods in Applied Sciences and Engineering, Vienna, Austria, 10–14 September 2012. [Google Scholar]
- Pironneau, O. On optimum design in fluid mechanics. J. Fluid Mech.
**1974**, 64, 97–110. [Google Scholar] [CrossRef] - Zymaris, A.S.; Papadimitriou, D.I.; Giannakoglou, K.C.; Othmer, C. Continuous adjoint approach to the Spalart-Allmaras turbulence model for incompressible flows. Comput. Fluids
**2009**, 38, 1528–1538. [Google Scholar] [CrossRef] - Subramaniam, V.; Dbouk, T.; Harion, J.L. Topology optimization of conjugate heat transfer systems: A competition between heat transfer enhancement and pressure drop reduction. Int. J. Heat Fluid Flow
**2019**, 75, 165–184. [Google Scholar] [CrossRef] - Kavvadias, I.S.; Papoutsis-Kiachagias, E.M.; Giannakoglou, K.C. On the proper treatment of grid sensitivities in continuous adjoint methods for shape optimization. J. Comput. Phys.
**2015**, 301, 1–18. [Google Scholar] [CrossRef] - Popovac, M.; Jasak, H.; Rusche, H.; Reichl, C. RANS turbulence treatment for continuous adjoint optimization. In Proceedings of the Eighth International Symposium On Turbulence Heat and Mass Transfer, Sarajevo, Bosnia and Herzegovina, 15–18 September 2015. [Google Scholar]
- Gkaragkounis, K.T.; Papoutsis-Kiachagias, E.M.; Giannakoglou, K.C. Conjugate Heat Transfer Shape Optimization Based on the Continuous Adjoint Method. In Proceedings of the Seventh International Conference on Computational Methods for Coupled Problems in Science and Engineering, Rhodes, Greece, 12–14 June 2017. [Google Scholar]
- Zymaris, A.S.; Papadimitriou, D.I.; Giannakoglou, K.C.; Othmer, C. Adjoint wall functions: A new concept for use in aerodynamic shape optimization. J. Comput. Phys.
**2010**, 229, 5228–5245. [Google Scholar] [CrossRef] - Othmer, C. Adjoint methods for car aerodynamics. J. Math. Ind.
**2014**, 6, 4. [Google Scholar] [CrossRef] [Green Version] - de Villiers, E.; Othmer, C. Multi-Objective Adjoint Optimization of Intake Port Geometry; SAE Technical Paper, 2012-01-0905; SAE: Warrendale, PA, USA, 2012. [Google Scholar] [CrossRef]
- Hinterberger, C.; Olesen, M. Automatic Geometry Optimization of Exhaust Systems Based on Sensitivities Computed by a Continuous Adjoint CFD Method in OpenFOAM; SAE Technical Paper, 2010-01-1278; SAE: Warrendale, PA, USA, 2010. [Google Scholar] [CrossRef]
- Borrvall, T.; Petersson, J. Topology optimization of fluids in Stokes flow. Int. J. Numer. Methods Fluids
**2003**, 41, 77–107. [Google Scholar] [CrossRef] - Papoutsis-Kiachagias, E.M.; Giannakoglou, K.C. Continuous Adjoint Methods for Turbulent Flows, Applied to Shape and Topology Optimization: Industrial Applications. Arch. Comput. Methods Eng.
**2016**, 23, 255–299. [Google Scholar] [CrossRef] - Svanberg, K. The method of moving asymptotes—A new method for structural optimization. Int. J. Num. Methods Eng.
**1987**, 24, 359–373. [Google Scholar] [CrossRef] - Olesen, L.H.; Okkels, F.; Bruus, H. A high-level programming-language implementation of topology optimization applied to steady-state Navier—Stokes flow. Int. J. Num. Methods Eng.
**2006**, 65, 975–1001. [Google Scholar] [CrossRef] [Green Version] - CFD Direct. OpenFOAM: The Open Source CFD Toolbox. Programmer’s Guide Version 1906; OpenFOAM Foundation Ltd.: London, UK, 2019. [Google Scholar]
- Weller, H.G.; Tabor, G.; Jasak, H.; Fureby, C. A tensorial approach to computational continuum mechanics using object orientated techniques. Comput. Phys.
**1998**, 12, 620–631. [Google Scholar] [CrossRef] - Othmer, C.; de Villiers, E.; Weller, H.G. On optimum design in fluid mechanics. In Proceedings of the AIAA-2007-3947, Miami, FL, USA, 25–28 June 2007. [Google Scholar]
- Othmer, C. A continuous adjoint formulation for the computation of topological and surface sensitivities of ducted flows. Int. J. Numer. Methods Fluids
**2008**, 58, 861–877. [Google Scholar] [CrossRef] - Papoutsis-Kiachagias, E.M.; Giannakoglou, K.C. An Adjoint-based Topology Optimization Framework for Fluid Mechanics and Conjugate Heat Transfer in OpenFOAM. In Proceedings of the 8th OpenFOAM Conference, Online, 13–15 October 2020. [Google Scholar]
- Launder, B.E.; Spalding, D.B. The numerical computation of turbulent flows. Comput. Methods Appl. Mech. Eng.
**1974**, 3, 269–289. [Google Scholar] [CrossRef]

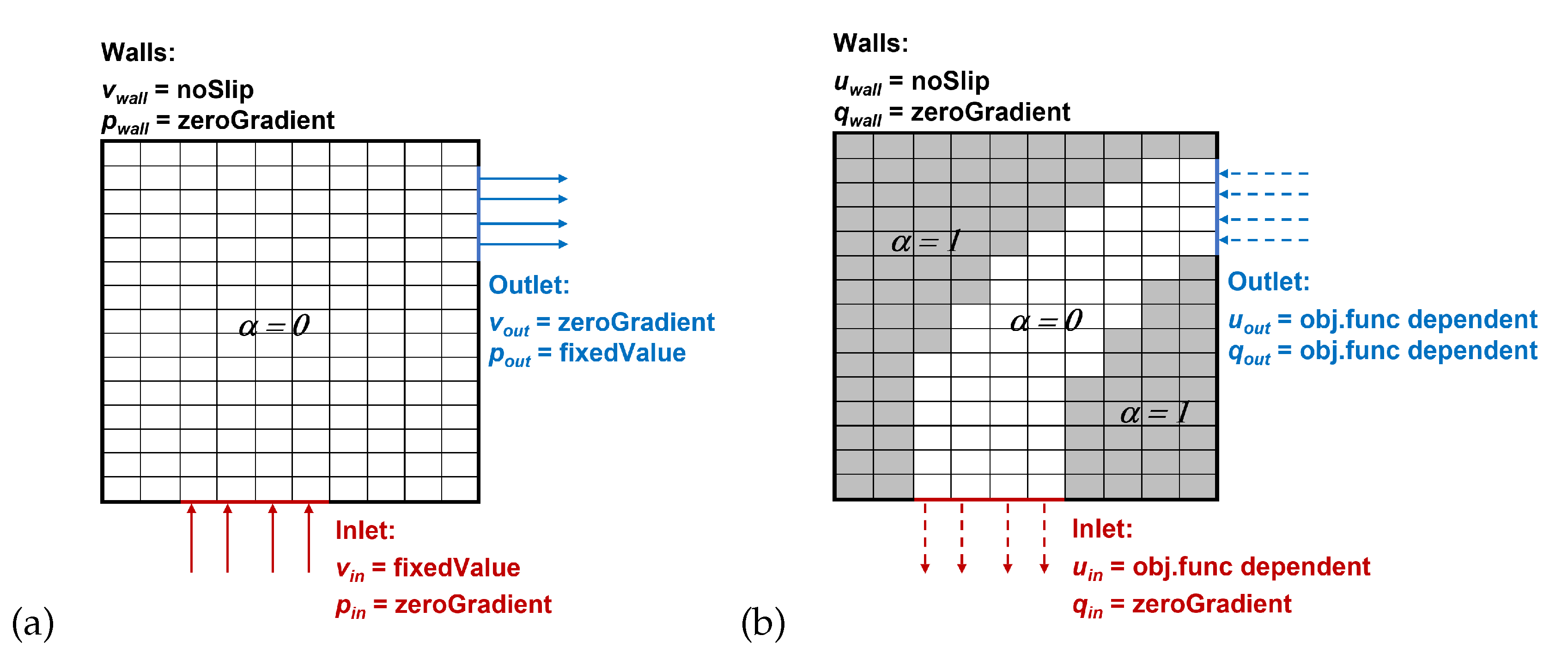

**Figure 1.**Topology optimization setup: available design space for a duct flow configuration (

**a**) and the topology optimization outcome (

**b**), with respective boundary conditions.

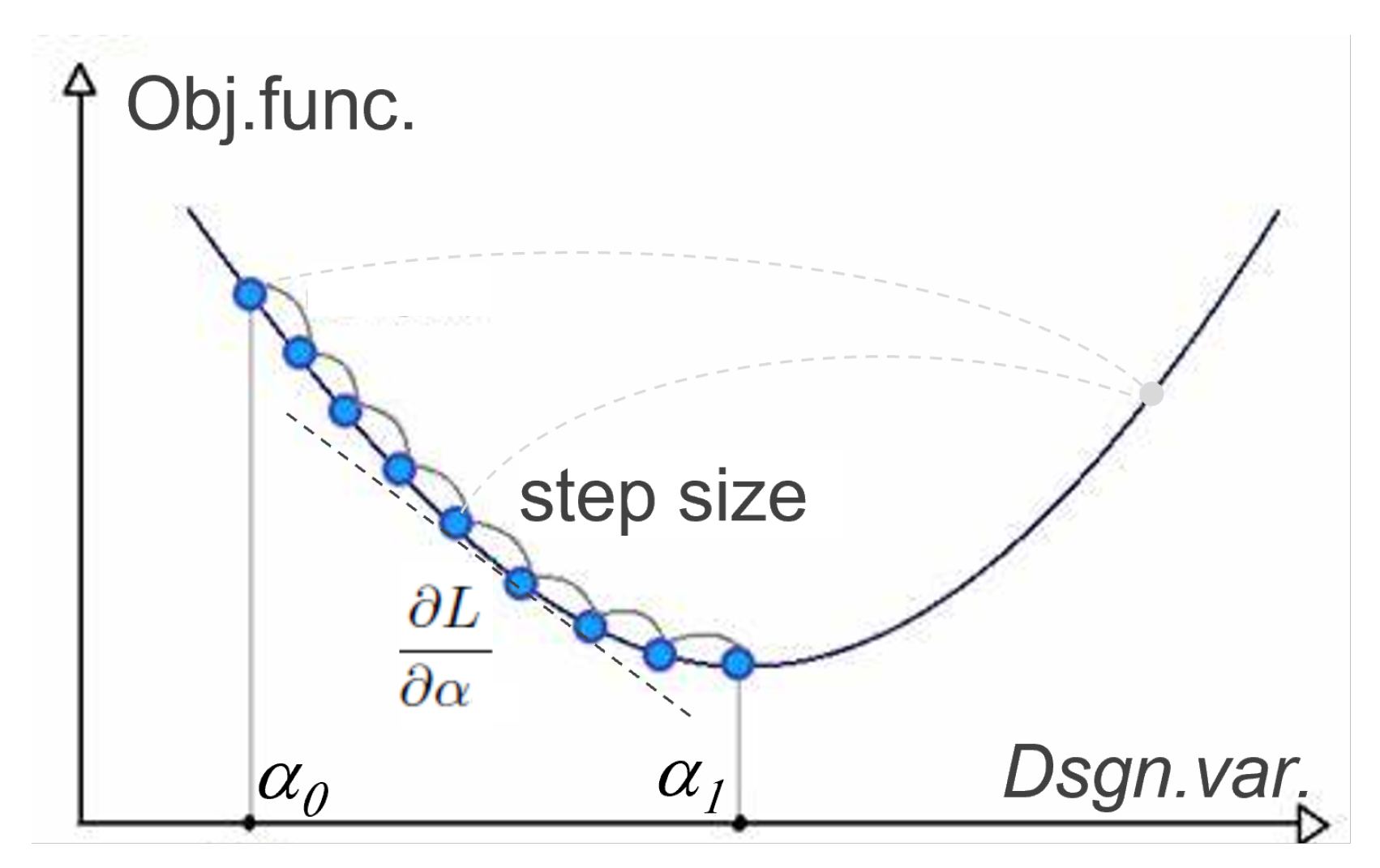

**Figure 2.**General principle of the design variable update based on steepest gradient descent method.

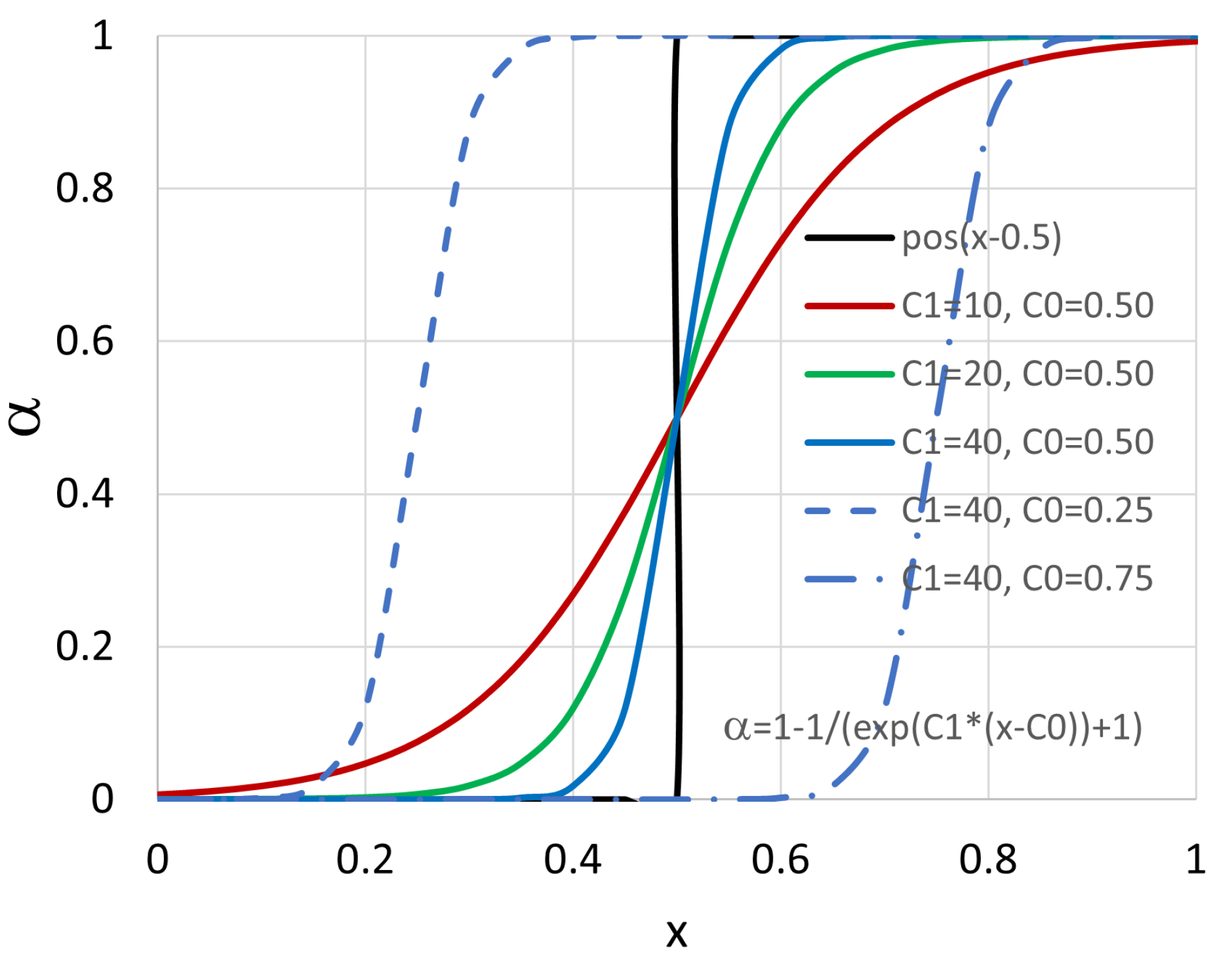

**Figure 3.**Sigmoid function with varying coefficients, ${C}_{0}$ for the inflection point shift (full, dash, dash–dot) and ${C}_{1}$ for modifying the slope (red, green, blue), and step function (black).

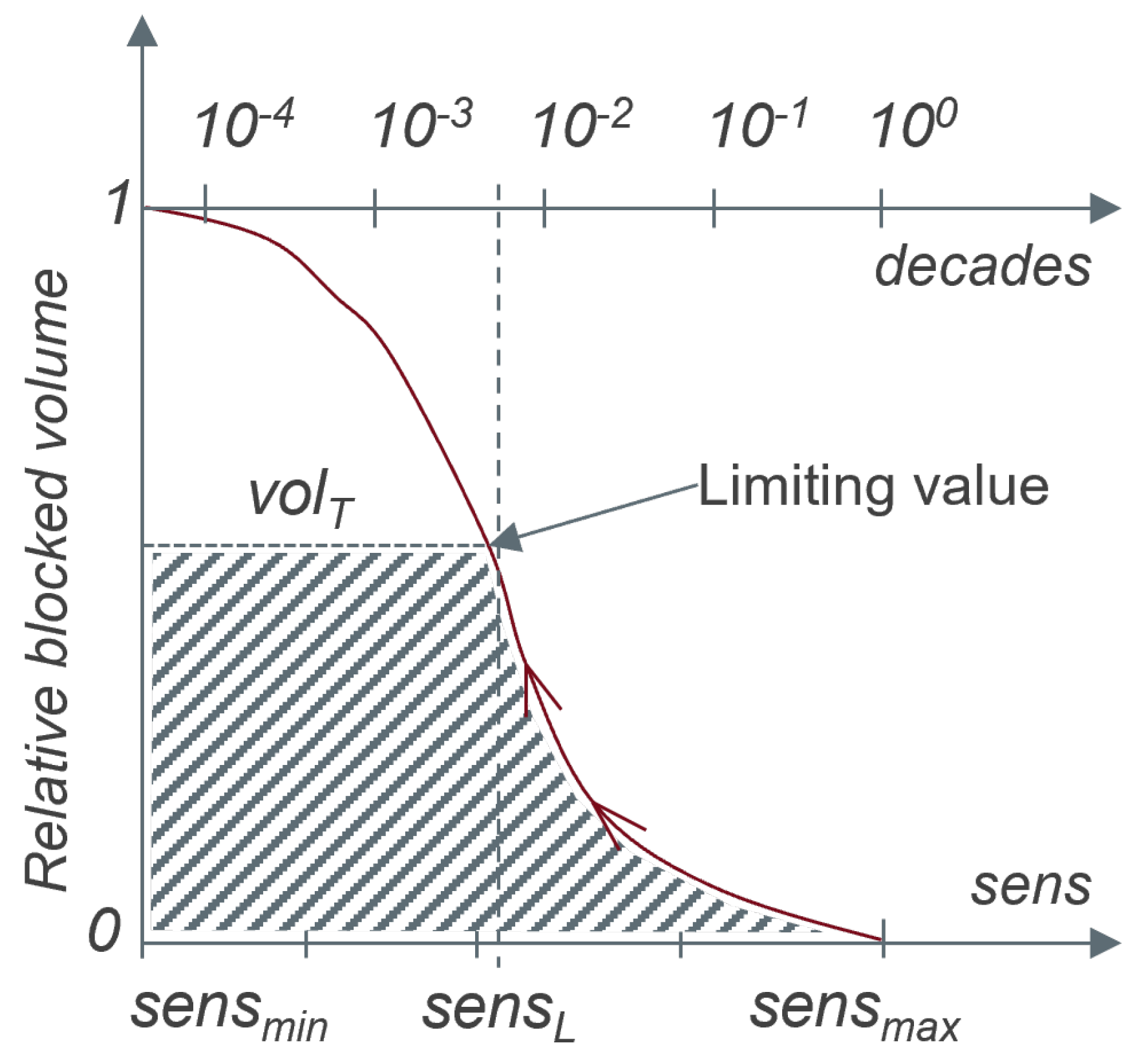

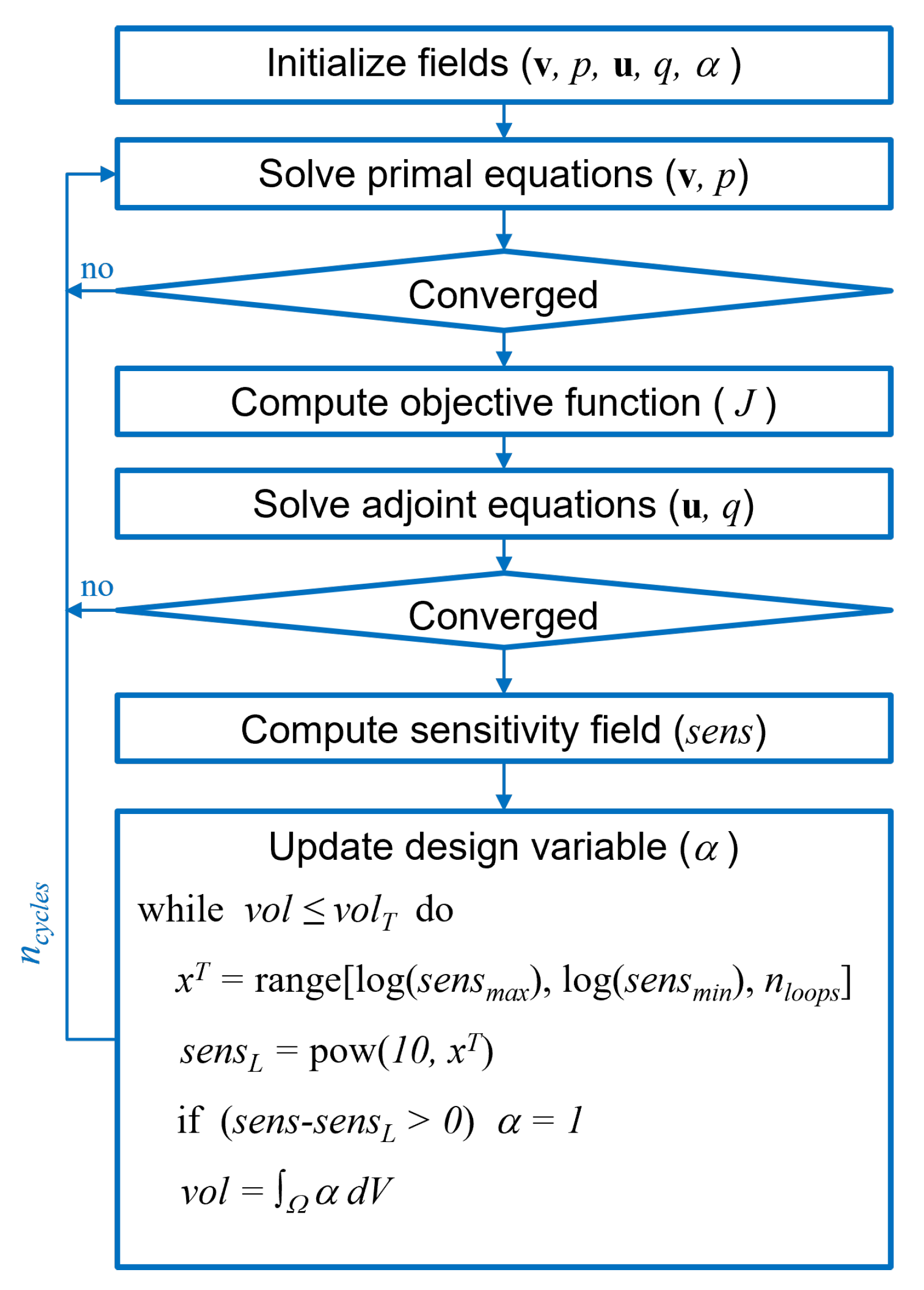

**Figure 5.**Flowchart of the topology optimization cycles using continuous adjoint method, with explicit design variable update.

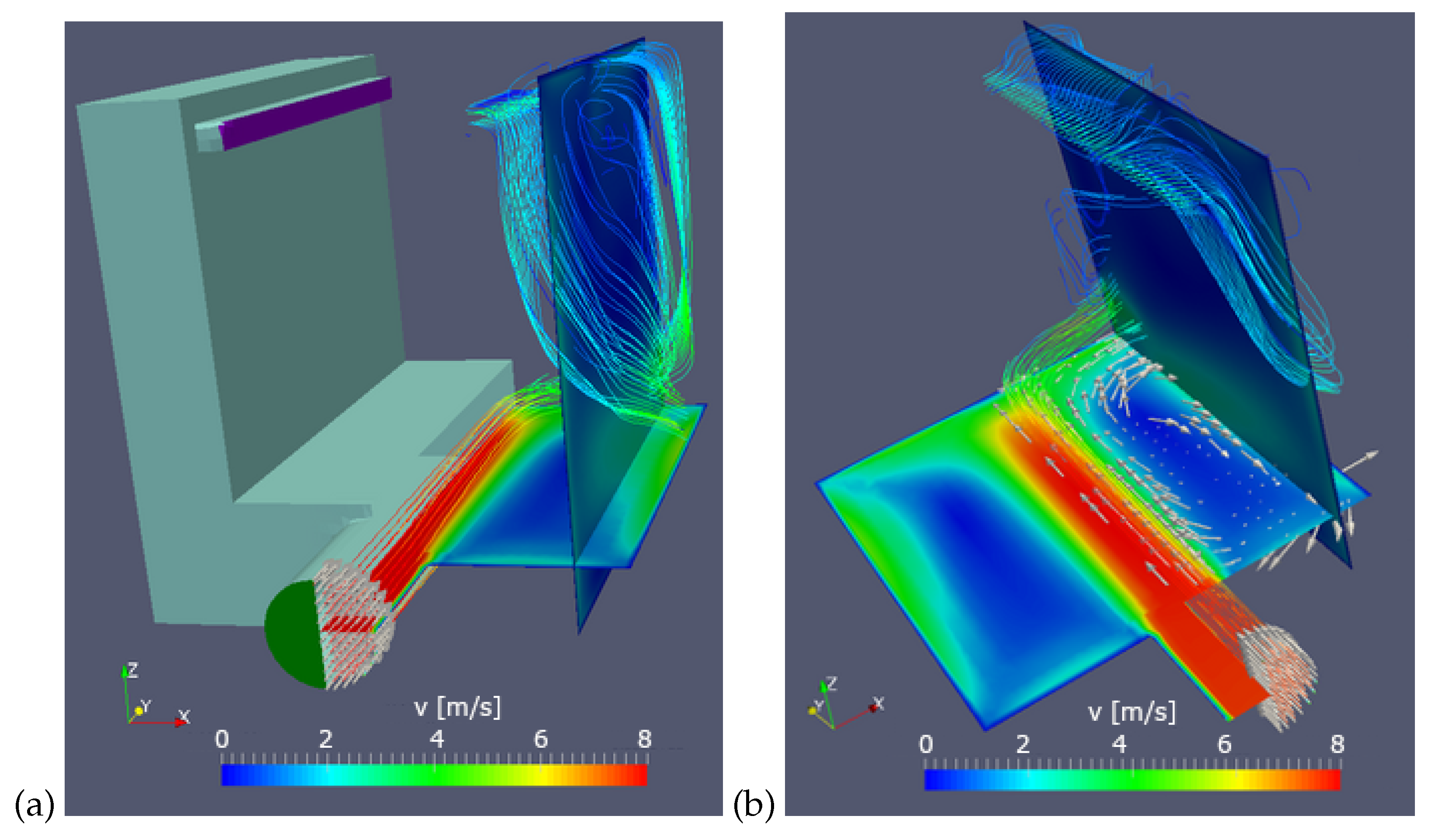

**Figure 6.**The 3D flow distribution duct: geometry and boundary conditions (

**a**), streamlines and contour plots revealing flow features (

**b**).

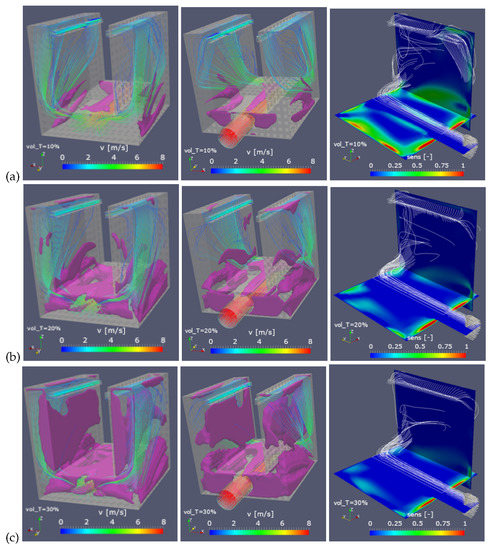

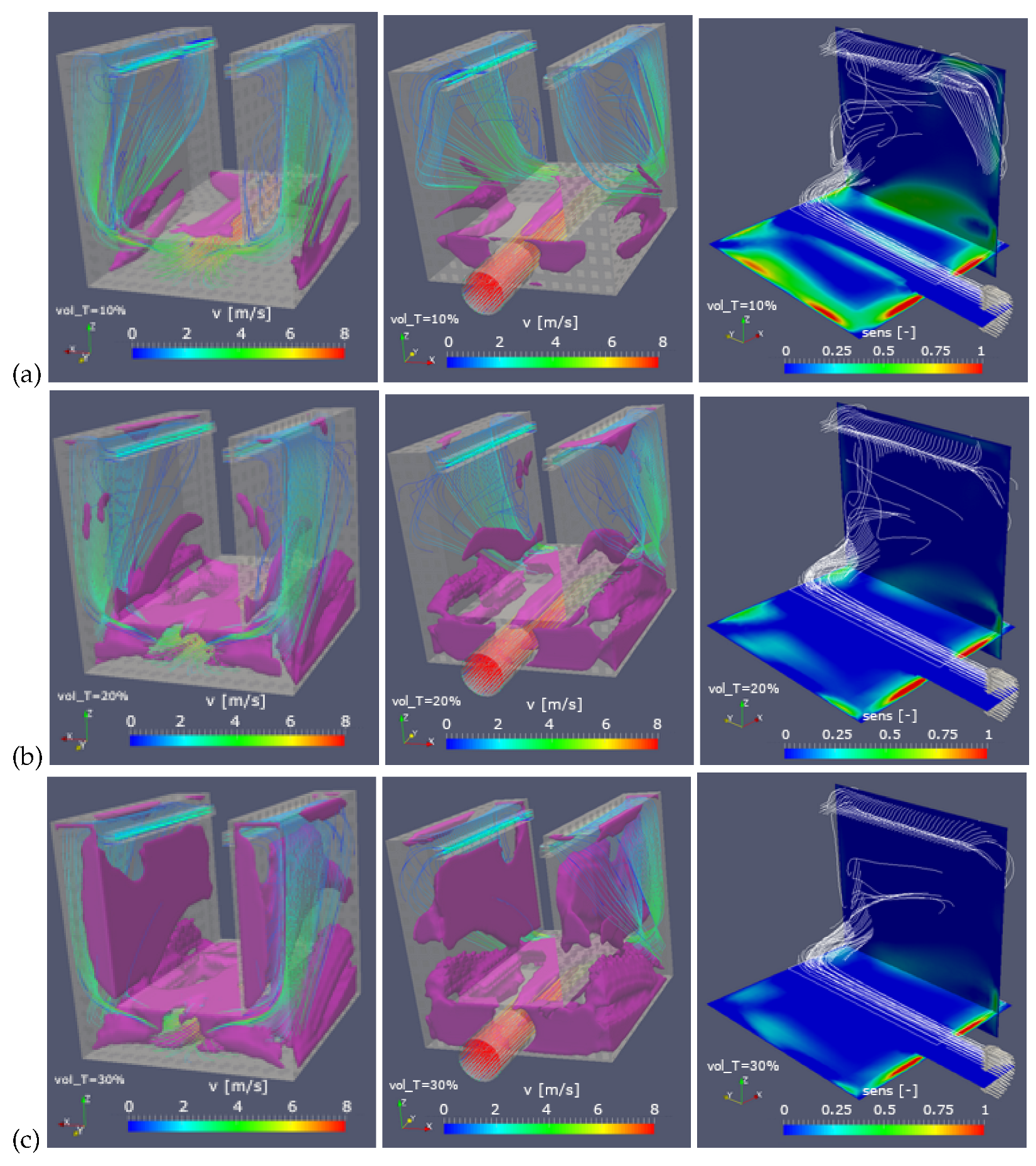

**Figure 7.**Flow pattern (streamlines) and $\alpha $ distribution (left–back view, middle–front view) and sensitivity (right) for 3D flow distribution duct optimization with $vo{t}_{T}$ = 10% (

**a**), 20% (

**b**), 30% (

**c**).

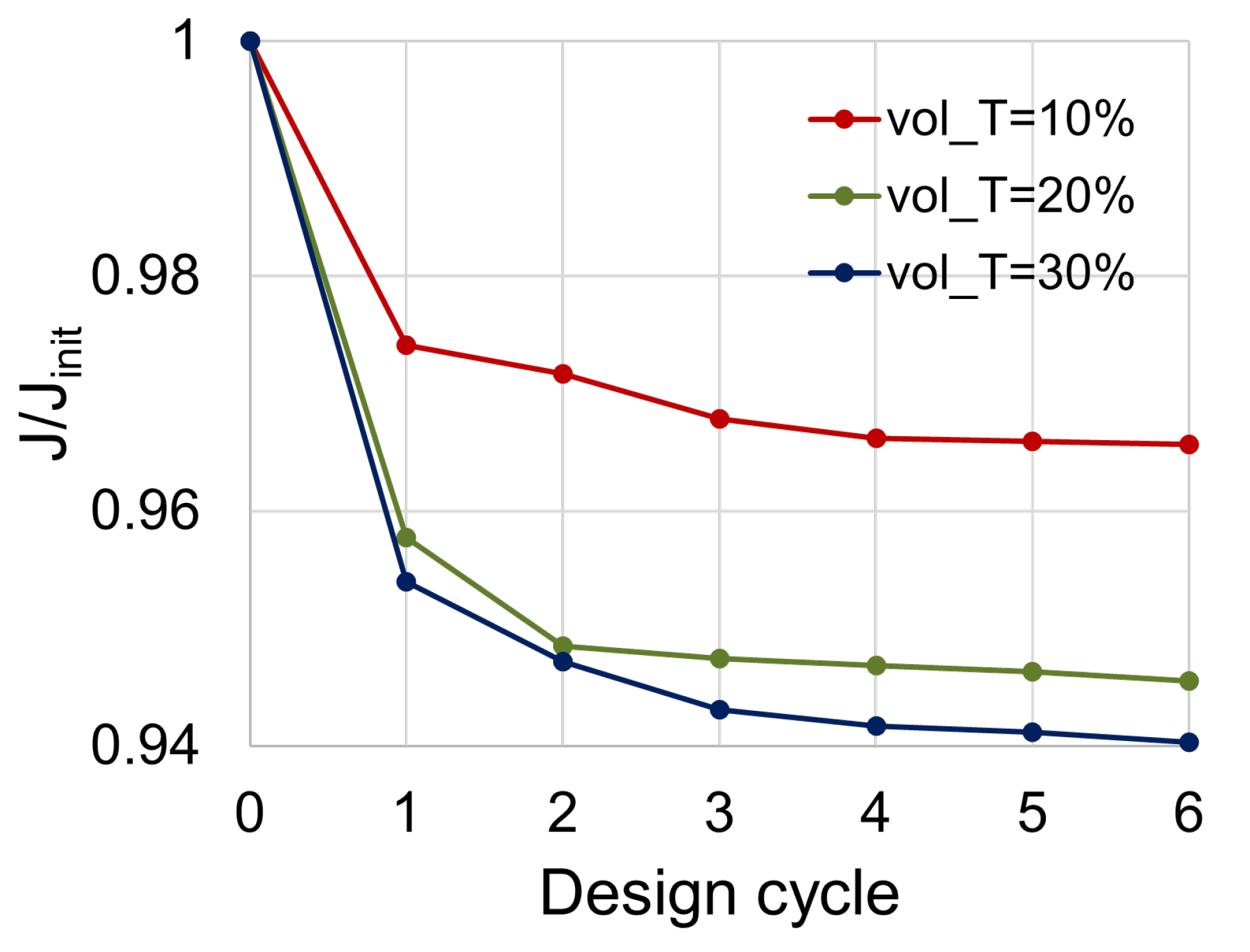

**Figure 8.**Reduction of the objective function (relative to the non-optimized case) at different design optimization cycles.

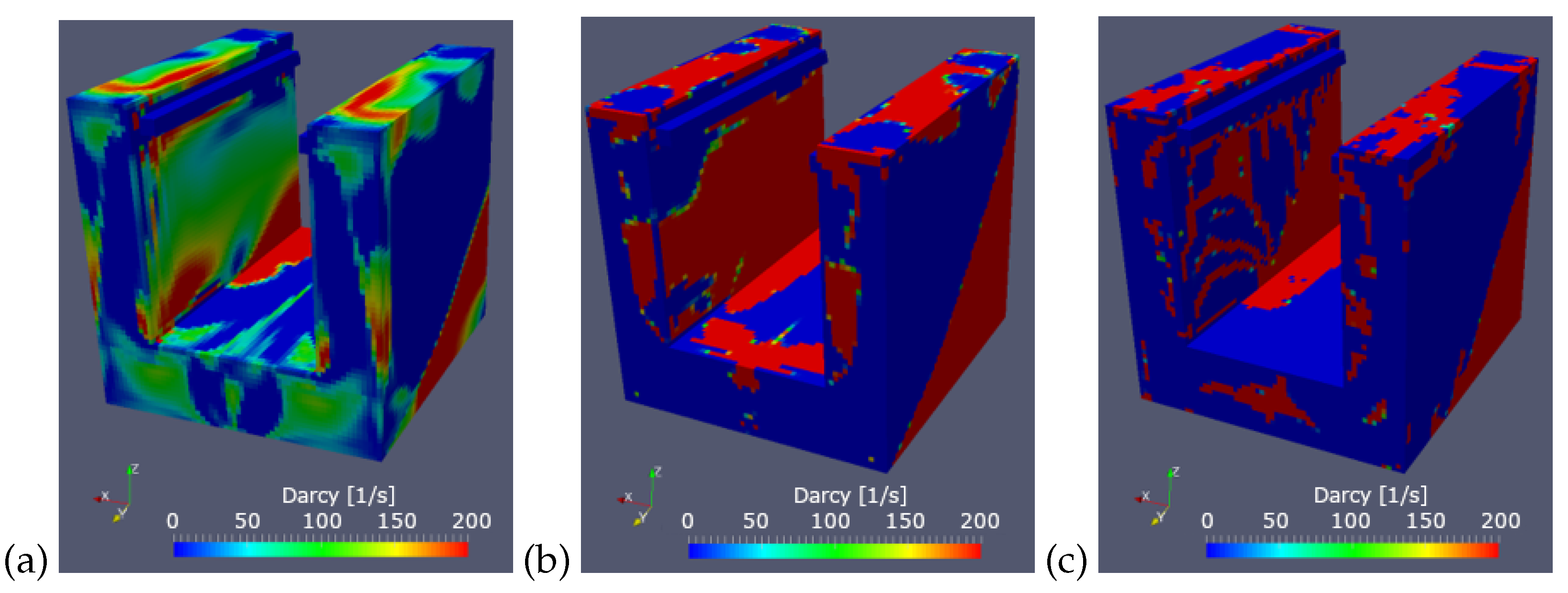

**Figure 9.**Distribution of the Darcy porosity $\alpha {d}_{\alpha}$ (back view) with steepest descent method for varying step size $\lambda $: too small (

**a**), appropriate (

**b**), too big (

**c**).

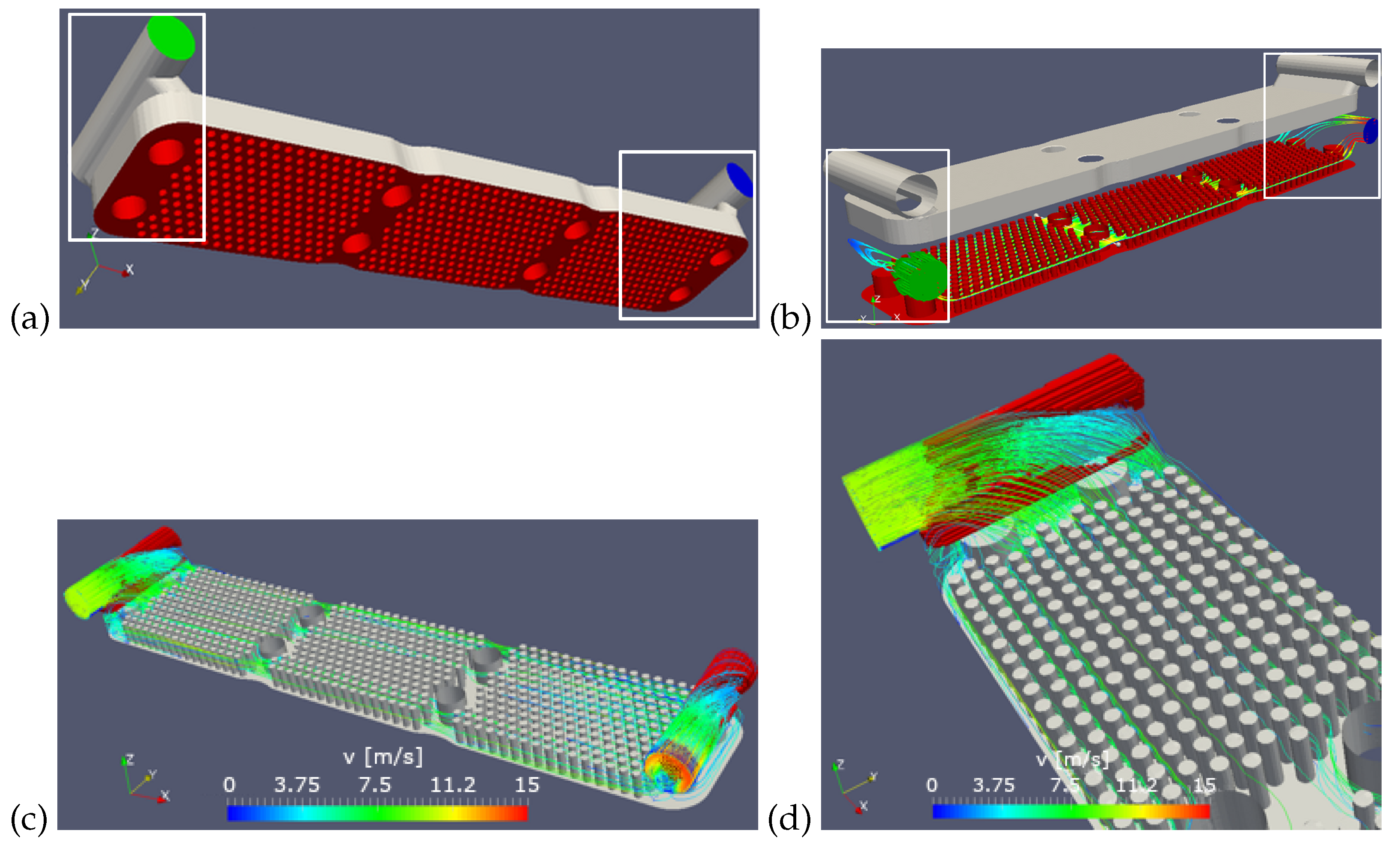

**Figure 10.**Pin-plate cooler geometry (

**a**) and flow features (

**b**) with flow connector encircled white, and the topology optimization of flow connector ((

**c**) total view, (

**d**) zoom view).
