Communication

How to Reintroduce Arable Crops after Growing Perennial Wild Plant Species Such as Common Tansy (Tanacetum vulgare L.) for Biogas Production

by
Moritz von Cossel
Biobased Resources in the Bioeconomy (340b), Institute of Crop Science, University of Hohenheim, Fruwirthstr. 23, 70599 Stuttgart, Germany
Energies 2022, 15(12), 4380; https://doi.org/10.3390/en15124380
Submission received: 1 June 2022 / Revised: 14 June 2022 / Accepted: 15 June 2022 / Published: 16 June 2022
(This article belongs to the Special Issue Biomass Energy for Environmental Sustainability)
Browse Figures
Versions Notes

Abstract

:
The cultivation of perennial wild plant mixtures (WPMs) is becoming increasingly important in Germany for providing sustainably produced bioenergy. However, perennial energy cropping systems always raise the question of how to reclaim the land for arable crops. This study examined this issue by looking at how a former WPM area was returned to arable cropping for an organic farm. From 2013 to 2018, the WPM area was harvested annually in the autumn. From 2019 to 2020, it was co-managed with the surrounding land as a semi-intensive grassland under a three-cut regime. The area was then ploughed in the spring of 2021 to grow silage maize. Weeds were controlled mechanically once. Nevertheless, the perennial wild plant species grew vigorously, with common tansy (Tanacetum vulgare L.) standing out with a total fresh matter share of 29.0%. This maize–WPM mixture achieved a dry matter yield of 15.5 ± 5.5 Mg ha−1, which was notably but not significantly (p < 0.05) lower than that of silage maize growing next to the former WPM area (23.4 ± 5.5 Mg ha−1). After silage maize, winter wheat was sown in the autumn of 2021 and further regrowth of common tansy was observed in the spring of 2022. Yield and quality effects must therefore be given special consideration in the first arable crop following WPM cultivation.

1. Introduction

Land use conflicts are expected to increase further in the future due to increasing societal demands and environmental challenges [1]. In addition, recent geopolitical developments have shown that reliable long-term planning is not always possible for the import of energy or raw materials [2]. Therefore, it is becoming increasingly important to use available resources as efficiently as possible within sustainable agriculture [3,4] and, in particular, rely on locally available resources and close nutrient circles as much as possible [5]. Here, perennial energy crops (PECs) can play an important role in bioeconomy, be it through their high tolerance to climate change-related cultivation limitations [6,7], their high nutrient use efficiency [8,9] or through their fulfillment of numerous ecosystem services, apart from the provision of biomass [10,11,12], which helps to substitute fossil energy sources. In addition to common PECs such as willow [13,14], Miscanthus [15,16], Sida [17,18], switchgrass [19,20] and cup plant [21,22], the cultivation of perennial wild plant mixtures (WPMs) is becoming increasingly important in Germany [23]. The cultivation of WPMs enables farms to specifically contribute to the promotion of biodiversity through a high number of flowering wild plant species and, at the same time, gain significant biomass yields for bioenergy production [24,25]. Therefore, in some federal states, WPM cultivation is or will be subsidized, for example within the support program for agri-environment, climate protection and animal welfare (“FAKT”, part of the Common Agricultural Policy) by up to EUR 500 per hectare per year [26].
In the early 2000s, WPMs were selected and mixed in such a way that the species composition provided suitable biomass quantity and quality for biogas production over at least five years of cultivation [27]. The use of WPM biomass in biogas production could then also contribute positively to climate change mitigation because fossil fuel energy resources would be replaced by renewable resources. With an average specific methane yield (SMY) of 241.5–248.5 lN kgVS−1 [28], wild plant species perform worse than silage maize (about 330 lN kgVS−1) [29] and Miscanthus (300 lN kgVS−1) [30], mainly due to the high amounts of lignin in WPM biomass. The degradation of this lignin prior to anaerobic digestion in the biogas plants could enable a much higher SMY. This was shown for Sida biomass, for example, in which the SMY could be increased to almost 600 lN kgVS−1 using a pretreatment with microwave thermohydrolysis and hot water [31]. However, a qualitative assessment of WPMs is not easy because of their high, yet intended, species composition dynamics within the WPMs during their cultivation, especially during the first three years [25,32]. This is because in the first year, the annual species dominate the plant stand, then the biennial species and from the third year onward, the perennial species [32]. In subsequent years, WPM stands then become increasingly impoverished as usually only one or two perennial wild plant species establish themselves as permanently dominant within the stand [32]. Surveys with farmers who have first-hand experience of WPM cultivation for several years have shown that common tansy is one of these important yield-relevant species and that WPMs help to increase biodiversity in the agroecosystem [33,34]. It is currently unknown for how long common tansy can be cultivated until biomass yields decrease and are no longer profitable [24]; however, it is likely that common tansy can persist for longer than five years because it has great self-seeding potential. Due to the revised regulations for PEC in several German states, it will also be possible for farmers to cultivate WPMs for longer than five years without losing the arable status of the fields on which the WPMs are grown.
When harvested as late as September, the first seeds are already ripe and can drop out and contribute to the building up of a common tansy seed bank in the soil. On the one hand, these seeds could contribute to the steady regeneration of the common tansy stand; on the other hand, they could make it more difficult to return the cultivated area to arable use or significantly increase the costs and resources required for the weed management of the following crop. Therefore, not only should how to optimize the cultivation of WPMs or common tansy be investigated [24,29], but also which problems can arise when returning former WPM areas to arable use and how these problems could be counteracted. Similar studies have already been undertaken for other PECs, such as Miscanthus, and important lessons have been learned [35]. Therefore, this study aimed to (i) communicate the need for the same investigation into WPM land based on the results of a preliminary field trial and (ii) derive promising approaches for targeted large-scale field trials in the future. For the preliminary field trial, it was hypothesized that WPMs as a pre-crop could have a significant effect on the performance of subsequent arable crops, such as silage maize.

2. Materials and Methods

The field trial with WPMs was established at a field near the University of Hohenheim (48°42′53.3″ N, 9°12′41.1″ E; 407 m above sea level) (Figure 1) in 2013. This field is located within the continental agro-ecological zone [36] and was characterized by an average annual temperature of 9.3 °C and a total precipitation of 619.1 mm in 2021 (Figure 2). The soil is a Luvisol with a clayey loam.
The field trial establishment procedure followed an approach that was previously published by von Cossel et al. [32], whereby the WPM field trial measured 432 m2 (12 m × 36 m) and from the second year of WPM cultivation onward (in 2015), the plant stand was dominated by common tansy (Figure 3). On the surrounding land, grassland management was carried out according to the usual four-cut method with an ordinary mower.
In the spring of 2021, the area was ploughed at a 15–20 cm depth. In May 2021, silage maize (Ronaldinio, KWS, Einbeck, Germany) was sown at a row width of 0.5 m and a sowing density of 9 kernels/m2. No nitrogen (N) fertilizer was applied because of the expected N mineralization from the grassland conversion. No synthetic chemical pesticides (e.g., herbicides, insecticides, etc.) were applied either during the maize cultivation in 2021 because it was intended to establish an organic farming system.
On 14th September 2021, three subsamples were taken from each experimental field (Figure 1a,b). For each of these subsamples, the above-ground biomass of a sample area of 1.13 m2 was harvested by hand at a cutting height of about 10 cm. The fresh matter samples of both maize and common tansy were weighed individually to determine the fresh matter yield per hectare for each species and the respective proportion of the total fresh matter yield for both plants. Then, the fresh matter samples of both maize and common tansy were mixed and chopped with a stand chopper (ELIET PROF 5, Eliet Europe nv, 8553 Otegem, Belgium). These subsamples were then dried at 60 °C to a constant weight to determine the dry matter content and calculate the dry matter yield. In addition to the biomass yield and quality measurements, the height and the number of stems of maize and common tansy were measured at harvest.
All data were compiled using MS Excel. For the statistical analysis, the PROC MIXED procedure of the SAS® Proprietary Software 9.4 TS level 1M5 (SAS Institute Inc., Cary, CA, USA) was used. Both the degrees of freedom and the standard errors were approximated using the Kenward–Roger method [37]. Then, t-tests were applied to generate a letter display [38] when differences were found. The significance level of 5% of the alpha error was not met because the differences in the treatment variants were already recognizable before sampling (conditional observation).

3. Results

During the vegetation period, the plant stand was observed once after the mechanical weeding was carried out (21 June 2021). It was seen that most of the wild plant species, especially the common tansy, were removed from between the maize rows but a large number of common tansy plants were still growing within the maize rows (Figure 4).
At harvest, just by looking at the plots from the field border, it was obvious that the overgrowth of common tansy had a clear impact on the growth of the maize (Figure 5). Thus, the maize plants in the plots where WPMs had previously been grown appeared significantly smaller and lighter than those in the control plots next to them, where there had previously been only grassland (Figure 5).
The visual impressions were confirmed by the measurements of the plant height, plant density and biomass yield characteristics at harvest (Table 1 and Table 2, Figure 6a–c). This showed that common tansy had a significant (p < 0.05) negative influence on the growth height of maize, which averaged only 201.3 cm with common tansy and 265.3 cm without common tansy. However, the plant density of maize was not affected by common tansy (Table 1) and neither was the fresh matter yield of maize (Figure 6a) nor the total dry matter yield (Figure 6b).

4. Discussion

Generally, it was shown that the results of the field experiment demonstrated a very high variation due to the low number of replicates (n = 3) and the small sample area (1.13 m2). For Miscanthus and willow, for example, a sample area of 3 m2 and 9 m2 is required, respectively, to account for 90% of the variances [39,40]. Thus, the preliminary results of this study should be approved by field experiments at a larger scale with larger sample areas and a higher number of replicates. This would allow for a more realistic representation of the variances of the quantitative and qualitative traits of the plants. For example, common tansy had a much higher share of the total fresh matter yield in one of the three replicates (Table 2) despite it being a little smaller than in the other two replicates (Table 1). This was mainly due to the much higher plant density in that replicate, showing how important it is to consider the plant density of common tansy (or any other wild plant species that could regrow after removing WPM cultivation) more in future investigations.
Additionally, there were no significant differences between the maize biomass yields for the different treatments, but it was notably lower in the area where WPMs were cultivated in the years of 2013 to 2018. With a more accurate estimation of the variances, this difference may be significant. Thus, the hypothesis was not confirmed. However, the preliminary results of this study already indicate the decline in biomass yield that can be caused by the regrowth of wild plant species, such as common tansy (Figure 6a,b).
This study did not consider effects on biomass quality other than the DMC and yet, they are significant in terms of biomass utilization (e.g., biogas production). This is because wild plant species, such as the common tansy, are known to have a lower ensilage suitability [41] and a lower substrate-specific methane yield than maize [27,28]. From this, it can be assumed that any share of the total biomass of wild plants, such as the common tansy, could cause a decrease in biomass quality where biogas production is concerned [29].
To circumvent this problem of decreased biomass quality for biogas production purposes, it would be worthwhile to investigate whether another type of use could be suitable. Other biomass utilization pathways, such as combustion or bioethanol production, require biomass quality criteria that are different from those of biogas production [18,41]. The high lignin content and the low content of water-soluble sugars in the biomass both lower the suitability of WPMs for biogas production [41] but can increase the suitability of the biomass for combustion [42,43,44].
However, biomass for combustion use must be harvested much later (in the winter), which would result in the renewed seed maturity of common tansy and a further spread of this wild plant within the stand (Figure 7). This would be harmless from an ecological point of view, as common tansy is a native wild plant species in central Europe [25,27]. In fact, extending the flowering period of common tansy would be fundamentally positive in terms of the ecosystem function of supporting pollinator insects. This is because the supply of flowering crops in modern agricultural landscapes is very limited [45], especially in the late summer to fall period, and it is then that many wild bee and bumblebee species rely on food to prepare their larvae for winter [46,47,48]. However, the common tansy seed accumulation in the soil would be unfavorable to the cultivation of annual arable crops, again reducing the yield of agricultural products (grains, tubers, etc.) and possibly also their quality. Hence, a higher input of labor energy and resources would be required to cope with common tansy in subsequent years.
In this study, it was not possible to carry out different weed management strategies. In the future, it should be investigated whether, for example, the preparation of a false seedbed [49] (seedbed preparation followed by another seedbed preparation a few weeks later) in combination with a later sowing date of maize would lead to a reduction in the spread of the common tansy. Any additional costs for further tillage could then be compensated by a higher biomass yield of maize (and a better biogas substrate quality), which would be enabled by the lower competitive pressure from common tansy (Figure 6a). More weed-competitive crops, such as fiber hemp [50] or sunflower, could also be tested instead of maize, provided that common tansy does not impede the harvesting procedure, for example, by further reducing the working speed of the harvester, which is already low in the case of sunflower cultivation (5 km/h) [51].
Furthermore, the regrowth from the second year of WPM cultivation also deserves a closer look. This is because it was shown in the spring of 2022 that common tansy germinated in winter wheat (which followed the silage maize cultivation in 2021) (Figure 7a,b) and could perhaps cause a certain reduction in the grain yield of the winter wheat. Here, the use of living mulch could be worth trying as Hiltbrunner et al. [52] found that living mulch, i.e., a mixture of white clover (Trifolium repens L.), subterranean clover (Trifolium subterraneum L.) and birdsfoot trefoil (Lotus corniculatus L.), helped to control dicotyledonous weeds in an organic farming system.
In non-organic farming systems that allow the use of synthetic–chemical pesticides, it would make sense to test the use of herbicides. In winter cereals, for example, there are a number of herbicides that have a broad spectrum of activity against dicotyledonous weeds [53]. However, conventional non-organic farming systems were not considered in this study as the trend in the future is more likely to be toward farming systems in which the use of at least synthetic–chemical pesticides is prohibited, such as organic farming or mineral-ecological farming [54].

5. Conclusions

The preliminary results of this study showed that the regrowth of common tansy has the potential to notably reduce the biomass yield and quality of silage maize in an organic farming system. Therefore, it is a very important topic that needs to be dealt with in more comprehensive studies (e.g., large-scale field trials) in the future. Two possible solutions were identified as needing to be addressed: (i) making the best use of the substrate mixture of maize and the common tansy, e.g., in biogas production, and (ii) increasing the weeding intensity so as to decrease the share of the total biomass of common tansy as much as possible. Other utilization pathways that are linked with a winter harvest, such as combustion or bioethanol production, would not make any sense for arable crops. Thus, in order to reintroduce an organic crop rotation of annual arable crops, there is probably no way around yield and quality losses due to the regrowth of certain wild plant species, such as the common tansy, in the first year.
It remains to be seen how low-intensity tillage approaches could also effectively help to reduce the regrowth of WPMs. This would be important in terms of reducing the mineralization of the soil carbon stocks that build up over the years by WPMs. Thus, the lower the tillage intensity (when removing WPMs), the better the climate change mitigation effects of WPM cultivation. This would add up to a wide range of beneficial ecosystem functions being caused by successful WPM cultivation and enable more sustainable biomass production that is not only biodiversity friendly but also contributes to climate change mitigation. The more knowledge that can be gained about this issue of the reintegration of arable crops after WPM cultivation, the greater the likelihood that (i) farmers will choose to cultivate WPMs and (ii) the corresponding agricultural policy regulations will be better adapted, for example, with regard to the duration, amount and framework conditions of the support measures.

Funding

This research was partially funded by the German Federal Ministry of Education and Research (BMBF) under the “BioProFi” framework (project: “GOBi”; project number: 03EK3525A) and the University of Hohenheim.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data are provided in the study.

Acknowledgments

The author is grateful to the staff of the University of Hohenheim’s Agricultural Experiment Station for providing technical support in the field trials and to Robin Treter, Thomas Ruopp and Simon Schäfer for their assistance with the field, laboratory and preparatory work. Special thanks are due to Iris Lewandowski and Ulrich Thumm who made this research possible in the first place.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Schneider, J.M.; Zabel, F.; Schünemann, F.; Delzeit, R.; Mauser, W. Global Cropland Could Be Almost Halved: Assessment of Land Saving Potentials under Different Strategies and Implications for Agricultural Markets. PLoS ONE 2022, 17, e0263063. [Google Scholar] [CrossRef] [PubMed]
  2. Tollefson, J. What the War in Ukraine Means for Energy, Climate and Food. Nature 2022, 604, 232–233. [Google Scholar] [CrossRef] [PubMed]
  3. Rodias, E.; Aivazidou, E.; Achillas, C.; Aidonis, D.; Bochtis, D. Water-Energy-Nutrients Synergies in the Agrifood Sector: A Circular Economy Framework. Energies 2021, 14, 159. [Google Scholar] [CrossRef]
  4. Ben Fradj, N.; Rozakis, S.; Borzęcka, M.; Matyka, M. Miscanthus in the European Bio-Economy: A Network Analysis. Ind. Crops Prod. 2020, 148, 112281. [Google Scholar] [CrossRef]
  5. Di Nassi o Nasso, N.; Roncucci, N.; Bonari, E. Seasonal Dynamics of Aboveground and Belowground Biomass and Nutrient Accumulation and Remobilization in Giant Reed (Arundo donax L.): A Three-Year Study on Marginal Land. BioEnergy Res. 2013, 6, 725–736. [Google Scholar] [CrossRef]
  6. Gerwin, W.; Repmann, F.; Galatsidas, S.; Vlachaki, D.; Gounaris, N.; Baumgarten, W.; Volkmann, C.; Keramitzis, D.; Kiourtsis, F.; Freese, D. Assessment and Quantification of Marginal Lands for Biomass Production in Europe Using Soil-Quality Indicators. Soil 2018, 4, 267–290. [Google Scholar] [CrossRef] [Green Version]
  7. Ramirez-Almeyda, J.; Elbersen, B.; Monti, A.; Staritsky, I.; Panoutsou, C.; Alexopoulou, E.; Schrijver, R.; Elbersen, W. Assessing the Potentials for Nonfood Crops. In Modeling and Optimization of Biomass Supply Chains; Elsevier: Amsterdam, The Netherlands, 2017; pp. 219–251. [Google Scholar]
  8. Heaton, E.A.; Dohleman, F.G.; Long, S.P. Meeting US Biofuel Goals with Less Land: The Potential of Miscanthus. Glob. Chang. Biol. 2008, 14, 2000–2014. [Google Scholar] [CrossRef]
  9. Studt, J.E.; McDaniel, M.D.; Tejera, M.D.; VanLoocke, A.; Howe, A.; Heaton, E.A. Soil Net Nitrogen Mineralization and Leaching under Miscanthus × giganteus and Zea mays. GCB Bioenergy 2021, 13, 1545–1560. [Google Scholar] [CrossRef]
  10. Von Cossel, M.; Winkler, B.; Mangold, A.; Lask, J.; Wagner, M.; Lewandowski, I.; Elbersen, B.; van Eupen, M.; Mantel, S.; Kiesel, A. Bridging the Gap between Biofuels and Biodiversity through Monetizing Environmental Services of Miscanthus Cultivation. Earth’s Future 2020, 8, e2020EF001478. [Google Scholar] [CrossRef]
  11. Chen, J.; Lærke, P.E.; Jørgensen, U. Land Conversion from Annual to Perennial Crops: A Win-Win Strategy for Biomass Yield and Soil Organic Carbon and Total Nitrogen Sequestration. Agric. Ecosyst. Environ. 2022, 330, 107907. [Google Scholar] [CrossRef]
  12. de Groot, R.; Brander, L.; van der Ploeg, S.; Costanza, R.; Bernard, F.; Braat, L.; Christie, M.; Crossman, N.; Ghermandi, A.; Hein, L.; et al. Global Estimates of the Value of Ecosystems and Their Services in Monetary Units. Ecosyst. Serv. 2012, 1, 50–61. [Google Scholar] [CrossRef]
  13. Krzyżaniak, M.; Stolarski, M.J.; Szczukowski, S.; Tworkowski, J.; Bieniek, A.; Mleczek, M. Willow Biomass Obtained from Different Soils as a Feedstock for Energy. Ind. Crops Prod. 2015, 75, 114–121. [Google Scholar] [CrossRef]
  14. Stolarski, M.J.; Krzyżaniak, M.; Załuski, D.; Tworkowski, J.; Szczukowski, S. Effects of Site, Genotype and Subsequent Harvest Rotation on Willow Productivity. Agriculture 2020, 10, 412. [Google Scholar] [CrossRef]
  15. Wagner, M.; Mangold, A.; Lask, J.; Petig, E.; Kiesel, A.; Lewandowski, I. Economic and Environmental Performance of Miscanthus Cultivated on Marginal Land for Biogas Production. GCB Bioenergy 2019, 11, 34–49. [Google Scholar] [CrossRef] [Green Version]
  16. Winkler, B.; Mangold, A.; Von Cossel, M.; Clifton-Brown, J.; Pogrzeba, M.; Lewandowski, I.; Iqbal, Y.; Kiesel, A. Implementing Miscanthus into Farming Systems: A Review of Agronomic Practices, Capital and Labour Demand. Renew. Sustain. Energy Rev. 2020, 132, 110053. [Google Scholar] [CrossRef]
  17. Cumplido-Marin, L.; Graves, A.R.; Burgess, P.J.; Morhart, C.; Paris, P.; Jablonowski, N.D.; Facciotto, G.; Bury, M.; Martens, R.; Nahm, M. Two Novel Energy Crops: Sida hermaphrodita (L.) Rusby and Silphium perfoliatum L.—State of Knowledge. Agronomy 2020, 10, 928. [Google Scholar] [CrossRef]
  18. Jablonowski, N.D.; Kollmann, T.; Nabel, M.; Damm, T.; Klose, H.; Müller, M.; Bläsing, M.; Seebold, S.; Krafft, S.; Kuperjans, I.; et al. Valorization of Sida (Sida hermaphrodita) Biomass for Multiple Energy Purposes. GCB Bioenergy 2017, 9, 202–214. [Google Scholar] [CrossRef] [Green Version]
  19. Elbersen, H.W.; Christian, D.G.; El Bassam, N.; Alexopoulou, E.; Pignatelli, V.; Van Den Berg, D. Switchgrass (Panicum virgatum L.) As an Alternative Energy Crop in Europe: Initiation of a Productivity Network. Final Report FAIR. 2001. Available online: https://www.switchgrass.nl/upload_mm/3/0/6/a0982a5d-bb01-4054-92bc-d7ba96c8fa7a_Elbersen%20et%20al%202003.%20Final%20report%20Eu%20switchgrass%20project.pdf (accessed on 14 June 2022).
  20. Alexopoulou, E.; Zanetti, F.; Scordia, D.; Zegada-Lizarazu, W.; Christou, M.; Testa, G.; Cosentino, S.L.; Monti, A. Long-Term Yields of Switchgrass, Giant Reed, and Miscanthus in the Mediterranean Basin. Bioenergy Res. 2015, 8, 1492–1499. [Google Scholar] [CrossRef]
  21. Von Cossel, M.; Amarysti, C.; Wilhelm, H.; Priya, N.; Winkler, B.; Hoerner, L. The Replacement of Maize (Zea Mays L.) by Cup Plant (Silphium perfoliatum L.) as Biogas Substrate and Its Implications for the Energy and Material Flows of a Large Biogas Plant. Biofuels Bioprod. Biorefining 2020, 14, 152–179. [Google Scholar] [CrossRef] [Green Version]
  22. Gansberger, M.; Montgomery, L.F.R.; Liebhard, P. Botanical Characteristics, Crop Management and Potential of Silphium perfoliatum L. as a Renewable Resource for Biogas Production: A Review. Ind. Crops Prod. 2015, 63, 362–372. [Google Scholar] [CrossRef]
  23. Janusch, C.; Lewin, E.F.; Battaglia, M.L.; Rezaei-Chiyaneh, E.; Von Cossel, M. Flower-Power in the Bioenergy Sector—A Review on Second Generation Biofuel from Perennial Wild Plant Mixtures. Renew. Sustain. Energy Rev. 2021, 147, 111257. [Google Scholar] [CrossRef]
  24. Von Cossel, M. Renewable Energy from Wildflowers—Perennial Wild Plant Mixtures as a Social-Ecologically Sustainable Biomass Supply System. Adv. Sustain. Syst. 2020, 4, 2000037. [Google Scholar] [CrossRef]
  25. Krimmer, E.; Marzini, K.; Heidinger, I. Wild plant mixtures for biogas: Promoting biodiversity in a production-integrated manner—Practical trials for ecological enhancement of the landscape. Nat. Landsch. 2021, 2, 12–21. [Google Scholar] [CrossRef]
  26. Netzwerk Lebenraum Feldflur Förderperiode 2014–2020: AUKMs der Länder › Lebensraum-Feldflur.de. 2019. Available online: https://www.energie-aus-wildpflanzen.de/politik/foerderperiode-2014-2020-aukms-der-laender/ (accessed on 14 June 2022).
  27. Vollrath, B.; Werner, A.; Degenbeck, M.; Illies, I.; Zeller, J.; Marzini, K. Energetische Verwertung von Kräuterreichen Ansaaten in der Agrarlandschaft und im Siedlungsbereich—Eine Ökologische und Wirtschaftliche Alternative bei der Biogasproduktion; Energie aus Wildpflanzen; Bayerische Landesanstalt für Weinbau und Gartenbau: Veitshöchheim, Germany, 2012; p. 207. [Google Scholar]
  28. von Cossel, M.; Pereira, L.A.; Lewandowski, I. Deciphering Substrate-Specific Methane Yields of Perennial Herbaceous Wild Plant Species. Agronomy 2021, 11, 451. [Google Scholar] [CrossRef]
  29. Von Cossel, M.; Steberl, K.; Hartung, J.; Agra Pereira, L.; Kiesel, A.; Lewandowski, I. Methane Yield and Species Diversity Dynamics of Perennial Wild Plant Mixtures Established Alone, under Cover Crop Maize (Zea mays L.) and after Spring Barley (Hordeum vulgare L.). GCB Bioenergy 2019, 11, 1376–1391. [Google Scholar] [CrossRef] [Green Version]
  30. Kazimierowicz, J.; Dzienis, L. Giant Miscanthus as a Substrate for Biogas Production. J. Ecol. Eng. 2015, 16, 139–142. [Google Scholar] [CrossRef]
  31. Zieliński, M.; Kisielewska, M.; Dudek, M.; Rusanowska, P.; Nowicka, A.; Krzemieniewski, M.; Kazimierowicz, J.; Dębowski, M. Comparison of Microwave Thermohydrolysis and Liquid Hot Water Pretreatment of Energy Crop Sida Hermaphrodita for Enhanced Methane Production. Biomass Bioenergy 2019, 128, 105324. [Google Scholar] [CrossRef]
  32. Von Cossel, M.; Lewandowski, I. Perennial Wild Plant Mixtures for Biomass Production: Impact of Species Composition Dynamics on Yield Performance over a Five-Year Cultivation Period in Southwest Germany. Eur. J. Agron. 2016, 79, 74–89. [Google Scholar] [CrossRef]
  33. Fürst-Preiß, C.; Von Cossel, M. Biodiversity-Friendly Bioenergy—A Closer Look on Farmer’s Experiences with Perennial Wild Plant Mixture Cultivation for Biogas Production. In Biodiversity and Bioeconomy; Elsevier: Amsterdam, The Netherlands, under review.
  34. Paltrinieri, S.; Schmidt, J. Wildpflanzen statt Mais für Biogas—Was beeinflusst die Akzeptanz dieser biodiversitätsfördernden Anbaualternative? Nat. Landsch. 2020, 52. Available online: https://www.nul-online.de/Themen/Erneuerbare-Energien/Wildpflanzen-statt-Mais-fuer-Biogas,QUlEPTY3MzE5MTYmTUlEPTE5Mjg2Ng.html (accessed on 14 June 2022).
  35. Mangold, A.; Lewandowski, I.; Kiesel, A. How Can Miscanthus Fields Be Reintegrated into a Crop Rotation? GCB Bioenergy 2019, 11, 1348–1360. [Google Scholar] [CrossRef]
  36. Metzger, M.J.; Bunce, R.G.H.; Jongman, R.H.; Mücher, C.A.; Watkins, J.W. A Climatic Stratification of the Environment of Europe. Glob. Ecol. Biogeogr. 2005, 14, 549–563. [Google Scholar] [CrossRef]
  37. Kenward, M.G.; Roger, J.H. Small Sample Inference for Fixed Effects from Restricted Maximum Likelihood. Biometrics 1997, 53, 983–997. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Piepho, H.-P. An Algorithm for a Letter-Based Representation of All-Pairwise Comparisons. J. Comput. Graph. Stat. 2004, 13, 456–466. [Google Scholar] [CrossRef]
  39. Knörzer, H.; Hartung, K.; Piepho, H.-P.; Lewandowski, I. Assessment of Variability in Biomass Yield and Quality: What Is an Adequate Size of Sampling Area for Miscanthus? GCB Bioenergy 2013, 5, 572–579. [Google Scholar] [CrossRef]
  40. Iqbal, Y.; Steberl, K.; Hartung, K.; Lewandowski, I. Optimal Sampling Area Determination for Willow by Evaluating Variability in Yield and Quality. Ind. Crops Prod. 2019, 134, 265–270. [Google Scholar] [CrossRef]
  41. Messner, J.; Jilg, T.; Wurth, W. Konservierungseigenschaften und Gaserträge von Wildpflanzenmischungen. Presented at the Biogas aus Wildpflanzen-Chancen und Herausforderungen Mehrjähriger Wildpflanzenmischungen zur Biogasnutzung aus Sicht der Forschung und Praxis, Hohenheim, Germany, 12 March 2019; Available online: https://baden-wuerttemberg.nabu.de/imperia/md/content/badenwuerttemberg/vortraege/messner_wildpflanzen_konservierung_gasertr__ge_messner_12.03.2019.pdf (accessed on 15 June 2022).
  42. Mlonka-Mędrala, A.; Magdziarz, A.; Gajek, M.; Nowińska, K.; Nowak, W. Alkali Metals Association in Biomass and Their Impact on Ash Melting Behaviour. Fuel 2020, 261, 116421. [Google Scholar] [CrossRef]
  43. Hedayati, A.; Lindgren, R.; Skoglund, N.; Boman, C.; Kienzl, N.; Öhman, M. Ash Transformation during Single-Pellet Combustion of Agricultural Biomass with a Focus on Potassium and Phosphorus. Energy Fuels 2021, 35, 1449–1464. [Google Scholar] [CrossRef]
  44. Von Cossel, M.; Lebendig, F.; Müller, M.; Hieber, C.; Iqbal, Y.; Cohnen, J.; Jablonowski, N.D. Comparison of Thermochemical Conversion and Anaerobic Digestion of Perennial Flower-Rich Herbaceous Wild Plant Species for Bioenergy Production. Bioresour. Technol. 2021, 340, 125724. [Google Scholar] [CrossRef]
  45. Steffan-Dewenter, I.; Münzenberg, U.; Bürger, C.; Thies, C.; Tscharntke, T. Scale-Dependent Effects of Landscape Context on Three Pollinator Guilds. Ecology 2002, 83, 1421–1432. [Google Scholar] [CrossRef]
  46. Filipiak, M. Key Pollen Host Plants Provide Balanced Diets for Wild Bee Larvae: A Lesson for Planting Flower Strips and Hedgerows. J. Appl. Ecol. 2019, 56, 1410–1418. [Google Scholar] [CrossRef]
  47. Frank, T.; Aeschbacher, S.; Zaller, J.G. Habitat Age Affects Beetle Diversity in Wildflower Areas. Agric. Ecosyst. Environ. 2012, 152, 21–26. [Google Scholar] [CrossRef]
  48. Hellwig, N.; Schubert, L.F.; Kirmer, A.; Tischew, S.; Dieker, P. Effects of Wildflower Strips, Landscape Structure and Agricultural Practices on Wild Bee Assemblages—A Matter of Data Resolution and Spatial Scale? Agric. Ecosyst. Environ. 2022, 326, 107764. [Google Scholar] [CrossRef]
  49. Rasmussen, I.A. The Effect of Sowing Date, Stale Seedbed, Row Width and Mechanical Weed Control on Weeds and Yields of Organic Winter Wheat. Weed Res. 2004, 44, 12–20. [Google Scholar] [CrossRef]
  50. Parvez, A.M.; Lewis, J.D.; Afzal, M.T. Potential of Industrial Hemp (Cannabis sativa L.) for Bioenergy Production in Canada: Status, Challenges and Outlook. Renew. Sustain. Energy Rev. 2021, 141, 110784. [Google Scholar] [CrossRef]
  51. Pari, L.; Latterini, F.; Stefanoni, W. Herbaceous Oil Crops, a Review on Mechanical Harvesting State of the Art. Agriculture 2020, 10, 309. [Google Scholar] [CrossRef]
  52. Hiltbrunner, J.; Liedgens, M.; Bloch, L.; Stamp, P.; Streit, B. Legume Cover Crops as Living Mulches for Winter Wheat: Components of Biomass and the Control of Weeds. Eur. J. Agron. 2007, 26, 21–29. [Google Scholar] [CrossRef]
  53. BVL Suchbegriffe: Ackerbau; Herbizid; Kreuzkraut-Arten. Available online: https://apps2.bvl.bund.de/psm/jsp/ListeMain.jsp?page=1&ts=1650612031273 (accessed on 22 April 2022).
  54. Zimmermann, B.; Claß-Mahler, I.; von Cossel, M.; Lewandowski, I.; Weik, J.; Spiller, A.; Nitzko, S.; Lippert, C.; Krimly, T.; Pergner, I.; et al. Mineral-Ecological Cropping Systems—A New Approach to Improve Ecosystem Services by Farming without Chemical Synthetic Plant Protection. Agronomy 2021, 11, 1710. [Google Scholar] [CrossRef]
Energies 15 04380 g001 550

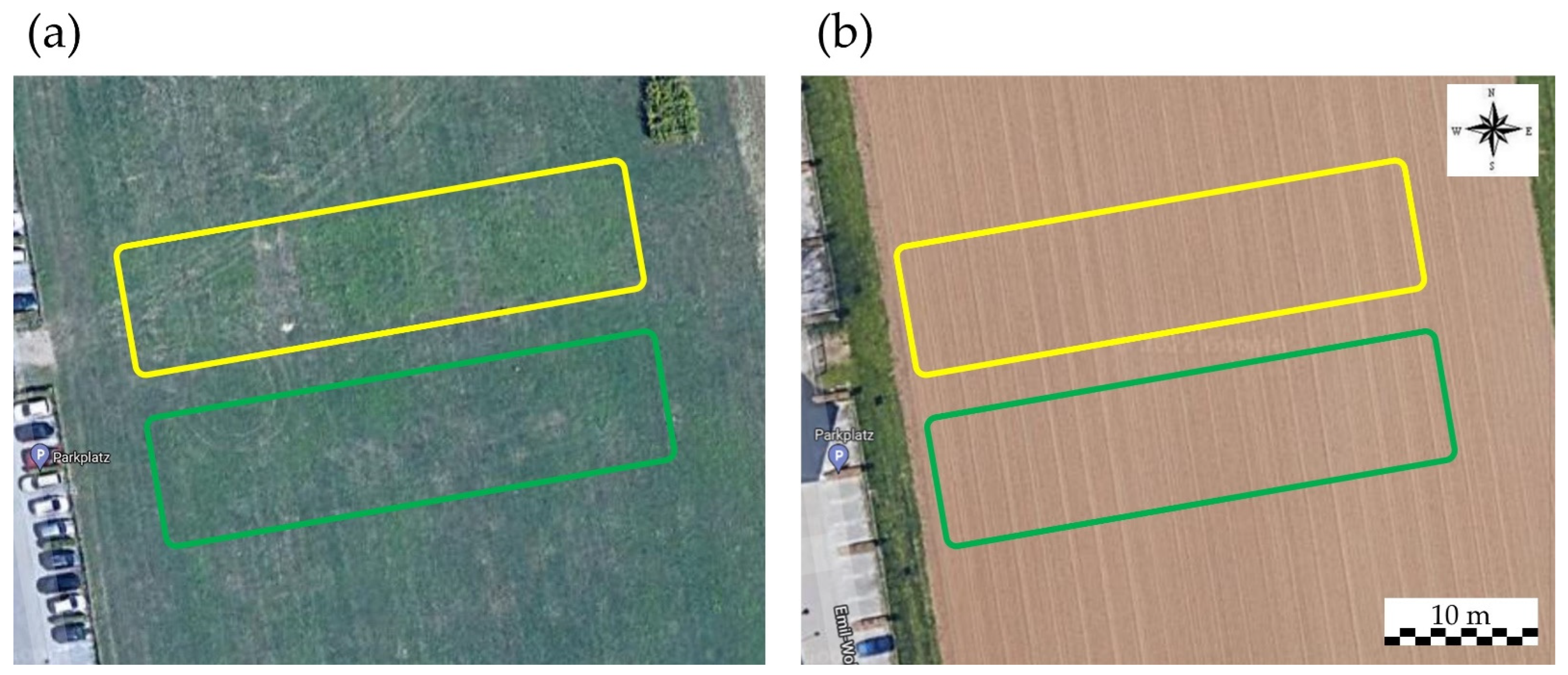

Figure 1. Satellite images (Maps Data: Google, © 2022 GeoBasis-DE/BKG) of the preliminary field experiment that was carried out in this study. One image was taken before the field was ploughed in the spring of 2021 (a) and one was taken in the winter of 2021–2022, when winter wheat was sown but was not yet visible from space (b). The yellow frame indicates the area in which wild plant mixtures were grown during the years of 2013 to 2018 and the green frame indicates the area from which the maize control samples were taken in September 2021.
Figure 1. Satellite images (Maps Data: Google, © 2022 GeoBasis-DE/BKG) of the preliminary field experiment that was carried out in this study. One image was taken before the field was ploughed in the spring of 2021 (a) and one was taken in the winter of 2021–2022, when winter wheat was sown but was not yet visible from space (b). The yellow frame indicates the area in which wild plant mixtures were grown during the years of 2013 to 2018 and the green frame indicates the area from which the maize control samples were taken in September 2021.
Energies 15 04380 g001
Energies 15 04380 g002 550

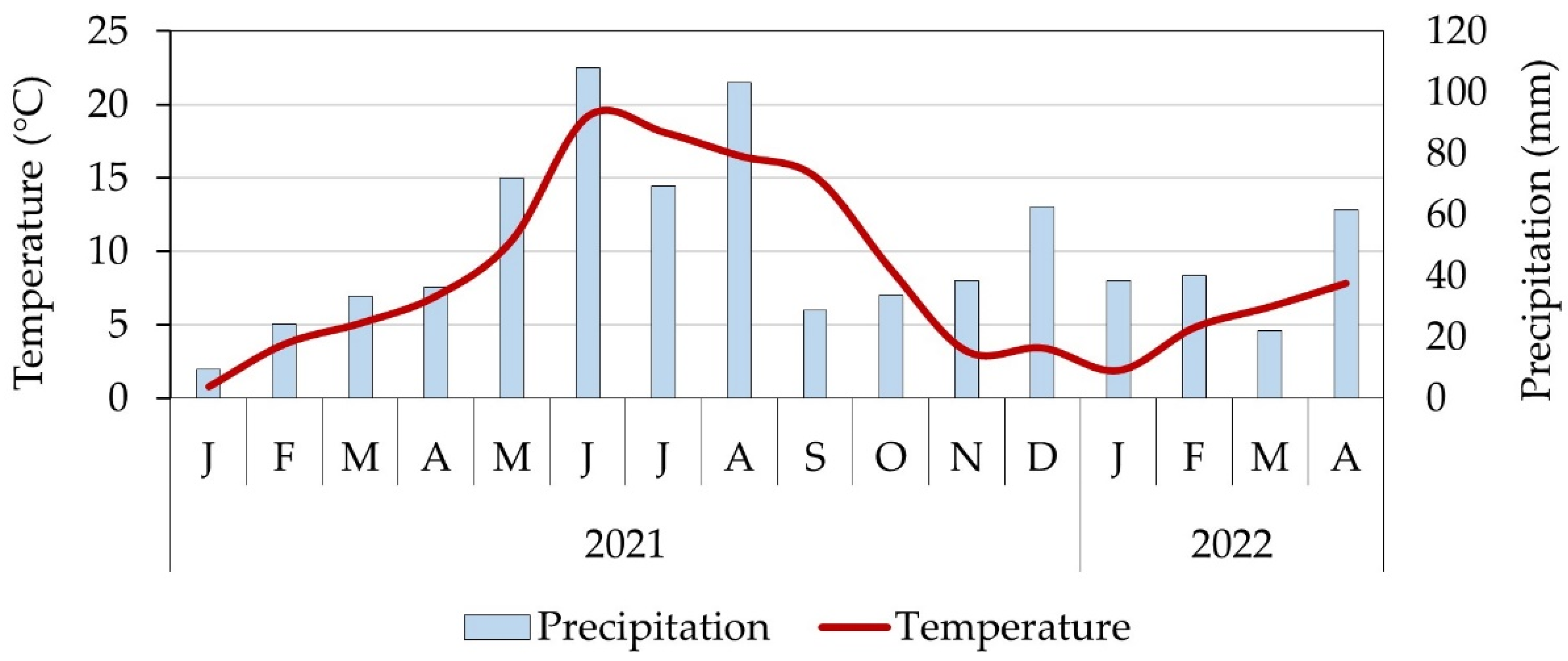

Figure 2. The monthly average temperature and precipitation at the experimental site in Hohenheim.
Figure 2. The monthly average temperature and precipitation at the experimental site in Hohenheim.
Energies 15 04380 g002
Energies 15 04380 g003 550

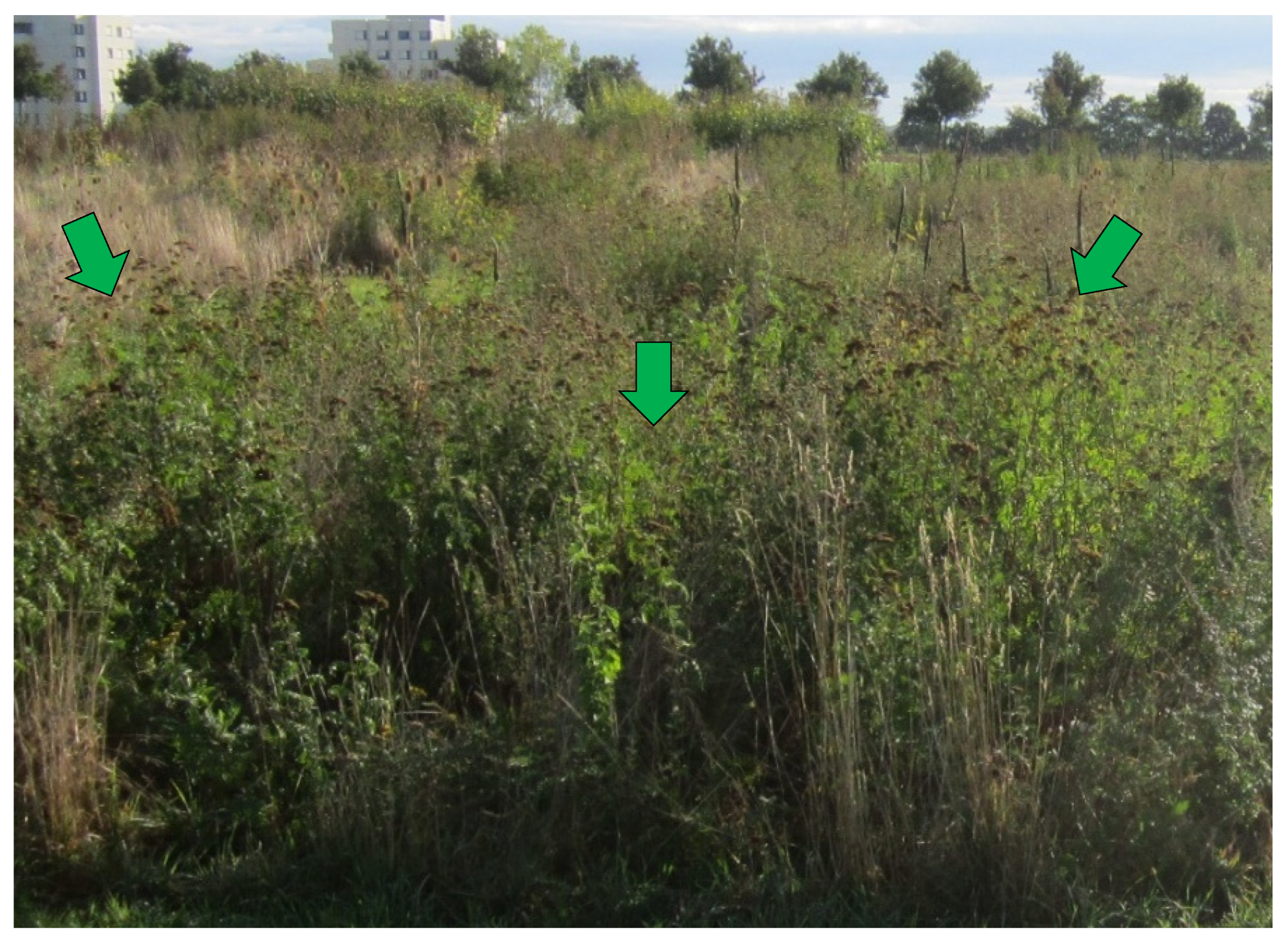

Figure 3. An overview of the WPM plant stand at harvest in 2015. The arrows indicate examples of individuals of common tansy, which dominated the plant stand.
Figure 3. An overview of the WPM plant stand at harvest in 2015. The arrows indicate examples of individuals of common tansy, which dominated the plant stand.
Energies 15 04380 g003
Energies 15 04380 g004 550

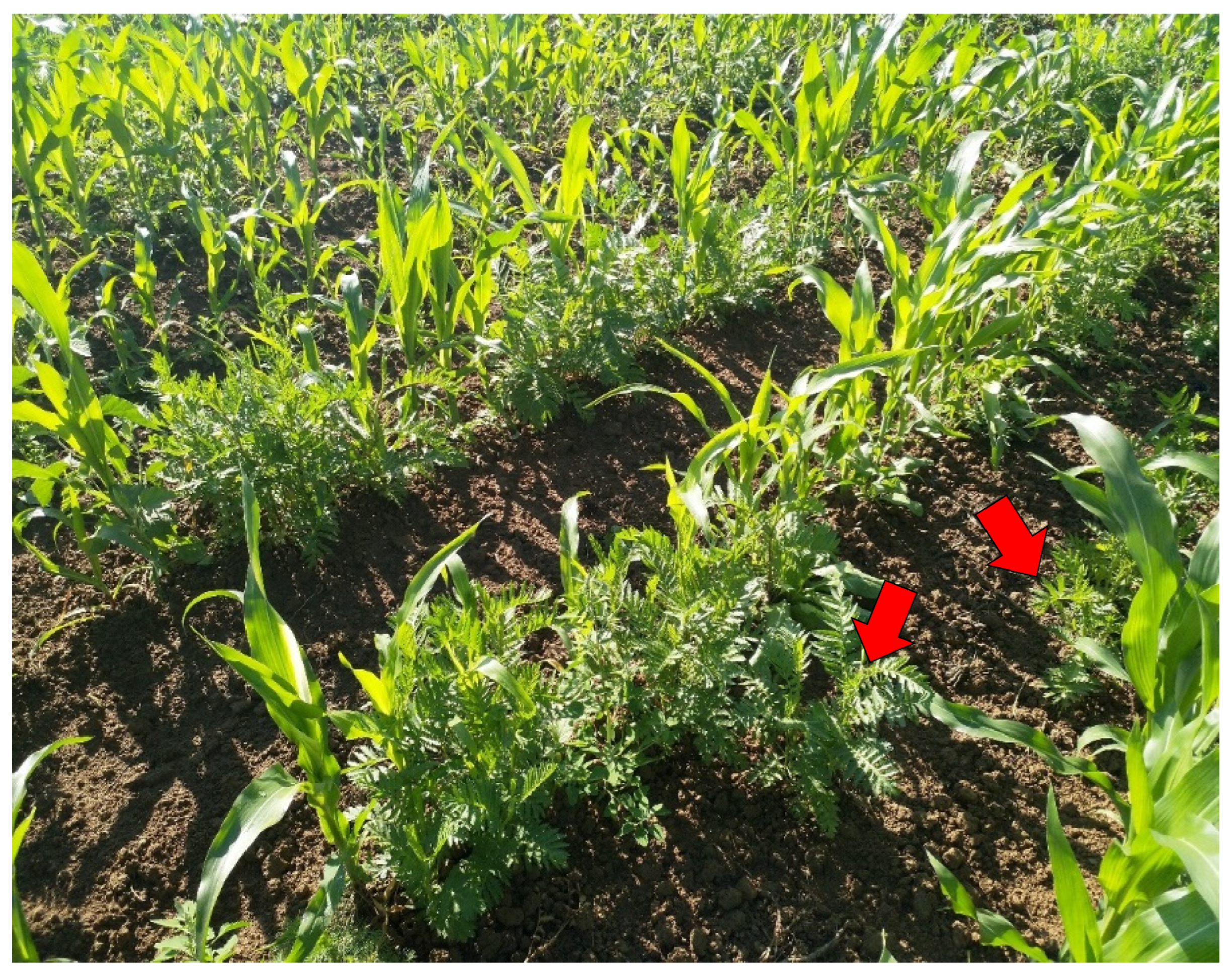

Figure 4. An impression of the maize plant stand within the treatment area “after wild plant cultivation”, two days after the mechanical weeding was carried out (21 June 2021). While most of the common tansy plants and the other non-target species between the maize rows were destroyed, a few common tansy individuals survived (red arrows).
Figure 4. An impression of the maize plant stand within the treatment area “after wild plant cultivation”, two days after the mechanical weeding was carried out (21 June 2021). While most of the common tansy plants and the other non-target species between the maize rows were destroyed, a few common tansy individuals survived (red arrows).
Energies 15 04380 g004
Energies 15 04380 g005 550

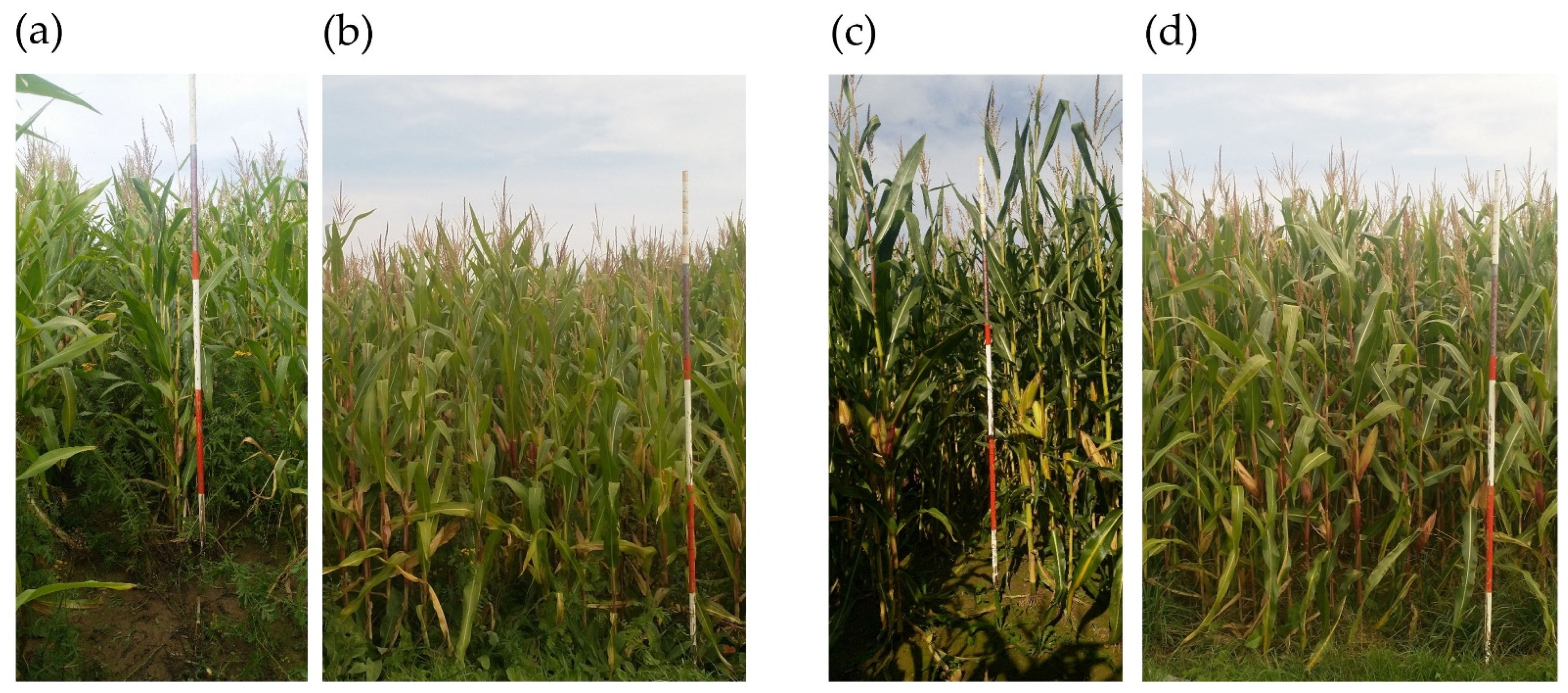

Figure 5. Impressions of the maize stands with (a,b) and without common tansy (c,d). For both treatments, views of inside the plant stand (a,c) and from the outside (b,d) are shown. One segment of the bar measures 0.5 m.
Figure 5. Impressions of the maize stands with (a,b) and without common tansy (c,d). For both treatments, views of inside the plant stand (a,c) and from the outside (b,d) are shown. One segment of the bar measures 0.5 m.
Energies 15 04380 g005
Energies 15 04380 g006 550

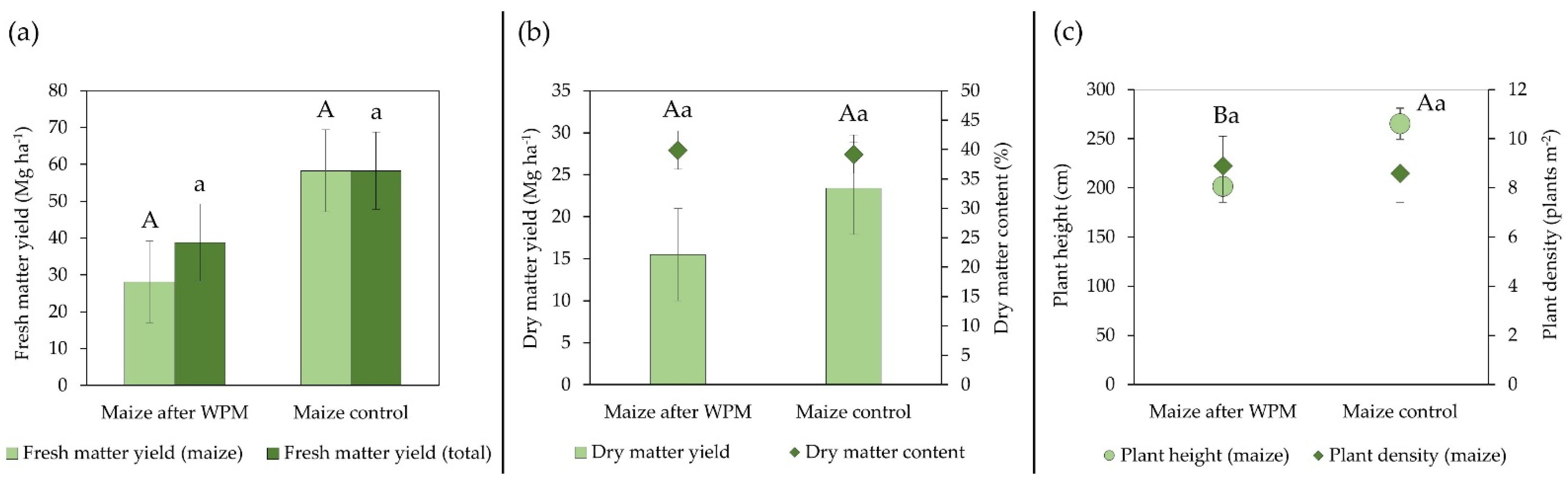

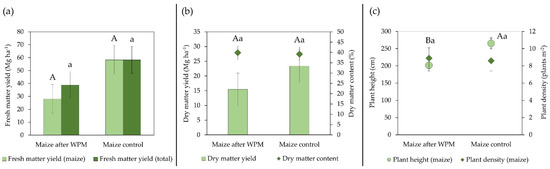

Figure 6. The results of the statistical analyses (estimates and standard errors) of the fresh matter yield components (a), total dry matter yield and dry matter content (b) and plant height and plant density (c) of the maize at harvest on 14 September 2021. “Maize after WPM” denotes the area where wild plant mixtures (WPMs) were grown during the years of 2013 to 2018. “Maize control” denotes the area that was cultivated with grassland (four-cut regime). Upper case letters denote significant (p < 0.05) differences between the treatments of fresh matter yield (maize) (a), total dry matter yield (b) and plant height (c). Lower case letters denote the other respective parameters shown in (a–c).
Figure 6. The results of the statistical analyses (estimates and standard errors) of the fresh matter yield components (a), total dry matter yield and dry matter content (b) and plant height and plant density (c) of the maize at harvest on 14 September 2021. “Maize after WPM” denotes the area where wild plant mixtures (WPMs) were grown during the years of 2013 to 2018. “Maize control” denotes the area that was cultivated with grassland (four-cut regime). Upper case letters denote significant (p < 0.05) differences between the treatments of fresh matter yield (maize) (a), total dry matter yield (b) and plant height (c). Lower case letters denote the other respective parameters shown in (a–c).
Energies 15 04380 g006
Energies 15 04380 g007 550

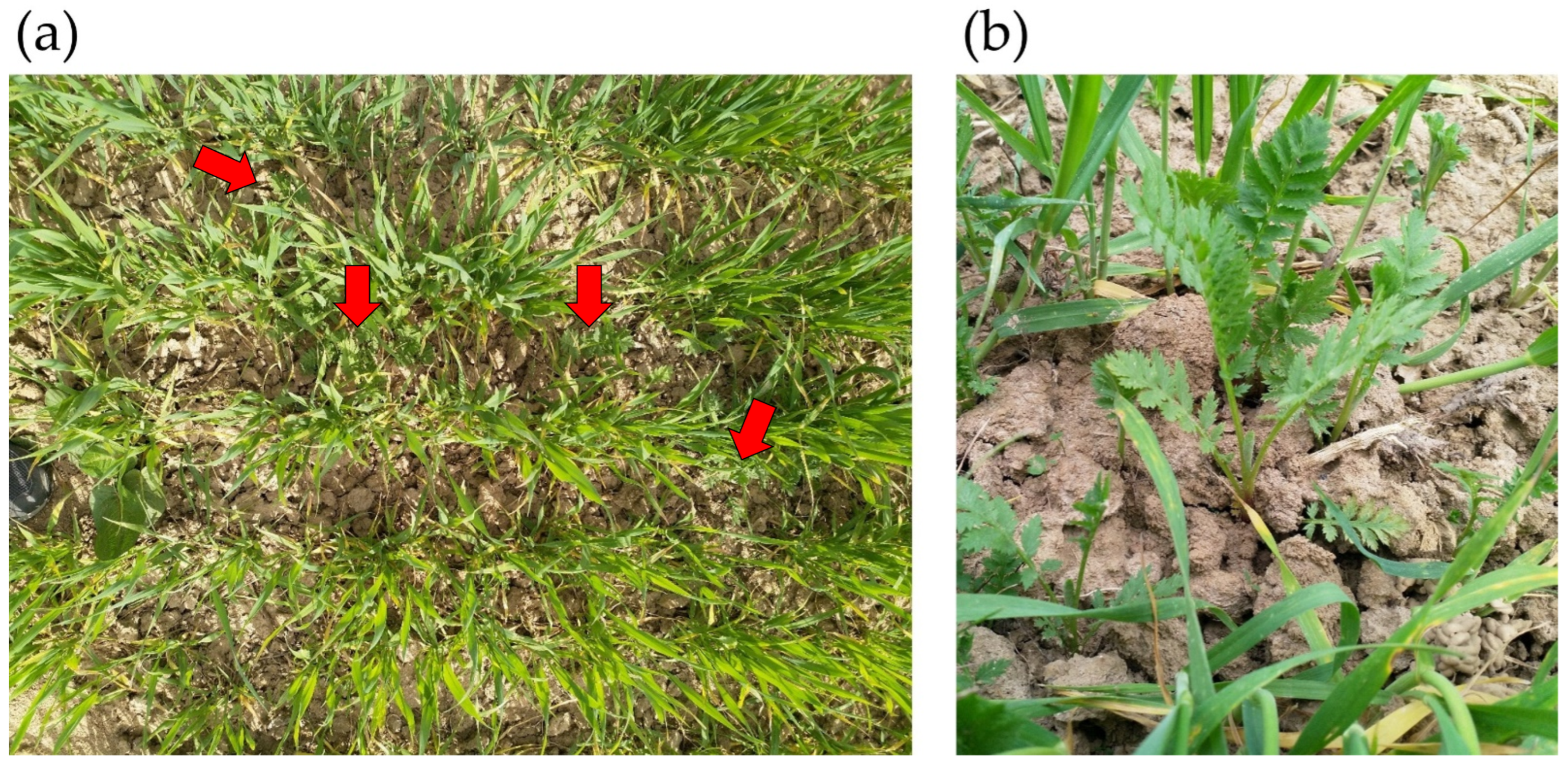

Figure 7. Observations of common tansy in winter wheat from above (a) (red arrows indicate a few individuals of the common tansy) and close-up (b). Photos were taken on 21 April 2022.
Figure 7. Observations of common tansy in winter wheat from above (a) (red arrows indicate a few individuals of the common tansy) and close-up (b). Photos were taken on 21 April 2022.
Energies 15 04380 g007
Table
Table 1. An overview of the morphological parameters of maize, common tansy and the total biomass per treatment. For each observation, the raw data, average values and standard deviations are shown.
Table 1. An overview of the morphological parameters of maize, common tansy and the total biomass per treatment. For each observation, the raw data, average values and standard deviations are shown.
TreatmentHeight (cm)Number of Stems per m2
Common TansyMaizeCommon TansyMaize
Maize Control 274 10.7
246 8.0
276 7.1
265.3 ± 13.7 8.6 ± 1.5
Maize After WPM12021828.48.0
12221028.49.8
11417660.48.9
118.7 ± 3.4201.3 ± 18.239.1 ± 15.18.9 ± 0.7
Table
Table 2. The raw data, average values and standard deviations of the fresh matter yields (FMYs) of common tansy and maize and the total biomass (maize + common tansy) per treatment. For the total biomass, the dry matter content (DMC) and dry matter yield (DMY) are also shown.
Table 2. The raw data, average values and standard deviations of the fresh matter yields (FMYs) of common tansy and maize and the total biomass (maize + common tansy) per treatment. For the total biomass, the dry matter content (DMC) and dry matter yield (DMY) are also shown.
TreatmentFMY (Mg ha−1)DMC (%)DMY (Mg ha−1)
Common TansyMaizeTotalTotalTotal
Maize Control 71.871.842.130.2
39.439.433.113.0
63.763.742.326.9
58.3 ± 13.758.3 ± 13.739.1 ± 4.323.4 ± 7.4
Maize After WPM8.636.845.440.718.5
9.629.238.937.614.6
13.818.232.041.413.3
10.7 ± 2.228.1 ± 7.638.8 ± 5.539.9 ± 1.615.5 ± 2.2
