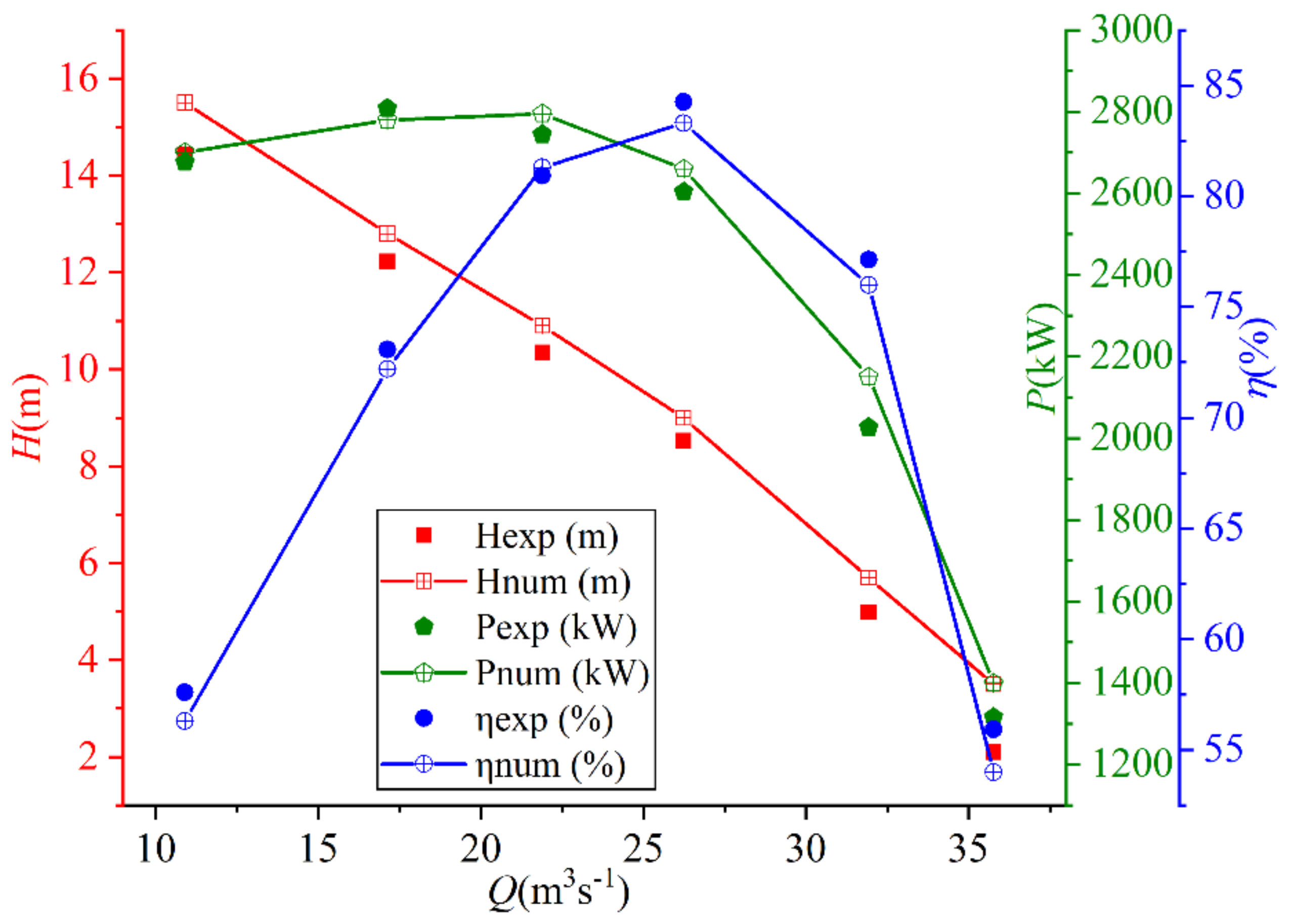

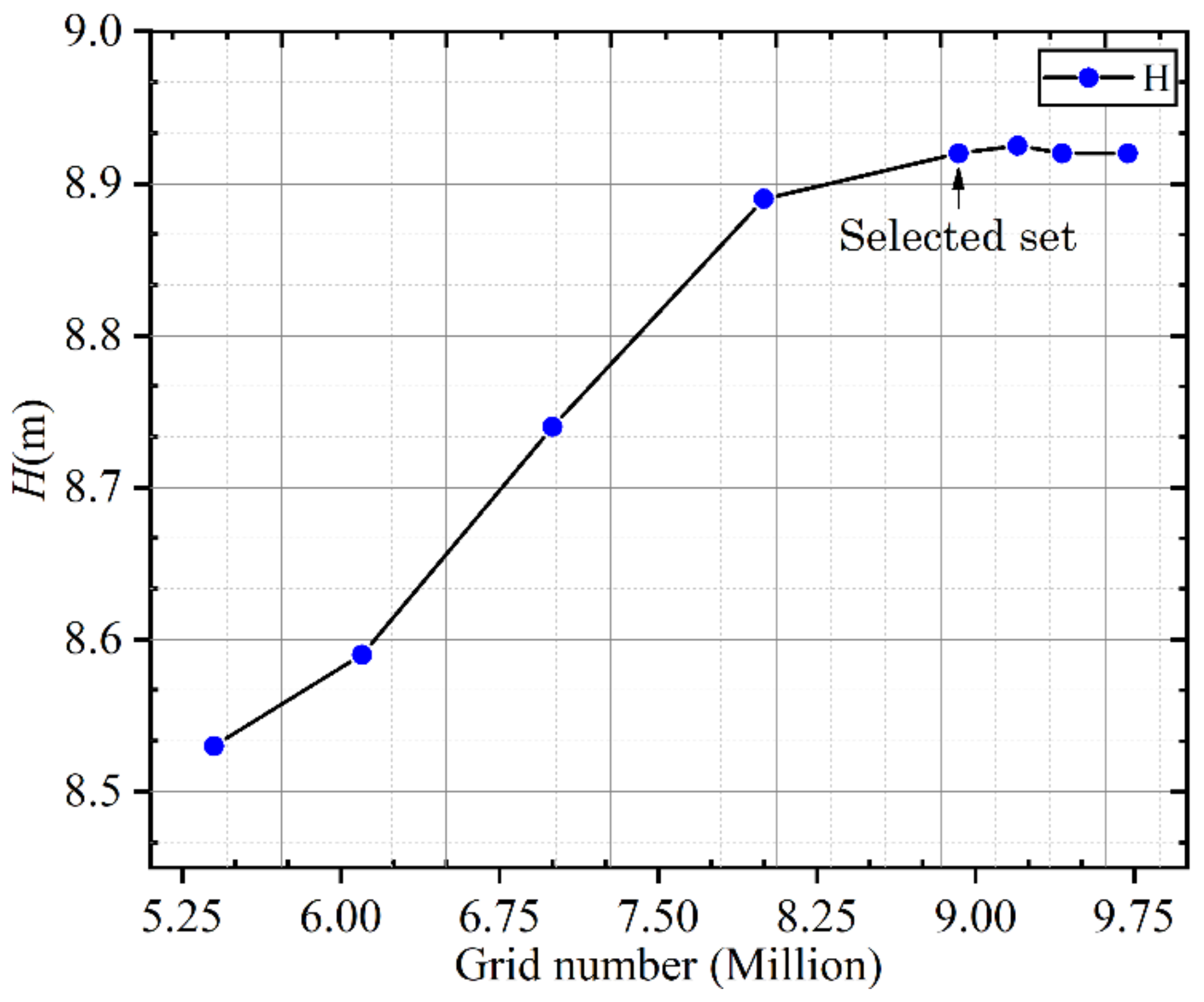

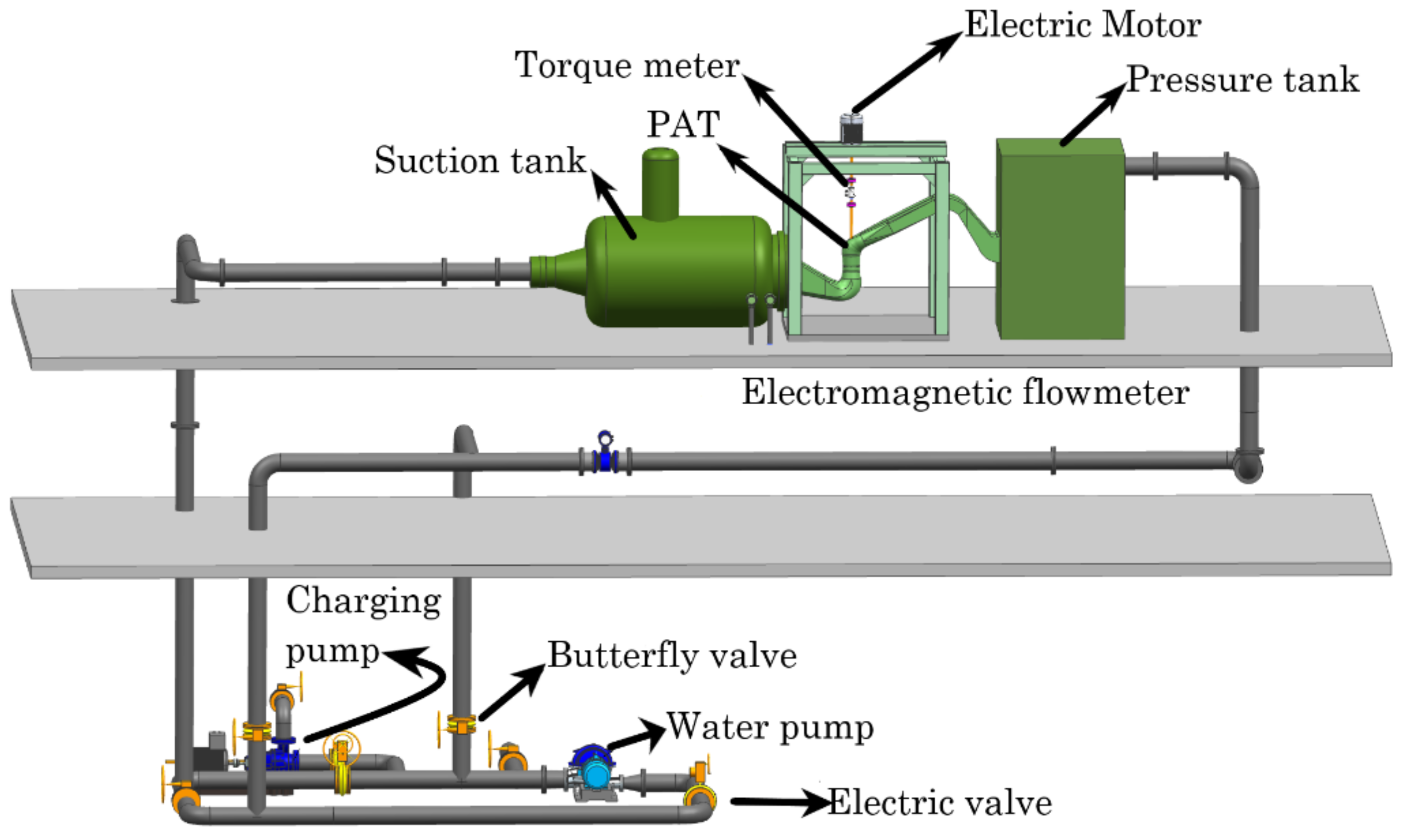

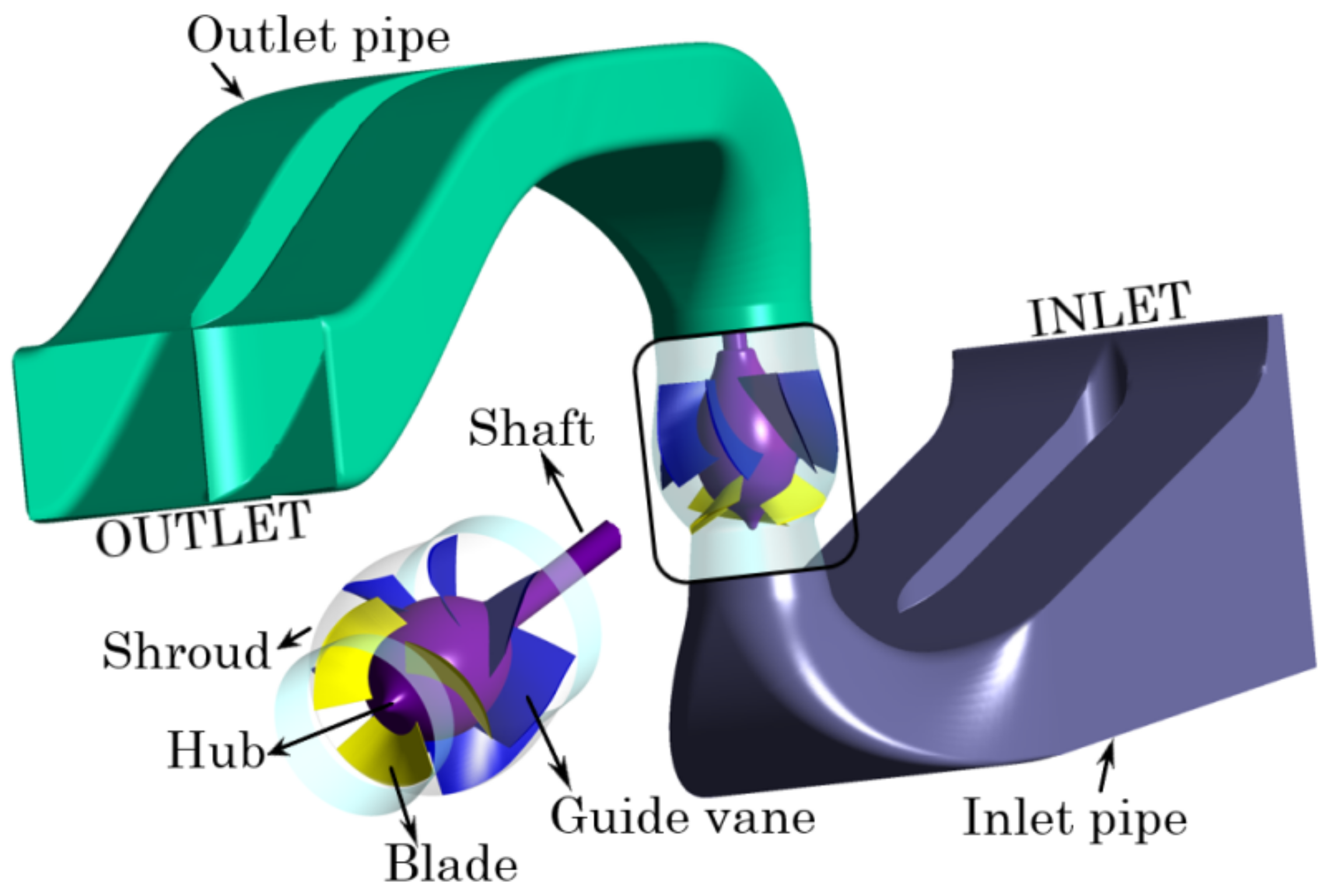

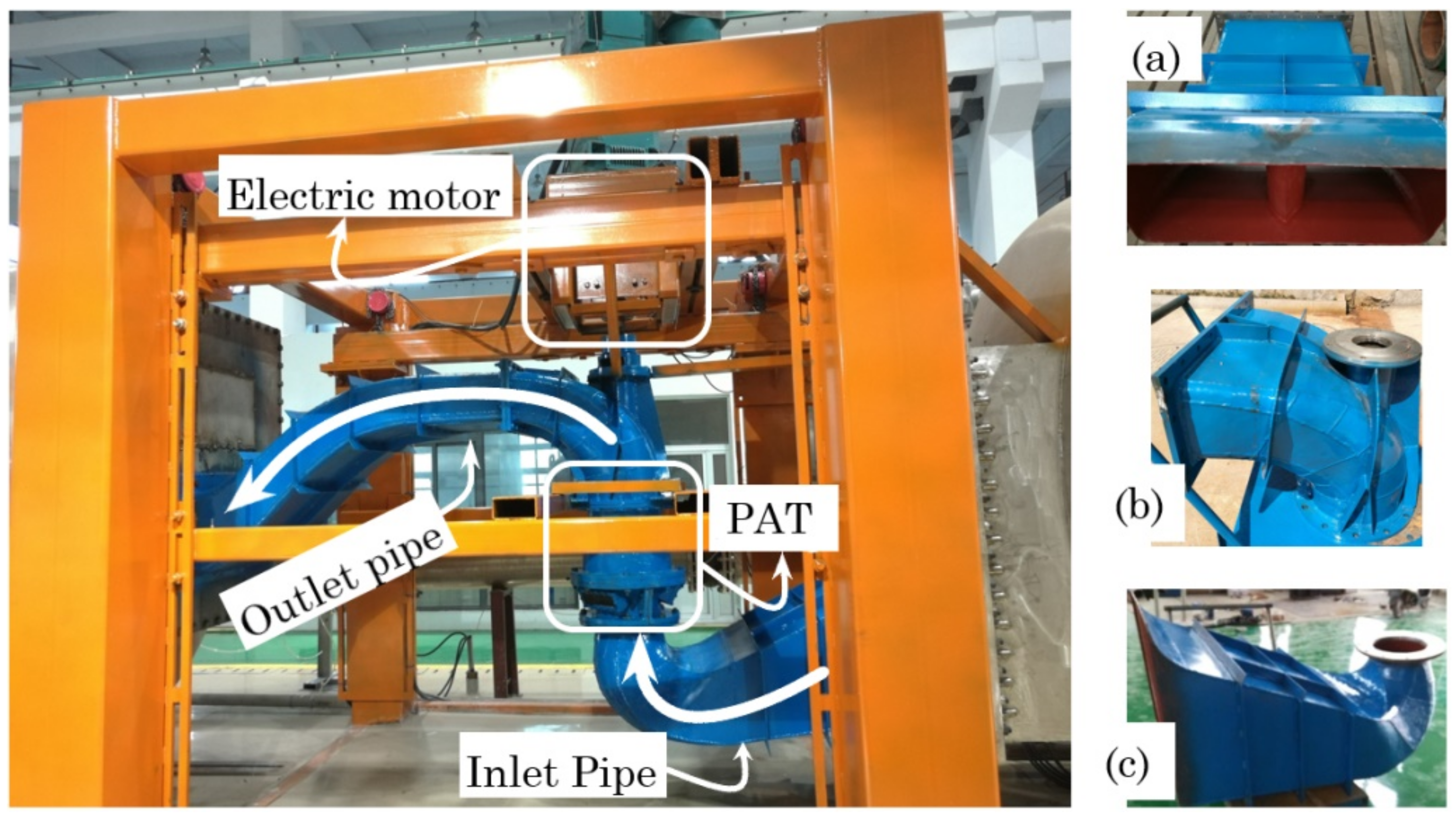

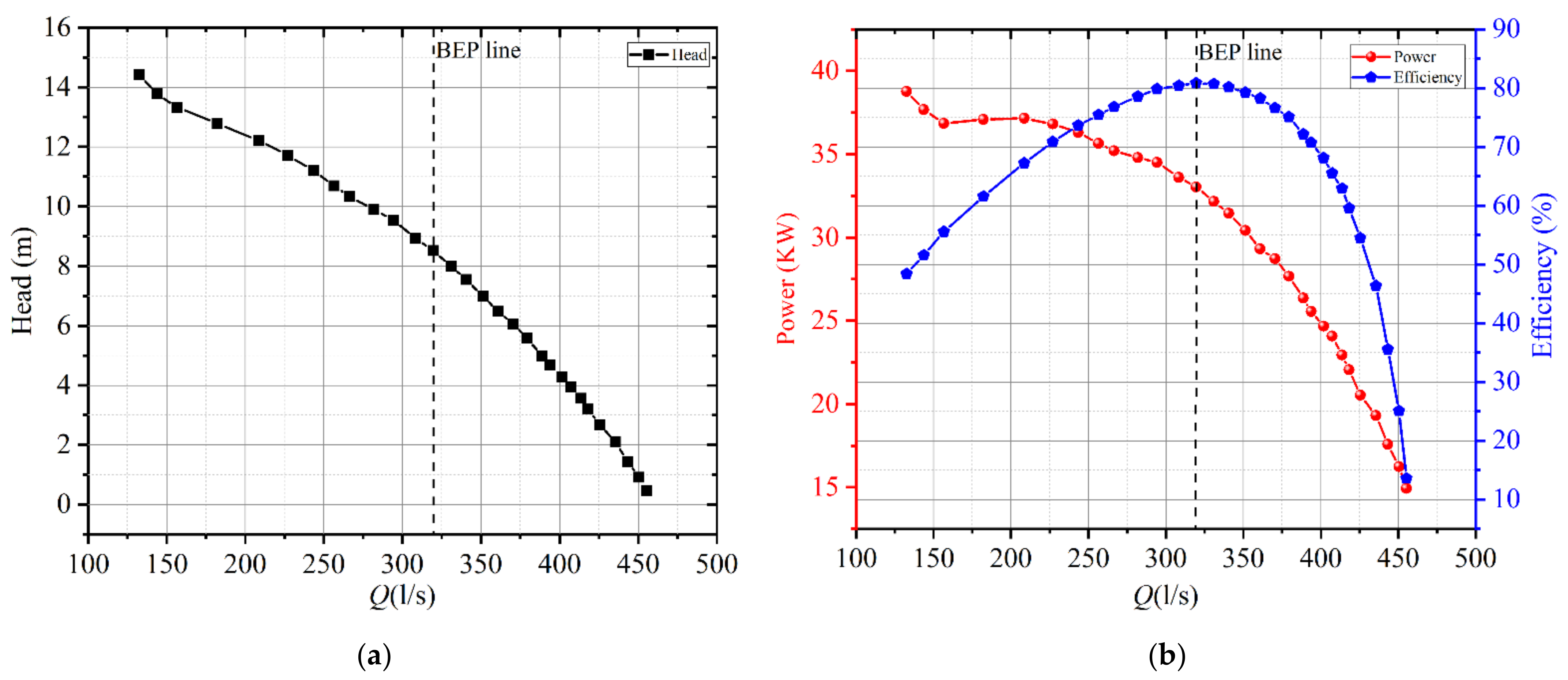

3.1. Flow Field Characteristics
In order to investigate the eventual changes in terms of water flow dynamics with the runner for different flow conditions, five turbo-planes within the runner inter-blade flow channels have been considered, from the hub side towards the shroud side as SP1, SP2, SP3, SP4, and SP5. Considering the unitary spanwise distance from the runner hub to the shroud, these planes occupy five successive positions as 0.1, 0.3, 0.5, 0.7, and 0.9, respectively. In

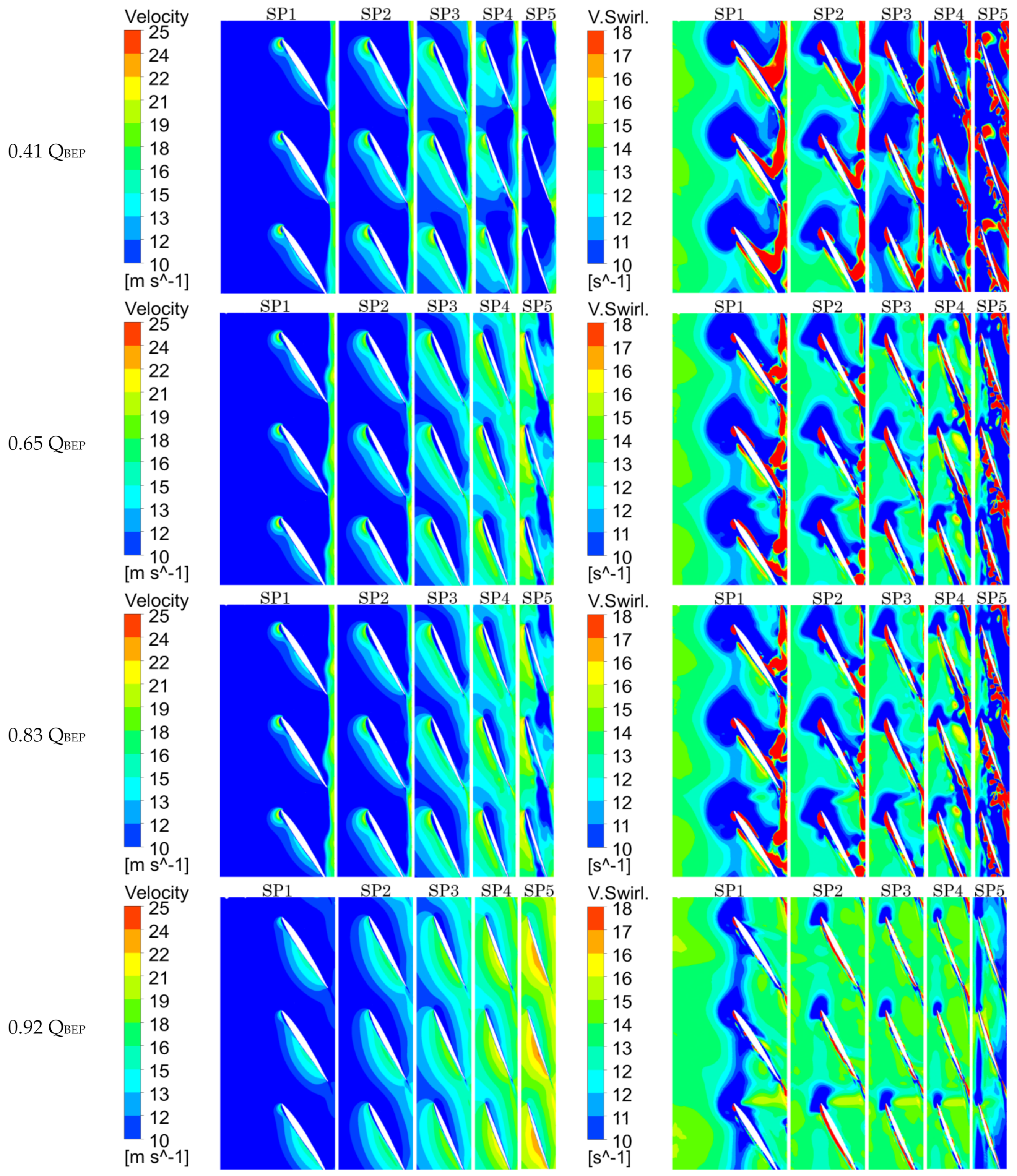

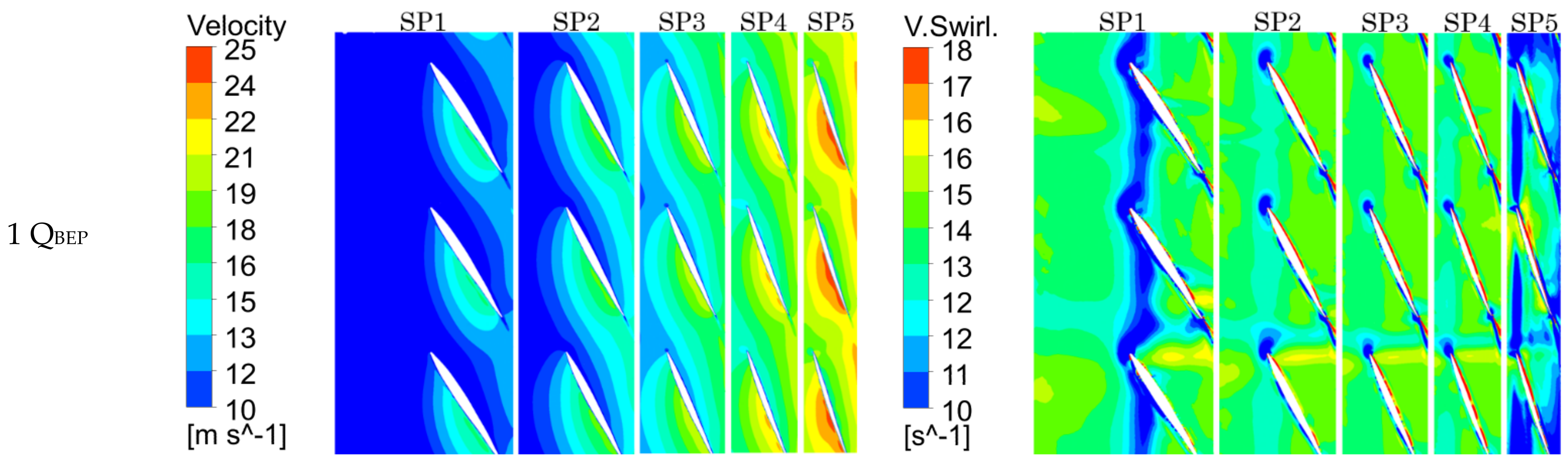

Figure 8, contours of runner flow velocity distribution and corresponding vorticity measure under different flow conditions have been presented. Gradually increasing the machine influx from deep part-load flow conditions to the BEP, the highest flow speed was recorded at flow zones within the vicinities of the runner shroud, while the lowest was situated close to the hub. Moreover, velocity contours show that higher-velocity flows on individual turbo-planes are recorded both on the runner blade’s suction side and the runner outlet zones (ROZ). It is also obvious that high-speed flow zones on the blade suction side (BSS) become larger along the spanwise direction towards the shroud, and extends farther in the streamwise direction towards downstream flow zones.
Moreover, the increase in machine influx led to a continuous enlargement of flow zones occupied by higher velocity flows on the blade suction side, where they reach the blade trailing edge (BTE) and start to expand towards inter-blade channels’ mid-zone, finally touching the blade pressure side’s (BPS) trailing zone under upper part-load and BEP flow conditions. This feature is believed to take the source from the flow separation that took place both at the runner blade’s leading edge and the blade suction side vicinities in the downstream flow field. For deep part-load flow conditions, flow separation at blade suction side in downstream zones is amplified by inlet swirling flow, leading to its obvious detachment from the blade leading edge one in the vicinities of the runner hub. This detachment was, however, found to weaken in the spanwise direction, leading to a reattachment of both flow separation zones to form one huge zone expanding the whole blade length at flow zones in the vicinities of the runner shroud. Flow separation at the blade leading edge is also found to be linked with a large flow incidence angle under deep part-load conditions. It was found that, with the decrease in the machine flow discharge, the flow incidence angle at the runner blade’s leading edge gradually increased, eventually resulting in the formation of huge flow wakes at the same zone, especially within both the runner blade’s hub and shroud vicinities under low flow conditions.
Correspondingly, the representation of flow vorticity measure within the runner inter-blade zone using the velocity swirling strength parameter not only confirmed the aspects discussed above, but also highlighted the presence of two more high-vorticity zones, one attached to the runner blade’s pressure side at the runner mid-length zone, the other at the blade trailing edge. The latter extends opposite to runner rotational direction, swiping the blade trailing edge zone in the form of wake structure and obviously occupying the above-mentioned high-speed flow zone within the runner outlet vicinities, which understandably makes connections with the vaneless space vortex flow, before meeting the next blade’s pressure side vortex. It was also found that this high-vorticity zone at the runner outlet gradually narrows down in the spanwise direction until the mid-span zone, where it enlarges again towards the shroud vicinities. At this zone, blade trailing edge-attached wake-like vortices no longer extend far enough to reach the next blade’s pressure side-attached vortex. Instead, the screw-like vortex emerges at the runner suction side, extending from the blade leading edge’s shroud tip region, all the way to the downstream zone, where it gradually enlarges towards the runner outlet zone. This structure is attached to the runner shroud, and as any other discussed secondary flows, decays with the increase in machine flow discharge.
To shed more light on the aspects discussed above, in

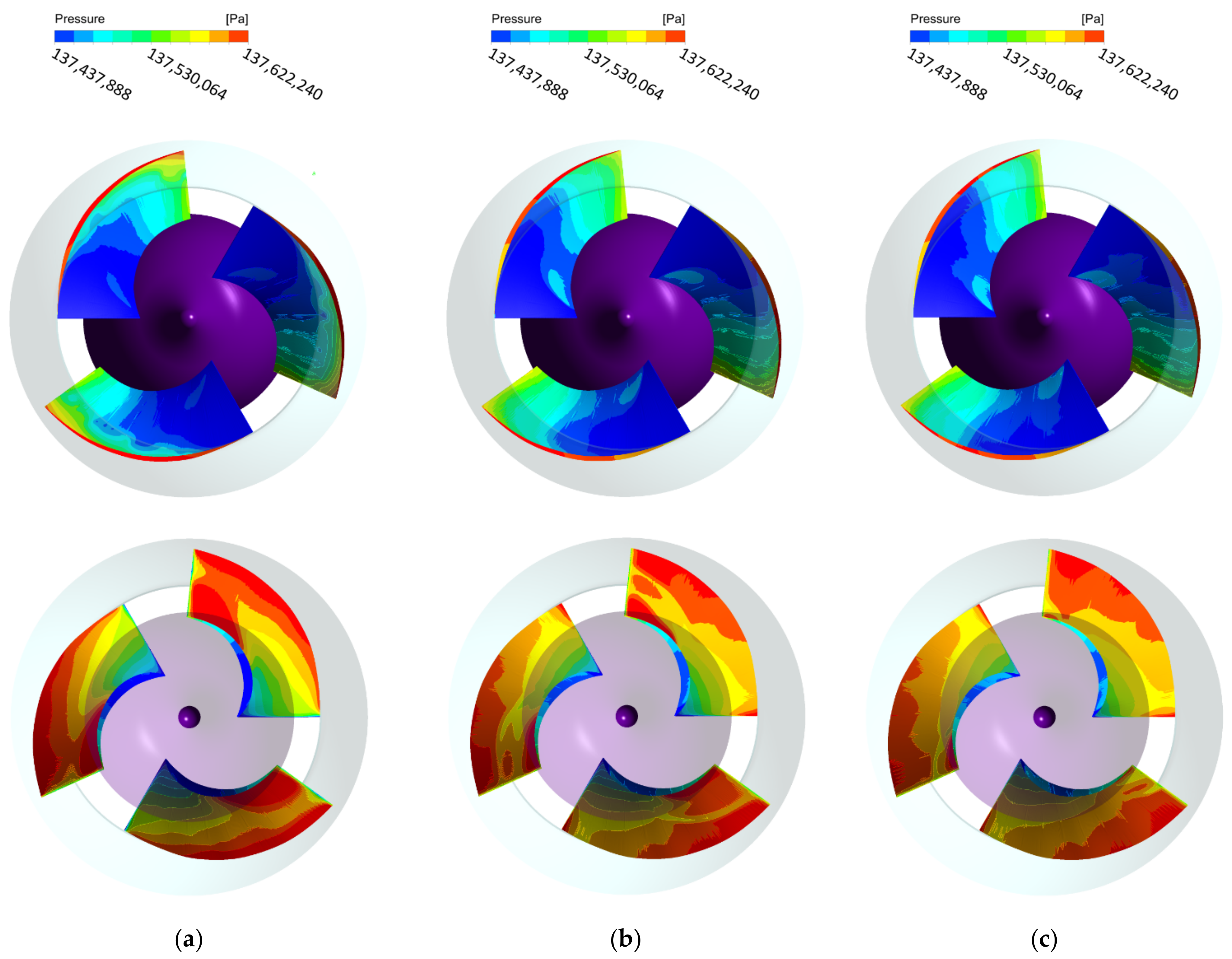

Figure 9, a visual is provided on the local pressure distribution mode on the runner blade’s suction and pressure surfaces. Starting at the blade suction surface, local pressure distribution mode can be distinctly classified into two zones, namely the low-pressure zone at the runner blade’s leading-edge and vicinities and the high-pressure zone at the blade’s trailing edge and vicinities. However, there is a smooth transition from one zone to another from the blade leading edge towards the downstream, and each zone’s size varies depending on the considered operating conditions. In good agreement with the velocity distribution mode discussed above, the low-pressure zone at the blade leading edge spans the whole spanwise blade length from hub to shroud and extends downstream to some blade mid-length distance. In addition, this zone extends farther in the shroud region than the hub region. This agrees well with the flow velocity distribution mode on the blade suction side, as discussed in the above sections, where it was shown that high-velocity zones are narrow in the hub zone but grow towards the downstream in layers above, such as the flow zones close to or within the shroud vicinities. These low-pressure zones close to the shroud are also found to grow further in the downstream direction with the increase in the machine flow discharge. The detachment discussed above of the high-velocity zones on the blade suction side from the influence of the inlet swirling flow in the hub zone is even obvious in
Figure 9, where a correspondent high-pressure sector within the hub vicinities is shown to grow in size with the machine flow discharge. On the other hand, the situation on the blade pressure surface is the opposite to that of the suction surface.
On this side, the high-pressure zone is localized at the blade trailing edge vicinal zone and grows bigger from the hub towards the shroud zone. Moreover, the extent of the high-pressure zone in the shroud vicinities is found to decrease with the increase in machine flow discharge. This is in good agreement with the flow vorticity distribution mode discussed above and the associated evolution at the same zones.
In

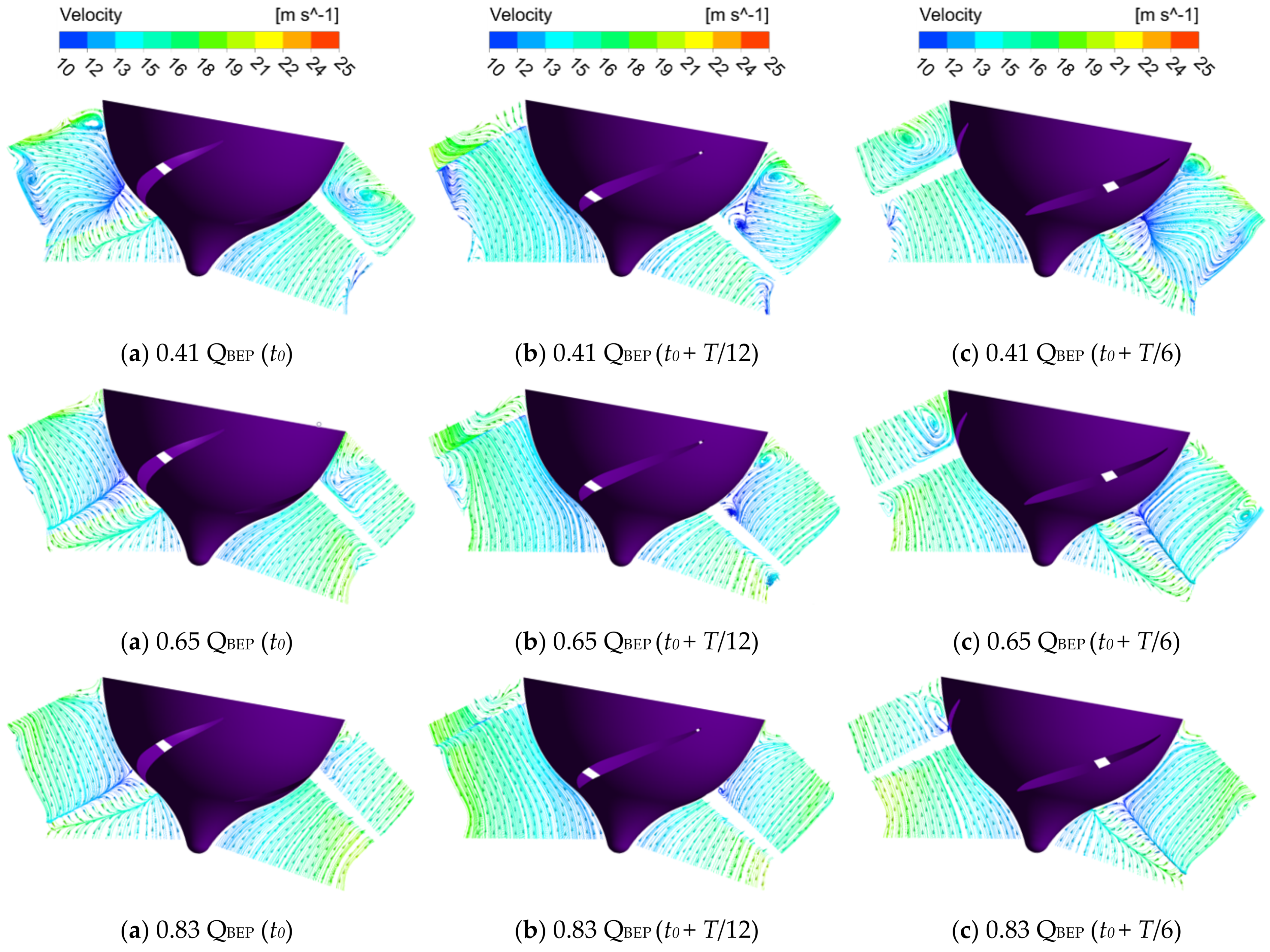

Figure 10, flow streamlines, colored according to velocity, on a transversal plane from the runner inlet to the outlet are presented for three successive instants, namely
t0,
t0 + T/12, and
t0 + T/6 respectively, where
t0 stands for the initial time and
T the runner rotational period. Considering three part-load operating conditions, this figure shows the instant changes that occurred in runner flow structures. It is globally shown that runner flow vorticity becomes larger and tougher with the decrease in machine flow discharge. Moreover, main flow vortical structures positions seem to remain unchanged despite the change in machine flow conditions. They rather grow or decrease in size. In this figure, one would notice both the BPS and BSS-attached vortices and their extensions in shroud vicinities away from the blade, as well as the runner outlet vortex, which is mostly within the vicinal zones of the runner hub. The latter is found to grow larger and expand to mid-span zone and beyond for deep part-load conditions.
Globally speaking, and in line with details as presented in

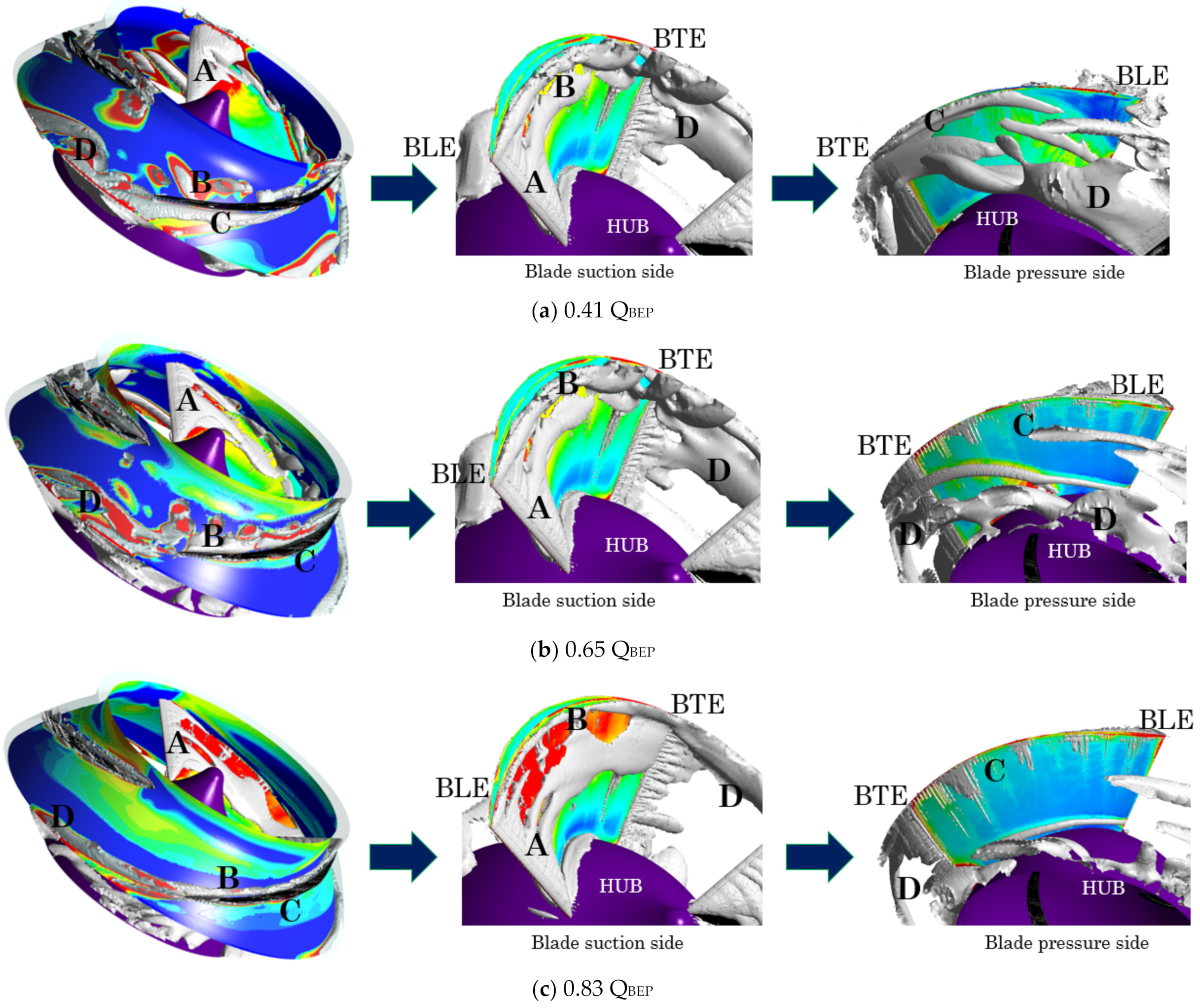

Figure 11, the runner flow vorticity can be classified into four groups respective to their positions, namely the BLE vortex, BSS vortex, BPS vortex, and ROZ vortex.
Figure 11 gives a view of the main vortex flow locations in the runner flow zone for the three investigated part-load conditions. Therefore, in this figure, the above-mentioned positions are marked by letters A, B, C, and D, respectively. While the left part of the figure presents the runner assembly with main flow vortex positions indicated, the middle and right sides of the figure show the runner BSS and BPS with the corresponding flow vortices. In total agreement with the above sections, the BLE vortex (A) grows bigger in the spanwise direction, finally reaching the runner shroud region, from where the BSS vortex (B) starts and extends the whole blade length and beyond, but mainly staying within the shroud vicinal zone. Depending on the considered machine flow conditions, this structure may link up with the ROZ vortex (D) at the runner outlet and extend towards the opposite direction of the runner rotation to eventually connect with the preceding blade’s BPS vortex (C). This is, for instance, the case for deep part-load condition as presented in
Figure 11a. While all these vortices are found to weaken and eventually vanish as the machine flow conditions move from part-load to the rated operating conditions, the BPS vortex does the same while changing locations with different flow conditions. Under deep part-load conditions (0.41 Q
BEP), the BPS vortex extends from blade mid-length to downstream. As the flow increases to part-load conditions (0.65 Q
BEP), it moves spanwise downward to mid-span zone and now extends from BLE to the runner outlet in a string-like form.
Under upper part-load conditions, it again moves downwards to the runner hub’s vicinal zone and maintains a string-like form extending from the BLE to the ROZ. For the sake of analyzing the flow dynamics within inter-guide vane (GV) flow channels, the next four figures (

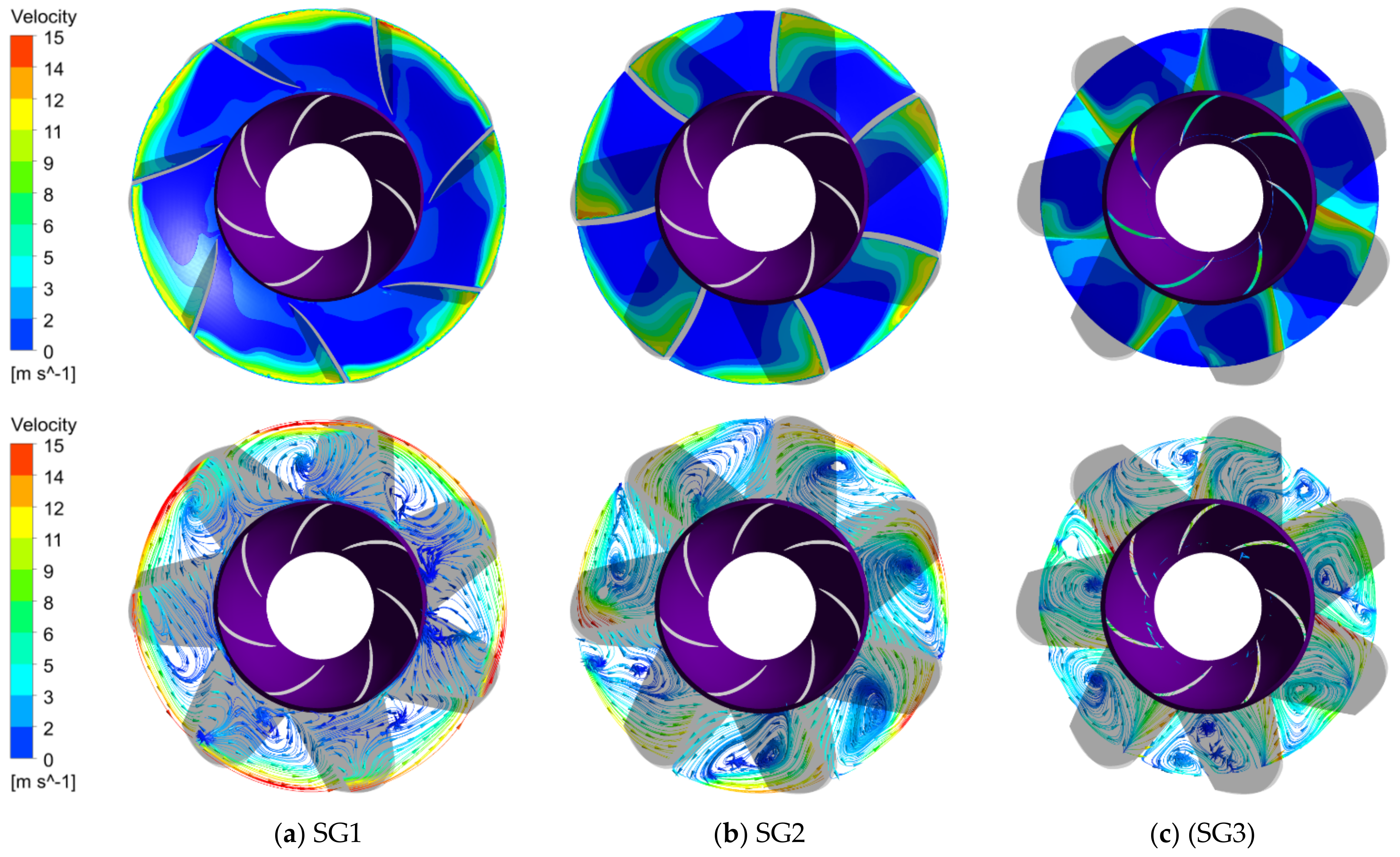

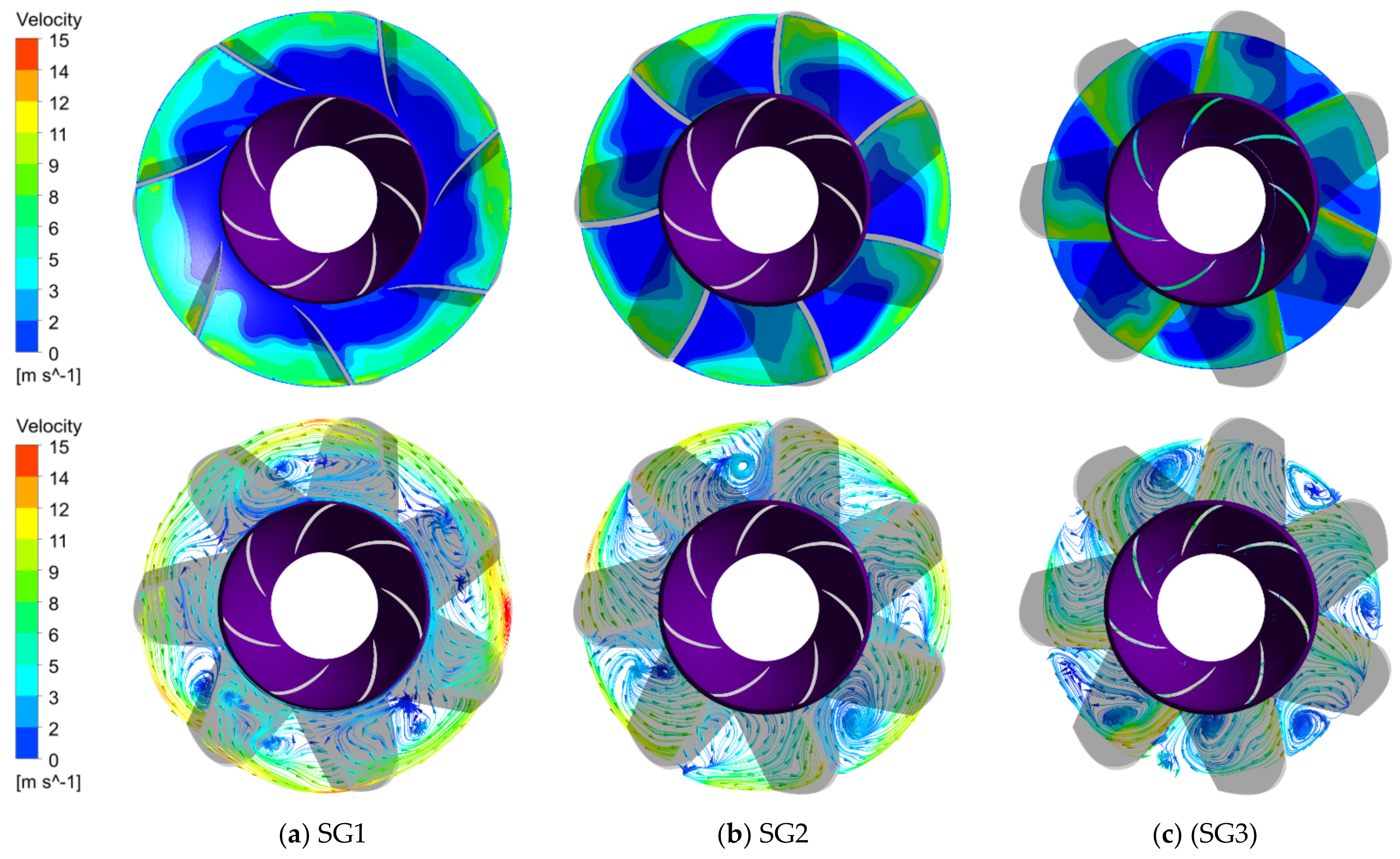

Figure 12,
Figure 13 and

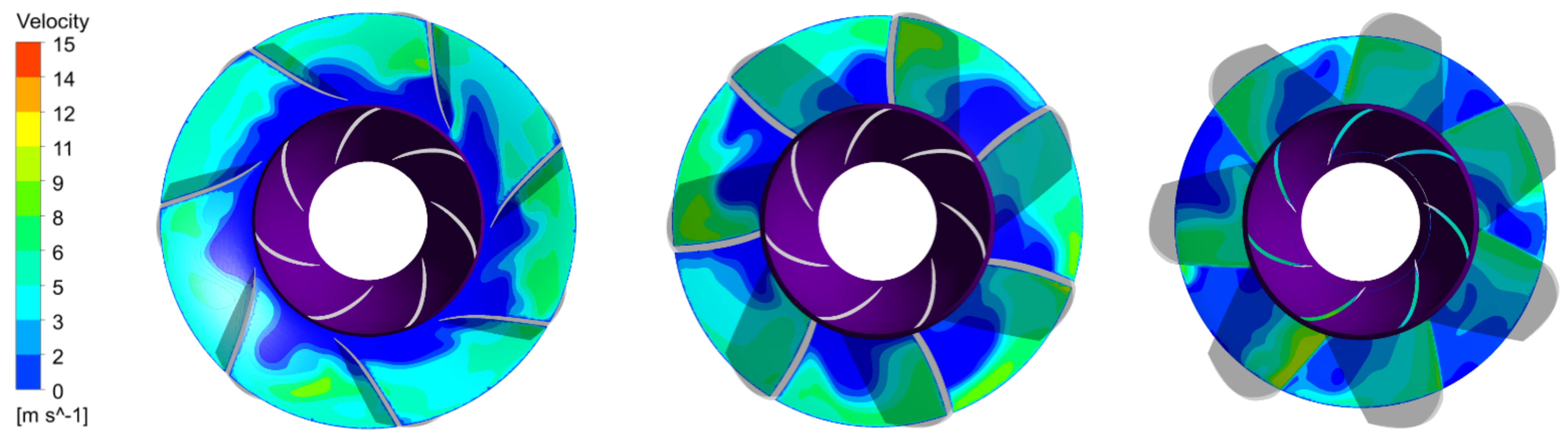

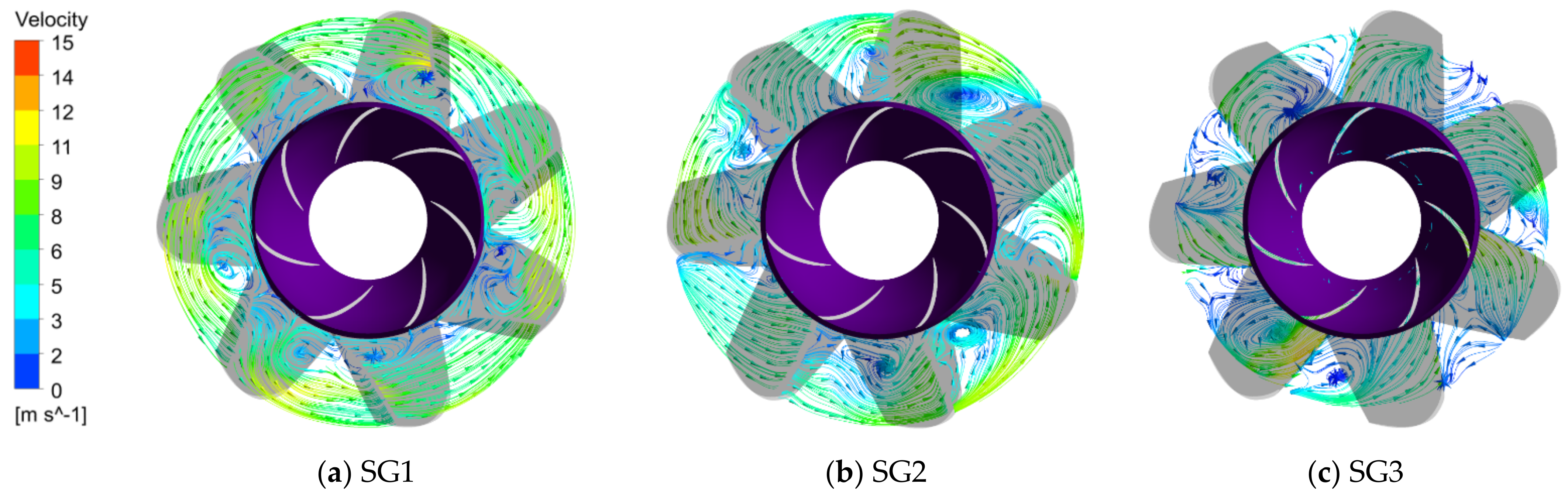

Figure 14) give a visual of both velocity contours and corresponding velocity-colored streamlines within the diffusor flow zone for different operating conditions. To do so, three consecutive planes, SG1, SG2, and SG3, were selected in the streamwise direction at positions 1.15, 1.55, and 1.95, considering positions at the diffuser inlet and the diffuser outlet as 1 and 2, respectively. Under 0.41 Q
BEP operating conditions, SG1, being the closest to the vaneless space between the runner and diffuser, exhibits a huge zone of very low flow velocity, expanding from the hub to beyond the mid-span zone and a narrow high-speed flow right at the diffuser’s shroud zone.
As shown by correspondent velocity-colored flow streamlines, low flow-speed zones are marked by large flow vortices and subsequent backflows. At the diffuser inlet, a large vortex and backflow is distributed in all channels circumferentially and blocks all hub flow zones, thus pushing the water to tiny left outflow areas at the shroud, resulting in high-speed flows at the shroud and vicinal flow zones. At the diffuser mid-zone, flow vortices occupy a bigger portion from the central flow area to one bounding blade’s pressure side, thus leaving the water flowing area at another blade’s suction side and a small portion in the shroud vicinal zone. At the outlet, the emergence of a double vortex leads to the occupation of the channel’s central zone, leaving tiny flowing areas attached to both bounding vanes’ surfaces. As shown in the rest of the figures (
Figure 13,
Figure 14 and

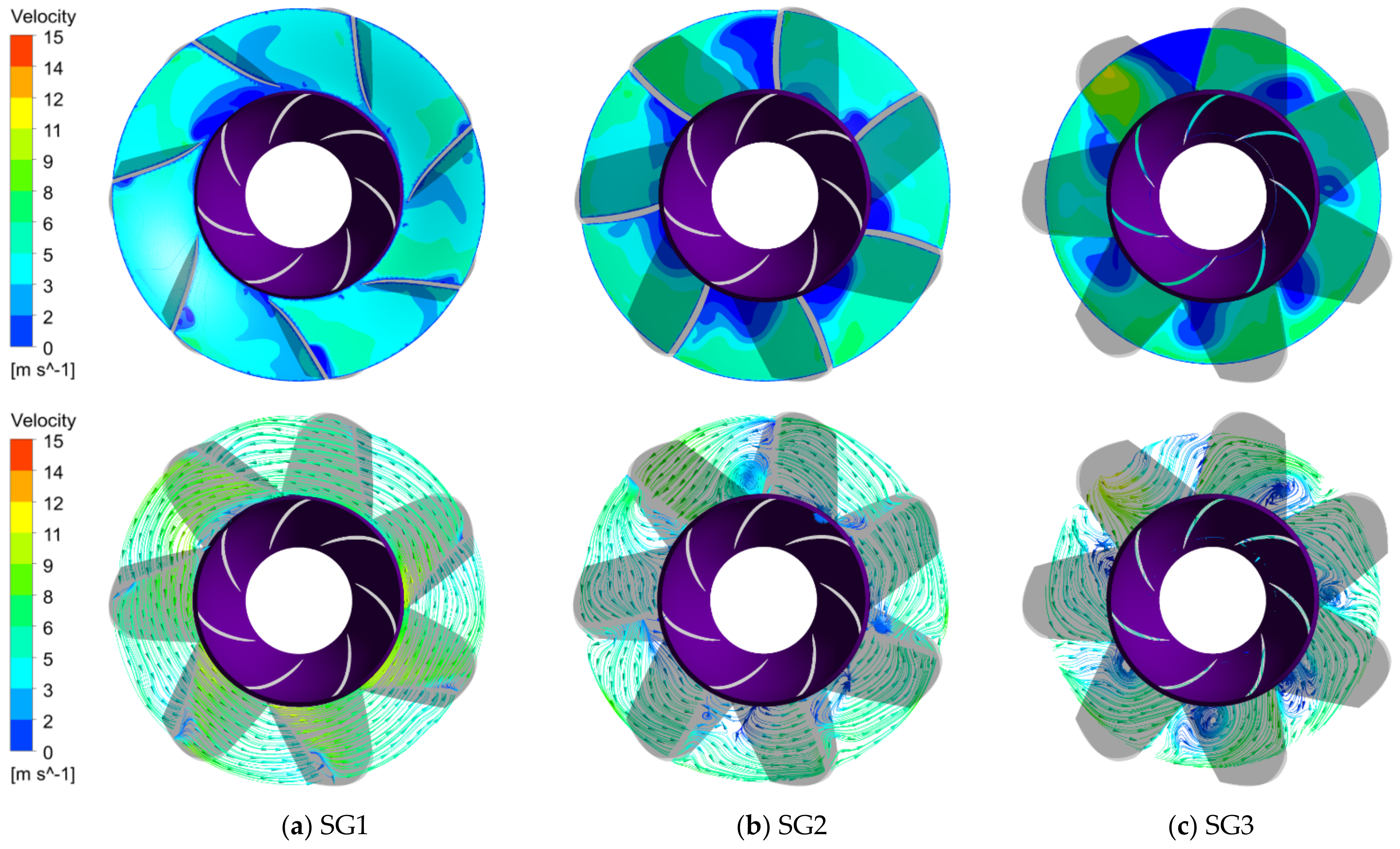

Figure 15), the flow blockage by the emerged flow vortices and backflows close to the diffuser hub and vicinal flow zones at the diffuser inlet were weakened with the increase in machine flow discharge. Correspondingly, flow vorticity at other flow zones within the diffuser was gradually weakened, leading to almost no flow blockage at the diffuser inlet under rated conditions (see
Figure 15).
At this zone, the high-speed flow zone is almost circumferentially distributed, where, however, in reality, a wider high-speed flow zone is attached on the guide vane’s suction surface (GSS), extending towards the opposite direction to the runner rotation, eventually reaching the precedent guide vane’s pressure surface (GPS) on its shroud tip region. At this zone, low-speed flow occupies almost 80% of the whole flow area. Under the same operating conditions, at the diffuser mid-distance in the streamwise direction (SG2 plane), a high-speed flow zone on the GSS detaches from the precedent GV and expands spanwise downwards, pushing the low-speed flow zone towards the preceding GV’s pressure side. At this zone, low-speed flow occupies around 75% of the whole flow area. At the diffuser outlet (SG3 plane), the low-speed zone moves to the center of the channel, leaving tiny high-speed zones attached to both vanes’ pressure and suction surfaces. At this zone, the low-speed flow zone occupies more than 80% of the available flow area.
3.2. Pressure Field Characteristics
In order to investigate the eventual pressure pulsation characteristics as associated with the flow dynamics discussed above, different pressure monitors were positioned at various locations along the PAT flow full flow passage.

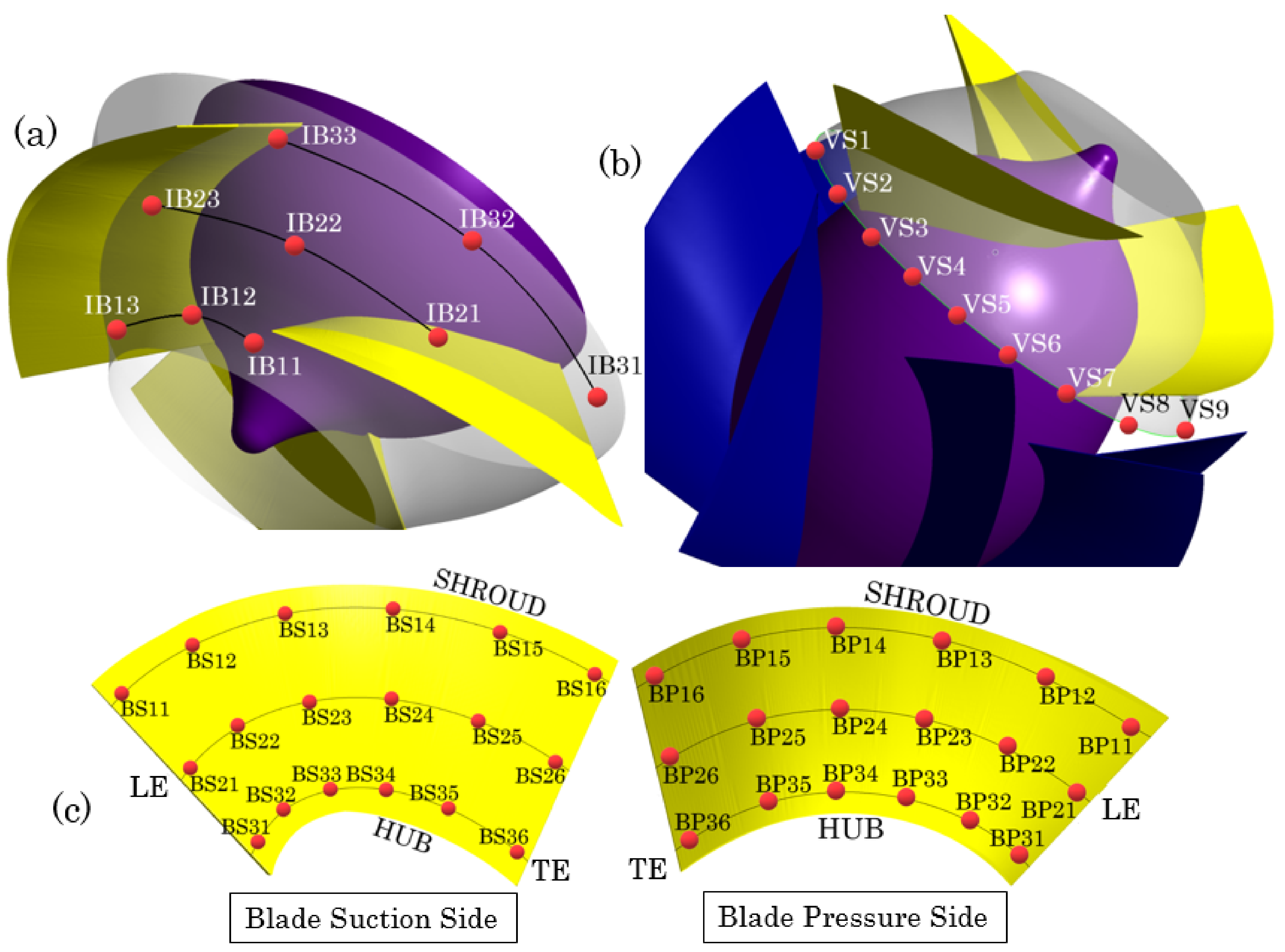

Figure 16 gives a visual of the placement of the mentioned pressure monitoring points within the runner flow zone. The specifically investigated zones are the inter-blade flow zones (IB), the runner blade’s suction and pressure sides (BS and BP), and the vaneless space (VS) between the runner blades and the distributor’s guide vanes. In more detail, nine monitors within the IB zone were positioned at three successive locations in the streamwise direction on the runner’s mid-span plane, as shown in
Figure 16a. Moreover, three spanwise layers were considered when positioning pressure monitors on the blade’s both surfaces. These layers were located at positions 0.1, 0.5, and 0.9, considering the positions of runner hub and shroud as 0 and 1, respectively, where six monitors were considered on each layer, making it 36 monitors on both the BSS and BPS, as shown in
Figure 16c. Finally, 24 monitors were equidistantly positioned on the mid-span plane within the vaneless space (
Figure 16b).

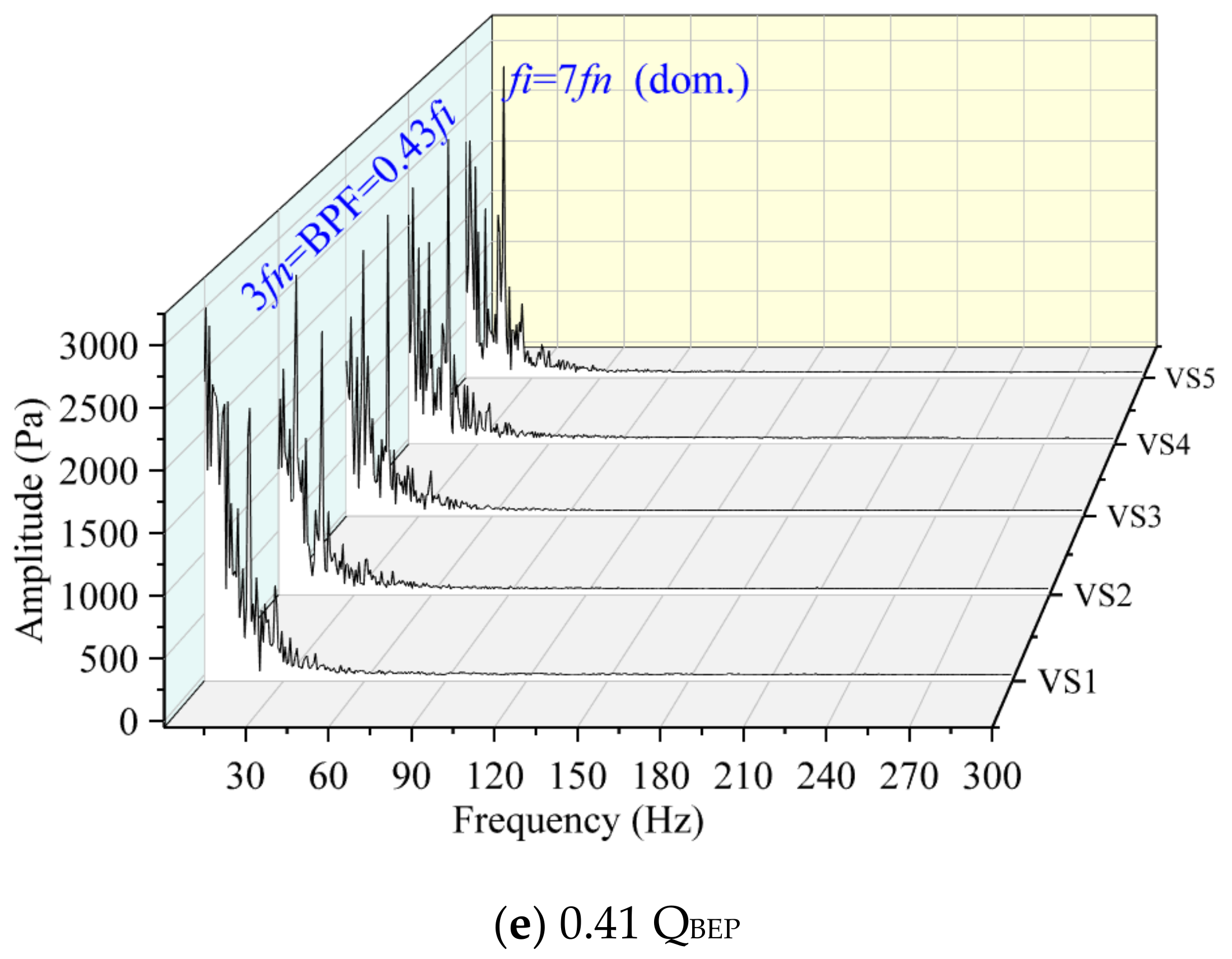

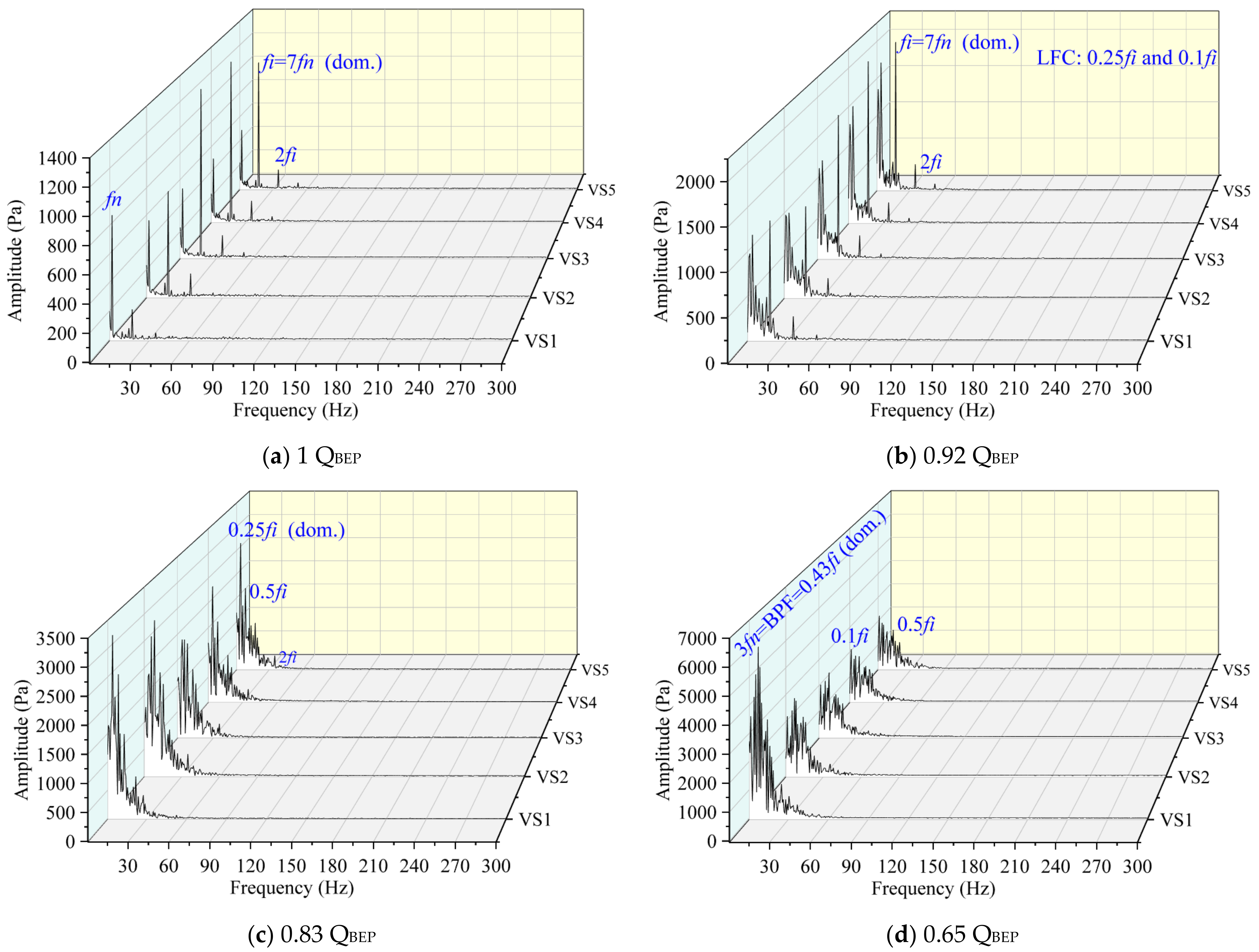

Frequency domain pressure pulsation spectra within the vaneless space for the five investigated operating conditions are shown in
Figure 17. However, for clarity, and owing to the fact that pressure pulsation characteristics within a specific flow zone under specific operating conditions are more likely to present little to no differences, only the first five VS monitors are presented. The vaneless space pressure pulsation characteristics are found to considerably vary with the changing machine operating conditions, where, for instance, the pressure pulsation amplitude of the dominant frequencies are continuously increased as the machine flow conditions decreased from rated conditions to part-load, before dropping to almost a half under deep part-load conditions.
This aspect agrees well the flow field characteristics evolution discussed above, where flow structures became more chaotic as the machine influx decreased. Under rated conditions, the associated pressure pulsation spectrum is mainly composed of three frequency components, namely the runner rotational frequency (fn), the dominant frequency fi = 7fn, and its double (2fi). Note that the runner rotational speed is 150 rpm, which means that fn = 2.5 Hz, while the blade passing frequency (BPF) should be 7.5 Hz as the utilized runner has three blades. Moreover, while the BPF stands for perturbations of the distributor flow field by the continuously passing runner blades, the guide vane passing frequency (GPF) represents the effect of stator guide vanes on the rotor flow field. Both BPF and GPF represent the mutual interactions between the runner and distributor, which is widely known as the “Rotor-Stator Interactions” or RSI. This phenomenon is widely recognized as the powerful trigger of large pressure pulsations within hydraulic machinery, which under serious cases may result in the emergence of severe structural vibrations and subsequent machine components breakage or cracks formation. On the grounds that the investigated PAT’s distributor is composed of seven guide vanes, the above-mentioned dominant frequency component fi is therefore of GPF type. When the machine flow conditions shifted from rated to 0.92 QBEP conditions, the amplitude of the dominant frequency component fi decreases to almost 80%, while two new low-frequency components (LFCs) emerged, namely 0.25fi and 0.1fi, while the fn component vanished.
The emergence of LFCs is connected to the appearance of more secondary flows as the machine’s operating conditions move away from its nominal operating conditions. Under 0.83 QBEP conditions, one of the above-mentioned LFCs (0.25fi) became the dominant frequency, where more components in the range from 0.5fi to 2fi surfaced. The 0.65 QBEP condition presented the highest pulsation amplitude, which was exhibited by the newly emerged blade passing frequency (BPF or 3fn) component, before falling back to almost half its value under deep part-load conditions where the formerly dominating component fi retook the lead.
Generally speaking, pressure pulsation spectra were loaded with more low-amplitude frequency components (LAFCs) as the machine flow conditions became further from the optimum conditions, whereas the last three operating conditions stand out in this respect. As already mentioned, the emergence of these frequencies and the continuous increase in global pressure pulsation amplitudes are a result of the eventual worsening of flow unsteadiness within the machine flow zones. For the last two operating conditions in particular, the associated pressure pulsation spectra are composed of both the local flow unsteadiness-born components and the RSI-born components (BPF and GPF components).
To try to comparatively get a picture of how machine operating conditions affect the pressure pulsation levels of specific flow zones, a relative pressure pulsation coefficient C
P was utilized, and its expression is written as in Equation (7), where
n,
Pimax, and
Pimin stand for number monitors in the same location and individual point’s maximum and minimum pressure pulsations amplitudes, respectively.
In this respect,

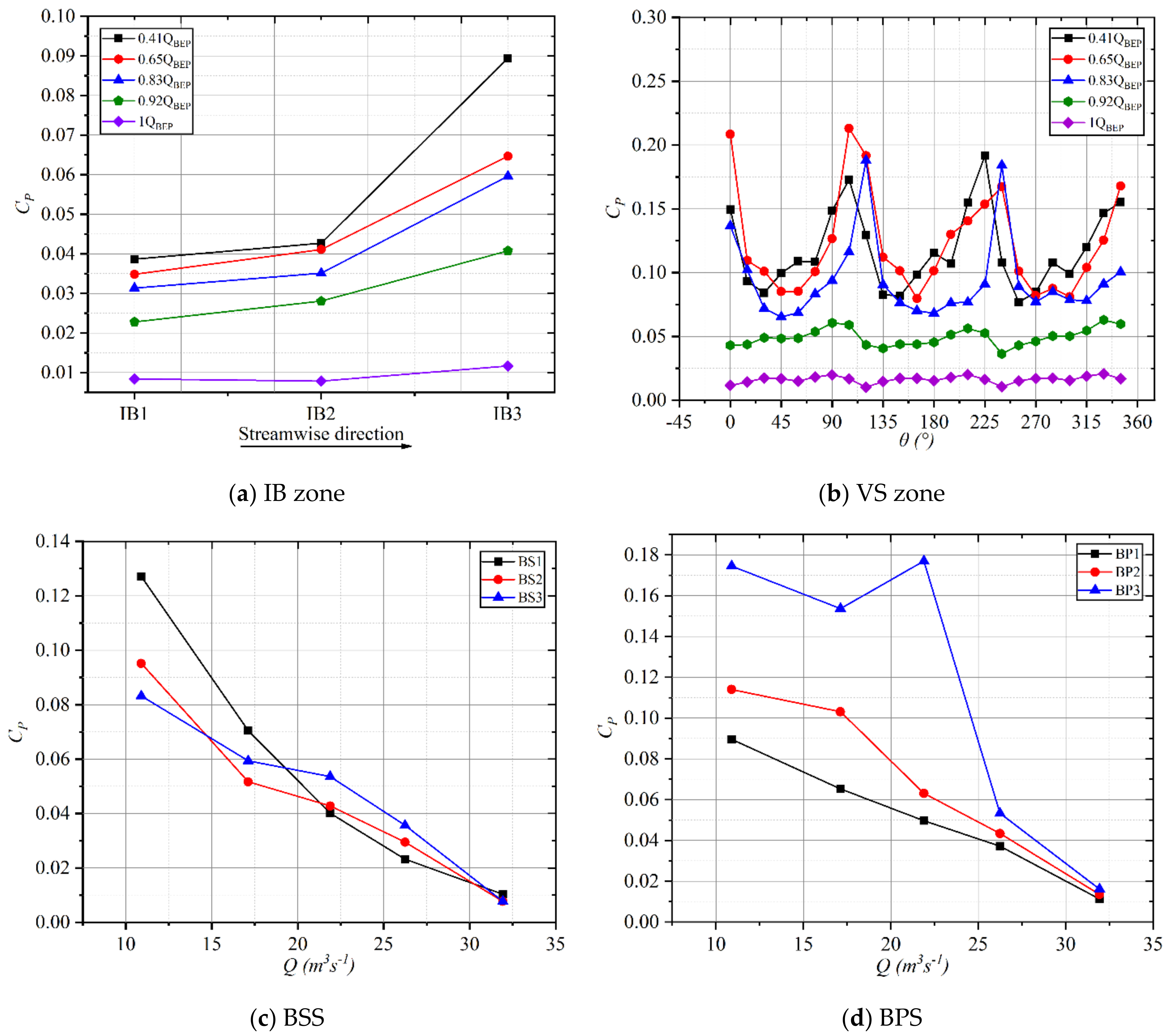

Figure 18 presents the pressure pulsation amplitude distribution mode at different locations within the runner under the five investigated operating conditions. Selected zones are the runner inter-blade channel, the vaneless space between the runner and the distributor, and the runner blade pressure and suction surfaces. Regardless of the considered operating conditions, pressure pulsation amplitudes within the inter-blade flow channels are generally found to increase in the streamwise direction from the runner inlet to the outlet. Moreover, as shown again in
Figure 18a, pressure pulsation amplitudes within the inter-blade flow channels are found to globally increase with the decreasing machine flow discharge, leading to the rated conditions presenting the least of the pressure pulsation levels, while deep part-load conditions exhibited the highest pulsation amplitudes. On the other hand, for the vaneless space zone (
Figure 18b), having generally exhibited the highest level of pulsation amplitudes as compared to other runner flow zones, part-load operating conditions recorded the highest amplitudes, while the least still had the rated conditions.
This is to say that, as also presented through
Figure 17, vaneless space pressure pulsation amplitudes increased with the decrease in machine flow discharge, reaching their peak under part-load conditions (0.65 Q
BEP) before dropping again towards deep part-load conditions. The VS pressure pulsation amplitudes distribution is more symmetric under both rated and upper part-load conditions (1 Q
BEP and 0.92 Q
BEP), whereas it becomes obviously asymmetric for the last three operating conditions. This aligns well with the emergence of many LAFCs in the vaneless space pressure pulsation frequency spectra, where they were believed to be linked to the worsening of flow unsteadiness under the last three conditions.
Pressure pulsation variation mode on the runner blade’s suction and pressure sides is presented in
Figure 18c,d respectively. While BS1 (BP1 on the pressure side) is the closest layer to the runner shroud, BS3 (BP3 on the pressure side) is the closest layer to the hub. Pulsation amplitudes on blades’ both surfaces are generally found to continuously increase with the decrease in machine flow discharge. The highest pressure pulsation amplitudes on the BSS were recorded in the runner shroud zone and vicinities under deep part-load conditions, and they decreased in the spanwise direction towards the runner hub region. The randomness in pulsation amplitudes distribution on BSS for other flow conditions is linked with the high flow activity noted at the same zone. On the other hand, the BPS’s lowest pressure pulsation amplitudes were recorded within the runner shroud zone and vicinities under deep part-load conditions and increased in the spanwise direction downwards to the hub zone. Unlike in the BSS case, this trend was maintained for the entire range of investigated flow conditions. Pressure pulsation distribution mode on both of the blade’s surfaces depends on frequent positions of flow vortical structures within this area. As also shown in
Figure 11, flow vortice formation and activity were seen at the BSS’s shroud zone, which was classified as type B. On the other hand, type C on BPS’s shroud zone was observed only under deep part-load conditions and vanished for other flow conditions. This somehow correlates with the above-mentioned fact that BSS recorded the highest pulsation amplitudes in shroud vicinities, while it was the hub zone for BPS.
3.3. Effect of Runner Blade Angle
Having investigated PAT flow structures formation mechanism and associated pressure pulsation characteristics, as well as their distribution modes for different operating conditions, the present study has also tried to investigate the effect of runner blade geometric design on them. In this respect, the runner blade angle γ was selected as the testing parameter, and its three values, namely γ1 = −2°, γ2 = 0°, and γ3 = +2°, were selected for further analysis. Investigation on incurred changes in PAT flow dynamics with the varying blade angle was conducted where only two flow conditions, namely the deep-part-load and rated conditions, were studied.
Investigations on incurred changes in PAT flow dynamics with the varying blade angle were conducted where only two flow conditions, namely the deep-part-load (0.41 QBEP) and rated conditions (1 QBEP), were studied.
In
Figure 19, streamlines on the blade’s suction, colored according to velocity, and pressure surfaces for the three blade angles, namely
γ1 = −2°,
γ2 = 0°, and
γ3 = 2°, under deep part-load conditions, are shown. It is obvious that the change in runner blade angle altered the flow structures formation mechanism on both surfaces, where, for instance, the formerly mentioned BSS flow vortices at runner shroud and vicinal zones were comparatively weak when using the −2° blade angle. These vortices were formerly classified as type B (see
Figure 11). However, with the blade angle increase from −2° through 0° to 2°, these vortices eventually became wider, occupying more space and becoming stronger. In addition, the high-speed flow zone at the runner blade’s leading edge grew wider with the increase in runner blade angle. Associated flow separation in the form of wakes was classified as type A in
Figure 11. On the other hand, the BPS flow field saw the runner hub-attached vortex flow grow stronger as the blade angle increased. These flow vortices within the hub vicinities are the reason why BPS’s hub pressure pulsation amplitudes were the highest as compared to other locations along the spanwise direction, as shown in
Figure 18d. These vortices, partly linking to VS flow unsteadiness within the blade trailing edge vicinal zones, caused the flow reversal movement back to inter-blade channels, where the corresponding hub backflow zone grew wider with the increase in runner blade angle. To support these facts,
Figure 20 and
Figure 21 give more details about the runner flow and pressure field changes taking place as the runner blade angle increases. In

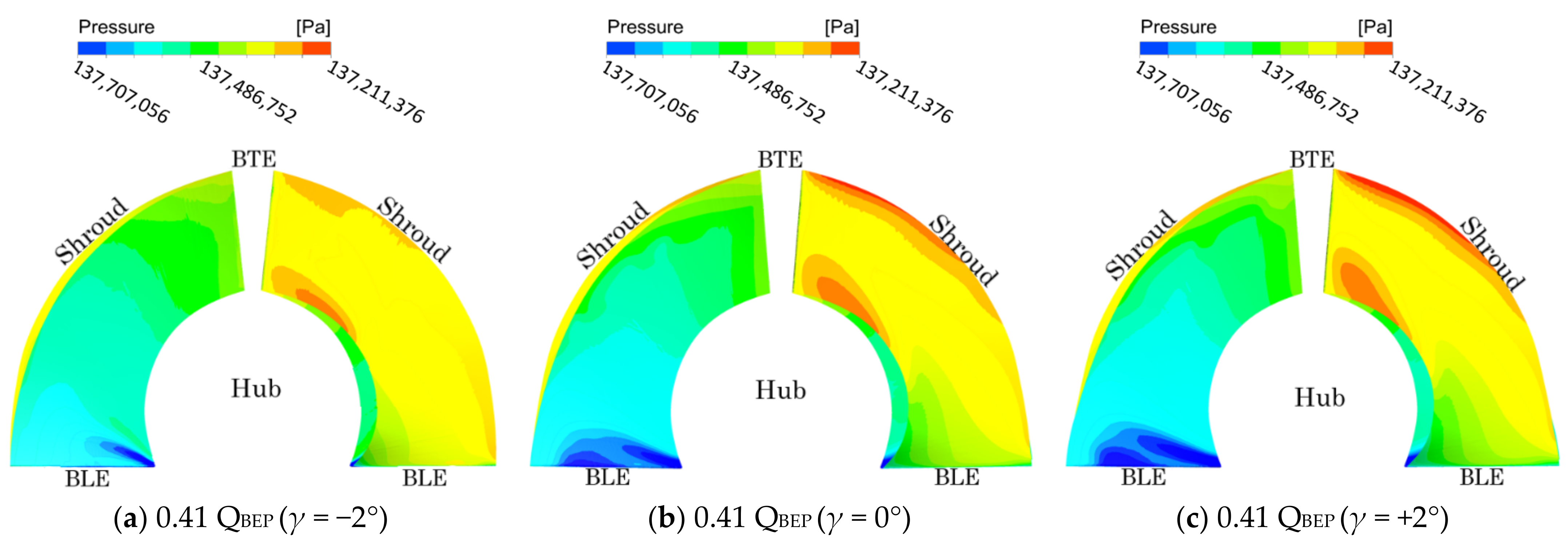

Figure 20, pressure distribution mode on both BSS and BPS and eventual changes as the blade angle increased are presented. As shown in this figure, and in line with the presented details presented above, the BLE low-pressure zone on the BSS corresponding to type A flow separation zone grew wider with the blade angle increase. Moreover, on the BPS, two high pressure zones can be seen, both the shroud and hub zones, corresponding to type C vortex flow and hub backflow zones, respectively. Both high-pressure zones are seen to increase in size and strength as the blade angle increased. In line with the above, flow axial velocity contours within the vicinal flow zone of the runner outlet are shown in

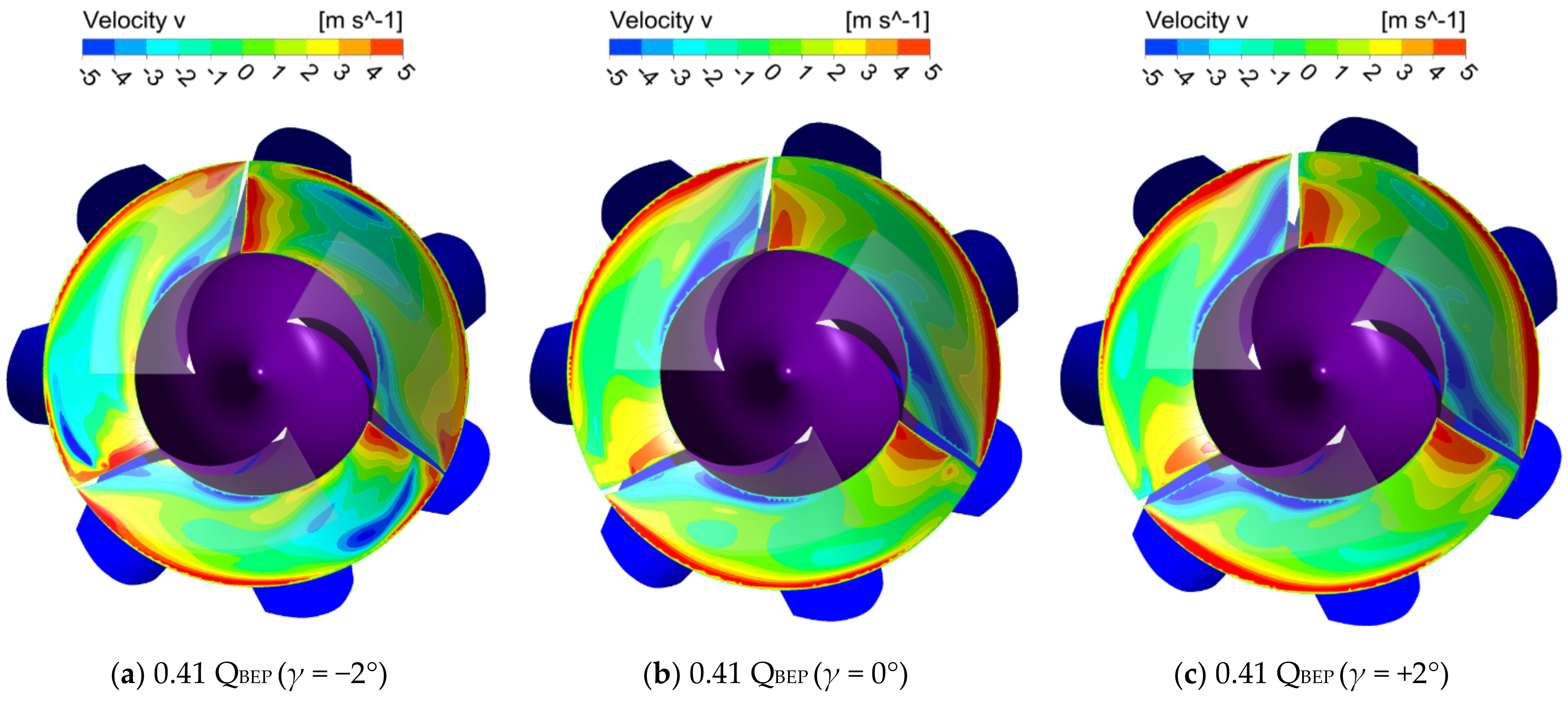

Figure 21. At this zone, two high-velocity zones can be commonly found at each of the three investigated blade angles. The first is attached on the BSS, where it extends from the hub to over mid-span zone but does not reach the shroud side. The second is attached to the shroud and extends from the first blade’s pressure side vicinal zone towards the next blade’s suction side but does not exactly reach it. Both zones are globally found to become thicker and stronger with the blade angle increase. In addition, one low axial velocity zone (negative axial velocity or backflow) is commonly found at each of the three investigated blade angles.
This zone is attached to the hub and is detached from the BPS in the first place, but extends obliquely towards the BPS to finally touch it at the mid-span’s vicinal zone. This zone is finally found to grow in size, occupying more area both at the hub and on the BPS, where it reaches the mid-span zone under
γ = 0° conditions and goes beyond for
γ = +2°. This agrees well with the details presented above, where it was stated that the hub-attached backflow zone grows with the blade angle increase. This also explains the increase in shroud-attached high axial flow zone strengthening with blade angle increase. As the hub-attached backflow zone thickens, the corresponding flow blockage pushes more water flow towards the shroud zone. Because of the axis channel flow obstruction, the shroud-attached positive flow accelerates more and more with the increase in hub backflow zone. In the same respect, the noted negative flow zone in the vicinal zone of the BSS towards the shroud side under
γ = 0° conditions (
Figure 21a) also caused the flow blockage at the same zone, which led to the emergence of shroud-attached accelerated water flow zone that touches the BSS on its shroud tip region. This zone is, however, found to disappear with the increase in runner blade angle.
Having described PAT flow dynamics and eventual changes as the blade angle increased, an effort was also made to explore corresponding modifications of pressure pulsation characteristics and distribution mode at different components of the considered computational domain. In this respect, while considering two operating conditions, namely the deep part-load and rated conditions,

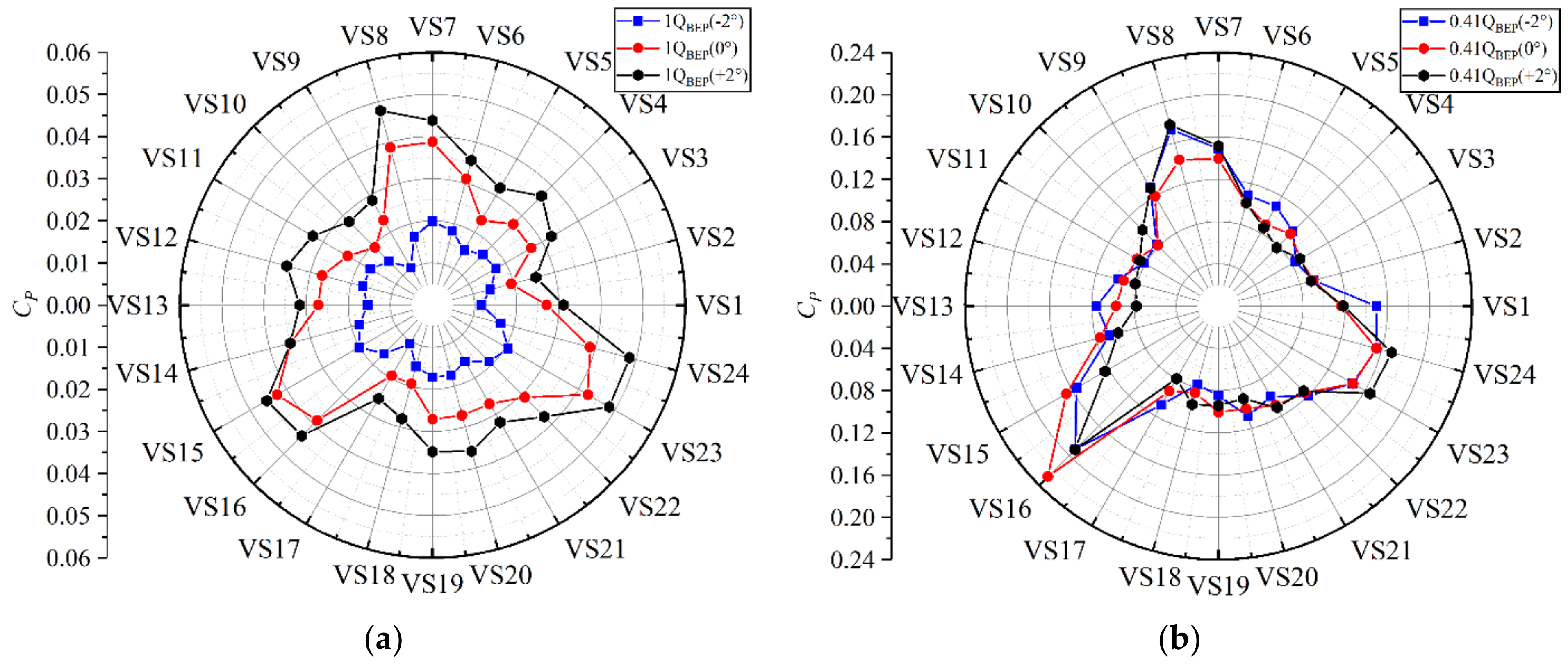

Figure 22 displays the pressure pulsation amplitudes distribution mode within the vaneless space flow zone for the three investigated blade angles. The pressure pulsation level of deep part-load conditions is globally found to be almost four times higher than the rated conditions. Having considered 24 monitoring locations equidistantly positioned along the VS circumference on the mid-span plane, the pulsation amplitude is found to increase with the blade angle under the rated conditions, while the situation is complex for deep part-load conditions, where pulsation amplitudes at different locations almost randomly vary, following no common law. Nevertheless, the highest of VS pulsation amplitudes under deep part-load condition was recorded under
γ = 0° blade angle at VS16 location. In
Figure 23, streamwise pressure pulsation amplitudes distribution mode from the inlet pipe (IP) through inter-blade and inter-guide vane channels (IB and IG) to the outlet pipe (OP), considering the three-blade angles, is presented. Four axially equidistant monitoring locations expanding from the IP’s elbow zone to the runner inlet were selected as IP4, IP3, IP2, and IP1. Within the inter-blade zone, three monitoring locations, namely IB12, IB22, and IB32, were selected in the streamwise direction from the runner inlet to the outlet’s vicinal zone on the runner’s mid-span plane. Again, considering the distributor’s mid-span plane, four successive locations were selected in the streamwise direction from the inlet to the outlet’s vicinal as IG21, IG22, IG23, and IG24. Finally, starting from the OP’s inlet zone to its elbow zone, four more equidistant monitoring locations were selected as OP11, OP21, OP31, and OP4. Therefore, adding the VS monitoring location, a total of 16 pressure monitoring locations were chosen all along the flow passage route from the IP’s elbow zone to the OP’s elbow zone. As shown in
Figure 23, regardless of the considered blade angle or operating condition, pulsation amplitudes within the IP zone are low and almost constant, followed by a gradual rise through the runner IB channels and vaneless space, reaching the highest level of pulsation amplitudes within the inter-guide vanes channels before falling back to the OP zone. Under the rated conditions, the PAT model with
γ = +2° recorded the highest of the pressure pulsation amplitudes at most of the flow zone along the investigated range, followed by
γ = 0° and finally
γ = −2°, presenting the lowest pressure pulsation level. Under deep part-load conditions on the other side,
γ = −2° dominated the whole flow passage from IP elbow through runner IB zone to the VS zone, mostly followed by
γ = 0°. Within the distributor’s IG channels,
γ = +2° took the lead again, followed again by
γ = 0° for the majority of locations. As for the OP flow zone,
γ = 0° dominated, followed by
γ = +2° and
γ = −2°, respectively. Moreover,
Figure 23b gives more clarity to some aspects presented in
Figure 22b. Under deep part-load conditions, the averaged values of recorded pulsation amplitudes within the VS zone show that the highest of the pulsation amplitudes under these conditions were recorded with the
γ = −2° followed by
γ = 0° and finally
γ = +2°. This, therefore, represents an opposite situation as compared to the rated conditions situation. However, on a global scale, regardless of the machine operating conditions, the distributor inter-guide vanes flow zone recorded the highest of pressure pulsation amplitudes, where, among the three investigated blade angles, the PAT model with
γ = +2° blade angle exhibited the highest of pressure pulsation levels, followed by
γ = 0° and
γ = −2°, respectively.
