# Connection System for Small and Medium-Size Wind Generators through the Integration in an MMC and NLC Modulation

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Fundamentals of Modular Multilevel Converters (MMC) and Near Level Control (NLC)

#### 2.1. Fundamentals of MMC

#### 2.2. Fundamentals of NLC

## 3. Proposed Wind Farm Topology with NLC Modulation

#### 3.1. Topology

- (1).
- Fewer semiconductors. The classic configuration uses for each wind generator two three-phase DC/AC converters, i.e., 12 IGBT/MOSFETs, while the developed configuration uses one three-phase DC/AC converter and one HB, in total 8 IGBT/MOSFETs.
- (2).
- Lower switching losses. The classical configuration uses high-frequency modulation because it uses two-level converters; the configuration presented in this paper generates an output voltage with many phase-to-neutral voltage levels (e.g., 11 voltage levels for 10 PM per arm), so it is not necessary to use high-frequency modulation but it is more appropriate to use low-frequency modulation such as NLC. Thus, switching power losses are greatly reduced.
- (3).
- Lower filtering requirements. The classic setup has a filter between the output converter and the grid to filter the two-level voltage of the converter; it uses one filter per generator. The proposed configuration generates the output voltage with a large number of steps so that the filtering requirements are very low or even eliminated, also, only one filter would be needed since there is only one converter connected to the grid.

#### 3.2. Control Schemes

## 4. Power Transfer between Phases and between Arms

#### 4.1. Balanced Generation

#### 4.2. Imbalance between Phases

#### 4.3. Imbalance between Arms

#### 4.4. Imbalance between Phases and Arms

## 5. Analysis of a Case for Different Generation Scenarios

- Discrete simulation.
- Fixed-step. The sample time was set at ${T}_{S}=10\mathsf{\mu}\mathrm{s}$.
- Solver: Bogacki–Shampine.

#### 5.1. Balanced Generation

#### 5.1.1. Balanced Generation and Medium Power

#### 5.1.2. Balanced Generation and Full Power

#### 5.2. Imbalance between Phases

#### 5.2.1. Medium Imbalance between Phases

#### 5.2.2. Large Imbalance between Phases

#### 5.3. Imbalance between Arms

#### 5.3.1. Medium Imbalance between Arms

#### 5.3.2. Large Imbalance between Arms

#### 5.4. Conclusions of the Case Study

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Friedrich, K. Modern HVDC PLUS application of VSC in Modular Multilevel Converter topology. In Proceedings of the 2010 IEEE International Symposium on Industrial Electronics, Bari, Italy, 4–7 July 2010. [Google Scholar]
- Mahimkar, N.; Persson, G.; Westerlind, C. HVDC Technology for Large Scale Offshore Wind Connections. In Proceedings of the Smartelec, Vadodara, India, 16 April 2013; pp. 1–5. [Google Scholar]
- Ingemansson, D.; Wheeler, J.D.; MacLeod, N.M.; Gallon, F.; Ruiton, O. The South — West Scheme: A New HVAC and HVDC Transmission System in Sweden. In Proceedings of the 10th IET International Conference on AC and DC Power Transmission (ACDC 2012), Birmingham, UK, 4–5 December 2012. [Google Scholar]
- Du, S.; Liu, J. A study on dc voltage control for chopper-cell-based modular multilevel converters in d-statcom application. IEEE Trans. Power Deliv.
**2013**, 28, 2030–2038. [Google Scholar] [CrossRef] - Mohammadi, H.P.; Bina, M.T. A transformerless medium-voltage STATCOM topology based on extended modular multilevel converters. IEEE Trans. Power Electron.
**2011**, 26, 1534–1545. [Google Scholar] [CrossRef] - Gangui, Y.; Jigang, L.; Gang, M.; Yu, L.; Yang, L.; Wei, S. Research on Modular Multilevel Converter Suitable for Direct-drive Wind Power System. Energy Procedia
**2012**, 17, 1497–1506. [Google Scholar] [CrossRef] [Green Version] - Engleitner, R.; Nied, A.; Cavalca, M.S.M.; Da Costa, J.P. Dynamic Analysis of Small Wind Turbines Frequency Support Capability in a Low-Power Wind-Diesel Microgrid. IEEE Trans. Ind. Appl.
**2018**, 54, 102–111. [Google Scholar] [CrossRef] - Yenduri, K.; Sensarma, P. Maximum Power Point Tracking of Variable Speed Wind Turbines with Flexible Shaft. IEEE Trans. Sustain. Energy
**2016**, 7, 956–965. [Google Scholar] [CrossRef] - Radwan, A.A.A.; Mohamed, Y.A.I. Grid-Connected Wind-Solar Cogeneration Using Back-to-Back Voltage-Source Converters. IEEE Trans. Sustain. Energy
**2020**, 11, 315–325. [Google Scholar] [CrossRef] - Rohner, S.; Bernet, S.; Hiller, M.; Sommer, R. Modulation, losses, and semiconductor requirements of modular multilevel converters. IEEE Trans. Ind. Electron.
**2010**, 57, 2633–2642. [Google Scholar] [CrossRef] - Martinez-Rodrigo, F.; Herrero-de Lucas, L.C.; de Pablo, S.; Rey-Boué, A.B.; Ramirez, D. Calculation of the number of modules and the switching frequency of a modular multilevel converter using near level control. Electr. Power Syst. Res.
**2018**, 165, 68–83. [Google Scholar] [CrossRef] - Soong, T.; Lehn, P.W. Assessment of Fault Tolerance in Modular Multilevel Converters with Integrated Energy Storage. IEEE Trans. Power Electron.
**2016**, 31, 4085–4095. [Google Scholar] [CrossRef] - Vasiladiotis, M.; Rufer, A. Analysis and control of modular multilevel converters with integrated battery energy storage. IEEE Trans. Power Electron.
**2015**, 30, 163–175. [Google Scholar] [CrossRef] - Soong, T.; Lehn, P.W. Evaluation of emerging modular multilevel converters for BESS applications. IEEE Trans. Power Deliv.
**2014**, 29, 2086–2094. [Google Scholar] [CrossRef] - Mao, M.; Ding, Y.; Chang, L.; Hatziargyriou, N.D.; Chen, Q.; Tao, T.; Li, Y. Multi-objective power management for EV fleet with MMC-based integration into smart grid. IEEE Trans. Smart Grid
**2019**, 10, 1428–1439. [Google Scholar] [CrossRef] - Bayat, H.; Yazdani, A. A Power Mismatch Elimination Strategy for an MMC-Based Photovoltaic System. IEEE Trans. Energy Convers.
**2018**, 33, 1519–1528. [Google Scholar] [CrossRef] - Rivera, S.; Wu, B.; Lizana, R.; Kouro, S.; Perez, M.; Rodriguez, J. Modular multilevel converter for large-scale multistring photovoltaic energy conversion system. In Proceedings of the 2013 IEEE Energy Conversion Congress and Exposition, ECCE 2013, Denver, CO, USA, 15–19 September 2013. [Google Scholar]
- Rong, F.; Gong, X.; Huang, S. A Novel Grid-Connected PV System Based on MMC to Get the Maximum Power under Partial Shading Conditions. IEEE Trans. Power Electron.
**2017**, 32, 4320–4333. [Google Scholar] [CrossRef] - Bayat, H.; Yazdani, A. A Hybrid MMC-Based Photovoltaic and Battery Energy Storage System. IEEE Power Energy Technol. Syst. J.
**2019**, 6, 32–40. [Google Scholar] [CrossRef] - Soong, T.; Lehn, P.W. Internal power flow of a modular multilevel converter with distributed energy resources. IEEE J. Emerg. Sel. Top. Power Electron.
**2014**, 2, 1127–1138. [Google Scholar] [CrossRef] - Martinez-Rodrigo, F.; Ramirez, D.; Rey-Boue, A.B.; de Pablo, S.; Herrero-de Lucas, L.C. Modular Multilevel Converters: Control and Applications. Energies
**2017**, 10, 1709. [Google Scholar] [CrossRef] [Green Version] - Peralta, J.; Saad, H.; Dennetière, S.; Mahseredjian, J.; Nguefeu, S. Detailed and averaged models for a 401-level MMC-HVDC system. IEEE Trans. Power Deliv.
**2012**, 27, 1501–1508. [Google Scholar] [CrossRef] - Tu, Q.; Xu, Z. Impact of sampling frequency on harmonic distortion for modular multilevel converter. IEEE Trans. Power Deliv.
**2011**, 26, 298–306. [Google Scholar] [CrossRef] - Meshram, P.M.; Borghate, V.B. A simplified nearest level control (NLC) voltage balancing method for modular multilevel converter (MMC). IEEE Trans. Power Electron.
**2015**, 30, 450–462. [Google Scholar] [CrossRef] - Blaabjerg, F.; Teodorescu, R.; Liserre, M.; Timbus, A.V. Overview of control and grid synchronization for distributed power generation systems. IEEE Trans. Ind. Electron.
**2006**, 53, 1398–1409. [Google Scholar] [CrossRef] [Green Version] - Saeedifard, M.; Iravani, R. Dynamic performance of a modular multilevel back-to-back HVDC system. IEEE Trans. Power Deliv.
**2010**, 25, 2903–2912. [Google Scholar] [CrossRef] - Arruda, L.N.; Silva, S.M.; Filho, B.J.C. PLL structures for utility connected systems. In Proceedings of the Conference Record—IAS Annual Meeting (IEEE Industry Applications Society), Chicago, IL, USA, 30 September–4 October 2001. [Google Scholar]

**Figure 1.**(

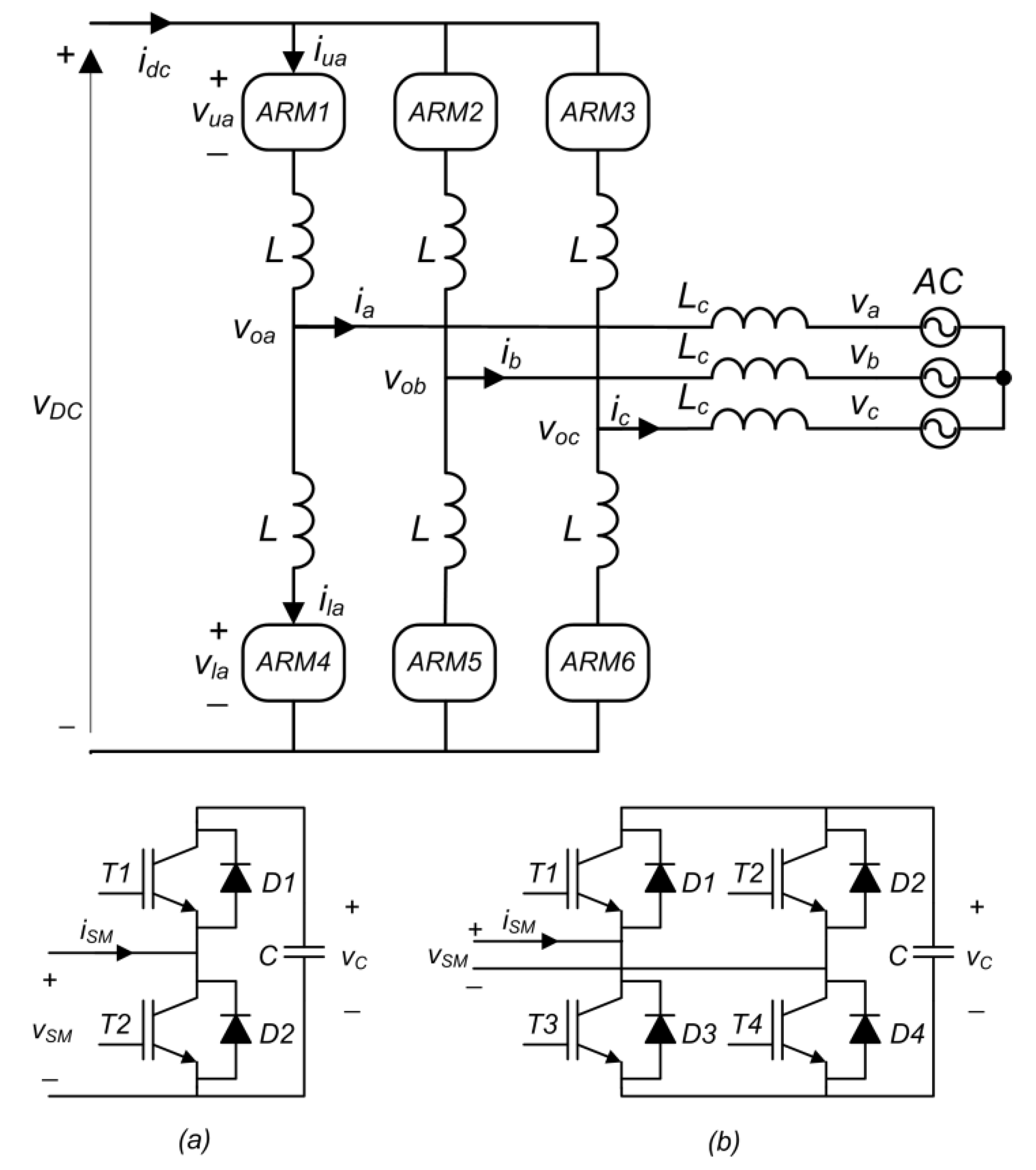

**Top**) Topology of a modular multilevel converter (MMC) connected to the grid by means of an inductance. (

**Bottom**) Switching modules (SM): (

**a**) half-bridge (HB), and (

**b**) full-bridge (FB) [21].

**Figure 2.**(

**Top**) Reference voltage and near level control (NLC) voltage graphs when the switching period is fixed. (

**Bottom**) Reference voltage and near level control (NLC) voltage graphs when the switching period is variable [21].

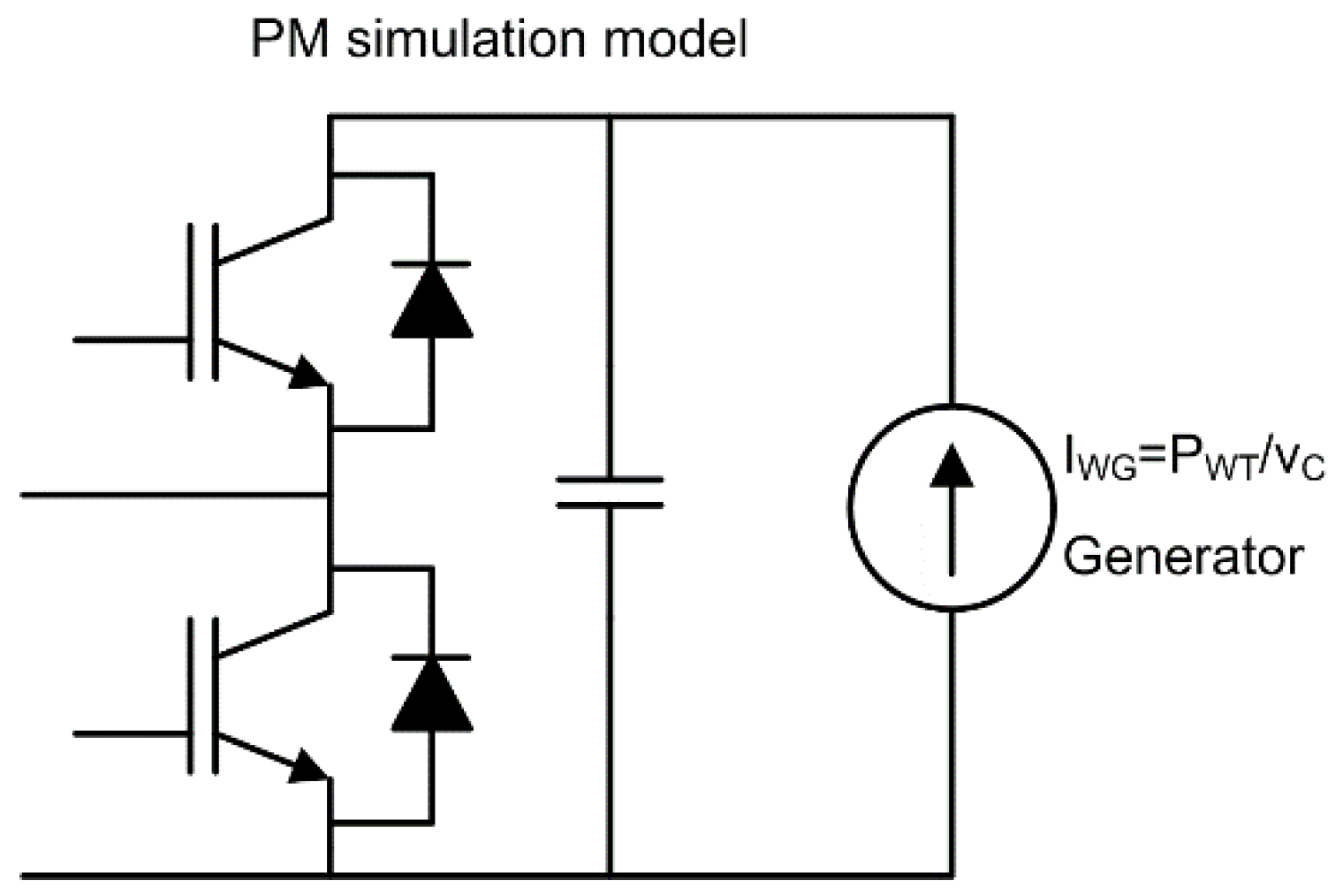

**Figure 3.**Proposed MMC for wind power generation, where the details of a power module (PM) including the wind generator, the generator-side converter, and the HB-SM can be seen.

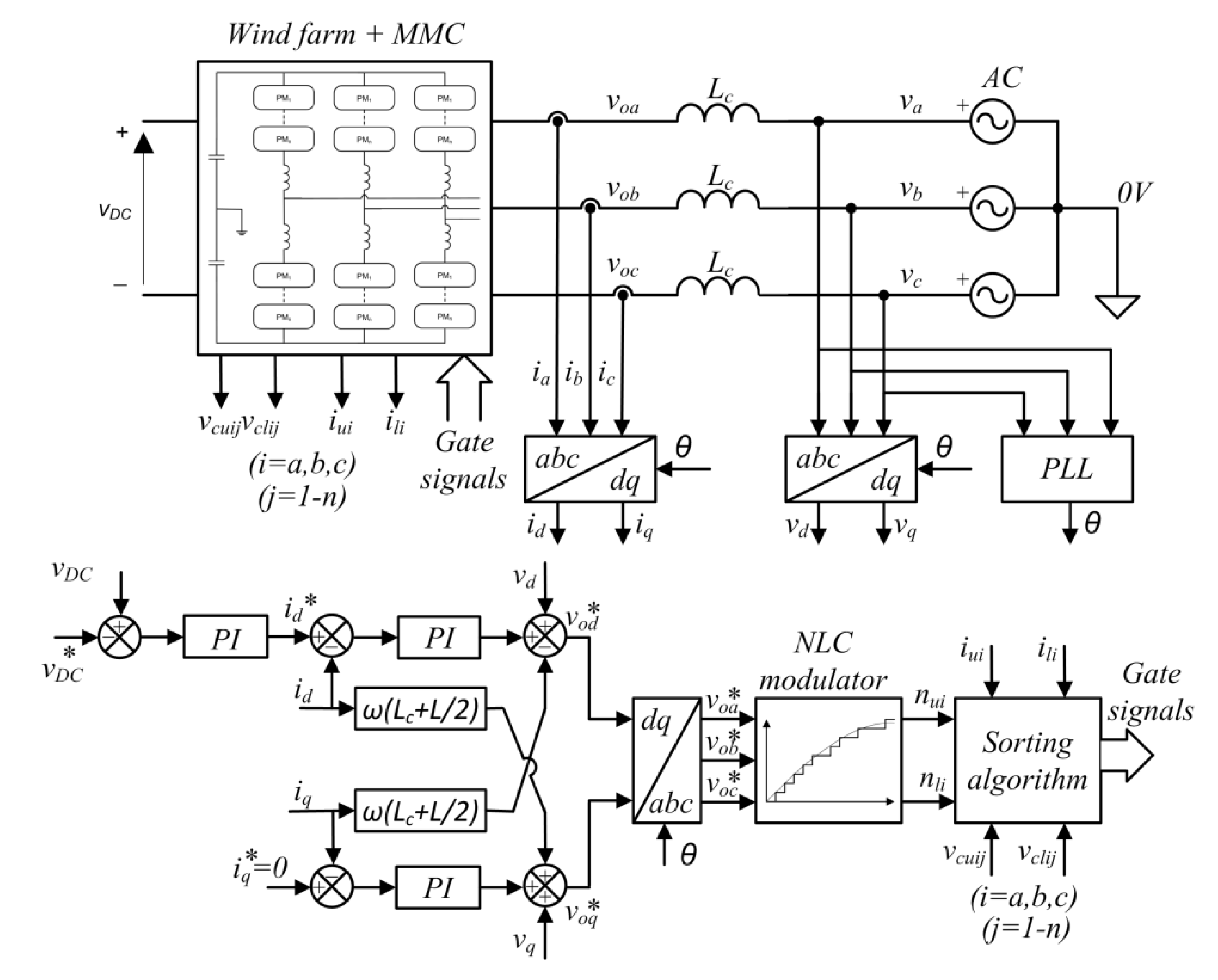

**Figure 4.**Control scheme of the new topology that integrates the wind generators into the structure of an MMC and uses an NLC modulator.

**Figure 5.**Vector diagram of the variables involved in power transmission from the arms. All of them are 50 Hz variables (harmonic 1).

**Figure 7.**Simulation graphs when the power is medium and the generation is balanced. (

**a**) Output voltages. (

**b**) Output currents. (

**c**) Power transferred between phases. (

**d**) Power delivered by each phase. (

**e**) Voltage on the DC link. (

**f**) Circulating currents. (

**g**) Capacitor voltages.

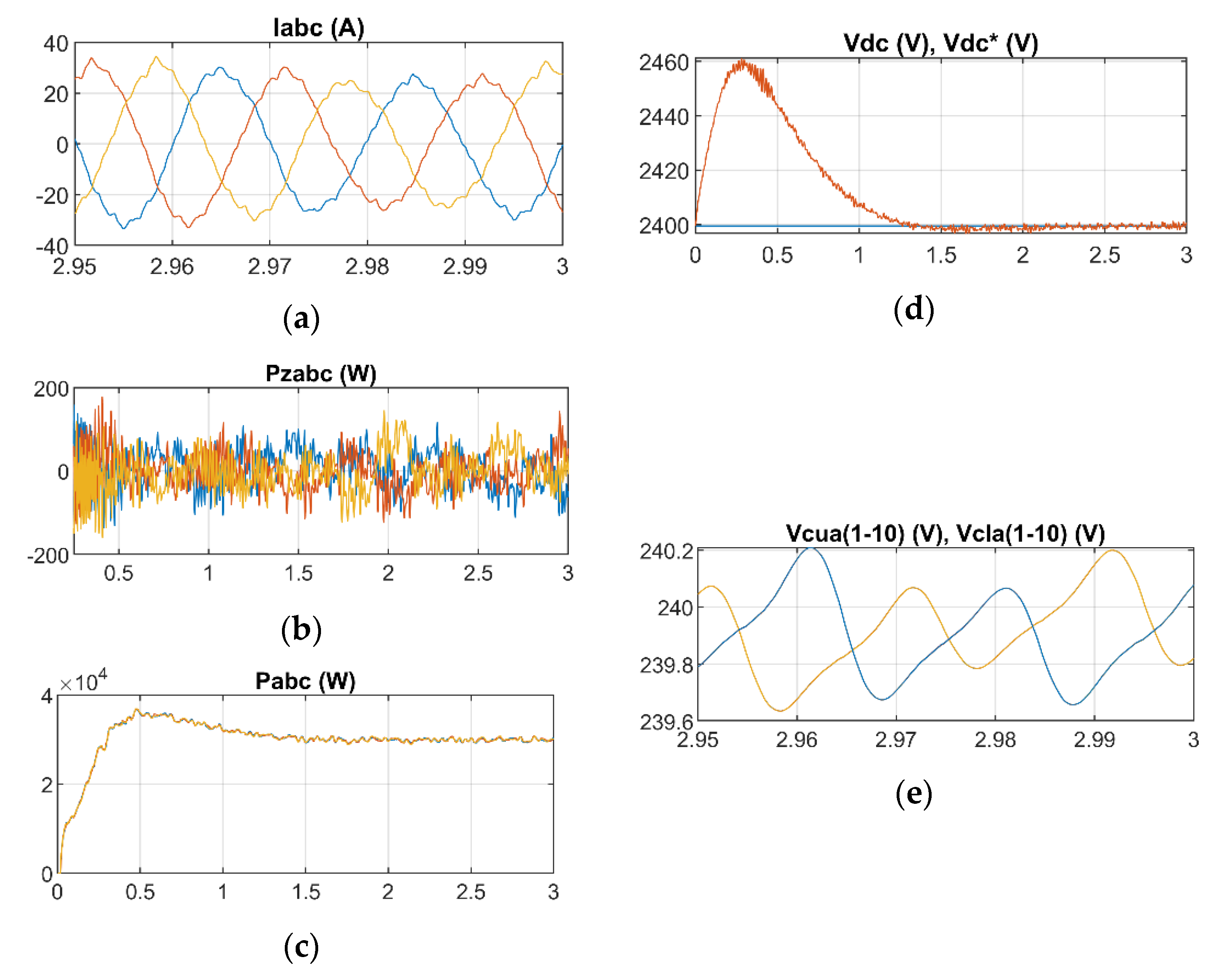

**Figure 8.**Simulation graphics when the generation is balanced and the power is full. (

**a**) Output currents. (

**b**) Power transferred between phases. (

**c**) Power delivered by each phase. (

**d**) Voltage on the DC link. (

**e**) Capacitor voltages.

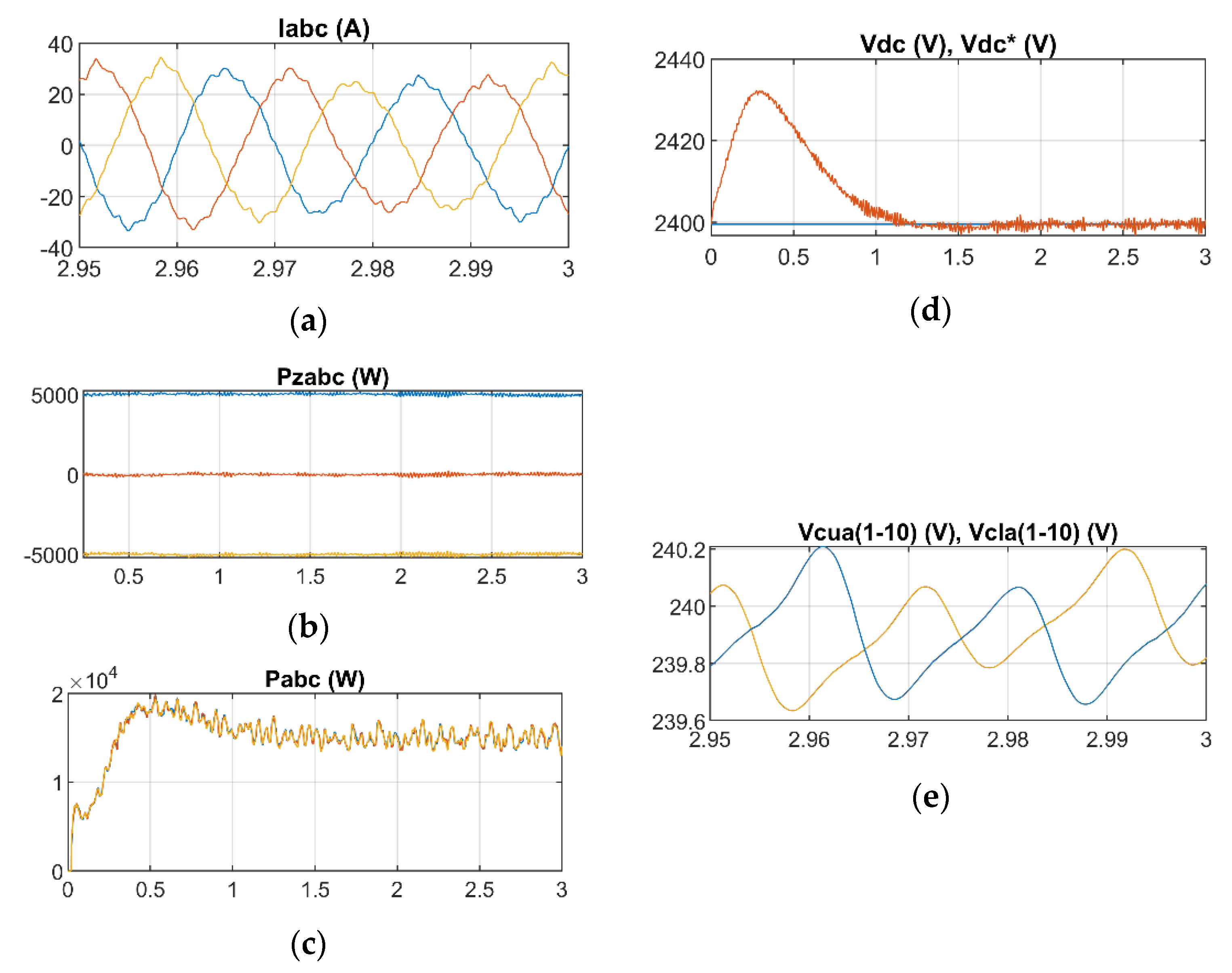

**Figure 9.**Simulation graphs when the generation has a medium phase imbalance. (

**a**) Output currents. (

**b**) Power transferred between phases. (

**c**) Power delivered by each phase. (

**d**) Voltage on the DC link. (

**e**) Capacitor voltages.

**Figure 10.**Simulation graphs when the generation has a large imbalance between phases. (

**a**) Output currents. (

**b**) Power transferred between phases. (

**c**) Power delivered by each phase. (

**d**) Voltage on the DC link. (

**e**) Capacitor voltages.

**Figure 11.**Simulation plots when the generation has an intermediate imbalance between arms. (

**a**) Output currents. (

**b**) Power of the upper and lower arms. (

**c**) Power delivered by each phase. (

**d**) Voltage on the DC link. (

**e**) Capacitor voltages.

**Figure 12.**Vector diagram of the variables involved in the transmission of power from the arms when the generation has a medium imbalance between arms. All of them are 50 Hz variables (harmonic 1).

**Figure 13.**Simulation plots when the generation has a large imbalance between arms. (

**a**) Output currents. (

**b**) Power of the upper and lower arms. (

**c**) Power delivered by each phase. (

**d**) Voltage on the DC link. (

**e**) Capacitor voltages.

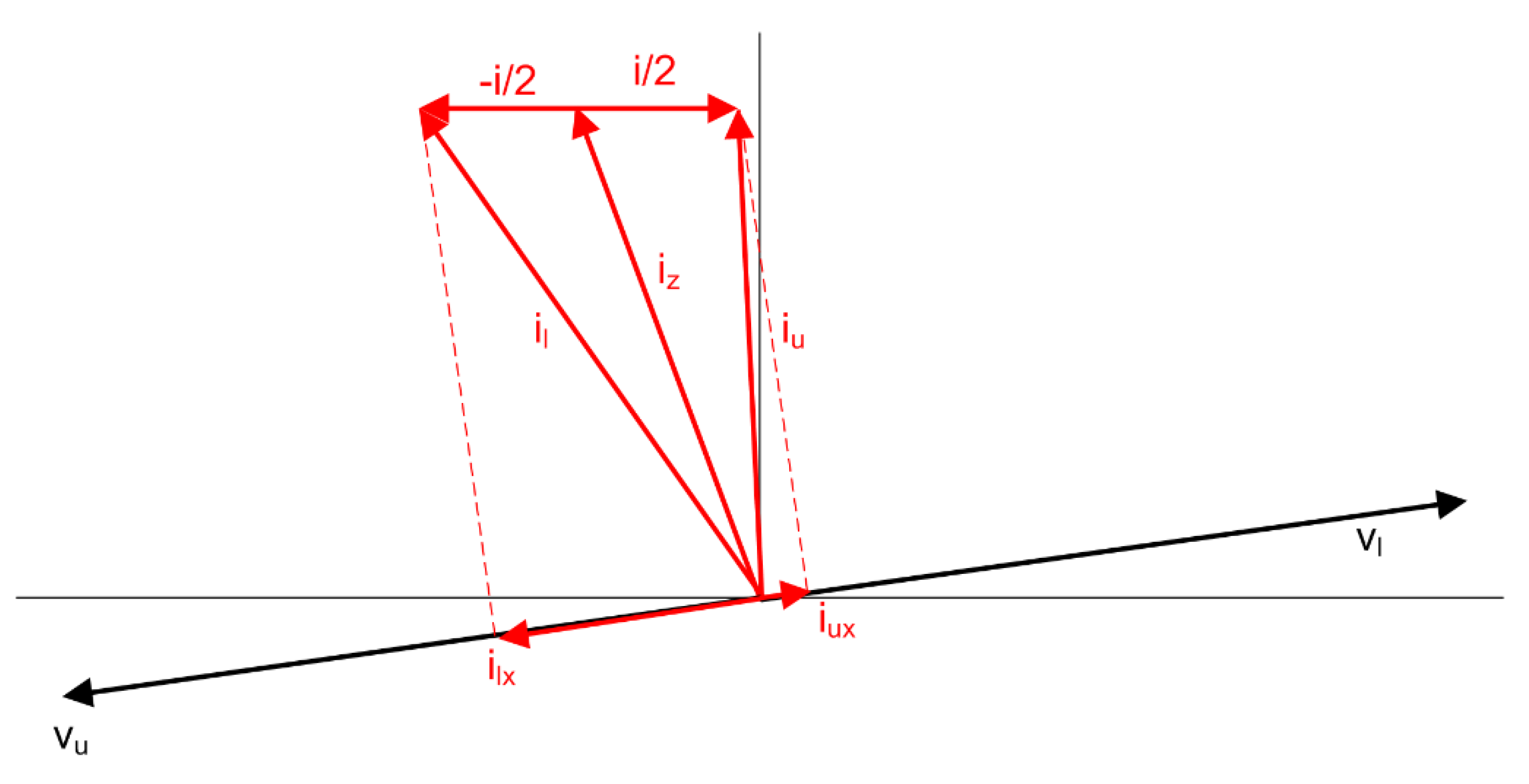

**Figure 14.**Vector diagram of the variables involved in the transmission of power from the arms when the generation has a large imbalance between arms. All of them are 50 Hz variables (harmonic 1).
