# Comparative Analysis of the Steady-State Model Including Non-Linear Flux Linkage Surfaces and the Simplified Linearized Model when Applied to a Highly-Saturated Permanent Magnet Synchronous Machine—Evaluation Based on the Example of the BMW i3 Traction Motor

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

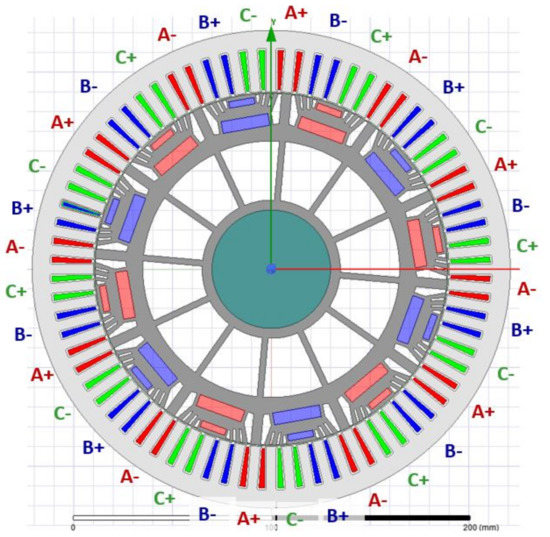

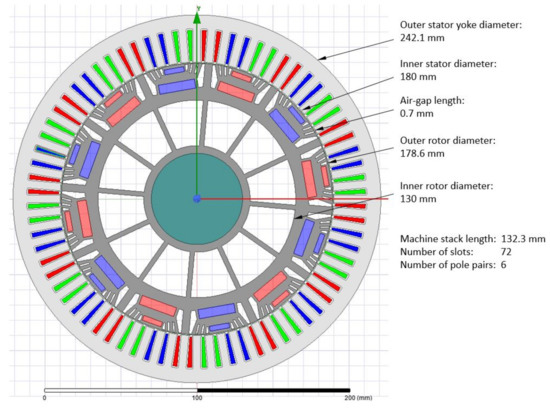

#### 2.1. Machine Geometry and Winding Configuration

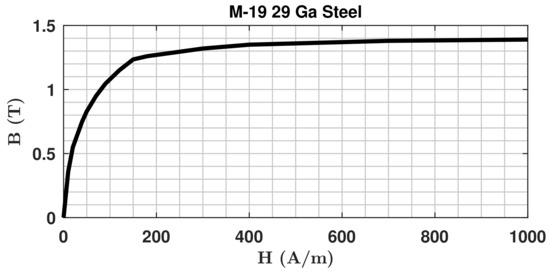

#### 2.2. Definition of the Used Materials

#### 2.3. Model Summary

## 3. Results

#### 3.1. FEM Simulation Results

#### 3.2. Calculations Based on the Non-Linear Model

#### 3.3. Calculations Based on the Linearized Model

- ‘Non-linear model’—the space-vector model in steady-state defined with Equation (1), which includes voltage drop across stator resistance and non-linear flux linkage surfaces.
- ‘Linearized model’—the simplified model defined with Equation (3), which neglects voltage drop across stator resistance and assumes constant machine parameters (hence the term ‘linearized’).

#### 3.4. Comparison of the Results—Maximal Torque

#### 3.5. Comparison of the Results—Partial Load Operation

## 4. Discussion

## 5. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

FEM | Finite Element Method |

IPMSM | Interior Permanent Magnet Synchronous Machine |

MTPC | Maximal Torque Per Current |

MTPV | Maximal Torque Per Voltage |

ORNL | Oak Ridge National Laboratory |

PMSM | Permanent Magnet Synchronous Machine |

## Appendix A. BMW i3 Traction Machine Data and FEM Simulation Results

Parameter Name | Value | Unit |
---|---|---|

overall motor assembly mass | 42 | kg |

outer housing mass (incl. one bearing) | 6.9 | kg |

stator mass | 20.8 | kg |

rotor mass | 14.2 | kg |

stator outer diameter | 242.1 | mm |

stator inner diameter | 180.0 | mm |

rotor outer diameter | 178.6 | mm |

rotor inner diameter | 130.3 | mm |

shaft diameter | 60.0 | mm |

stack length | 132.3 | mm |

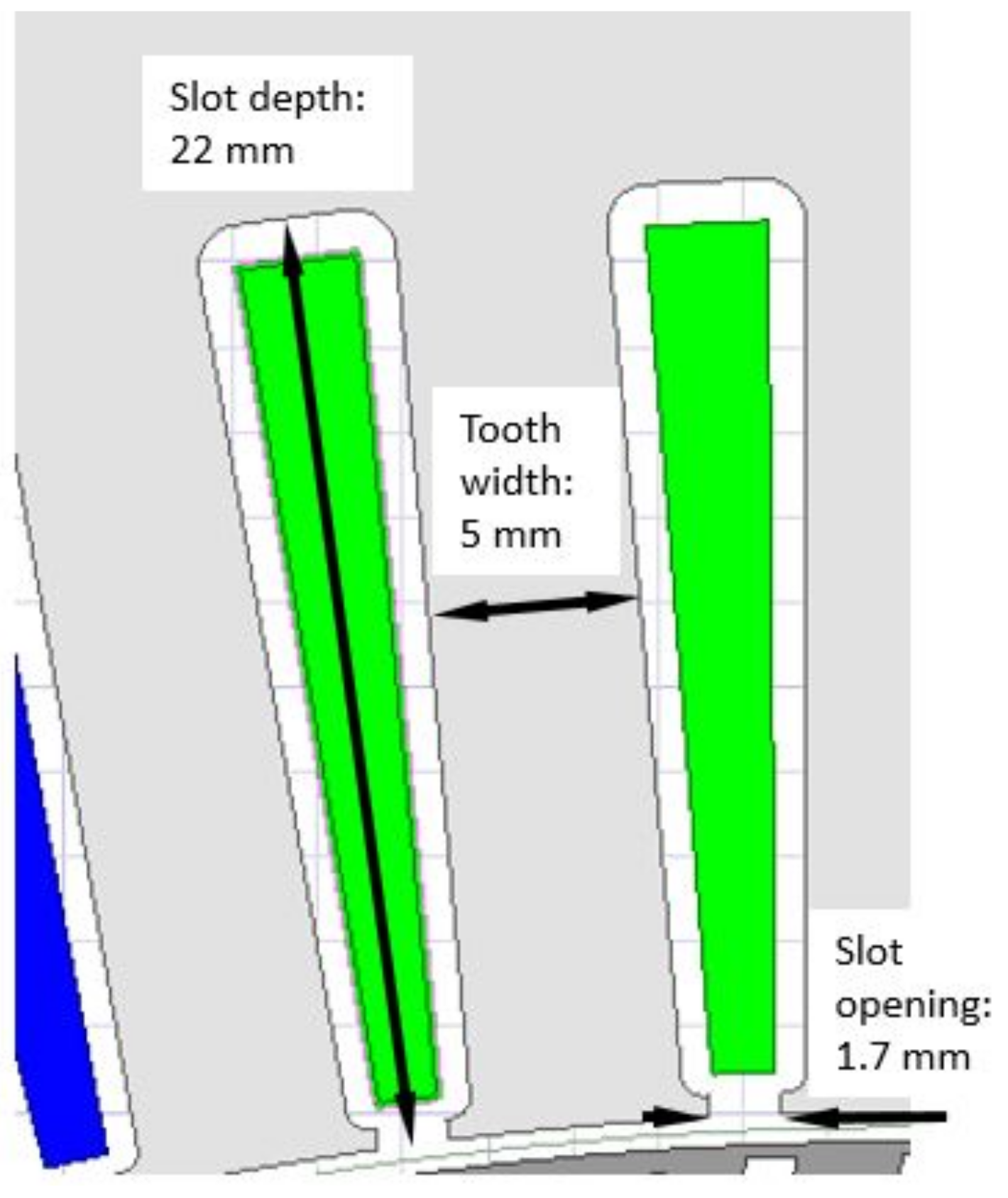

tooth width | 5.0 | mm |

slot opening | 1.7 | mm |

slot depth | 22.0 | mm |

Parameter Name | Value | Unit |
---|---|---|

number of slots | 72 | - |

number of pole pairs | 6 | - |

stator turns per coil | 9 | - |

number of wires “in hand” | 12 | strands/turn |

wire size | 21 | AWG |

slot fill factor | 54.43 | % |

parallel circuits per phase | 6 one neutral/phase | |

coils in series per phase | 1 per leg | |

winding notes | full pitch, concentrically wound | |

6 independent neutrals |

Machine Part | Material |
---|---|

stator core | magnetic steel: M-19 29 Ga |

stator coil | copper: 100% IACS |

stator liner | epoxy resin |

rotor core | magnetic steel: M-19 29 Ga |

rotor magnet | neodymium iron boron: 38/23 |

rotor sleeve | stainless steel: 304 |

shaft | cold rolled steel: CR10 |

hub | non-magnetic |

**Table A4.**Flux linkage in the d-axis calculated with the FEM model (mWb) (values averaged over one electrical period).

q-axis Current (A) | ||||||||
---|---|---|---|---|---|---|---|---|

0 | 100 | 200 | 300 | 400 | 500 | 600 | ||

ine d-axis current (A) | −600 | 1.0 | 1.3 | 2.0 | 2.7 | 3.2 | 3.4 | 3.6 |

−500 | 7.7 | 8.0 | 8.6 | 9.0 | 9.1 | 9.0 | 8.8 | |

−400 | 14.5 | 14.8 | 15.3 | 15.4 | 15.1 | 14.6 | 14.1 | |

−300 | 21.5 | 21.8 | 22.3 | 22.2 | 21.3 | 20.3 | 19.4 | |

−200 | 28.6 | 29.0 | 29.5 | 29.0 | 27.6 | 26.0 | 24.6 | |

−100 | 35.9 | 36.5 | 37.0 | 35.6 | 33.6 | 31.5 | 29.8 | |

0 | 43.6 | 44.4 | 44.0 | 41.5 | 39.0 | 36.6 | 34.5 |

**Table A5.**Flux linkage in the q-axis calculated with the FEM model (mWb) (values averaged over one electrical period).

q-axis Current (A) | ||||||||
---|---|---|---|---|---|---|---|---|

0 | 100 | 200 | 300 | 400 | 500 | 600 | ||

ine d-axis current (A) | −600 | 0.0 | 18.8 | 35.2 | 47.4 | 55.4 | 60.0 | 62.7 |

−500 | 0.0 | 19.8 | 36.8 | 48.9 | 56.3 | 60.3 | 62.8 | |

−400 | 0.0 | 20.8 | 38.2 | 49.9 | 56.6 | 60.2 | 62.5 | |

−300 | 0.0 | 21.8 | 39.4 | 50.2 | 56.3 | 59.6 | 61.8 | |

−200 | 0.0 | 22.8 | 40.3 | 49.9 | 55.2 | 58.5 | 60.8 | |

−100 | 0.0 | 23.9 | 40.8 | 48.9 | 53.4 | 56.9 | 59.3 | |

0 | 0.0 | 24.9 | 40.1 | 46.7 | 51.3 | 54.8 | 57.6 |

**Table A6.**Machine torque calculated with the FEM model (Nm) (values averaged over one electrical period).

q-axis Current (A) | ||||||||
---|---|---|---|---|---|---|---|---|

0 | 100 | 200 | 300 | 400 | 500 | 600 | ||

ine d-axis current (A) | −600 | −1.4 | 100.6 | 190.2 | 259.5 | 307.8 | 337.7 | 357.1 |

−500 | −1.1 | 94.2 | 177.7 | 241.0 | 283.8 | 310.5 | 329.5 | |

−400 | −0.9 | 86.3 | 162.1 | 218.6 | 256.3 | 281.3 | 300.3 | |

−300 | −0.6 | 76.8 | 144.1 | 193.3 | 227.0 | 251.2 | 270.9 | |

−200 | −0.3 | 65.9 | 123.9 | 166.6 | 197.3 | 221.4 | 241.8 | |

−100 | −0.1 | 53.7 | 101.9 | 138.8 | 167.9 | 192.3 | 213.4 | |

0 | 0.0 | 39.7 | 78.1 | 110.9 | 139.4 | 164.0 | 185.7 |

q-axis Current (A) | ||||||||
---|---|---|---|---|---|---|---|---|

0 | 100 | 200 | 300 | 400 | 500 | 600 | ||

ine d-axis current (A) | −600 | 21.06 | 21.62 | 21.49 | 22.51 | 21.69 | 18.63 | 19.99 |

−500 | 18.53 | 18.94 | 16.86 | 16.89 | 16.93 | 14.06 | 16.55 | |

−400 | 15.90 | 16.15 | 13.83 | 12.84 | 12.50 | 10.27 | 15.28 | |

−300 | 12.30 | 12.71 | 12.56 | 12.01 | 11.99 | 11.36 | 16.45 | |

−200 | 8.56 | 9.17 | 10.22 | 11.61 | 10.86 | 10.19 | 13.83 | |

−100 | 5.02 | 5.74 | 8.03 | 10.37 | 10.35 | 11.08 | 12.12 | |

0 | 2.16 | 3.66 | 6.77 | 9.39 | 11.18 | 12.23 | 13.79 |

## References

- Lovelace, E.C.F. Optimization of a Magnetically Saturable Interior Permanent-Magnet Synchronous Machine Drive. Ph.D. Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 2000. Available online: http://pdfs.semanticscholar.org/c9ca/8d246d4e2e2c3effd05c1d832c78223fcfa9.pdf?_ga=2.137131315.2073111183.1580043790-153552457.1580043790 (accessed on 10 March 2021).
- Grunditz, E.A. Design and Assessment of Battery Electric Vehicle Powertrain, with Respect to Performance, Energy Consumption and Electric Motor Thermal Capability. Ph.D. Thesis, Chalmers University of Technology, Goteborg, Sweden, 2016. Available online: http://www.chalmers.se/SiteCollectionDocuments/Energi%20och%20milj%C3%B6/Elteknik/EmmaGrunditz_PhDthesis_lowrez.pdf (accessed on 10 March 2021).
- Finken, T.; Hombitzer, M.; Hameyer, K. Study and comparison of several permanent-magnet excited rotor types regarding their applicability in electric vehicles. In Proceedings of the 2010 Emobility—Electrical Power Train, Leipzig, Germany, 8–9 November 2010; pp. 1–7. [Google Scholar]
- Cavagnino, A.; Bramerdorfer, G.; Tapia, J.A. Optimization of electric machine designs—Part I. IEEE Trans. Ind. Electron.
**2017**, 64, 9716–9720. [Google Scholar] [CrossRef] - Cavagnino, A.; Bramerdorfer, G.; Tapia, J.A. Optimization of electric machine designs—Part II. IEEE Trans. Ind. Electron.
**2017**, 65, 1700–1703. [Google Scholar] [CrossRef] - Gierczynski, M.; Grzesiak, L. Per Unit Approach Based Assessment of Torque Production Capability of PMSMs Operating in the Field Weakening Region. In Proceedings of the 2019 Fourteenth International Conference on Ecological Vehicles and Renewable Energies (EVER), Monte-Carlo, Monaco, 8–10 May 2019; pp. 1–15. [Google Scholar]
- Schiferl, R.F.; Lipo, T.A. Power capability of salient pole permanent magnet synchronous motors in variable speed drive applications. IEEE Trans. Ind Appl.
**1990**, 26, 115–123. [Google Scholar] [CrossRef] - Morimoto, S.; Takeda, Y.; Hirasa, T.; Taniguchi, K. Expansion of operating limits for permanent magnet motor by current vector control considering inverter capacity. IEEE Trans. Ind Appl.
**1990**, 26, 866–871. [Google Scholar] [CrossRef] - Adnanes, A.K.; Undeland, T.M. Optimum torque performance in PMSM drives above rated speed. In Proceedings of the Conference Record of the 1991 IEEE Industry Applications Society Annual Meeting, Dearborn, MI, USA, 28 September–4 October 1991; pp. 169–175. [Google Scholar]
- Soong, W.L. Design and Modelling of Axially-Laminated Interior Permanent Magnet Motor Drives for Field-Weakening Applications. Ph.D. Thesis, University of Glasgow, Glasgow, Scotland, 1993. Available online: http://theses.gla.ac.uk/75707/1/13818424.pdf (accessed on 10 March 2021).
- Soong, W.L.; Miller, T.J.E. Theoretical limitations to the field-weakening performance of the five classes of brushless synchronous AC motor drive. In Proceedings of the 1993 Sixth International Conference on Electrical Machines and Drives, Oxford, UK, 8–10 September 1993; pp. 127–132. [Google Scholar]
- Jahns, T.M. Component Rating Requirements for Wide Constant Power Operation of Interior PM Synchronous Machine Drives. In Proceedings of the Conference Record of the 2000 IEEE Industry Applications Conference, Rome, Italy, 8–12 October 2000; pp. 1697–1704. [Google Scholar]
- Morimoto, S.; Sanada, M.; Takeda, Y.; Taniguchi, K. Optimum machine parameters and design of inverter-driven synchronous motors for wide constant power operation. In Proceedings of the 1994 IEEE Industry Applications Society Annual Meeting, Denver, CO, USA, 2–5 October 1997; pp. 177–182. [Google Scholar]
- Bianchi, N.; Bolognani, S.; Chalmers, B.J. Salient-rotor PM synchronous motors for an extended flux-weakening operation range. IEEE Trans. Ind Appl.
**2000**, 36, 1118–1125. [Google Scholar] [CrossRef] - Soong, W.L.; Reddy, P.B.; El-Refaie, A.M.; Jahns, T.M.; Ertugrul, N. Surface PM Machine Parameter Selection for Wide Field-Weakening Applications. In Proceedings of the 2007 IEEE Industry Applications Annual Meeting, New Orleans, LA, USA, 23–27 September 2007; pp. 882–889. [Google Scholar]
- Jahns, T.M.; Caliskan, V. Uncontrolled generator operation of interior PM synchronous machines following high-speed inverter shutdown. IEEE Trans. Ind Appl.
**1999**, 35, 1347–1357. [Google Scholar] [CrossRef] - Asef, P.; Bargallo, R.; Lapthorn, A.; Tavernini, D.; Shao, L.; Sorniotti, A. Assessment of the Energy Consumption and Drivability Performance of an IPMSM-Driven Electric Vehicle Using Different Buried Magnet Arrangements. Energies
**2021**, 14, 1418. [Google Scholar] [CrossRef] - Richter, J. Permanentmagneterregte Synchronmaschine. In Modellbildung, Parameteridentifikation und Regelung Hoch Ausgenutzter Synchronmaschinen; KIT Scientific Publishing: Karlsruhe, Germany, 2016; pp. 10–29. Available online: https://publikationen.bibliothek.kit.edu/1000057097 (accessed on 10 March 2021).
- Oak Ridge National Laboratory, FY 2016 Annual Progress Report for Electric Drive Technologies Program July 2017. Available online: http://www.energy.gov/sites/prod/files/2017/08/f36/FY16%20EDT%20Annual%20Report_FINAL.pdf (accessed on 10 March 2021).
- Hendershot, J. Connect tutorial E-Car Project Insight: BMW i3 Electric Traction Drive—YouTube. Available online: http://www.youtube.com/watch?v=xt-nfcwv6Kc (accessed on 10 March 2021).
- Merwerth, J.; BMW Group. The hybrid-synchronous machine of the new BMW i3 & i8. Available online: http://hybridfordonscentrum.se/wp-content/uploads/2014/05/20140404_BMW.pdf (accessed on 10 March 2021).
- Li, Y.; Yang, H.; Lin, H.; Fang, S.; Wang, W. A Novel Magnet-Axis-Shifted Hybrid Permanent Magnet Machine for Electric Vehicle Applications. Energies
**2019**, 12, 641. [Google Scholar] [CrossRef] [Green Version] - Chalmers, B.J.; Musaba, L.; Gosden, D.F. Variable-frequency synchronous motor drives for electric vehicles. IEEE Trans. Ind Appl.
**1996**, 32, 896–903. [Google Scholar] [CrossRef] - Jolly, L.; Jabbar, M.A.; Qinghua, L. Optimization of the constant power speed range of a saturated permanent-magnet synchronous motor. IEEE Trans. Ind Appl.
**2006**, 42, 1024–1030. [Google Scholar] [CrossRef] - Legranger, J.; Friedrich, G.; Vivier, S.; Mipo, J.C. Combination of Finite-Element and Analytical Models in the Optimal Multidomain Design of Machines: Application to an Interior Permanent-Magnet Starter Generator. IEEE Trans. Ind Appl.
**2010**, 46, 232–239. [Google Scholar] [CrossRef] - Wang, F.; Chang, C.; Liu, B. Analysis of PMSM control performance based on the mathematical model and saturated parameters. In Proceedings of the 2014 IEEE Conference and Expo Transportation Electrification Asia-Pacific (ITEC Asia-Pacific), Beijing, China, 31 August–3 September 2014; pp. 1–5. [Google Scholar]
- Decker, S.; Brodatzki, M.; Bachowsky, B.; Schmitz-Rode, B.; Liske, A.; Braun, M.; Hiller, M. Predictive Trajectory Control with Online MTPA Calculation and Minimization of the Inner Torque Ripple for Permanent-Magnet Synchronous Machines. Energies
**2020**, 13, 5327. [Google Scholar] [CrossRef] - Gemassmer, T. Effiziente und Dynamische Drehmomenteinpraegung in Hoch Ausgenutzten Synchronmaschinen mit Eingebetteten Magneten. Ph.D. Thesis, Karlsruhe Institute of Technology, Karlsruhe, Germany, 2015. Available online: https://publikationen.bibliothek.kit.edu/1000046666 (accessed on 16 April 2021).
- Dutta, R.; Chong, L.; Rahman, M.F. Analysis of CPSR in motoring and generating modes of an IPM motor. In Proceedings of the 2011 IEEE International Electric Machines & Drives Conference (IEMDC), Niagara Falls, ON, Canada, 14–17 May 2011; pp. 1474–1479. [Google Scholar]
- Ansys Maxwell: Low Frequency Electromagnetic Field Simulation. Available online: http://www.ansys.com/products/electronics/ansys-maxwell (accessed on 10 March 2021).
- Selected Magnetic Steel Data—Power Magnetic Devices—Wiley Online Library. Available online: http://onlinelibrary.wiley.com/doi/pdf/10.1002/9781118824603.app3 (accessed on 10 March 2021).
- Neodymium Iron Boron Magnets Datasheet. Available online: http://www.eclipsemagnetics.com/site/assets/files/2418/ndfeb_neodymium_iron_boron-standard_ndfeb_range_datasheet_rev1.pdf (accessed on 10 March 2021).
- MATLAB. Available online: http://www.mathworks.com/products/matlab.html (accessed on 10 March 2021).

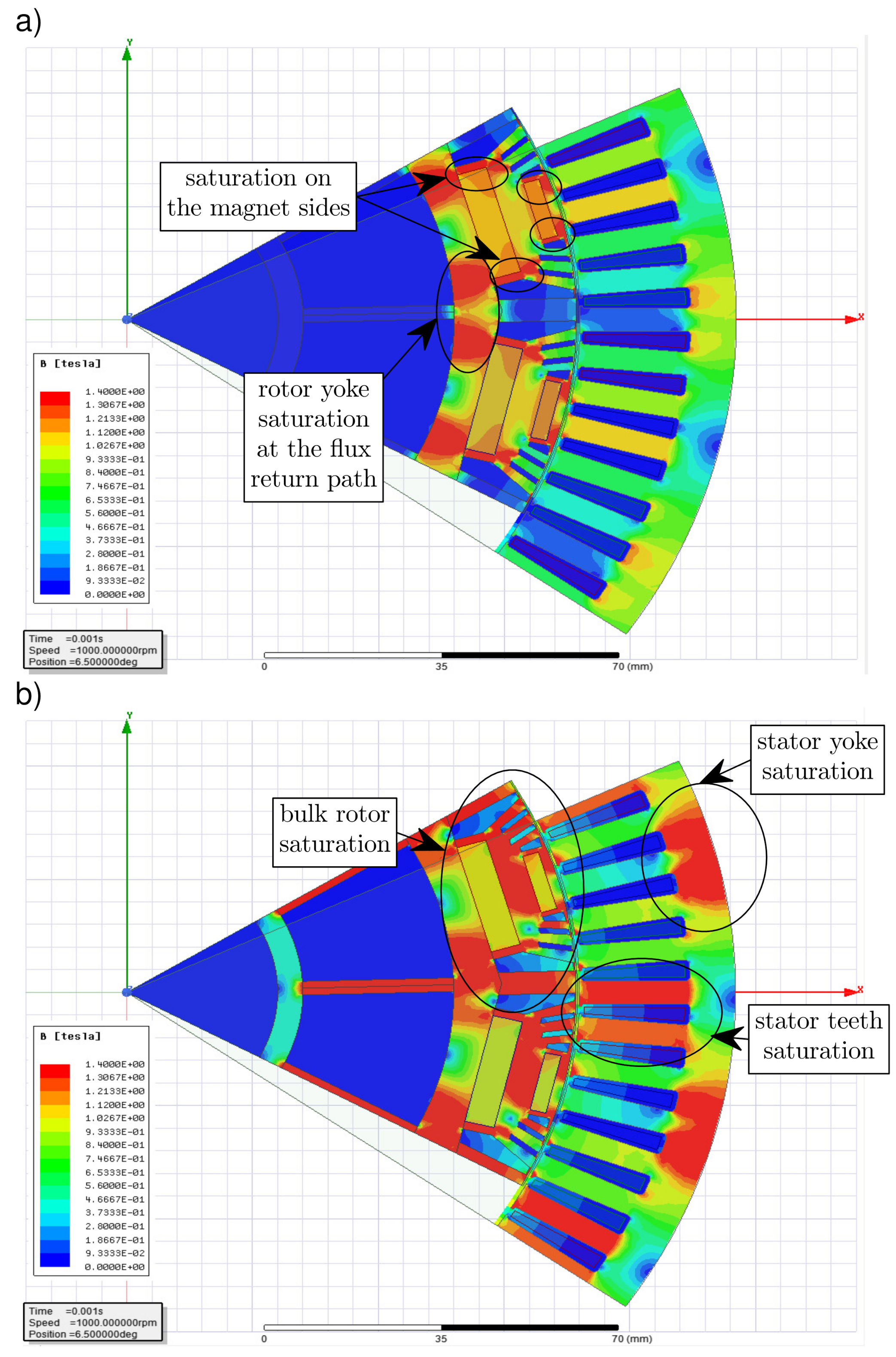

**Figure 5.**Magnetic circuit saturation of the BMW i3 traction machine: (

**a**) flux density plot at no current state, (

**b**) flux density plot at the working point corresponding to the peak torque (${i}_{d\_\mathrm{Tpk}}=-401\phantom{\rule{3.33333pt}{0ex}}\mathrm{A},{i}_{q\_\mathrm{Tpk}}=399\phantom{\rule{3.33333pt}{0ex}}\mathrm{A}$). These plots were obtained with the “Ansys Maxwell” software.

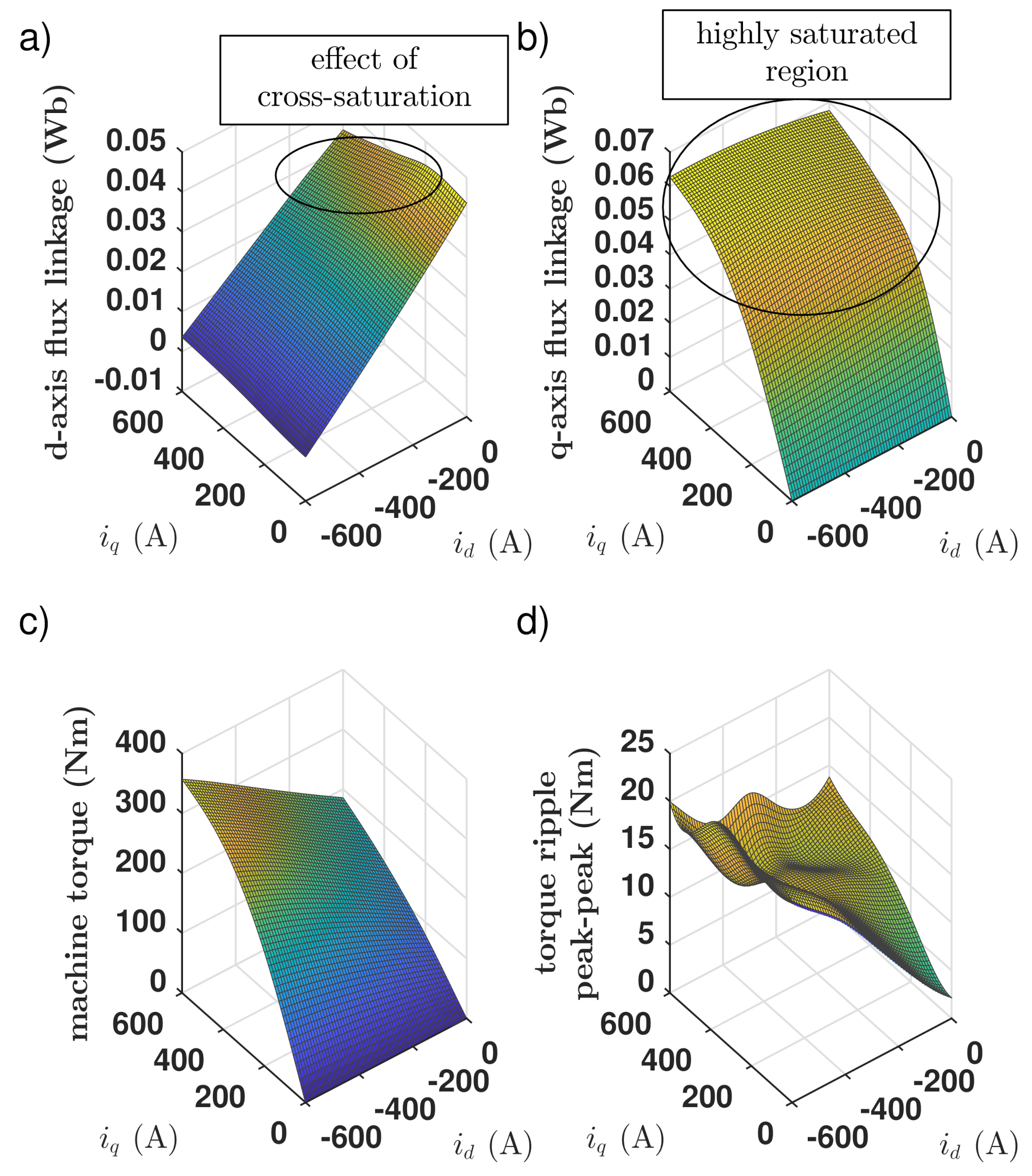

**Figure 6.**Surface plots of the FEM simulation results for the BMW i3 traction machine: (

**a**) d-axis flux linkage averaged over one electrical period, (

**b**) q-axis flux linkage averaged over one electrical period, (

**c**) torque averaged over one electrical period, (

**d**) peak to peak torque ripple.

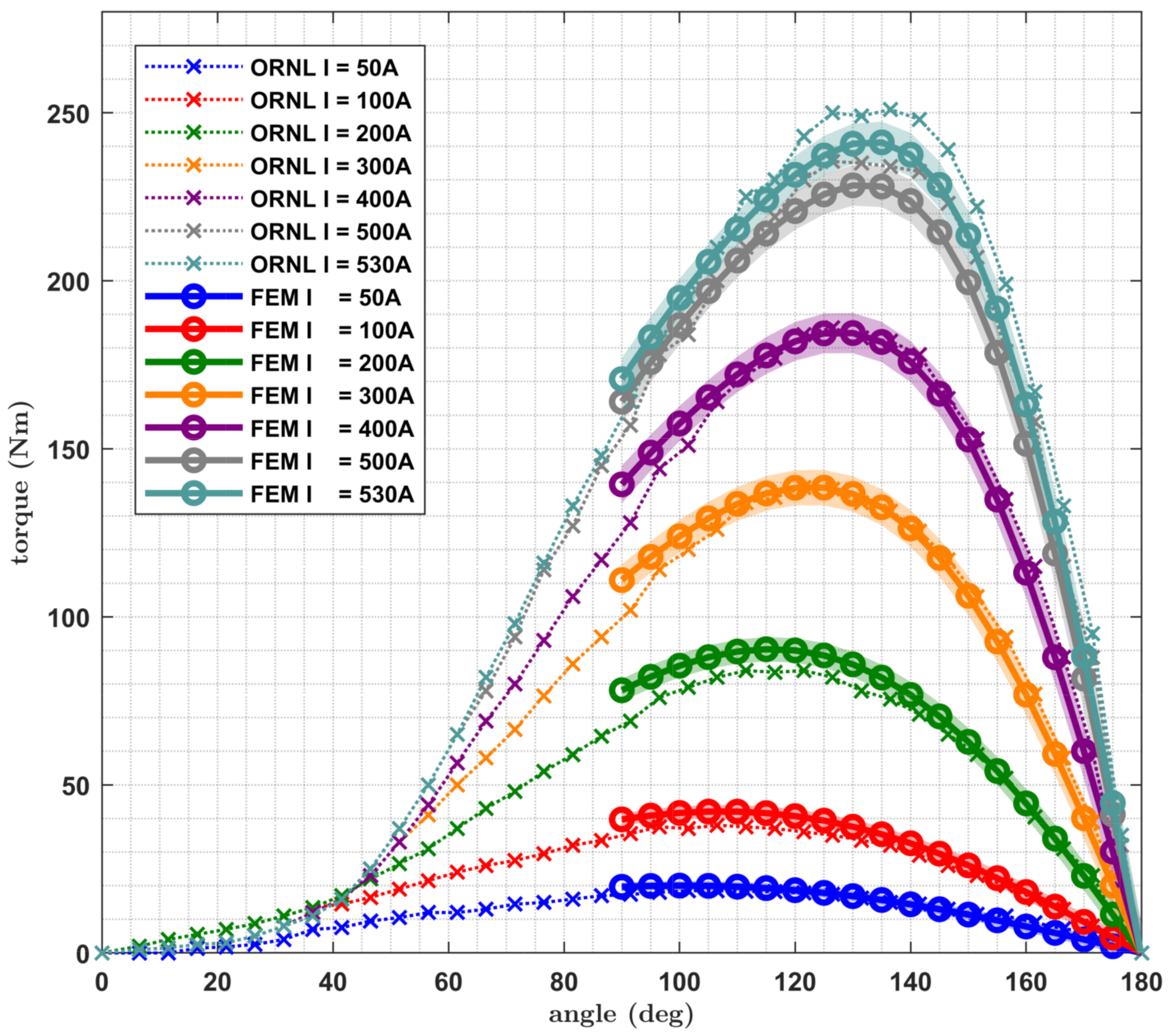

**Figure 7.**Comparison of the experimental locked rotor test results obtained by the Oak Ridge National Laboratory (ORNL) [19] (dotted lines with cross markers) with corresponding values obtained with the FEM model (solid lines with circle markers). Simulation results are averaged over one electrical period and the shaded areas indicate the amount of torque ripple.

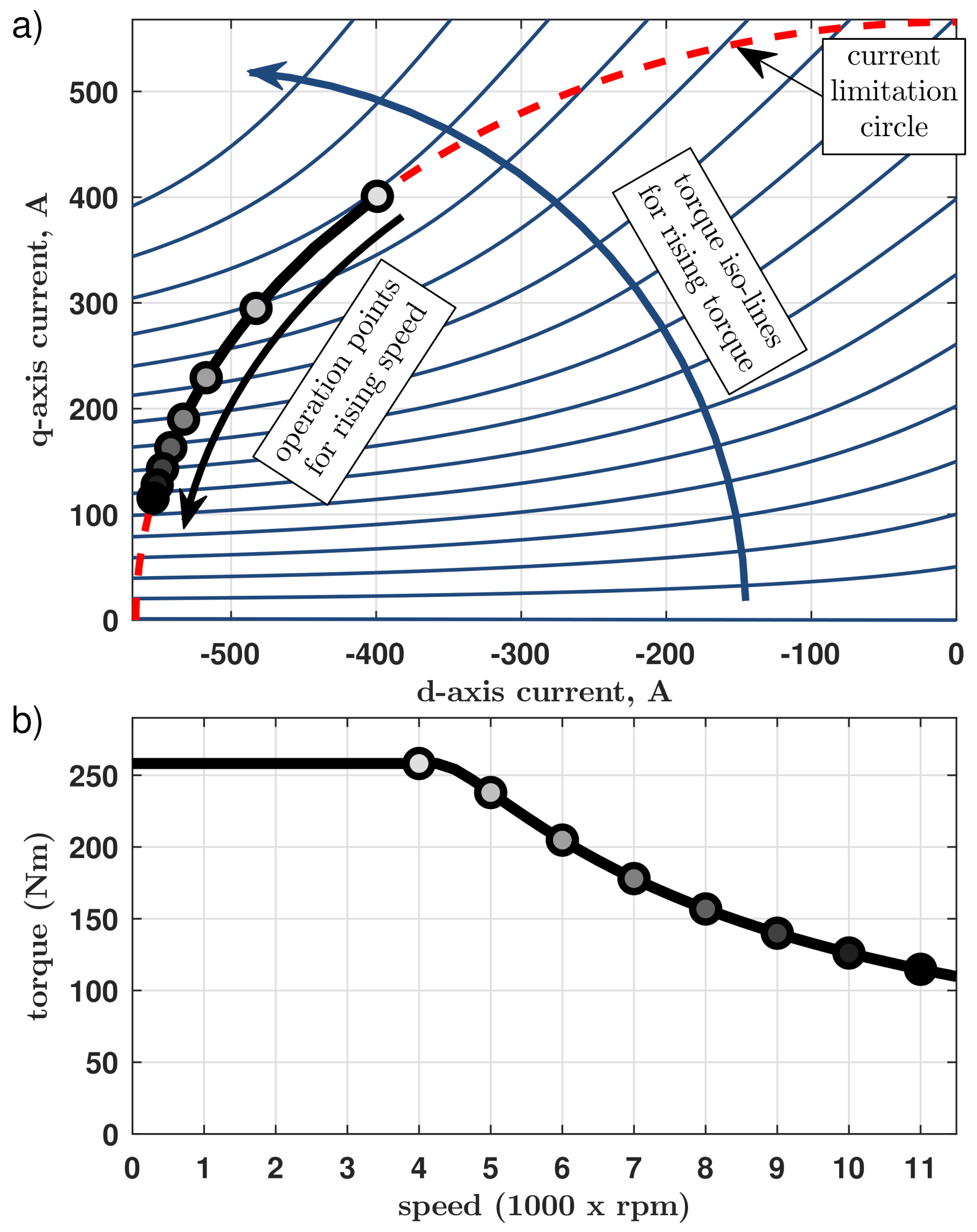

**Figure 8.**The results of the BMW i3 traction drive maximal torque analysis, based on a numerical search algorithm and the non-linear flux linkage surfaces obtained with FEM simulation: (

**a**) current space-vector locus, (

**b**) torque vs. speed curve. The filled dots are the operation points for different speeds.

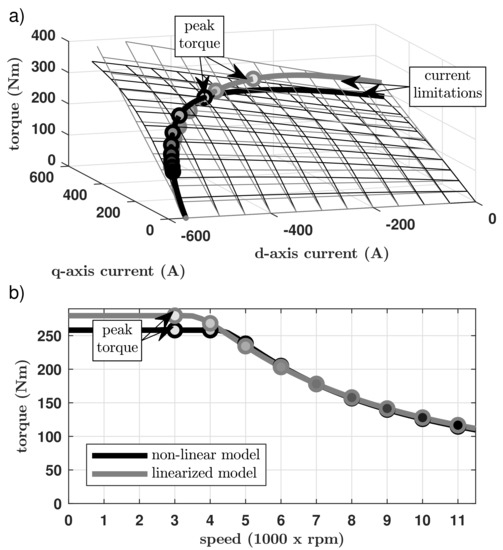

**Figure 9.**Comparison of the maximal BMW i3 traction drive torque calculated with two different methods, i.e., the numerical search algorithm based on the non-linear machine model (black) and analytical equations based on the linearized machine model (gray): (

**a**) torque surfaces, (

**b**) torque vs. speed curves. The filled dots are the operation points for different speeds.

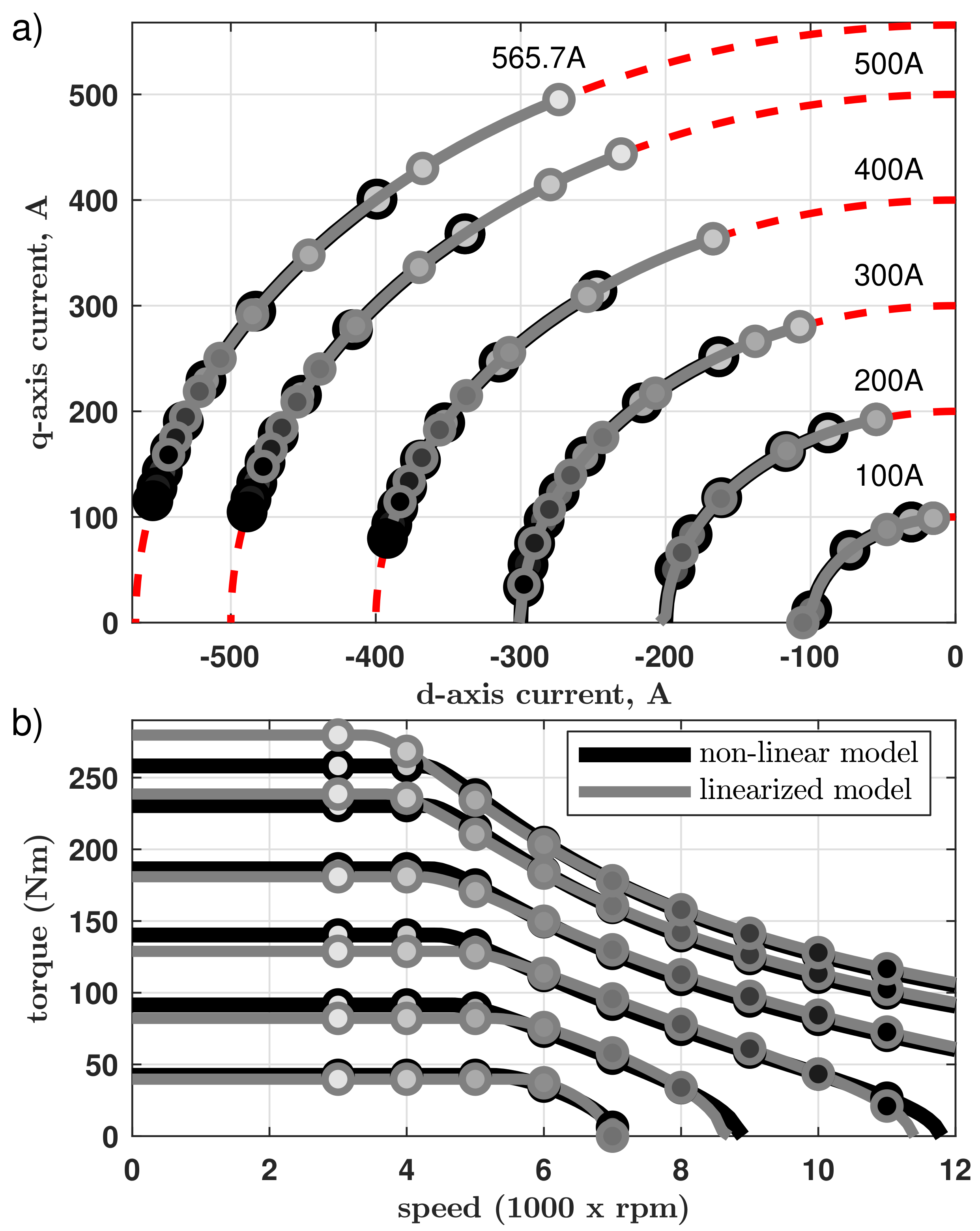

**Figure 10.**Comparison of the partial load torque vs. speed calculations for the BMW i3 traction drive calculated with two different methods, i.e., the numerical search algorithm based on the non-linear machine model (black) and analytical equations based on the linearized machine model (gray): (

**a**) current space-vector loci, (

**b**) torque vs. speed curves. The consecutive curves were calculated for many different values of the current limitation.

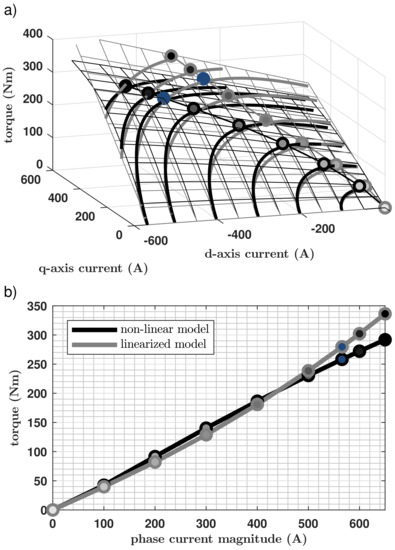

**Figure 11.**Comparison of the partial load torque vs. current magnitude for the BMW i3 traction drive calculated with two different methods, i.e., a numerical search algorithm based on the non-linear machine model (black) and analytical equations based on the linearized machine model (gray): (

**a**) operation points locus at torque surfaces, (

**b**) torque vs. phase current magnitude. The filled dots are the operation points calculated for different phase current limitations. The points corresponding to the actual peak phase current of the drive (i.e., 565.7 A) are marked with blue.

Parameter Name | Symbol | Value | Unit |
---|---|---|---|

max. current | ${i}_{\mathrm{max}}$ | 565.7 | A |

max. voltage | ${u}_{\mathrm{max}}$ | 159.2 | V |

no. of pole pairs | p | 6 | - |

max. speed | ${n}_{\mathrm{max}}$ | 11,400 | rpm |

phase resistance | R | 5.3 | m$\Omega $ |

winding configuration | - | Y | - |

d-axis flux linkage | ${\psi}_{d}$ | see Table A4 | Wb |

q-axis flux linkage | ${\psi}_{q}$ | see Table A5 | Wb |

**Table 2.**The BMW i3 traction drive parameters obtained for the linearized model (3) for the current and voltage limitations listed in Table 1.

Parameter Name | Symbol | Value | Unit |
---|---|---|---|

motor saliency factor | $\epsilon $ | 1.98 | - |

drive characteristic factor | ${k}_{\mathrm{ch}}$ | 0.92 | - |

motor characteristic current | ${i}_{\mathrm{ch}}$ | 612.4 | A |

permanent magnet flux linkage | ${\psi}_{\mathrm{PM}\_\mathrm{lin}}$ | 0.0436 | Wb |

d-axis inductance | ${L}_{d\_\mathrm{lin}}$ | 71.2 | $\mu $H |

q-axis inductance | ${L}_{q\_\mathrm{lin}}$ | 141.3 | $\mu $H |
