# The Correlation of Transformer Oil Electrical Properties with Water Content Using a Regression Approach

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Work

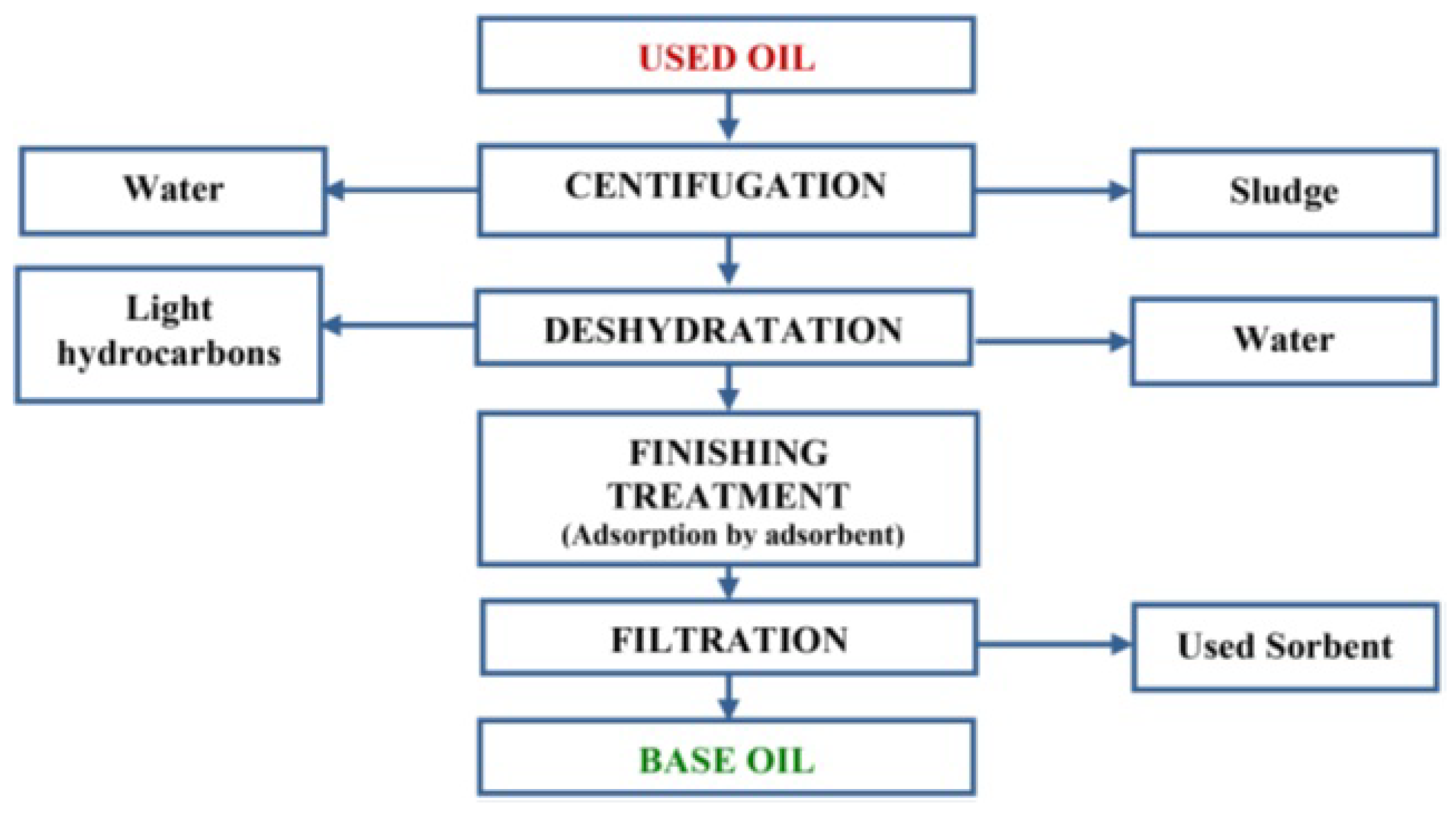

#### 2.1. Experiment Preparation

#### 2.2. Method of Physical Treatment

## 3. Correlation and Regression Analysis

- b(i) is the vector containing the regression model parameters a and b;
- x(i) are the water content values;
- y(i) are the experimental values of each electrical property; and
- f(b(i),x(i)) is the exponential given in Equation (1).

- y${}_{i}$ are the experimental values of each electrical property,
- $\widehat{{y}_{i}}$ are the correlated values obtained by the regression analysis for each electrical property,
- and
- $\overline{{y}_{i}}$ are the mean of the six test values for each point.

## 4. Results and Discussion

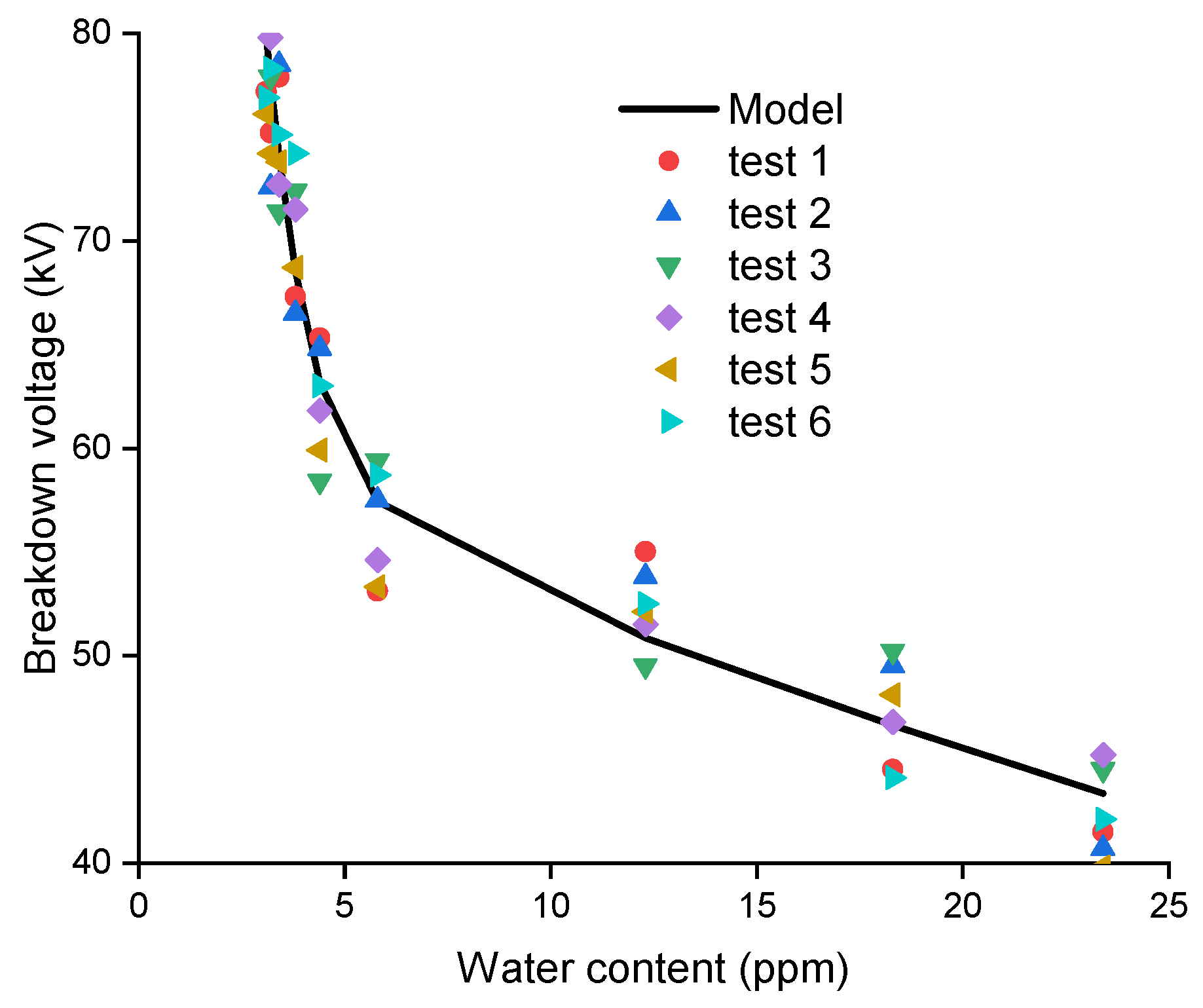

#### 4.1. Breakdown Voltage

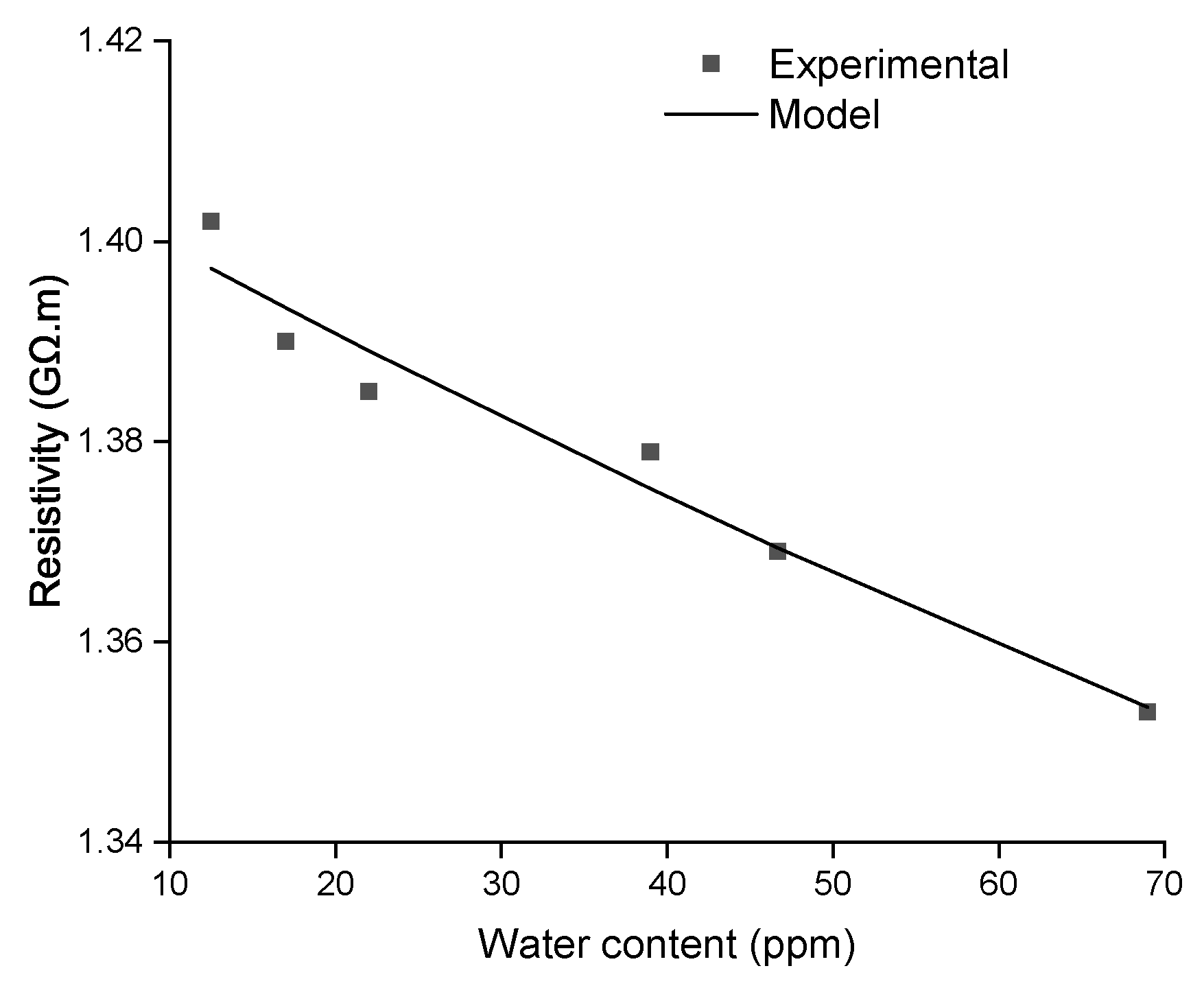

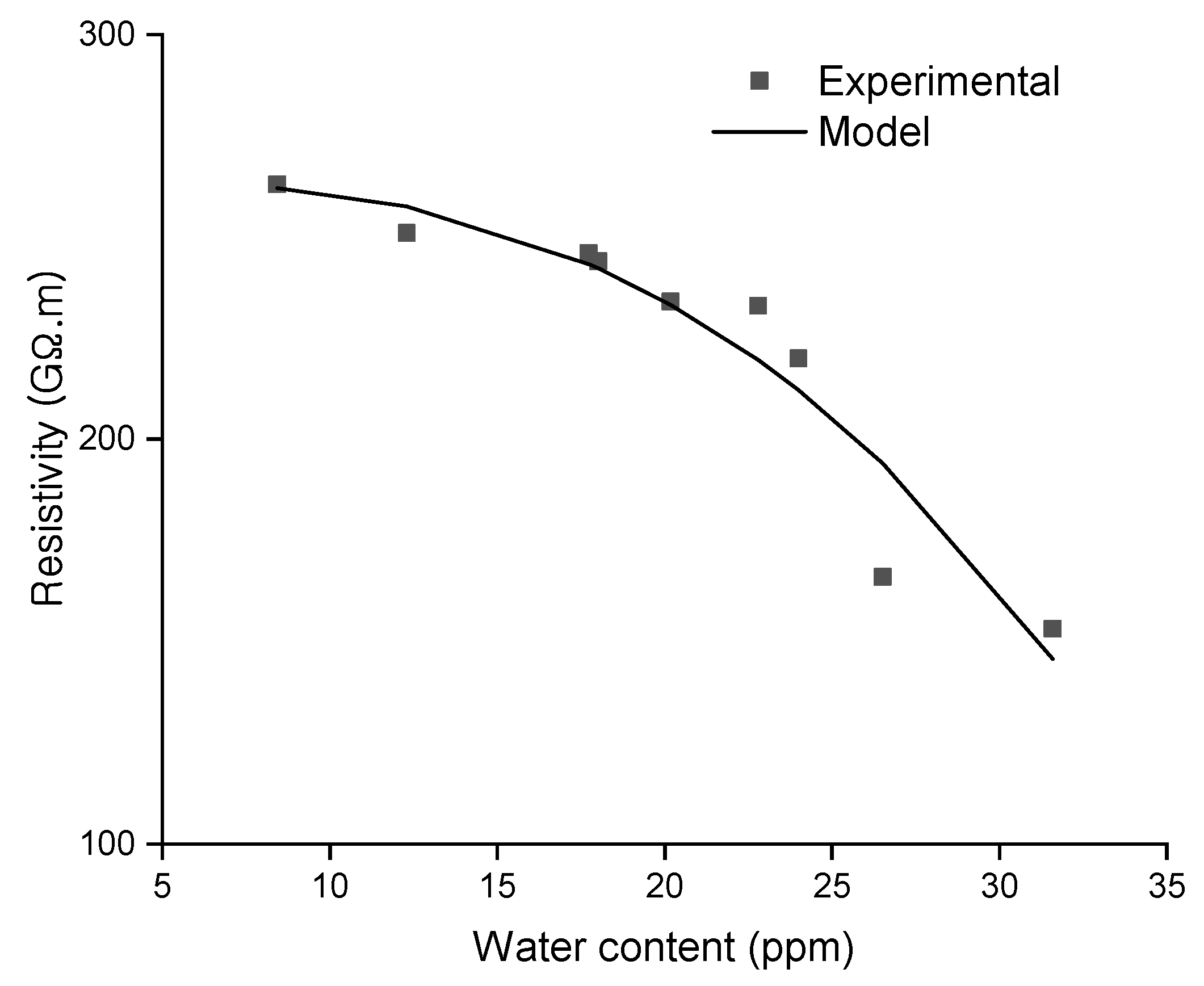

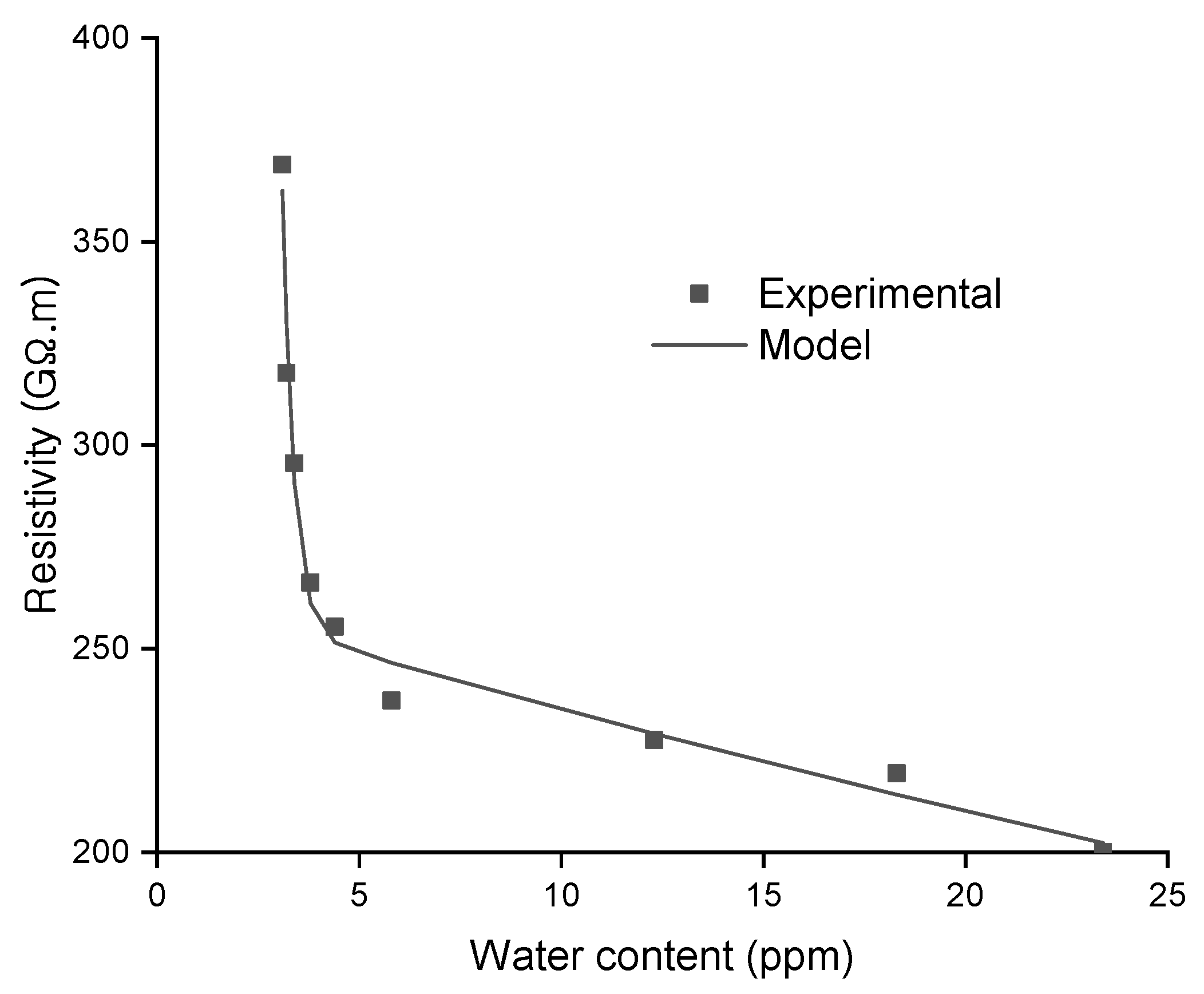

#### 4.2. Resistivity

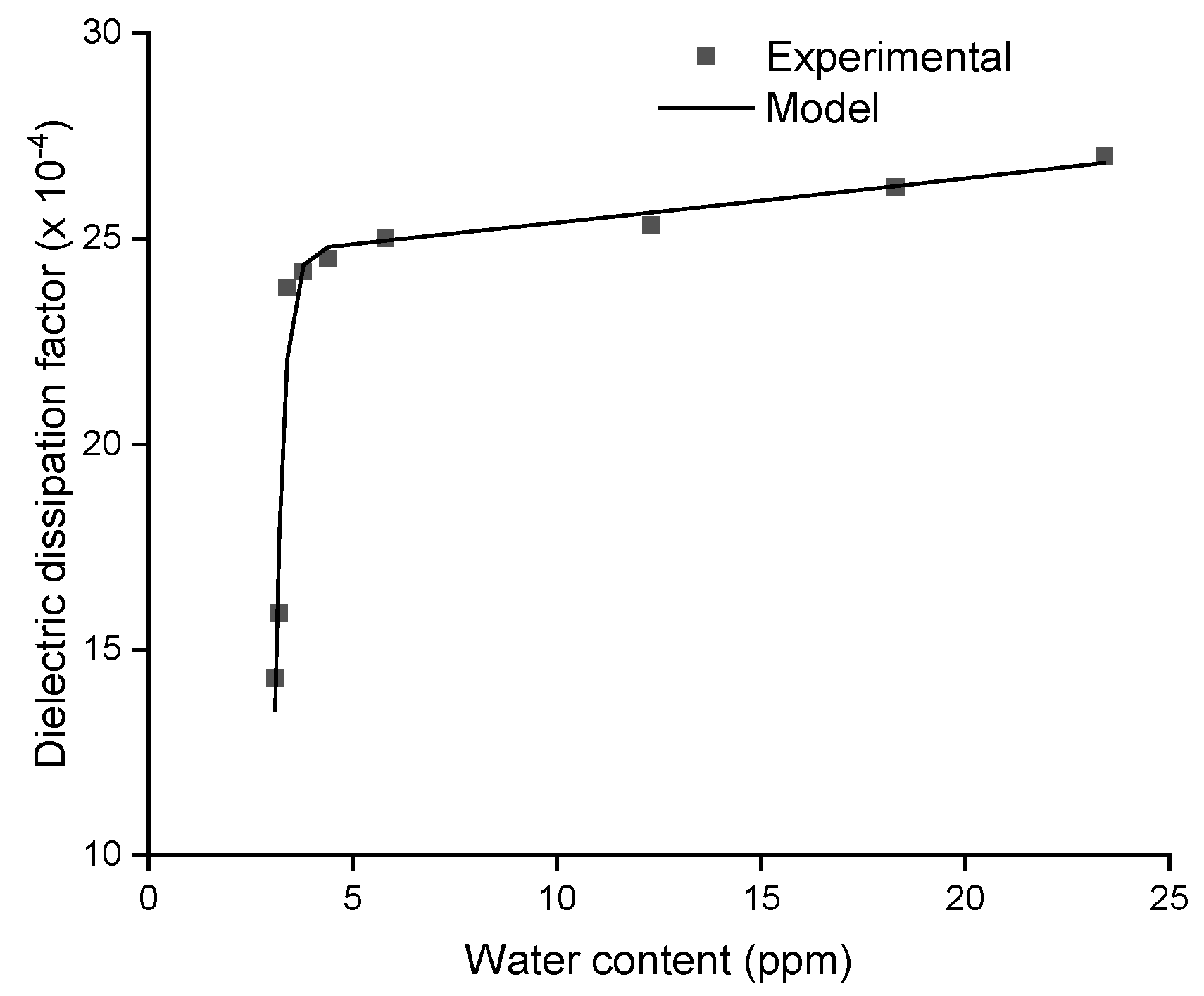

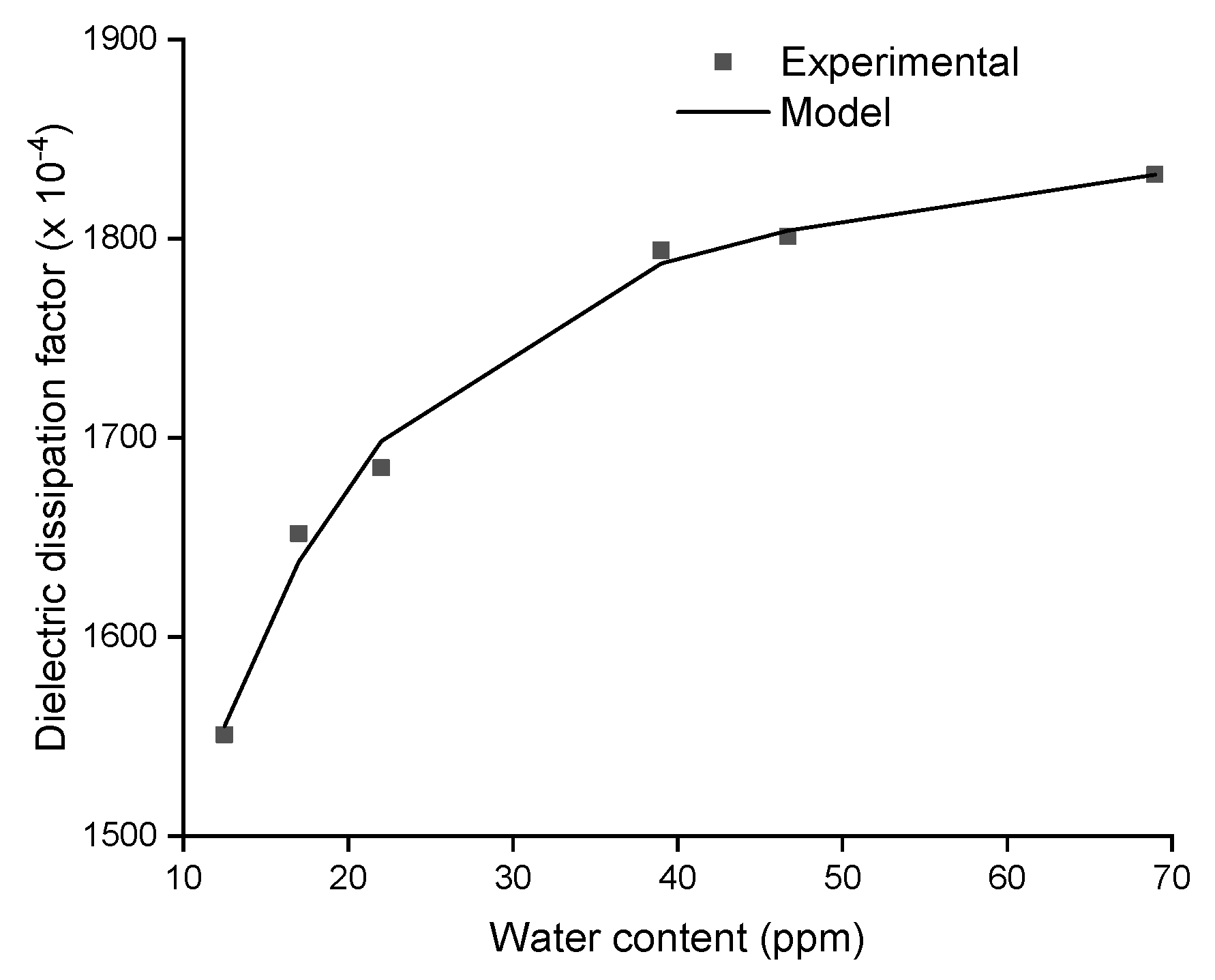

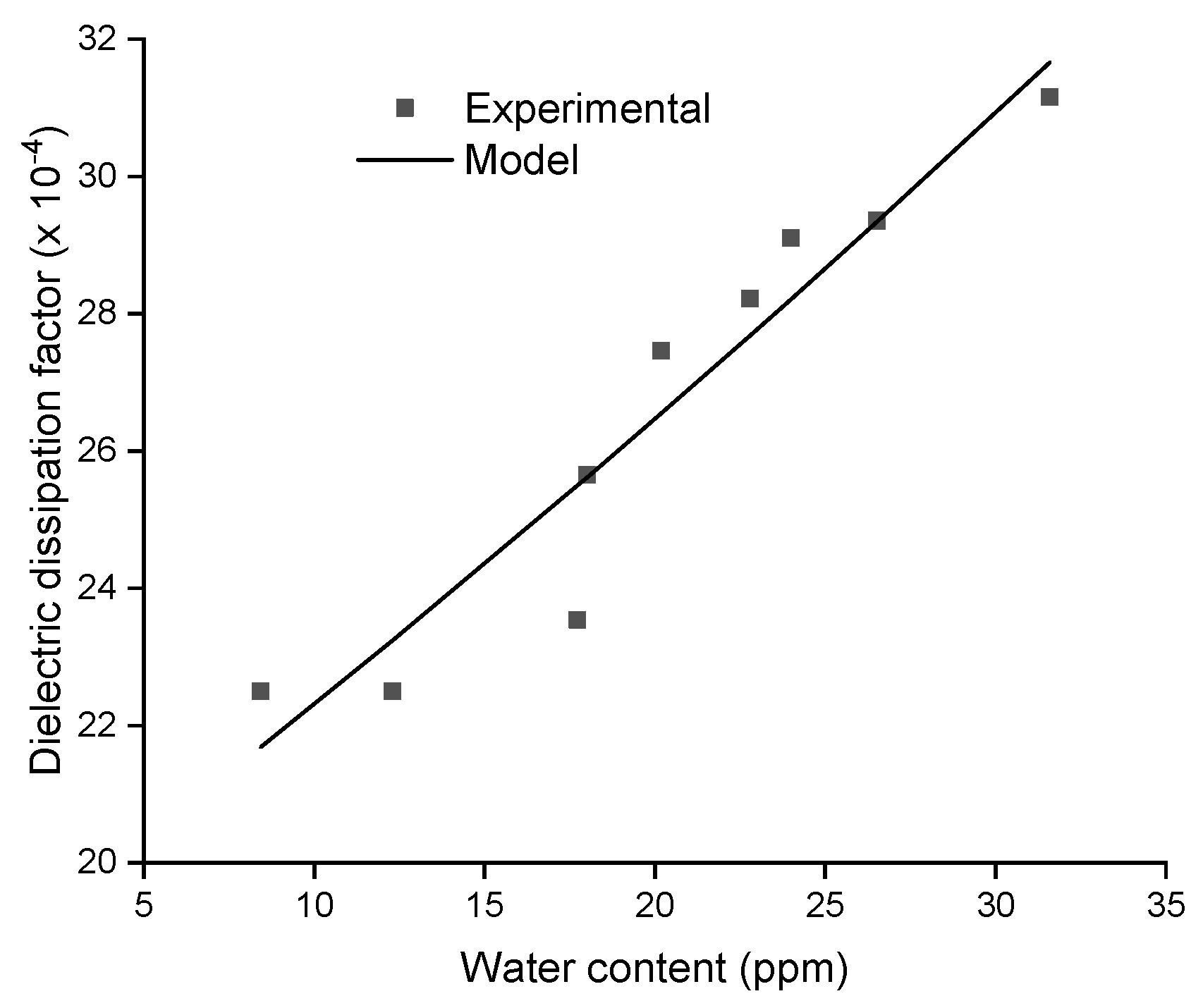

#### 4.3. Dielectric Dissipation Factor

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Saha, T.K. Review of modern diagnostic techniques for assessing insulation condition in aged transformers. IEEE Trans. Dielectr. Electr. Insul.
**2003**, 10, 903–917. [Google Scholar] [CrossRef] [Green Version] - Abdi, S.; Boubakeur, A.; Haddad, A.; Harid, N. The Voltage and Current Characteristics of Breakdown in Transformer Oil under Impulse Voltage. In Proceedings of the 19th International Symposium on High Voltage Engineering, Pilsen, Czech Republic, 23–28 August 2015. [Google Scholar]
- Du, Y.; Lv, Y.; Li, C.; Chen, M.; Zhong, Y.; Zhou, J.; Li, X.; Zhou, Y. Effect of semiconductive nanoparticles on insulating performances of transformer oil. IEEE Trans. Dielectr. Electr. Insul.
**2012**, 19, 770–776. [Google Scholar] [CrossRef] - Ma, H.; Saha, T.K.; Ekanayake, C. Statistical learning techniques and their applications for condition assessment of power transformer. IEEE Trans. Dielectr. Electr. Insul.
**2012**, 19, 481–489. [Google Scholar] [CrossRef] [Green Version] - Cui, Y.; Ma, H.; Saha, T.; Ekanayake, C.; Martin, D. Moisture-Dependent Thermal Modelling of Power Transformer. IEEE Trans. Power Deliv.
**2016**, 31, 2140–2150. [Google Scholar] [CrossRef] - Martin, D.; Perkasa, C.; Lelekakis, N. Measuring Paper Water Content of Transformers: A New Approach Using Cellulose Isotherms in Nonequilibrium Conditions. IEEE Trans. Power Deliv.
**2013**, 28, 1433–1439. [Google Scholar] [CrossRef] - Wang, D.; Zhou, L.; Wang, A.; Li, H.; Liao, W.; Guo, L.; Cui, Y. Effects of thermal aging on moisture diffusion in insulation paper immersed with mineral oil. IEEE Trans. Dielectr. Electr. Insul.
**2018**, 25, 1888–1896. [Google Scholar] [CrossRef] - Garcia, B.; Burgos, J.C.; Alonso, A.M.; Sanz, J. A moisture-in-oil model for power transformer monitoring—Part I: Theoretical foundation. IEEE Trans. Power Deliv.
**2005**, 20, 1417–1422. [Google Scholar] [CrossRef] - Garcia, B.; Burgos, J.C.; Alonso, A.M.; Sanz, J. A moisture-in-oil model for power transformer monitoring—Part II: Experimental verification. IEEE Trans. Power Deliv.
**2005**, 20, 1423–1429. [Google Scholar] [CrossRef] - Du, Y.; Zahn, M.; Lesieutre, B.C.; Mamishev, A.V.; Lindgren, S.R. Moisture equilibrium in transformer paper-oil systems. IEEE Electr. Insul. Mag.
**1999**, 15, 11–20. [Google Scholar] [CrossRef] [Green Version] - Arakelian, V.G.; Fofana, I. Water in oil-filled high-voltage equipment part II: Water content as physicochemical tools for insulation condition diagnostic. IEEE Electr. Insul. Mag.
**2007**, 23, 15–24. [Google Scholar] [CrossRef] - Arakelian, V.G.; Fofana, I. Water in Oil-Filled, High-Voltage Equipment, Part I: States, Solubility, and Equilibrium in Insulating Materials. IEEE Electr. Insul. Mag.
**2007**, 23, 15–27. [Google Scholar] [CrossRef] - Liu, L.; Wu, H.; Liu, T.; Feng, H.; Tian, H.; Peng, Z. Influence of moisture and temperature on the frequency domain spectroscopy characteristics of transformer oil. In Proceedings of the 2016 IEEE International Conference on Dielectrics (ICD), Montpellier, France, 3–7 July 2016; Volume 1, pp. 565–568. [Google Scholar] [CrossRef]
- Wasserberg, V.; Borsi, H.; Gockenbach, E. A novel system for the prolongation of the lifetime of power transformers by reduced oxidation and aging. In Proceedings of the Conference Record of the 2004 IEEE International Symposium on Electrical Insulation, Indianapolis, IN, USA, 19–22 September 2004; pp. 233–236. [Google Scholar] [CrossRef]
- Martins, M. Study of moisture equilibrium in oil-paper system with temperature variation. In Proceedings of the 7th International Conference on Properties and Applications of Dielectric Materials (Cat. No.03CH37417), Nagoya, Japan, 1–5 June 2003; Volume 3, pp. 1124–1129. [Google Scholar] [CrossRef]
- Cheng, L.; Jiang, Y.; Dan, M.; Wen, H.; Li, Y.; Qin, W.; Hao, J. Effects of Fiber and Copper Particles on Conductivity and Breakdown Characteristics of Natural Ester and Mineral Oil under DC Voltage. Energies
**2020**, 13, 1818. [Google Scholar] [CrossRef] [Green Version] - Zhang, X.; Ren, L.; Yu, H.; Xu, Y.; Lei, Q.; Li, X.; Han, B. Dual-Temperature Evaluation of a High-Temperature Insulation System for Liquid-Immersed Transformer. Energies
**2018**, 11, 1957. [Google Scholar] [CrossRef] [Green Version] - Rao, U.M.; Fofana, I.; Betie, A.; Senoussaoui, M.L.; Brahami, M.; Briosso, E. Condition monitoring of in-service oil-filled transformers: Case studies and experience. IEEE Electr. Insul. Mag.
**2019**, 35, 33–42. [Google Scholar] [CrossRef] - Martin, D.; Saha, T.; Dee, R.; Buckley, G.; Chinnarajan, S.; Caldwell, G.; Zhou, J.B.; Russell, G. Determining water in transformer paper insulation: Analyzing aging transformers. IEEE Electr. Insul. Mag.
**2015**, 31, 23–32. [Google Scholar] [CrossRef] - Abdi, S.; Boubakeur, A.; Haddad, A.; Harid, N. Influence of Artificial Thermal Aging on Transformer Oil Properties. Electr. Power Compon. Syst.
**2011**, 39, 1701–1711. [Google Scholar] [CrossRef] - Suwarno. The Influence of arc on Dissolved Gases in Transformer Oils. In Proceedings of the 2006 IEEE 8th International Conference on Properties Applications of Dielectric Materials, Denpasar, Bali, Indonesia, 26–30 June 2006; pp. 498–501. [Google Scholar] [CrossRef]
- Singha, S.; Asano, R.; Frimpong, G.; Claiborne, C.C.; Cherry, D. Comparative aging characteristics between a high oleic natural ester dielectric liquid and mineral oil. IEEE Trans. Dielectr. Electr. Insul.
**2014**, 21, 149–158. [Google Scholar] [CrossRef] - Liao, R.; Hao, J.; Chen, G.; Ma, Z.; Yang, L. A comparative study of physicochemical, dielectric and thermal properties of pressboard insulation impregnated with natural ester and mineral oil. IEEE Trans. Dielectr. Electr. Insul.
**2011**, 18, 1626–1637. [Google Scholar] [CrossRef] [Green Version] - Koreh, O.; Torkos, K.; Bashir Mahara, M.; Boressay, J.; Izvekov, V. Study of water clusters in insulating oils by Fourier transform infrared spectroscopy. IEEE Trans. Dielectr. Electr. Insul.
**1998**, 5, 896–902. [Google Scholar] [CrossRef] - Farooq, K. The effect of particulate and water contamination on the dielectric strength of insulating oils. In Proceedings of the Conference Record of the 1996 IEEE International Symposium on Electrical Insulation, Montreal, QC, Canada, 16–19 June 1996; Volume 2, pp. 728–732. [Google Scholar] [CrossRef]
- ASTM D1500. Standard Test Method for ASTM Color of Petroleum Products (ASTM Color Scale); ASTM: West Conshohocken, PA, USA, 2002. [Google Scholar]
- Safiddine, L.; Hadj-Ziane Zafour, A.; Fofana, I.; Skender, A.; Guerbas, F.; Boucherit, A. Transformer oil reclamation by combining several strategies enhanced by the use of four adsorbents. IET Gener. Transm. Distrib.
**2017**, 11, 2912–2920. [Google Scholar] [CrossRef] - Safiddine, L.; Zafour, H.Z.; Rao, U.M.; Fofana, I. Regeneration of Transformer Insulating Fluids Using Membrane Separation Technology. Energies
**2019**, 12, 368. [Google Scholar] [CrossRef] [Green Version] - IEC 60422. Mineral Insulating Oils in Electrical Equipment–Supervision and Maintenance Guidance. 2005. Available online: https://webstore.iec.ch/publication/16120 (accessed on 8 March 2021).
- IEC 60814. Insulating liquids–Oil-impregnated paper and pressboard, Determination of water by automatic coulometric Karl Ficher titration. IEC
**1997**, 60814, 1997. [Google Scholar] - IEC 60156. Insulating Liquids-Determination of the Breakdown Voltage at Power Frequency-Test Method. 1995. Available online: https://webstore.iec.ch/publication/913 (accessed on 8 March 2021).
- IEC 60247. Insulating Liquids-Measurement of Relative Permittivity, Dielectric Dissipation Factor (tan) and d.c. Resistivity. 2004. Available online: https://webstore.iec.ch/publication/1150 (accessed on 8 March 2021).
- Ádám Tamus, Z. Regression analysis to evaluate the reliability of insulation diagnostic methods. J. Electrost.
**2013**, 71, 564–567. [Google Scholar] [CrossRef] - Kovacević, U.; Vujisić, M.; Iričanin, B.; Osmokrović, P.; Milosavljević, S. The correlation and regression between the pre-breakdown current and breakdown voltage of the vacuum switchgear in dependence of switching operation. In Proceedings of the 2014 IEEE International Power Modulator and High Voltage Conference (IPMHVC), Santa Fe, NM, USA, 1–5 June 2014; pp. 384–387. [Google Scholar] [CrossRef]
- Jakšić, U.G.; Arsić, N.B.; Fetahović, I.S.; Stanković, K.Đ. Analysis of correlation and regression between particle ionizing radiation parameters and the stability characteristics of irradiated monocrystalline Si film. Nucl. Technol. Radiat. Prot.
**2014**, 29, 123–127. [Google Scholar] [CrossRef] - Sha, Y.; Zhou, Y.; Nie, D.; Wu, Z.; Deng, J. A study on electric conduction of transformer oil. IEEE Trans. Dielectr. Electr. Insul.
**2014**, 21, 1061–1069. [Google Scholar] [CrossRef] - Rouse, T.O. Mineral insulating oil in transformers. IEEE Electr. Insul. Mag.
**1998**, 14, 6–16. [Google Scholar] [CrossRef] - Toudja, T.; Moulai, H.; Nacer, A.; Beldjilali, A.; Khelfane, I.; Debche, A. Moisture and electrical discharges effect on naphthenic mineral oil properties. IET Sci. Meas. Technol.
**2014**, 8, 588–594. [Google Scholar] [CrossRef]

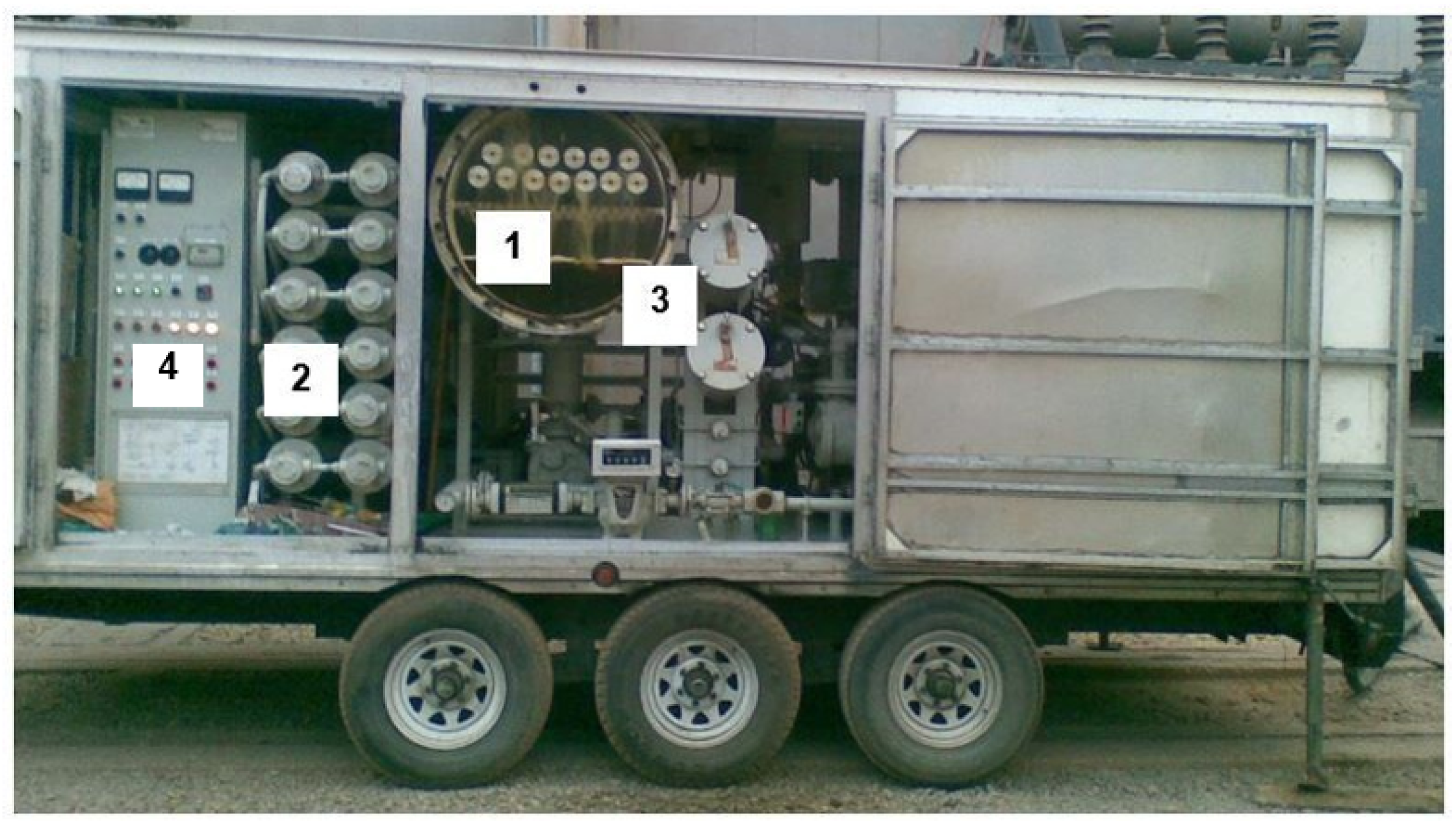

**Figure 4.**SESCO physical treatment mobile station (1, Degassing chamber, 2, Electric heater bloc, 3, Filtration oil system, 4, Control unit).

Property | Standard | Unit | New Sample | Regenerated Sample | Used Sample |
---|---|---|---|---|---|

Acidity | IEC 62021 | mg KOH/g | 0.012 | 0.03 | 0.21 |

Water content | IEC 60814 | ppm | 23.4 | 31.59 | 69 |

tan $\delta $ (×10${}^{-4}$) (90 ${}^{\circ}$C) | IEC 60247 | — | 27 | 31.15 | 1832 |

Permittivity | IEC 60247 | — | 2.11 | 2.12 | 2.19 |

Resistivity (90 ${}^{\circ}$C) | IEC 60247 | G$\mathsf{\Omega}$·m | 200 | 153.2 | 1.353 |

Breakdown voltage | IEC 60156 | k V | 42.3 | 33.6 | 18.4 |

Viscosity (40 ${}^{\circ}$C) | ISO 3104 | mm${}^{2}$/s | 6.78 | 6.78 | 9.91 |

Density (20 ${}^{\circ}$C) | ISO 3675 | g/mL | 0.875 | 0.875 | 0.862 |

Color index | ISO 2049 | — | <0.5 | 0.5 | 5 |

The Oil Sample | The Exponential Model BDV = a·exp$(\mathit{b}\xb7\mathit{WC})$ + c·exp$(\mathit{d}\xb7\mathit{WC})$ | R${}^{2}$ | SS |
---|---|---|---|

New | BDV = 437·exp$(-0.9676\xb7WC)$ + 60.71·exp$(-0.0144\xb7WC)$ | 99.24% | 11.43 |

Regenerated | BDV = −5.85 × 10${}^{5}$·exp$(-0.0607\xb7WC)$ + 5.851 × 10${}^{5}$·exp$(-0.0607\xb7WC)$ | 92.05% | 62.94 |

Used | BDV = 75.56·exp$(-0.09457\xb7WC)$ + 23.44·exp$(-0.003706\xb7WC)$ | 99.77% | 1.33 |

**R**

**${}^{2}$**: residual sum of squares or correlation coefficient,

**S**

**S**: sum of squares.

The Oil Sample | The Exponential Model $\mathit{\rho}$ = a·exp$(\mathit{b}\xb7\mathit{WC})$ + c·exp$(\mathit{d}\xb7\mathit{WC})$ | R${}^{2}$ | SS |
---|---|---|---|

New | $\rho $ = 6.49 × 10${}^{6}$·exp$(-3.548\xb7WC)$ + 263.1·exp$(-0.01124\xb7WC)$ | 98.38% | 371.58 |

Regenerated | $\rho $ = −5.038 × 10${}^{5}$·exp$(0.02811\xb7WC)$ + 5.041 × 10${}^{5}$·exp$(0.02811\xb7WC)$ | 90.25% | 1.1406 × 10${}^{3}$ |

Used | $\rho $ = 0.2096·exp$(-0.004624\xb7WC)$ + 1.199·exp$(2.546\times {10}^{-5}\xb7WC)$ | 95.59% | 6.4305 × 10${}^{-5}$ |

The Oil Sample | The Exponential Model tang$\mathit{\delta}$ = a·exp$(\mathit{b}\xb7\mathit{WC})$ + c·exp$(\mathit{d}\xb7\mathit{WC})$ | R${}^{2}$ | SS |
---|---|---|---|

New | tang$\delta $ = 24.36·exp$(0.004135\xb7WC)$−3.369 ×${}^{7}$·exp$(-4.813\xb7WC)$ | 95.55% | 7.4048 |

Regenerated | tang$\delta $ = 9.508 × 10${}^{4}$·exp$(0.003997\xb7WC)$−9.506 × 10${}^{4}$·exp$(0.003994\xb7WC)$ | 91.16% | 7.2310 |

Used | tang$\delta $ = 17.71·exp$(0.0005016\xb7WC)$−7.414·exp$(0.9475\xb7WC)$ | 99.25% | 0.0444 |
