Conventional and Innovative Hygienization of Feedstock for Biogas Production: Resistance of Indicator Bacteria to Thermal Pasteurization, Pulsed Electric Field Treatment, and Anaerobic Digestion

Abstract

Animal by-products (ABP) can be valorized via anaerobic digestion (AD) for biogas energy generation. The digestate issued from AD process is usually used to fertilize farming land for agricultural activities, which may cause potential sanitary risk to the environment. The European Union (EU) requires that certain ABP be thermally pasteurized in order to minimize this sanitary risk. This process is called hygienization, which can be replaced by alternative nonthermal technologies like pulsed electric field (PEF). In the present study, Enterococcus faecalis ATCC 19433 and Escherichia coli ATCC 25922 were used as indicator bacteria. Their resistance to thermal pasteurization and PEF treatment were characterized. Results show that Ent. faecalis and E. coli are reduced by 5 log10 in less than 1 min during thermal pasteurization at 70 °C. The critical electric field strength was estimated at 18 kV∙cm⁻¹ for Ent. faecalis and 1 kV∙cm⁻¹ for E. coli. “G+” bacteria Ent. faecalis are generally more resistant than “G−” bacteria E. coli. AD process also plays an important role in pathogens inactivation, whose performance depends on the microorganisms considered, digestion temperature, residence time, and type of feedstock. Thermophilic digestion is usually more efficient in pathogens removal than mesophilic digestion.

1. Introduction

Reduction of CO₂ emission, production of renewable energy as well as promotion of innovative technological advances have nowadays become major objectives for waste valorization leading to circular economy. Anaerobic digestion is a manually controlled microbiological treatment approach converting organic matter of waste (i.e., feedstock) into biogas, which can be used for renewable energy generation [1]. Its coproduct, digestate, is the liquid and solid residue in anaerobic digesters after anaerobic digestion (AD) process. Digestate is rich in mineral elements like N, P, and K and, therefore, can be reused as fertilizers and soil amendment by spreading on farm lands. This “return to soil” policy of digestate is drawing increasing concerns about the sanitary risk to the environment and human being. Contamination of feedstock by various pathogens, such as Salmonella spp., Listeria spp., Giardia spp., Cryptosporidium parvum, and Campylobacter spp. [2,3] and other emerging contaminants like antibiotic resistance genes (ARG) [4], could be transmitted to the environment through waste and digestate land application if they are not properly handled [5]. In 2002, the United States Environmental Protection Agency (US EPA) disclosed that the spreading of biosolids (sewage sludge) on farm lands might cause health problem to nearby local habitants [6]. Afterwards many studies confirm this sanitary risk, especially for anaerobic digestate [7,8].

Animal by-products (ABP) are co-products originated from food industry (e.g., various waste from livestock raising, slaughterhouse and food processing), which are not suitable for human usage. The use, transport, transformation and disposal of ABP are strictly regulated by the European council and parliament [9]. ABP are divided into three categories according to their risk level. Only ABP from Categories 2 and 3 could be valorized through anaerobic digestion in biogas plants (BGP). However, the European Union (EU) requires that these ABP should be pasteurized prior to AD. The process is called hygienization, carried out at 70 °C for at least 60 min. The maximum particle size of ABP entering hygienizers should be kept below 12 mm. Its objective is to reduce the concentration of Enterococcus faecalis or Salmonella senftenberg by a factor of 10⁵ (i.e., 5 log10) and thermal-resistant virus by 3 log10 in ABP [10]. Hygienization consumes huge amount of energy and is considered too prudent in terms of treatment efficiency versus treatment temperature and time [11]. According to Liu et al. (2019) [5], almost 6–25% of the primary energy produced from biogas is consumed by thermally-related hygienization processes in European BGP [5]. This consumption reduces the ecological and financial advantages of biogas energy production.

Pulsed electric field (PEF) is an emerging biomass pretreatment technology. PEF can be applied to liquid or solid materials having biological structure. The intensive electric field (up to 50 kV·cm⁻¹) is delivered to products in forms of short pulses (in the order of milliseconds), giving rise to the electroporation of product cell membrane [12]. Once the electric field intensity exceeds a certain threshold, the induced electroporation on cell membrane disorders microbial activities and therefore, inactivates microorganisms present in the treated materials. This technology has been widely applied for the non-thermal pasteurization of food products [13] and various mechanisms have been discussed for a better knowledge of the process [12,14,15]. PEF was firstly proposed by the same authors of the present paper to substitute for thermal hygienization of ABP by using a batch [16] and a continuous treatment system [17]. The inactivation kinetics of indicator bacteria and the effect of energy input were systematically studied in these studies. The integration of ohmic heating into PEF treatment was proposed to achieve an enhanced synergistic effect of microbial reduction in ABP [17]. Apart from effects on microbial reduction, PEF is able to enhance the biochemical methane potential (BMP) of various biowaste [5].

In addition to thermal and alternative hygienization processes, anaerobic digestion itself was reported to play an important role in certain pathogens inactivation. Many papers have studied the fate of various sporulating and non-sporulating microorganisms during AD treatment and different conclusions were drawn, depending on the AD operational modes, substrates digested and microorganisms considered. Grim et al. (2015) [18] developed integrated thermophilic sanitation operated in anaerobic digesters for ABP hygienization at a Swedish full-scale BGP. Zhao and Liu (2019) [19] resumes in a recent study the key factors determining the reliability of AD process as a possible barrier for deactivation of pathogenic agents in sewage sludge.

Enterococcus faecalis (Gram-positive bacteria, “G+”) and Escherichia coli (Gram-negative bacteria, “G−”) are two microorganisms often serving as indicators characterizing the performance of hygienization process [20,21,22]. As mentioned above, Ent. faecalis is also chosen by EU regulation No. 142/2011 [10] as indicator bacteria. However, the resistance of these two species of bacteria to different hygienization technologies has not been clearly studied. This is the basic information for those who select Ent. faecalis and E. coli as indicator bacteria with regard to various hygienization treatment technologies (i.e., thermal, electrical, and AD stress). It gives practical information to the development of alternative technologies for waste hygienization, helpful for a larger application of innovative technologies such as PEF and the possible integration of hygienization step into the anaerobic digestion process.

The present study characterizes the resistance of indicator microorganisms to conventional thermal pasteurization, alternative PEF treatment and anaerobic digestion. This paper involves (1) the study of inactivation kinetics of Ent. faecalis and E. coli during conventional pasteurization by offering modeling parameters, (2) an investigation of the key characteristics of two indicator bacteria under PEF stress and (3) a literature overview about the effect of AD on the hygienization of biowaste.

2. Materials and Methods

2.1. Suspension Preparation

2.1.1. Indicator Bacteria Incubation

Two strains, Ent. faecalis ATCC 19433 and E. coli ATCC 25922 (Collection of Institut Pasteur, Paris, France), were used as indicator bacteria. Porous beads containing the related strains were incubated at 37 ± 1 °C in nutrient broth (CM0001, Oxoid™, Basingstoke, UK) until achieving respective stationary physiological phase (24 h for Ent. faecalis and 20 h for E. coli [16,17]) since the microorganisms are found the most resistant to heat and PEF treatment at stationary phase [23]. The incubated suspension with target indicator bacteria was then inoculated into different media (nutrient broth or mixed ABP) for thermal and PEF treatment.

2.1.2. Mixed Animal By-Products

The mixed ABP (mixture of fishery waste and pig slurry) came from the feedstock of a local BGP (SEM LIGER, Locminé, France). This ABP had been subjected to thermal pasteurization at 70 °C for an hour conforming to EU regulation No. 142/2011 [10]. No Enterococcus spp. or E. coli were found in this mixed ABP after pasteurization. The collected ABP was analyzed for its physico-chemical properties. The pH value of the ABP was 6.75. Its total solids content was of 14.9%, 94.5% of which was volatile solids. More detailed information is available in Liu et al. (2019) [16].

2.2. Thermal Pasteurization

2.2.1. Thermal Treatment Protocol

The thermal resistance of two indicator bacteria was investigated using the method developed by Le Jean et al. (1994) [24]. 24.3 ± 0.8 μL of the diluted bacterial suspension was put in 75-μL micro-haematocrit capillary tubes (Brand™, Wertheim, Germany) by capillary force. The two ends of capillary tubes were sealed by micro-flame. The initial cell count in capillary tubes varied between 10⁶ and 10⁷ MPN∙mL⁻¹ or CFU∙mL⁻¹.

The capillary tubes containing the bacterial suspension were subjected to different temperatures (55, 60, 65, and 70 °C) for different treatment times. They were simultaneously immersed in a water bath maintained at the desired temperature by a hot plate (Stuart Co., Stone, UK) (see Figure S1 in Supplementary Materials). Time required for the medium in the tube to reach the desired temperature was estimated to be 2.8 s according to previous studies [24,25]. This short rise time can therefore be considered negligible compared to the holding times for the experiments.

Numerous sampling intervals were used to give the bacterial inactivation kinetics as accurate as possible. At each time step, three capillary tubes were removed and cooled by immersion in ice water. The tubes were rinsed with alcohol and then with sterile distilled water. The rinsed tubes were then kept in ice water (0 °C) for viable counts within two hours of handling.

2.2.2. Culturable Bacteria Count

The viable fraction of indicator bacteria present in each capillary tube was counted using Most Probable Number (MPN) method, recommended by the United State Food and Drug Administration [26] and the United States Department of Agriculture [27].

The capillary tubes, without treatment (i.e., controls) or after treatment, were broken into sterile microplates (PS-96 wells, Corning, New York, NY, USA) pre-filled with 216 μL of autoclaved nutrient broth per well. Serial dilutions were performed by micropipettes using disposable sterile filter tips (VWR, Radnor, PA, USA). Before each dilution, the suspensions were stirred several times by the micropipette. The microplates were then incubated at 37 °C for 24 h. The controls (nutrient broth without indicator bacteria in the capillary tubes and in the microplates) were realized in parallel to check for potential contamination. All of the manipulations were carried out under aseptic conditions.

After 24 h incubation, the results (cloudy or not) were noted for each dilution. The data were then entered into the software developed by Dr Blodgett from the US FDA (Division of Mathematics) in order to exert the viable fraction of indicator bacteria in all tubes [26].

2.2.3. Inactivation Kinetics Modeling

Weibull model, as shown in Equation (1), was used to realize the inactivation kinetics of two indicator bacteria after pasteurization at four studied temperatures.

$${\log }_{10}{\mathrm{N}\left(\mathrm{t}\right)/\mathrm{N}}_0=-{ (\mathrm{t}/\mathsf{\alpha }) }^{\mathsf{\beta }}/2.303$$

(1)

where N(t) is the culturable bacteria count at time t (MPN∙mL⁻¹), N₀ is the initial bacteria count (MPN∙mL⁻¹), t is the treatment time (s), α is the scale parameter of Weibull model (s) and β is the shape parameter of Weibull model (–).

According to van Boekel (2002) [28], the scale parameter α of Weibull model strongly depends on the external circumstances like temperature. As a result, the Arrhenius equation (c.f. Equation (2)) was proposed as secondary model to study the possible relationship between the Weibull model’s scale parameter α and the studied temperatures.

$$\ln 1/\mathsf{\alpha } = \ln \mathrm{A} -{ \mathrm{E}}_{\mathrm{a}}/(\mathrm{R} · \mathrm{T})$$

(2)

where A is the pre-exponential factor (s⁻¹), E_a is the activation energy for the reaction (kJ∙mol⁻¹), R is the universal gas constant (R = 8.314 J∙K⁻¹∙mol⁻¹) and T is the pasteurization temperature (°C).

Van Boekel (2002) [28] indicates that the shape parameter β is an intrinsic parameter of one particular species of bacteria, independent of or weakly dependent on the external environment.

A parameter estimating the time to achieve 5-log10 reduction of indicator bacteria, i.e., 5-D value, is proposed. It can be calculated using Weibull parameters as shown in Equation (3) [29].

$$5-\mathrm{D} = \mathsf{\alpha } · \left(5 \times 2.303 \right){ }^{1 / \mathsf{\beta }}$$

(3)

where α is the scale parameter of Weibull model (s) and β is the shape parameter of Weibull model (–).

2.3. PEF Treatmennt as Alternative Hygienization

2.3.1. PEF Treatment Protocol

The resistance of indicator bacteria to PEF exposure in nutrient broth (NB) and mixed ABP was characterized in electroporation cuvettes (1-mm gap 90 μL, VWR, Belgium). The experimental setting of PEF treatment was described by Liu et al. (2019) [16]. It was composed of a high voltage generator (SR2.5-P-600, Technix, Créteil, France) and a pulse signal generator (TGP 110, TTI Thurlby Thandar instrument, Bruz, France) regulated by an oscilloscope (OX8022-20 MHz, Metcix, Paris, France). All of them were connected to an electrical modulator (AHTPM2.5, Effitech, Pau, France) sending high voltage pulses to electroporation cuvettes (see Figures S2 and S3 in Supplementary Materials). The electric generator could give voltage up to 2500 V.

The electric field intensity (E) varied from 0 to 25 kV∙cm⁻¹ with the energy input kept constant at 350 J∙mL⁻¹ for each electric field intensity studied. The energy input from high voltage generator can be calculated by the following Equation (4) [30]:

$${\mathrm{W}}_{\mathrm{PEF}} = {\int }_0^{{\mathrm{t}}_{\mathrm{PEF}}} \mathrm{U} ·{ \mathrm{I} \mathrm{dt} = \mathrm{E}}^2{ · \mathsf{\sigma } · \mathrm{n}}_{\mathrm{train}}{ · \mathrm{f} · \mathrm{t}}_{\mathrm{train}} · \mathsf{\tau }$$

(4)

where W_PEF is the energy input (J∙mL⁻¹), t_PEF is the effective PEF treatment time (s), U is the voltage applied (V), I is the electric current intensity (A), E is the electric field intensity (kV∙cm⁻¹), σ is the electrical conductivity (σ = 0.2 S∙m⁻¹), n_train is the number of treatment trains (–), f is the repetition frequency (f = 40 Hz), t_train is the treatment time per train (s) and τ is the pulse width (τ = 2 μs). The suspension temperature in cuvettes was kept under 45 °C in order to minimize the possible microbial damage from ohmic heating, realized by a cooling system consisting of forced ventilation. After one trial, the treated electroporation cuvette was put into iced water pending further microbiological analysis within 2 h.

2.3.2. Culturable Bacteria Count

The culturable fraction of indicator bacteria was counted in triplicates using spread plate method on selective agars. Detailed information could be found in Liu et al. (2019) [16]. Serial dilutions of the PEF-treated suspension were performed under aseptic conditions. 0.1 mL of each dilution was spread, for Ent. faecalis, on Slanetz and Bartley agar (CM0377, Oxoid™, Basingstoke, UK) and for E. coli, on Tryptone Bile X-glucuronide Agar (CM0945, Oxoid™, Basingstoke, UK). Incubation of Ent. faecalis and E. coli in a ventilated oven was carried out at 37 °C for 48 h and 24 h, respectively, before counting.

2.3.3. Estimation of Critical Electric Field Intensity

Critical electric field strength is the intensity of electric field above which a significant inactivation ratio of a given microorganism is observed. This is a key parameter characterizing the resistance of a specific bacteria species to PEF exposure. In order to find this value for two indicator bacteria, the inactivation ratios as a function of applied field strength were modeled by Fermi’s model [31] whose formular is shown in Equation (5).

$${\log }_{10}{\mathrm{N}\left(\mathrm{E}\right) / \mathrm{N}}_0 = -{ \log }_{10}\left[ 1 + \exp \left( \frac{\mathrm{E} -{ \mathrm{E}}_{\mathrm{c}}}{{\mathrm{k}}_{\mathrm{c}}} \right) \right]$$

(5)

where N(E) is the inactivation ratio obtained at the studied electric field intensity E (CFU∙mL⁻¹), N₀ is the initial bacteria count (CFU∙mL⁻¹), E is the electric field intensity (kV∙cm⁻¹), E_c is the critical electric field intensity (kV∙cm⁻¹) and k_c is the Fermi’s model parameter (kV∙cm⁻¹).

2.4. Microbial Inactivation during AD

The inactivation of bacteria during anaerobic digestion was studied by conducting a literature review of published work. The databases used include Web of Science™ (Clarivate Analytics, Philadelphia, PA, USA), Scopus^® (Elsevier, Amsterdam, The Netherlands), and Google Scholar™ (Alphabet, Mountain View, CA, USA). In addition to the indicator bacteria mentioned in Section 2.1.1 (Ent. faecalis and E. coli), the information about other important microorganisms like Staphylococcus aureus, coliforms, Salmonella spp., Campylobacter spp., and Clostridium perfringens is also given in this study.

2.5. Data Processing

The achieved experimental and literature data were processed by Microsoft Excel 2016 (Microsoft^®, Redmond, WA, USA). The non-linear regression for kinetic modeling was realized by R studio (R Studio Inc., Boston, MA, USA). The modeling goodness was evaluated according to adjusted R², sum of squared errors (SSE) and root mean squared errors (RMSE) [32].

3. Results

3.1. Resistance to Thermal Treatment

3.1.1. Thermal Inactivation Kinetics

The thermal inactivation kinetics of the two indicator bacteria were performed at 55, 60, 65, and 70 °C. The cultivable fraction was counted using the MPN method and the decimal reductions are presented as a function of processing time in Figure 1. It is evident that the treatment temperature (T) played an important role in the effectiveness of pasteurization. However, the two indicator bacteria behave differently when exposed to the same heat stress.

The “G+” bacteria Ent. faecalis are slightly inactivated (0.24 log10 and 1.28 log10) at 55 °C after treatment of 1.0 h and 1.5 h respectively, whereas at 60 °C, a 20 min treatment is sufficient to achieve 4.0-log10 reduction. When the pasteurization temperature is increased from 65 °C to 70 °C, a reduction of more than 5 log10 can be achieved in only 150 s and 35 s, respectively.

As for the “G−” bacteria E. coli, it is more sensitive to heat and its inactivation kinetics are totally different from Ent. faecalis. Pasteurization at 55 °C can easily cause a 5-log10 reduction in 20 min. As the temperature rises, the inactivation kinetics are much faster: at 70 °C, less than 10 s are sufficient for a decimal reduction of more than 6 log10.

It should be noted that the shape of the inactivation curves for Ent. faecalis differs from that of E. coli. The former has a concave shape, whereas for the latter’s shape is convex. The concave shape may be due to the fact that Ent. faecalis, initially resistant to heat stress, accumulate sublethal thermal damage at the beginning of treatment. As treatment time moves on, the bacteria are no longer able to survive pasteurization. On the contrary, the convex shape could be explained by the vulnerability of most of the E. coli population to thermal pasteurization while a certain fraction of the bacteria is more resistant to heat stress.

3.1.2. Curves Modeling and Activation Energy

Inactivation kinetics of two indicator bacteria subjected to thermal pasteurization were modeled using the Weibull model (Equation (1)). This model assumes a non-homogeneous distribution under external stress in a population of samples (population of Ent. faecalis and E. coli in our case). The modelled curves are presented in Figure 1.

Table 1. Modeling results of thermal inactivation kinetics of two indicator bacteria using Weibull model.

Temperature T (°C)	Weibull Model
	α (s)	β (–)	Adjusted R2 (–)	SSE (–)	RMSE (–)	5-D Values (s)
Enterococcus faecalis ATCC 19433
55	3 463	1.300	0.798	0.214	0.124	22 689
60	177.7	1.144	0.927	0.844	0.306	1 505
65	17.06	1.134	0.977	0.377	0.217	147
70	5.097	1.271	0.922	1.11	0.429	34.8
Escherichia coli ATCC 25922
55	8.902	0.5546	0.878	2.07	0.588	728
60	0.3277	0.4000	0.878	2.67	0.578	147
65	0.0769	0.4000	0.815	1.17	0.542	34.6
70	0.0300	0.4068	0.888	0.829	0.455	12.2

also summarizes the parameter values and the quality of the modeling used. It can be seen that the modeling of microbial destruction kinetics is satisfactory. The modeling of Ent. faecalis is generally better than that of E. coli.

Since the inactivation curves do not follow first order kinetics (log-linear function), 5-D values estimated by Weibull model instead of 1-D values were calculated. Table 1 gives the time to achieve a reduction of 5 log10 (5-D, see Equation (3)) in indicator bacteria. This performance corresponds to the EU criterion about the hygienization efficiency. It can be seen that the 5-D value of Ent. faecalis is reduced by a factor of 10 when the temperature is increased by every 5 °C between 55 °C and 65 °C, whereas it is reduced by a factor of 5 between 65 °C and 70 °C. It indicates that the Ent. faecalis strain has a higher resistance to heat stress. Pasteurization at 55 °C has almost no effect on the inactivation of this “G+” strain.

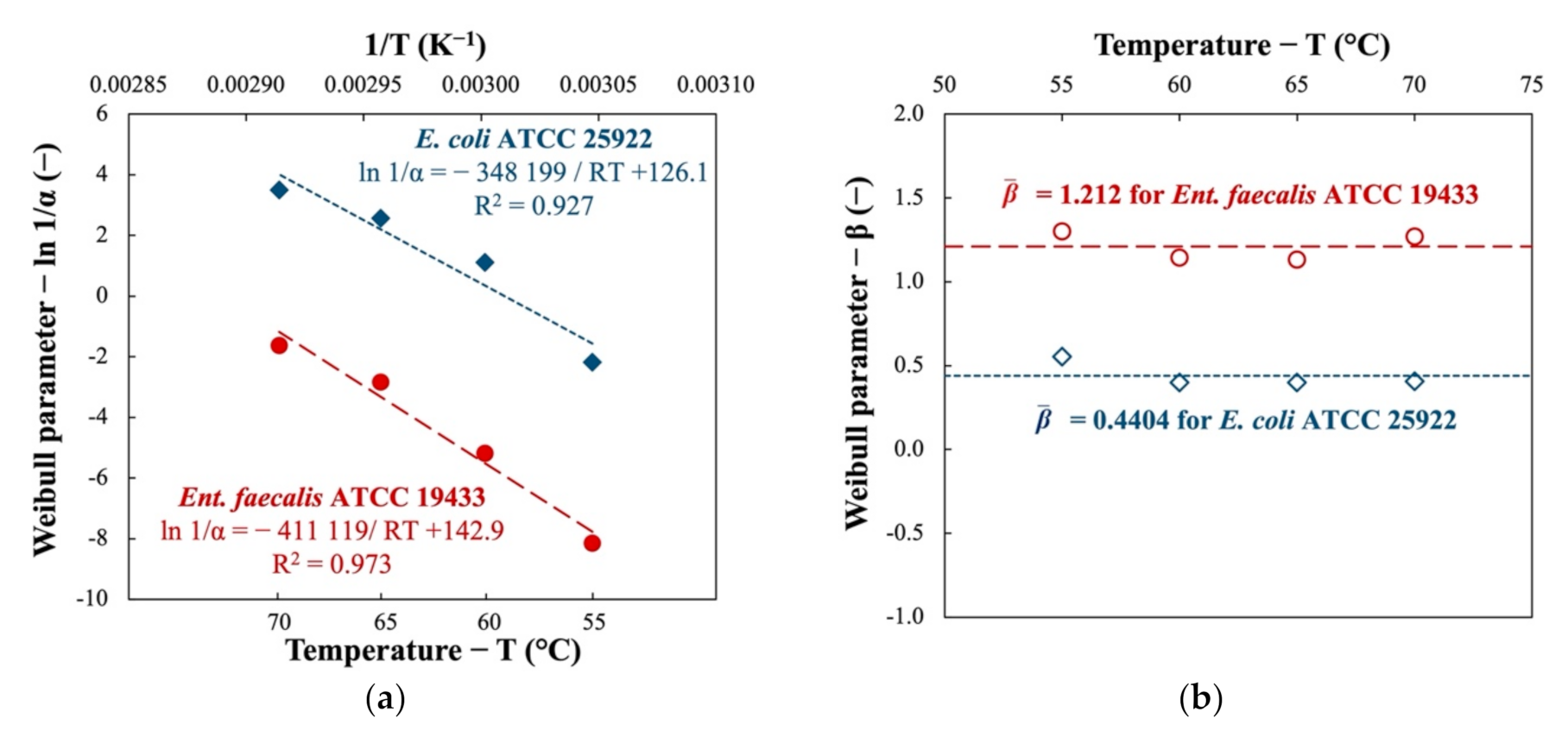

The relationship between the parameters of the Weibull model and pasteurization temperatures was studied (see Figure 2). When plotting the ln(1/α) against the inverse of the temperature (1/T), a linear function described by the Arrhenius equation (Equation (2)) was established with satisfactory modeling performance. The activation energy for pasteurization of the two indicator bacteria is therefore calculated as shown in Figure 2a (E_a = 411.1 kJ∙mol⁻¹ and 348.2 kJ∙mol⁻¹ for Ent. faecalis and E. coli, respectively). The difference in activation energy suggests the difference in resistance of the studied bacteria to thermal pasteurization.

As illustrated by Figure 2b, the values of Weibull shape parameter β do not vary much as the treatment temperature changes (coherent to the statement in Section 2.2.3). The mean value of β is found 1.121 for Ent. faecalis and 0.4404 for E. coli.

3.2. Resistance to PEF Treatment—Critical Electric Field Strength

The obtained inactivation ratios of two indicator bacteria in nutrient broth (NB) and mixed animal by-products (ABP) were plotted against the applied electric field strength (0, 4.0, 6.3, 12.5, 18.7, and 25.0 kV∙cm⁻¹).

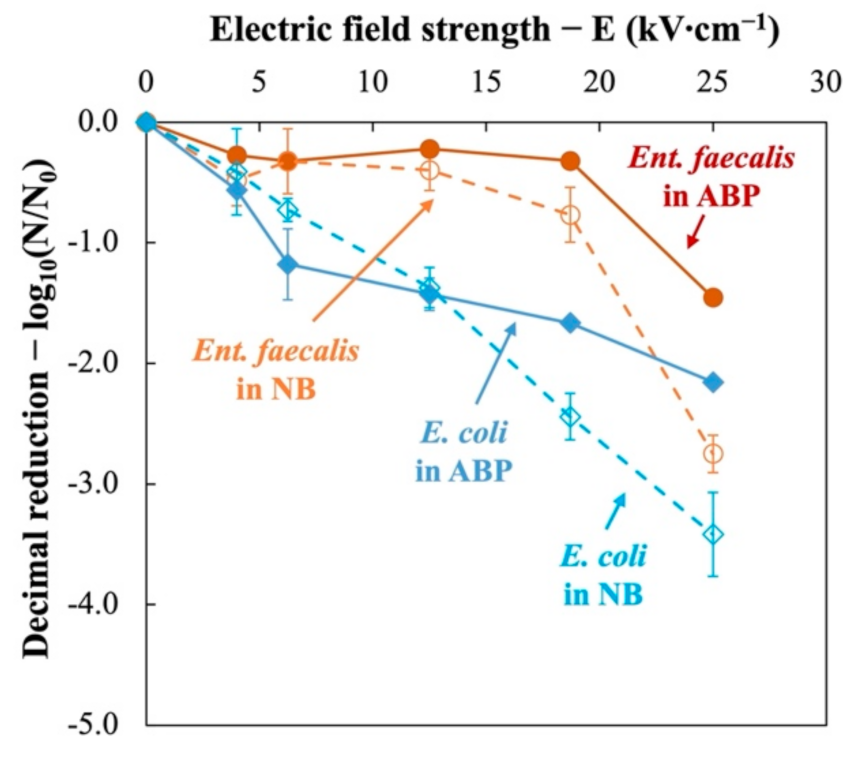

Figure 3 illustrates the behavior of two indicator bacteria treated at 350 J∙mL⁻¹ at different electric fields, in the nutrient broth or in animal by-products. It can be deduced that PEF treatments are generally less effective in ABP than in NB. This justifies the previous findings that animal by-products provide a protective effect to microorganisms against electrical treatment [16].

For Ent. faecalis, slight inactivation (<0.4 log10) can be obtained when electric field varied between 0 and 18.5 kV∙cm⁻¹. When electric field intensity increases from 18.5 kV∙cm⁻¹ to 25 kV∙cm⁻¹, significant reduction was observed (1.45 log10 in ABP and 2.75 log10 in NB). Nevertheless, E. coli presents a different inactivation curves. It was inactivated since the very beginning and almost linear inactivation curves are obtained (2.16 log10 in ABP and 3.42 log10 in NB at 25 kV∙cm⁻¹).

The Fermi model (Equation (5)) was used to estimate the critical electric field strength values (E_c) of indicator bacteria.

Table 2. Modeling results of PEF inactivation kinetics of two indicator bacteria using Fermi’s model.

Bacteria	Fermi’s Model
	kc (kV∙cm−1)	Ec (kV∙cm−1)	R2 (–)
Ent. faecalis	2.12	18.0	0.81
E. coli	4.70	~1.0	0.84

summarizes the modeling results. The critical field strengths are estimated at 18.0 kV∙cm⁻¹ and 1.0 kV∙cm⁻¹, respectively, for Ent. faecalis and E. coli. They are close to the theoretical E_c values, 16.5 kV∙cm⁻¹ for Ent. faecalis and 3.34 kV∙cm⁻¹ for E. coli, calculated by Heinz et al. (2001) [33].

The derivative of the Fermi’s modelled bacterial inactivation curves in Figure 4 shows the distribution of the vulnerable fraction of the two indicator bacteria as a function of electric field. It can be seen that there is a much larger PEF-resistant fraction in Ent. faecalis than in E. coli. 90% of E. coli is vulnerable to electric field strength less than 10 kV∙cm⁻¹, as compared with 20 kV∙cm⁻¹ for Ent. faecalis treated in the same ABP at 350 J∙mL⁻¹. This confirms that “G+” bacteria like Ent. faecalis are generally more resistant to PEF treatment than “G−” bacteria like E. coli [15,16]. In addition, the mixture of ABP has a protective effect compared to NB.

3.3. Resistance to AD Process

Table 3. Literature data about the efficiency of anaerobic digestion (AD) process on pathogens inactivation in animal by-products.

Substrates	AD Conditions	Experimental Scale	Indicator Microorganism	Observations 5	References
Bovine Slurry	MAD 1 at 35 °C for 10–28 d	Lab batch	Mycobacterium paratuberculosis	4 log10 depending on VS 2	[34]
	TAD at 53–55 °C for < 3 h	Lab batch	Mycobacterium paratuberculosis	4 log10
Bovine and swine slurry	MAD at 35 °C for 13 d	Lab continuous	Salmonella typhimurium	4 log10	[35]
	MAD at 35 °C for 9 d		Escherichia coli O8	3.7 log10
	MAD at 35 °C for 2 d		Staphylococcus aureus	5 log10
	MAD at 35 °C for 8 d		Enterococcus faecalis	3.6 log10
Chicken manure	MAD at 35 °C	Lab batch	Fecal coliforms and salmonella	50% inactivation	[36]
	TAD 3 at 50 °C		Fecal coliforms and salmonella	Full inactivation
	MAD		oocysts of Eimeria tenella	1–2 log10
	TAD		oocysts of Eimeria tenella	3 log10
Animal manure	TAD for 24 h	BGP continuous	Salmonella and Ascaris suum eggs	Full inactivation	[37]
Animal waste	MAD for 140 d	Full-scale continuously stirred digester	Escherichia coli	0.33 log10	[38]
			Salmonella typhimurium	0.73 log10
			Yersinia enterocolitica	1.39 log10
			Listeria monocytogenes	0.88 log10
			Campylobacter jejuni	0.05 log10
Manure	MAD at 35 °C for ~35 d	Lab batch	Fecal enterococci	4 log10	[39]
	MAD at 35 °C for ~9 d		Bovine enterovirus	4 log10
	MAD at 35 °C		Porcine parvovirus	No effect
	TAD at 55 °C for 3.8 h		Porcine parvovirus	4 log10
	TAD at 55 °C for 2.3 h		Bovine enterovirus	4 log10
	TAD at 55 °C for 148 h		Fecal enterococci	4 log10
Manure and biowaste	MAD at 35 °C for months	Continuously stirred 5-L digester	Salmonella spp.	Full inactivation	[40]
	TAD at 55 °C for months		Salmonella spp.	Full inactivation
MSW 4 and ABP	MAD at high level of NH3	Semi-continuous reactors	Enterococcus faecalis	6 log10	[41]
			Salmonella typhimurium	>5 log10
ABP	MAD or TAD	Full-scale BGP	Bacillus spp.	Slight decrease	[42]
			Clostridium spp.	No effect
Swine manure	Psychrophilic AD	Farm-scale sequencing batch reactors	Total coliforms	6 log10	[43]
			Salmonella spp.	3 log10
			Campylobacter spp.	3 log10
			Yersinia enterocolitica	4 log10
			Clostridium perfringens	No sig. effect
			Enterococcus spp.	No sig. effect
Dairy manure	AD at 25, 37, and 52.5 °C for 60, 40, and 4 d	Lab batch	Escherichia coli	~7, 4 and 8 log10	[44]
Swine manure	MAD at 35 °C	Lab batch	Ascaris suum eggs	Full inactivation after 24 h	[45]
Dairy slurry and manure	MAD for 11 months	Farm-scale digester	Mycobacterium avium	88% inactivation	[46]
	MAD for 11 months	2-stage BGP	Mycobacterium avium	Full inactivation
Swine carcasses and manure	AD at 24 °C	Lab batch	Escherichia coli	Full inactivation after 25–30 d	[47]
			Salmonella Senftenberg	Full inactivation after 10 d
			Phage PhiX–174	No sig. effect
			Phage MS2 and PCV2	1.5 log10 and 3 log10 after 30 d
	MAD at 37 °C	Lab batch	Escherichia coli	Full inactivation after 8–10 d
			Salmonella Senftenberg	Full inactivation after 10 d
			Phage PhiX-174	1.8 log10 after 30 d
			Phage MS2 & PCV2	Full inactivation & 3 log10 after 30 d
Animal slurry	MAD at 37 °C for 28 d	Lab batch	Total coliforms	>3 log10	[48]
			Escherichia coli	>3 log10
			Enterococci	>2 log10
Animal manure	MAD at 27–41 °C for 40–70 d	5 Farm BGP	Escherichia coli	0.7–2.5 log10	[3]
			Enterococci	−0.49 6 to +1.17 7 log10
			Clostridium perfringens total	–0.80 to +0.07 log10
			Clostridium perfringens spores	0.15–0.83 log10
			Thermotolerant Campylobacter	–1.40 to +0.30 log10
			Listeria monocytogenes	Almost full inactivation
			Salmonella spp.	Almost full inactivation
			Clostridium botulinum total	Very low level
			Clostridioides difficile total	Very low level

¹ MAD: Mesophilic anaerobic digestion, ² VS: Volatile solids, ³ TAD: Thermophilic anaerobic digestion, ⁴ MSW: Municipal solid waste, ⁵ By default, numbers provided in this column mean microbial reduction, ⁶ “–” means reduction in target microorganisms, ⁷ “+” means increase in target microorganisms.

reviews the literature data about the effect of anaerobic digestion on the inactivation of pathogen agents present in ABP like animal manure and slaughterhouse waste.

Various microorganisms are discussed including bacteria like Bacillus spp. (G+), Clostridium spp. (G+), enterococcus spp. (G+), Listeria spp. (G+), Mycobacterium spp. (considered as G+), Staphylococcus aureus (G+), Campylobacter spp. (G–), E. coli (G–), Salmonella spp. (G–), Yersinia spp. (G–), total and fecal coliforms (G–), eggs of eukaryotes like Ascaris suum, Eimeria tenella, virus like poliovirus and bacteriophages like coliphages.

Table 4. Literature data about the efficiency of AD process on pathogens inactivation in sewage sludge.

Substrates	AD Conditions	Experimental Scale	Indicator Microorganisms	Observations	References
WAS 1	MAD 2	Several WWTP 3	Fecal enterococci	1–1.5 log10	[49]
Sewage sludge	MAD	WWTP	Listeria monocytogenes	Sensitive to anaerobic conditions	[50]
Biosolids	TAD 4 for 0.5–6 h	Lab batch	Ascaris suum eggs	~4 log10	[51]
	TAD for 0.03–2 h	Lab batch	Poliovirus	~6 log10
Biosolids	TAD	Continuous flow reactor	Salmonella spp.	Not detected for most samples	[52]
			Fecal enterococci	3.68–4.89 log10
			Somatic and male-specific coliphages	0–2.36 log10
			Ascaris suum eggs	>2 log10
			Poliovirus	2.07–5.76 log10
Biosolids	TAD	Full scale	Microbial indicators for Biosolids	Meet US Class-A biosolids criteria	[53]
Primary sludge and farm biosolids	TAD	Two-stage continuous-batch full-scale digester	Microbial indicators for Biosolids	Meet US Class-A biosolids criteria	[54]
Sewage sludge	MAD or TAD	Lab batch	Total coliforms	1.9 or 6.3 log10	[55]
			Escherichia coli	1.69 or 5.38 log10
			Clostridium perfringens spores	0.48 or 0.93 log10
			Salmonella spp.	Full inactivation
Sewage sludge	AD at 35 or 55 °C for 60 d	Lab batch	Fecal coliforms	5.13 log10 or 5.09 log10	[56]
			Salmonella spp.	Full inactivation
			Helminths eggs	Full inactivation

¹ WAS: Waste activated sludge, ² MAD: Mesophilic anaerobic digestion, ³ WWTP: Wastewater treatment plant, ⁴ TAD: Thermophilic anaerobic digestion.

and

Table 5. Literature data about the efficiency of AD process on pathogens inactivation in other biowaste.

Substrates	AD Conditions	Experimental Scale	Indicator Microorganisms	Observations	References
Cabbage roots	MAD 1 at 35 °C for 2 weeks	Lab batch	Plasmodiophora brassicae	No effect	[57]
	TAD 2 at 55 °C for 2 weeks	Lab batch	Plasmodiophora brassicae	3 log10
Household wastes	Solid phase TAD at 52 °C for 12 h	Lab batch	Ralstonia solanacearum	8 log10	[58]
Green waste	MAD for 21 d	300-L batch reactor	Fusarium oxysporum f. sp. asparagi	2.9 log10	[59]
			Ralstonia solanacearum	6 log10
			Salmonella typhimurium	7 log10
			Sclerotium cepivorum	No effect
			Enterobacteriaceae	3 log10
Household wastes	MAD at 35 °C and TAD at 55 °C	45-L semi-continuous digester	Several strains of fungi	2–7 log10 depending on strains	[60]
Biowaste	TAD for 24 h	Full-scale 750-m3 BGP	Listeria monocytogenes Salmonella enterica Escherichia coli Campylobacter jejuni	Full inactivation	[61]
				Full inactivation
				Full inactivation
				Full inactivation
Food waste and blackwater	Two-stage AD (TAD + MAD)	Lab batch	Escherichia coli	6.4 log10 after TAD	[62]
				regenerated by 4 log10 after MAD
			Clostridium perfringens	No sig. effect
			Coliphage	1.4 log10
MSW and food waste	TAD at 54 °C	Full scale 1 500-m3 BGP	Salmonella Senftenberg W775, Enterococcus spp., and Ascaris suum	Full inactivation	[63]
Anaerobic digestate	MAD at 38 °C for > 30 d	Full-scale BGP	Campylobacter spp.	reduction of 98.7%	[64]
			Bacillus spp.	reduction of 25.3–38.9%

¹ MAD: Mesophilic anaerobic digestion, ² TAD: Thermophilic anaerobic digestion.

list, not exhaustively, several examples of pathogens removal during AD of sewage sludge and other biowaste like municipal solid waste (MSW) and green waste.

The pathogens inactivation efficiency largely depends on the AD operational conditions such as temperature, retention time and treatment scale. Generally, thermophilic AD process (T > 50 °C) tends to be more critical to the survival of microorganisms. Mesophilic AD (35 °C < T < 40 °C) may have effect on certain microorganisms but its performance is limited. A longer retention time in anaerobic digesters may cause a relatively higher microbial removal efficiency. Treatment on lager scales (e.g., full scale BGP) has more difficulty in pathogens reduction than on laboratory scales.

“G−” bacteria are generally more vulnerable to the stress brought by anaerobic conditions than “G+” bacteria. Mesophilic AD has little effect on certain sporulating bacteria like Clostridium spp., bacillus spp. and their respective resistant forms (spores).

When it comes to the efficiency difference among substrates treated by AD (i.e., comparison among Table 3, Table 4, Table 5), pathogens present in sewage sludge and other biowaste are more vulnerable to anaerobic digestion than in animal by-products. This may be due to the variation in chemical composition of substrates that lead to difference in physico-chemical conditions during AD processes, e.g., pH evolution, volatile fatty acids (VFA) production and NH₃ accumulation [19].

The mechanisms behind these phenomena are to be discussed in Section 4.

4. Discussion

4.1. Mechanisms

Resistance of Ent. faecalis ATCC 19433 and E. coli ATCC 25922 to the thermal pasteurization was characterized. The 5-D values found by Weibull model were coherent with the reported data [65,66]. The activation energy (E_a) for the inactivation of two indicator bacteria was estimated at 411.1 kJ∙mol⁻¹ and 348.2 kJ∙mol⁻¹. These values correspond to the activation energy range for proteins denaturation [67,68]. It indicates that certain proteins and enzymes critical to microbial activities are denatured giving rise to the bacterial inactivation during thermal treatment. As for PEF treatment, the critical electric field strengths are estimated at 18.0 kV∙cm⁻¹ and 1.0 kV∙cm⁻¹ for Ent. faecalis and E. coli, respectively, close to the theoretical E_c values given by Heinz et al. (2001) [33]. Similar to thermal inactivation, “G+” bacteria Ent. faecalis has a higher resistance to PEF exposure than E. coli.

The difference in chemical compositions constituting cell wall may explain the resistance variation between “G+” and “G−” bacteria to thermal and PEF treatment. “G+” bacteria have a thicker cell wall with multi-layered peptidoglycan and teichoic acids preventing penetration of toxic substances into cells [68]. This rigid cell wall resists the heat transfer and PEF stress that disturb microbial activities [16,17,69,70,71]. As for “G−” bacteria like E. coli, their cell wall consists of a monolayer of peptidoglycan covered by a lipid-rich membrane, which is therefore vulnerable to any physical and chemical stress [68,69].

The difference in electrical treatment efficiency between ABP and nutrient broth reveals that the chemical composition of the products is a very important parameter when evaluating the PEF hygienization efficiency. The changes in electrical conductivity, osmolarity and water activity in the suspension has an impact on bacterial survival [32]. Similar protective effect was seen during the PEF pasteurization of products rich in proteins (E. coli in skim milk) [72], lipids (E. coli, Lactobacillus brevis, Pseudomonas fluorescens, and Saccharomyces cerevisiae in full cream milk) [73], and polysaccharides (Pseudomonas spp. in xanthan gum) [74]. The interaction of indicator bacteria with other microorganisms could also be a reason explaining the efficiency difference in ABP and nutrient broth. In non-sterilized conditions like the case of ABP mixture, microorganisms could form biofilm or aggregates. Then microorganisms situated in the core of aggregates could be protected by the external layers of biofilm or aggregates. Those microbes, as a result, receive less electrical stress and therefore, survive during the treatment [75].

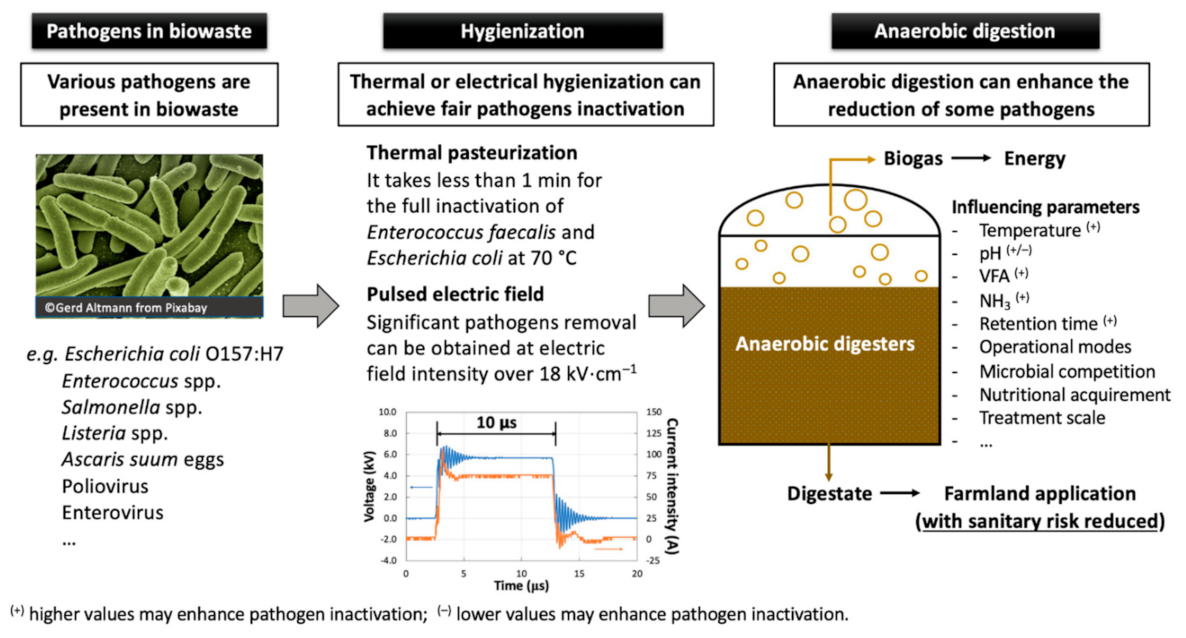

The literature review about the AD effect on pathogen inactivation indicates that its performance depends on the microorganisms considered, digestion temperature, residence time and type of feedstock. Thermophilic digestion is usually more efficient in pathogens removal than mesophilic digestion. “G+” bacteria can persist better than “G−” bacteria. Spores can hardly be influenced by AD process. Figure 5 summarizes different AD parameters that have an impact on pathogens removal during AD treatment of biowaste.

Aitken et al. (2005) found the energy activation of 580 kJ∙mol⁻¹ and 510 kJ∙mol⁻¹ for deactivation of Ascaris suum and poliovirus respectively during sludge thermophilic anaerobic digestion operated at 49–53 °C [51]. Differently, Popat et al. (2010) revealed an activation energy of 39 kJ∙mol⁻¹ for poliovirus during sludge AD operated at 51–55 °C. This value refers to the activation energy of RNA inactivation [76]. From the perspectives of molecular microbiology, two different mechanisms could be attributed to explain the microbial inactivation during AD: capsid protein denaturation at higher temperature (T > 55 °C) and DNA or RNA inactivation at lower temperature (T < 55 °C) [77]. The types of AD feedstock (substrates) can also influence the inactivation efficiency of pathogens during AD. Large molecules like lipids, proteins and polysaccharides are degraded into small molecules like VFA and NH₃. VFA can cause rapid local pH changes stressing microorganisms. Free VFA and NH₃ can penetrate into cells with ease, which disturbs microbial activities. In addition, the competition of various microorganisms present in anaerobic digesters may also be a factor influencing pathogens inactivation performance during AD [19,68].

4.2. Perspectives

The present paper studies the microbial resistance of indicator bacteria to thermal pasteurization, alternative PEF treatment and AD processes. It helps a better grasp of the knowledge related to the hygienization process of biowaste for biogas production.

Conventional thermal pasteurization, conforming to EU No. 142/2011 [10], is found energy consuming. 6–25% of primary energy from biogas could be used to feed this process [5]. The objectives and operational conditions of hygienization have to be reviewed to support the sustainable development of the industry of biogas production. Innovative technologies like alternative hygienization solutions are thus to be studied. In fact, many attempts have been made. In Sweden, Grim et al. (2015) [18] proposed the integrated thermophilic sanitation (ITS) by keeping the substrates at 52 °C for 10 h in thermophilic digesters and for a minimum hydraulic retention time (HRT) of 7 d to dispense from EU pasteurization obligation. They succeeded in achieving similar microbial reduction and got the approval from Swedish Board of Agriculture. Liu et al. (2019 and 2020) [16,17] have studied the possible application of PEF on the alternative hygienization of ABP.

In addition, research focus have been put into the removal of emerging microbial contaminants like ARG. As mentioned in Section 1, studies [4,78] found that ARG could be hardly reduced through traditional waste treatment technologies. Derongs et al. (2020) [79] revealed the role of anaerobic digestate as possible carrier of antibiotic-resistant Clostridium perfringens into the environment. The removal of ARG has to be taken into consideration by future hygienization process. Other infectious pathogens like bacterial spores and African Swine Fever Virus should be included in hygienization objectives as well. More studies are needed to clarify the health risk and their fate during conventional hygienization and AD treatment.

In addition to pathogen removal, hygienization, no matter thermal or alternative (e.g., PEF, microwave and ultrasound), may serve as pretreatment of substrates influencing their biomethane potential [80]. Many studies on ABP [81], biowaste [82] and green waste [83] were realized and around 0–50% BMP increase could be achieved [5]. However, a systematic study combining effect of hygienization on both BMP enhancement and pathogens removal is rare.

Therefore, future strategy of selecting pretreatment methods for biogas feedstock should rely on their sanitary aspect, feedstock types, methane potential intensification, energy consumption, potential efficiency dealing with emerging biological contaminants (e.g., ARG, African Swine Fever Virus (ASFV), and spores) and environmental impact evaluation carried out by life cycle assessment (LCA) approaches.

5. Conclusions

The present study focuses on the characterization of microbial resistance to traditional and innovative hygienization, including thermal pasteurization, PEF treatment and AD process. The thermal inactivation kinetics of Ent. faecalis and E. coli were presented. The values of critical electric field strength of two indicator bacteria are estimated. After a literature review, the behavior of various microorganisms like virus, bacteria, eukaryotes, and phages during anaerobic digestion is summarized. Possible mechanisms explaining the difference in microbial resistance are given. The paper also discusses the perspectives of the research focus concerning hygienization of biowaste. They are the essential information for academic and industrial partners to practice hygienization of biowaste in a more sustainable way.
