Extended SINDICOMP: Characterizing MV Voltage Transformers with Sine Waves^{ †}

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Background

## 3. Using Sine Waves for the Measurement of the VT Frequency Behavior

#### 3.1. Preliminary Consideration and Scope of the Technique

- Waveforms composed by a fundamental tone, at 50 Hz and rated amplitude and a harmonic tone with fixed amplitude (1% of fundamental tone) and variable frequency and phase angle (in the following, this kind of test will be referred to as FH1, that stands for Fundamental and one Harmonic tone). Here, SINDICOMP is not yet applied.
- Sine waves with reduced amplitude (40 V) and variable frequency (in the following, this kind of test will be referred to as SFS, which stands for Sinusoidal Frequency Sweep).

- using SINDICOMP to compensate for the non-linearity effects;

#### 3.2. First Step: Non Linearity Compensation

- the subscripts “p” and “s” stand for primary and secondary side respectively;
- the primary quantities are here referred to the primary side of the transformer, so that the transformation ratio does not explicitly appear (that is the quantities at the secondary side are multiplied by the rated ratio of the VT);
- ${\dot{Z}}^{*}$ and ${\overline{I}}_{m,h}$ are, respectively, the equivalent VT leakage series impedance and the h-harmonic component of the magnetization current;
- the superscript “d” and “sin” refer to tests performed under distorted and sinusoidal conditions.

#### 3.3. Second Step: Approximated Voltage Transformer (VT) Frequency Response

- ${k}_{r}=\raisebox{1ex}{${V}_{p,r}$}\!\left/ \!\raisebox{-1ex}{${V}_{s,r}$}\right.$ is the rated transformation ratio (${V}_{p,r}$ and ${V}_{s,r}$ are the rated primary and secondary voltages);
- ${V}_{p,h}$ and ${V}_{s,h}$ are the root mean square (rms) values of the primary and secondary h-order harmonic voltage;
- ${\phi}_{p,h}$ and ${\phi}_{s,h}$ are phase angles of the primary and secondary h order harmonic voltage.

## 4. Measurement Setup

_{s}equal to 50 kHz, the time window chosen is 1 s and ten repetitions are executed for each test. The Discrete Fourier Transform (DFT) is performed on the acquired samples and the phasors of the voltages at VT primary and secondary side are measured.

## 5. Application of E-SINDICOMP to Various Voltage Transformer (VTs)

#### 5.1. Test Description

#### 5.2. Identification of the D_{lim} Value

#### 5.3. VT 1 Characterization

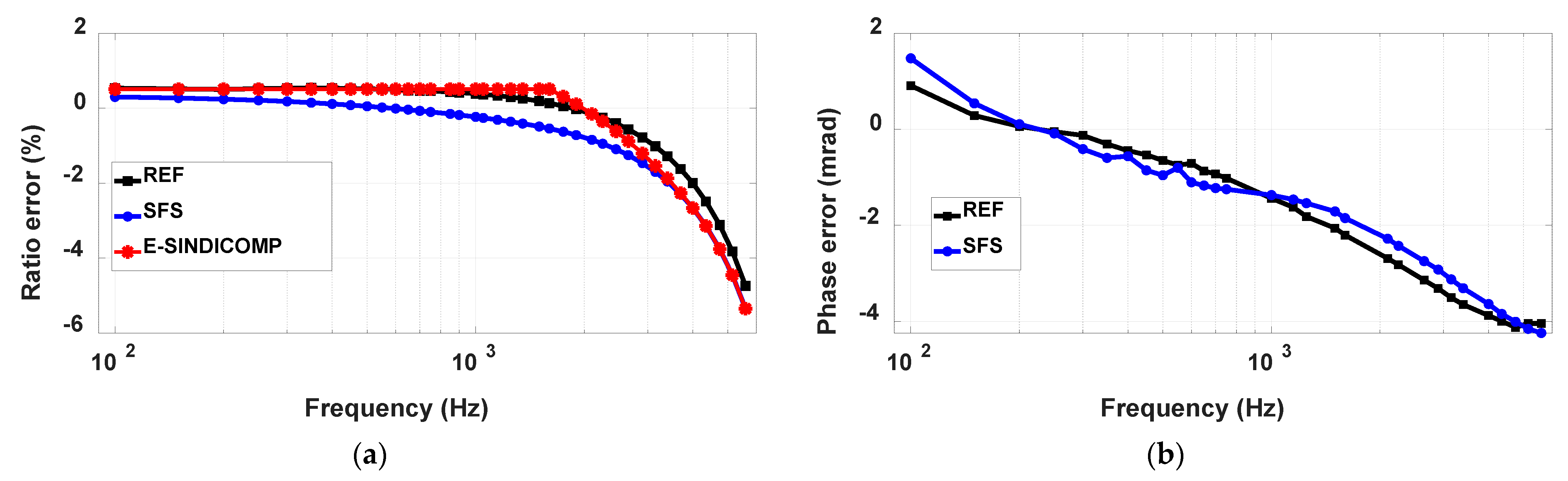

#### 5.4. VT2 Characterization

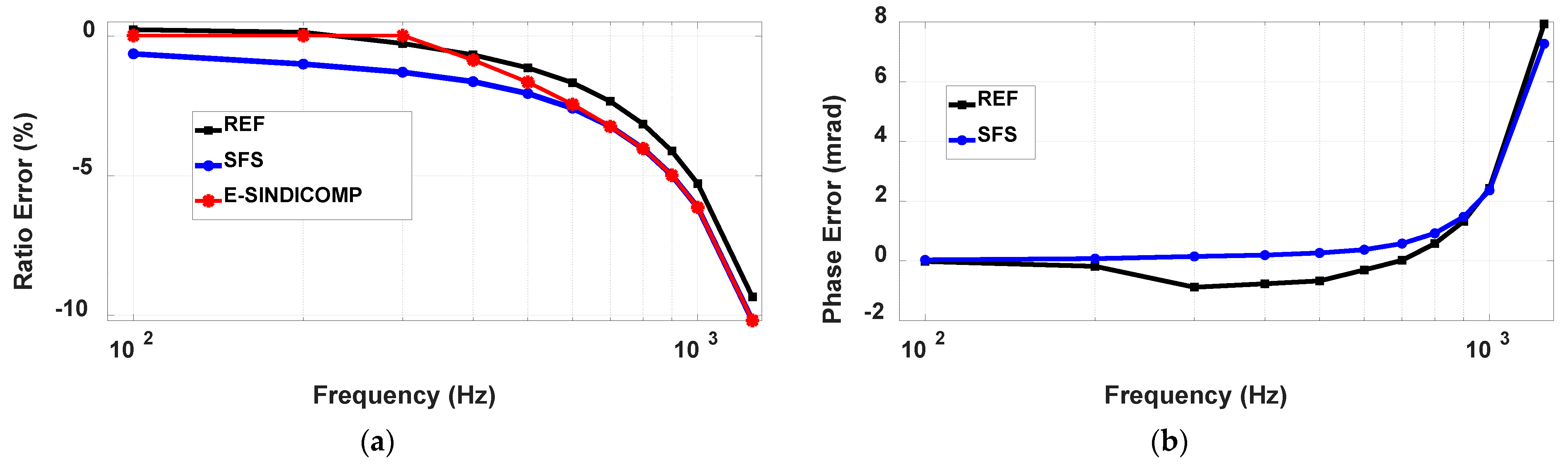

#### 5.5. VT3 Characterization

#### 5.6. Burden Effect

## 6. Conclusions

- E-SINDICOMP requires two measurement steps for the frequency characterization of MV VTs, the first of which, executed at power frequency, is identical to the standard procedure for VT calibration [20], so that every VT calibration laboratory is able to perform it.
- The second measurement step involves the generation and measurements of sine waves at some tens of volt and up to some kilohertz, again requiring measuring instrumentation generally available in most electrical measurement laboratories.
- E-SINDICOMP has been applied to three different commercial MV VTs, showing a good performance improvement with respect to the use of the widely adopted low voltage sinusoidal frequency sweep technique.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- De La Rosa, F.C. Harmonics, Power Systems, and Smart Grids; CRC Press: Boca Raton, FL, USA, 2015. [Google Scholar]
- Elphick, S.; Gosbell, V.; Smith, V.; Perera, S.; Ciufo, P.; Drury, G. Methods for harmonic analysis and reporting in future grid applications. IEEE Trans. Power Deliv.
**2016**, 32, 989–995. [Google Scholar] [CrossRef] - Kalair, A.; Abas, N.; Saleem, Z.; Khan, N. Review of harmonic analysis, modeling and mitigation techniques. Renew. Sustain. Energy Rev.
**2017**, 78, 1152–1187. [Google Scholar] [CrossRef] - Cataliotti, A.; Di Cara, D.; Emanuel, A.E.; Nuccio, S. A novel approach to current transformer characterization in the presence of harmonic distortion. IEEE Trans. Instrum. Meas.
**2009**, 58, 1446–1453. [Google Scholar] [CrossRef] - Faifer, M.; Laurano, C.; Ottoboni, R.; Toscani, S.; Zanoni, M. Harmonic distortion compensation in voltage transformers for improved power quality measurements. IEEE Trans. Instrum. Meas.
**2019**, 68, 3823–3830. [Google Scholar] [CrossRef] - Faifer, M.; Laurano, C.; Ottoboni, R.; Toscani, S.; Zanoni, M.; Crotti, G.; Giordano, D.; Barbieri, L.; Gondola, M.; Mazza, P. Overcoming frequency response measurements of voltage transformers: An approach based on quasi-sinusoidal Volterra models. IEEE Trans. Instrum. Meas.
**2019**, 68, 2800–2807. [Google Scholar] [CrossRef] - Cataliotti, A.; Cosentino, V.; Crotti, G.; Delle Femine, A.; Di Cara, D.; Gallo, D.; Giordano, D.; Landi, C.; Luiso, M.; Modarres, M.; et al. Compensation of nonlinearity of voltage and current instrument transformers. IEEE Trans. Instrum. Meas.
**2019**, 68, 1322–1332. [Google Scholar] [CrossRef] - Ballal, M.S.; Wath, M.G.; Suryawanshi, H.M. A novel approach for the error correction of CT in the presence of harmonic distortion. IEEE Trans. Instrum. Meas.
**2019**, 68, 4015–4027. [Google Scholar] [CrossRef] - Collin, A.J.; Delle Femine, A.; Gallo, D.; Langella, R.; Luiso, M. Compensation of current transformers’ nonlinearities by tensor linearization. IEEE Trans. Instrum. Meas.
**2019**, 68, 3841–3849. [Google Scholar] [CrossRef] - D’Avanzo, G.; Delle Femine, A.; Gallo, D.; Landi, C.; Luiso, M. Impact of inductive current transformers on synchrophasor measurement in presence of modulations. Measurement
**2020**, 155, 107535. [Google Scholar] [CrossRef] - Kaczmarek, M.; Stano, E. Nonlinearity of magnetic core in evaluation of current and phase errors of transformation of higher harmonics of distorted current by inductive current transformers. IEEE Access
**2020**, 8, 118885–118898. [Google Scholar] [CrossRef] - Kusters, N.L.; Moore, W.J.M. The development and performance of current comparators for audio frequencies. IEEE Trans. Instrum. Meas.
**1965**, 14, 178–190. [Google Scholar] [CrossRef] - Cristaldi, L.; Ferrero, A.; Ottoboni, R. A VI-based equipment for the frequency-domain characterization of voltage transformers. In Proceedings of the IEEE Instrumentation and Measurement Technology Conference Sensing, Processing, Networking, Ottawa, ON, Canada, 19–21 May 1997; IEEE: Piscataway, NJ, USA, 1997; pp. 188–192. [Google Scholar]
- Gallo, D.; Landi, C.; Luiso, M. Real-time digital compensation of current transformers over a wide frequency range. IEEE Trans. Instrum. Meas.
**2010**, 59, 1119–1126. [Google Scholar] [CrossRef] - Klatt, M.; Meyer, J.; Elst, M.; Schegner, P. Frequency responses of MV voltage transformers in the range of 50 Hz to 10 kHz. In Proceedings of the 14th International Conference on Harmonics and Quality of Power—ICHQP 2010, Bergamo, Italy, 26–29 September 2010; IEEE: Piscataway, NJ, USA, 2010; pp. 1–6. [Google Scholar]
- Mohns, E.; Meisner, J.; Roeissle, G.; Seckelmann, M. A wideband current transformer bridge. IEEE Trans. Instrum. Meas.
**2014**, 63, 2322–2329. [Google Scholar] [CrossRef] - Crotti, G.; Gallo, D.; Giordano, D.; Landi, C.; Luiso, M.; Modarres, M. Frequency response of MV voltage transformer under actual waveforms. IEEE Trans. Instrum. Meas.
**2017**, 66, 1146–1154. [Google Scholar] [CrossRef] - EMPIR 19NRM05 IT4PQ. Available online: https://www.euramet.org/research-innovation/search-research-projects/details/project/measurement-methods-and-test-proce-dures-for-assessing-accuracy-of-instrument-transformers-for-power/?L=0&tx_eurametctcp_project%5Baction%5D=show&tx_eurametctcp_project%5Bcontroller%5D=Project&cHash=022ee6ab2e8ea8c12a7ed904625a1cc7 (accessed on 7 February 2021).
- Letizia, P.S.; Crotti, G.; Giordano, D.; Delle Femine, A.; Gallo, D.; Landi, C.; Luiso, M. Low cost procedure for frequency characterization of voltage instrument transformers. In Proceedings of the 2019 IEEE International Instrumentation and Measurement Technology Conference (I2MTC), Auckland, New Zealand, 20–23 May 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–6. [Google Scholar]
- International Electrotechnical Commission. Instrument Transformers—Part 2: Additional Requirements for Inductive Voltage Transformers. IEC 61869-3; IEC: Geneva, Switzerland, 2012. [Google Scholar]
- Crotti, G.; Gallo, D.; Giordano, D.; Landi, C.; Luiso, M.; Modarres, M. Calibration of MV voltage instrument transformer in a wide frequency range. In Proceedings of the 2017 IEEE International Instrumentation and Measurement Technology Conference (I2MTC), Torino, Italy, 22–25 May 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 1–6. [Google Scholar]
- International Electrotechnical Commission. Instrument Transformers—The Use of Instrument Transformers for Power Quality Measurement; IEC TR 61869-103; IEC: Geneva, Switzerland, 2012. [Google Scholar]
- Crotti, G.; Gallo, D.; Giordano, D.; Landi, C.; Luiso, M.; Modarres, M.; Zucca, M. Frequency compliance of MV voltage sensors for smart grid application. IEEE Sens. J.
**2017**, 17, 7621–7629. [Google Scholar] [CrossRef] - Crotti, G.; Gallo, D.; Giordano, D.; Landi, C.; Luiso, M. Industrial comparator for smart grid sensor calibration. IEEE Sens. J.
**2017**, 17, 7784–7793. [Google Scholar] [CrossRef] - Popov, M. General approach for accurate resonance analysis in transformer windings. Electr. Power Syst. Res.
**2018**, 161, 45–51. [Google Scholar] [CrossRef]

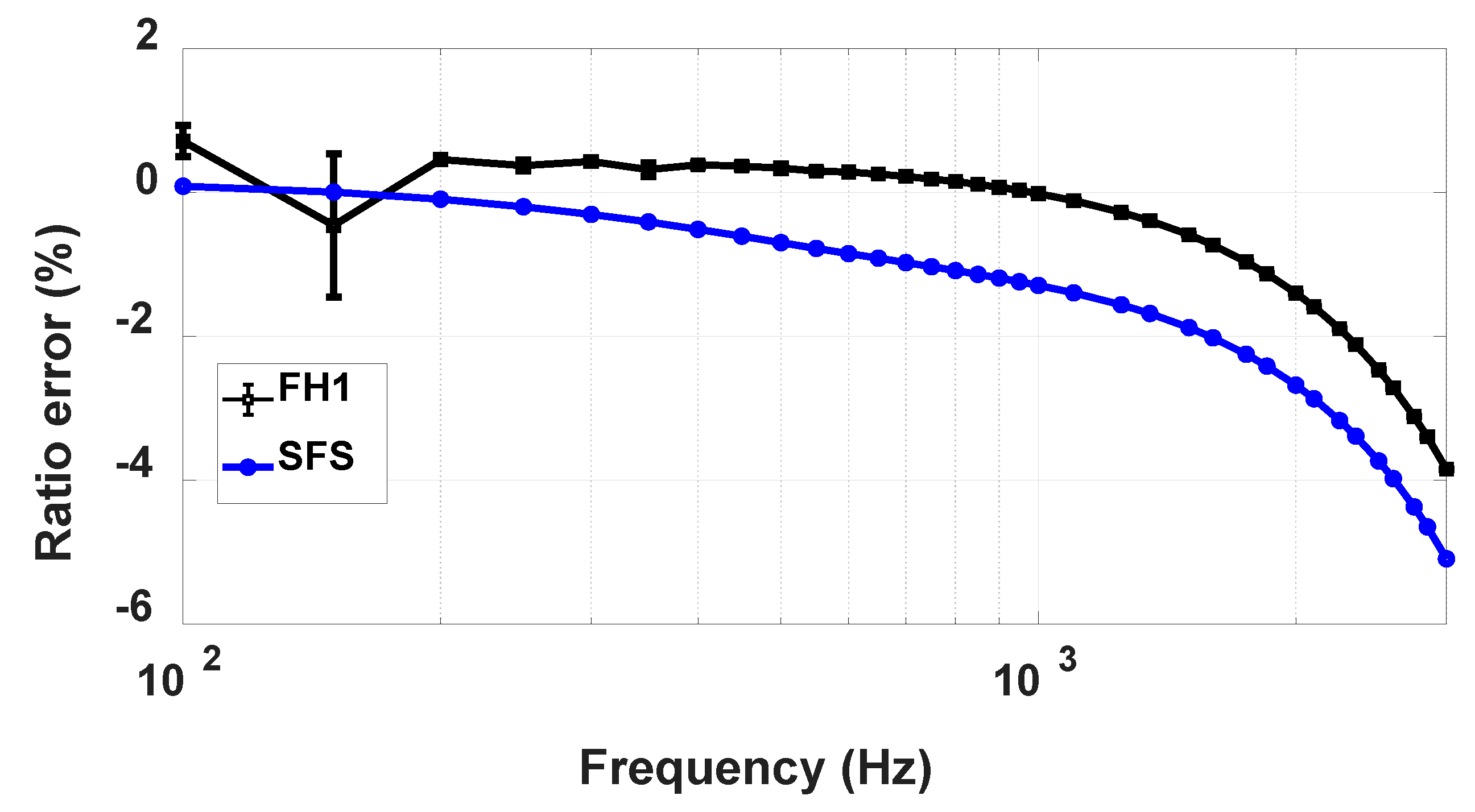

**Figure 1.**Ratio error of the Voltage Transformer (VT) evaluated performing FH1 (square marker) and SFS (circle marker) characterization tests.

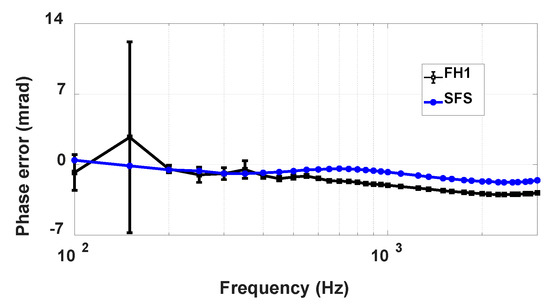

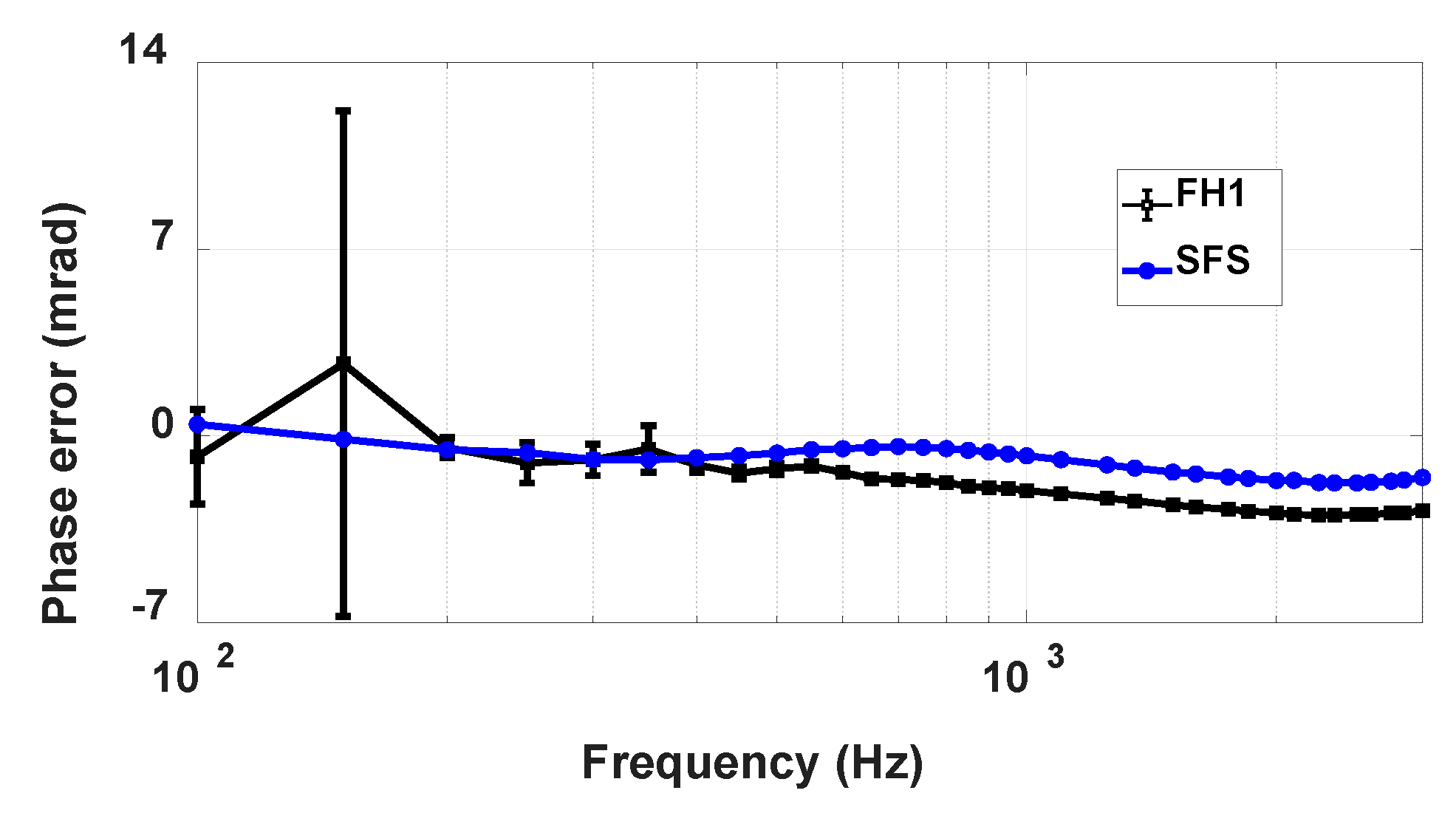

**Figure 2.**Phase error of the Voltage Transformer (VT) evaluated performing FH1 (square marker) and SFS (circle marker) characterization tests.

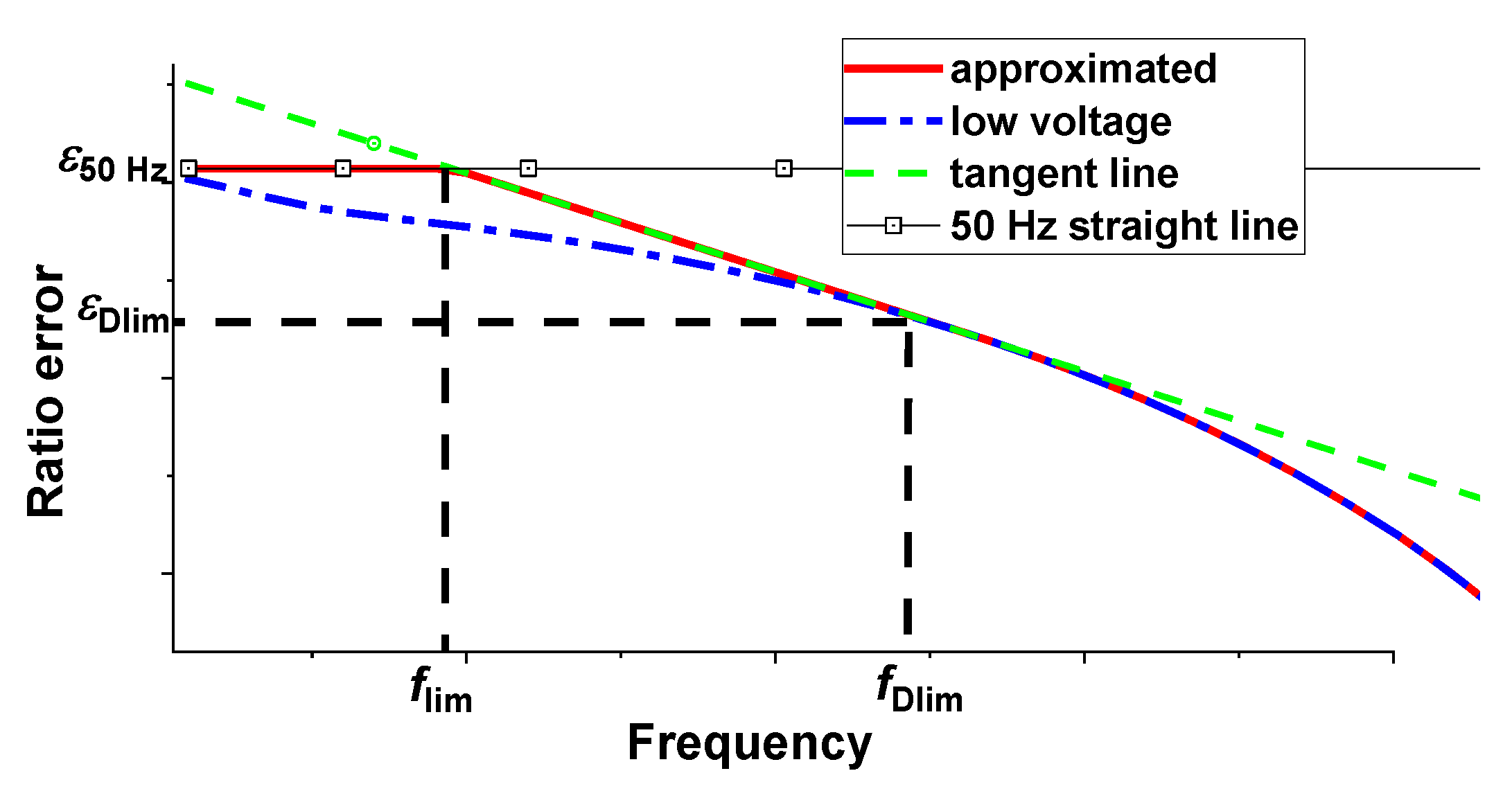

**Figure 3.**Graphical description of the proposed procedure for the identification of the Voltage Transformer (VT) frequency response.

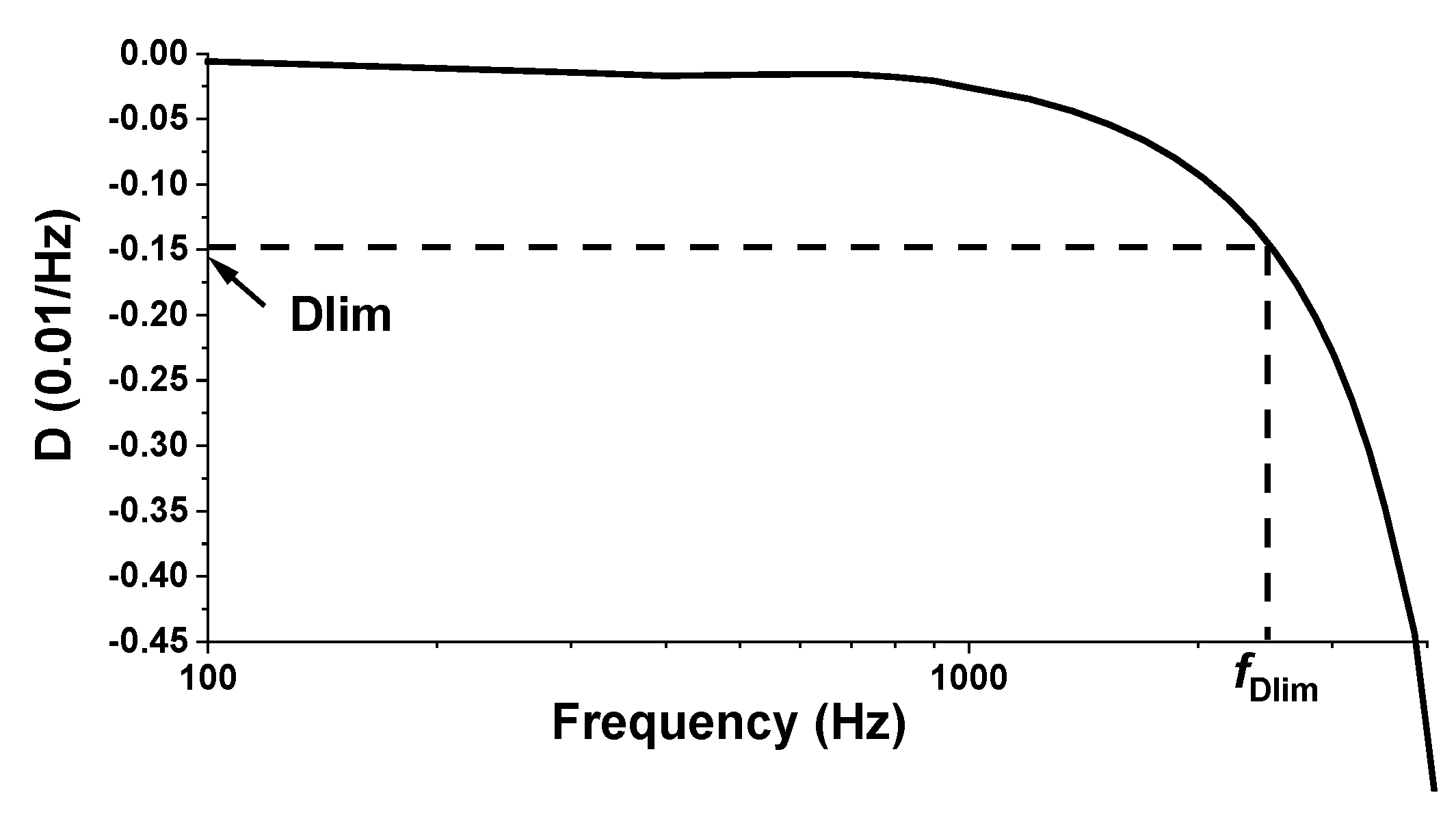

**Figure 4.**Behavior of the frequency derivative of the Voltage Transformer (VT) ratio error from the SFS test. The point [${f}_{Dlim}$, ${D}_{lim}$] identifies the limit beyond which the linear effects affecting the ratio error are predominant.

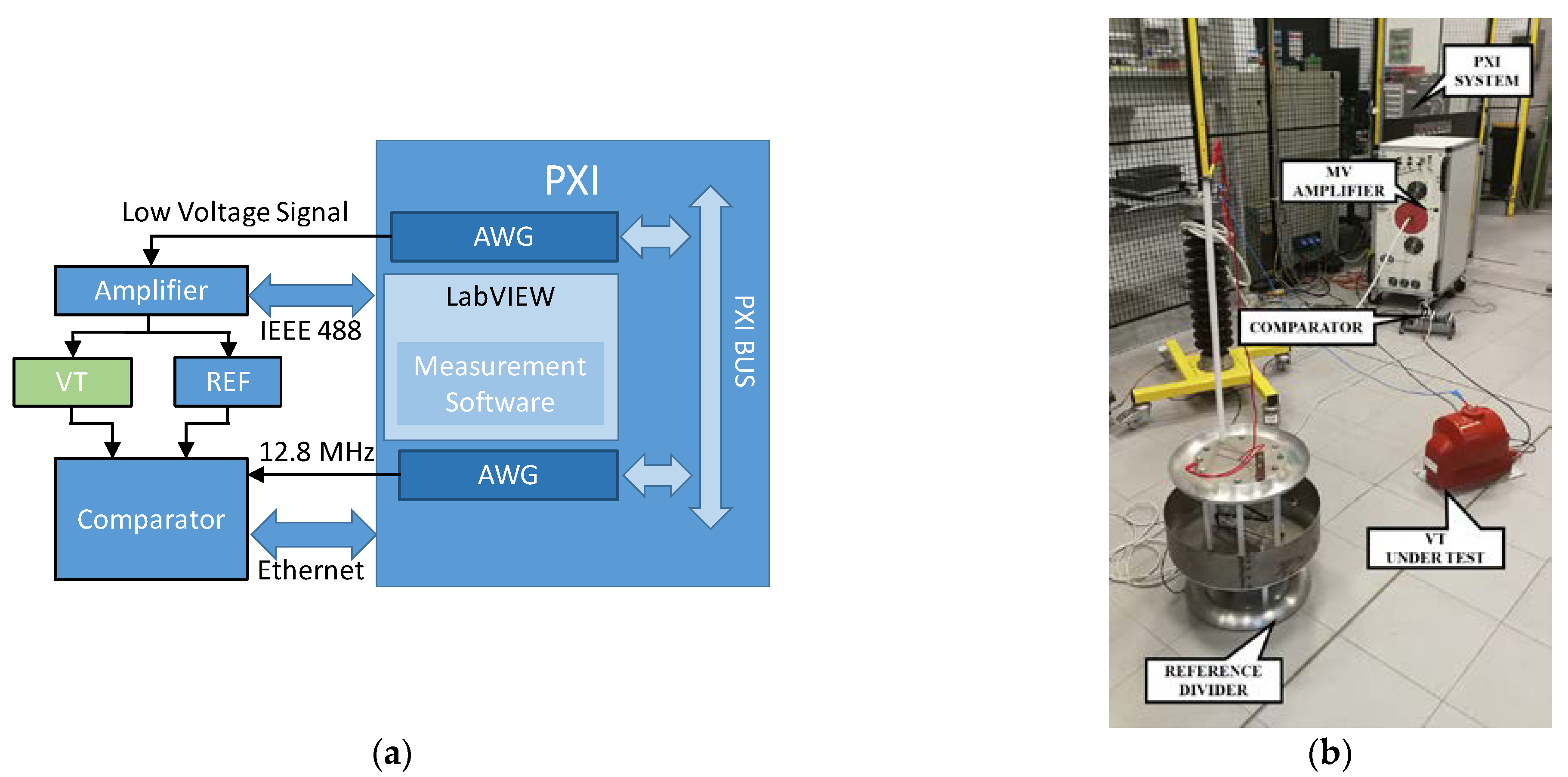

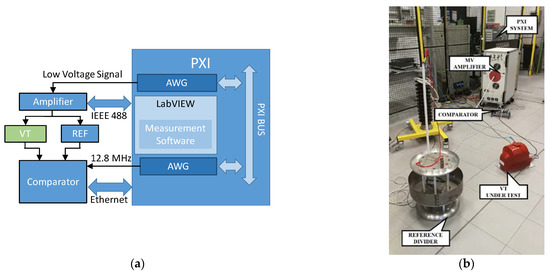

**Figure 5.**Setup for the Voltage Transformer (VT) characterization: (

**a**) block diagram, (

**b**) generation and measurement circuit at Italian National Metrology Institute (INRIM).

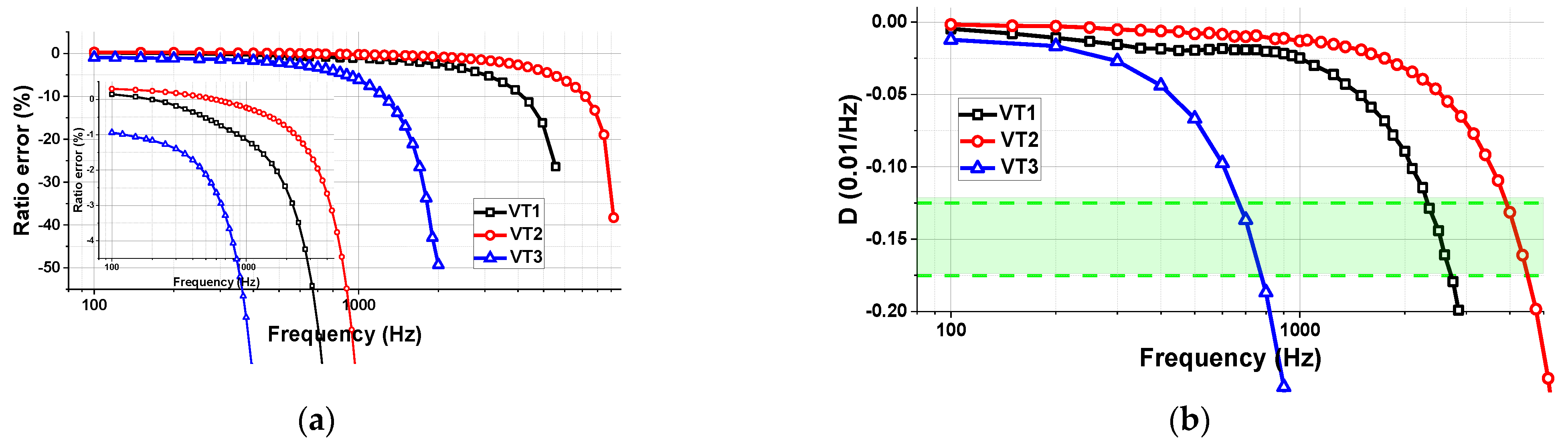

**Figure 6.**VT1 (square marker), VT2 (circle marker) and VT3 (triangle marker): SFS ratio error up to resonance frequency (inset: zoom up to ${f}_{Dlim}$) (

**a**) and their derivative curves $D$ (

**b**).

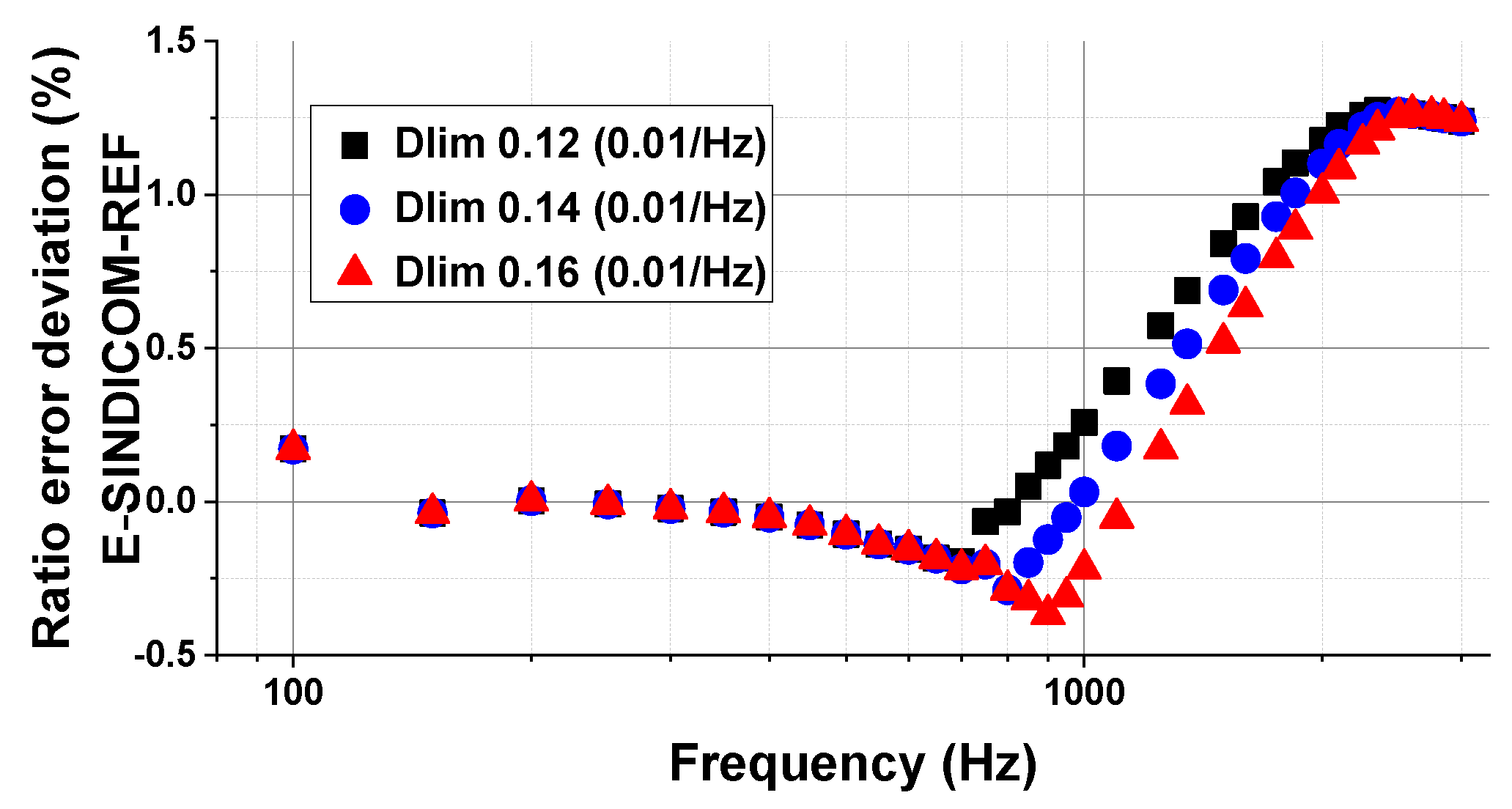

**Figure 7.**VT1 ratio error deviation vs frequency with different values for ${D}_{lim}$ and ${f}_{Dlim}$.

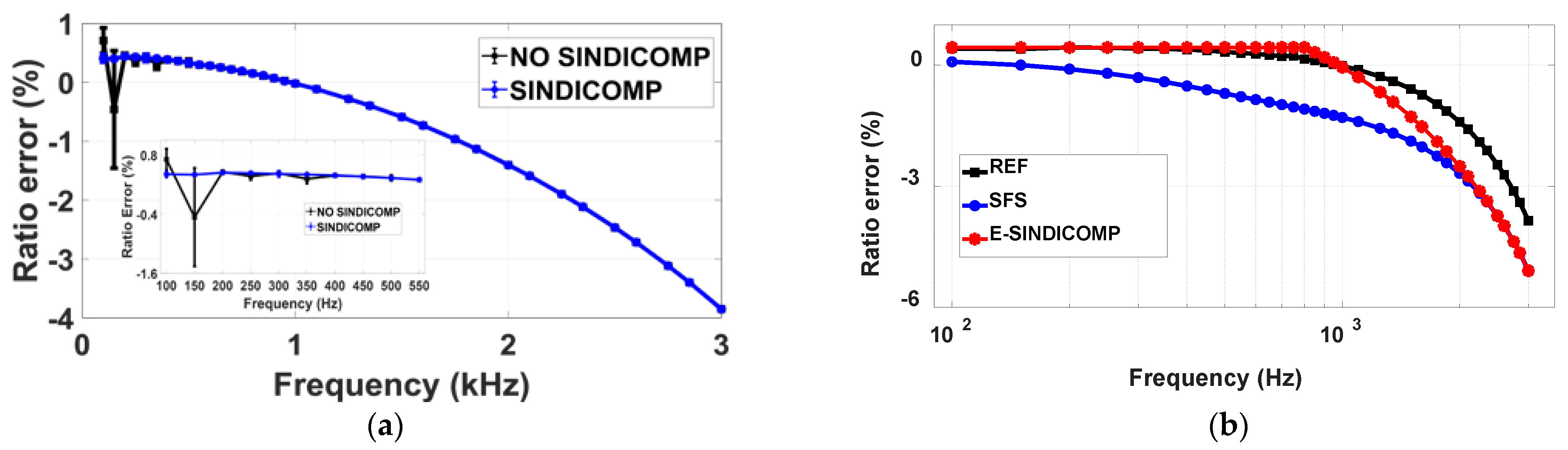

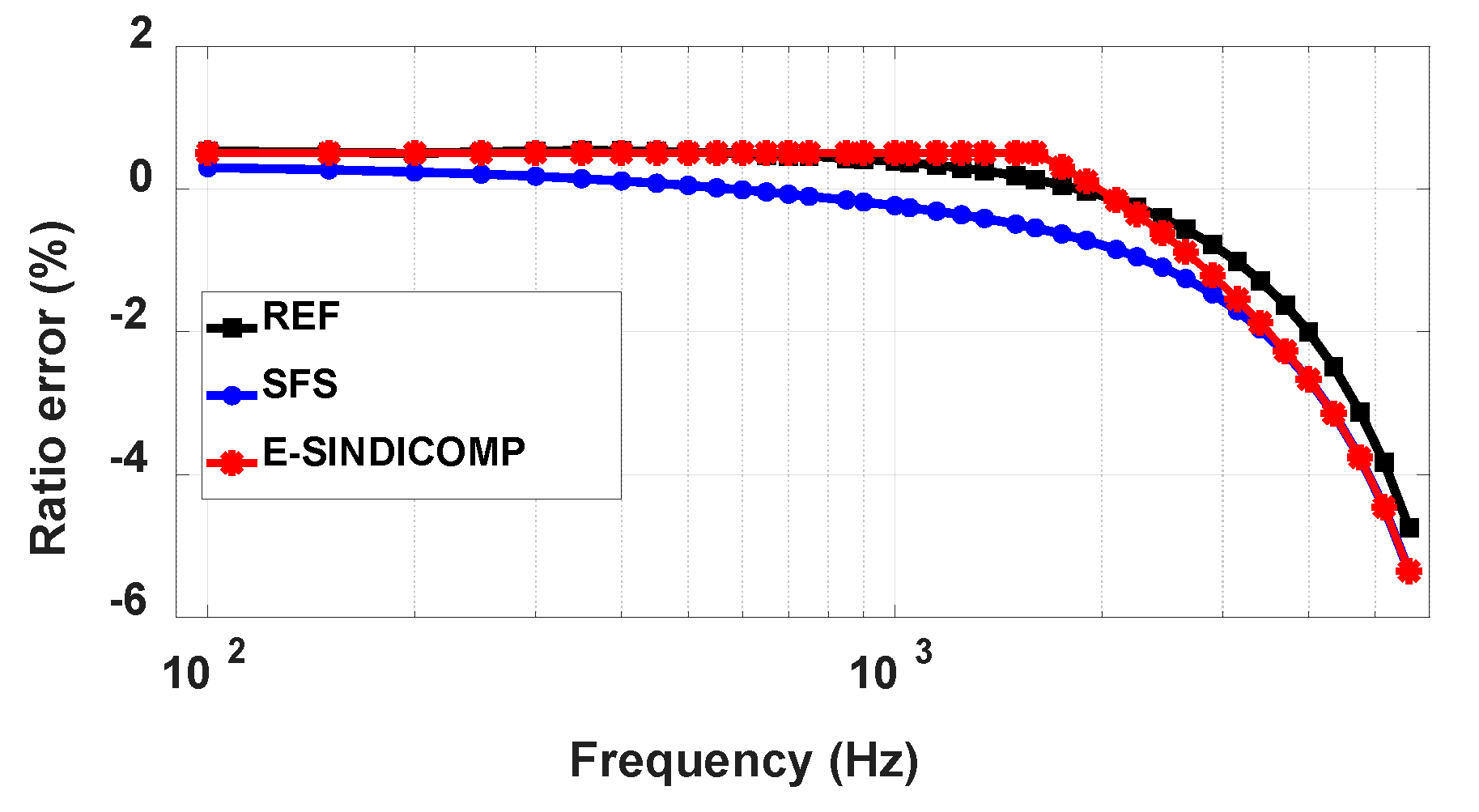

**Figure 8.**VT1: FH1 ratio error with linearity compensation (with SINDICOMP) and without linearity compensation (NO SINDICOMP) (

**a**); comparison of ratio errors obtained with REF (FH1 with SINDICOMP), SFS and E-SINDICOMP (

**b**).

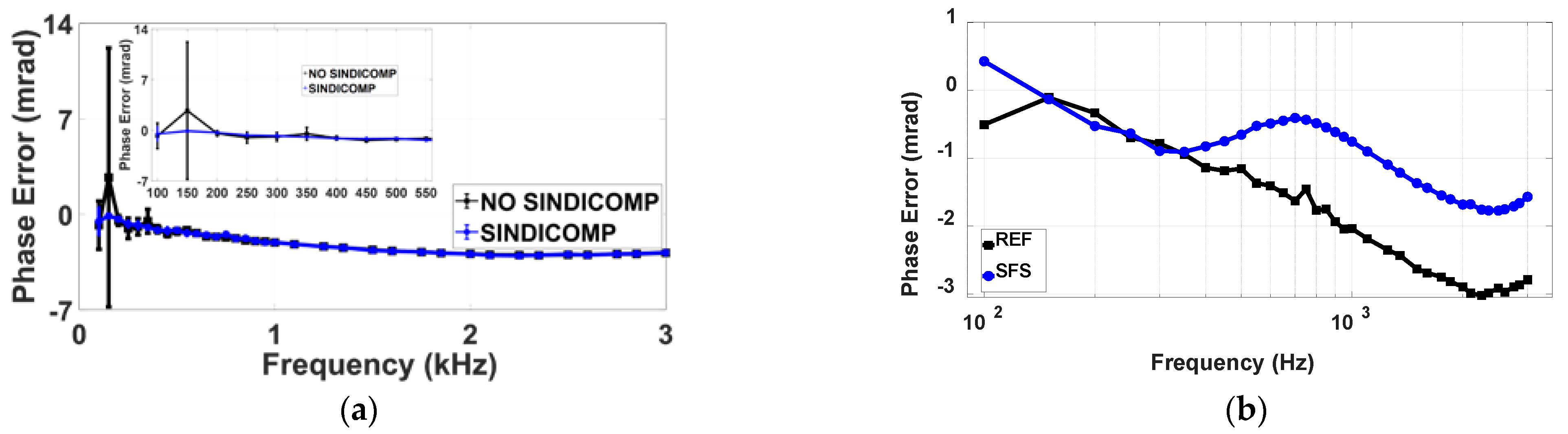

**Figure 9.**VT1: FH1 phase error with linearity compensation (with SINDICOMP) and without linearity compensation (NO SINDICOMP) (

**a**); comparison of phase errors obtained with REF (FH1 with SINDICOMP) and SFS (E-SINDICOMP phase error is equal to SFS phase error) (

**b**).

Name | Primary Voltage (kV) | Secondary Voltage (V) | Rated Burden (VA) | Accuracy Class | First Resonance Frequency f_{r} (kHz) |
---|---|---|---|---|---|

VT1 | 20/√3 | 100/√3 | 50 | 0.5 | 5.5 |

VT2 | 11/√3 | 110/√3 | 50 | 0.5 | 9.2 |

VT3 | 20 | 100 | 50 | 0.2 | 2.0 |

**Table 2.**Selected ${D}_{lim}$ and ${f}_{Dlim}$ values of the investigated Voltage Transformer (VTs).

DUT | ${\mathit{D}}_{\mathit{l}\mathit{i}\mathit{m}}$ (0.01/Hz) | ${\mathit{f}}_{\mathit{D}\mathit{l}\mathit{i}\mathit{m}}\phantom{\rule{0ex}{0ex}}\mathbf{\left(}\mathbf{Hz}\mathbf{\right)}$ | ${\mathit{f}}_{\mathit{l}\mathit{i}\mathit{m}}\phantom{\rule{0ex}{0ex}}\mathbf{\left(}\mathbf{Hz}\mathbf{\right)}$ |
---|---|---|---|

VT1 | −0.15 | 2500 | 800 |

VT2 | −0.14 | 4000 | 1600 |

VT3 | −0.14 | 800 | 300 |

Frequency (Hz) | Ratio Error Deviation (%) | Phase Error Deviation (mrad) SFS-REF | |
---|---|---|---|

SFS-REF | E-SINDICOMP-REF | ||

100 | −0.36 | 0.03 | 0.93 |

200 | −0.54 | −0.0039 | −0.19 |

300 | −0.72 | 0.022 | −0.11 |

700 | −1.19 | 0.22 | 1.22 |

1000 | −1.27 | −0.031 | 1.28 |

1250 | −1.28 | −0.38 | 1.26 |

1500 | −1.29 | −0.69 | 1.26 |

1750 | −1.29 | −0.93 | 1.20 |

2000 | −1.27 | −1.0 | 1.21 |

Frequency (Hz) | Ratio Error Deviation (%) | Phase Error Deviation (mrad) SFS-REF | |
---|---|---|---|

SFS-REF | E-SINDICOMP-REF | ||

100 | −0.24 | −0.03 | 0.57 |

500 | −0.47 | −0.01 | −0.31 |

1000 | −0.62 | 0.12 | 0.07 |

1500 | −0.68 | 0.31 | 0.35 |

2000 | −0.69 | −0.01 | 0.41 |

2500 | −0.69 | −0.21 | 0.39 |

3000 | −0.69 | −0.43 | 0.38 |

3500 | −0.67 | −0.56 | 0.34 |

Frequency (Hz) | Ratio Error Deviation (%) | Phase Error Deviation (mrad) SFS-REF | |
---|---|---|---|

SFS-REF | E-SINDICOMP-REF | ||

200 | −0.86 | −0.21 | −0.052 |

300 | −1.14 | 0.120 | −0.27 |

500 | −0.96 | −0.19 | −1.03 |

700 | −0.91 | −0.77 | −0.56 |
