1. Introduction
Due to their high energy density and convenience, fossil fuels have been exploited for vehicles for a long time. However, this exploitation has been accompanied by global problems of air pollution in the form of fine particulates resulting from vehicle exhausts, including , as well as global warming, which is attributable to carbon dioxide emissions.
Therefore, countries worldwide have strengthened regulations on the fuel efficiency and emissions of vehicles. Additionally, some countries and cities have even prohibited the driving and sale of vehicles equipped with internal combustion engines [
1]. To cope with these regulations, the global automobile industry has developed and released various kinds of eco-friendly vehicles, denoted as ‘xEV’. Among them, electric vehicles have been spotlighted as alternatives that can help reducing air pollution due to their zero emission. There has also been a rapid increase in the number of electric vehicle models that have been released into the market, as well as the sales [
2]. The market outlooks estimate that the share of electric vehicles could reach approximately 28% of all motor vehicles in the motor vehicle industry by 2030 [
3].
The charging time and driving distance per battery charge still remain as issues that can be further improved. In case of the charging time issue, the charging time for 400 km driving range of electric vehicle equipped with 400 V system is 29 min, but, the charging time can be reduced to less than 15 min for the same driving range by changing the voltage level from 400 V to 800 V [
4]. In case of driving distance, the driving distance between 80 km and 200 km for a battery-powered electric shuttle bus equipped with 30.7 kWh and 33 kWh, respectively, has been presented [
5,
6]. To extend the driving distance provided by a single charge of an electric vehicle battery, various methods have been introduced, including one that developed a high-power-density battery (solid state battery) to increase the energy capacity [
7], as well as another study that installed two different driving systems on the front and rear wheels and optimized the power distribution of the front and rear wheels [
8]. Furthermore, Xibo et al. proposed the traction force distribution method to minimize power losses for permanent magnet (PM)-type traction motors for a front and rear wheel driven electric vehicle [
9]. Studies on independent four-wheel driving systems intending to increase the performance efficiency of electric vehicles have also shown promising results. For example, Park et al. conducted a study on the optimization of the driving energy and systematic stability of an electric vehicle equipped with a four-wheel drive system by employing fuzzy logic [
10]. The efficiency of the driving system of an electric vehicle depends substantially on the temperature and input voltage of the driving system [
11], and the input voltage is also dependent on the voltage level at the terminal of the battery because of the wire connection between the terminal of the battery and the input terminal of the driving system. The voltage level at the terminal and capacity of the battery vary according to the elapsed driving hours, and changes in the input voltage affect the output of the driving system. However, the studies mentioned above [
8,
9,
10] did not account for changes in the system state.
This paper presents methods to increase the energy efficiency of a battery-powered electric shuttle bus equipped with a decentralized four-wheel drive system. First, the specification of a battery-powered electric shuttle bus will be derived. Then, the analysis of the input voltage effects on the driving system efficiency will be conducted, and an algorithm to obtain the optimal distribution of driving torque to the front and rear wheels by accounting for the varying input voltages will be proposed. The effects and gain of the algorithm on the driving efficiency of a battery-powered electric shuttle bus will be verified by Matlab/Simulink simulation.
This paper is organized as follows: The specifications for a driving system and requirements for a battery-powered electric shuttle bus are defined in
Section 2, in
Section 3, design results for the drive system are described. The efficiency changes are also examined with the input voltage changes in
Section 3. The algorithm used to allocate the driving torque to the front and rear wheels while securing optimal system efficiency is explained in
Section 4. In
Section 5, the simulation model for a battery-powered electric shuttle bus is built and the effects on the system efficiency in low voltage condition is analyzed by comparing with uniform distribution method and also with a fixed voltage optimization method through simulation according to ‘Manhattan Bus cycle’. Finally, an effectiveness of proposed algorithm is analyzed for a battery-powered electric shuttle bus.
2. Electric Vehicle System Design
In this section, the requirement of the target vehicle is defined and then, the requirement for propulsion system is specified by using longitudinal dynamics.
2.1. Vehicle Requirements
The target vehicle selected for the simulation is a battery-powered electric shuttle bus. This bus drives according to a predetermined interval to connect key places to respective final destinations as a means of last-mile transportation. The driving route for the target vehicle has a one-way interval of 3.7 km, wherein the simulation design included an average driving speed of 15 km/h, a driving time of approximately 15 min, a daily operation of 8 h, and up to 15 passengers. The specifications of the target vehicle are summarized in
Table 1.
Table 2 presents the performance requirements of the target vehicle. By considering the fact that the vehicle drives at a low speed along the last-mile interval in the downtown regions of cities, the following performance requirements were set for the vehicle: a maximum driving speed of 45 km/h [
5,
6], an autonomous driving speed of 25 km/h [
5,
6], a maximum climbing capacity enabling propulsion on a road with a maximum gradient of 28%, continuous driving at 5 km/h on a road with an identical gradient, and a maximum acceleration or deceleration capability of 3
.
The electric shuttle bus has an independent four-wheel drive system with the following power transmission architecture.
Figure 1 shows the configuration of the power system of the target autonomous electric vehicle.
2.2. Propulsion System Sizing
To fulfill the power requirements for the desired performance of the target vehicle, it is necessary to set the design objectives of the power system. Thus, according to the power performance requirements of the target vehicle, the correlation thereof with the attributes of the power system needs to be identified. As shown in
Figure 2, the correlations between the indicators of the power performance of the target vehicle and the attributes of the power system are defined.
The maximum speed signifies the maximum continuous driving speed of the target vehicle on a flat road (gradient 0%) corresponding to the continuous output of its power system. As an attribute of a vehicle that corresponds to the continuous output of its power system, the performance of that vehicle continuously driving along a gradient road (gradeability) could be taken into account. In addition, the performance in terms of the maximum acceleration and deceleration, along with the maximum gradeability (gradient), correspond to the instantaneous output of the power system.
The forces (
) acting on the driving vehicle can be differentiated as the driving force of the vehicle (
) and the forces of air resistance (
), rolling resistance (
), and climbing resistance (
). These are illustrated in Equations (1)–(5). The balance relationship between forces, corresponding to the power performance objectives of the vehicle in question, can be represented in terms of longitudinal vehicle dynamics (illustrated in Equation (1)), from which the forces required for each wheel can be determined [
12]:
Here,
represents the air density of 1.293
;
is a coefficient of air resistance;
and
represent the front area and velocity of the vehicle, respectively;
denotes the coefficient of rolling resistance, which is 0.01; and
,
, and
represent the mass of a vehicle, gravitational acceleration, and longitudinal gradient of the road, respectively. The other specifications were borrowed from the vehicle specifications presented in
Table 1.

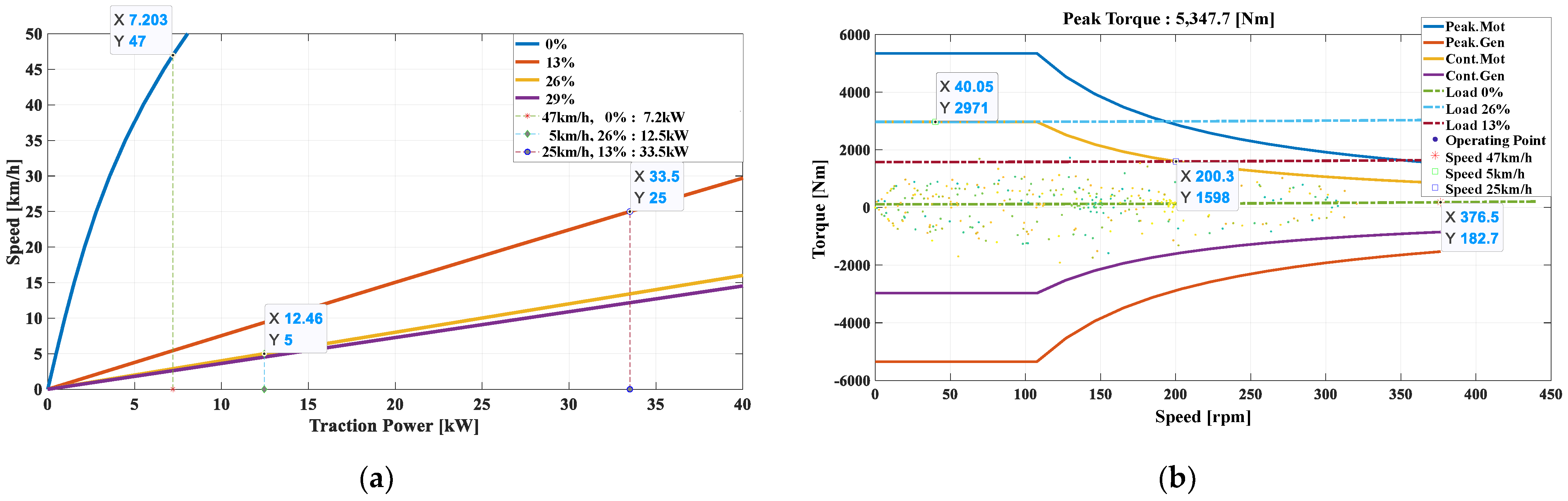

Table 3 and
Figure 3 present the results of the power output and torque required for the vehicle, which were obtained using Equations (1)–(5) and Equations (6) and (7), respectively. By accounting for changes in the loading condition, air pressure, and tire diameter of the vehicle, a speed of 2 km/h and a 1% margin for the gradient angle were added:
Here, and represent the wheel torque and tire radius, respectively.
An operating speed of 25 km/h was selected to satisfy the requirement that the maximum speed remain below 45 km. Based on the above results, the largest value among the values corresponding to the continuous output was selected by using Equations (8) and (9), by which the continuous maximum torque of 2971 Nm and the continuous maximum output of 33.5 kW were derived. Additionally, a base speed of 108 rpm was determined by Equation (7), which is the TN characteristic expression of the driving system. Here, the instantaneous maximum torque and instantaneous maximum output are dependent upon the cooling mechanism of the motor. For example, in the case of water cooling, these are approximately 1.8 to 2 times the continuous peak torque and continuous output, respectively. In this paper, the value of 1.8 was used, resulting in a maximum torque of 5348 N and an instantaneous maximum output of 60.4 kW:
As shown in
Figure 1, four driving motors are mounted on the vehicle. Furthermore, the required performance of each driving motor in the single driving system was derived by dividing the entire torque and output of the vehicle into four shares, as presented in
Table 4.
2.3. Propulsion System Design
This section describes the specifications of the driving motor that is capable of satisfying the requirements of the output characteristics in the drive system derived from
Section 2.2. The correlation between the
Vdclink value and the efficiency map of the motor is analyzed.
Table 5 lists the specifications of the motor used in this study.
Figure 4 illustrates the dimensions and shapes for the cross-sectional view of the motor.

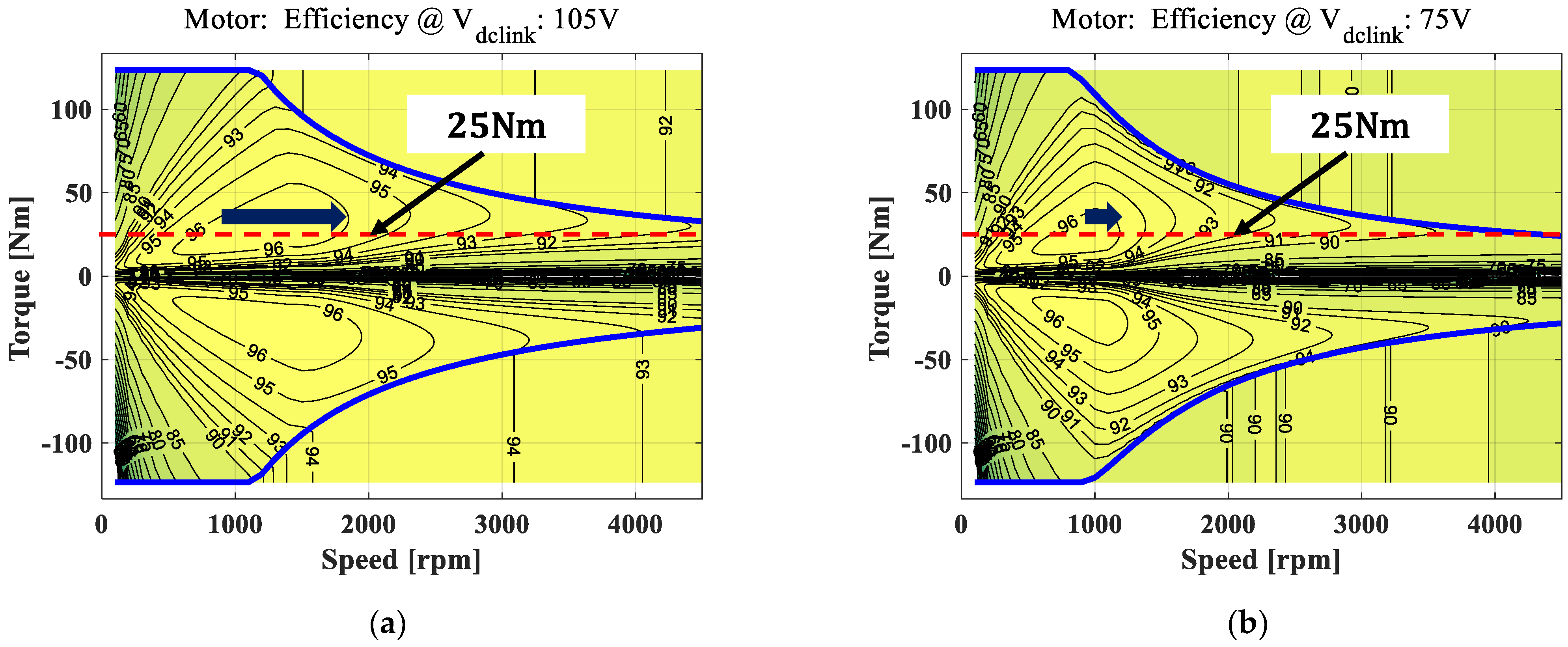

Figure 5 shows the efficiency map of the motor corresponding to
Vdclink values of 105 V and 75 V, respectively. To develop the efficiency map of the motor, the finite element method (FEM) was used to obtain the inductance
Ld and
Lq on the
dq-axis, as well as the magnetic flux
ψa for a permanent magnet.
Based on the FEM results, the information needed for the efficiency map of the motor is derived through the following Equation of torque (10) and Equations of voltage (11)–(13) [
13], by using the equivalent circuit (
Figure 6) on the
dq-axis of the motor [
14]:
The meanings of the symbols expressed in Equations (10)–(13) are as follows:
Np: Number of poles; ψa: Magnetic flux of a permanent magnet; Ld and Lq: Inductance on the dq-axis;
iod and ioq: Current on the dq-axis; icd and icq: Current for the core resistance Rc on the dq-axis;
id and iq: Input current on the dq-axis; ia: Input current; β: Current angle;
ωe: Electric angular velocity; ωm: Mechanical angular velocity; vod and voq: Voltage on the dq-axis;
Ra: Phase resistance for the winding; Rc: Core loss resistance; and ηinv: Inverter efficiency.
Equation (10) for torque T can be derived using Faraday’s law [
15]. In order to meet the voltage limit by considering the maximum speed of the vehicle, the given voltage limit
Vlimit is required to satisfy equation (13). In Equation (13),
Vdclink denotes the peak voltage in the terminal of the inverter input for the battery. The inverter efficiency is assumed as
ηinv = 0.95 to derive
Vlimit [
13]
The motor efficiency
ηm is derived by the maximum torque per ampere (MTPA) control methodology to generate the maximized efficiency. The efficiency of the motor is reduced by the losses generated from the motor. These losses can be distinguished into the copper loss, iron loss, and mechanical loss. The copper loss
Pcu is due to the input current of the stator coil. The iron loss for the electrical core of the stator and rotor
Piron results from the eddy current of the core, which is proportional to the rotating speed of the motor.
Pcu is calculated using Equation (14), and
Piron is calculated using Equation (15) by deriving the iron loss resistance
Rc after conducting finite element analysis by using the loss information of the electrical core (15). The mechanical loss is excluded in this study due to the fact that the measurements are indispensable. Therefore, the efficiency of the motor can be expressed as shown in Equation (16) [
13]:
3. Analysis of the Propulsion System Efficiency
As illustrated in
Figure 5, an analysis of the efficiency and output for a torque of 25 Nm over the entire speed interval for the whole efficiency map was conducted to identify changes in the efficiency for the two
Vdclink models. By using Equations (10)–(16), the causes of the changes in efficiency according to
Vdclink were analyzed.
Figure 7 shows the analyzed results. The efficiency of the
Vdclink = 75 V model decreased compared to that of the
Vdclink = 105 V model, in accordance with the increase of speed after exceeding the base speed. In the drive region for the torque of 25 Nm as shown in
Figure 5, the mechanical output at each speed was identical.

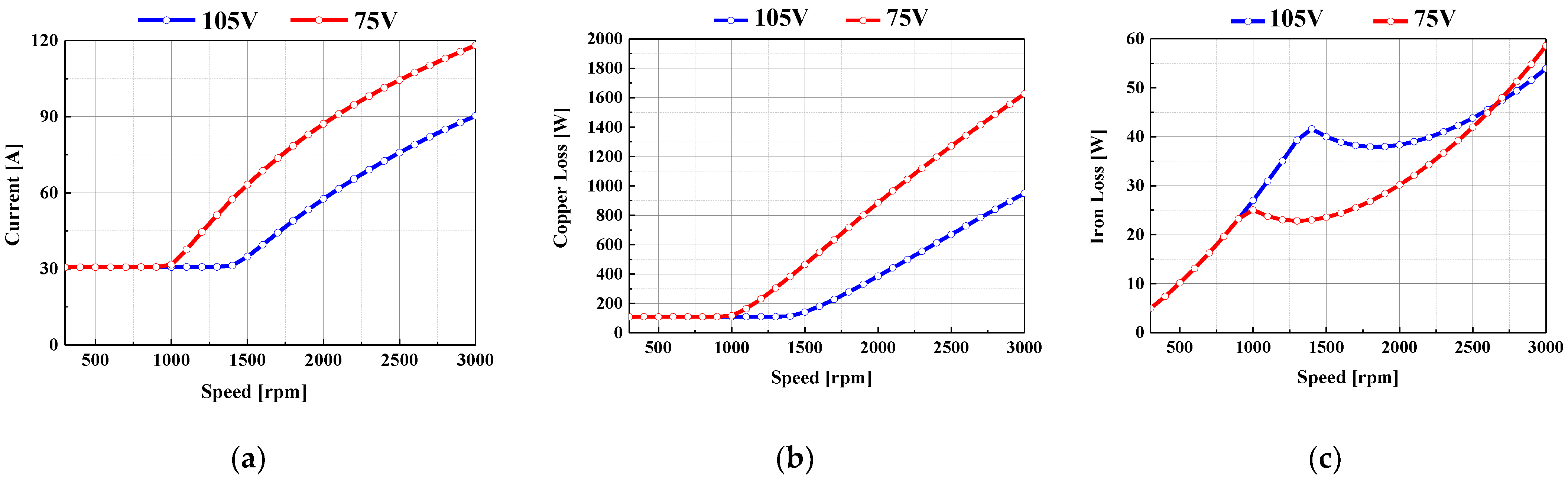

The difference in the loss characteristics, which caused the difference in the efficiency of the two
Vdclink models, is described by using
Figure 8. The phase resistance
Ra of the two
Vdclink models is identical, since the two models use the same motor. However, the phase currents used to generate the torque of 25 Nm are different for different
Vdclink values, as shown in
Figure 8a. The requirement of the two models is to meet the identical power condition, as shown in
Figure 7b. In the case of
Vdclink = 105 V, the voltage limit is reached at the base speed of 1450 rpm. However, in the case of
Vdclink = 75 V, the voltage limit is reached at the base speed of 1000 rpm. Considering the voltage limit condition after reaching the base speed of the two models, the
Vdclink = 75 V model requires more current
Ia than the
Vdclink = 105 V model in order to satisfy the identical power output condition
P = Vdclink Ia.
In this paper, the power factor was assumed to be 1. Therefore, in the case of
Vdclink = 75 V, a higher input current is required than in
Vdclink = 105 V, as shown in
Figure 8a. For this reason, the copper loss increased significantly compared to that of
Vdclink = 105 V, as shown
Figure 8b. In terms of the iron loss, the magnitude is significantly smaller than that of the copper loss, as shown in
Figure 8c. Therefore, in the case of
Vdclink = 75 V, the main cause of the reduced efficiency is that the increased copper loss due to the phase current is dominant.
4. Control Strategy

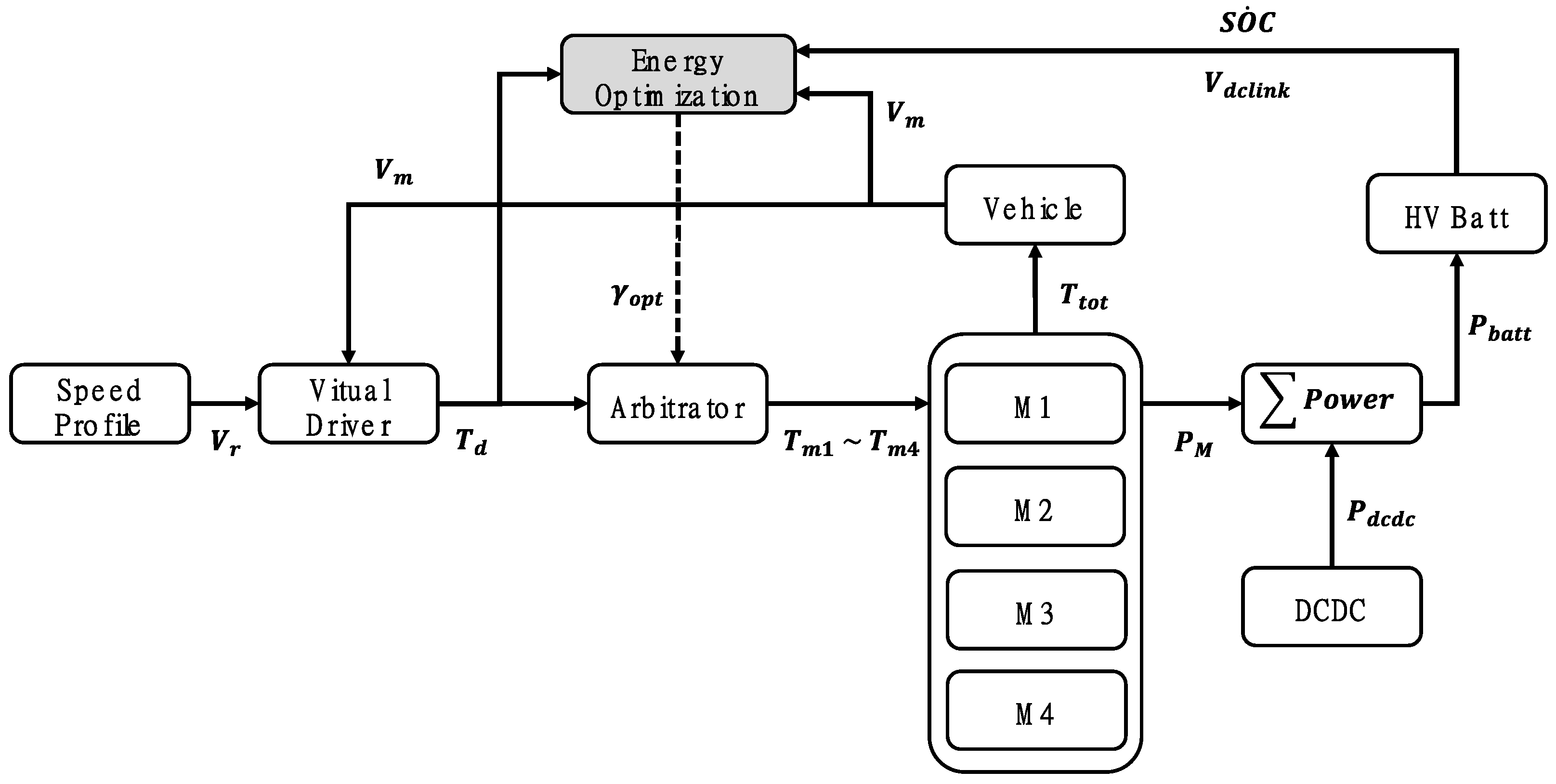

As illustrated in
Figure 9, the real-time optimization algorithm for the power distribution to the front and rear wheels, which showed the lowest energy consumption to create the required driving torque under a given speed, is presented. The ‘Virtual Driver’ creates the required driving torque
in order to follow the given speed
, and the ‘Energy Optimization’ creates the ‘set-point’ of the driving torque of each system divided into four wheels with minimum energy consumption while satisfying the required driving torque. Here,
,
,
–
,
,
,
,
,
,
,
, and
signify the required speed, required torque by the driver, target torque of the driving system, total driving torque, ratio of the optimal energy distribution for the front and rear driving torques, required electric driving torque of the driving system, electric power consumption of the 12 V power system, total power consumption of the battery, vehicle speed, input voltage of the driving system, and rate of change in the electric energy of the battery, respectively.
The real-time optimization method presented in this paper is explained concretely below, and the effects of changing Vdclink were verified by comparing two cases of power consumption, where the changes in Vdclink were taken into account or not taken into account for the specified point (speed, required torque).
4.1. Optimal Front/Rear Torque Distribution Concept
The real-time optimization of the driving energy can be modeled using Equations (17)–(23), shown below. The system state variable SOC and the controlled input of the ratio of the driving torques to the front and rear wheels are used for modeling. Here, the required torque () for the front and rear wheel drive of the system varies according to the distribution ratio to the front and rear wheels.
Thus, the operating point varies accordingly, resulting in changes in the efficiencies (
,
) of the front and rear wheel drive systems. Additionally, the electric power (
) used by the drive system varies in accordance with the changing distribution ratio of the driving torque. Here, as examined in
Section 3, the efficiency (
) of drive system as a map can be modeled with speed and torque. In this study, the efficiency (
) map of the drive system is modeled with Equation (22) by taking the change of the input voltage (
) into account. The input voltage (
) modeled by internal resistance circuit of the battery is as a function of SOC and the rate of SOC (23) [
16]; in this way, the input voltage (
) of the given state is considered. In addition, the braking stability based on the ideal braking torque distribution was designed. Then, the regenerative braking torques distributed to the front and rear axles were limited by the maximum generated torque of the corresponding traction system.
By employing Equation (18), which represents the cost function, the total consumption of energy can be minimized by minimizing the consumption of electric power (
) required at each moment by the driving system in every time interval 10 ms, as expressed in Equation (19):
subject to:

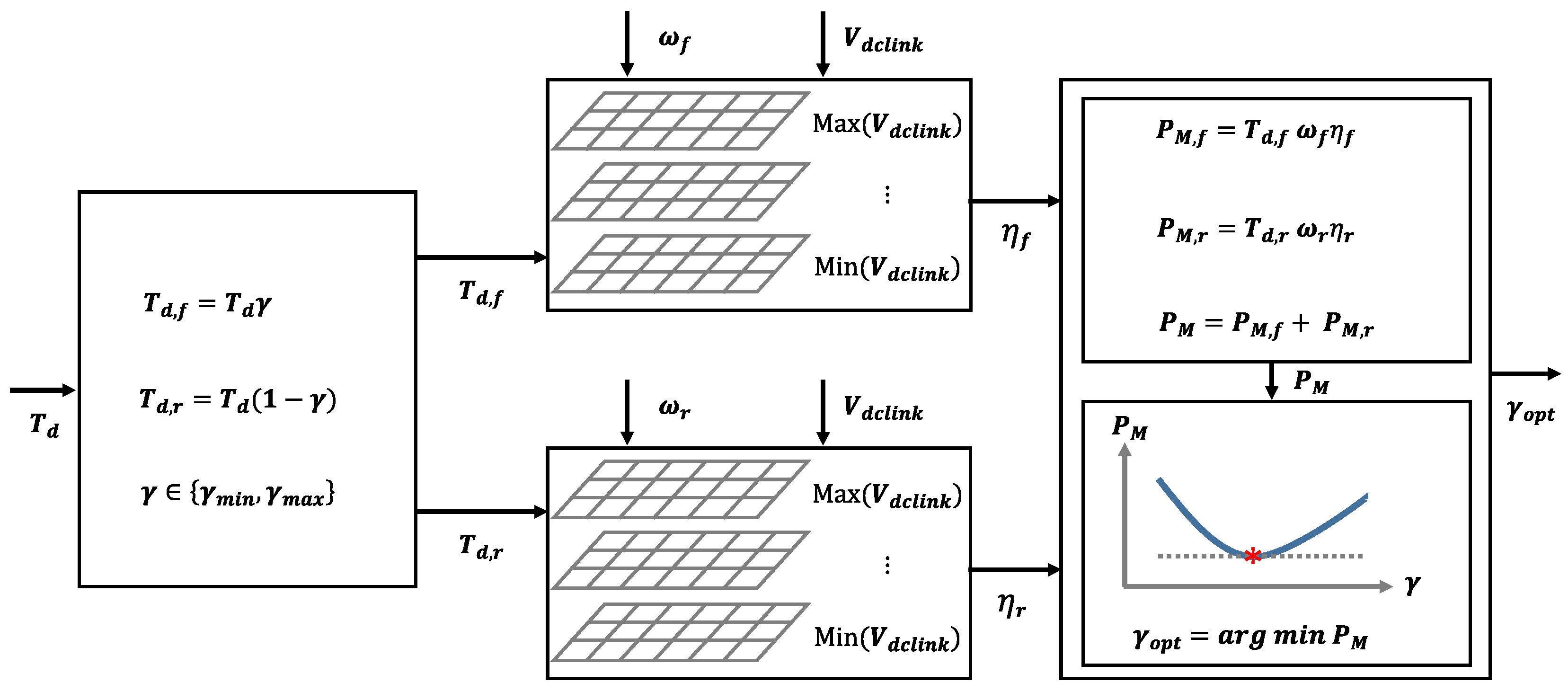

Figure 10 illustrates the method of distribution of the driving torque to optimize the real-time energy consumption. When the torque (
required by a driver is given at a certain speed (
), then the combination of the available driving torques of
and
are created by the array (
of the driving torque distribution ratio. By exploiting the efficiency map reflecting the voltage of the input terminal, the efficiency vectors of the front and rear wheel corresponding to each created combination of the driving torque can be generated. Consequently, the energy consumption
at each element in the array of the distribution ratio of the driving torque can be calculated. Additionally, as expressed in Equation (24), the array of the minimum consumption of energy (
) can be extracted to derive the distribution ratio (
) of the distribution driving torque to the front and rear wheels with minimized energy consumption:
4.2. Analysis of Optimal Front/Rear Torque Distribution
In this section, the effectiveness of the algorithm presented in this study will be analyzed by comparing two cases: one in which the input voltage changes are taken into account and one in which they are not.
Figure 11 illustrates the results of the optimal distribution ratios of driving torques to the front and rear wheels corresponding to each voltage at the input terminal according to the respective motor speed and driving torque required by the driver.
As illustrated in
Figure 5, when a driver requires a driving torque that is below that of peak efficiency at the rotating speed of driving, the optimal distribution ratio (
) of the driving torque to the front and rear wheels becomes zero. In contrast, when the required driving torque exceeds the peak efficiency, the ratio becomes
. As a result, the driving torque is distributed uniformly to the front and rear wheels. However, since the driving torque required by a driver is limited to four times the maximum torque of the unit driving system, the optimal distribution ratio of the driving torque to the front and rear wheels will be limited to
when the driving torque required by a driver exceeds 50% of the available maximum torque, due to the limit set for the system. As illustrated in the map showing the efficiency characteristics of the unit driving system (
Figure 5), this phenomenon is attributed to the rapid decrease in the efficiency characteristics in the low-torque domain, resulting in minimized driving in that domain.

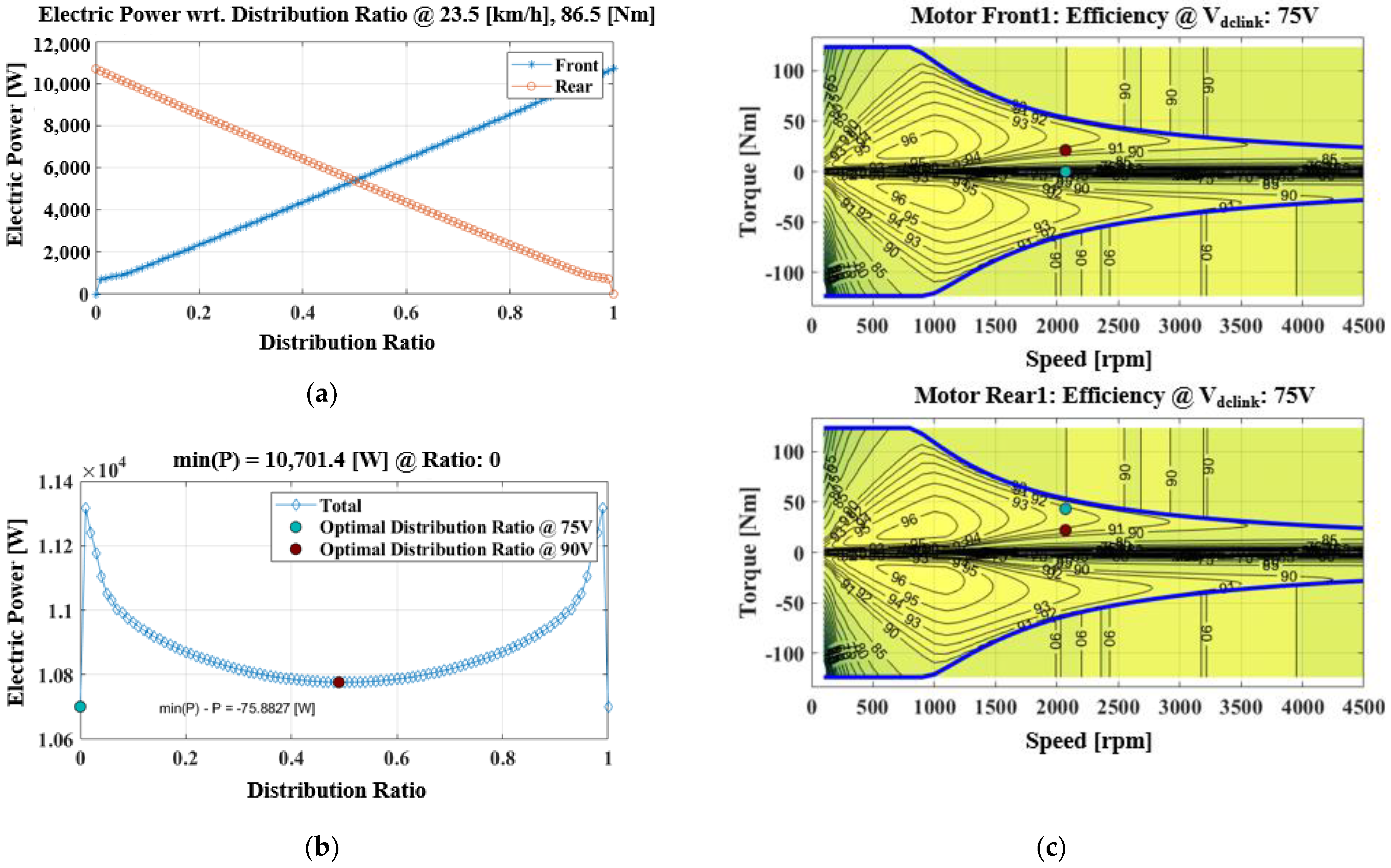

The effects of the voltage variation at an input terminal on the optimal distribution of the driving torque to the front and rear wheels were verified at a system input terminal voltage of
Vdclink = 75 V. The driving situation is assumed that motor speed is 2000 rpm (approx. 23 km/h) and the torque required by the driver is 40% of the entire driving torque. The operating point of the front and rear wheels and the power consumption for the optimal distribution ratio of the driving torque to the front and rear wheels derived at
Vdclink = 90 V (
Vnorm), with a system input terminal voltage of
Vdclink = 75 V, are illustrated in
Figure 12.
When applying the optimal driving torque distribution to both the front and rear wheels, derived at the input terminal voltage of Vdclink = 90 V (Vnorm), approximately 76 [W] more power was used, as compared to what was when applying the optimal driving torque distribution derived from the case when the input terminal voltage was Vdclink = 75 V. This result shows that consideration of the input terminal voltage is necessary to optimize system efficiency.
5. Simulation Results
To verify the algorithm presented in this paper, simulation model for a battery-powered electric shuttle bus in the longitudinal direction and driving simulation of the vehicle were carried out according to the Manhattan Bus Cycle as shown in
Figure 13. The Manhattan Bus Cycle uses a maximum driving speed of 40.9 km/h, peak acceleration/deceleration of 0.2 g, and driving time of 1089 s with an average driving speed of 11 km/h; these are similar to the operating conditions and specifications of the target vehicle [
17]. The simulation model built with Matlab/Simulnk is shown in
Figure 14. All parameters used in the simulation are described as
Table 1 and
Table 2 in
Section 2. The battery model based on the internal resistance of the battery, Equation (25), is used to calculate the
Vdclink of the driving system. The
Vdclink of the driving system can be derived by Kirchhoff’s current law [
16]. Here, no voltage drop and losses between the battery output terminal and the input terminal of the driving system is assumed. And the state of charge (SOC) can be calculated by Equation (26) which is the ratio of the charged current over the full charged capacity.
Here, , , , , , and represent open circuit voltage of the battery, current of the circuit, internal resistance of the battery, state of charge at time interval k, state of charge at time interval k − 1, variation of the current at time interval k − 1 and nominal battery capacity of the battery, respectively.
In total, three simulations corresponding to each case were carried out. All simulation was conducted with time interval of 10 ms. To compare the performance of the presented algorithm for varying input terminal voltages, a low–voltage condition (instead of the nominal voltage of 90 V) and an initial condition where the battery SOC was 20% were used. As described in
Section 2, the target vehicle is a battery-powered electric vehicle for last-mile mobility. Once the target vehicle is charged, the mission of the target vehicle is to drive the predefined for root without additional charge of the battery. So, the simulation condition assumes that the battery of the vehicle is depleted to 20% of SOC. Here, the initial value of the input terminal voltage of the driving system was 82 V. The conditions employed for the simulation are as follows: a case with an uniform distribution, a case with an optimal distribution of the driving torque based on a nominal voltage of 90 V, and a case with the optimal distribution of the driving torque reflecting the real-time voltage of the input terminal. The following additional conditions were assumed for the simulation: inverter and decelerator efficiencies of 95% and an average electric component load of 400 W.
Table 6 presents the analysis results. The designed vehicle was considered in the driving simulation carried out based on the Manhattan Bus Cycle. In the case of uniform distribution of the required driving torque by the driver to both the front and rear wheels, the energy efficiency was 4.58 km/kWh, whereas the energy efficiency for the case where the optimal driving torque distribution was applied to both the front and rear wheels without considering the effect of the input terminal voltage was 4.83 km/kWh. This indicates an increase in efficiency of approximately 5.3%, compared to the uniform distribution. Furthermore, for the final case of applying the optimal distribution of the driving torque to both the front and rear wheels while considering the input terminal voltage (as presented in this study), the energy efficiency was found to be 4.86 km/kWh, indicating an improvement of approximately 6.0% compared to the case with uniform distribution. This shows that an additional 0.7% improvement in the energy efficiency was achieved by taking the input terminal voltage into account.

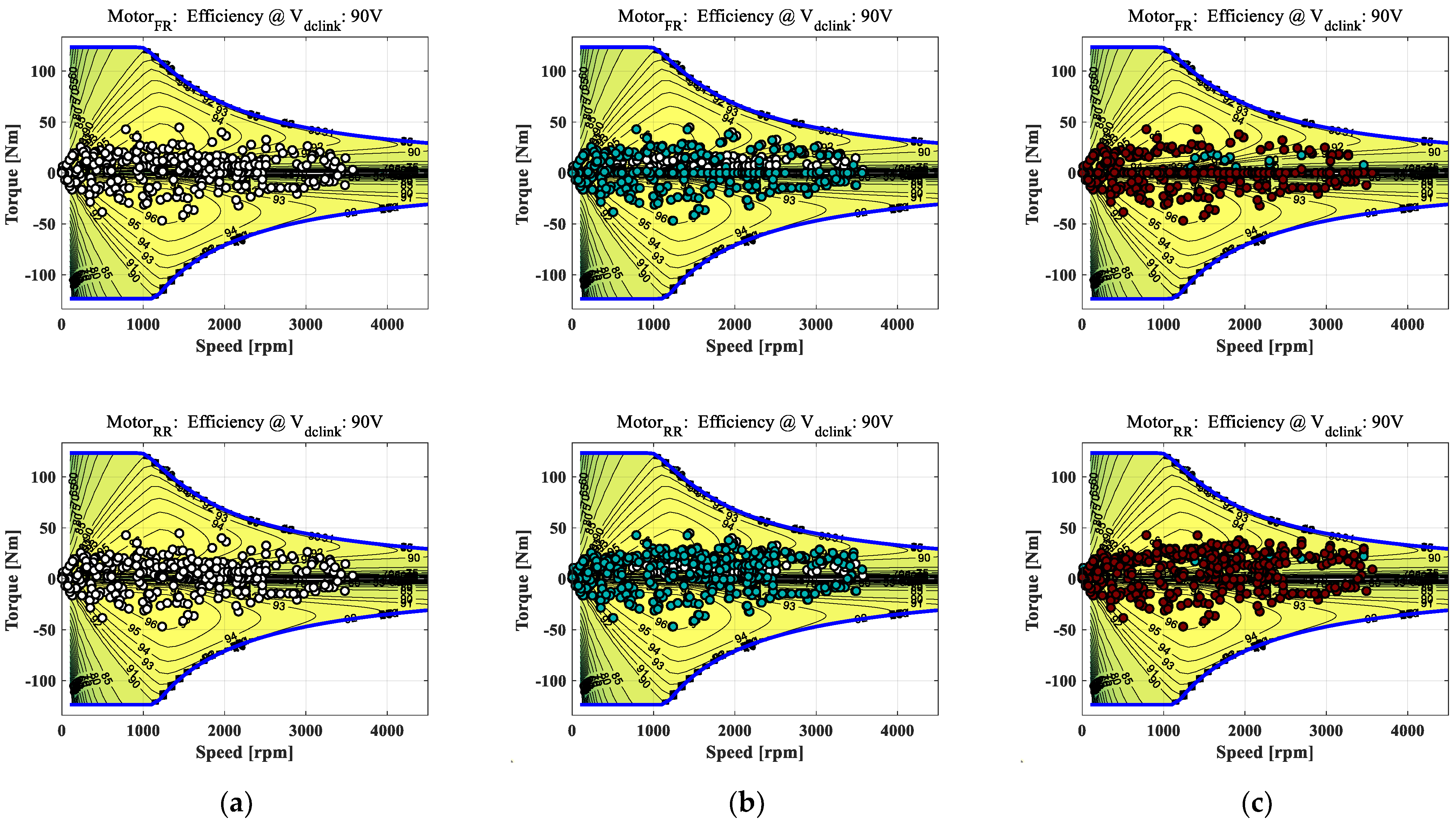

Figure 15 shows the operating points of the front and rear wheels under the conditions of the three simulations listed in
Table 6. Due to the uniform distribution of the driving torque to the left and right single-axle torque, the left and right sides thereof represent the operating points of the front-right (FR) and rear-right (RR) wheels. In addition, the operating points were marked on the efficiency map of the 90 V condition to generalize the marking of operating points on the efficiency map, despite the fact that the efficiency map varied with changes in the input terminal voltage.
Figure 15a illustrates the uniform distribution of the driving torque, wherein the operating points of FR and RR are identical. The operating point in (b) represents the results of allocating the driving torque to the front and rear wheels according to the driving speed of the vehicle and the driving torque required by the driver by following (b) presented in
Figure 11. Meanwhile, (c) represents the results of applying the driving torque derived by applying the method presented in
Figure 10, according to varying the input terminal voltage between (a) and (b) in
Figure 11, to both the front and rear wheels. Altogether, the operating points of (b) and (c) in
Figure 15 appear to be similar to each other. As illustrated in
Figure 15c, the operating point varied with the application of the optimal distribution ratio of the driving torque as the input terminal voltage varied. Due to the accumulation of changes in the operating points, an additional 0.7% improvement in efficiency was secured.

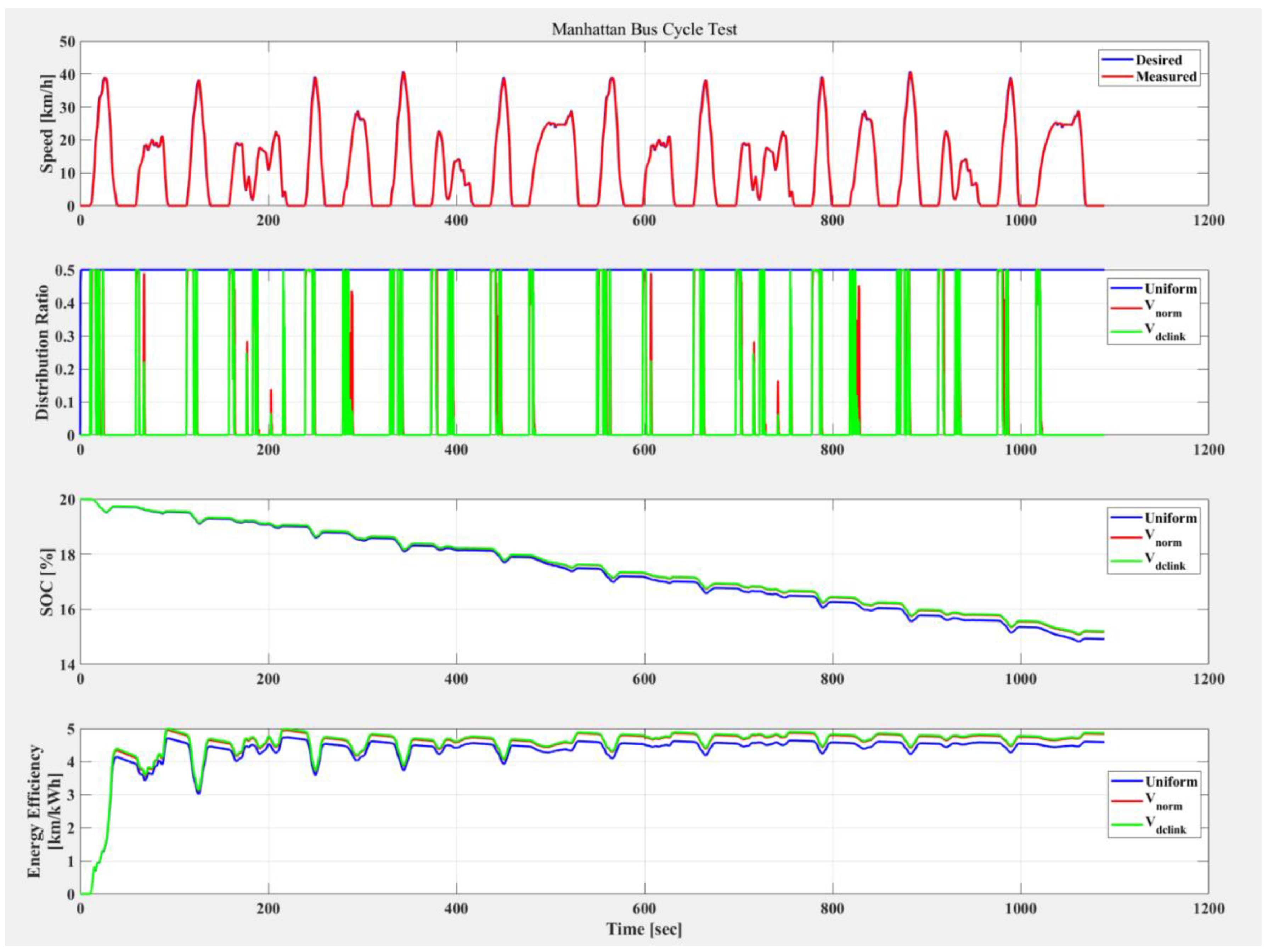

Figure 16 represents the results of the simulations corresponding to (a)–(c) in
Figure 15. In terms of the distribution ratio, when the input voltage is taken into account, it is operated at a better efficiency point than the nominal voltage of
Vdclink = 90 V (
Vnorm) by delaying transition to the uniform distribution. As a result, the accumulated consumption of energy decreased, ultimately resulting in an increased final energy efficiency.
