1. Introduction
With the aggravation of global energy security and environmental pollution problem, various renewable energy types—especially the wind energy—have become the focus on large-scale development and utilization. Due to the limitation for local absorption of intermittent wind power in remote areas, the phenomenon of power curtailment exists in large quantities, which compromise the carbon reduction and economic benefits of wind farms [
1]. The power-to-gas (P2G) technology, with its advantages of reducing renewable energy curtailment and consuming carbon, has become a necessary supplement for remote wind farms [
2]. By taking P2G in the scheduling plans in multiple energy forms—which include electricity, gas, and carbon—it can further enhance the economic benefits, while improving the wind power accommodation and reducing carbon emissions [
3].
The introduction of P2G systems makes the scheduling of power from wind farms not only a matter of the electricity market, but also encompasses gas market and carbon market. A typical scenario for wind farms with P2G embedded is that surplus power that is not sold in the electricity market due to bidding strategies, transmission constraints, etc., can be utilized through P2G [
4], while also participating in the gas and the carbon markets. Many researchers have studied such kinds of optimal scheduling of wind farms with P2G embedded in multiple energy markets [
5,
6,
7]. In [
8], the market behaviors of power systems and natural gas systems which are coupled by P2G are described considering the influence of the market pricing mechanism on the coordinated optimal scheduling. The concept of a combined P2G and gas-fired generator system is brought up in [
9], and the optimal scheduling is studied considering renewable energy accommodation and the ability to reduce carbon emissions. The potential of P2G to absorb renewable energy is assessed in [
10], and then the optimal scheduling results of the electricity and gas markets considering the impact of P2G on long/short term natural gas prices is analyzed. However, these studies described P2G with crude models. A P2G system has a high investment and operation cost [
11], and the adoption of simplified P2G models would lead to inaccurate results. Improvements thus can be made to enhance the accuracy of scheduling results.
Moreover, most wind farms are geographically remote and spatially dispersed due to constraints in wind farm siting [
12,
13]. It leads to a decentralized form of information exchange, so cyber instabilities—such as delays, dropouts, and tampers, etc.—are hard to avoid and difficult to fix in time, even if they can be detected immediately. In this context, wind farms would face the issue of communication instability and insecurity. In addition, the electricity, gas, and carbon markets are generally managed by various organizations in different locations and are often with different temporal scales. When wind farms located in remote areas participate in multiple energy markets, the possibility of information dissonance increases. Any untimely or missing or falsified information with one market organizer can affect the scheduling results. Therefore, when the ideal stable and secure communication environment is not assumed, improvements need to be made regarding how to guarantee the effectiveness of scheduling plans in multiple energy markets [
14].
To deal with the above-mentioned problems, an automated scheduling approach under blockchain-enabled smart contracts can provide an effective solution. Being a distributed database, the blockchain technology facilitates the prevention of information tampering, ensures the security of transactions, and provides the ability to automate the execution of transactions/settlements [
15,
16]. Meanwhile, smart contracts are able to execute pre-determined contracts automatically and securely. Smart contracts in the blockchain environment are thus able to automate the contract procedures and minimize interactions between market organizers [
15,
17].
Researchers have carried out exploratory studies and applications in related energy fields [
14,
18] and market transactions [
19]. A pilot project for an energy system in Japan in [
20] analyzes the multiple challenges to the expansion of blockchain in the energy sector from both technology and economy aspects. The Brooklyn microgrid project practices the application of blockchain for microgrid energy markets [
21]. A blockchain-secured demand response scheme is proposed to promote individualized incentive pricing under a dual-incentive mechanism in [
22]. Focusing on the resource-consuming drawbacks of blockchain itself, beneficial solutions to reduce frequent transactions on blockchain is proposed in [
23].
However, the blockchain technology has its inherent weakness. In blockchain environment, smart contract can execute contract automatically and securely. For the sake of secure operation, some measures have been taken such as designing a so-called gasLimit variable in some blockchain environment, e.g., Ethereum. This variable restricts the number of computation steps, the logic of contract contents, and the complexity of contract logic. Hence, current smart contracts are able to support simple scripting language [
24] but cannot support complex calculations. This limitation is very practical, considering that the consensus process also makes it difficult and unnecessary to include complex calculations. A consortium blockchain-enabled secure energy trading framework for electric vehicles is proposed in [
25], and the contract optimization problem is solved by using the iterative convex–concave procedure algorithm. It demonstrates how to get contract items using off-chain computation, while not involving the implementation of smart contracts. A decentralized cooperative demand response framework is presented in [
26] to manage the daily energy exchanges, and smart contract is utilized to enforce autonomous monitor and transaction. Currently, the respective on-chain and off-chain tasks and their cooperation in the blockchain environment are not widely discussed in the literature.
For remote wind farms with P2G systems which trade in multiple energy markets, an automated scheduling framework under blockchain-based smart contract is proposed in order to guarantee that transactions in multiple energy markets can still proceed under potential communication instability and insecurity at real-time schedule. Main contributions in this paper can be briefed as follows:
A scheduling strategy considering the revenues of participating in multiple energy markets, the capability of reducing wind power curtailment, the penalizations of violating contract items, and the investment/operation cost of investing a wind farm equipping a P2G system is established, in which the non-linearity in the electrolysis of P2G system is considered with detailed models.
An automated scheduling framework with both off-chain and on-chain procedures is proposed to ensure the applicability of smart contract in blockchain environment, especially in the case that the scheduling considers a non-linearity model of P2G system and trades in multiple energy markets.
A modified smart contact protocol is adapted considering that more than one scheduling result from the wind farm can be submitted as potential contract items. Moreover, a two-stage scheduling processes and the off-chain/on-chain framework is simulated to compare the effectiveness of the proposed approach.
The rest of the paper is organized as follows.
Section 2 describes the framework of smart-contract-enabled automatic scheduling for remote wind farms participating in multiple energy markets.
Section 3 introduces the non-linear modeling and scheduling objectives for such a wind farm with the P2G system.
Section 4 illustrates the implementation of the proposed framework with commonly used smart contracts.
Section 5 provides results of simulations. Conclusions are discussed in
Section 6.
2. Smart-Contract-Enabled Automated Scheduling Framework
For a wind farm, being equipped with a P2G can further help to enhance the scheduling economy, improve the wind power accommodation, and reduce carbon emissions. The amount of carbon P2G absorbs can be regarded as the permits of carbon emission P2G owns, which can be sold in carbon market. However, there are some concerns with this kind of scheduling involving multiple energy types. The first one is that energy markets are isolated from each other, which makes it difficult for wind farms to coordinate their scheduling plans. The second one is that, for remote wind farms, it is not easy to guarantee the stability and trustworthy of information considering the communication conditions.

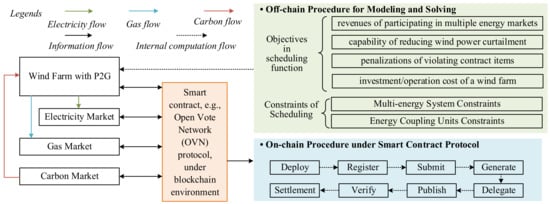

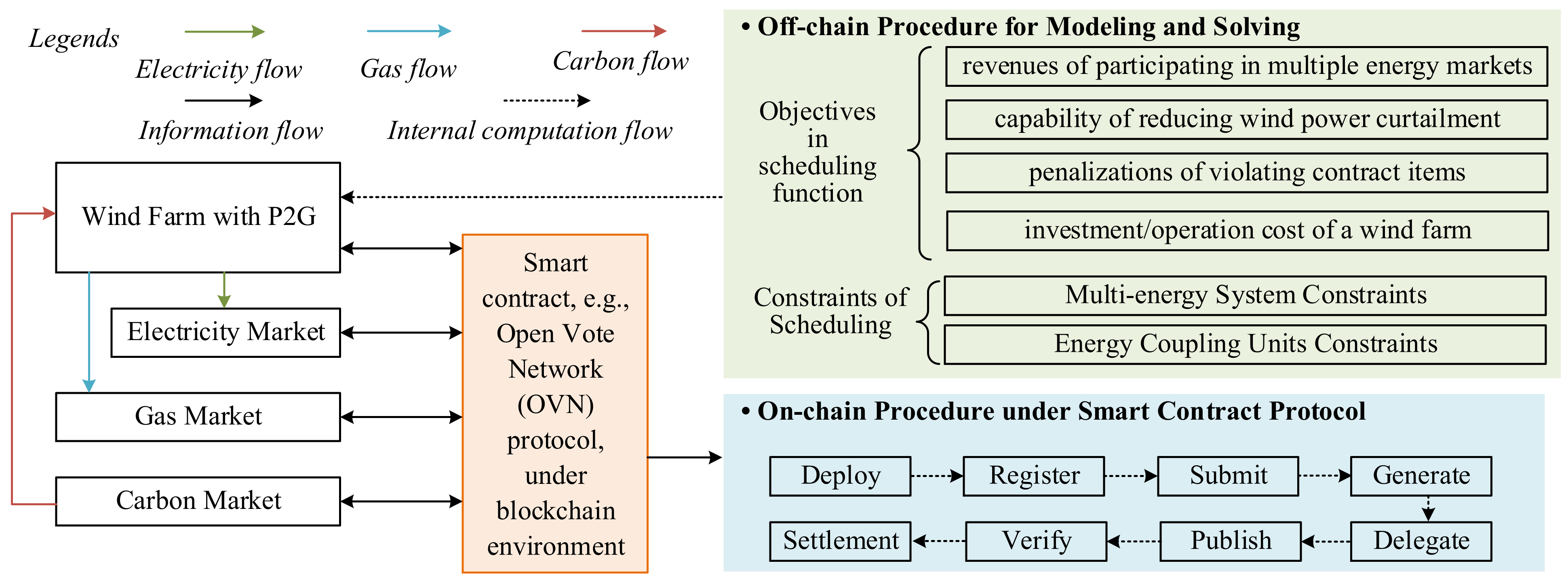

Focusing on these concerns, a smart-contract-enabled automated scheduling framework for remote wind farms with P2G systems is established and the overall framework is shown in
Figure 1. In blockchain environment, smart contract can only support simple scripting language considering the operation security. Due to the insufficient calculation capability of the smart contract, the scheduling objective with a non-linear P2G model are solved off-chain. The respective functionalities of on-chain and off-chain procedures are described as follows:
The off-chain procedure is executed by the wind farm, and is able to find a set of potential scheduling results. Even without the framework proposed here, one wind farm is obliged to run a scheduling function and report its scheduling results in corresponding energy markets. In addition, since predictions on wind power output are often difficult to limit to one particular result, it is also very common to obtain a set of potential scheduling results based on multiple predicted wind power output curves. Although the objectives in [
25] are electric vehicles, the process of obtaining results from off-chain procedure is similar to this paper. Details on obtaining contract items will be given in
Section 3.
The on-chain procedure is used to urge that one of these scheduling results can be recognized and executed between wind farms and multiple energy markets. Each participator in the blockchain—i.e., a wind farm owner and organizers of multiple energy markets—votes in one scheduling result from the set of potential scheduling results, and automatically settles among participators based on the smart contract. Specifically, the Open Vote Network (OVN), i.e., a voting protocol as a smart contract in Ethereum [
27], is adapted. Details on reclaiming this security and honesty through OVN will be explained in
Section 4.
A typical two-stage scheduling process, i.e., day-ahead and real-time scheduling, is described for simplicity. In this framework, real-time scheduling can directly utilize the day-ahead scheduling result, eliminating the need for a new round of scheduling solving and confirmation with multiple energy markets. Moreover, in order to avoid that the retraction of deposits in the blockchain, the wind farm and multiple energy markets can trust each other to transfer a certain set of buying/selling volumes in real-time as agreed in the smart contract.
6. Conclusions
Predictions of uncontrollable wind power outputs are often not accurate enough, and the curtailment affects the economics of wind farms. By deploying P2G, wind farms can not only benefit from participating in multiple energy markets, but also contribute more for carbon reduction. An automated scheduling approach for remote wind farms equipped with P2G systems considering multiple energy markets is proposed in this paper in the presence of instable and unreliable information. Moreover, considering the insufficient calculation capability of smart contracts, a structure of off-chain solving and on-chain transaction is further developed. According to the simulation results, the main conclusions are summarized as follows:

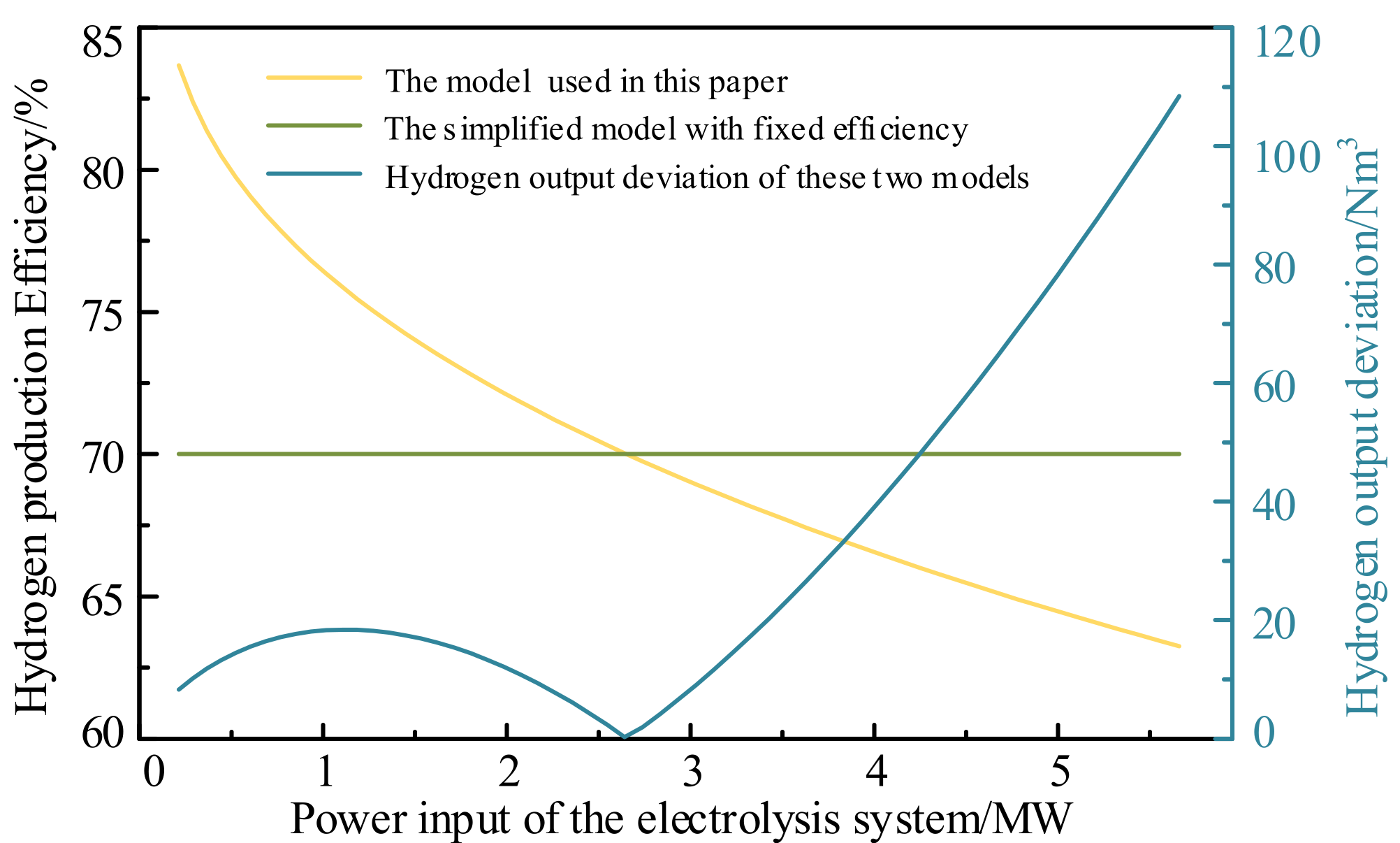

The results verify the effectiveness of the non-linear model of the P2G system. The electrolysis process is full of complexity and non-linearity, which should be taken into account when constructing the P2G model to improve accuracy of scheduling results.
The proposed framework can cope with the limited complexity of smart contracts and insufficient computation. Specifically, off-chain solving is able to use a non-linear P2G model to obtain more accurate results, while the on-chain protocol only needs to consider a small set of potential scheduling plans.
The proposed approach can effectively make full use of remote wind farms with P2G equipped—i.e., improve the economics of scheduling while reducing wind curtailment and decarbonization—while the execution of real-time scheduling can be ensured by smart contract items agreed a day ahead.
This paper is an exploration of adapting the fast-developing blockchain technology in the field of energy trading in multiple energy markets. For future research, the market behaviors from the multiple energy markets will be considered. Further verification will be done on blockchain-based platforms to capitalize energy trading. In addition, more market-realistic situations, such as more than one remote wind farms equipped with P2G systems, will be studied.
