Experimental Investigation on Uniaxial Compression Mechanical Behavior and Damage Evolution of Pre-Damaged Granite after Cyclic Loading
Abstract
:1. Introduction
2. Experiment
2.1. Equipment
2.2. Experimental Scheme
2.2.1. Pre-Damage Treatment of Specimens
- Four groups of rock specimens were vacuumed and saturated with water using the vacuum water saturation equipment, first for 240 min dry pumping and then for 120 min wet pumping to completely saturate the specimens;
- Uniaxial compressive strength of specimens in Group D were measured with the MTS815 testing machine loaded at a rate of 2 kN/s (Group D was the control group);

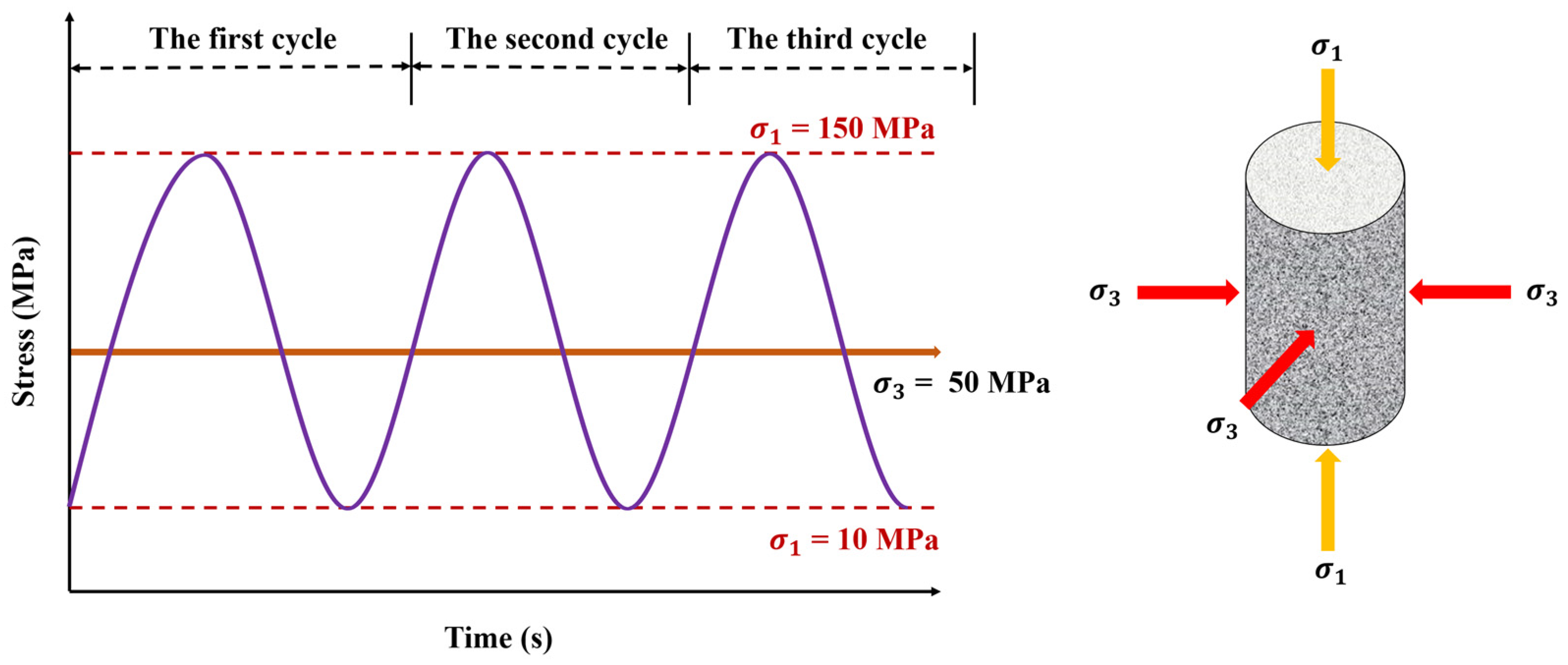

- The remaining rock specimens of Group A, B, and C were cyclically loaded and unloaded for 10, 20, and 30 times under confining pressures of 50 MPa, 80 MPa, 100 MPa, and 120 MPa, respectively, without destroying the specimens, to realize the pre-damage treatment inside the granite specimens (see Table 2 for the specific scheme). The load cycle path used constant confining pressure and unloading axial pressure; both loading and unloading rates were 2 kN/s, loading stress point was 153 MPa (about 93% of the average uniaxial compressive strength), and unloading stress point was 5 MPa (about 3% of the average uniaxial compressive strength).

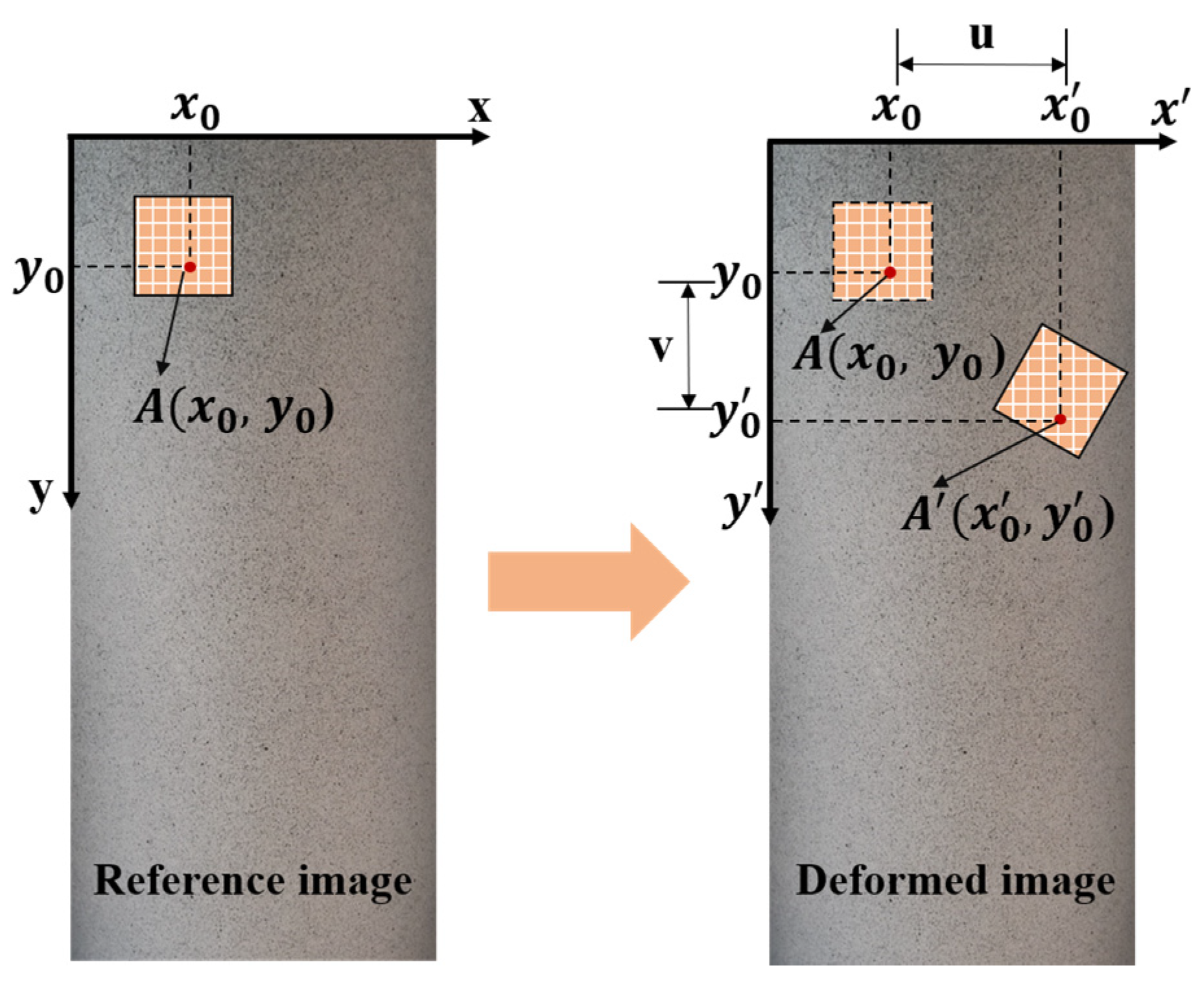

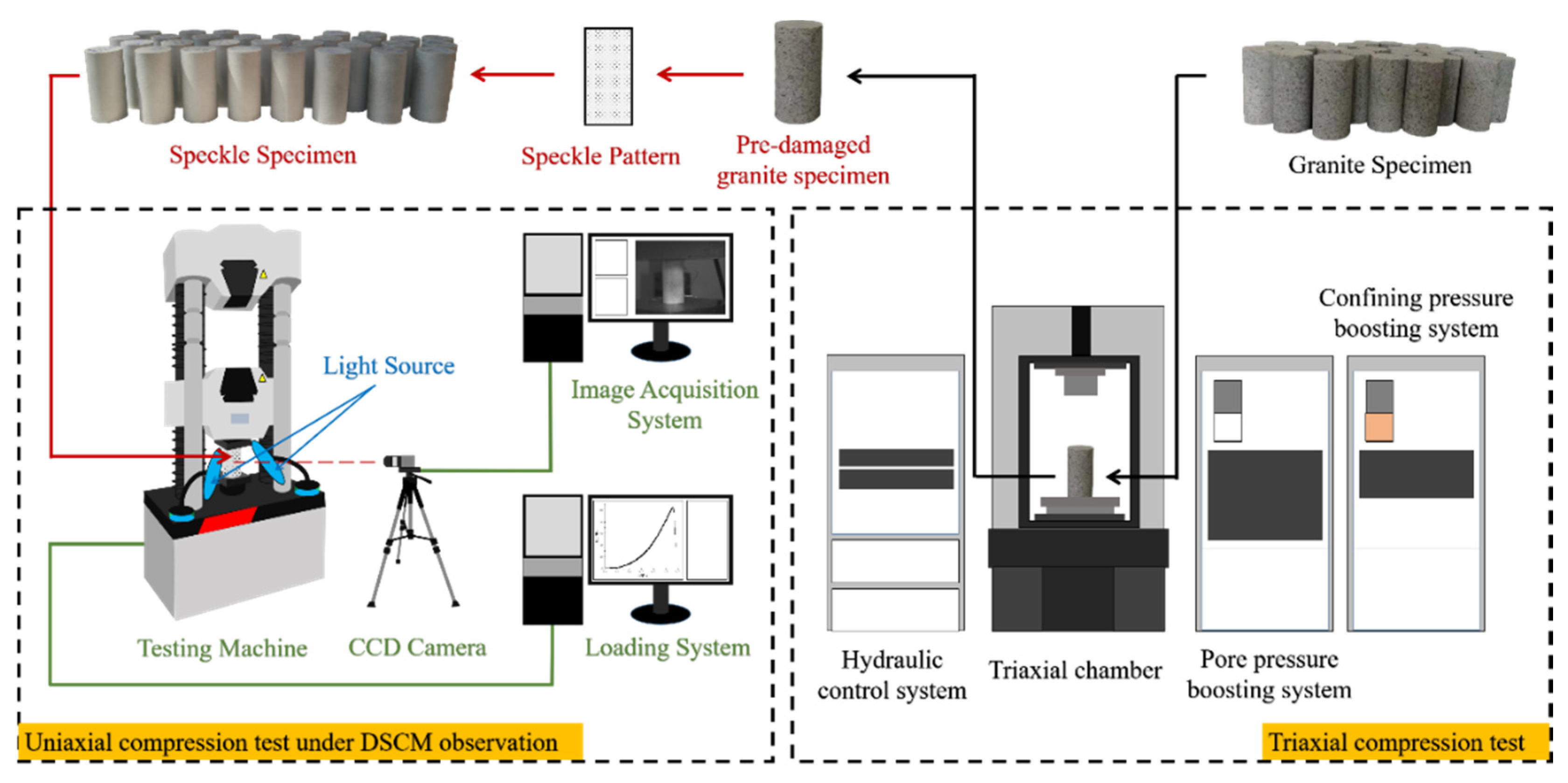

2.2.2. Uniaxial Compression Test with DSCM
3. Results
3.1. Uniaxial Compressive Strength Results for Intact Specimens
3.2. Uniaxial Compressive Strength Results for Pre-Damaged Specimens
3.3. Strength Characteristics of Pre-Damaged Specimens
4. Rock Damage Mechanisms and Failure Modes Analysis
4.1. Relationship of Damage Variables to Cycle Numbers and Confining Pressures
4.2. Damage Evolution Mechanism of Pre-Damaged Specimens
4.3. Failure Mode of Pre-Damaged Specimens
- (1)

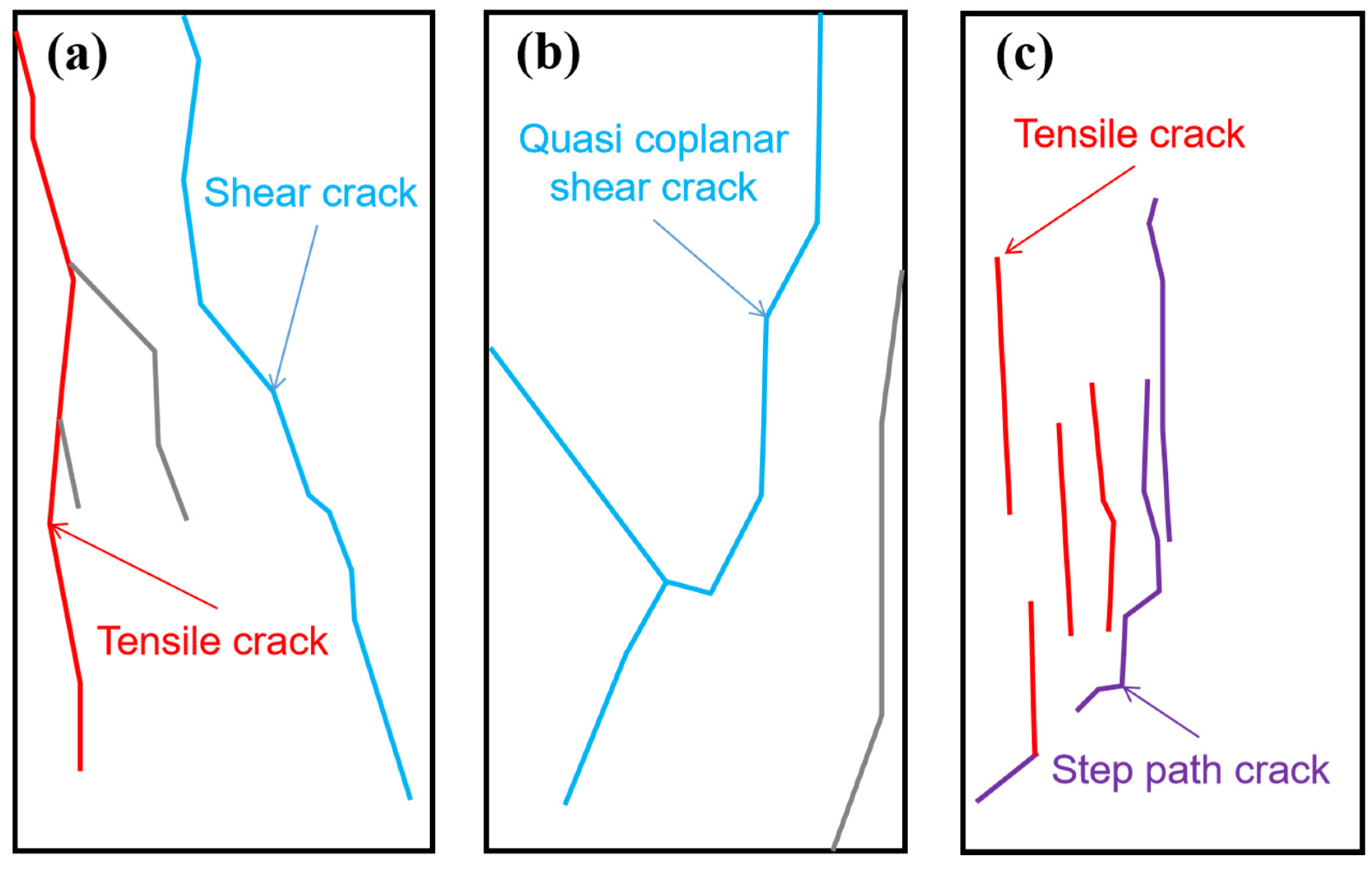

- Mode I: The main cracks in this failure mode are tensile cracks and shear cracks, and these two main cracks are independent of each other at the time of final failure. No crack coalescence occurs, so this failure mode is called tensile shear failure (Figure 12a). The red line is a tensile crack, the blue line is a shear crack, and the gray line is secondary shear cracks in Figure 12a. The final failure in this mode will cause spalling on the tensile crack or shear crack surface, and the overall degree of damage is small. This failure mode is also identified in [33,36], which is called mixed coalescence mode.
- (2)
- Mode II: The main cracks in this failure mode are two intersecting shear cracks, so this mode is called quasi-coplanar shear failure (Figure 12b). The blue line is a quasi-coplanar shear crack, and the gray line is a shear secondary crack in Figure 12b. The damage in this mode is generally marked by peeling from its conjugate surface or collapse, and the degree of damage is large. Such quasi-conjugate or single shear plane failure results have been reported in [37].
- (3)
- Mode III: The main cracks in this failure mode are tensile cracks. Because multiple tensile cracks interact, propagate and coalescence to form a shear crack in a stepped path, this mode is called a stepped path failure (Figure 12c). The purple line is a step path crack, and the blue line is a tensile crack in Figure 12c. The main feature of this failure mode is that there are generally multiple groups of parallel tensile cracks above or below the step. Failure mode III in this mode generally shows layers of peeling in the tensile crack area, and the degree of damage is relatively large. This result is consistent with those of a granite specimen that contains multiple pre-existing holes in [33].
5. Conclusions
- (1)
- The mechanical properties of granite specimens that undergo high cycle pre-damage are significantly different from those of their low cycle pre-damage specimens. The mechanical properties of the high cycle pre-damaged specimens decreased significantly. Under uniaxial compression, the pre-damaged specimens showed complex strength characteristics, and uniaxial compressive strength presents a non-linear relationship with cycle numbers and confining pressures. Damage to pre-damaged specimens was primarily due to the strength weakening effect caused by cycle numbers.
- (2)

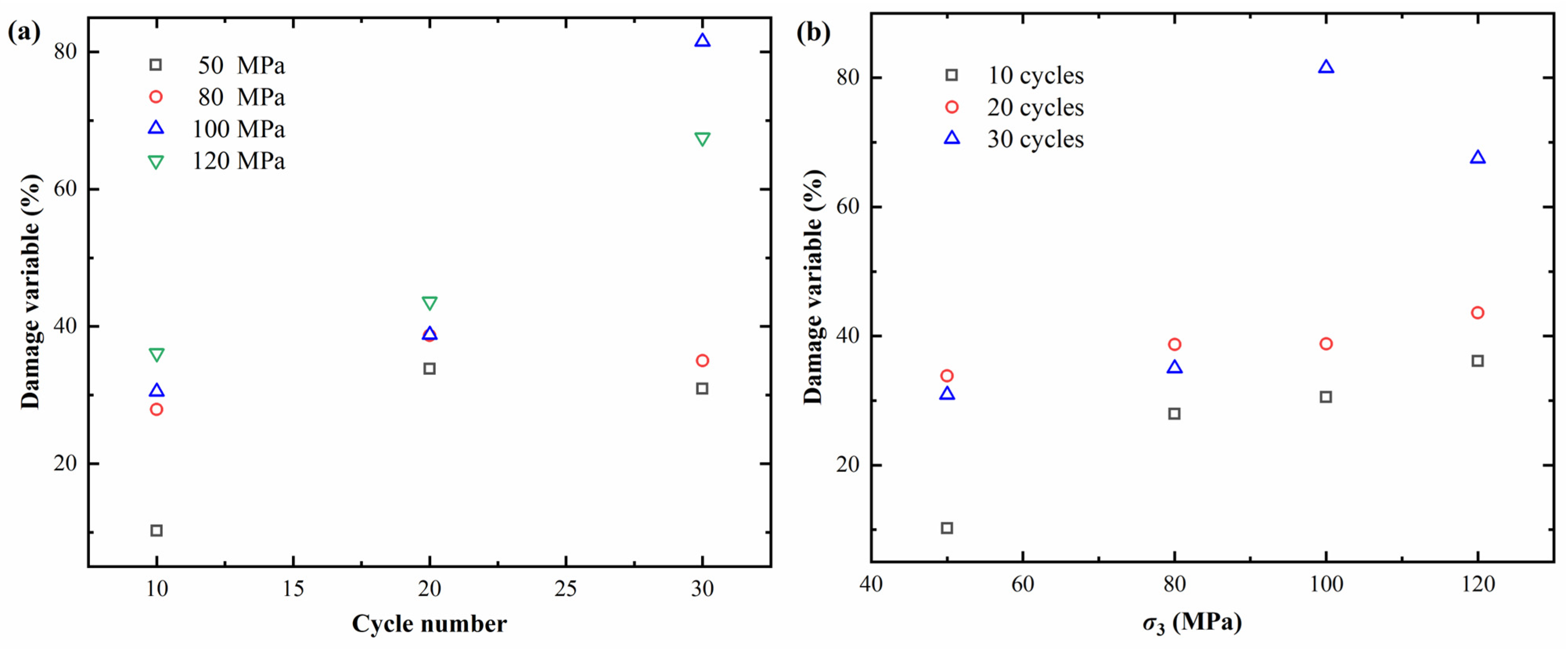

- The damage variables of pre-damaged specimens positively correlate with the cycle numbers and confining pressure. Damage to the pre-damaged specimens continues to increase with increasing cycle numbers, and the magnitude of damage varied with various confining pressure. The greater the confining pressure, the greater the damage variable in pre-damaged specimens. When specimens were subjected to high cycle numbers, the confining pressure restriction effect was not obvious.
- (3)

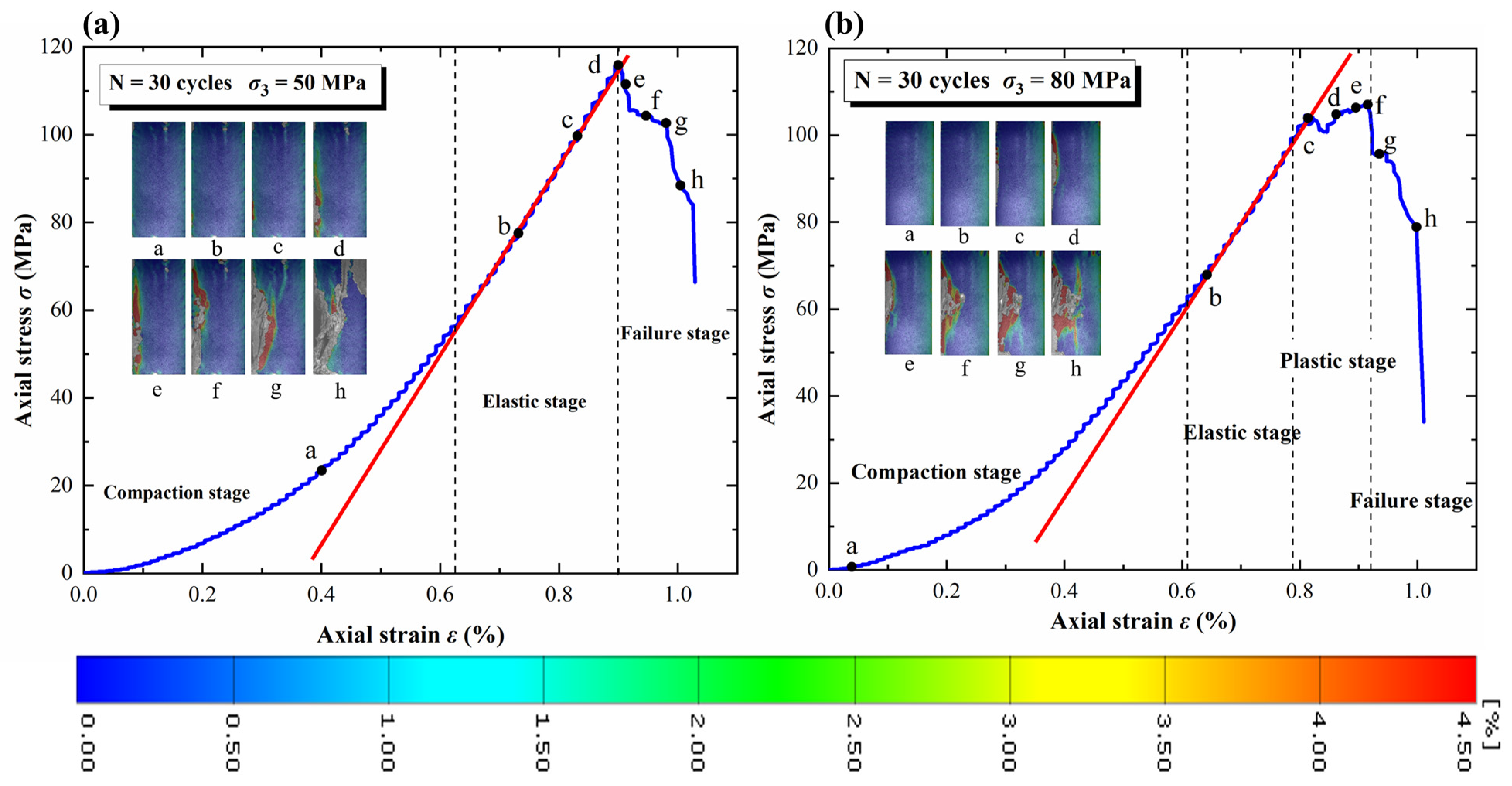

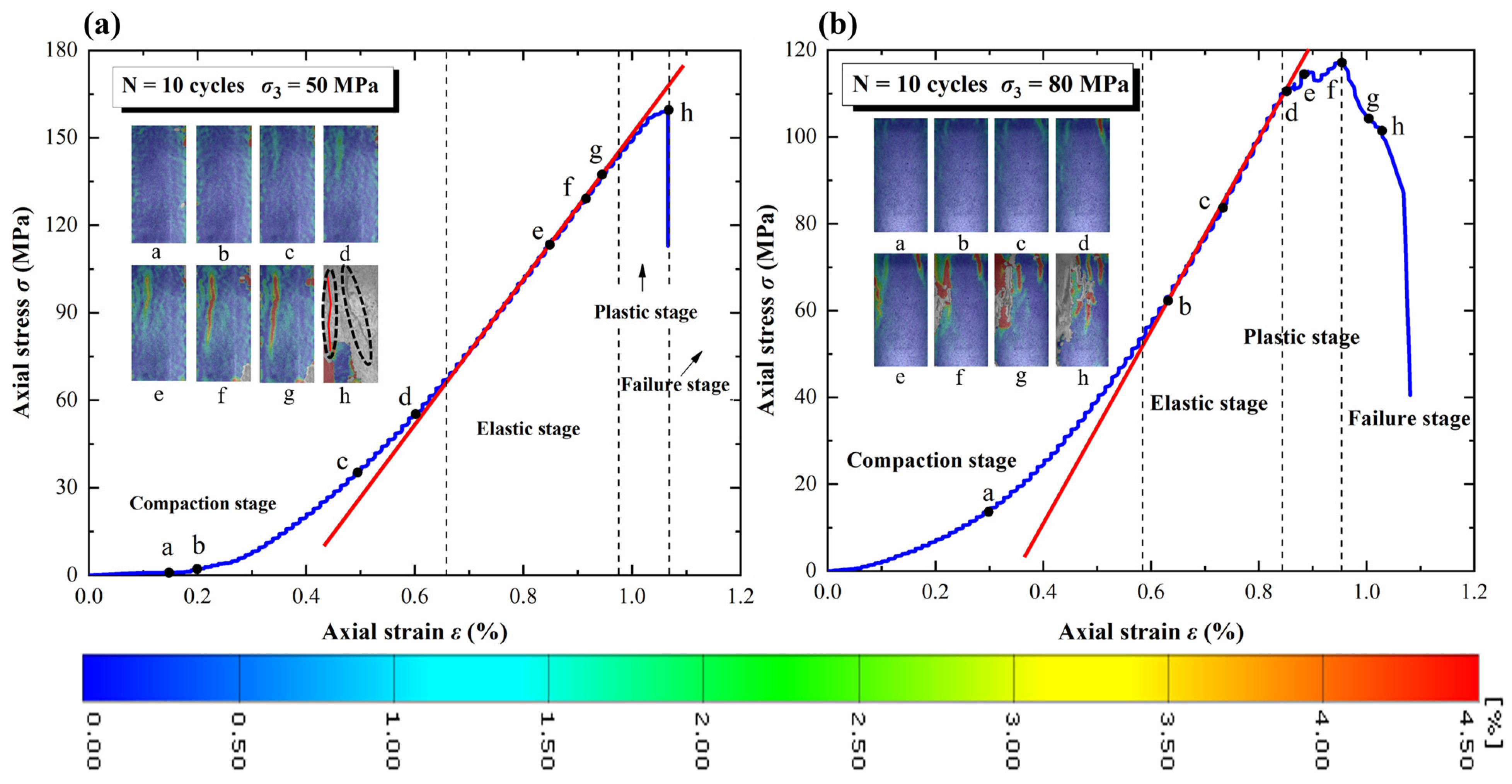

- The evolution laws of uniaxial compression damage propagation in pre-damaged specimens showed differences and obvious localization phenomenon under different cycle numbers and confining pressures. The number of initial cracks was less at low cycle numbers. However, the number of initial cracks was large under high cycle numbers, and they coalesced with each other to form stepped shear cracks. Tensile cracks were always the earliest cracks to appear in pre-damaged granite specimens, and the greater the cycle numbers, the more concentrated the crack initiation was in the plastic deformation stage.
- (4)
- There are three uniaxial compression failure modes for pre-damaged specimens, namely tensile shear failure (mode I), quasi-coplanar shear failure (mode II), and stepped path failure (mode III). The failure modes of pre-damaged specimens are related to confining pressure. Under different pre-damage stress environments with high confining pressures, the failure modes are dominated by Mode II and Mode III, respectively.
