To prevent the worst climatic events, all countries of the world must contribute to the reduction of greenhouse gases (GHG) emissions as was agreed on the Paris Conference in 2015. The Paris Agreement set the goal of keeping the global warming well below 2 °C above pre-industrial levels and even more ambitious to 1.5 °C until the end of this century. To accomplish this, national efforts and pledges are established and published in the so-called National Determined Contributions (NDCs). The emissions gap for 2030-defined as the difference between global total GHG emissions from least-cost scenarios that keep global warming to 2 °C, 1.8 °C, or 1.5 °C, and the estimated global total GHG emissions resulting from a full implementation of the NDCs shows that current unconditional NDCs falls short 15 GtCO
by 2030 compared with the 2 °C scenario, and by about 32 GtCO
compared with the 1.5 °C scenario. Despite the emissions reduction by about 7% in 2020 compared with 2019 due to the COVID-19 outbreak, the GHG atmospheric concentration continues to rise, which means that the pandemic offered only a short-term reduction with negligible effect by 2030 unless countries pursue a strong post-pandemic recovery process, including a long term deep decarbonization towards net-zero GHG emissions [1
The transport sector is a major contributor to GHG emissions, as it was responsible for 23% of global energy-related CO
emissions in 2014, 72% of which were produced by road transport as was reported by the 5th IPCC Assessment Report [2
]. Additionally, it is the fastest-growing sector in terms of emissions and the least diversified energy end-use sector, consuming 65% of global oil in 2018 [3
]; however, only 8 of the 47 revised NDC submissions for the period 2020–2025 include specific emissions targets for the transport sector [5
Some of the decarbonization indicators proposed by the IPCC mitigation pathways are: (i) reduction of the carbon intensity of electricity generation, and (ii) increase the electrification rate in final energy consumption sectors. These pillars are strategic for the energy transition in the land transport sector. Even though in several developing countries there is a significant share of renewable energy for electricity generation, the use of electricity in the transport sector is still minimal [6
]. This is especially true in the Latin American and Caribbean (LAC) region where the stock of battery electric vehicles (BEV) in 2020 represented less than 1% of its global fleet, where Mexico, Brazil and Chile stand out [8
]. The LAC region is experiencing the highest growth in car ownership in the world—more than twice the global average of 27% [7
]. On the other hand, LAC has the world’s highest per capita bus use and also leads in the implementation of bus rapid transit, with systems present in 54 cities as of 2019 [7
]. In LAC there are 2000 electric buses in 2020, this is less than 1% of the region’s fleet. The city of Santiago (Chile) has the largest number of electric buses in the region, followed by Bogotá (Colombia) [6
]. In addition, there are specific pilot projects that have implemented small fleets of institutional electric vehicles or taxis, and free electric chargers in shopping centers or parks in the main cities of the region [7
Following the broad trends of rapid urbanization and increase of private car share in Latin-American countries [10
], Ecuador has witnessed a growth of 161% of road transport vehicles (including freight vehicles) between 2008 to 2018 [11
]. According to the most recent official national GHG inventory (2012), this sector contributed with 21% of total national emissions [12
], and has historically been the most energy-consuming sector in Ecuador. In 2019, it represented almost 50% of the 94 million barrels of oil equivalent (BOE) of the total energy consumed in the country. The road transport is by far the most used mode of transport, accounting for almost 95% of the sectorial energy consumption. In the same year, the use of electricity in the transport sector accounted for 0.02% of final energy consumption [13
], which is explained by the operation of a trolley BRT system in Quito. There is much expectation for the massive penetration of electric buses in compliance with the Energy Efficiency Law, which mandates that all new urban and inter-municipal buses from 2025 will be electric [14
]. Rail transport is virtually nonexistent, and due to the size of the country (283,560 km
) air transport is not a viable option for local freight. Heavy freight and passenger vehicles consumed 47% and 27% of the land transport energy demand respectively [13
]. In the same year, it consumed 83% of the diesel and 76% of gasoline required in the country; moreover, in the last decade (2009–2019), the consumption of diesel and gasoline in the transport sector has increased in 74% and 119% respectively [13
]. Although these data show the weight of the transport sector on the energy consumption and GHG emissions of the country, it has been disregarded in energy projections and plans, while there are no specific commitments in the NDC [15
]. Understanding the implications of the future large-scale development of land electric transportation in Ecuador is a challenge that has been little explored [16
According to the Ecuadorian Electrification Master Plan (PME), the deployment of hydropower will be the priority to supply the future electricity demand, complemented with natural gas for the dry season; whereas the solar, wind, biomass and geothermal deployment will continue at minimal levels [17
]. In 2019, the electricity generation reached 76.3% from hydropower, 21.9% from thermal plants (diesel, natural gas, heavy oil), and 1.8% from solar, wind, and biomass resources. In the last ten years (2009–2019), the hydropower installed capacity increased from 2.1 GW to 5.1 GW, whereas, the installed capacity of other renewable energy technologies just increased from 109 MW to 193 MW in the same period [13
]. However, this strategy does not take fully into account the vulnerability to climate change due to the possible high or low hydropower availability scenarios [18
At global scale, there are several academic studies discussing the impacts of stringent decarbonization scenarios with large participation of electric land transport [25
]. There are less studies focusing on developing countries. For example for LAC region, Gils et al. [28
] studied the feasibility of a 100% renewable energy power system in Brazil through sector coupling and regional development; Sauer et al. [29
] analyzed the strengths and opportunities of developing in Bolivia and Paraguay a large industry of electric vehicles with Li-ion battery by taking advantage of the mineral potential and the availability of hydroelectricity of both countries, respectively; Meza et al. [30
] discussed about the transformation of the Nicaraguan energy mix towards 100% renewable to support the electric mobility development; Lallana et al. [31
] presented the required transformation of the productive matrix in Argentina to achieve decarbonization goals with large share of electric vehicles; and, finally, Godínez-Zamora et al. [32
] assessed decarbonization scenarios and electrification of the transport sector in Costa Rica. The development of electric transportation in developing countries should also analyze the reliability in the operation of the whole transport system [33
], innovation to develop smart urban electric transport systems based in electric car sharing [34
], participation of citizens to guarantee governance and transparency [35
], conditions to attract foreign direct investments and its macro-economic impacts in terms of job creation and participation of local industries [37
], and other Political Economy related topics [40
From the literature review, we did not identify scientific publications that analyse the impact on the operation of the Ecuadorian national interconnected power system (SNI) due to a large development of electric land transportation. Although there are few publications presenting analysis of the long-term expansion of the energy system in Ecuador [16
] and its economic and social impacts [42
], there are no scientific publications where detailed power system operating criteria is considered for the calculation of the long-term expansion of the national power system in scenarios with large use of electric mobility. This work helps fill this gap in two ways: (i) it analyses long-term scenarios of massive participation of electric vehicles in Ecuador; (ii) the modelling framework considers detailed power system operating criteria, which are considered for the calculation of the long-term expansion of the national power system. This without counting on the soft-link with an integrated model of the entire energy sector that provides final energy demands for the transportation sector.
In line with the IPCC report on Mitigation Pathways Compatible with 1.5 °C, in this study we adopted a systemic approach for analyzing the inter-dependencies between end-use sectors and energy-supply [3
]. In this sense, an electrified, low-emission transport sector could be achieved only if structural changes are applied to the energy matrix at a proper pace, balancing the introduction of renewable energy technologies and the phasing out of fossil-based power generation. Therefore, we analyze three scenarios with different degrees of electrification in the transport sector by 2050, which adds to the electricity demand of the other sectors. Additionally, we also included technology-focused measures (energy efficiency and fuel switching), as well as structural changes on the transport activity; the former contributes to the reduction of CO
emissions, while the latter to the reduction of energy consumption [3
Although Ecuador contributes with a minimal part of the global GHG emissions, it cannot remain on the side-lines of the economic, technological and social opportunities that arise from sustainable and low carbon strategies for a post-pandemic and post-extractivist future [43
]. This study seeks to understand to what extent and under what conditions renewable energy can suply electricity demand until 2050 in a context of transport decarbonization in Ecuador, and, at the same time, how they can complement each other to generate reliable and affordable electricity.
The document is structured as follows: Section 2

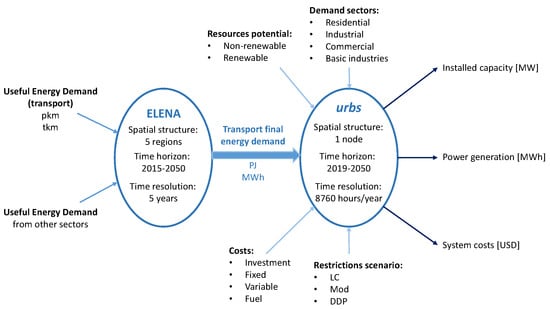

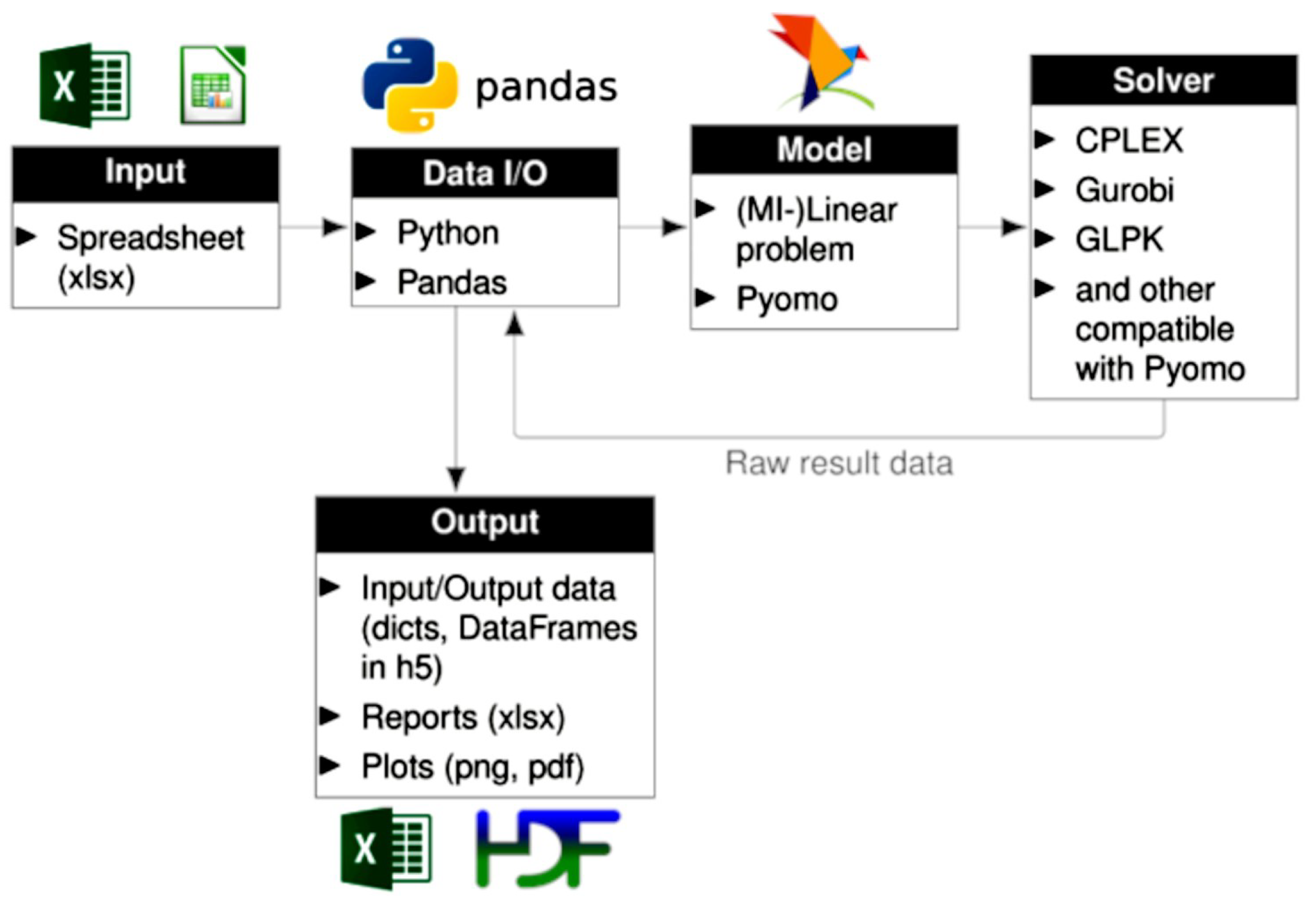

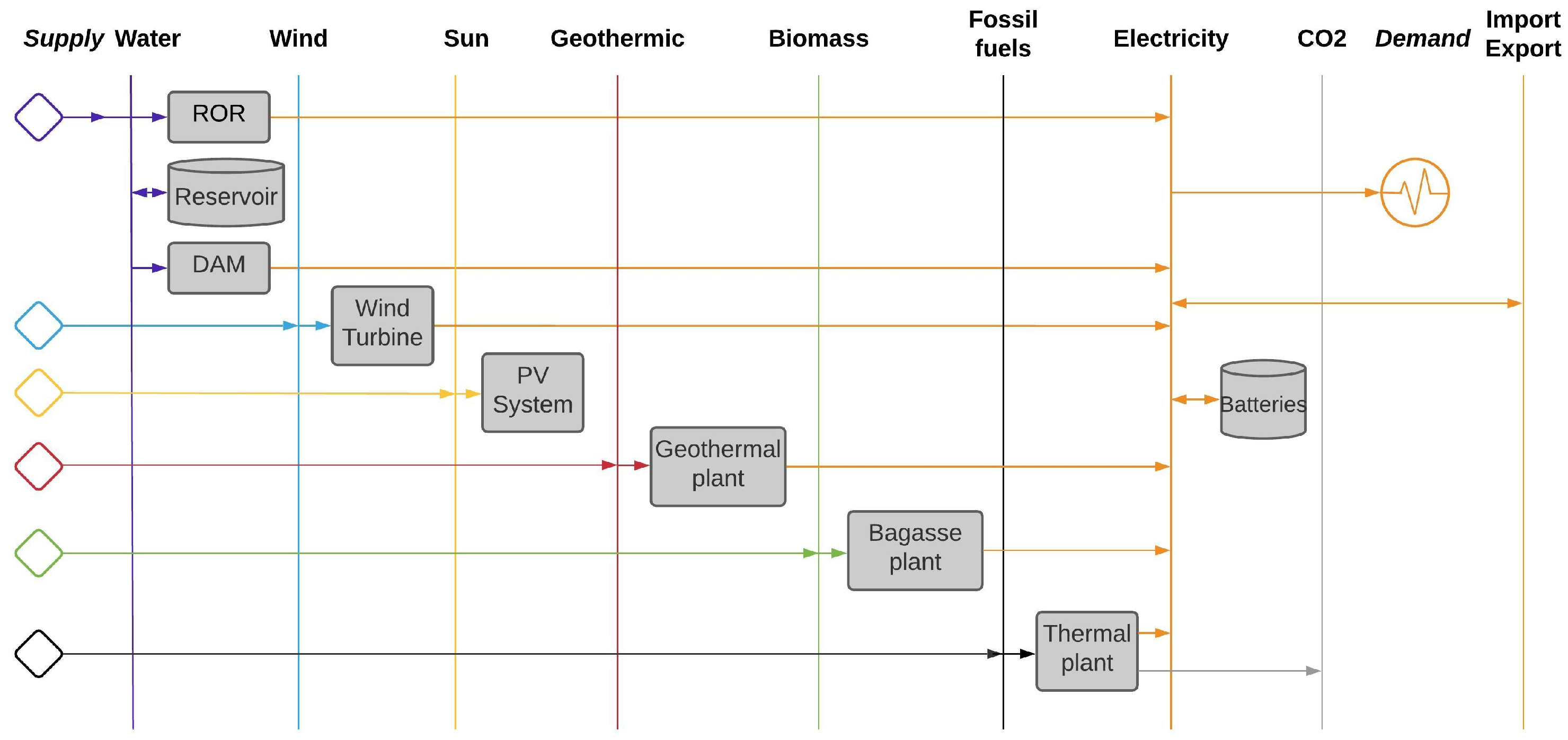

details the methods including the description of ELENA and urbs
models, a presentation of the three analyzed scenarios, the detailed modeling of the Ecuadorian power sector using urbs

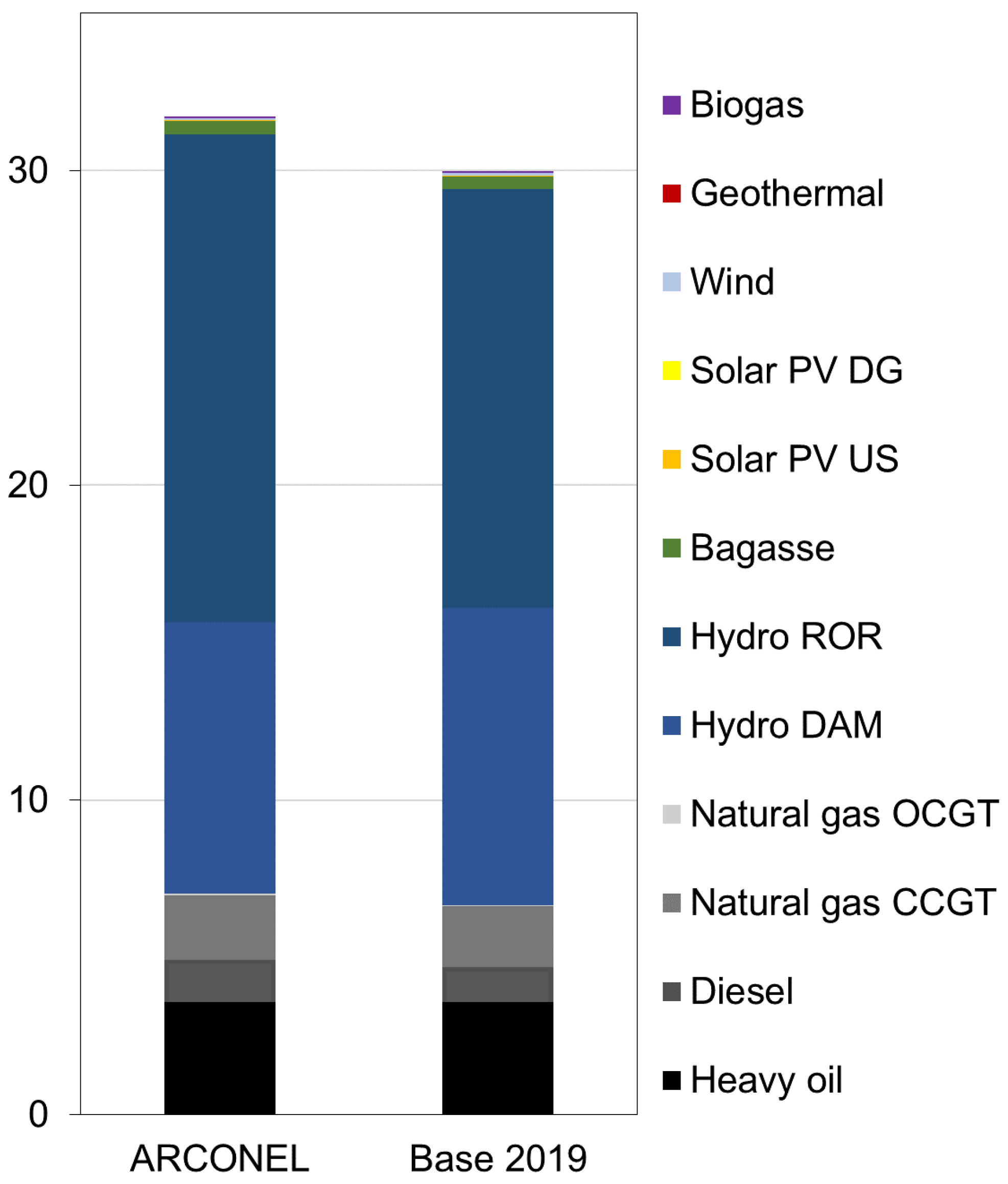

, and finally, the model validation. Section 3
presents the results and discussion about the expansion of the power system by 2050 for the three scenarios and provides recommendations for future research works. Section 4
contains the main conclusions of this work. Finally, Section 5
presents the future works lied to the results.
3. Results and Discussion
3.1. Analysis of the Transport Sector Energy Demand
The LC scenario shows a low electrification rate in the land transport sector, reaching only 0.30 TWh by 2050. It follows the current consumption behavior with a big participation of fossil fuels. In the Mod scenario, the electrification of the transport sector reaches 5.86 TWh by 2050, compared with the 0.011 TWh in 2019, but still contains an important share of natural gas as fuel for transport vehicles. The DDP scenario presents an electricity consumption of 8.54 TWh by 2050, which is 2.68 TWh more than the Mod scenario for the same year, with the particularity that natural gas used in the Mod scenario is totally replaced by electricity. Besides the increase of the electrification rate in the Mod and the DDP scenarios, these consider a substantial reduction in the land transport energy demand from 116.92 PJ in the LC scenario to 32.06 PJ by 2050 in the Mod and DDP scenarios (please refer to Table 6
The results show that electrification of the land passengers transport sector at the levels proposed for each scenario is indeed possible. However, a high electrification of this sector by non-conventional renewable energies is only possible if at the same time final energy demand is reduced, as is the case in the Mod and DDP scenarios. The LC scenario depicts the trend growth of transport, derived from the expected increase in GDP and population, but without considering any measures to restrict the use of private motor vehicles and increase energy efficiency, so that its final consumption is more than three times the demand of the Mod and DDP scenarios. The electrification of the whole LC energy demand for land passengers transport (116.92 PJ) implies that renewable energies would have to be massively deployed and should include battery-based storage systems, which would increase investment costs even above the costs of the other scenarios. Analyzing the electrification of a constantly growing land passengers transport as the only measure of decarbonization was not the scope of this study.
In addition, electricity represents a small part of the total final energy consumption of land freight transport. This is because there are no credible assumptions to consider that electric trucks could enter the Ecuadorian market in the coming decades on a large scale. However, it is observed that in the Mod scenario, the total electricity consumption of land freight transport in 2050 is three times higher than the electricity consumption of passenger transport; while their consumption in the DDP scenario are almost equal, so the contribution of the freight land transport to the electricity demand and its impact on the energy mix cannot be disregarded (see Table 6
and Table 7
3.2. Installed Capacity and Electricity Generation
Electricity generation in Ecuador is already highly renewable, with more than 85% generated by hydropower plants; however, the deep electrification of the transport sector is still a challenge, not fully considered in the Ecuadorian energy policies or GHG emission reduction measures.

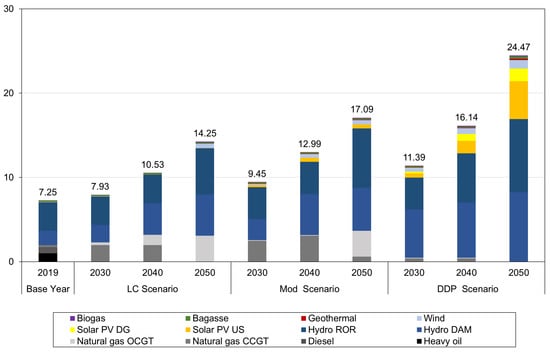

The installed capacity, presented in Figure 9
, shows that for the three scenarios, hydropower continues as the least cost clean technology; complemented in the LC and Mod scenarios with natural gas, and in the DDP scenario with a mix of other renewable technologies. In the LC scenario, the installed capacity grows from 7.93 GW by 2030 to 14.25 GW by 2050. During the studied period, natural gas is used to complement hydropower generation, with minimal participation of other renewable technologies. By 2050, hydropower reaches 10.4 GW of installed capacity, followed by 3.08 GW of natural gas, other fuels such diesel and heavy oil are no longer used by 2030, and the deployment of renewables such as solar, wind, geothermal, biomass, and biogas is minimal reaching in total 0.77 GW.
In the Mod scenario, as the demand increases, the installed capacity also grows from 9.45 GW by 2030 to 17.09 GW by 2050. Natural gas complements hydropower during the whole analyzed period, and the participation of other renewables increases compared with the LC scenario. By 2050, hydropower has an installed capacity of 12.14 GW, followed by 3.66 GW of natural gas. Other non-conventional renewables reach 1.29 GW, which is in line with current national policies for the power system expansion stated in the Ecuadorian Master Electricity Plan.
The deployment of renewable energies, especially solar energy, in the DDP scenario replaces the expansion of natural gas power plants since 2030 and phases them out by 2050. PV-US technology reaches 4.5 GW, PV-DG 1.50 GW, wind farms 1 GW, bagasse 0.3 GW, geothermal 0.15 GW, and biogas 0.1 GW, all together represent 30.86% of the total installed capacity in the Ecuadorian power system; hydropower has the remaining 69.14%. In this scenario, by 2030 the energy mix reaches 95.94% based on renewable energies, 97.13% by 2040, and 100% by 2050.

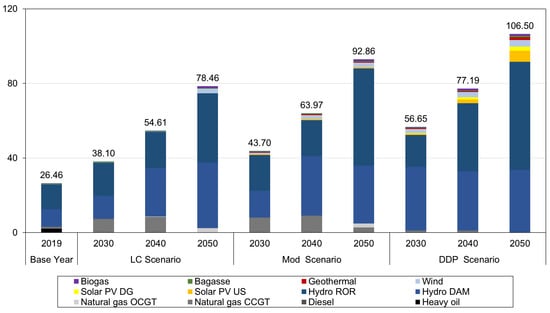

shows that for the LC scenario, hydropower reaches more than 70% of the total generation, which is a goal stated in the National Energy Agenda [52
] (78.95% by 2030, 82.96% by 2040, and 92.11% by 2050). Natural gas decreases its participation from 19.42% by 2030 to 3.12% by 2050. As the deployment of other renewable energies (solar, wind, bagasse, geothermal, and biogas) is minimal, it contributes with a small participation into the mix reaching 4.77% of the total generation by 2050.
The Mod scenario also presents a high participation of hydropower into the energy mix. It represents 76.84% by 2030, 79.82% by 2040, and 89.52% by 2050 of the total electricity generation. Besides, the natural gas participation decreases from 18.39% in 2030, 14.34% in 2040, and 5.3% in 2050. The power generation from other renewable technologies reaches 5.17% of the total generation by 2050. This scenario presents a power mix mostly based on renewable resources during the whole period (81.61% by 2030, 85.66% by 2040, and 94.69% by 2050), but fossil fuels such natural gas still has a participation into the supply mix, and at the same time is used as fuel in the passenger land transport (please refer to Table 6
The results for the DDP scenario show that, by 2050, is possible to reach a high electrification rate in the passengers land transport (47.8%) and at least 5.87% in the freight transport (see Table 6
and Table 7
), while the power mix is completely based on renewable resources. In 2050, the electricity generation matrix is composed of 85.98% hydropower, 7.65% solar, 3.40% wind, 1.24% geothermal, 0.86% bagasse, and 0.82% biogas. A 100% renewable mix is possible with the limitation of natural gas usage that allows the deployment of alternative renewable technologies.
Although the scope of this study was not the calculation of the GHG emission reductions, the need for a deep decarbonization of the transport sector is framed within the context of climate change mitigation. In this sense, all scenarios can be seen, at first glance, as clean due to the large share of hydropower in the present and projected future. However, in order to reduce GHG emissions through electrification, both supply-side and demand-side measures must be implemented. This is remarked in the case of the LC scenario, in which the electricity demand maintains the same behavior as today, therefore, the energy mix is mainly based on hydropower, but the transport sector remains highly dependent on fossil fuels. This reliance on hydropower is also seen in the other scenarios, as it is the most stable low-emission technology. Despite Ecuador’s vast water resources and experience with hydropower plants, relying so heavily on a single technology can pose disadvantages. First, it has been demonstrated that water reservoirs can emit significant amounts of GHGs, especially in flooded tropical soils, as is the case of Ecuador [65
]. Secondly, available studies show the vulnerability of hydroelectric projects to climate change in Ecuador, as water availability (high or low water scenarios) can induce a variation in electricity generation of between 29% and 86% [18
], thus causing a significant risk of electricity shortages for demand sectors. Finally, large hydropower plants can be seen as a form of the classical extractivism model that encourage the exploitation of enormous quantities of natural resources causing socio-environmental conflicts, that have been well reported throughout Latin America [66

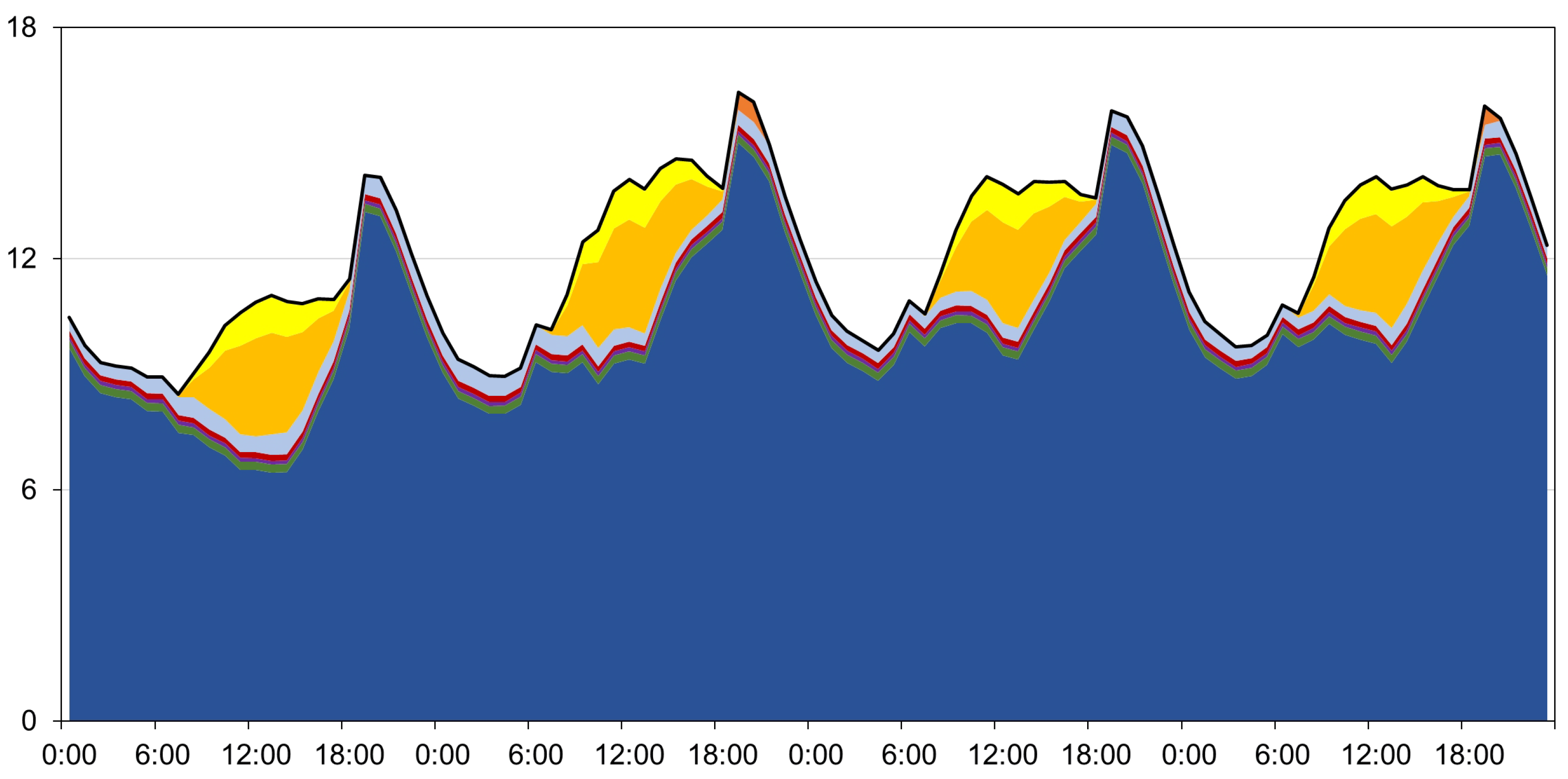

In order to understand how an electrified transport sector in combination with other electricity demand sectors can be reliably supplied through renewable national resources, we analyzed in detail the DDP scenario. It contains the greatest effort in terms of diversifying demand sectors, achieving high levels of electrification in each of them. With this regard, the results obtained for this scenario fulfill the two selected decarbonization indicators of the IPCC mitigation pathways: the reduction in the carbon intensity of electricity, and the increase in the share of final energy provided by electricity. Note that this scenario could be reached only if technology-focused measures (energy efficiency and fuel switching), as well as structural changes to avoid or shift transport activity are implemented at the same time, which were integrated in the premises of this scenario (Table 1
). For ease, Figure 11
shows just the load curves for the DDP scenario.
The load curves show that the diversification of natural resources for electricity generation makes it possible to use each resource according to its hourly availability. During the day (from 06:00 to 18:00), solar energy contributes to the energy mix, while water is stored in reservoirs for its usage at peak hours (from 19:00 to 22:00). All renewable technologies in combination are able to supply the whole demand without the necessity of fossil fuels; nevertheless, possible high energy peaks during the dry season (October to March) could require importing electricity from neighbour countries Colombia and Peru. An electrical interconnection network with these countries already exists, but this could lead to a delocalization of GHG emissions. It must be said that these three countries share the same time zone and would have similar peak demand times, thus is probable that the electricity purchased from these countries comes from non-renewable sources.
From 1:00 to 8:00 there is a valley in the electricity demand curve. This low consumption time slot could become, through the implementation of a low electricity tariff, an ideal period for recharging the batteries of electric vehicles. This kind of incentive would increase the appeal of this vehicles and ensure that an increasing fleet does not represent an extra load during peak time. Nowadays in Ecuador, electricity subsidies are determined according with the overall consumption level, switching to a time-based cost of electricity can also reduce the consumption at peak time which is one of the major concerns from the generation side. This kind of electricity price analysis should be considered as a topic for future research.
3.3. Costs of The System

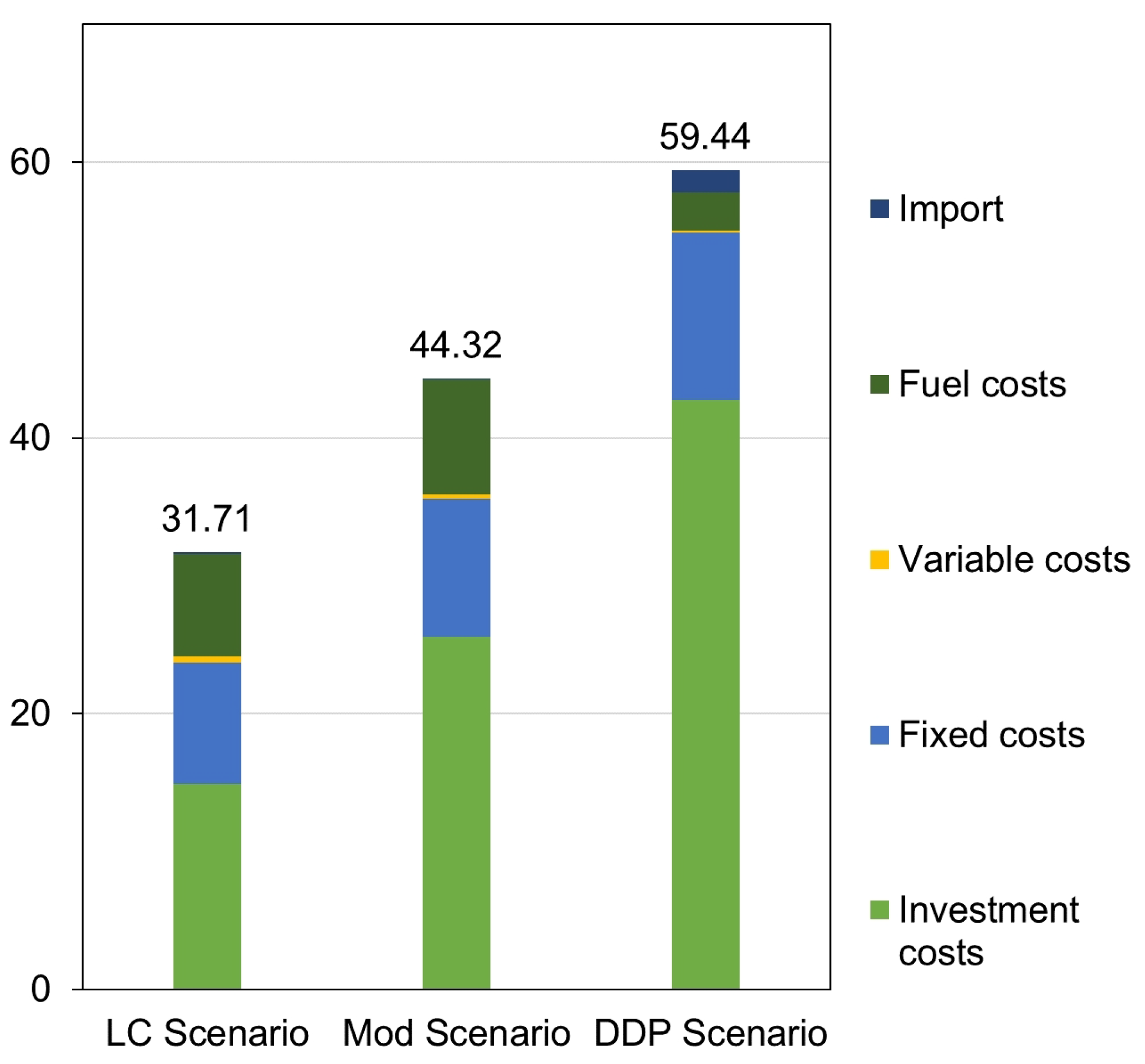

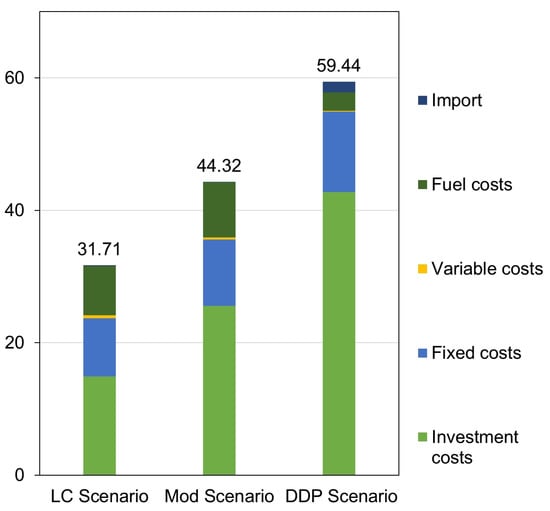

The total costs of the system during the whole period vary among the three scenarios. For the LC scenario the total cost reaches USD 31.71 billion, whose investment component (USD 14.88 billion) is the highest, representing 47% of the total, followed by fixed costs (USD 8.83 billion), the fuel costs (USD 7.48 billion), variable costs (USD 0.41 billion), and import costs (USD 0.12 billion), which represent the import of electricity that is still needed in this scenario.
As the installed capacity increases for the Mod scenario, also the cost of the system (USD 44.32 billion) which is 1.4 times higher than the LC because of the increased deployment of alternative renewable technologies. This leads to a 58% share of the investment costs with respect to the whole system costs (USD 25.58 billion). As this scenario still has thermal electricity generation with natural gas, the costs for the fuel represents almost 19% (USD 8.30 billion), while the fixed costs reaches 22.54% (USD 9.99 billion), the variable costs depicts 0.77% (USD 0.34 billion), and the costs for electricity imports represents 0.24% (USD 0.10 billion).
The DDP scenario requires the strongest effort in terms of total costs (USD 59.44 billion), which are 1.9 and 1.3 times bigger than the LC and Mod scenarios, respectively. It is clear that the investment costs represent by far the largest component of the total system costs due to the new renewable technologies. The fixed costs (USD 12.15 billion) are higher than the fuel costs (USD 2.73 billion) due to the 100% renewable energy mix by 2050. There are still fuel costs in this scenario due to the presence of thermal electricity generation until 2040 that is then completely replaced by renewable technologies. The variable costs are USD 0.13 billion, and the import of electricity costs reaches USD 1.65 billion. All these results can be seen in the Figure 12
Given that the three scenarios depict different installed capacities, a cost comparison can be misleading. It is important to remember that the DDP scenario is purposely designed to show an important national economic growth coupled with behavioral changes in the demand side and a strong effort to reach a totally renewable energy mix. This is the reason why DDP represents the highest cost, as it reflects the effort of a change towards sustainability in both demand and supply sides of the energy system. In contrast, the LC scenario represents the trend growth without major changes in both energy demand and supply. It reflects factors as techno-economic characteristics of the technological components, the infrastructure at the system level, and the institutional characteristics that favor one technology and act as barriers for others, and therefore promote technological lock-ins [70
]. This is the Ecuadorian case, which shows a trend trajectory of deployment of the cheapest and most mature energy technologies (hydropower and thermal generation) as can be seen in the national energy policies and plans that consider only a small participation of alternative renewable generation technologies, even though in the future these are expected to become cheaper [71
The cost of a fully renewable electricity matrix for Ecuador has to be analyzed also under the perspective that the country’s oil era is likely coming to an end within the next decade or, according to the most optimistic estimates, within the next two decades [72
]. If the country is no longer an oil producer but its technological dependency on this product continues, his energy and transport sectors will be vulnerable to the fluctuating oil market. A planned and gradual transition from fossil fuels to a clean energy mix would be less costly than a forced adoption of new technologies that could result in many stranded assets, so the depletion of oil reserves is an important factor to consider in the energy planning.
In this context, a most comprehensive cost analysis should be taken into account that can serve as inputs for policy and planning recommendations. Although this is not the objective of this work, some insights in this direction can be mentioned. First the presented cost analysis does not take into account the economic costs such as environmental and social ones. Many authors show the impact and related social costs of big energy projects, that can lead to several social issues even to the movement or disappearing of entire communities [44
], with associated governmental costs needed to supply people with new houses, infrastructure, employment and so on. Most of the time these are not considered because are hidden behind the side effects of an infrastructure project and are not visualized as costs. Moreover, the environmental costs are also disregarded in most cases, especially because of the difficulty of assigning a cost to environmental degradation, and a weak consideration of the impacts of environmental services loss on other activities located in the places where the big energy projects are built, such as agriculture, tourism, and cultural values for people and communities, as is widely the case in Ecuador [73
]. For coping with this, a multi criteria analysis can be used to visualize and take into consideration the social, environmental, technological, and political aspects of the energy projects, especially those of big scale, that help to redefine the energy portfolios and reflect the potential advantages of a more diversified and non-centralized energy mix. This is a field of further research to improve our analysis of the Ecuadorian energy mix transition.
This study analyzes whether a diversified and clean electricity mix can supply the demand of a highly electrified transport sector without neglecting the demand of other consumption sectors. The second inherent research question is how renewable energy technologies can be integrated to supply this demand taking into account technical and cost criteria of each type of technology. This work adds new information to previous studies on the decarbonization of the Ecuadorian demand sectors, as here we visualize different levels of electrification of the transport sector, and analyze the energy supply in the context of current national plans and also potential measures.
High electrification of passengers land transport can be achieved with the renewable resources available in the country, while a significant portion of land freight transport can also be electrified. For this, Ecuador could reject the use of fossil fuels, due to its vast renewable resources, especially water, however, the disadvantages of over dependence on this resource should be avoided through holistic energy planning, seeking for the best balance between available resources and technologies.
This work demonstrates that clean electrification of demand sectors, especially land transport is a viable alternative for the country to reinforce its future climate change mitigation goals. Finally, the results show that the deployment of renewable technologies has high costs in terms of investment, maintenance and operation, however, this should be seen as the cost of a necessary transition towards a sustainable, low-emission energy supply and demand, which can deliver large potential benefits to the national economy.
