Separation of the Mixture 2-Propanol + Water by Heterogeneous Azeotropic Distillation with Isooctane as an Entrainer

Abstract

Advanced processes, which are alternatives to ordinary distillation, are essential to dehydrate azeotropic alcoholic mixtures for biofuel production. In that regard, this work focuses on the analysis of heterogeneous azeotropic distillation for the separation of a 2-propanol + water mixture in order to recover the alcohol with a sufficiently low water content. By comparing the performances of various entrainers on the basis of ternary maps, isooctane was selected for further process analysis. An advantage it poses is related to the fact that traces of it within the recovered dehydrated alcohol are highly welcome with a view to its subsequent use as a fuel. Aspen Plus^® V11 software was employed for the simulation of the process, thus filling the gap existing in the literature due to the lack of studies on the process analysis of the heterogeneous azeotropic distillation of the 2-propanol + water system using isooctane as an entrainer.

1. Introduction

The need for reducing the consumption of fossil fuels and increasing the use of renewable energy has caused a growing interest in biofuels. In particular, alcoholic mixtures resulting from bioprocesses can be effectively used as fuel substitutes or additives with a view to increasing the octane number, ensuring a better combustion, reducing harmful exhaust pipe emissions, and thus protecting the environment. Indeed, light alcohols are directly used as a blendstock with gasoline in many countries such as Brazil, Europe and the USA [1]. Among them, ethanol and butanol can be mentioned, which have been proven to reduce life-cycle greenhouse gas emissions when produced from biomass and waste feedstock [2], though some problems are encountered when operating these processes [3,4], and high costs are involved in the downstream product recovery [5,6]. According to Zhu et al. [7], bioethanol recovery from fermentation broths involves energy consumptions that account for 60–80% of the total biofuel production consumption. In that regard, an important aspect to be taken into account is related to the concentration and final dehydration of the fermentation broth, which affect the price of the alcohol product, especially if a high purity is required, as for direct combustion or gasoline mixing purposes [8]. Indeed, even tiny amounts of water within the blend can lead to phase splitting, which in turn can cause engine troubles and malfunctions. For example, in fuel-grade ethanol the presence of water affects the physicochemical properties of ethanol–biodiesel blend fuels, with a negative impact on their combustion [9]. Hence, the dehydration of azeotropic alcoholic mixtures represents a crucial step for biofuel production, and alternative processes to ordinary distillation need to be found.

Vacuum distillation, extractive distillation, heterogeneous azeotropic distillation, liquid–liquid extraction including salting-out extraction [10], pervaporation [11] and adsorption are examples of the possible advanced technologies required to obtain alcoholic fractions with sufficiently low water contents. Among them, the extractive distillation (ED) and the heterogeneous azeotropic distillation (HAD) processes represent the most commonly employed and competitive options for anhydrous alcohol production. HAD, in particular, is a widely used technique to separate azeotropic alcoholic mixtures into their components: in such a process, an additional compound, called entrainer, causes liquid–liquid phase separation over a broad range of compositions in the ternary phase diagrams. This liquid–liquid phase split allows us to move across the distillation boundaries caused by the existence of azeotropes within the mixture.

In that regard, it is important to point out that the choice of the entrainer to be added is a key aspect: various factors, including safety, environmental effects, corrosion, availability and price, need to be taken into consideration. In addition, major concerns are represented by the analysis of the structure of the residue curves and distillation line maps associated with the resulting mixtures [12,13].

Several studies have been published on the subject of HAD, with particular reference to advantages and disadvantages, heterogeneous phase diagrams, residue curve maps and column sequencing [12,14,15,16,17,18,19,20]. Furthermore, the optimization, dynamics and control of the process configuration have been addressed [21,22,23,24,25,26].

More in depth, several papers are available with reference to HAD processes for the dehydration of alcoholic mixtures. In particular, in the case of ethanol + water mixtures, the solvents which are typically employed are isooctane, benzene and toluene: practical examples of ethanol dehydration with the use of isooctane as an entrainer have been analyzed by Cairns and Furzer [27], as well as Font and co-workers [28]. A two-column sequence, for instance, has been envisaged in case the ethanol is to be used as a fuel: by means of such a process configuration, a mixture containing ethanol and isooctane is obtained, meeting the ASTM specifications given by the American Society for Testing and Materials for an ethanol-based fuel E95. In parallel, Gomis et al. [29] have analyzed the viability of a HAD process with isooctane as an entrainer to dehydrate ethanol and to obtain a mixture of ethanol + isooctane, for use as gasoline and with a water concentration lower than 50 ppm. The attention of the authors was particularly focused on the importance of the thermodynamic model to be used to carry out the simulations: as a matter of fact, the model has to accurately predict the phase splitting, and possible differences between experimental and simulation results can be attributed to the inappropriate calculation of the liquid–liquid equilibria (LLE).

Regarding cases in which benzene and toluene are employed as entrainers for ethanol dehydration processes, various studies have been published [18,20,24,30,31]. With specific reference to Luyben’s work and analysis [24], rigorous simulations of the process, involving a preconcentrator, the azeotropic and entrainer recovery column, have been carried out by means of Aspen Plus^®: as emphasized in the paper, the simulation of the first preconcentration column is not critical. Instead, the same is not true for the other two columns involved because of the two associated recycle streams: converging recycle streams is quite often very difficult, especially when considering a highly non-ideal phase equilibrium system. Moreover, multiple steady states can be found, depending on the initial values considered for the various parameters.

In addition to isooctane, benzene and toluene, various other hydrocarbons can be regarded as candidate entrainers for ethanol dehydration processes. As a matter of fact, systems composed of ethanol, water and hydrocarbons are extremely important in the fuel industry, where ethanol + gasoline blends, with sufficiently low amounts of water, are widely employed. Thus, the use of a hydrocarbon as an entrainer has the advantage that any remaining quantity within the recovered alcoholic fraction would not pose a problem for its subsequent use as a fuel. For instance, Gomis and co-workers [32,33] have analyzed the vapor–liquid–liquid equilibria (VLLE) and the vapor–liquid equilibria (VLE) for ethanol + water + heptane and the ethanol + water + hexane systems. Besides this, Pequenín et al. [34,35,36] have investigated the VLLE and the VLE behavior of various systems involving ethanol, water and various hydrocarbons as solvents (cyclohexane, heptane, isooctane, toluene). In the end, as suggested by Pienaar [30], diisopropyl ether (DIPE) can also be considered as a feasible entrainer in the case of ethanol dehydration by HAD processes.

With reference to 2-propanol + water mixtures, instead, the commonly employed entrainers are cyclohexane and benzene. Chien and co-workers [37] have shown two different and feasible column sequences to obtain a 2-propanol product stream when starting from an aqueous alcoholic mixture (69% mol 2-propanol and 31% mol water). Additionally, in the case of a more diluted 2-propanol + water mixture, Arifin and Chien [38], as well as Luyben and Chien [39], have analyzed and optimized different column sequences with the use of cyclohexane as an entrainer.

Further studies on the subject of 2-propanol dehydration processes with cyclohexane or benzene as an entrainer have been published [15,21,22,26,30,40]. In addition, DIPE can be envisaged as a possible entrainer [30], while other studies are related to the potentiality of using isooctane for the separation of 2-propanol + water mixtures [41,42], analysing phase equilibria.

Table 1. List of entrainers considered in the literature for the dehydration of ethanol.

Entrainer	Literature Source	Focus of the Study
benzene	Cairns and Furzer [27]	New simulation method for three-phase distillation using a modified phase-stability analysis
	Luyben [24]	Process simulation
	Pienaar [30]	Process simulation
cyclohexane	Gomis et al. [45]	VLE and VLLE data
toluene	Gomis et al. [62]	VLE and VLLE data
	Zhao et al. [31]	Process simulation
isooctane or 2,2,4-trimethylpentane	Cairns and Furzer [27]	New simulation method for three-phase distillation using a modified phase-stability analysis
	Font et al. [28]	VLE and VLLE data
	Gomis et al. [29]	Analysis of process viability by an experimental procedure and an equilibrium-model-based simulation
cyclohexane + toluene	Pequenín et al. [36]	VLE and VLLE data
cyclohexane + isooctane	Pequenín et al. [34]	VLE and VLLE data
cyclohexane + heptane	Pequenín et al. [35]	VLE and VLLE data
diisopropyl ether (DIPE)	Hwang et al. [49]	LLE data
	Pienaar [30]	VLE and VLLE data; process simulation
	Pienaar et al. [44]	VLE and VLLE data
diethyl ether	Gomis et al. [63]	VLLE data
pentane	Magnussen et al. [64] 1	Simulation method 1
hexane	Gomis et al. [33]	VLE and VLLE data
n-heptane	Gomis et al. [32]	VLE and VLLE data
p-xylene	Gomis et al. [46]	VLE and VLLE data
n-butanol	Newsham and Vahdat [65]	VLE data
	Gomis et al. [63]	VLLE data
	Iwakabe and Kosuge [66]	VLLE data
2-butanol	Iwakabe and Kosuge [66]	VLLE data
1-pentanol	Fernandez-Torres et al. [58]	LLE data
ethyl acetate	Van Zandijcke and Verhoeye [67]	VLE data
	Lee et al. [68]	VLE and VLLE data
	Gomis et al. [63]	VLLE data
	Donis et al. [69]	Feasibility of heterogeneous batch-extractive distillation
n-butyl acetate	Younis et al. [70]	VLLE data
methyl ethyl ketone	Younis et al. [70]	VLLE data

¹ as reported by Cairns and Furzer [27].

and

Table 2. List of entrainers considered in the literature for the dehydration of 2-propanol.

Entrainer	Literature Source	Focus of the Study
benzene	Cho and Jeon [40]	Process simulation
cyclohexane	Verhoeye [54]	VLE and LLE data
	Prokopakis et al. [71] 1	Simulation method 1
	Wang et al. [26]	Experiment using a laboratory-scale sieve plate distillation column; dynamic simulation
	Chien et al. [21]	Dynamics and control of a HAD column
	Chien et al. [22]	Operation and decoupling control of a heterogeneous azeotropic distillation column
	Chien et al. [37]	Design and control of a complete HAD column
	Arifin and Chien [38]	Combined preconcentrator/recovery column design
	Kraemer et al. [15]	Shortcut-based design
Isooctane or 2,2,4-trimethylpentane	Arda and Sayar [41]	LLE data
	Otero et al. [42]	LLE data
	Font et al. [72]	VLE and VLLE data
	Rastegar and Jessen [51]	LLE data
	This work	Process simulation
diisopropylether (DIPE)	Hwang et al. [49]	LLE data
	Lladosa et al. [50]	VLLE data
	Pienaar [30]	Process simulation
dichloromethane	Sayar [52]	LLE data
1,2-dichloroethane	Sayar [52]	LLE data
2-methylbutyl acetate	Sayar [52]	LLE data
1-butanol	Aicher et al. [73]	VLE and LLE data
1-pentanol	Sayar [52]	LLE data
phenylmethanol	Sayar [52]	LLE data
cyclohexanol	Sayar [52]	LLE data
1-methylcyclohexanol	Sayar [52]	LLE data
dibenzyl ether	Sayar [52]	LLE data
octanenitrile	Sayar [52]	LLE data

¹ as reported by Cairns and Furzer [27].

summarize the entrainers that have been considered in the literature works for the separation of the ethanol + water mixture (Table 1) and 2-propanol + water mixture (Table 2), focusing either on thermodynamic equilibrium measurements or on the proposal of separation sequences.

Further papers related to HAD for the separation of aqueous alcoholic mixtures can also be mentioned [30,43,44,45,46,47,48,49,50,51,52,53,54,55]. Gomis et al. [43], for instance, have analyzed the n-butanol + water + n-hexane system, whilst Pienaar et al. [44] have considered the VLLE and the VLE for the ternary systems n-propanol + water + DIPE and n-propanol + water + isooctane. Indeed, alternative entrainers to the carcinogenic benzene need to be found. Consequently, hydrocarbons such as hexane to octane and their isomers have been proposed as candidates, with cyclohexane being the most popular one. Additionally, common fuel additives such as DIPE and di-n-propyl ether (DNPE) have also been recommended. In the end, many studies which are related to the VLLE and VLE of aqueous alcoholic mixtures and amyl alcohol (1-pentanol) as a possible entrainer have been published [52,56,57,58,59,60].

The present paper focuses on the separation process of a 2-propanol + water mixture by means of an HAD process, as this has been investigated less than the ethanol + water mixture, particularly from a process point of view. As a matter of fact, when considering mixtures obtained from bioprocesses, 2-propanol is one of the most abundant alcoholic components.

At first, relying on what is available in the scientific literature on the subject, various candidate entrainers have been identified and their performances have been compared on the basis of ternary maps. Once isooctane was identified as the most appropriate solvent for the separation, process simulations were carried out with AspenTech’s Aspen Plus^® V11 [61] commercial simulation software using the Non-Random Two-Liquid (NRTL) thermodynamic model with built-in parameters. Ultimately, with particular reference to the HAD, the present paper is intended to fill the gap due to the lack, in the pertinent literature, of works focused on the dehydration of aqueous 2-propanol mixtures with the use of isooctane as an entrainer. Indeed, most of the literature is centred on HAD processes with the use of isooctane for the separation of ethanol + water mixtures. On the other hand, HAD processes for the dehydration of aqueous 2-propanol mixtures typically involve benzene or cyclohexane as solvents. Moreover, the few papers available on 2-propanol + water + isooctane ternaries are related to the study of phase equilibria for the exploitation of the potential of such an entrainer for 2-propanol dehydration, without reference to process analysis. It is also important to highlight that the use of isooctane as an entrainer can be extremely beneficial in the case of 2-propanol dehydration: traces of such an entrainer do not pose a problem within the recovered dehydrated alcoholic product with a view to its subsequent use as a fuel.

2. Methods

HAD can be reasonably regarded as a valuable option for the separation of the 2-propanol + water mixture. Indeed, the presence of a homogeneous azeotrope at 80.18 °C and with 67.2% mol 2-propanol hampers the separation of the two components by means of ordinary distillation, and the HAD process can be effectively employed for the separation to be accomplished.

Aspen Plus^® V11 [61, AspenTech, Burlington, MA, USA] has been identified as the most suitable software because of the ability of its thermodynamic package, NRTL, to accurately reproduce the experimental equilibrium data for the operating conditions of interest, with low pressures and a highly non-ideal liquid phase. In addition, the data bank of the built-in NRTL parameters for the system under study, also considering the selected candidate entrainers, is complete.

Firstly, it was used to build ternary maps which help in the selection of the entrainer to be used in the separation of the 2-propanol + water mixture by HAD. Then, it was employed for the simulation of the process that aims at the separation of a mixture of the two components comprising 65% mol 2-propanol, which is assumed to be near the 2-propanol and water azeotropic composition. As illustrated in the schematic flowsheet in Figure 1, the process consists of two columns, namely the HAD column (COLUMN 1) and the entrainer recovery column (COLUMN 2), which have, respectively, 30 and 25 equilibrium stages and are operated at atmospheric pressure. The first column, into which the fresh feed (FF), the distillate from the recovery column (D2) and the organic reflux (OR) from the DECANTER are fed, separates pure 2-propanol at the bottom (B1) and the top vapour V1 close to the ternary azeotrope. The organic phase exiting the DECANTER, which contains mostly the entrainer, is totally refluxed back to the HAD column, while the aqueous phase (AO, aqueous outlet), still containing a significant amount of 2-propanol, is fed into the recovery column. The bottom stream (B2) of this column is pure water, and the distillate (D2) is recycled back to the HAD column. In the first column, the mass purity of the bottom product B1 was set equal to 99.75%, so as to limit the water content to 2500 ppm by weight. As for the second column, the mole purity of the bottom product B2, rich in water, was set equal to 99.95% for limiting the impact on the downstream water treatment process. In order to obtain an indication about this, the Theoretical Oxygen Demand (ThOD) for the aqueous stream exiting the separation process was computed: such a parameter, corresponding to the amount of oxygen required to completely oxidize the organic components within the stream, provides an indication of the carbon yield of the separation process, as well as of the impact on the downstream water treatment process. As a matter of fact, the higher the ThOD value, the higher the carbon content within the aqueous stream and the worse it is in terms of the carbon yield of the separation process. Moreover, if ThOD values are too high, the aqueous stream weighs too much on the downstream water treatment process. In this work, a maximum value of 3–4 gO₂/L was considered as the target for the process simulation so as not to burden the water purification process. The two specifications for the 2-propanol product and water product have been achieved in the simulation by varying the flow rate of the bottom product of the respective columns. More details about the set-up of the simulation are reported in the Section 3.2.

3. Results

This section deals with the results obtained for the selection of the entrainer (Section 3.1) and for the process simulation carried out using isooctane as an entrainer (Section 3.2).

3.1. Entrainer Selection

As was thoroughly shown in the introductory paragraph, the typical solvents used for the separation of azeotropic mixtures involving 2-propanol and water are benzene and cyclohexane [24,37,38,40]. Nevertheless, isooctane can be potentially considered as a suitable entrainer for the separation of aqueous 2-propanol solutions: ternary 2-propanol + water + isooctane mixtures have been analyzed, and the extracting capability of the entrainer was estimated by making reference to distribution coefficients and separation factors [41,42,51,55]. In that regard, it is also necessary to mention that, unlike the commonly employed benzene, isooctane is not carcinogenic. Moreover, as was previously mentioned, traces of such an entrainer, which is a typical hydrocarbon in gasoline, are useful within the recovered 2-propanol fraction with a view to its subsequent use as a fuel. Hence, the purity requirements for the dehydrated 2-propanol product fraction do not need to be extremely tight [29,32,34,35,36,43,44]. In addition, amyl alcohol can also be considered as a candidate entrainer for the separation of 2-propanol + water mixtures, considering the relevant literature on phase equilibria [56,57,58,59,60].

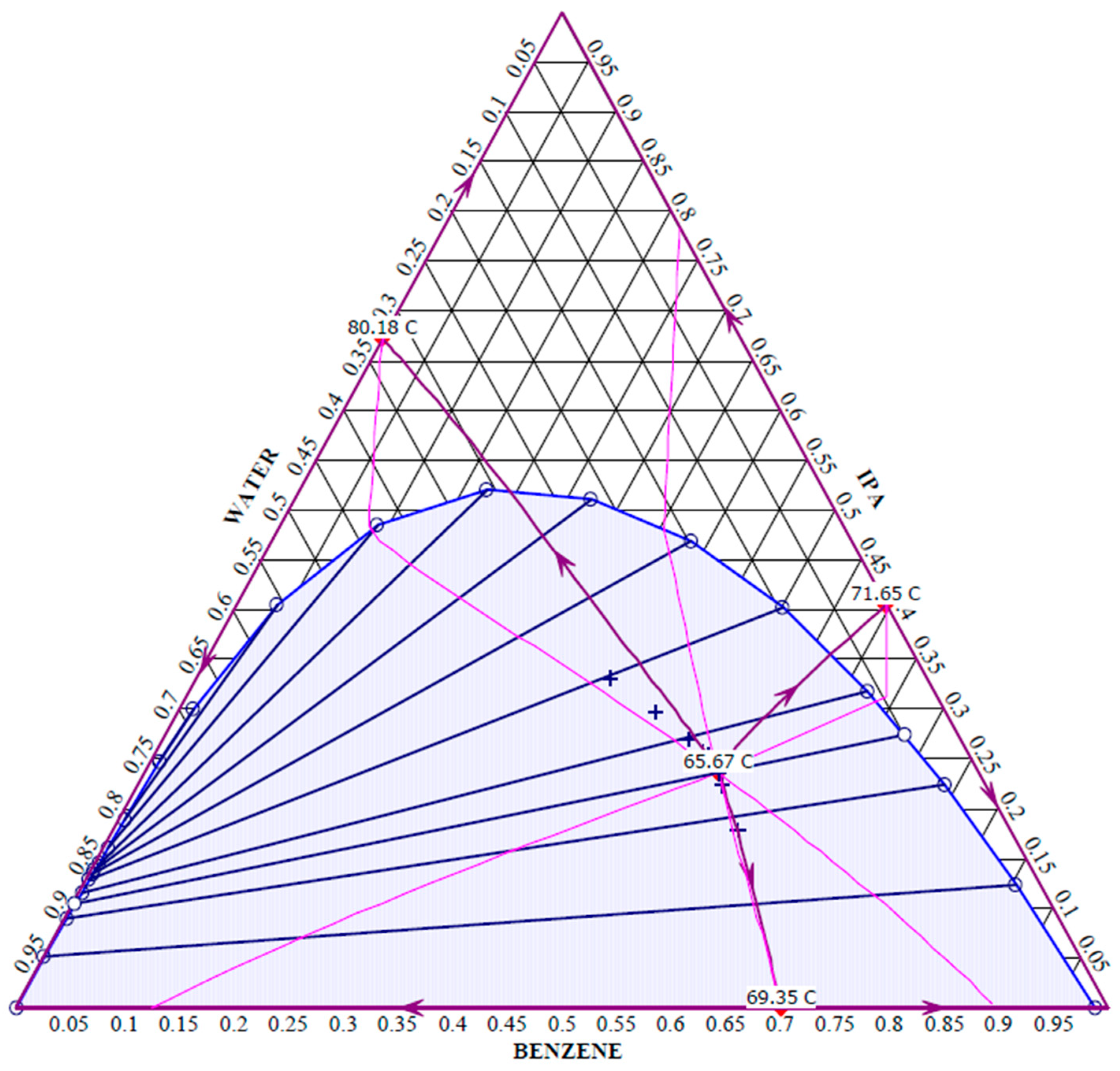

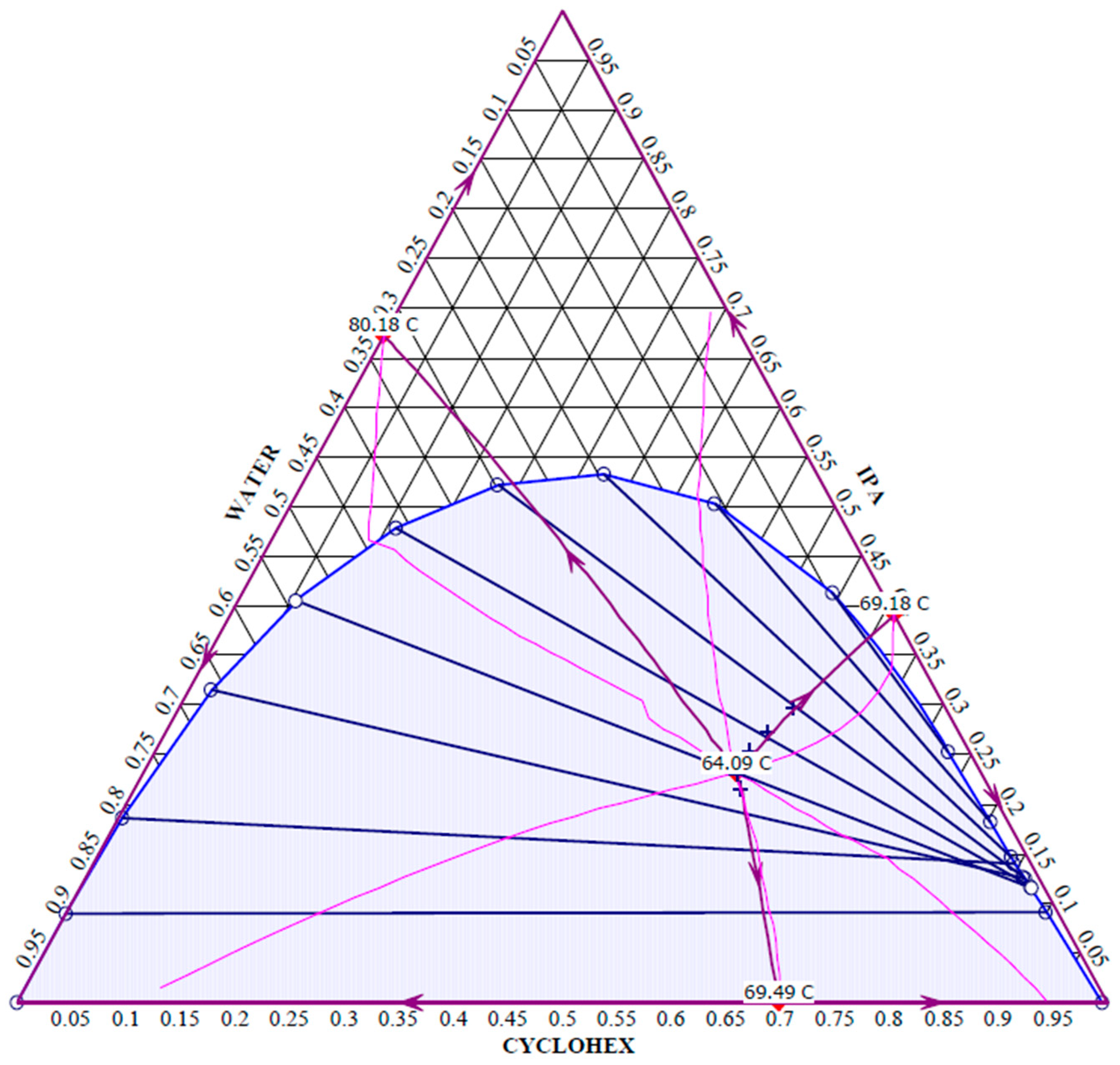

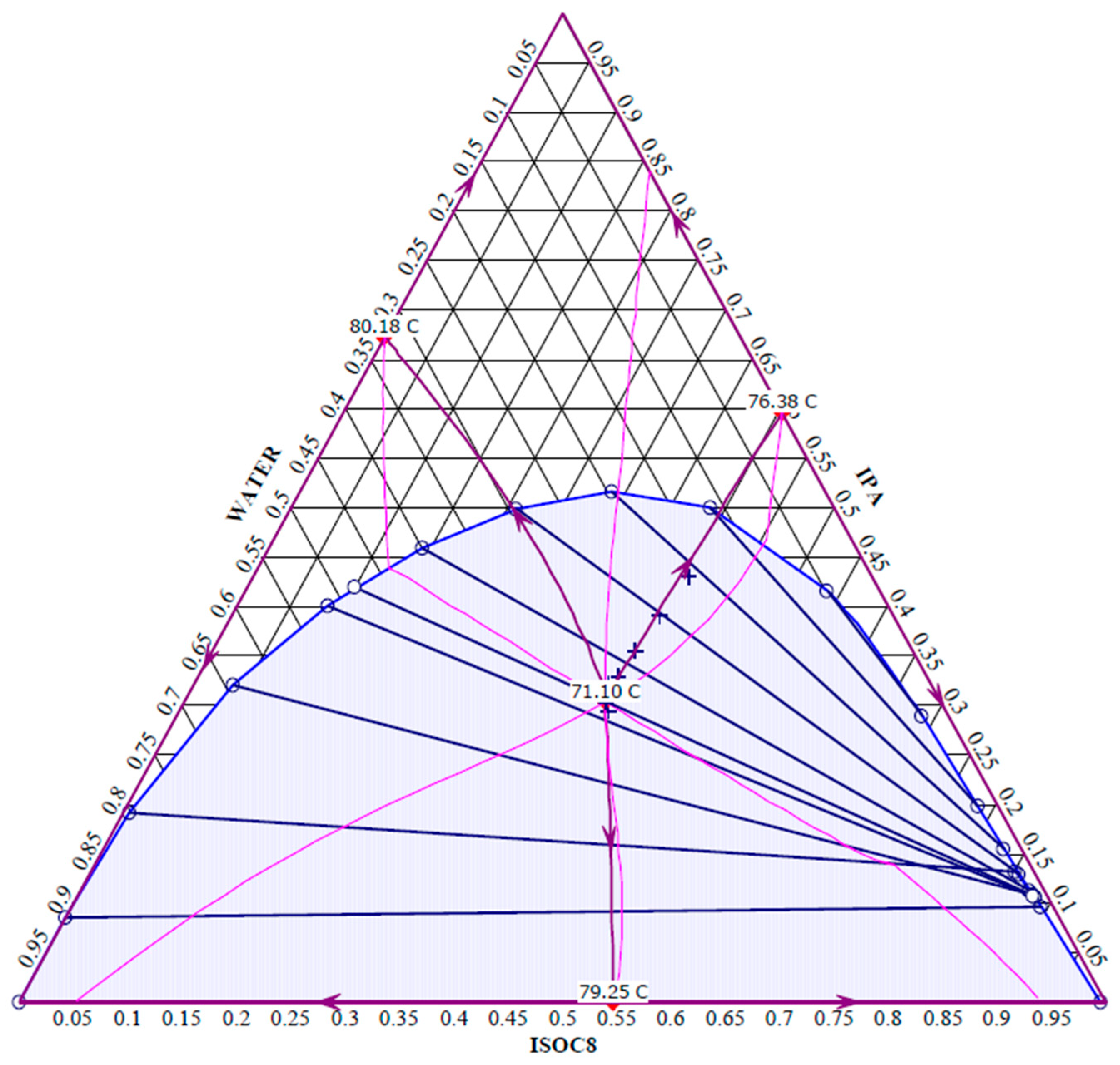

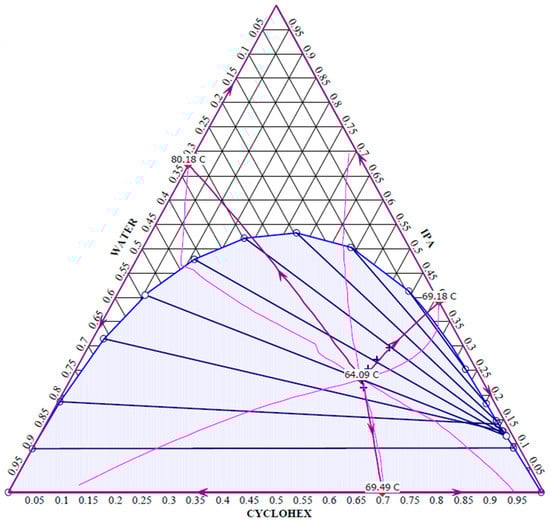

In order to compare the performances of the various entrainers, ternary maps showing the heterogeneous azeotrope point, the liquid–liquid phase splitting region and the associated tie lines have to be considered. Figure 2, Figure 3 and Figure 4 represent such diagrams, respectively, in case of the systems 2-propanol + water + benzene, 2-propanol + water + cyclohexane, and 2-propanol + water + isooctane.

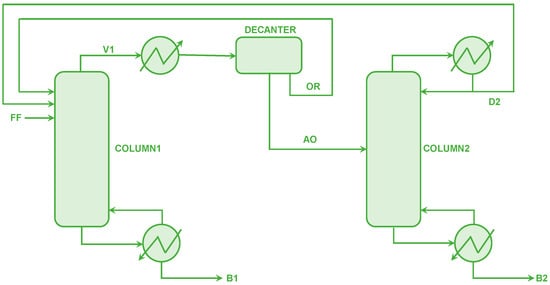

According to Luyben and Chien [39], the comparison of entrainers’ performances has to be carried out by making particular reference to the material balance lines associated with the process inside the ternary maps. As a matter of fact, if we are considering an ideal case, as illustrated in Figure 1, for the separation of the fresh feed (FF), the bottom stream (B1) of the heteroazeotropic column (COLUMN1) reaches the composition of pure 2-propanol, whilst the top vapor stream (V1) approaches the ternary azeotrope. The stream D2, instead, exiting the top of the recovery column, is located at the distillation boundary. Thus, with reference to such an ideal case, the flowrate of the vapor stream from the top of the heterogeneous azeotropic column can be estimated by means of Equation (1), where b and a are obtained by drawing a line between the summation point FF + D2 and the organic reflux exiting the decanter (OR), and a line between B1 and V1 inside the ternary diagram:

$$V1 flowrate=B1 flowrate\times \frac{b}{a}$$

(1)

As a consequence, the position of the ternary azeotropic point and the slope of the tie line passing through it are fundamental. Indeed, the estimated vapor flowrate is much lower if the ternary heterogeneous azeotrope is located lower and if the OR point is placed more favorably in the ternary diagram, i.e., so that the material balance line drawn from the point of FF + D2 to the point of OR is such that it is not very closed to the point of the ternary azeotrope, which would lead to a greater top vapor flowrate from the lever rule. As a result of a lower vapor flowrate from the HAD column, a lower OR flowrate is sent back to the heterogeneous azeotropic column, and a much lower flowrate of the aqueous stream (AO) exits the decanter and enters the entrainer recovery column. In other terms, less reboiler duty is required to generate the boil-up, and smaller diameters are found. Ultimately, from this perspective, the best ideal entrainer to be added is the one that only forms one additional minimum-boiling heterogeneous azeotrope with water. As a matter of fact, if we examine the corresponding ternary map, the flowrate of the vapor stream from the top of the heterogeneous azeotropic column would be further reduced.

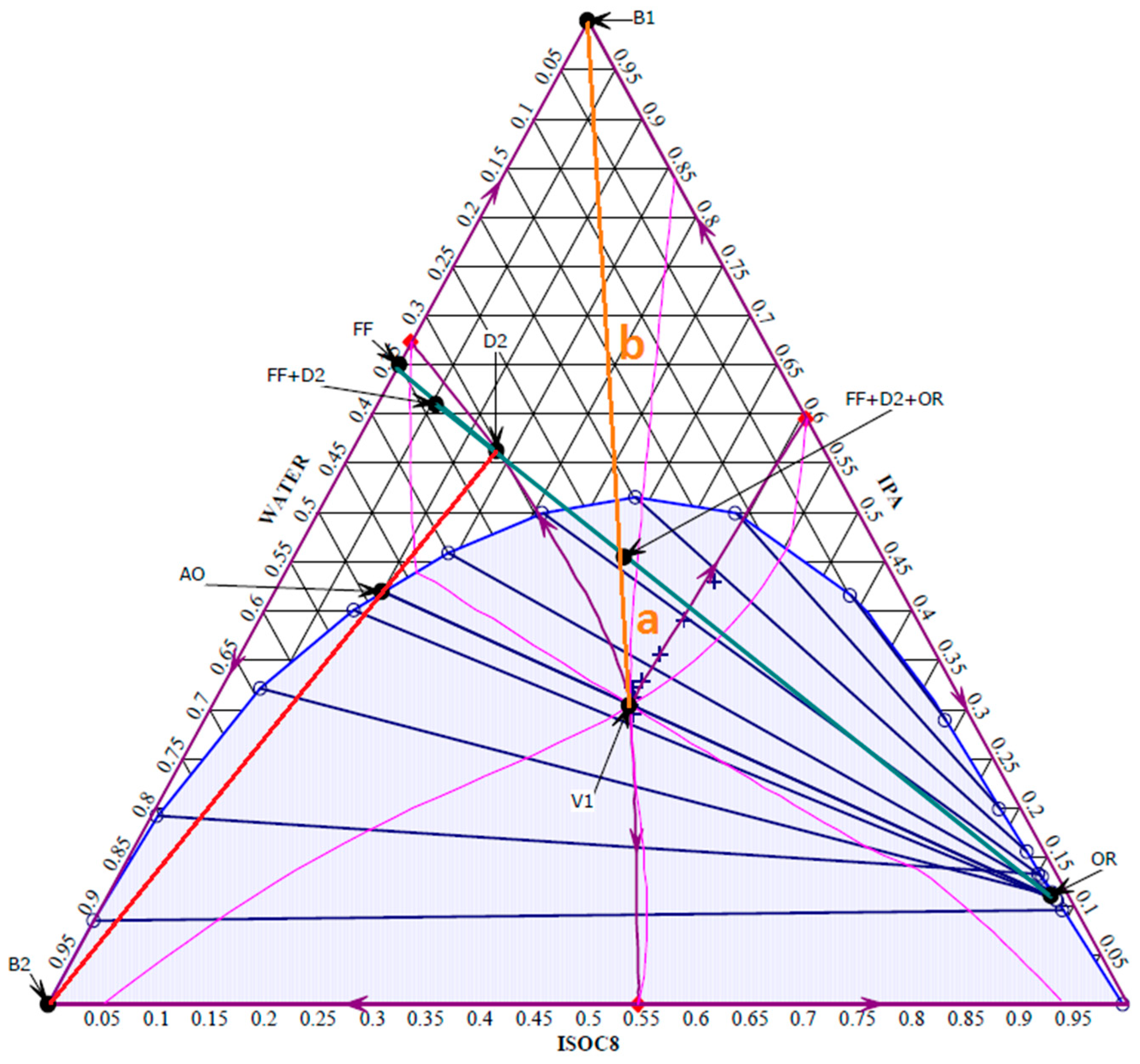

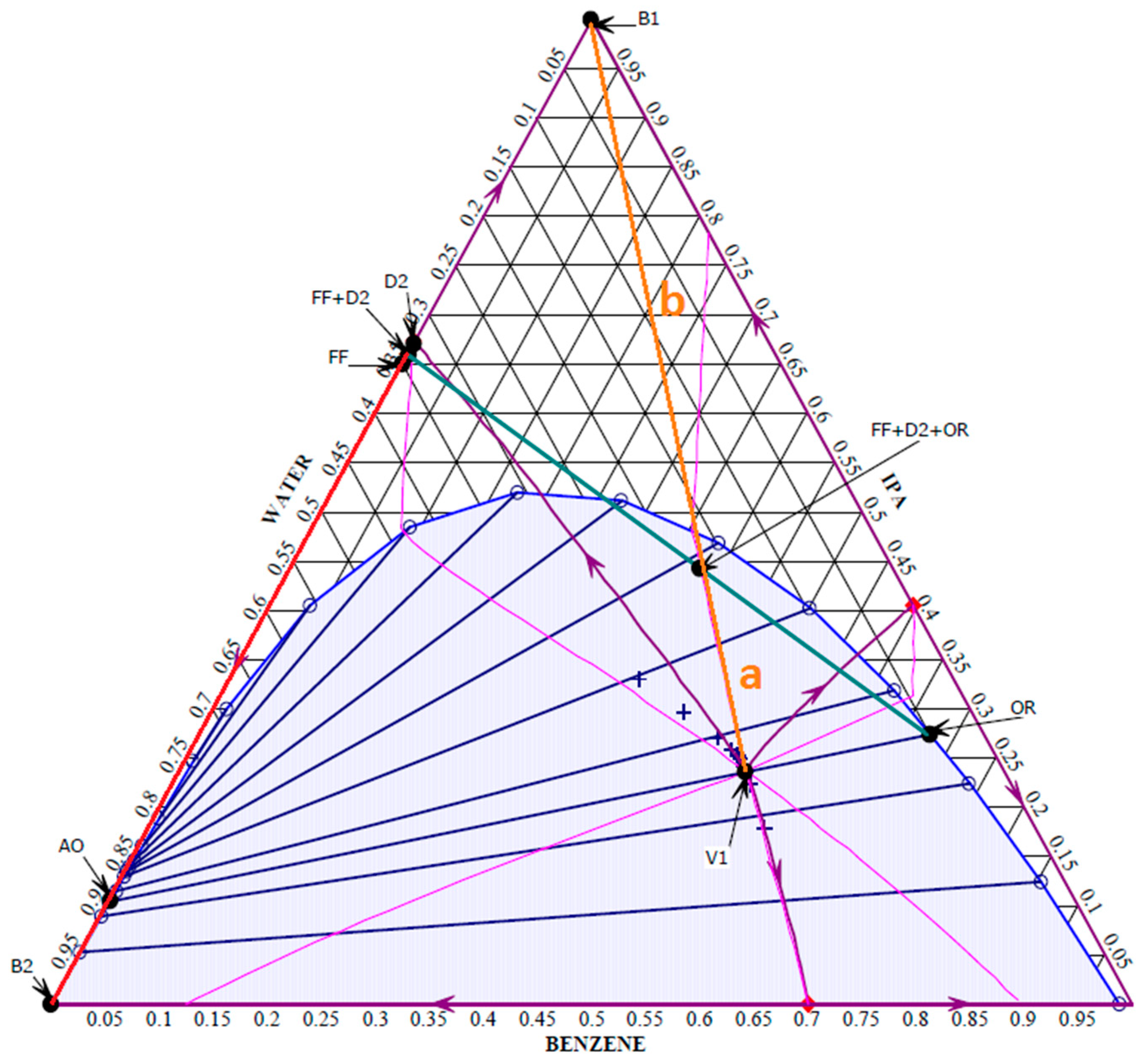

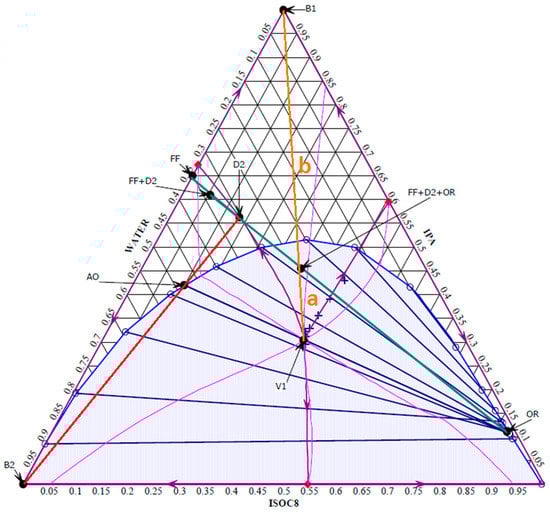

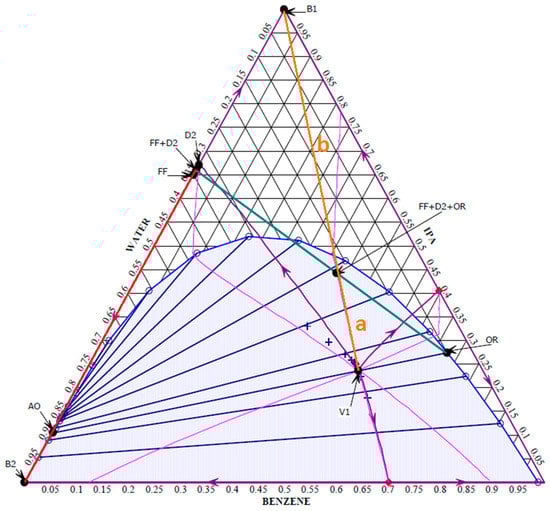

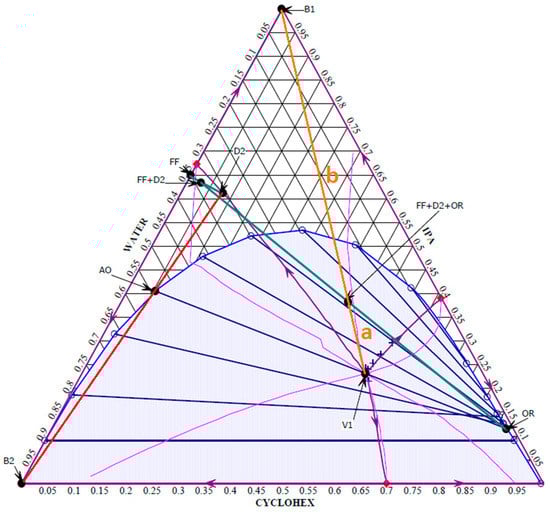

Hence, in order to compare the entrainers, Figure 5, Figure 6 and Figure 7 show the ternary diagrams with the material balance lines associated with the heterogeneous azeotropic distillation process. As can be noticed by examining b and a for the various cases, benzene turns out to be the best possible entrainer, followed by isooctane and cyclohexane.

Additional papers can be considered in order to compare the various candidate entrainers [30,33,37,44,69]. In particular, with reference to what was reported by Gomis, Pienaar and their co-workers [30,33,44], the comparison of solvent performances should be based on the slope of the tie line passing through the heteroazeotropic point. As a matter of fact, the efficiency of the process is improved when the amount of water eliminated in the decanter of the heterogeneous azeotropic distillation column is greater. Therefore, by considering that the vapor stream exiting the top of the column is close to the heteroazeotropic point, the composition of the aqueous phase of the tie line containing the heteroazeotrope is related to the amount of water eliminated after condensation and decantation: when the water content of the aqueous phase is lower, a larger quantity of all of the components needs to be recirculated within the system (OR stream), with a consequent increase in the operating costs. Thus, by examining the ternary maps shown in Figure 2, Figure 3 and Figure 4, it can be noticed that the water content in the case of benzene as an entrainer is much higher (ca. 90% mol) than in the case of cyclohexane (ca. 60% mol) or isooctane (ca. 58% mol). Consequently, benzene can be regarded as the best entrainer for the separation of the 2-propanol + water mixture, whilst, with reference to cyclohexane and isooctane, remarkable differences are not found.

The analysis carried out with the aid of the ternary maps allows the observation that benzene is the most appropriate entrainer as far as the HAD process is concerned for the separation of the mixture under investigation. Nevertheless, as it is carcinogenic, alternative solvents need to be found: in addition to cyclohexane, which was already analyzed in several literature papers (as summarized in Table 2), isooctane can be reasonably taken into consideration. Indeed, cyclohexane and, even more, isooctane do not pose a problem within the recovered alcoholic fraction with a view to its subsequent use as a fuel.

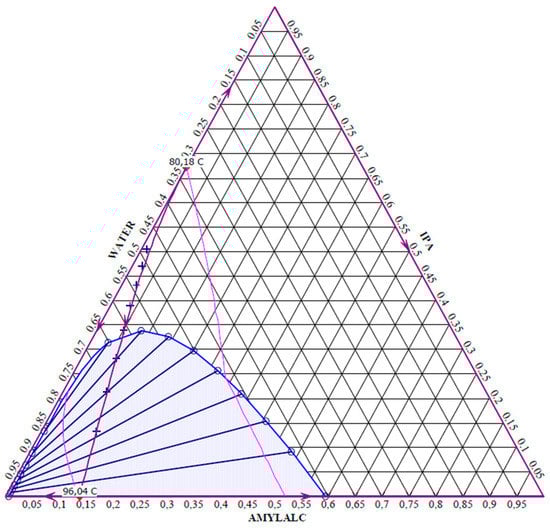

On the contrary, amyl alcohol is not directly comparable to the other entrainers, as it entails the formation of a binary heterogeneous azeotrope, which is not even minimum-boiling: the ternary diagram conformation, shown in Figure 8—and, in turn, the required process configuration—are unavoidably different from the ones envisaged so far (as shown in Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7). Nonetheless, amyl alcohol might be considered as a potential solvent, with its own process configuration, and it might turn out to be even better than benzene, cyclohexane and isooctane, as the water content in the aqueous phase exiting the decanter would be approximately equal to 100%. However, a conflicting aspect has to be unavoidably considered: because the homogeneous 2-propanol + water (67.28–32.72% mol) azeotrope is characterized by a normal boiling point temperature of 80.18 °C, the 2-propanol, with a normal boiling point temperature of 82.05 °C, corresponds to a saddle point. It is, thus, evident that a process configuration involving amyl alcohol as an entrainer cannot work: if we are trying to simulate the heterogeneous azeotropic distillation column in order to obtain the required alcohol from the top and the heteroazeotrope from the bottom, it would not be possible to reach a distillate composition beyond that of the 2-propanol + water homogeneous azeotrope.

As a result of the analysis presented above, isooctane was regarded as a feasible and viable entrainer for the separation of the 2-propanol + water mixture, thus filling the gap existing in the literature due to the lack of studies on the process for the separation of such a mixture using isooctane as an entrainer.

3.2. Process Simulation

According to the outcomes of the entrainer selection analysis presented in the previous section, the simulation of the HAD process with the use of isooctane was carried out by means of the Aspen Plus^® V11 [61] commercial software.

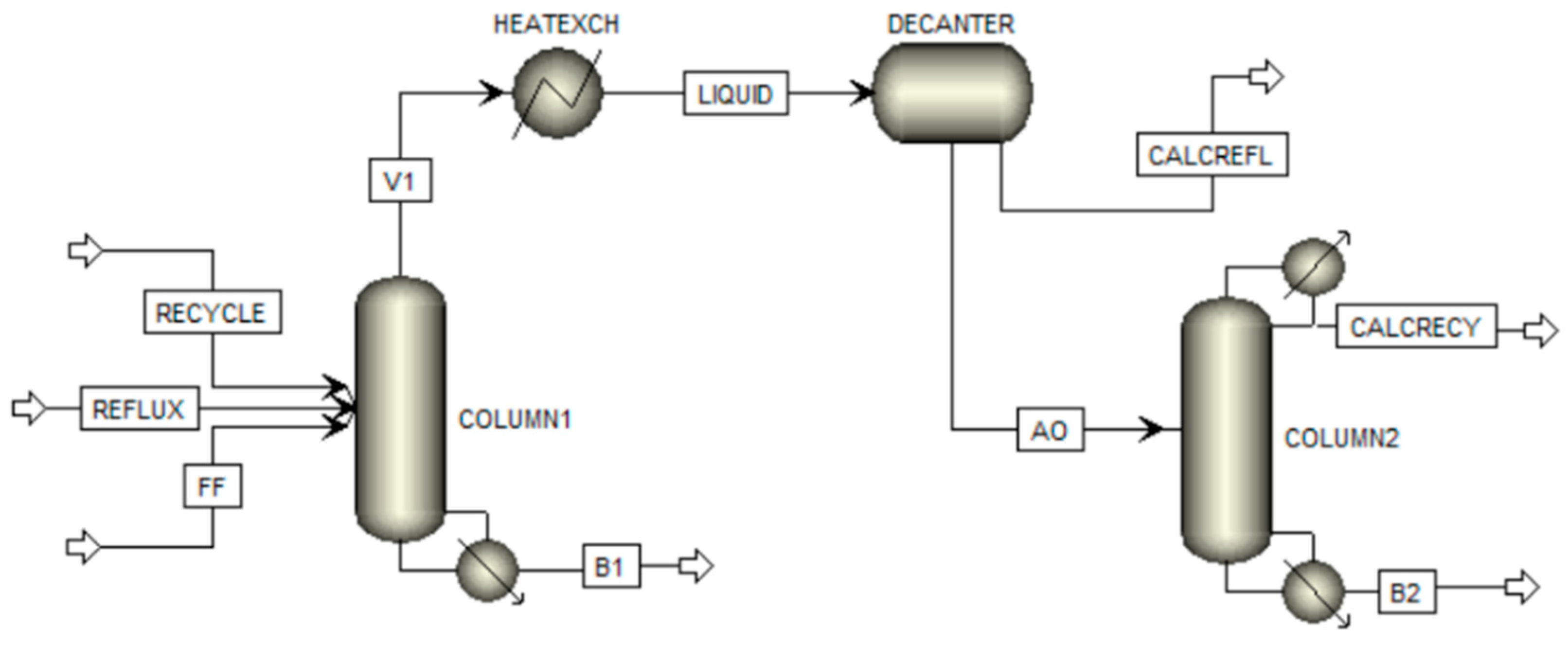

In more detail, several attempts have been made to properly simulate the configuration and meet the targets related to the 2-propanol product fraction and the aqueous stream: as highlighted by Luyben [24], the simulation of the two columns involved in such a process is extremely challenging because of the need to converge the two recycle streams in a highly non-ideal phase equilibrium system. Consequently, at first, the process configuration shown in Figure 9, with the two recycle streams (REFLUX and RECYCLE) not closed, was simulated: by referring to Luyben’s work and by examining the ternary map for the system under investigation, first-guess values were considered for the definition of the REFLUX and RECYCLE streams, and calculated values were obtained (CALCREFL and CALCRECY in Figure 9). As a subsequent step, the first-guess values were manually adjusted in an attempt to reduce, as far as possible, the extremely high variations related to the REFLUX/CALCREFL and RECYCLE/CALCRECY flowrates, composition and temperatures. For this purpose, Aspen Plus Dynamics^® was also exploited: the sizing of the process vessels as well as the checking of the pressure levels throughout the flowsheet were carried out, and the process simulation, with all of the pumps and valves required, was exported from Aspen Plus^® to Aspen Plus Dynamics^®. After much effort, the problem of converging the recycle streams and closing the two loops was solved (Figure 10).

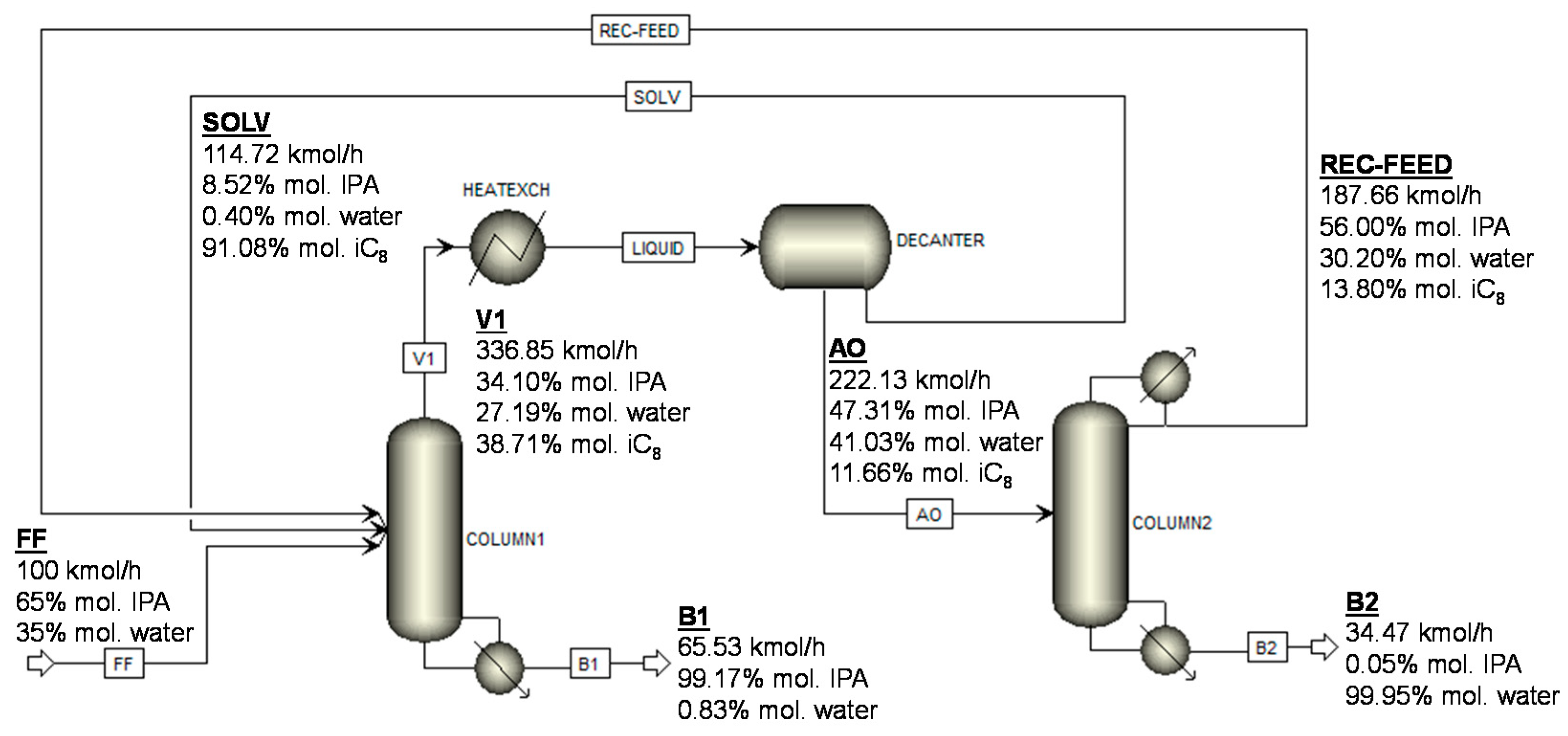

The results obtained imply that, in the case of 100 kmol/h of the 2-propanol + water mixture, available at 25 °C, a heteroazeotropic column (COLUMN1) with 30 stages, excluding the condenser, is required. The feed mixture to be separated enters the column at stage number 3 (counting from the top). Instead, the inlet stage for the organic phase (SOLV, 114.72 kmol/h) exiting the DECANTER is number 1, and the inlet stage for the stream (REC-FEED, 187.66 kmol/h) exiting the top of the recovery column (COLUMN2) is number 2. Moreover, the diameter of COLUMN1 turns out to be equal to 1.663 m. The energy consumption related to the reboiler is equal to 4.019 MW, whilst the duty of the heat exchanger (HEATEXCH) needed for the condensation of the top vapor stream turns out to be 3.529 MW.

A decanter (DECANTER) and a recovery column (COLUMN2) with 25 stages are also necessary. The aqueous stream (AO) exiting the decanter enters the column at stage number 10 (counting from the top). In addition, COLUMN2′s condenser duty, reboiler duty and diameter turn out to be equal, respectively, to 8.395 MW, 8.756 MW and 2.122 m.

Further considerations related to the temperature levels at the top and at the bottom of the columns should be made. The HAD process is characterized by COLUMN1′s condenser and reboiler being operated at 71.12 °C and 81.95 °C, respectively: cooling water can be used at the condenser, while even exhaust steam can be used at the reboiler. On the contrary, for COLUMN2, 72.64 °C is the operating temperature of the condenser and 99.64 °C is the operating temperature of the reboiler. Thus, cooling water can also be employed at the condenser in this case, and low-pressure steam is required for the operation of the reboiler.

By applying such a process, the two required targets are met: the water content within the 2-propanol stream is equal to 2500 ppm by weight, whilst the ThOD value of the aqueous stream exiting the bottom of COLUMN2 is estimated to be 3.671 gO₂/L. A further consideration is related to the ratio, equal to 3.4, between the flowrate of the aqueous phase (AO) exiting the decanter and entering COLUMN2, and the flowrate of the 2-propanol product stream (B1): evidently, a high flowrate is going from the HAD column to the recovery column, and is recycled back.

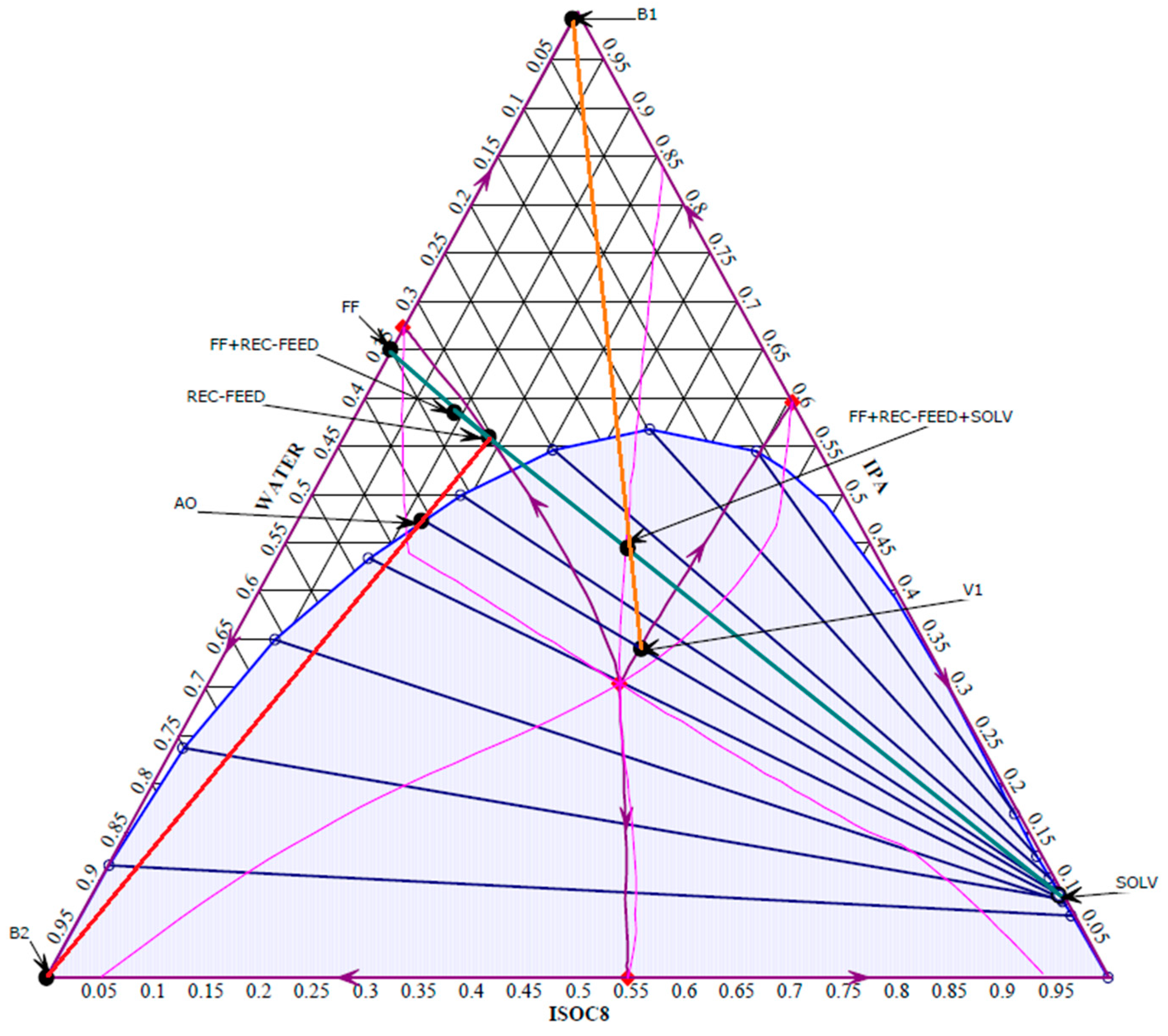

Figure 11 summarizes the results obtained by making reference to the ternary map for the system under study: the points corresponding to the various streams in Figure 10 as well as the material balance lines for the two columns are shown.

4. Conclusions

The dehydration of azeotropic alcoholic mixtures is essential in downstream separations involved in biofuel production, and alternative processes to conventional distillation need to be considered. In this context, this work was focused on the analysis of the heterogeneous azeotropic distillation (HAD) process, with the aim of dehydrating a 2-propanol + water (65–35% mol) mixture and obtaining an alcoholic product stream to be used as a biofuel. The scope of this work was to fill the gap existing in the pertinent literature due to the analysis of heterogeneous azeotropic distillation processes for the dehydration of aqueous 2-propanol mixtures with the use of isooctane as an entrainer. Indeed, solvents that are typically considered to produce dehydrated 2-propanol streams are benzene and cyclohexane. On the other hand, isooctane is usually employed for the separation of ethanol + water mixtures, whilst the few papers available on 2-propanol + water + isooctane ternaries are related to the examination of the potentialities of such an entrainer for 2-propanol dehydration, without reference to process analysis.

By referring to the triangular maps of the corresponding ternaries, the performances of various candidate entrainers have been compared: benzene turns out to be the most appropriate entrainer to be used for the separation. Nevertheless, as it is carcinogenic, alternative entrainers are necessary, and in that regard, isooctane can be identified as a feasible and viable option. On the contrary, the possibility of using amyl alcohol as entrainer has to be discarded.

The simulation of the process with the use of isooctane as an entrainer, which was not reported in previous literature works, was carried out by means of the Aspen Plus^® V11 commercial simulation software using the NRTL thermodynamic model with built-in parameters. The procedure that was followed to overcome the difficulties experienced in closing the loops related to the two recycle streams to the heteroazeotropic column (namely, the organic phase exiting the decanter and the distillate stream exiting the top of the recovery column) was explained, and the results were discussed with the aid of the corresponding ternary map, which showed the points representing the different streams at stake together with the material balance lines. The simulated process was able to recover 2-propanol with a water content limited to 2500 ppm by weight from the bottom of the first column, and to obtain water from the bottom of the second column at a mole purity of 99.95% to limit the impact on the downstream water treatment process. Considering 100 kmol/h of 2-propanol + water mixture to be separated, the energy consumptions are related to the reboiler (4.019 MW) and the condenser (3.529 MW) of the first column, and to the reboiler (8.756 MW) and condenser (8.395 MW) of the second column.
