Article

Water-Driven Structural Transformation in Cobalt Trimesate Metal-Organic Frameworks

by
Jayashree Ethiraj
1,2,*,
Vinayagam Surya
1,
Parasuraman Selvam
1,3,4,* and
Jenny G. Vitillo
5,*
1
National Centre for Catalysis Research, Department of Chemistry, Indian Institute of Technology Madras, Chennai 600 036, India
2
Center for Nanoscience and Technology, Chennai Institute of Technology, Kundrathur, Chennai 600 069, India
3
School of Chemical Engineering and Analytical Science, The University of Manchester, Manchester M13 9PL, UK
4
Department of Chemical and Process Engineering, University of Surrey, Guildford, Surrey GU2 7XH, UK
5
Department of Science and High Technology and INSTM, University of Insubria, Via Valleggio 9, 22100 Como, Italy
*
Authors to whom correspondence should be addressed.
Energies 2021, 14(16), 4751; https://doi.org/10.3390/en14164751
Submission received: 28 May 2021 / Revised: 30 July 2021 / Accepted: 3 August 2021 / Published: 5 August 2021
(This article belongs to the Special Issue Recent Progress in Metal-Organic Frameworks for Energy-Related Applications)
Browse Figures
Versions Notes

Abstract

:
We report on the synthesis and the characterization of a novel cobalt trimesate metal-organic framework, designated as KCL-102. Powder X-ray diffraction pattern of KCL-102 is dominated by a reflection at 10.2° (d-spacing = 8.7 Å), while diffuse reflectance UV-Vis spectroscopy indicates that the divalent cobalt centers are in two different coordination geometries: tetrahedral and octahedral. Further, the material shows low stability in humid air, and it transforms into the well-known phase of hydrous cobalt trimesate, Co3(BTC)2·12H2O. We associated this transition with the conversion of the tetrahedral cobalt to octahedral cobalt.

Graphical Abstract

1. Introduction

In the past 25 years of research on metal-organic frameworks (MOFs) [1], MOFs set a benchmark as a highly porous class of materials with characteristic physical and chemical properties. MOFs were extensively studied for gas adsorption [2,3,4], gas separation [3,5], gas storage [6], gas sensing [7], heterogeneous catalysis [8,9], luminescence [10], and drug delivery [11,12]. In recent studies, MOFs were widely studied and regarded as active materials for supercapacitors owing to their flexible structure and outstanding porosity, which also includes electrochemical applications [13] drawing attention to electronic properties and dielectric response [14]. Cobalt-based MOFs were studied for various applications, such as for removal of Pb ions from aqueous solution [15] to materials for post-combustion CO2 capture [16]. Nevertheless, among the most intriguing applications for Co-MOFs, there is the low-dimensional magnetism. Divalent cobalt centers in MOFs offer the opportunity to realize low dimensional magnetism studies [17,18]. In fact, the different arrangements that cobalt ions can have in the MOFs metal nodes (chains [19], single atoms [20], paddle wheel [21]) allows one to obtain materials with very peculiar magnetic properties. The possibility to design the materials with such precision at the atomic scale is unprecedented for magnetic materials. Cobalt oxides are among the most studied materials for water splitting [22]. Co-O species in MOFs were exploited for the same aim; in fact, cobalt MOFs were reported to be active catalysts for hydrogen evolution reactions [23] and oxygen evolution and reduction reactions [24]. Co-MOFs started to gain attention in energy sectors as electrode materials for supercapacitors, and they can be classified into two main groups: (i) MOFs as excellent precursors for synthesis of porous transition metal oxides, carbon, or metal oxides embedded in porous carbon matrices [25,26]; (ii) MOFs directly used as electrode materials for supercapacitors due to their porosity and metal cations providing the accommodation space of electrolytes and the redox active sites [27,28]. Nevertheless, relatively few cobalt MOFs are reported to date, e.g., ZIF-67 (cobalt-2methylimidazoate framework, [20]), Co-ZIF-9 (cobalt-benzimidazolate framework, [29]), DUT-8 (Co2(NDC)2DABCO, NDC = 2,6-napththalene dicarboxylate, DABCO = 1,4-diazabicyclo[2.2.2]octane, [30]), Co-MOF-74 and CPO-27-Co (cobalt-2,5 dihydroxyterephthate framework, [31]), Co-UTSA-16 (K2Co3(cit)2, cit = fully dehydroxylated citrate anion, [32,33]), Co-BDP (cobalt-1,4-benzenedipyrazolate framework, [34]), Co2(BDC)2(DABCO) (BDC = benzenedicarboxylate, [30]), and Co2Cl2(BTDD) (BTDD = bis(1H-1,2,3- triazolo[4,5-b],[4′,5′-i])dibenzo[1,4]dioxin, [19]).
Cobalt trimesates (Co-BTC, BTC = benzene-1,3,5-tricarboxylate) were reported previously. A search on the Cambridge Structural Database (CSD) indicates the presence of 27 deposited structures with cobalt and trimesate [35]. The first material reported as a metal-organic framework by Yaghi et al. in 1995 was a cobalt trimesate [36]. Other cobalt trimesates were reported since then for very different applications [37,38,39,40,41,42,43,44,45]. Among them, Co3(BTC)2·12H2O [46] is particularly interesting for energy related applications. Tan et al. [47] suggested Co3(BTC)2·12H2O as a catalyst for CO oxidation, and Yaqoob et al. [48] proved Co3(BTC)2·12H2O and its nanocomposites with rGO to be promising for oxygen evolution reaction. This material showed also a very high thermal stability, reported to be up 450 °C [47]. On the other hand, a mixed nickel and cobalt 1,3,5-benzenetricarboxylate (Ni-Co-BTC) was proposed as anode material for lithium-ion batteries [49].
Herein, we report a solvothermal process to obtain a Co-BTC MOF (KCL-102) which has a quite different powder X-ray diffraction (PXRD) pattern than the reported Co-BTCs. We investigated the stability of this novel Co-BTC after contact with air and water by using PXRD, scanning electron microscopy (SEM), thermogravimetry (TG), and diffuse ultraviolet-visible spectroscopy (DRUV-Vis). KCL-102 is not stable in moisture. Nevertheless, unlike most parts of MOFs that become amorphous upon contact with water, it undergoes a phase transformation to another crystalline phase, non-porous Co-BTC, the previously reported Co3(BTC)2·12H2O [46].

2. Materials and Methods

All the chemicals were purchased from Sigma Aldrich and were used without any further purification. Table 1 lists three different synthesis parameters for the preparation of KCL-102. KCL-102 was synthesized using benzene-1,3,5-tricarboxylic acid (BTC) and cobalt nitrate hexahydrate in 1:2 (molar ratio). At first, BTC was dissolved in 100 mL DMF and 50 mL Millipore water mixture. The cobalt source was then added to the solution and stirred until it completely dissolved (~15 min). The solution was transferred to a 250 mL Teflon lined autoclave and kept in preheated oven at 140 °C for 1–2 h. The resulting precipitate was filtered and dried at 50 °C for 2 h, washed with DMF, and dried again at 50 °C for 2 h.
PXRD patterns were recorded using a Rigaku Miniflex tabletop diffractometer equipped with a Cu X-ray tube (Kα1 = 1.540562 Å) with fixed tube voltage of 30 kV and output current of 15 mA; it was also equipped with a graphite monochromator. The diffraction patterns were collected in Bragg Brentano geometry in the 3–70° 2θ range with step size of 0.02°. The simulated powder diffraction pattern of Co3(BTC)2·12H2O was obtained by using the structure reported in Ref. [46] by employing the program Mercury 2020.2.0 [50]. SEM images were obtained with an FEI 400 instrument operated at 30 kV. TGA was carried out on a TAQ600 (TA Instruments) with a ramp rate of 10 °C/min from room temperature to 700 °C in nitrogen or in dry air flow using an alumina pan.
Infrared (IR) spectra were recorded on JASCO spectrometer in transmittance mode in the range of 4000 to 400 cm−1 using a deuterated triglycine sulfate detector on self-supported pellets obtained by diluting the MOF powder in KBr. DRUV-Vis spectra were recorded on a JASCO 650 spectrometer. BaSO4 was used as the reference standard. The spectra were acquired in air with loose powders diluted in pure BaSO4 placed inside the standard powder cell of the instrument.

3. Results and Discussion

Three batches of KCL-102 were synthesized (see Table 1), and all the samples showed similar PXRD patterns (Figure 1a), indicating the good reproducibility of the synthesis. The reaction yield was not dependent on the reaction conditions used, being 35–40% in all cases. The reaction time was significantly shorter compared to the typical Co3(BTC)2·12H2O synthesis (20–24 h, [46,47]). All the patterns reported in Figure 1a,b were equivalent, and they were all different from the patterns reported for other metal trimesates. The structures used for the comparison were obtained by search in articles collection databases [24,35,36,37,38,39,40,41,42,43,44,45,46,48,51,52,53,54] and in the Cambridge Structural Database (CCSD, [55]) using as a query in ConQuest one cobalt atom bound to one oxygen atom of a BTC linker and coordinated to two additional oxygen atoms through a single bond. The most intense reflection of the pattern was centered at 10.2°, corresponding with a d-spacing of 8.7 Å. No variation was observed in the diffraction patterns after DMF washing (blue line, Figure 1b).
KCL-102 is not stable in air for a prolonged time. The material dried at 50 °C and left in the air was found to undergo to a phase transformation that was completed in one week, and the resulting sample was designated as KCL-102-air following. This structural transformation was ascribable to moisture (see below), and the conversion was much faster upon contacting KCL-102 with a droplet of water and drying it in the air (KCL-102-H2O). A similar observation was previously noticed for MOFs in the presence of protic solvents [56]. KCL-102-air and KCL-102-H2O were fully equivalent from their characterization. In the following, only the results obtained for KCL-102-air are reported. The phase transformation was accompanied by a change in the color from violet (KCL-102) to pale pink (KCL-102-air and KCL-102-H2O). Likewise, the color change was also observed in the reaction mixture left in the air after a few days. A first attempt to measure the surface area of KCL-102 was made, thermally treating the sample in vacuum at 100 °C and 150 °C. Unfortunately, the desorption of a large amount of solvent (likely DMF) from the sample to the measurement cell hindered the isotherm collection. Future studies should be aimed at the determination of a washing procedure for the removal of DMF from the sample, e.g., using low boiling solvents.
The diffraction patterns recorded for the as-made KCL-102 (blue line) and KCL-102-air (light magenta) are presented in Figure 2a. It can be seen from this figure that the two patterns were significantly different. Noteworthy, the diffraction pattern of KCL-102-air corresponded to the Co3(BTC)2·12H2O pattern (see Figure 2a), a non-porous MOF reported formerly by Yaghi et al. [46] that was suggested as a catalyst for CO oxidation [47] and a promising candidate for oxygen evolution reaction [48]. The structure of Co3(BTC)2·12H2O as in Ref. [46] is reported in Figure 2b. Nevertheless, some additional reflections were identified in the KCL-102-air that were not present in the Co3(BTC)2·12H2O pattern at 9.3°, 12.5°, 23.2°, and 23.5°. Among them, the most intense were the reflections at 9.3° and 12.5°. These reflections could not be indexed as belonging to the expected products from KCL-102 decomposition (Co(OH)2, Co3O4, and trimesic acid) or to any other reported Co trimesates (Refs. [35,36,37,38,39,40,41,42,43,44,45,46]). Although these peaks could be related to an additional Co trimesate phase, we suggest that they were associated with the formation of mesopores due to framework collapse, as already reported for other MOFs. Unfortunately, the presence of a significant amount of DMF did not allow us to record the nitrogen isotherm for KCL-102-air or to verify this hypothesis.
Figure 3a displays the SEM image of the KCL-102. It can be seen from this image that the material exhibited a well-defined cuboid structure with size ranging from 15 to 20 µm. On the other hand, KCL-102-air (Figure 3b) showed a significantly altered morphology after contact with moisture/air leading to distributed sizes predominantly with needle-shaped particles.
The thermal stability of KCL-102 and KCL-102-air in a flow of dry air or nitrogen was compared by using thermogravimetry (TG). The data obtained for KCL-102 and KCL-102-air are reported in parts a and b of Figure 4, respectively. Regarding KCL-102, it was not possible to assign the different steps in the TG trace, as its chemical formula is unknown (Figure 4a). We were limited to observing that KCL-102 TG trace was not dependent on the reaction environment up to 350 °C (Figure 4a), with temperature corresponding to about 10% weight loss. This result indicated a significant thermal stability of KCL-102. The weight loss up to 350 °C was continuous without abrupt changes, and it was likely associated with solvent (water and DMF) and unreacted linker desorption from the MOF pores. Material decomposition started at 350 °C and 450 °C in air and nitrogen, respectively, corresponding to structural water desorption and material decomposition.
The TG traces of the hydrated cobalt trimesate, KCL-102-air, in a flow of dry air (dashed line) or nitrogen (solid line) are reported in Figure 4b. Regarding TG collected under nitrogen atmosphere, it can be seen from this figure that a substantial weight loss between 100–400 °C (~26 wt%) could be attributed to the removal of the coordinated water molecules. This result was similar to that reported by Crane et al. [38]. The plateau extended up to 450 °C, indicating the larger thermal stability of Co3(BTC)2·12H2O compared to KCL-102. The second stage weight loss (~30 wt%) evidenced in the temperature range 450–525 °C could be associated with framework collapse leading to the formation of Co(OH)2 (34.5 wt%) followed by a continuous weight loss to Co3O4 (29.8 wt%).
As expected, a similar behavior was observed for the sample heated in air (dashed line in Figure 4b), however, with the onset temperatures shifted to lower values. In this case, a plateau was reached at 420 °C, and that was maintained at least up to 700 °C. The observed weight loss (64 wt%) was close to the one expected for the formation of Co3O4.
We investigated KCL-102 using infrared (FTIR) and UV-Vis spectroscopy in order to gain some knowledge on details of KCL-102 structure. Figure 5 shows the vibration modes of KCL-102 (blue line) and KCL-102-air (pink line) in comparison with the spectra of the trimesic acid (black line) and of MIL-100(Fe), an iron trimesate [57] (brown line). MIL-100(Fe) spectrum was used a standard for the quick identification of carboxylate band and unreacted carboxylic acid groups in KCL-102 and KCL-102-air. The IR spectrum of KCL-102-air matched well with the spectrum reported by Yaghi et al. for Co3(BTC)2·12H2O [46]. In the 3600–2800 cm−1 region, the spectra of KCL-102 and KCL-102-air were clearly dominated by a large band due to the solvent molecules (water and DMF), both structural and physisorbed solvent molecules. The relative intensity of these bands was larger in KCL-102-air than in KCL-102 because of the larger hydration degree of the former. IR absorption bands of the BTC linker were observed in the 1800–400 cm−1 range. For comparison, the spectra of a trimesate salt (MIL-100(Fe), brown line) and of trimesic acid (black line) are also reported in Figure 5. The absorption bands in the ranges 1700–1500 cm−1 and 1500–1300 cm−1 corresponded to νasym(COO) and νsym(COO). These bands were remarkably similar to the ones observed in the iron trimesate. No signals were observed that could be associated with unreacted carboxylic acid. The signal observed at 1681 cm−1 was likely associated with DMF [58]. The band centered at 758 cm−1 in KCL-102 spectrum was previously assigned to ν(C-H) bending mode in HKUST-1, a copper trimesate [59]. Alves et al. [60] reported the FT-IR spectra of nanoparticles of Co3O4: they observed the bands at 567 and 665 cm−1 which were related to the Co-O stretching vibrations. For Co2O3 nanoparticles, the vibrational band was observed at 560 cm−1 owing to the Co–O stretching vibration mode, and 668 cm−1 was the bridging vibration of the O–Co–O bond. The higher band at 668 cm−1 was normal for Co2+–O vibration in a tetrahedral site, and the lower band 560 cm−1 was accredited to the Co3+–O vibration at the octahedral site [61]. In case of Co-BTC, at a lower wavenumber region, two vibrational modes centered at 554 and 455 cm−1 were observed. The vibrational modes corresponding to cobalt oxides falls at 554 cm−1 could be assigned to Co-O stretching vibrational modes. Co-O stretching vibrational mode at 554 cm−1 in KCL-102 was highly perturbed in KCL-102-air, hinting at the changes in coordination around Co2+.
Diffuse reflectance UV-vis (DR-UV-vis) provides information on the oxidation state and on the coordination of the cobalt, that is, the number of the ligands, their symmetry, and their chemical nature. Moreover, oxidation states different than 2+ cannot be excluded a priori for cobalt. As mentioned above, the phase transition caused a change in the color of the powder from violet of KCL-102 (Figure 6c) to pink of KCL-102-air (Figure 6d). A synthetized Co3(BTC)2·12H2O was a pink powder [44]. A violet color was, in general, associated with the copresence in cobalt-based materials of Co centers in both octahedral and tetrahedral coordination [32]. This was, for example, the case of UTSA-16, the spectra of which were characterized by two peaks at 527 and 566 nm due to d-d transitions in Co(II) in octahedral and tetrahedral geometry (see black line in Figure 6b and discussion in Ref. [32]). In Figure 6b (green curve), another Co(II) based MOF, ZIF-67, having all the cobalt centers in tetrahedral coordination is reported as a reference. The spectra of KCL-102 samples before and after the exposure to air confirmed the divalent state of the cobalt centers. KCL-102 spectrum (blue curve in Figure 6a) showed two bands at 520 and 578 nm that were then assigned to d-d transitions of Co(II) centers in octahedral and tetrahedral geometry in analogy to UTSA-16. KCL-102 peaks were less defined than UTSA-16, suggesting a heterogeneous nature of the two families of cobalt centers. The Co3(BTC)2·12H2O structure is known [46]. Cobalt ions in the materials were all in octahedral coordination, although of two different kinds: one coordinated with four H2O molecules and two O belonging to the same COO- group, while the other one coordinated with four H2O molecules and two O belonging to two different COO- groups (Figure 6e). Accordingly, KCL-102-air spectrum (pink spectrum in Figure 6a) was characterized by a complex broad band centered at 540 nm. The low intensity signal at 578 nm could be associated with residual KCL-102.

4. Conclusions

We report here a novel cobalt trimesate, KCL-102, and we verified the high reproducibility of its synthesis protocol. KCL-102 is characterized by a large thermal stability in nitrogen and dry air (up to 350 °C), as verified by thermogravimetry. Nevertheless, KCL-102 is unstable in air, and it undergoes a slow phase transformation (for about a week) to its hydrated form, Co3(BTC)2·12H2O. This transformation is very quick in direct contact with water. Furthermore, unlike several other MOFs, KCL-102 does not become amorphous upon hydration, but it is converted to a well-known crystalline phase, Co3(BTC)2·12H2O. Various physico-chemical characterization results indicate the presence of tetrahedrally and octahedrally coordinated Co(II) in the KCL-102 framework, while in Co3(BTC)2·12H2O, only octahedrally coordinated Co(II) are present, suggesting a water-induced phase transformation that causes the conversion of the tetrahedral Co(II) to octahedral Co(II). At this juncture, it is to be noted here that the main difference between the synthesis protocols of KCL-102 and Co3(BTC)2·12H2O is the shorter reaction time of the former, being 2 h for KCL-102 and 20–24 h for Co3(BTC)2·12H2O. The presence of cobalt centers having an oxidation state different than 2+ was excluded in this study based on the UV-Vis measurements, although these results should be confirmed also by means of other techniques such as X-ray photoelectron spectroscopy (XPS), X-ray absorption near edge spectroscopy (XANES), or superconducting quantum interference device (SQUID).
Future investigations should be aimed at the determination of the KCL-102 structure and surface area and to its testing for the several energy-related applications where cobalt-based MOFs are known to be excellent in regard to water harvesting, heat exchangers, oxygen reduction reaction (ORR), oxygen evolution reaction (OER), and CO and other oxidation reactions [54].

Author Contributions

Conceptualization, J.E. and P.S.; Methodology, J.E. and V.S.; Software, J.G.V.; Validation, P.S. and J.G.V.; Formal analysis, J.E.; Investigation, J.E. and V.S.; Resources, P.S.; Data curation, J.E. and V.S., J.G.V. and P.S.; Writing—original draft preparation, J.E.; Writing—review and editing, J.G.V. and P.S.; Visualization, J.G.V.; Supervision, P.S.; Project administration, P.S.; Funding acquisition, P.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

P.S. would like to thank the Department of Science and Technology (DST), New Delhi for instituting National Centre for Catalysis Research (NCCR) at Indian Institute of Technology-Madras (IITM). J.E. acknowledges the financial support from IITM in the form of Institute Post-Doctoral Fellowship (IPDF) and Chennai Institute of Technology, Chennai for support and encouragement. The authors acknowledge Marco Milanesio (Università del Piemonte Orientale, Italy) for useful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ralph, F.; Stefano, C.; Seth, M.C.; Wei, Y.; Hexiang, D.; Vincent, G.; Mohamed, E.; David, G.M.; David, F.-J.; Hao, L.; et al. 25 years of Reticular Chemistry. Angew. Chem. Int. Ed. 2021. [Google Scholar] [CrossRef]
  2. Alhamami, M.; Doan, H.; Cheng, C.-H. A Review on Breathing Behaviors of Metal-Organic-Frameworks (MOFs) for Gas Adsorption. Materials 2014, 7, 3198–3250. [Google Scholar] [CrossRef]
  3. Li, H.; Wang, K.; Sun, Y.; Lollar, C.T.; Li, J.; Zhou, H.-C. Recent advances in gas storage and separation using metal-organic frameworks. Mater. Today 2018, 21, 108–121. [Google Scholar] [CrossRef]
  4. Wanigarathna, D.K.J.A.; Gao, J.; Liu, B. Metal organic frameworks for adsorption-based separation of fluorocompounds: A review. Mater. Adv. 2020, 1, 310–320. [Google Scholar] [CrossRef]
  5. Songolzadeh, M.; Soleimani, M.; Ravanchi, M.T.; Songolzadeh, R. Carbon Dioxide Separation from Flue Gases: A Technological Review Emphasizing Reduction in Greenhouse Gas Emissions. Sci. World J. 2014. [Google Scholar] [CrossRef] [Green Version]
  6. Sumida, K.; Rogow, D.L.; Mason, J.A.; McDonald, T.M.; Bloch, E.D.; Herm, Z.R.; Bae, T.-H.; Long, J.R. Carbon Dioxide Capture in Metal-Organic Frameworks. Chem. Rev. 2012, 112, 724–781. [Google Scholar] [CrossRef]
  7. Li, H.-Y.; Zhao, S.-N.; Zang, S.-Q.; Li, J. Functional metal-organic frameworks as effective sensors of gases and volatile compounds. Chem. Soc. Rev. 2020, 49, 6364–6401. [Google Scholar] [CrossRef]
  8. Pascanu, V.; Miera, G.G.; Inge, A.K.; Martin-Matute, B. Metal-Organic Frameworks as Catalysts for Organic Synthesis: A Critical Perspective. J. Am. Chem. Soc. 2019, 141, 7223–7234. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, Q.; Astruc, D. State of the Art and Prospects in Metal-Organic Framework (MOF)-Based and MOF-Derived Nanocatalysis. Chem. Rev. 2020, 120, 1438–1511. [Google Scholar] [CrossRef] [PubMed]
  10. Cui, Y.; Yue, Y.; Qian, G.; Chen, B. Luminescent Functional Metal-Organic Frameworks. Chem. Rev. 2012, 112, 1126–1162. [Google Scholar] [CrossRef]
  11. Cao, J.; Li, X.; Tian, H. Metal-Organic Framework (MOF)-Based Drug Delivery. Curr. Med. Chem. 2020, 27, 5949–5969. [Google Scholar] [CrossRef]
  12. Wang, L.; Zheng, M.; Xie, Z. Nanoscale metal-organic frameworks for drug delivery: A conventional platform with new promise. J. Mater. Chem. B 2018, 6, 707–717. [Google Scholar] [CrossRef]
  13. Punde, N.S.; Rawool, C.R.; Rajpurohit, A.S.; Karna, S.P.; Srivastava, A.K. Hybrid Composite Based on Porous Cobalt-Benzenetricarboxylic Acid Metal Organic Framework and Graphene Nanosheets as High Performance Supercapacitor Electrode. ChemistrySelect 2018, 3, 11368–11380. [Google Scholar] [CrossRef]
  14. Ryder, M.R.; Dona, L.; Vitillo, J.G.; Civalleri, B. Understanding and Controlling the Dielectric Response of Metal-Organic Frameworks. ChemPlusChem 2018, 83, 308–316. [Google Scholar] [CrossRef] [PubMed]
  15. Shooto, N.D.; Ayawei, N.; Wankasi, D.; Sikhwivhilu, L.; Dikio, E.D. Study on cobalt metal organic framework materials as adsorbent for lead ions removal in aqueous solution. Chem. Asian J. 2016, 28, 277–281. [Google Scholar] [CrossRef]
  16. Danaci, D.; Bui, M.; Mac Dowell, N.; Petit, C. Exploring the limits of adsorption-based CO2 capture using MOFs with PVSA—from molecular design to process economics. Mol. Syst. Des. Eng. 2020, 5, 212–231. [Google Scholar] [CrossRef]
  17. Dong, J.-L.; Xie, F.; Du, J.-Q.; Lan, H.-M.; Yang, R.-X.; Wang, D.-Z. Cobalt MOFs base on benzimidazol and varied carboxylate ligands with higher capacitance for supercapacitors and magnetic properties. J. Solid State Chem. 2019, 279, 120917. [Google Scholar] [CrossRef]
  18. Dubskikh, V.A.; Lysova, A.A.; Samsonenko, D.G.; Lavrov, A.N.; Kovalenko, K.A.; Dybtsev, D.N.; Fedin, V.P. 3D Metal–Organic Frameworks Based on Co(II) and Bithiophendicarboxylate: Synthesis, Crystal Structures, Gas Adsorption, and Magnetic Properties. Molecules 2021, 26, 1269. [Google Scholar] [CrossRef] [PubMed]
  19. Rieth, A.J.; Dincă, M. Controlled Gas Uptake in Metal–Organic Frameworks with Record Ammonia Sorption. J. Am. Chem. Soc. 2018, 140, 3461–3466. [Google Scholar] [CrossRef]
  20. Ethiraj, J.; Palla, S.; Reinsch, H. Insights into high pressure gas adsorption properties of ZIF-67: Experimental and theoretical studies. Microporous Microporous Mater. 2020, 294. [Google Scholar] [CrossRef]
  21. Marri, S.R.; Chauhan, N.; Tiwari, R.K.; Kumar, J.; Behera, J.N. Two novel 3D-MOFs (Ca-TATB and Co-HKUST): Synthesis, structure and characterization. Inorg. Chim. Acta 2018, 478, 8–14. [Google Scholar] [CrossRef]
  22. Ghosh, S.; Bloom, B.P.; Lu, Y.; Lamont, D.; Waldeck, D.H. Increasing the Efficiency of Water Splitting through Spin Polarization Using Cobalt Oxide Thin Film Catalysts. J. Phys. Chem. C 2020, 124, 22610–22618. [Google Scholar] [CrossRef]
  23. Han, W.; Li, M.; Ma, Y.; Yang, J. Cobalt-Based Metal-Organic Frameworks and Their Derivatives for Hydrogen Evolution Reaction. Front. Chem. 2020, 8. [Google Scholar] [CrossRef] [PubMed]
  24. Tripathy, R.K.; Samantara, A.K.; Behera, J.N. A cobalt metal-organic framework (Co-MOF): A bi-functional electro active material for the oxygen evolution and reduction reaction. Dalton Trans. 2019, 48, 10557–10564. [Google Scholar] [CrossRef]
  25. Pang, H.; Gao, F.; Chen, Q.; Liu, R.; Lu, Q. Dendrite-like Co3O4 nanostructure and its applications in sensors, supercapacitors and catalysis. Dalton Trans. 2012, 41, 5862–5868. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, B.; Shioyama, H.; Akita, T.; Xu, Q. Metal-Organic Framework as a Template for Porous Carbon Synthesis. J. Am. Chem. Soc. 2008, 130, 5390–5391. [Google Scholar] [CrossRef]
  27. Yang, J.; Xiong, P.; Zheng, C.; Qiu, H.; Wei, M. Metal–organic frameworks: A new promising class of materials for a high performance supercapacitor electrode. J. Mater. Chem. A 2014, 2, 16640–16644. [Google Scholar] [CrossRef]
  28. Liu, X.; Shi, C.; Zhai, C.; Cheng, M.; Liu, Q.; Wang, G. Cobalt-Based Layered Metal–Organic Framework as an Ultrahigh Capacity Supercapacitor Electrode Material. ACS Appl. Mater. Interfaces 2016, 8, 4585–4591. [Google Scholar] [CrossRef] [PubMed]
  29. Ozturk, Z.; Hofmann, J.P.; Lutz, M.; Mazaj, M.; Logar, N.Z.; Weckhuysen, B.M. Controlled Synthesis of Phase-Pure Zeolitic Imidazolate Framework Co-ZIF-9. Eur. J. Inorg. Chem. 2015, 1625–1630. [Google Scholar] [CrossRef]
  30. Tu, T.N.; Nguyen, K.D.; Nguyen, T.N.; Thanh, T.; Phan, N.T.S. New topological Co-2(BDC)(2)(DABCO)as a highly active heterogeneous catalyst for the amination of oxazoles via oxidative C-H/N-H couplings. Catal. Sci. Technol. 2016, 6, 1384–1392. [Google Scholar] [CrossRef]
  31. Valenzano, L.; Civalleri, B.; Sillar, K.; Sauer, J. Heats of Adsorption of CO and CO2 in Metal-Organic Frameworks: Quantum Mechanical Study of CPO-27-M (M = Mg, Ni, Zn). J. Phys. Chem. C 2011, 115, 21777–21784. [Google Scholar] [CrossRef]
  32. Masala, A.; Vitillo, J.G.; Bonino, F.; Manzoli, M.; Grande, C.A.; Bordiga, S. New insights into UTSA-16. Phys. Chem. Chem. Phys. 2016, 18, 220–227. [Google Scholar] [CrossRef] [Green Version]
  33. Lawson, S.; Al-Naddaf, Q.; Krishnamurthy, A.; Amour, M.S.; Griffin, C.; Rownaghi, A.A.; Knox, J.C.; Rezaei, F. UTSA-16 Growth within 3D-Printed Co-Kaolin Monoliths with High Selectivity for CO2/CH4, CO2/N-2, and CO2/H-2 Separation. ACS Appl. Mater. Interfaces 2018, 10, 19076–19086. [Google Scholar] [CrossRef] [PubMed]
  34. Taylor, M.K.; Runcevski, T.; Oktawiec, J.; Gonzalez, M.I.; Siegelman, R.L.; Mason, J.A.; Ye, J.; Brown, C.M.; Long, J.R. Tuning the Adsorption-Induced Phase Change in the Flexible Metal Organic Framework Co(bdp). J. Am. Chem. Soc. 2016, 138, 15019–15026. [Google Scholar] [CrossRef]
  35. Cambridge Structural Database. Available online: https://www.ccdc.cam.ac.uk/ (accessed on 10 June 2021).
  36. Yaghi, O.M.; Li, G.; Li, H. Selective binding and removal of guests in a microporous metal–organic framework. Nature 1995, 378, 703–706. [Google Scholar] [CrossRef]
  37. Hamidipour, L.; Farzaneh, F. Cobalt metal organic framework as an efficient heterogeneous catalyst for the oxidation of alkanes and alkenes. React. Kinet. Mech. Catal. 2013, 109, 67–75. [Google Scholar] [CrossRef]
  38. Crane, J.L.; Anderson, K.E.; Conway, S.G. Hydrothermal Synthesis and Characterization of a Metal–Organic Framework by Thermogravimetric Analysis, Powder X-ray Diffraction, and Infrared Spectroscopy: An Integrative Inorganic Chemistry Experiment. J. Chem. Educ. 2015, 92, 373–377. [Google Scholar] [CrossRef]
  39. Ejegbavwo, O.A.; Berseneva, A.A.; Martin, C.R.; Leith, G.A.; Pandey, S.; Brandt, A.J.; Park, K.C.; Mathur, A.; Farzandh, S.; Klepov, V.V.; et al. Heterometallic multinuclear nodes directing MOF electronic behavior. Chem. Sci. 2020, 11, 7379–7389. [Google Scholar] [CrossRef]
  40. Zhou, K.; Jiang, F.-L.; Chen, L.; Wu, M.-Y.; Zhang, S.-Q.; Ma, J.; Hong, M.-C. Unprecedented three-level hierarchical entanglement in a coordination polymer. Chem. Commun. 2012, 48, 12168–12170. [Google Scholar] [CrossRef]
  41. Israr, F.; Chun, D.; Kim, Y.; Kim, D.K. High yield synthesis of Ni-BTC metal–organic framework with ultrasonic irradiation: Role of polar aprotic DMF solvent. Ultrason. Sonochem. 2016, 31, 93–101. [Google Scholar] [CrossRef] [PubMed]
  42. Horcajada, P.; Serre, C.; Vallet-Regí, M.; Sebban, M.; Taulelle, F.; Férey, G. Metal–Organic Frameworks as Efficient Materials for Drug Delivery. Angew. Chem. Int. Ed. 2006, 45, 5974–5978. [Google Scholar] [CrossRef]
  43. Nowacka, A.; Briantais, P.; Prestipino, C.; Llabrés i Xamena, F.X. Facile “Green” Aqueous Synthesis of Mono- and Bimetallic Trimesate Metal–Organic Frameworks. Cryst. Growth Des. 2019, 19, 4981–4989. [Google Scholar] [CrossRef]
  44. Steenhaut, T.; Hermans, S.; Filinchuk, Y. Green synthesis of a large series of bimetallic MIL-100(Fe,M) MOFs. New J. Chem. 2020, 44, 3847–3855. [Google Scholar] [CrossRef]
  45. Faustini, M.; Kim, J.; Jeong, G.Y.; Kim, J.Y.; Moon, H.R.; Ahn, W.S.; Kim, D.P. Microfluidic Approach toward Continuous and Ultrafast Synthesis of Metal-Organic Framework Crystals and Hetero Structures in Confined Microdroplets. J. Am. Chem. Soc. 2013, 135, 14619–14626. [Google Scholar] [CrossRef] [PubMed]
  46. Yaghi, O.M.; Li, H.; Groy, T.L. Construction of Porous Solids from Hydrogen-Bonded Metal Complexes of 1,3,5-Benzenetricarboxylic Acid. J. Am. Chem. Soc. 1996, 118, 9096–9101. [Google Scholar] [CrossRef]
  47. Tan, H.; Liu, C.; Yin, Y.; Wu, J. Simple Preparation of Crystal Co-3(BTC)(2)center dot 12H(2)O and Its Catalytic Activity in CO Oxidation Reaction. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2015, 30, 71–75. [Google Scholar] [CrossRef]
  48. Yaqoob, L.; Noor, T.; Iqbal, N.; Nasir, H.; Sohail, M.; Zaman, N.; Usman, M. Nanocomposites of cobalt benzene tricarboxylic acid MOF with rGO: An efficient and robust electocatalyst for oxygen evaluation reaction (OER). Renew. Energy 2020, 156, 1040–1054. [Google Scholar] [CrossRef]
  49. Zheng, W.; Bi, W.; Gao, X.; Zhang, Z.; Yuan, W.; Li, L. A nickel and cobalt bimetal organic framework with high capacity as an anode material for lithium-ion batteries. Sustain. Energy Fuels 2020, 4, 5757–5764. [Google Scholar] [CrossRef]
  50. Macrae, C.F.; Sovago, I.; Cottrell, S.J.; Galek, P.T.A.; McCabe, P.; Pidcock, E.; Platings, M.; Shields, G.P.; Stevens, J.S.; Towler, M.; et al. Mercury 4.0: From visualization to analysis, design and prediction. J. Appl. Cryst. 2020, 53, 226–235. [Google Scholar] [CrossRef] [Green Version]
  51. Wu, Y.; Qiu, L.-G.; Wang, W.; Li, Z.-Q.; Xu, T.; Wu, Z.-Y.; Jiang, X. Kinetics of oxidation of hydroquinone to p-benzoquinone catalyzed by microporous metal-organic frameworks M3(BTC)2 [M = copper(II), cobalt(II), or nickel(II); BTC = benzene-1,3,5-tricarboxylate] using molecular oxygen. Transit. Met. Chem. 2009, 34, 263–268. [Google Scholar] [CrossRef]
  52. Yan, W.; Han, L.-J.; Jia, H.-L.; Shen, K.; Wang, T.; Zheng, H.-G. Three Highly Stable Cobalt MOFs Based on “Y”-Shaped Carboxylic Acid: Synthesis and Absorption of Anionic Dyes. Inorg. Chem. 2016, 55, 8816–8821. [Google Scholar] [CrossRef] [PubMed]
  53. Xuan, W.; Ramachandran, R.; Zhao, C.; Wang, F. Influence of synthesis temperature on cobalt metal-organic framework (Co-MOF) formation and its electrochemical performance towards supercapacitor electrodes. J. Solid State Electrochem. 2018, 22, 3873–3881. [Google Scholar] [CrossRef]
  54. Dhakshinamoorthy, A.; Montero Lanzuela, E.; Navalon, S.; Garcia, H. Cobalt-Based Metal Organic Frameworks as Solids Catalysts for Oxidation Reactions. Catalysts 2021, 11, 95. [Google Scholar] [CrossRef]
  55. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Cryst. 2016, 72, 171–179. [Google Scholar] [CrossRef]
  56. Vitillo, J.G.; Bordiga, S. Increasing the stability of Mg2(dobpdc) metal-organic framework in air through solvent removal. Mater. Chem. Front. 2017, 1, 444–448. [Google Scholar] [CrossRef] [Green Version]
  57. Simons, M.C.; Vitillo, J.G.; Babucci, M.; Hoffman, A.S.; Boubnov, A.; Beauvais, M.L.; Chen, Z.; Cramer, C.J.; Chapman, K.W.; Bare, S.R.; et al. Structure, Dynamics, and Reactivity for Light Alkane Oxidation of Fe(II) Sites Situated in the Nodes of a Metal–Organic Framework. J. Am. Chem. Soc. 2019, 141, 18142–18151. [Google Scholar] [CrossRef]
  58. Bonino, F.; Lamberti, C.; Chavan, S.; Vitillo, J.G.; Bordiga, S. Characterization of MOFs. 1. Combined Vibrational and Electronic Spectroscopies. In Metal Organic Frameworks as Heterogeneous Catalysts; Llabrés i Xamena, F.X., Gascon, J., Eds.; The Royal Society of Chemistry: Cambridge, UK, 2013; pp. 76–142. [Google Scholar]
  59. Ethiraj, J.; Bonino, F.; Lamberti, C.; Bordiga, S. H2S interaction with HKUST-1 and ZIF-8 MOFs: A multitechnique study. Microporous Mesoporous Mater. 2015, 207, 90–94. [Google Scholar] [CrossRef]
  60. Alves, I.C.B.; Santos, J.R.N.; Viegas, D.S.S.; Marques, E.P.; Lacerda, C.A.; Zhang, L.; Zhang, J.J.; Marques, A.L.B. Nanoparticles of Fe2O3 and Co3O4 as Efficient Electrocatalysts for Oxygen Reduction Reaction in Acid Medium. J. Braz. Chem. Soc. 2019, 30, 2681–2690. [Google Scholar] [CrossRef]
  61. Rajeevgandhi, C.; Sathiyamurthy, K.; Guganathan, L.; Savithiri, S.; Bharanidharan, S.; Mohan, K. Experimental and theoretical investigations on the spinel structure of Co(2)O(3)nanoparticles synthesized via simple co-precipitation method. J. Mater. Sci. Mater. Electron. 2020, 31, 16769–16779. [Google Scholar] [CrossRef]
Energies 14 04751 g001 550
Figure 1. PXRD diffractograms of KCL-102. (a) Diffraction patterns of as-synthesized KCL-102 in various batches using different reaction conditions (see Table 1). (b) Diffraction patterns of the as-synthesized KCL-102 before and after washing with DMF.
Figure 1. PXRD diffractograms of KCL-102. (a) Diffraction patterns of as-synthesized KCL-102 in various batches using different reaction conditions (see Table 1). (b) Diffraction patterns of the as-synthesized KCL-102 before and after washing with DMF.
Energies 14 04751 g001
Energies 14 04751 g002 550

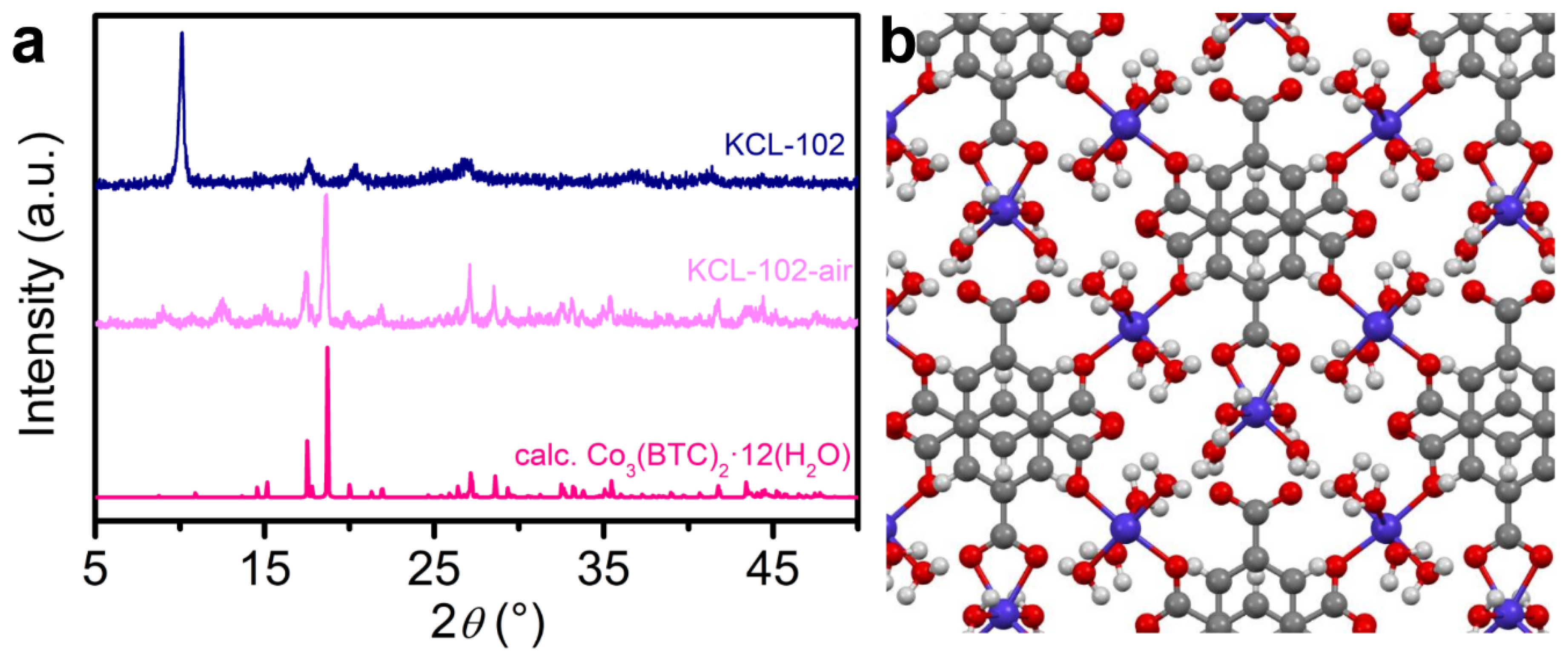

Figure 2. (a) XRD patterns of DMF-washed KCL-102 (blue line) and after leaving KCL-102 in the air for one week (KCL-102-air, light pink line). The calculated pattern of Co3(BTC)2·12H2O using the structure reported in Ref. [46] is also shown for comparison (dark pink line). (b) View along [001] of Co3(BTC)2·12H2O structure as reported in Ref. [46]. Color code: violet (Co), red (O), grey (C), white (H).
Figure 2. (a) XRD patterns of DMF-washed KCL-102 (blue line) and after leaving KCL-102 in the air for one week (KCL-102-air, light pink line). The calculated pattern of Co3(BTC)2·12H2O using the structure reported in Ref. [46] is also shown for comparison (dark pink line). (b) View along [001] of Co3(BTC)2·12H2O structure as reported in Ref. [46]. Color code: violet (Co), red (O), grey (C), white (H).
Energies 14 04751 g002
Energies 14 04751 g003 550

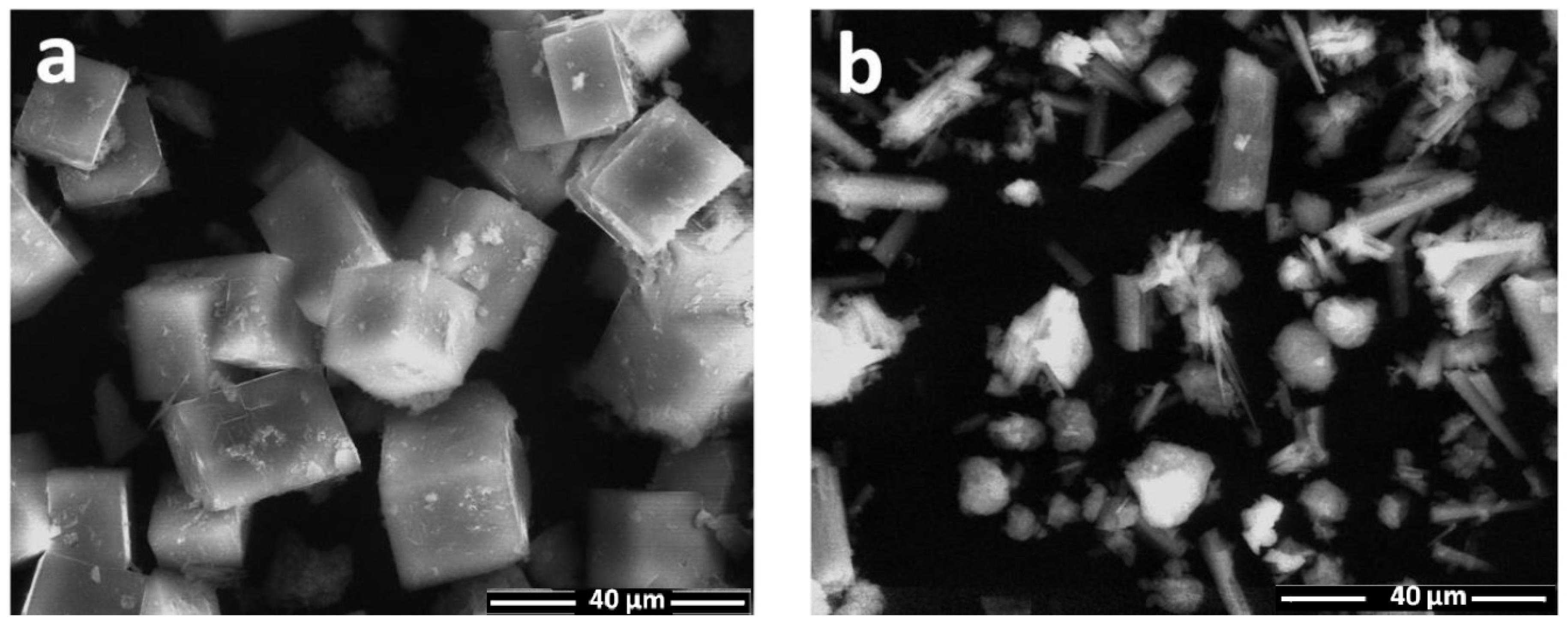

Figure 3. SEM images of (a) KCL-102 and (b) KCL-102-air.
Figure 3. SEM images of (a) KCL-102 and (b) KCL-102-air.
Energies 14 04751 g003
Energies 14 04751 g004 550

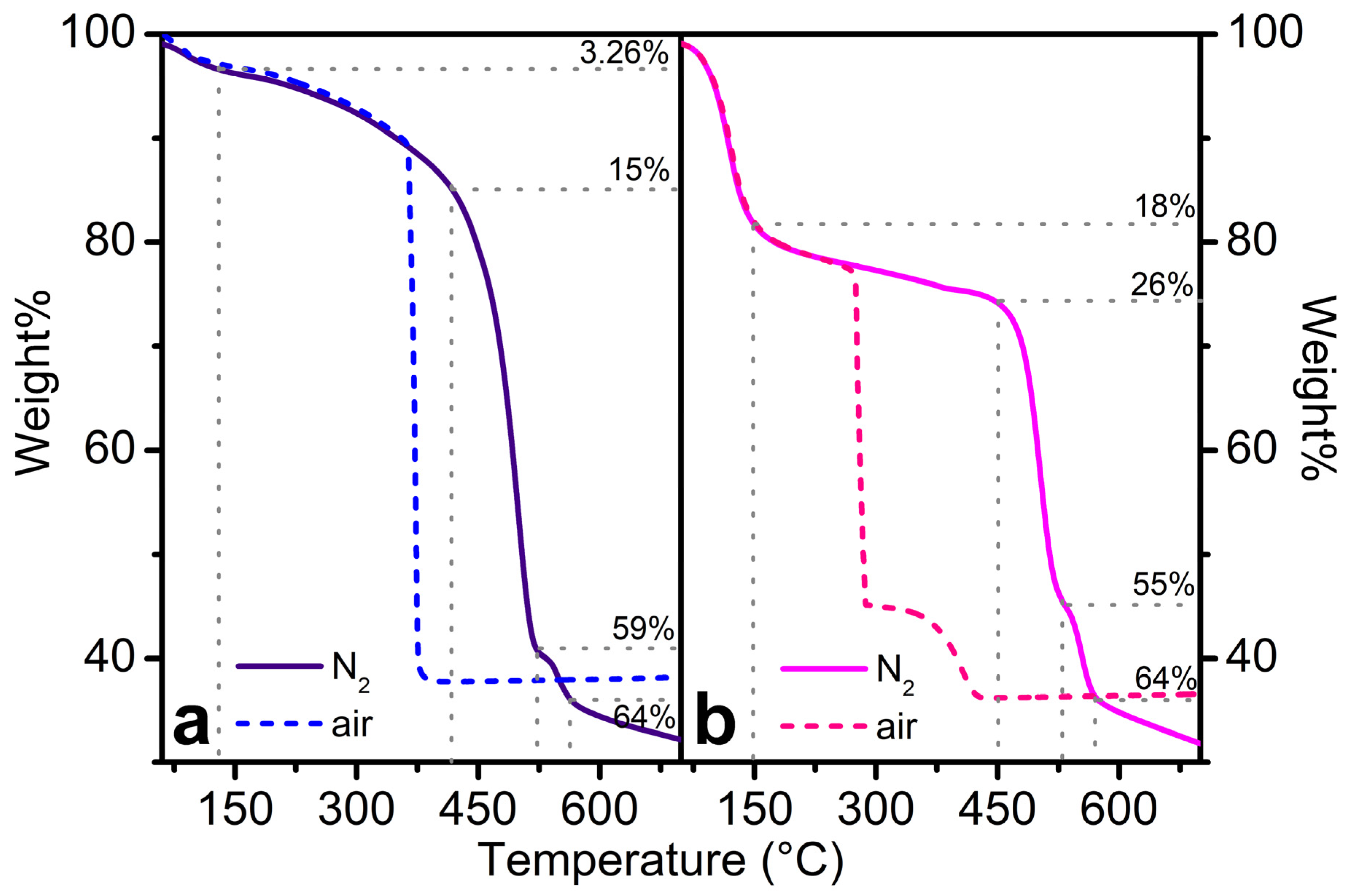

Figure 4. TG traces of (a) KCL-102 and (b) KCL-102-air in a flow of dry air and N2.
Figure 4. TG traces of (a) KCL-102 and (b) KCL-102-air in a flow of dry air and N2.
Energies 14 04751 g004
Energies 14 04751 g005 550

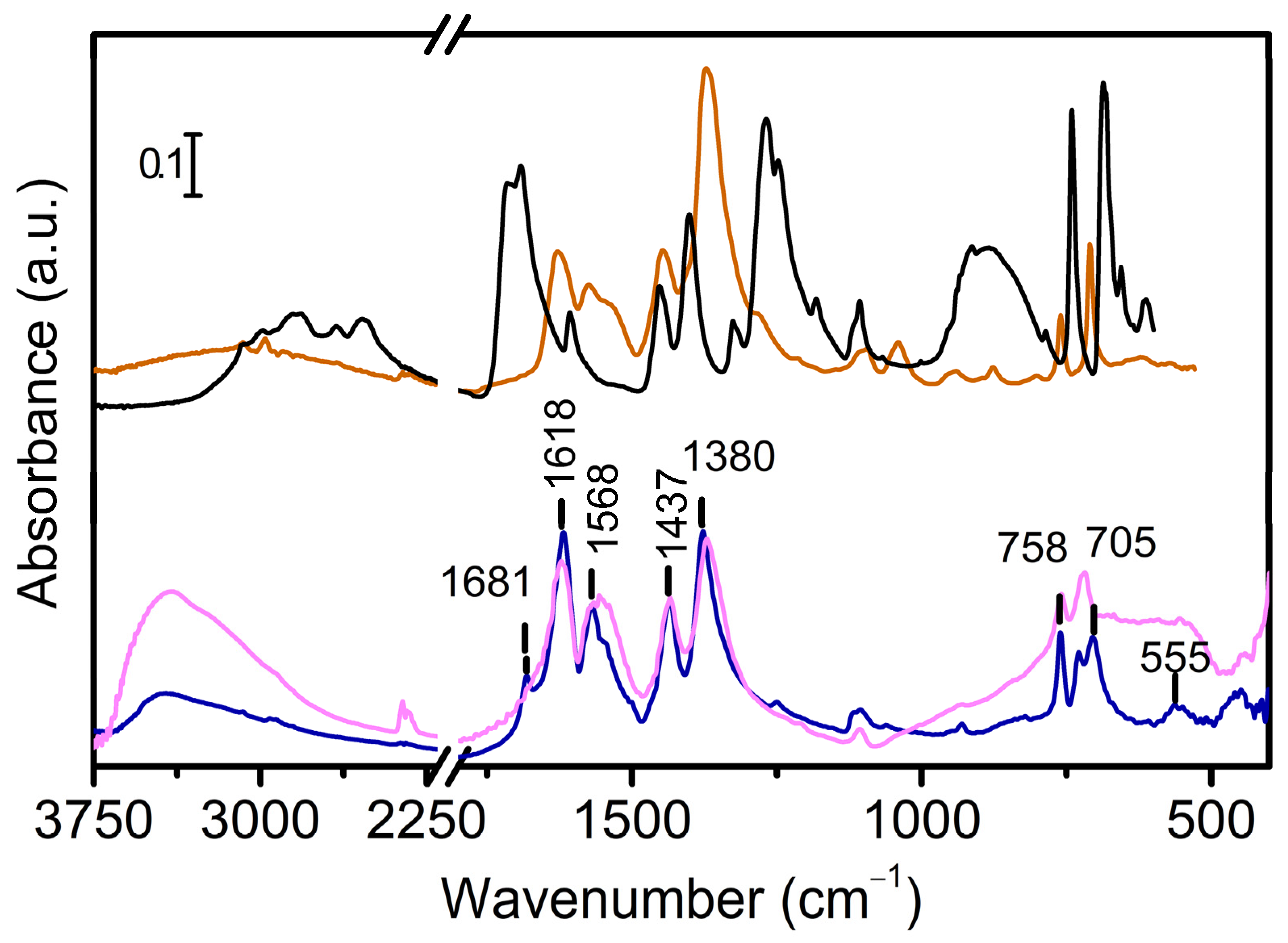

Figure 5. FT-IR spectrum of KCL-102 (blue line) recorded in air right after synthesis compared to the spectrum of KCL-102-air (light pink), trimesic acid (black line), and of another trimesate based MOF (MIL-100(Fe), unpublished data, brown line). For additional characterization of this MIL-100(Fe) sample, please refer to Ref. [57].
Figure 5. FT-IR spectrum of KCL-102 (blue line) recorded in air right after synthesis compared to the spectrum of KCL-102-air (light pink), trimesic acid (black line), and of another trimesate based MOF (MIL-100(Fe), unpublished data, brown line). For additional characterization of this MIL-100(Fe) sample, please refer to Ref. [57].
Energies 14 04751 g005
Energies 14 04751 g006 550
Figure 6. (a) DRUV-vis spectra of KCL-102 (blue line) and KCL-102-air (magenta). (b) DRUV-Vis spectra of ZIF-67 (green line) and UTSA-16 (black line, from Ref. [32]). All the spectra were recorded in the air. (c,d) Photographs of the KCL-102 (c) and the KCL-102-air (d) samples. (e) First coordination environment of cobalt centers in KCL-102-air as in the experimental structure reported in Ref. [46]. Color atom code: violet (Co), red (O), grey (C), white (H).
Figure 6. (a) DRUV-vis spectra of KCL-102 (blue line) and KCL-102-air (magenta). (b) DRUV-Vis spectra of ZIF-67 (green line) and UTSA-16 (black line, from Ref. [32]). All the spectra were recorded in the air. (c,d) Photographs of the KCL-102 (c) and the KCL-102-air (d) samples. (e) First coordination environment of cobalt centers in KCL-102-air as in the experimental structure reported in Ref. [46]. Color atom code: violet (Co), red (O), grey (C), white (H).
Energies 14 04751 g006
Table
Table 1. Experimental conditions used for the synthesis of KCL-102 (BTC = 1,3,5-benzenetricarboxylic acid, DMF = dimethylformide, T = temperature).
Table 1. Experimental conditions used for the synthesis of KCL-102 (BTC = 1,3,5-benzenetricarboxylic acid, DMF = dimethylformide, T = temperature).
ItemCo(NO3)2·6H2O (g)BTC (g)DMF (mL)H2O (mL)T (°C)Reaction Time (min)
Batch 11.45510.525010050140120
Batch 22.91021.050810050140120
Batch 31.45510.52501005014080
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
