1. Introduction
As a result of the depletion of natural resources, which are carriers of conventional energy, the increase in the wealth of society and the ease of obtaining energy, as well as the trend of limiting the consumption of primary energy in all its forms, which continued for some time, buildings are created in accordance with the idea of sustainable development. The built environment is responsible for around 30–40% of the world’s total primary energy consumption. Therefore, it has a high reduction potential that can be used to improve the energy performance of individual structures [
1,
2,
3,
4,
5,
6,
7].
Establishing a policy implementing the sustainable development strategy in the world was the entry point for the introduction of normative provisions in the housing industry that clearly limit the demand for energy in this sector. The effects were achieved mainly by tightening the requirements for thermal insulation of building envelopes and defining limitations concerning the value of the annual primary energy (PE) demand index. Directive 2010/31/EU of the European Parliament and of the Council of 19 May 2010 [
8] introduced a concept of a nearly zero-energy building (nZEB). Thus, the minimum standard of newly erected buildings was defined and it is fully applicable from 1 January 2021 for all newly constructed buildings.
A standard ahead of the European requirements in terms of energy efficiency is the idea of a passive house, in line with the standards of the Passive House Institute (PHI), which combines high living comfort with very low energy consumption. Passive house construction is characterized by excellent energy efficiency, optimal thermal comfort and a high degree of user satisfaction with the surrounding conditions, but also protection against potential damage caused by excessive condensation of water vapor [
9,
10,
11,
12,
13,
14,
15,
16]. A residential building designed in accordance with the idea of a passive house should function as a starting point and meet the fundamental requirements of designing buildings with a positive energy balance. Nearly zero-energy buildings (nZEBs) and basic passive buildings are already, in the design process, treated as intermediate stages. A building or a group of buildings with a positive energy balance is an energy-independent structure, it does not require the use of conventional energy sources for heating, cooling and electricity [
15,
16,
17].
The process of designing residential buildings with a positive energy balance is an extremely complex undertaking. It is accompanied by informational, technical, energy, exergy, economic, social and environmental factors that require continuous decision-making in order to achieve the intended goal, which can after all be accomplished in many different ways. The methods are in close connection to solutions (variants), and the variants are accompanied by the factors mentioned above. These are measurable characteristics, but they are also sometimes difficult to measure, most often they interact with each other. An indication of the most favorable variant (a compromise solution) is accompanied by a specific decision situation resulting from the characteristics of the problem and the evaluation criteria. The choice of the best variant is supported by knowledge, experience and intuition, but with the increasing complexity and scale of problems, it becomes necessary to support decisions with methods of operational research, i.e., the so-called multi-criteria methods of supporting the decision-making process. Using them makes it possible to determine a set of permissible solutions, and after indicating the decision-making criteria and determining the preferences of the decisionmaker, it enables the choice of a compromise solution.
Entities responsible for the design and operation of sustainable buildings need clear and reliable building evaluation tools [
18,
19,
20,
21]. Currently, there are many methods for measuring and evaluating the environmental performance of a building, often referred to as building rating systems (BRSs). The two most common ones are the English BREEAM method and the American LEED method [
22]. Unfortunately, there is no methodology for designing a residential building with a positive energy balance, which makes it difficult to start the construction process. So far, no methodology with an open set of decision criteria has been developed that would include the modeling of the decisionmaker’s preferences using statistical surveys of a group of decisionmakers for this purpose. There is also a lack of methodology relating to the interdependence of decision criteria [
22,
23,
24,
25,
26,
27,
28,
29,
30,
31,
32,
33,
34,
35,
36,
37,
38,
39,
40,
41].
It is necessary to develop a methodology for designing residential buildings with a positive energy balance, consistent with the idea of sustainable development, allowing for a reduction in global consumption of non-renewable primary energy in the household sector, based on an open set of criteria and parameters, in accordance with the specific preferences of the decisionmaker, and taking into account the relations between decision criteria. The choice of a compromise solution becomes a decision problem that requires the use of one (or many) of the multi-criteria methods supporting decision-making.
The main goal of this paper is to present an innovative methodology for designing residential buildings with a positive energy balance in accordance with the principles of sustainable development. A large number of available methods makes it difficult to make the best choice. The final decision was influenced by many factors, including the nature of the issue under consideration, the potential of the method, the construction or use of an existing tool, its perception, flexibility, speed and ease of use. Undoubtedly, the choice of method is itself a decision problem. However, there are universal solutions, the usefulness of which was tested on many practical examples, especially those related to construction, to obtain the desired and satisfactory results of the analyses [
32,
33,
34,
35,
36,
37,
38,
39].

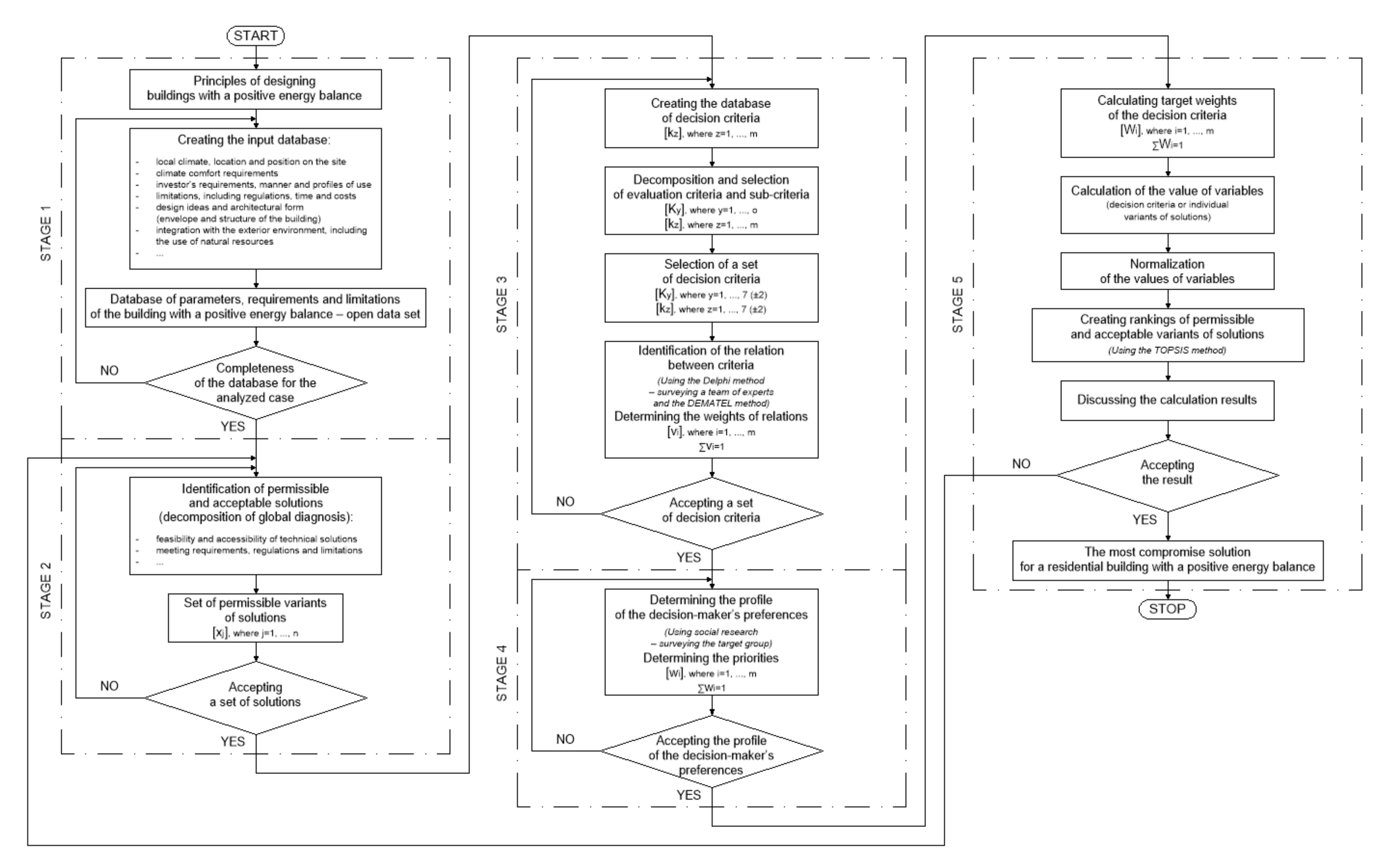

The present paper discusses the AHP/ANP-DEMATEL-TOPSIS approach. The developed methodology consists of five stages. The first is the construction of an input database for a specific project, the second is the identification of permissible and acceptable solutions. The third stage is the creation of a set of decision criteria and the identification of the relation between them, which is determined by surveying a group of experts using the Delphi method. To identify the relation between decision criteria, the DEMATEL method and an original expert team survey questionnaire is used. The aim is to determine the weights of the relations between criteria (vi). Pairwise comparisons are made with respect to all combinations of interrelations between elements and their groups. The fourth stage consists in determining the preferences of the decisionmaker with the use of a target group survey utilizing social research. In order to compare pairs of decision criteria based on the set goal, i.e., the selection of a residential building with a positive energy balance, the AHP/ANP method is used together with an original questionnaire surveying the target group: decisionmakers clearly interested in the construction of the buildings in question. The aim is to determine the weights of the criteria preferences (wc). An algorithm completes the fifth stage, in which the values of the variables are calculated and normalized, and a ranking of permissible and acceptable variants of solutions is created, concluded with the choice of a compromise solution. The TOPSIS method is used to create the final ranking of permissible and acceptable solutions. The prepared algorithm indicates the need for changes in the classic design of residential buildings, taking into account the decision criteria that show interdependence.
3. Conducted Research
The choice of a residential building with a positive energy balance is a decision issue. The decisionmaker is the one looking for a compromise (ideal) solution among the permissible solutions (variants). This process results in achieving the goal (choosing a compromise solution) and identifying the order of preference in a specific set of variants. When creating a ranking of permissible solutions, the selected assessment criteria (set of identified characteristics), the weight of the relations and the decisionmaker’s preferences are taken into account. Then the selection of the best variant comes down to the selection of the variant with the highest preference.
Preferences can be formulated in two ways. Firstly, by taking into account an appropriate numerical scale (distinguishing between incomparability), and secondly, by knowing certain measures of the characteristics of comparable objects (solutions). Determining the dependence (relation) of individual assessment sub-criteria within all sub-criteria is independent of the decisionmaker’s preferences, and are the responsibility of a team of experts in line with the research carried out using the Delphi method (for details see
Section 3.1). Determining the preference dependent on the decisionmaker consists in defining the weights of individual evaluation sub-criteria in a given group of the main decision criteria and the main criteria alone. For this purpose, a target group was surveyed with the use of social research, the results of the research are presented in
Section 3.2.
For both cases, i.e., in order to determine the relations between individual evaluation sub-criteria within all sub-criteria, and to determine the weights of individual evaluation sub-criteria in a given group of decision criteria, two different questionnaires were prepared. First, for both trial surveys, independent pilot studies were conducted to test the questionnaires (group of five respondents). The criteria for the validity of the test were verified, including objectivity, standardization, reliability, accuracy, norms, appropriate adaptation and general features of the questionnaires, as well as their understandability, transparency, length, and the respondents’ reactions. The pilot study resulted in a simplification of the structure of the questionnaire by changing individual questions aimed at pairwise comparison into compact tables. The vast majority of the questions asked are used to confirm the research assumptions: achieving the goals: direct; determining the numerical values of the evaluations of individual pairwise comparisons made, and indirect; assigning oneself to a specific group of respondents, assessing one’s own knowledge and expertise in relation to the selected type of construction and to given groups of evaluation criteria (it allows potential weighting of the respondent’s answers). Moreover, a number of personal questions were added to define the respondent’s profile; education, age, and place of residence. This study does not take into account the answers to such detailed questions, they are for informational purposes only. The data can be used in the future. Both questionnaires are summarized by a question about the time spent on completing the questionnaire.
It is crucial that the created questionnaires are not only checked in terms of methodology, but also characterized by high reliability and accuracy of the evaluation made by the respondents. For this purpose, one of the features of the ANP method was used, i.e., the possibility to assess the quality of the respondents making comparisons (in the first case, a team of experts, and in the second, a specific group of decisionmakers). Based on the geometric consistency index (GCI) determined within individual matrices for a group of evaluations made by respondents participating in the survey, it is calculated to what extent the transitivity of the evaluation is preserved; that is, it indicates whether relations (impact/preference) are logically evaluated for each group of components, e.g., for the three components a, b, c; if a is preferred over b and b is preferred over c, then a is also preferred over c. In the case of inconsistency of evaluation for the collected group of respondents (experts or decisionmakers), i.e., for a situation where GCI > GCIperm., not meeting the conditions results in the necessity of revising the values assigned by all K respondents.
3.1. The Delphi Method, the Expert Team Study, Determining the Relations between Criteria
The Delphi method, the expert team study, aims to determine the relations between individual components of the decision network. According to the ANP/DEMATEL method, pairwise comparisons are made with regard to all combinations of interrelations between elements [
40,
41]. The ANP method uses a nine-point scale of comparisons, the so-called Saaty’s scale, which was the scale used in the study.
The DEMATEL method was used to determine the relations between individual evaluation criteria. The evaluating entity, in accordance with the Delphi method, is a group of experts, which was surveyed using an original expert questionnaire.
Evaluation of the intensity of the impact between individual decision criteria and sub-criteria requires the participation of experts. Their opinions are usually different, and their positions are built on the basis of various priorities, systems of values, competences, knowledge resources or education and expertise. For this purpose, it is necessary in the first place to create an expert questionnaire, select a target group (team of experts), conduct a survey and finally conduct a statistical analysis.
According to the DEMATEL method and the Analytic Network Process (ANP), all criteria and sub-criteria of evaluation had to be compared, both within individual groups of decision criteria and for each evaluation sub-criterion. A discrete and non-negative evaluation was used, i.e., a nine-point scale that symbolizes the intensity of the impact of an evaluation criterion in pairwise comparison on the other criterion, including point zero corresponding to the lack of direct impact. The respondent, using the relation degree (relation/impact) used to evaluate pairwise comparisons and interpreted in the manner presented in the questionnaire, was asked to assign the value of the relation for each pair (determining the intensity of impact), from absolute impact (−9/+9) to no impact (0), which in the respondent’s opinion, contributes to the achievement of the goal, i.e., the selection of the most favorable solution for residential buildings with a positive energy balance. All questions regarding the determination of the intensity of impact were closed-ended, in each of them the respondent marked a numerical value on the Saaty’s scale axis. The pairwise comparison method was used; it is the easiest way for the respondents to provide the correct answer due to its intuitiveness. In all cases, the decision sub-criterion on the left side of the scale was compared to all the other decision sub-criteria on the right side. The pairs were grouped according to the order of decision criteria and sub-criteria in a tabular manner. Hence, the questionnaire became legible and transparent and the use of such a solution facilitated the process of filling it in, and a situation in which the respondents were unable to provide answers was excluded. Another advantage of the adopted survey structure is the easier statistical analysis of the data.
An important element of the research carried out using the Delphi method is the correct selection of the sample and quality of respondents, i.e., people who have the appropriate knowledge and expertise in the analyzed subject. The prepared expert questionnaire was addressed to experts in the field of architecture and urban planning, construction, environmental engineering or energy. The selection of the group of respondents for the study was intended and strictly defined, it consisted of people employed in scientific units, research units and operating in business who should be considered experts due to their interests, knowledge and expertise.
The expert questionnaires were distributed in three categories:
Source_a; experts from the Poznań University of Technology, 16 respondents;
Wersja_1; experts from other scientific and research units, 57 respondents;
Ver_1; specialists from the industry, 15 respondents.
The paper-based expert questionnaire was sent to a total of 73 experts employed in scientific units and research units, as well as to 15 specialists from the industry. Completed questionnaires were received from 8 experts from the Poznań University of Technology, 12 experts from other universities and research units, and 11 industry specialists. In total, out of 88 sent questionnaires, 31 were completed, which is 35.2%.
Table S2 shows the distribution of the frequency of the evaluation marks provided by all experts.
For the statistical evaluation of the obtained data and the results of the survey, the geometric mean is used, which is one of the measures of the average (position measures), which indicate a value typical for the surveyed population. It allows an evaluation of the average measurable characteristic in a statistical population and was determined according to Equation (4):
where:
- −
xi, value of a variable in a series;
- −
n, number of variables in a series;
- −
k, number of variables with the same value in a series.
In
Table S2, the last column shows calculations of the geometric consistency index (GCI). The collected evaluations by the surveyed target group show high reliability and accuracy of the evaluations made by the respondents. There are no grounds for revising the value of the evaluations made by all K respondents.
In the case of the proposed methodology for designing buildings with a positive energy balance, the individual evaluation criteria and sub-criteria are most often interdependent. It is essential to determine the relation between individual evaluation criteria and sub-criteria. For this purpose, the potential of the DEMATEL method was used.
In order to determine the intensity of the impact of individual decision criteria and sub-criteria on the remaining ones, it was decided to use the geometric mean of the evaluations obtained as a result of the Delphi study. It was concluded that if for a given pair of decision criteria the majority of experts (at least 16 out of 31 respondents) indicate the value of the relation to be 0, then it is assumed that these criteria show no impact to each other (i.e., there is lack of impact).
The next step was to create a direct-relation matrix, a normalized direct-relation matrix and a total-relation matrix. All matrices were created for the main criteria and the sub-criteria of the evaluation, see
Table S3.
Table 1 shows the role and importance of individual components in terms of the total impact. The s+ (D + R) indicator defines the position, prominence and gross influence, while the s− (D − R) indicator defines the relation and/or net influence. The higher the value of the s+ indicator for a given criterion/sub-criterion, the higher the level of interrelations with other criteria/sub-criteria. Both indicators are stimulants: the first; with increasing preference (the higher the indicator value, the greater the importance of the parameter), the second; determining the cause (s− > 0) or effect (s− < 0) character.
Table 1 shows the causal factors (s− > 0) in bold, while the effect criteria (s− < 0) are in italics. By creating a composition of the main criteria and sub-criteria of evaluation that describe buildings with a positive energy balance, a hierarchy and correlation between individual elements can be shown on the cause-and-effect diagram.
The DEMATEL method was used to determine the value of relation weights for individual decision criteria and sub-criteria. The normalized weights of the relations between the main criteria and sub-criteria of evaluation are presented in
Table 2. Relative weights with the value over 15% for the main criteria and over 3.5% for the sub-criteria of evaluation were marked in bold.
After performing the analysis with the DEMATEL method, it is possible to accurately characterize the relations, or the lack of them, between the individual main criteria and sub-criteria of evaluation for the design process of residential buildings with a positive energy balance. All relations between various criteria and sub-criteria of evaluation should be taken into account. The advantage of the method used is that it is transparent in reflecting the interrelations between a wide set of elements. The analyst, on the basis of the feedback from the experts, can make comments about the effects (direction and significance) between the factors.
The most important evaluation criteria/sub-criteria are those that have a strong causal character and influence other evaluation criteria/sub-criteria the most. It means that the criteria illustrate the first priority factors to focus on when designing positive-energy residential buildings, and within them, further improvement potential must be sought.
On the basis of the analysis performed, the analyst may remove from the set of criteria/sub-criteria that show a strong effect character, which means that they are also influenced by other criteria/sub-criteria. The same criteria/sub-criteria can also remain in the set of evaluation criteria/sub-criteria, providing added value for the decisionmaker (wider set of decision criteria). Thus, the decisionmaker is aware that all factors (characteristics) influencing the design process of positive-energy residential buildings were considered.
The tool, i.e., the DEMATEL method, fulfills the expected function and enables the identification of the relations between the criteria and sub-criteria of evaluation. The results obtained using the research method serve as weights of relations, which are used in the methodology for designing residential buildings with a positive energy balance.
3.2. Social Research Method Survey Defining the Decisionmaker’s Preferences
A social research method, a target group survey, is aimed at aggregating partial valuations (i.e., determining the direct weights of the decision criteria and sub-criteria, and the preferences of the decisionmaker) for the possible variants of solutions for residential buildings with a positive energy balance, this way a model of the decisionmaker’s preferences is created. For this purpose, an original questionnaire was proposed, which was distributed to the decisionmakers clearly interested in the construction of the buildings in question, and to people who currently live in such houses. The group of respondents for the study may include designers, contractors, investors (developers), students of environmental engineering, current and future users.
In order to create a model of the decisionmaker’s preferences, it was necessary to obtain information on the preferences of individual decisionmakers regarding the selection of a residential building with a positive energy balance. More specifically, to obtain weights for individual decision criteria. To that end, it was necessary to create a questionnaire surveying the decisionmaker’s preferences, select a target group (individuals clearly interested in the construction of residential buildings with a positive energy balance, i.e., designers, contractors, investors (developers), students, current and future users, architects, energy auditors and others) and people who currently live in such houses, and finally, conduct the survey and statistical analysis.
The decisionmakers compared the main criteria and sub-criteria of evaluation within a given main criterion. For pairwise comparison of elements, a discrete and non-negative evaluation was used in accordance with the analytic hierarchy process and the analytic network process (AHP/ANP); specifically, the nine-point scale by Saaty which symbolizes the degree of advantage (scale of dominance/preference) of one of the evaluation criteria, considered within a pair, over the other, where point 1 corresponds to no advantage. Both criteria are equally important.
The respondent, using the degree of advantage (scale of domination/preference), used to evaluate pairwise comparisons and interpreted in the manner presented in the questionnaire, was asked to assign for each pair the value of the relation (determining the advantage of importance), from absolutely more important (−9/+9) to equally important (1). The pairwise comparisons aimed to select the decision criteria of the highest significance according to a given respondent, which contributes to the achievement of the goal, i.e., selecting the most favorable solution for buildings with a positive energy balance. All questions regarding the determination of the intensity of importance were closed-ended, in each of them the respondent marked a numerical value on the Saaty’s scale axis. In the case of the expert questionnaire, pairwise comparison was used in the questionnaire surveying the decisionmaker’s preferences, which is the easiest way for the respondents to provide the correct answer, it is intuitive. The decision sub-criterion on the left side of the scale was always compared to all the other decision sub-criteria on the right side. The pairs were grouped according to the order of decision criteria and sub-criteria in a tabular manner. The questionnaire is legible and transparent, and the use of this type of solution facilitates the working process, and a situation in which the respondents were unable to provide answers was excluded. The advantage of the adopted survey structure, similarly to the expert survey, is that the statistical analysis of the data can be easily conducted.
An important element of the social research carried out using a survey is the correct selection of the sample and quality of respondents, i.e., people who fill in the questionnaire scrupulously, devoting due attention and time to it, and who have appropriate knowledge and expertise in the analyzed subject. The prepared questionnaire of the decisionmaker’s preferences should be addressed to individuals who show clear interest in the construction of residential buildings with a positive energy balance, and to those who currently live in such houses. The group of respondents for the study may comprise of designers, contractors, investors (developer), students of architecture, construction or environmental engineering, current and future users, architects, energy auditors and others. The selection of the group of respondents depending on the category must be strictly defined.
The prepared questionnaire of the decisionmaker’s preferences was addressed to individuals who show clear interest in the construction of residential buildings with a positive energy balance (according to the answers to question no. 11, 79.2% were interested in the construction of such a building, while only 15.1% of decisionmakers were not), and those who currently live in that type of buildings (according to the answers to question no. 11—5.7%). The group of respondents for the study comprised of designers, contractors, investors (developers), students of environmental engineering, current and future users, architects, energy auditors and others. The selection of the group of respondents depending on the category was strictly defined (BUDMA 2019/PIBP) or random (WOIIB/RI).
The distribution of the decisionmakers’ preference questionnaires was divided into four categories:
Paper-based questionnaires, distributed during BUDMA 2019 trade fair during the author’s presentation on the installation of technical equipment for buildings in passive houses, 60 copies;
Source_a, distribution by the Greater Poland District Chamber of Civil Engineers (WOIIB), no limit;
Wersja_1, distribution by Rynek Instalacyjny (RI) periodical, no limit;
Ver_1, distribution by a database of certified designers of the Polish Passive House Institute (PIBP) and people from the passive construction community, 15 copies.
Completed decisionmakers’ preference questionnaires were received from 30 people during BUDMA 2019, from 5 people through WOIIB, from 8 people through RI periodical and from 10 people related to passive housing. A total of 53 questionnaires were completed, which is a satisfactory sample.
It was decided that a statistical analysis of the data divided into specific groups of respondents would be conducted, and for a given group,
Table S4 shows the distribution of the frequency of the evaluation marks provided by individual decisionmakers. The following groups were distinguished:
Designer/Architect;
Contractor;
Current user;
Future user;
Investor (developer).
In
Table S4, the last column shows calculations of the geometric consistency index (GCI). The collected evaluations made by the surveyed target group show high reliability and accuracy of the respondents’ evaluations. There are no grounds to revise the value of the evaluations made by all K respondents. Only in the group current user, for comparisons under question no. 7, the condition of consistency of evaluations was not met. Therefore, a decision was made to merge the group current user with the group future user. After merging both groups, the condition of consistency of evaluations was met. The calculations after combining the two groups are shown in
Table S4.
In order to determine the weight vectors of the selected evaluation criteria, the AHP/ANP analysis was performed using the geometric mean. The calculations were made taking into account all surveyed respondents (decisionmakers). In turn, the matrices of comparisons of the main criterion and sub-criteria was created with the determination of the order of decision variants.
Table S5 presents the matrices of comparisons of the main criterion and sub-criteria with the determination of the order of decision variants.

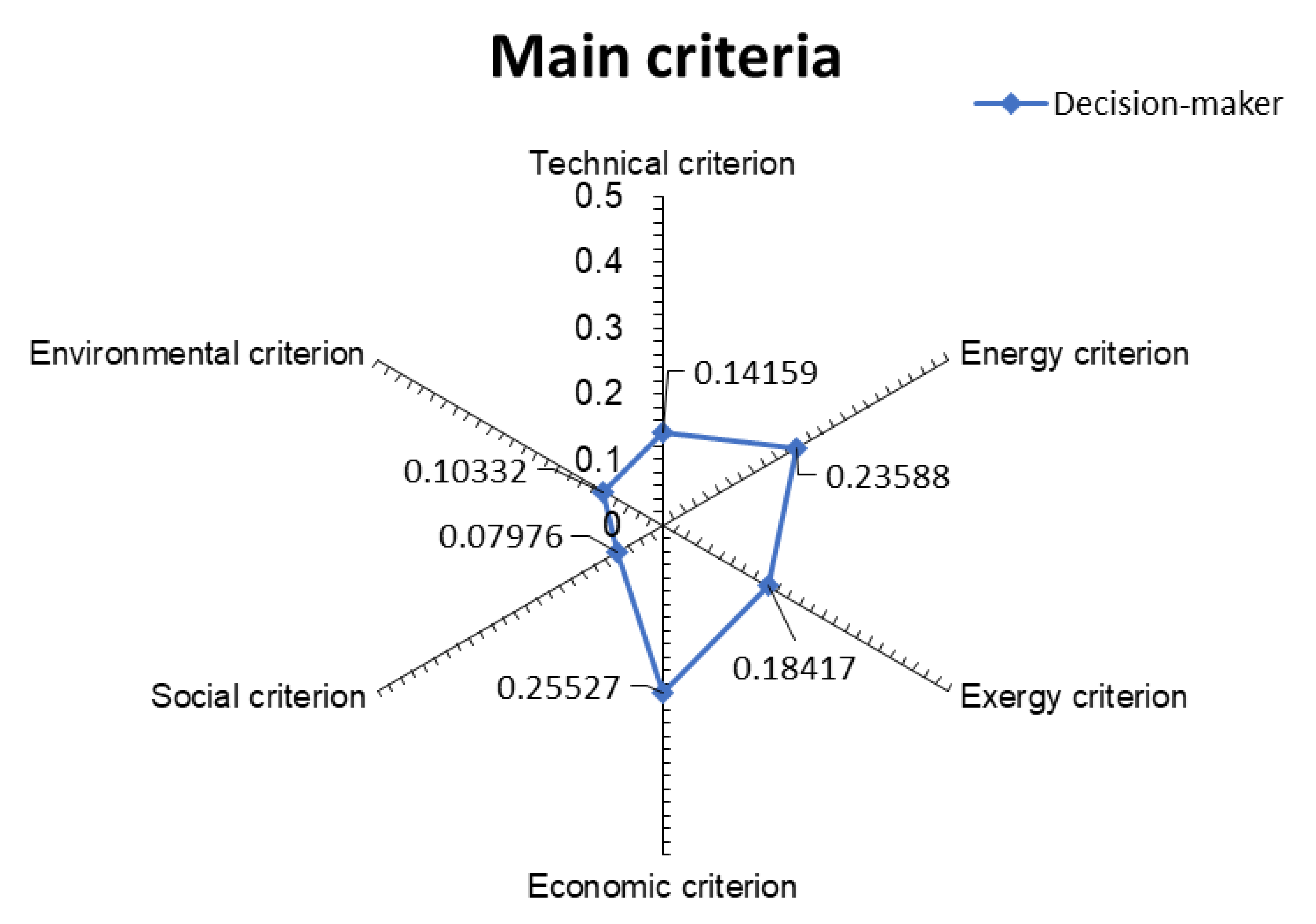

Table 3 and
Figure 2 show the normalized preference evaluations for the main criteria, while
Table 4 presents the normalized values for the sub-criteria of evaluation within a given main criterion, as well as raw data from the limit supermatrix and the same values normalized as part of a whole.
After determining the weight vectors of the selected evaluation criteria, they can be classified from the most preferred (those having a high value) to the least important (those having a low value). On the basis of the conducted analysis, the analyst may remove from the set of criteria/sub-criteria those that have the lowest value, which means that they are the least preferred by the decisionmaker. The same criteria/sub-criteria, similarly to the expert survey stage, may remain in the set of evaluation criteria/sub-criteria, constituting an added value for the decisionmaker (a wider set of decision criteria). This way, the decisionmaker is aware that all factors (characteristics) influencing the process of designing residential buildings with a positive energy balance were considered.
As a tool, the AHP/ANP method fulfills the expected function and enables the ranking of evaluation criteria and sub-criteria. The results obtained with the research method serve as weights of the decisionmakers’ preferences, which are used in the methodology for designing residential buildings with a positive energy balance.
In order to confirm the applicability of the proposed methodology for designing residential buildings with a positive energy balance, it is necessary to provide computational examples.
