Biogas Production from Excess Sludge Oxidized with Peracetic Acid (PAA)

by
Iwona Zawieja
* and
Małgorzata Worwąg
Faculty of Infrastructure and Environment, Czestochowa University of Technology, 42-200 Czestochowa, Poland
*
Author to whom correspondence should be addressed.
Energies 2021, 14(12), 3434; https://doi.org/10.3390/en14123434
Submission received: 22 April 2021 / Revised: 7 June 2021 / Accepted: 7 June 2021 / Published: 10 June 2021
(This article belongs to the Special Issue Wastewater Treatment and Biogas Production)
Browse Figures
Versions Notes

Abstract

:
Human functioning related to living and economic activity involves generating an increasing amount of sewage and sludge, which needs to be subjected to advanced processes of treatment, neutralization, and management. The deterioration in the susceptibility of excess sludge to biochemical decomposition observed under anaerobic conditions leads to the development and application of highly effective methods of wastewater treatment based on the removal of biogenic compounds using activated sludge, with a high degree of sludge thickening obtained in mechanical facilities. The concentration of volatile fatty acids, being an important intermediate product of anaerobic stabilization, directly determines biogas production efficiency. This study aimed to determine the effect of chemical disintegration with peracetic acid on biogas production efficiency using methane fermentation of pretreated sludge. Intensification of the hydrolysis phase is an important determinant of the efficiency of biochemical sludge decomposition under anaerobic conditions. The association of excess sludge oxidation, initiated by peracetic acid with biological hydrolysis, which is the first phase of methane fermentation, led to an increase in sludge digestion degree and biogas production efficiency. The compound of STERIDIAL W-10, which is an aqueous solution of 10% peracetic acid, 10% acetic acid, and 8% hydrogen peroxide, was used. The disintegration of excess sludge with a reactant dose of 3.0 mL of STERIDIAL W-10/L yielded a specific biogas production of 0.52 L/g VSS and a 74% degree of sludge digestion.

1. Introduction

Subjecting excess sludge to disintegration under the most favorable process conditions improves the effectiveness of methane fermentation. Depending on the energy supplied to the sludge, disintegration methods can be divided into mechanical, thermal, chemical, and biochemical (enzymatic) methods, as well as hybrid methods, which are a combination of the above [1].
According to literature data, chemical methods lead to oxidation and dissolution of organic compounds contained in sludge [2,3]. The application of pretreatment before anaerobic stabilization not only accelerates hydrolysis but also improves sludge susceptibility to biodegradation and dewatering, limits its foaming, and reduces the content of pathogens present in the sludge [4,5,6,7,8,9,10,11]. According to Sridhar Pilli et al. [12], the rate of biogas production is directly proportional to the sludge liquefaction factor.
Pretreatment of excess sludge using chemical reagents to break down single and clustered cells of microorganisms contained in the sludge leads to the release of intracellular organic matter into the liquid phase, and it also increases the availability of these substances to bacteria living in the sludge. Liquid substances in the hydrolysate are rich in organic compounds because fats and carbohydrates are converted into easily degradable forms, whereas proteins lose their protective enzymatic structure [13,14].
Based on data in the literature [15,16,17], it is known that the choice of reactant, its dose, and the appropriate time of its action have a great effect on the degree of disintegration.
Chemical methods of disintegration using the energy of chemical reactions can be divided into the methods of advanced oxidation (based on the Fenton reaction, hydrogen peroxide, and ozone) and chemical methods using strong acid or alkali in amounts causing pH to reach close to extreme values [18,19].
The chemical methods also include wet oxidation, which consists of sludge oxidation under conditions of elevated pressure. This process simultaneously involves the oxidation of organic compounds and thermohydrolysis, which is the main disintegrating agent [20,21,22].
Currently, methods based on the disinfecting power of oxidants such as ozone, hydrogen peroxide, chlorine, and chlorine dioxide are commonly used in sludge decomposition studies. Only a few researchers have used a combination of the effect of these reactants with anaerobic stabilization. An alternative to the above-mentioned reactants is the use of peracetic acid [23,24], which is available on the chemical market in the form of an aqueous solution of acetic acid, peracetic acid, and hydrogen peroxide. Peracetic acid, with an oxidation potential of 1.81 eV, has many applications in the medical and food industry as a disinfectant and an oxidizing agent. As reported by Domínguez Henao et al. [25,26,27], in addition to its high efficacy, peracetic acid is characterized by no toxic degradation products. As a result of the action of PAA, low concentrations of DBP were observed, mainly carboxylic acids, which are not considered genotoxic. It was found that there is no evidence of endocrine or ecotoxicological disturbances of human health. Furthermore, it was observed that disinfected wastewater with PAA in the concentrations used typically in sewage treatment plants had limited toxic, mutagenic, or genotoxic effects on aquatic organisms.
Oxidation of organic compounds with peracetic acid occurs through the formation of hydroxyl radicals, which react with organic substances according to the following reaction:
RH + OH* → H2O + R*
The resulting organic radical reacts with the other components [28].
According to Yoon et al. [29], hydroxyl radicals are efficient oxidizing agents formed by the Fenton reaction. According to the radical theory, the course of the Fenton reaction can be generally represented by the equation:
Fe2+ + H2O2 + H+ → Fe3+ + H2O + OH•
However, the course of the Fenton reaction is complex.
Hydroxyl radicals formed in the Fenton reaction oxidize organic substances (RH) and produce highly reactive organic radicals (R•):
RH + HO• → H2O + R•
According to Braun et al. [30], hydroxyl radicals can react with organic compounds in three ways:
-
Through dehydrogenation, with this reaction usually taking place in unsaturated organic compounds:
HO• + RH → R•+ H2O
-
Through electrophilic addition:
HO• + X2C = CX2 → X2C(OH) − C•X2
-
Through electron transfer:
HO• + RX → XR• + HO−
The above-mentioned processes lead to the formation of organic radicals with an unpaired electron on the carbon atom (carbon radicals), which react with dissolved oxygen to produce peroxyl radicals according to the reaction:
R• + O2 → ROO•
Peracetic acid in an aqueous medium decomposes to water and acetic acid, which is a valuable substrate for methanogenic microorganisms responsible for biogas production.
According to Fleck et al. [28,31], peracetic acid causes the oxidation of a part of the organic suspension in the sludge with simultaneous inactivation of sludge microorganisms.
As demonstrated by Shang Meng et al. [32], sludge disintegration with peracetic acid at a concentration of 0.011% and a pretreatment time of 12 h leads to an approximately 72% increase in biogas production. Furthermore, the study by Appels et al. [33] showed that a dose of peracetic acid amounting to 25 g/kg T.S. of sludge yielded a ca. 21% increase in biogas production.
It should be noted that sludge pretreatment with peracetic acid at the dose of peracetic acid of 40 g/kg T.S. and higher, due to the high concentration of volatile fatty acids of 12,000 mg CH3COOH/L, led to the deactivation of anaerobic microorganisms, consequently resulting in a decrease in biogas production intensity [34].
According to Neis [35], a maximum degree of ca. 40% sludge digestion can be achieved during conventionally conducted anaerobic stabilization of excess sludge. Therefore, the disintegration of excess sludge using peracetic acid is technologically advisable due to the possibility of an increase in the degree of sludge digestion, intensification, and shortening of the hydrolysis phase, and an increase in the efficiency of biogas generation.
In conclusion, an important advantage of peracetic acid disintegration is no secondary contamination of sludge due to the absence of toxic or mutagenic oxidation by-products or chemical residues [36,37]. The products of acetic acid breakdown are water and acetic acid [33]. The oxidation of organic compounds with peracetic acid occurs through the formation of hydroxyl radicals, which interact with organic compounds: RH + OH* → H2O + R*. However, the produced organic radicals R* react with other components [33].
Therefore, the aim of this study was to determine the effect of chemical disintegration with PAA on biogas production efficiency using methane fermentation of the sludge after pretreatment. The novelty of the research is the application of a highly effective method of oxidation with the use of peracetic acid based on the most favorable treatment conditions to generate biogas from excess sludge. In this research, the most favorable conditions of sludge disintegration with peracetic acid were determined by analyzing changes in the pH value, alkalinity, acidity, dissolved chemical oxygen demand, and the concentration of volatile fatty acids. After the methane fermentation process, the degree of sludge digestion and biogas yield were determined while simultaneously conducting an analysis of daily biogas production intensity with consideration of the volumetric ratio of methane.

2. Materials and Methods

2.1. Materials

To achieve the aims of this study, excess sludge was used as a basic substrate in laboratory experiments concerning disintegration and in the next stage of conventional methane fermentation and assisted disintegration. Furthermore, during anaerobic stabilization, digested sludge was used as an inoculum. Sludge was collected from a mechanical and biological treatment plant at an increased nutrient removal rate. Due to the nature of the research, sludge from a large sewage treatment plant was selected for laboratory experiments, with the technology of sludge disposal allowing for potential implementation of the technological processes based on disintegration methods. A general characterization of selected physicochemical parameters determined for the sludge studied is presented in Table 1.

2.2. Technological Examinations

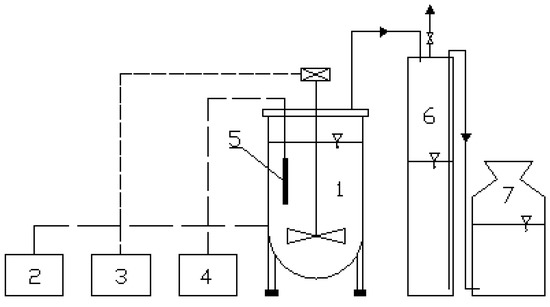

The research concerned the course of methane fermentation conducted in a conventional way and supported by chemical disintegration with peracetic acid (PAA).
The first stage of the research involved the disintegration of excess sludge with peracetic acid. A compound with the trade name STERIDIAL W-10 was used, which is an aqueous solution of 10% peracetic acid, 10% acetic acid, and 8% hydrogen peroxide. Selected doses of the tested reagent were used (0.5 ÷ 8 mL STERIDIAL W-10/L), and the pretreatment times using the chemical method were 1, 4 h, and 8 h. To chemically disintegrate the sludge, a mixture of excess sludge and reagent was pretreated at an appropriate dose selected for testing. Acid disintegration of sewage sludge was carried out at an ambient temperature in laboratory flasks protected from air and placed in a laboratory shaker.
The values of VFAs and SCOD were corrected by the value of these indices derived from the dose of peracetic acid, and acetic acid added into the sludge, which was the components of the reagent, i.e., STERIDIAL W-10, taking into account their percentage content in the solution and their density. As recommended by Appels et al. [33], it was assumed that peracetic acid was completely decomposed to acetic acid in the aqueous medium, and its value was calculated as 1.07 g O2 = 1 g CH3COOH.
The results were the basis for the determination of the most favorable pretreatment conditions, for which the highest value of soluble chemical oxygen demand (SCOD) and the highest increase in the concentration of volatile fatty acids (VFAs) was obtained.
In the second stage of the study, methane fermentation of non-pretreated sludge and the sludge subjected to chemical oxidation with peracetic acid was carried out. The 26-day anaerobic sludge stabilization was performed in a glass cylinder digester (Applicon, USA) with an active volume of 5 L. The system was equipped with an installation for biogas collection and a device to ensure optimum mixing rate and to maintain a constant process temperature. A water jacket was placed outside to heat the sludge that fills the chamber. A platinum thermoelectrode placed inside the chamber ensured that the correct temperature was maintained. The stirrer had an option to control the rotational speed in the range of 0–1250 rpm. The mixing speed for all the processes carried out in the experiment was constant at 120 rpm. The system for biogas capture consistsed of a cylinder with an active volume of 2.5 L filled with a saturated sodium chloride solution and a 5 L compensation cylinder. Reading of the volume of the generated biogas collected in the cylinder was made based on the volume of the liquid displaced by the gas filling the vessel, with its excess (based on the principle of the communicating vessels) flowing into the compensation cylinder. The course of the fermentation was controlled every day based on gas production intensity. Figure 1 shows the digester with the installation used to control adequate mixing rate, maintain a constant process temperature, and capture the biogas.
The scope of the partial research tasks included:
  • Determination of the impact of disintegration on the value of indices of susceptibility of the sludge to biodegradation;
  • Determination of the effect of disintegration with peracetic acid on the structure of pretreated excess sludge;
  • Determination of the effect of the disintegration carried out by a chemical method with the most favorable pretreatment conditions on the efficiency of anaerobic stabilization, i.e., biogas production intensity, methane content, and the degree of mineralization of excess sludge.
Mixtures of non-pretreated and disintegrated excess sludge were stabilized and inoculated with digested sludge to initiate the process, assuming a volumetric ratio of the above-mentioned sludge of 10:1.
The following mixtures of sludge were subjected to anaerobic stabilization:
-
Sludge A: raw excess sludge + inoculum;
-
Sludge B—excess sludge chemically disintegrated using an acidic reagent at a dose of 3 mL of STERIDIAL W-10/L for 1 h + inoculum.
The effectiveness of disintegration was evaluated based on the analysis of the following selected physicochemical parameters of the sludge:
  • pH using pH meter (Cole Palmer 59002-00), according to PN-9/C-04540/05 [38];
  • Alkalinity and total acidity, according to PN-91/C-04540/05 [38];
  • Soluble chemical oxygen demand (SCOD) by bichromate method using tests for HACH 2I00N IS spectrophotometer, according to ISO 7027 [39];
  • Volatile fatty acids (VFA) by means of distillation with water vapor, according to PN-75/C-04616/04 [40].
The correctness and effectiveness of anaerobic stabilization of non-disintegrated and pretreated sludge were evaluated based on the following physicochemical determinations:
  • Dry matter, dry organic matter, dry mineral matter according to PN-EN-12879 [41];
  • pH using pH meter (Cole Palmer 59002-00), according to PN-91/C-04540/05 [38];
  • Soluble chemical oxygen demand (SCOD) by bichromate method using tests for HACH 2I00N IS spectrophotometer, according to ISO 7027 [39];
  • Volatile fatty acids (VFA) by means of distillation with water vapor, according to PN-75/C-04616/04 [40];
  • Total alkalinity, according to PN-91/C-04540/05 [38];
  • Ammonium nitrogen, according to PN-73/C-04576/02 [42];
  • Total Kjeldahl nitrogen, according to PN-73/C-04576/10 [43].

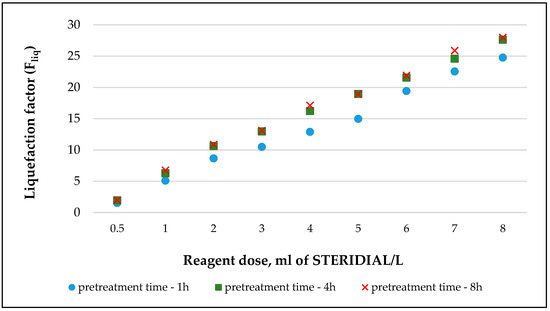

To evaluate disintegration efficiency, the liquefaction factor was determined using the methodology proposed by Zielewicz [44], Baier, and Schmidheiny [45] according to the following equation:
Fliq = SCODd/SCOD0
where Fliq is the liquefaction factor; SCODd is the soluble chemical oxygen demand determined in the filtrate after 0.45 µm filter, for a sample after disintegration, mgO2/L; SCOD0 is the soluble chemical oxygen demand determined in the filtrate after 0.45 µm filter, for a sample before disintegration, mgO2/L.
Microscopic observations of the change in sludge structure were made at the stage of disintegration. The microscopic images obtained for the sludge subjected to the above-mentioned treatment processes provided, in addition to the values of selected physicochemical determinations of the sludge, an additional tool for the assessment of the efficiency of disintegration, and consequently the potential efficiency of methane fermentation. Microscopic observations of the structure of unprocessed and pretreated excess sludge were performed using an Olympus BX 41 microscope with instrumentation for taking photographs. Microphotographs were taken at 500× magnification, and the assessment of changes in the structure of excess sludge was made using a visual method taking into account selected morphological features of the sludge.
The degree of digestion of the sludge tested was calculated according to PN-75/C-04616/07 [46]. The volume of biogas produced during methane fermentation was converted to standard conditions, according to the Polish standard PN-75/C-04616/07 [45]. On the other hand, biogas yield (BY) was determined according to equation [47]:
BY = (∑n)/(∆f_u)
where BY is the biogas yield, L/g VSS; ∑n is the sum of biogas volume obtained during fermentation reduced to normal conditions, L; ∆fu is the loss of VSS in the sludge, g VSS.
Furthermore, the composition of the biogas produced was monitored at one-day intervals during methane fermentation. A GA 2000 analyzer (Geotechnical Instruments) was used to determine the percentage of methane in biogas. For selected parameters, the standard deviation was determined, with its value presented on graphs. Selected determinations were repeated three times during the research. For each value in the dataset, the deviation of this value from the mean was calculated, and the deviation is shown using the symbol ± [48].
Table 2 presents the characteristics of the research stages carried out.

3. Results and Discussion

3.1. The Effect of the Disintegration Conducted Using Independent Methods on Indices of Biodegradability of Sewage Sludge

In this section, the effect of acidic chemical disintegration on the increase in biodegradability of pretreated sludge was determined. The most favorable pretreatment conditions were determined based on the increase in soluble chemical oxygen demand (SCOD) and volatile fatty acids (VFAs) concentration. Furthermore, the pH of the pretreated sludge and its acidity and alkalinity were determined for selected samples. To determine the most favorable conditions of acid disintegration, the reagent dose was chosen at the assumed pretreatment times of 1, 4, and 8 h. The correctness of the choice of the most favorable conditions for sludge pretreatment was additionally confirmed by the value of the sludge liquefaction factor, which was reflected in the observed change in the structure of the pretreated sludge. The values obtained for repeated measurements of individual physicochemical parameters were not differentiated. It was found that in the case of statistical deviation determined for all measurements, the obtained results showed a slight deviation from the mean.

3.1.1. Increase in the Concentration of Dissolved Organic Matter Observed in the Supernatant Liquor of Chemically Disintegrated Sewage Sludge

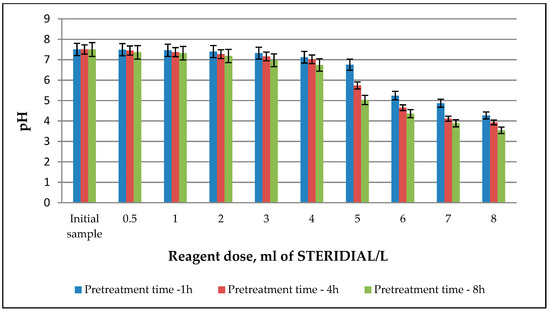

Based on the results, it was found that an increase in the reagent dose had a decisive impact on the increase in the values of indices determining the biodegradability of pretreated sludge, i.e., SCOD and VFAs. Furthermore, a decrease in pH was observed after the addition of an acidic reagent to the sludge (Figure 2). For the dose range studied and pretreatment time of 1 h, the pH value ranged from 4.27 to 7.49; for the pretreatment time of 4 h, they ranged from 3.93 to 7.42, while for the 8 h pretreatment—from 3.54 to 7.26.
According to Procházka et al. [49], the insignificant impact of PAA on the excess sludge pH could be caused by buffering capacity, that is, equilibrium between ammonium, carbonate, and volatile fatty acids (e.g., acetic, propanoic, and butyric acids). An increasing trend was observed in the case of the total acidity of the sludge pretreated with the reagent in the range of doses of 0.5 ÷ 8 mL of STERIDIAL W-10/L, with values of 37 ÷ 1167 mg CO2/L for the pretreatment time of 1 h, 42 ÷ 1318 mg CO2/L for the pretreatment time of 4 h, and 45 ÷ 1427 CO2/L for the pretreatment time of 8 h (Figure 3).

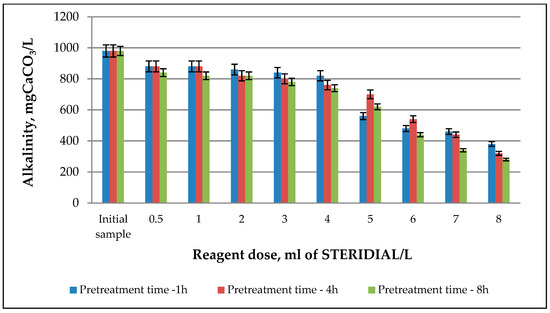

A decreasing trend was observed for total alkalinity determined in the case of pretreated sludge, with values ranging from 380 to 880 mg CaCO3/L for 1 h, 320 to 880 mg CaCO3/L for 4 h, and 280 to 840 mg CaCO3/L for 8 h (Figure 4).

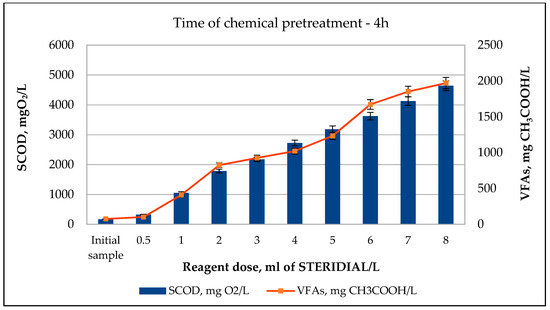

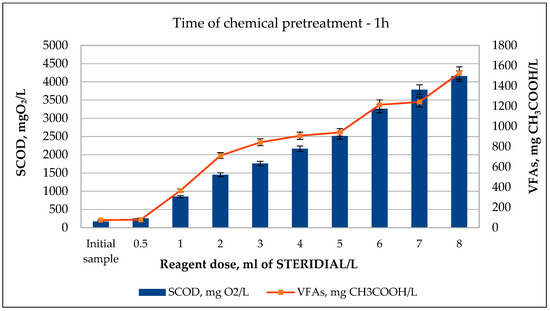

As a result of 1, 4, and 8 h of sludge disintegration by addition of STERIDIAL W-10 solution in doses ranging from 0.5 ÷ 8 mL/L, an increase in the soluble chemical oxygen demand (SCOD) values was from 256 to 4157 mg O2/L for the pretreatment time of 1 h, from 324 to 4638 mg O2/L for 4 h, and from 332 to 4698 mg O2/L for 8 h with respect to the lowest and the highest reagent doses, respectively (Figure 5, Figure 6 and Figure 7). Based on the results obtained, Cavallini et al. [50] concluded that PAA leads to an increase in the concentration of dissolved organic matter, resulting in an increase in chemical oxygen demand in sewage by approximately 20 mg/L for every 10 mg/L of PAA used. As the reagent dose increased, a gradual increase in the concentration of volatile fatty acids determined in the supernatant liquid of the pretreated sludge was noted. For the tested reagent doses of 0.5 ÷ 8 mL STERIDIAL W-10/L, a 1.1-fold to 20.4-fold increase in the VFA concentration for the pretreatment time of 1 h, 1.4-fold to 26.3-fold for 4 h, and 1.6-fold to 26.6-fold for 8 h, were obtained with respect to the VFA concentration values of the non-pretreated sludge (Figure 5, Figure 6 and Figure 7). According to data in the literature [28,30,31], chemical disintegration with peracetic acid promotes the formation of highly reactive hydroxyl radicals, which is an important oxidizing agent during chemical pretreatment.

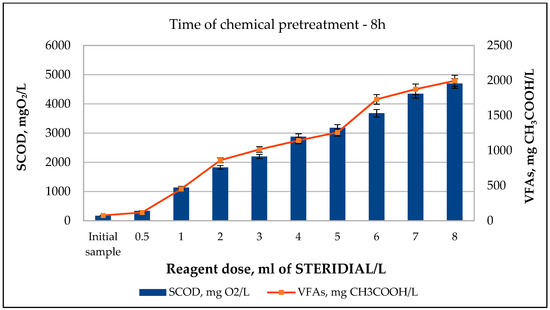

As a result of the disintegration of sludge by adding STERIDIAL W-10 solution in doses ranging from 0.5 to 8 mL/L, the values of the liquefaction factor were 1.5 to 24.7 for the pretreatment time of 1 h, 1.9 to 27.6 for the pretreatment time of 4 h, and 2.0 to 28.0 for the pretreatment time of 8 h. It was observed that for the reagent doses tested, similar values of the sludge liquefaction factor were obtained for greater treatment times (Figure 8).
Due to the technological conditions of the anaerobic stabilization process, a reagent dose of 3.0 mL of STERIDIAL W-10/L of sludge was selected for further experiments, for which, along with the subsequent increase in sludge biodegradability, there was no need to modify the pH of the sludge treated. In the case of higher doses, a correction of the pH value would be necessary and would cause secondary contamination of the treated medium. The reagent dose of 3 mL of STERIDIAL W-10/L, and the pretreatment time of 1 h were found to be the most favorable pretreatment conditions. According to Domínguez Henao et al. [25,26,27], regarding the kinetics of the changes induced by peracetic acid, the value of the rate constant and the initial consumption of PAA increases with increasing content of organic matter. Therefore, the half-life of PAA dosed to sludge is short, with a large amount of suspended solids.

3.1.2. Structure of Chemically Disintegrated Excess Sludge

The measurable effect of disintegrating factors is the observed change in the structure of pretreated sludge, with its nature determining sludge susceptibility to biochemical decomposition in anaerobic conditions. Changes in the structure of excess sludge subjected to peracetic acid pretreatment recorded during microscopic observations correlate with the value of the liquefaction factor (Fliq), which can be considered an additional research tool confirming the effectiveness of the selected disintegration method. Intensification of sludge particle liquefaction was observed with an increase in the reactant dose (Figure 9).

3.2. Effect of Disintegration on the Efficiency of Anaerobic Stabilization, i.e., Volatile Fatty Acids Generation, Biogas Production Intensity, Methane Content, and Sludge Digestion Degree

The choice of the most favorable conditions for chemical disintegration with peracetic acid was based on the effectiveness of the disintegration method tested, i.e., the increase in VFA concentration, SCOD value, and the liquefaction factor (Fliq), also taking into account the pH value, acidity, and alkalinity, which determine the correct course of methane fermentation. Therefore, for technological reasons, a reactant dose of 3 mL of STERIDIAL W-10/L and a pretreatment time of 1 h were chosen for further experiments. Due to the buffering properties of the sludge, the application of the above-mentioned reagent dose did not cause a significant decrease in pH value and did not require any correction of this indicator to the optimal value for methane fermentation. It should be noted that the pH affects solubility and forms of both organic and inorganic compounds. It also determines the proper development of fermentation microorganisms, especially methanogens. According to Magrel [51], the pH of the supernatant liquid should be 7.0 ÷ 7.2. The pH limits should be between 6.5 and 8.5. [51,52]. The disintegration of the excess sludge with 3 mL of STERIDIAL W-10/L and a pretreatment time of 1 h resulted in a pH value of 6.78.
In the first research cycle, a conventional methane fermentation was carried out (Mixture A), while in the next, chemically disintegrated sludge was subjected to methane fermentation using a dose of 3 mL of STERIDIAL W-10/L (Mixture B). Chu et al. [53] argued that disintegration of excess sludge leads directly affects the acceleration and leads to the shortening of the time needed for stabilization to about 8 days and increasing the rate of biogas production and unit biogas production. Figure 10 shows the changes in the concentration of volatile fatty acids during 8-day conventional methane fermentation and methane fermentation of sludge treated with peracetic acid (PAA).
With the changes taking place in the physicochemical and structural properties of the disintegrated sludge, an increase in the amount and rate of production of volatile fatty acids (VFAs) was observed at the stage of sludge acid digestion compared to the anaerobic stabilization of pretreated sludge. The combination of acid hydrolysis caused by the introduction of peracetic acid (PAA) and biological hydrolysis, which is the first phase of methane fermentation, resulted in an increase in the efficiency of anaerobic stabilization compared to the efficiency of stabilization of the non-pretreated sludge. According to data in the literature [19], hydrolysis in conventional systems of sludge treatment based on anaerobic processes has a decisive effect on the rate of methane fermentation, and it takes place with the participation of exoenzymes produced by microorganisms.
Table 3 shows selected physicochemical parameters obtained for conventional methane fermentation and methane fermentation of the sludge after disintegration.
The SCOD values of 842 mg O2/L and 1034 mg O2/L and concentrations of volatile fatty acid (VFAs) of 617 mg CH3COOH/L, 834 mg CH3COOH/L were recorded for sludge A and B on day 26 of the process, respectively. On the other hand, on the day of the process initiation (Day 0), the values of the examined indices were 185 mg and 1792 mg O2/L and 83 and 912 mg CH3COOH/L, respectively. Stabilization of sludge A yielded ca. 53% sludge digestion degree and ca. 42% reduction in dry matter, while for sludge B, sludge digestion degree was ca. 74%, and the reduction in dry matter was ca. 56%. The pH value at the beginning of the process (Day 0) was 7.1 for sludge A; and 7.06 for sludge B, reaching 7.31 and 7.24 on day 26. During the 26-day stabilization, the initial and final alkalinity values were 880 and 2420 CaCO3/L for sludge A and 920 and 2640 CaCO3/L for sludge B, respectively. The VFAs/alkalinity quotient on day 26 was 0.25 (sludge A) and 0.32 (sludge B). The values of Kjeldahl nitrogen and ammonium nitrogen on the day of process initiation (day 0) and after 26 days of stabilization of the sludge A were 134 and 585 mg N/L, and 69 and 507 mg N-NH4/L, respectively. Furthermore, for the tested sludge B, the values of Kjeldahl nitrogen and ammonium nitrogen at the day of the process initiation (day 0) and after 26 days of stabilization were 415 and 617 mg N/L, and 134 and 583 mg N-NH4/L, respectively.

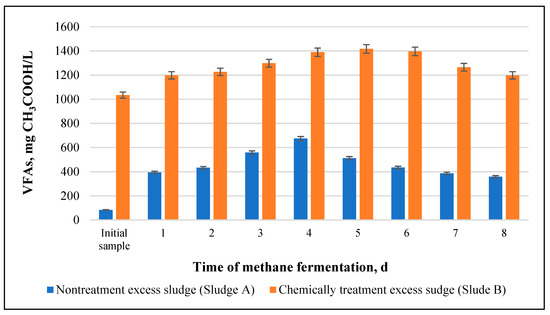

During methane fermentation of sludge subjected to chemical disintegration with a reactant dose of 3.0 mL of STERIDIAL W-10/L (sludge B), the highest value of daily biogas production (0.28 L) was observed on the 10th day of the process. Total biogas production of 3.53 L was recorded, which translated into a specific biogas production of 0.52 L/g VSS. In the case of the conventional sludge methane fermentation (sludge A), the highest value of daily biogas production (0.12 L) was observed on day 12. A total biogas production of 0.97 L was recorded, which translated into specific biogas production of 0.2 L/g VSS. According to the literature data [45], biogas production efficiency can be determined with reference to the volume of the digester expressed in m3, the volume of biogas per one inhabitant, or by defining the volume of biogas obtained from the removal of a load of pollutants contained in the sludge expressed as dry organic matter, i.e., biogas yield (L/g VSS).
Based on research results, Sun et al. [54] found that with regard to the methane fermentation of untreated sludge, the cumulative biogas production increased by 20.0% after 26 days of anaerobic digestion of the sludge subjected to oxidation with peracetic acid. The biogas production rate in the digester with pretreated sludge reached the maximum on day 8 at 87 mL/d, but the peak value was obtained on day 11 at 74 mL/d in the case of non-pretreatment sludge. Therefore, based on the results obtained in the present study and those obtained by other scientists [33,54,55,56], it can be concluded that disintegration with peracetic acid may shorten the retention time of methane fermentation and increase biogas production.

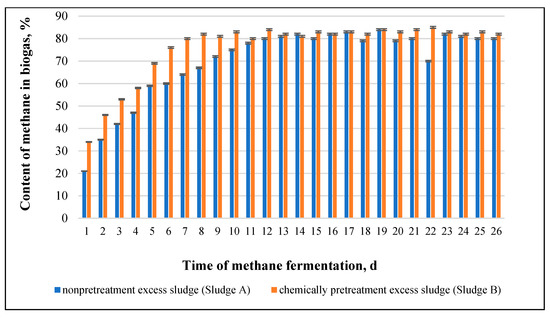

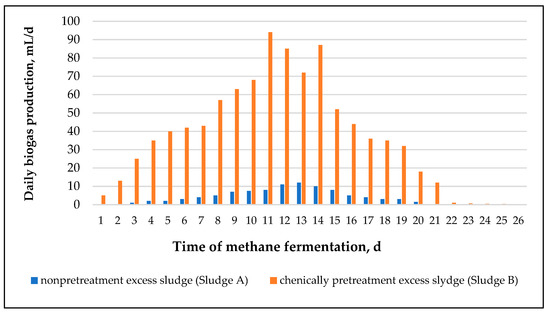

Figure 11 shows the course of biogas generation, while Figure 12 shows the proportion of methane in biogas expressed in volume percentage during conventional methane fermentation of sludge and methane fermentation of chemically disintegrated sludge.
According to data in the literature, pre-oxidation of sludge with PAA leads to the degradation of extracellular polymer substances and improves the solubility of organic matter and sludge disintegration, thus contributing to increased biogas production [33,54,57,58].

4. Conclusions

The disintegration of excess sludge before methane fermentation plays an important role by supporting the biochemical decomposition of sludge under anaerobic conditions. The use of intracellular substances separated from the cells of activated sludge microorganisms by anaerobic bacteria of methane fermentation occurs only in a dissolved form as a result of the initiation of hydrolysis by disintegrating agents characterized by different types of energy supplied to the sludge.
A novelty aspect of the research is the use of a highly effective method of oxidation of excess sludge with peracetic acid (PAA), taking into account the selection of the most favorable treatment conditions to increase the effectiveness of methane fermentation.
Sludge pretreatment with peracetic acid (PAA) resulted in an increase in soluble chemical oxygen demand and the correlated increase in the concentration of volatile fatty acids, determined in the filtrate fluid of the pretreated sludge. Furthermore, the physicochemical transformation of sludge taking place as a result of sludge pretreatment is reflected in a significant change in the sludge structure expressed by an increase in the degree of particle dispersion. The total and unit biogas production reported during the 26-day anaerobic stabilization of disintegrated sludge and the degree of sludge digestion show, compared to anaerobic stabilization of non-treated sludge, a significant increase in biodegradability of excess sludge treated using the method studied. However, no increase in the calorific value of biogas was found compared to conventional methane fermentation.
It should be emphasized that the potential application of the tested disintegration method in the technological line for sludge disposal offers both ecological and economic benefits resulting from reduced environmental load due to the application of sludge pretreatment, which does not cause secondary pollution.

Author Contributions

Conceptualization, I.Z. and M.W.; methodology, I.Z., software, I.Z. and M.W.; validation, I.Z.; formal analysis, I.Z.; investigation, I.Z.; resources, I.Z. and M.W.; data curation, I.Z.; writing—original draft preparation, I.Z. and M.W.; writing—review and editing, I.Z.; visualization, I.Z.; supervision, M.W.; project administration, I.Z.; funding acquisition, I.Z. and M.W. Both authors have read and agreed to the published version of the manuscript.

Funding

The study was carried out in the framework of the statutory funds for research, financed by the Ministry of Science and Higher Education.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
