Performance Analysis of TiO₂-Modified Co/MgAl₂O₄ Catalyst for Dry Reforming of Methane in a Fixed Bed Reactor for Syngas (H₂, CO) Production

Abstract

Co/TiO₂–MgAl₂O₄ was investigated in a fixed bed reactor for the dry reforming of methane (DRM) process. Co/TiO₂–MgAl₂O₄ was prepared by modified co-precipitation, followed by the hydrothermal method. The active metal Co was loaded via the wetness impregnation method. The prepared catalyst was characterized by XRD, SEM, TGA, and FTIR. The performance of Co/TiO₂–MgAl₂O₄ for the DRM process was investigated in a reactor with a temperature of 750 °C, a feed ratio (CO₂/CH₄) of 1, a catalyst loading of 0.5 g, and a feed flow rate of 20 mL min⁻¹. The effect of support interaction with metal and the composite were studied for catalytic activity, the composite showing significantly improved results. Moreover, among the tested Co loadings, 5 wt% Co over the TiO₂–MgAl₂O₄ composite shows the best catalytic performance. The 5%Co/TiO₂–MgAl₂O₄ improved the CH₄ and CO₂ conversion by up to 70% and 80%, respectively, while the selectivity of H₂ and CO improved to 43% and 46.5%, respectively. The achieved H₂/CO ratio of 0.9 was due to the excess amount of CO produced because of the higher conversion rate of CO₂ and the surface carbon reaction with oxygen species. Furthermore, in a time on stream (TOS) test, the catalyst exhibited 75 h of stability with significant catalytic activity. Catalyst potential lies in catalyst stability and performance results, thus encouraging the further investigation and use of the catalyst for the long-run DRM process.

1. Introduction

The rising concerns over greenhouse gas (GHG) emissions on global warming and climate change has motivated many industrial production facilities to reconsider plans on how to effectively control and recycle GHGs to produce synthetic fuels [1,2]. Synthesis gas (mainly made of H₂ and CO) is a vital fuel gas mixture currently being employed as an alternative to petroleum-based fuels. Syngas is considered the primary feedstock in the production of some important liquid fuels, such as ammonia and methanol, and it can also be used as an intermediate resource to produce H₂, synthetic petroleum, and hydrocarbon products [3,4,5].

Syngas can be produced from various routes and techniques. The catalytic reforming technologies for syngas production, such as the steam reforming of methane (SRM) [6], partial oxidation of methane (POM) [5], and dry reforming of methane (DRM) [7,8], have gained much importance in recent years [9,10]. The DRM has been shown to be a promising technique that employs two major GHGs (CH₄ and CO₂) as feedstock to produce syngas [11,12]. The H₂/CO syngas ratio produced above unity as a result of the DRM reaction is favourable for the synthesis of value-added chemicals and long-chain hydrocarbons for Fischer–Tropsch (FT) synthesis [13]. The DRM converts stable molecules of CO₂ and CH₄ via catalytic pathways into syngas when mixed in-unit proportion (Equation (1)).

$${\mathrm{CH}}_4{+\mathrm{CO}}_2\to {2 \mathrm{CO}+2 \mathrm{H}}_2\hspace{1em}\mathsf{\Delta }{\mathrm{H}}^{°}{}_{25°\mathrm{C}}{=247 \mathrm{kJ} \mathrm{mol}}^{-1} ( \mathrm{DRM} )$$

(1)

The DRM has some notable disadvantages, as it promotes reverse water-gas shift reaction (RWGS) and carbon formation via methane decomposition [14,15]. RWGS mainly occurs when the H₂ to CO ratio becomes less than unity. The carbon formation is expressed by the famous Boudouard reaction, which can result in the deactivation of catalysts [16,17] Equations (2) and (3).

$$\mathrm{C}{\mathrm{H}}_4\to \mathrm{C}+{\mathrm{H}}_2\hspace{1em}\mathsf{\Delta }{\mathrm{H}}^{°}{}_{25°\mathrm{C}}=75{ \mathrm{kJ} \mathrm{mol}}^{-1} (\mathrm{Methane} \mathrm{cracking})$$

(2)

$$2 \mathrm{C}\mathrm{O}\to \mathrm{C}+\mathrm{C}{\mathrm{O}}_2\hspace{1em}\mathsf{\Delta }{\mathrm{H}}^{°}{}_{25°\mathrm{C}}=-172{ \mathrm{kJ} \mathrm{mol}}^{-1} (\mathrm{Boudouard} \mathrm{reaction})$$

(3)

It is understood that carbon formation has adverse effects on the reaction mechanism and results in carbon deposition, thus leading to the deactivation of catalysts that affect the reaction lifetime and altering the H₂/CO ratio [18,19]. To have a better understanding of coke formation, understanding the thermodynamics of the DRM is important for commercial DRM process implementation. Thus, the development of a catalyst with a high catalytic performance and resistance to coking is an important objective [20]. In this regard, catalyst performance depends on active metal and support properties, their interaction, and their catalytic behaviour.

In the catalytic DRM, noble metals like rhodium (Rh), palladium (Pd), and ruthenium (Ru) are recognised as stable catalysts that can inhibit carbon formation but are commercially unviable [21,22,23]. Nickel (Ni) is the most widely used commercially active metal due to its availability and good catalytic activity. The carbon deposition rate and sintering of the Ni catalyst still need to be addressed in the DRM [24,25,26]. Cobalt (Co) exhibits a better stability to carbon deposition, but its performance in the DRM must be improved [27,28,29,30]. For instance, El et al. [31] investigated the effects of confinement on the catalytic performance of two silica supports (SiO₂ and SBA-15) on Co loading. The results indicated that Co/SBA-15 showed stability against the sintering of mesopores during the DRM and that the addition of rhodium to Co/SBA-15 led to increased stability and activity with less carbon coking.

The effect of the support on the catalyst depends on the nature of the support, which can play an essential role in the activity and stability of the catalyst [32]. MgAl₂O₄ is an excellent support material with a high sintering resistance, good hydrothermal stability, and excellent mechanical strength [3,14,33]. During the DRM, CO₂ dissociation and adsorption proceed at a faster rate with the use of basic support, and, in this regard, MgAl₂O₄ can be used as a support material due to its basic nature and high surface area [34,35,36]. DRMs done using different Ni loadings on nanocrystalline MgAl₂O₄ (with its high surface area) have shown high catalytic activity and stability, with an increase in carbon deposition following the increase in Ni loading [14,37].

Bi-support catalysts can be very effective in improving mechanical properties and catalytic performance. For example, TiO₂ provided some favourable properties for the DRM [38]. The strong metal–support interaction between the TiO₂ support and metal exhibited a high resistance towards coke deposition while increasing catalyst activity and stability. The activity and stability of TiO₂ can be improved using a structured TiO₂-based catalyst [38,39]. In catalysis, a higher catalytic activity has been observed with the use of metal supported on TiO₂ nanowires. The use of a low-temperature SRM using Ni/TiO₂ as a catalyst revealed that stronger metal–support interactions assisted low-temperature methane activation while Ni species aided in hydrogen production via WGSR. It was reported that Ni/TiO₂ showed an enhanced coking resistance [40]. Though TiO₂ nanowires have been investigated for other photocatalytic and fuel cell applications, their effect on the DRM with a combination of the Co transition metal and added bi-support has yet to be investigated [41]. The combination of TiO₂ and MgAl₂O₄ as co-supports and Co as an active metal could enhance the CH₄ and CO₂ activation, resist carbon formation, and aid stability.

In this study, the catalytic performance of a TiO₂ nanowire-modified Co/MgAl₂O₄ catalyst was investigated for the DRM in a fixed bed reactor. Co/TiO₂–MgAl₂O₄ was synthesised by the co-precipitation process, the hydrothermal method, and the wetness impregnation method. The catalyst was characterised using various techniques such as XRD, SEM, EDS, TGA, and FTIR. The catalyst was tested for the DRM activity and the effect of metal loading, and stability tests were conducted for longer times on stream (TOS). Furthermore, the spent catalyst was characterised by XRD, SEM-EDS, and TGA to analyse the carbon formation during the TOS and to present a possible reaction mechanism.

2. Materials and Methods

2.1. Synthesis of MgAl₂O₄ and TiO₂ Nanoparticles

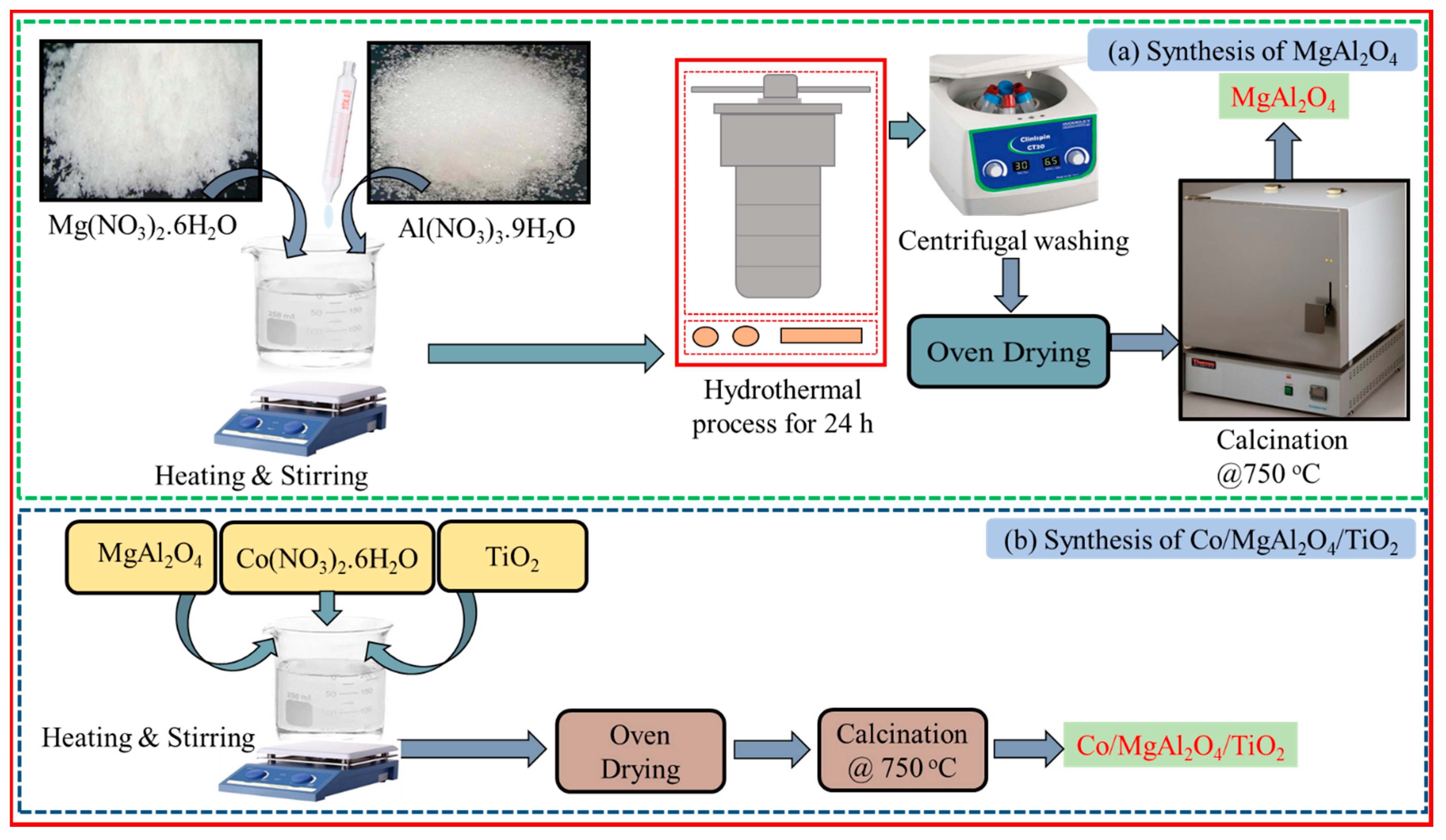

To prepare the MgAl₂O₄ spinel, a modified co-precipitation method followed by the hydrothermal process was used, as shown in Figure 1a. A stoichiometric amount of Mg (NO₃)₂·6H₂O (99.99%, Sigma Aldrich) and Al (NO₃)₃·9H₂O (98%, Honeywell Fluka) was added in deionised water and set to mild stirring conditions until a homogeneous solution formed. An ammonia solution (32%) was used as a precipitating agent, which was added dropwise into the solution with continuous stirring to maintain a pH of at 10.5 because higher PH would have resulted in a lower crystallite size and a higher specific surface area [42]. The stirring and heating continued until the stabilisation of the pH at 10.5 and the appearance of a milky white solution. The solution was then transferred to a hydrothermal autoclave maintained at 160 °C for 24 h and left to cool at room temperature overnight. The precipitates were separated using a centrifuge and washed with warm DI water and absolute ethanol until the pH of the solution reached 7.0 [14]. The slurry was dried at 110 °C overnight. The prepared sample was a ground and calcined in a furnace maintained at 800 °C for 5 h in static air. The collected sample was ground until fine MgAl₂O₄ particles were formed.

In the typical synthesis of TiO₂ nanowires (NWs), 0.70 g of titanium (IV) oxide (99%, Sigma-Aldrich) nano-powder were added in 70 mL of a 10 M solution of NaOH and continuously stirred until the formation of a homogeneous solution. The solution was then shifted to a hydrothermal autoclave, heated to 160 °C for 5 h, and allowed to cool at room temperature. The solution was centrifuged to collect the white precipitates, and then it was washed with a 0.1 M HCl solution and warm deionised water several times to bring the pH to 7.0 [43]. The sample was oven-dried at 110 °C, followed by calcination at 500 °C to obtain a fine white powder.

2.2. Preparation of Co/TiO₂–MgAl₂O₄ Nanocomposite

A schematic representation of Co/TiO₂–MgAl₂O₄ nanocomposite preparation is shown in Figure 1a. For the preparation of the Co/TiO₂–MgAl₂O₄ nanocomposite, the wetness impregnation method was used with the addition of Co(NO₃)₂·6H₂O (98%, Merck) on MgAl₂O₄ and TiO₂ NW supports. In catalyst preparation, 1.0 g of MgAl₂O₄ and 0.1 g of TiO₂ NWs were dispersed in a 0.1 M Co(NO₃)₂·6H₂O solution and allowed to stir for 5 h at 110 °C. The resulting slurry was oven-dried at 110 °C overnight and calcined at 750 °C for 5 h. The prepared sample was named 5%Co/TiO₂–MgAl₂O₄. Similarly, composite samples of 2.5 and 7.5% Co loading were prepared.

2.3. Materials Characterisation

The crystalline structure and phase transition of the prepared catalysts were analysed by the X-ray diffraction method. The identification of the peaks of the calcined and ground samples was carried out via a Bruker D8 advanced X-ray diffractometer with an irradiation wavelength of 1.5418 Å at 40 kV and 40 mA operating conditions. XRD patterns were obtained using diffraction angles over the range of 5–90° with a step size of 0.05°. The Scherrer equation was used to estimate the average crystallite size [44].

The surface morphology of the prepared fresh samples and the spent samples were examined by SEM. To obtain the micro-level images of the samples, a JSM-6490A JEOL SEM (Japan) was used. The resolution of the microscope was set to 3 nm, and it was operated at 30 kV. EDX was used to analyse the elemental composition of catalyst.

TGA was performed using a TGA 5500 from TA Instruments (USA) to observe the thermal stability of the fresh catalyst and the amount of carbon deposited on spent samples by maintaining a nitrogen flow of 25 mL min⁻¹ and a heating rate of 10 °C min⁻¹ to a maximum temperature at 900 °C. The weight of the sample used for the analysis was 10 mg. The percentage of weight loss was observed at different temperatures based on the reactive carbon.

FTIR was used to identify the functional groups in the sample and the interactions between them. The FTIR analysis was carried out on a Cary 630 FTIR (Agilent Technologies, USA), with the wavenumber ranging from 4000 to 650 cm⁻¹.

2.4. Experimental Setup

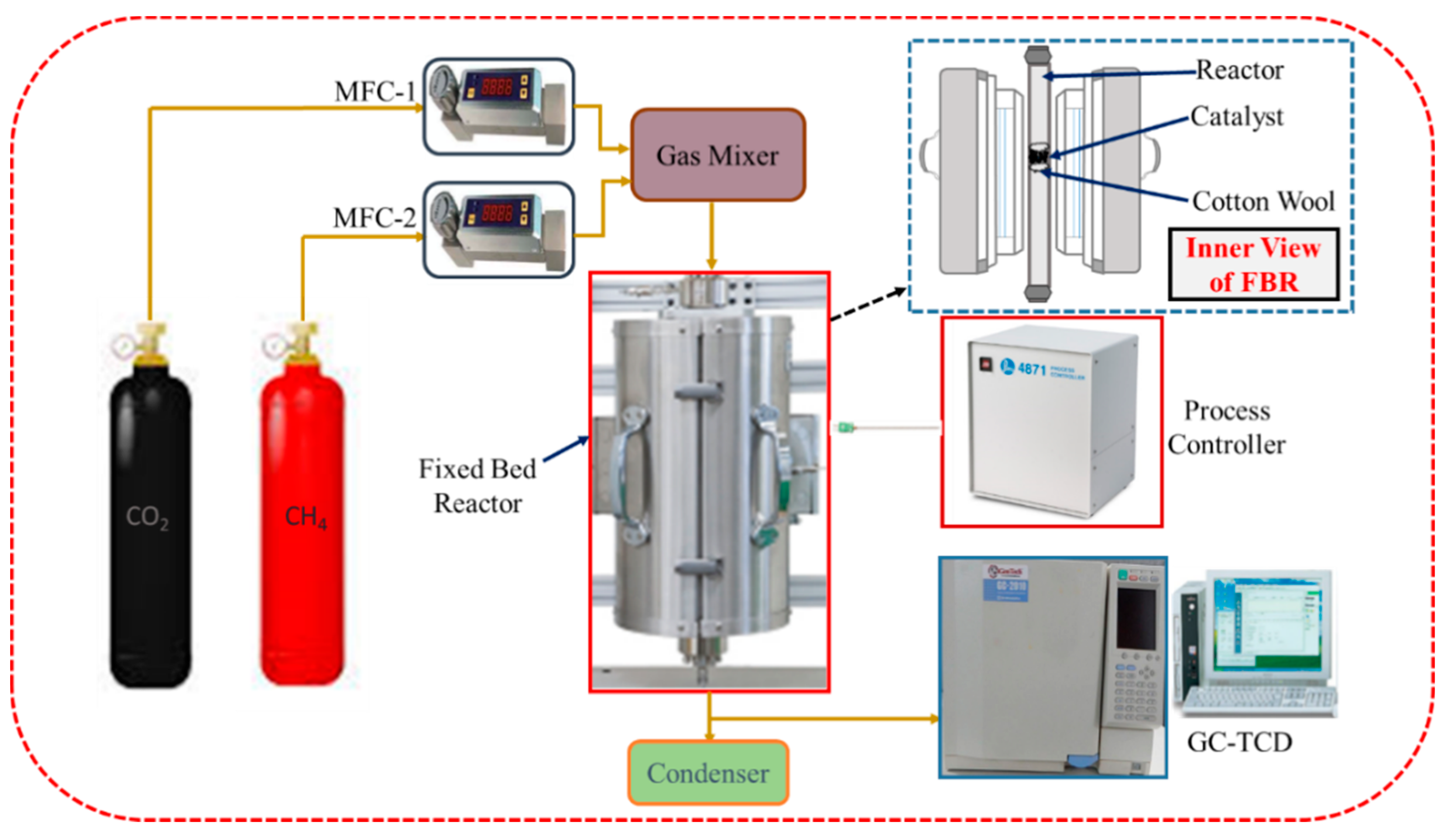

The experimental setup scheme for the DRM is illustrated in Figure 2. The fixed bed reactor of PARR (Model # LSP-2.38-0-32-1C-2335EEE, Moline USA) was used for the DRM process. The reactor consisted of a 2.5 ft SS-316 material tube with a ½ inch diameter. Th tube openings were fixed with SS RED union at both ends and connected to a gas mixer. The supply of the feed gas was controlled with digital MF4600 series mass flow controllers. The reactor temperature was controlled by the 4871 Series Process Controllers. The K-type thermocouple was used to control the temperature of the catalyst bed. The catalyst was sandwiched in between the glass wool and kept in the centre of the reactor using suitable support. Before each experiment, 60 mL min⁻¹ of N₂ were introduced to purge the reactor system, and 20 mL min⁻¹ of H₂ in the presence of 60 mL min⁻¹ of N₂ gas were used to reduce the catalyst at 750 °C for 1 h by activating the active sites due to the requirement of higher conversions and longer stability runs for the DRM. During experimental runs, the mass flow rates of the feed gas CH₄ (99.99%) and CO₂ (99.99%) were controlled at 10 mL min⁻¹ each and then introduced into the reactor that was set at 750 °C and 0.5 g of catalyst loading. The reaction products were allowed to pass through the condenser before gas analysis. The gases were analysed with a gas chromatograph (GC 2010 plus Shimadzu) equipped with a thermal conductivity detector (TCD) [45]. The temperature of the GC column was set at 200 °C, while the peak retention time was set for 10 min.

2.5. Catalytic Activity Calculations

Catalytic activity tests were conducted to analyse the performance and stability of the DRM catalyst in the fixed bed reactor. The DRM activity test included reactant conversion, selectivity, and yield, as presented in Equations (4)–(10). The term ‘n’ represents the number of moles in the following equations.

$${\mathrm{CH}}_4\mathrm{conversion}\left({\mathrm{X}}_{{\mathrm{CH}}_4}\right)\%=\left[\frac{{{(\mathrm{nCH}}_4)}_{\mathrm{converted}}}{{{(\mathrm{nCH}}_4)}_{\mathrm{feed}}}\times 100\right]$$

(4)

$${\mathrm{CO}}_2\mathrm{conversion}\left({\mathrm{X}}_{{\mathrm{CO}}_2}\right)\%=\left[\frac{{{(\mathrm{nCO}}_2)}_{\mathrm{converted}}}{{{(\mathrm{nCO}}_2)}_{\mathrm{feed}}}\times 100\right]$$

(5)

$${\mathrm{H}}_2\mathrm{selectivity}\left({\mathrm{S}}_{{\mathrm{H}}_2}\right)\%=\left[\frac{{{(\mathrm{nH}}_2)}_{\mathrm{produced}}}{{(2\times {\mathrm{nCH}}_4)}_{\mathrm{converted}}}\times 100\right]$$

(6)

$$\mathrm{CO}\mathrm{selectivity}\left({\mathrm{S}}_{\mathrm{CO}}\right)\%=\left[\frac{{\left(\mathrm{nCO}\right)}_{\mathrm{produced}}}{{{(\mathrm{nCH}}_4+{\mathrm{nCO}}_2)}_{\mathrm{converted}}}\times 100\right]$$

(7)

$${\mathrm{H}}_2\mathrm{yield}\left({\mathrm{Y}}_{{\mathrm{H}}_2}\right)\%=\left[\frac{{{(\mathrm{nH}}_2)}_{\mathrm{produced}}}{2\times {({\mathrm{nCH}}_4)}_{\mathrm{feed}}}\times 100\right]$$

(8)

$$\mathrm{COyield}\left({\mathrm{Y}}_{\mathrm{CO}}\right)\%=\left[\frac{{\left(\mathrm{nCO}\right)}_{\mathrm{produced}}}{{ (\mathrm{nCH}}_4+{\mathrm{nCO}}_2{)}_{\mathrm{feed}}}\times 100\right]$$

(9)

$${\mathrm{H}}_2/\mathrm{CO} \mathrm{ratio}=\left[\frac{{({\mathrm{nH}}_2)}_{\mathrm{produced} }}{ {(\mathrm{nCO})}_{\mathrm{produced} }}\right]$$

(10)

3. Results and Discussion

3.1. Characterization of Catalyst

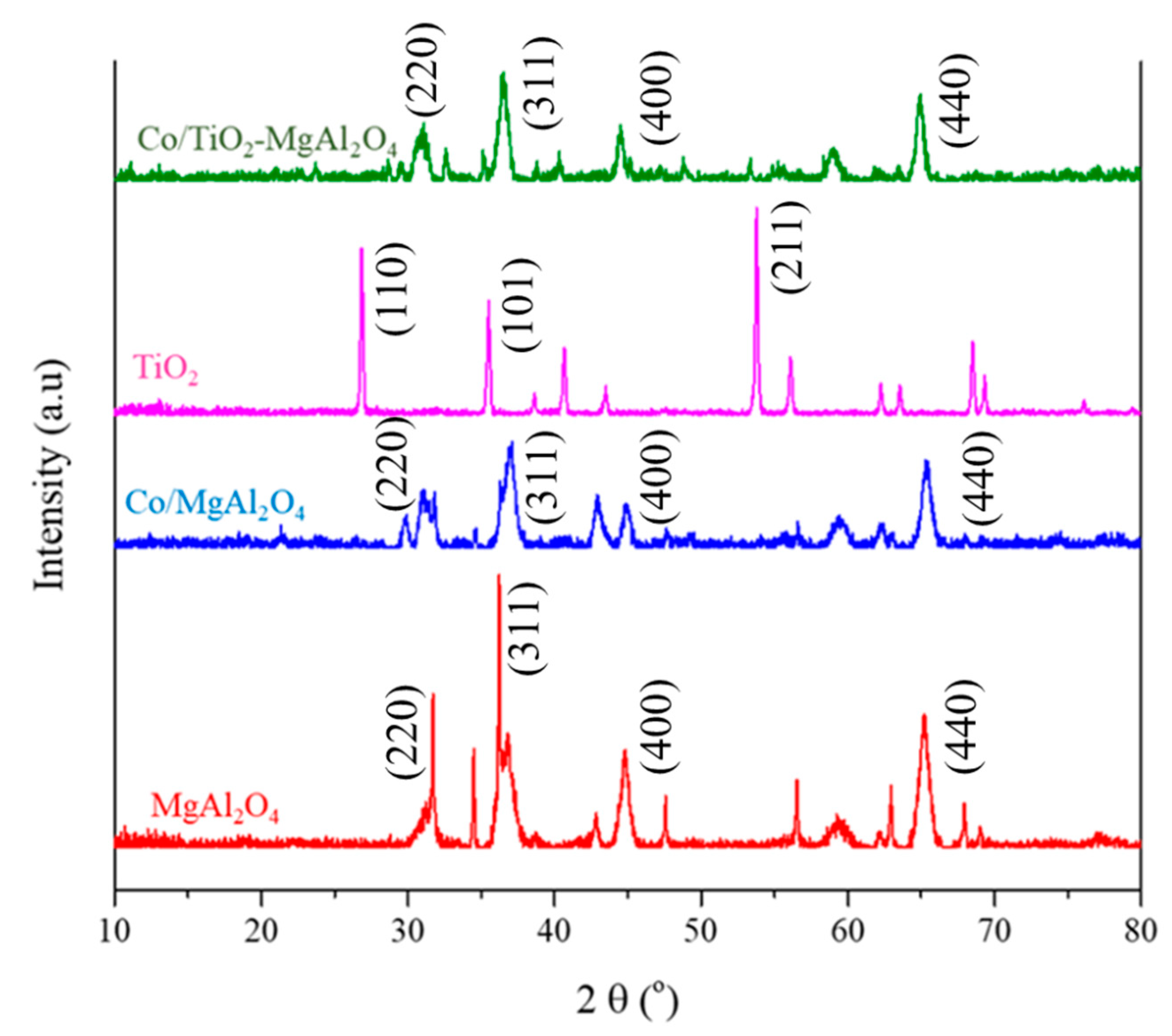

The XRD of the prepared samples is shown in Figure 3. MgAl₂O₄ (PDF:21-1152) showed diffraction peaks centred at 2θ = 31.27°, 36.85°, 44.8, and 65.2° corresponding to different planes with intensified characteristic peaks at 36.85° (hkl;311) with a d-spacing of 0.243 nm and at 65.2° (hkl; 440) with a d-spacing of 0.14 nm, thus indicating the presence of a spinel phase of MgAl₂O₄ [46,47]. A rutile phase with a tetragonal symmetry was detected for TiO₂ (PDF:21-1276) diffraction peaks, with the major phase (211) observed at 54.32° and a d-spacing of 0.16 nm [48]. Upon adding cobalt with MgAl₂O₄, some peaks observed in MgAl₂O₄ XRD went missing due to the merging of peaks with the neighbour peaks. Similarly, cubic phase CoAl₂O₄ (PDF:44-0160) showed a major peak at 36.7° (hkl; 311) with a d-spacing 0.244 nm and a space group of 227:Fd3m, while the other peaks observed at 31.74° and 44.63° with the corresponding planes of (220) and (400), respectively [49]. Diffraction peaks were observed at 31.2° and 36.8° with planes (220) and (311), respectively, with a space group of 227:Fd3m of the cubic phase, thus indicating the presence of Co₃O₄ (PDF:43-1003) [50]. CoTiO₃ (PDF:15-0866), with a hexagonal phase with a major peak observed at 32.8° (hkl; 104) and a d-spacing of 0.27 nm, showed the space group of R-3(148) [51].

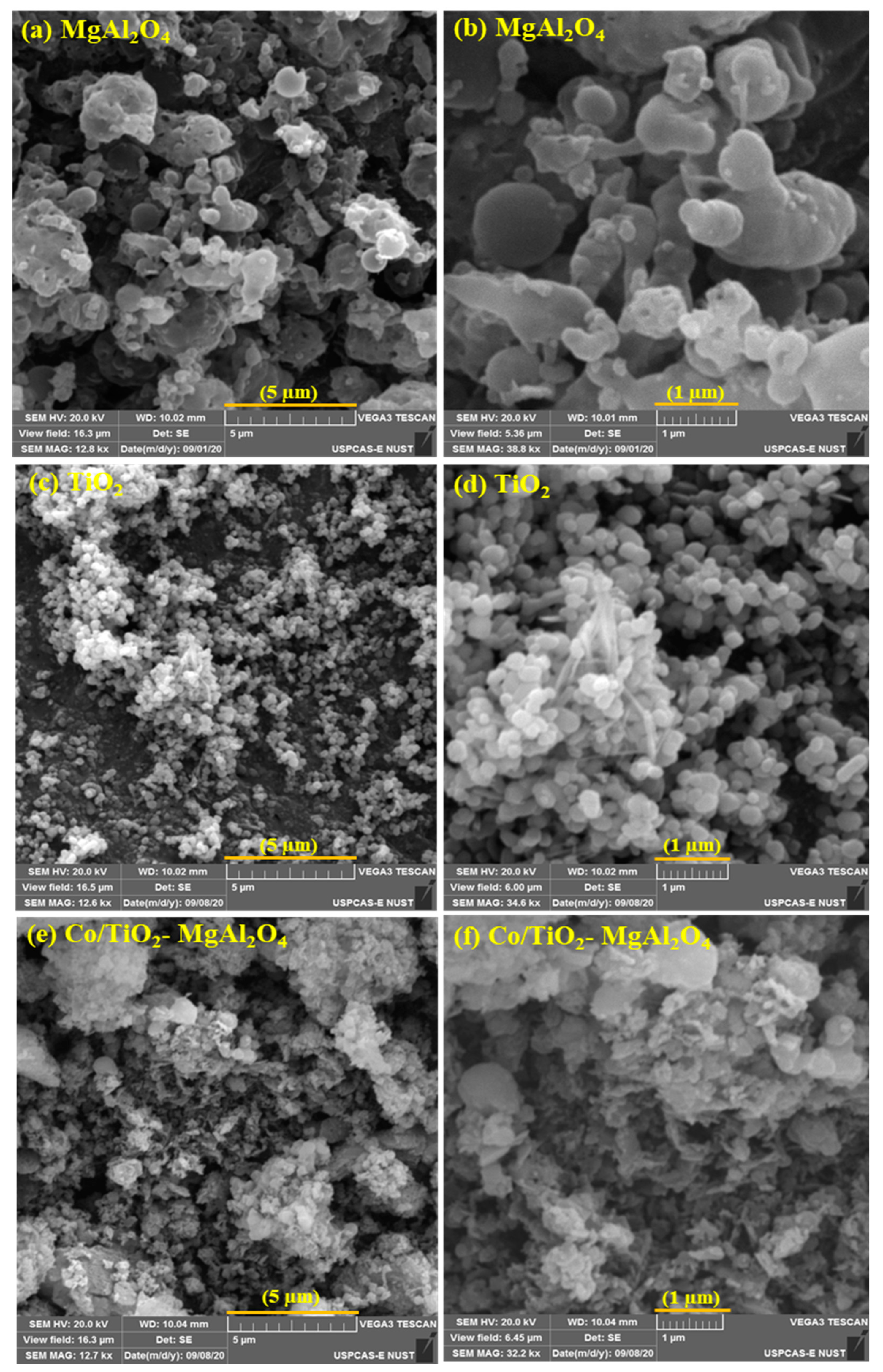

An SEM micrograph of MgAl₂O₄ particles is shown in Figure 4a,b, which indicates the formation of porous-structure, block-shaped crystallites depicting the sintering of particles because of the higher temperature calcination. Figure 4c,d demonstrates the formation of mixed, very fine TiO₂ particles and TiO₂ nanowires due to the hydrothermal method [52]. Figure 4e,f indicates the modification of MgAl₂O₄ particles, while Co and TiO₂ dispersed over the surface and extended to the pores, ultimately showing a mixed composite structure. The EDXs for MgAl₂O₄, TiO₂, and Co/TiO₂–MgAl₂O₄ are presented in Figure 5a–c. The possible compounds are present in the spectrum, and the extra peaks are associated with carbon tape and gold, that were added during coating before the EDX analysis. The Co loading was confirmed by EDX, as it was presented in the composite.

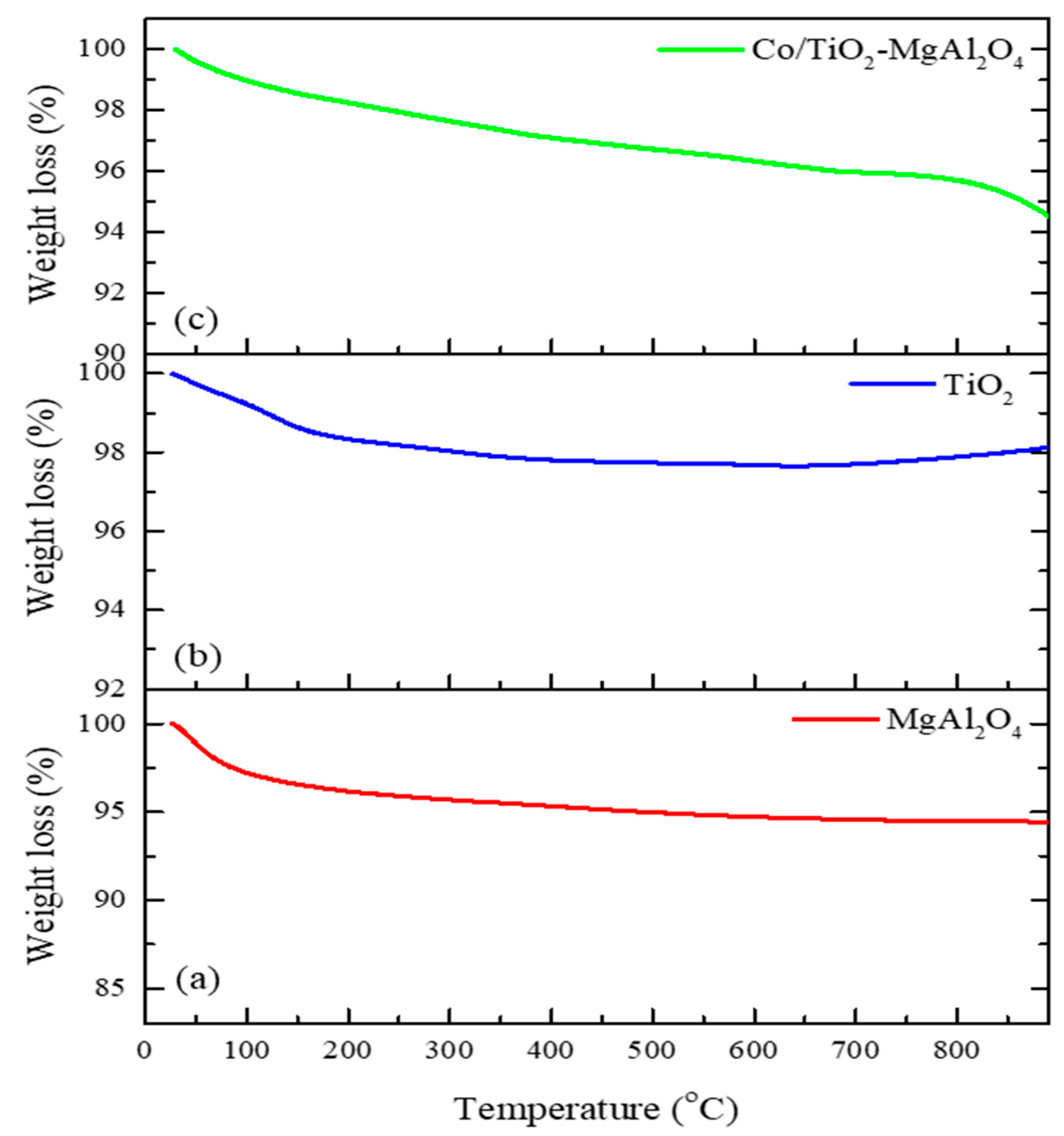

Figure 6 shows the thermal stability of the prepared samples. A total of 5% weight loss was observed in the MgAl₂O₄ sample TGA analysis, as shown in Figure 6a. A weight loss of 3.5% was observed up to 250 °C because the material was subjected to the removal of the adsorbed moisture and the combustion of nitrates that went unreacted during the reaction, while the rest of the weight loss was due to the dihydroxylation of the mixed oxide to oxides [14]. Furthermore, the TGA analysis of the TiO₂ sample showed a minimal weight loss of up to 2%, thus exhibiting the stability of the sample, and the weight loss was due to adsorbed moisture removal and the decomposition of organic compounds (as presented in Figure 6b), while the slight weight gain after 600 °C was attributed to the rearrangement of the particles after impurity removal and reaction completion. The TGA of the fresh Co/TiO₂–MgAl₂O₄ nanocomposite showed a gradual weight loss up to 5% with the increase in temperature, most of which was rooted in moisture removal, while the sudden weight loss at a high temperature was due to the decomposition of bonds and the formation of the intermediate complexes of a composite, as presented in Figure 6c [14].

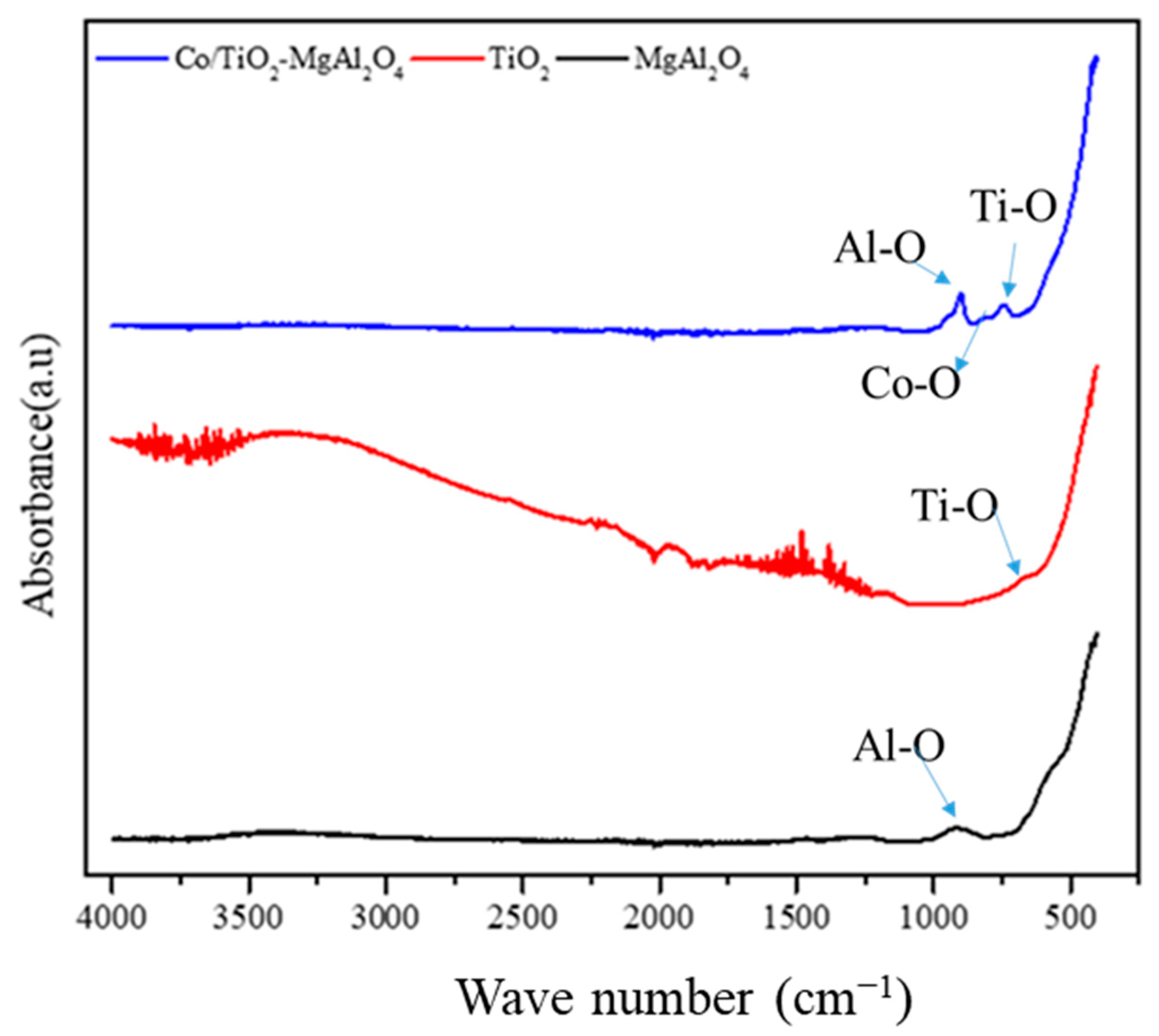

The FTIR analysis of the prepared fresh samples is shown in Figure 7. The IR spectrum of calcined MgAl₂O₄ observed at 912 cm⁻¹, which corresponded to the stretching vibration of Mg–O–Al falling into inorganic bands and Al–O bonds, was indicative of the crystal MgAl₂O₄ spinel [53,54,55]. With Co/TiO₂–MgAl₂O₄, two peaks identified at 900 cm⁻¹ corresponded to the vibration of Mg–O–Al, where the peak identified at 744 cm⁻¹ corresponded to O–Ti–O bond stretching vibrations depicting an anatase morphology [56,57] because the band range of 500–800 cm⁻¹ followed the anatase crystal vibration modes [58]. The presence of a small peak around 850 cm⁻¹ corresponded to O–Co–O, which indicated the formation of Co₃O₄ [59]. In the IR spectrum of TiO₂, the small peak was slightly shifted below 700 cm⁻¹, which could have been related to the stretching vibration of Ti–O bonding.

3.2. Dry Reforming of Methane (DRM)

The prepared fresh catalyst samples were loaded into a fixed bed reactor to conduct activity and stability tests during the DRM process. The feed gas ratio was set to 1, with a flow rate of 20 mL min⁻¹, and it was fed to reactor maintained at 750 °C with a catalyst loading of 0.5 g.

3.2.1. Catalyst Activity Test

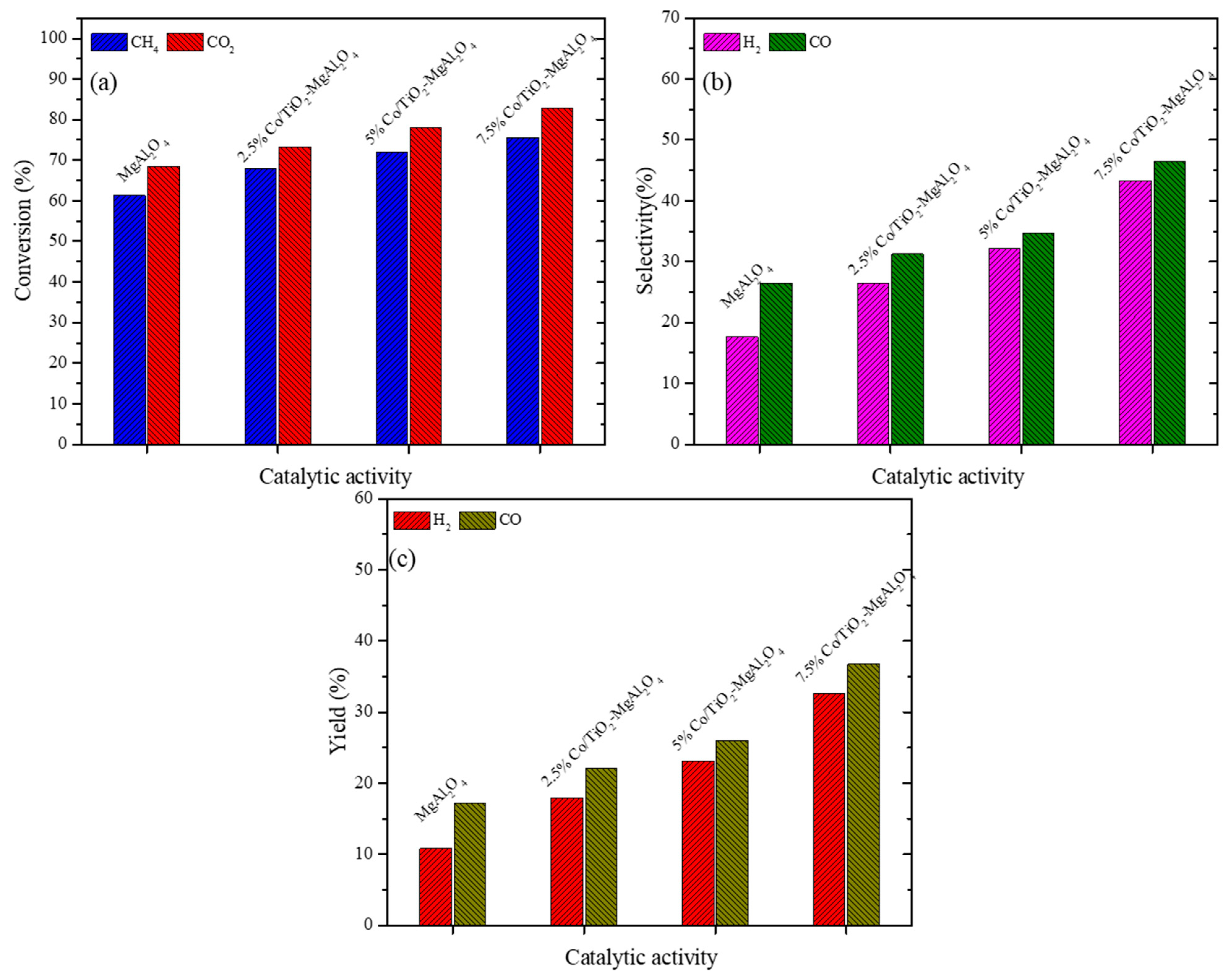

DRM activity test results for the MgAl₂O₄ and composites with different Co loading are shown in Figure 8a–c. For MgAl₂O₄, the conversions of CH₄ and CO₂ were recorded at 61% and 68.5%, respectively. The selectivities of H₂ and CO were observed at 17.5% and 26.5%, respectively, whereas the yields of H₂ and CO were calculated at 11% and 17%, respectively. The CH₄ conversion was observed to be less than the CO₂ conversion, while the higher CO₂ conversion could be attributed to the basic nature of the support that caused the activation of CO₂ [60]. For the Co/TiO₂–MgAl₂O₄, the increase in the conversion of CH₄ and CO₂ with Co loading could be associated with Co loading that showed a good interaction that formed CoTiO₃ and CoAl₂O₄ with supports, as depicted by the XRD analysis. The higher activity results were due to the higher amount of reduced surface Co sites with increases in cobalt loading [61]. The higher activity results coming with increases in Co loading corresponded with the reduction of Co₃O₄ at lower temperatures, and XRD analysis confirmed the presence of Co₃O₄ species. The conversions of CH₄ and CO₂ were recorded at 68% and 73%, respectively for the composite of 2.5% depicted in Figure 8a. In contrast, 5% of Co loading resulted in conversions of 73% and 78% for CH₄ and CO₂, respectively, while 7.5% of Co loading resulted in 76% and 83% yields of CH₄ and CO₂, respectively. A similar trend of increase was shown for H₂ and CO selectivity at 2.5–7.5% of Co loading. The highest H₂ and CO selectivities recorded for 7.5% of Co loading were 43% and 46.5%, respectively, as presented in Figure 8b. The yields of H₂ and CO remained 18% and 22%, respectively, for 2.5% of Co loading, and they were highest at 33% and 37%, respectively, for the 7.5% Co-loaded composite, as demonstrated in Figure 8b.

For the low Co-loaded composite, relatively lower conversions of CH₄ and CO₂ were observed, primarily due to the presence of CoAl₂O₄ species, as observed in the XRD analysis, and these were reducible at higher temperatures. However, higher Co-loaded composites had comparatively more easily reducible species, thus resulting in higher activity [62]. Though the higher Co loading adhered with the issue of carbon deposition because the larger amount of available carbon species led to deactivation, in this case, the highest conversions of the 7.5% Co-loaded composite was because of the balance provided by the higher CO₂ conversion that provided more oxygen species to the excess carbon formed by the CH₄ decomposition [27]. The higher conversion rates of CO₂ to CO and oxygen species due to fast reactions resulted in the reaction of the available oxygen species and the high amount of carbon produced with the CH₄ decomposition for the highly loaded Co. The result was more CO produced in comparison to H₂, as shown by the produced syngas ratio. The 7.5% Co-loaded composite, however, showed a gradual decrease in activity when tested for more extended-run stability tests. However, possible issues connected with high Co-loaded composites include the formation of cobalt clusters that affect support surface properties, and unfavourable gas adsorption conditions with the long-term stability analysis of the 7.5% Co-loaded composite led to the deactivation of the catalyst and, consequently, a lower catalytic activity with time [63]. Thus, considering the better activity and stability results, further tests for conversion, selectivity, yield, and a syngas ratio of over 75 h longer-run stability tests were only conducted for the 5% Co-loaded composite.

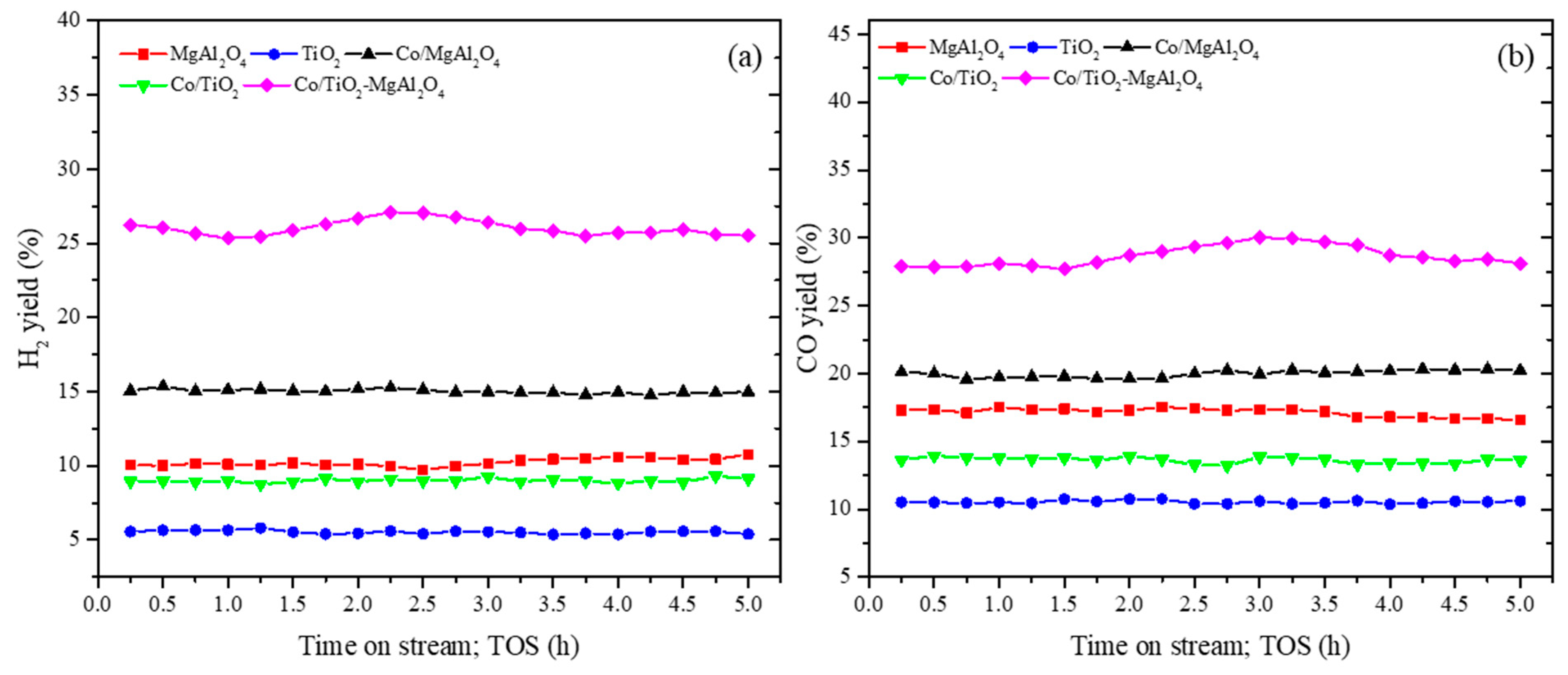

To better understand the role of the supports and active metal, as well as their effects on a fully developed catalyst, different catalysts like MgAl₂O₄, TiO₂, Co/MgAl₂O₄, Co/TiO₂, and Co/TiO₂ºMgAl₂O₄ were tested for 5 h TOS for CH₄ and CO₂ conversions, as shown in Figure 9a,b, respectively. Additionally, the H₂ and CO selectivity and the H₂ and CO yield for the prepared catalysts are presented in Figure 10a,b and Figure 11a,b, respectively. The results indicated that TiO₂ resulted in the lowest CH₄ and CO₂ conversion, and the lowest selectivity and yield of H₂ and CO compared to other catalysts because TiO₂, in its pure form in the absence of metal, does not have a significant effect on conversion at higher temperatures but provides good metal–support interactions, as indicated by the formation of a CoTiO₃ intermediate while loading the Co and the provision of good stability [64]. For MgAl₂O₄ support, CH₄ conversion averaged 61%, while CO₂ conversion averaged approximately 70% over-range during the 5 h TOS, which indicated that inherent basic nature of the MgAl₂O₄ spinel provided good support and the combined use of Mg and Al could achieve good thermal stability [65]. The basic support aided the dissociation of CO₂ [66]. The results indicated that the use of an MgAl₂O₄ support could provide decent catalytic results. The lower conversion, selectivity, and yield corresponding to Co/TiO₂ were due to the metallic Co oxidation because the oxidation species (CO₂) caused catalyst deactivation [67,68]. Co/MgAl₂O₄ showed intermediate conversions of CH₄ and CO₂, with average values of 65% and 72%, respectively, which could mainly be associated with the formation of CoAl₂O₄, as discussed in the XRD analysis of Co/MgAl₂O₄, and was the reason for the inhibition of carbon deposition [69]. The 5% Co/TiO₂–MgAl₂O₄ composite showed the maximum conversions of CH₄ and CO₂, along with maximum H₂ and CO selectivity and yield. It is associated to good metal–support interactions that contributed to activity and provided good stability [39]. Due to its basic nature, the presence of the MgAl₂O₄ support in the composite resulted in CO₂ adsorption and dissociation that produced CO, while the cobalt in the composite aided CH₄ activation to produce more H₂ and surface carbon. The TiO₂ support played role in the reaction of CoTiO₃ species with surface carbon to avoid coke deposition.

3.2.2. Stability Analysis of Composite

The 5%Co/TiO₂–MgAl₂O₄ was tested for stability analysis over the reaction time of 75 h under the same test conditions. Figure 12a demonstrates that the stability test showed a gradual increase in CO₂ and CH₄ conversion. The gradual rise was possibly due to the activation of some deposited carbon species. The selectivity of H₂ and CO, as presented in Figure 12b, showed the same trend with a gradual rise and then stabilisation for the next phase. The stability in activity was noticed for 75 h on TOS.

The yield of H₂ and CO, as presented in Figure 13, showed similar trends to that of selectivity for the 75 h TOS. The H₂/CO ratio (Figure 13) value below unity and close to 0.9 was estimated for the 75 h TOS stability test. The H₂/CO ratio below unity showed a lower amount of carbon formation and good stability, as a relatively greater amount of CO was produced. The reasons for greater CO production were the faster reaction of carbon with CO₂ than CH₄ dissociation and the reaction of intermediate CoTiO₃ with carbon. Additionally, the possible reaction of H₂O produced due to the RWGS reaction (though was not physically observed) with C produced more H₂ and CO [70].

3.3. Characterisation of Spent Catalyst

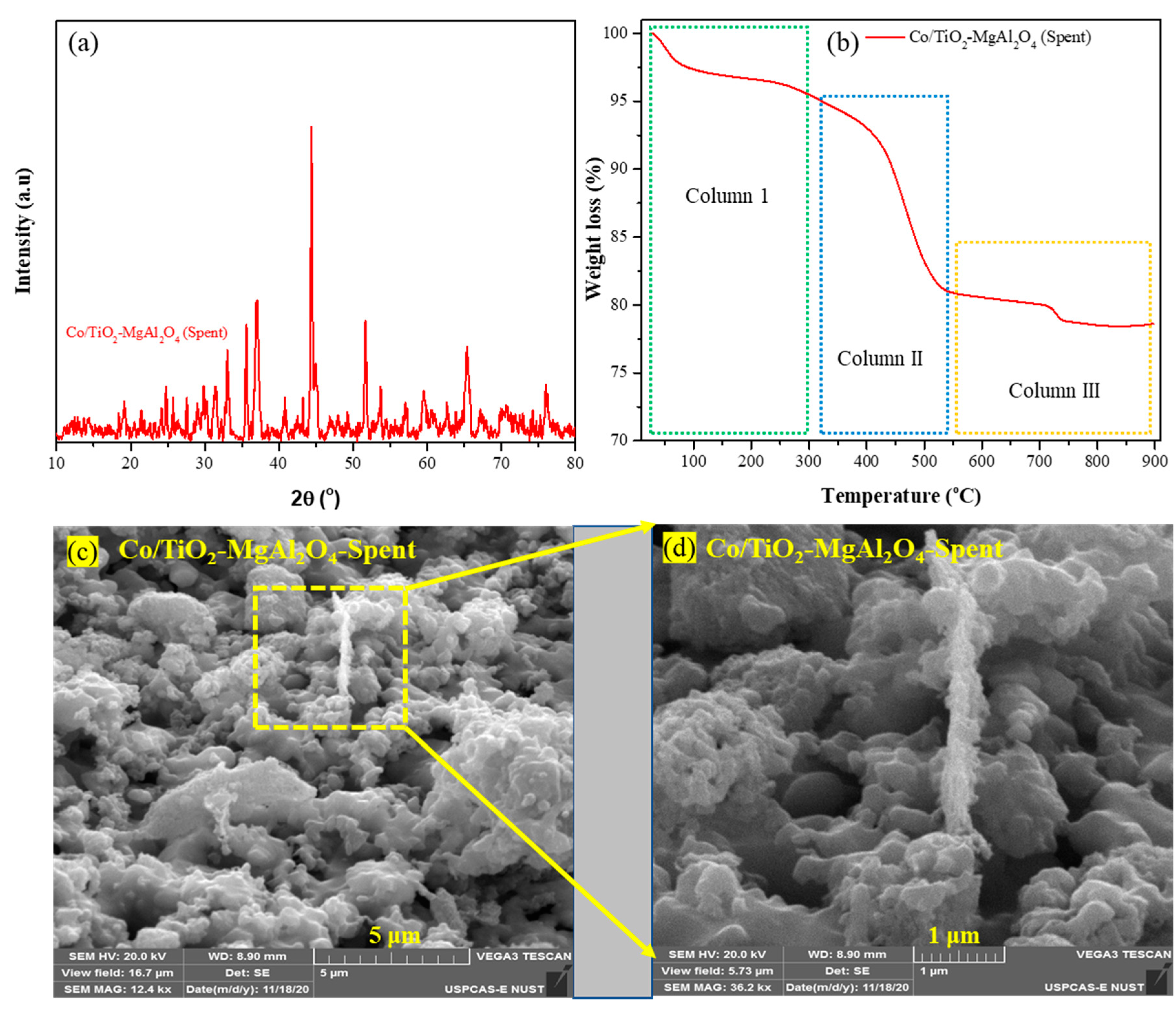

The spent catalyst collected after 75 h of TOS was further analysed and characterised by XRD, TGA, SEM, and EDX. The results are shown in Figure 14 and Figure 15 to investigate the carbon formation over the catalyst. Figure 14a shows that the XRD pattern of the spent catalyst confirmed the presence of the same crystalline phases as those observed in the fresh composite sample, having the same peaks of the MgAl₂O₄ spinel (PDF#21-1152) with a main peak at 36.85° (hkl; 311). TiO₂ (PDF#21-1276) was also observed as the same rutile phase with tetragonal geometry, and its main peak was slightly shifted at 51.8° (hkl; 211). A slight shift in the main peak of CoAl₂O₄ (PDF#44-0160) was observed at 36.0° (hkl; 311), while Co₃O₄ (PDF#43-1003) was identified in the fresh sample with peaks at 31.2° (hkl; 220) and 36.8° (hkl; 311). CoTiO₃ (PDF#15-0866) indicated a peak at 32.8° (hkl; 104), as observed in the fresh sample. The graphite carbon (PDF#41-1487) with a hexagonal geometry confirmed the peak at 26.3° (hkl; 002) with a d-spacing of 0.337 nm [71]. The TGA profile of the spent catalyst, as shown in Figure 14b, was analysed over three different temperature regions. Column I showed a total 4–5% weight loss up to 300 °C, which could be attributed to the moisture removal and other volatile species [72], where a significant weight loss of almost 14% was observed in column II in a temperature range of 300–500 °C due to the presence of reactive carbon species such as α-C and β-C [73]. Similarly, column III showed a 2–3% weight loss above 500 °C, which could be ascribed to a lower amount of filamentous carbon (γ-C) formation [3].

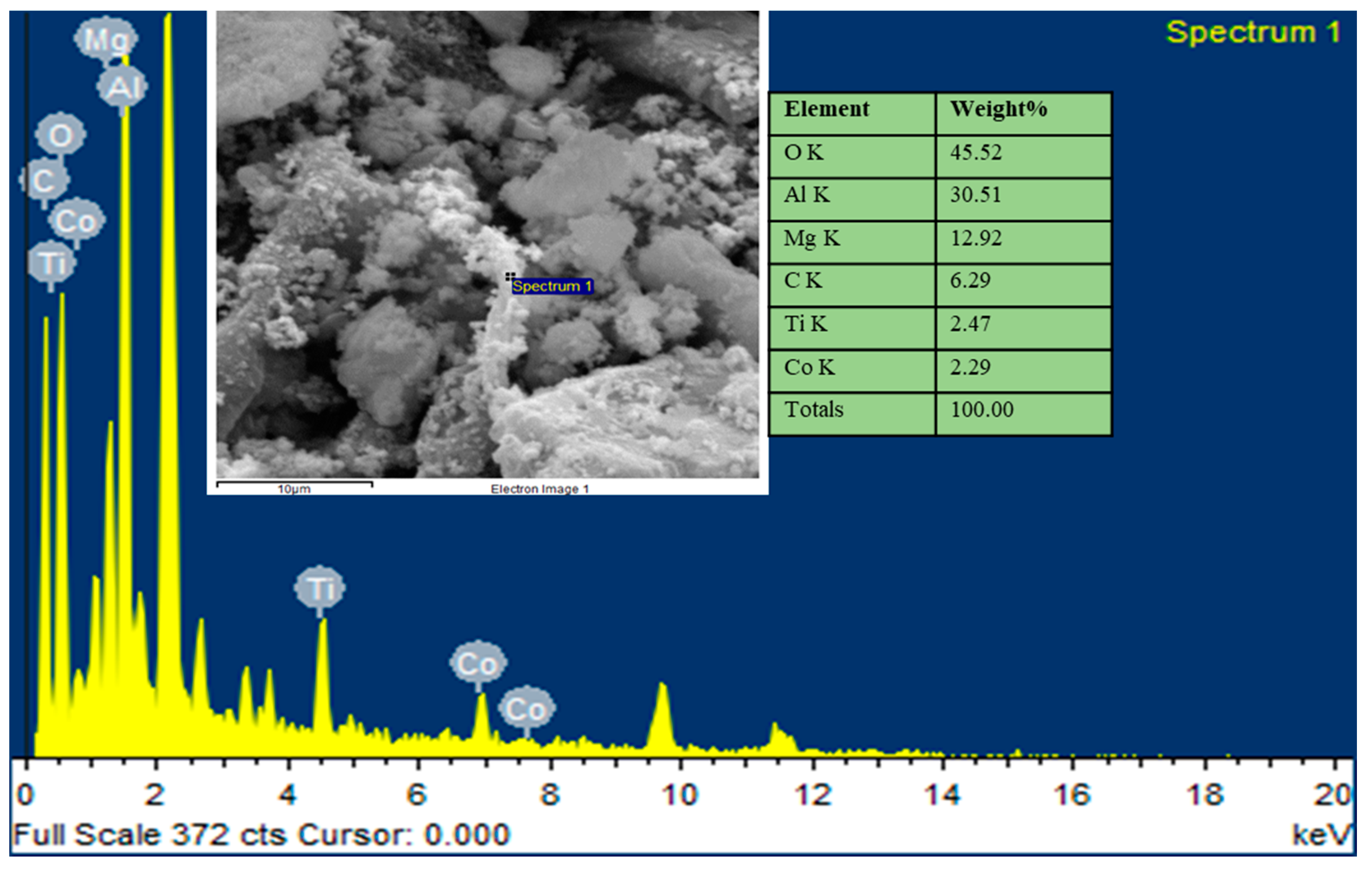

The SEM micrograph of the spent catalyst presented in Figure 14c,d shows the support surface that was modified after being exposed to the DRM for 75 h. The carbon presence was confirmed by the elemental analysis, as shown in Figure 15 that indicates the presence of almost 4.5% carbon in the spent catalyst. Though different carbonaceous species were formed due to the reactive phase during the reaction, a carbon gasification at high temperature was expected and produced CO that had a higher syngas ratio.

3.4. Reaction Mechanism

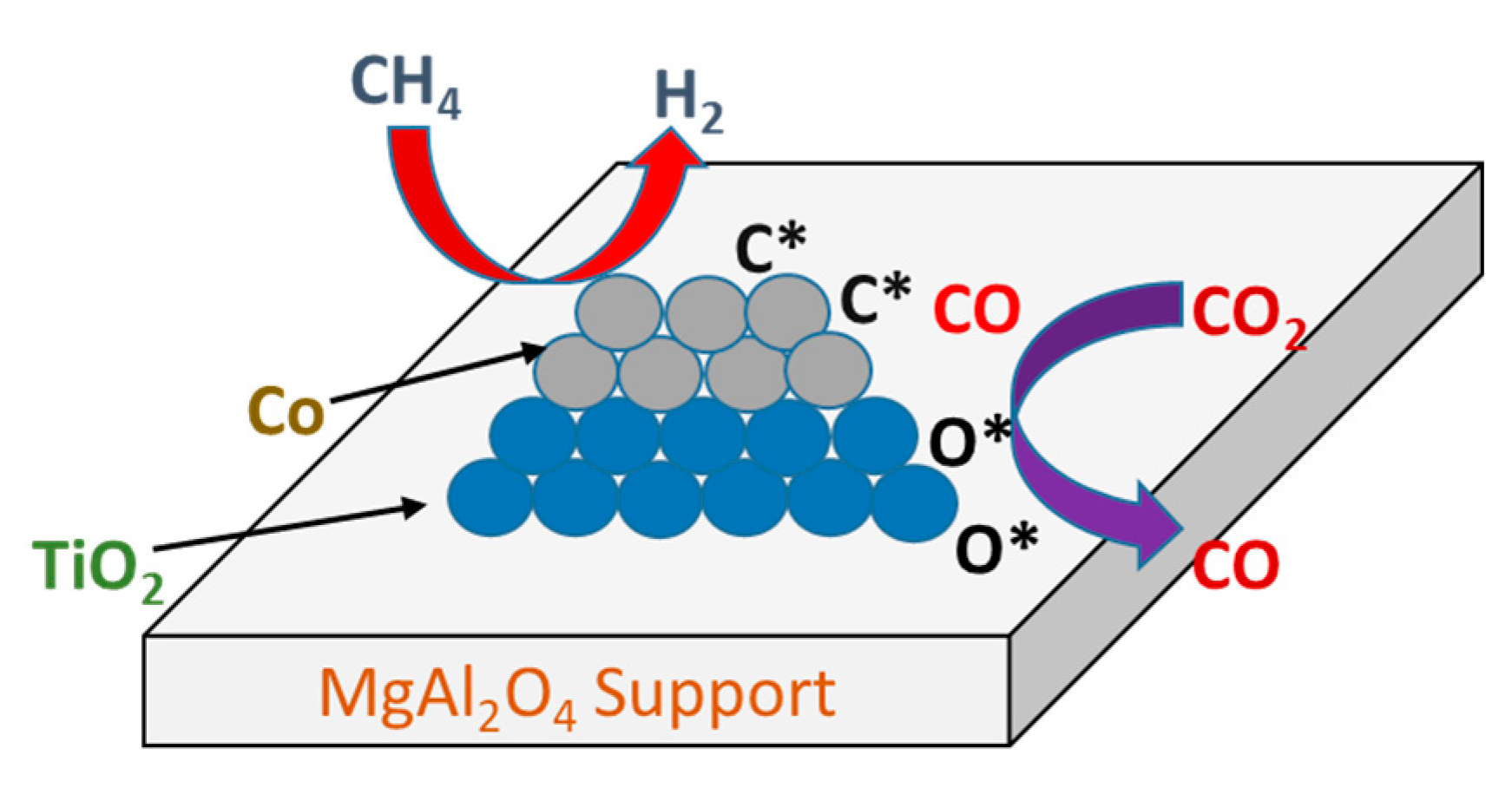

The overall possible reaction mechanism based on the product and spent catalyst analysis is presented in Figure 16. CH₄ activation starts with the adsorption on the active Co surface to produce surface carbon and hydrogen species that then combine to produce hydrogen molecules in the gaseous phase, as represented by reactions (11) and (12) [74,75]. Furthermore, the adsorption of CO₂ onto the supports of TiO₂ and MgAl₂O₄ leads to the formation of CoTiO₃ species, along with the dissociation of CO₂ to CO, as represented by reactions ((13)–(17)). However, the reaction of surface carbon with the CoTiO₃ species may result in the formation of CO, as represented by reaction (18).

$${\mathrm{CH}}_4+2\mathrm{Co} \to \mathrm{C}-\mathrm{Co}+\mathrm{H}-\mathrm{Co}$$

(11)

$$2\mathrm{H}-\mathrm{Co} \to { \mathrm{H}}_2+2\mathrm{Co}$$

(12)

$${\mathrm{CO}}_2+{\mathrm{MgAl}}_2{\mathrm{O}}_4\to \mathrm{O}-{\mathrm{MgAl}}_2{\mathrm{O}}_4+\mathrm{CO}$$

(13)

$$\mathrm{C}-\mathrm{Co}+\mathrm{O}-{\mathrm{MgAl}}_2{\mathrm{O}}_4\to {\mathrm{MgAl}}_2{\mathrm{O}}_4+\mathrm{CO}-\mathrm{Co}$$

(14)

$$\mathrm{CO}-\mathrm{Co}\to \mathrm{CO}+\mathrm{Co}$$

(15)

$${\mathrm{CO}}_2+{\mathrm{TiO}}_2\to \mathrm{CO}+{\mathrm{TiO}}_2-\mathrm{O}$$

(16)

$$\mathrm{C}-\mathrm{Co}+\mathrm{O}-{\mathrm{TiO}}_2\to {\mathrm{CoTiO}}_3+\mathrm{C}$$

(17)

$${\mathrm{CoTiO}}_3+\mathrm{C}\to \mathrm{Co}+{\mathrm{TiO}}_2+\mathrm{CO}$$

(18)

4. Conclusions

This study investigated the synthesis of various Co-loaded, TiO₂–MgAl₂O₄-supported catalysts for the DRM process in a thermally fixed bed reactor. The 5%Co/TiO₂–MgAl₂O₄ showed the best catalytic performance due to its higher CH₄ and CO₂ conversions, improved selectivity, yield of H₂ and CO, and higher stability for more than 75 h TOS. The basic nature of MgAl₂O₄ helped the activation and dissociation of CO_2, and the strong metal–support interaction while adding TiO₂ as a co-support. This was evidenced by the formation of CoTiO₃ and CoAl₂O₄ on the catalyst, which improved the conversion of CH₄ and, consequently, the catalytic performance. Regardless of the highest CH₄ and CO₂ conversions of the 5%Co/TiO₂–MgAl₂O₄ among the prepared composites, the H₂/CO ratio was below the theoretical ratio. The reaction of CoTiO₃ with the reactive carbon to form TiO₂ and larger amounts of CO brought the H₂/CO ratio to less than unity and improved stability for 75 h TOS. The enhanced stability suggested that this catalyst has prospects for the up-gradation of industrial-scale syngas production when using the DRM process.
