Investigation Concerning the Excitation Loss of Synchronous Generators in a Stand-Alone Ship Power Plant

Abstract

The protection systems of ship generators enable them to eliminate potential failures that pose a significant threat to the safety of the crew and the use of the ship. However, due to the fact that marine classification societies do not require the protection of generators against the loss of excitation, such protection is only used sporadically. This article presents an LOE (loss of excitation) analysis of ship generators that operate in parallel. This analysis is supported by simulations and experimental research. The test results show that the positions of the operating points of each generator are interrelated, and changes in the excitation of one (damaged) generator cause automatic changes in the excitation, as well as changes in electromagnetic and energy processes, in the second (efficient) generator. An LOE in one generator causes a dangerous increase in armature currents in both generators. The results of this study prove that the lack of LOE protection at lower levels of excitement in one of the generators causes (by activating the required protection) the efficient generator to be switched off first. The main conclusion of this article is that the introduction of the use of security measures against LOE should be obligatory and legally required.

1. Introduction

The power system is the most important system in a watercraft. It affects the watercraft’s life cycle as an autonomous unit. In order to ensure the safe and efficient use of the ship, it is necessary to ensure that the electricity generated is of high quality. The complexity of this task results from the use of multi-generator power plants and the need to ensure the parallel operation of electric energy sources [1].

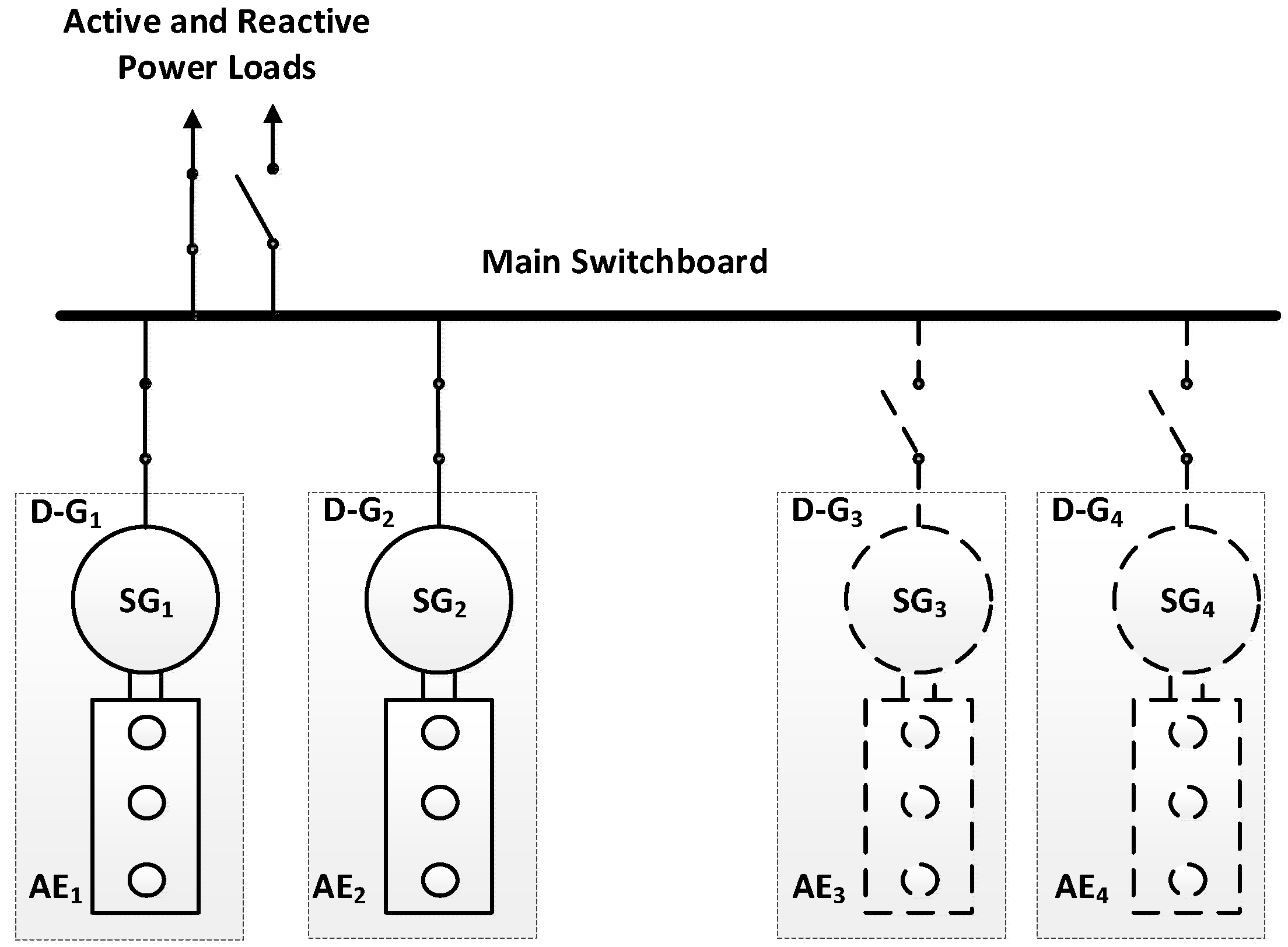

Modern marine power systems have a large number of automation systems that ensure the parallel operation of marine generating sets [1,2]. However, there are many emergency situations. They occur due to the poor quality of the parallel operation of the power sources. The reasons for this situation are the incomplete examination of all electromagnetic and energy processes, imperfections in the automation systems, and insufficiently qualified operating personnel. One of the poorly examined problems concerning the parallel operation of marine generating sets is the loss of stability in a ship’s power system.

Commonly, the main elements of ship power systems are synchronous generators (SGs) that use electromagnetic excitation, which are usually powered by combustion engines (AEs—auxiliary engines). A ship power plant consists of (at least) two generating sets [3,4] (usually three or more diesel–generator sets (D-G)) (Figure 1). The specificity of a ship’s power grid in relation to the classic (common) onshore grid is connected with the power of some individual receivers with respect to the power of the generators. This is a so-called “soft” (“flexible”) grid. It is also important that D-G sets operate in parallel on a common receiving grid. The parallel operation of D-G sets is related to the power demand, but above all, it is to ensure the safe operation of the ship. Similar power systems—where the parallel operation of two D-G sets is sometimes necessary—are used on land (autonomous systems) [5,6,7,8].

Synchronous generators are exposed to many different types of defects and abnormal operating conditions. The occurrence of abnormal states in the generators can have catastrophic consequences. Generator failures imply high costs for shipowners. They result not only from the need to repair or replace a damaged machine, but also from the inability to operate the ship. Therefore, in the event of a failure, the protective systems must be selective and fast in order to isolate the machine from the system immediately.

Disturbances in the operation of synchronous generators may be external or internal. External disturbances of generators include disturbances related to the power system or the generator’s drive [8]. Internal disturbances include short circuits generated in the stator and rotor windings, as well as damages covering the whole excitation system. The most common causes of all types of disturbances include aging of the insulation, mechanical damage to the insulation, construction defects, and connection failures. Dangers in the operation of generators include voltage increases at the generator’s terminals, thermal overload of the windings, external short circuits, individual short circuits in the winding, load asymmetry, motor operation, loss of excitation, and mechanical disturbances. Some disturbances can only be signaled, while others cause disconnection of the generator.

The requirements for the rules and regulations for ship classification that were published by classification societies are based on the applicable standards for ships published by the IEC (International Electrotechnical Commission) [9].

In accordance with the requirements of classification societies, ship generators must be protected from four parameters [10,11,12,13]:

• Overloads;
• Short circuits;
• Inverse power;
• Voltage (undervoltage protection).

LOE protection is not required by ship classification societies.

The static and dynamic instability of SGs (operating in a rigid power grid) has been thoroughly examined and widely discussed in the literature. One of the common causes of static instability in SGs is the loss of excitation [14,15,16,17,18].

The most common cause of LOE in marine generators is the incorrect operation of the voltage regulator and damage to the diode in the rotating rectifier bridge of the SG magnetizer.

The effects of the loss of excitation in autonomous power plants, such as ship power plants, may pose a significant threat to the safety of the crew and the exploitation of the ship. The loss of excitation and (consequently) the loss of synchronism by the generator will have an impact on the power system and the generating set in the following ways [19]:

• The absorption of reactive power (to a large extent);
• The heating of the generator’s rotor;
• The libration of the set of generators;
• The probable formation of resonant overvoltage.

A family of characteristics called the V-curve [20,21] is used for the evaluation of the static stability of an SG (operating in parallel with the grid with a constant frequency f and voltage U). V-curves for four values of the active output power P of a generator are shown in relative values in Figure 2. They represent the dependence of the current I at the generator output on the excitation current I_ex(I = f(I_ex)). The minimum values of the currents I are presented on the CD curve. They represent the SG’s control characteristics: cos Φ = 1.

To the right of the CD curve, the generator’s load is active–inductive. The load current magnetizes the generators and its emf increases. In the points on the left side of the CD curve, the generator’s load is active–capacitive. The load current demagnetizes the generator and its emf decreases. The AB curve is a limit of the static stability at which the generator “loses the ability” to maintain synchronous rotation in an independent way, and it falls out of synchronism (goes into an asynchronous mode of operation).

The problem of LOE (loss of excitation) in the case of the parallel operation of a synchronous generator with a rigid grid has been widely presented in the literature, but in the case of ship power plants (as well as onshore autonomous power plants), where we deal with the parallel operation of two or more generators that are working on a single load, it has not been discussed.

A methodology was developed to analyze the electromagnetic and energy processes in a system of two ship generator sets operating on a common load. Using this methodology, based on the geometric relations of the vector diagrams, the electromagnetic and energetic characteristics of the system were calculated, and the parameters for the transition of the units to the asynchronous operation regime were determined. A model of the system was developed in the Matlab-Simulink environment, and experimental tests were carried out in a laboratory.

The symptoms and effects of the loss of excitation of a damaged generator and their impact on the operation of the second (undamaged) generator are presented. As a result of analytical, simulated, and experimental tests, it was proved that a partial LOE and a complete LOE can lead to the failure of a ship’s power plant system, and the generator protections that are currently used on ships are not effective against such threats.

2. Analysis of the SG Excitation Loss in the Parallel Operation of Generating Sets

A different physical picture of the LOE in an SG is observed in autonomous electric grids—in particular, in ship grids. In such grids, two generators with the same power very often operate on a common load (Figure 1). In such systems, the positions of the operating points of each generator on the “V-curve” (Figure 2) are interconnected, and a change in the excitation current of one generator results in an automatic change in the excitation current of the second generator.

The mathematical description of the system with two generators operating in parallel for a common load in the x, y coordinate system (rotating synchronously with the rotating fields SG1 and SG2) can be presented in the following way [22]:

$$\begin{array}{l}{\overline{E}}_1(t)={\overline{U}}_L(t)+L_1\frac{d{\overline{I}}_1(t)}{dt}+r_1{\overline{I}}_1{(t)}_1+x_1{\overline{I}}_1(t),\\ {\overline{E}}_2={\overline{U}}_L(t)+L_2\frac{d{\overline{I}}_2(t)}{dt}+r_2{\overline{I}}_2(t)+x_2{\overline{I}}_2(t),\\ {\overline{I}}_L(t)={\overline{I}}_1(t)+{\overline{I}}_2(t).\end{array}$$

(1)

where:

${\overline{U}}_L,{\overline{I}}_L={\overline{I}}_1+{\overline{I}}_2$—load voltage and current and armature currents for the first and second generator;

$r_1,r_2$—resistance of the armature windings (first and second generator);

$L_1,L_2$—inductance of the armature windings (first and second generator);

$x_1=\omega L_1,x_2=\omega L_2$—reactance of the armature windings (first and second generator);

${\overline{E}}_1,{\overline{E}}_2$—emf of the first and second generator.

In the synchronous state, the system of Equation (1) transforms into the form:

$$\begin{array}{l}{\overline{E}}_1={\overline{U}}_L+r_1{\overline{I}}_1+x_1{\overline{I}}_1,\\ {\overline{E}}_2={\overline{U}}_L+r_2{\overline{I}}_2+x_2{\overline{I}}_2,\\ {\overline{I}}_L={\overline{I}}_1+{\overline{I}}_2.\end{array}$$

(2)

The electromagnetic processes occurring in a synchronous generator when operated autonomously or in parallel with the grid are traditionally studied in the d, q coordinate system, which is associated with the excitation field and EMS of the generator. In the study of two generators operating on a common load, it is necessary to depart from the traditional approach and consider the electromagnetic processes in a coordinate system associated with a common load. In this article, this coordinate system is marked as x, y.

In the x, y coordinate system, Equation (2) can be presented as:

$$\begin{array}{l}{E}_{1x}=0+r_1{I}_{1x}-x_1{I}_{1y},\\ E_{1y}=U_L+r_1{I}_{1y}+x_1{I}_{1x},\\ E_{2x}=0+r_2{I}_{2x}-x_2{I}_{2y},\\ E_{2y}=U_L+r_2{I}_{2y}+x_2{I}_{2x},\\ I_{Lx}=I_{1x}+I_{2x},\\ I_{Ly}=I_{1y}+I_{2y}.\end{array}$$

(3)

The analysis of the mutual influence of the generators operating in parallel on the common load was conducted with the use of the systems of Equations (2) and (3) and the vector diagram of the whole generating system (Figure 3). Each generator set contains a closed stabilization system of speed and voltage.

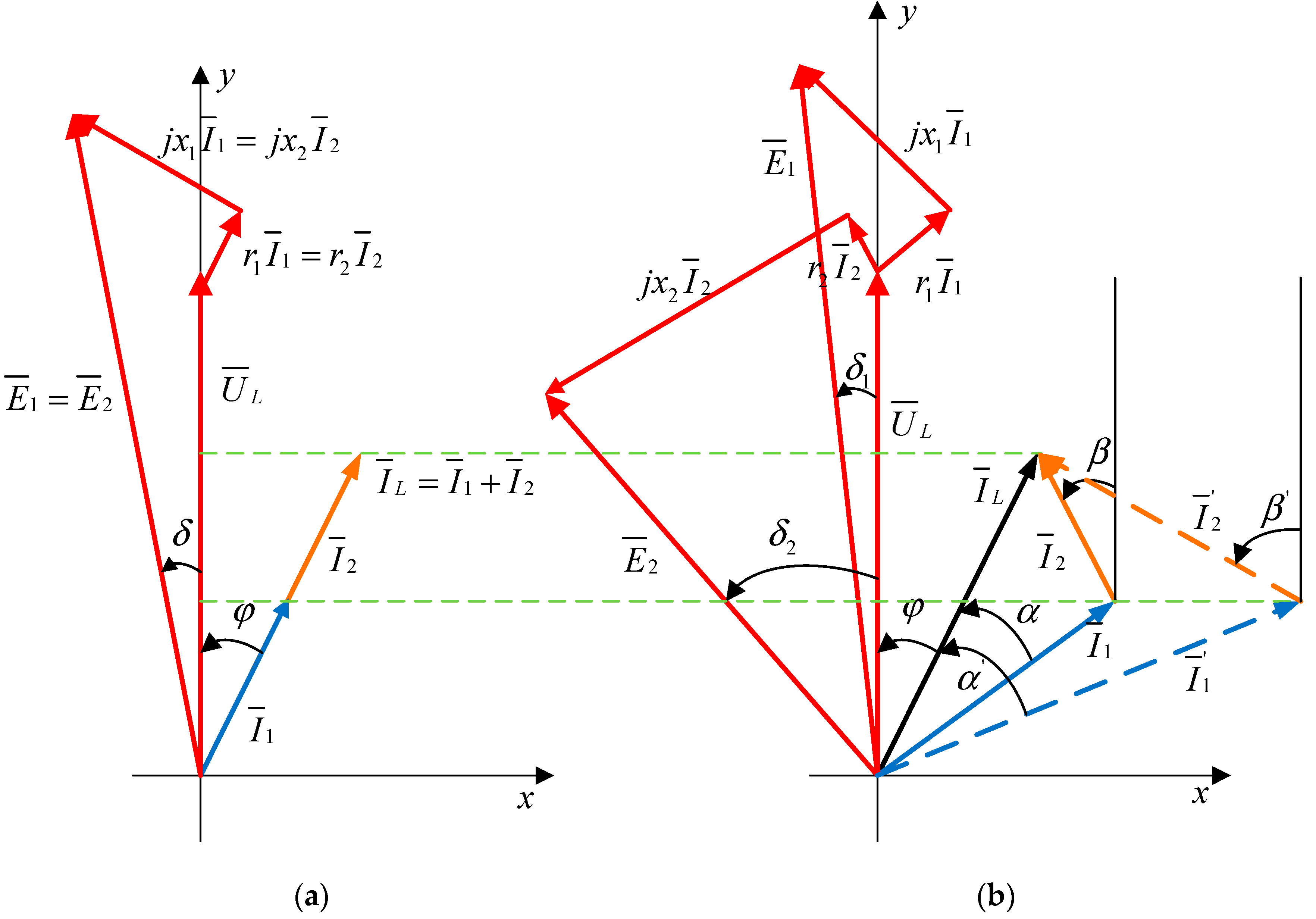

The following symbols are used in the vector diagram:

$\phi$—phase shift between the load current and voltage;

δ₁, δ₂—load angles for the first and second generators;

α, α’—angle of mismatch (phase shift between the first generator’s current and load current);

β, β’—angle of mismatch (phase shift between the second generator’s current and load voltage).

The vector diagram shows two cases. In the first case (Figure 3a), the parameters of the voltage and speed regulators of both generators are the same, and the active and reactive power (currents) transferred by the generators to the load and emf of the generators is (are) the same. In the second case (Figure 3b), the load voltage and current remain unchanged, the reactive current of the second generator is lower than that of the first generator, and the active currents of the generators remain equal.

The vector diagram of the symmetrically operating generators (Figure 3a) corresponds to point E on the “V-curve” (Figure 2). The appearance of a difference $∆\overline{E}={\overline{E}}_1-{\overline{E}}_2$ leads to the fact that the operating point of the first generator shifts to the right of point E, and the operating point of the second generator shifts to the left of point E. This shift causes an increase in $∆\overline{E}$, which leads to an even greater discrepancy in the operating points of the generators. Therefore, a slight asymmetry in the excitation channels of the generators leads to the appearance of a positive feedback in the system, which brings the operating point of one generator to the limit of static stability (AB) (Figure 2). The vector diagram (Figure 3b) clearly shows that while the total load current remains unchanged (${\overline{I}}_L$), the currents change (${\overline{I}}_2{\overline{I}}_1$). Simultaneously, the current inductive component (${\overline{I}}_1$) increases; the current inductive component (${\overline{I}}_2$) initially decreases, and then the capacitive component appears and increases.

The process of changing the values of the currents (${\overline{I}}_1$ and ${\overline{I}}_2$) and mismatch angles (α and β) takes place over time. In the analysis, it is assumed that the angle of mismatch (α) grows proportionally to time and that it is an independent argument. The angle α varies from the value α = ϕ to the value α = α_lim, which can be determined on the basis of the vector diagram, assuming that the angle β = δ₂ is equal to 90°.

The equations for calculating the generators’ currents with the values obtained from the geometrical relationships [23] (vector diagram—Figure 3) are presented below.

$$\begin{array}{l}{I}_{1y}=k{I}_L\cos \phi ,\\ I_{2y}=(1-k)I_L\cos \phi ,\\ I_{1x}=k{I}_L\cos \phi \cdot tg(\phi +\alpha ),\\ I_{2x}=I_L\sin \phi -(1-k)I_L\cos \phi \cdot tg(\phi +\alpha ),\\ I_1=\sqrt{I_{1x}^2+I_{1y}^2},\\ I_2=\sqrt{I_{2x}^2+I_{2y}^2}.\end{array}$$

(4)

where:

I_1y, I_2y—active components of the armature currents (first and second generator);

I_1x, I_2x—reactive components of the armature currents (first and second generator);

k—load distribution coefficient between the generators.

The load factor k varies depending on the distribution of the active load between the generators. Further examinations were conducted with the same active load distribution between the generators of k = 0.5.

In this case, the active powers of the load and generators are determined from the equations:

$$\begin{array}{l}{P}_{1L}=1.5U_L{I}_L\cos \phi ;\\ P_1=P_2=0.75U_L{I}_L\cos \phi .\end{array}$$

(5)

In order to visualize the analysis that was conducted, calculations were performed for an SG, the parameters of which are presented in

Table 1. SG parameters used in the tests.

S kVA	U V	I A	f Hz	n rpm	p	Uex V	Iex A	R Ω	Ls H
20	400	29	50	1500	2	50	8.3	1	0.012

. The parameters of the generator (in Table 1) were read from the rating plate of the generator used in the experimental tests (generator type: ELMOR GCf 74).

In accordance with Equation (4), for k = 0.5, the dependencies of the SG’s reactive currents I_1x and I_2x (Figure 4) and apparent currents I₁ and I₂ (Figure 5) on the angle (α + ϕ) for the set value of the active power were determined.

The values of the load angles δ₁, δ₂ and emf of the generators E₁, E₂ were determined on the basis of Equation (3) and the vector diagram (Figure 3b).

$$\begin{array}{l}{\delta }_1=arctg\frac{-E_{1x}}{E_{1y}}=arctg\frac{x_1{I}_{1y}-r_1{I}_{1x}}{U_L+x_1{I}_{1x}+r_1{I}_{1y}};\\ E_1=\sqrt{{\left(U_L+x_1{I}_{1x}+r_1{I}_{1y}\right)}^2+{(x_1{I}_{1y}-r_1{I}_{1x})}^2};\\ {\delta }_2=arctg\frac{-E_{2x}}{E_{2y}}=arctg\frac{x_2{I}_{2y}-r_2{I}_{2x}}{U_L+x_2{I}_{2x}+R_2{I}_{2y}};\\ E_2=\sqrt{{\left(U_L+x_2{I}_{2x}+r_2{I}_{2y}\right)}^2+{(x_2{I}_{2y}-r_2{I}_{2x})}^2}.\end{array}$$

(6)

Figure 6 presents the course of the load angle δ₂ of the SG₂ generator. The total loss of excitation for SG₂ will occur at δ₂ = 1.57 rad.

Figure 7 shows the dependence of the emf of SG₁ and SG₂ (E₁ and E₂) on the angle ϕ + α. It indicates that the emf limit value at E₂ = E_2gr corresponds to the angle α = α_gr = 1.36 − ϕ.

In the case of the occurrence of reactive currents, the reactive power in the system of two parallel generator sets is determined on the basis of the vector diagram with the use of the following equations:

$$\begin{array}{l}{Q}_1=1.5U_L{I}_1\sin (\phi +\alpha )=1.5U_L{I}_{1x};\\ Q_2=1.5U_L{I}_2\sin (\phi +\beta )=1.5U_L{I}_{2x}.\end{array}$$

(7)

where:

$$\beta =arctg\frac{x_2{I}_{2x}+r_2{I}_{2y}}{x_2{I}_{2y}}$$

Figure 8 presents the dependence of the reactive power of generators Q₁ and Q₂ on the angle ϕ + α. According to the Equations (3) and (4), the appearance of asymmetry in the voltage regulators (loss of excitation for SG₂) causes a change in the reactive power of both generators. These changes continue to the value α = α_lim = 1.36 − ϕ, at which the second generator loses synchronism (on the AB line (Figure 2)). It should be noted that the active powers of the generators in the synchronous operation mode remain constant and equal (Equation (2)).

The waveforms of the reactive power of Q₁ and Q₂ are similar to the waveforms of the reactive currents of the armature (I_1x and I_2x for SG₁ and SG₂ (Figure 4)).

3. Simulation Results

In order to check the above analysis, simulation tests were conducted for a marine power plant system with synchronous generators with electromagnetic excitation (Figure 1). The parameters of the SGs used in the test are presented in Table 1.

Figure 9 shows a general block diagram of an autonomous ship power plant system during the parallel operation of two D-G sets implemented in the Sim Power System program of the Matlab-Simulink environment.

Each generator (SG₁ and SG₂ blocks) has a rotational speed regulator (Control Speed SG1, Control Speed SG2) and a voltage regulator (Control Excitation SG1, Control Excitation SG2). SG₁ and SG₂ operate in parallel on a common load. Loss of excitation occurs as a result of asymmetry in the excitation circuits of the generators. The initial asymmetry was simulated in SG₂ through a change in the U-set point.

Figure 10 presents the waveforms of the values of apparent currents I₁ and I₂ operating in parallel (SG₁ and SG₂).

The current I₁ of SG₁ (of the undamaged generator) increases faster than the current I₂ of SG₂. This is caused by the fact that the reactive current of SG₁ is the sum of the reactive current of SG₂ and the reactive current of the load (Figure 4). The results of the simulation tests confirm the previously conducted analysis (Figure 5).

Figure 11 presents the change in the load angle δ₂ of SG₂. The loss of excitation in SG₂ occurs when δ₂ = 1.57 rad (δ₂ = 90°).

With the loss of excitation in the SG₂ generator, the energy of the whole ship’s power system (thanks to the existence of the regulators in each generator set (SG₁ and SG₂)) begins to oscillate. This is a characteristic feature in the asynchronous operation of synchronous generators. The results of the examinations confirm the previous analysis (Figure 7).

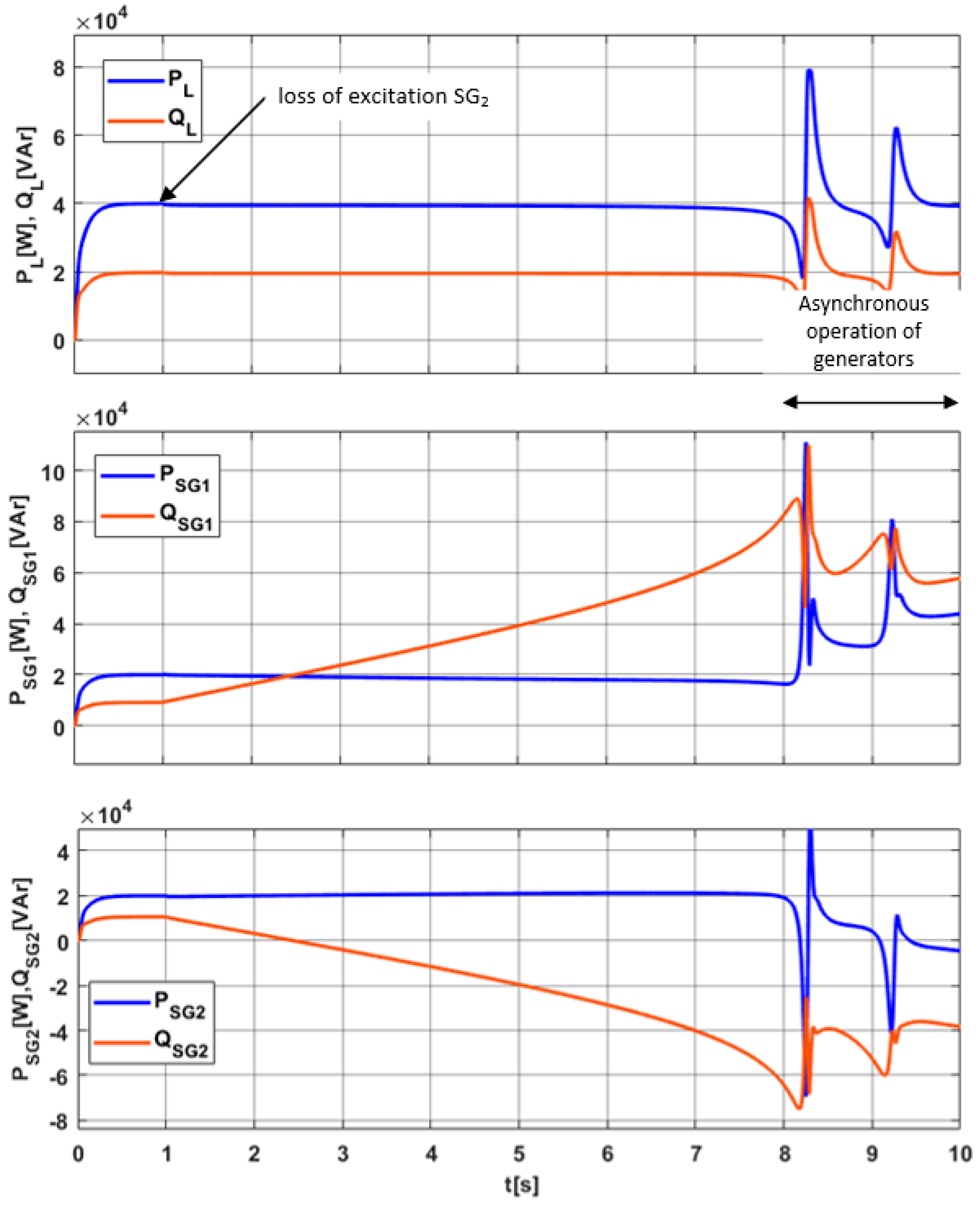

Figure 12 presents the waveforms of the active and reactive power of the load (P_L, Q_L), as well as the active and reactive power of SG₁ (P_SG1, Q _SG1) and SG₂ (P _SG2, Q_SG2).

The active and reactive power (P_L, Q_L) is maintained at a constant level until the loss of excitation (generator SG₂) and the transition of the generating sets of the ship’s power system into an oscillating state.

SG₂ and SG₁ are symmetrically loaded with active power until the generators are switched to asynchronous operation. The reactive power (Q_SG1) increases in order to meet the demand for inductive reactive power of the load and the second generator. The reactive power (Q_SG2) decreases to zero and then changes sign.

In order to present the energy dependencies in the autonomous ship power plant system in the parallel operation of the two generating sets in a more accurate way, simulations were carried out with only the active load (Q_L = 0). Such a mode of operation corresponds to the characteristics for P = 0 in Figure 2—when the initial state of operation for the sets is positioned at point C.

Figure 13 presents the simulation results in this operating mode. The reactive power flow between generators occurs as a result of the positive feedback in the system when the SG₁ is a source of capacitive reactive power for SG₂.

4. Experimental Results

The tests on the parallel operation of the D-G₁ and D-G₂ sets were conducted on a laboratory stand, the schematic diagram of which is presented in Figure 14. The main elements of the stand were:

• SG₁, SG₂—synchronous generators (type: ELMOR GCf74) with the parameters presented in Table 1;
• CM₁, CM₂—squirrel cage motors of the generators—ELMOR MSSfc200L4;
• CONV₁, CONV₂—power converters of CM₁ and CM₂;
• AVR—automatic voltage regulator for the generators—ANCIAC 80;
• M1—energy and power quality meter—TEAMWARE-WALLY_A/A³ (measurement: I₁, P₁, Q₁);
• M2—energy and power quality meter—SONEL-PQM700 (measurement: I₂, P₂, Q₂);
• RL—load on the generating sets (12 kW, 4.8 kVAr).

Figure 15 and Figure 16 present the view of the laboratory stand.

The tests were performed after the synchronization of the generating sets and the distribution of active and reactive powers in a symmetrical way (k = 0.5; Equation (4)). The RL loads of the generating sets were: active power load P_L = 12.1 kW and reactive power load Q_L = 4.85 kVAr.

The time courses of the currents, as well as the active and reactive power, were recorded with the use of electric power quality meters M₁ and M₂ (the sampling period was set to 1 s; the maximum sampling frequency of meter M₂ was 1 Hz). The voltage point for the voltage regulator of generator SG₂ was set to a minimum value in order to simulate the loss of excitation. Figure 17 and Figure 18 show the waveforms of the reactive power (Q₁ and Q₂) and active power (P₁ i P₂) emitted by the generating sets that were operating in parallel.

Until t = 15 s, generating set SG₂ worked alone. At t = 15 s, set SG₁ was active. Then, at t = 39 s, there was a synchronization and symmetrical power distribution. The sets worked symmetrically until t = 80 s. Then, there was a partial loss of SG2′s excitation. The inductive reactive power (Q₂) decreased to zero, and then it started to increase with a changed sign (Q₂—capacitive; Figure 3b and Figure 8).

Figure 19 presents the effective values of the apparent currents for both generators. At the moment of partial loss of excitation for SG₂, the current I₂ began to temporarily decrease (until the value of the reactive current component was zero), and then increased—it significantly exceeded the nominal current I_N. At the same time, the current I₁ start to increase (faster), exceeding the I_N value.

In order to protect the generators against damage, the tests were interrupted when the I₁ current was exceeded by approximately 1.5 × I_N. It was not possible to ensure the asymmetrical operation of the generators.

5. Discussion

Two aspects that explain the importance of this problem can be highlighted here. The first concerns ensuring the safety of the ship. Disturbances in the parallel operation of generators can lead to failures of the power system, disconnection of the ship from the power supply, loss of controllability, and catastrophes. Secondly, the economic considerations connected with the operation of each ship are important. Power that is generated with a low quality leads to increased fuel consumption, longer duration of the cruise, and additional costs connected with the repair of equipment. It should be considered that, in the majority of cases, synchronous generators are powered by diesel combustion engines. This means that the process of ensuring safe parallel operation must be considered in conjunction with these diesel combustion engines [8].

The results of the laboratory tests were confirmed by the analytical and simulation examinations. Because of the specificity of the autonomous ship grid, when a generating set operates in parallel, an LOE in one generator has a decisive impact on the operation of the set. The tests showed that the value of the inductive reactive power generated by an efficient generator covers the demand for the inductive reactive power of the receiver and the capacitive reactive power of the generator that had lost the excitation. The current of an efficient generator increases faster than the current of a damaged generator. The reactive component of the current in an efficient generator is the sum of the reactive component of the current in the damaged generator and the reactive component of the load current. When the load angle (δ > 90°) of a generator that has lost its excitation is exceeded, the power system switches to the asymmetric operation of both generators (oscillations of power and currents). The active power transmitted by both generating sets remains constant until the oscillation.

The simulation tests with an active load (Q_L = 0) showed that when the excitation of one of the operating generators was lost, there was a significant flow of reactive power between the generators (Figure 17).

This research confirms that in the event of activation of protection (instantaneous short-circuit protection), the efficient generator may first be disconnected from the system. A generator that has lost its excitation will be disconnected from the system by the undervoltage protection, and there will be a blackout.

6. Conclusions

To the best of the authors’ knowledge, the problem of loss of excitation during the parallel operation of two generators in (autonomous) ship power grids was tested for the first time in this article. The instability of the power system is treated as the existence of positive feedback in this system. This leads to the loss of synchronization in the cooperation between the two generators. Analytical examinations have shown that in the case of the loss of stability conditions (asymmetry of voltage control systems) in sets operating in parallel, when one generator loses its excitation, the second generator takes over the reactive load of the entire set.

These research results show that in autonomous ship grids, unlike with the operation of generating sets with a rigid grid, there are mutual influences from the electromagnetic and energy processes in all generators that are operating in parallel.

The research presented in this article showed that, in the event of LOE occurrence in one of the generators, the current will increase in both generators. However, the current in an undamaged generator will be higher than that in a damaged one because the reactive current is the sum of the reactive current of the generator where the LOE occurred and the reactive current of the load. Therefore, the currently used protections (required by the rules and regulations for the classification of ships)—in this case, overload protection—will first operate on an undamaged generator, thus turning this generator off. It should also be noted that the generator overload protection used on ships usually has a time delay of approximately 20 s. During this time, the current can significantly exceed its nominal value and, in extreme cases, the generators may work asynchronously. After disconnection of the undamaged generator, the voltage protection will switch off the damaged one. As a consequence, this may lead to a serious threat to the safety of the ship. The only solution to this problem is the use of a protective device against excitation loss (e.g., the SELCO—Excitation Loss Relay T2100 [24]).

The analytical and simulation tests, as well as the experimental results presented in this article, prove the necessity of introducing mandatory global regulations that will oblige marine classification societies to adjust the protections of ship generators to account for loss of excitation. Moreover, it is necessary to introduce similar protections in onshore autonomous power plants.
