Is LiI a Potential Dopant Candidate to Enhance the Thermoelectric Performance in Sb-Free GeTe Systems? A Prelusive Study

Abstract

As a workable substitute for toxic PbTe-based thermoelectrics, GeTe-based materials are emanating as reliable alternatives. To assess the suitability of LiI as a dopant in thermoelectric GeTe, a prelusive study of thermoelectric properties of GeTe_1−xLiI_x (x = 0–0.02) alloys processed by Spark Plasma Sintering (SPS) are presented in this short communication. A maximum thermoelectric figure of merit, zT ~ 1.2, was attained at 773 K for 2 mol% LiI-doped GeTe composition, thanks to the combined benefits of a noted reduction in the thermal conductivity and a marginally improved power factor. The scattering of heat carrying phonons due to the presumable formation of Li-induced “pseudo-vacancies” and nano-precipitates contributed to the conspicuous suppression of lattice thermal conductivity, and consequently boosted the zT of the Sb-free (GeTe)_0.98(LiI)_0.02 sample when compared to that of pristine GeTe and Sb-rich (GeTe)_x(LiSbTe₂)₂ compounds that were reported earlier.

1. Introduction

Thermoelectric (TE) materials and devices have gained limelight due to their ability to reversibly convert waste heat into useful electricity, especially for energy harvesting applications [1,2,3]. The efficiency of a TE material is quantified by a dimensionless figure of merit, zT = S²σT/κ, where σ, S, T and κ are the electrical conductivity, Seebeck coefficient, absolute temperature and total thermal conductivity (which constitute both the electronic part, κ_e, and the lattice part, κ_latt), respectively. These transport properties are highly interlinked and there is a greater challenge in decoupling the electrical and thermal transport parameters [4]. To take on these challenges, an array of novel concepts and approaches have been developed and implemented by the thermoelectric community, such as the concepts of band engineering [5,6], introducing nano-scale features [7,8] and discoveries of novel materials [9,10,11,12,13]. Among those state-of-the-art TE materials, the widely studied lead tellurides are limited by their high toxicity for any commercial application, in spite of their high zT [14,15,16,17,18]. Of late, GeTe-based materials have emerged as viable alternatives, as they have proven to exhibit higher TE performance (zT > 1), if optimally alloyed/doped with appropriate elements [19]. Such strategies have been effectively adopted on several classes of GeTe-based materials to improve their electrical transport properties (i.e., the power factor, S²σ) by the convergence of electronic band valleys [20,21] or by the introduction of resonance states [22,23], and/or to suppress their thermal transport properties by nanostructuring [24]. GeTe undergoes a second-order ferroelectric structural transition from rhombohedral to cubic symmetry at around 700 K [19]. This structural transition holds a key in tuning the TE properties of GeTe. In cubic (c) GeTe, there are two valence bands with a small energy offset, whereas there are several sub-valence bands separated by a large energy offset in the case of rhombohedral (r) GeTe [25]. Therefore, the total number of degenerate valleys in c-GeTe is larger than that of r-GeTe, which will result in a higher total density of states effective mass (m*) without affecting much the mobility, thus resulting in an improved TE performance, as illustrated in the case of In-Sb codoped GeTe [26].

The presented communication tries to explore the suitability of LiI as a dopant for improving the TE performance of GeTe. Our studies on the TE properties of the (GeTe)_1−x(LiI)_x system was motivated by a previous report on the p-type (GeTe)_x(LiSbTe₂)₂ bulk materials, where a strong suppression of κ_latt and a slightly improved zT ~ 1 at 723 K was reported [27]. It is well established that Sb doping in GeTe helps in improving the band degeneracy and thus ultimately in a better TE performance [19,26]. However a large amount/heavy doping of Sb (~8–10 mol%) is essential for achieving the favorable TE properties [21]. There is no real harm in doping Sb into GeTe, and this strategy has become increasingly incremental although not many reports exists on new strategies to enhance zT in GeTe without employing Sb. Moreover, in almost all cases where Sb was doped into GeTe, there was a severe impact on the electrical conductivity [19,21,26]. Therefore, a critical challenge remains in achieving higher TE performance in the Sb-free GeTe-based systems. This work is one such attempt in exploring the Sb-free GeTe-based thermoelectric compounds. Improvising on that work on (GeTe)_x(LiSbTe₂)₂ materials [27], where they attribute the lower thermal transport to the probable “pseudo-vacancy” caused by Li, herein we try to explore the thermoelectric transport properties of Sb-free (GeTe)_1−x(LiI)_x solid-state solutions and compare the performance of these Sb-free compounds with that of pristine GeTe and with the previously reported Sb-rich (GeTe)_x(LiSbTe₂)₂ system [27].

2. Materials and Methods

The vacuum-sealed tube melt processing route was used to synthesize the samples of (GeTe)_1−x(LiI)_x (x = 0–0.02). The powders of the crushed ingots were consolidated by Spark Plasma Sintering, SPS (FCT Systeme GmbH), at 773 K for 5 min (holding time) under an axial pressure of approx. 60 MPa. Powder X-ray diffraction patterns were recorded at room temperature in the 2θ range 10–90° with a step size of 0.026° and a scan per step of 400 s using a PANalytical X’Pert Pro diffractometer (Cu K-L_2,3 radiation, PIXcel 1D detector). The Hall measurements were carried on samples of dimensions ~5 × 5 × 2 mm³ using a four-point probe setup (Van der Pauw method), where a fixed magnetic field of 0.112 T and DC current of 15 mA was applied. The electrical conductivity and Seebeck coefficients were measured simultaneously from room temperature to 773 K on samples of dimension ~10 × 2 × 2 mm³ using a commercial instrument (LSR-3, Linseis Inc.) in a He atmosphere. Temperature-dependent thermal diffusivity, D, was measured on disc shaped samples of dimension ~10 mm diameter ×2 mm thickness using the laser flash diffusivity method in a Netzsch LFA-457. The heat capacity, C_p, was derived using the Dulong–Petit relation, C_p = 3R/M (R is the gas constant and M is the molar mass). The total thermal conductivity was obtained from the equation κ = DC_pρ, where ρ is the density of the sample measured using Archimedes’ principle. The uncertainty in the results for the values of electrical and thermal transport properties was ~5% and ~7%, respectively, and for the overall zT it was ~12% [28]. Error bars are not shown in the figures to increase readability.

3. Results and Discussion

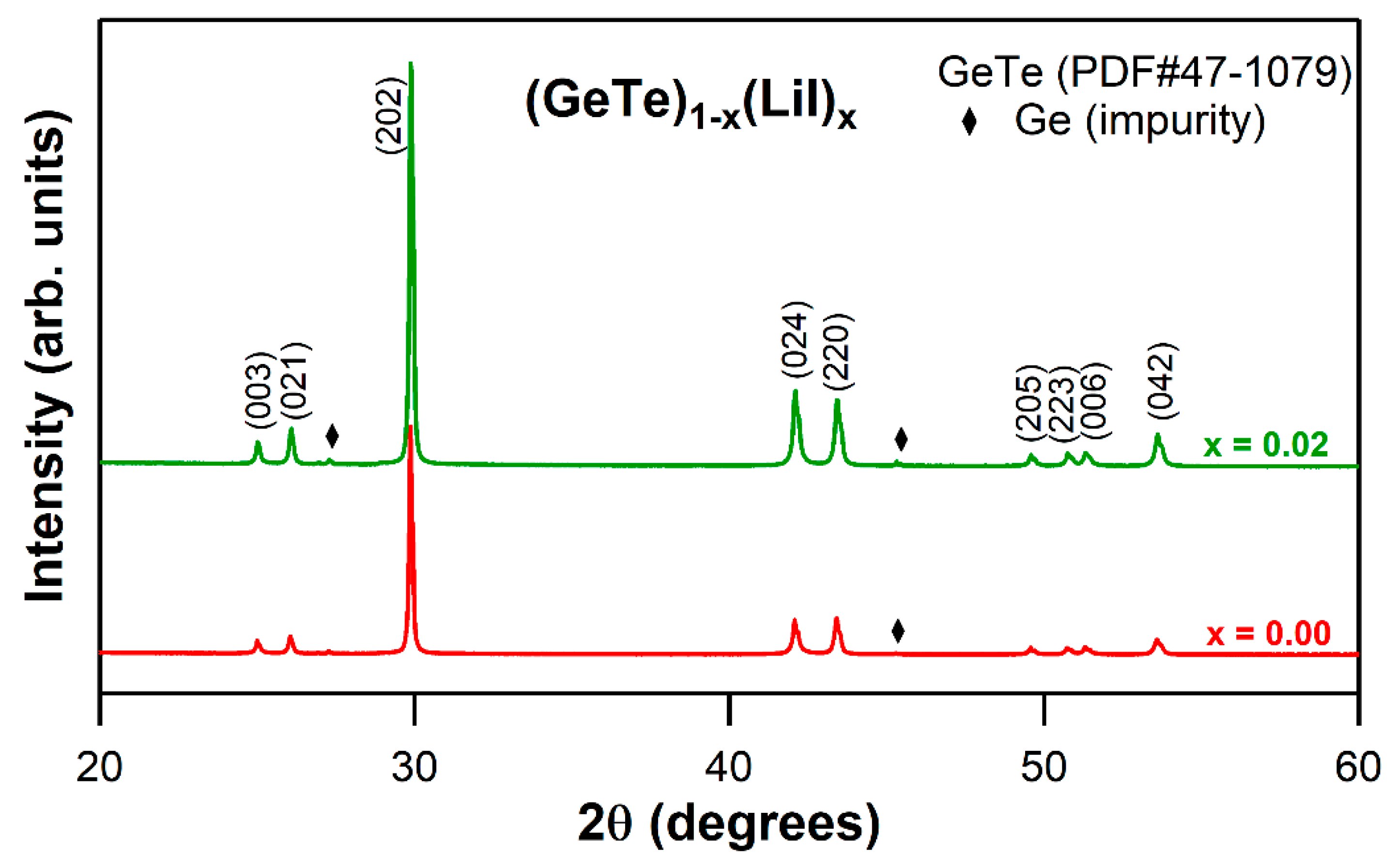

The sharp reflections noticed from the X-ray diffraction (XRD) patterns for (GeTe)_1-x(LiI)_x (x = 0–0.02) stipulate the phases to be crystalline in nature (Figure 1). The major reflections in both doped and undoped samples could be indexed to the rhombohedral (space group—R3m) GeTe phase (PDF# 00-047-1079). The double reflections, i.e., (0 2 4) and (2 2 0), in the range of 2θ values between 41° and 44°, further confirms the presence of the rhombohedral phase. The secondary phase (Ge-rich) was also present, albeit in a minor proportion, and is in agreement with the previously reported studies [21,23,29,30].

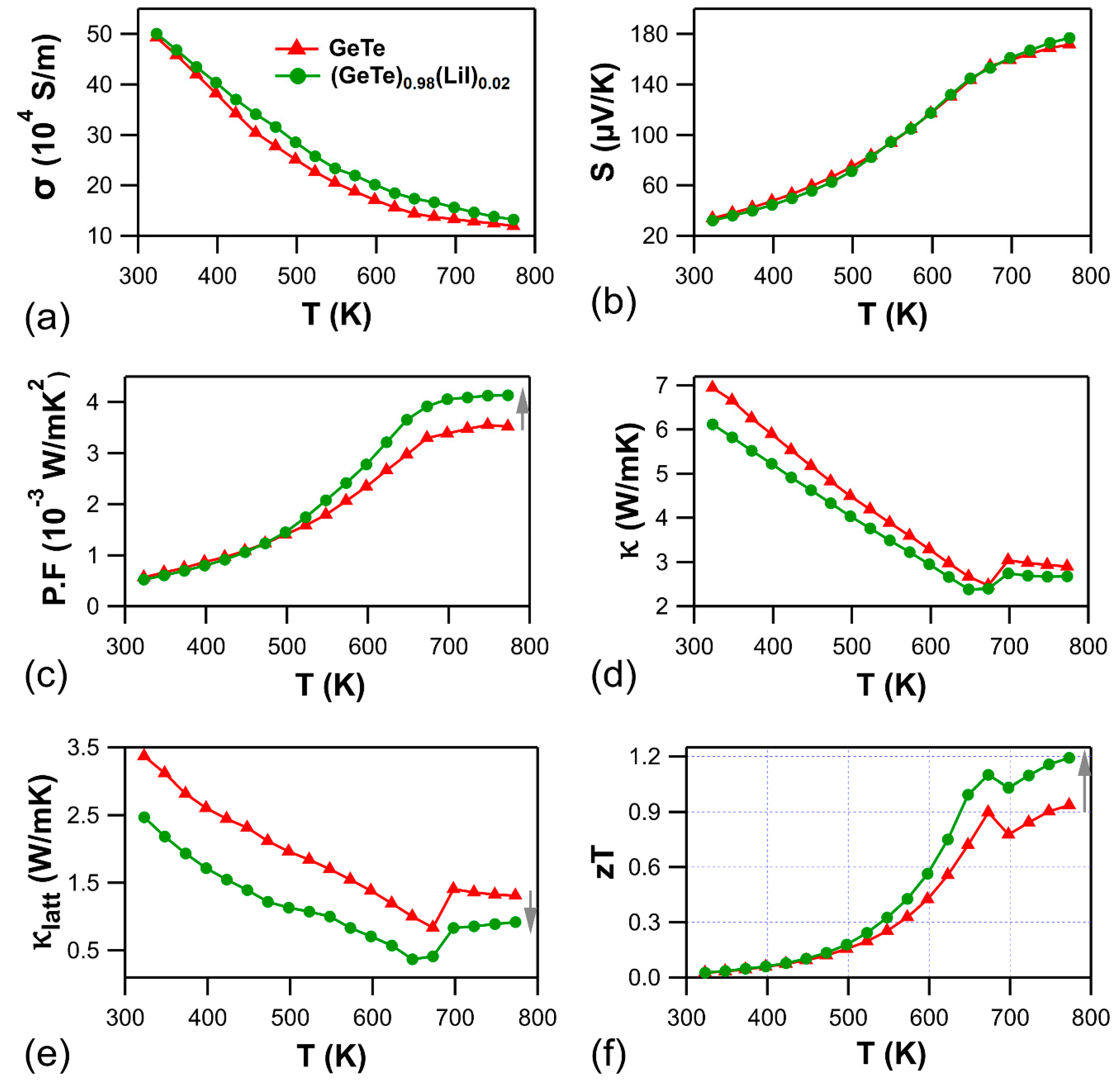

Results from Hall measurements indicated not much variation in the carrier concentration (n) and mobility (µ), as the pristine GeTe exhibited n ~ 9.08 × 10²⁰ cm^-3 and µ ~ 57 cm² V⁻¹ s⁻¹, while the 2 mol% LiI-doped GeTe exhibited n ~ 9.3 × 10²⁰ cm^-3 and µ ~ 54 cm² V⁻¹ s⁻¹. As the Hall voltage was positive in the (GeTe)_1−x(LiI)_x (x = 0–0.02) system, holes are the dominant charge carriers (p-type). With increasing temperature, the electrical conductivity of the samples slumped (Figure 2a), suggesting a degenerate semi-conducting behavior. The Seebeck coefficient was found to be positive (Figure 2b), thus confirming the p-type behavior in the LiI-doped GeTe, which is in line with the Hall measurement results.

Doping LiI into GeTe marginally enhanced the electrical conductivity, which could probably be due to the LiI-driven higher ionicity and the Seebeck coefficient remained more or less the same as the pristine GeTe. This led to a small but significant improvement in the power factor (P.F = S²σ) at elevated temperatures (Figure 2c). In a previously reported Li-Sb codoped study [27], it was postulated that the higher ionicity of Li helped in optimizing the electrical transport properties in those compounds. Considering the close similarities between these material systems, the assumption that LiI-driven ionicity as a cause for improved electrical transport properties in this case seems to hold good. LiI-doping into GeTe markedly decreased the total thermal conductivity (Figure 2d), thanks to the suppressed lattice contribution (Figure 2e). In the case of pristine GeTe, it is well established that the formation energy of the Ge vacancy is quite low, and it is the easily formed intrinsic defect [31,32]. It is reported that Li can fill the cation vacancies and is quite light; hence, it can be regarded as a “pseudo-vacancy”, as illustrated by Schröder et al. [27]. Employing Li⁺ as a “pseudo-vacancy” might have created a substantial mass difference between the atoms involved, which can potentially disturb the lattice vibrational modes and retard the lattice phononic contribution to the thermal conductivity. Nanostructuring can also be a reason for suppression of lattice contribution, as SPS processing is known to create nano-scale inclusions, defects, dislocations, misfit strains, displacement layers, precipitates and micro/nano-porosity [33,34,35,36,37,38,39], all of which, depending on their sizes, are known to scatter phonons of different mean free paths. It can be noted that at around 673 K, there is a change of trend in both electrical and thermal transport properties (for both pristine and LiI-doped GeTe), which is an indication noting the structural transition from the rhombohedral to cubic phase (at ~673 K). LiI-doping in GeTe has helped to simultaneously enhance the power factor and suppress the thermal transport. This cumulative effect of marginally enhanced power factor and significantly suppressed thermal transport has facilitated the LiI-doped GeTe to exhibit a superior thermoelectric figure of merit, zT ~ 1.2 at 773 K (Figure 2f), when compared to the pristine GeTe (zT ~ 0.9 at 773 K). It must be noted that the zT ~ 1.2 at 773 K for the Sb-free (GeTe)_0.98(LiI)_0.02 composition that is reported in this work is considerably higher than what was reported in the literature for the Sb-rich (GeTe)_x(LiSbTe₂)₂ composition (zT ~ 1 at 723 K).

As such, this communication has exposed LiI-doped GeTe as a potential candidate for mid-temperature range TE module fabrication, if a suitable n-type counterpart is figured out. More in-depth analysis and experimentation with the variation of LiI content to optimize the dopant concentration (x) in (GeTe)_1−x(LiI)_x system are to be explored in the near future to investigate if the zT can be pushed up further (say, closer to ~1.5) with an optimal level of doping and processing conditions.

4. Conclusion

Highly dense samples of (GeTe)_1−x(LiI)_x (x = 0–0.02) compounds were successfully synthesized via a two-step process (i.e., melt-processing followed by SPS). Substitution of LiI in GeTe was found to contemporaneously enhance the electrical transport and suppress the thermal transport, thus ultimately boosting up the zT. The Sb-free sample of the (GeTe)_0.98(LiI)_0.02 composition exhibited an improved zT ~ 1.2 at 773 K, which is markedly higher than that of pristine GeTe and the Sb-rich (GeTe)_x(LiSbTe₂)₂ compounds that were reported earlier, thus opening up new avenues to explore further and optimize these (GeTe)_1-x(LiI)_x compounds for a potential mid-temperature range thermoelectric application.
