Solar Panel Tilt Angle Optimization Using Machine Learning Model: A Case Study of Daegu City, South Korea

Abstract

Finding optimal panel tilt angle of photovoltaic system is an important matter as it would convert the amount of sunlight received into energy efficiently. Numbers of studies used various research methods to find tilt angle that maximizes the amount of radiation received by the solar panel. However, recent studies have found that conversion efficiency is not solely dependent on the amount of radiation received. In this study, we propose a solar panel tilt angle optimization model using machine learning algorithms. Rather than trying to maximize the received radiation, the objective is to find tilt angle that maximizes the converted energy of photovoltaic (PV) systems. Considering various factors such as weather, dust level, and aerosol level, five forecasting models were constructed using linear regression (LR), least absolute shrinkage and selection operator (LASSO), random forest (RF), support vector machine (SVM), and gradient boosting (GB). Using the best forecasting model, our model showed increase in PV output compared with optimal angle models.

1. Introduction

Recently, research and use of photovoltaic power generation have been increasing worldwide. With issues such as depletion of natural resources and environmental pollution, securing sustainable green energy and using it more effectively became important. In particular, photovoltaic power generation has attracted a great deal of attention by using semi-permanent energy sources such as solar, but efficient development has been limited due to factors such as location, climate, and installation type.

There have been numerous efforts to implement the photovoltaic systems in South Korea. The country relied heavily on the imports of fossil fuels as its source of energy and its energy-consumption rate is among world’s top 10 [1]. Nonetheless, due to the negative effects the fossil fuels generate to the environment, the Korean government plans to build rural-area photovoltaic (PV) systems. Following the trend, numerous studies have been conducted by Korean researchers in terms of PV systems including topics such as the regional differences of optimal orientation of PV systems and optimal PV model under residential conditions to minimize the cost [2,3].

Solar energy gets converted into electricity using photovoltaic (PV) technology, which receives solar irradiance from its panel as a source of energy. Roman [4] noted that how much of electricity a solar system produces depends on how much sunshine it receives. Therefore, the more a PV collects, the more energy it produces. Accordingly, previous studies have focused on estimating solar radiation and the optimal tilt angle of the solar panel to maximize the amount of solar irradiation. Jamil et al. [5] estimated availability of solar radiation for south-facing flat surfaces in humid subtropical climatic region of India, and monthly, seasonal, and annual optimum tilt angles were estimated. Benghanem [6] analyzed the optimal choice of the tilt angle for the solar panel in order to collect the maximum solar irradiation for Madinah, Saudi Arabia. Wei [7] constructed forecasting models to estimate surface solar radiation on an hourly basis and the solar irradiance received by solar panels at different tilt angles, to enhance the capability of PV systems in Tainan City, Taiwan.

Nevertheless, amount of sunlight reaching at PV panel is not a sole factor in expecting maximum power generated. Although not as impactful as solar radiation, factors such as elevation, humidity, and weather condition were found to be other important variables in determining solar power generation [8]. Dinçer and Meral [9] found that factors such as cell temperature, MPPT (maximum power point tracking), and energy conversion efficiency affect solar cell efficiency. Since each PV module consists of different solar cell structures, materials, and technologies, it is difficult to expect a unified spectral response when equal amount of solar radiation was given.

As such, finding the optimal tilt angle of a solar panel to receive maximum sunlight does not guarantee the PV module to exploit it fully. Martin and Ruiz [10] analyzed the angular loss of the incident radiation and the surface soil. They calculated the optical losses under a certain field condition relative to the normal incidence situation, of which electrical characteristics of a PV module is applied with a clean surface. They found that dust influenced the angular loss meaningfully. This finding suggests that the angle where maximum sunlight could reach the PV module is not necessarily the angle, but a complex entanglement of a wide variety of factors. Therefore, the objective of this study is to construct a forecasting model to estimate the solar power generation and derive an angle that can maximize it through simulation considering various conditions such as weather, dust level, and aerosol level. PV data from 22 solar power plants in Daegu city, South Korea, weather data ranging from January 2016 to March 2018, and sun location data were used as input variables. The rest of this paper is organized as follows: Section 2 describes about the studying site and data. Section 3 introduces the proposed methodology of PV panel optimization based on the machine learning algorithm. Section 4 evaluates the result of the proposed model and compares the predicted solar power based on the optimized panel angle against the original angle. Finally, Section 5 discusses the conclusion of this study.

2. Study Site and Data

The study site is in Daegu city, South Korea. The collected data are from 22 PV modules out of 246 present in Daegu city.

2.1. Solar Power Generation Data Set

173,568 records of solar power generation data were acquired from 22 PV modules. Collected period of the data ranges from January 2016 to March 2018. The data consists of relevant features such as module capacity, installation location, module azimuth angle, and panel angle. The panels’ angles were all fixed as shown in

Table 1. Solar power generation dataset.

Module ID	Y Coordinate	X Coordinate	Capacity (W)	Azimuth Angle (°)	Panel Angle (°)	Data Range
S02-01	35.83	128.696	200	180	30	2016.1–2018.3
S02-02	35.83	128.696	250	180	30	2017.1–2018.3
S03-01	35.85	128.55	250	180	30	2016.1–2018.3
S05-01	35.854	128.425	250	180	20	2016.1–2018.3
S06-03	35.846	128.462	254.8	180	15	2016.1–2018.3
S07-02	35.885	128.539	250	180	25	2016.1–2018.3
S07-03	35.885	128.539	250	180	25	2017.1–2018.3
S07-04	35.885	128.539	260	180	25	2016.1–2018.3
S07-05	35.884	128.531	250	180	25	2017.1–2018.3
S09-01	35.822	128.496	260	180	25	2017.1–2018.3
S09-02	35.822	128.496	260	180	25	2016.1–2018.3
S09-04	35.822	128.496	250	180	25	2016.1–2018.3
S10-01_1	35.91	128.594	250	180	25	2016.1–2018.3
S10-01_2	35.91	128.594	250	180	25	2016.1–2018.3
S10-01_3	35.91	128.594	250	180	25	2016.1–2018.3
S12-01	35.829	128.62	250	180	20	2016.1–2018.3
S13-01	35.847	128.462	260	180	15	2016.1–2018.3
S13-02	35.873	128.45	260	180	15	2016.1–2018.3
S13-03	35.861	128.5	260	180	15	2016.1–2018.3
S13-04	35.94	128.54	260	180	15	2016.1–2018.3
S13-05	35.915	128.591	260	180	15	2016.1–2018.3
S20-01	35.823	128.494	300	180	20	2016.1–2018.3

.

2.2. Meteorological Data

The meteorological data of Daegu Metropolitan City was collected through Meteorological Agency’s Open Weather Portal. The meteorological office operates single meteorological observatory in the city and collects time data such as temperature, precipitation, wind speed, humidity, and sunshine. Synoptic meteorological observations are ground observations that are performed at the same time on all observatories at a fixed time in order to determine the weather of the synoptic scale. The size of the scale refers to the spatial size and longevity of high and low pressures expressed in weather map. The attributes of the collected dataset are shown in

Table 2. Meteorological data attributes.

Attribute	Data Range	Location	Unit
Temperature	2016.1–2018.3	Latitude: 35.87797 Longitude: 128.65296 Altitude Above Sea: 54 m	Celsius
Precipitation			millimeter
Wind Speed			m/s
Wind Direction			16 Cardinal Points
Humidity			Percentage
Vapor Pressure			hectopascal
Dew Point Temperature			Celsius
Local Air Pressure			hectopascal
Barometric Pressure			hectopascal
Sunshine			Hour
Insolation			milliJoule per square meter
Snow			Cm
3 hour snow			Cm
Total Cloud Amount			10 Quartile
Mid Cloud Amount			10 Quartile
Lowest Cloud Height			100 m
Visibility			Km
Ground Temperature			Celsius
5 cm Underground Temperature			Celsius
10 cm Underground Temperature			Celsius
20 cm Underground Temperature			Celsius
30 cm Underground Temperature			Celsius

.

The mass concentrations of aerosols, the microdust ($\mu \mathrm{m}/{\mathrm{m}}^3$), were collected using dust monitor (PM10) placed in Daegu Metropolitan City. The dust monitor is a device that continuously measures the concentration of particles having a diameter of 10 $\mu \mathrm{m}/{\mathrm{m}}^3$ or less among aerosols floating in the atmosphere.

In addition, aerosol data were collected (

Table 3. Aerosol data attributes.

Attribute	Data Range	Measure Location	Unit
Microdust	2016.1–2018.3	Latitude: 35.87797 Longitude: 128.65296 Altitude Above Sea: 54 m	$\mu \mathrm{m}/{\mathrm{m}}^3$
Aerosol	2016.1–2018.3	Latitude: 36.540 Longitude: 126.330 Altitude Above Sea: 47 m	$\mu \mathrm{m}/{\mathrm{m}}^3$

). Aerosols are solid or liquid particles floating in the air and usually have a size of about 0.001–100 $\mu m/m^3$ and are caused by natural factors such as dust, ash, and sea salt, as well as by artificial factors such as emissions from urban and industrial facilities, incineration, and automobiles. It affects climate change by flooding in the atmosphere to block or absorb solar radiation coming into the surface, or by changing cloud formation and physical properties. The Meteorological Agency observes the aerosol water concentration by particle size from 0.5 to 20 $\mu m/m^3$ at the Anmyeon Island Climate Change Monitoring Center as part of the World Meteorological Organization’s Global Atmosphere Monitoring (GAW) program.

2.3. Sun Position Data

The hourly solar position for Daegu City during the 2016–2018 period was calculated using a theoretical equation. The declination angle, the hour angle, the zenith angle, the elevation angle, and the azimuth angle were the variables for the solar position used in this study. In addition, the ratio of beam radiation and diffuse radiation on tilted surface were also calculated.

The declination angle, which is denoted by δ, has a seasonal variance due to the tilt of the earth on its axis of rotation and the rotation of the earth around the sun. The equation of declination is calculated as:

$$\delta =23.45° \sin ((\frac{360\left(n_d-80\right)}{365}),$$

(1)

where $n_d$ is the day of a year. The hour angle, which is denoted by ω, is the hourly angle of the sun’s movement from the east to the west on the celestial sphere of the Earth. Sun’s positional change is 15° per hour since it takes 24 hours for sun to have a full rotation on its axis. The equation of hour angle is calculated as:

$$\omega =15°\left(H-12\right),$$

(2)

where $H$ is time in 24-hour format. The zenith angle, denoted by θ, is the angle between the sun and the direct overhead point at a measuring location. The equation is calculated as:

$$\theta =co{s}^{-1}(\sin \lambda ·\sin \delta +\cos \lambda ·\cos \delta ·\cos \omega ),$$

(3)

where $\lambda$ is the latitude of a measuring location. The elevation angle, denoted by $\alpha$, is the angle from the sun to the observation point and the horizontal plane. The equation is calculated as:

$$\alpha =90°-\theta .$$

(4)

The azimuth angle, denoted by $\xi$, is the angle between the Earth’s orbit around the sun and its horizon.

The equation is calculated as:

$$\xi =si{n}^{-1}(\cos \delta ·\sin \omega /\sin \theta ).$$

(5)

The ratio of the average daily beam radiation on a tilted surface and the ratio of the average daily diffuse radiation on a tilted surface was calculated by using equations proposed by Liu and Jordan [11]. The equation of the ratio of the average daily beam radiation on a tilted surface ($R_b$) depends on the point of observation’s geographic location. Since the observation point of this study is located in the northern hemisphere, we used the corresponding equation:

$$R_b=\frac{\cos \left(\varphi -\beta \right)\cos \delta \sin {\omega }_{ss}+{\omega }_{ss}\sin \left(\varphi -\beta \right)\sin \delta }{\cos \varphi \cos \delta \sin {\omega }_{ss}+{\omega }_{ss}\sin \varphi \sin \delta },$$

(6)

where $\varphi$ is the latitude, $\beta$ is the solar panel’s tilt angle, and the ${\omega }_{ss}$ is the sunset hour angle. Lastly, the ratio of the average daily diffuse radiation on a tilted surface ($R_d$) was calculated as:

$$R_d=\frac{1+\cos \beta }{2}.$$

(7)

3. Methodology

3.1. Procedures

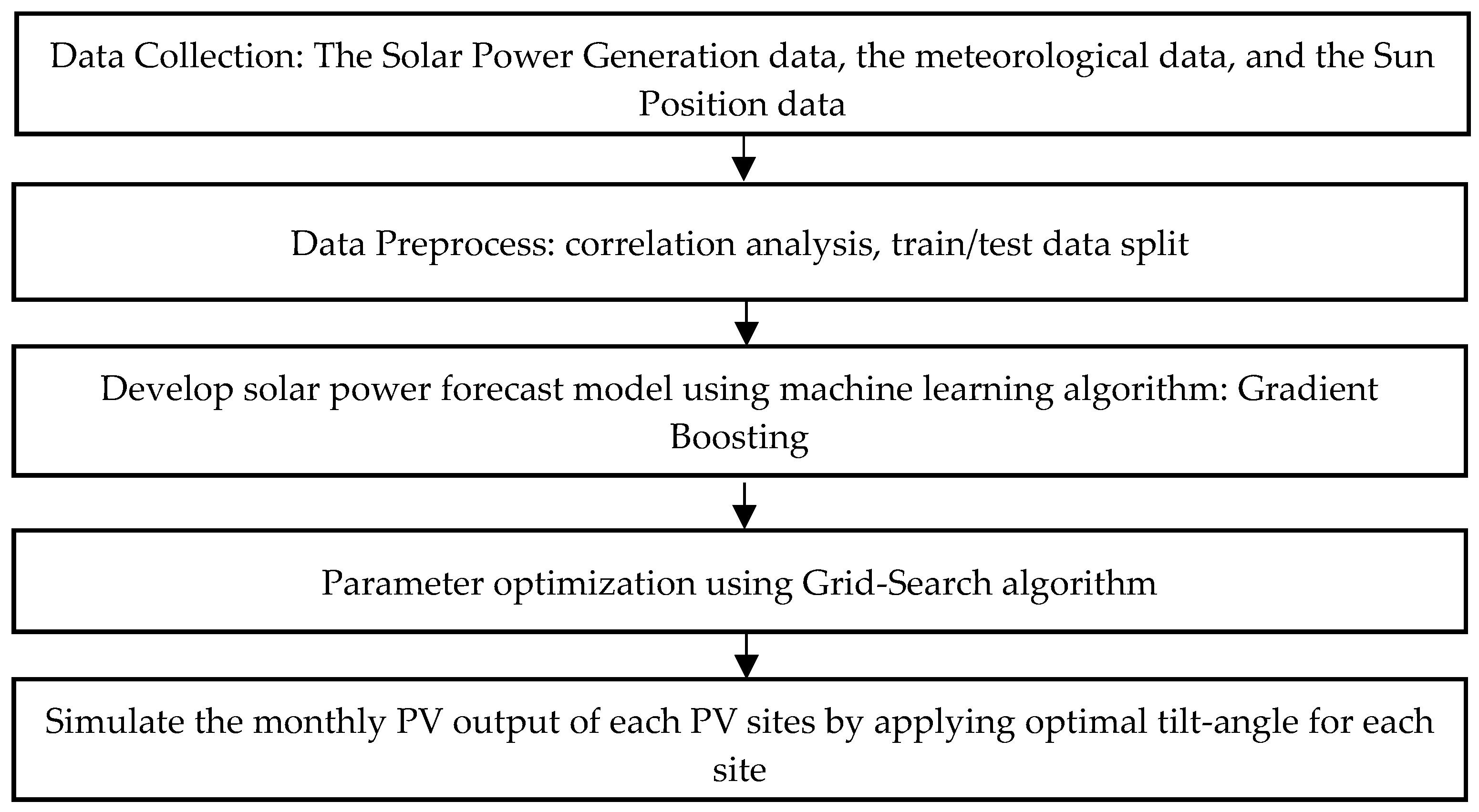

The procedure of this study is as shown in the Figure 1.

3.2. Data Collections

As mentioned in the previous section, the PV module data, meteorological data, and the sun position data were the required data for this study. As each PV module’s collection period differed within the range of January 2016 through March 2018, the meteorological data and sun position data were collected for this whole period.

3.3. Data Preprocessing

All collected data were recorded on an hourly base. As our proposed model predicts each PV module’s monthly and annual output, collected data were aggregated accordingly to match the unit. Additionally, for every PV site, we calculated average daily beam radiation ($R_b$) and average daily diffuse radiation ($R_d$) of all possible panel tilt angles ranging between 0 and 90 degrees using the equations stated in the previous section. There were originally 69 PV sites data collected from Daegu-city but we only chose 22 of them because others had missing data.

3.4. Correlation Analysis

In the data preprocessing stage, we performed correlation analysis on 22 PV sites and calculated correlation between the input features and PV output to select relevant features for our forecasting model. From 31 of the available features, 14 were selected as shown in the resulting

Table 4. Correlation analysis result.

Variable	Correlation
Ratio of Beam Radiation on Tilted Surface	0.75
Ratio of Diffuse Radiation on Tilted Surface	0.59
Humidity	0.41
Total Cloud Amount	0.34
Ground Temperature	0.33
Visibility	0.20
Wind Speed	0.19
Wind Direction	0.18
Lowest Cloud Height	0.14
Micro dust	0.09
Precipitation	0.08
Temperature	0.06
Snow	0.03
Aerosol	0.02

.

3.5. Modeling

In machine learning, predictive methods serve different objectives depending on which type of prediction problem a researcher works on. Since our objective is to construct a model, which can successfully learn from the data to predict the PV output, which is a continuous variable, regression learners were considered for our predictive method candidates.

In this work, gradient boosting was used as our model’s base algorithm. Gradient boosting machine is an ensemble method, which constructs base learners to maximally correlate it with the negative gradient of loss function, associated with the whole ensemble [12]. Ensemble methods often improve predictive performance for its generalization power and computational advantage [13]. More specifically, Gradient boosting machine constructs a sequence of regression trees, where each tree predicts the residual of preceding tree, and the machine aggregates the predictions additively to minimize the loss [14]. Compared to other machine learning algorithms, Gradient Boosting is proven to be very successful in experimental comparisons of learning algorithms [15,16]. It is also successfully applied in industrial applications [17,18]. Considering optimization, the gradient boosting algorithm has relatively few parameters to tune.

In order to verify that gradient boosting algorithm is a good fit for our study, we compared the predictive performance of different algorithms. For comparison, we randomly selected one of the 22 PV modules (S07-04) and trained each model on the subset (January 2016–December 2017). Trained models were then validated using the remaining portion of the PV dataset (January 2018–March 2018). Root-mean-square error (RMSE), which represents the difference between the predicted output and the actual output, was calculated for each model as shown in

Table 5. Train and test RMSE of different models.

Model	Train RMSE	Test RMSE
Linear Regression	6.4595	6.4630
LASSO	6.5977	6.5978
Random Forest	5.7135	6.3703
Support Vector Machine	4.9068	5.5943
Gradient Boosting	2.5152	5.5122

. From the result, we verified that the gradient boosting (GB) model showed the lowest RMSE (train: 2.5152, test: 5.5122). Thus, we chose the trained gradient boosting model for our simulation model after tuning the model using grid-search algorithm.

3.6. Model Simulation for Monthly/Annual PV Optimal Tilt Angle

For every PV module, monthly optimal tilt angles were derived by simulating our trained model. We defined the optimal tilt angle as an angle that maximizes the PV output. Simulation period was January 2017–December 2017 and simulated angles ranged from 0 to 90 degrees. Among the simulated angles, an angle that produced the highest PV output was recorded as a monthly optimal tilt angle, and the corresponding PV output was recorded as well. Similarly, simulation of 2017 as a whole was done for the annual PV optimal tilt angle and a single angle that produced the highest PV output for the entire year was recorded as optimum.

4. Results

The estimation result of the 2017 PV outputs is shown in

Table 6. Estimation result of the 2017 annual photovoltaic (PV) outputs.

PV Module	Tilt Angle	Original Output (kWh)	Estimated Output (kWh)
S02-01	30	136,805	136,630
S02-02	30	100,820	100,700
S03-01	30	94,686	94,771
S05-01	20	119,539	119,801
S06-03	15	134,778	134,535
S07-02	25	119,227	119,025
S07-03	25	127,931	127,742
S07-04	25	129,927	129,552
S07-05	25	143,626	143,454
S09-01	25	73,678	73,458
S09-02	25	74,057	73,859
S09-04	25	286,132	286,473
S10-01-1	25	48,581	48,352
S10-01-2	25	47,839	47,802
S10-01-3	25	46,677	46,723
S12-01	20	139,726	139,531
S13-01	15	145,356	145,196
S13-02	15	140,310	140,045
S13-03	15	142,010	142,138
S13-04	15	135,904	136,465
S13-05	15	131,698	131,317
S20-01	20	149,661	149,929

. The estimated PV output is the annual PV output predicted by our forecasting model. Original panel angles were applied for the estimation.

The trained model successfully simulated the annual PV output with identical parameters given as the original condition.

The simulation result of the 2017 PV outputs is shown in

Table 7. Simulation Result of 2017 PV modules.

PV Module	Original Output (kWh)	Yearly Optimal Output (kWh)	Year Optimal Angle	Monthly Optimal Output (kWh)
S02-01	136,630	139,240 (1.91%)	18	143,735 (5.20%)
S02-02	100,700	101,405 (0.70%)	26	104,909 (4.18%)
S03-01	94,771	95,122 (0.37%)	25	99,557 (5.05%)
S05-01	119,801	120,041 (0.20%)	25	125,708 (4.93%)
S06-03	134,535	134,576 (0.03%)	14	138,598 (3.02%)
S07-02	119,025	119,191 (0.14%)	22	124,071 (4.24%)
S07-03	127,742	129,696 (1.53%)	6	132,200 (3.49%)
S07-04	129,552	134,760 (4.02%)	1	134,605 (3.90%)
S07-05	143,454	143,841 (0.27%)	29	152,520 (6.32%)
S09-01	73,458	73,958 (0.68%)	19	75,721 (3.08%)
S09-02	73,859	74,553 (0.94%)	16	76,370 (3.40%)
S09-04	286,473	288,392 (0.67%)	11	295,554 (3.17%)
S10-01-1	48,352	49,183 (1.72%)	4	49,474 (2.32%)
S10-01-2	47,802	48,839 (2.17%)	1	49,164 (2.85%)
S10-01-3	46,723	47,428 (1.51%)	1	48,227 (3.22%)
S12-01	139,531	139,908 (0.27%)	11	143,019 (2.50%)
S13-01	145,196	145,371 (0.12%)	1	148,274 (2.12%)
S13-02	140,045	140,857 (0.58%)	1	142,692 (1.89%)
S13-03	142,138	142,294 (0.11%)	1	145,734 (2.53%)
S13-04	136,465	138,880 (1.77%)	1	139,876 (2.50%)
S13-05	131,317	131,540 (0.17%)	1	134,889 (2.72%)
S20-01	149,929	150,873 (0.63%)	1	154,262 (2.89%)

. Here, our trained model simulates each PV module’s annual output by applying: (1) the computed yearly optimal angle and (2) the computed monthly optimal angles. The comparison was made based on the model’s estimated PV output shown in previous result.

The yearly optimal angles of the PV modules were 1–29°. Most of the modules had a small increase in PV output at the yearly optimum angle. S06-03 module showed the least improved output rate (0.03%) while S07-04 module showed the most (4.02%). In terms of angular difference, S06-03 module required least amount of angular change and S07-04 module required the maximum angular change. Similarly, we could see that other modules’ rate of improvement and rate of angular change were positively correlated. This pattern partially suggests the level of efficiency in currently applied angles for all PV modules.

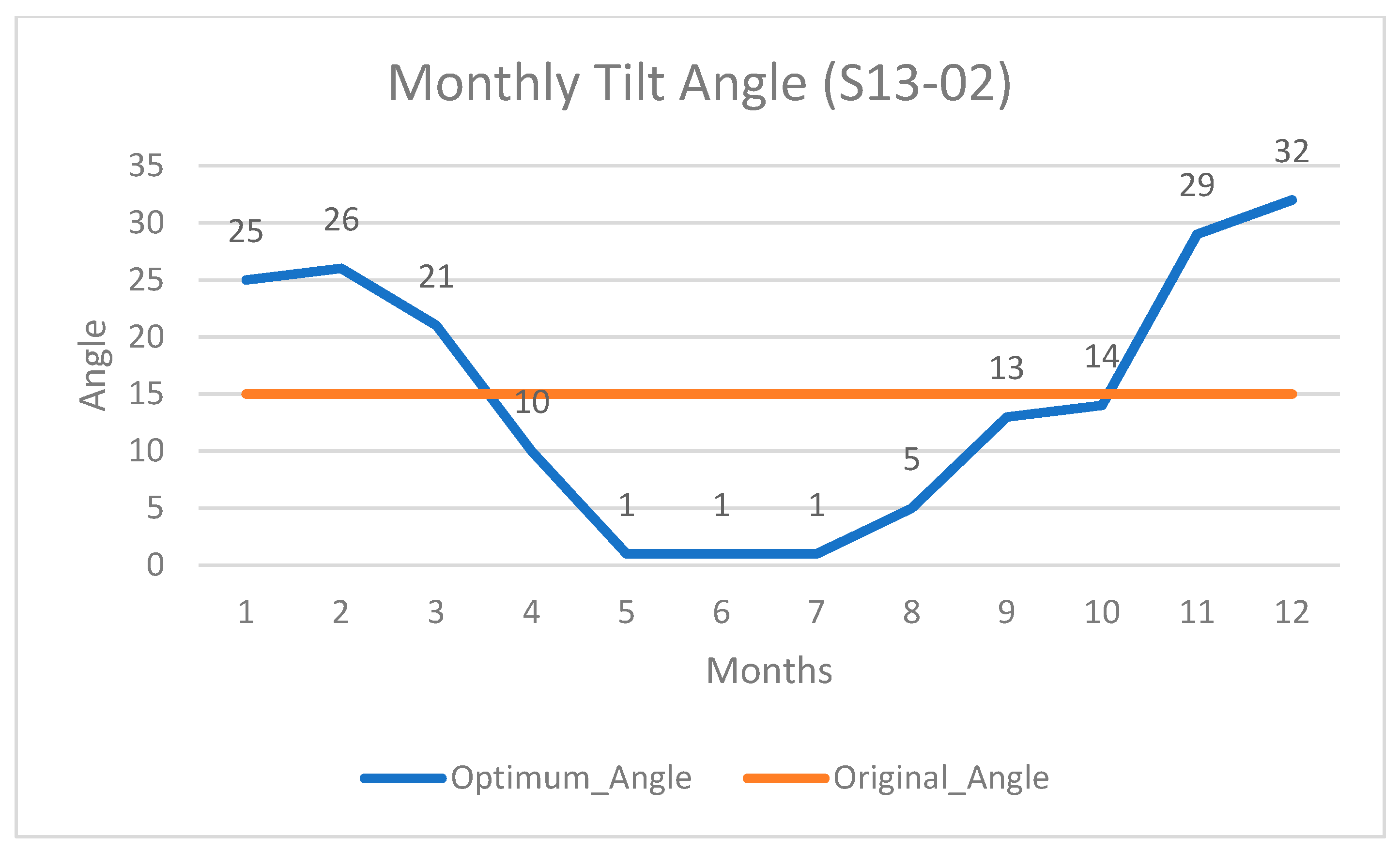

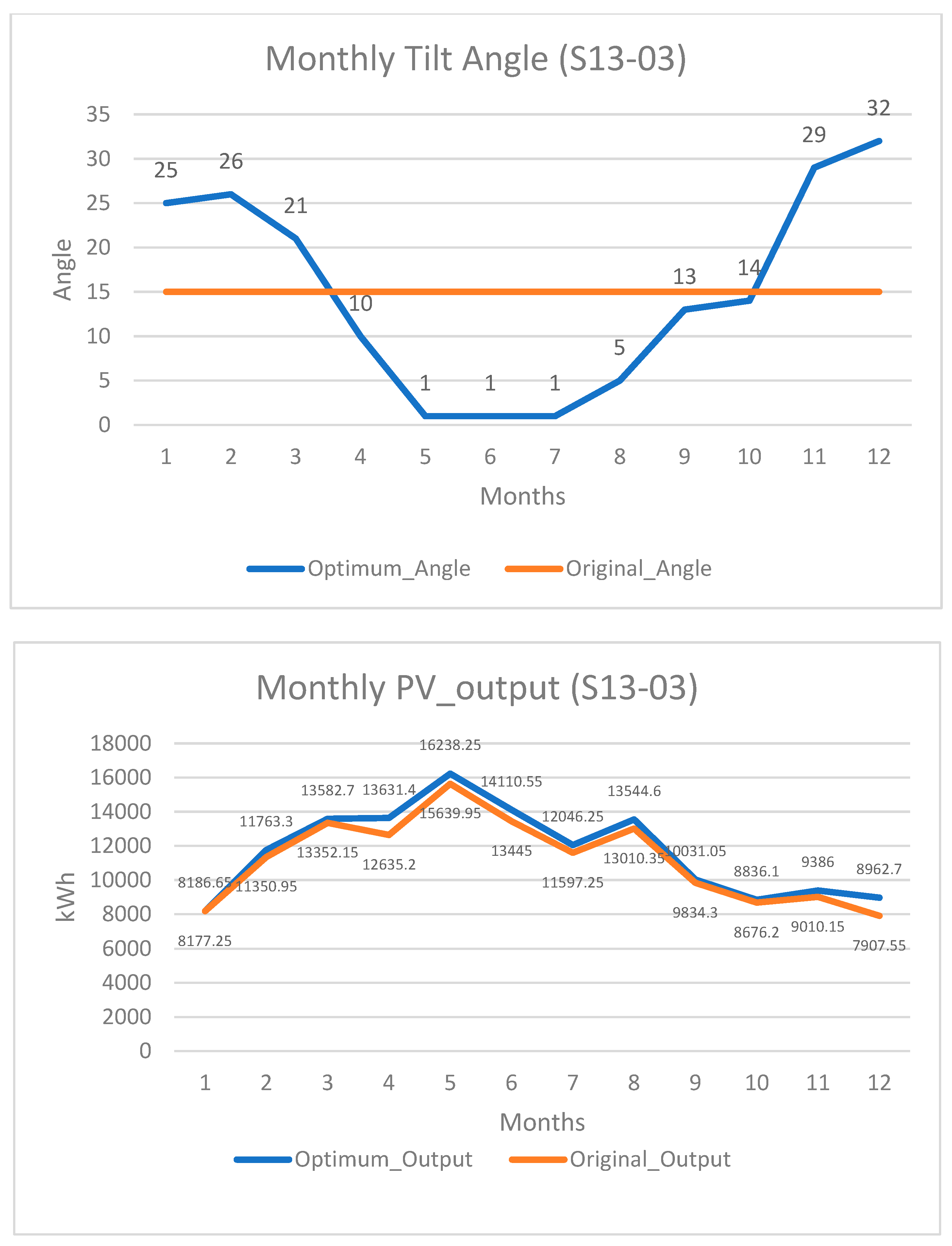

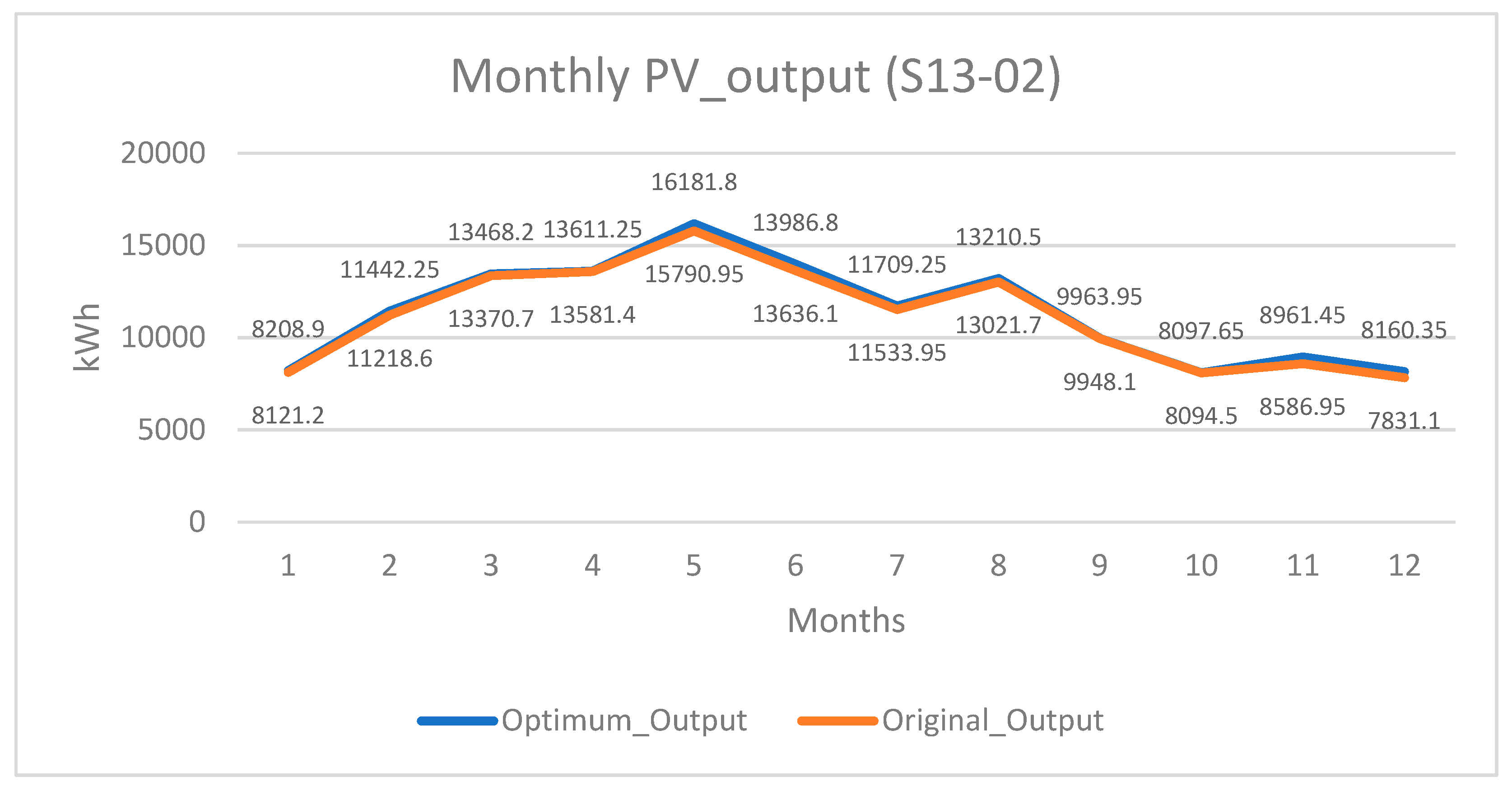

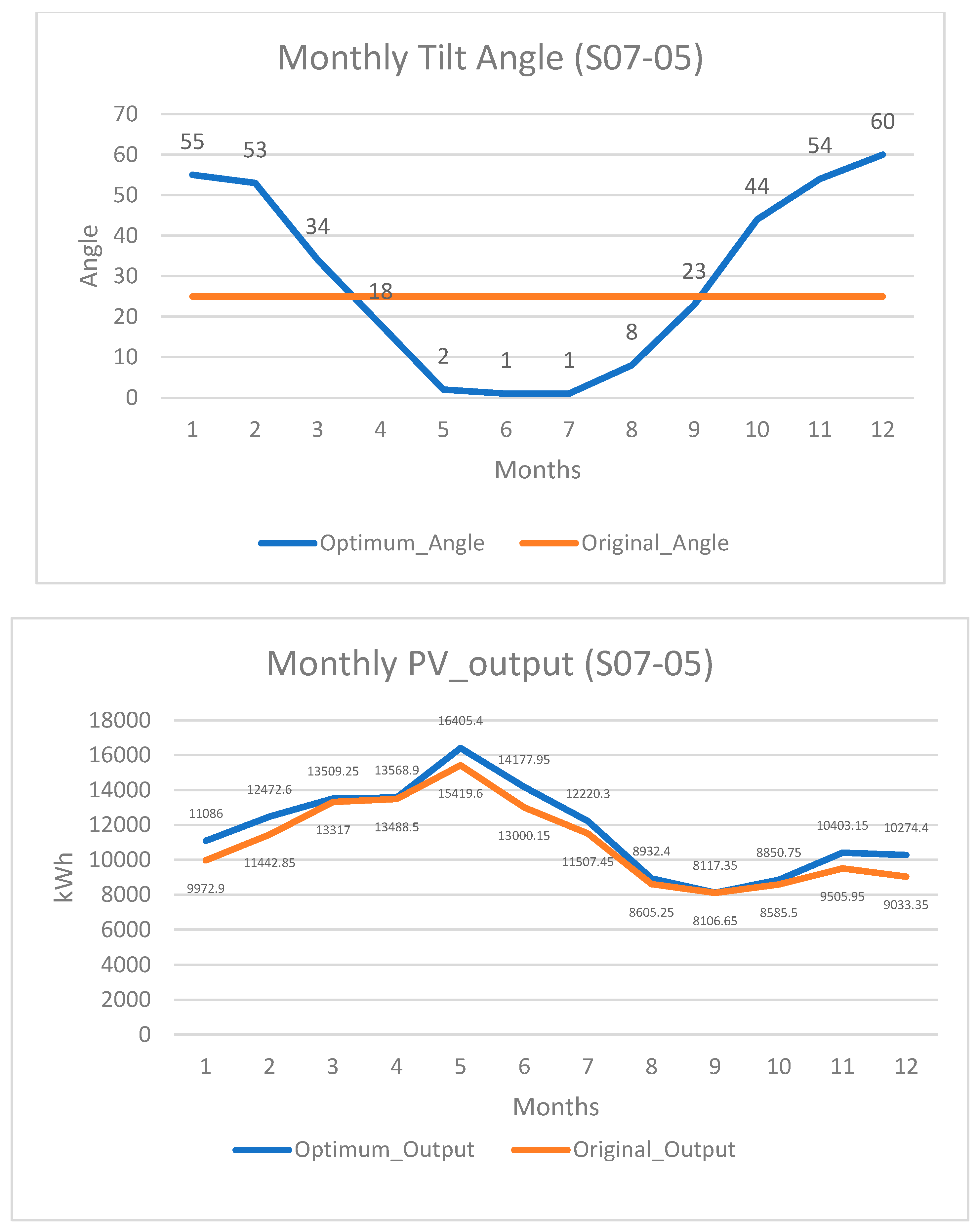

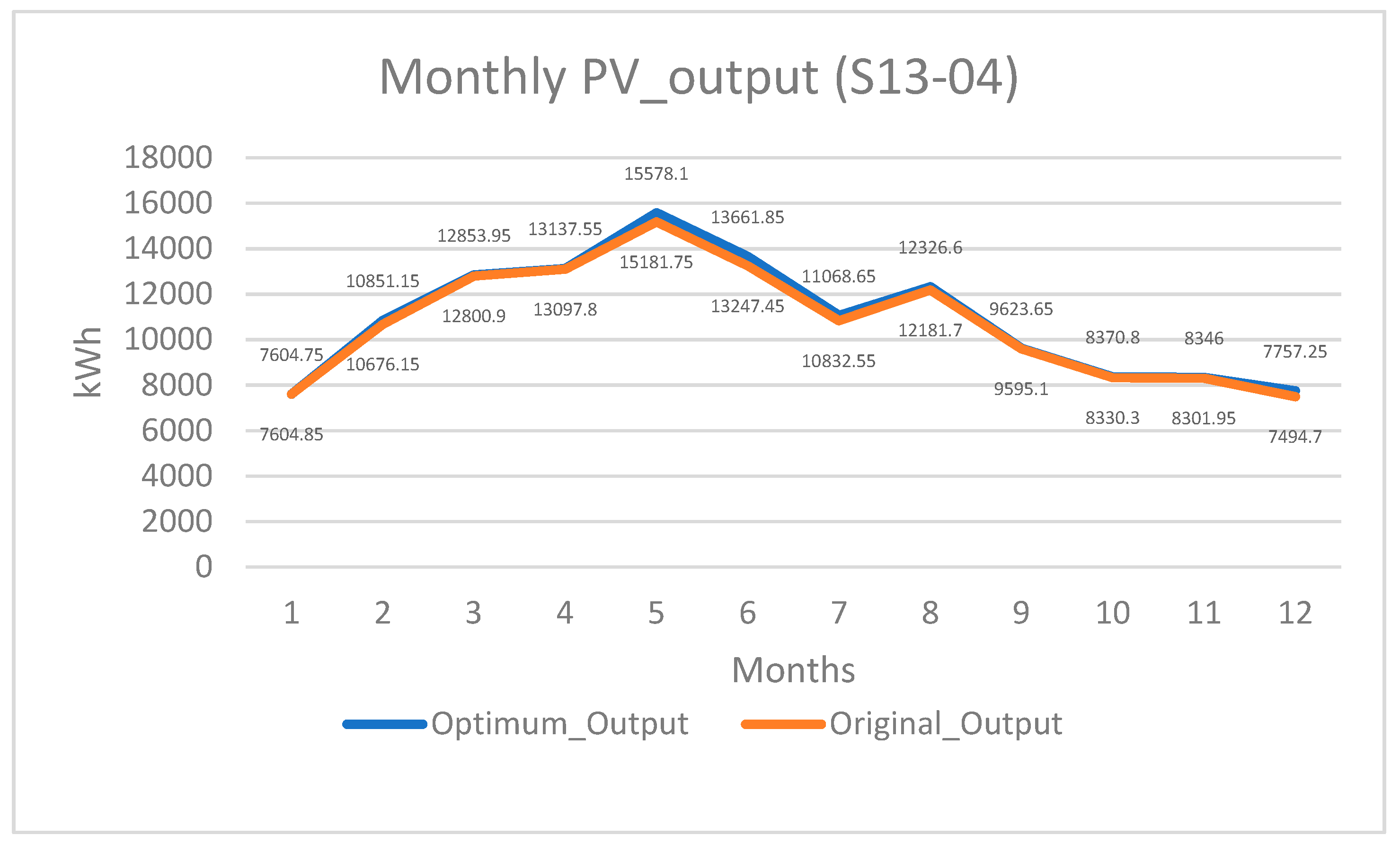

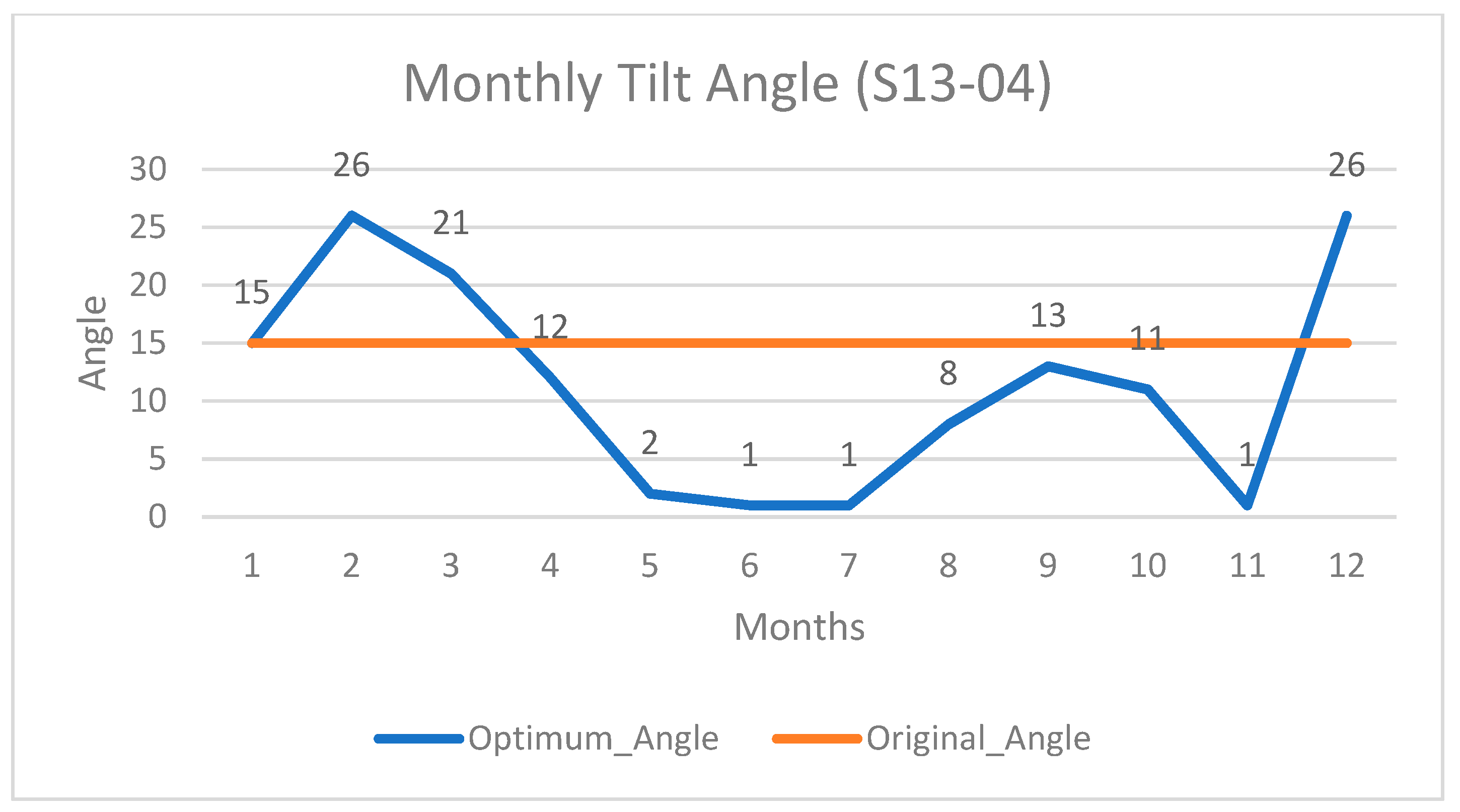

The result of PV output difference was even more significant when angles were monthly adjusted using monthly optimum angles. For every PV module, the result of PV output for the monthly adjusted case was significantly better than the yearly adjusted case. S13-02 module showed the least improved rate (1.89%) and S07-05 module showed the most improved rate (6.32%). Although costly, the result suggests that it is advisable to adjust the panel angle in monthly fashion to expect high efficiency. Samples of monthly optimum angles and outputs are shown in the Appendix A (Figure A1, FFigure A2, Figure A3 and Figure A4).

As shown in

Table 8. 2017 yearly generated energy estimation for different tilt angles.

Condition	Generated Energy Total (kWh)
Original tilt angle	2,667,498
Yearly optimum tilt angle	2,689,950
Monthly optimum tilt angle	2,759,160

, when all other conditions are same and only the angle of the PV panel was adjusted as suggested by our model, we could expect a total of 0.83% (22,452 kWh) increase in overall PV output when adjusted with yearly optimum angle, and 3.32% (91,662 kWh) increase when adjusted with monthly optimum angles.

To gain a realistic insight of these results, we used LCOE value (levelized costs of electricity) for the solar energy conversion value [19]. In Korea, the LCOE value for 100 kW facilities was 147.1 Korean Won (KRW)/kWh. By converting additional power generated, we saved 3302 thousand KRW (147.1 × 22,452) by yearly optimum angle and 13,483 thousand KRW (147.1 × 91,662) by monthly optimum angles for the 22 sites annually.

5. Conclusions

In this paper, forecasting model based on the gradient boosting algorithm was proposed to predict the amount of solar power generated by PV modules on both a monthly and yearly basis, which then simulated the energy generation of PV modules to derive the monthly/yearly panel tilt angles that could maximize them. The study site was in Daegu city in South Korea. The model used the solar power generation data, the meteorological data, and the sun position data.

Compared to the originally fixed angles, the amount of solar energy generated by PV modules when the panel angles were fixed with yearly optimal angle brought slight increase (0.83%) in overall energy generation. The performance change of each PV modules varied from 0.03% to 4.02%, suggesting that actually applied angles of these modules differed in efficiency. When the optimal angle of each PV module was calculated and adjusted on a monthly basis, the overall energy generation had an even higher increase (3.32%) to that of original angles. The performance change of each PV modules varied from 1.89% to 6.32%. Although all modules were located in a single city and share similar geometrical attributes, the optimal angles differed to some degrees.

We calculated how much of economic efficiency we gained when we applied these changes to the real-world in annual basis. In order to produce additional kWh with the original tilt angles, the studied PV modules would cost additional 3302 thousand KRW for the amount of energy that could be produced with yearly optimum tilt angles applied, and 13,483 thousand KRW for the monthly optimum tilt angles applied.

The sun positional data were calculated from data collected by a single meteorological observatory. Although studied PV modules were located in a same city and would not show significant difference in sun positional data between the modules, we could expect more precise and reliable outcome in both modeling and simulation stage if we could measure the sun related data for each module.

We acknowledged a limitation of generalizing our finding to different PV modules of various geographical conditions since the experiment was done on PV modules located within a single city. In our future study, we plan to collect PV modules data from different cities in order to improve the generalization of our approach. In addition, since our studies collectively combined different factors and applied for machine learning techniques, it was a little difficult to single out individual feature’s effect. Future studies could address issues like ‘rain effect of clearing dust level for increasing PV output’ using feature engineering or statistical techniques.
