Review on Energy Efficiency Progresses, Technologies and Strategies in the Ceramic Sector Focusing on Waste Heat Recovery

by
Miguel Castro Oliveira
*,
Muriel Iten
,
Pedro L. Cruz
and
Helena Monteiro
Low Carbon & Resource Efficiency, R&Di, Instituto de Soldadura e Qualidade, 4415-491 Grijó, Portugal
*
Author to whom correspondence should be addressed.
Energies 2020, 13(22), 6096; https://doi.org/10.3390/en13226096
Submission received: 17 October 2020 / Revised: 10 November 2020 / Accepted: 18 November 2020 / Published: 20 November 2020
(This article belongs to the Special Issue Waste Energy Recovery and Valorization in Internal Combustion Engines)
Browse Figures
Versions Notes

Abstract

:
Thermal processes represent a considerable part of the total energy consumption in manufacturing industry, in sectors such as steel, aluminium, cement, ceramic and glass, among others. It can even be the predominant type of energy consumption in some sectors. High thermal energy processes are mostly associated to high thermal losses, (commonly denominated as waste heat), reinforcing the need for waste heat recovery (WHR) strategies. WHR has therefore been identified as a relevant solution to increase energy efficiency in industrial thermal applications, namely in energy intensive consumers. The ceramic sector is a clear example within the manufacturing industry mainly due to the fuel consumption required for the following processes: firing, drying and spray drying. This paper reviews studies on energy efficiency improvement measures including WHR practices applied to the ceramic sector. This focuses on technologies and strategies which have significant potential to promote energy savings and carbon emissions reduction. The measures have been grouped into three main categories: (i) equipment level; (ii) plant level; and (iii) outer plant level. Some examples include: (i) high efficiency burners; (ii) hot air recycling from kilns to other processes and installation of heat exchangers; and (iii) installation of gas turbine for combined heat and power (CHP). It is observed that energy efficiency solutions allow savings up to 50–60% in the case of high efficiency burners; 15% energy savings for hot air recycling solutions and 30% in the when gas turbines are considered for CHP. Limitations to the implementation of some measures have been identified such as the high investment costs associated, for instance, with certain heat exchangers as well as the corrosive nature of certain available exhaust heat.

1. Introduction

Industrial processes are overall associated to high energy consumption and industry holds about 25% of the final energy consumption in European Union (EU) [1]. Some industrial thermal processes require a significant energy demand and are usually associated with considerable heat losses (waste heat) [2]. In the EU, thermal energy can reach 70% of the total energy use [3]. Waste heat has been estimated to represent from 20 to 50% of overall industrial energy consumption [4] in the United States. In the EU, its potential for reuse means about 300 TWh/year, representing around 17% of the industrial energy consumption for process heat and 10% of the total industrial energy consumption [5]. In the prospect to improve the energy efficiency of industrial thermal processes, several sets of practices related to waste heat recovery (WHR) have been proposed and implemented [6].
The implementation of innovative measures for energy efficiency improvement reveals as a potential field of research to attain not only for the reduction in energy consumption but also in achieving clean and low carbon objectives regarding sustainability at the EU and worldwide level [6]. In this prospect, the adoption of a consistent energy management, in addition to the practices related to industrial symbiosis [7], the promotion of eco-efficiency [8] and the use of alternative fuels coming from renewable sources, attractive in energy-intensive sectors to reduce environmental impacts without compromising the technical requirements in the involved processes [9,10] are relevant to improve energy efficiency and promote sustainability in industry.
The ceramic industry is an energy intensive sector, similar to the steel, cement and glass industries [11]. A reference document for the best available techniques (BAT) is available in the EU for the ceramic industry [12] and its revision is currently ongoing. Overall, the improvement opportunities in this sector range from waste heat recovery, for which examples are given in [13], equipment optimisation examples are demonstrated in [14], and those for the use of renewable energy are expressed in [15]. The framework of energy efficiency improvement measures within the ceramic sector have been studied. However, as most recent studies have been focusing on the progresses achieved until the end of the 1990s [16], such frameworks are outdated. Furthermore, generalist studies have been performed for the framework of WHR technologies in the industry [17]. An updated review on energy efficiency technologies and strategies is therefore required for framing the most recent technological developments for energy efficiency improvement within the operation of ceramic industry plants, namely improvements at the equipment level, plant level and outer plant level for energy valorisation and cleaner thermal processes.
This paper aimed to review the most prominent energy efficiency technologies and strategies in the ceramic sector, focusing on waste heat recovery (WHR) and performing an analysis of improvements at the equipment level, plant level and outer plant level. This was set to establish a benchmark for the analysis of thermal processes in the ceramic industry, the assessment of energy efficiency improvement potential and the selection of the most favourable strategies for the distribution of waste heat within the plant processes attending to each process energy requirements.

2. Description of the Ceramic Sector

According to data from the European ceramic industry association, Ceramie-Unie (C-U) [18], the ceramic industry is an overall export-oriented sector (the EU exports 30% of its total production), it encompasses around 2000 companies, and it has an annual production value of EUR 30 billion. As an energy intensive sector, its competitiveness is highly dependent on fuel prices. Therefore, cost effective strategies that increase energy efficiency and reduce carbon emissions will highly improve both the environment and ceramic production costs.

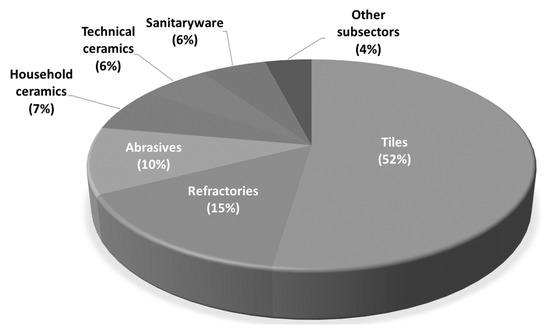

The ceramic sector is categorised into several subsectors. A classification considered in the BAT reference document [12] considers the following subsectors: tiles (including roof and wall and floor); refractories; abrasives; household: technical and sanitaryware. There are also other subsectors with minor sales turnover and energy consumption (including vitrified clay pipes and expanded clay aggregates). The ceramic industry may also be characterised regarding sales turnover and energy consumption. Figure 1 presents the distribution of sales turnover for each subsector of the ceramic industry.

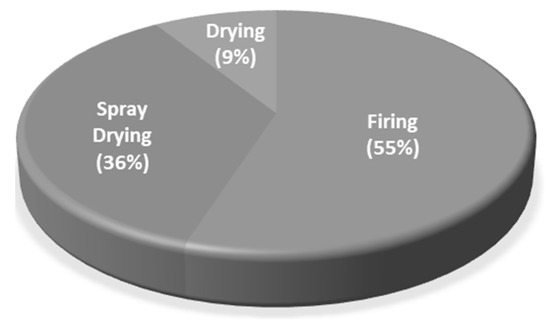

The energy use within a ceramic plant is highly significant, representing about 30% of the overall production costs [21], which accounts for the evidence that the ceramic industry is an energy intensive sector. In terms of the distribution between the subsectors, the tiles production represents 80% of the total energy consumption in the ceramic industry [21]. Considering this and considering the data present in Figure 1, it is possible to verify that the tile manufacturing industry is the most representative subsector in terms of sales turnover and energy consumption.

3. Characterisation of Thermal Processes in the Ceramic Industry

The ceramic production includes several processes: material storage, mixture and preparation, shaping (extrusion or pressing), drying, glazing, firing, quality check, and packaging [16]. The intensive energy consumption in a ceramic production plant is mainly related to processes of firing, drying and spray drying [22]. In most ceramic subsectors, the specific fuel consumption (per tonne of produced ceramic material) is superior to the electric energy consumption [23], which is for instance due to the operation of these energy intensive thermal processes. The firing process is at the highest energy consumption level, due to the high annual operational times of the kilns and consequent high operational temperatures [22]. Figure 2 presents the distribution of thermal energy consumption per process for the ceramic tile manufacturing industry—the most significant ceramic subsector.

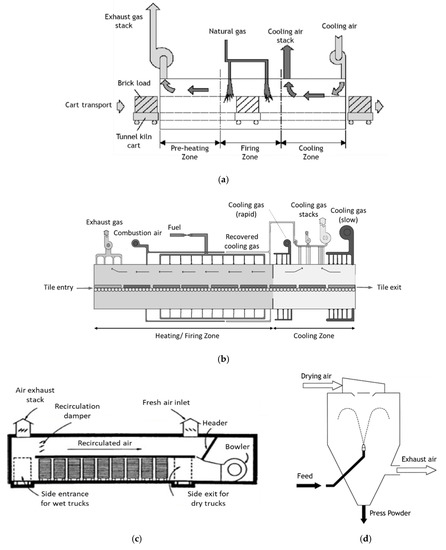

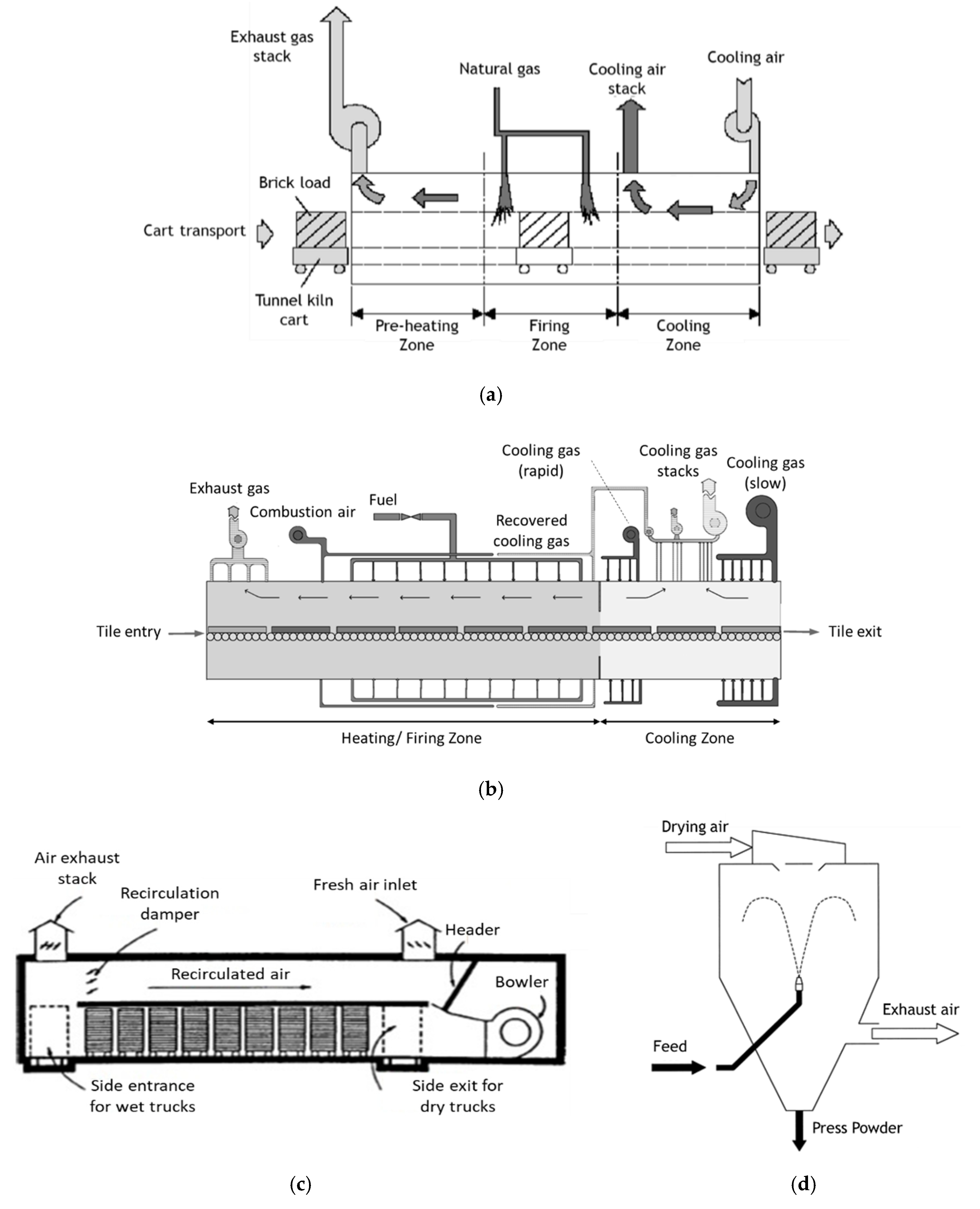

The firing process is operated in ceramic kilns, including tunnel kilns [24], rotary kilns [16], roller kilns [25] and intermittent kilns [26]. Tunnel kilns are continuous kilns, in which the products to be fired, are transported in kiln cars, being normally open at the inlet and the outlet while heating occurs at the centre [24]. Rotary kilns use the process of calcination to heat up products in continuous operation [16], while roller kilns are constituted by a refractory roller conveyor for the transportation of products through a hot tunnel, enabling fast firing in rapid cycles [25]. Intermittent kilns are closed kilns, operating in discontinuous operation, and a schedule exists for the increase in temperature within the kiln [26]. The drying process may also occur in several types of dryers, which include vertical and horizontal dryers [27]. The tunnel dryer is an example of a horizontal dryer with a continuous operation [28]. In vertical dryers, the product is transported vertically within the dryer and is shaped by the press as it is placed into beds [29]. Figure 3 presents the most energy consuming operations in a ceramic plant, namely tunnel kiln, roller kiln, tunnel dryer and spray dryer.
In the prospect of the improvement opportunities in ceramic thermal processes, several authors investigated the operation of tunnel kilns, intermittent kilns, rotary kilns and roller kilns, dryers and spray dryers. Such studies were based on the performance of mass and enthalpy balances [24,29], which were complemented by exergy analysis—applied to identify irreversibility to assess improvement opportunities [25,29,33] and thermal analysis—applied to identify potential improvements in heat transfer [26]. The performance of global balances to a process may be used to quantify the overall waste heat in a thermal process, and thus WHR opportunities. Considering the values presented by Mezquita et al. [24], it is possible to observe the heat losses associated to each stream of a ceramic kiln, as presented in Figure 4.

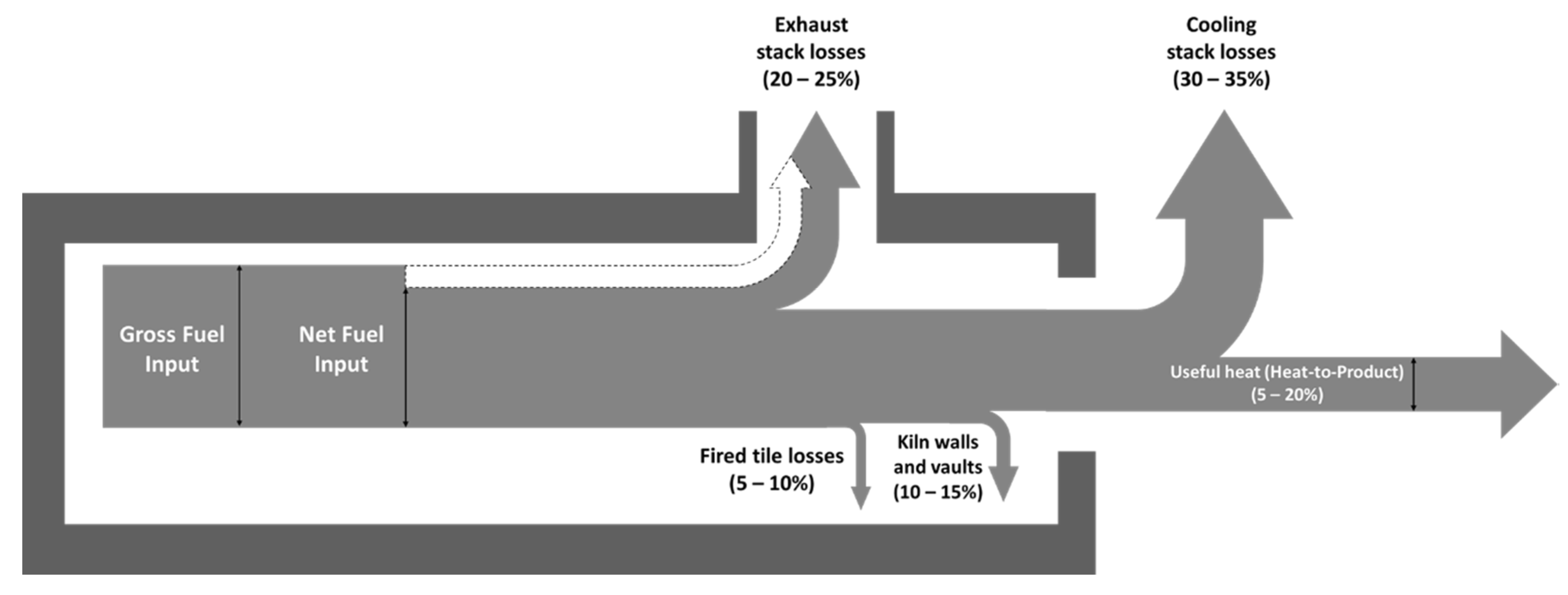

While a quantification of typical heat losses for the remaining thermal processes, such as drying and spray drying, remain to be performed, practical studies to quantify the energy inputs and outputs of specific dryers and spray dryers can be found in the literature [32,33].

4. Framework of Waste Heat Recovery for Industrial Applications

Industrial thermal energy is primarily generated by fuel combustion in different processes. Electric energy may also generate waste heat from compressing and grinding operations [35]. In both systems, high amounts of heat are lost to the environment, mainly heat losses in equipment and heat losses in exhaust gas stacks [4]. The implementation of WHR technologies and strategies make use of such waste heat to obtain several associated benefits [24], such as: reduction in energy consumption and associated CO2 emissions; reduction in manufacturing costs; increase in company competitiveness; reduction in resource consumption and the associated environmental impacts, contributing to a low carbon economy. Several authors have been exploring the application of WHR technologies and strategies in the industry in general and in specific industrial sectors, exploring all its aspects and its framework within the area of energy efficiency. Table 1 presents the foremost progresses within the study of industrial WHR, studied by several authors, covering its contextualisation, optimisation through modelling and techno-economic assessment.
According to Papapetrou et al. [5], Jouhara et al. [17] and Bruckner et al. [90], WHR technologies may be classified following their temperature range: high temperature (HT), medium temperature (MT) and low temperature (LT) as detailed in Table 2. Each category is also differentiated according to the origin of the waste heat, following Jouhara et al. [17]. While HT technologies are applied directly in combustion processes, MT technologies are applied to reuse the waste heat from exhaust gases and LT technologies are applied to use the waste heat from the products and equipment. The share over the total waste heat presented in Table 2 corresponds to the representativity of low-grade, medium-grade and high-grade waste heat over the total waste heat potential in the EU (300 TWh/year) [5].

5. Energy Efficiency Technologies and Strategies in the Ceramic Sector

The energy efficiency improvement opportunities in the ceramic sector include the optimisation of equipment performance, the use of material streams with considerable waste heat potential and the use of alternative fuels and renewable energy resources. Although opportunities are centred on processes of firing, drying and spray drying, improvement measures, in particular WHR technologies and strategies, may also be recovered from these processes to other thermal processes (such as boilers) and to produce electric energy. A summary on the progress of energy efficiency improvement in the ceramic sector focusing on WHR is presented in Table 3. The progress is categorised into energy efficiency improvement, the analysis of flow phenomena in thermal processes, modelling and the optimisation of thermal process and plants, the implementation of WHR strategies, WHR-based electricity generation, the use of alternative fuels and renewable energy resources and the application of water and energy integration.
In the following section, several energy efficiency technologies and strategies for the ceramic industry are presented, in three sub-sections: Equipment-Level Technologies and Strategies (Sub-Section 5.1), Plant-level Technologies and Strategies (Sub-Section 5.2) and Outer-Plant Systems (Sub-Section 5.3).

5.1. Equipment-Level Technologies and Strategies

The improvement of energy efficiency in a ceramic plant may be performed by the optimisation of the equipment operation. Authors have pointed in a generalist manner a set of best practices to be performed in a ceramic thermal processes [27,31,102,118] including: the automatic control of operational conditions (temperature and humidity); installation of fans in the zones of dryers with higher independent thermal contributions; improvement of thermal insulation of kilns by the application of refractory layers; control of the excess air at the inlet and outlet of kilns; automatic control of the kiln combustion regime; use of the kiln preheating zone to complete the drying and maximisation of the batch and continuous process synchronisation in the production flow. In this section, several technologies and strategies for the improvement of the operation of a ceramic plant’s processes (kilns, dryers and spray dryers) are presented. These technologies and strategies are described in Table 4 into two main findings: technical; and energy and economic aspects.

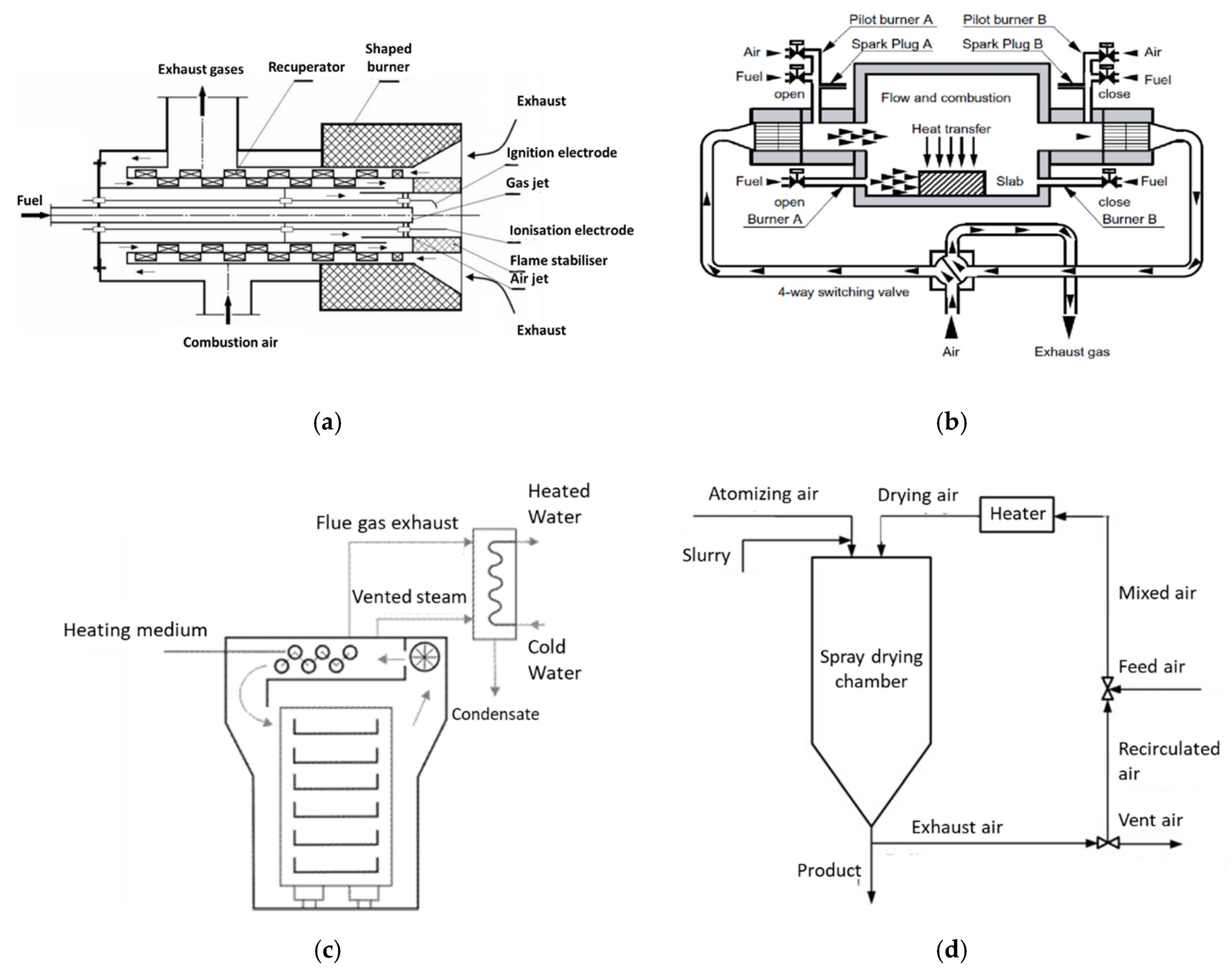

In Figure 5, the description of the operation of the technologies and strategies identified in Table 4 are presented, namely high efficiency burners, airless drying and exhaust air recirculation in spray dryers.

5.2. Plant-Level Technologies and Strategies

The improvement of energy efficiency in a ceramic plant may be also performed by the application of several technologies and strategies. In these sections, several plant-level technologies and strategies are presented (Table 5).

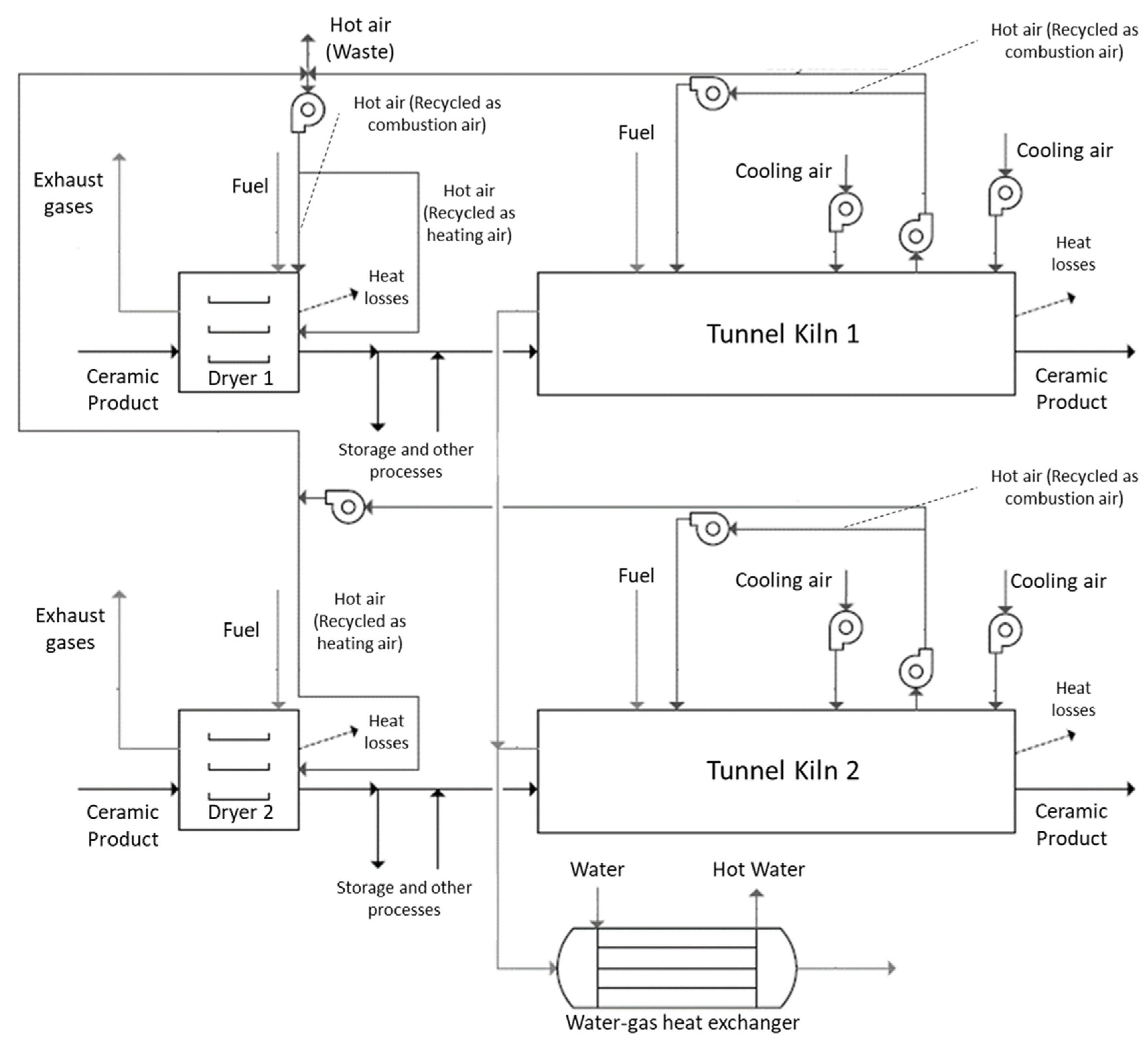

In Figure 6, the flowsheets of some of the WHR strategies and process integration within a plant are presented. In the flowsheet presented in Figure 6, previously published by the authors [123], it is observable that the project of the implementation of a plant-level WHR strategy encompassing the most energy-consuming processes of the plant, contemplating the hot air recycling from the cooling zone of the kilns as combustion air between kilns and as drying air and the use of the waste heat potential from exhaust gas streams in a water–gas heat exchanger.
In the ceramic sector, for plant-level technologies and strategies, two main types of heat exchangers can be installed, namely water–gas heat exchangers (also called economisers) and air–gas heat exchangers (air preheaters) [17]. Water–gas heat exchangers are finned tube heat exchangers applied for the heating of water through the heat recovered from a gas stream [80], normally exhaust gases as exemplified in Figure 6. While air–gas heat exchangers are mostly applied for the heating of an air stream, such as the preheating of a combustion air stream [108], these may present several configurations [166], such as: regenerators, recuperators, rotary regenerators and run around coil. Moreover, different designs exist [17], such as: plate heat exchangers and heat pipe heat exchangers. The application of heat exchangers is conditional to the type of fluid, namely if corrosive. Corrosion can be caused by the passage of acidic gases originating from combustion and due to the potential production of foaming; for hot air recycling usually this is not applicable, in which an equivalent amount of waste heat may be recovered to tunnel kilns or other processes within the plant, without the risk of corrosion or foaming formation [22].

5.3. Outer-Plant Technologies and Strategies

In addition to plant-level measures, namely WHR strategies encompassing the recycling of several streams may be applicable if there are significant remaining waste streams to furtherly improve energy efficiency beyond by directly reducing fuel consumption. Such an approach is based on the application of technologies for the generation of electric energy and the combined heat and power (CHP) generation [56]. These are methods of selection to increase the self-sufficiency of a plant [6]. In this section, the description of two measures which produce benefits to be used in outer-plant are detailed, namely through the measures presented in Table 6. The approached technologies consider the organic Rankine cycle—a system similar to a Clausius–Rankine cycle suitable for low-grade heat sources and; gas turbine cogeneration—a system that produces both heat and electric energy using a system containing a gas turbine).

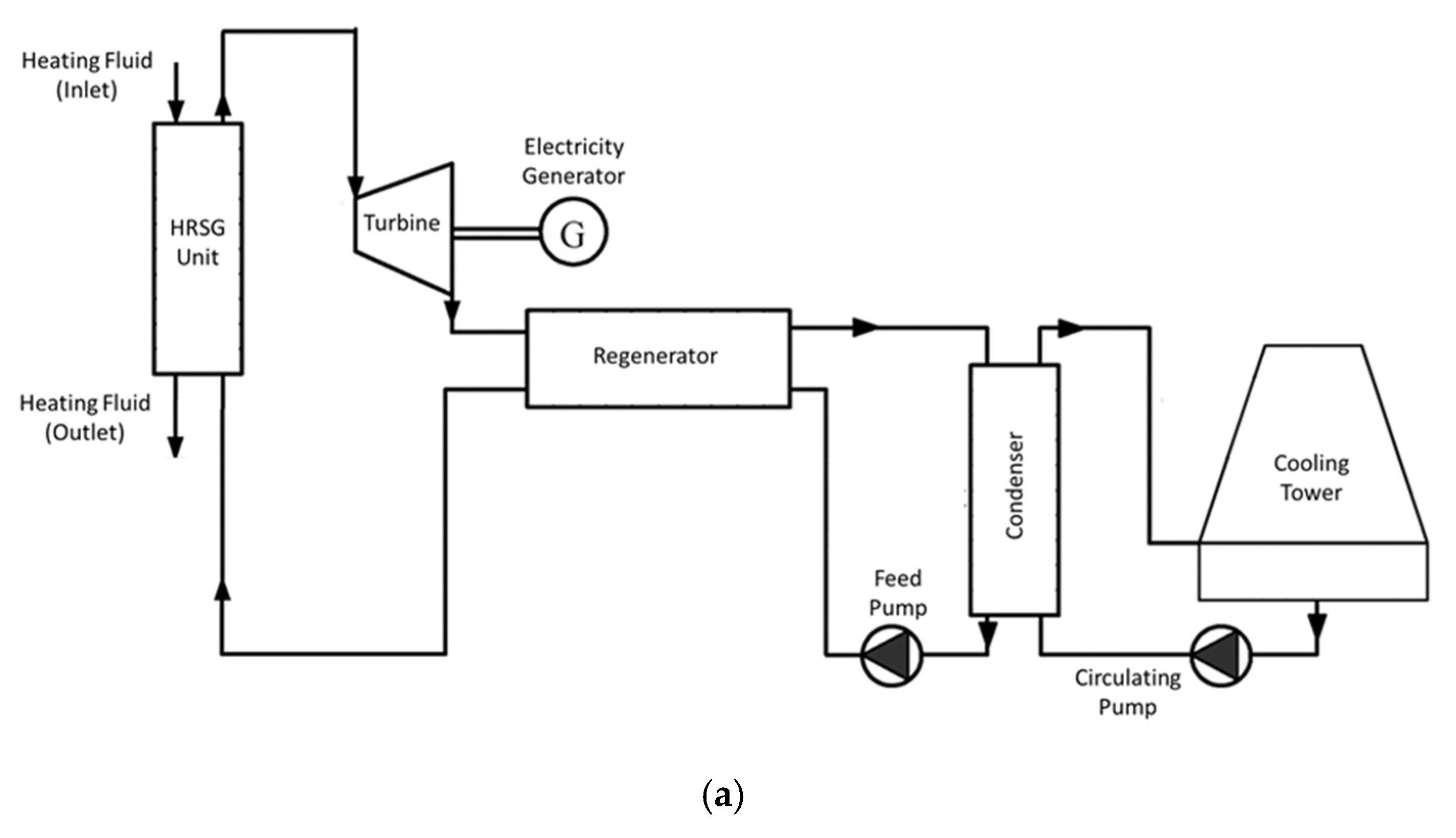

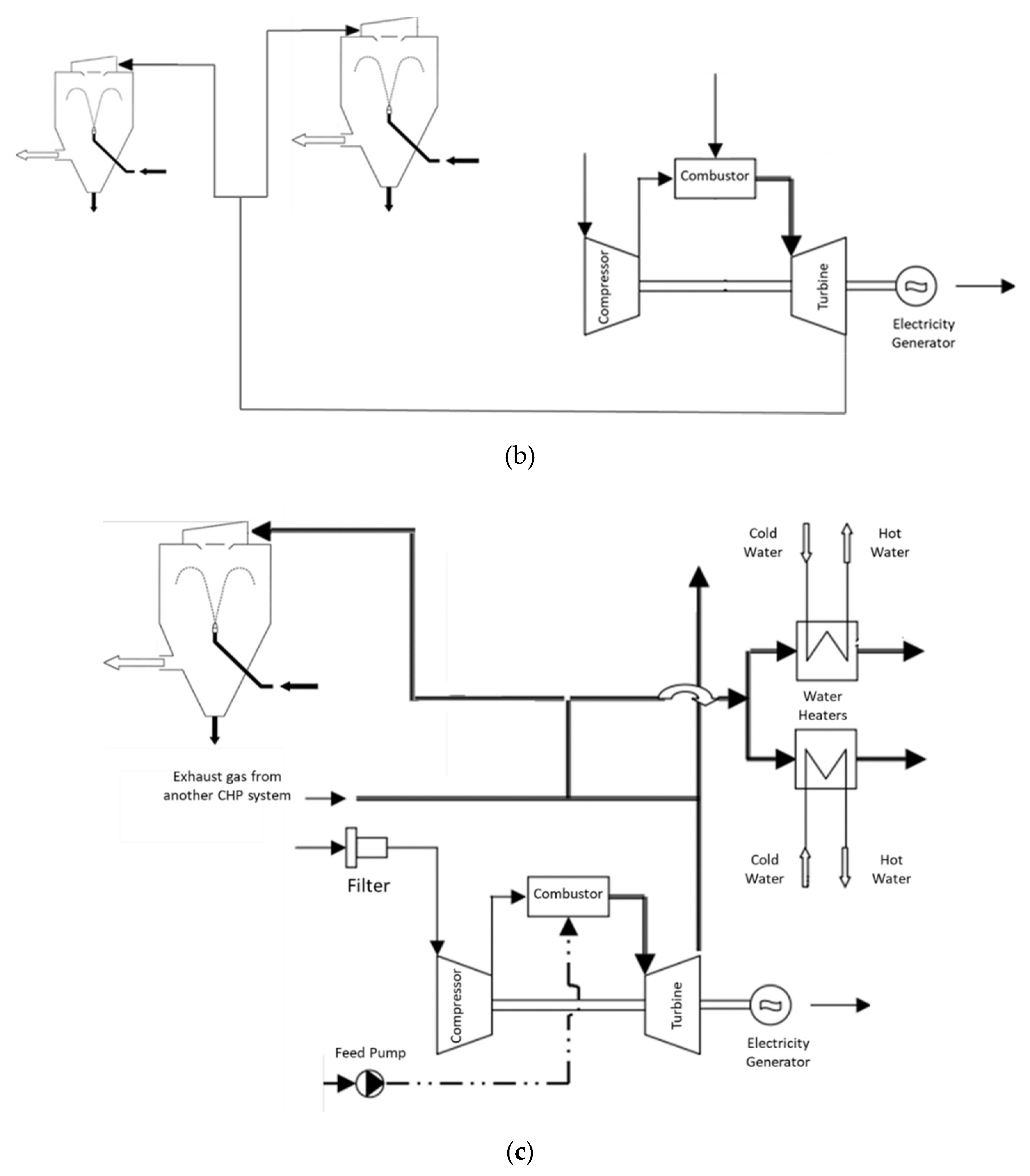

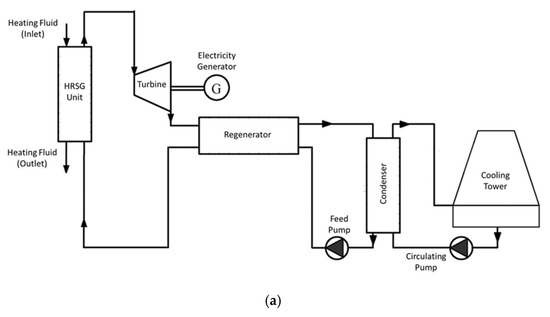

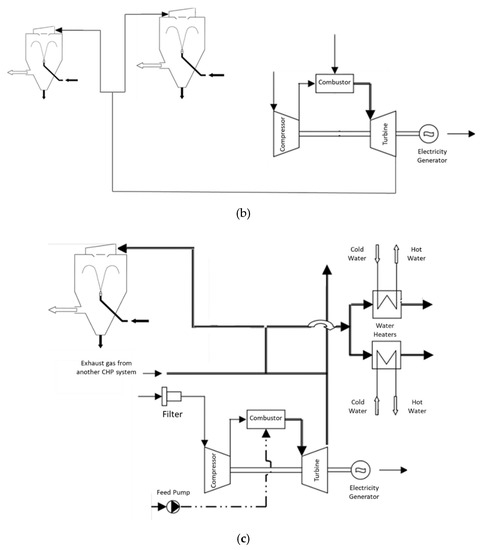

In Figure 7, the schematic of an organic Rankine cycle (ORC)and two gas turbine CHP installations is presented.

5.4. Future Goals

The improvement measures in the industry and in particular the implementation of WHR technologies and strategies presented in this paper, have been evolving in the scope of the requirements of each single plant to reduce its investment in energy use. Nonetheless, such requirements have been emerging under more far-reaching goals which comprise the need of promoting industrial sustainability in a worldwide perspective, namely of manufacturing industry. Within the EU, these sustainable goals may be linked to the 2030 climate and energy framework [167] and in a furthermost perspective, the 2050 long-term strategy [168]. Table 7 summarises the future goals regarding energy efficiency improvement in the European and the National industry—Portugal—correlating these goals with the current energy policies, with a focus on WHR and in the light of the improvement measures approached for the case of the ceramic industry.

6. Conclusions

In this paper, several technologies and strategies for energy efficiency improvement on the ceramic industry are presented:
  • At the equipment level, several WHR technologies and strategies are applicable for the improvement of firing, drying and spray drying operations, such as the application of high efficiency burners (typical fuel savings of 50–60% for regenerative burners) and airless drying (typical thermal energy savings of 20–50%), in addition to the application of alternative fuels and improvement in ceramic material design;
  • At plant-level implementation, there is great potential for measures such as hot air recycling from kilns to other processes (low associated payback time for implementation) and the use of dry routes instead of wet routes in raw material preparation (associated 78% of thermal energy savings and 36% reduction in electric energy savings), in addition to the use of renewable energy resources (such as CSP);
  • At the outer-plant level, technologies and strategies, two main applications were presented: electricity production systems, namely the organic Rankine cycle (with an associated payback time of 4–5 years) and gas turbine CHP (with associated typical 25% electric energy savings and 30% fuel savings).
Throughout the paper, gaps regarding the existence of specific studies were also identified. These are mostly associated to techno-economic limitations, for instance:
  • The practice of hot air recycling is generally favoured relatively to the installation of heat exchangers—higher investment costs and the problem of corrosion by the passing of exhaust gases and; as most of the performed studies focus on hot air recycling, with a verifiable lack of studies for the application of several types of heat exchangers;
  • Despite the potential of industrial symbiosis encompassing this sector, namely regarding WHR, a lack of existing studies on the assessment of energy efficiency improvement caused by the implementation of an industrial symbiosis-based measure is observed.

Author Contributions

M.C.O., M.I., P.L.C. and H.M. performed the literature review; M.C.O. and H.M. wrote the paper; P.L.C. and H.M. revised the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This project has received funding from Portugal2020 03/SIAC/2016 under grant agreement “No. 26791”. The publishing procedure has received funding by the European Union’s Horizon 2020 research and innovation programmes under grant agreement “No. 810764”.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

Abbreviations
BATBest available technologies
CHPCombined heat and power
CSPConcentrated solar power
HTHigh temperature
LTLow temperature
MTMedium temperature
ORCOrganic Rankine cycle
PCMPhase change materials
TESThermal energy storage
WHRWaste heat recovery
