Performance Analysis of IEC 61850 Messages in LTE Communication for Reactive Power Management in Microgrids
Abstract
:1. Introduction
- IEC 61850 communication model is developed for reactive power management in microgrid.
- The developed IEC 61850 model is mapped to LTE and adapted for operation
- Lab-tests have been done for E2E delay performance evaluation of R-GOOSE and R-SV messages over LTE network with D2D communication.
2. Overview of Reactive Power Management in Microgrids
3. IEC 61850 Based Information Modeling and Mapping of Reactive Power Management in Microgrids

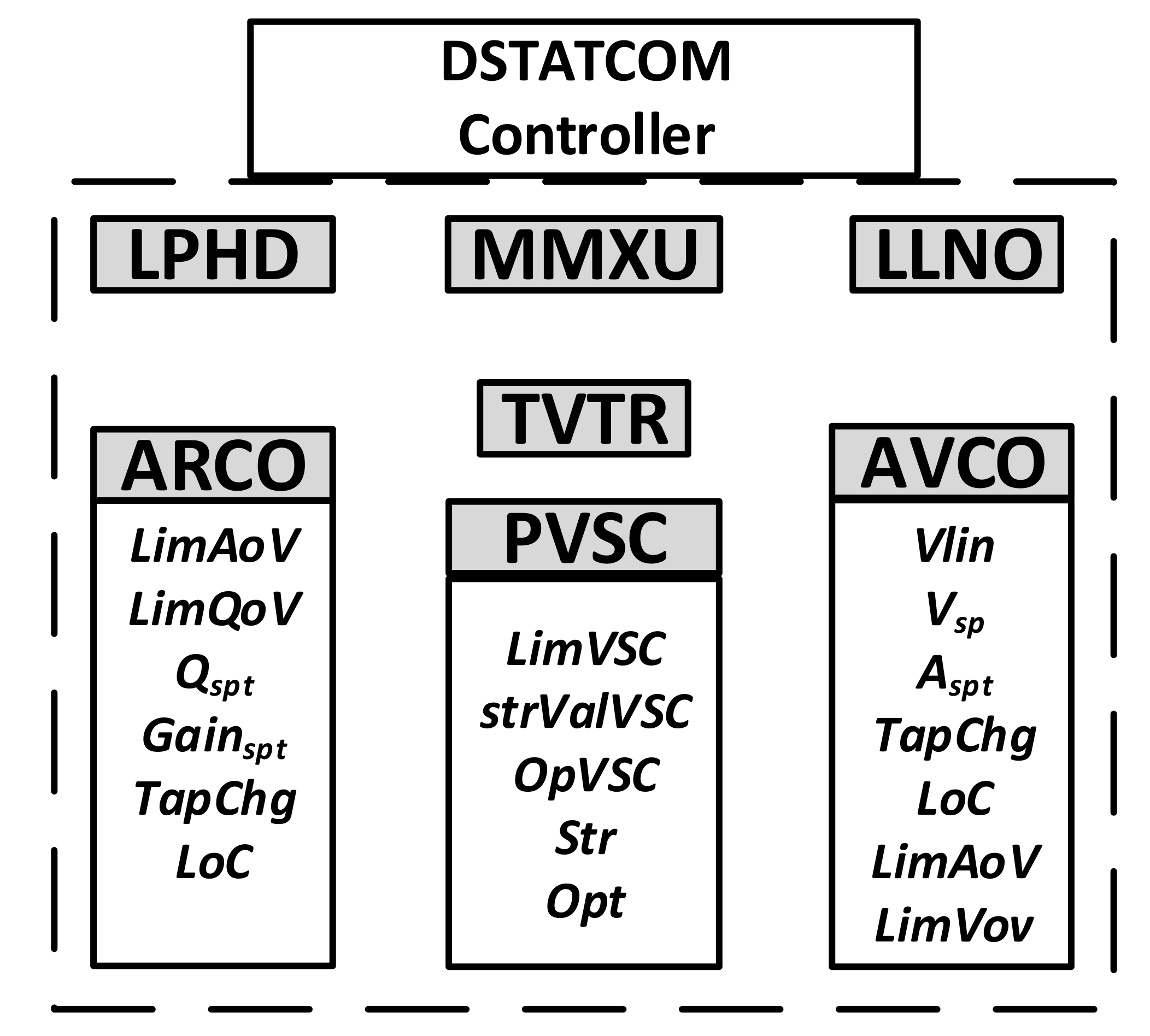

3.1. Information Modeling of DSTATCOM Controller

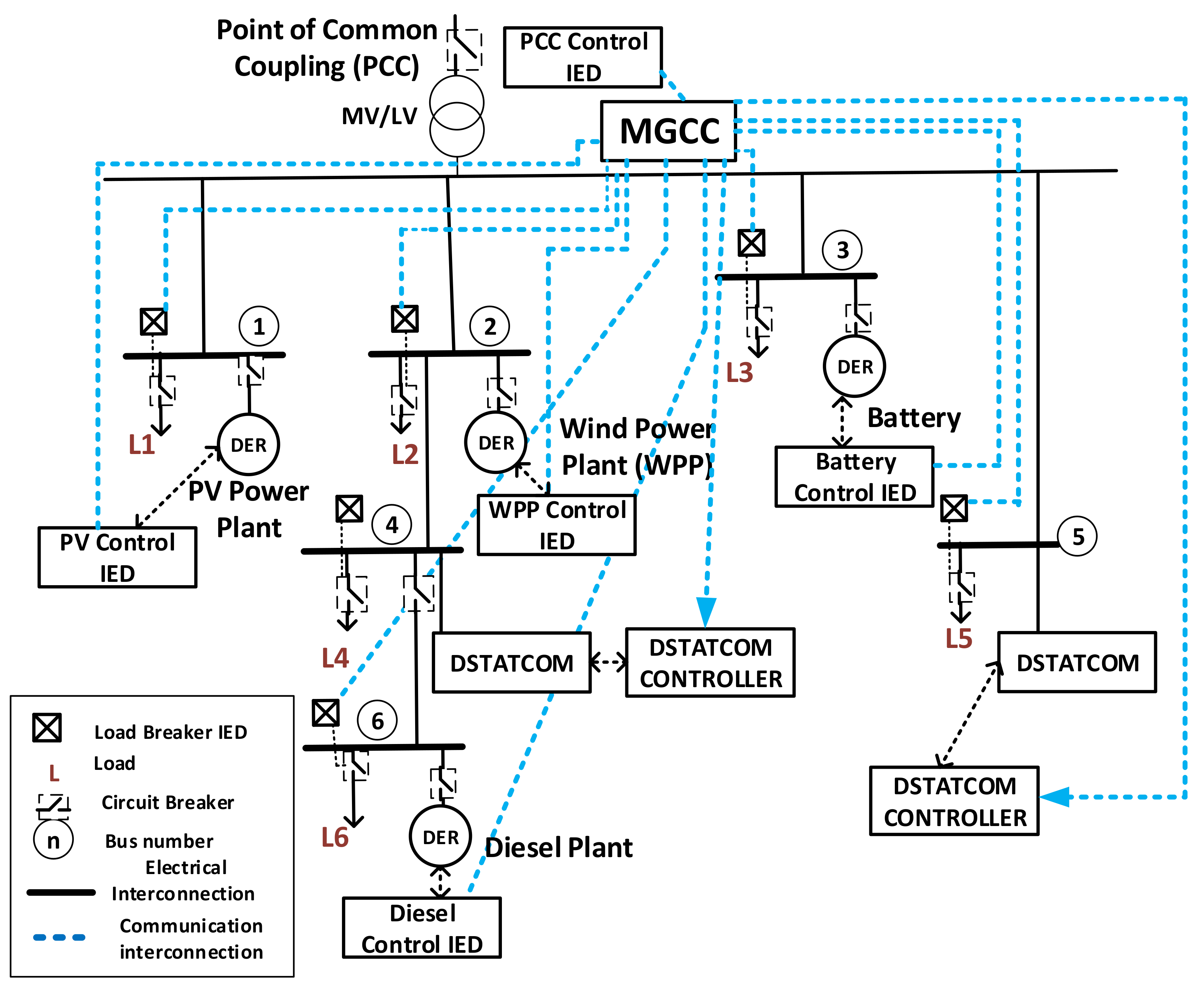

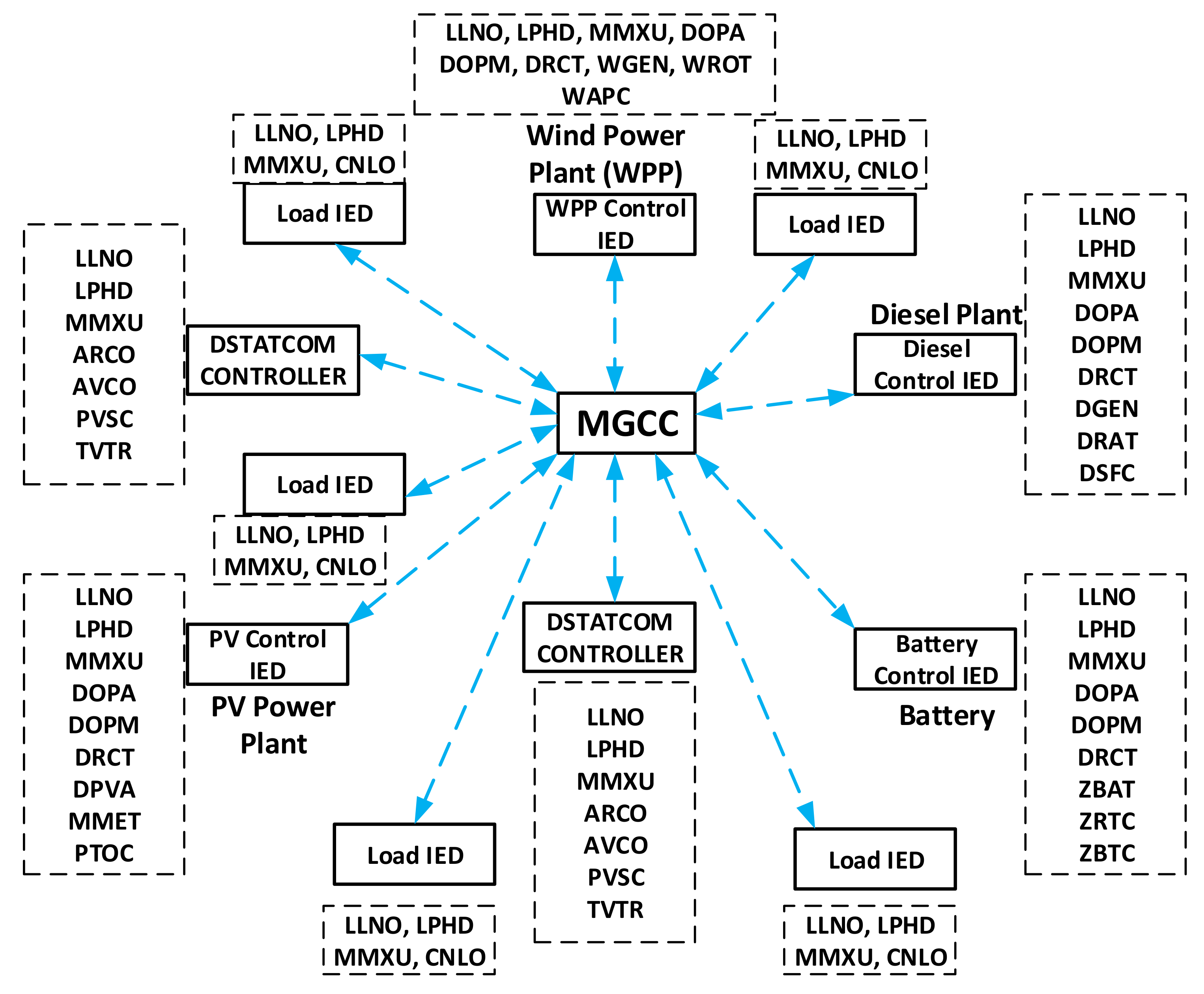

3.2. IEC 61850 Information Exchanges for Reactive Power Management in Test Microgrid
WPP_ControlIED$DPST $ST $ECPConn → MGCC
MGCC → DSTATCOM_ControllerIED2 $ARCO $SP $Qspt
MGCC → DSTATCOM_ControllerIED2 $AVCO $SP $Vsp
4. Mapping of IEC 61850 Messages to LTE
4.1. Overview of Long Term Evolution (LTE)

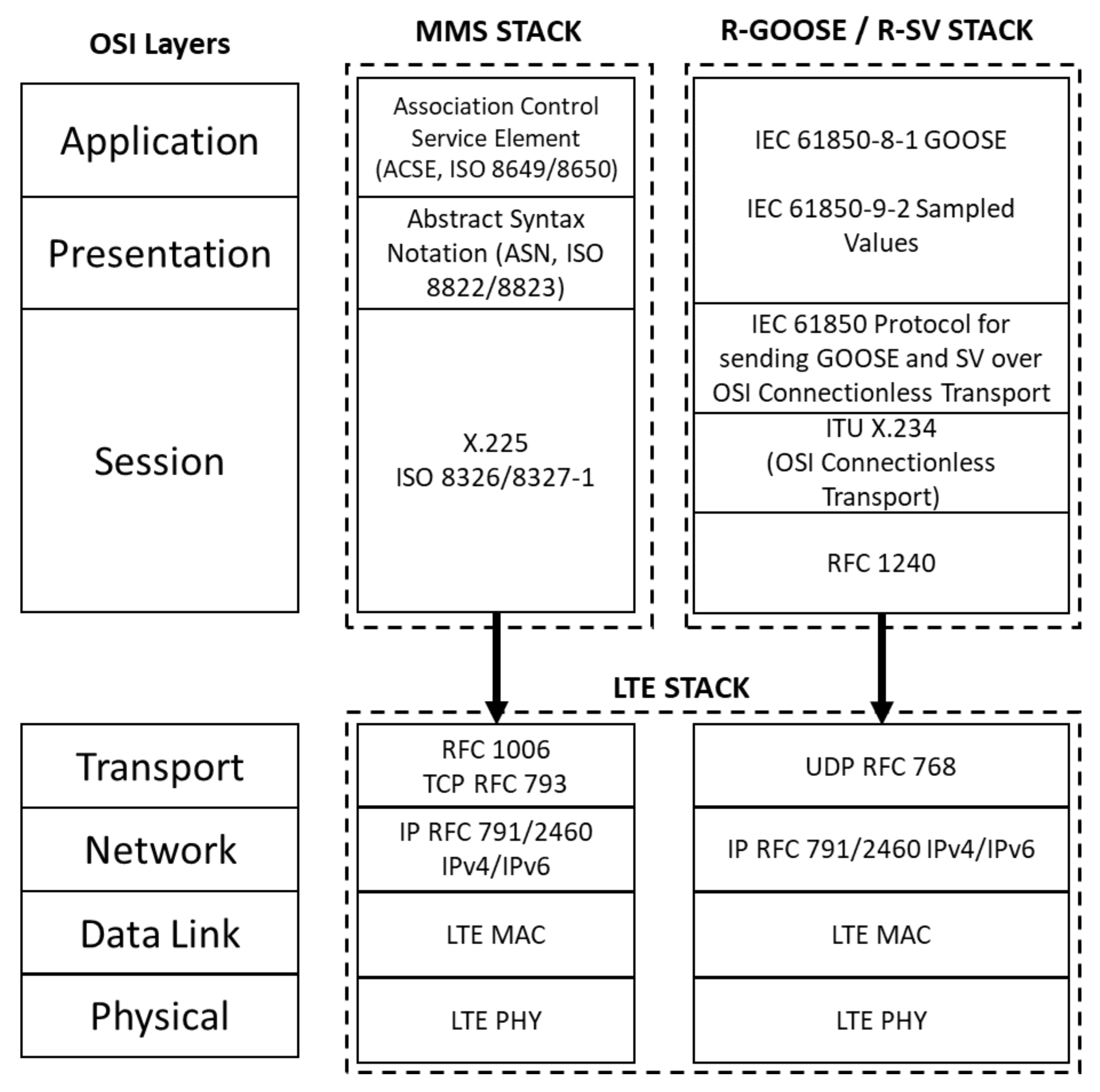

4.2. Mapping of IEC 61850 Messages to LTE

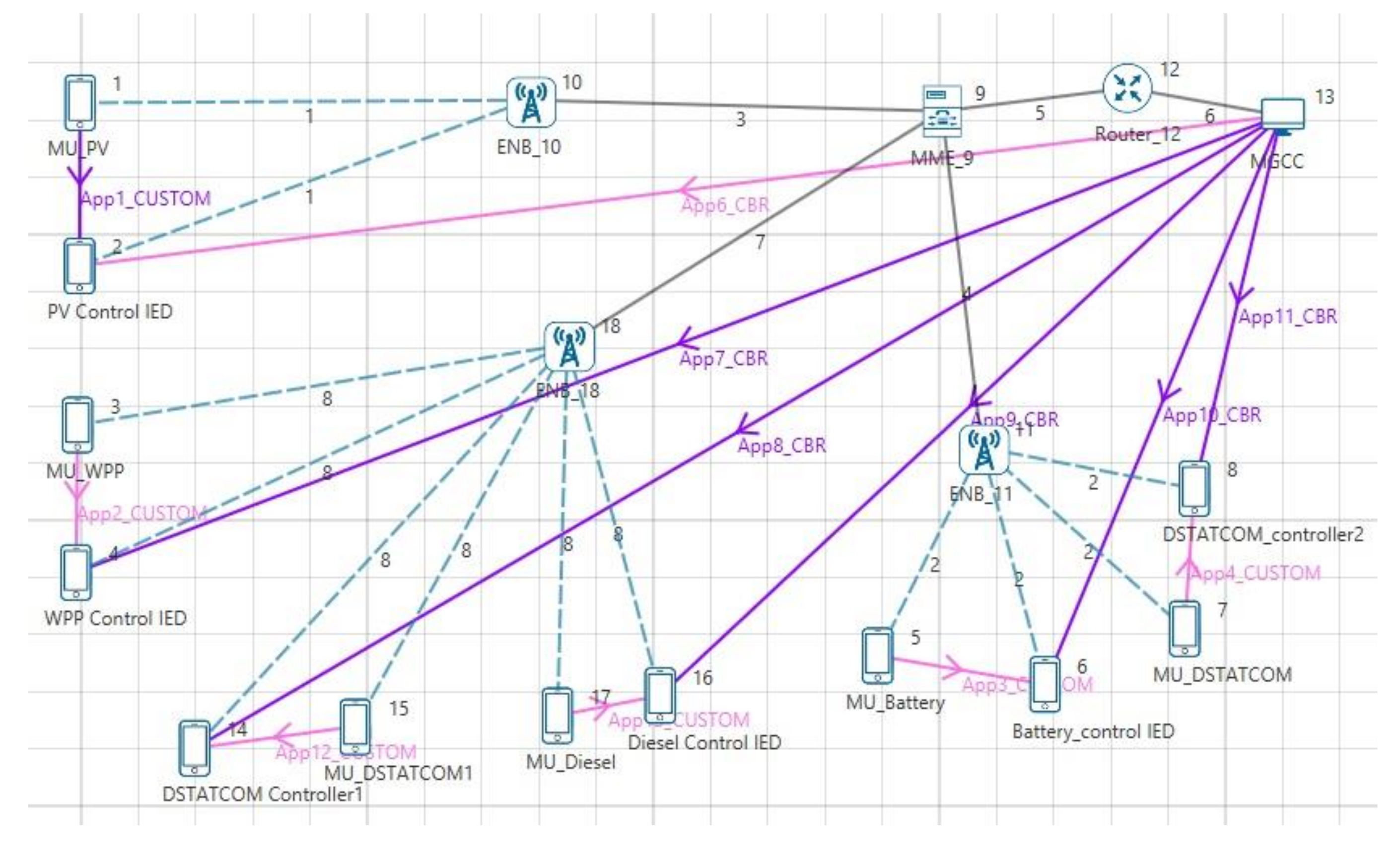

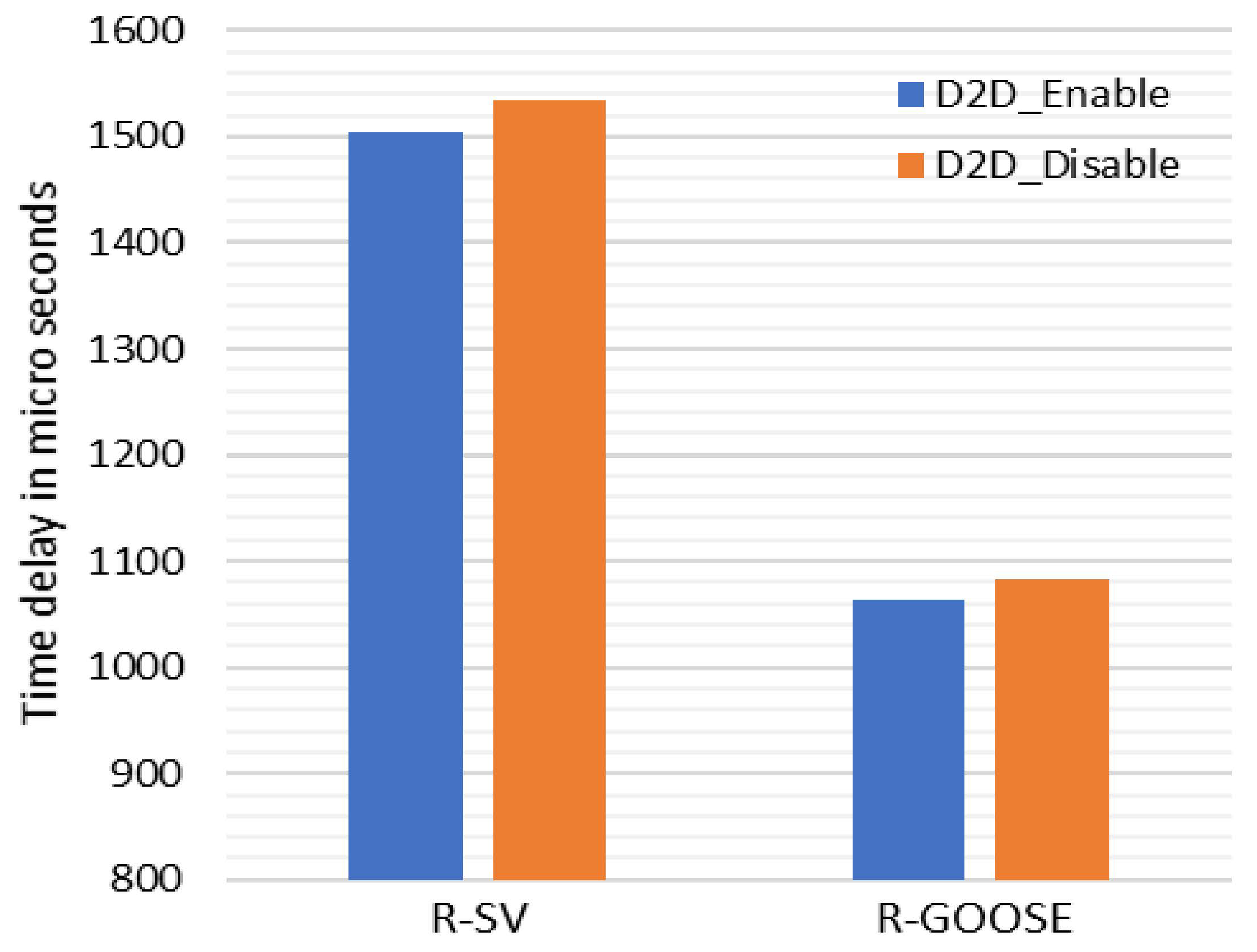

5. Performance Evaluation of IEC 61850 Message Transmission over LTE
6. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Javed, K.; Ashfaq, H.; Singh, R.; Hussain, S.M.; Ustun, T.S. Design and Performance Analysis of a Stand-alone PV System with Hybrid Energy Storage for Rural India. Electronics 2019, 8, 952. [Google Scholar] [CrossRef] [Green Version]
- Hubble, A.; Ustun, T.S. Scaling renewable energy based microgrids in underserved communities: Latin America, South Asia, and Sub-Saharan Africa. In Proceedings of the 2016 IEEE PES Power Africa, Livingstone, UK, 28 June–3 July 2016; pp. 134–138. [Google Scholar]
- Ustun, T.S. Design and Development of a Communication-Assisted Microgrid Protection System. Ph.D. Thesis, Victoria University, Melbourne, Australia, 2013. [Google Scholar]
- Hatziargyriou, N. The microgrids concept. In Microgrids: Architectures and Control; John Wiley & Sons: New York, NY, USA, 2014; pp. 1–24. [Google Scholar]
- Nadeem, F.; Aftab, M.A.; Hussain, S.M.; Ali, I.; Tiwari, P.K.; Goswami, A.K.; Ustun, T.S. Virtual power plant management in smart grids with XMPP based IEC 61850 communication. Energies 2019, 12, 2398. [Google Scholar] [CrossRef] [Green Version]
- Ustun, T.S.; Aoto, Y. Analysis of smart inverter’s impact on the distribution network operation. IEEE Access 2019, 7, 9790–9804. [Google Scholar] [CrossRef]
- Hussain, S.M.S.; Aftab, M.A.; Ali, I. IEC 61850 modeling of DSTATCOM and XMPP communication for reactive power management in microgrids. IEEE Syst. J. 2018, 12, 3215–3225. [Google Scholar] [CrossRef]
- Aftab, M.A.; Hussain, S.M.S.; Ali, I.; Ustun, T.S. IEC 61850 based substation automation system: A survey. Int. J. Electr. Power Energy Syst. 2020, 120, 106008. [Google Scholar] [CrossRef]
- Ali, I.; Hussain, S.S. Control and management of distribution system with integrated DERs via IEC 61850 based communication. Eng. Sci. Technol. Int. J. 2017, 20, 956–964. [Google Scholar] [CrossRef]
- Aftab, M.A.; Hussain, S.M.S.; Ali, I.; Ustun, T.S. IEC 61850-based communication layer modeling for electric vehicles: Electric vehicle charging and discharging processes based on the international electrotechnical commission 61850 standard and its extensions. IEEE Ind. Electron. Mag. 2020, 14, 4–14. [Google Scholar] [CrossRef]
- Ustun, T.S.; Hussain, S.M.S. Standardized communication model for home energy management system. IEEE Access 2020, 8, 180067–180075. [Google Scholar] [CrossRef]
- Hussain, S.M.S.; Aftab, M.A.; Nadeem, F.; Ali, I.; Ustun, T.S. Optimal energy routing in microgrids with IEC 61850 based energy routers. IEEE Trans. Ind. Electron. 2020, 67, 5161–5169. [Google Scholar] [CrossRef]
- Liu, C.H.; Gu, J.C. Modeling and integrating PV stations into IEC 61850 XMPP intelligent edge computing gateway. Energies 2019, 12, 1442. [Google Scholar] [CrossRef] [Green Version]
- Deng, W.; Pei, W.; Shen, Z.; Zhao, Z.; Qu, H. Adaptive micro-grid operation based on IEC 61850. Energies 2015, 8, 4455–4475. [Google Scholar] [CrossRef] [Green Version]
- Parikh, P.P.; Sidhu, T.S.; Shami, A. A Comprehensive investigation of wireless LAN for IEC 61850–based smart distribution substation applications. IEEE Trans. Ind. Inform. 2013, 9, 1466–1476. [Google Scholar] [CrossRef]
- Hussain, S.M.S.; Tak, A.; Ustun, T.S.; Ali, I. Communication modeling of solar home system and smart meter in smart grids. IEEE Access 2018, 6, 16985–16996. [Google Scholar] [CrossRef]
- Hussain, S.M.S.; Aftab, M.A.; Ali, I.; Ustun, T.S. IEC 61850 based energy management system using plug-in electric vehicles and distributed generators during emergencies. Int. J. Electr. Power Energy Syst. 2020, 119, 105873. [Google Scholar] [CrossRef]
- Haj-Ahmed, M.A.; Hawa, M.; Shamlawi, L.A.; Alnaser, S.; Alsmadi, Y.M.; Abualnadi, D. Cognitive radio based backup protection scheme for smart grid applications. IEEE Access 2020, 8, 71866–71879. [Google Scholar] [CrossRef]
- Dahlman, E.; Parkvall, S.; Sköld, J. 4G LTE/LTE-Advanced for Mobile Broadband; Elsevier, Academic Press: Amsterdam, The Netherlands, 2011. [Google Scholar]
- Dahlman, E.; Parkvall, S.; Skold, J.; Beming, P. 3G Evolution: HSPA and LTE for Mobile Broadband; Elsevier: Amsterdam, The Netherlands, 2007. [Google Scholar]
- Kalalas, C.; Gkatzikis, L.; Fischione, C.; Ljungberg, P.; Alonso-Zarate, J. Enabling IEC 61850 communication services over public LTE infrastructure. In Proceedings of the 2016 IEEE International Conference on Communications (ICC), IEEE, Kuala Lumpur, Malaysia, 22–27 May 2016; pp. 1–6. [Google Scholar]
- Mouftah, H.T.; Erol-Kantarci, M.; Rehmani, M.H. LTE-D2D Communication for power distribution grid: Resource allocation for time-critical applications. In Transportation and Power Grid in Smart Cities: Communication Networks and Services; John Wiley & Sons: New York, NY, USA, 2019; pp. 21–67. [Google Scholar]
- Code, P.; Prix, C. Communication networks and systems for power utility automation—Part 8–1: Specific Communication Service Mapping (SCSM)—Mappings to MMS (ISO 9506-1 and ISO 9506-2) and to ISO/IEC 8802-3; International Electrotechnical Commission: Geneva, Switzerland, 2011. [Google Scholar]
- Patel, D.; Mohamed, M.I.N.; Mehdi, S.Z.R.; Williams, F.; Sadu, A.; Ponci, F.; Monti, A. Investigating the performance of QoS enabled LTE networks for IEC 61850 based smart grid applications. In Proceedings of the 2016 IEEE International Energy Conference (ENERGYCON), Leuven, Belgium, 4–8 April 2016. [Google Scholar]
- Bag, G.; Johansson, M.; Lednicki, L.; Neander, J.; Eriksson, L.; Bogati, R.; Hovila, P.; Saarinen, J.; Torsner, J. Performance evaluation of IEC 61850-90-5 over a latency optimized 3GPP LTE Network. In Proceedings of the 2018 IEEE International Conference on Communications, Control, and Computing Technologies for Smart Grids (Smart Grid Comm), Aalborg, Denmark, 29–31 October 2018. [Google Scholar]
- Majumder, R. Reactive power compensation in single-phase operation of microgrid. IEEE Trans. Ind. Electron. 2013, 60, 1403–1416. [Google Scholar] [CrossRef]
- Communication Networks and Systems for Power Utility Automation—Part 7–420: Basic Communication Structure—Distributed Energy Resources Logical Nodes; International Electrotechnical Commission: Geneva, Switzerland, 2009.
Message Exchanges for Reactive Power Management | ACSI Service | SCSM | IEC 61850 Message Type | |
---|---|---|---|---|
Source IED | Destination IED | |||
MGCC | PCC_ControlIED → XCBR → Pos → ‘0′ | SendGOOSEMessage | GoosePDU | R-GOOSE |
PV_ControlIED → DPST → ECPConn | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
WPP_ControlIED → DPST → ECPConn | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
Battery_ControlIED → DPST → ECPConn | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
Diesel_ControlIED → DPST → ECPConn | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
MGCC | PV_ControlIED → DOPA → DEROpMode | SendGOOSEMessage | GoosePDU | R-GOOSE |
MGCC | Diesel_ControlIED → DOPA → DEROpMode | SendGOOSEMessage | GoosePDU | R-GOOSE |
MGCC | WPP_ControlIED → DOPA → DEROpMode | SendGOOSEMessage | GoosePDU | R-GOOSE |
MGCC | DSTATCOM_ControllerIED1 → ARCO → Qspt | SendGOOSEMessage | GoosePDU | R-GOOSE |
MGCC | DSTATCOM_ControllerIED2 → ARCO → Qspt | SendGOOSEMessage | GoosePDU | R-GOOSE |
PV_ControlIED‘→ MMXU → TotW, TotVAr, PhV | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
WPP_ControlIED‘→ MMXU → TotW, TotVAr, PhV | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
Diesel_ControlIED‘→ MMXU → TotW, TotVAr, PhV | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
Battery_ControlIED‘→ MMXU → TotW, TotVAr, PhV | MGCC | GetDataValues | Read-MMS Request Read-MMS Response | MMS |
MGCC | DSTATCOM_ControllerIED1 → AVCO → Vsp | SendGOOSEMessage | GoosePDU | R-GOOSE |
MGCC | DSTATCOM_ControllerIED1 → AVCO → Vsp | SendGOOSEMessage | GoosePDU | R-GOOSE |
All MU_IED | All Control IEDs | SendSVMessage | SvPDU | R-SV |
QCI | Priority Level | Packet Delay (ms) | Packet Error Loss Rate | Service Type |
---|---|---|---|---|
1 | 2 | 100 | 10−2 | Conversation Voice |
2 | 4 | 150 | 10−3 | Conversation Video |
3 | 3 | 50 | 10−3 | Real-time gaming |
4 | 5 | 300 | 10−6 | Non-Conversation Video |
65 | 0.7 | 75 | 10−2 | Mission critical PTT |
66 | 2 | 100 | 10−2 | Non-Mission critical PTT |
5 | 1 | 100 | 10−6 | IMS signaling |
6 | 6 | 100 | 10−6 | Video TCP-based |
7 | 7 | 300 | 10−3 | Real-time |
8 | 8 | 100 | 10−6 | Video TCP-based |
9 | 9 | 300 | 10−6 | Video TCP-based |
69 | 0.5 | 60 | 10−6 | Mission critical live |
70 | 5.5 | 200 | 10−6 | Mission critical live |
10 | 0.1 | 10 | 10−6 | IEC 61850 GOOSE/R-GOOSE |
11 | 0.5 | 10 | 10−6 | IEC 61850 SV/ R-SV |
12 | 1 | 200 | 10−6 | IEC 61850 MMS |
Parameter | Value |
---|---|
Bandwidth | 15 MHz |
Transmission Time Interval (TTI) | 1 ms |
Modulation | 64QAM |
DL / UL access scheme | OFDMA / SC-FDMA |
FFT size | 1536 |
Carrier Aggregation | Intra band Contiguous |
Frame / Sub-Frame / Slot duration | 10 / 1 / 0.5 ms |
Subcarrier spacing (kHz) | 15 |
eNodeB, User | 3, 12 |
Message Type | Source → Destination | Size of Message (Bytes) | Average ETE in ms | Packet Loss Rate |
---|---|---|---|---|
R-SV | MU_PV → PV_Control IED | 219 | 1.671 | 0.561 × 10−6 |
MU_WPP → WPP_Control IED | 219 | 1.839 | 0.522 × 10−6 | |
MU_DSTATCOM1 → DSTATCOM_Controller IED1 | 219 | 1.492 | 0.478 × 10−6 | |
MU_Diesel → Diesel_Control IED | 219 | 1.507 | 0.561 × 10−6 | |
MU Battery → Battery_control IED | 219 | 1.504 | 0.561 × 10−6 | |
MU_DSTATCOM2 → DSTATCOM_Controller IED2 | 219 | 1.503 | 0.582 × 10−6 | |
R−GOOSE | MGCC → PV_Control IED | 204 | 1.02 | 0.353 × 10−6 |
MGCC → WPP_Control IED | 204 | 1.02 | 0.353 × 10−6 | |
MGCC → DSTATCOM_Controller IED1 | 204 | 1.084 | 0.312 × 10−6 | |
MGCC → Diesel_Control IED | 204 | 1 | 0.353 × 10−6 | |
MGCC → Battery_control IED | 204 | 1 | 0.353 × 10−6 | |
MGCC → DSTATCOM_Controller IED2 | 204 | 1.084 | 0.312 × 10−6 | |
MMS | { WPP_Control IED, WPP_Control IED, DSTATCOM_Controller IED1, Diesel_Control IED, Battery_control IED, DSTATCOM_Controller IED2 } ←→ MGCC | 220 | 3.492 | 0.457 × 10−6 |
