# Reliability and Network Performance Enhancement by Reconfiguring Underground Distribution Systems

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introductions

## 2. Proposed Reliability Indices

_{c}feeding nodes, the reliability indices for the ith radial topology, as adopted by the Chilean law, are defined by the Inter-American Committee of Regional Electricity-CIER [26] as

_{c}system load points as well as of the failure rate λ(j), repair time r(j) and the unavailability U(j) for each load point.

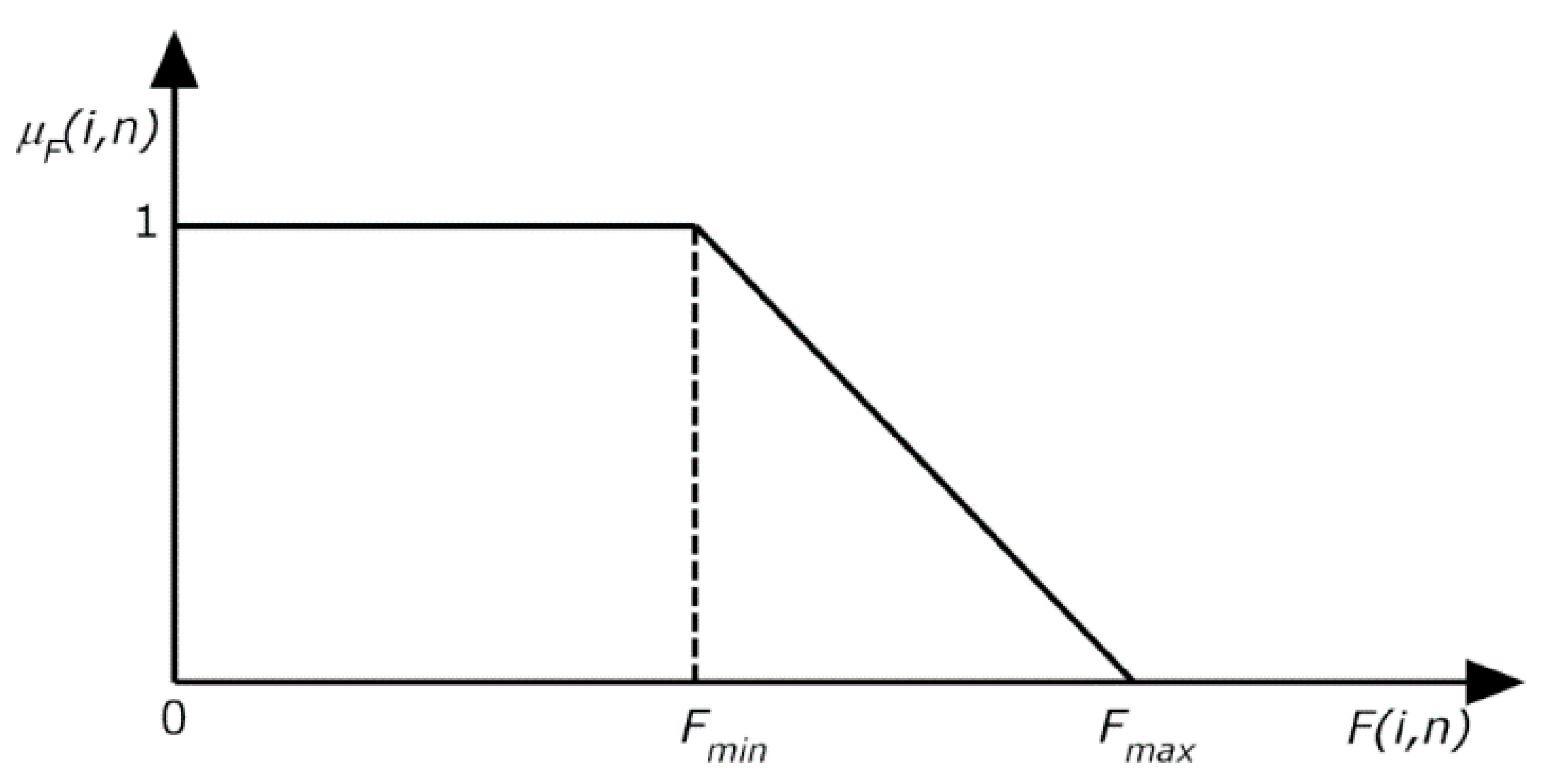

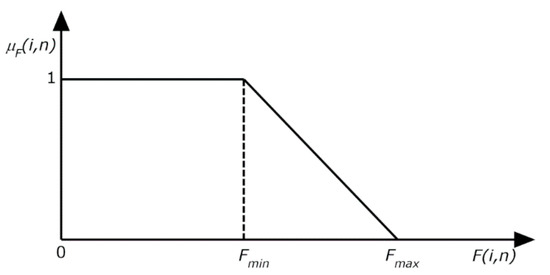

## 3. Problem Formulation for Proposed NR

- Power Flow Constraint$${g}_{j}\left(i\right)=0;\text{}\forall j\in {N}_{c}$$
- Node Voltage Constraint$${V}_{\mathrm{min}}\le {V}_{jn}\le {V}_{\mathrm{max}};\text{}\forall n\in N;\forall j\in {N}_{c}$$
- Feeder Current Limit Constraint$${I}_{jn}\le {I}_{j}^{\mathrm{max}};\text{}\forall n\in N,\forall j\in {N}_{c}$$
- Radial Topology Constraint$${\Phi}_{n}(i)=0;\forall n\in N$$

## 4. Handling Uncertainty in Load Demand and Renewable Power Generation

## 5. Simulation Results

## 6. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Nomenclature

D(i) | System’s average duration interruption index for the ith candidate topology (hr/failure) |

DV(i,n) | Node voltage deviations for ith network topology during nth system state (p.u.) |

DVmin/DVmax | Minimum and maximum value of node voltage deviation index (p.u.) |

EL(i,n) | Energy losses for the ith network topology during nth system state (MWh) |

ELmin/ELmax | Minimum and maximum value of feeder energy loss index (MWh) |

ENS(i) | Energy not supplied for the ith candidate topology (MWh/yr) |

ENSmin/ENSmax | Minimum and maximum value of energy not supplied index (MWh/yr) |

F(i) | System’s average interruption frequency index for the ith candidate topology (failure/yr) |

F(i,n)/T(i,n)/ENS(i,n)/D(i,n) | F/T/ENS/D for ith topology at nth system state |

Fmin/Fmax | Minimum and maximum value of System average interruption frequency index (failure/yr) |

I(b,j,nom) | Current in the jth distribution feeder in base configuration during nominal load conditions (p.u.) |

I(i,j,n) | Current in the jth feeder for ith network topology during nth system state (p.u.) |

${I}_{j}^{\mathrm{max}}$ | Maximum current of jth branch (p.u.) |

I_{jn} | Current of jth line at nth system state (p.u.) |

k_{e}(n) | Energy price prevailed at nth system state ($/kWh) |

KVA(j) | Apparent load demand of jth node (kVA) |

KVA(j,n) | Apparent load demand of jth node at nth system state (kVA) |

KW(j) | Active load demand on the jth distribution feeder (kW) |

KW(j,n) | Active load demand at jth system node for nth system state (kW) |

LD(n) | Load duration for the nth system state (hr) |

N/N_{c} | Set of system states/nodes |

r(j) | Repair time of jth feeder (hr) |

R_{j} | Line resistance of the jth line (Ω) |

T(i) | System’s average interruption unavailability index for the ith candidate topology (hr/yr) |

T_{min}/T_{max} | Minimum and maximum value of System average interruption unavailability index (hr/yr) |

U(j) | Unavailability index of jth feeder (failure) |

U(i,j,n) | U(j) for ith topology at nth system state (failure) |

V_{jn} | Voltage of jth node at nth system state (p.u.) |

Vmax,Vmin | Maximum/minimum limits of node voltage (p.u.) |

V_{s} | Absolute value of the source voltage (p.u.) |

ζ(i,j,n) | Failure rate in the jth distribution feeder for ith network topology at nth system state (failure/yr) |

λ(j) | Failure rate of jth feeder (failure/yr) |

Φ_{n}(i) | Closed path for ith network topology for nth state |

µ_{F}(i,n) | Overall fuzzy membership function for the ith network topology during nth system state |

µ_{DV}^{MIN}(b) | Minimum fuzzy membership function of µ_{DV}(b,n) for the base topology |

µ_{DV}^{MIN}(o) | Minimum fuzzy membership function of µ_{DV}(o,n) for the optimal topology |

µ_{F}(b,n)/µ_{T}(b,n)/µ _{ENS}(b,n)/µ_{EL}(b,n)/µ_{DV}(b,n) | Fuzzy membership function of reliability and power quality indices for the base topology during nth system state |

µ_{F}(i,n)/µ_{T}(i,n)/µ _{ENS}(i,n)/µ_{EL}(i,n)/µ _{DV}(i,n) | Fuzzy membership function for F(i,n)/T(i,n)/ENS(i,n)/EL(i,n)/DV(i,n) |

µ_{F}(o,n)/µ_{T}(o,n)/µ _{ENS}(o,n)/µ_{EL}(o,n)/µ_{DV}(o,n) | Fuzzy membership function of reliability and power quality indices for the optimal topology during nth system state |

µ_{F}^{M}(b)/µ_{T}^{M}(b)/µ _{ENS}^{M}(b)/µ_{EL}^{M}(b) | Mean fuzzy membership function of µ_{F}(b,n)/µ_{T}(b,n)/µ_{ENS}(b,n)/µ_{EL}(b,n) for the base topology |

µ_{F}^{M}(o)/µ_{T}^{M}(o)/µ _{ENS}^{M}(o)/µ_{EL}^{M}(o) | Mean fuzzy membership function of µ_{F}(o,n)/µ_{T}(o,n)/µ_{ENS}(o,n)/µ_{EL}(o,n) for the optimal topology |

## References

- Zhong, J.; Wang, C.; Wang, Y. Chinese growing pains. IEEE Power Energy Mag.
**2007**, 5, 33–40. [Google Scholar] [CrossRef] - Willis, H.L. Power Distribution Planning Reference Book, 2nd ed.; Mercel Dekkar: New York, NY, USA, 2004. [Google Scholar]
- Amanulla, B.; Chakrabarti, S.; Singh, S.N. Reconfiguration of power distribution systems considering reliability and power loss. IEEE Trans. Power Deliv.
**2012**, 27, 918–926. [Google Scholar] [CrossRef] - Fard, A.K.; Akbari-Zadeh, M.R. Reliability enhancement using optimal distribution feeder reconfiguration. Neurocomputing
**2013**, 106, 1–11. [Google Scholar] [CrossRef] - Kumar, K.S.; Jayabarathi, T. Power system reconfiguration and loss minimization for an distribution systems using bacterial foraging optimization algorithm. Int. J. Electr. Power Energy Syst.
**2012**, 36, 13–17. [Google Scholar] [CrossRef] - Fard, A.K.; Niknam, T.; Khosravi, A. Multi-objective probabilistic distribution feeder reconfiguration considering wind power plants. Int. J. Electr. Power Energy Syst.
**2014**, 55, 680–691. [Google Scholar] [CrossRef] - Zou, K.; Keerthipala, W.W.L.; Perera, S. SAIDI minimization of a remote distribution feeder. In Proceedings of the 2007 Australasian Universities Power Engineering Conference, Perth, WA, Australia, 9–12 December 2007. [Google Scholar]
- Skoonpong, A.; Sirisumrannukul, S. Network reconfiguration for reliability worth enhancement in distribution systems by simulated annealing. In Proceedings of the 2008 5th International Conference on Electrical Engineering/Electronics, Computer, Telecommunications and Information Technology, Krabi, Thailand, 14–17 May 2008; pp. 937–940. [Google Scholar]
- Niknam, T.; Fard, A.K.; Baziar, A. Multi-objective stochastic distribution feeder reconfiguration problem considering hydrogen and thermal energy production by fuel cell power plants. Energy
**2012**, 42, 563–573. [Google Scholar] [CrossRef] - Brown, H.E.; Suryanarayanan, S.; Natarajan, S.A.; Rajopadhye, S. Improving reliability of islanded distribution systems with distributed renewable energy resources. IEEE Trans. Smart Grid
**2012**, 3, 2028–2038. [Google Scholar] [CrossRef] - Vitorino, R.M.; Jorgeb, H.M.; Neves, L.P. Loss and reliability optimization for power distribution system operation. Electr. Power Syst. Res.
**2013**, 96, 177–184. [Google Scholar] [CrossRef] - Pfitscher, L.L.; Bernardon, D.P.; Canha, L.N.; Montagner, V.; Garcia, V.; Abaide, A. Intelligent system for automatic reconfiguration of distribution network in real time. Electr. Power Syst. Res.
**2013**, 97, 84–92. [Google Scholar] [CrossRef] - Narimani, M.R.; Vahed, A.A.; Azizipanah-Abarghooee, R.; Javidsharifi, M. Enhanced gravitational search algorithm for multi-objective distribution feeder reconfiguration considering reliability, loss and operational cost. IET Gener. Transm. Distrib.
**2014**, 8, 55–69. [Google Scholar] [CrossRef] - Paterakis, N.G.; Mazza, A.; Santos, S.F.; Erdinc, O.; Chicco, G.; Bakirtzis, A.G.; Catalão, J.P.S. Multi-objective reconfiguration of radial distribution systems using reliability indices. IEEE Trans. Power Syst.
**2016**, 31, 1048–1062. [Google Scholar] [CrossRef] - Wang, H.; Lin, H.; Yu, T.; Xu, Z. Dynamic equivalent-based reliability evaluation of distribution systems with DGs. IET Gener. Transm. Distrib.
**2016**, 10, 2285–2294. [Google Scholar] [CrossRef] - Shareef, H.; Ibrahim, A.A.; Salman, N.; Mohamed, A.; Ai, W.L. Power quality and reliability enhancement in distribution systems via optimum network reconfiguration by using quantum firefly algorithm. Int. J. Electr. Power Energy Syst.
**2014**, 58, 160–169. [Google Scholar] [CrossRef] - Esmaeilian, H.R.; Fadaeinedjad, R. Distribution system efficiency improvement using network reconfiguration and capacitor allocation. Int. J. Electr. Power Energy Syst.
**2015**, 64, 457–468. [Google Scholar] [CrossRef] - Zheng, H.; Cheng, Y.; Gou, B.; Frank, D.; Bern, A.; Muston, W. Impact of automatic switches on power distribution system reliability. Electr. Power Syst. Res.
**2012**, 83, 51–57. [Google Scholar] [CrossRef] - Raoofat, M. Simultaneous allocation of DGs and remote controllable switches in distribution networks considering multilevel load model. Int. J. Electr. Power Energy Syst.
**2011**, 33, 1429–1436. [Google Scholar] [CrossRef] - Ray, S.; Bhattacharya, A.; Bhattacharjee, S. Optimal placement of switches in a radial distribution network for reliability improvement. Int. J. Electr. Power Energy Syst.
**2016**, 76, 53–68. [Google Scholar] [CrossRef] - Zare, M.; Abarghooee, R.A.; Hooshmand, R.A.; Malekpour, M.; Azizipanah, R. Optimal reconfiguration of distribution systems by considering switch and wind turbine placements to enhance reliability and Efficiency. IET Gener. Transm. Distrib.
**2018**, 12, 1271–1284. [Google Scholar] [CrossRef] - Fard, A.K.; Niknam, T. Multi-objective stochastic distribution feeder reconfiguration from the reliability point of view. Energy
**2014**, 64, 342–354. [Google Scholar] [CrossRef] - López, J.C.; Lavorato, M.; Franco, J.F.; Rider, M.J. Robust optimisation applied to the reconfiguration of distribution systems with reliability constraints. IET Gener. Transm. Distrib.
**2016**, 10, 917–927. [Google Scholar] [CrossRef][Green Version] - Fard, A.K.; Niknam, T.; Taherpoor, H.; Abbasi, A. Multi-objective probabilistic reconfiguration considering uncertainty and multi-level load model. IET Sci. Meas. Technol.
**2015**, 9, 44–55. [Google Scholar] [CrossRef] - Zhang, P.; Li, W.; Wang, S. Reliability-oriented distribution network reconfiguration considering uncertainties of data by interval analysis. Int. J. Electr. Power Energy Syst.
**2012**, 34, 138–144. [Google Scholar] [CrossRef] - Mendoza, J.E.; López, M.E.; Coello, C.A.C.; López, E.A. Microgenetic multiobjective reconfiguration algorithm considering power losses and reliability indices for medium voltage distribution network. IET Gener. Transm. Distrib.
**2009**, 3, 825–840. [Google Scholar] [CrossRef] - Swarnkar, A.; Gupta, N.; Niazi, K.R. A novel codification for meta-heuristic techniques used in distribution network reconfiguration. Electr. Power Syst. Res.
**2011**, 81, 1619–1626. [Google Scholar] [CrossRef] - Wang, Z.; Chen, B.; Wang, J.; Kim, J.; Begovic, M.M. Robust optimization based optimal DG placement in microgrids. IEEE Trans. Smart Grid
**2014**, 5, 2173–2182. [Google Scholar] [CrossRef] - Kanwar, N.; Gupta, N.; Niazi, K.R.; Swarnkar, A. Optimal distributed resource planning for microgrids under uncertain environment. IET Renew. Power Gener.
**2018**, 12, 244–251. [Google Scholar] [CrossRef] - Baran, M.E.; Wu, F.F. Network reconfiguration in distribution systems for loss reduction and load balancing. IEEE Trans. Power Deliv.
**1989**, 4, 1401–1407. [Google Scholar] [CrossRef] - Etemadi, A.H.; Firuzabad, M.F. Distribution system reliability enhancement using optimal capacitor placement. IET Gener. Transm. Distrib.
**2008**, 2, 621–631. [Google Scholar] [CrossRef] - Gupta, N.; Swarnkar, A.; Niazi, K.R. Distribution network reconfiguration for power quality and reliability improvement using Genetic Algorithms. Int. J. Electr. Power Energy Syst.
**2014**, 54, 664–671. [Google Scholar] [CrossRef] - Mahmoud, K.; Lehtonen, M. Simultaneous allocation of multi-type distributed generations and capacitors using generic analytical expressions. IEEE Access
**2019**, 7, 182701–182710. [Google Scholar] [CrossRef]

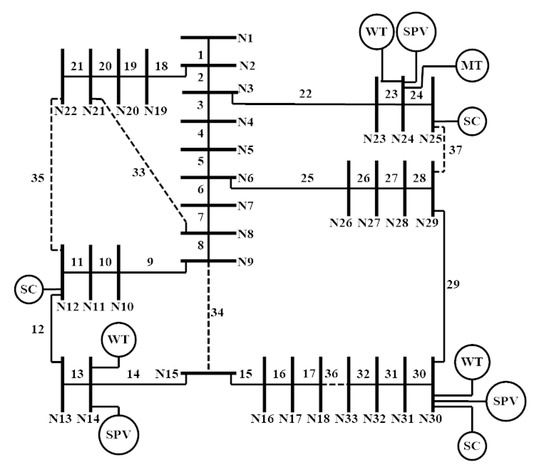

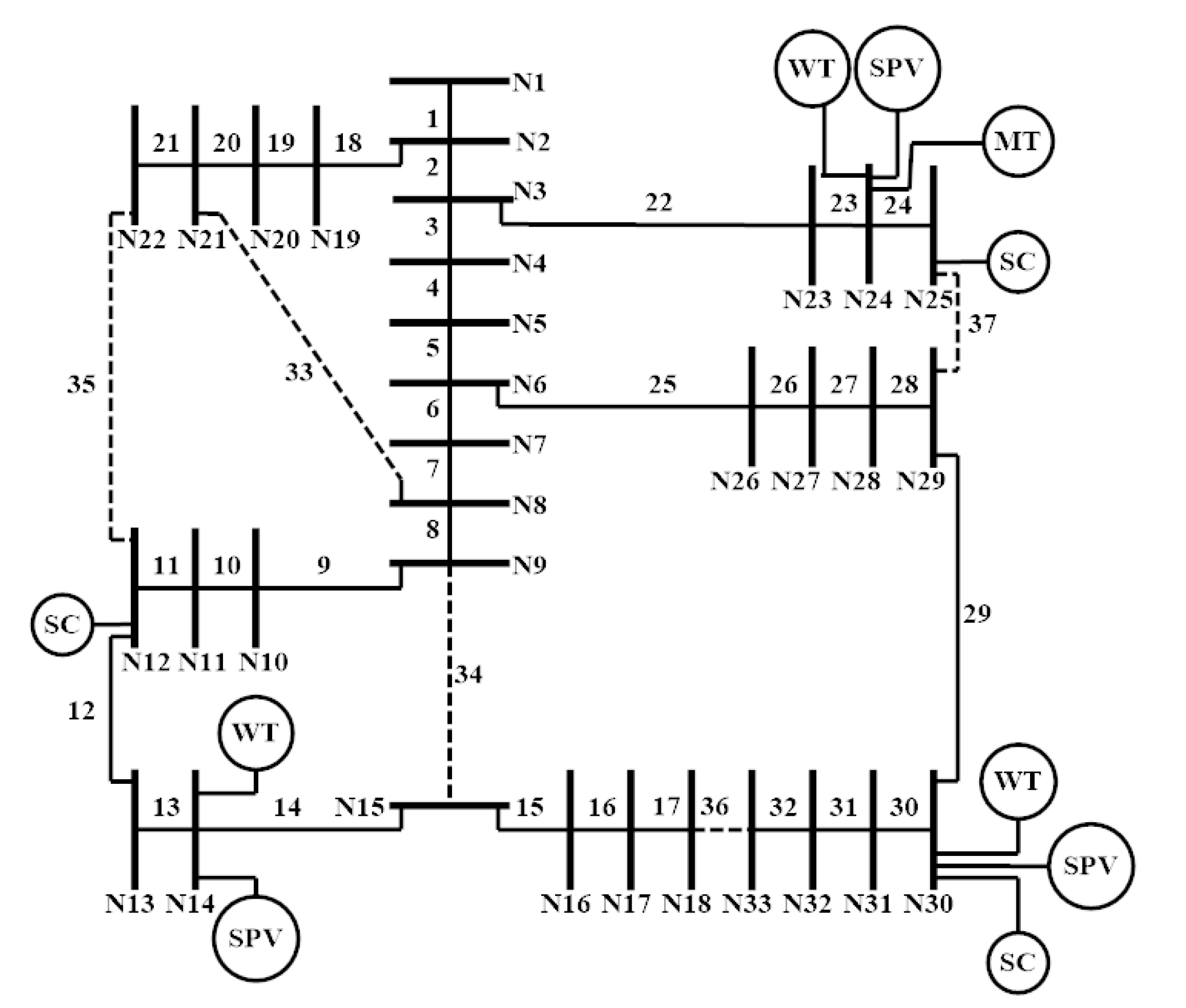

Particular | Value |
---|---|

Line voltage (kV) | 12.66 |

Nominal active power demand (kW) | 3715 |

Nominal reactive power demand (kVAr) | 2300 |

Sectionalizing switches | 1–32 |

Tie-switches | 33–37 |

Base configuration with open lines | 33 to 37 |

Power loss (kW) | 202.5 |

Minimum node voltage (pu) | 0.9131 |

**Table 2.**Comparison of existing and proposed reliability indices without distributed resources (DRs) before network reconfiguration (NR).

Reliability Index | F (Failure/yr) | T (hr/yr) | ENS (MWh/yr) | ||
---|---|---|---|---|---|

Load level | 1 | F(i) | 3.18 | 1.86 | 437.67 |

F(i,n) | 3.18 | 1.86 | 437.67 | ||

%ΔF | 0 | 0 | 0 | ||

1.1 | T(i) | 3.18 | 1.86 | 481.43 | |

T(i,n) | 3.91 | 2.29 | 591.41 | ||

%ΔT | 22.97 | 22.89 | 22.84 | ||

0.9 | ENS(i) | 3.18 | 1.86 | 393.9 | |

ENS(i,n) | 2.53 | 1.49 | 314.41 | ||

%ΔENS | –20.26 | –20.20 | –20.18 |

SPV (Size in kWp/Site) | WT (Size in kWp/Site) | MT (Size in kW/Site) | SC (Size in kVAr/Site) |
---|---|---|---|

280/14, 840/24, 560/30 | 420/14, 700/24, 420/30 | 800/24 | 300/12, 300/25, 600/30 |

State | Load/Generation Factor | State | Load/Generation Factor | ||||
---|---|---|---|---|---|---|---|

Load | WT | SPV | Load | WT | SPV | ||

1 | 0.5421 | 0.556 | 0 | 13 | 0.8711 | 0.896 | 0.967 |

2 | 0.5421 | 0.507 | 0 | 14 | 0.8000 | 0.894 | 0.921 |

3 | 0.5421 | 0.484 | 0 | 15 | 0.8711 | 0.799 | 0.820 |

4 | 0.5421 | 0.454 | 0 | 16 | 0.8711 | 0.688 | 0.625 |

5 | 0.5421 | 0.45 | 0 | 17 | 0.8711 | 0.704 | 0.398 |

6 | 0.6132 | 0.49 | 0 | 18 | 0.8711 | 0.728 | 0.158 |

7 | 0.6829 | 0.397 | 0.008 | 19 | 0.9303 | 0.763 | 0 |

8 | 0.6829 | 0.435 | 0.203 | 20 | 1.0000 | 0.784 | 0 |

9 | 0.6829 | 0.587 | 0.453 | 21 | 1.0000 | 0.806 | 0 |

10 | 0.7421 | 0.698 | 0.563 | 22 | 0.7513 | 0.823 | 0 |

11 | 0.7421 | 0.748 | 0.794 | 23 | 0.5421 | 0.88 | 0 |

12 | 0.7421 | 0.796 | 0.934 | 24 | 0.5421 | 0.911 | 0 |

00AM-6AM | 6AM-5PM | 5PM-9PM | 9PM-00AM |
---|---|---|---|

0.02 | 0.06 | 0.12 | 0.09 |

F_{max} (Failure/yr) | T_{max} (h/yr) | ENS _{max} (USD/yr) | EL _{max} (USD) | DV_{max} (p.u.) |
---|---|---|---|---|

5 | 3 | 800 | 70 | 0.10 |

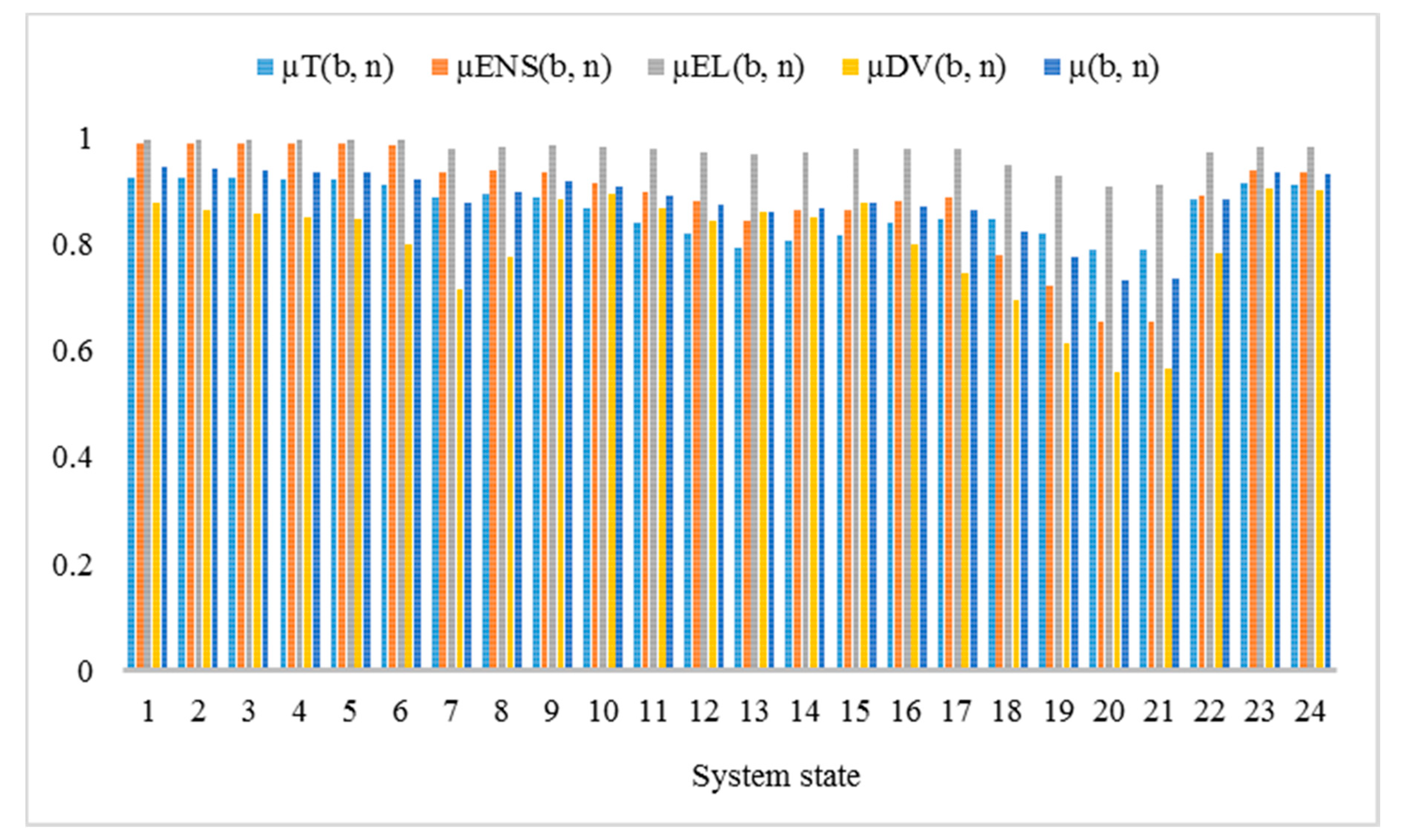

µ_{F}^{M}(b) | µ_{T}^{M}(b) | µ_{ENS}^{M}(b) | µ_{EL}^{M}(b) | µ_{DV}^{MIN}(b) |
---|---|---|---|---|

0.8882 | 0.8660 | 0.8891 | 0.9743 | 0.5598 |

F(b) (failure/yr) | T(b) (hr/yr) | ENS(b) (USD/yr) | EL(b) (USD/yr) | DV(b) (p.u.) |

0.5590 | 0.4021 | 88.7287 | 15757.7700 | 0.0440 |

State | Optimal Configuration | State | Optimal Configuration |
---|---|---|---|

1 | 33-37-35-13-36 | 13 | 20-37-35-13-8 |

2 | 33-37-35-13-36 | 14 | 20-37-33-10-34 |

3 | 33-37-35-13-36 | 15 | 33-37-35-9-34 |

4 | 33-37-35-13-36 | 16 | 33-37-35-11-34 |

5 | 33-37-35-13-36 | 17 | 33-37-35-12-36 |

6 | 33-37-35-13-36 | 18 | 33-37-35-12-36 |

7 | 33-37-35-14-36 | 19 | 33-37-35-14-36 |

8 | 33-37-35-13-36 | 20 | 33-37-35-14-36 |

9 | 33-37-35-13-36 | 21 | 33-37-35-14-36 |

10 | 20-37-11-34-36 | 22 | 33-37-35-12-36 |

11 | 20-37-8-12-36 | 23 | 20-37-35-34-36 |

12 | 20-37-8-12-36 | 24 | 20-37-35-34-36 |

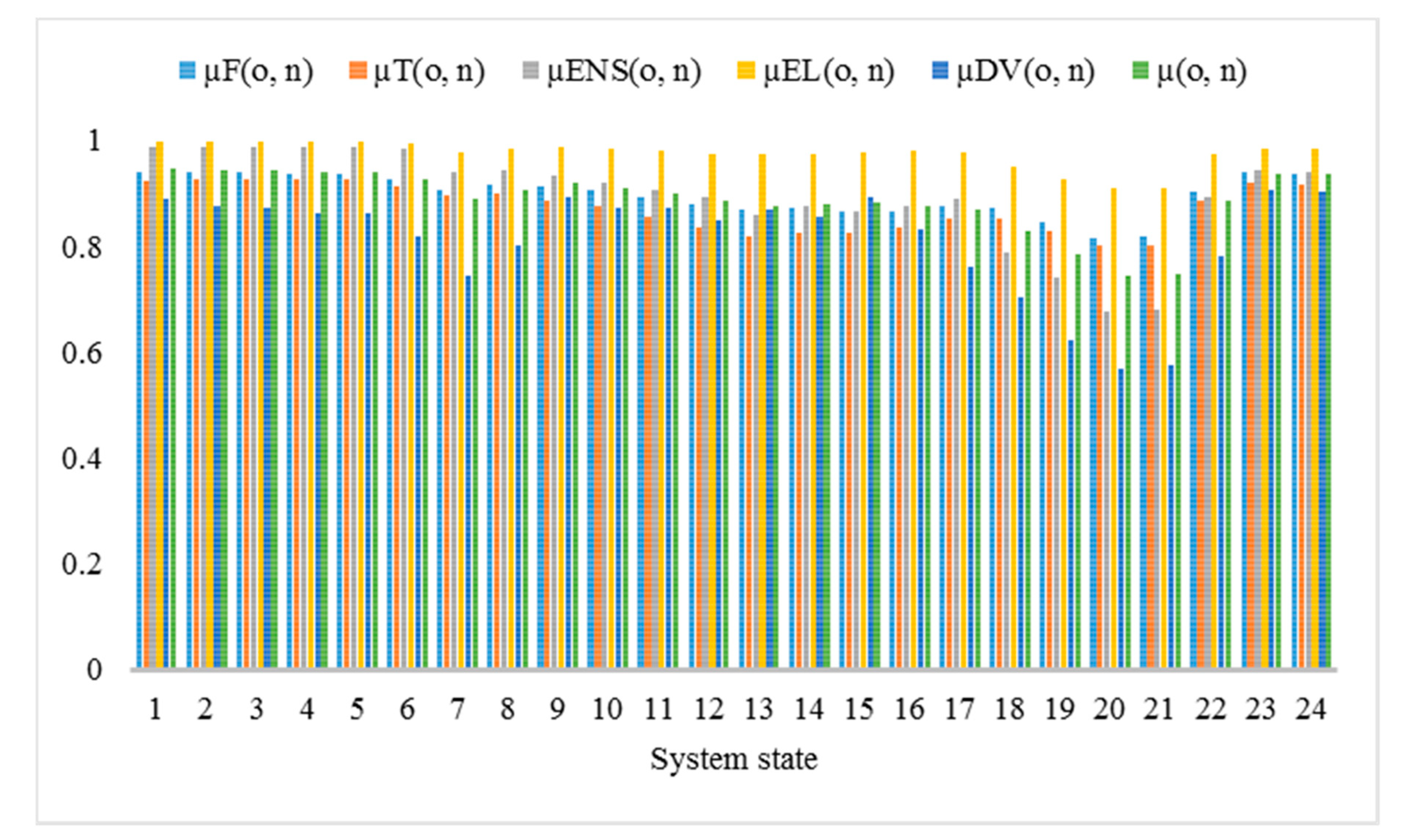

µ_{F}^{M}(o) | µ_{T}^{M}(o) | µ_{ENS}^{M}(o) | µ_{EL}^{M}(o) | µ_{DV}^{MIN}(o) |
---|---|---|---|---|

0.8967 | 0.8732 | 0.8954 | 0.9812 | 0.5699 |

F(o) (failure/yr) | T(o) (hr/yr) | ENS(o) (USD/yr) | EL(o) (USD/yr) | DV(o) (p.u.) |

0.5167 | 0.3804 | 83.6887 | 13122.48 | 0.0316 |

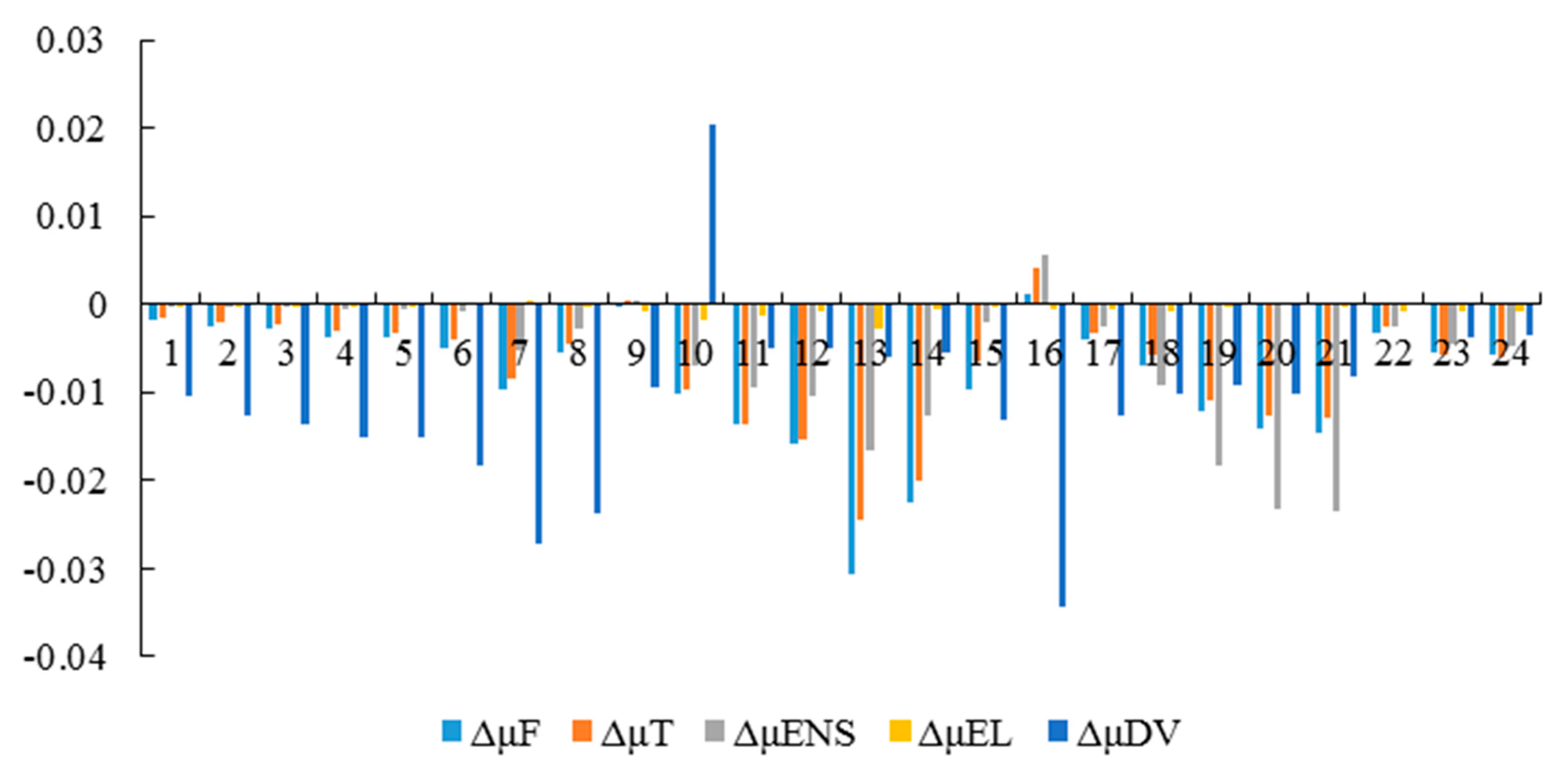

F(%) | T(%) | ENS (%) | EL(%) | DV(%) |

7.57 | 5.40 | 5.68 | 16.72 | 28.18 |

Scenario | Network Topology | F (Failure/yr) | T (h/yr) | ENS (USD/yr) | EL (USD/yr) | DV (p.u.) |
---|---|---|---|---|---|---|

Distribution system without DR | Before NR | 1.7123 | 1.0055 | 229.0578 | 70722.99 | 0.0869 |

After NR | 1.5300 | 0.9123 | 207.92 | 66282.78 | 0.0803 | |

Distribution system with DR | Before NR | 0.5590 | 0.4021 | 88.7287 | 15757.77 | 0.0440 |

After NR | 0.5167 | 0.3804 | 83.6887 | 13122.48 | 0.0316 |
