Advanced Laboratory Testing Methods Using Real-Time Simulation and Hardware-in-the-Loop Techniques: A Survey of Smart Grid International Research Facility Network Activities

1
Fraunhofer IEE, 34119 Kassel, Germany
2
DERLab, 34119 Kassel, Germany
3
Sandia National Laboratories, Albuquerque, NM 87123, USA
4
National Institute of Advanced Industrial Science and Technology, Fukushima 963-0298, Japan
5
CanmetENERGY, Natural Resources Canada (NRCan), Varennes, QC J3X 1S6, Canada
6
OPAL-RT Technologies, Montreal, QC H3K 1G6, Canada
7
ZHAW, IEFE, 8401 Winterthur, Switzerland
8
DTU, Kgs. 2800 Lyngby, Denmark
9
TU-Sofia, 1756 Sofia, Bulgaria
10
Institute for Energy and Environment, Electronic and Electrical Engineering Department, University of Strathclyde, Glasgow G1 1XQ, UK
11
KERI, Changwon-si 51543, Korea
12
Power Grid Corporation of India Limited, Gurgaon 122001, India
13
Austrian Institute of Technology, 1210 Vienna, Austria
*
Author to whom correspondence should be addressed.
Energies 2020, 13(12), 3267; https://doi.org/10.3390/en13123267
Received: 20 May 2020 / Revised: 16 June 2020 / Accepted: 22 June 2020 / Published: 24 June 2020
(This article belongs to the Special Issue Advancements in Real-Time Simulation of Power and Energy Systems)
The integration of smart grid technologies in interconnected power system networks presents multiple challenges for the power industry and the scientific community. To address these challenges, researchers are creating new methods for the validation of: control, interoperability, reliability of Internet of Things systems, distributed energy resources, modern power equipment for applications covering power system stability, operation, control, and cybersecurity. Novel methods for laboratory testing of electrical power systems incorporate novel simulation techniques spanning real-time simulation, Power Hardware-in-the-Loop, Controller Hardware-in-the-Loop, Power System-in-the-Loop, and co-simulation technologies. These methods directly support the acceleration of electrical systems and power electronics component research by validating technological solutions in high-fidelity environments. In this paper, members of the Survey of Smart Grid International Research Facility Network task on Advanced Laboratory Testing Methods present a review of methods, test procedures, studies, and experiences employing advanced laboratory techniques for validation of range of research and development prototypes and novel power system solutions. View Full-Text
Keywords: co-simulation; CHIL; geographically distributed simulations; power system protection and control; holistic testing; lab testing; field testing; PHIL; PSIL; pre-certification; smart grids; standards co-simulation; CHIL; geographically distributed simulations; power system protection and control; holistic testing; lab testing; field testing; PHIL; PSIL; pre-certification; smart grids; standards
Show Figures

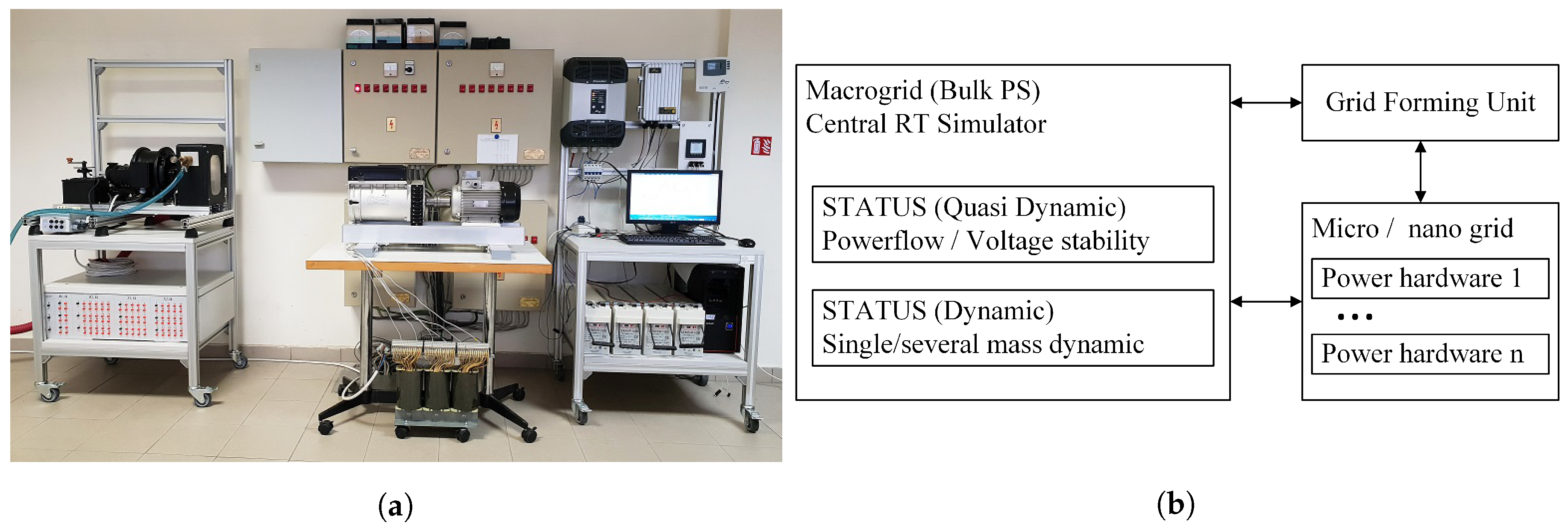

Figure 1
