The Wave-to-Wire Energy Conversion Process for a Fixed U-OWC Device

Abstract

Oscillating water column (OWC) devices, either fixed or floating, are the most common wave energy converter (WEC) devices. In this work, the fluid dynamic interaction between waves and a U-shaped OWC breakwater embedding a Wells turbine has been investigated through unsteady Computational Fluid Dynamic (CFD) simulations. The full-scale plant installed in the harbor of Civitavecchia (Italy) was numerically modeled. A two-dimensional domain was adopted to simulate the unsteady flow, both outside and inside the U-OWC device, including the air chamber and the oscillating flow inside the conduit hosting the Wells turbine. For the numerical simulation of the damping effect induced by the Wells turbine connected to the air chamber, a porous medium was placed in the computational domain, representing the conduit hosting the turbine. Several simulations were carried out considering periodic waves with different periods and amplitudes, getting a deep insight into the energy conversion process from wave to the turbine power output. For this purpose, the three main steps of the overall energy conversion process have been examined. Firstly, from the wave power to the power of the water oscillating flow inside the U-duct. Secondly, from the power of the oscillating water flow to the air pneumatic power. Finally, from the air pneumatic power to the Wells turbine power output. Results show that the U-OWC can capture up to 66% of the incoming wave power, in the case of a wave period close to the eigenperiod of the plant. However, only two-thirds of the captured energy flux is available to the turbine, being partially dissipated due to the losses in the U-duct and the air chamber. Finally, the overall time-average turbine power output is evaluated showing that it is strongly influenced by a suitable choice of the turbine characteristics (mainly geometry and rotational speed).

1. Introduction

Oceans and seas can be a fundamental renewable source of energy, considering that they cover almost two-thirds of the Earth’s surface. Ocean energy has great potential, even though harnessing this resource is more difficult than it seems. The main forms of ocean energy are waves, tides, marine currents, salinity, and temperature gradients. Among all of these, the most mature technologies are currently wave and tidal energies. Many different technical concepts for extracting wave energy are presently under study and development [1,2,3,4]. One of the most promising technologies refers to oscillating water column (OWC) devices (see, e.g., [5,6]), that can be either integrated inside a breakwater, in a near-shore configuration, like in the cases of both Civitavecchia’s harbour [7] and the Mutriku’s harbour [8,9] or arranged as a floating device [10]. In general, an OWC device consists of a chamber that is partially submerged in the seawater, with an air column trapped above a water column inside. The wall of the chamber, which is in front of the sea, presents a big vertical opening. Waves enter through this opening and determine the oscillation of the water surface in the chamber. On the roof of the chamber, there is a conduit connecting it to the atmosphere, and containing the power take-off (PTO) system. The incoming waves cause the water column in the chamber to compress and expand the air pocket inside it, and hence cause the inhalation and exhalation of air through the conduit. This oscillating flow drives the PTO system, which is actually a self-rectifying turbine, e.g., either a Wells turbine [10] or an impulse turbine [11]. U-OWC devices ([12,13]) belong to the family of OWCs, with some modifications with respect to conventional ones. They are caisson breakwaters in reinforced concrete embodying an OWC with an additional vertical duct on the wave-beaten side. The vertical duct is actually one of the two branches of the U-duct, the other one being the chamber. Like a standard OWC, the air chamber is connected with the atmosphere through a conduit that hosts the PTO system. To exploit a natural resonance with sea waves, the various parts of the plant have to be designed to obtain an eigenperiod of the oscillations of the free water surface inside the chamber close to the incident wave period of the wave train giving the highest energy contribution during the year. The parts to be designed (see Figure 1) are the width s, and length l, of the vertical duct, the width b, and height c, of the chamber, and the diameter D, of the air conduit [12]. When a U-OWC device works under resonance conditions, it achieves a very large absorption of the incident wave energy. A maximum absorption of $60\%$ of the incident wave energy has been registered during the experiments carried out on a small-scale device placed in the natural laboratory of Reggio Calabria (Italy) [14]. Recently, U-OWC devices have been installed in the harbor of Civitavecchia (Italy), located in the Tyrrhenian Sea [7]. The U-OWCs were located in the area close to the harbor entrance and allowed the creation of a novel basin into the port area.

Numerical one-dimensional models were developed by Boccotti in [15] and validated against small scale experiments in [16,17]. Such models, with some minor modifications, were applied by Arena et al. [7] to their full-scale U-OWC system to verify their capability of predicting the overall energy performance. However, one-dimensional models are unable to give an insight of the different hydrodynamic processes that occur in the proximity of, and inside the U-OWC system. To overcome the intrinsic limits of these one-dimensional models, a numerical approach based on CFD simulations has been proposed by the authors [18,19] and by others (e.g., [20,21,22,23]). The performance of an OWC device under a range of wavelengths for different wave steepness was analyzed by Kamat et al. [21] by means of CFD simulations. At lower wave steepness, the effect of wave steepness values on the efficiency of the device was found to be small, but a large reduction in performance was found in the presence of steep non-linear waves. However, to investigate the overall energy conversion process, the simulations of the U-OWC device must include the characteristics of the PTO system. As it is well known, the PTO acts as a damping term in the airflow motion of an OWC excited by the incident waves (e.g., [24]). To optimize the overall efficiency of the wave energy converter (WEC) device, it must be tuned into the plant (and consequentially the PTO system) to enter in resonance with the most energetic waves of the location. To this aim, numerical modeling is useful to carry out an evaluation of the performance of the OWC operating under different values of the PTO damping (modified by changing its rotational speed), and for different incoming waves. In this work, the computational domain includes a wave flume which is 1 km long by 30 m deep and contains the U-OWC breakwater with its plenum chamber and the conduit hosting the Wells turbine. In this way, we are able to take into account all the energy conversions from waves (generated by means of a piston-type wavemaker) to the power take-off (simulated by means of momentum and energy source terms introduced with a porous medium inside the conduit), similarly to other wave-to-wire models, such as [25,26,27,28]. In order to take into account the Wells turbine effect on the fluid dynamic behavior of the air and water flow inside the WEC device in the CFD simulations, without determining a significant increase of the computational cost, a porous medium was introduced in the air conduit, giving a pressure drop linearly dependent on the flow rate, according to the Wells turbine characteristic curve. The use of a porous medium was firstly used by the authors in other applications (e.g., see [29]), and opportunely adapted here. Several examples of a similar approach can be found in various publications. The use of porous media theory to develop a numerical model of the PTO damping effect was explored by Didier et al. [30], by means of a relationship between the air pressure in the chamber and the airflow velocity across the turbine. The numerical results were validated comparing them with the experimental results collected from a physical model. In that physical model, the turbine damping effect was simulated by a piece of a porous membrane (textile) placed on the top of the cylinder. Moreover, the optimization of the turbine induced damping on an OWC device using a CFD model was studied by Lopez et al. [31], after validating the model with data from physical model tests. In both the physical and the CFD models, the turbine damping was modeled by carefully designing the area of the orifice at the top of the OWC chamber.

The advantage of using the porous medium is that we correctly take into account the linear characteristic curve of the Wells turbine, rather than approximating it as an orifice which has a parabolic characteristic curve, as it is usually done by many authors [31,32,33]. This paper continues with the description of the numerical experiment (in terms of the computational domain, governing equations, and PTO model) in Section 2. The fluid dynamic analysis is carried out in Section 3, describing the wave field evolution inside the flume. Then, in Section 4 the energetic analysis from the wavemaker to the absorber was described. Furthermore, the attention goes to the captured energy, and finally to the conversion of this energy into available power thanks to the power take-off.

2. The Numerical Experiment

2.1. Layout of the Numerical Domain

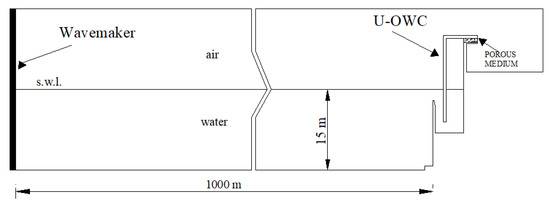

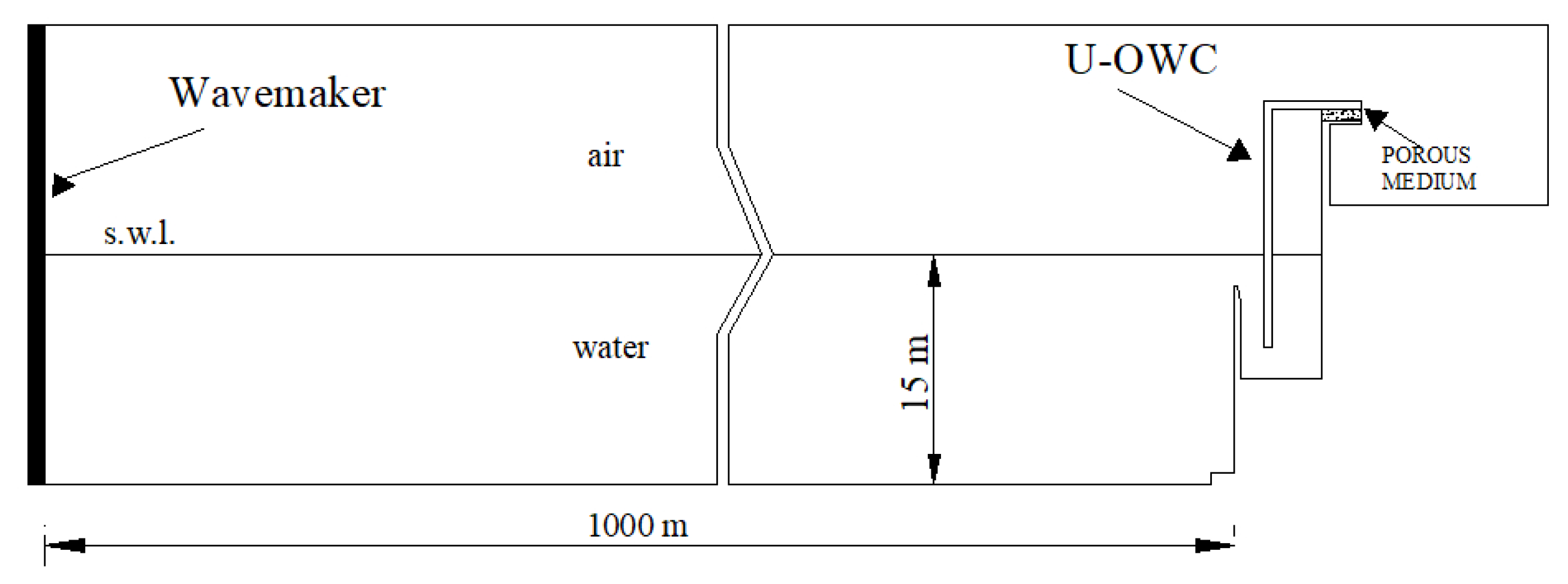

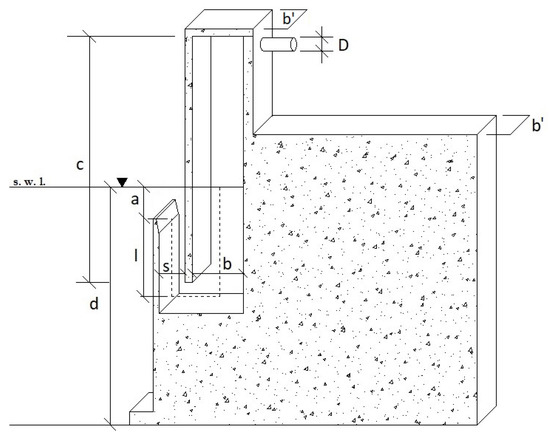

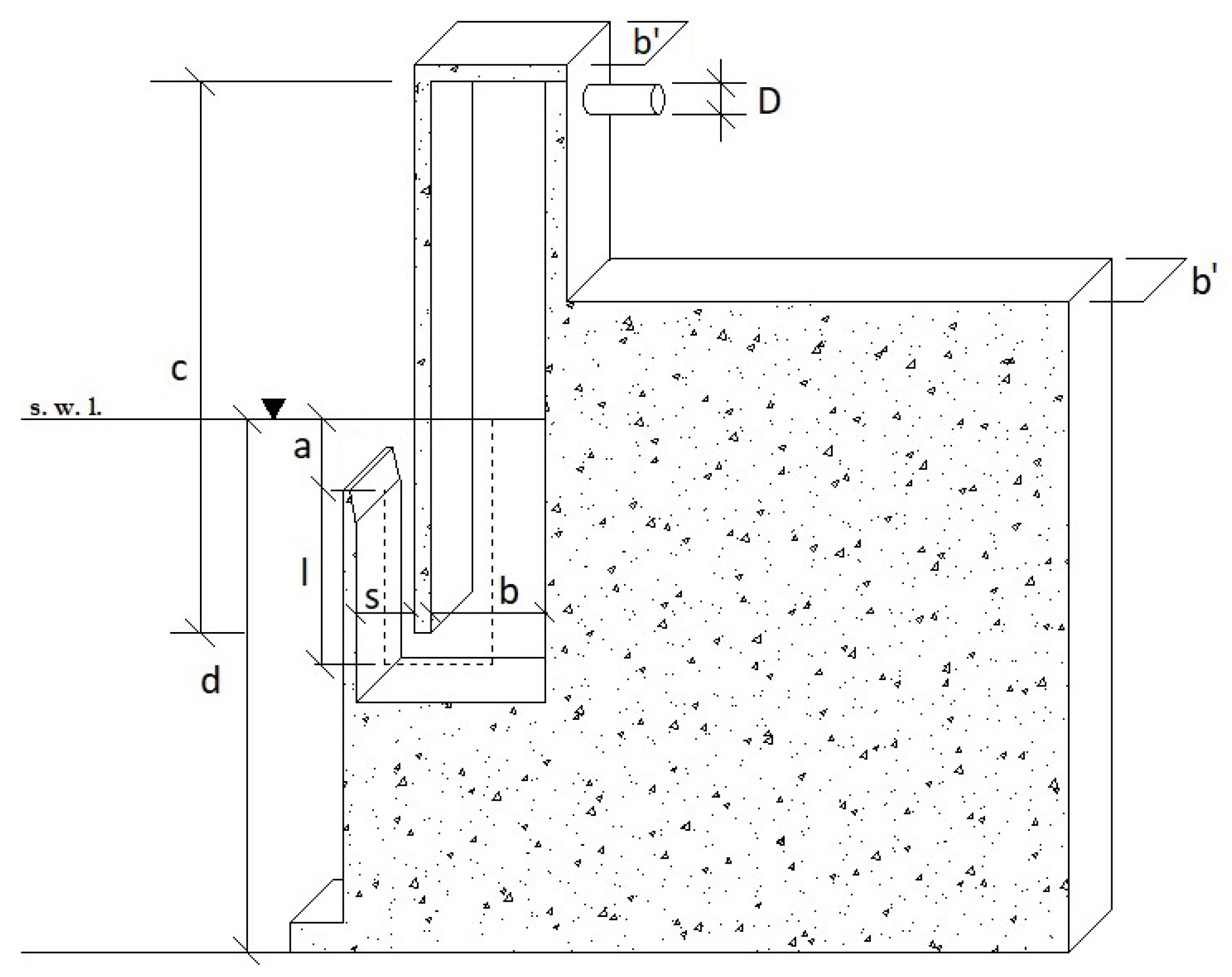

In order to numerically investigate the interaction between waves and the breakwater, we set up a two-dimensional numerical wave flume, with a piston-type wavemaker placed on the left side and the U-OWC breakwater, on the right side (see Figure 2). The wave flume is 1 km long and 30 m deep. This relevant length of the flume allows several wavelengths (at least 10) to be contained, between the wavemaker and the U-OWC breakwater. This distance is wide enough to investigate the unsteady wave field propagating from the U-OWC towards the wavemaker. The U-OWC device under consideration is a schematic reproduction of the plant installed at the Civitavecchia’s harbor (Italy) in the Tyrrhenian Sea. The widths of both the duct and the internal chamber are $1.6$ m and $3.2$ m, respectively; the length of the duct is $7.0$ m, the height of the chamber over the mean water level is $9.4$ m. The internal chambers of each caisson breakwater are independent from each other, with a horizontal section b × $b^{\prime }$ equal to 3.2 m × 3.87 m. The still water depth was set at $15.0$ m, and the outer opening of the plant is $2.0$ m below the still water level. Assuming that the waves are moving perpendicularly to the OWC, a two-dimensional CFD simulation is carried out, to reduce the computational effort with respect to a fully three-dimensional simulation. Figure 2 also shows the conduit that hosts the porous medium, that is able to reproduce the pressure drops across the turbine for the CFD simulations.

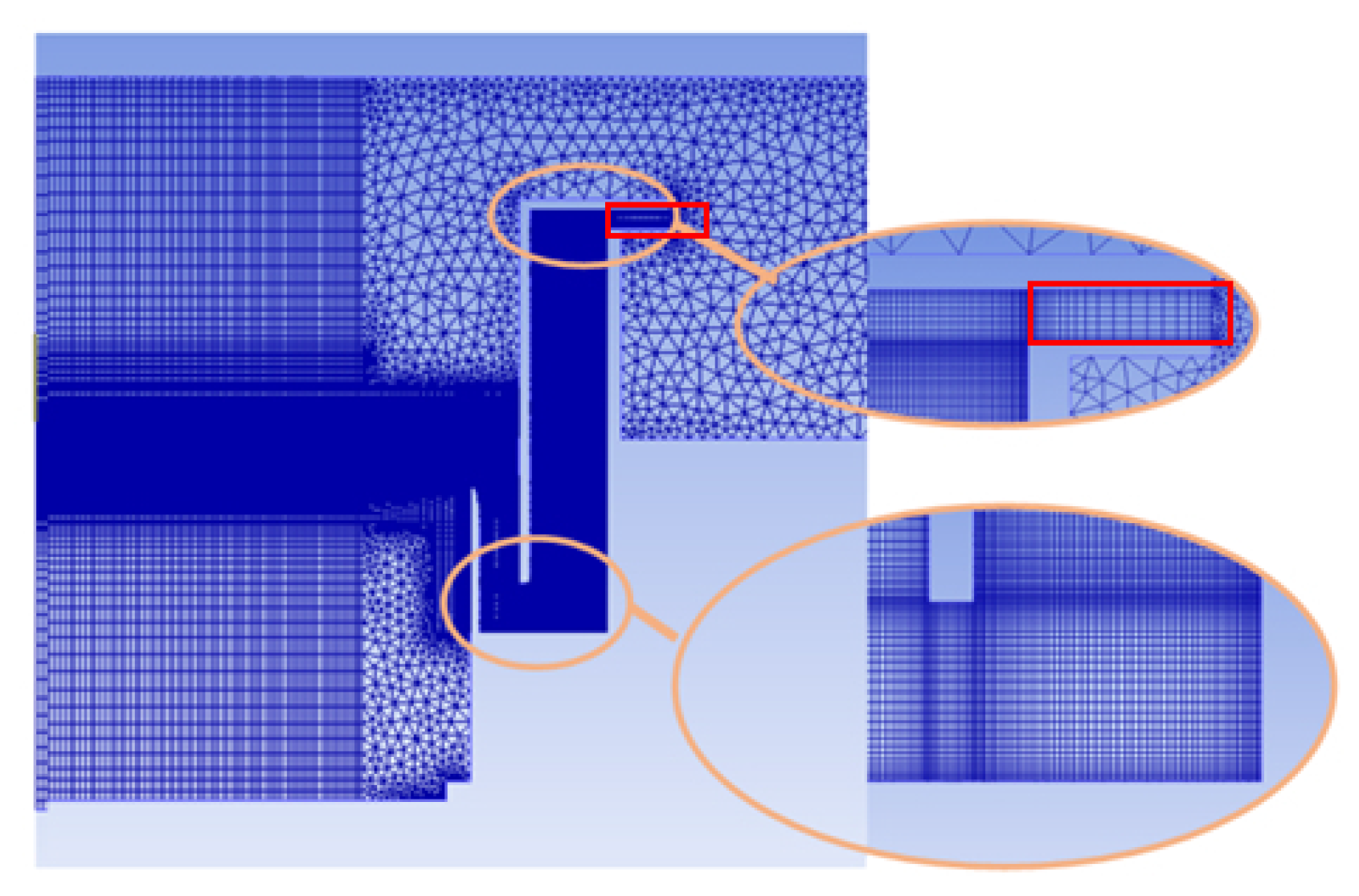

The spatial discretization of the computational domain (see Figure 3) has been portioned according to a multi-block scheme, adopting structured rectangular elements and triangular elements. In other words, we used rectangular elements along the flume, which were thinner near to the free surface displacement, to achieve a better resolution of the water surface, whereas, near the contour of the U-OWC device, we used triangular elements to guarantee a slow transition between the mesh size in the overall domain and the mesh size (which is smaller) inside the plant, where rectangular elements were used again. The mesh has approximately 300,000 cells. The mesh metric information allows the mesh quality to be evaluated. The most common quality indexes are the orthogonal quality, the skewness coefficient and the aspect ratio. In this mesh, the minimum orthogonal quality is 0.49, which is a medium value considering that the orthogonal quality ranges from 0 to 1. According to the definition of the skewness, a value of 0 indicates an equilateral cell (the best quality), and a value of 1 indicates a completely degenerated cell. The maximum skewness is about 0.29. The aspect ratio of either a face or a cell is the ratio of the longest edge length to the shortest one. The best possible result (equal to one) is achieved by both squares and equilateral triangles. In this work, the maximum aspect ratio of the spatial discretization is 2.0. Moreover, the mesh has been refined across the free water surface, in order to accurately simulate the wave elevation.

Starting from water at rest, the wave generation process has been simulated assigning a sinusoidal motion on the left wall of the wave flume, by means of a user-defined function (UDF). The maximum displacement of the piston type wavemaker was calculated referring to the complete first-order piston wavemaker solution, reported by Dean and Dalrymple [34], and described later in this manuscript. Smooth no-slip wall boundary conditions have been assigned to the breakwater and the flume walls, whilst the upper domain boundary is defined as a pressure outlet with zero-gauge pressure, considering the atmospheric pressure ($p_a$ = 1.01325 bar) as the reference pressure. Air is assumed to be compressible, following the ideal-gas law, to take into account the compressibility of the air pocket inside the chamber.

2.2. The Governing Equations

The numerical approach is based on a two-dimensional unsteady CFD simulation, using the commercial code Ansys Fluent v17.0, Academic Version. The water-air interaction is taken into account by means of the volume of fluid (VOF) model. In the VOF model, two or more fluids (or phases) are not interpenetrating, and the fraction of the volume of the qth phase in a cell is called the volume fraction, ${\alpha }_q\in \left[0,1\right]$. Each volume fraction is governed by its own continuity equation:

$$\frac{1}{{\rho }_q}\left[\frac{\partial }{\partial t}\left({\alpha }_q{\rho }_q\right)+▿·\left({\alpha }_q{\rho }_q{\overline{v}}_q\right)=S_{{\alpha }_q}+\sum _{p=1}^n\left({\dot{m}}_{pq}-{\dot{m}}_{qp}\right)\right],$$

(1)

where ${\rho }_q$ is the density of the qth phase, $\overline{v}$ is the velocity vector, ${\dot{m}}_{qp}$ is the mass transfer from phase q to phase p, and ${\dot{m}}_{pq}$ is the mass transfer from phase p to phase q. The volume fraction equation will not be solved for the primary phase, standing the following constraint:

$$\sum _{q=1}^n{\alpha }_q=1.$$

(2)

In our case, no source terms or mass transfer from one phase to the other are considered, hence Equation (1) is simplified as follows:

$$\frac{1}{{\rho }_q}\left[\frac{\partial }{\partial t}\left({\alpha }_q{\rho }_q\right)+▿·\left({\alpha }_q{\rho }_q{\overline{v}}_q\right)=0\right].$$

(3)

The volume fraction in a cell hosting an interface between two phases is calculated by the geometric reconstruction scheme. In this approach, the interface between fluids is represented through a piecewise linear interpolation. Both air and water flow fields are assumed to be unsteady and are computed solving the governing equations, that are

• the mass conservation (or continuity) equation:

  $$\frac{\partial \rho }{\partial t}+▿·\left(\rho \overline{v}\right)=0;$$

  (4)

  which holds both for incompressible as well as for compressible flows, and states that the mass is constant in a given system;
• the momentum balance equation:

  $$\frac{\partial }{\partial t}\left(\rho \overline{v}\right)+▿·\left(\rho \overline{vv}\right)=-▿p+▿·\left(\stackrel{=}{\tau }\right)+\rho \overline{g}+\overline{F};$$

  (5)

  where p is the pressure, $\overline{F}$ is a source term (for instance, the one related to the porous medium) and $\stackrel{=}{\tau }$ is the stress tensor equal to

  $$\stackrel{=}{\tau }=\mu \left[\left(▿\overline{v}+▿{\overline{v}}^T\right)-\frac{2}{3}\left(▿·\overline{v}\right)\stackrel{=}{I}\right],$$

  (6)

  where $\mu$ is the molecular viscosity;
• the energy conservation equation:

  $$\frac{\partial }{\partial t}\left[\rho \left(e+\frac{1}{2}{v}^2\right)\right]+▿·\left[\rho \overline{v}\left(e+\frac{1}{2}{v}^2\right)\right]=▿·\left(k_t▿T\right)+▿·\left(-p\overline{v}+\stackrel{=}{\tau }·\overline{v}\right)+\overline{v}·\overline{F}+Q_h,$$

  (7)

  where e is the specific energy, $k_t$ the thermal conductivity, T the temperature, $Q_h$ a possible heat source. When a Reynolds-averaged approach is used, each generic variable $\varphi$ can be decomposed in its averaged value (average performed over a sufficiently small time interval under unsteady flow conditions) $\overline{\varphi }$, and its fluctuation ${\varphi }^{\prime }$. Then, all the non-linear terms give birth to new variables, which must be opportunely modeled to resolve the problem. For instance, in the Reynolds-averaged momentum balance equation, the term $-\overline{\rho {\overline{v}}^{\prime }{\overline{v}}^{\prime }}$, known as the Reynolds stress tensor appears. This is a symmetric tensor and thus has six components, which must be modeled. For the closure problem, the Boussinesq hypothesis is used to relate the Reynolds stresses to the mean velocity gradients together with two transport equations for the turbulent kinetic energy k, and the specific turbulent dissipation rate $\omega$, according to the standard $k-\omega$ turbulence model. In this work, the governing equations were discretized according to a finite volume approach, adopting a pressure-based algorithm in its implicit formulation. The semi-implicit method for pressure-linked equations (SIMPLE) scheme was used for the pressure-velocity coupling. This is a segregated algorithm that uses a relationship between velocity and pressure corrections to enforce mass conservation and to obtain the pressure field. In order to obtain the spatial discretization of the convection terms in the governing equations, we used the Green–Gauss cell-based method for the gradient evaluation and the pressure staggering option (PRESTO!) scheme for the pressure equation. The other convection-diffusion equations (e.g., momentum or energy equation) were discretised by means of the second-order upwind scheme. Regarding the temporal discretization, a time step $\Delta t=T/1000$, T being the wave period, was used. This time step size was selected to keep the courant number value much lower than 1, improving the solution convergence. A summary of the CFD simulation set up details are shown in

  Table 1. CFD simulation set up details.

  Model for two-phase (water/air) interaction	Eulerian VOF
  Solver	SIMPLE algorithm
  Spatial discretization of Gradient	Green Gauss cell Based
  Spatial discretization of pressure	PRESTO!
  Spatial discretization of momentum	2nd order upwind
  Spatial discretization of Volume Fraction	Geo-Reconstruct
  Transient formulation	1st order implicit
  Time step	1/1000 $T_p$
  Turbolence model	$k-\omega$ - Standard
  Reference pressure	$p_a$ = 101,300 [Pa]

  .

2.3. The PTO System

The part of the computational domain, indicated by a red rectangle in Figure 3, was set as a “porous zone” to model the pressure drop in the air duct due to both the presence of the Wells turbine and the minor fluid-dynamic losses. Indeed, the “porous zone” is characterized by viscous and inertial losses, which are used to reproduce the actual pressure drop in the air conduit, mainly due to the air turbine that converts the oscillating pneumatic power into mechanical power. The rationale of using a porous zone instead of the simulation of the actual duct and turbine inside, it is that the main effect that influences the fluid dynamic behaviour of the OWC is the relation between the pressure in the air chamber and the air flow in the duct. The local flow field, instead, has a limited influence. Furthermore, our simulations are 2D. The introduction of the porous medium allowed us to represent the duct without the need for respecting the equivalent cross section area. Once the cross-section of the duct has been defined in the 2D CFD model, we guarantee the same mass flow rate and the same pressure drop by opportunely defining the porous medium coefficients. Therefore the model reproduces the relation of the air pressure drop vs. the air flow. To this purpose, the pressure drop $\Delta p$, has been subdivided into two contributions:

• $\Delta p_t$ due to the turbine;
• $\Delta p_c$ due to continuous and minor losses in the air conduit.

According to [7], a Wells turbine is supposed to be installed in the U-OWC breakwater of the Civitavecchia’s harbor. During operation, the parameters characterizing the behavior of the turbine were recorded under several sea states. In particular, the following parameters were evaluated:

• the non-dimensional pressure drop

  $$\Delta p^{*}=\frac{\Delta p}{{\rho }_a{U}_{tip}^2};$$

  (8)
• the non-dimensional flow coefficient

  $$U^{*}=\frac{V_a}{U_{tip}};$$

  (9)

  where $V_a$ is the mean axial velocity in the turbine annulus, evaluated as the ratio between the volumetric flow rate Q, and the annulus are $A_t$:

  $$V_a=\frac{Q}{A_t},$$

  (10)

  and $U_{tip}=\omega R_{tip}$ is the blade tip speed, with $\omega$ the turbine angular speed, and $R_{tip}$ the turbine tip radius. Introducing the hub to tip ratio $h=R_{hub}/R_{tip}$, it results

  $$A_t=\pi R_{tip}^2\left(1-h^2\right).$$

  (11)

The stagnation pressure drop across the Wells turbine $\Delta p_t$, is just about linearly variable with the axial flow velocity $V_a$, as confirmed by experiments, (e.g., [14,35]), and numerical simulations (e.g., [36,37,38,39]). Therefore, a linear relationship between the turbine parameters $\Delta p^{*}$ and $U^{*}$ is assumed in this work:

$$\Delta p^{*}=\frac{B_t}{2}{U}^{*},$$

(12)

where $B_t$ is the turbine damping factor. If the turbine rotates at a constant rotational speed, it produces a viscous loss for the air current.

In our CFD simulations, the viscous pressure drop $\Delta p_v$ across the porous medium was set equal to the pressure drop determined by the Wells turbine $\Delta p_t$. This pressure drop can be expressed as

$$\Delta p_v={\mu }_a\Delta l{R}_v{V}_p,$$

(13)

where $R_v$ is the viscous coefficient, ${\mu }_a$ is the air molecular viscosity, $\Delta l$ is the porous medium length and $V_p$ is the air flow velocity in the porous medium. At the same time, from the definition of the turbine damping factor $B_t$, the turbine pressure drop $\Delta p_t$ can be expressed as

$$\Delta p_t=\Delta p^{*}{\rho }_a{U}_{tip}^2=\frac{B_t}{2}{U}^{*}{\rho }_a{U}_{tip}^2=\frac{B_t}{2}{\rho }_a{U}_{tip}{V}_a,$$

(14)

hence the coefficient $R_v$, can be evaluated from the turbine damping factor $B_t$, as soon as we can relate the air flow velocity in the porous medium $V_p$, to the velocity across the Wells turbine $V_a$. To this purpose, we have to consider that the mass flow rate through the porous medium has to be equal to the mass flow rate across the turbine:

$${\rho }_a{A}_p{V}_p={\rho }_a{A}_t{V}_a,$$

(15)

$A_p$ being the cross section area of the porous medium, which is equal to the product of the conduit diameter and the width of the absorbing chamber (i.e., $D\times b^{\prime })$. Hence

$$R_v=\frac{\Delta p_v}{{\mu }_a\Delta l{V}_p}=\frac{\Delta p_t}{{\mu }_a\Delta l{V}_p}=\frac{A_p}{A_t}\frac{B_t}{2}\frac{{\rho }_a{U}_{tip}}{{\mu }_a\Delta l}.$$

(16)

Being that the air flow is fully turbulent in the conduit, the continuous pressure losses, due to friction on the conduit walls, are calculated analytically from the Darcy–Weisback formula:

$$\Delta p_c=\frac{{\rho }_a{F}_C\Delta l{V}_c^2}{2D},$$

(17)

where D is the diameter of the conduit, $V_c$ is the air flow velocity in the conduit and $F_c$ is the friction coefficient computed according to the Tsal approximation

$$F_C=0.11{\left(\frac{\epsilon }{D}+\frac{68}{Re}\right)}^{0.25},$$

(18)

where $\epsilon$ is the wall roughness and $Re$ is the Reynolds number.

Minor losses at the entrance and the exit of the conduit can be evaluated from

$$\Delta p_{i+o}=\frac{1}{2}{\rho }_a{F}_{i+o}{V}_t^2,$$

(19)

where $F_{i+o}$ is the sum of the minor losses coefficients, $F_i$ (inlet/entrance) and $F_o$ (outlet/exit).

Table 2. Parameters assumed for the computation of the continuous and minor losses.

Parameter	Value
$\epsilon$ [m]	3 × 10${}^{-5}$
$F_i$	0.5
$F_o$	1

shows the values of these adopted coefficients.

Both the continuous pressure losses $(\Delta p_c)$ and the minor losses $(\Delta p_{i+o})$ are proportional to ${\rho }_a{V}_t^2$. Therefore, their summation is put equal to the inertial pressure drop $\Delta p_i$ in the porous medium:

$$\Delta p_i=\frac{1}{2}{\rho }_a\Delta l{R}_i{V}_p^2,$$

(20)

where $R_i$ is the inertial resistance coefficient obtained imposing $\Delta p_c+\Delta p_{i+o}=\Delta p_i$.

Finally, the total pressure drop $\Delta p_{tot}=(\Delta p_c+\Delta p_{i+o}+\Delta p_t)$, in the air duct is evaluated as the sum of the viscous $\Delta p_v$, and the inertial $\Delta p_i$, losses:

$$\Delta p_{tot}=\Delta p_v+\Delta p_i={\mu }_a\Delta l{R}_p{V}_p+\frac{1}{2}{\rho }_a\Delta l{R}_i{V}_p^2.$$

(21)

3. Fluid Dynamic Analysis

3.1. The Wave Generation and Propagation

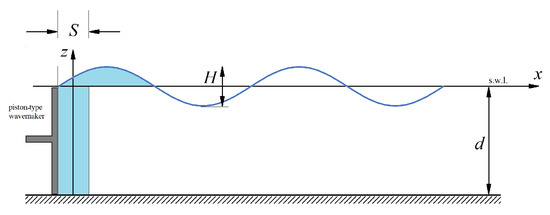

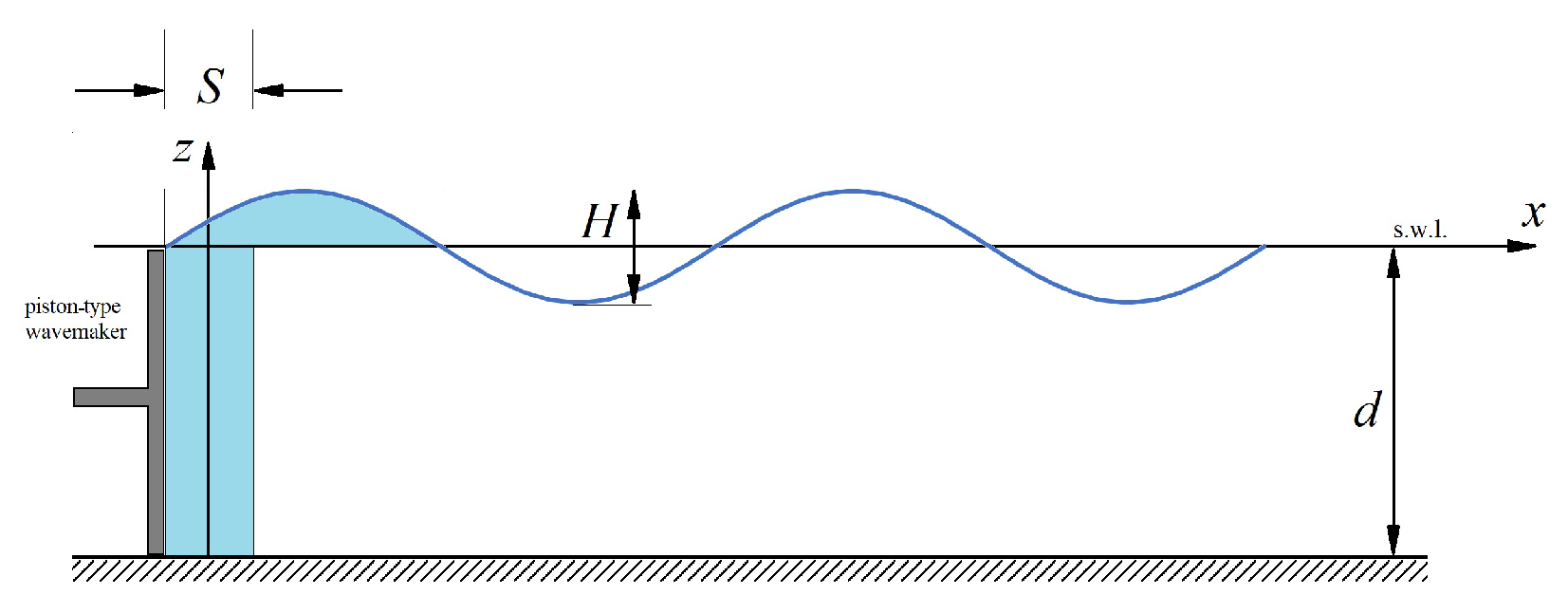

According to [40], a piston-type wavemaker starting from rest and moving sinusoidally for a given period of time t, produces a free surface displacement $\eta$, that can be expressed as

$$\eta (x,t)=\frac{2}{\pi }{\int }_0^{\infty }\frac{\tan \mathrm{h}\left(kd\right)}{k}\cos \left(kx\right){\int }_0^t{U}_0\left(\tau \right)\cos \left(\sigma (t-\tau )\right)d\tau dl,$$

(22)

where d is the flume depth, $U_0$ is the horizontal velocity of the wave board, and ${\sigma }^2=gk\tan \mathrm{h}\left(kd\right)$, is the squared angular frequency of the generated waves, with $k=2\pi$/L, being the angular wavenumber and L being the wave length. Assuming the board starts from rest at its extreme backward position, its displacement and velocity are given by

$$X\left(t\right)=-\frac{S}{2}\cos \left(\omega t\right),$$

(23)

$$U_0\left(t\right)=\frac{S}{2}\omega \sin \left(\omega t\right),$$

(24)

respectively, where S is the total horizontal stroke excursion, and $\omega$ is the angular frequency of the wave board. As reported by Huges [40], a simplified theory for plane wavemakers in shallow water was proposed by Galvin (1964), who imposed that the water displacement by the wavemaker is equal to the crest volume of the propagating wave form. Considering a piston-type wavemaker with a stroke S, along the entire water depth d, the volume of water displaced over a whole stroke is actually $Sd$ (see Figure 4), whereas the volume of water below a wave crest is

$${\int }_0^{L/2}(H/2)sin\left(kx\right)\mathrm{d}x=\frac{H}{k}.$$

(25)

Equating the two volumes, we obtain

$$Sd=\frac{H}{k}=\frac{H}{2}\left(\frac{L}{2}\right)\frac{2}{\pi },$$

(26)

where the factor $2/\pi$ represents the ratio between the shaded area and the area of the enclosing rectangle (see Figure 4). This equation can also be expressed as

$${\left(\frac{H}{S}\right)}_{\mathrm{piston}}=kd,$$

(27)

where $H/S$ is the height-to-stroke ratio. This relationship is valid in the shallow water region, $kd<\pi /10$.

In this work, we carried out numerical simulations assigning a sinusoidal motion to the left wall of the wave flume, in order to simulate wave trains formed by periodic regular waves. The aim is to reproduce three sea states having significant wave height $H_s$, and peak period characteristics $T_p$, typical for the location of the Civitavecchia plant: (1) significant height $H_s$ = 2.0 m and peak period $T_p$ = 6 s; (2) $H_s$ = 3.0 m, and $T_p$ = 7.4 s; (3) $H_s$ = 3.5 m, and $T_p$ = 8 s (see sea state No. 4, 6 and 7 in [7], respectively). To calculate the stroke S, we have considered a periodic wave height H with a wave period T ≡ $T_p$, energetically equivalent to the significant wave height $H_s$, of each sea state, whilst remembering the basic relations in the theory of the sea states [41]:

$$<{\eta }^2\left(t\right)>=\frac{H_s^2}{16},$$

(28)

and

$$<{\eta }^2\left(t\right)>=\sum _{i=1}^N\frac{1}{2}{a}_i^2,$$

(29)

being, for a monochromatic periodic wave $a_i$ equal to $H/2$ we have:

$$H=\frac{H_s}{\sqrt{2}}.$$

(30)

Table 3. The wave trains simulated.

Wave Trains	${\mathit{H}}_{\mathit{s}}$$\left[\mathbf{m}\right]$	T$\left[\mathbf{s}\right]$	$\mathit{H} \left[\mathbf{m}\right]$	$\mathit{S} \left[\mathbf{m}\right]$	${\mathit{U}}_{\mathit{r}} \left[-\right]$
SS4	2.5	6.0	1.4	0.901	1.18
SS6	3.0	7.4	2.1	1.725	3.38
SS7	3.5	8.0	2.5	2.218	4.90

$U_r=H{L}^2/d^3$ is the Ursell number.

shows the characteristic values of the simulated wave trains and the corresponding parameters of the generated, energetically equivalent, wave trains.

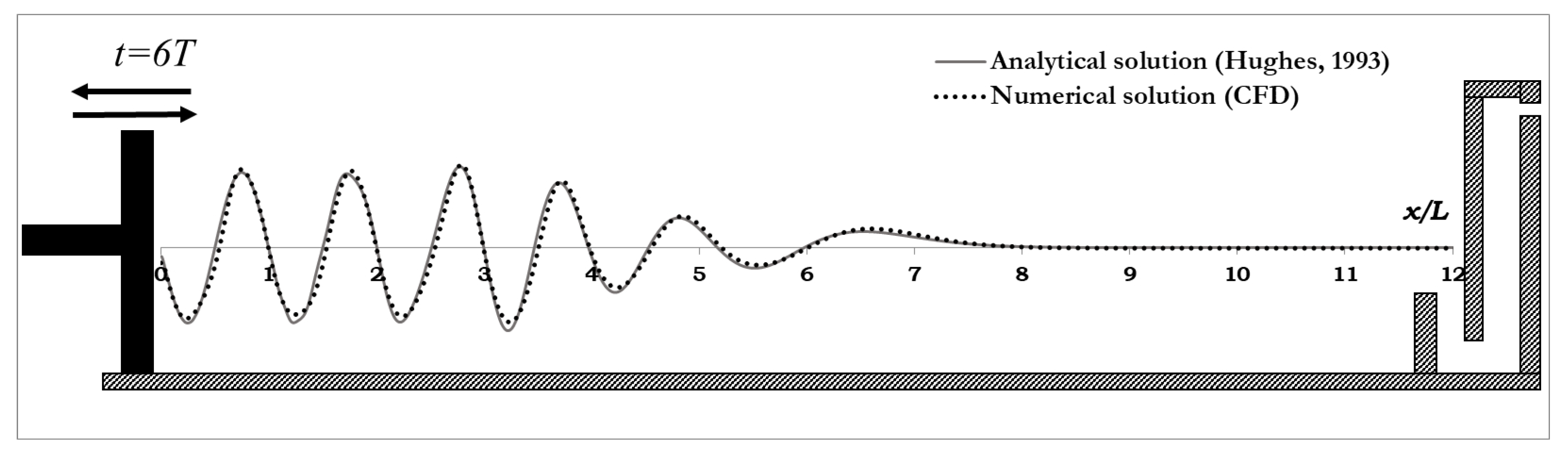

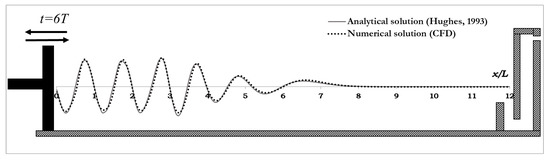

To test the wave generation and propagation in the flume, the values of $\eta (y,t)$ registered during the CFD simulation for the SS7 wave train, were compared with the analytical ones. Figure 5 shows the instantaneous free surface elevation along the flume, a few time instants after the beginning of the piston motion (actually, after 6 wave periods). For comparison, the analytical solution Equation (22) is superposed. As we can see, there is a good agreement between the two sets of data.

3.2. The Wave Field in Front of the Plant

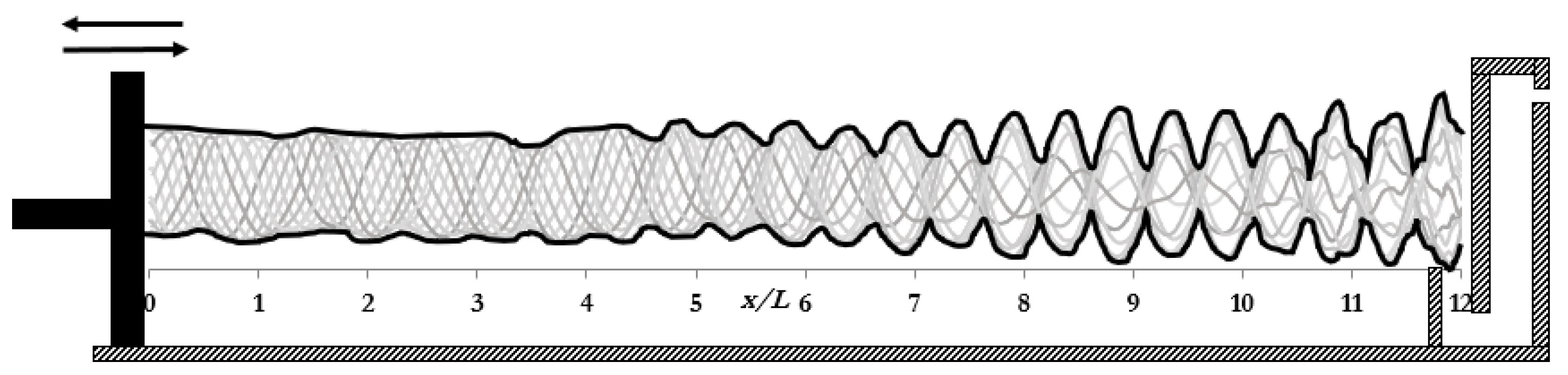

The wave field in front of the absorber-breakwater is produced by the interaction between incoming waves, reflected waves and the pulsating discharge through the plant. Figure 6 shows, for the SS7 wave train, that we considered as a test, the overlapping of several snapshots of the surface waves in the flume, in which each frame is taken every $\Delta t=T/20$, during a wave period T. As we can see, the flow field in front of the U-OWC breakwater is quite different from the standing wave field in front of a vertical reflecting wall. This quasi-standing wave field is characterized by the presence of quasi-nodes, which are points where the amplitude of $\eta$ is at its minimum but different from zero (as they are in the standing waves). Moreover, when the incident wave train has impacted the absorber-breakwater, the wave amplitude at the breakwater wall is smaller than in front of a vertical reflecting wall. Indeed, the amplification factor $\beta$ (equal to the ratio of the wave amplitude at the U-OWC breakwater wall and H) is 0.85.

4. Analysis of the Energy Conversion Process

4.1. The Energy Flux of the Generated Waves

To verify the share of the incident wave energy captured by the U-OWC, we have calculated the mean energy flux $\overline{\mathrm{\Phi }}$, at different vertical sections along the wave flume:

$$\overline{\mathrm{\Phi }}=\frac{1}{T}{\int }_0^T{\int }_0^{\eta }\Delta p(z,t)V_x(z,t)\mathrm{d}z\mathrm{d}t,$$

(31)

where $\Delta p(z,t)$ is the wave pressure and $V_x(z,t)$ is the horizontal velocity. The integral was calculated numerically in 14 points ($\Delta z$ = 1.35 m) from the bottom up to the maximum free surface displacement. In order to additionally check the numerical wave generation process, incident fluxes, calculated along the flume, were compared with that obtained by means of the linear wave theory:

$${\overline{\mathrm{\Phi }}}_{lwt}=\frac{1}{8}\rho g{H}^2{c}_G,$$

(32)

where $c_G$ is the wave group velocity:

$$c_G=\frac{1}{2}\sqrt{\frac{g}{k}\tan \mathrm{h}\left(kd\right)}\left(1+\frac{2kd}{\sin \mathrm{h}\left(2kd\right)}\right).$$

(33)

The incident wave flux ${\overline{\mathrm{\Phi }}}_{A{A}^{\prime }}$, is calculated at a fixed abscissa near the wavemaker, averaged over the time interval during which a progressive wave is established. Figure 7 shows the mean energy flux of the incident waves versus the wave period T, for the three wave trains of Table 3.

As we can see, there is a reasonably good agreement, being that the maximum difference between theoretical and numerical values, corresponding to the same wave period, is about 20%. This difference is acceptable considering that Equation (32) is valid for waves of small amplitude. The wave field along the flume is unsteady in time and not homogeneous in space. Initially, we have a progressive wave train generated by the wavemaker traveling towards the U-OWC, in a flume at rest. After the impact with the breakwater wall, we have a new wave field expanding in the opposite direction and superposing on it. To analyze the energy propagation mechanism, we chose several vertical sections where the mean energy flux was evaluated (see Figure 8).

Regarding the first cross section ($A{A}^{\prime }$), the nearest to the wavemaker, the instantaneous energy flux evaluated by Equation (32) is shown in Figure 9. During the time interval reproduced in abscissa, waves are periodic and progressive with H = 2.5 m, T = 8 s.

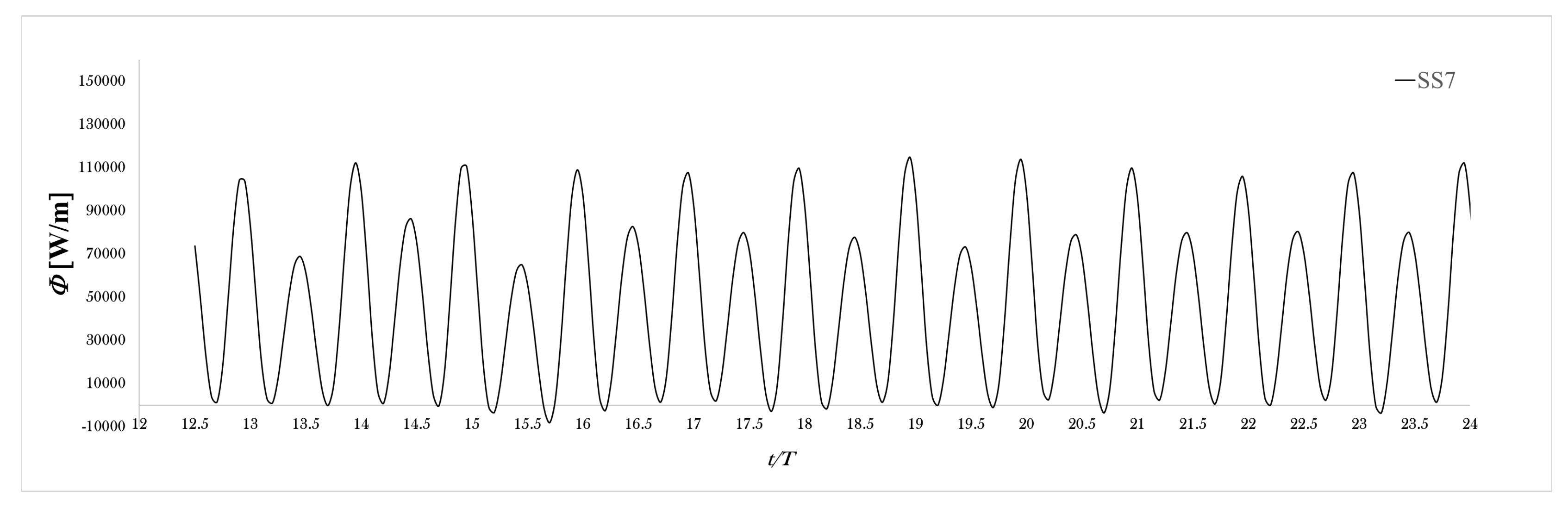

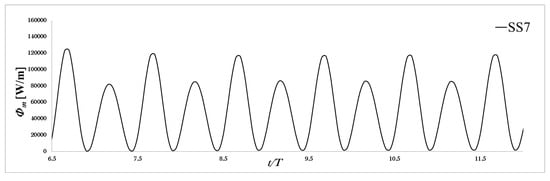

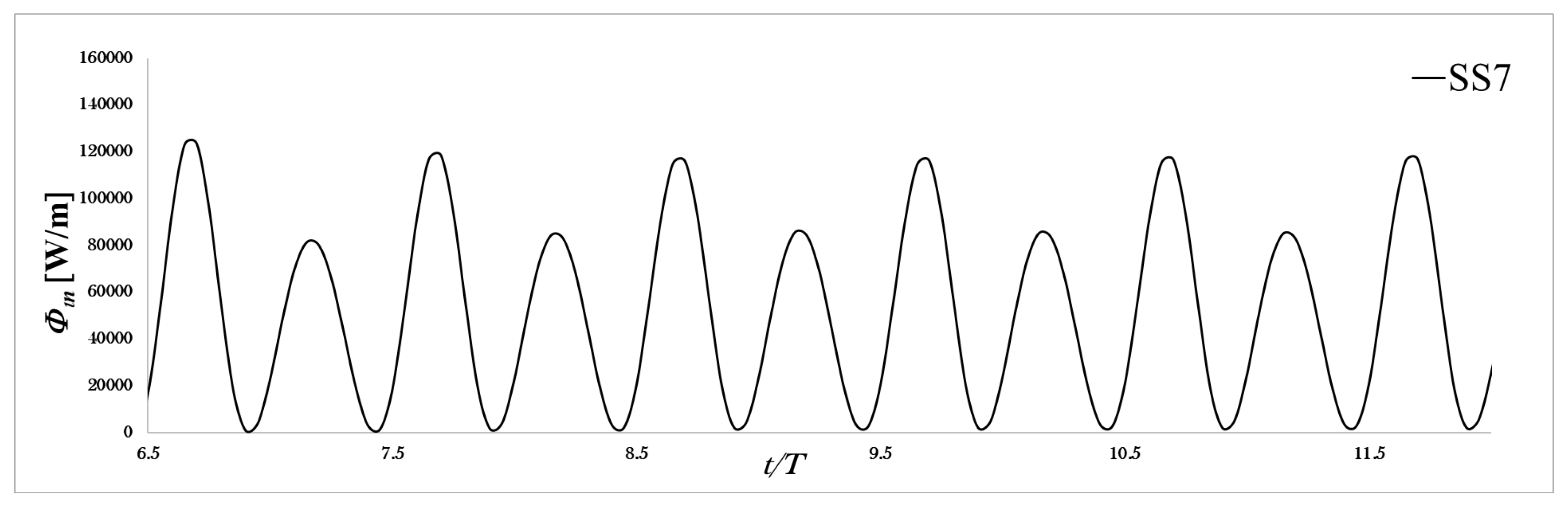

In the shown time interval (see Figure 9), the mean flux is $52.5$ kW/m, 10% less than the energy flux evaluated by means of Equation (32). In this section, the energy fluxes of the incident waves for all the simulated wave trains are calculated. The second section ($B{B}^{\prime }$) is placed at the middle length of the computational flume, and the instantaneous energy flux is shown in Figure 10, during a time interval when progressive waves are crossing this section. The mean energy flux in section $B{B}^{\prime }$ is equal to $46.5$ kW/m, 11% less than in section $A{A}^{\prime }$.

Hence, we can assume that the wave train further looses energy in order to travel across the entire flume length. For this reason, we can estimate that the wave energy reaching the U-OWC, ${\overline{\mathrm{\Phi }}}_{in}$, can be evaluated as follows:

$${\overline{\mathrm{\Phi }}}_{in}={\overline{\mathrm{\Phi }}}_{A{A}^{\prime }}-\left({\overline{\mathrm{\Phi }}}_{A{A}^{\prime }}-{\overline{\mathrm{\Phi }}}_{B{B}^{\prime }}\right)\frac{(X_{D{D}^{\prime }}-X_{A{A}^{\prime }})}{(X_{B{B}^{\prime }}-X_{A{A}^{\prime }})},$$

(34)

being $X_{A{A}^{\prime }}$, $X_{B{B}^{\prime }}$ and $X_{D{D}^{\prime }}$ the abscissas of the vertical section $A{A}^{\prime }$, $B{B}^{\prime }$ and $C{C}^{\prime }$, respectively.

This is not surprising: the attenuation of the wave height along a wave flume was also registered by Dong and Huang [42]; furthermore, the damping rate of the wave height increases with the Ursell number. The damping is mainly caused by two contributions [34]: (1) the energy dissipation due to the bottom shear stress; (2) the energy losses in the irrotational part of the flow field, even if this latter contribution is much less significant with respect to the former. Finally, even a small attenuation of the wave height determines a significant energy loss, due to the quadratic dependence.

4.2. The Energy Flux of the Transient Waves along the Flume

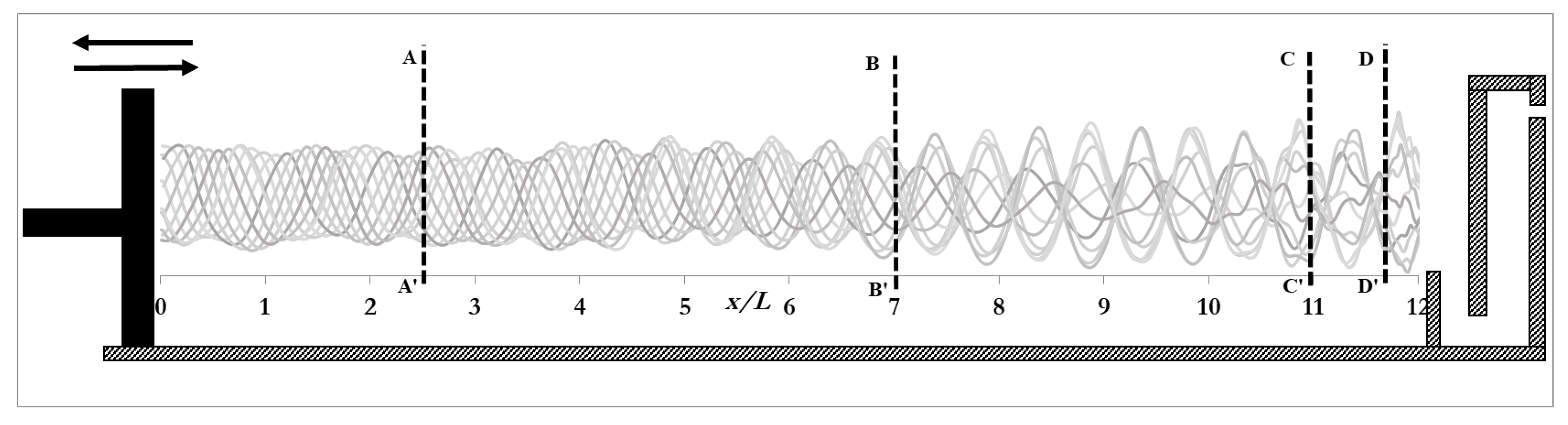

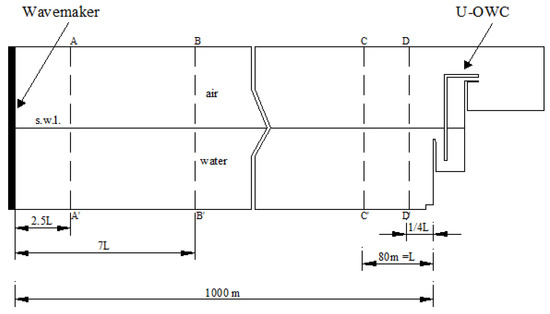

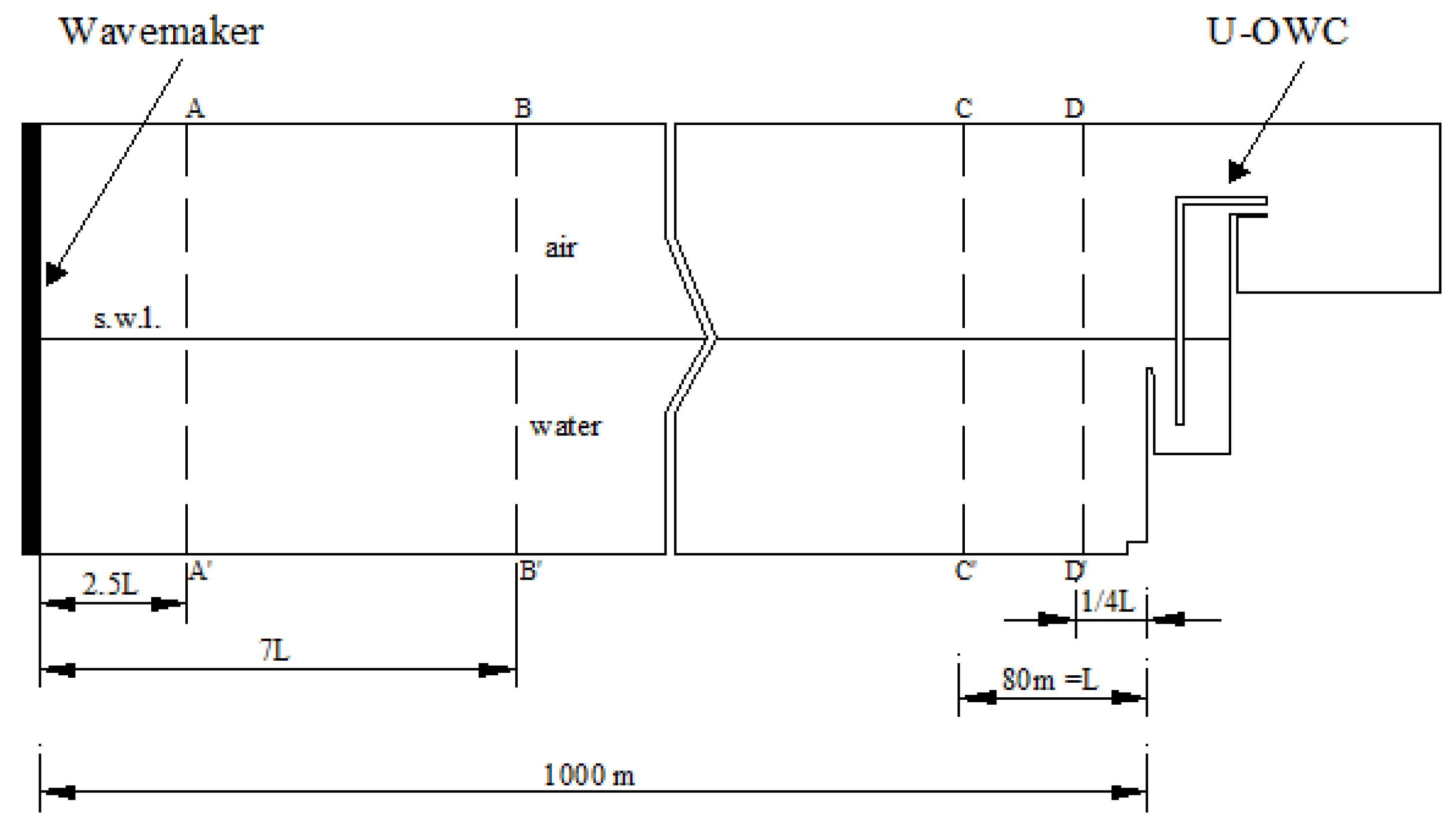

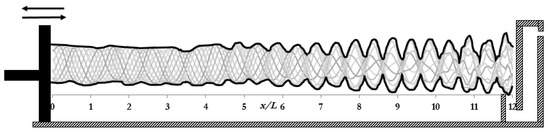

Sections $C{C}^{\prime }$ and $D{D}^{\prime }$ are utilized to evaluate the energy flux of the wave field in a time interval subsequent to the impact of the incoming wave train on the absorber. In order to understand the spatial inhomogeneities of the wave field along the flume, Figure 11 shows the overlap of the free surface displacement $\eta \left(t\right)$ along the whole flume for $25T<t<26T$, each $\Delta t=T/20$. As we can see, along a distance equal to 6 wavelengths starting from the wavemaker, the wave field is progressive. In the subsequent two wavelengths ($6L<x<8L$), there is the transition between the waves moving towards the U-OWC and the quasi-standing field expanding in the opposite direction. In the last 3–4 wavelengths of the flume, the quasi-standing wave field is fully developed.

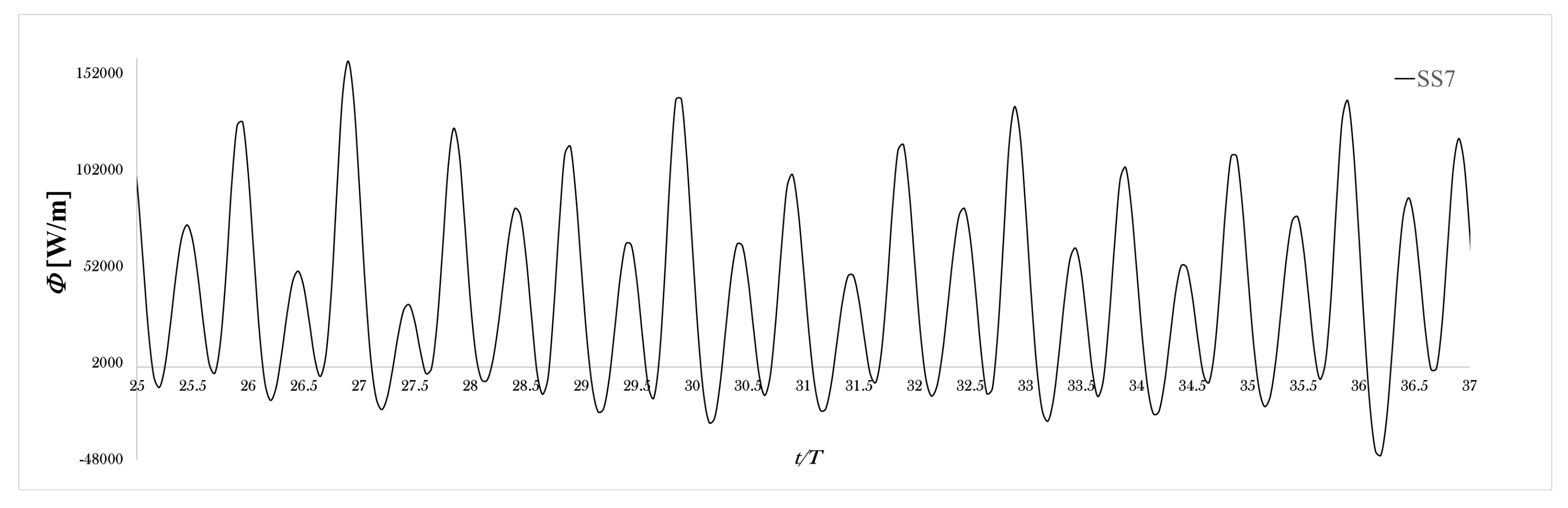

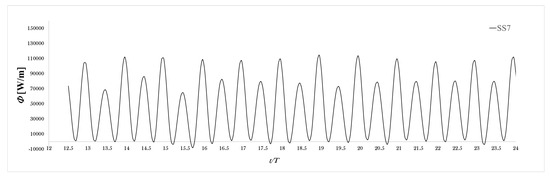

In the time interval shown in Figure 11, Section $B{B}^{\prime }$, located at $7L$ far from the wavemaker, is crossed by waves in transition between the progressive and the quasi-standing fields. Indeed, looking at the instantaneous energy flux in $B{B}^{\prime }$, shown in Figure 12, for the same time interval used in Figure 11, we can identify negative energy flux, because the energy emitted by the U-OWC adds to the reflected energy in some moments, becoming bigger than the incident energy flux, as we will see in more detail in the next section.

In the same way, the mean energy flux in those sections closest to the plant was evaluated ($C{C}^{\prime }$ and $D{D}^{\prime }$), and the results are summarized in

Table 4. Mean energy flux in the six sections of Figure 8, averaged in the time intervals shown in the fourth column.

SECT.	Absolute Position x [m]	Relative Position $\mathit{x}/\mathit{L}$	Time Interval	$\overline{\mathbf{\Phi }}$ [kW/m]	Wave Type
$A{A}^{\prime }$	200	2.5	6 T–12 T	52.5	progressive
$B{B}^{\prime }$	550	6.7	12 T–23 T	46.5	progressive
$B{B}^{\prime }$	550	6.7	25 T–36 T	37.0	transition zone
$C{C}^{\prime }$	920	11.25	25 T–36 T	27.7	quasi-standing
$D{D}^{\prime }$	980	12	25 T–36 T	29.2	quasi-standing

.

Note that the “wave type” column characterizes the nature of waves crossing the section indicated in the first column, during the time interval shown in the fourth column. A transient motion along the wave flume occurs near the head of both the incoming and the reflected wave trains. The first is the head of the progressive wave field generated by the wavemaker which propagates along the surface of the flume, which is initially at rest (i.e., for 3.5 $\le x/L\le$ 8 in Figure 5). The latter is the head of the reflected wave train, which superimposes the progressive wave (i.e., for 5 $\le x/L\le$ 7 in Figure 6). Progressive waves denote the periodic condition established after the passage of the head of the incoming waves or reflective waves, respectively. Summarizing, the mean energy flux of waves ($H=2.5\mathrm{m}$, $T=8\mathrm{s}$) ${\overline{\mathrm{\Phi }}}_{A{A}^{\prime }}$, generated by the wavemaker and flowing through section $A{A}^{\prime }$ is approximately equal to $52.5$ kW/m. For this sea state, the estimated wave energy flux ${\overline{\mathrm{\Phi }}}_{in}$ which would reach the U-OWC, is equal to 40.95 kW/m (Equation (34)). As we can see, this value is larger than the energy flux at section $D{D}^{\prime }$, because it represents the energy flux of the waves at section $D{D}^{\prime }$ in the absence of the plant, while the actual energy flux at section $D{D}^{\prime }$ (in the presence of the plant) is close to the energy absorbed by the plant. The energy equation applied in a control volume in front of the absorber can be written as [15]:

$${\overline{\mathrm{\Phi }}}_{in}-{\overline{\mathrm{\Phi }}}_{D{D}^{\prime }}=({\overline{E}}_{qd}-{\overline{E}}_{in})c_r,$$

(35)

where ${\overline{E}}_{in}$ is the mean energy per unit surface of the incident waves, ${\overline{E}}_{qd}$ is the mean energy per unit surface of the quasi-standing wave field, and $c_r$ is the group celerity of the quasi-standing wave field.

4.3. The Energy Flux of the Waves Close to the Absorber

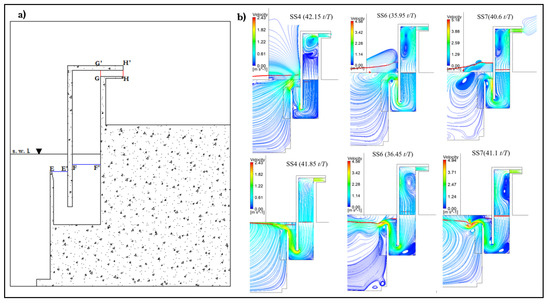

Figure 13b shows the water streamlines upstream and inside the absorber breakwater. As we can see, the wave field near the plant cannot be homogeneous in space. This is due to the fact that the wave discharge is distributed along a whole vertical section (e.g., in sections $A{A}^{\prime }$ and $B{B}^{\prime }$), while at the absorber, it is concentrated at the opening of the vertical duct (section $E{E}^{\prime }$ in Figure 13b). This implies that velocity streamlines lay along the exterior wall of the vertical duct, from the bottom up to its outer opening, where they abruptly turn inwards. In particular, the upper three snapshots show the time instant when the water exits the plant, occurs when there is a wave trough on the absorber wall. Conversely, during a wave crest, the flow enters the plant, as shown in the three snapshots of the lower panel.

In the vicinity of the U-OWC, every deviation of the streamlines produces large eddies and, consequently, a dissipation of energy. To quantify the mechanical energy associated with the water, air and turbine motions inside the U-OWC, we fixed three control volumes: in the U-conduit, in the plenum and in the duct containing the turbine. The first is enclosed between sections $E{E}^{\prime }$ and $F{F}^{\prime }$; the second, between sections $F{F}^{\prime }$ and $G{G}^{\prime }$ and finally, the third, between sections $G{G}^{\prime }$ and $H{H}^{\prime }$. Note that section $F{F}^{\prime }$ was chosen just below the minimum level of the air-water interface in the chamber (see Figure 13b).

4.4. The Captured Energy Flux

In the present work, we simulated three wave trains energetically equivalent to the sea states SS4, SS6 and SS7 reported in [7]. It is assumed that the turbine acts as a linear damper, with a damping factor $B_t=2\Delta p^{*}/U^{*}=4.834$, corresponding to the averaged value of a monoplane Wells turbine similar to the one designed by Curran and Gato [43]. For each sea state, the instantaneous wave energy flux absorbed by the plant ${\overline{\mathrm{\Phi }}}_{abs}={\overline{\mathrm{\Phi }}}_{E{E}^{\prime }}$, was evaluated at the horizontal cross-section on the outer opening of the vertical duct (section $E{E}^{\prime }$), by multiplying the pressure fluctuation by the volumetric flow rate.

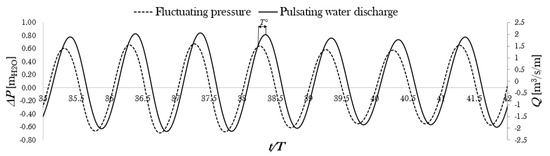

In Figure 14 the pressure fluctuation $\Delta p$, at the outer opening and the discharge Q in the plant, for the SS4 wave train ($H=1.4\mathrm{m}$, $T=6\mathrm{s}$) are shown.

The performance of the plant is strongly affected by resonance. The resonant coefficient R, is a useful index to check how close to resonance the plant is working. It is calculated, according to [44], starting from the phase difference $T^{\circ }$ (see Figure 14), between the water discharge Q, and the fluctuating wave pressure $\Delta p$, at the outer opening of the plant (section $E{E}^{\prime }$) as

$$R=T^{\circ }/4T,$$

(36)

T being the wave period. R ranges in (−1,1) and it is defined as positive if the pressure fluctuation anticipates the pulsating discharge, as in the case of Figure 14. Values of R lower than zero mean that the wave period is greater than the eigenperiod, whereas values larger than zero mean that the wave period is smaller than the eigenperiod. Values close to 0 mean that the plant is near to resonance.

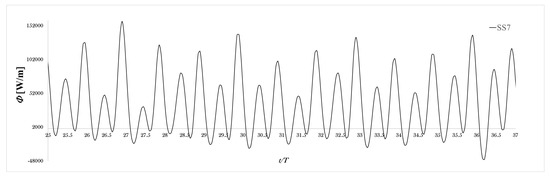

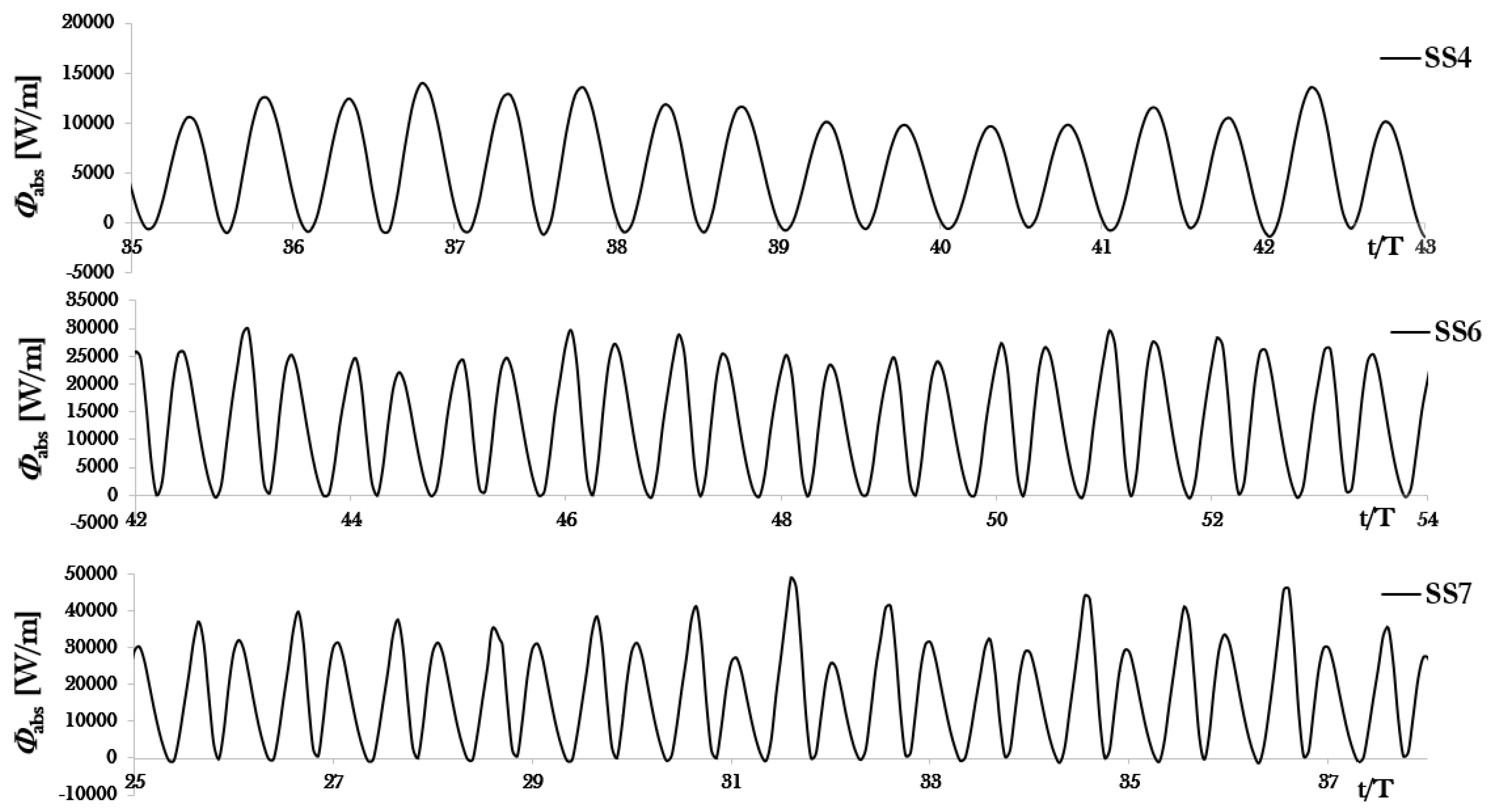

Figure 15 shows the instantaneous energy flux absorbed by the plant for each sea state.

The ratio between time-averaged values of ${\overline{\mathrm{\Phi }}}_{abs}$ and the estimated energy flux of incident waves ${\overline{\mathrm{\Phi }}}_{in}$, represents the absorption coefficient A. For instance, for the SS7 wave train, the mean estimated energy flux ${\overline{\mathrm{\Phi }}}_{in}$ of the incoming wave train is approximately equal to $40.95$ kW/m whereas the time average energy flux absorbed by the plant ${\overline{\mathrm{\Phi }}}_{abs}$, is about $16.45$ kW/m, which is about 40.2% of the mean estimated energy flux of the incoming wave train. Analogously, for the SS4 and SS6 wave trains, the absorption coefficients A, are 66.1% and 45.7%, respectively (see

Table 5. Summary of the simulations.

Wave Train	H	${\overline{\mathbf{\Phi }}}_{{\mathit{AA}}^{\prime }}$	${\overline{\mathbf{\Phi }}}_{{\mathit{BB}}^{\prime }}$	${\overline{\mathbf{\Phi }}}_{\mathit{in}}$	${\overline{\mathbf{\Phi }}}_{\mathit{abs}}={\overline{\mathbf{\Phi }}}_{{\mathit{EE}}^{\prime }}$	$\mathit{A}={\overline{\mathbf{\Phi }}}_{\mathit{abs}}/{\overline{\mathbf{\Phi }}}_{\mathit{in}}$	R	$\mathit{\beta }$
	[m]	[kW/m]	[kW/m]	[kW/m]	[kW/m]	[-]	[-]	[-]
SS4	1.4	11.05	9.6	7.9	5.23	66.1%	0.29	0.70
SS6	2.1	31.6	29.7	27.5	12.57	45.7%	−0.11	0.68
SS7	2.5	52.5	46.5	40.95	16.45	40.2%	−0.25	0.85

).

In Table 5, the summary of this calculation is shown. As reported by [44], R quantifies the difference between the wave period and the eigenperiod of the plant and, as previous described, it is as close to zero as the wave period is close to the eigenperiod of the absorber. In the same way, the absorption coefficient A, grows when the eigenperiod of the plant is closer to the wave period of the incident waves. However, as shown during the experiment on a small scale model of a U-OWC described by Boccotti et al. [15] (in Table 1), A is also influenced by the steepness of the incoming waves. In particular, at the same value $\left|R\right|$, A is larger the lower the steepness of waves.

4.5. The Hydraulic Power on the U-Duct

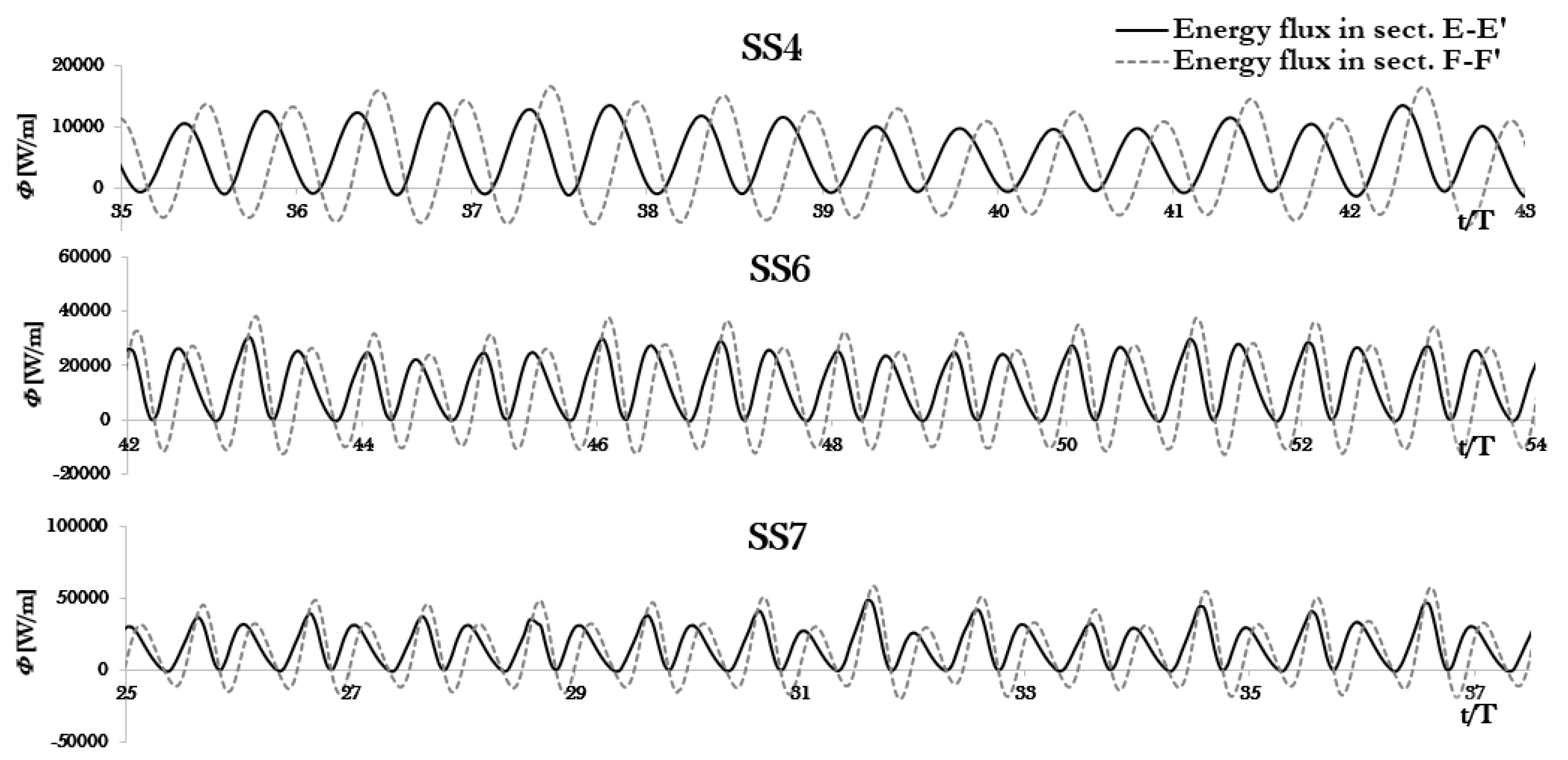

Figure 16 shows, for the three simulated wave trains, the instantaneous energy flux absorbed by the U-OWC measured at the cross-section $E{E}^{\prime }$ (continuous line), and the energy flux transmitted to the air mass (dashed line), computed at the cross-section $F{F}^{\prime }$. As we can see, the transmitted energy flux is delayed in time with respect to the instantaneous energy flux absorbed by the plant. The difference ${\mathrm{\Phi }}_{E{E}^{\prime }}\left(t\right)-{\mathrm{\Phi }}_{F{F}^{\prime }}\left(t\right)$ is equal to the time derivative of the kinetic energy inside the control volume plus the rate of energy dissipated by heat. Averaging this difference in a time interval of a length multiple of the period T, the difference between ${\overline{\mathrm{\Phi }}}_{E{E}^{\prime }}$ and ${\overline{\mathrm{\Phi }}}_{F{F}^{\prime }}$ is equal to the dissipated power, $L_w$ (i.e., the water energy losses), being that the mean kinetic energy contained in the control volume is constant. The fluid dynamic losses of the hydraulic current flowing in the U-conduit occur whenever there is a deviation of the streamlines, that are near the outer opening of the vertical duct and near the lower edge of the exterior wall of the chamber (see Figure 13a).

Furthermore, in our CFD simulations, air was considered as an ideal gas taking into account the compressibility effects. The loss due to the air compressibility [45], $L_a$, was evaluated as the difference of the average energy fluxes in section FF’ and GG’ (see Figure 16) which limit the air chamber.

Focusing on the wave train SS7, the energy flowing through section $E{E}^{\prime }$ (${\overline{\mathrm{\Phi }}}_{E{E}^{\prime }}=16.45$ kW/m), is mostly used to force the water flow to move the air mass in the chamber reducing its value in section $F{F}^{\prime }$ $\left({\overline{\mathrm{\Phi }}}_{F{F}^{\prime }}=12.58\mathrm{kW}/\mathrm{m}\right)$ by 23.5%. Similarly, for the wave trains SS4 and SS6, we have obtained a reduction of the mean energy flux of 22.5% and 26.2%, respectively. As said, these reductions represent the energy losses in water.

4.6. The Pneumatic Power

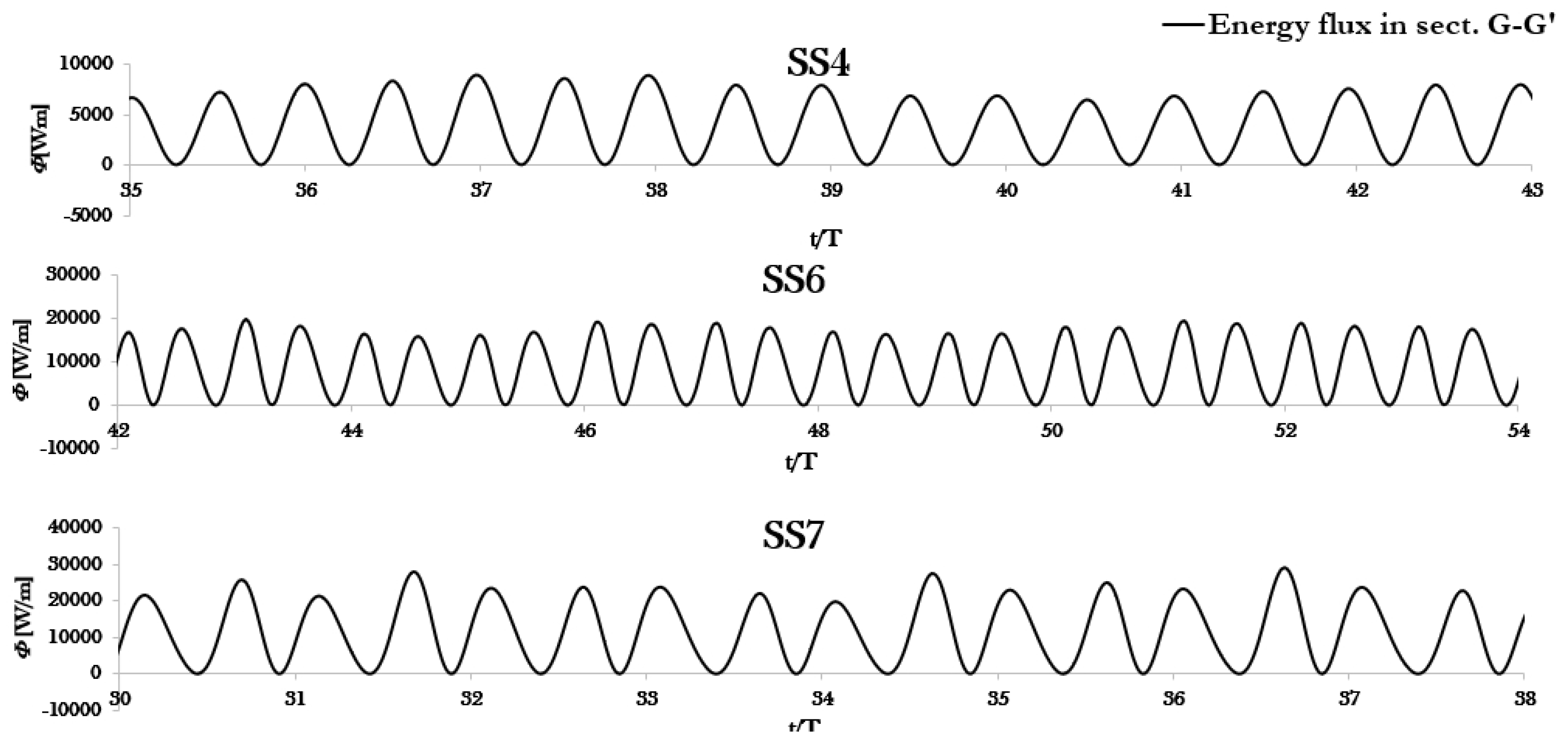

Figure 17 shows the same analysis illustrated in Figure 16, for the control volume included between cross-sections $G{G}^{\prime }$ and $H{H}^{\prime }$, chosen to evaluate the pneumatic power absorbed in the porous medium that reproduces the behavior of the Wells turbine. The energy flux across section $G{G}^{\prime }$ is evaluated by multiplying the fluctuating pressure by the volumetric air flow, neglecting the internal energy due to the temperature fluctuations. The power crossing section $G{G}^{\prime }$ is fully absorbed in the porous medium and, therefore it is zero at section $H{H}^{\prime }$, where the pressure is constant and equal to the atmospheric value. The pneumatic power $P_p$, acting on the Wells turbine can be obtained by multiplying the energy flux ${\overline{\mathrm{\Phi }}}_{G{G}^{\prime }}$ by the width $b^{\prime }$ of one absorbing chamber, which the turbine is connected to. In other words, we have ${\overline{\mathrm{\Phi }}}_{G{G}^{\prime }}={\overline{P}}_p/b^{\prime }$.

4.7. The Turbine Shaft Power

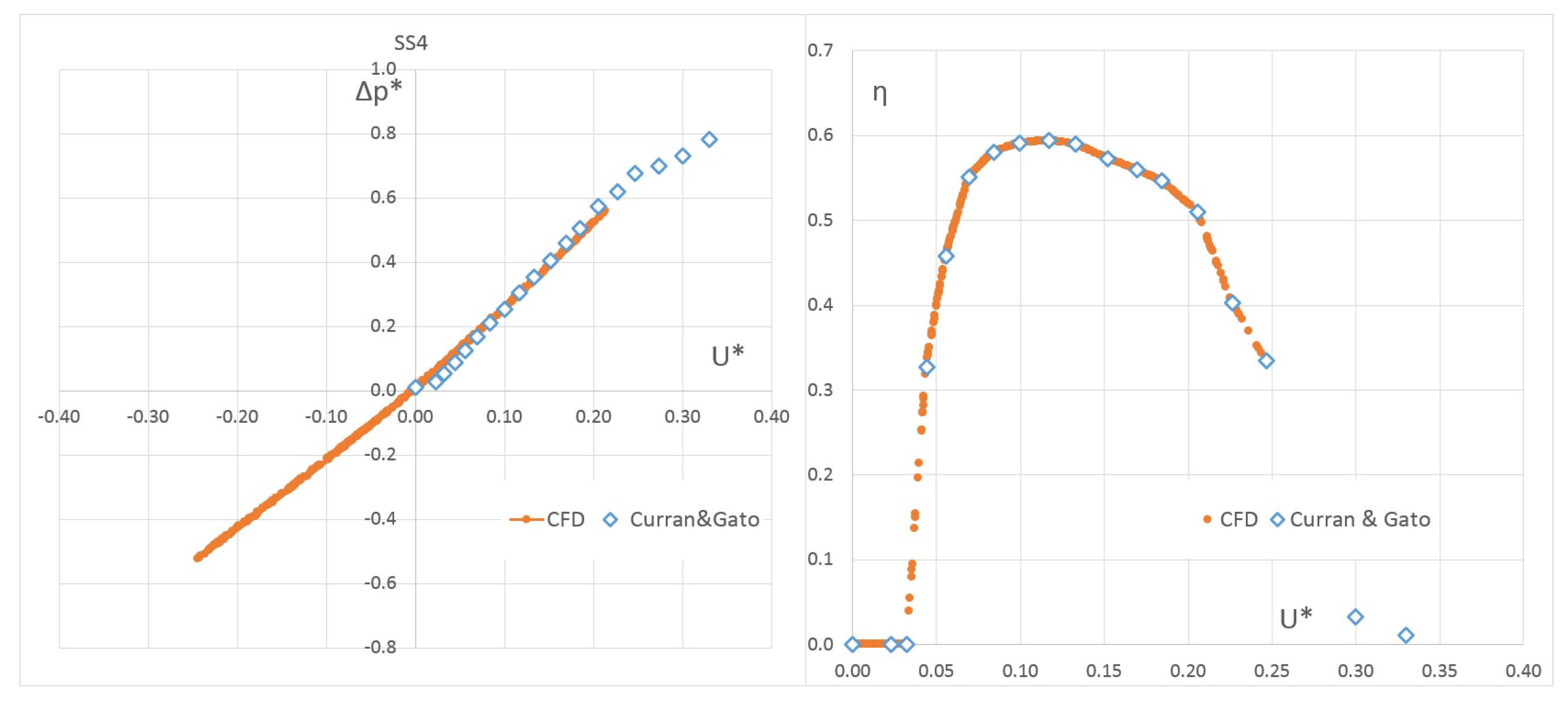

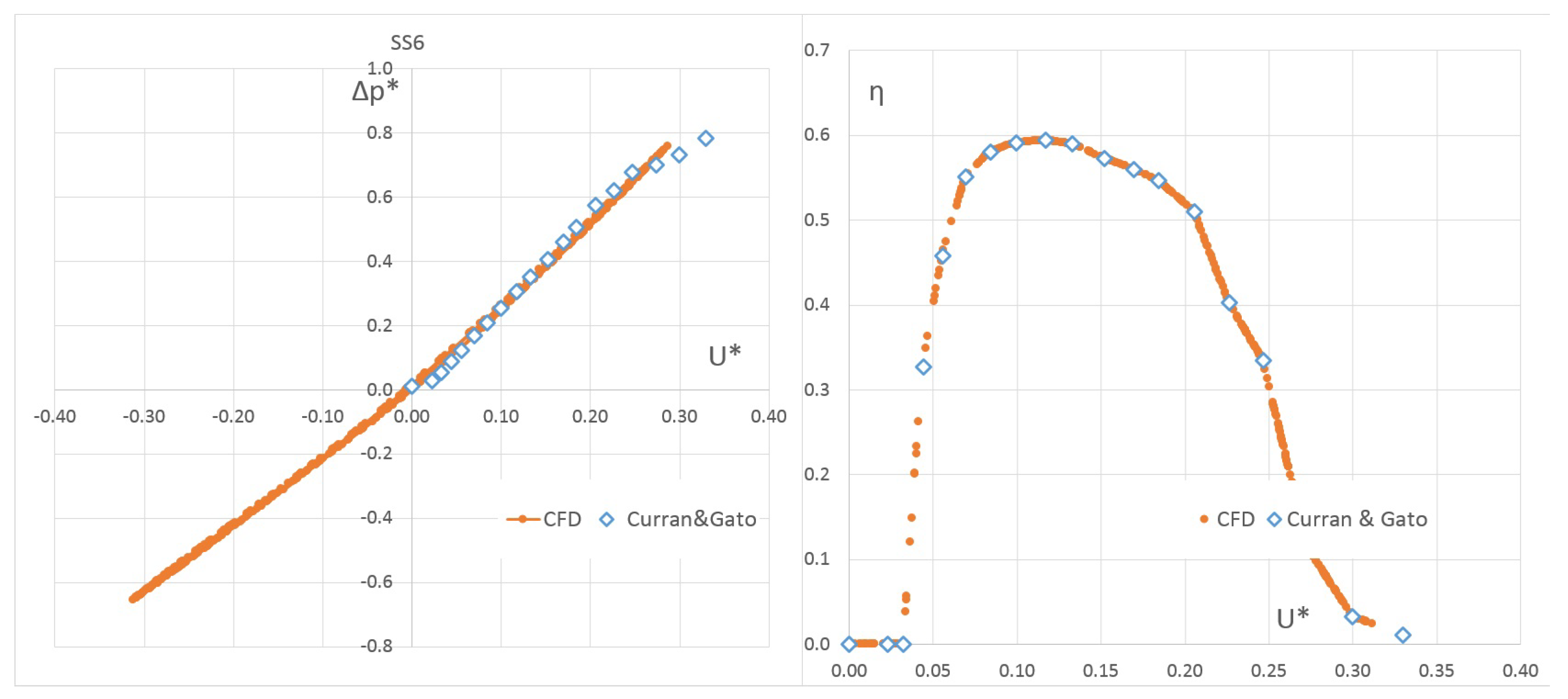

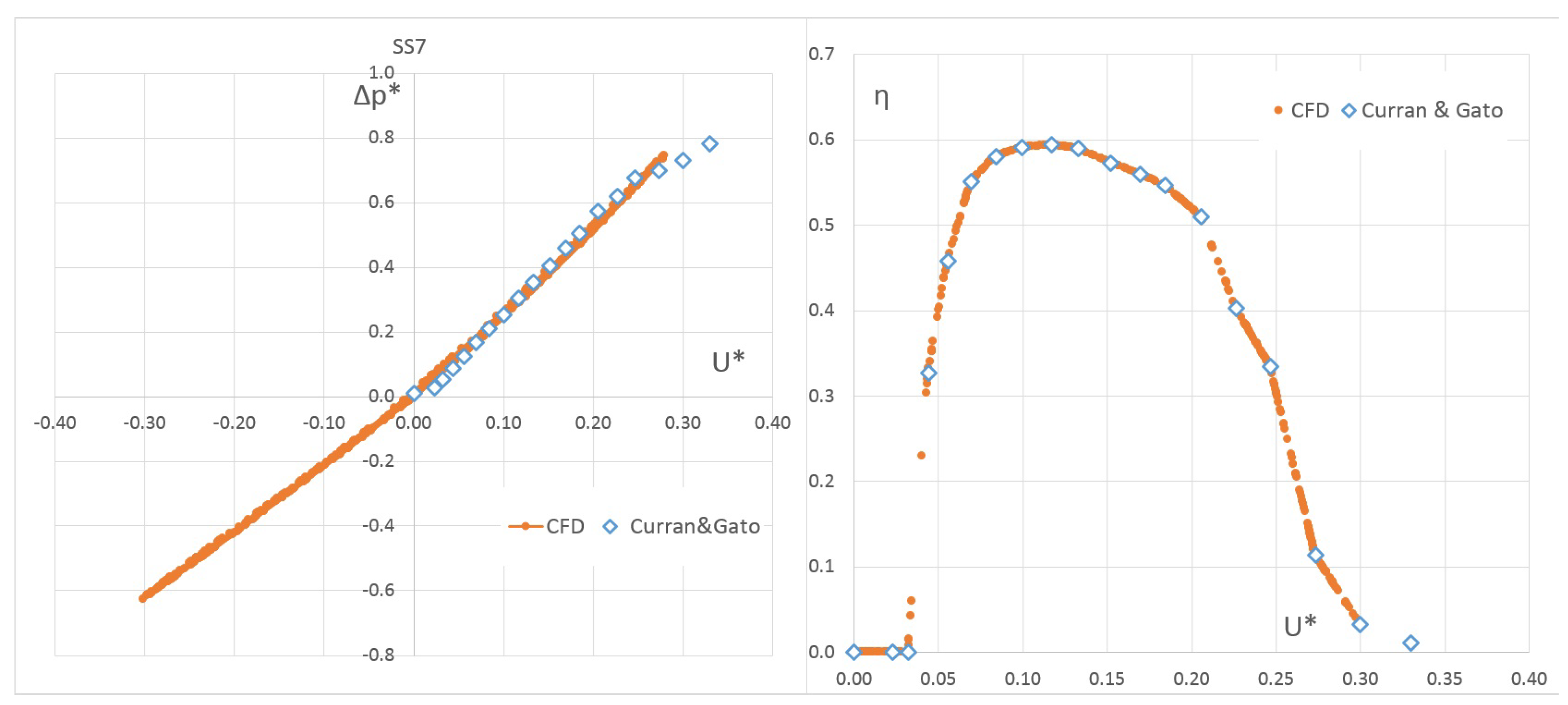

In order to estimate the average shaft power, the Wells turbine installed into the U-OWC is supposed to be equivalent (in terms of non-dimensional characteristics: $T^{*}$, $\Delta p^{*}$ and $\eta$, vs. $U^{*}$) to the monoplane studied by Curran and Gato [43].

In order to guarantee the desired $R_v$ value, a turbine with a tip radius $R_{tip}=0.41\mathrm{m}$ was considered, and for each wave train the rotational speed has been opportunely modified (see

Table 6. Viscous coefficient in the equivalent porous medium.

Wave Train	n$\left[\mathbf{rpm}\right]$	${\mathit{R}}_{\mathit{v}}$ [1/m${}^2$]
SS4	2129	5472 $\times {10}^4$
SS6	2330	5990 $\times {10}^4$
SS7	2608	6704 $\times {10}^4$

).

Under the previous hypothesis, the instantaneous turbine shaft power was easily computed. At each time step, the flow coefficient across the Wells turbine was evaluated by considering the mass flow rate across the equivalent porous medium (Figure 18, Figure 19 and Figure 20). With the computed $U^{*}$ (by means of a simple interpolation of the experimental data of Curran and Gato [43]) it was possible to evaluate the turbine efficiency $\eta =\eta \left(U^{*}\right)$, and hence the shaft power by multiplying the pneumatic power $(P_{\pi }=Q\Delta p)$ by the efficiency $\eta$:

$$P_t={\eta }_{t}Q\Delta p.$$

(37)

Then, averaging over a finite number of periods, the average power outpt can be obtained.

Table 7. Summary of the average power and efficiency for each simulation.

Wave Train	${\overline{\mathbf{\Phi }}}_{\mathit{in}}$	${\overline{\mathbf{\Phi }}}_{{\mathit{EE}}^{\prime }}$ = ${\overline{\mathbf{\Phi }}}_{\mathit{abs}}$	${\overline{\mathbf{\Phi }}}_{{\mathit{FF}}^{\prime }}$	${\mathit{L}}_{\mathit{w}}$/${\overline{\mathbf{\Phi }}}_{{\mathit{EE}}^{\prime }}$	${\overline{\mathbf{\Phi }}}_{{\mathit{GG}}^{\prime }}={\overline{\mathit{P}}}_{\mathit{\pi }}/{\mathit{b}}^{\prime }$	${\mathit{L}}_{\mathit{a}}$/${\overline{\mathbf{\Phi }}}_{{\mathit{FF}}^{\prime }}$	${\overline{\mathit{\eta }}}_{\mathit{t}}$	${\overline{\mathit{P}}}_{\mathit{t}}/{\mathit{b}}^{\prime }$
-	[kW/m]	[kW/m]	[kW/m]	-	[kW/m]	-	-	[kW/m]
SS4	7.9	5.23	4.03	22.5%	3.72	5.9%	48%	2.04
SS6	27.5	12.57	9.28	26.2%	8.66	6.7%	40%	3.27
SS7	40.95	16.45	12.58	23.5%	11.79	6.3%	42%	4.67

summarizes the energy conversion process inside the U-OWC device starting from the average energy flux absorbed by the U-OWC, measured at the cross-section $E{E}^{\prime }$, ${\overline{\mathrm{\Phi }}}_{E{E}^{\prime }}={\overline{\mathrm{\Phi }}}_{abs}$, and ending with the output power of the turbine, $P_t$. Due to the water power losses, $L_w$, at the cross-section $F{F}^{\prime }$, the WEC experiences the first significant reduction (ranging from 22.5% for the SS4 to 26.2% for the SS6 of ${\overline{\mathrm{\Phi }}}_{E{E}^{\prime }}$). Due to the adiabatic non-isentropic thermodynamic transformations experienced cyclically by the air inside the plenum chamber, a further loss (ranging from 5.9% for the SS4 to 6.7% for the SS6 of ${\overline{\mathrm{\Phi }}}_{F{F}^{\prime }}$), indicated as $L_a$, reduces the average energy flux at the cross-section $G{G}^{\prime }$, ${\overline{\mathrm{\Phi }}}_{G{G}^{\prime }}$, which is equal to the average pneumatic power ${\overline{P}}_{\pi }/b^{\prime }$. Finally, taking into account the turbine performance, it can be shown that the average turbine power output, $\overline{P_t}$, ranges from 40% for the SS6 to 48% for the SS4 of the average pneumatic power, ${\overline{P}}_{\pi }$.

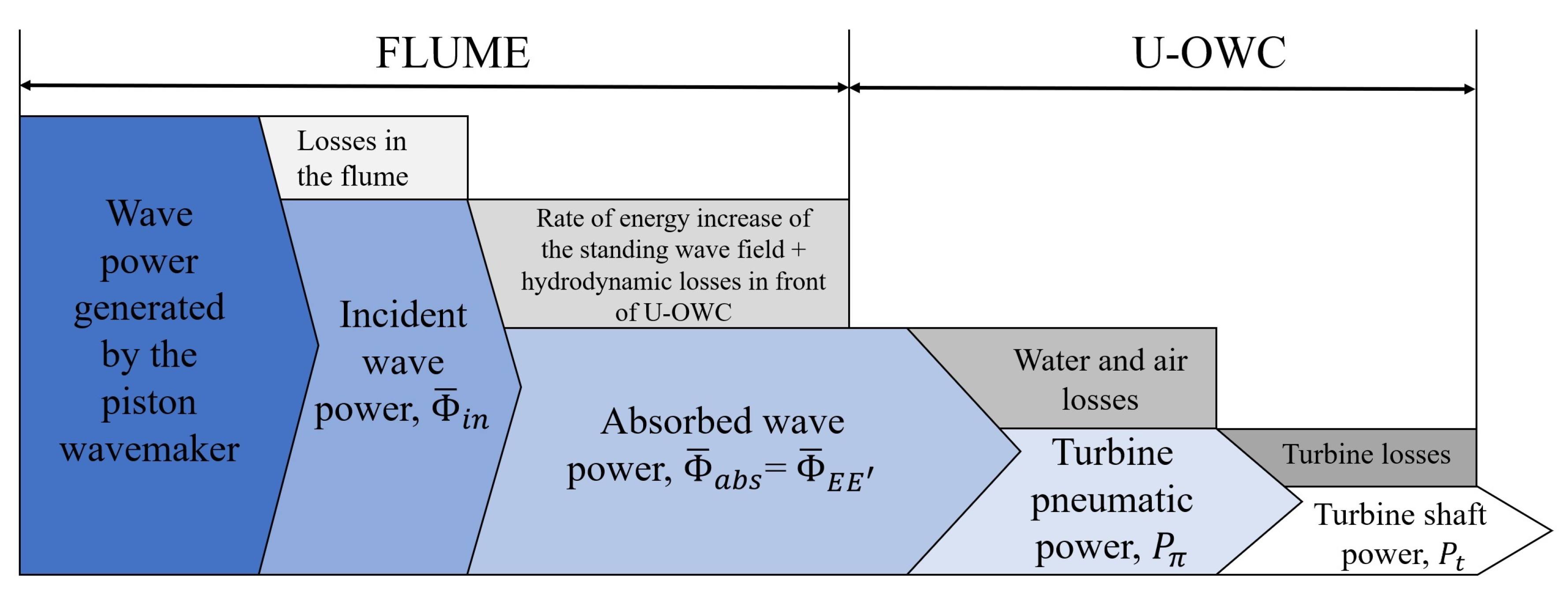

Figure 21 shows the graphical representation of the evolution of the wave power from the generation to the turbine shaft. As we can see, part of the wave power generated by the wavemaker is dissipated during the propagation of the waves along the flume. A share of the energy flux, which reaches the plant (i.e., the incident wave power, ${\mathrm{\Phi }}_{in}$), is spent to increase the energy density of the quasi standing wave field in front of the plant and partially wasted due to hydrodynamic losses (see Equation (35)). The energy flux captured by the plant, ${\mathrm{\Phi }}_{E{E}^{\prime }}$ is partially dissipated by minor losses in the motion of the water inside the U-duct, and in the plenum chamber. The turbine shaft power $P_t$, is the pneumatic power $P_{\pi }$, multiplied by the turbine efficiency ${\eta }_t$.

5. Conclusions

A numerical experiment to investigate the energy conversion process from wave to wire of a WEC was presented. The plant belongs to the family of OWCs, even if it is different from conventional plants, due to the presence of an additional vertical duct in front of the wave beaten wall, and connected to the plenum chamber, actually forming a U-duct. Due to this specific configuration, waves cannot enter the plant; therefore, the water motion inside it is like a pipe flow. However, this solution implies both advantages and disadvantages. An advantage is that the outer opening of the vertical duct is closer to the water surface where the pressure fluctuations are larger. However, the U-shape configuration increases the fluid dynamics of minor losses due to abrupt changes in the direction of the water motion. The paper quantifies these losses, simulating the operating conditions of a U-OWC under the action of three different periodic wave trains. The wave sizes are chosen to investigate the plant working near resonance. The PTO system is simulated using an original approach, which utilizes a porous medium in the air duct containing the turbine. The area and the pressure drop across the porous medium are set in order to have the same air discharge and pressure drop across the turbine. The results confirm this model’s success at reproducing the given turbine characteristic curves. The CFD simulations were carried out by means of the commercial CFD code Ansys Fluent v.17, using a Volume of Fluid model to simulate the multiphase flow. The U-OWC breakwater installed in the Civitavecchia’s harbor (Italy) was put in a 2D numerical flume. The energy conversion was analyzed, starting from the generated wave power to the turbine shaft, taking into account the energy dissipation step by step. First of all, we estimated the wave power dissipated along the 1 km flume, with the aim to quantify the actual wave energy which hits the absorber wall. This evaluation can be only carried out supposing a constant-rate energy dissipation along the flume, being that the evaluation of the incident wave energy near the plant is impossible, due to the interaction with the plant itself. Secondly, we evaluated the energy flux captured by the plant and consequently the absorbed coefficient of the plant, is that the latter is the share of the incident wave power captured by the plant. We focused our attention on the amount of energy lost from the plant entrance to the turbine duct. Analyzing the energy conversion process in-depth, for instance considering the SS7 wave train, we found that about $1/3$ of the energy loss occurs in the water motion, because of the presence of large eddies at the outer opening of the vertical duct and near the lower edge of the exterior wall of the chamber. Therefore, nearly 66% of the absorbed energy is converted into pneumatic power which is made available in the turbine duct. Finally, looking at the streamlines colored by the velocity magnitude (Figure 13a), it appears evident that the shape of the plant could be optimized, in order to reduce the vortices and consequently, to reduce the energy losses in water.
