Design and Implementation of a Hybrid Single T-Type Double H-Bridge Multilevel Inverter (STDH-MLI) Topology

1
Center of Research Excellence in Renewable Energy and Power Systems, King Abdulaziz University, Jeddah 21589, Saudi Arabia
2
Department of Electrical and Computer Engineering, Faculty of Engineering, King Abdulaziz University, Jeddah 21589, Saudi Arabia
3
Power Electronics and Renewable Energy Research Laboratory, Department of Electrical Engineering, University of Malaya, Kuala Lumpur 50603, Malaysia
4
Department of Electrical Engineering, Faculty of Engineering, King Abdulaziz University, Rabigh 25732, Saudi Arabia
5
School of Software and Electrical Engineering, Swinburne University of Technology, Melbourne 3122, VIC, Australia
6
School of Engineering, Deakin University, Geelong 3216, VIC, Australia
*
Authors to whom correspondence should be addressed.
Energies 2019, 12(9), 1810; https://doi.org/10.3390/en12091810
Received: 23 March 2019 / Revised: 2 May 2019 / Accepted: 3 May 2019 / Published: 13 May 2019

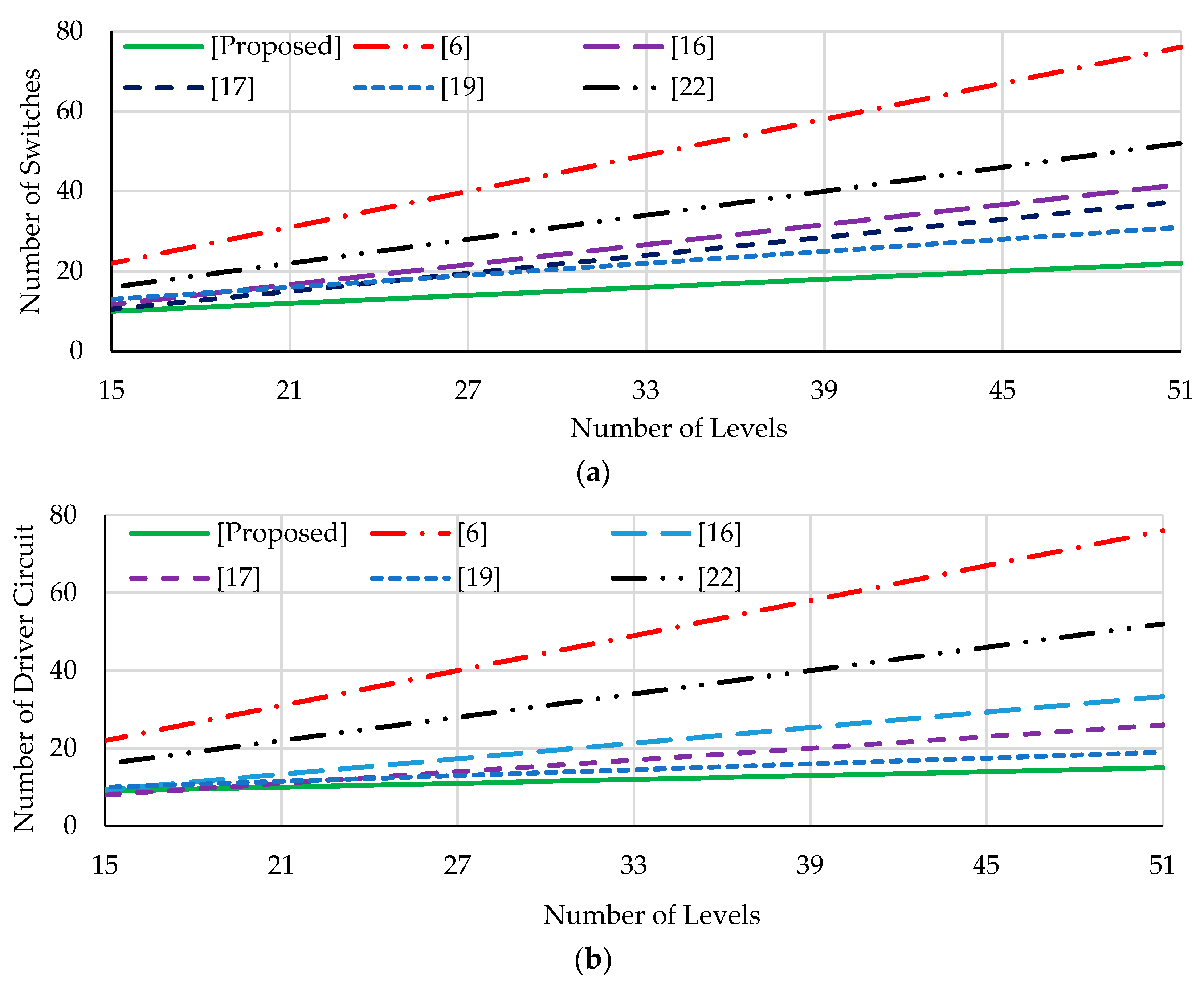

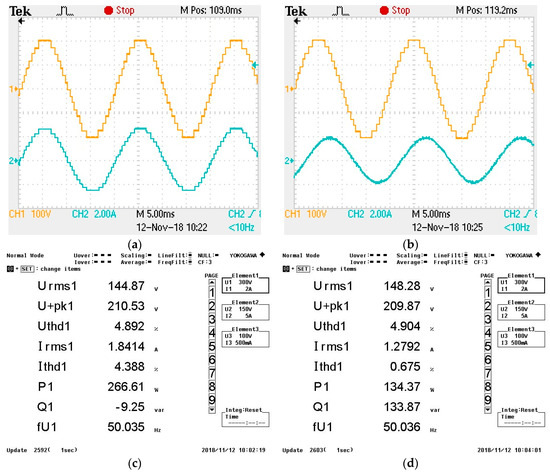

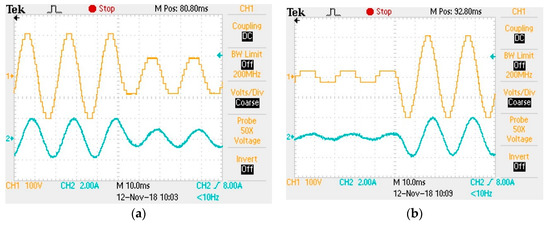

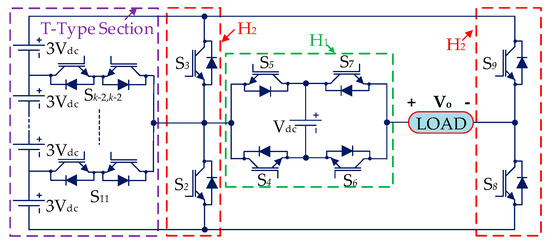

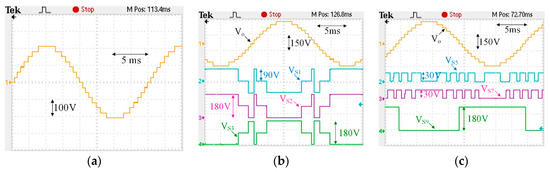

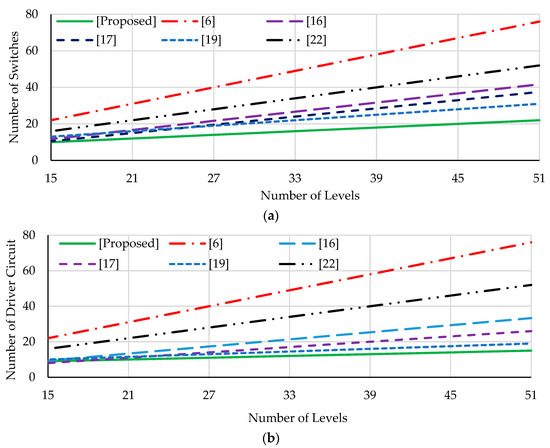

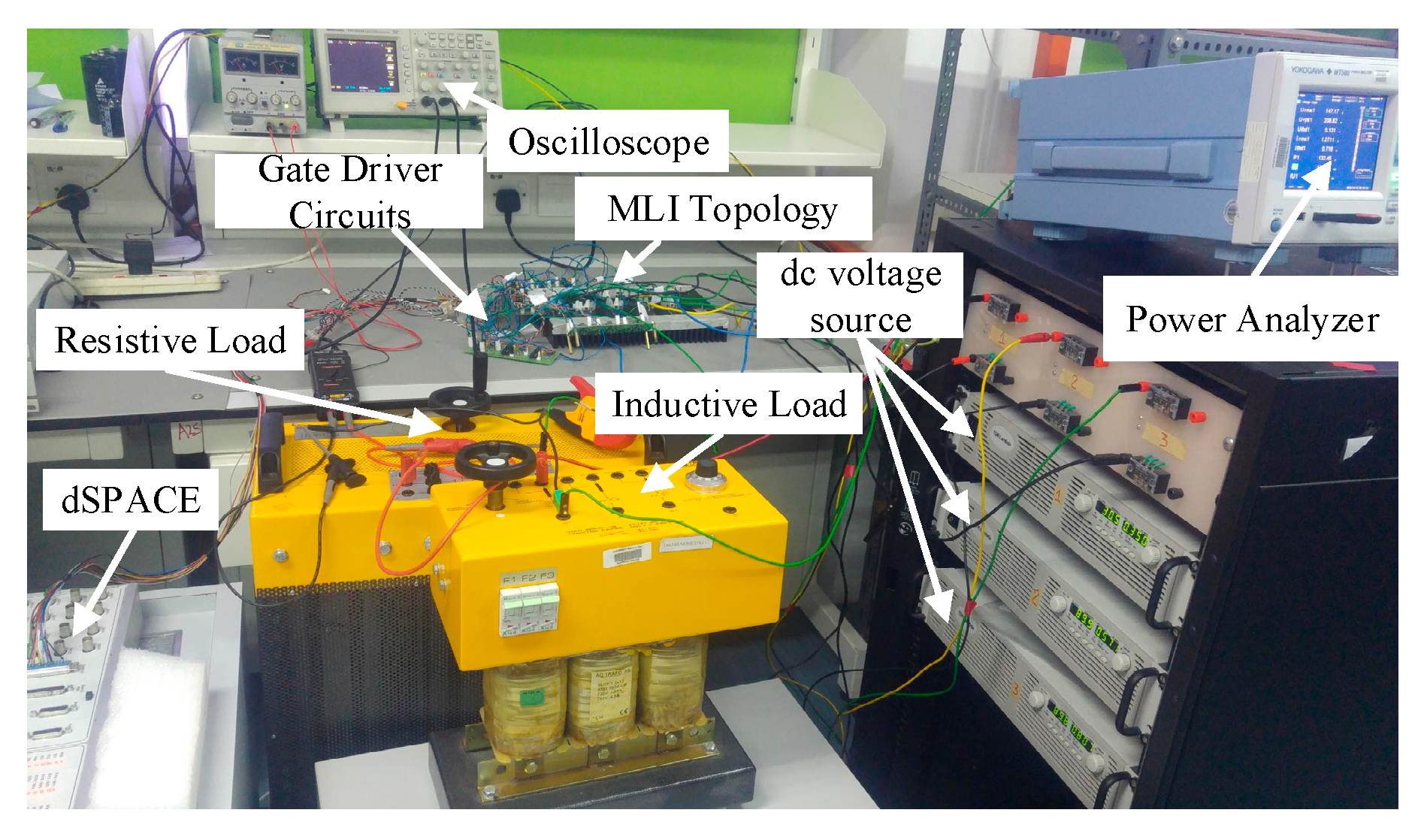

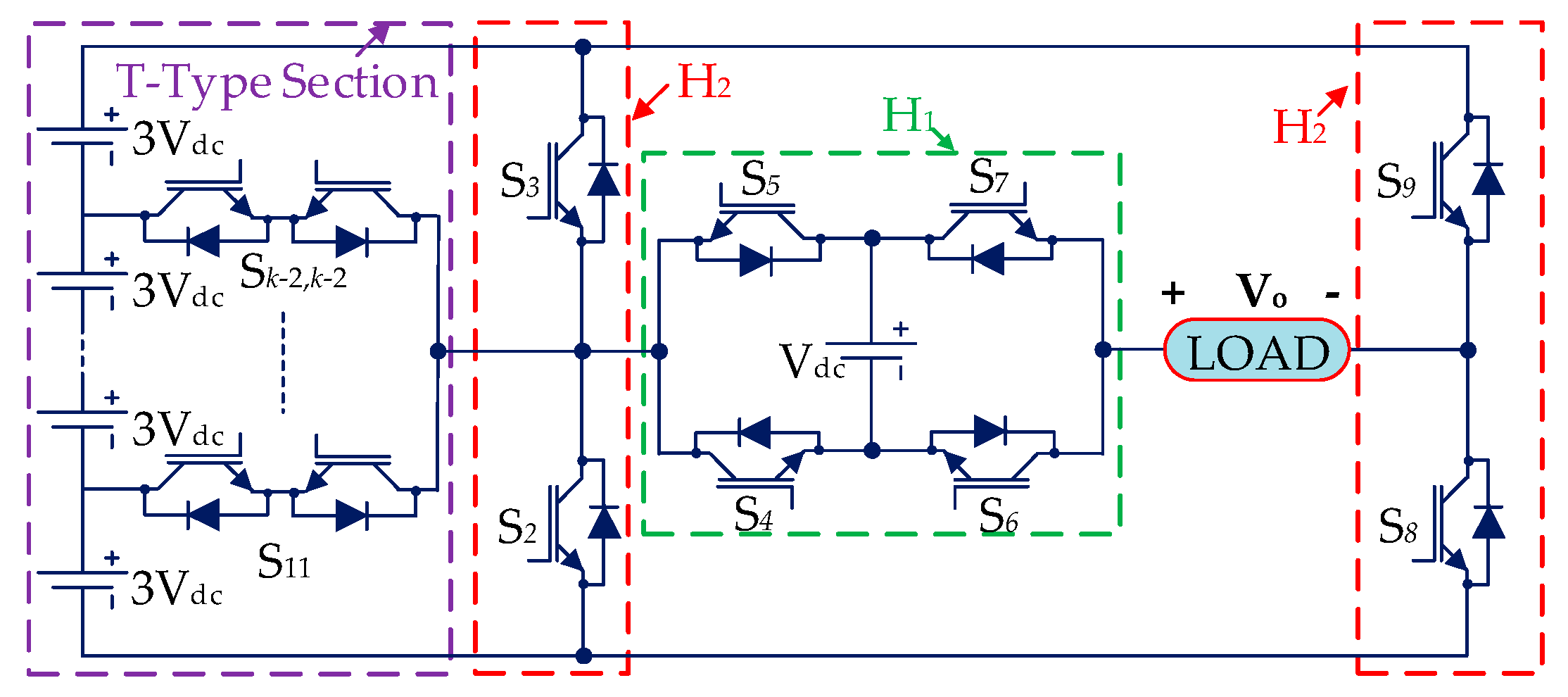

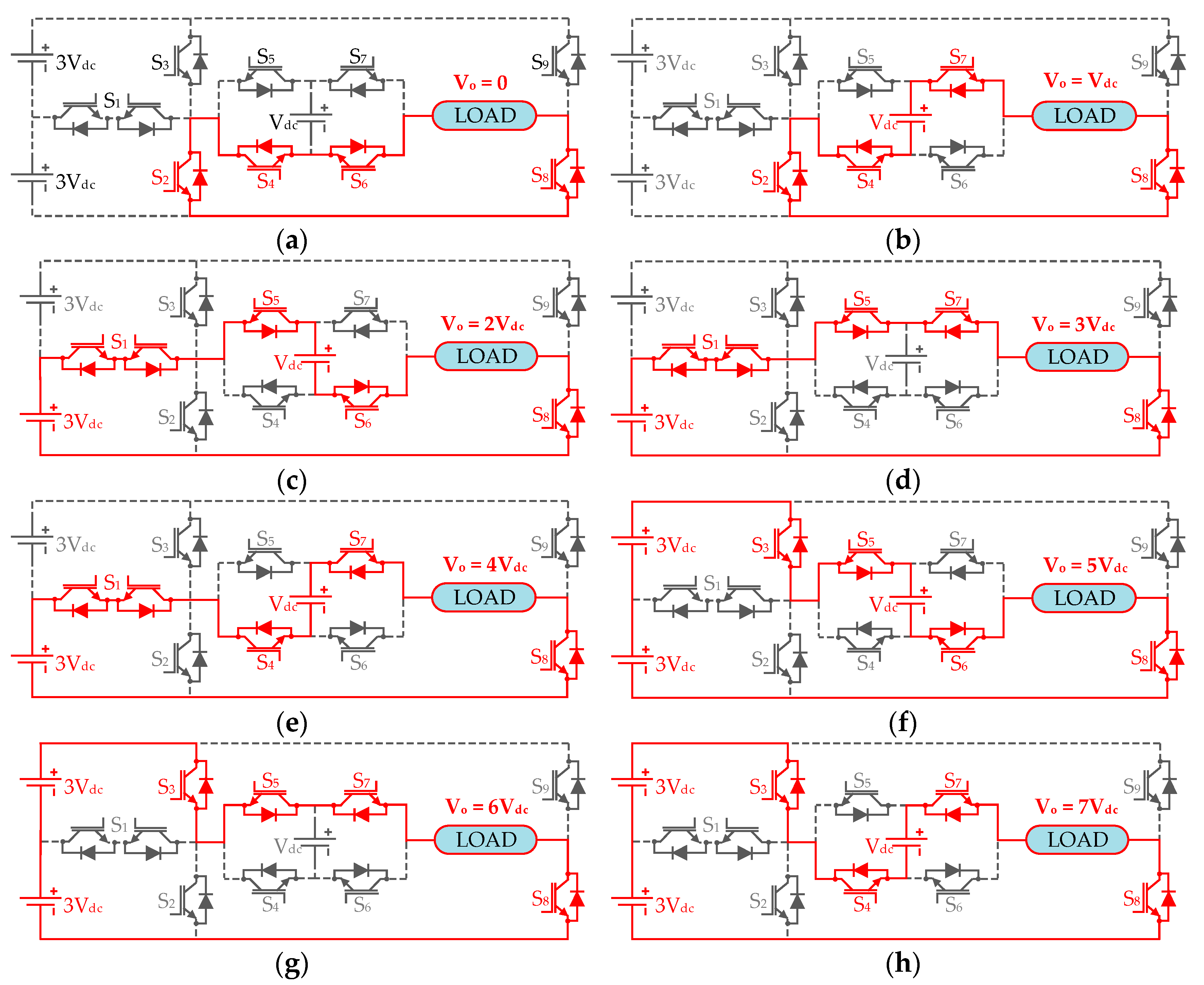

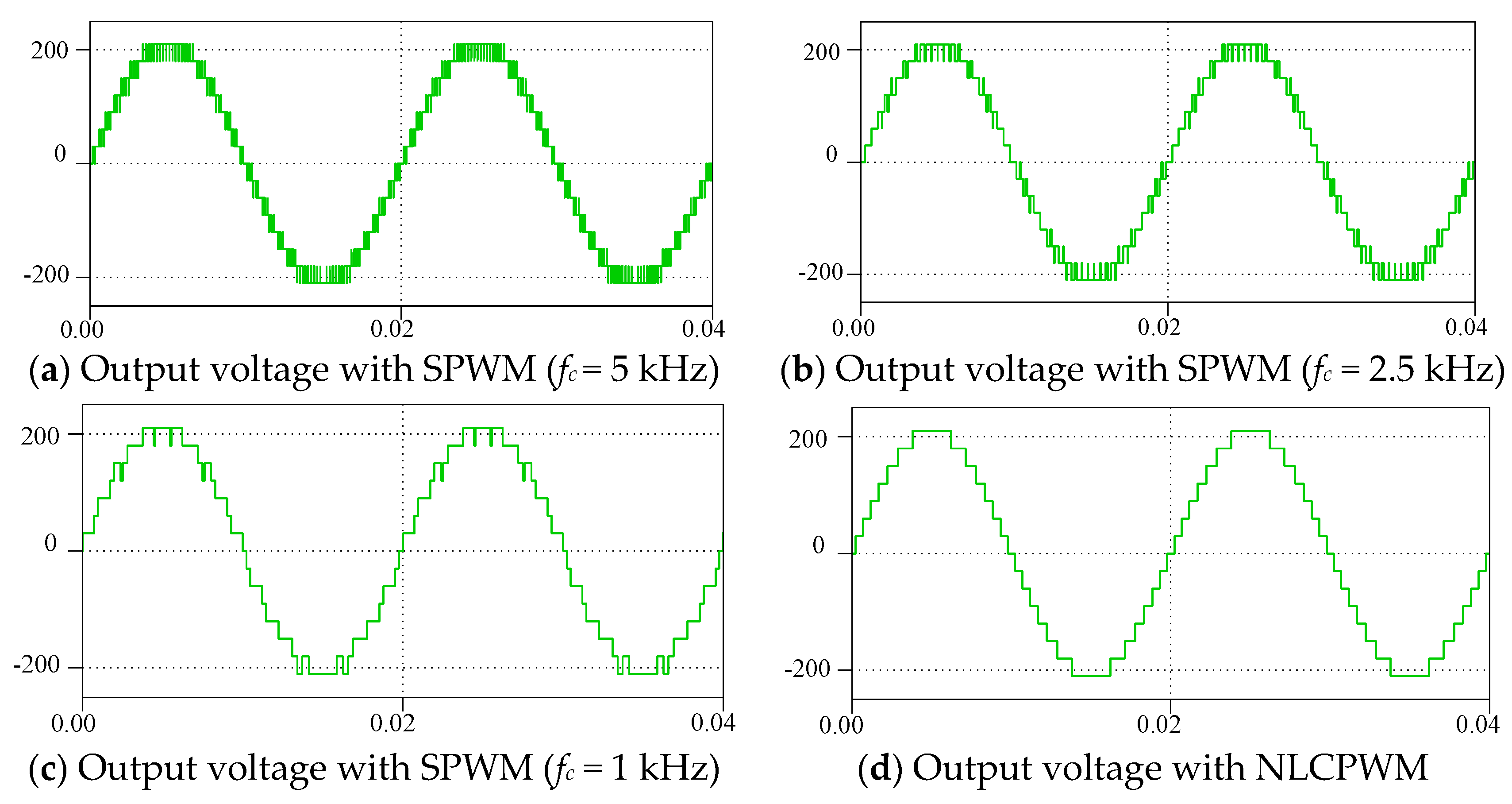

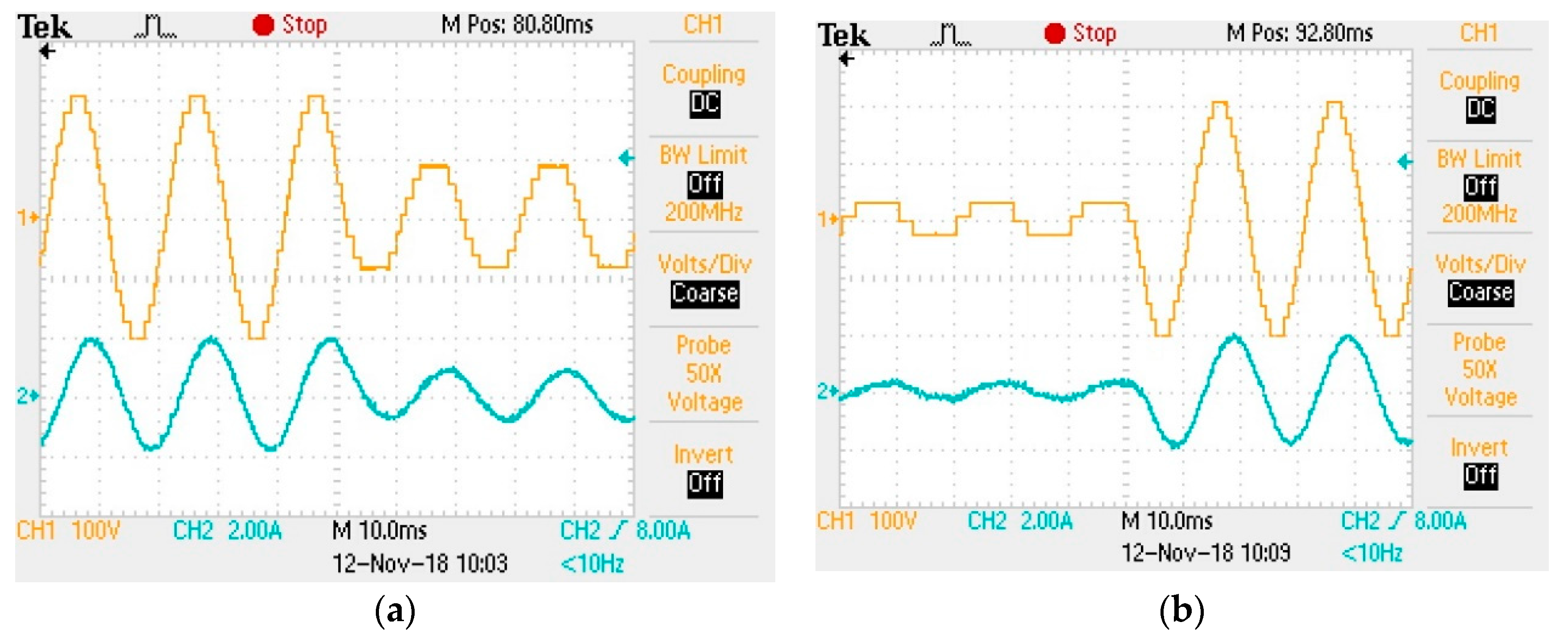

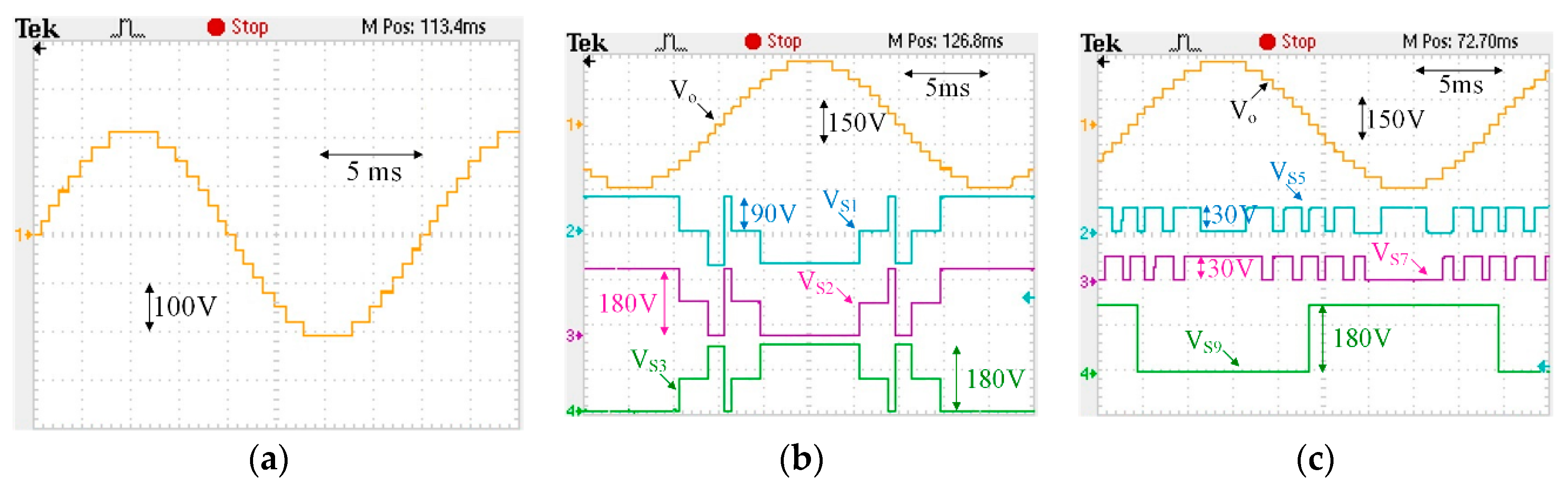

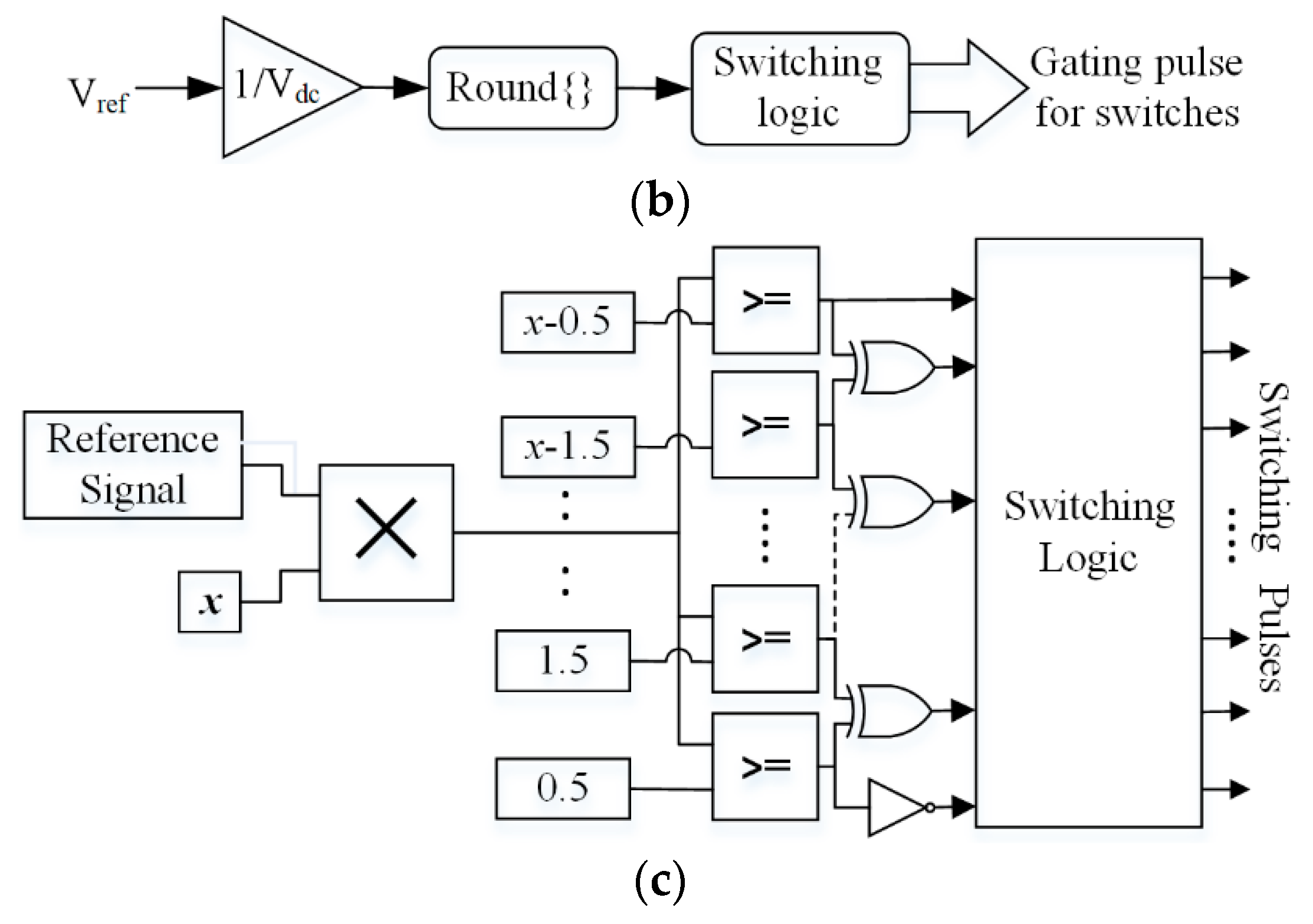

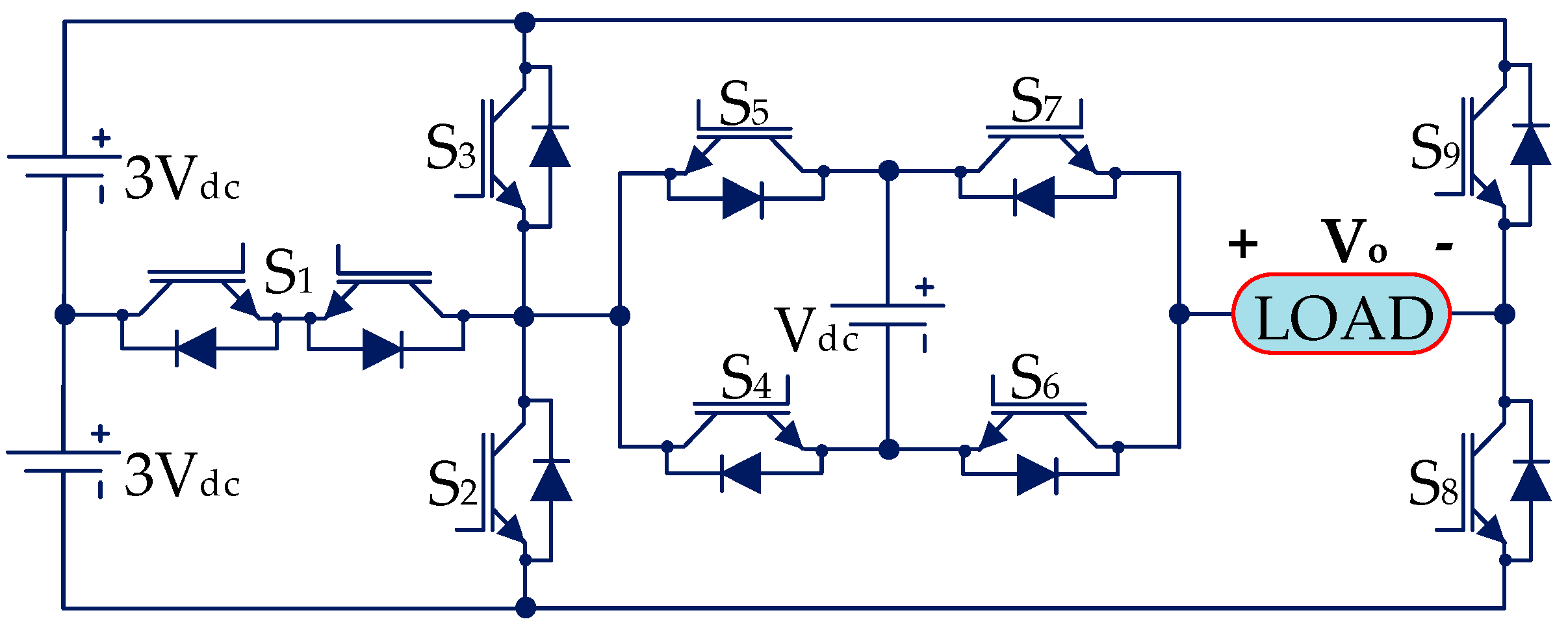

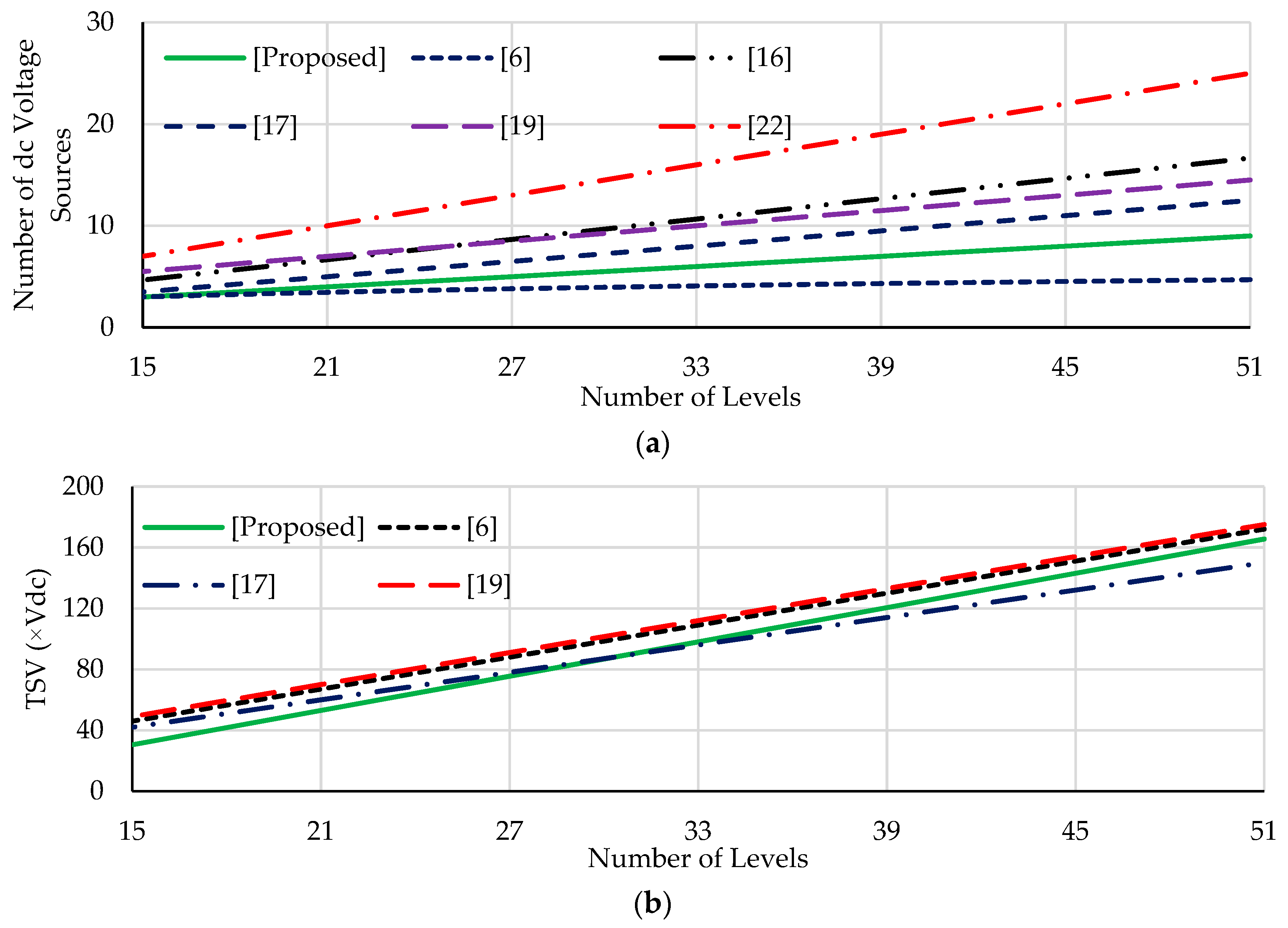

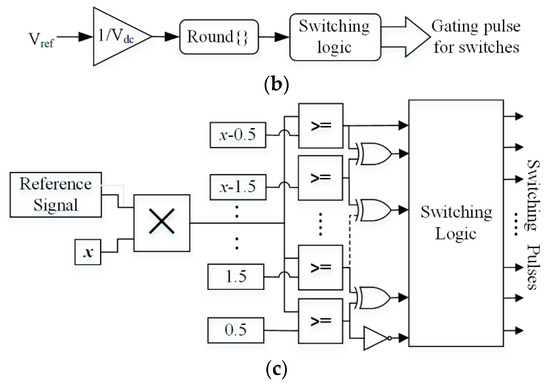

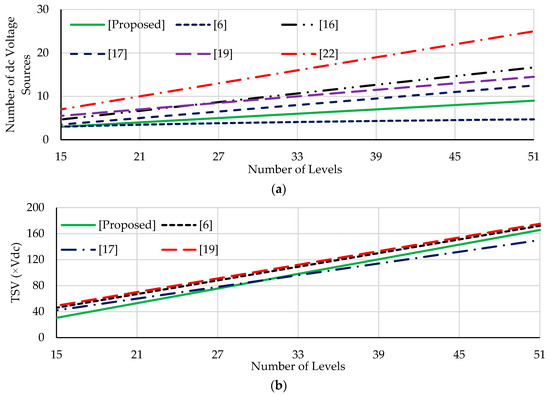

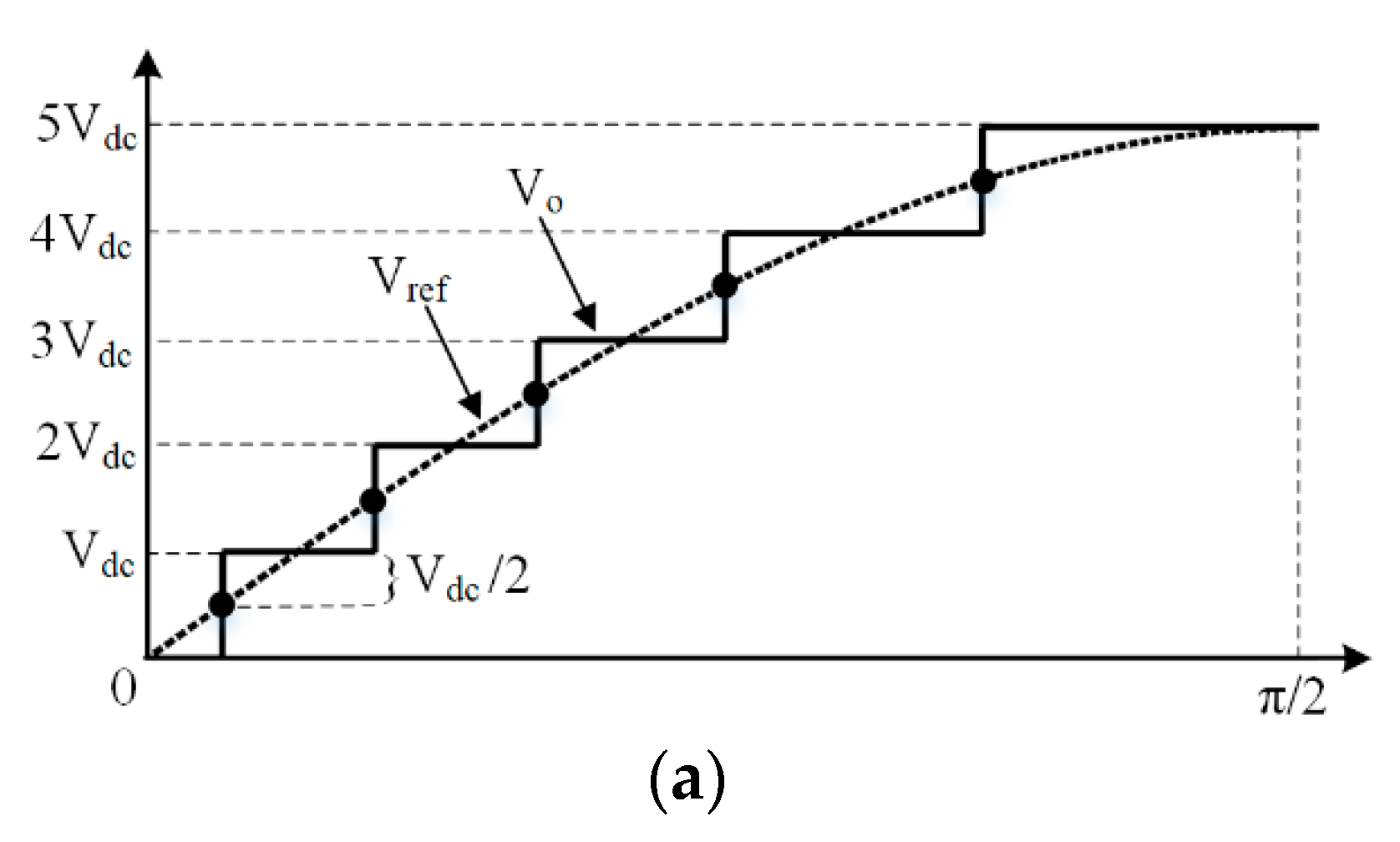

Multilevel inverters are proficient in achieving a high-quality staircase output voltage waveform with a lower amount of harmonic content. In this paper, a new hybrid multilevel inverter topology based on the T-type and H-bridge module is presented. The proposed topology aims to achieve a higher number of levels utilizing a lower number of switches, direct current (dc) voltage sources, and voltage stresses across different switches. The basic unit of the proposed single T-type and double H-bridge multilevel inverter (STDH-MLI) produces 15 levels at the output using three dc voltage sources. The proposed topology can be extended by connecting a larger number of dc voltage sources in the T-type section. The nearest level control (NLC) switching technique is used to generate gate pulses for switches to achieve a high-quality output voltage waveform. In addition, a simplified way to achieve NLC is also described in the paper. A detailed comparison with other similar topologies is provided to set the benchmark of the proposed topology. Finally, experimental work is carried out to validate the performance of the proposed topology. View Full-Text
Keywords: H-bridge; hybrid inverter; multilevel inverter; nearest level control; pulse width modulation (PWM); T-type; reduced switch count; PLECS H-bridge; hybrid inverter; multilevel inverter; nearest level control; pulse width modulation (PWM); T-type; reduced switch count; PLECS
Show Figures

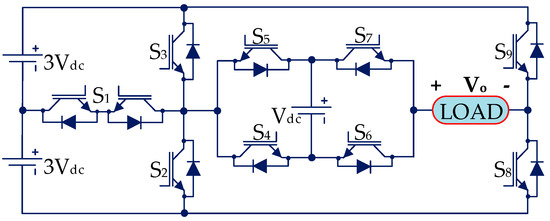

Figure 1

MDPI and ACS Style

Rawa, M.; Siddique, M.D.; Mekhilef, S.; Mohamed Shah, N.; Bassi, H.; Seyedmahmoudian, M.; Horan, B.; Stojcevski, A. Design and Implementation of a Hybrid Single T-Type Double H-Bridge Multilevel Inverter (STDH-MLI) Topology. Energies 2019, 12, 1810.
