Energies 2019, 12(8), 1432; https://doi.org/10.3390/en12081432

Heat-Transfer Characteristics of Liquid Sodium in a Solar Receiver Tube with a Nonuniform Heat Flux

1
School of Chemical Engineering, Kunming University of Science and Technology, Kunming 650500, China
2
State Key Laboratory of Multiphase Flow in Power Engineering, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Received: 7 March 2019 / Revised: 10 April 2019 / Accepted: 11 April 2019 / Published: 14 April 2019
(This article belongs to the Special Issue Research on Solar Collector)
  |
PDF [3569 KB, uploaded 14 April 2019]
  |

Abstract

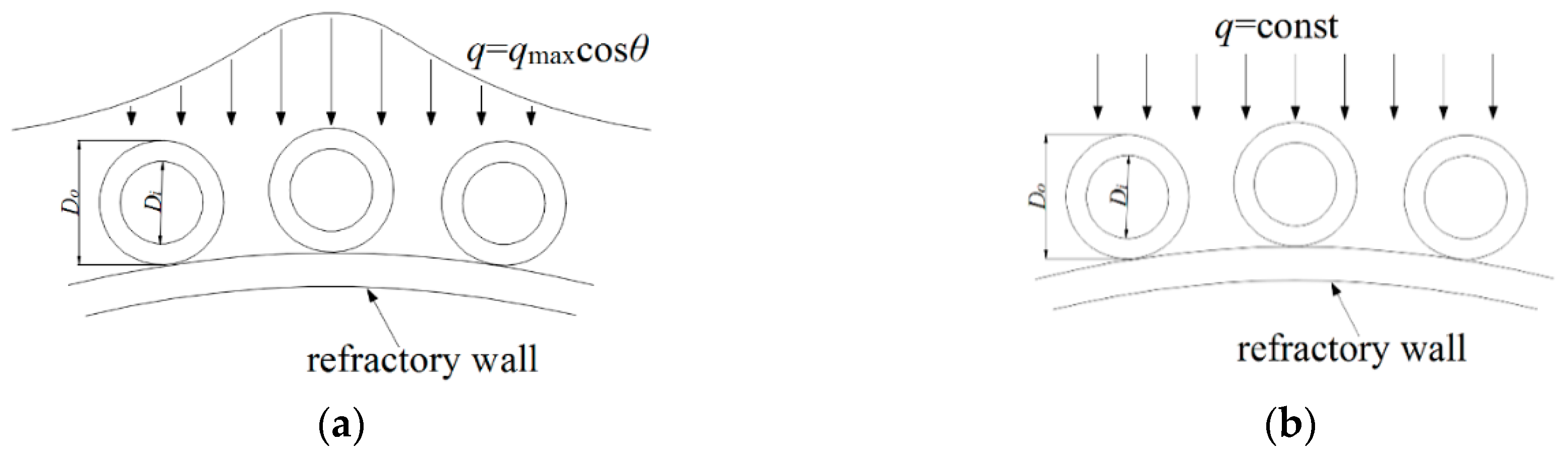

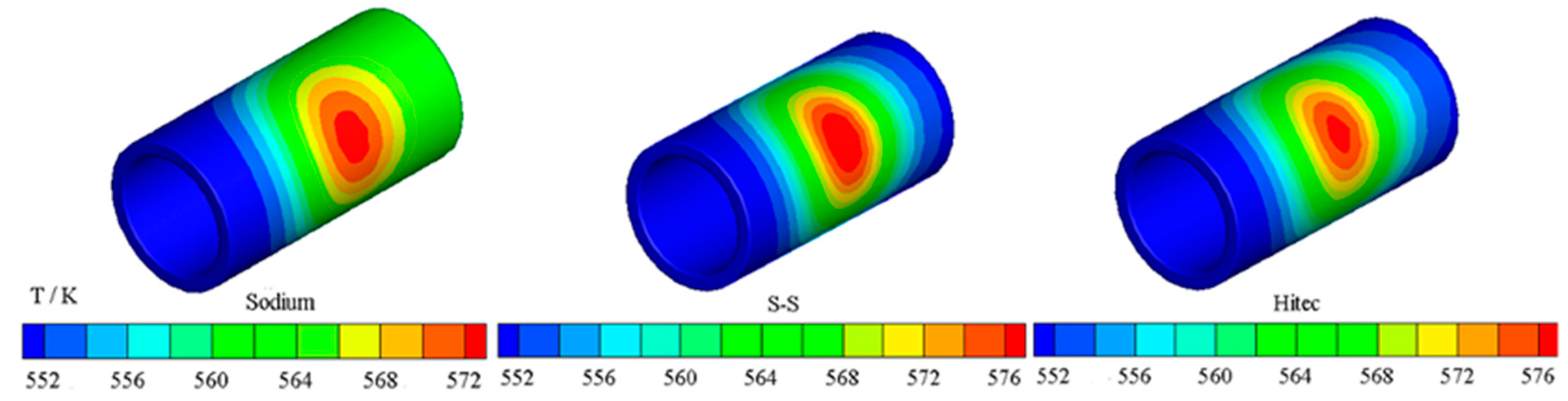

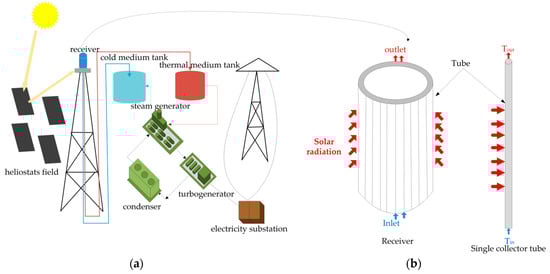

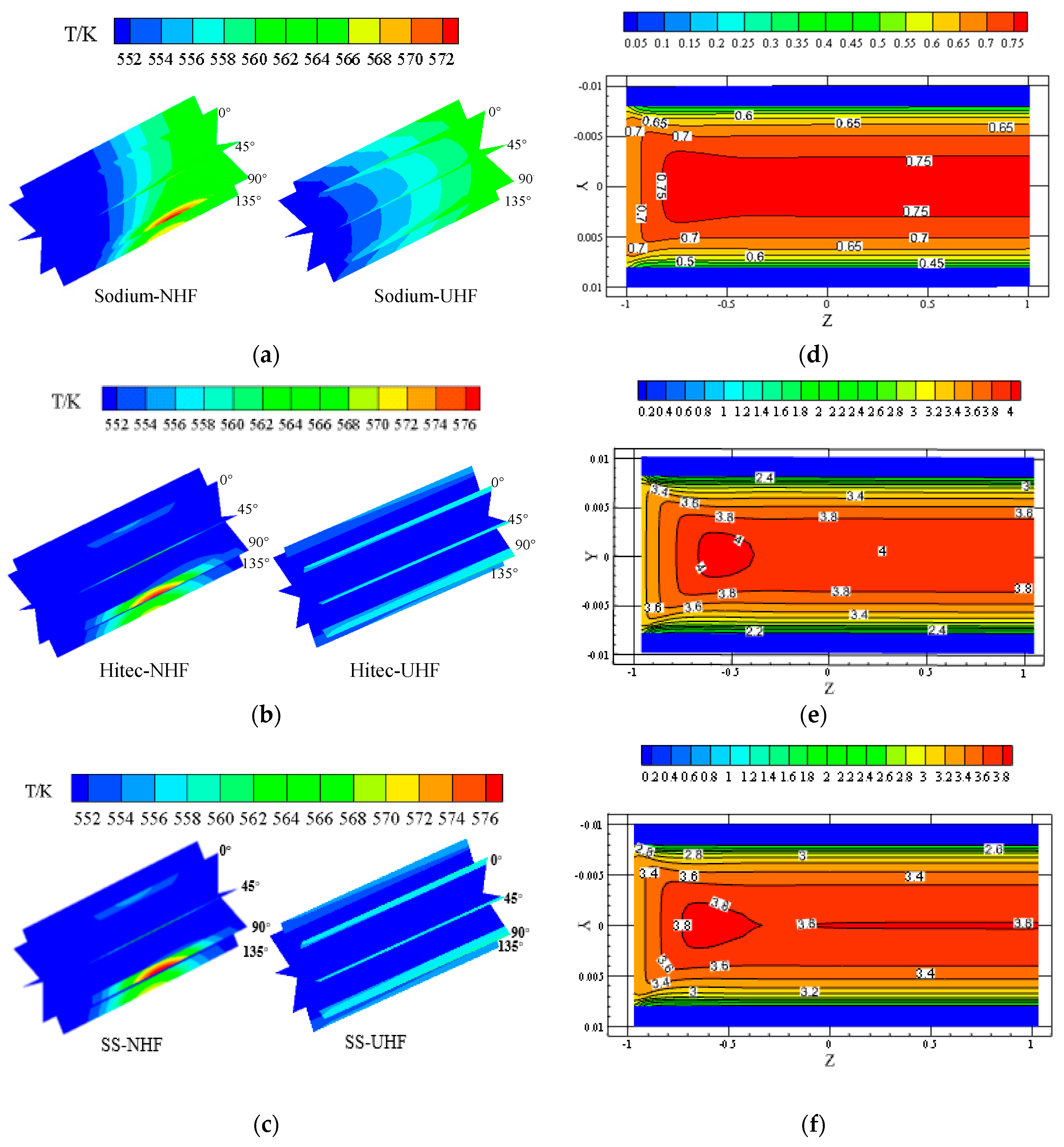

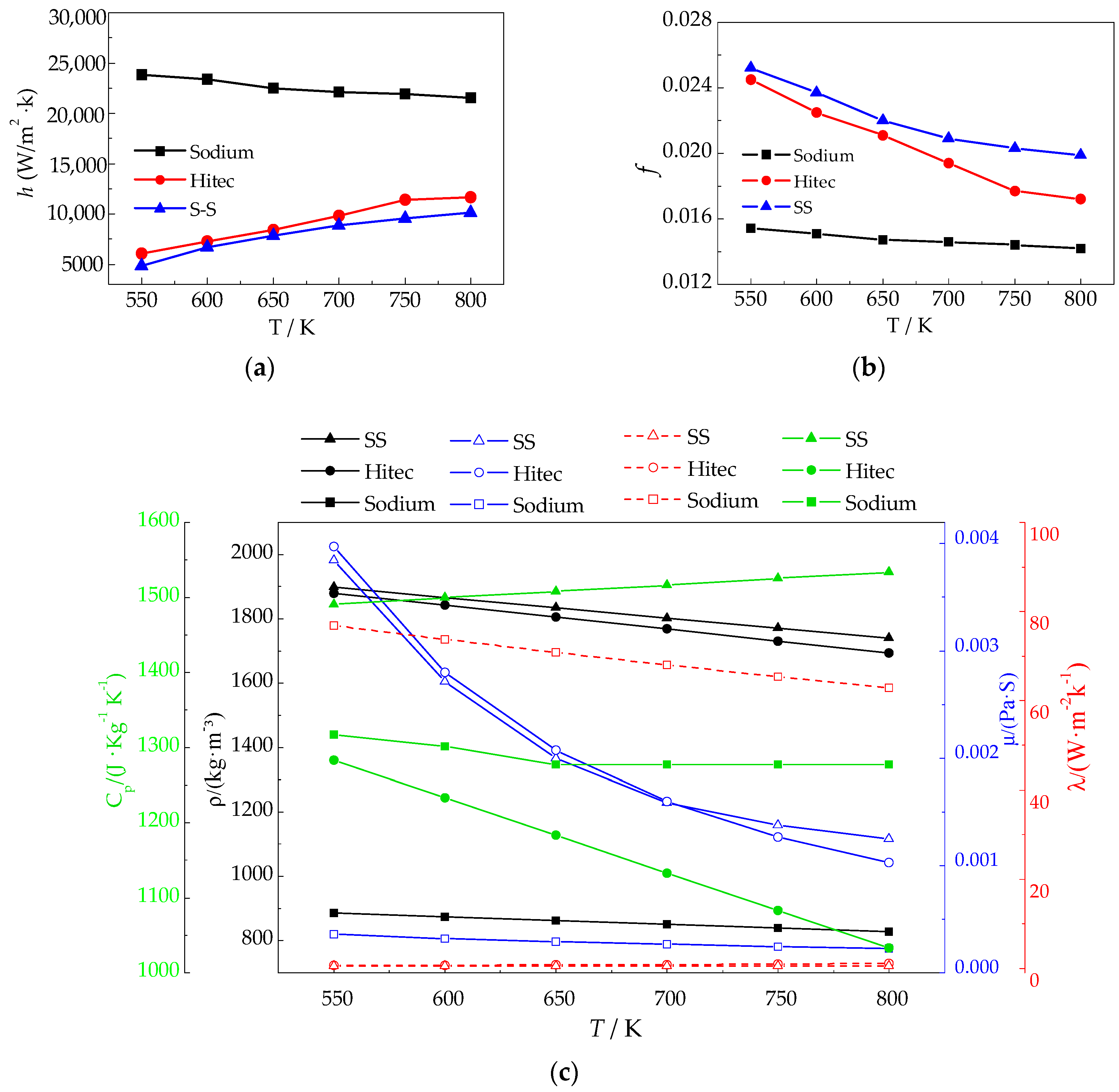

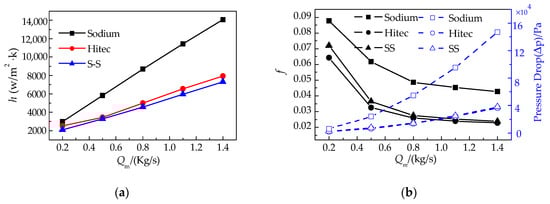

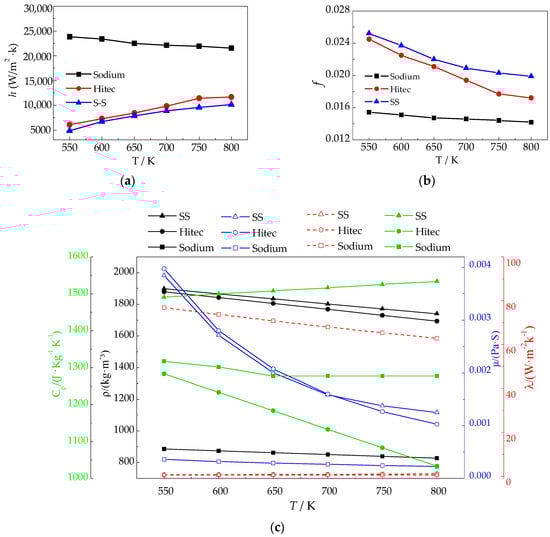

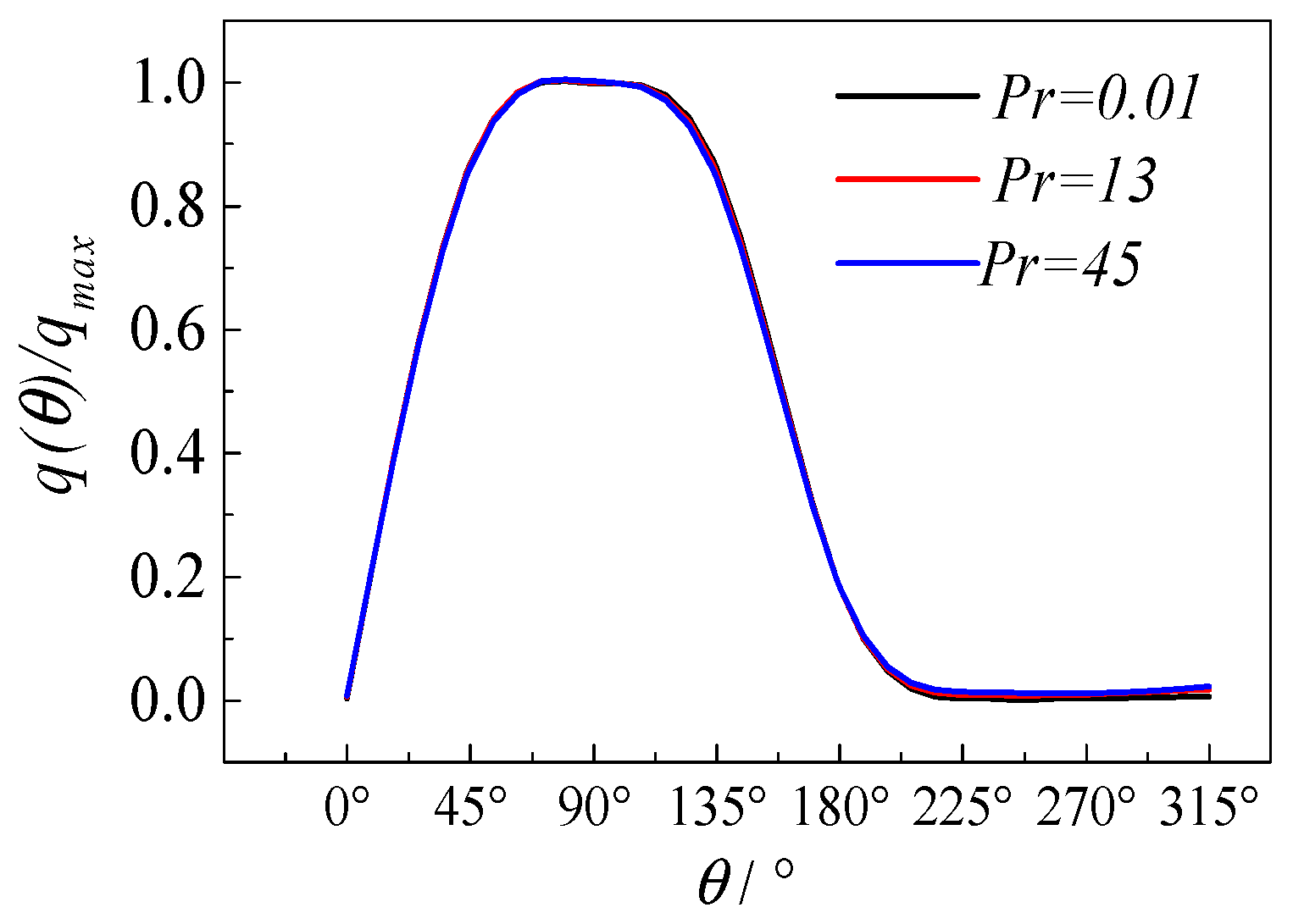

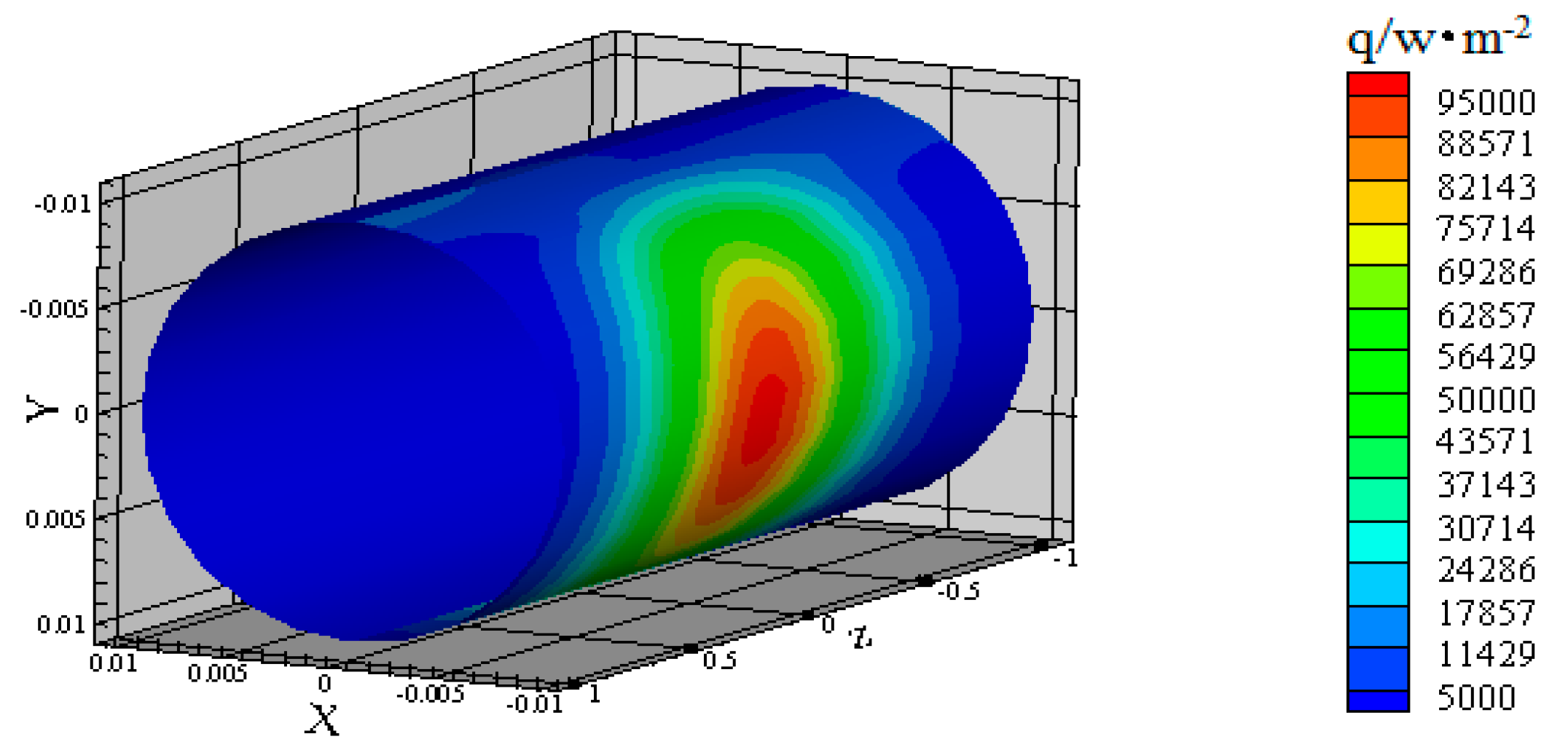

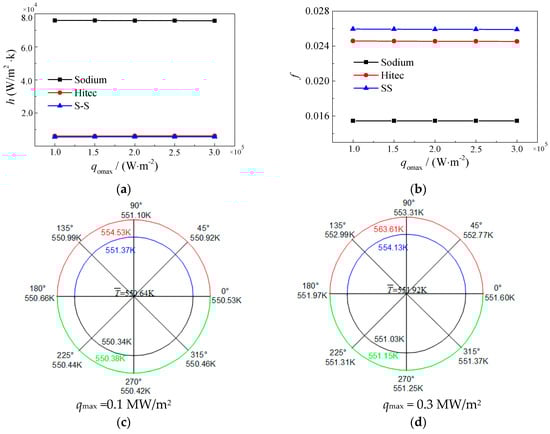

This paper presents a numerical simulation on the heat transfer of liquid sodium in a solar receiver tube, as the liquid sodium is a promising heat-transfer candidate for the next generation solar-power-tower (SPT) system. A comparison between three mediums—solar salt, Hitec and liquid sodium—is presented under uniform and nonuniform heat-flux configurations. We studied the effects of mass flow rate (Qm), inlet temperature (Tin), and maximum heat flux (qomax), on the average heat-transfer coefficient (h) and the friction coefficient (f) of the three mediums. The results show that the h of liquid sodium is about 2.5 to 5 times than other two molten salts when Tin is varying from 550 to 800 K, Qm is 1.0 kg/s, and qomax is 0.1 MW/m2. For maximum heat fluxes from 0.1 to 0.3 MW/m2, the h of liquid sodium is always an order of magnitude larger than that of Hitec and Solar-Salt (S-S), while maintaining a small friction coefficient. View Full-Text
Keywords: solar-power tower; liquid sodium; solar salt; Hitec; heat flux solar-power tower; liquid sodium; solar salt; Hitec; heat flux
