# Shales Leaching Modelling for Prediction of Flowback Fluid Composition

^{*}

## Abstract

**:**

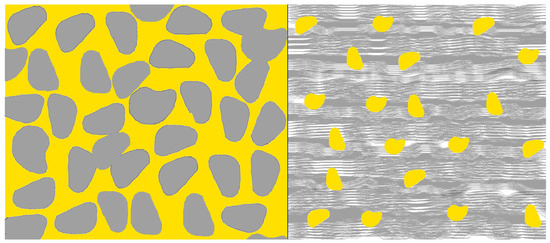

## 1. Introduction

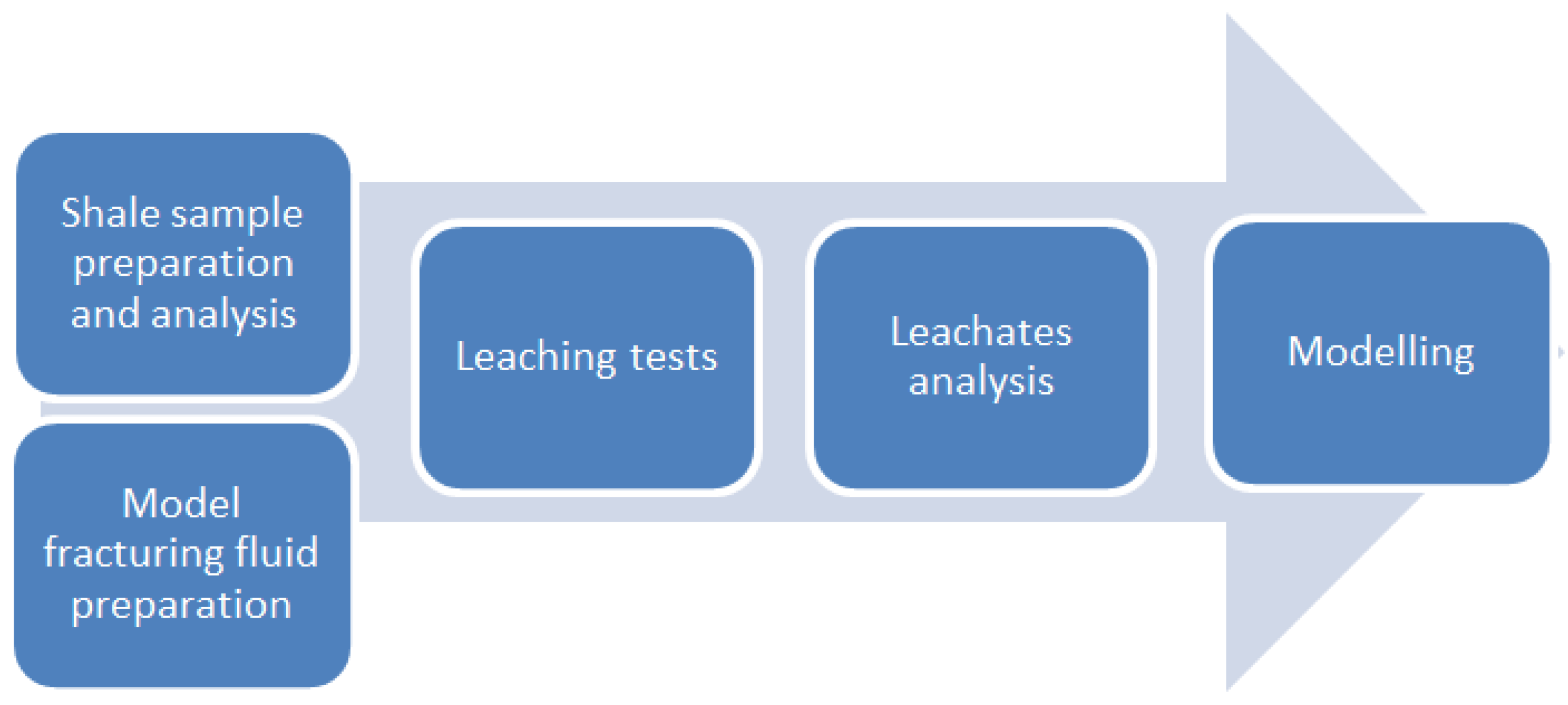

## 2. Materials and Methods

#### 2.1. Shale Sample Acquisition

#### 2.2. Shale Sample Preparation

#### 2.3. Shale Samples Analysis

#### 2.4. Preparation of Model Fracturing Fluids

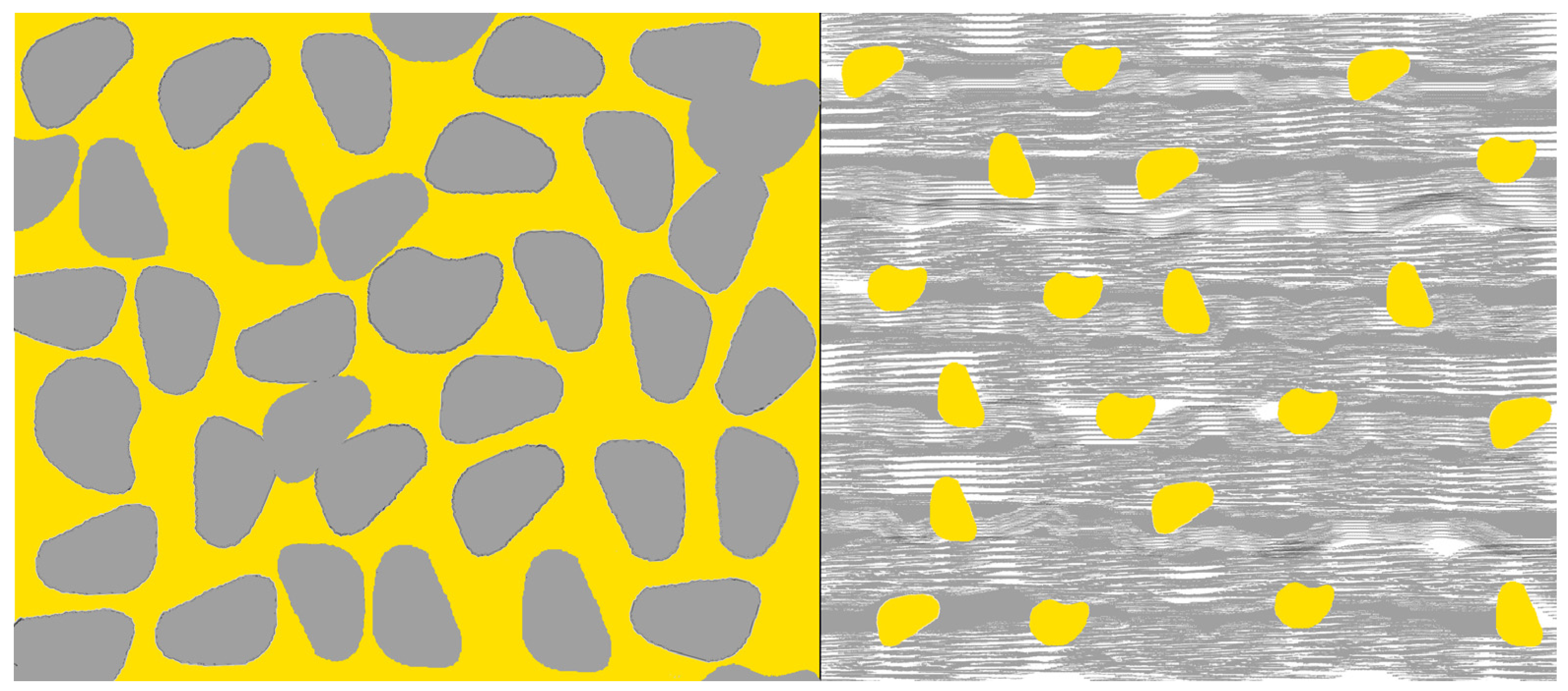

#### 2.5. Leaching Tests

^{2}) was above 0.85 were taken into consideration, the probability value for all describing variables was below 0.05 (variable values are not random), so the confidence level was always above 0.95 (note: R

^{2}coefficients are calculated for obtained model equations not for the residual analysis diagrams). In the next step only those equations for which all separate levels of confidence for every separate parameter were above 0.95 were considered. Then the model with the highest determination coefficient was chosen for further analysis. For chosen model the standard deviation was always the lowest taking into account considered models and its value justifies the correctness of application of R

^{2}as a crucial parameter to choose the most adequate model. The residual analysis showed a sufficient number of describing variables (small inclination angle to the abscissa) and there was no correlation between residuals and described variables (Pearson between −0.5 and 0.5). The Pearson coefficients were calculated for the correlation between elements concentrations in leachates and the residuals of the model. The residuals were calculated as the difference between laboratory and model data values. The model was selected basing on the comparison of the standard model error, the determination coefficient, the level of significance and the number of parameters relevant to the correct description of the model. Other parameters presented in the next section were calculated using statistical and mathematical methods implemented in RStudio software [43].

## 3. Results and Discussion

_{B}, c

_{Ba}, etc.) and variables. Residual analysis (difference between measured and calculated values) and maximum and minimum values calculated for the part of the model that can be influenced by controllable parameters of the fracturing fluid (c’

_{min}(60), c’

_{min}(80), c’

_{max}(60), c’

_{max}(80)) are presented in Table 5, Table 6, Table 7, Table 8, Table 9, Table 10, Table 11, Table 12 and Table 13. Composition of shales and temperature in the borehole are parameters of a particular well, therefore, we can change: IS, TOC and pH (by changing the fracturing fluid composition) so c’

_{B}, is a part of the whole c equation which can be manipulated and is used to calculate the possible range of changeability of the model by fracturing fluid parameter manipulations. The values of c’

_{min}and c’

_{max}were calculated for two extreme temperature values. It was calculated that the minimum and maximum values for all models are equal to 60 or 80 °C (minimum and maximum temperature). The differences between these values are presented in Table 14. These results indicate how much the concentration of the element in the flowback fluid can be reduced by proper control of the parameters of the fracturing fluid according to the developed models. Due to the statistical nature of the model, in some cases lowering the concentration could give a negative value. This should be taken into account when using and possibly implementing the model using a computer tool. Model fracturing fluids are characterized in Table 14.

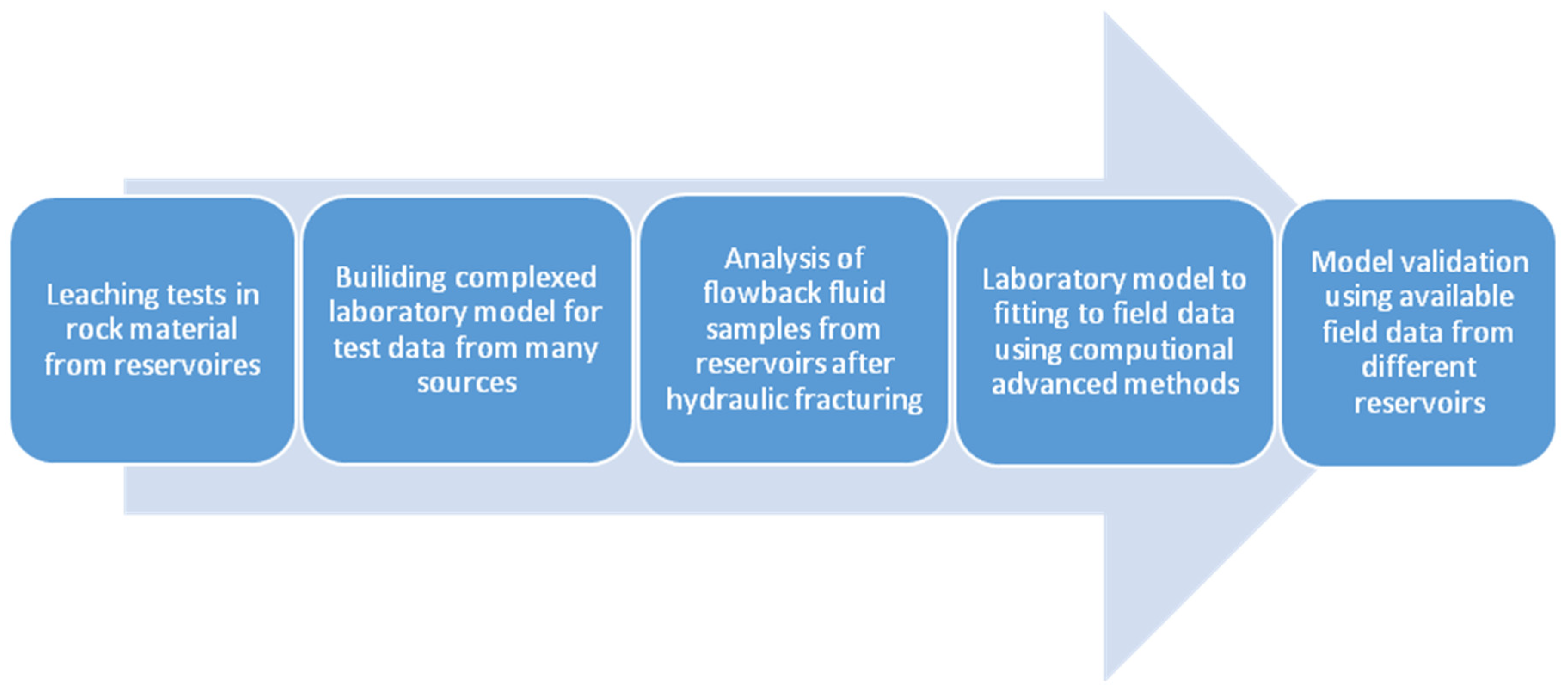

## 4. Conclusions

^{2}as a crucial parameter to choose most adequate model. Residual analysis gives information that applied variables describes the model in the tested range well enough. Moreover, no correlation between residuals and measured values means that there are probably no methodological errors. Selected parameters of the model fracturing fluid and rock properties are sufficient to predict the composition of the flowback fluid in the laboratory system. In the next research other shale rock samples should be tested and data from analysis of flowback fluid for attempts to develop industrial version of the model need to be carried.

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

No. Shale Sample | Mineral (%) | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Quarz | Alb | Micr | Ort | Calc | Dol | Pir | Bar | Chl | Ill | Mon | Kao | Mus | Bio | Par | Gla | |

A1 | 15.89 | 2.93 | 1.58 | 1.10 | 9.38 | 2.56 | 6.70 | 2.43 | 4.75 | 1.10 | 0.00 | 9.38 | 38.29 | 0.36 | 2.56 | 0.98 |

A2 | 21.58 | 1.83 | 1.10 | 0.74 | 2.93 | 0.74 | 0.00 | 0.08 | 7.19 | 0.74 | 0.00 | 2.81 | 57.48 | 1.58 | 0.61 | 0.61 |

A3 | 12.74 | 2.07 | 2.68 | 0.61 | 28.67 | 8.53 | 0.00 | 0.12 | 3.77 | 0.48 | 10.73 | 5.85 | 18.64 | 2.93 | 1.83 | 0.36 |

A4 | 19.58 | 3.10 | 5.08 | 0.37 | 21.52 | 3.97 | 0.00 | 0.25 | 7.81 | 8.80 | 0.00 | 1.86 | 2.61 | 22.81 | 1.11 | 1.11 |

A5 | 23.73 | 0.98 | 0.86 | 0.37 | 22.81 | 4.80 | 0.00 | 0.12 | 9.34 | 2.83 | 0.12 | 11.55 | 19.17 | 0.62 | 0.86 | 1.85 |

A6 | 22.57 | 3.44 | 2.59 | 0.74 | 13.05 | 30.67 | 1.73 | 0.12 | 4.06 | 1.73 | 0.00 | 0.37 | 13.29 | 0.24 | 3.32 | 2.09 |

A7 | 13.60 | 2.70 | 3.19 | 0.12 | 12.86 | 33.97 | 0.12 | 0.12 | 5.03 | 3.19 | 0.24 | 0.36 | 17.27 | 4.53 | 0.50 | 2.20 |

A8 | 25.66 | 4.16 | 2.08 | 0.62 | 8.44 | 16.50 | 0.00 | 0.12 | 4.88 | 0.74 | 0.00 | 0.36 | 33.76 | 0.48 | 1.72 | 0.48 |

A9 | 34.97 | 6.67 | 3.52 | 1.00 | 9.17 | 11.19 | 0.76 | 0.12 | 5.04 | 2.13 | 0.00 | 2.13 | 5.53 | 3.77 | 1.51 | 12.47 |

A10 | 21.81 | 2.18 | 1.09 | 0.48 | 9.82 | 12.13 | 0.12 | 0.00 | 7.52 | 0.48 | 0.00 | 1.21 | 41.45 | 0.36 | 0.97 | 0.36 |

## References

- Dayal, A.M. Shale. In Shale Gas: Exploration and Environmental and Economic Impacts; Elsevier Science: Amsterdam, Holand, 2017; ISBN 9780128095355. [Google Scholar]
- Singh, K.; Holditch, S.A.; Ayers, W.B. Basin Analog Investigations Answer Characterization Challenges of Unconventional Gas Potential in Frontier Basins. J. Energy Resour. Technol.
**2008**, 130. [Google Scholar] [CrossRef] - Chopra, S.; Solutions, A.S.; Kumar, R.; Marfurt, K.J. Current Workflows for Shale Gas Reservoir Characterization. In Proceedings of the Unconventional Resources Technology Conference, Denver, CO, USA, 12–14 August 2013. [Google Scholar] [CrossRef]
- Chermak, J.A.; Schreiber, M.E. Mineralogy and trace element geochemistry of gas shales in the United States: Environmental implications. Int. J. Coal Geol.
**2014**, 126, 32–44. [Google Scholar] [CrossRef] - Liu, J.; Yao, Y.; Elsworth, D.; Liu, D.; Cai, Y.; Dong, L. Vertical heterogeneity of the shale reservoir in the lower silurian longmaxi formation: Analogy between the southeastern and Northeastern Sichuan Basin, SW China. Minerals
**2017**, 7, 151. [Google Scholar] [CrossRef] - Barnhoorn, A.; Houben, M.E.; Lie-A-Fat, J.; Ravestein, T.; Drury, M. Variations in petrophysical properties of shales along a stratigraphic section in the Whitby mudstone (UK). In Proceedings of the EGU General Assembly 2015, Vienna, Austria, 12–17 April 2015. [Google Scholar]
- Chen, L.; Lu, Y.; Jiang, S.; Li, J.; Guo, T.; Luo, C. Heterogeneity of the lower silurian longmaxi marine shale in the southeast sichuan basin of China. Mar. Pet. Geol.
**2015**, 65, 232–246. [Google Scholar] [CrossRef] - Rogala, A.; Krzysiek, J.; Bernaciak, M.; Hupka, J. Non-aqueous fracturing technologies for shale gas recovery. Physicochem. Probl. Miner. Process.
**2013**, 49, 313–322. [Google Scholar] - Rogala, A.; Ksiezniak, K.; Krzysiek, J.; Hupka, J. Carbon dioxide sequestration during shale gas recovery. Physicochem. Probl. Miner. Process.
**2014**, 50, 681–692. [Google Scholar] - Howard, G.C.; FAST, C.R. Hydraulic Fracturing; Henry L. Doherty Memorial Fund of AIME: New York, NY, USA, 1970; Volume 2, ISBN 0895202018. [Google Scholar]
- Tao, H.; Zhang, L.; Liu, Q.; Deng, Q.; Luo, M.; Zhao, Y. An Analytical Flow Model for Heterogeneous Multi-Fractured Systems in Shale Gas Reservoirs. Energies
**2018**, 11, 3422. [Google Scholar] [CrossRef] - Economides, M.J.; Martin, T. Modern Fracturing—Enhancing Natural Gas Production; Energy Tribune Publishing: Houston, TX, USA, 2007; 509p. [Google Scholar]
- Gandossi, L. An Overview of Hydraulic Fracturing and Other Formation Stimulation Technologies for Shale Gas Production; Joint Research Centre: Mercier, Luxembourg, 2015; ISBN 9789279347290. [Google Scholar]
- Mader, D. Hydraulic Proppant Fracturing and Gravel Packing; Elsevier Science: Amsterdam, Holand, 1989; ISBN 9780444873521. [Google Scholar]
- Ksiezniak, K.; Rogala, A.; Hupka, J. Wettability of shale rock as an indicator of fracturing fluid composition. Physicochem. Probl. Miner. Process.
**2015**, 51, 315–323. [Google Scholar] - Albrycht, I.; Boy, K.; Jankowski, J.M. Gaz Niekonwencjonalny—Szansa dla Polski i Europy? Analiza i Rekomendacje; Instytut Kościuszki: Kraków, Poland, 2011; ISBN 9788393109340. [Google Scholar]
- Arthur, J.D.; Bohm, B.K.; Cornue, D. Environmental Considerations of Modern Shale Gas Development. In Proceedings of the SPE Annual Technical Conference and Exhibition, San Antonio, TX, USA, 9–11 October 2009. [Google Scholar]
- Hayes, T.; Severin, B.F. Barnett and Appalachian Shale Water Management and Reuse Technologies; Project Report by Gas Technology Institute Research Partners toSecure Energy for America; Publications Office of the European Union: Mercier, Luxembourg, 2012; pp. 1–10. [Google Scholar]
- Boschee, P. Produced and Flowback Water Recycling and Reuse: Economics, Limitations, and Technology. Oil Gas Facil.
**2014**, 3, 16–21. [Google Scholar] [CrossRef] - Abualfaraj, N.; Gurian, P.L.; Olson, M.S. Assessing residential exposure risk from spills of flowback water from Marcellus shale hydraulic fracturing activity. Int. J. Environ. Res. Public Health
**2018**, 11, 15. [Google Scholar] [CrossRef] - Zhou, J.; Zhang, L.; Braun, A.; Han, Z. Investigation of processes of interaction between hydraulic and natural fractures by PFC modeling comparing against laboratory experiments and analytical models. Energies
**2017**, 10, 1001. [Google Scholar] [CrossRef] - Clarkson, C.R.; Williams-Kovacs, J. Modeling Two-Phase Flowback of Multifractured Horizontal Wells Completed in Shale. SPE J.
**2013**, 18. [Google Scholar] [CrossRef] - Williams-Kovacs, J.D.; Clarkson, C.R. A modified approach for modeling two-phase flowback from multi-fractured horizontal shale gas wells. J. Nat. Gas Sci. Eng.
**2016**, 30, 127–147. [Google Scholar] [CrossRef] - Clarkson, C.R.; Haghshenas, B.; Ghanizadeh, A.; Qanbari, F.; Williams-Kovacs, J.D.; Riazi, N.; Debuhr, C.; Deglint, H.J. Nanopores to megafractures: Current challenges and methods for shale gas reservoir and hydraulic fracture characterization. J. Nat. Gas Sci. Eng.
**2016**. [Google Scholar] [CrossRef] - Jia, P.; Cheng, L.; Clarkson, C.R.; Huang, S.; Wu, Y.; Williams-Kovacs, J.D. A novel method for interpreting water data during flowback and early-time production of multi-fractured horizontal wells in shale reservoirs. Int. J. Coal Geol.
**2018**, 200, 186–196. [Google Scholar] [CrossRef] - Cao, P.; Liu, J.; Leong, Y.K. A multiscale-multiphase simulation model for the evaluation of shale gas recovery coupled the effect of water flowback. Fuel
**2017**, 199, 191–205. [Google Scholar] [CrossRef] - Bai, B.; Elgmati, M.; Zhang, H.; Wei, M. Rock characterization of Fayetteville shale gas plays. Fuel
**2013**, 105, 642–652. [Google Scholar] [CrossRef] - Zhang, H.Y.; Gu, D.H.; Zhu, M.; He, S.L.; Men, C.Q.; Luan, G.H.; Mo, S.Y. Optimization of Fracturing Fluid Flowback Based on Fluid Mechanics for Multilayer Fractured Tight Reservoir. Adv. Mater. Res.
**2014**, 886, 448–451. [Google Scholar] [CrossRef] - Michel, G.; Civan, F.; Sigal, R.; Devegowda, D. Proper Simulation of Fracturing-Fluid Flowback from Hydraulically-Fractured Shale-Gas Wells Delayed by Non-Equilibrium Capillary Effects. In Proceedings of the Unconventional Resources Technology Conference, Denver, CO, USA, 12–14 August 2013. [Google Scholar]
- Moray, L.; Holdaway, K.R. Fluid flowback prediction. U.S. Patent US20150112597A1, 23 April 2015. [Google Scholar]
- Jurus, W.J.; Whitson, C.H.; Golan, M. Modeling Water Flow in Hydraulically-Fractured Shale Wells. In Proceedings of the SPE Annual Technical Conference and Exhibition, New Orleans, LA, USA, 30 September–2 October 2013. [Google Scholar]
- Abdulelah, H.; Mahmood, S.; Al-Hajri, S.; Hakimi, M.; Padmanabhan, E. Retention of Hydraulic Fracturing Water in Shale: The Influence of Anionic Surfactant. Energies
**2018**, 11, 3342. [Google Scholar] [CrossRef] - He, C.; Li, M.; Liu, W.; Barbot, E.; Vidic, R.D. Kinetics and Equilibrium of Barium and Strontium Sulfate Formation in Marcellus Shale Flowback Water. J. Environ. Eng.
**2014**, 140. [Google Scholar] [CrossRef] - Barbot, E.; Vidic, N.S.; Gregory, K.B.; Vidic, R.D. Spatial and temporal correlation of water quality parameters of produced waters from Devonian-age shale following hydraulic fracturing. Environ. Sci. Technol.
**2013**, 47, 2562–2569. [Google Scholar] [CrossRef] [PubMed] - Gdanski, R.; Weaver, J.; Slabaugh, B. A New Model for Matching Fracturing Fluid Flowback Composition. In Proceedings of the SPE Hydraulic Fracturing Technology Conference, College Station, TX, USA, 29–31 January 2007. [Google Scholar]
- Liu, X.; Ortoleva, P. A General-Purpose, Geochemical Reservoir Simulator. Soc. Pet. Eng.
**1996**. [Google Scholar] [CrossRef] - Balashov, V.N.; Engelder, T.; Gu, X.; Fantle, M.S.; Brantley, S.L. A model describing flowback chemistry changes with time after Marcellus Shale hydraulic fracturing. Am. Assoc. Pet. Geol. Bull.
**2015**, 99, 143–154. [Google Scholar] [CrossRef] - Kalbe, U.; Berger, W.; Eckardt, J.; Simon, F.G. Evaluation of leaching and extraction procedures for soil and waste. Waste Manag.
**2008**, 28, 1027–1038. [Google Scholar] [CrossRef] [PubMed] - Fällman, A.M.; Aurell, B. Leaching tests for environmental assessment of inorganic substances in wastes, Sweden. Sci. Total Environ.
**1996**, 178, 71–84. [Google Scholar] [CrossRef] - Mahmoudkhani, M.; Wilewska-Bien, M.; Steenari, B.M.; Theliander, H. Evaluating two test methods used for characterizing leaching properties. Waste Manag.
**2008**, 28, 133–141. [Google Scholar] [CrossRef] - Quevauviller, P.; Van der Sloot, H.A.; Ure, A.; Muntau, H.; Gomez, A.; Rauret, G. Conclusions of the workshop: Harmonization of leaching/extraction tests for environmental risk assessment. Sci. Total Environ.
**1996**, 178, 133–139. [Google Scholar] [CrossRef] - Organization for Economic Cooperation and Development. OECD Guidelines for Testing of Chemicals; OECD Publishing: Paris, France, 2000; ISBN 9108026995001. [Google Scholar]
- RStudio Team. RStudio: Integrated Development for R; RStudio, Inc.: Boston, MA, USA, 2015; Available online: http://www.rstudio.com/ (accessed on 1 April 2019).

**Table 1.**Comparison of concentrations of the most important components in fracturing fluid and flowback fluid from the Marcellus Shale [18].

Component | Fracturing Fluid | Flowback Fluid | ||
---|---|---|---|---|

Range of Concentrations (ppm) | Median Concentration (ppm) | Range of Concentrations (ppm) | Median Concentration (ppm) | |

Na^{+} | 25.70–6190 | 67.8 | 10700–65100 | 18000 |

Ca^{2+} | 6.70–2990 | 32.9 | 1440–23500 | 4950 |

Mg^{2+} | 1.20–235 | 6.7 | 135–1550 | 559 |

Fe^{2+} | 0.00–14.3 | 1.2 | 10.8–180 | 39 |

Ba^{2+} | 0.06–87.1 | 0.4 | 21.4–13900 | 686 |

Cl^{−} | 4.10–3000 | 42.3 | 26400–148000 | 41850 |

HCO_{3}^{−} | <1.00–188 | 49.9 | 29.8–162 | 74.4 |

NH_{4}^{+} | 0.58–441 | 5.9 | 15–242 | 82.4 |

No. | MFF | t (°C) | pH | IS (mol/L) | TOC (g/L) |
---|---|---|---|---|---|

X1 | X2 | X3 | X4 | ||

1 | P1 | 60 | 9 | 0.51 | 0.06 |

2 | P2 | 60 | 9 | 0.03 | 4.06 |

3 | P3 | 60 | 5 | 0.51 | 4.06 |

4 | P4 | 60 | 5 | 0.03 | 0.06 |

5 | P5 | 80 | 9 | 0.51 | 4060 |

6 | P6 | 80 | 9 | 0.03 | 0.06 |

7 | P7 | 80 | 5 | 0.51 | 0.06 |

8 | P8 | 80 | 5 | 0.03 | 4.06 |

9 | P9 | 80 | 7 | 0.51 | 4.06 |

10 | P10 | 60 | 7 | 0.03 | 0.06 |

11 | P11 | 80 | 9 | 0.51 | 2.06 |

12 | P12 | 60 | 5 | 0.03 | 2.06 |

13 | P13 | 70 | 7 | 0.27 | 2.06 |

14 | P13 | 70 | 7 | 0.27 | 2.06 |

15 | P13 | 70 | 7 | 0.27 | 2.06 |

No. of Sample | Element Concentration in the Shale Sample (CS) (ppm) | Aw (m^{2}/g) | TOC_{S} (%) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

B | Ba | Li | Mg | Mo | Rb | Si | Sr | Ca | |||

A1 | 4050 | 821 | 139 | 18240 | 10 | 3372 | 247285 | 401 | 116287 | 15.17 | 2.11 |

A2 | 3988 | 593 | 149 | 14820 | 95 | 3570 | 278445 | 175 | 35020 | 16.15 | 0.84 |

A3 | 3325 | 708 | 97 | 19570 | 82 | 2542 | 229900 | 605 | 179117 | 12.77 | 2.41 |

A4 | 3637 | 967 | 112 | 15960 | 9 | 3469 | 241965 | 179 | 131634 | 10.24 | 2.43 |

A5 | 3467 | 1208 | 110 | 17670 | 97 | 2578 | 262200 | 178 | 114948 | 10.67 | 2.72 |

A6 | 3694 | 774 | 115 | 23560 | 97 | 3369 | 262105 | 262 | 100013 | 14.05 | 1.40 |

A7 | 3361 | 1119 | 88 | 26695 | 82 | 3280 | 248045 | 212 | 123188 | 14.61 | 1.61 |

A8 | 3918 | 1455 | 122 | 20805 | 106 | 3068 | 273505 | 178 | 68804 | 9.72 | 4.40 |

A9 | 3425 | 1395 | 120 | 19665 | 100 | 2777 | 277400 | 154 | 58916 | 13.29 | 1.81 |

A10 | 3513 | 842 | 119 | 18335 | 105 | 3358 | 282150 | 140 | 59019 | 12.62 | 1.77 |

_{S}—Total organic carbon in shale sample, B, Ba, Li, etc.—symbols of the indicated elements, CS

_{X}—element X concentration in shale sample.

No. of Sample | Group of Minerals (%) | ||||
---|---|---|---|---|---|

G1 | G2 | G3 | G4 | G5 | |

A1 | 21.50 | 11.95 | 9.13 | 15.24 | 42.19 |

A2 | 25.25 | 3.66 | 0.08 | 10.74 | 60.28 |

A3 | 18.10 | 37.19 | 0.12 | 20.83 | 23.75 |

A4 | 28.14 | 25.49 | 0.25 | 18.47 | 27.64 |

A5 | 25.94 | 27.60 | 0.12 | 23.84 | 22.50 |

A6 | 29.33 | 43.72 | 1.85 | 6.16 | 18.94 |

A7 | 19.61 | 46.83 | 0.24 | 8.82 | 24.50 |

A8 | 32.52 | 24.94 | 0.12 | 5.98 | 36.44 |

A9 | 46.16 | 20.36 | 0.88 | 9.31 | 23.29 |

A10 | 25.56 | 21.96 | 0.12 | 9.22 | 43.15 |

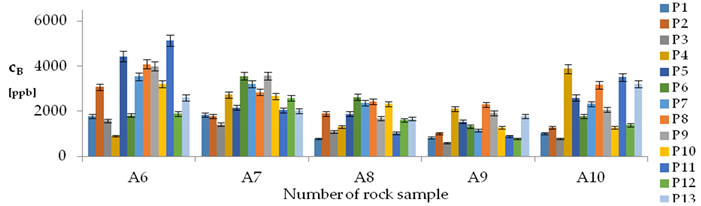

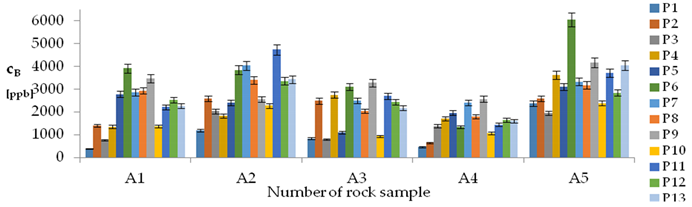

B concentration in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{B} = −5155 + 35.6t − 549.7TOC − 74.7(TOC)^{2} − 341.7pH × IS + 25.5pH × TOC + 21.5t × IS + 9.3t × TOC − 211.6G1− 115.4G2 − 60.2G4 − 183.9G5 + 2.4CS_{B} − 81CS_{Mo} + 0.06CS_{Si} ± [286.4]c’ _{B} = −35.6t − 549.7TOC − 74.7 (TOC)^{2} − 341.7pH × IS + 25.5pH × TOC + 21.5t × IS + 9.3t × TOC | |||

R^{2} | 0.90 | Residual analysis | |

p | <0.000001 | ||

a | 0.0888 | ||

α = arctan (a) | 5.1° | ||

Pearson | 0.30 | ||

c_{min} (t = 60 °C) | 1238 ppb | ||

c_{max} (t = 60 °C) | 1967 ppb | ||

c_{min} (t = 80 °C) | 2181 ppb | ||

c_{max} (t = 80 °C) | 3159 ppb |

_{B}—concentration of boron in leachates; r

_{A}-residual in residual analysis; a—directional coefficient; arctan-arcus tangent which is equal to angle between regression line in residual analysis and 0x axis; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{B}, CS

_{Mo}, CS

_{Si-}B, Mo, Si concentrations in shale sample.

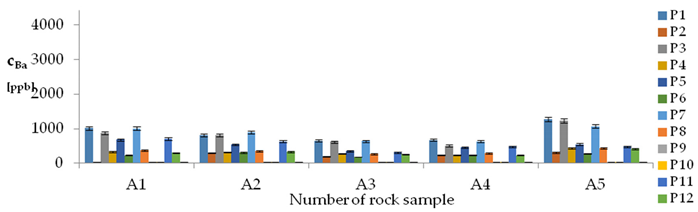

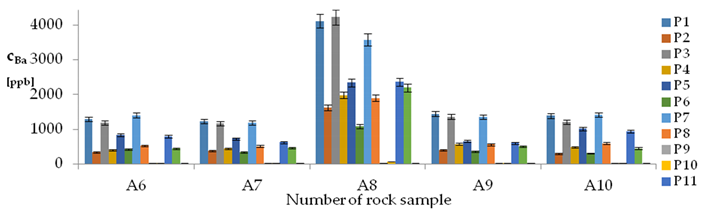

Ba concentrations in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Ba} = 1664 – 1792pH + 122pH^{2} + 43.8TOC^{2} + 157.7pH × IS − 3.14t × TOC − 48.73G2 − 118.41G3 − 271Aw − 0.44CS_{Ba}+ 34.44CS_{Li} + 0.276CS_{Mg} + 0.00071CS_{Ca} ± [168]c’ _{Ba} = −1792pH + 122pH^{2} + 43.8TOC^{2} + 157.7pH × IS − 3.14t × TOC | |||

R^{2} | 0.90 | Residual analysis | |

p | <0.000001 | ||

a | 0.061 | ||

α = arctan (a) | 3.5° | ||

Pearson | 0.28 | ||

c’_{min} (t = 60 °C) | −6741 | ||

c’_{max} (t = 60 °C) | −5524 | ||

c’_{min} (t = 80 °C) | −6898 | ||

c’_{max} (t = 80 °C) | −5527 |

_{Ba}—concentration of barium in leachates; r

_{A}—residual; a—directional coefficient, arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{Ba}, CS

_{Li}, CS

_{Mg}, CS

_{Ca}-Ba, Li, Mg, Ca concentrations in shale sample.

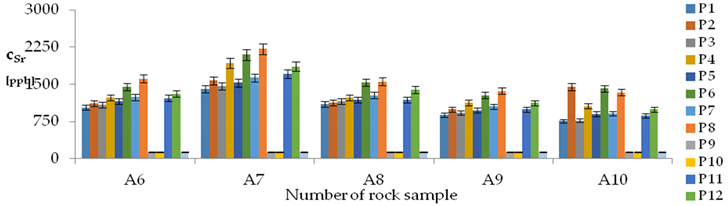

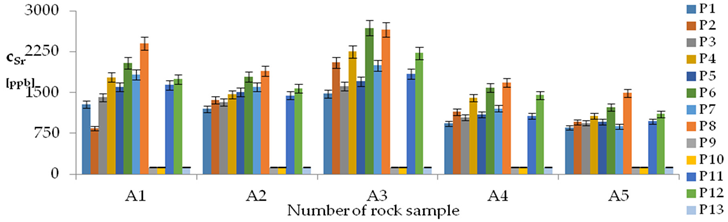

Sr concentration in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Sr} = 11995 − 4001pH + 273.6pH^{2} + 12.1TOC^{2} + 2.2pH × t − 4.8pH × TOC − 7t × IS − 72.4IS × TOC + 40.2G2 + 25.6G5 + 129.1Aw + 1.11CS_{Ba} − 0.1CS_{Mg} − 0.005CS_{Si} + 1.5CS_{Sr} ± [134.6]c’ _{Sr} = −4001pH + 273.6pH^{2} + 12.1TOC^{2} + 2.2pH × t − 4.8pH × TOC − 7t × IS − 72.4IS × TOC | |||

R^{2} | 0.95 | Residual analysis | |

p | <0.000001 | ||

a | 0.046 | ||

α = arctan (a) | 2.6° | ||

Pearson | 0.24 | ||

c’_{min} (t = 60 °C) | −13910 ppb | ||

c’_{max} (t = 60 °C) | −12700 ppb | ||

c’_{min} (t = 80 °C) | −13670 ppb | ||

c’_{max} (t = 80 °C) | −12310 ppb |

_{Sr}—concentration of strontium in leachates; r

_{A}—residual; a-directional coefficient; arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{Ba}, CS

_{Li}, CS

_{Mg}, CS

_{Ca}—Ba, Li, Mg, Ca concentrations in shale sample.

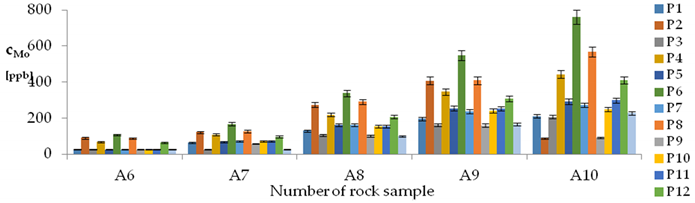

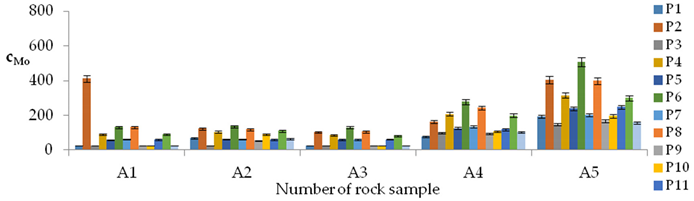

Mo concentrations in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Mo} = −1002.7 + 37.82t − 15576IS + 207.9TOC + 17.68pH^{2} − 4.05pH × t + 145.83pH × IS − 3.59t × TOC + 166.94IS × TOC + 3.82G4 + 2.41G5 − 0.38CS_{B} + 10.19CS_{Mo} − 0.22CS_{Sr} ± [32.7]c’ _{Mo} = 37.82t − 15576IS + 207.9TOC + 17.68pH^{2} − 4.05pH × t + 145.83pH × IS − 3.59t × TOC + 166.94IS × TOC | |||

R^{2} | 0.91 | Residual analysis | |

p | <0.000001 | ||

a | 0.069 | ||

α = arctan (a) | 4.0° | ||

Pearson | 0.29 | ||

c’_{min} (t = 60 °C) | 1069 | ||

c’_{max} (t = 60 °C) | 1695 | ||

c’_{min} (t = 80 °C) | 1342 | ||

c’_{max} (t = 80 °C) | 1431 |

_{Mo}-concentration of molybdenum in leachates; r

_{A}—residual; a-directional coefficient; arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t =80 °C)—explained before Table 5; CS

_{B}, CS

_{Mo}, CS

_{Sr}—Ba, Mo, Sr concentrations in shale sample.

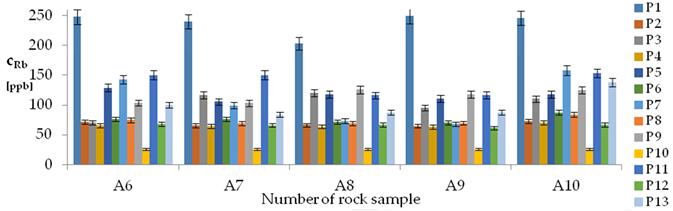

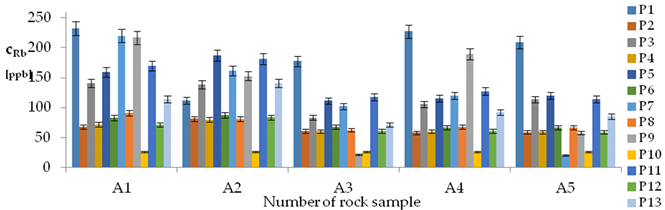

Rb concentrations in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Rb} = −77.42 + 1.05t + 462.79 IS + 27.92 pH × IS − 6.49t × IS − 21.88IS × TOC − 0.42G2 + 0.024CS_{Rb} ± [18.71]c’ _{Rb} = 1.05t + 462.79IS + 27.92pH × IS − 6.49t × IS − 21.88IS × TOC | |||

R^{2} | 0.86 | Residual analysis | |

p | <0.000001 | ||

a | 0.102 | ||

α = arctan (a) | 5.8° | ||

Pearson | 0.31 | ||

c’_{min} (t = 60 °C) | 125.9 | ||

c’_{max} (t = 60 °C) | 227.5 | ||

c’_{min} (t = 80 °C) | 80.6 | ||

c’_{max} (t = 80 °C) | 182.2 |

_{Rb}-concentration of rubidium in leachates; r

_{A}—residual; a-directional coefficient; arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{Rb},–Rb concentrations in shale sample.

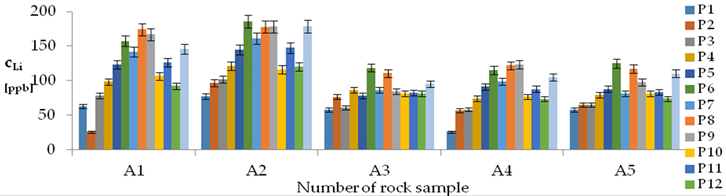

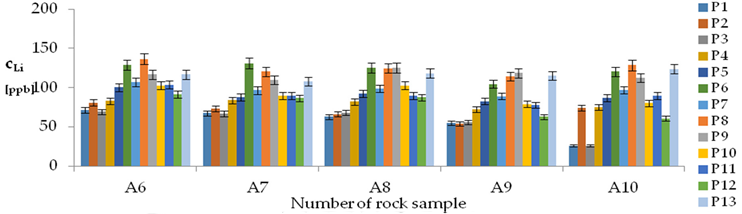

Li concentrations in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Li} = 500.56 + 78.85pH + 150.00IS − 7.51pH^{2} + 0.38pH × t − 2.50t × IS − 3.53IS × TOC − 3.03G1 + 1.23G4 − 1.73G5 + 0.41CS_{Li} − 0.0019CS_{Si} + 0.08CS_{Sr} − 0.0018CS_{Ca} ± [10.66]c’ _{Li} = 78.85pH + 150.00IS − 7.51pH^{2} + 0.38pH × t − 2.50t × IS − 3.53IS × TOC | |||

R^{2} | 0.88 | Residual analysis | |

p | <0.000001 | ||

a | 0.082 | ||

α = arctan (a) | 4.7 | ||

Pearson | 0.27 | ||

c’_{min} (t = 60 °C) | 298.8 | ||

c’_{max} (t = 60 °C) | 343.6 | ||

c’_{min} (t = 80 °C) | 341.6 | ||

c’_{max} (t = 80 °C) | 371.4 |

_{Li}-concentration of lithium in leachates; r

_{A}—residual; a-directional coefficient; arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{Li}, CS

_{Si}, CS

_{Sr}, CS

_{Ca}–Li, Si, Sr, Ca concentrations in shale sample.

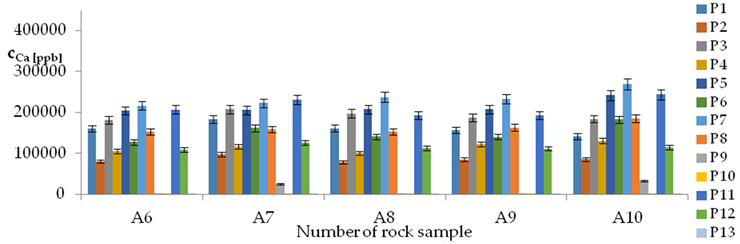

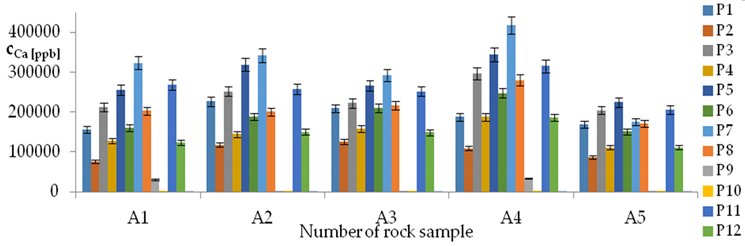

Ca concentrations in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Ca} = 1000(3749.56 − 553.95pH − 52.84t + 799.88IS − 83TOC + 39.86TOC^{2} + 7.84pH × t − 322.63IS × TOC − 1.12G2 − 0.05CS_{Ba} − 0.09CS_{Sr} + 0.000553CS_{Ca} ± [27.07])c’ _{Ca} = 1000(−553.95pH − 52.84t + 799.88IS − 83TOC + 39.86TOC^{2} + 7.84pH × t − 322.63IS × TOC) | |||

R^{2} | 0.90 | Residual analysis | |

p | <0.000001 | ||

a | 0.080 | ||

α = arctan (a) | 4.6° | ||

Pearson | 0.29 | ||

c’_{min} (t = 60 °C) | −3897280 | ||

c’_{max} (t = 60 °C) | −3527670 | ||

c’_{min} (t = 80 °C) | −3836130 | ||

c’_{max} (t = 80 °C) | −3172780 |

_{Ca}—concentration of calcium in leachates; r

_{A}—residual; a-directional coefficient; arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{Ba}, CS

_{Ca}, CS

_{Sr}-Ba, Ca, Sr concentrations in shale sample.

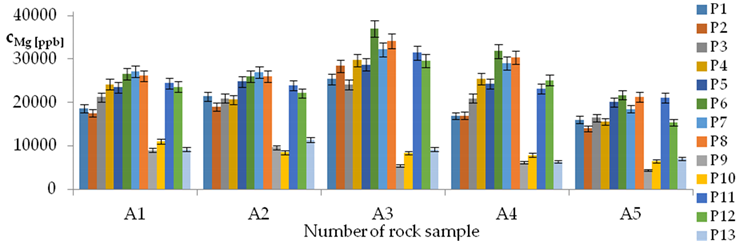

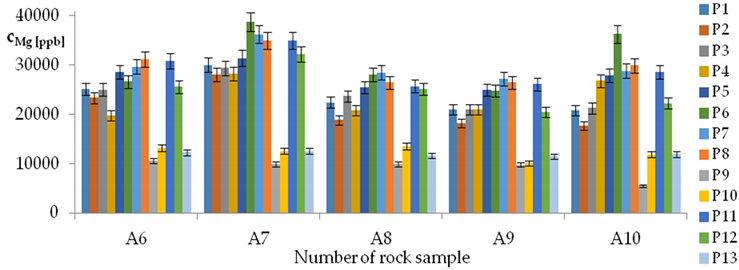

Mg concentrations in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Mg} = −16117 − 8518pH + 1756.39t − 21296IS + 35845TOC + 3511.7TOC^{2} + 30118pH × IS − 726.9t × TOC − 294G2 − 775G3 − 459Aw − 8.2CS_{Ba} + 1.6009CS_{Mg} − 0.1145CS_{Si} ± [2311]c _{Mg} = −8518pH + 1756.39t − 21296IS + 35845TOC + 3511.7TOC^{2} + 30118pH × IS − 726.9t × TOC | |||

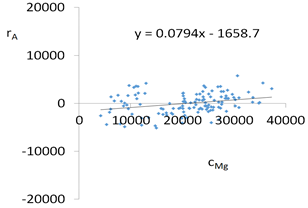

R^{2} | 0.92 | Residual analysis | |

p | <0.000001 | ||

a | 0.079 | ||

α = arctan (a) | 4.5° | ||

Pearson | 0.28 | ||

c’_{min} (t = 60 °C) | 26676 | ||

c’_{max} (t = 60 °C) | 57888 | ||

c’_{min} (t = 80 °C) | 30668 | ||

c’_{max} (t = 80 °C) | 92144 |

_{Mg}—concentration of magnesium in leachates; r

_{A}—residual; a-directional coefficient; arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{Ba}, CS

_{Mg}, CS

_{Si}-Ba, Mg, Si concentrations in shale sample.

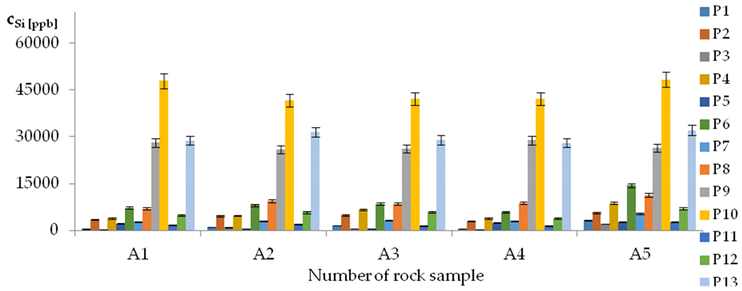

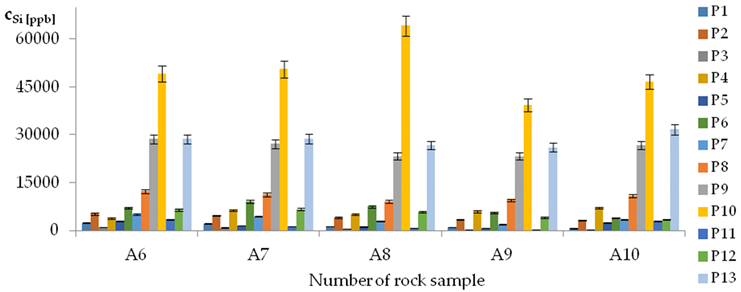

Si concentrations in samples after leaching of A1 to A10 rocks using fluids P1 to P13 | |||

Model | |||

c_{Si} = −298621 + 9229pH − 35067IS − 6556pH^{2} + 457TOC^{2} − 338pH × TOC + 324t × IS − 151.6G1 − 68G5 + 0.0555CS_{Si} ± [2312]c _{Si} = 92297pH − 35067IS − 6556pH^{2} + 457TOC^{2} − 338pH × TOC + 324t × IS | |||

R^{2} | 0.96 | Residual analysis | |

p | <0.000001 | ||

a | 0.049 | ||

α = arctan (a) | 2.8° | ||

Pearson | 0.30 | ||

c’_{min} (t = 60 °C) | 286589 | ||

c’_{max} (t = 60 °C) | 316728 | ||

c’_{min} (t = 80 °C) | 289889 | ||

c’_{max} (t = 80 °C) | 320028 |

_{Si}—concentration of silicon in leachates; r

_{A}-residual; a—directional coefficient; arctan-arcus tangent; Pearson-Pearson correlation coefficient for r

_{A}and c

_{B}; c’

_{min}(t = 60 °C); c’

_{min}(t = 80 °C); c’

_{max}(t = 60 °C); c’

_{max}(t = 80 °C)—explained before Table 5; CS

_{B}, CS

_{Mo}, CS

_{Sr}–Ba, Mo, Sr concentrations in shale sample.

Model | Concentration Operating Range (ppb) | Analysed Concentration Range in MFF (ppb) | ||
---|---|---|---|---|

60 °C | 80 °C | min | max | |

B | 729 | 978 | 371 | 6044 |

Ba | 1217 | 1371 | 25 | 4219 |

Sr | 1210 | 1360 | 125 | 2687 |

Mo | 626 | 89 | 25 | 760 |

Rb | 101.6 | 101.6 | 25 | 249 |

Li | 44.8 | 29.8 | 25 | 186 |

Ca | 369608 | 663354 | 130 | 417450 |

Mg | 31212 | 61476 | 4316 | 38782 |

Si | 30139 | 30139 | 250 | 64153 |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Rogala, A.; Kucharska, K.; Hupka, J.
Shales Leaching Modelling for Prediction of Flowback Fluid Composition. *Energies* **2019**, *12*, 1404.
https://doi.org/10.3390/en12071404

**AMA Style**

Rogala A, Kucharska K, Hupka J.
Shales Leaching Modelling for Prediction of Flowback Fluid Composition. *Energies*. 2019; 12(7):1404.
https://doi.org/10.3390/en12071404

**Chicago/Turabian Style**

Rogala, Andrzej, Karolina Kucharska, and Jan Hupka.
2019. "Shales Leaching Modelling for Prediction of Flowback Fluid Composition" *Energies* 12, no. 7: 1404.
https://doi.org/10.3390/en12071404
