Open AccessArticle

Organic Matter Pore Characterization of the Wufeng-Longmaxi Shales from the Fuling Gas Field, Sichuan Basin: Evidence from Organic Matter Isolation and Low-Pressure CO2 and N2 Adsorption

1,2,*, 1,2, 1,2 and 1,2
1
State Key Laboratory of Petroleum Resources and Prospecting, China University of Petroleum, Beijing 102249, China
2
Unconventional Natural Gas Research Institute, China University of Petroleum, Beijing 102249, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(7), 1207; https://doi.org/10.3390/en12071207
Received: 15 January 2019 / Revised: 16 March 2019 / Accepted: 26 March 2019 / Published: 28 March 2019
(This article belongs to the Special Issue Shale Oil and Shale Gas Resources)
  |
PDF [8864 KB, uploaded 28 March 2019]
  |

Abstract

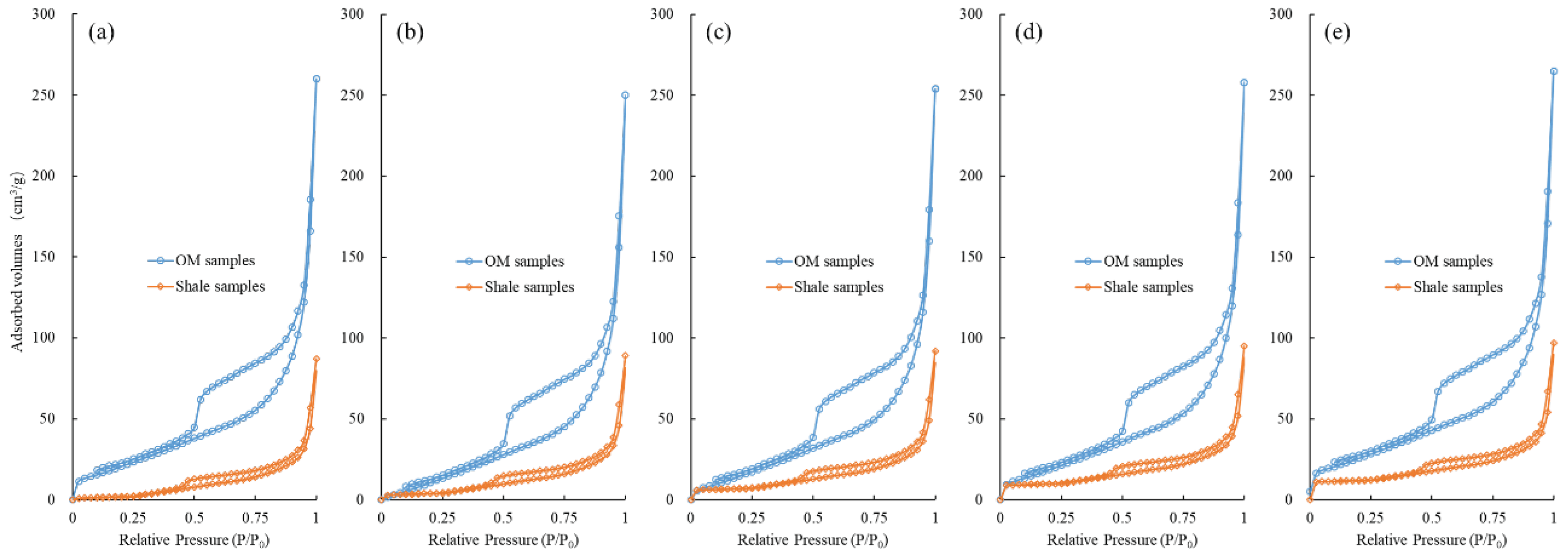

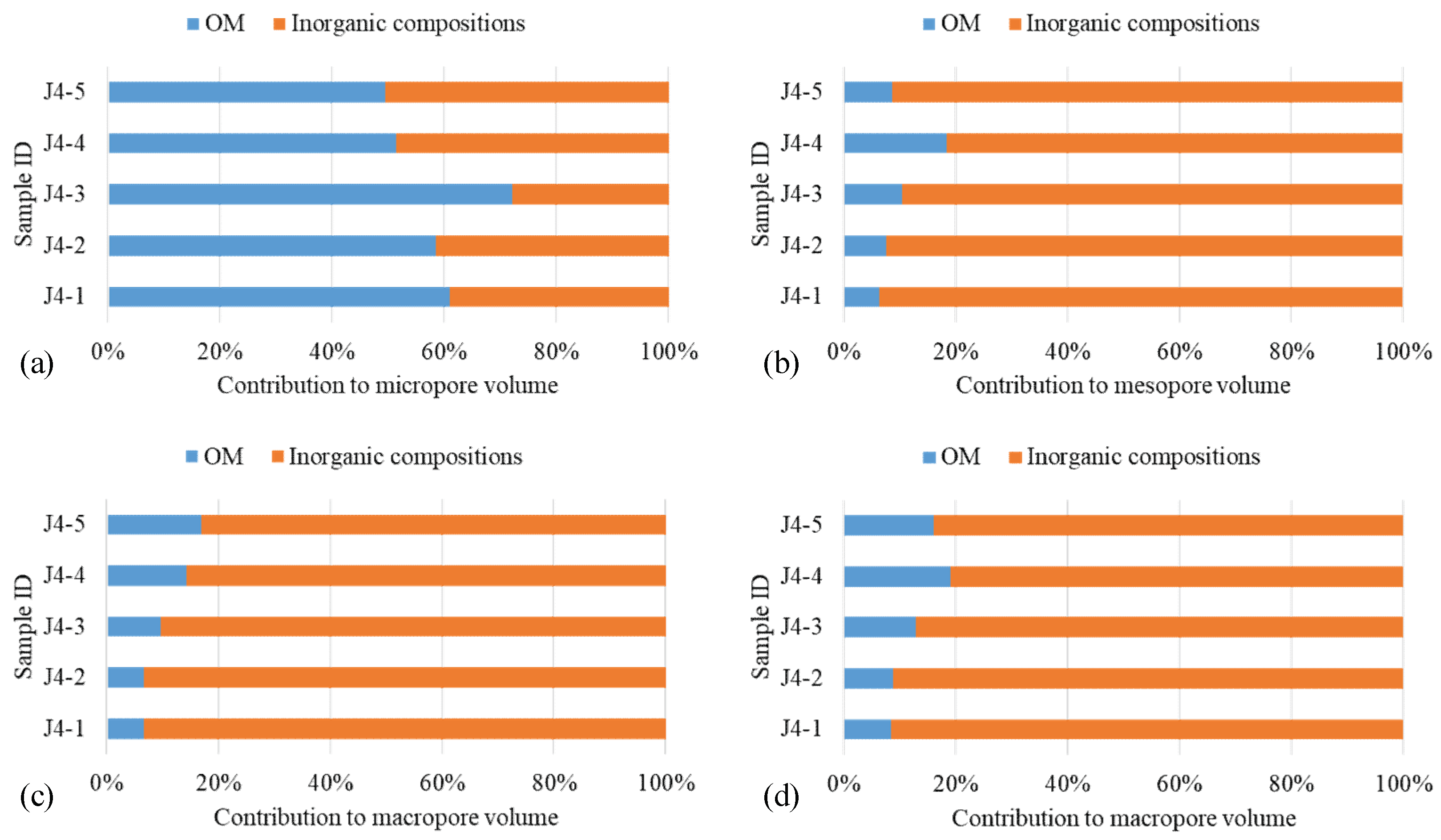

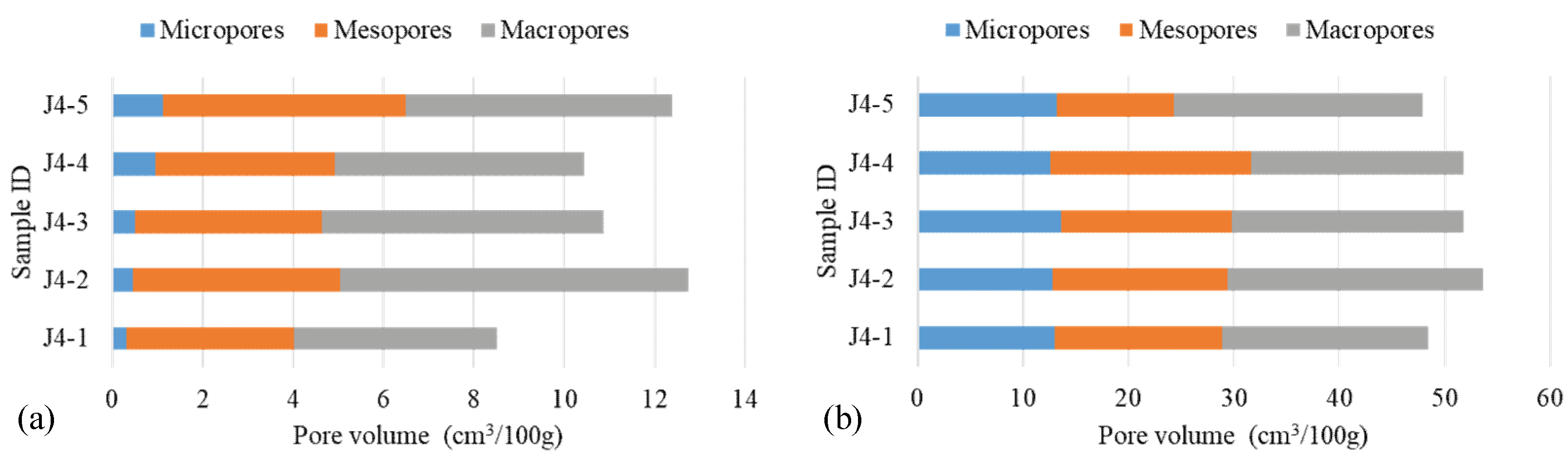

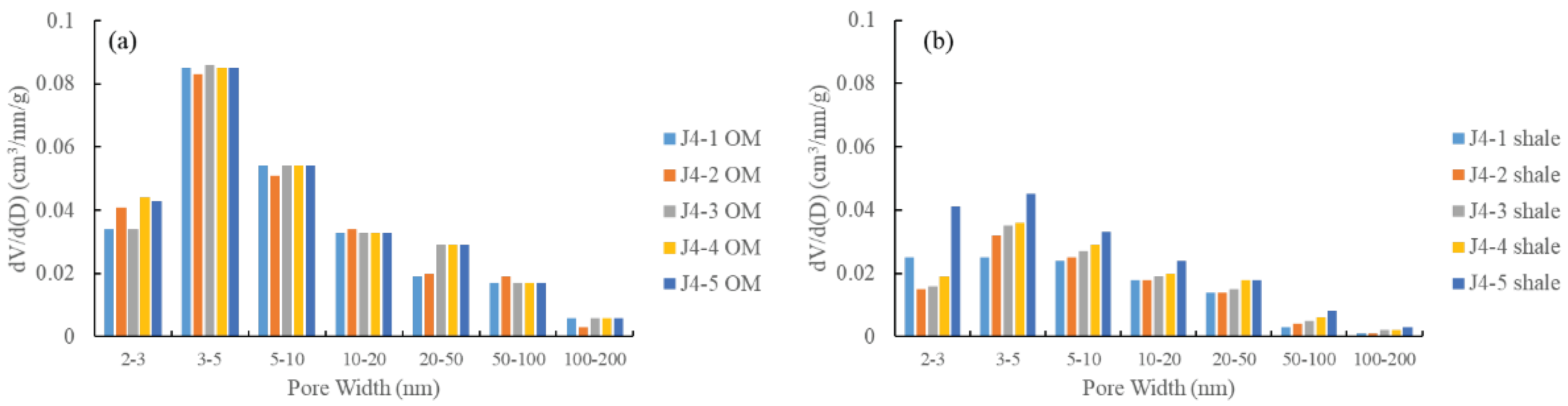

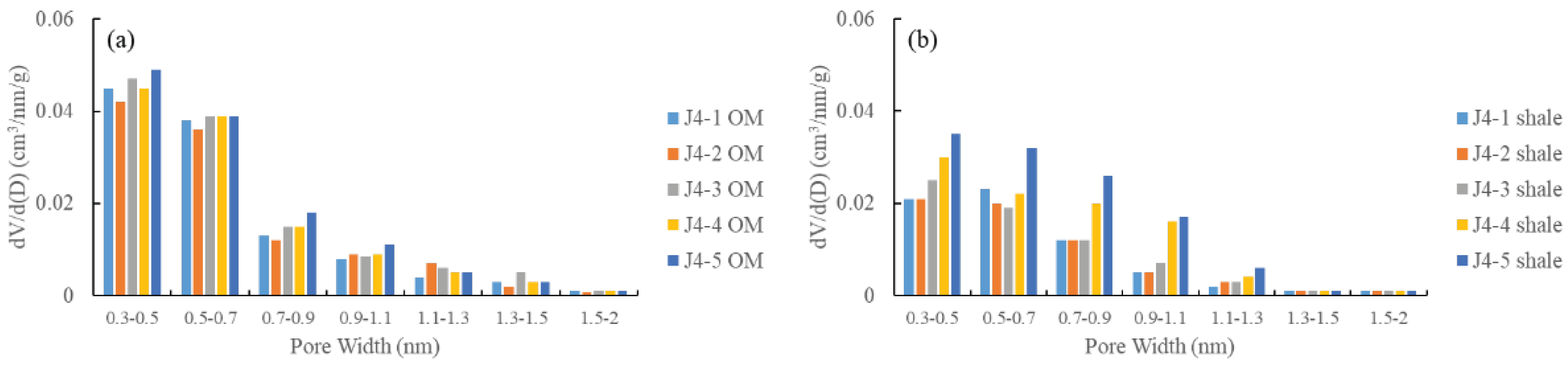

Organic matter (OM) pores are significant for shale gas accumulation and flow mechanisms. The pores of Wufeng-Longmaxi (W-L) shale in the Sichuan Basin, China have been extensively characterized, however, the proportion of OM pores in this shale have not been adequately discussed. In this study, the contribution of OM pores to the total pore volume of W-L shale was quantitatively studied through the analysis of OM isolation, field emission scanning electron microscopy (FE-SEM) and low-pressure CO2 and N2 adsorption (LPGA). FE-SEM images showed abundant OM pores, interparticle pores and intraparticle pores with various shapes and widths in the W-L shales. The pore size distribution (PSD) of the isolated OM from five shale samples showed a consistent, unimodal pattern. The pore volume of isolated OM was greater than that of the bulk shale samples, suggesting that OM is more porous than the inorganic compositions in shales. The average contribution of OM to the volumes of micropores, mesopores and macropores was 58.42%, 10.34% and 10.72%, respectively. Therefore, the pore volume of the W-L shale was dominantly related to inorganic minerals. This was probably due to the small weight ratio of OM in the shale samples (1.5 wt%–4.2 wt%). The findings of this study reveal the different effects of OM and minerals on pore development, and provide new insights into the quantitative contribution of OM pores to the total pore volume of the W-L shale. View Full-Text
Keywords: isolated organic matter; organic matter pores; pore size distribution; Wufeng-Longmaxi shale; fuling gas field isolated organic matter; organic matter pores; pore size distribution; Wufeng-Longmaxi shale; fuling gas field
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Li, Z.; Jiang, Z.; Yu, H.; Liang, Z. Organic Matter Pore Characterization of the Wufeng-Longmaxi Shales from the Fuling Gas Field, Sichuan Basin: Evidence from Organic Matter Isolation and Low-Pressure CO2 and N2 Adsorption. Energies 2019, 12, 1207.
