Open AccessArticle
Energies 2019, 12(6), 986; https://doi.org/10.3390/en12060986

Variation of Petrophysical Properties and Adsorption Capacity in Different Rank Coals: An Experimental Study of Coals from the Junggar, Ordos and Qinshui Basins in China

1,2
,
1,2,*
,
1,2
and
1,2
1
School of Energy Resources, China University of Geosciences, Beijing 100083, China
2
Coal Reservoir Laboratory of National Engineering Research Center of CBM Development & Utilization, China University of Geosciences, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Received: 29 January 2019 / Revised: 4 March 2019 / Accepted: 11 March 2019 / Published: 13 March 2019
(This article belongs to the Special Issue Development of Unconventional Reservoirs)
Full-Text   |   PDF [5631 KB, uploaded 14 March 2019]   |

Abstract

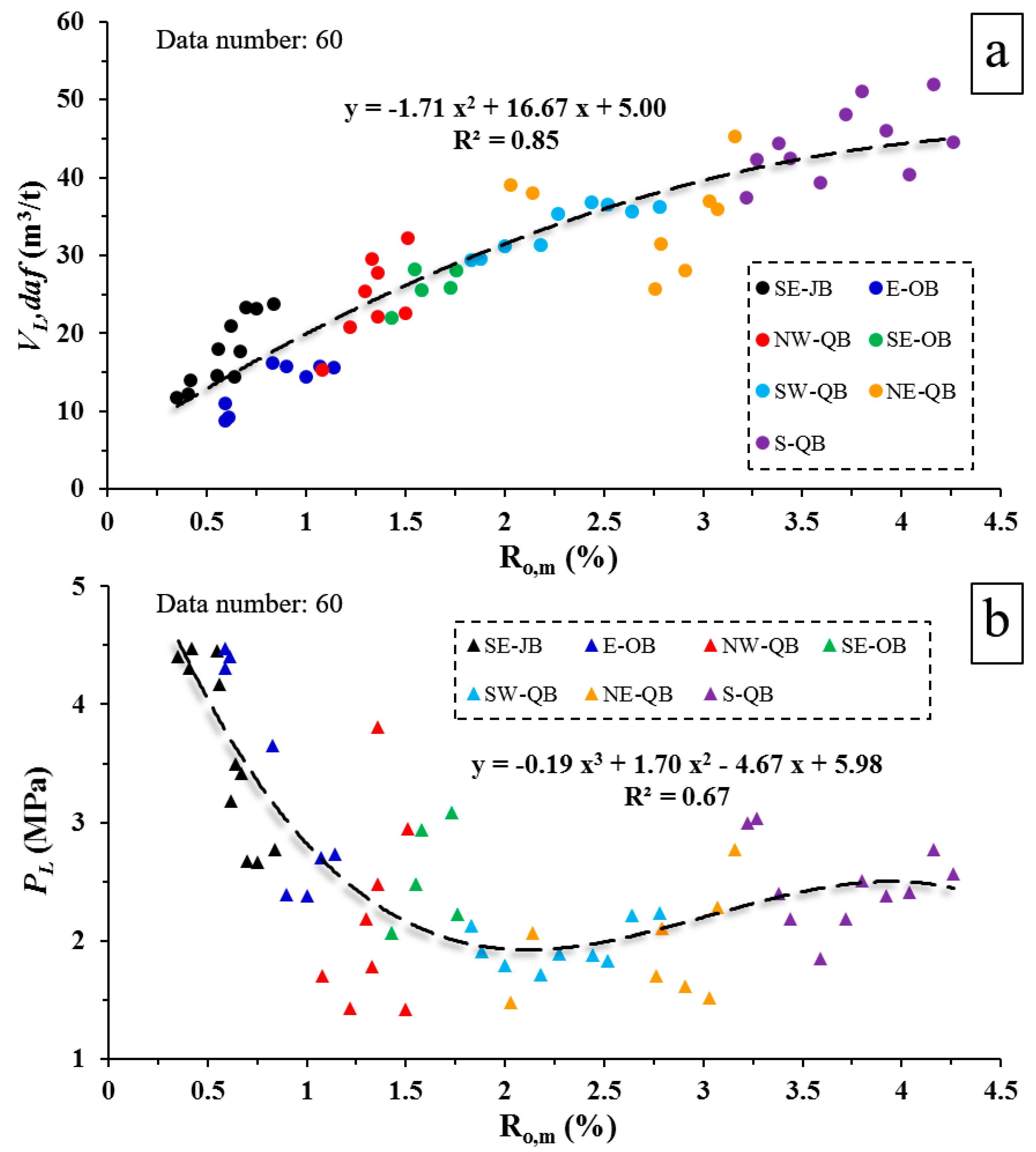

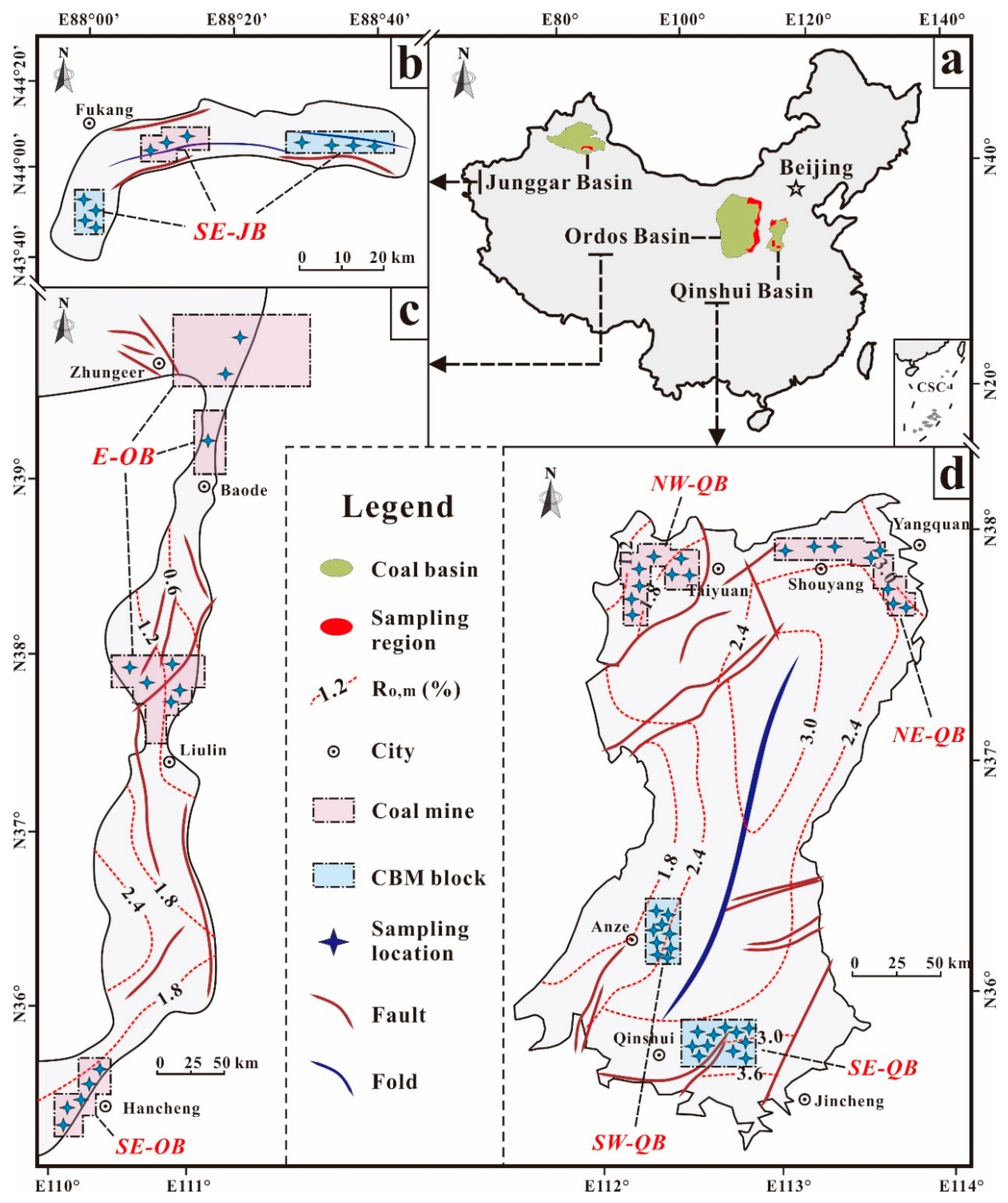

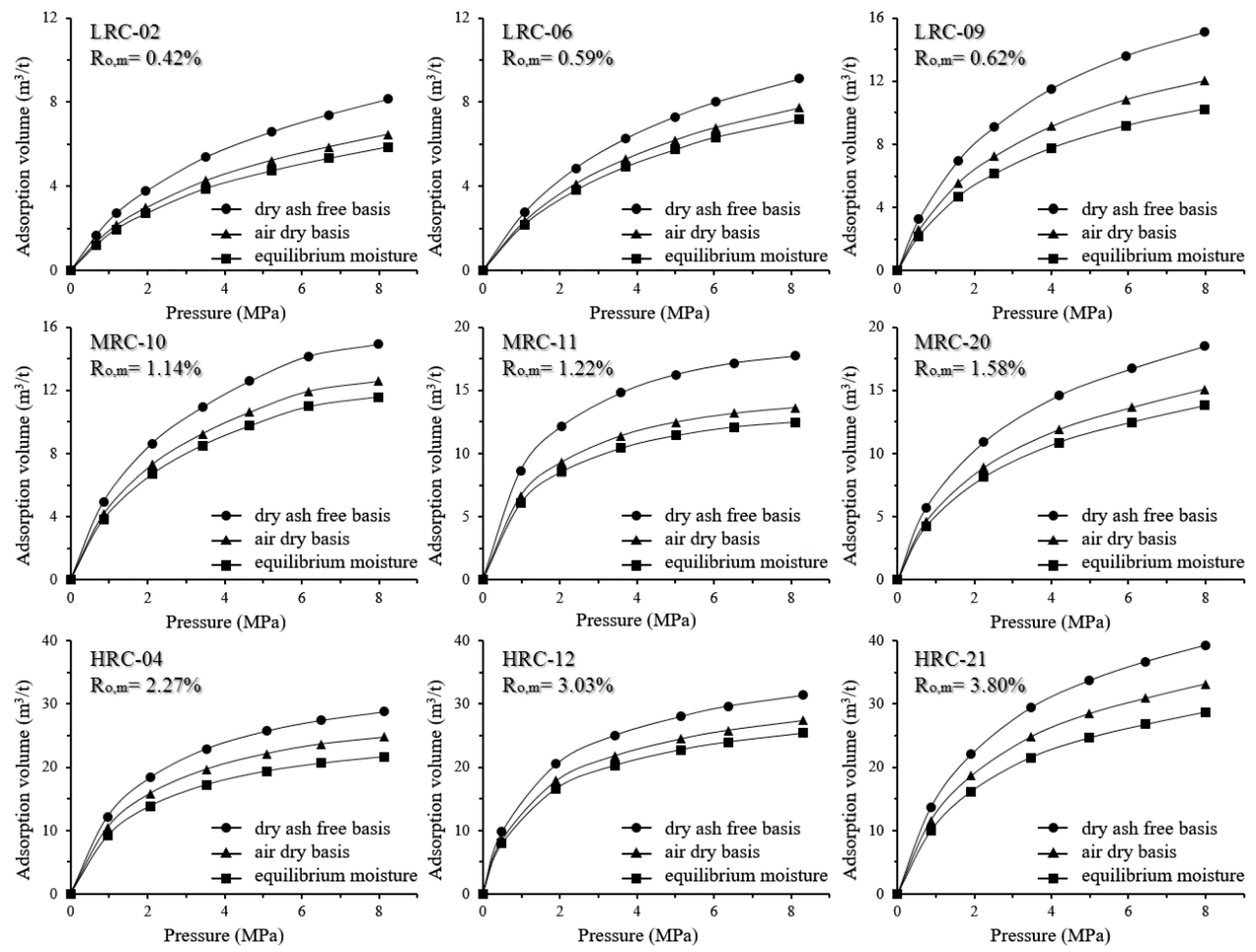

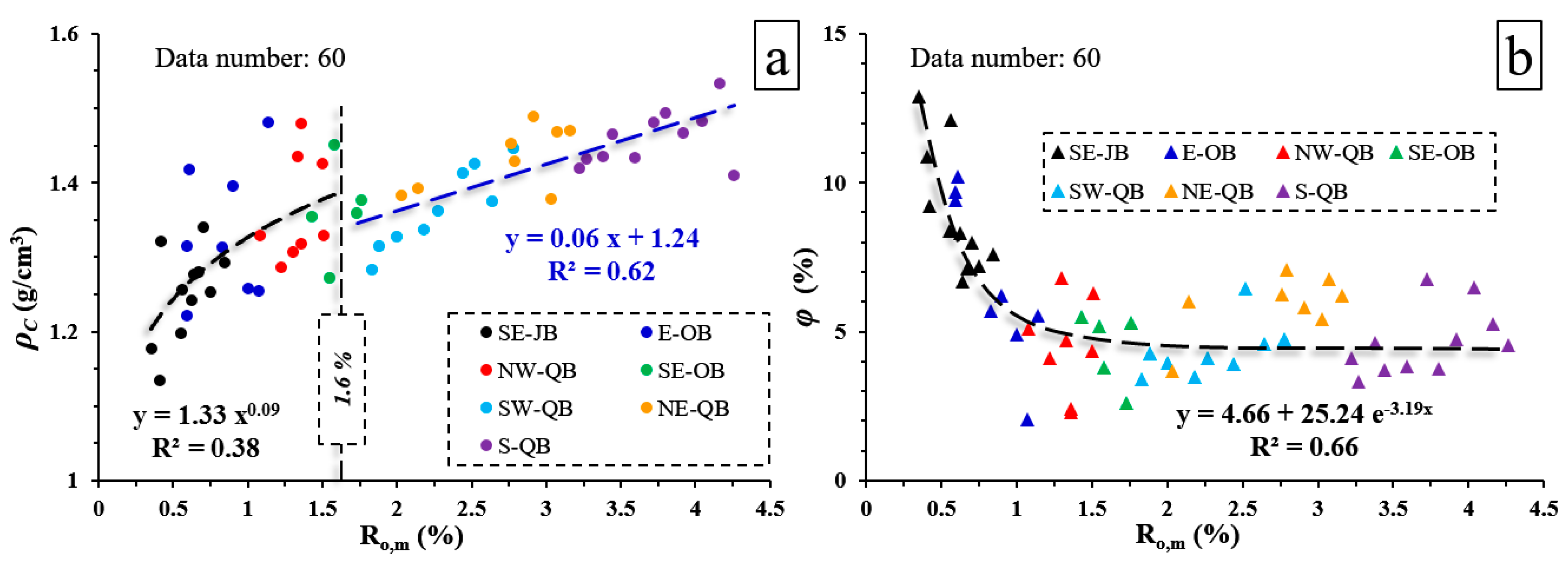

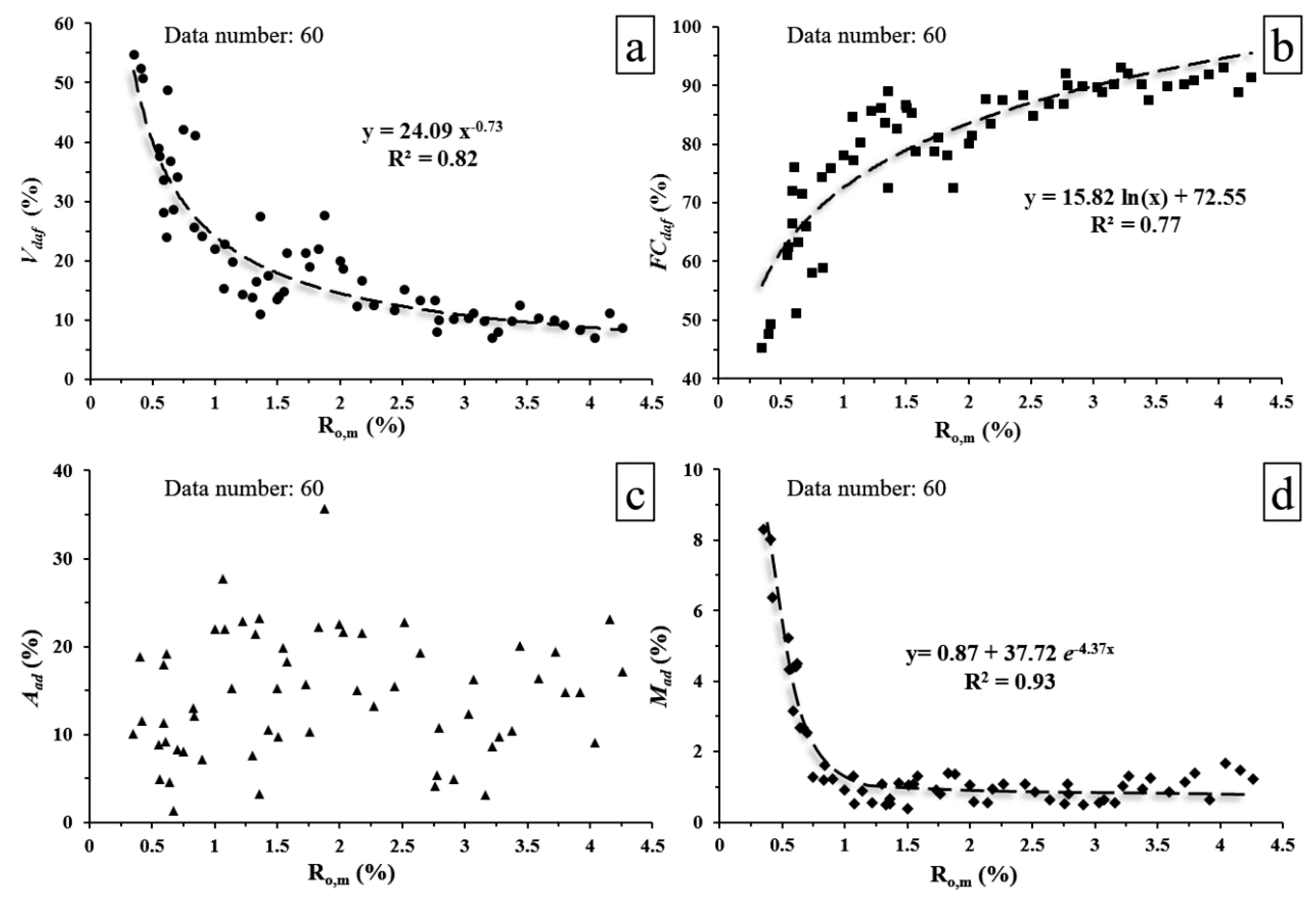

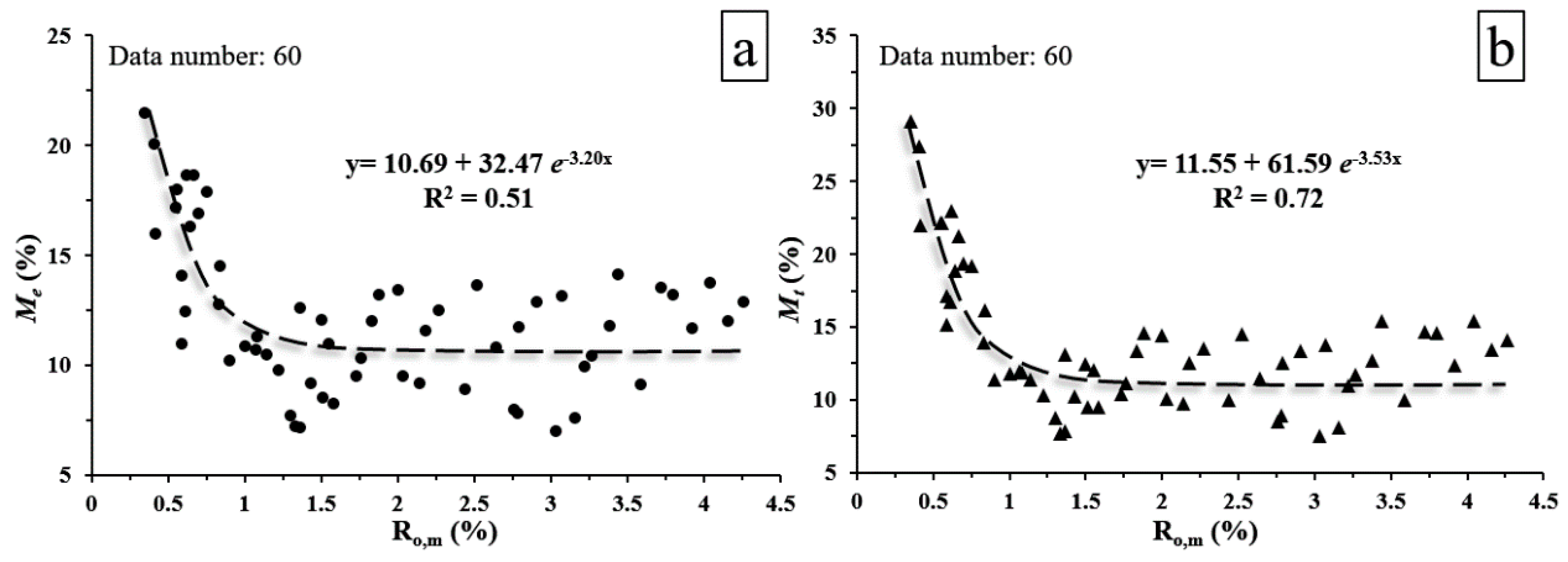

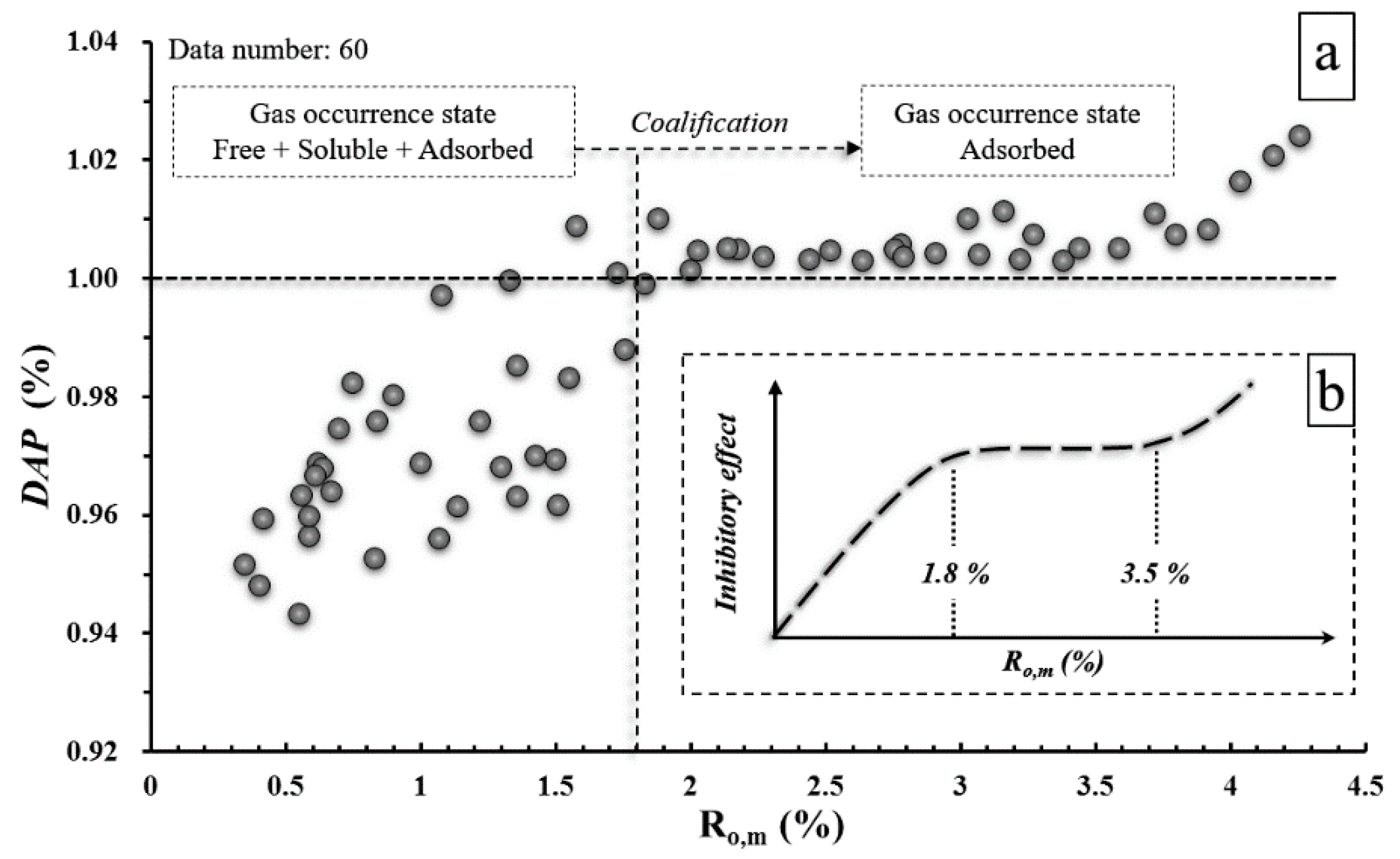

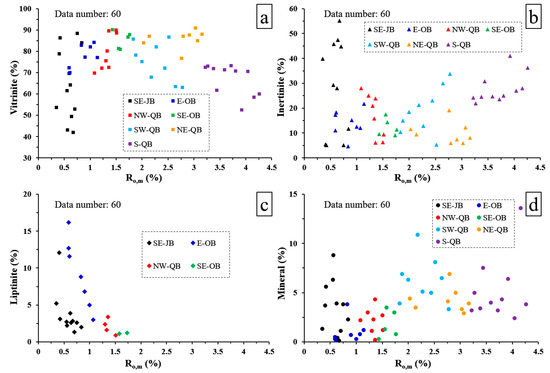

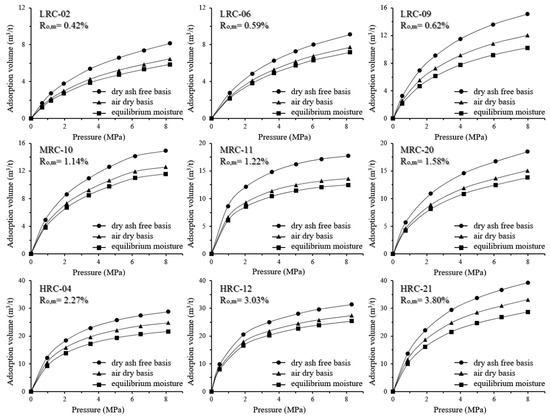

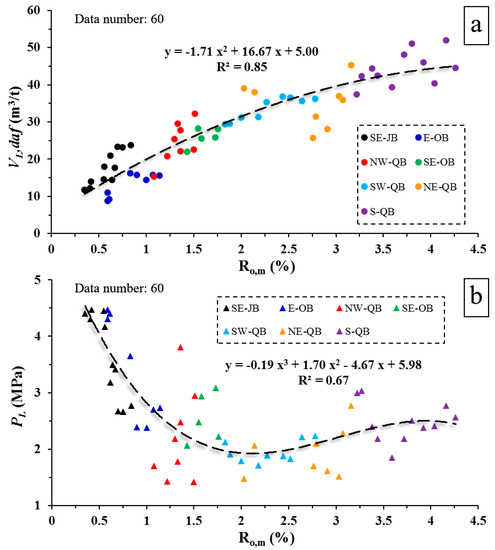

The petrophysical properties of coal will vary during coalification, and thus affect the methane adsorption capacity. In order to clarify the variation rule and its controlling effect on methane adsorption, various petrophysical tests including proximate analysis, moisture measurement, methane isothermal adsorption, mercury injection, etc. were carried out on 60 coal samples collected from the Junggar, Ordos and Qinshui basins in China. In this work, the boundary values of maximum vitrinite reflectance (Ro,m) for dividing low rank, medium rank and high rank coals are set as 0.65% and 2.0%. The results show that vitrinite is the most abundant maceral, but the maceral contents are controlled by sedimentation without any relation to coal rank. Both the moisture content and porosity results show higher values in the low ranks and stabilized with Ro,m beyond 1%. Ro,m and VL (daf) show quadratic correlation with the peak located in Ro,m = 4.5–5%, with the coefficient (R2) reaching 0.86. PL decrease rapidly before Ro,m = 1.5%, then increase slowly. DAP is established to quantify the inhibitory effect of moisture on methane adsorption capacity, which shows periodic relationship with Ro,m: the inhibitory effect in lignite is the weakest and increases during coalification, then remains constant at Ro,m = 1.8% to 3.5%, and finally increases again. In the high metamorphic stage, clay minerals are more moisture-absorbent than coal, and the inherent moisture negatively correlates with the ratio of vitrinite to inertinite (V/I). During coalification, micro gas pores gradually become dominant, fractures tends to be well oriented and extended, and clay filling becomes more common. These findings can help us better understand the variation of petrophysical properties and adsorption capacity in different rank coals. View Full-Text
Keywords: coal rank; petrophysical properties; coalbed methane; adsorption capacity coal rank; petrophysical properties; coalbed methane; adsorption capacity
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
