# Application of Discrete-Interval Moving Seasonalities to Spanish Electricity Demand Forecasting during Easter

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Forecasting for Special Events

## 3. Materials and Methods

#### 3.1. Holt–Winters Models with Discrete Interval Moving Seasonalities

#### 3.1.1. Obtaining Seeds of the Model

#### 3.1.2. Parameter Optimisation and Forecast

- The first consists in determining all parameters simultaneously. Chatfield [39] studied the optimisation of the parameters separately and jointly. He concluded that the best solution is to accomplish the joint optimisation of the parameters.
- The second consists in accomplishing an optimisation of the regular model and subsequently optimising the parameters of the DIMS. Although this contradicts the previous point of view, no differences in precision are found, but there are differences in optimisation time.

#### 3.2. A Case Study: Easter

## 4. Results and Discussion

#### 4.1. Analysis of Results

#### 4.2. Comparison

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Garrués-Irurzun, J.; López-García, S. Red Eléctrica de España S.A.: Instrument of regulation and liberalization of the Spanish electricity market (1944–2004). Renew. Sustain. Energy Rev.
**2009**, 13, 2061–2069. [Google Scholar] [CrossRef] - Domínguez, E.F.; Bernat, J.X. Restructuring and generation of electrical energy in the Iberian Peninsula. Energy Policy
**2007**, 35, 5117–5129. [Google Scholar] [CrossRef] - Hobbs, B.F. Analysis of the value for unit commitment of improved load forecasts. IEEE Trans. Power Syst.
**1999**, 14, 1342–1348. [Google Scholar] [CrossRef] - Hirth, L.; Ziegenhagen, I. Balancing power and variable renewables: Three links. Renew. Sustain. Energy Rev.
**2015**, 50, 1035–1051. [Google Scholar] [CrossRef][Green Version] - Roldán-Fernández, J.; Gómez-Quiles, C.; Merre, A.; Burgos-Payán, M.; Riquelme-Santos, J.M. Cross-border energy exchange and renewable premiums: The case of the Iberian system. Energies
**2018**, 11, 3277. [Google Scholar] [CrossRef] - Weron, R. Modeling and Forecasting Electricity Loads and Prices: A Statistical Approach; John Wiley & Sons: Hoboken, NJ, USA, 2007; Volume 403. [Google Scholar]
- Contreras, J.; Espinola, R.; Nogales, F.J.; Conejo, A.J. ARIMA models to predict next-day electricity prices. IEEE Trans. Power Syst.
**2003**, 18, 1014–1020. [Google Scholar] [CrossRef][Green Version] - Juberias, G.; Yunta, R.; Garcia Moreno, J.; Mendivil, C. A new ARIMA model for hourly load forecasting. In Proceedings of the 1999 IEEE Transmission and Distribution Conference, New Orleans, LA, USA, 11–16 April 1999; pp. 314–319. [Google Scholar] [CrossRef]
- Bianco, V.; Manca, O.; Nardini, S. Electricity consumption forecasting in Italy using linear regression models. Energy
**2009**, 34, 1413–1421. [Google Scholar] [CrossRef] - Taylor, J.W. Short-term electricity demand forecasting using double seasonal exponential smoothing. J. Oper. Res. Soc.
**2003**, 54, 799–805. [Google Scholar] [CrossRef][Green Version] - Taylor, J.W. Triple seasonal methods for short-term electricity demand forecasting. Eur. J. Oper. Res.
**2010**, 204, 139–152. [Google Scholar] [CrossRef][Green Version] - De Livera, A.M.; Hyndman, R.J.; Snyder, R.D. Forecasting time series with complex seasonal patterns using exponential smoothing. J. Am. Stat. Assoc.
**2011**, 106, 1513–1527. [Google Scholar] [CrossRef] - Hyndman, R.; Koehler, A.; Ord, J.; Snyder, R. Forecasting with Exponential Smoothing: The State Space Approach; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
- Ko, C.; Lee, C. Short-term load forecasting using SVR (support vector regression)-based radial basis function neural network with dual extended Kalman filter. Energy
**2013**, 49, 413–422. [Google Scholar] [CrossRef] - Rana, M.; Koprinska, I. Forecasting electricity load with advanced wavelet neural networks. Neurocomputing
**2016**, 182. [Google Scholar] [CrossRef] - Baliyan, A.; Gaurav, K.; Kumar Mishra, S. A review of short term load forecasting using artificial neural network models. Procedia Comput. Sci.
**2015**, 48, 121–125. [Google Scholar] [CrossRef] - Yang, Z.; Ce, L.; Lian, L. Electricity price forecasting by a hybrid model, combining wavelet transform, ARMA and kernel-based extreme learning machine methods. Appl. Energy
**2017**, 190, 291–305. [Google Scholar] [CrossRef] - Ghadimi, N.; Akbarimajd, A.; Shayeghi, H.; Abedinia, O. Two stage forecast engine with feature selection technique and improved meta-heuristic algorithm for electricity load forecasting. Energy
**2018**, 161, 130–142. [Google Scholar] [CrossRef] - Troncoso, A.; Riquelme-Santos, J.M.; Riquelme, J.; Gómez-Expósito, A.; Martínez-Ramos, J.L. Time-Series Prediction: Application to the Short-Term Electric Energy Demand. Lect. Notes Comput. Sci.
**2004**, 3040, 577–586. [Google Scholar] [CrossRef][Green Version] - Martínez-Álvarez, F.; Troncoso, A.; Riquelme, J.C.; Aguilar-Ruíz, J. Energy Time Series Forecasting Based on Pattern Sequence Similarity. IEEE Trans. Knowl. Data Eng.
**2011**, 23, 1230–1243. [Google Scholar] [CrossRef][Green Version] - Cancelo, J.R.; Espasa, A.; Grafe, R. Forecasting the electricity load from one day to one week ahead for the Spanish system operator. Int. J. Forecast.
**2008**, 24, 588–602. [Google Scholar] [CrossRef][Green Version] - Cancelo, J.; Espasa, A. Modelling and Forecasting Daily Series of Electricity Demand. Investig. Econ.
**1996**, 20, 359–376. [Google Scholar] - Torro, H.; Meneu, V.; Valor, E. Single Factor Stochastic Models with Seasonality Applied to Underlying Weather Derivatives Variables. J. Risk Financ.
**2003**, 4, 6–17. [Google Scholar] [CrossRef] - Darbellay, G.A.; Slama, M. Forecasting the short-term demand for electricity: Do neural networks stand a better chance? Int. J. Forecast.
**2000**, 16, 71–83. [Google Scholar] [CrossRef] - Smith, M. Modeling and Short-Term Forecasting of New South Wales Electricity System Load. J. Bus. Econ. Stat.
**2000**, 18, 465–478. [Google Scholar] [CrossRef] - Zhang, X.; Wang, J. A novel decomposition–ensemble model for forecasting short–term load–time series with multiple seasonal patterns. Appl. Soft Comput.
**2018**, 65, 478–494. [Google Scholar] [CrossRef] - Moral-Carcedo, J.; Vicéns-Otero, J. Modelling the non-linear response of Spanish electricity demand to temperature variations. Energy Econ.
**2005**, 27, 477–494. [Google Scholar] [CrossRef] - Pardo, A.; Meneu, V.; Valor, E. Temperature and seasonality influences on Spanish electricity load. Energy Econ.
**2002**, 24, 55–70. [Google Scholar] [CrossRef] - Elamin, N.; Fukushige, M. Modeling and forecasting hourly electricity demand by SARIMAX with interactions. Energy
**2018**, 165(Part B), 257–268. [Google Scholar] [CrossRef] - Çevik, H.H.; Çunkaş, M. A Fuzzy Logic Based Short Term Load Forecast for the Holidays. Int. J. Mach. Learn. Comput.
**2016**, 6, 57–61. [Google Scholar] [CrossRef] - Kulkarni, S.; Simon, S.; Sundareswaran, K. A spiking neural network (SNN) forecast engine for short-term electrical load forecasting. Appl. Soft Comput.
**2013**, 13, 3628–3635. [Google Scholar] [CrossRef] - Erisen, E.; Iyigun, C.; Tanrısever, F. Short–term electricity load forecasting with special days: An analysis on parametric and non–parametric methods. Ann. Oper. Res.
**2017**, 1–34. [Google Scholar] [CrossRef] - Arora, S.; Taylor, J. Short-term forecasting of anomalous load using rule-based triple seasonal methods. IEEE Trans. Power Syst.
**2013**, 28, 3235–3242. [Google Scholar] [CrossRef] - Arora, S.; Taylor, J. Rule-based autoregressive moving average models for forecasting load on special days: A case study for France. Eur. J. Oper. Res.
**2018**, 266, 259–268. [Google Scholar] [CrossRef][Green Version] - Bermúdez, J. Exponential smoothing with covariates applied to electricity demand forecast. Eur. J. Ind. Eng.
**2013**, 7, 333–349. [Google Scholar] [CrossRef] - Göb, R.; Lurz, K.; Pievatolo, A. Electrical load forecasting by exponential smoothing with covariates. Appl. Stoch. Model Bus. Ind.
**2013**, 29, 629–645. [Google Scholar] [CrossRef] - García-Díaz, J.; Trull, O. Competitive Models for the Spanish Short-Term Electricity Demand Forecasting. In Time Series Analysis and Forecasting: Selected Contributions from the ITISE Conference; Springer: Berlin, Germany, 2016; pp. 217–231. [Google Scholar]
- Cleveland, R.; Cleveland, W.; McRae, J.; Terpenning, I. STL: A seasonal-trend decomposition procedure based on loess. J. Off. Stat.
**1990**, 6, 3–33. [Google Scholar] - Chatfield, C. The Holt-Winters forecasting procedure. Appl. Stat.
**1978**, 27, 264–279. [Google Scholar] [CrossRef] - He, Y.; Xu, Q.; Wan, J.; Yang, S. Short-term power load probability density forecasting based on quantile regression neural network and triangle kernel function. Energy
**2016**, 114, 498–512. [Google Scholar] [CrossRef] - De Livera, A. Automatic Forecasting with a Modified Exponential Smoothing State Space Framework; Technical Report; Monash University, Department of Econometrics and Business Statistics: Melbourne, Australia, 2010. [Google Scholar]

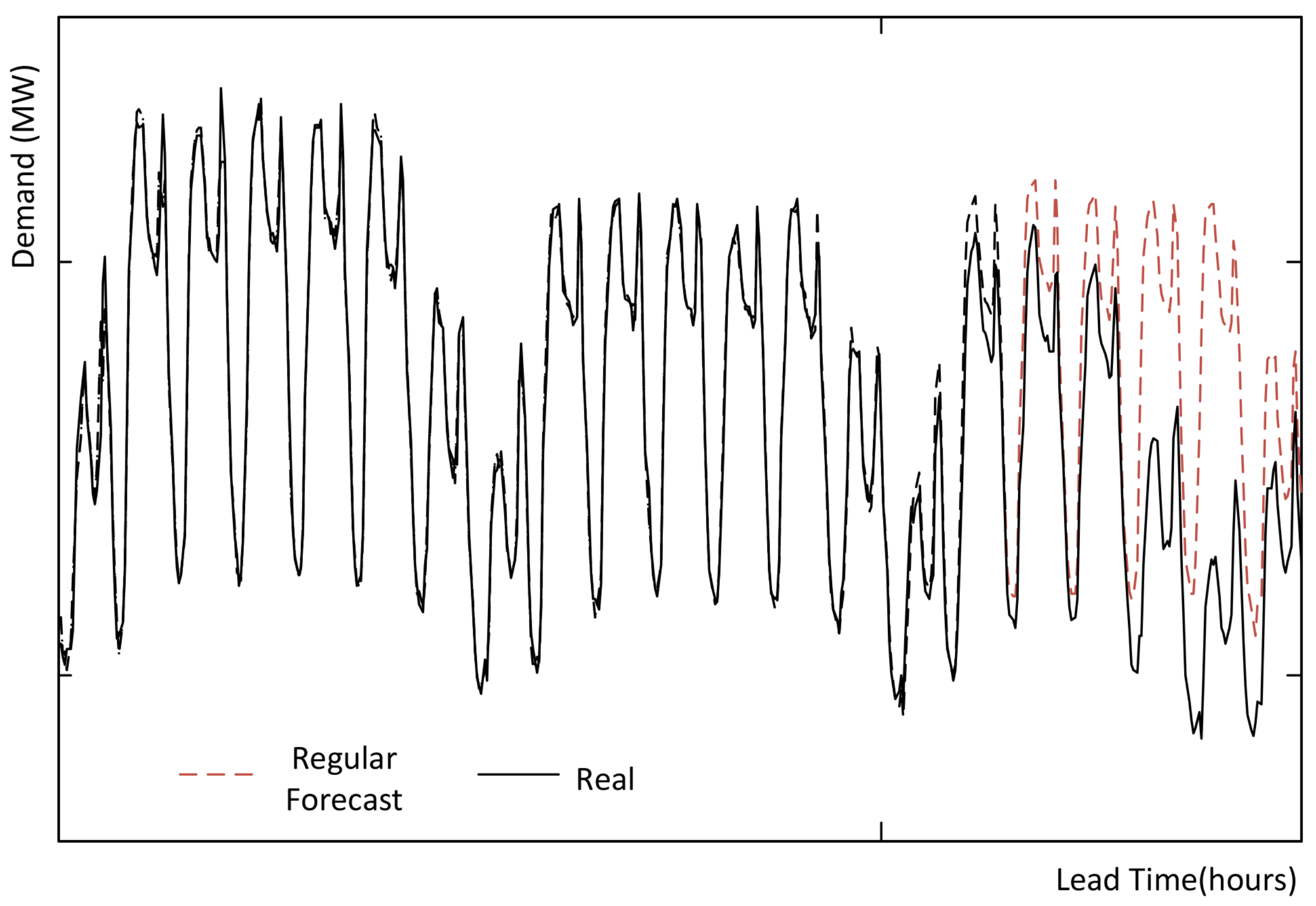

**Figure 1.**Comparison of the effect produced by a special event (Easter in this case) on the hourly time series of electricity demand in Spain.

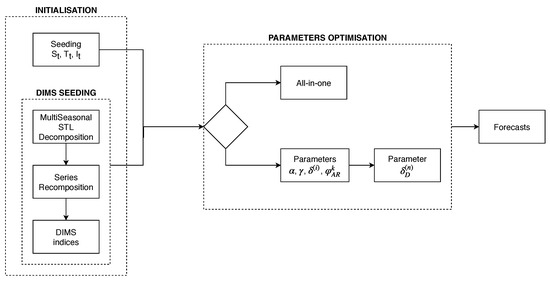

**Figure 2.**Flow chart for the utilisation of the discrete-interval moving seasonality (DIMS). Initialisation is found at the left side of the figure. The right side explains the parameter optimisation and forecasts.

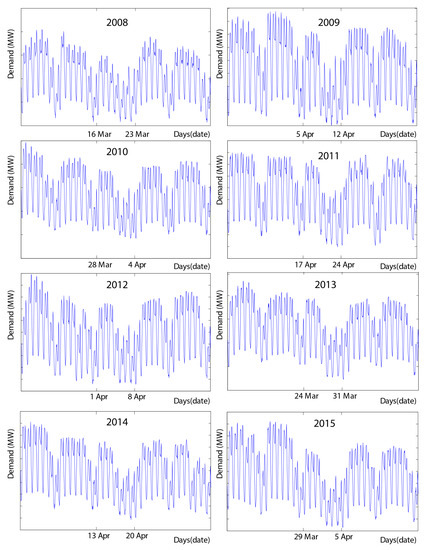

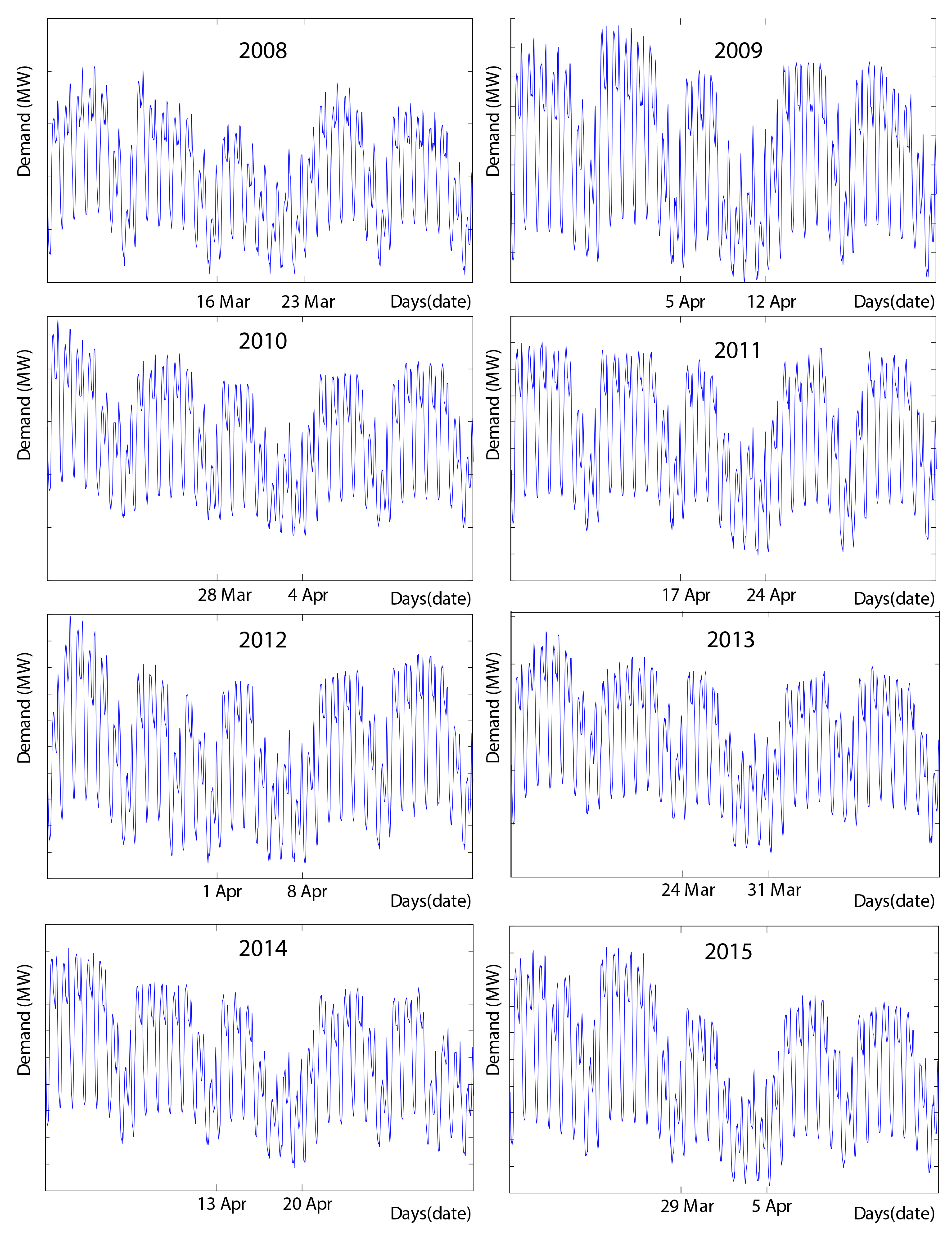

**Figure 3.**Hourly electricity demand in Spain in the weeks around Easter. It can be seen that the dates of Easter vary every year and that a decrease in consumption always takes place during the Easter week. Furthermore, this descent has a similar behaviour every year.

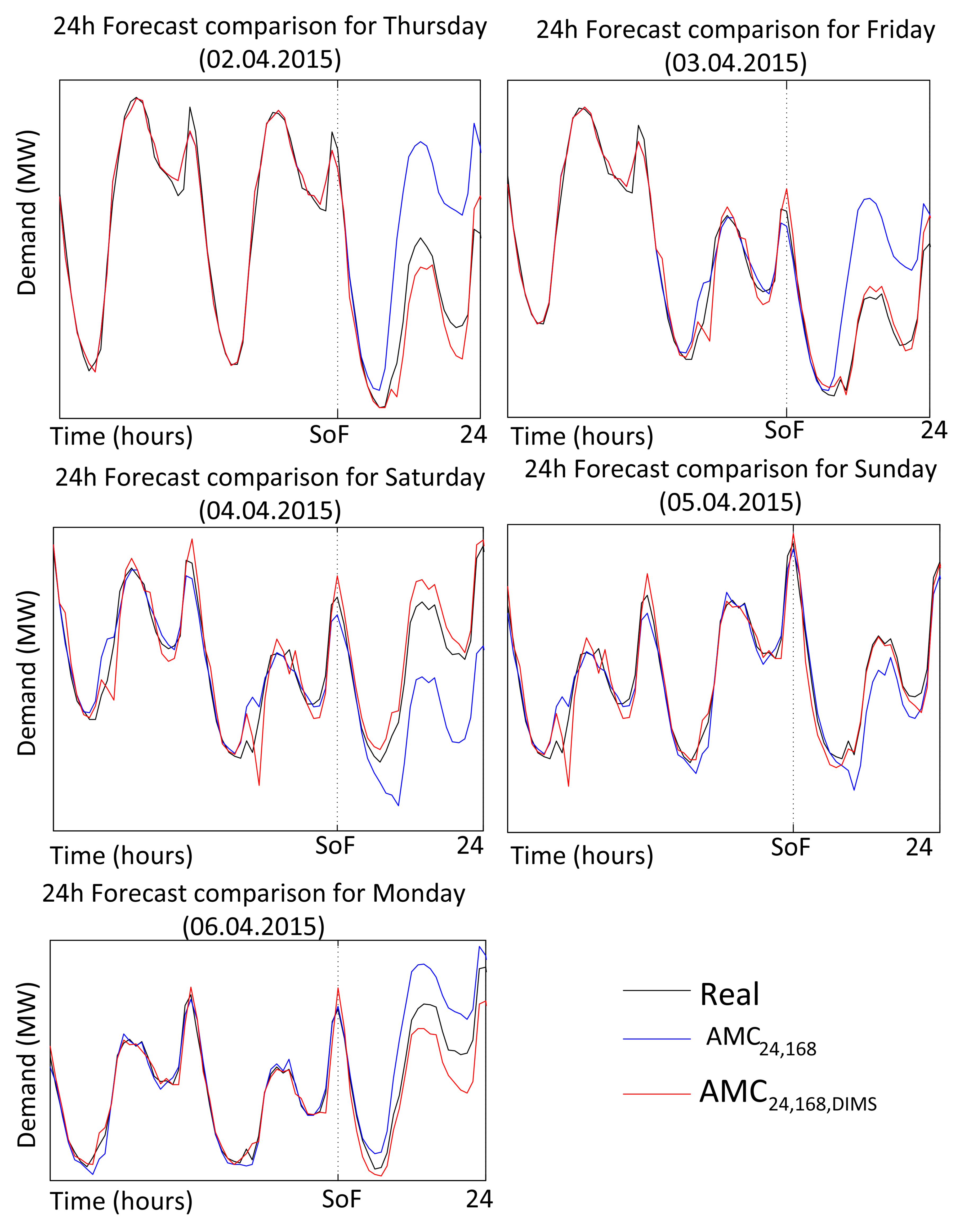

**Figure 4.**Comparison of 24-h-ahead forecasts obtained by the regular method and the DIMS method. The abscissa represents the lead time in hours from the start of the forecast (SoF) to 24 h ahead. The black line represents the real (observed values) with which the forecasts are compared. The blue line is the forecast obtained by the regular method; the red line is the forecast obtained by the new DIMS method.

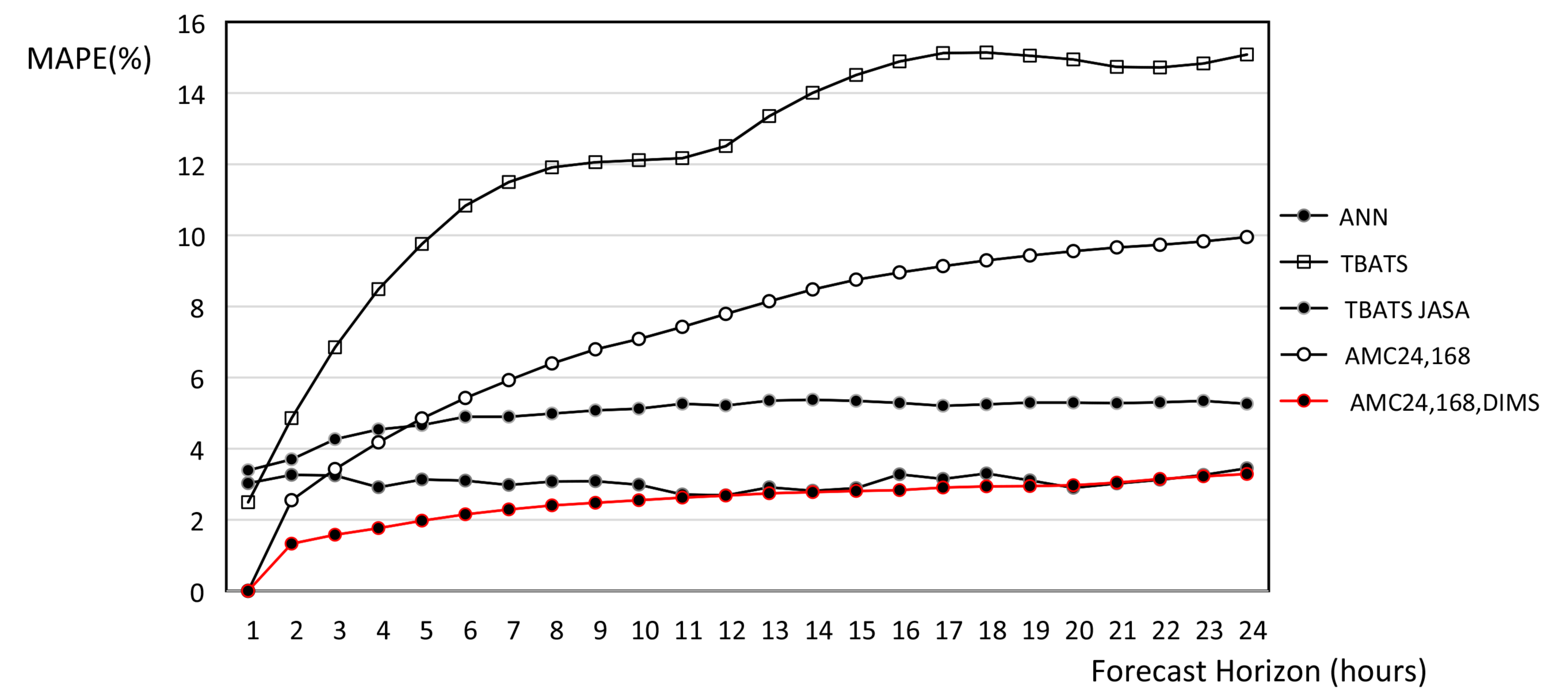

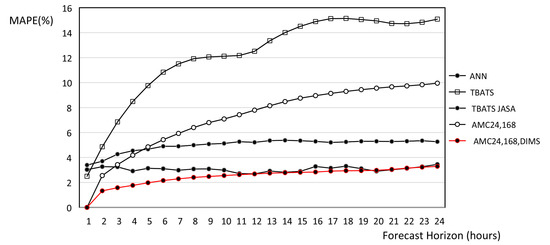

**Figure 6.**Comparison of MAPE for all methods. ANN is the artificial neural network; TBATS stands for the general Exponential Smoothing State Space Model with Box-Cox Transformation, ARMA Errors, Trend and Seasonal Components (TBATS) method, and TBATS JASA stands for TBATS with regressors. $AM{C}_{24,168}$ is the regular nHWT method, and $AM{C}_{24,168,Easter}$ stands for nHWT with DIMS.

**Table 1.**Estimate of the weights of the values of the series on the rebuilt time series. In the columns each appearance of the discrete-interval moving seasonality (DIMS) is shown, and in the rows every time instant within the discrete seasonality.

1 | 2 | 3 | … | n | |
---|---|---|---|---|---|

1 | $\frac{{X}_{{p}_{1}}}{{R}_{{p}_{1}}}$ | $\frac{{X}_{{p}_{2}}}{{R}_{{p}_{2}}}$ | $\frac{{X}_{{p}_{3}}}{{R}_{{p}_{3}}}$ | … | $\frac{{X}_{{p}_{n}}}{{R}_{{p}_{n}}}$ |

2 | $\frac{{X}_{{p}_{1}+1}}{{R}_{{p}_{1}+1}}$ | $\frac{{X}_{{p}_{2}+1}}{{R}_{{p}_{2}+1}}$ | $\frac{{X}_{{p}_{3}+1}}{{R}_{{p}_{3}+1}}$ | … | $\frac{{X}_{{p}_{n}+1}}{{R}_{{p}_{n}+1}}$ |

… | … | … | … | … | |

${s}_{h}$ | $\frac{{X}_{{p}_{1}+{s}_{h}-1}}{{R}_{{p}_{1}+{s}_{h}-1}}$ | $\frac{{X}_{{p}_{2}+{s}_{h}-1}}{{R}_{{p}_{2}+{s}_{h}-1}}$ | $\frac{{X}_{{p}_{3}+{s}_{h}-1}}{{R}_{{p}_{3}+{s}_{h}-1}}$ | … | $\frac{{X}_{{p}_{n}+{s}_{h}-1}}{{R}_{{p}_{n}+{s}_{h}-1}}$ |

Year | Palm Sunday | Resurrection | ${\mathit{t}}_{\mathit{Easter}}^{*}$ | ${\mathit{s}}_{\mathit{Easter}}^{*}$ | |
---|---|---|---|---|---|

Sunday | Begin | End | |||

2008 | 16 March | 23 March | 1897 | 2017 | — |

2009 | 5 April | 12 April | 11,237 | 11,257 | 9220 |

2010 | 28 March | 4 April | 19,705 | 19,825 | 8448 |

2011 | 17 April | 24 April | 28,945 | 29,065 | 9120 |

2012 | 1 April | 8 April | 37,345 | 37,465 | 8280 |

2013 | 24 March | 31 March | 45,913 | 46,033 | 8448 |

2014 | 13 April | 20 April | 55,153 | 55,273 | 9120 |

2015 | 29 March | 5 April | 63,553 | 63,673 | 8280 |

Model | $\mathit{\alpha}$ | $\mathit{\gamma}$ | ${\mathit{\delta}}^{\left(24\right)}$ | ${\mathit{\delta}}^{\left(168\right)}$ | ${\mathit{\delta}}^{\left(\mathit{Easter}\right)}$ | ${\mathit{\phi}}_{\mathit{AR}}$ |
---|---|---|---|---|---|---|

$AM{C}_{24,168,Easter}$ | 0.0502 | 0.0001 | 0.3080 | 0.0614 | 0.0627 | 0.9178 |

$AA{C}_{24,168,Easter}$ | 0.0001 | 0.0071 | 0.2981 | 0.1127 | 0.1167 | 0.9658 |

Period | Starting at | Length |
---|---|---|

0 | Regular Model, no DIMS included | |

1 | Monday after Palm Sunday | 192 h |

2 | Holy Thursday | 120 h |

**Table 5.**Mean Absolute Percentage Error (MAPE) for $AM{C}_{24,168}$, $AM{C}_{24,168,Easter}$, $AA{C}_{24,168}$, and $AA{C}_{24,168,Easter}$ for different periods and optimisation methods.

MODEL | ${\mathit{AMC}}_{24,168}$ | ${\mathit{AMC}}_{24,168,\mathit{Easter}}$ | ${\mathit{AAC}}_{24,168}$ | ${\mathit{AAC}}_{24,168,\mathit{Easter}}$ | |||||
---|---|---|---|---|---|---|---|---|---|

VARIANT | CASE 0 | CASE 1 | CASE 2 | CASE 0 | CASE 1 | CASE 2 | |||

M2 | M1 | M2 | M1 | ||||||

Thursday | 17/04/2014 | 13.12 | 3.05 | 2.73 | 2.79 | 12.25 | 6.42 | 5.90 | 9.18 |

Friday | 18/04/2014 | 11.38 | 1.74 | 2.41 | 3.06 | 14.22 | 1.79 | 2.39 | 2.14 |

Saturday | 19/04/2014 | 10.97 | 1.68 | 1.44 | 1.58 | 11.34 | 1.40 | 1.28 | 1.09 |

Sunday | 20/04/2014 | 3.25 | 1.65 | 1.88 | 4.04 | 5.85 | 4.33 | 4.67 | 4.79 |

Monday | 21/04/2014 | 4.94 | 6.25 | 3.57 | 7.02 | 5.80 | 4.87 | 5.06 | 5.87 |

Thursday | 02/04/2015 | 11.35 | 2.90 | 2.79 | 3.07 | 12.02 | 5.47 | 4.81 | 8.80 |

Friday | 03/04/2015 | 10.66 | 3.44 | 1.55 | 2.62 | 12.82 | 0.97 | 1.13 | 2.44 |

Saturday | 04/04/2015 | 10.51 | 1.10 | 2.58 | 2.04 | 10.32 | 2.64 | 2.45 | 2.28 |

Sunday | 05/04/2015 | 3.60 | 2.56 | 1.53 | 2.47 | 4.86 | 3.11 | 3.44 | 2.88 |

Monday | 06/04/2015 | 5.91 | 1.51 | 3.93 | 4.69 | 7.40 | 2.84 | 3.04 | 2.96 |
