Energies 2019, 12(5), 948; https://doi.org/10.3390/en12050948

An Estimation Model with Generalization Characteristics for the Internal Impedance of the Rechargeable Batteries by Means of Dual ANN Model

Doshisha University, Graduate School of Science and Engineering, Department of Electrical and Electronic, Engineering Power System Analysis Laboratory, 1-3 Tatara Miyakodani, Kyoto 610-0394, Japan
*
Author to whom correspondence should be addressed.
Received: 10 January 2019 / Revised: 22 February 2019 / Accepted: 4 March 2019 / Published: 12 March 2019
Full-Text   |   PDF [8298 KB, uploaded 12 March 2019]   |

Abstract

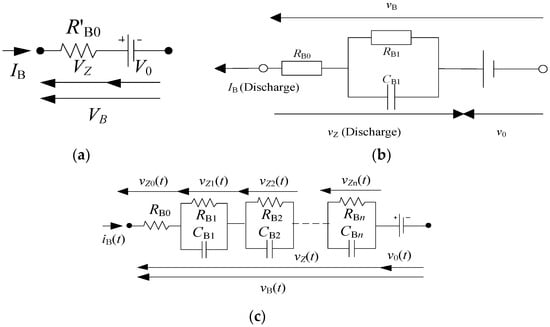

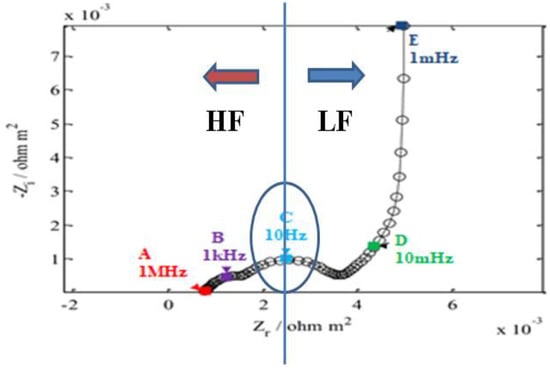

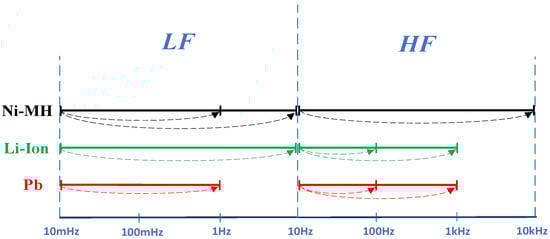

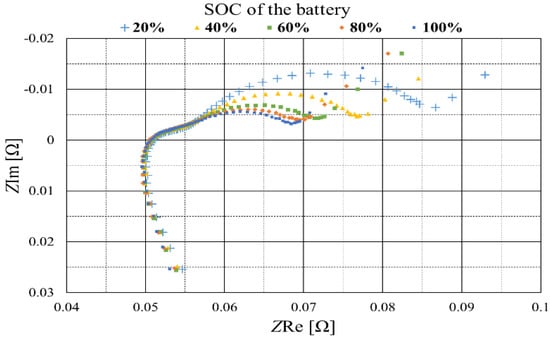

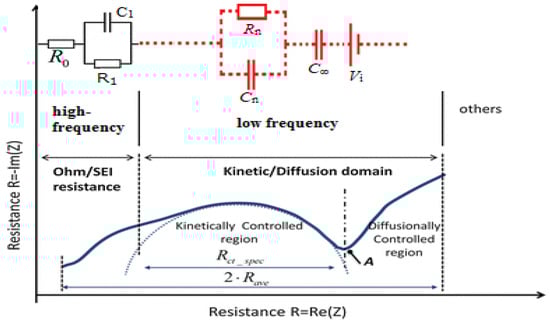

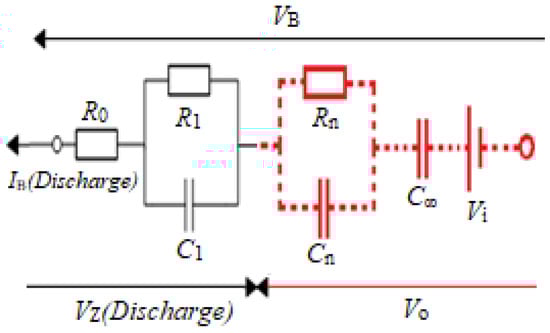

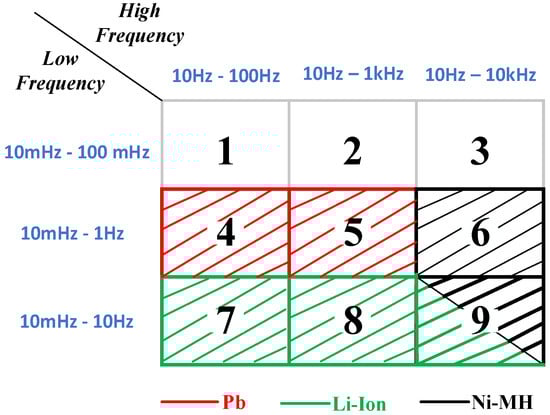

An estimation method of equivalent circuit parameters for rechargeable batteries that follows Artificial Neural Network (ANN) logic is proposed in this paper. The capability of the nonlinear analysis of the ANN is suitable for estimating the parameters that are nonlinearly involved in the complex circuit equation. The parameters have to be obtained from the complex internal impedances, which are measured in a wide frequency range. The accuracy is improved by dividing this wide range into a low-frequency and a high-frequency region. These regions are strongly related to the capacity fade and the maximum chargeable/dischargeable current, respectively. The improved method will determine the optimal frequency region for three different rechargeable batteries, which are composed of Li-Ion, Pb and Ni-MH. The accuracy of the proposed method is confirmed by a comparison with the measured results obtained using a conventional frequency domain method. For obtaining the real-time diagnostics of the battery, an improved dual ANN system, which employs unequal sampling, is proposed to obtain the circuit parameters. The deterioration of a battery can be detected from the estimated parameters, which can help in further investigations that aim to develop diagnostic models for the embedded circuit in industrial applications. View Full-Text
Keywords: optimal frequency region; dual ANN; parameter estimation; rechargeable battery; internal impedance; EV optimal frequency region; dual ANN; parameter estimation; rechargeable battery; internal impedance; EV
Figures

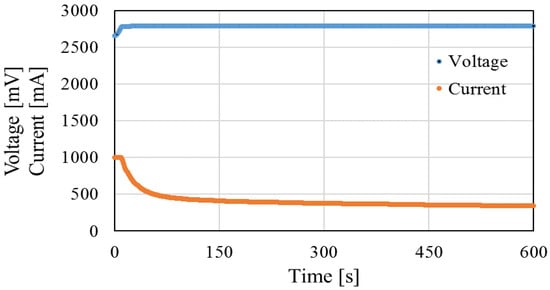

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Bezha, M.; Gondo, R.; Nagaoka, N. An Estimation Model with Generalization Characteristics for the Internal Impedance of the Rechargeable Batteries by Means of Dual ANN Model. Energies 2019, 12, 948.
