Energies 2019, 12(5), 943; https://doi.org/10.3390/en12050943

Sliding Mode-Based Robust Control for Piezoelectric Actuators with Inverse Dynamics Estimation

1
System Engineering and Automation Department, Faculty of Engineering of Vitoria-Gasteiz, University of the Basque Country (UPV/EHU), Nieves Cano 12, 01006 Vitoria-Gasteiz, Spain
2
Fundación Centro de Tecnologías Aeronáuticas (CTA), Juan de la Cierva 1, 01510 Miñano, Spain
*
Author to whom correspondence should be addressed.
Received: 11 February 2019 / Revised: 5 March 2019 / Accepted: 7 March 2019 / Published: 12 March 2019
Full-Text   |   PDF [5680 KB, uploaded 12 March 2019]   |

Abstract

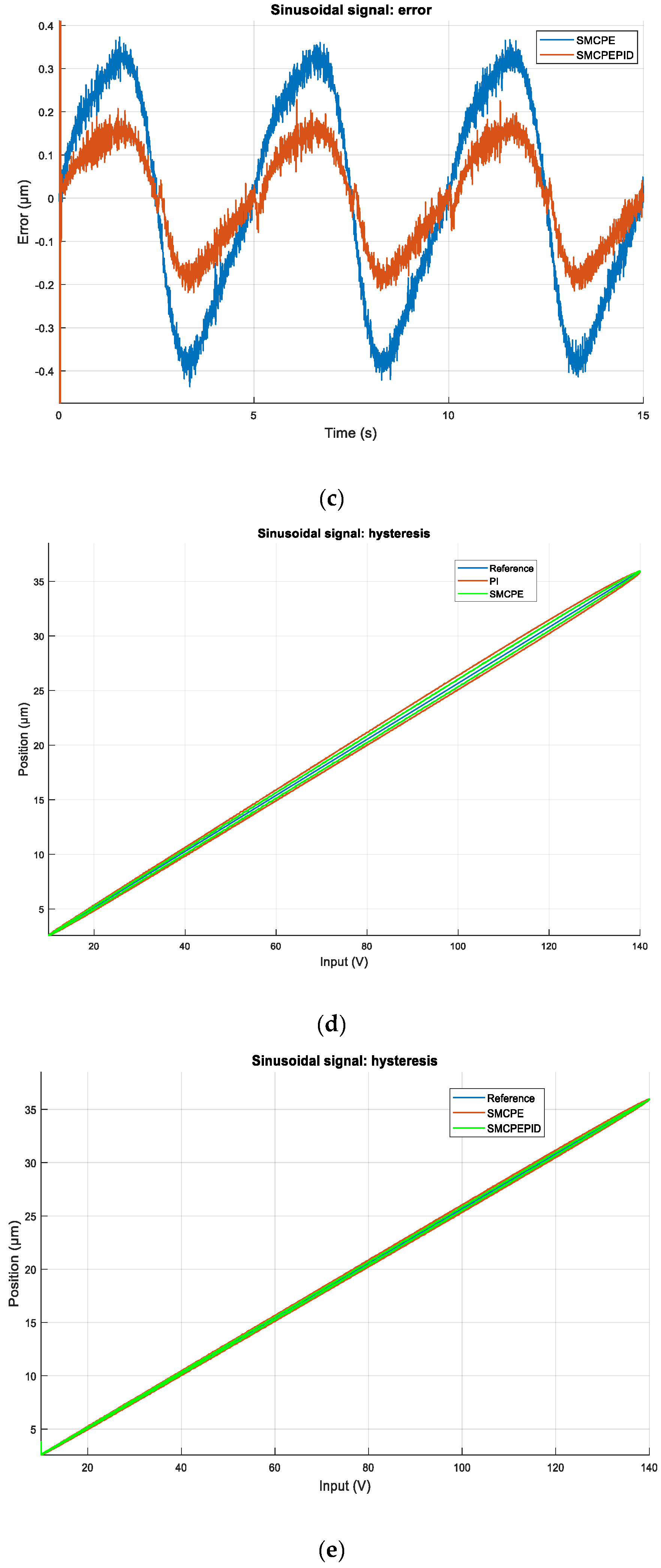

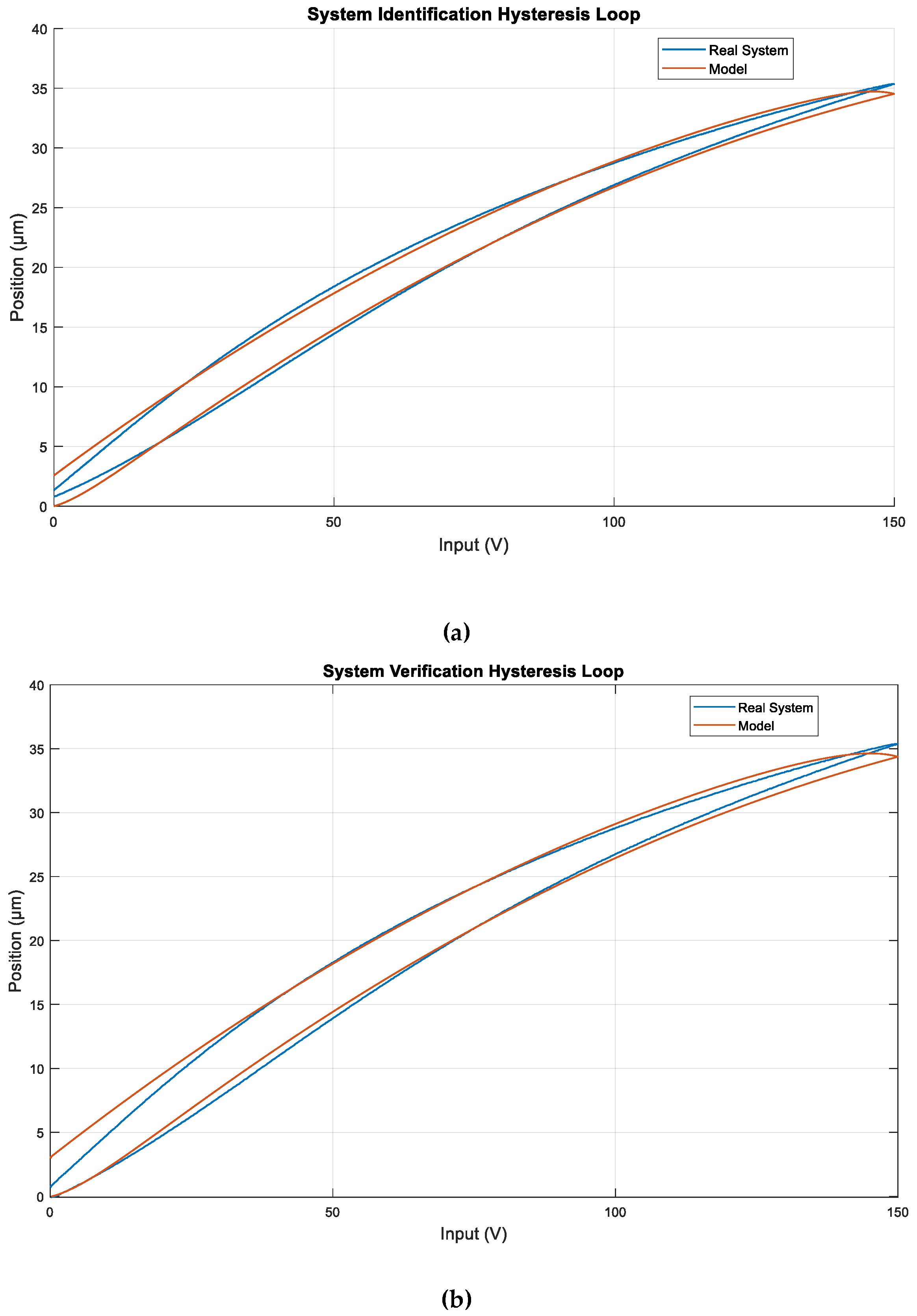

This paper presents an improved control approach to be used for piezoelectric actuators. The proposed approach is based on sliding mode control with estimation perturbation (SMCPE) techniques. Also, a proportional–integral–derivative (PID)-type sliding surface is proposed for position tracking. The proposed approach has been studied and implemented in a commercial actuator. A model for the system is introduced, which includes the Bouc–Wen (BW) model to represent the hysteresis, and it is identified by means of the System Identification Toolbox in Matlab/Simulink. Experimental data show that the proposed controller has a better performance when compared to a proportional-integral (PI) controller or a conventional SMCPE in motion tracking. Furthermore, a sub-micrometer accuracy tracking can be obtained while compensating for the hysteresis effect. View Full-Text
Keywords: sliding mode control; piezoelectric actuator; hysteresis; nonlinear system; precise position control; robust control sliding mode control; piezoelectric actuator; hysteresis; nonlinear system; precise position control; robust control
Figures

Figure 1
