Energies 2019, 12(4), 583; https://doi.org/10.3390/en12040583

Fractal Characterization of Nanopore Structure in Shale, Tight Sandstone and Mudstone from the Ordos Basin of China Using Nitrogen Adsorption

1
Central Laboratory of Geological Sciences, RIPED, PetroChina, Beijing 100083, China
2
Research Institute of Enhanced Oil Recovery, China University of Petroleum, Beijing 102249, China
*
Author to whom correspondence should be addressed.
Received: 31 December 2018 / Revised: 26 January 2019 / Accepted: 1 February 2019 / Published: 13 February 2019
(This article belongs to the Special Issue Flow and Transport Properties of Unconventional Reservoirs 2018)
Full-Text   |   PDF [4331 KB, uploaded 19 February 2019]   |

Abstract

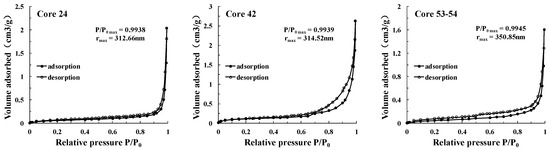

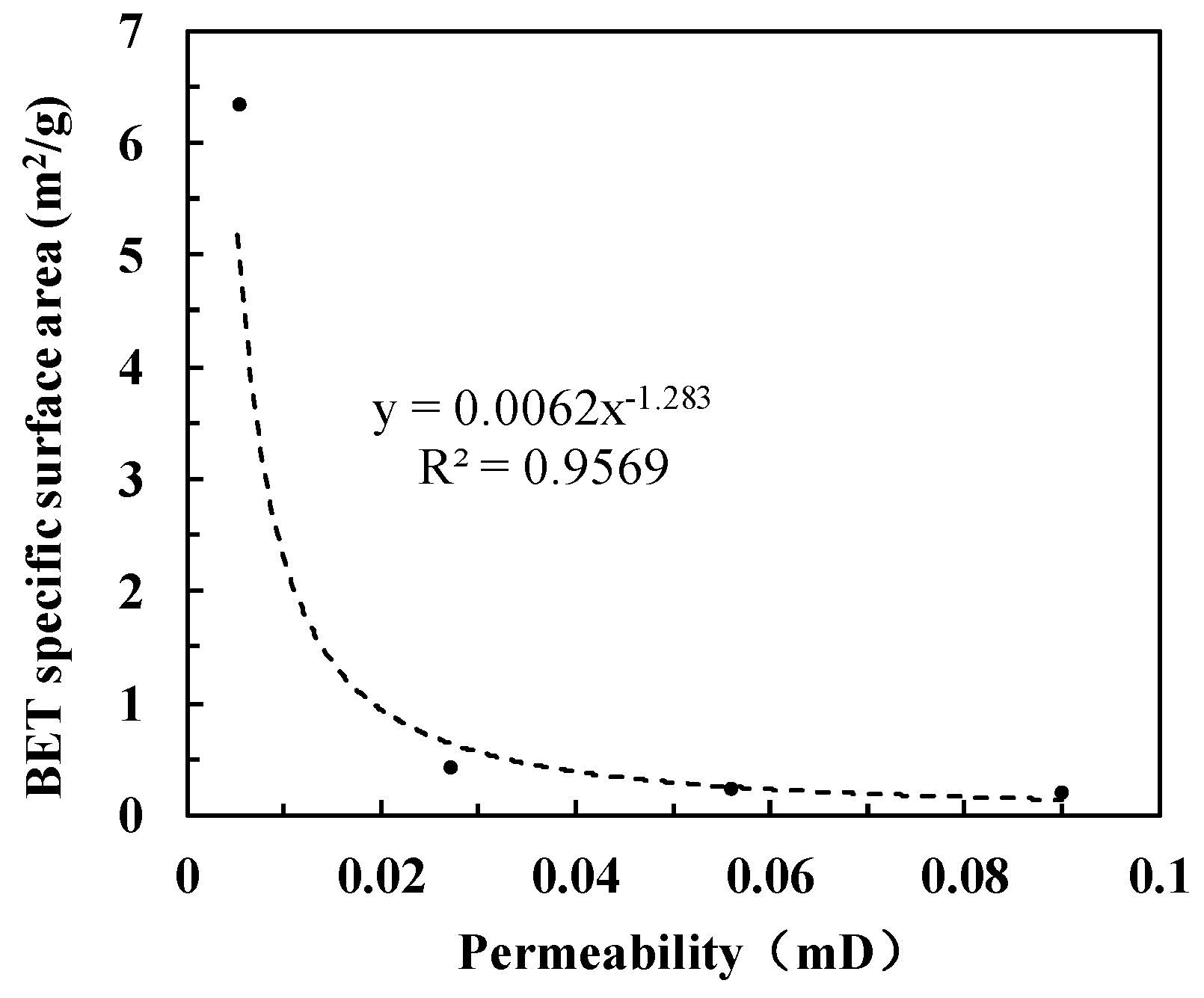

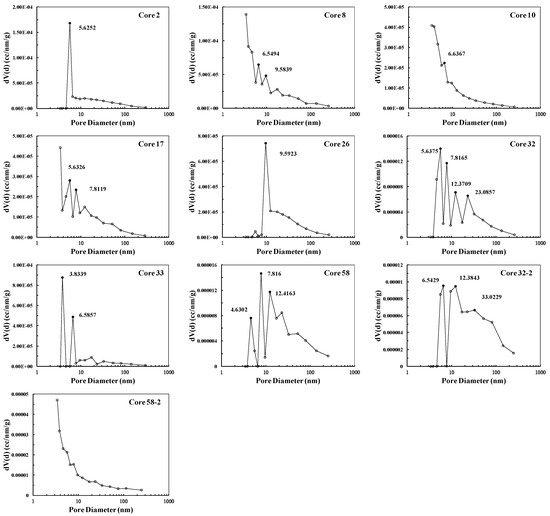

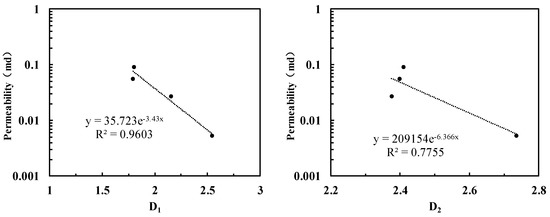

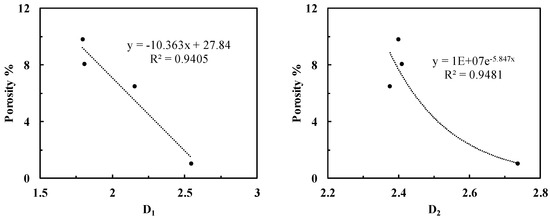

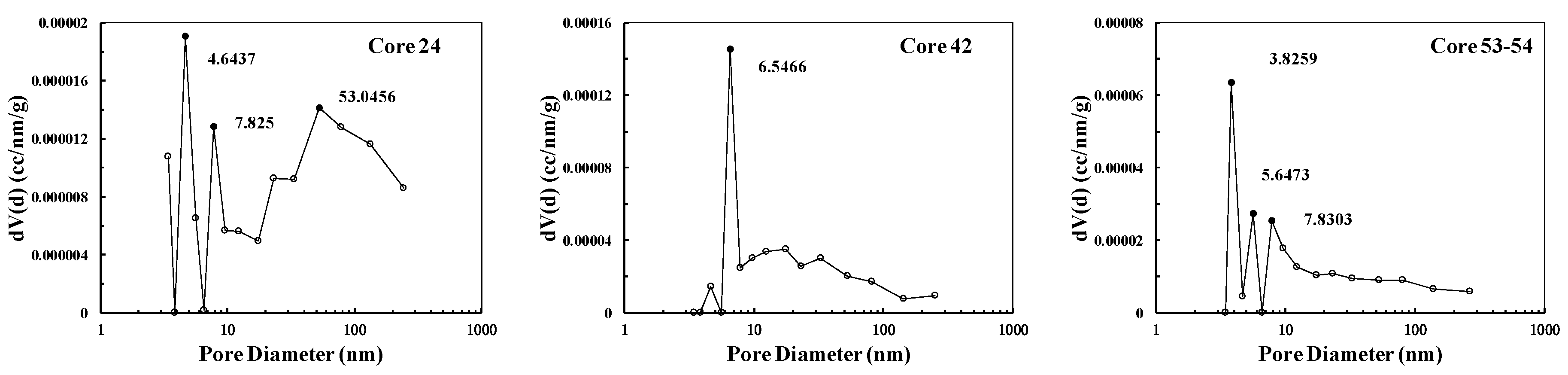

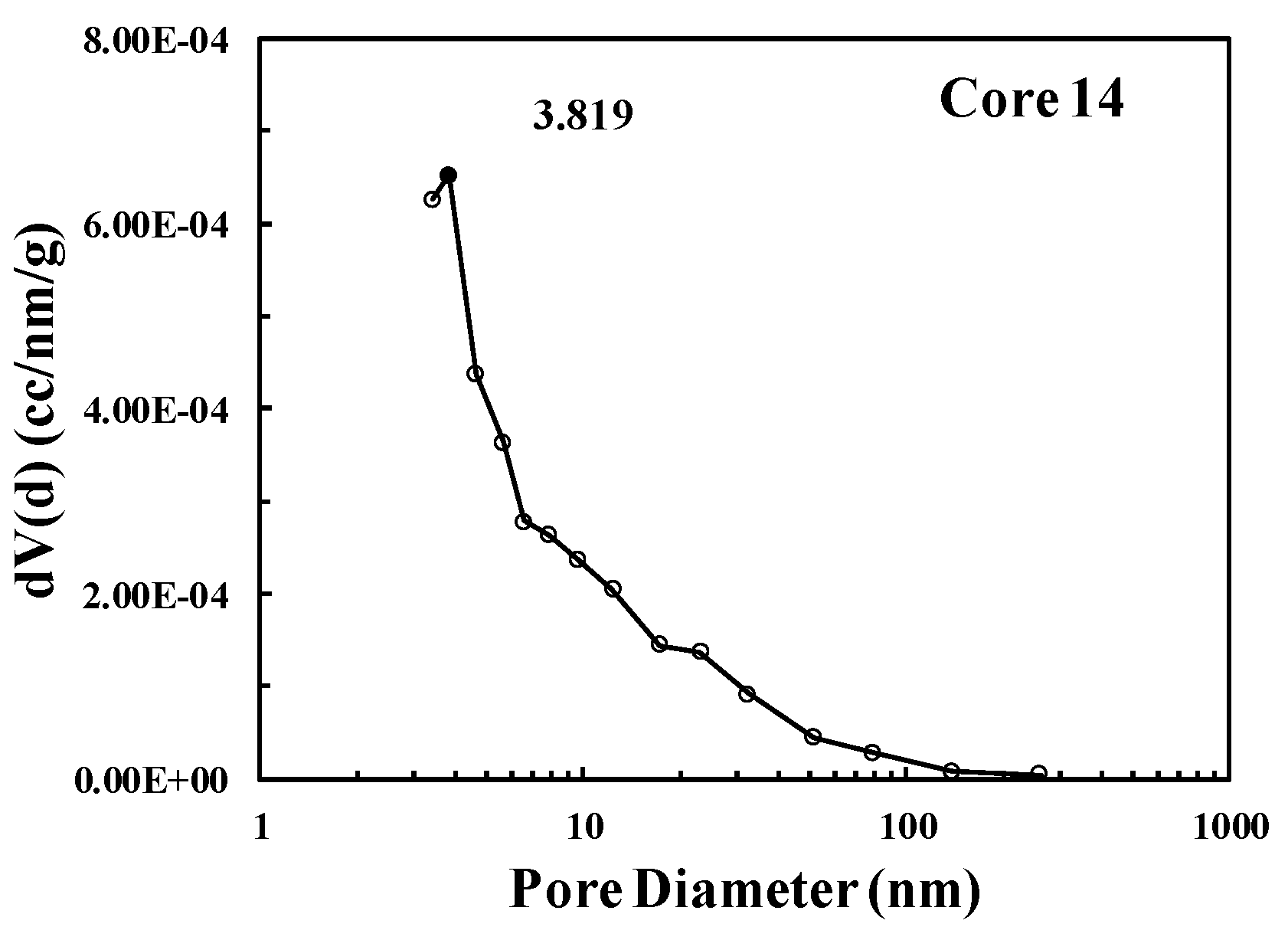

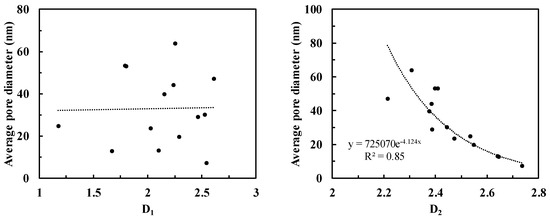

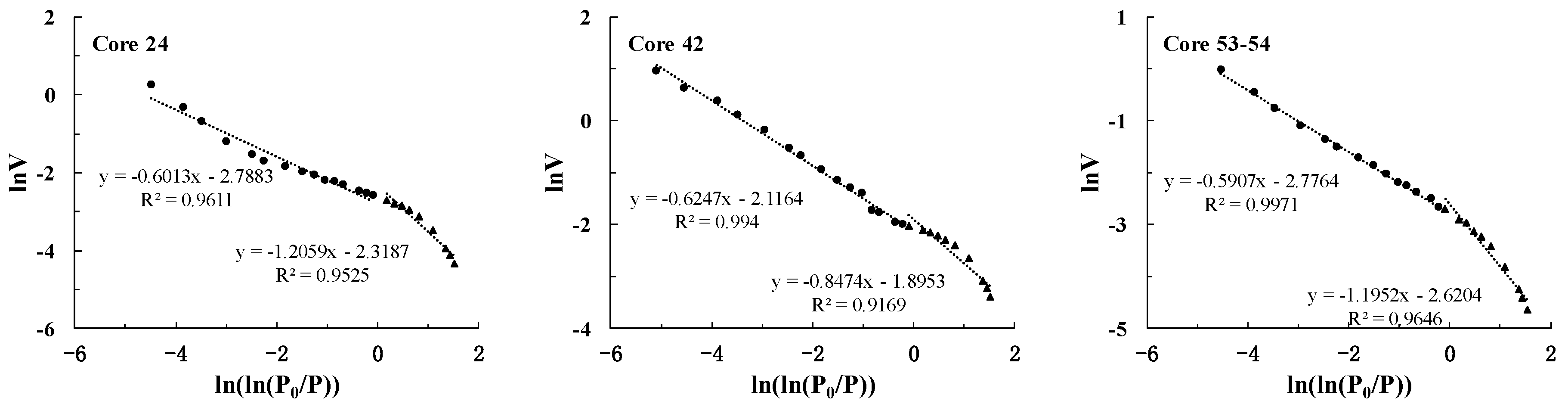

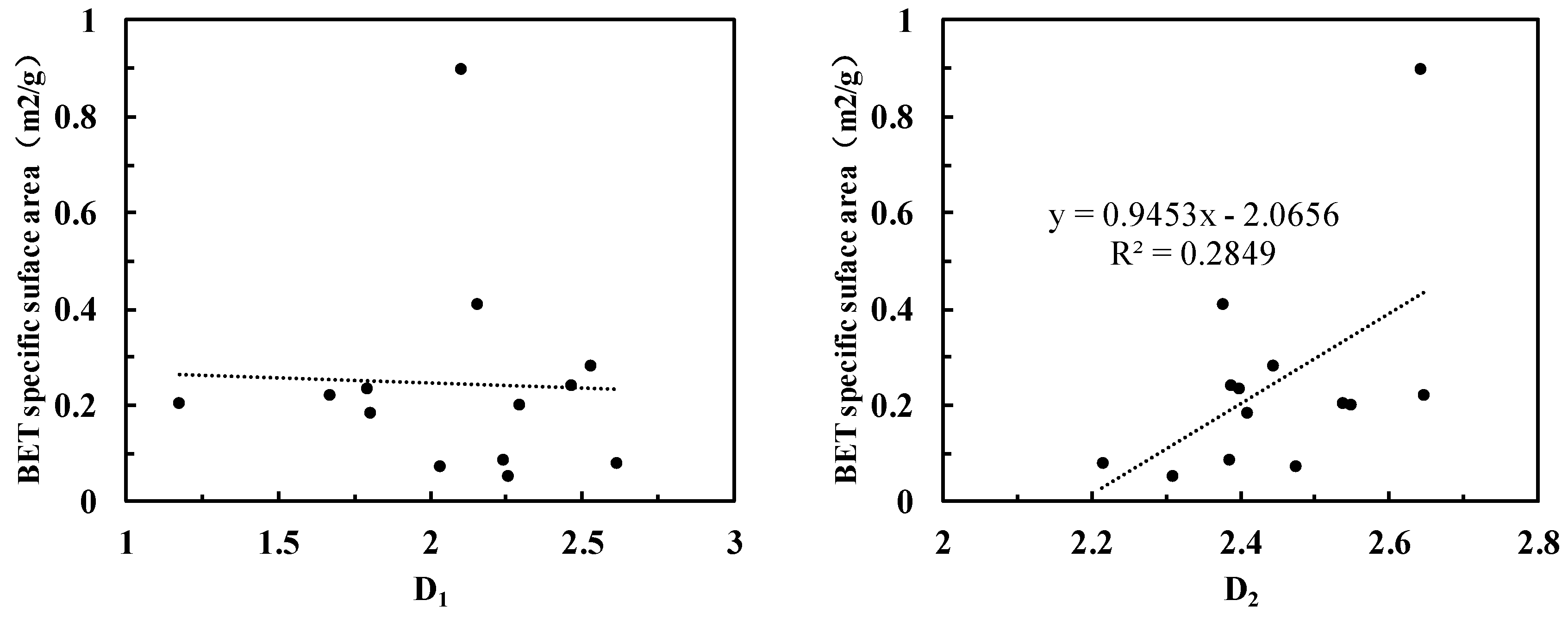

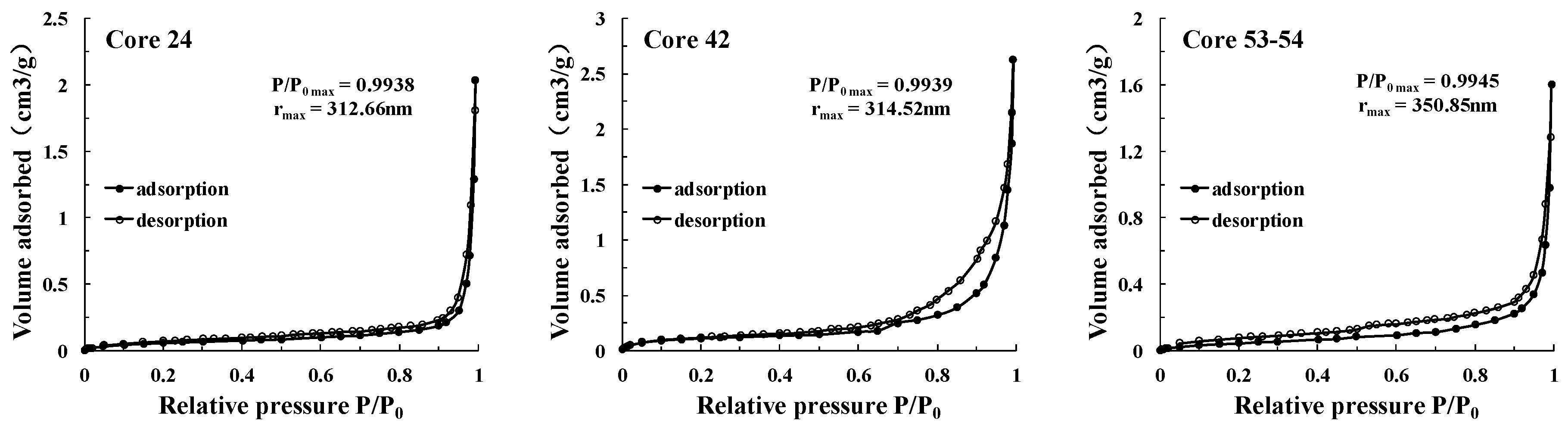

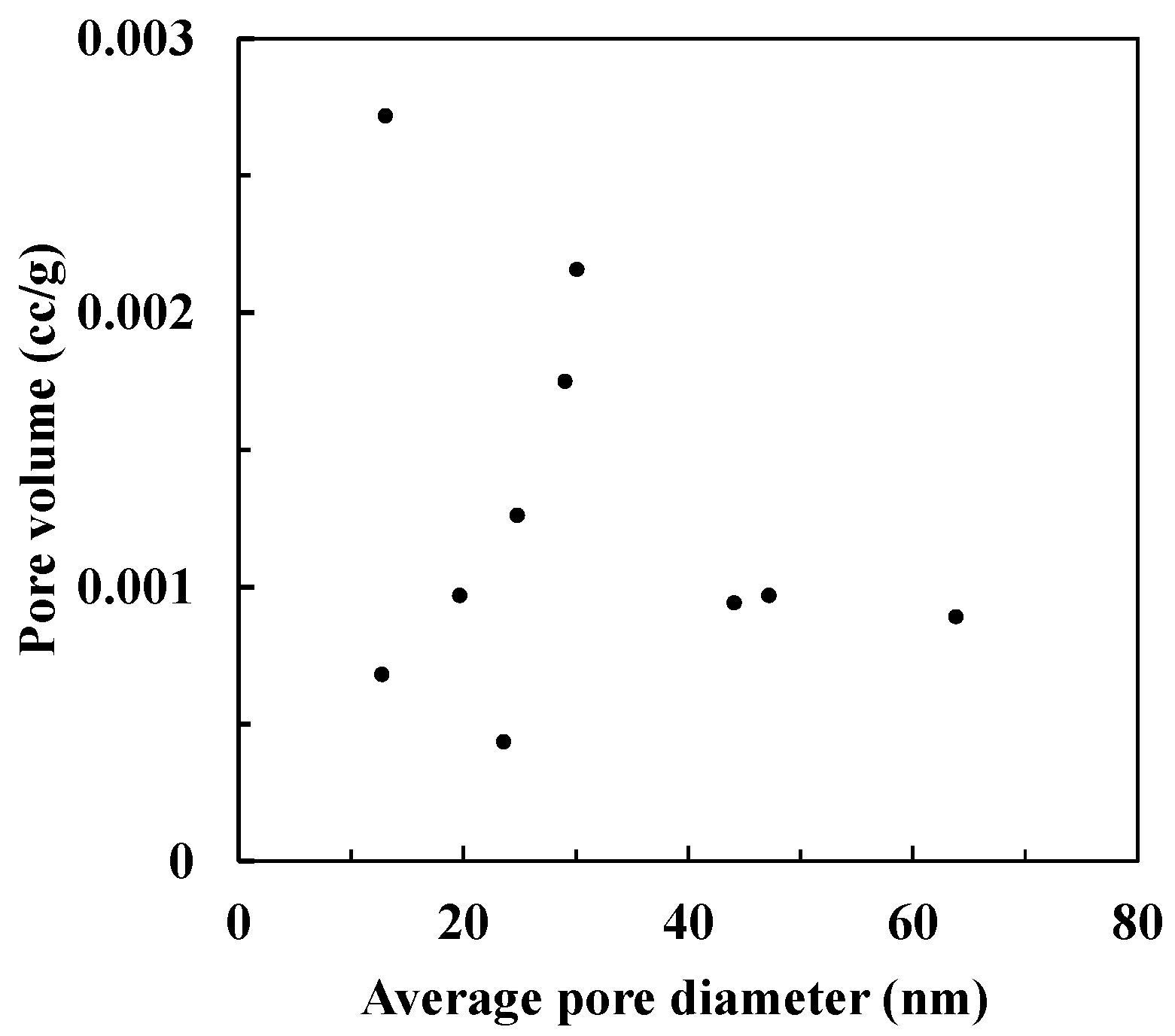

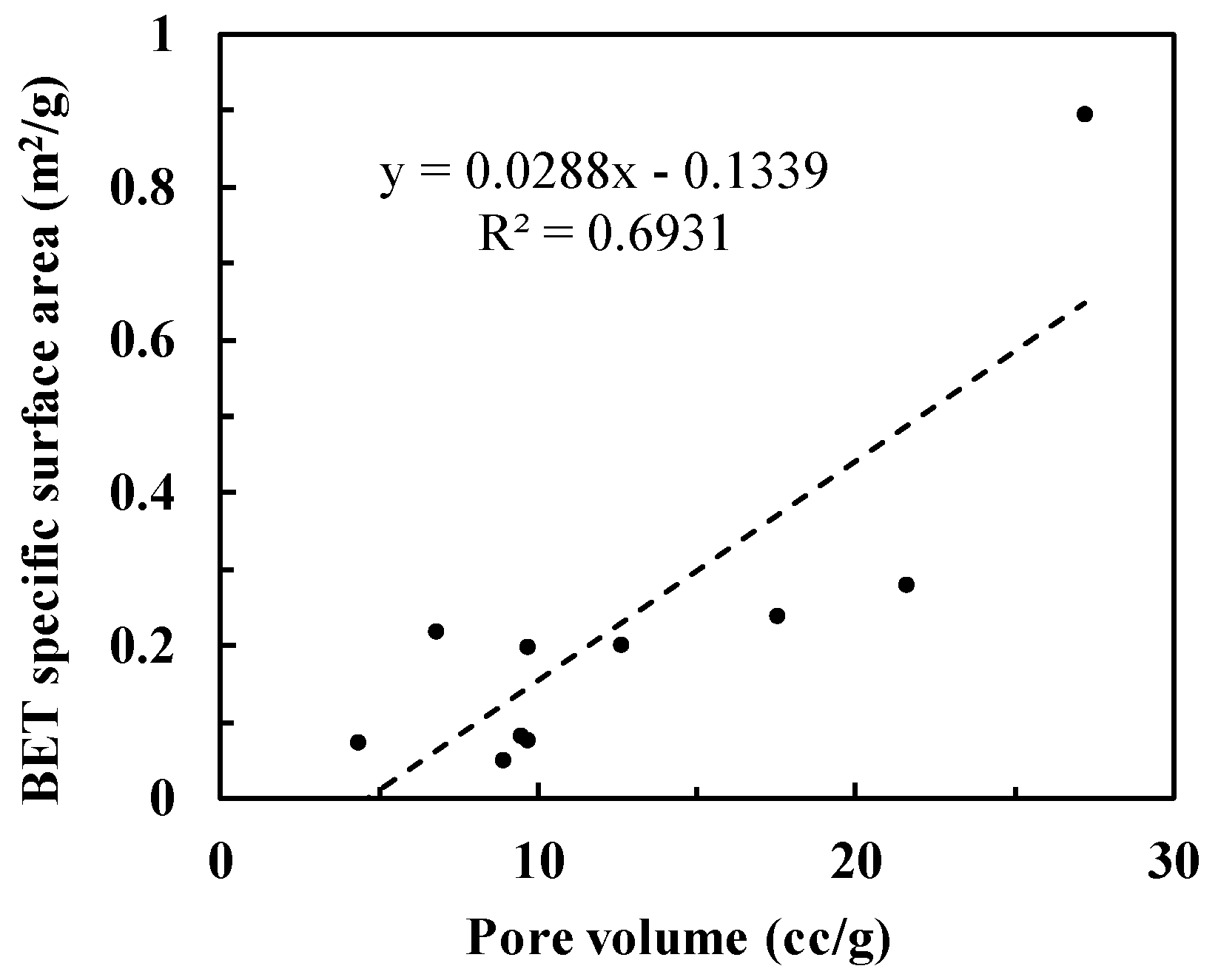

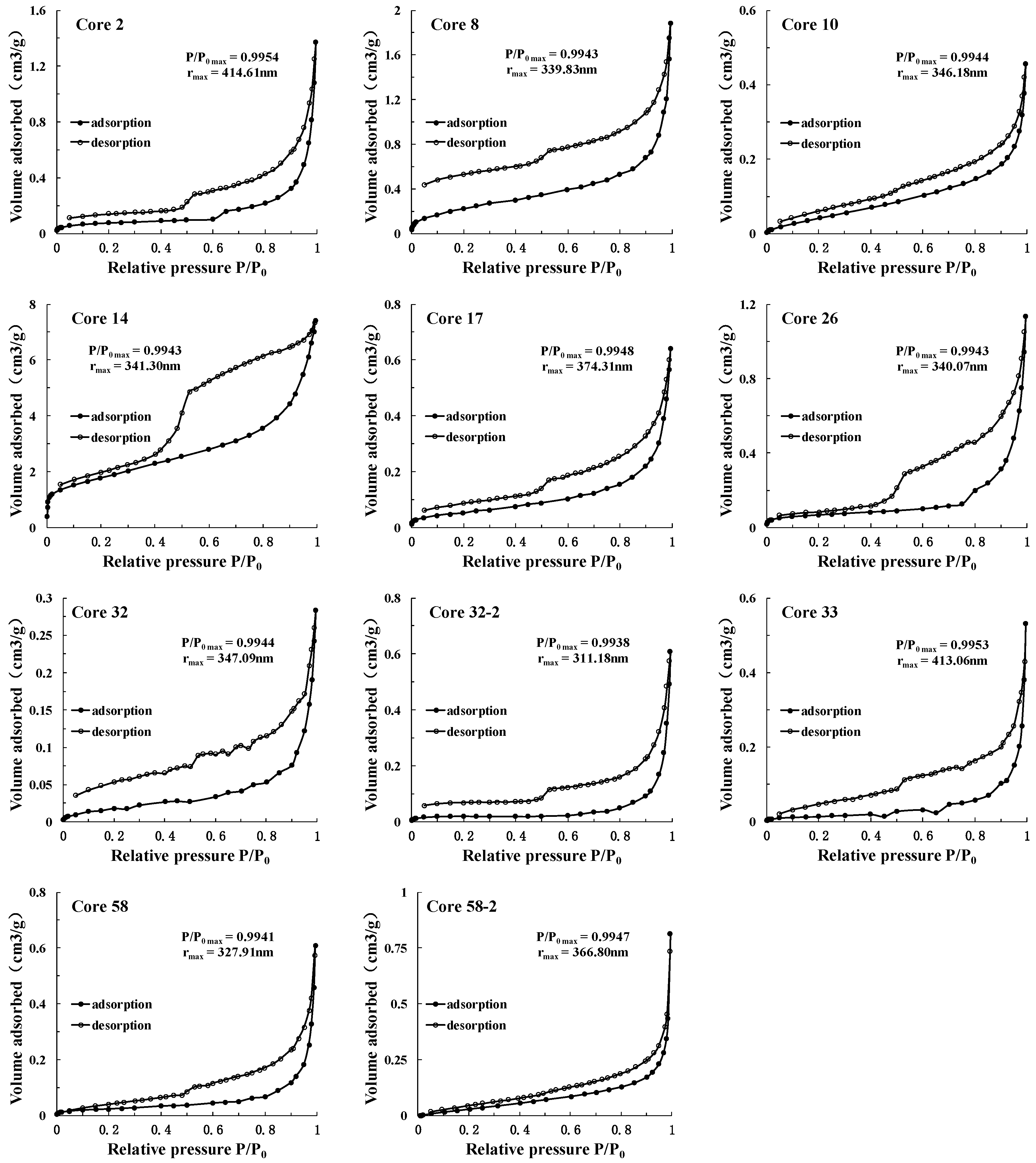

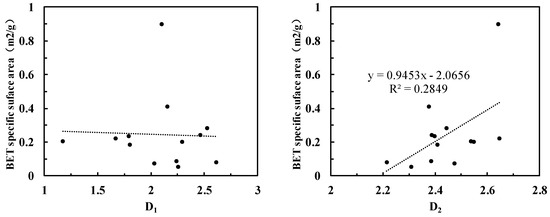

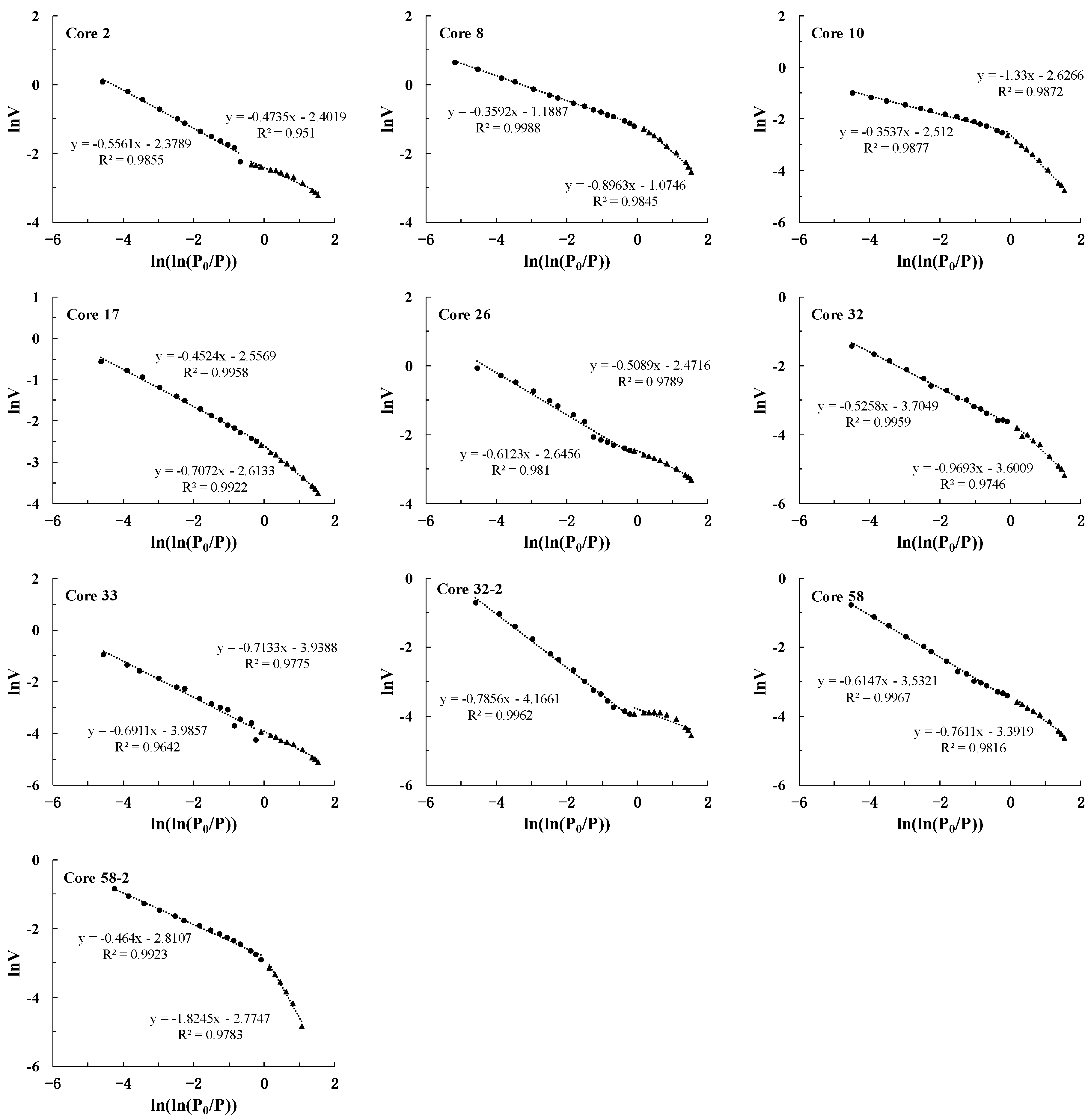

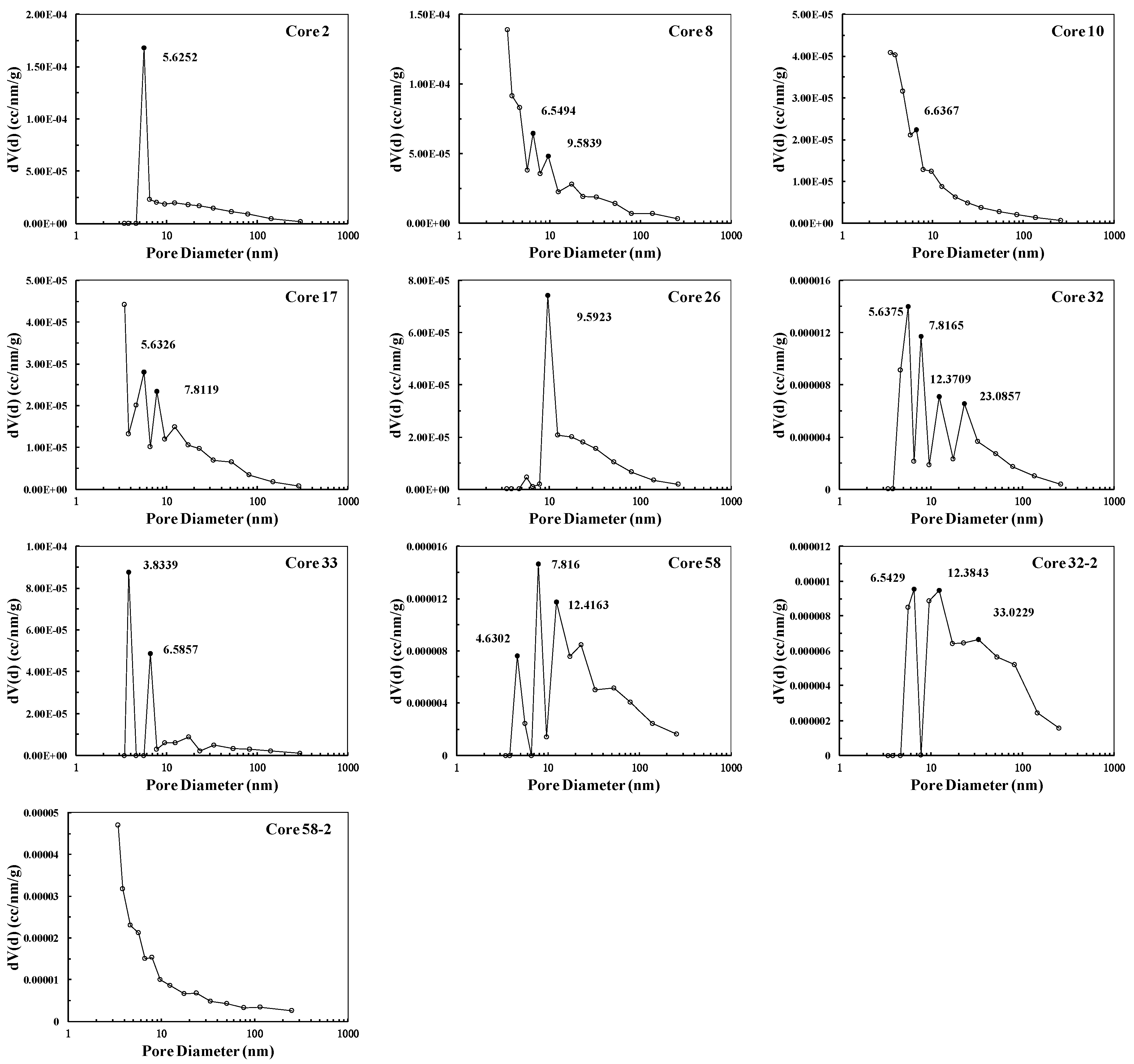

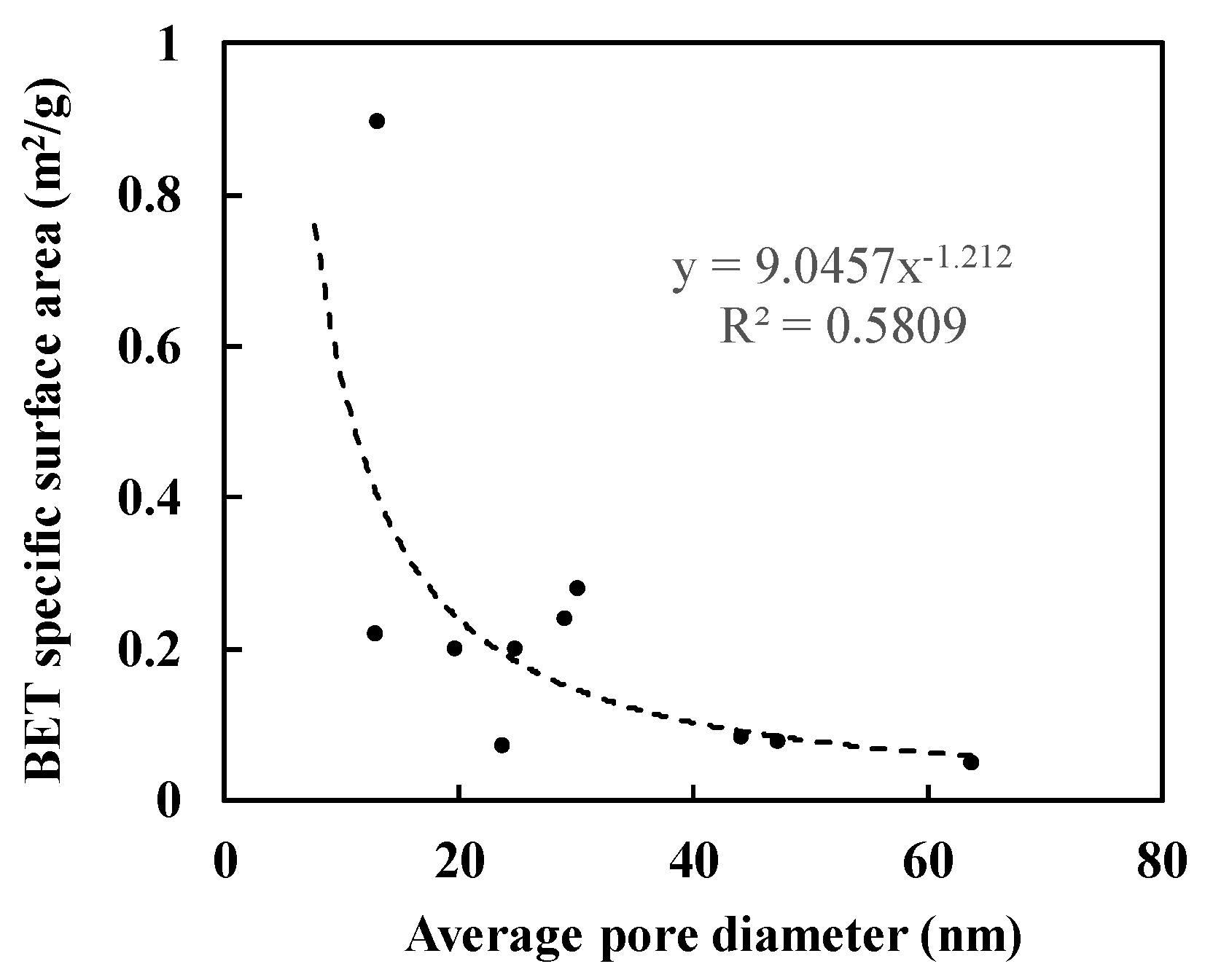

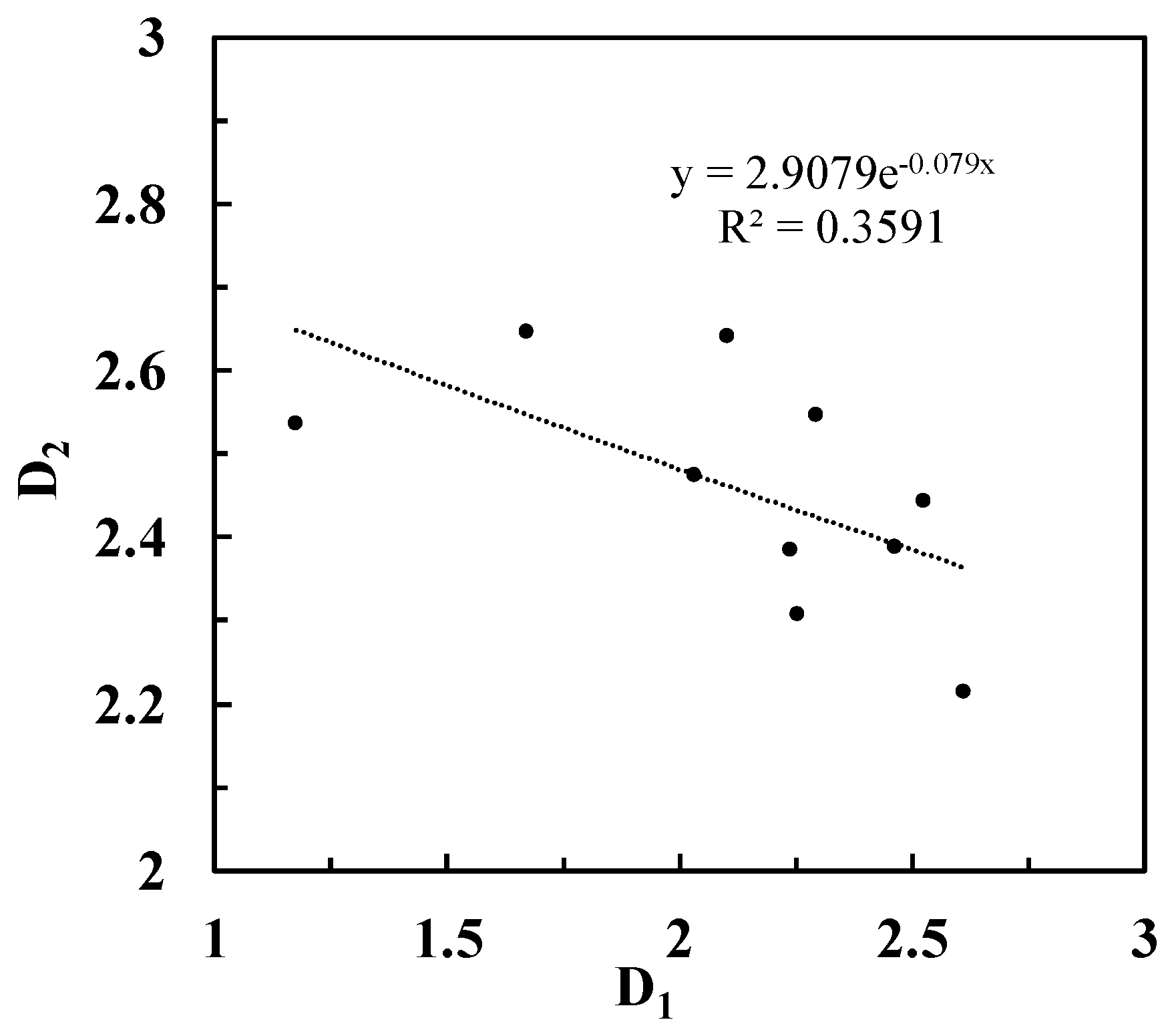

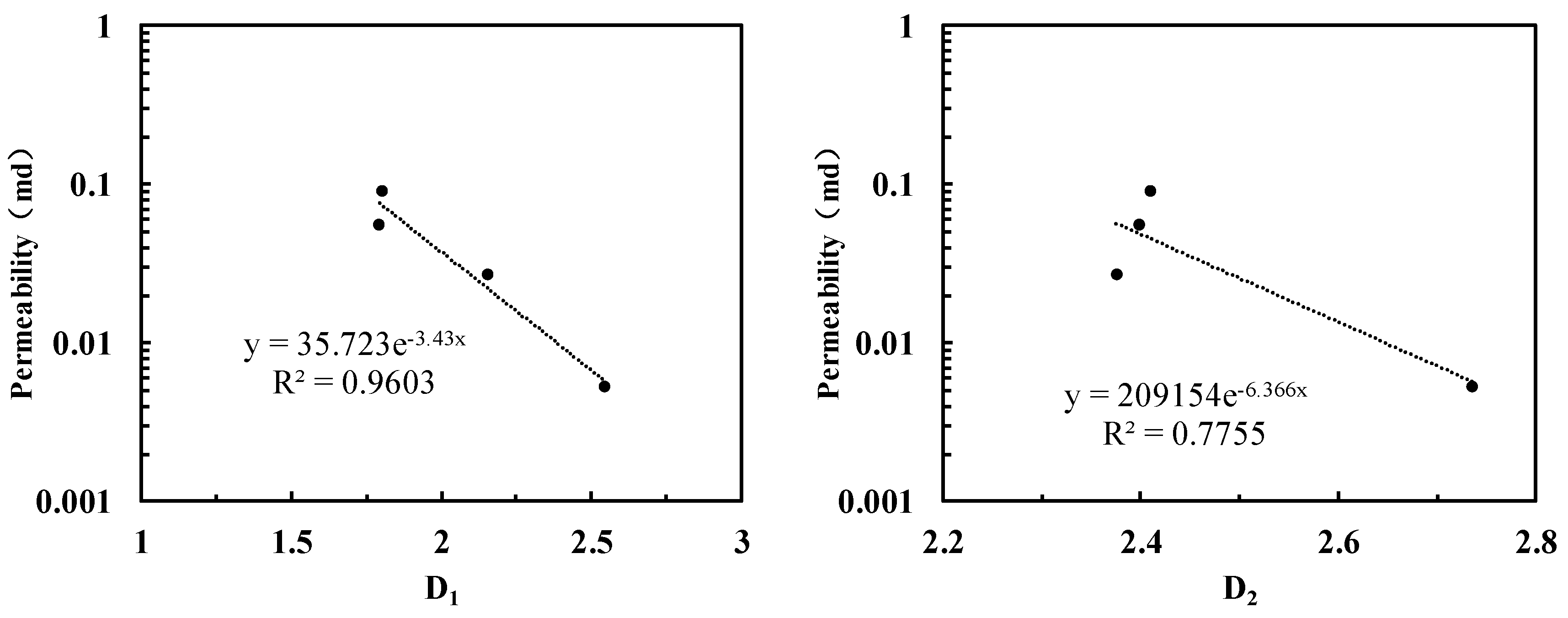

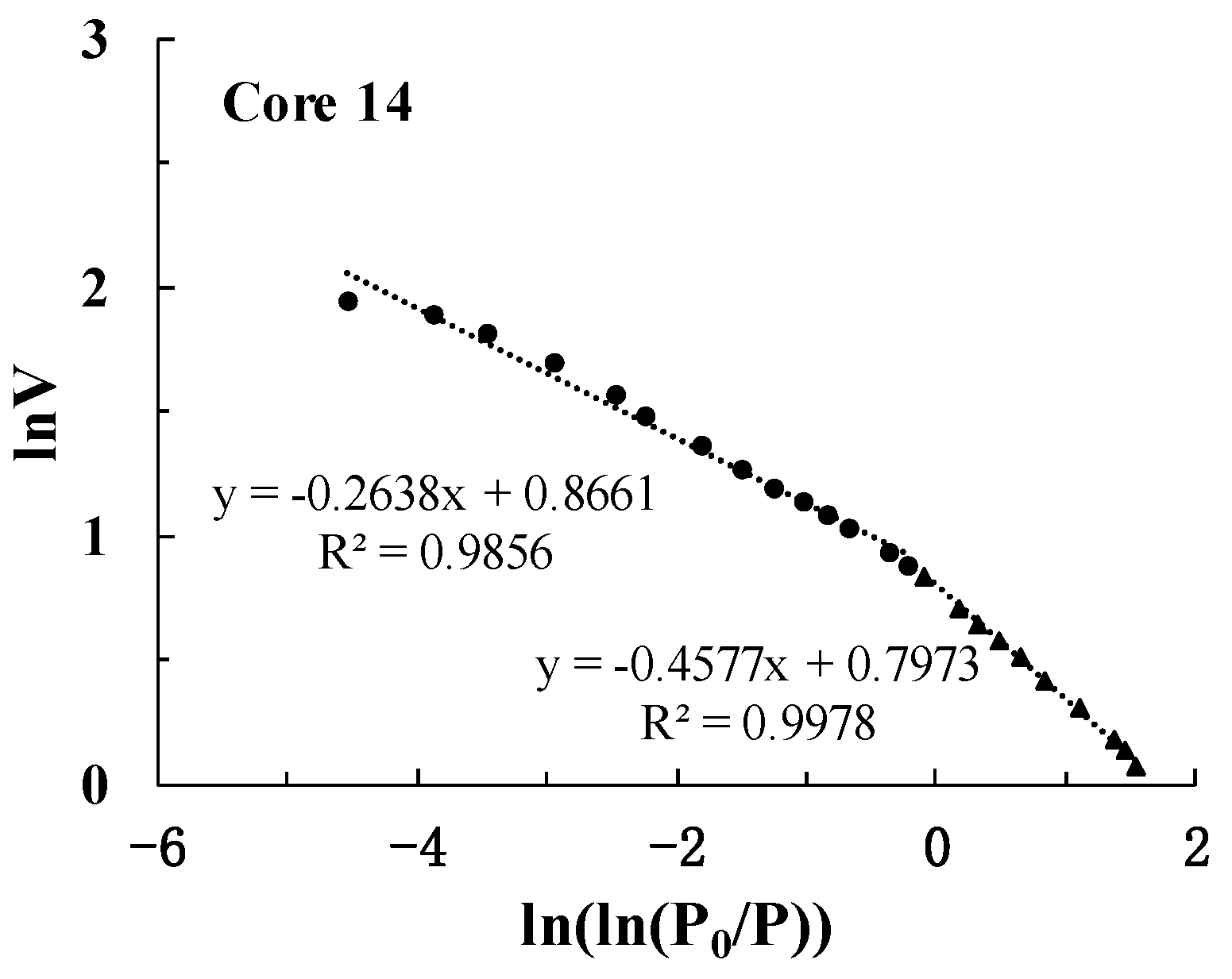

The characteristics of the nanopore structure in shale, tight sandstone and mudstone from the Ordos Basin of China were investigated by X-ray diffraction (XRD) analysis, porosity and permeability tests and low-pressure nitrogen adsorption experiments. Fractal dimensions D1 and D2 were determined from the low relative pressure range (0 < P/P0 < 0.4) and the high relative pressure range (0.4 < P/P0 < 1) of nitrogen adsorption data, respectively, using the Frenkel–Halsey–Hill (FHH) model. Relationships between pore structure parameters, mineral compositions and fractal dimensions were investigated. According to the International Union of Pure and Applied Chemistry (IUPAC) isotherm classification standard, the morphologies of the nitrogen adsorption curves of these 14 samples belong to the H2 and H3 types. Relationships among average pore diameter, Brunner-Emmet-Teller (BET) specific surface area, pore volume, porosity and permeability have been discussed. The heterogeneities of shale nanopore structures were verified, and nanopore size mainly concentrates under 30 nm. The average fractal dimension D1 of all the samples is 2.1187, varying from 1.1755 to 2.6122, and the average fractal dimension D2 is 2.4645, with the range from 2.2144 to 2.7362. Compared with D1, D2 has stronger relationships with pore structure parameters, and can be used for analyzing pore structure characteristics. View Full-Text
Keywords: nanopore; pore structure; shale; tight sandstone; mudstone; nitrogen adsorption; fractal nanopore; pore structure; shale; tight sandstone; mudstone; nitrogen adsorption; fractal
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
