Energies 2019, 12(3), 571; https://doi.org/10.3390/en12030571

Wide Bandwidth Control for Multi-Parallel Grid-Connected Inverters with Harmonic Compensation

1
School of Information Science and Engineering, Central South University, Changsha 410083, China
2
Jiangxi Electric Power Research Institute, Nanchang 330096, China
*
Author to whom correspondence should be addressed.
Received: 12 December 2018 / Revised: 5 February 2019 / Accepted: 6 February 2019 / Published: 12 February 2019

Abstract

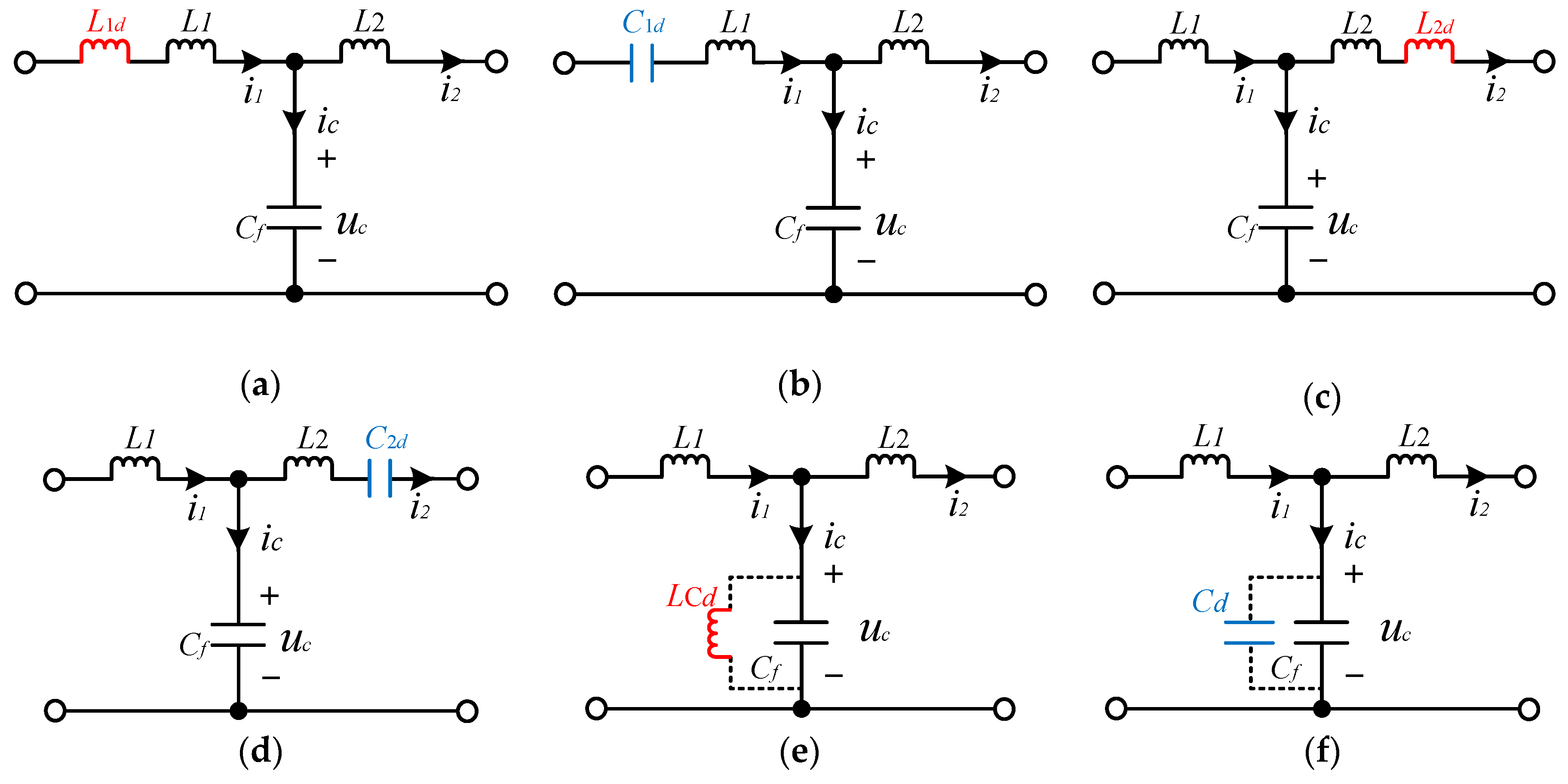

This paper proposes a virtual impedance-based bandwidth control method for multi-parallel harmonic-compensation grid-connected inverters (HCGIs). Firstly, the influence of the resonance points caused by the interaction of multiple HCGIs on the control bandwidth is analyzed, and the analysis result shows that the control bandwidth becomes narrow due to the appearance of a new resonance point. Then, to increase the control bandwidth of multi-parallel HCGIs, six different types of virtual impedance circuits are constructed and compared, and the bandwidth control method based on virtual impedance by capacitor voltage feedback is proposed. Following that, the relationship between feedback coefficient and bandwidth is established, the design approach of parameters for the proposed method is presented. Finally, the proposed method is confirmed by the simulation and experimental tests. The simulation and experimental results show that the proposed control method can effectively shift resonance frequencies right to solve the issue of control bandwidth reduction in multi-parallel HCGIs systems, while without affecting the low-frequency harmonic current compensation. View Full-Text
Keywords: harmonic-compensation grid-connected inverters; multiple parallel; control bandwidth; virtual impedance; capacitor voltage feedback harmonic-compensation grid-connected inverters; multiple parallel; control bandwidth; virtual impedance; capacitor voltage feedback
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
