Open AccessArticle
Energies 2019, 12(3), 522; https://doi.org/10.3390/en12030522

Fault Simulation and Online Diagnosis of Blade Damage of Large-Scale Wind Turbines

School of Control and Computer Engineering, North China Electric Power University, Beijing 102206, China
*
Author to whom correspondence should be addressed.
Received: 23 December 2018 / Revised: 30 January 2019 / Accepted: 2 February 2019 / Published: 7 February 2019
(This article belongs to the Special Issue Maintenance Management of Wind Turbines)
Full-Text   |   PDF [4489 KB, uploaded 7 February 2019]   |

Abstract

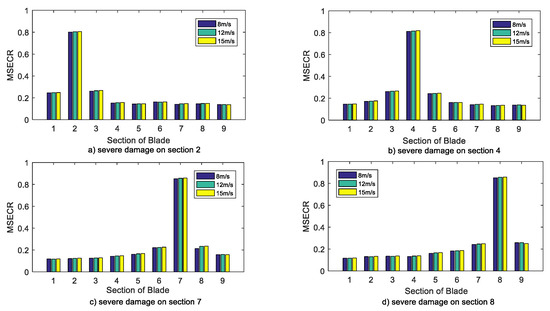

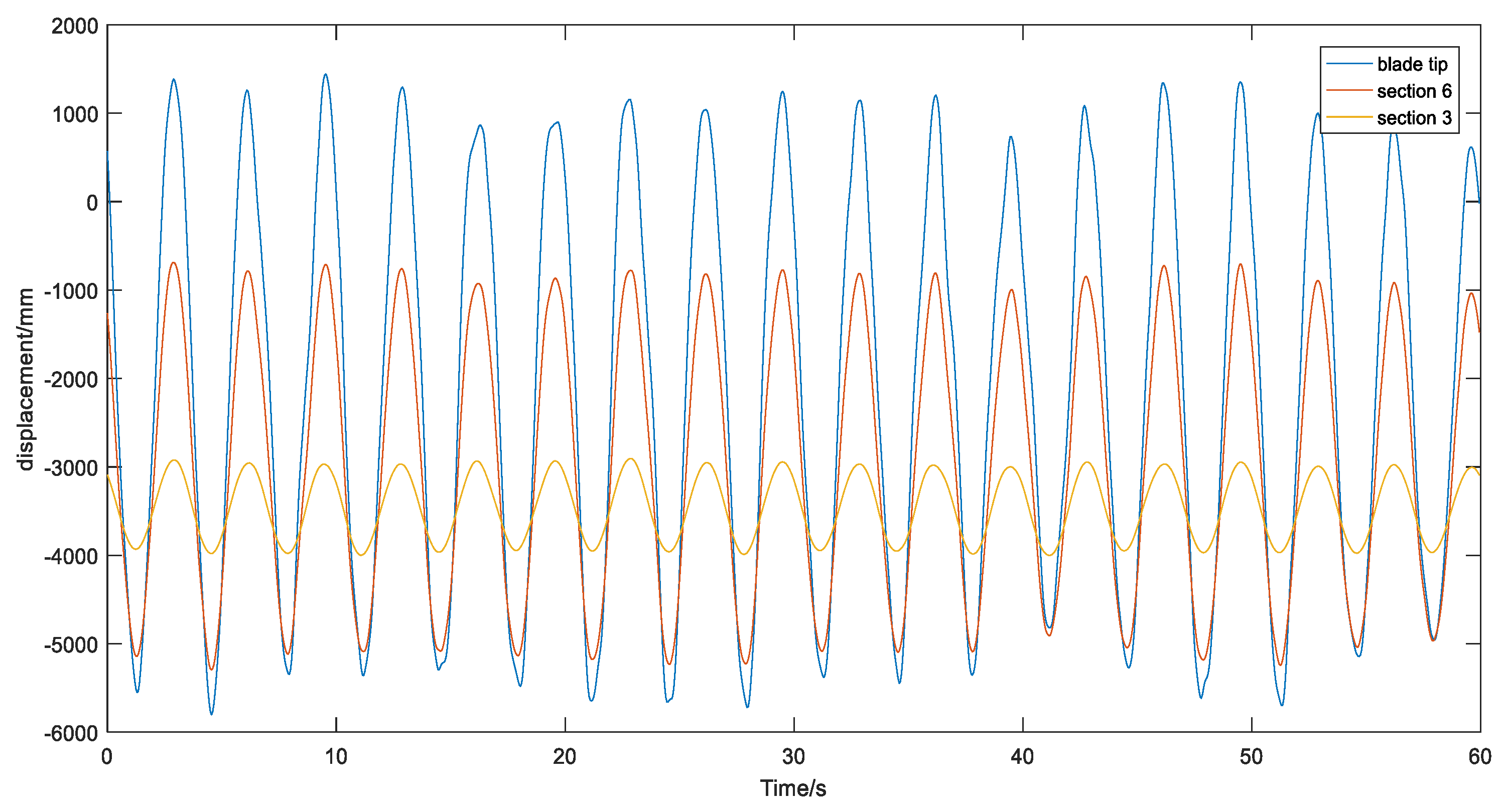

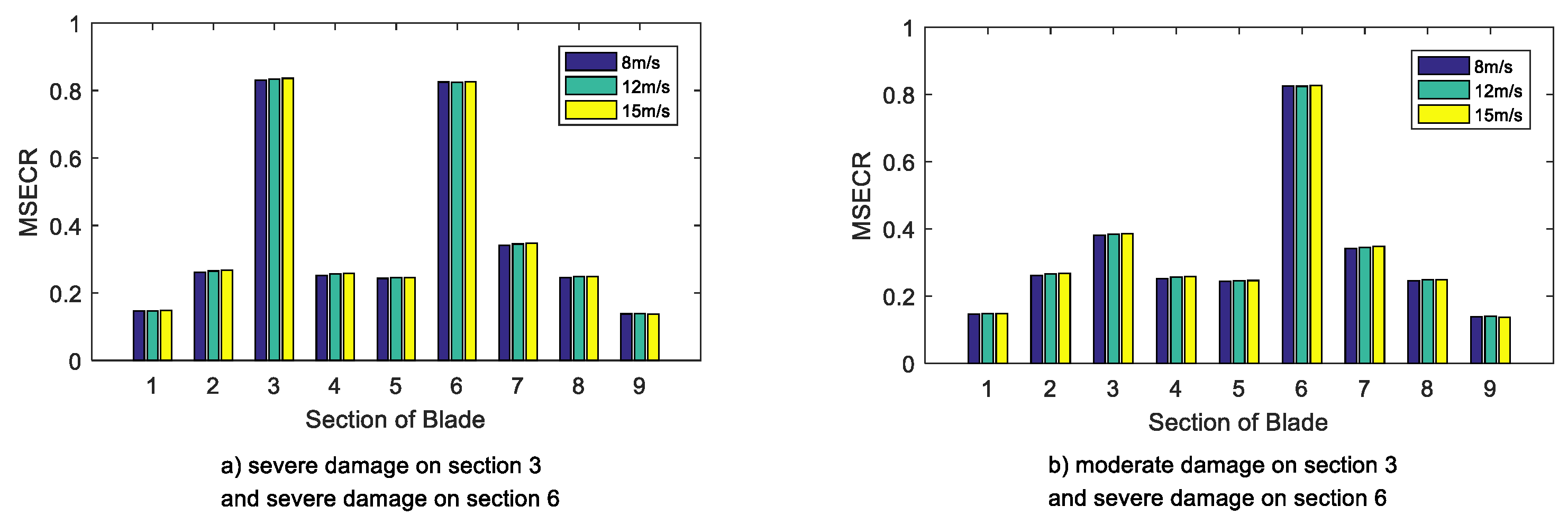

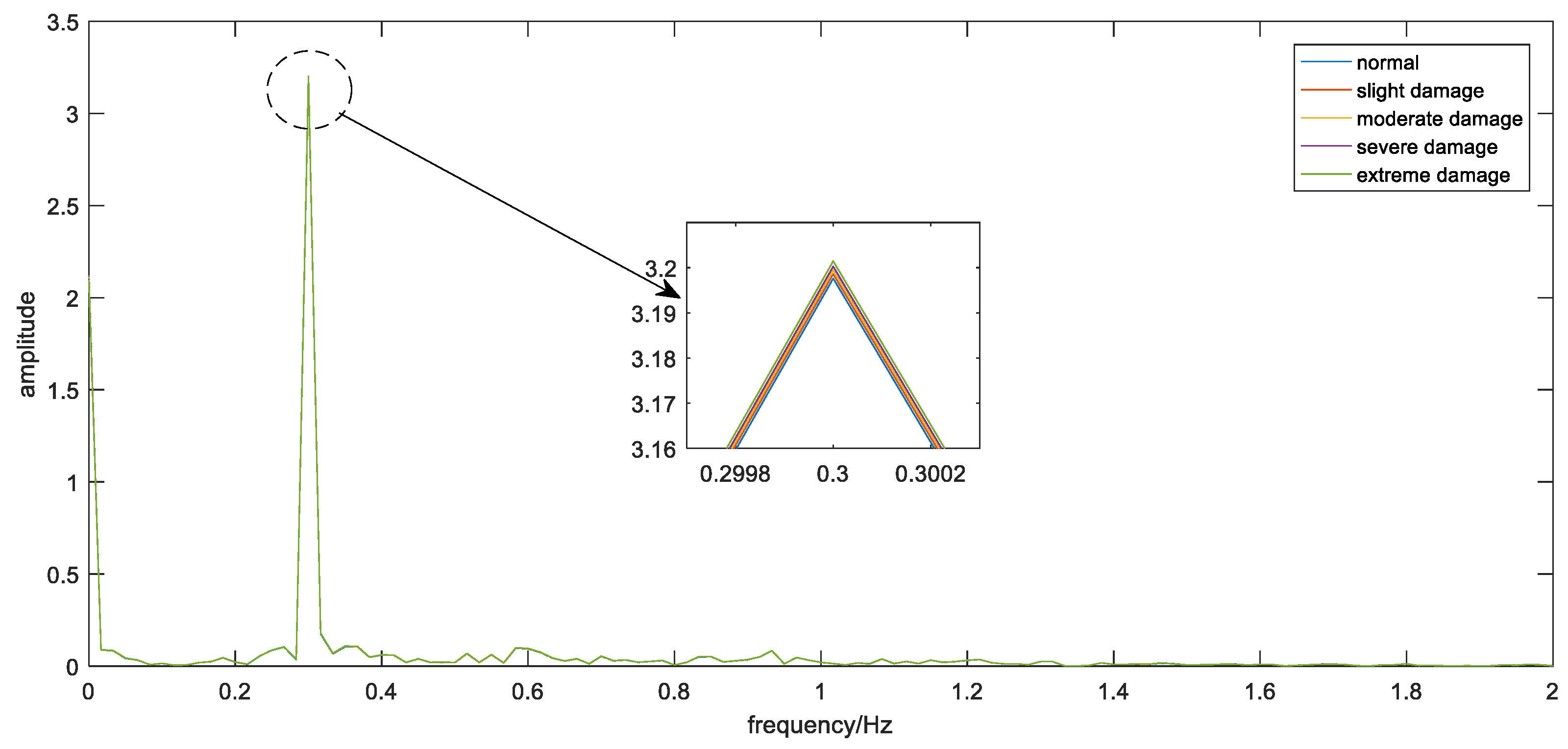

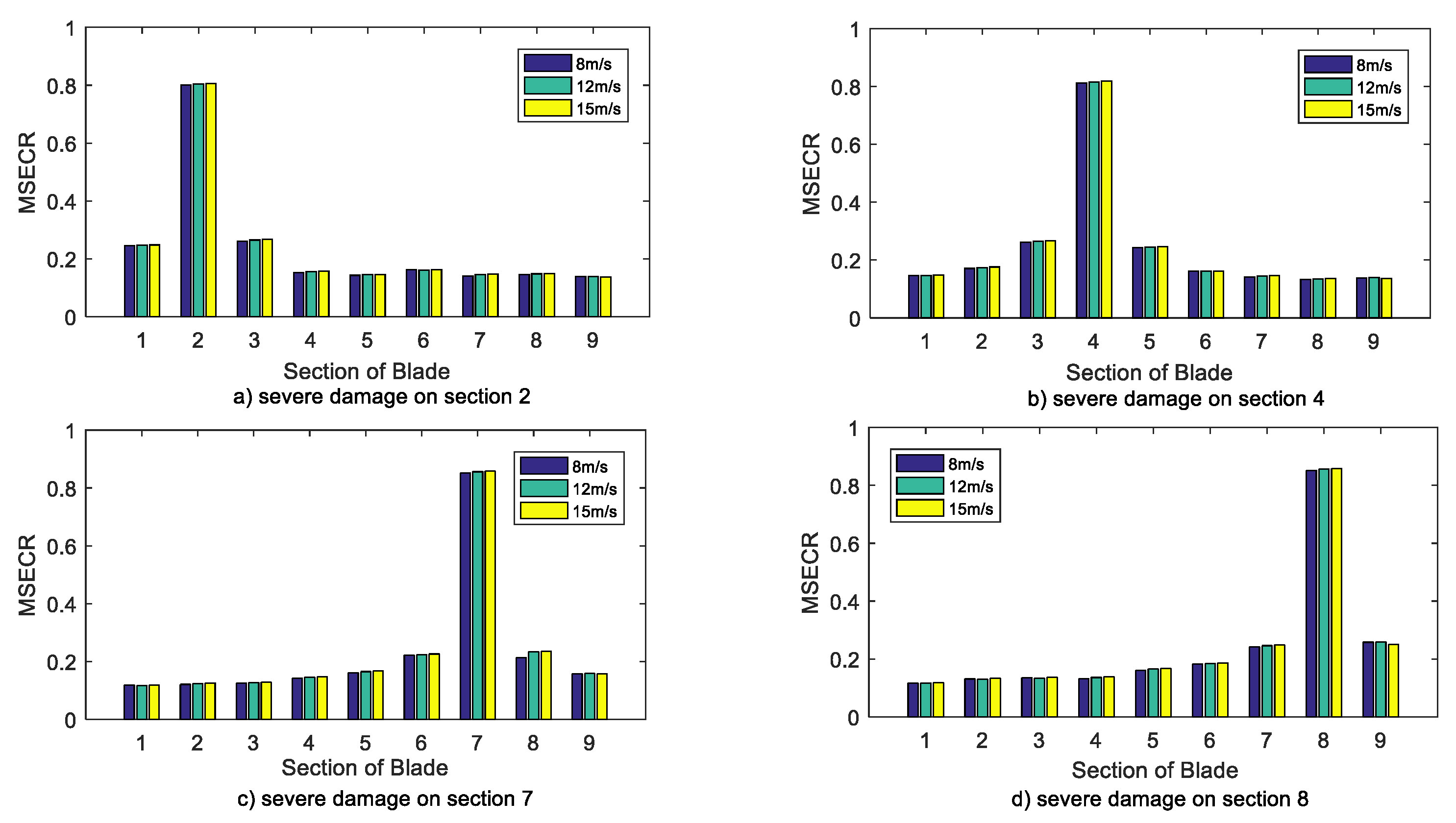

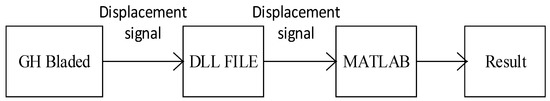

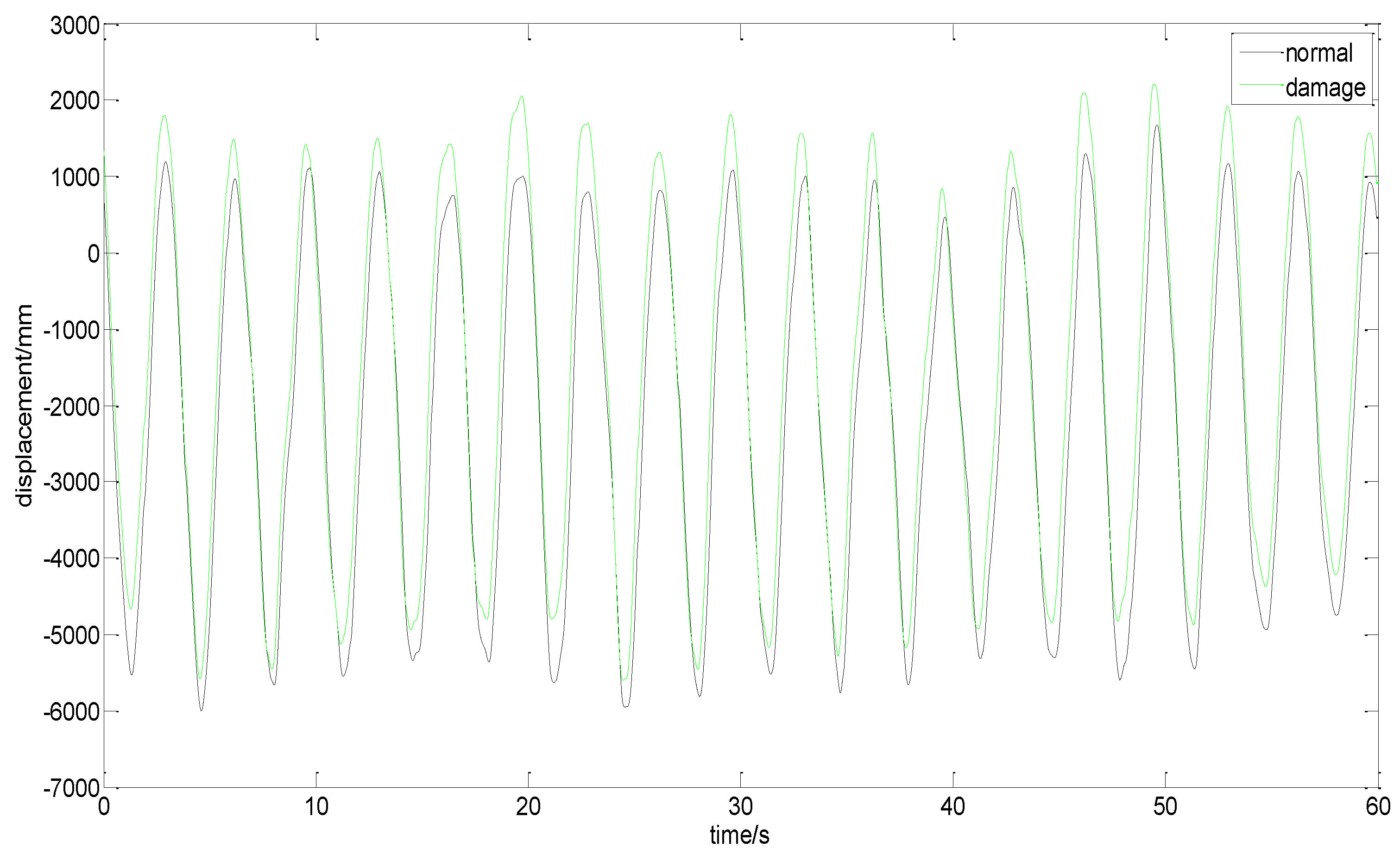

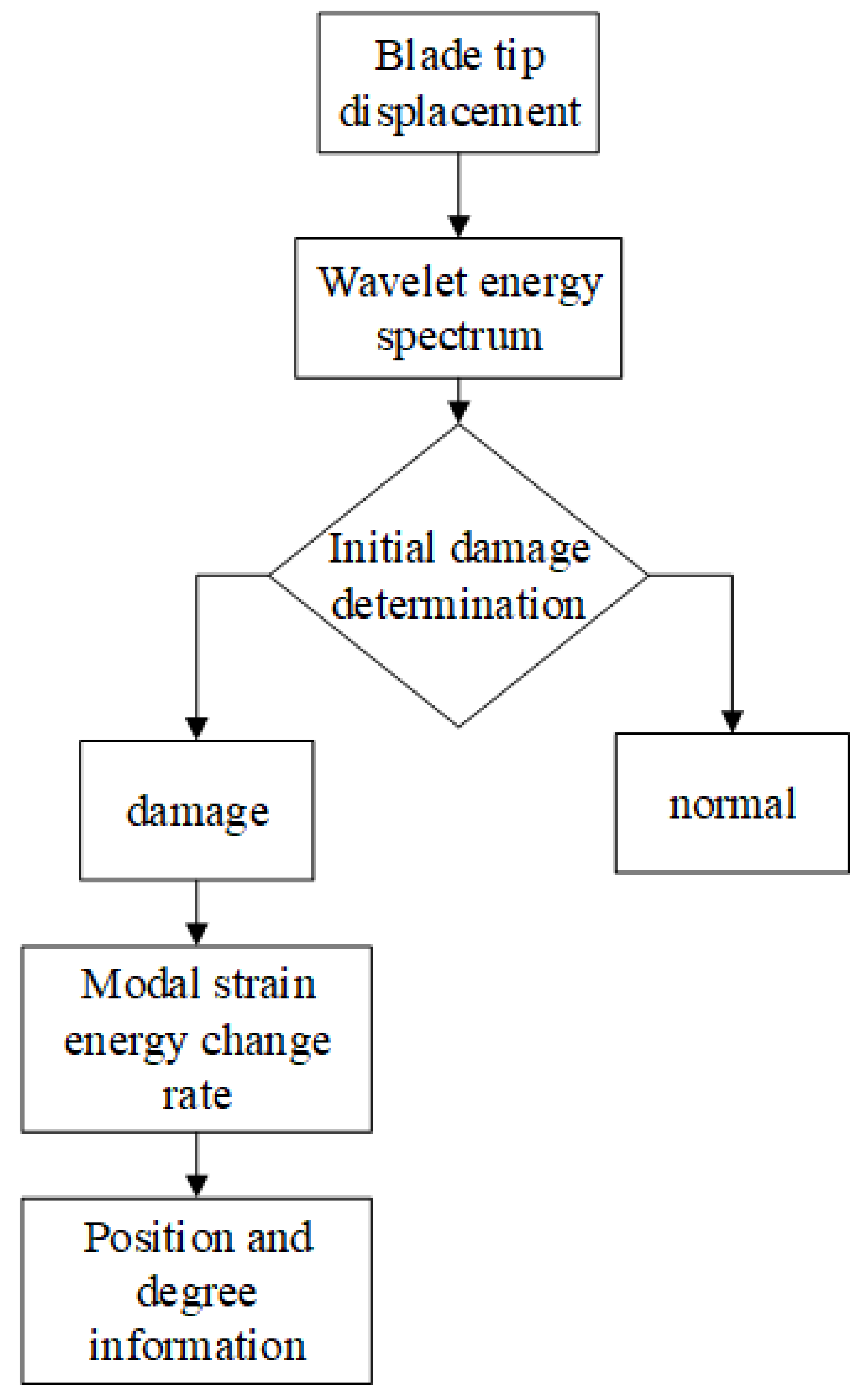

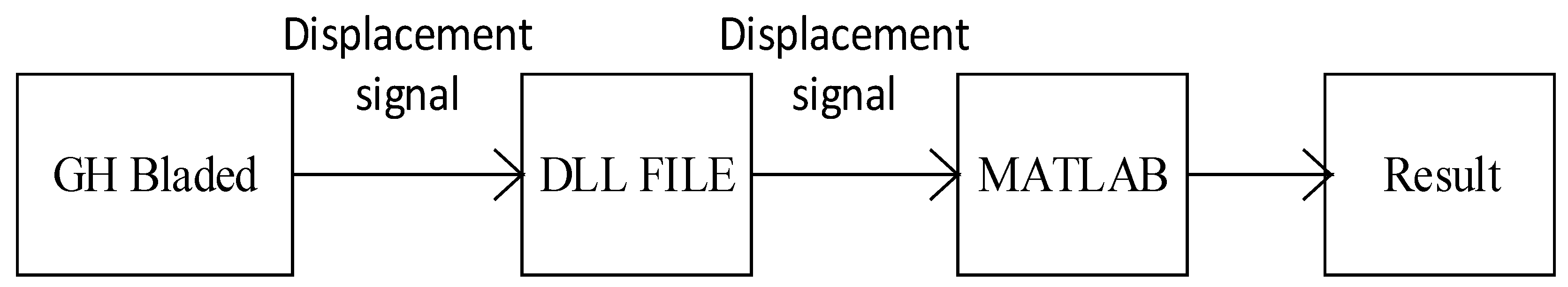

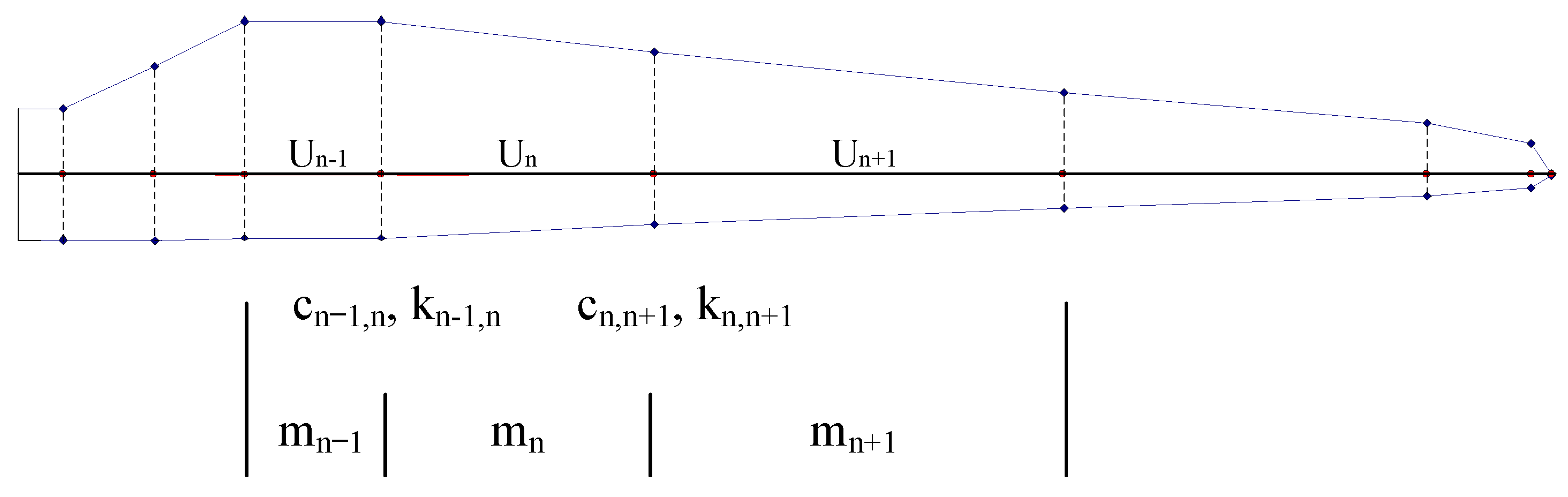

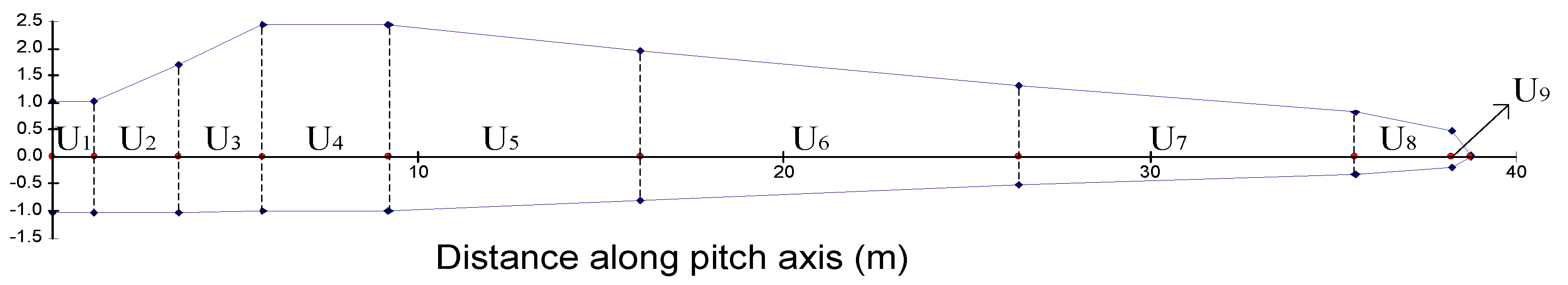

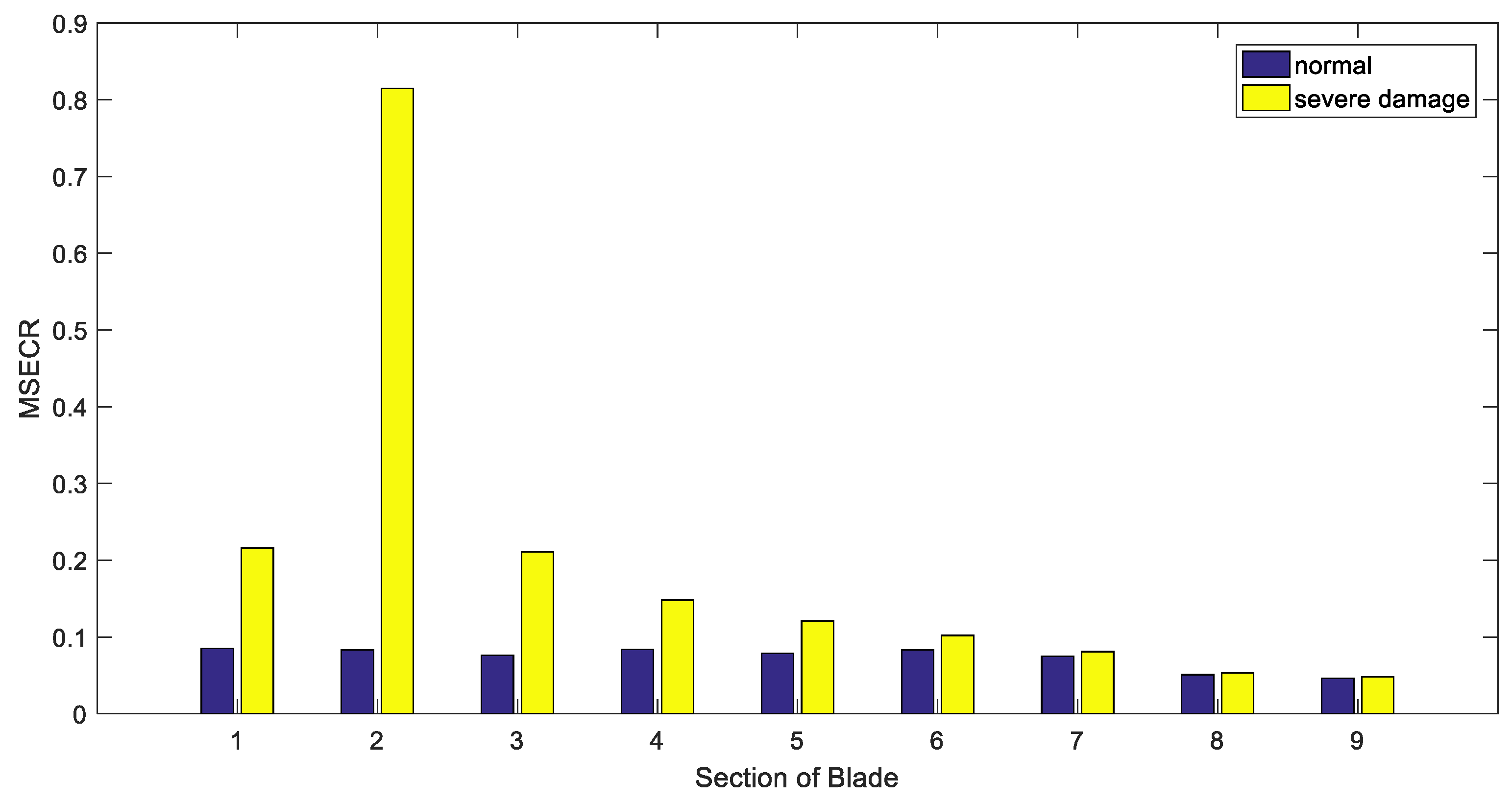

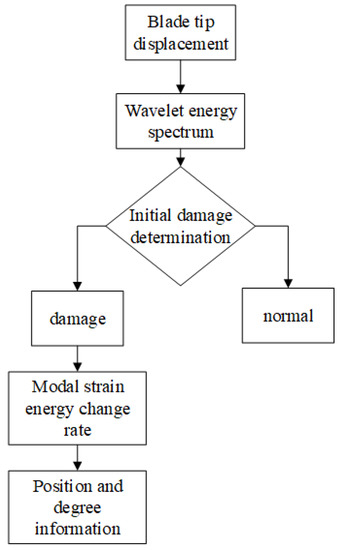

Damaged wind turbine (WT) blades have an imbalanced load and abnormal vibration, which affects their safe and stable operation or even results in blade rupture. To solve this problem, this study proposes a new method to detect damage in WT blades using wavelet packet energy spectrum analysis and operational modal analysis. First, a wavelet packet transform is used to analyze the tip displacement of the blades to obtain the energy spectrum. The damage is detected preliminarily based on the energy change in different frequency bands. Subsequently, an operational modal analysis method is used to obtain the modal parameters of the blade sections and the damage is located based on the modal strain energy change ratio (MSECR). Finally, the professional WT simulation software GH (Garrad Hassan) Bladed is used to simulate the blade damage and the results are verified by developing an online fault diagnosis platform integrated with MATLAB. The results show that the proposed method is able to diagnose and locate the damage accurately and provide a basis for further research of online damage diagnosis for WT blades. View Full-Text
Keywords: wind turbine; blade damage diagnosis; wavelet transform; operational modal analysis; modal strain energy (MSE) wind turbine; blade damage diagnosis; wavelet transform; operational modal analysis; modal strain energy (MSE)
Figures

Figure 1
