Suppression Effects of Hydroxy Acid Modified Montmorillonite Powders on Methane Explosions

Abstract

In this paper, montmorillonite inhibitors modified with polyhydroxy functional groups by gluconic acid (GA) were successfully prepared. The particle size distribution, composition, surface functional groups, and pyrolysis characteristics of the pure montmorillonite powders (Mt) and the gluconic acid modified powders (G-Mt) were analyzed by using a laser particle analyzer, X-ray diffraction (XRD), Fourier transform infrared (FTIR) and thermogravimetry–differential scanning calorimetry (TG-DSC), respectively. The suppression effect of Mt and G-Mt on the 9.5% methane–air premixed gas was tested in a 20 L spherical explosion device and a 5 L pipeline experimental system. The results show that G-Mt displays a much better suppression property than that of Mt. The optimal explosion suppression effect concentration of Mt or G-Mt powders is about 0.25 g·L⁻¹. In this concentration, for G-Mt, the maximum explosion pressure declined by 26.7%, the maximum rate of pressure rise declined by 74.63%, and the time for the flame front to reach the top of the pipe was delayed by 242.5%. On the basis of the experimental data, the better suppression effect of G-Mt than Mt might be attributed to the presence of more hydroxyl groups on the surface.

1. Introduction

As is well known, a methane–air mixture is a type of explosive gas and is the main component of natural gas, biogas, and coalbed methane. It is a high-quality clean fuel as well as an important raw material for the manufacture of syngas, as well as many chemical products that are usually transported through the pipeline network [1]. However, it can lead to extremely serious consequences because of its explosiveness. Thus, in order to prevent or reduce the damage caused by methane explosions, many inhibitors have been developed such as inert gases, water mist, aerosol, powder inhibitors, and so on [2,3,4,5,6]. Chemical powders—especially inorganic powders— have attracted many studies owing to the advantages of their easy storage, low cost, high dispersion, and being environmentally benign. As reported by Luo, Liu and Zhang [7,8,9], diatomite, quartz, rock dust, and palygorskite powders presented certain explosion suppression effects on methane explosions. Sun, Ni, and Wang obtained novel composite powder inhibitors by NaHCO₃ powders with porous kaolinite, zeolite, and red mud, respectively [10,11,12]. Hu modified Mg(OH)₂ powders by the use of 9,10-dihydro-9-oxygen mixed-10-phosphaphenanthrene-10-oxide, and the results showed that the pyrolysis fragments could directly react with flame free radicals to achieve an excellent explosion suppression effect [13]. His research also indicated that the development of modified inorganic mineral powders which can react with active free radicals (∙H, ∙HO₂, ∙CH, ∙CH₃ and ∙HCO) [14,15,16,17,18] of the methane explosion is an effective methane explosion suppression method.

Montmorillonite is a kind of 2:1 layered structure clay [19]. Because of its special structure, it is often used for functional modification [20]. Ca²⁺-montmorillonite is usually treated with acids to replace the divalent calcium cations with monovalent hydrogen ions, with the aim of altering the smectite layers and increasing the specific surface area and porosity [21]. Gluconic acid is a type of low carbon polyhydroxy acid, and the hydroxyl groups on saturated carbon are easily removed after protonation. Therefore, using gluconic acid to modify montmorillonite may increase the amount of the montmorillonite surface hydroxyl groups; thus, the modified montmorillonite may exhibit greater gas explosion suppression performance.

In this study, montmorillonite was modified by gluconic acid, and montmorillonite powders with polyhydroxyl functional groups were obtained. Then, the explosion inhibition effects of the montmorillonite powders with polyhydroxyl functional groups on methane explosions were investigated using a 20 L stainless steel spherical vessel and a 5 L pipeline experimental system. Based on the experimental results, a possible suppression mechanism was discussed.

2. Experimental

2.1. Materials and Preparation Procedures

The montmorillonite (purity > 95%) was obtained from Zhejiang Sanding Technology Co., Ltd. Gluconic acid (C₆H₁₂O₇, 99%) was purchased from Nine-Dinn Chemistry (Shanghai) Co., Ltd. All of the raw chemical reagents used in the experiments were of analytical-grade purity and were used directly without further purification.

The procedure used to prepare the modified montmorillonite inhibitors was as follows. Firstly, a solution of 0.5 mol/L gluconic acid was prepared and 10 g of montmorillonite powders were mixed with 40 mL of acid solution under a liquid–solid ratio of 4:1. Then, the mixture was stirred for two hours at a constant temperature of 298 K in a heat-collecting thermostatic heating magnetic agitator. Afterwards, it was rinsed 4–5 times using deionized water and then pumped with a filter pump 3–4 times to obtain precipitation. The mixture was dried for one week in a vacuum drying oven at 313 K. Finally, the powders for testing were collected through a 200-mesh sieve screen.

2.2. Powder Characterisation Methods

X-ray powder diffraction (XRD) analysis was performed by a Bruker AXS D8 advance diffractometer (AXS D8, Bruker, Madison, WI, USA) with Cu/K_α radiation, at 40 kV and 25 mA, in a scanning range of 5–80° (2θ). A Malvern Sizer 2000 (Mastersizer2000, Marvin instruments Ltd, Worcestershire, UK) was used to test the powder specification. The Fourier transform infrared (FTIR) spectrum of the KBr wafer was recorded using a Nicolet 6700 Fourier Transform Spectrometer (TENSOR-37, Brook spectroscopic instruments Ltd, Ettlingen, Germany). Thermogravimetry-differential scanning calorimetry (TG-DSC) analysis was conducted using a Simultaneous Thermal Analyser (NETZSCH, Selb, Germany) in a flow of air (20 mL·min⁻¹) at a heating rate of 10 °C·min⁻¹. In this process, the starting temperature was 25 °C and the termination temperature was 800 °C.

2.3. Powder Suppression Explosion Experiments

The explosion pressure parameters of the methane explosion, suppressed by different concentrations of Mt and G-Mt, were tested by using the 20 L spherical explosion instrument, and the flame propagation behavior was measured in the pipeline test system, which had a cross-sectional area of 100 × 100 mm² and a length of 500 mm. It has been shown that the dust dispersion inside the 20 L sphere used for explosion experiments is not uniform [22], and also that dust particles may undergo fragmentation when passing through the nozzle of the 20 L spherical vessel [23]. The same is true in the pipeline test system. In order to ensure the accuracy and reproducibility of the results, each experiment was repeated at least three times. Fortunately, the experimental results showed that the experimental data in this study are repeatable. The physical properties of the montmorillonite powders and the palygorskite powders were similar; thus, the test parameters of each system were the same as those used in previous research [9].

3. Results and Discussion

3.1. Characterisation of Mt and G-Mt

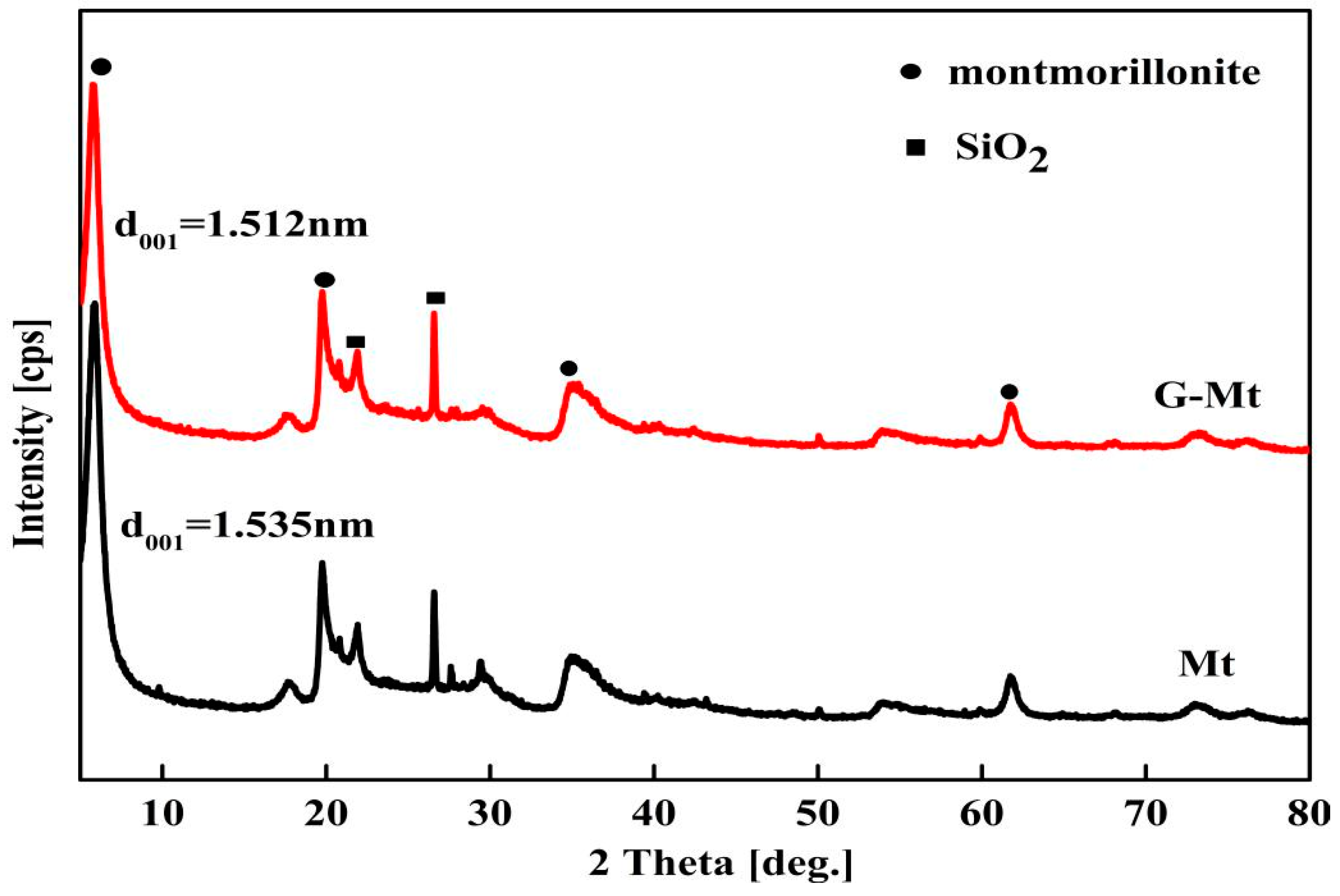

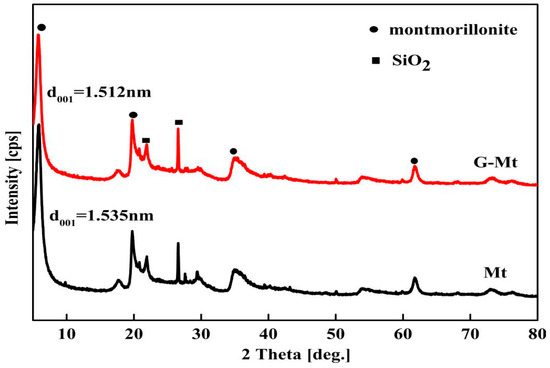

The XRD patterns of Mt and G-Mt are shown in Figure 1. It can be seen that the diffraction peaks of the two samples match the Mt standard pattern (JCPDS: 13–0135). The three principal peaks at 2θ = 5.887°, 17.688°, and 19.712° correspond to the (001), (003), and (100) planes of Mt, respectively [24]. Moreover, the value of d₀₀₁ of the (001) crystal is 1.535 nm, indicating that the sample is typical calcium montmorillonite [25]. Compared with d₀₀₁ of the (001) crystal peak of Mt, the value of d₀₀₁ of G-Mt decreases slightly. This is because the structure of Mt is destroyed by GA [26]. An obvious peak is observed at 2θ = 26.639°, which agrees with SiO₂ (JCPDS: 13–0135). Thus, it can be inferred that a small amount of quartz is included in the Mt.

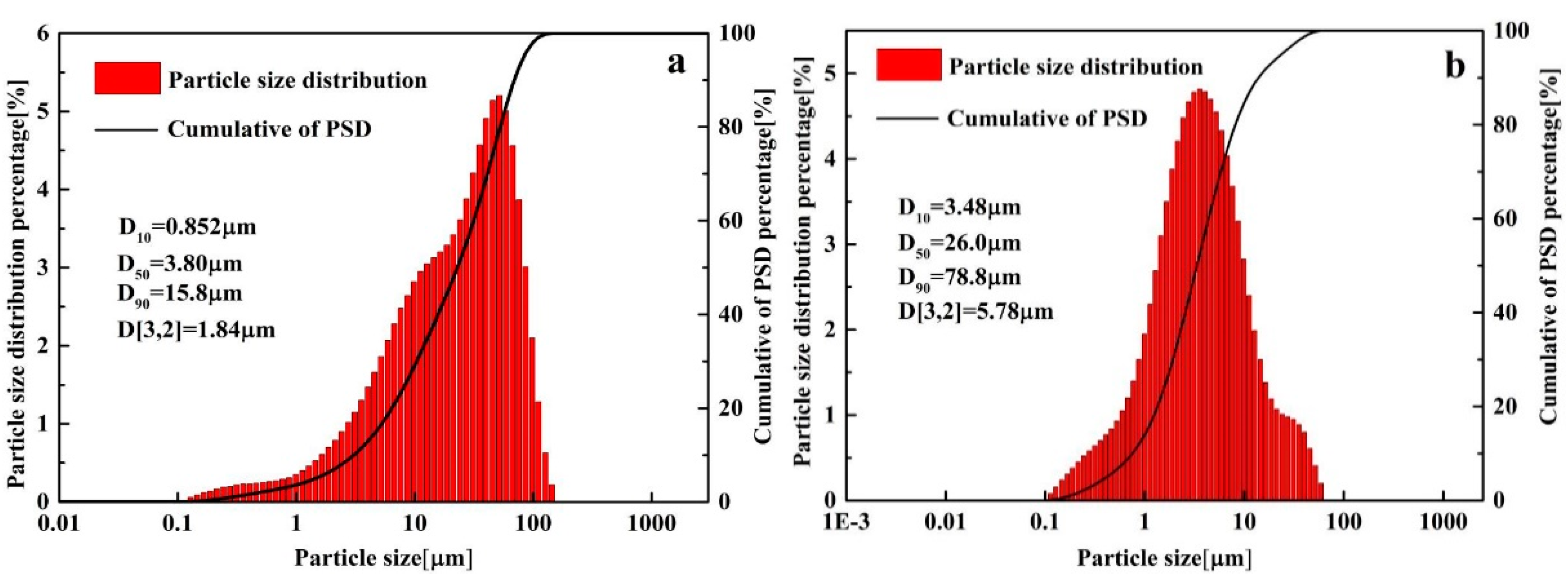

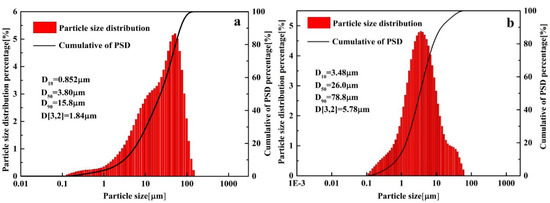

The powder inhibitors used in this study were all sieved through a standard 200-mesh screen. Then, their particle size distributions were determined using a Malvern Mastersizer 2000 laser particle analyzer (Mastersizer2000, Marvin instruments Ltd, UK). The results of the two different powders are shown in Figure 2. The average particle sizes of Mt and G-Mt are 1.84 μm and 5.78 μm, respectively.

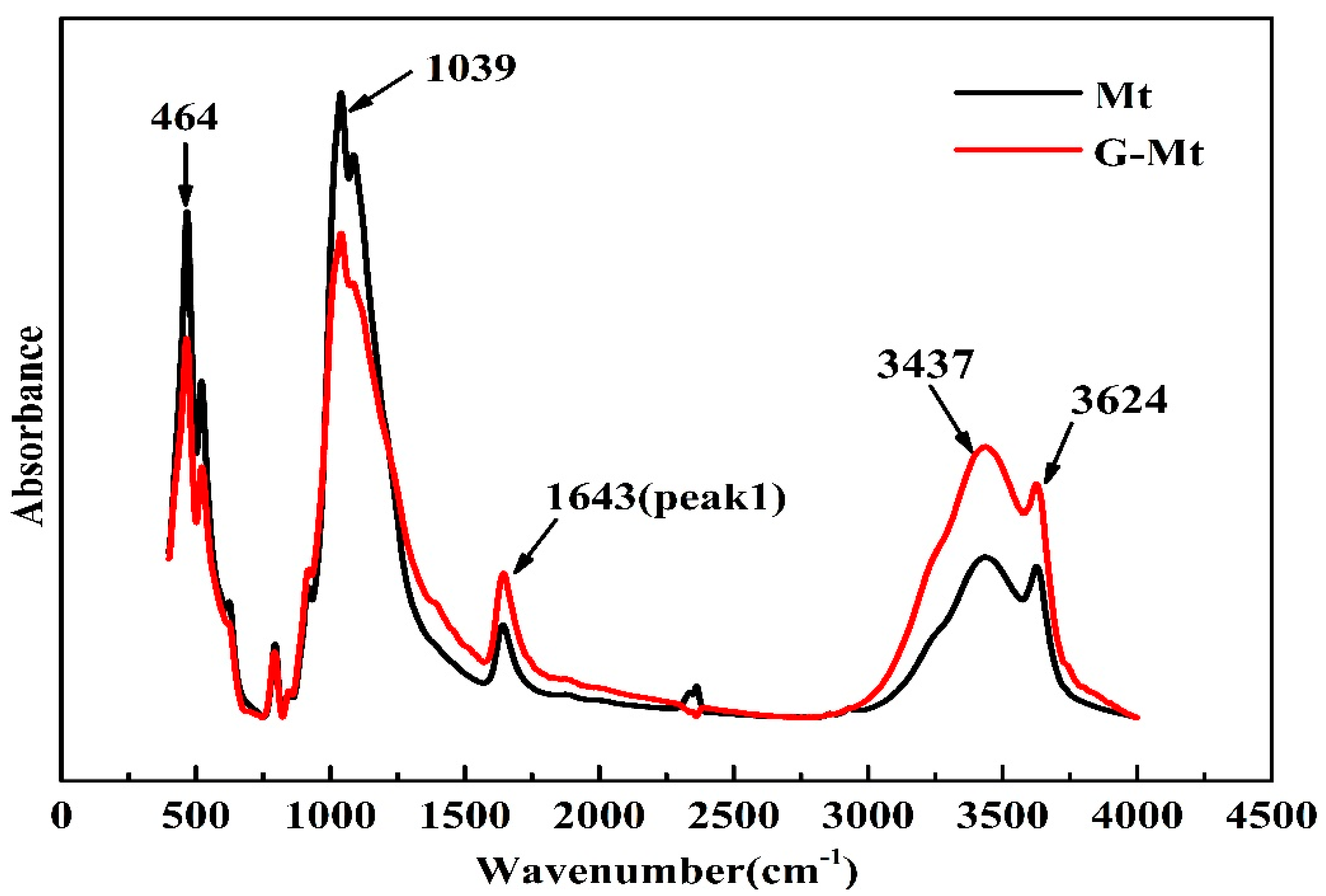

The FTIR spectra of Mt and G-Mt are shown in Figure 3. Bands at 464 and 1039 cm⁻¹ correspond to the bending vibration of Si-O and the stretching vibration of O-Si-O, respectively [27]. The -OH bending and stretching vibration are found at 3400–3700 cm⁻¹ [28,29]. It can be seen from Figure 3 that the -OH absorption peaks of G-Mt are significantly stronger than those of Mt. Comparing the adsorption peaks of -OH in two samples, the possible intercalation and grafting of -OH within the clay could be predicted when the increase of the relative intensities of the aforementioned peaks was observed [30]. Therefore, the 1643 and 3000–4000 cm⁻¹ bands were processed by peak-splitting fitting [31], and the corresponding results are shown in Figure 4. As can be seen from

Table 1. The hydroxyl peak fitting area of Mt and G-Mt.

Sample	Peak 1	Peak 2	Peak 3
Mt	6.24	96.45	7.62
G-Mt	8.74	184.29	10.15

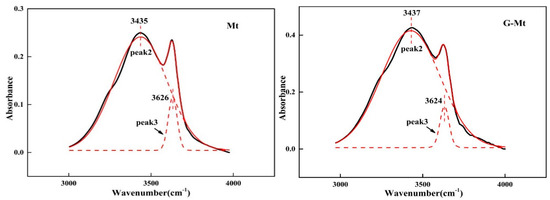

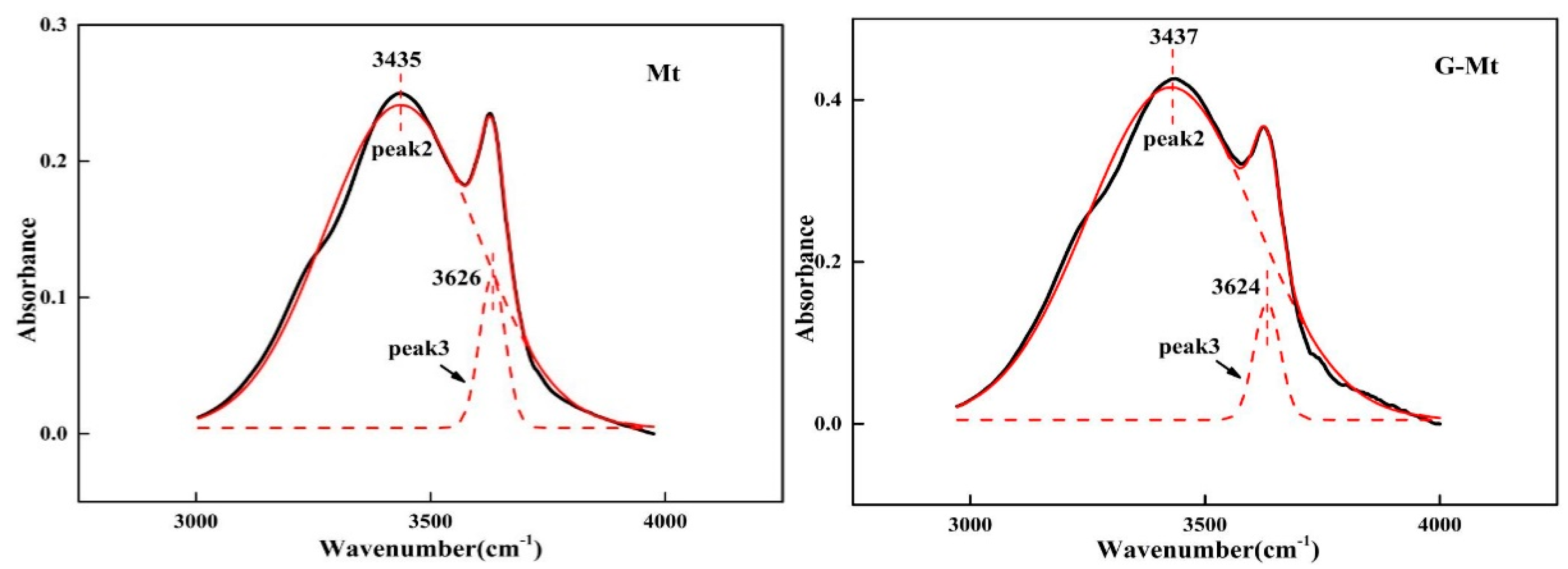

, the 1643 cm⁻¹ ν_OH can be attributed to the interlayer water with a variety of orientations and interactions [32,33,34]. The peak area value in peak 1 between Mt and G-Mt is similar, which might exclude the interference of water. However, ν_OH and δ_OH, belonging to the structural hydroxyl of G-Mt at 3000–4000 cm⁻¹, increases about twice as much as for Mt.

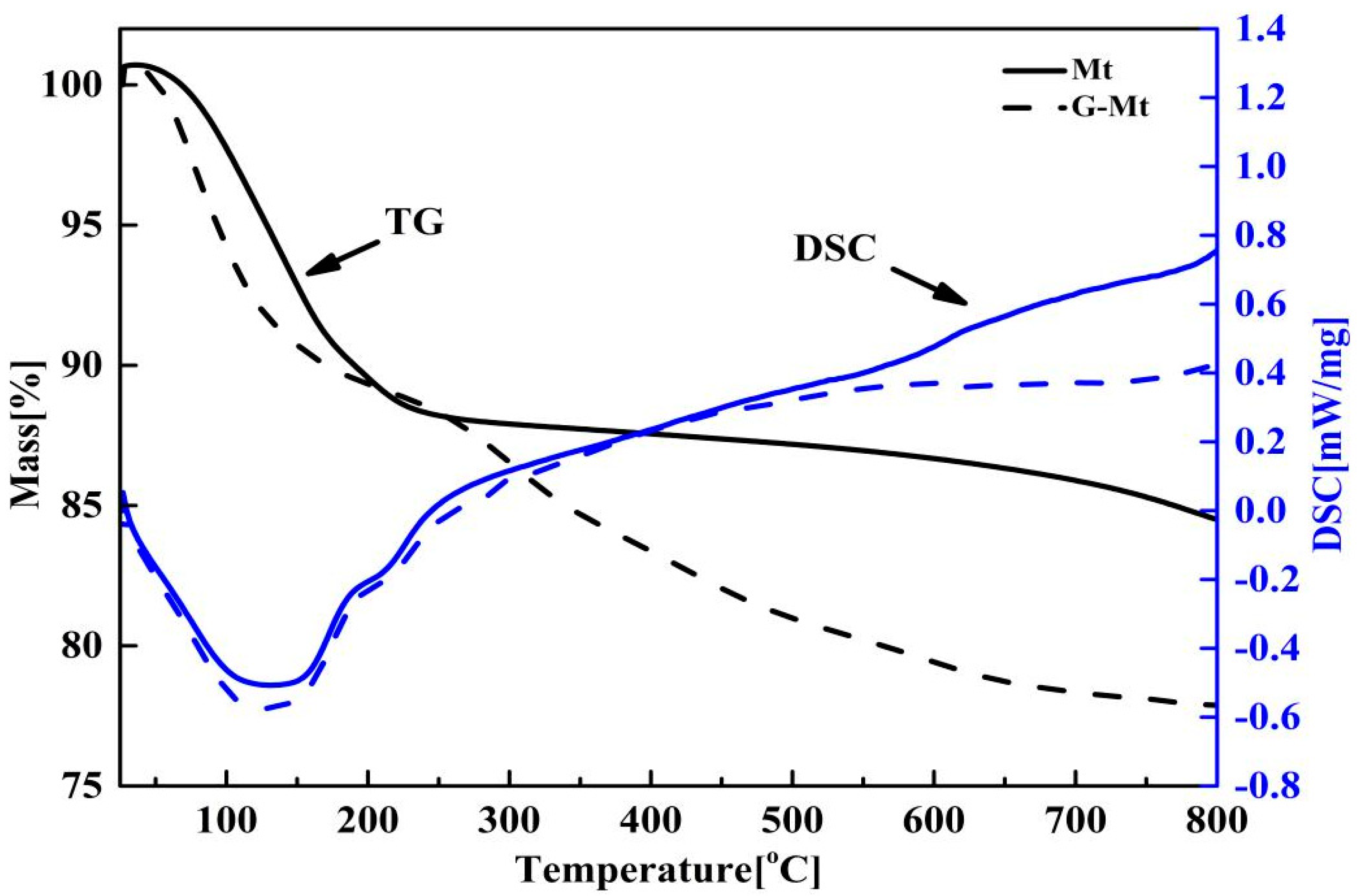

Figure 5 presents the TG-DSC curves of Mt and G-Mt. It can be seen from Figure 5 that the decomposition process of Mt begins at 70 °C and ends at 250 °C. The mass loss is 12.17%, which is attributed to the loss of intercalated moisture [19]. From 250 to 800 °C, the TG curve of Mt becomes steady and shows little change with further increases in temperature. In addition, a small endothermic peak of the Mt DSC curve from 250 to 800 °C, with a mass loss of 4.15%, can be observed, which could be attributed to the removal of -OH from the crystal structure of Mt [35]. For the TG curve of G-Mt, a large gradual mass loss of 5.63% occurs after 250 °C, and the total weight loss (

Table 2. The TG-DSC parameters of Mt and G-Mt.

Sample	Total Weight Loss (%)	Total Endothermic Quantity (J·g−1)
Mt	16.32	1143
G-Mt	19.66	570.30

) of G-Mt is larger than that of Mt, but the total endothermic quantity of G-Mt is smaller. The reason for the smaller endothermic quantity of G-Mt can be attributed to the closely distributed hydroxyl groups on the surface of G-Mt, which can form H-bonded hydroxyl groups that are gradually removed at high temperatures [8,35].

3.2. Suppression Effect of Mt and G-Mt

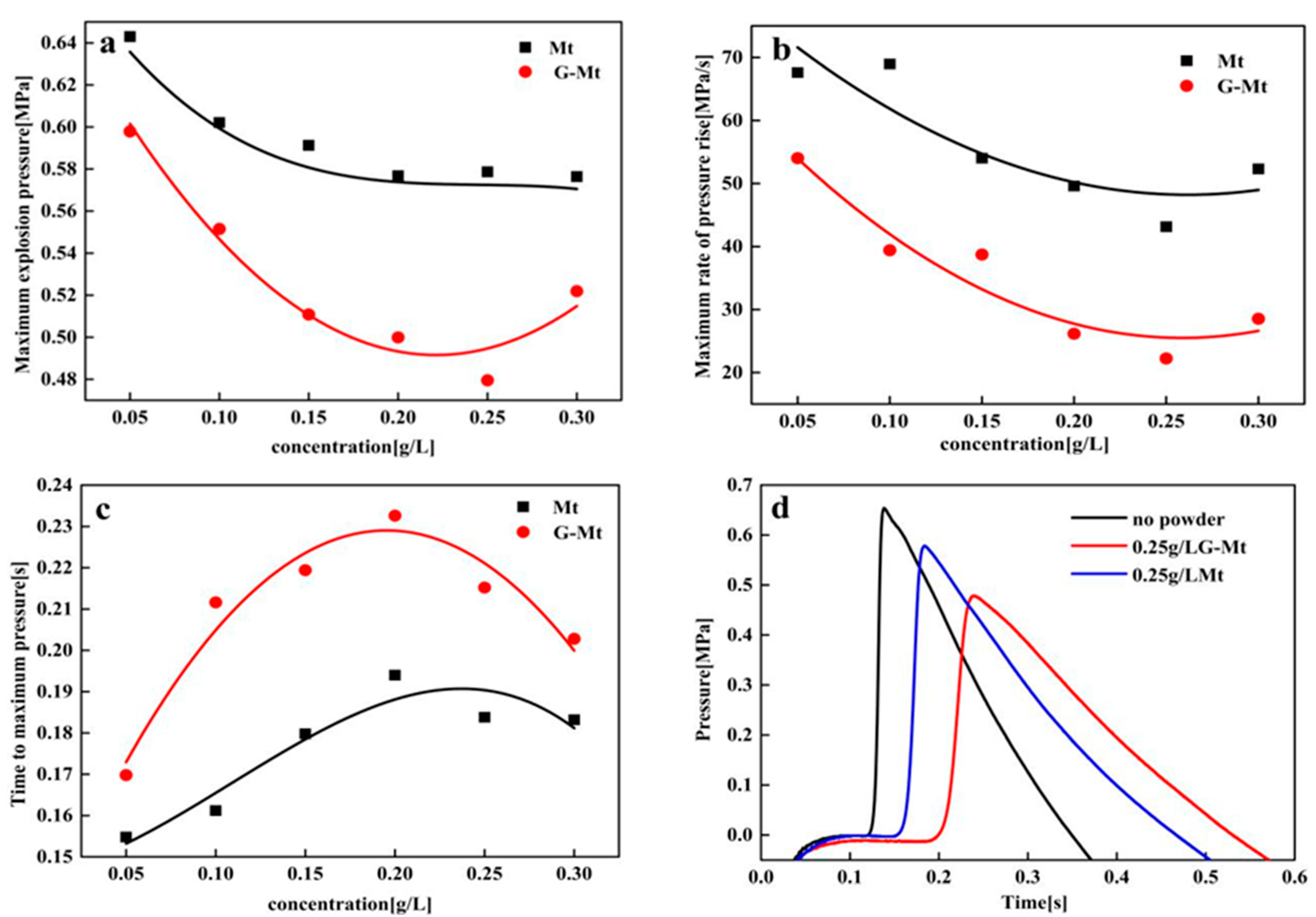

The explosion pressure parameters were tested in a 20 L spherical vessel. The effects of Mt and G-Mt on the 9.5% methane explosion are presented in Figure 6. As can be seen from Figure 6a,b, both the maximum explosion pressure (P_max) and the maximum rate of explosion pressure rise ([dP/dt]_max) decrease after the addition of Mt or G-Mt. Meanwhile, the time for the pressure to reach a maximum value (T_max) obviously increases, as shown in Figure 6c. On increasing the concentration of Mt or G-Mt, both P_max and [dP/dt]_max decrease and T_max increases. However, on further increasing the concentration of Mt or G-Mt, P_max and [dP/dt]_max no longer decrease and T_max no longer increases, indicating that an optimal inhibitory effect concentration of Mt or G-Mt exists. According to Figure 6a–c, it can be found that the optimal concentration is about 0.25 g·L⁻¹. Furthermore, comparing the results of P_max, [dP/dt]_max, and T_max, the inhibitory effect of G-Mt is more significant than Mt with the addition of the same mass concentration powders.

In order to compare the suppression effect of Mt or G-Mt more clearly, the explosion pressure curves of the 9.5% methane mixed with Mt and G-Mt, respectively, with a concentration of 0.25 g·L⁻¹, are shown in Figure 6d. It can be seen that the methane explosion could be divided into two main stages. The first is the pressure increase stage, in which the pressure increases rapidly with time. The heat released from combustion exceeds the heat lost to the surroundings. The second stage is the pressure decay process [10]. For 9.5% methane, the P_max, [dP/dt]_max and T_max are 0.654 MPa, 87.648 MPa/s and 0.138 s, respectively, as shown in

Table 3. The explosion parameters of CH₄–air premixed gas with Mt and G-Mt.

Sample	Concentration (g·L−1)	Maximum Pressure (MPa)	Time of Pressure Peak (s)	Rate of Maximum-Pressure Rise (MPa·s−1)
No powders	0	0.654	0.138	87.648
Mt	0.25	0.578	0.183	43.144
G-Mt	0.25	0.479	0.215	22.235

. As the G-Mt with a concentration of 0.25 g·L⁻¹ is added, the P_max and [dP/dt]_max decrease by 26.7% and 74.63% respectively, and T_max increases by 55.8%. For Mt, these percentage values are 11.6%, 50.77%, and 50.74% respectively, which are much lower than those of G-Mt. Thus, the inhibition effect of G-Mt is much better than that of Mt.

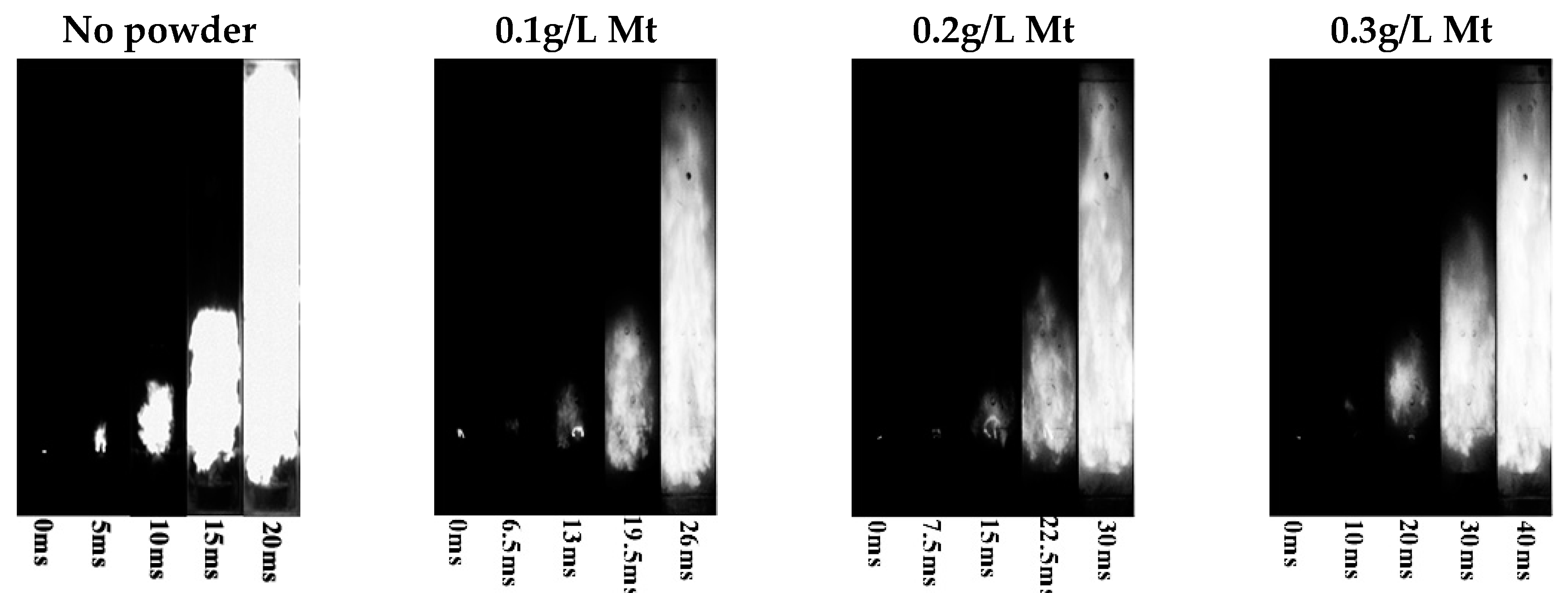

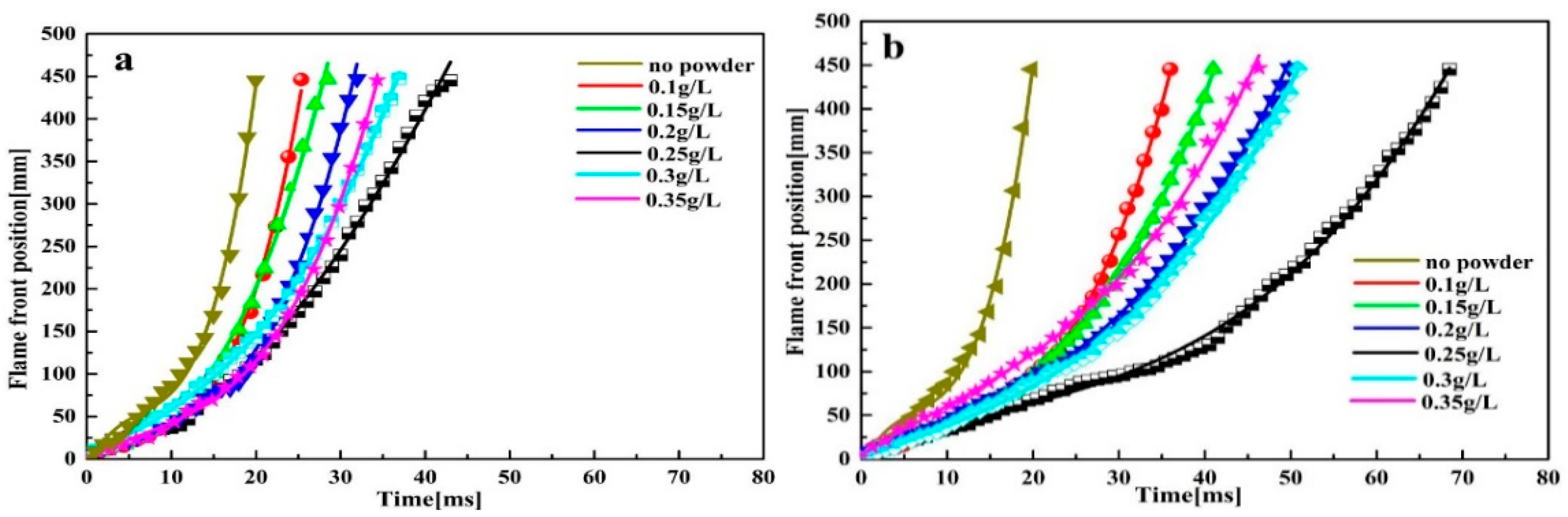

The flame propagation characteristics of ma ethane explosion with inhibitors are also important evaluation parameters. Hence, experiments were performed in the 5 L pipeline experimental system. The flame propagation images of the methane explosions with no powder, Mt and G-Mt are shown in Figure 7. It can be seen that the flame front of the methane explosion with no powder reaches the upper end 20 ms after ignition. However, when Mt or G-Mt are added, the explosion flame darkens and slows down. Simultaneously, an uneven flame structure appears, which can be attributed to the nonuniformity of the dust dispersion or dust particle fragmentation. Figure 8a,b presents the variation in the flame front position (FFP) for the 9.5% methane explosion with different concentrations of Mt and G-Mt, respectively. As can be seen from Figure 8a, the time to the upper end of the methane explosion flame (T_e) gradually lengthens when Mt with the concentrations of 0.05 to 0.25 g·L⁻¹ being added, and T_e is prolonged from 20 ms to 42.5 ms with the addition of 0.25 g·L⁻¹ Mt (Figure 9). However, with further increases in the concentration of Mt, once more, the flame propagates quickly in Figure 8b, and the Te of G-Mt with different concentrations shows a similar trend of initially increasing and then decreasing with T_e being prolonged from 20 ms to 68.5 ms with the addition 0.25 g·L⁻¹ G-Mt (Figure 9). Thus, 0.25 g·L⁻¹ might still be the optimal inhibitory effect concentration for Mt or G-Mt in the 5 L pipeline experimental system.

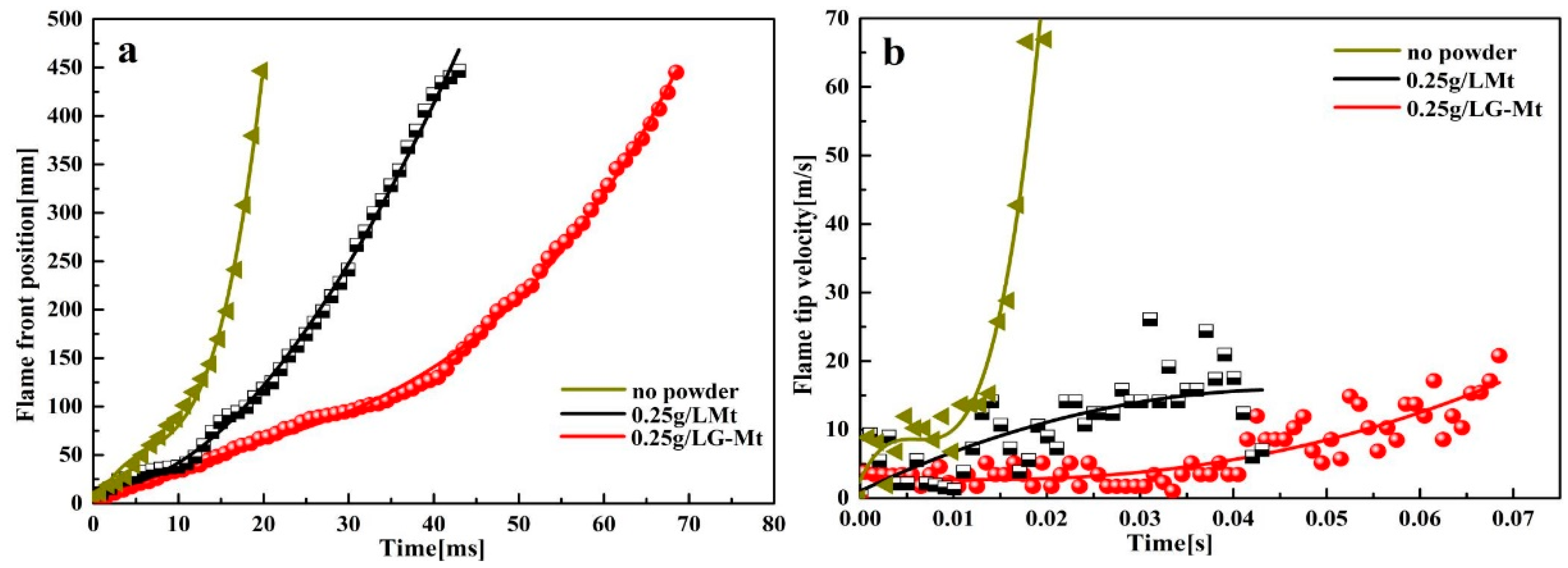

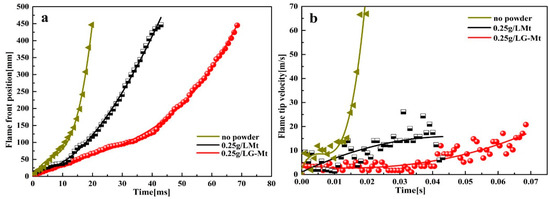

Figure 10a shows the FFP of the 9.5% methane explosion with Mt and G-Mt at the concentration of 0.25 g·L⁻¹. Compared with the methane explosion with no powder, the T_e value of the 9.5% methane explosion with 0.25 g·L⁻¹ Mt and 0.25 g·L⁻¹ G-Mt is noticeably delayed, by 112.5% and 242.5%, respectively. The flame propagation velocities (FPV) of the methane explosions with no powder, 0.25 g·L⁻¹ Mt, and 0.25 g·L⁻¹ G-Mt are shown in Figure 10b. The FPV of methane explosion with no powder shows the trend of initial acceleration followed by a steady propagation that may be due to the reflected explosion wave [36,37]. The value of FPV significantly decreases with the addition of 0.25 g·L⁻¹ Mt or 0.25 g·L⁻¹ G-Mt. Furthermore, the FPV curve of G-Mt with the same concentration is below that of Mt, indicating that the suppression property of G-Mt is better than Mt. These test results are consistent with those obtained in the 20 L spherical explosive device.

3.3. Suppression Mechanism of Mt and G-Mt

From the experimental results, the methane explosion suppression mechanism can be attributed to the combined efforts of physical and chemical inhibition effects.

3.3.1. Physical Inhibition Effect

On the one hand, the evaporation of surface and interlayer water of Mt or G-Mt can absorb the amount of heat released from the explosion reaction to cool the system down and inhibit the propagation of the explosion wave [2].

On the other hand, the inhibitor powders, which are widely dispersed in the reaction zone, can reduce the thermal diffusion coefficient of the unburnt gas as well as the heat transfer from the reaction zone to the unburnt zone by blocking and absorbing the heat radiation.

3.3.2. Chemical Inhibition Effect

Many studies have shown that there are 325 elementary reactions, involving 53 species, which occur in the process of a methane explosion [38,39]. The chain reactions are dominated by free radicals (especially ∙O, H∙, ∙HO₂, ∙CH₃, ∙HCO, and ∙OH) during the chemical reaction. Montmorillonite modified by gluconic acid alters the smectite layers and increases the specific surface area and porosity, which improves the probability of collisions between the surface hydroxyls of Mt or G-Mt and the active radicals. Therefore, the ∙O, H∙, and ∙OH, et al., of the methane explosion may be eliminated by the surface hydroxyls of Mt or G-Mt [40,41]. Furthermore, the metal ions such as Ca²⁺, Mg²⁺, Al³⁺ which are generated during the heat dehydration process of Mt or G-Mt can react with the above free radicals [42,43]. The related reactions are as follows:

M⁺ + OH∙→ M(OH)

(1)

M(OH) + OH∙→ MO + H₂O

(2)

MO + O∙→ M + O₂

(3)

Furthermore, some of the key reactions play an important role in the methane explosion, such as Equations (4)–(7), et al. [14,17]. Nie confirmed that the formation of free radicals (∙O, H∙, and ∙OH) was mostly sensitive to the forward reaction of Equation (6) and the reverse reaction of Equation (7) [14]. Therefore, when Mt or G-Mt are added into the methane explosion, a large number of hydroxyl radicals may be produced in the instantaneous high temperature, and these hydroxyl radicals can reverse the direction of the key reactions of Equation (6) and Equation (7) that promote the explosion:

O₂ + CH₂O ⇌ HO₂ + HCO∙

(4)

CH₃∙ + O₂ ⇌ O∙ + CH₃O∙

(5)

CH₃∙ + O₂ ⇌ OH∙ + CH₂O

(6)

2CH₃∙ + (M) ⇌ C₂H₆ + (M)

(7)

According to the TG-DSC curves, the total endothermic quantities of Mt and G-Mt are 1143 J/g and 570.3 J/g, respectively. The average particle size of G-Mt is obviously larger than Mt, but G-Mt presents a better explosion suppression efficiency than Mt. These results prove that more hydroxyl groups of G-Mt exert a better chemical inhibition effect in the methane explosion.

4. Conclusions

In this work, clean, nontoxic and low-cost inhibitors, with polyhydroxy functional groups modified by gluconic acid, were obtained through a simple stirring method. Montmorillonite powders modified by gluconic acid had a better explosion suppression capability than the pure montmorillonite powders. When G-Mt was used as a methane explosion suppression powder material, the maximum explosion pressure reduced by 26.7%, the maximum rate of pressure rise declined by 74.63%, and the time of the flame front reaching the top of the pipe was delayed significantly. Based on the characterization analysis of the powders and the results of methane explosion suppression, it was found that the hydroxyl functional groups on the surface of Mt and G-Mt present a positive inhibitory effect. However, the exact mechanism of their action is still unclear. Hence, more work is needed to fundamentally understand the hydroxyl functional groups’ response to the methane explosion and to complement the experimental results with molecular reaction simulations. In general, this work has some guiding potential for the development and preparation of new explosion inhibitors.
