Cost-Optimal Plus Energy Building in a Cold Climate

Abstract

The main objective of this article is to propose possible requirements for cost-optimal plus energy building in a cold, heating dominated climate. The open question is what is more cost-effective: reduction of energy demand or increase of production from renewable energy sources. The target of the research was to check which solution has the lowest investment and maintenance costs. The analysis was made for a single-family house located in central Poland, including three different energy standards: WT2021 with energy need for heating ≤100 kWh/(m² year), NF40 with energy need for heating ≤40 kWh/(m² year) and NF15 with energy need for heating ≤15 kWh/(m² year)). Air and ground source heat pumps were used as a heat source and a photovoltaic system for the production of the electrical energy. For each case the investment and running costs were calculated very precisely, taking into account heating, ventilation, domestic hot water and auxiliary systems. Global cost for a 30-year period showed that house variants with air source heat pumps are more cost effective. The investment, replacement and maintenance cost related with energy systems have the biggest share in the global cost. Reaching the plus energy standard was possible only in the case of low-energy standard NF40 and NF15. Based on this research the proposed requirements for plus energy single-family residential buildings in central Poland are the following: the final (delivered) electrical energy demand (including heating, ventilation, domestic hot water and auxiliary systems) <45 kWh/(m² year) and the on-site electrical energy production >45 kWh/(m² year).

1. Introduction

The Energy Performance of Buildings Directive (EPBD) [1] requires that all new buildings constructed in the European Union (EU) from 2021 (in the case of public utility buildings from 2019) are buildings with nearly zero energy consumption (NZEB). According to the revised EPBD [2] by 2050 we should decarbonise the building stock, which is currently responsible for about 36 % of all CO₂ emissions in the EU. The Member States, including Poland, have set out the country requirements for standard NZEB [3]. These requirements include, among others, thermal insulation of buildings elements and maximum non-renewable primary energy consumption (in Poland only the part of the energy that is coming from fossil fuels is included in the calculations). Abundant research indicates how to optimize single-family residential buildings to meet the requirements [4,5] or how to renovate to NZEB standard [6,7]. Reaching the aforementioned European goals, related to the building stock by 2050, can be complicated without more ambitious solutions. Meanwhile, new research show that the future will belong to plus energy buildings. The study of Gustafsson [8] concentrates on building energy systems in the context of renovation. This is especially important when aiming towards the 100% share of the renewable system in the future. To reach the plus energy standard a combination of photovoltaics, heat pumps, balanced ventilation with heat recovery and improved building envelopes is needed [9]. Therefore, a whole design process is to be optimized from the architectural and economic perspective [10]. One of the solutions can be the use of building integrated photovoltaics [11]. Examples of already-built plus energy houses can be found e.g., in Germany [12] where the Federal Ministry of the Interior for Building and Homeland is already promoting such a standard.

The question is how feasible requirements for the plus energy building definition should be formulated in central Poland. In order to find an answer, various energy efficiency standards of the model house were analysed, including different types of heat pumps, photovoltaic and ventilation systems. For each variant the global cost was calculated over a 30-year period. The used calculation period was based on the methodology framework established by the Commission with the Delegated Act No. 244/2012. According to the regulation for residential and public buildings 30 years of calculation period should be taken into account, and for commercial, non-residential buildings at least 20 years. The minimal cost was used as an optimizing criterion. The general definition states that building is plus energy when it produces more energy from renewable energy sources, over the course of a year, than it needs for heating, ventilation, domestic hot water (DHW) and auxiliary systems [13]. According to the concept [13] generated electricity, which is not consumed in place, is sent to the electricity grid. The power grid plays the role of energy storage in such a solution. Additionally, reaching of plus energy standard is only possible for buildings with a very high energy efficiency level, what confirms the study of Melgar, Bohórquez and Márquez [14]. What precise solutions in terms of construction and systems should be used are not always clear. Taking in consideration that the aim of the research was to check what is more cost-effective; the reduction of energy demand (e.g., thanks to better insulation of building elements) or the increase of production from renewable energy sources. At one point there has to be an optimum combination of those two measures, in combination with the minimal global cost. Research results were used to define possible requirements for plus energy building in the cold climate of central Poland.

The capital Warsaw was chosen as the location of the building, representing an average climate of central Poland. The city has a humid continental climate with long cold winters and short warm summers. The average length of the heating season is 222 days with the average outdoor air temperature of 3.4 °C. Yearly in-plane irradiation is 1100 kWh/m² [15]. For the determination of the plus energy standard a single-family building model was used. It well represents typical new single-family buildings constructed in Poland and does not include any special solutions referring to its construction or architecture.

The whole paper has following structure:

• materials and method—description of the calculation methodology, used building model and analysed variants,
• systems dimensioning—selection of air and ground source heat pumps for different building variants, selection of photovoltaic panels on a basis of total final energy consumption for heating, hot water and auxiliary systems,
• cost calculation—calculations of investment costs including construction and systems, calculation of annual costs related to energy consumption, systems replacement and maintenance,

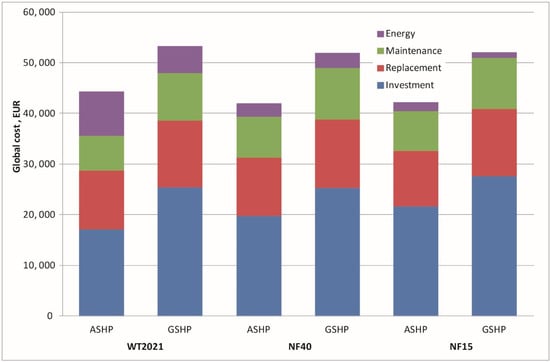

• results and discussion—global cost comparison and selection of cost-optimal variant,
• conclusions—proposition of requirements for plus energy single-family residential buildings in central Poland.

2. Material and Method

2.1. Calculation Methodology

The process of determining requirements for the plus energy building definition was divided into the following stages:

• calculation of energy performance of the house,
• systems dimensioning,
• global cost calculation.

The first stage was defining the energy performance of a single-family house used as the model building. The calculations were made for three different energy efficiency standards. Energy data were the basis for the dimensioning of building systems. Adequate heat pumps, PV systems and balanced ventilation were selected. Based on them it was possible to determine six main variants of plus energy house using either an air or ground source heat pump.

The aim of the global cost calculation was to determine the cost-optimal variant. The results depended on the energy efficiency standard and energy systems in the building. As an optimizing criterion, the minimal global cost (including investment + running costs) was used, calculated over a 30-year period. The calculations were based on the standard EN 15459-1 Energy performance of buildings, Economic evaluation procedure for energy systems in buildings, Part 1: Calculation procedures [16] and literature review [17,18]. The global cost for the 30-year period for the purpose of the study was calculated on basis of the following formula:

$$C_G=C_I+{{\displaystyle \sum }}_{i=1}^{30}\left(C_a\left(i\right)·f_{pv}\left(i\right)\right)-{{\displaystyle \sum }}_{j=1}^{}{V}_{30\_f}\left(j\right),$$

(1)

where:

• C_I—initial investment cost including additional constructions and systems costs, EUR;
• C_a(i)—annual costs of the year i represent the sum of maintenance costs and energy costs or replacement costs paid in the year i, EUR;
• f_pv(i)—present value factor;
• V_{30_f(j)}—final value of the component j at the end of the calculation period, EUR.

The present value factor is the factor by which any annual costs are to be multiplied in order to be comparable with the initial investment at the time of installation. It was calculated for the year i with the use of the following formula:

$$f_{pv}\left(i\right)=\frac{{\left(1+s\right)}^i·{\left(1+e\right)}^i}{{\left(1+d\right)}^i},$$

(2)

where:

• s—annual inflation rate;
• d—discount rate;
• e—evolution of energy prices (electrical energy) over the inflation rate in the analysed period.

The annual costs of the year i represent the sum of energy consumption, systems maintenance and replacement costs paid in specific years. It was calculated with the use of the following formula:

$$C_a\left(i\right)=C_{Rj,Tn}+C_e+C_m$$

(3)

where:

• C_Rj,Tn—replacement costs for component or system j at time T_n and 2T_n if the calculation period is longer or equal to 2T_n;
• T_n—lifetime expectancy for a component j (or system) normally specified in years;
• C_e—cost of energy consumption for heating, ventilation, DHW and auxiliary systems;
• C_m—maintenance costs.

The final value of the component j (V_{30_f(j)}) at the end of the calculation period was calculated if its lifespan was longer than the calculation period of 30 years. For example, if the component had to be replaced in year 30 the full replacement cost was multiplied by present value factor and subtracted from the annual costs. But if the lifespan of the component was 15 years and it was replaced for the first time in year 15 the final value of the component at the end of the calculation period will be 0 (zero).

2.2. Building Variants

The calculations were made for three different building energy efficiency standards referring to envelope performance, ventilation system and energy demand:

• WT2021—This is the term for the requirements for new buildings designed according to the building code [3] that will be built in Poland from 2021. The requirements apply to the maximum heat transfer coefficients (U-values) of building elements and the coefficient of maximum annual demand for non-renewable primary energy (Q_P) for heating, ventilation, cooling, domestic hot water preparation and lighting. From 2021, it will be reduced to a maximum of 70 kWh/(m² year).
• NF40—This is the term for a low-energy house, characterized by the energy need for heating (Q_H) no higher than 40 kWh/(m² year). The standard was defined by the National Fund for Environmental Protection and Water Management (NFEP and WM) in Poland as part of a program supporting the energy-efficient buildings [19]. The energy demand for heating of new houses is typically about 100 kWh/(m² year).
• NF15—This is the term for a passive house, characterized by the energy need for heating (Q_H) no higher than 15 kWh/(m² year). The standard was also defined by the NFEP and WM [19]. To achieve such a low energy demand, the building must be properly designed, constructed and equipped with very efficient ventilation system.

It is worth noting that the WT2021 concentrates on demand for non-renewable primary energy while NF40 and NF15 on energy demand for heating. Specific requirements for the given standards are shown later in the paper. In order to reach plus energy level systems, components have to be used which reduce the house final energy consumption and maximize renewable energy production on the site. In the scope of the research the following systems were included:

• PV—Photovoltaic solar panels were used to produce electrical energy. Depending on the situation monocrystalline or polycrystalline solar panels were applied. The surface of the roof of the house on which the panels can be installed is usually limited, e.g., to 35 m² in the case of the used model house.
• ASHP—Air source heat pump using energy stored in ambient air. Split system consists of one unit inside and one outside the building. The heat is distributed through the surface, water central heating system and used for the heating of DHW. The ASHP type has to be appropriate to work in cold climate. The key element of such a construction is the electronically controlled compressor with EVI (enhanced vapour injection) technology [20].
• GSHP—Ground source heat pump with vertical exchanger using energy accumulated in the ground for heating and domestic hot water preparation. The pipes run in vertical holes bored in the ground with a diameter of 10–15 cm deep at 15–200 m. The minimum distance between holes is 5 to 6 m [21,22]. Stable ground temperature at a lower depth allows for higher efficiency of the heat pump, shorter loops reduce pumping costs and the exchanger takes up less space.

The house model has been subjected to six variants differing in the energy efficiency standards and the systems. In order to reduce the energy needs for heating balanced ventilation with heat recovery was introduced in the NF40 and NF15 standards. All the variants are presented in

Table 1. Analysed variants matrix.

Energy Efficiency Standard	Systems	Ventilation Type
WT2021	ASHP + PV	Natural ventilation
	GSHP + PV
NF40	ASHP + PV	Balanced ventilation with heat recovery
	GSHP + PV
NF15	ASHP + PV	Balanced ventilation with heat recovery
	GSHP + PV

.

The research included two different heat pump types in order to check how they influenced the results. Currently in Poland air source heat pumps are becoming very popular because they are cheaper than pumps with a ground exchanger [23]. Unfortunately, their energy efficiency is lower compared to ground source heat pumps [24], what is especially important in a cold climate of Poland. One of the research tasks was to check if the investment in higher efficiency is cost effective in the case of plus energy buildings.

2.3. Building Model and Energy Performance

A single-family building model was used to determine the requirements for plus energy standard (Figure 1). It was a two-storey, detached house without basement, with a heated, usable attic. The building has compact shape, designed on a rectangular plan. It has traditional brick construction. The heated attic was covered with a gable roof with a wooden structure. The visible lucarne was oriented towards the south. The area of the roof, oriented on the south, on which the PV panels could be installed, was limited to 35 m². The basic geometric data of the house are shown in

Table 2. Basic geometric data.

Parameter	Value	Units
Heated area	129.0	m2
Heated volume	307.1	m3
Gross covered area	91.5	m2
Shape factor	0.67	m−1

. The used model well represents typical new single-family buildings constructed in Poland.

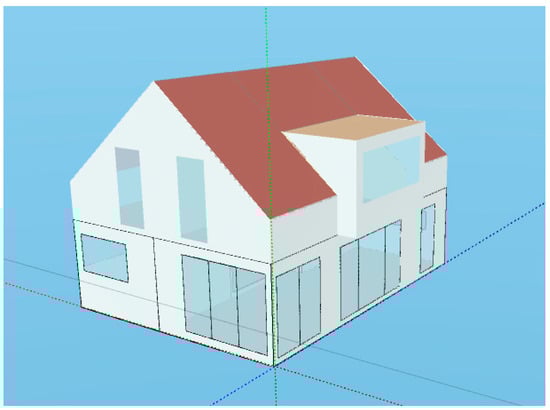

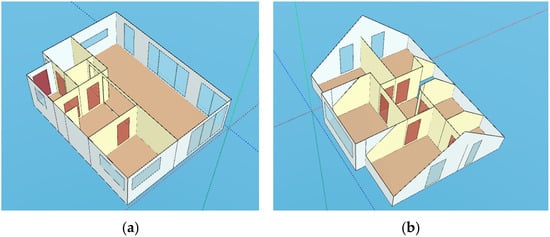

The 3D model of the house and the energy performance was created in software Audytor OZC (energy need calculation) version 6.8 Pro (Sankom, Warsaw, Poland). The axonometric projections can be seen in Figure 2.

The precise requirements for individual energy efficiency standard are shown in

Table 3. Heat transfer coefficient (U-value) requirements for the WT2021, NF40 and NF15 standards [3,19].

Units	Maximum U-values of Building Elements	WT2021	NF40	NF15
W/(m2 K)	External walls	0.20	0.15	0.10
	Roofs, flat roofs and floors under unheated attics	0.15	0.12	0.10
	Floors over unheated basements and closed spaces, floors on the ground	0.30	0.20	0.12
	External and garage doors	1.3	1.3	0.8
	Windows, balcony doors and transparent facades	0.90	1.0	0.8

and

Table 4. A list of linear heat loss coefficients (Ψ-value) and system requirements for the WT2021, NF40 and NF15 standards [3,19].

Units	Requirement	WT2021	NF40	NF15
Maximum Ψ-values of thermal bridges
W/(m K)	Balconies	around 0.70	0.20	0.01
	Others places, e.g., window opening	around 0.70	0.10	0.01
%	Ventilation type and efficiency	natural, no requirements	balanced ventilation with heat recovery, ≥85	balanced ventilation with heat recovery, ≥90
1/h	Envelope air-tightness in n50	3.0	1.0	0.6
kWh/(m² year)	Non-renewable primary energy demand	QP ≤ 70	no	no
kWh/(m² year)	Energy need for heating	no	QH ≤ 40	QH ≤ 15

. The comparison concerns the maximum values of heat transfer coefficients (U-value) and linear heat loss coefficients (Ψ-value), ventilation type and efficiency, air-tightness and energy demand.

For each variant the energy need for heating was calculated with use of software Audytor OZC in accordance with ISO 13790 standard [26]. The Audytor OZC software is used to assist in the calculation of the design heating load of rooms and buildings, determination of the seasonal energy need for heating and cooling and performance of Energy Certificates for buildings and their parts. The program can also carry out moisture analysis of building elements. Design heating load was calculated in accordance with EN 12831-1 standard [27] and used for the systems dimensioning. It was assumed that the house is located in Warsaw representing a typical Polish climate. The number of heating degree days (HDD) for Warsaw is 3686 Kd. The energy need for hot water heating was calculated on basis of Polish regulation [28]. All the assumptions used for the calculations were summarized in

Table 5. Assumptions used for the energy need and design heating load calculation for the WT2021, NF40 and NF15 standards.

Assumption	Value	Units
Design outdoor air temperature	−20.0	°C
Average yearly outdoor air temperature	7.6	°C
Design indoor air temperature—rooms	20.0	°C
Design indoor air temperature—bathrooms	24.0	°C
Design hot water temperature	55.0	°C
Design hot water consumption	180.0	l/day
Air exchange rate	0.60	H−1

. The energy needs for heating and DHW preparation is given in

Table 6. Energy need for heating and DHW preparation for the WT2021, NF40 and NF15 standards.

Energy Efficiency Standard	Energy Need for Heating, QH	Energy Need for DHW Preparation, QDHW	Design Heating Load, Φ
	kWh/(m² year)	kWh/(m² year)	kW
WT2021	99.4	25.0	8.7
NF40	35.1		4.6
NF15	11.8		3.1

.

Change of envelope and ventilation system parameters had visible influence on energy performance. Energy need for heating and design heating load decreased with the increase of requirements. The energy need for DHW preparation was the same for all standards. In all the energy efficiency standards the parameters of inside comfort were at the same level as shown in Table 5.

3. Systems Dimensioning

In order to reach the plus energy level it was necessary to properly select the buildings systems for each variant. As part of the work, heat pumps, PV panels and ventilation with heat recovery were selected. Selection of exact model made it possible to precisely determine the price and efficiency of the devices.

3.1. Heat Pumps Selection

Two types of heat pumps were chosen for each energy efficiency standard of the house—ASHP or GSHP. The ground source heat pump works with a vertical exchanger. To make the comparison more reliable (to eliminate the influence of the brand) only one supplier was selected namely the company NIBE. The design heating load of the house included the transmission and ventilation losses and was calculated in accordance with EN 12831-1 standard [27]. On the basis of the results obtained, heat pumps were selected together with all the fittings necessary for the proper functioning of the entire system. The heating capacity of the heat pumps was always higher than the design heating load. From the manufacturer’s catalogue the first device in the order was always chosen with the capacity higher than the designed one. It was assumed that heat pumps will work with low temperature (35 °C—design supply temperature), under floor, water heating.

Using the NIBE catalogue, the Standard 12 Monoblok and Standard 6 Monoblok air source heat pumps were chosen. They are designed for central and water heating, even by an outdoor temperature of –20 °C. The set included: heat pump F2040 12 kW or 6 kW, internal unit HK 200 M with hot water heater of a 180 L capacity, heat exchanger and control module SMO 20.

Table 7. Basic technical parameters of the air source heat pump (ASHP) selected for the WT2021, NF40 and NF15 standards [29].

Technical Parameter	Energy Efficiency Standard
	WT2021	NF40 and NF15
Heat pump model	F2040 12 kW	F2040 6 kW
Heating capacity range	3.5–12 kW	2.0–6 kW
Electric power	1.79 kW	0.55 kW
Nominal heating capacity	6.91 kW	2.32 kW
Seasonal space heating energy efficiency, cold climate, 35 °C	142%	134%
Water heating energy efficiency, cold climate	88%	89%
Min. working temperature	−20 °C	−20 °C
Max. DHW temperature	58 °C	58 °C
Sound pressure level	43 dB	35 dB

shows the basic parameters of the pump.

In all cases the heating capacity of the ASHP was higher than the designing heating load. In the case of NF15 it was even twice higher because the F2040 6 kW was the smallest device produced by the company. During the research process a lot of effort was made to find a suitable heat pump (with very low heating capacity) for NF15 standard. For example, Samsung offers a heat pump EHS SPLIT 4.4 kW but it is only for heating and not for hot water preparation. Daikin offers Altherma III Bluevolution with 4.3 kW but it is only suitable for average climate and not for cold climate conditions. A suitable heat pump e.g., iTec from Thermia has a capacity of 5.0 kW so is very similar to the selected type. The additional capacity was used for DHW heating which especially important during the cold winters.

According to the literature [30] the influence of over-sizing on the energy efficiency of the heat pump is smaller than influence of under-sizing in the cold climate. By over-sizing the heat pumps work more often in the on–off mode. As a result the efficiency decreases by 3%–6%. By under-sizing the heat pumps, they work more often with full speed of the compressor and the amount of energy consumed by the auxiliary electric heater increases. As a result the efficiency decreases by 3%–18%. For the ground source heat pump the dual-function NIBE F1226 device was chosen with heating capacity 12 kW or 6 kW. The pumps have integrated hot water heater of 180 L capacity.

Table 8. Basic technical parameters of the ground source heat pump (GSHP) selected for the WT2021, NF40 and NF15 standards [31].

Technical Parameter	Energy Efficiency Standard
	WT2021	NF40 and NF15
Heat pump model	F1226 12 kW	F1226 6 kW
Electric power	2.68 kW	1.31 kW
Nominal heating capacity	11.52 kW	5.49 kW
Seasonal space heating energy efficiency, cold climate, 35 °C	177%	170%
Water heating energy efficiency, cold climate	89%	91%
Max. DHW temperature	63 °C	63 °C
Sound pressure level	29 dB	28 dB

shows the basic parameters of the devices.

In all cases the heating capacity of the GSHP was higher than the designing heating load. In case of NF15 it was even twice higher because the F2040 6 kW was the smallest device produced by the company. In regard to the ASHP seasonal space heating energy efficiency was visibly higher but the water heating energy efficiency was very similar. The technical parameters of the heat pumps were the basis for the calculation of annual final energy demand.

3.2. Photovoltaic Panels Selection

In order to properly select the peak power of the PV system it was necessary to calculate the annual final energy demand of the house and compare it with electrical energy production of the system. In order to reach the plus energy level, the final, annual energy consumption for heating, ventilation, domestic hot water and auxiliary systems should be smaller than the annual production of the PV system. The annual energy consumption in kWh in terms of final energy should be calculated as the ratio of the reference annual heating or DHW need and the total, seasonal space heating or water heating energy efficiency. The energy efficiency of building systems was evaluated based on supplier data [29,31], the Polish regulation [28] and several European reference standards: EN 15243 [32], EN 15316 [33] and EN 15316–3-1:2005 [34]. Seasonal space and water heating energy efficiency of the heat pumps was calculated on basis of data from Table 7 and Table 8 multiplied by the primary energy factor for electrical energy equal to 2.5 according the Regulation No 811/2013 [35]. The total efficiency for both heat pumps is presented in

Table 9. Calculation of total energy efficiency of floor and DHW heating systems with ASHP.

System Type	Seasonal Energy Efficiency	WT2021	NF40 and NF15
Floor heating	heat pump	3.55	3.35
	control and heat use	0.89
	heat distribution	0.96
	heat storage	0.95
	total, seasonal	2.88	2.72
DHW heating	heat pump	2.20	2.23
	DHW use	1.0
	DHW distribution	0.60
	DHW storage	0.85
	total, seasonal	1.12	1.13

and

Table 10. Calculation of total energy efficiency of floor and DHW heating systems with GSHP.

System Type	Seasonal Energy Efficiency	WT2021	NF40 and NF15
Floor heating	heat pump	4.43	4.25
	control and heat use	0.89
	heat distribution	0.96
	heat storage	0.95
	total, seasonal	3.59	3.45
DHW heating	heat pump	2.23	2.28
	DHW use	1.0
	DHW distribution	0.60
	DHW storage	0.85
	total, seasonal	1.12	1.13

. The total efficiency of the heating system was calculated on basis of the following formula:

η_H,tot = η_H,g × η_H,e × η_H,d × η_H,s,

(4)

where:

• η_H,g—seasonal space heating energy efficiency;
• η_H,e—seasonal control and heat use energy efficiency;
• η_H,d—seasonal heat distribution energy efficiency;
• η_H,s—seasonal heat storage energy efficiency.

The total efficiency of the hot water system was calculated on the basis of the following formula:

η_W,tot = η_W,g × η_W,e × η_W,d × η_W,s,

(5)

where:

• η_W,g—seasonal water heating energy efficiency;
• η_W,e—seasonal efficiency of water use;
• η_W,d—seasonal hot water distribution energy efficiency;
• η_W,s—seasonal hot water storage energy efficiency.

The next stage was the calculation of annual, final energy consumption for all standards and systems. The consumption included heating, DHW and electrical energy used by auxiliary systems—control, pumps and ventilation unit (only in case of NF40 and NF15). Results are shown in

Table 11. Final energy consumption for heating, DHW and auxiliary systems for the WT2021, NF40 and NF15 standards.

Energy Efficiency Standard	Heat Pump Type	Final Energy Consumption for Heating, QF,H	Final Energy Consumption for DHW, QF,DHW	Final Energy Consumption Auxiliary Systems	Final Energy Consumption Ventilation Unit	Total Final Energy Consumption, QF
		kWh/year	kWh/year	kWh/year	kWh/year	kWh/year
WT2021	ASHP	4450	2827	503	-	7827
NF40		1665	2842	400	296	5203
NF15		560	2842	284	296	3982
WT2021	GSHP	3570	2842	503	-	6915
NF40		1313	2780	400	296	4788
NF15		441	2780	284	296	3801

.

Results clearly showed that in the case of buildings with high energy efficiency (NF40 and NF15) the energy consumption for water heating was more significant than for heating. Energy used by auxiliary systems decreased with the increase of building standard because the heating season became shorter. At the same time use of mechanical ventilation caused additional energy consumption.

In order to reach the plus energy standard, the amount of energy produced on-site had to be higher than total final energy consumption over the course of a year. For each variant PV panels were used and installed on the south roof surface. The available roof area was limited to 35 m². In order to maximize the energy production monocrystalline panels were selected in the case of WT2021. They are more effective but also more expensive. The amount of energy produced was calculated on basis of SOLEKO data [36]. The results of the selection can be seen in

Table 12. Selection of photovoltaic panels for the WT2021, NF40 and NF15 standards.

Energy Efficiency Standard	Heat Pump Type	Total Final Energy Consumption, QF	Peak Load of PV System	Estimated Electrical Energy Production	Area of the PV Panels	Number of PV Panels
		kWh/year	kWp	kWh/year	m2	-
WT2021	ASHP	7827	6.30	6600	34	20
NF40		5203	5.13	5400	31	18
NF15		3982	3.99	4200	24	14
WT2021	GSHP	6915	6.30	6600	34	20
NF40		4788	4.56	4800	28	16
NF15		3801	3.99	4200	24	14

.

In the case of WT2021 it was impossible to reach plus energy level, despite the use of more efficient panels. The limited roof area and high energy consumption were the main barriers. The assembly of panels on the external walls was not considered due to their lower efficiency and the risk of shading. The next step of the analysis was the calculation of investment and exploitation costs also for the WT2021 standard. Based on results presented in Table 10 the final energy consumption and production indexes were calculated (

Table 13. Final energy indexes for the WT2021, NF40 and NF15 standards.

Energy Efficiency Standard	Heat Pump Type	Index of Final Energy Consumption	Index of Electrical Energy Production
		kWh/(m2 year)	kWh/(m2 year)
WT2021	ASHP	60.7	51.2
NF40		40.3	41.9
NF15		30.9	32.6
WT2021	GSHP	53.6	51.2
NF40		37.1	37.2
NF15		29.5	32.6

). On their basis possible requirements for a plus energy single family building were proposed.

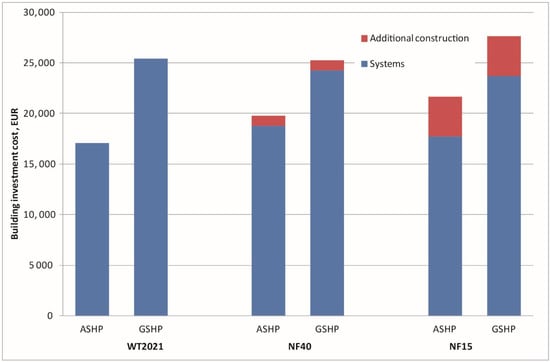

4. Costs Calculation

The WT2021 standard was adopted as the reference. The calculation was made separately for the building envelope and the systems. For the building envelope the cost increased in the case of NF40 and NF15 standards, because of thicker insulation layer, better windows, thermal bridges reduction and increase of air-tightness. System costs included heat pump (and vertical exchanger if required), PV panels and mechanical ventilation.

4.1. Construction Costs

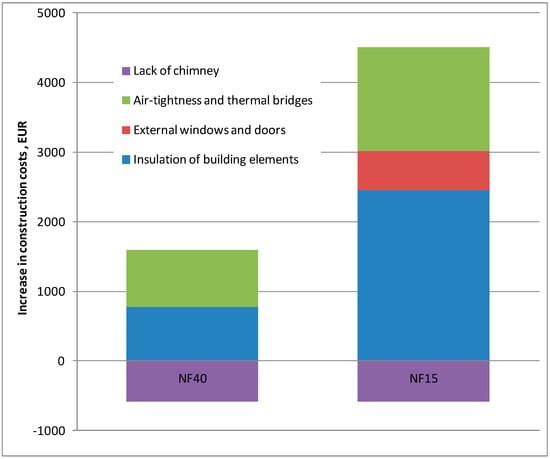

The summary of the additional construction costs resulting from the insulation of building elements is presented in

Table 14. Additional cost of insulation for the NF40 and NF15 standards.

Building Element/Insulation Material	Reference Thickness of the Insulation WT2021	Additional Layer on Insulation NF40	Additional Layer on Insulation NF15	Additional Cost of Insulation NF40	Additional Cost of Insulation NF40
	cm	cm	cm	EUR	EUR
External walls/styrofoam	20	+1	+15	71	967
Floor on ground/mineral wool	10	+6	+20	192	518
Floor under unheated attic/mineral wool	30	+5	+10	111	222
Flat roof/mineral wool	30	+5	+10	25	51
Roof/mineral wool	30	+8	+16	376	693
Total cost				775	2451

.

It was necessary to replace external doors and windows so that they met the requirements of specific NF15 standard. Because there is only small difference between WT2021 and NF40 standard no change in the cost was assumed. The prices of doors and windows 34re based on the online calculator [37]. The cost summary is presented in the

Table 15. Additional cost of external windows and doors for the NF40 and NF15 standards.

Building Rlement	Reference Thickness U-value WT2021	U-value NF40	U-value NF15	Additional Cost NF40	Additional Cost NF40
	W/(m2∙K)	W/(m2∙K)	W/(m2∙K)	EUR	EUR
External doors	0.90	1.0	0.80	0	186
External windows	1.30	1.30	0.80	0	373
Total cost				0	559

.

Another increase in construction costs resulted from the need to limit heat losses through thermal bridges. These costs included, e.g., the installation of window frames in the insulation layer in the NF15 standard. In addition, it was necessary to increase the air-tightness of the building envelope. Based on our own research [38,39,40], it was assumed that both improvements will cost 815 EUR in the NF40 and 1500 EUR in the NF15.

The use of balanced ventilation with heat recovery saved on the cost of building a chimney. In relation to the WT2021 standard with natural ventilation, this saving amounted to 580 EUR for the variant NF40 and NF15. The summary of all construction cost is presented in Figure 3. The minus values represent the savings. In total the costs increased by 1010 EUR for NF40 and by 3930 EUR for NF15 in regard to WT2021.

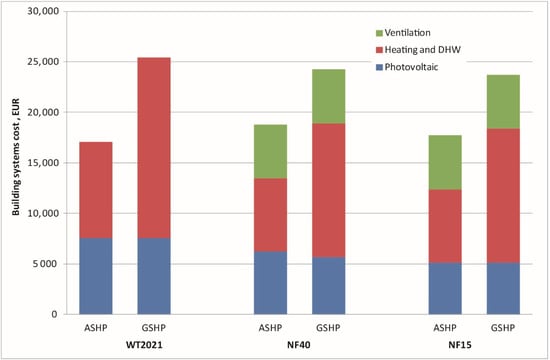

4.2. Systems Costs

The cost of the photovoltaic system included the cost of solar panels, inverter, additional elements like cables and installation. Depending on peak power and panels type the costs were estimated based on the price list of SOLEKO company [36]. Installation of a solar panel on a roof covered with standard roofing tiles was 35 EUR for each photovoltaic panel. The total cost for each building variant is presented in

Table 16. The photovoltaic system cost.

Energy Efficiency Standard	Heat Pump Type	Peak Load of PV System	Number of PV Panels	Inverter Cost	PV Panels and Equipment Cost	Installation Cost	Total Cost
		kWp	-	EUR	-	EUR	EUR
WT2021	ASHP	6.30	20	1510	5350	700	7560
NF40		5.13	18	1479	4101	630	6210
NF15		3.99	14	1260	3390	490	5140
WT2021	GSHP	6.30	20	1510	5350	700	7560
NF40		4.56	16	1390	3720	560	5670
NF15		3.99	14	1260	3390	490	5140

.

The cost of the heating and DHW system included the cost of heat pump, hot water tank, control module, additional equipment, vertical exchanger (if required), installation and commissioning. Depending on the heating load and pump type the costs were estimated based on the price list of NIBE company [29,31]. The vertical exchanger cost was calculated based on assumed maximum feat flow of 45 W per one meter of the boreholes and the cost of 25 EUR for each meter of the drilling [31]. The total cost for each building variant is presented in

Table 17. The heating and DHW system cost.

Energy Efficiency Standard	Heat Pump Type	Heat Pump Model	Heat Pump Cost	Equipment Cost	Vertical Exchanger Cost	Installation Cost	Total Cost
			EUR	EUR	EUR	EUR	EUR
WT2021	ASHP	F2040 12 kW	7150	1840	-	535	9525
NF40		F2040 6 kW	4860	1840	-	535	7235
NF15
WT2021	GSHP	F1226 12 kW	8730	1750	6670	720	17,870
NF40		F1226 6 kW	7440	1750	3330	720	13,240
NF15

. As expected, the cost depended on the heating load and the type of heat pump. The ASHPs were almost twice as cheap as GSHPs because there was no need for the vertical exchanger.

Selection of smaller heat pumps (if an appropriate type would be available) in the case of NF15 standard would have little influence on its price. In the case of the air source heat pump from Daikin the difference in price between 4.3 kW and 6.0 kW was lower than 10%. The difference in price between 5.7 kW and 7.6 kW for Vitocal 333-G of Viessmann was 5%.

The last element of the building systems was in case of NF40 and NF15 the balance ventilation with heat recovery. The cost was calculated on a basis of an offer from PRO-VENT [41] company. It included installation of ventilation ducts, ventilation unit with heat recovery, regulation and commissioning of the entire system. NF40 and NF15 standards use the same type of ventilation unit, therefore the cost of EUR 5325for both variants is identical. The summary of all system costs for all standards is shown in Figure 4.

The total systems cost did not change much with the change of the building energy efficiency standard. Although the heat source capacity can be smaller the additional cost of balanced ventilation appeared. Higher differences could be seen in regard to the heat pump type. Use of ASHP reduced the costs from 23% to 33%. A full assessment of investment costs was possible after adding extra construction costs (Figure 5).

Reaching the plus energy standard would be cheapest in case of WT2021 with the ASHP but the amount of energy produced by the PV panels was too small (lower than consumption). Because of that, the NF40 standard with air source heat pump represented the lowest investment cost. Changing to GSHP increased the cost by about 28% and to NF15 by about 9%. The share of additional construction cost was minor because the system cost dominates.

4.3. Replacement and Maintenance Costs

The analysis included the replacement costs of system components during the explanation of the building. It was a periodic cost corresponding to the lifespan of the component. The used lifetime expectancies are shown in

Table 18. Replacement cost and lifespan of building systems.

System Component	Investment Cost	Lifespan 5 Years	Lifespan 10 Years	Lifespan 15 Years	Lifespan 20 Years	Lifespan 25 Years	Lifespan 30 Years
	EUR	EUR	EUR	EUR	EUR	EUR	EUR
PV system 6.3 kWp	7560				7560
PV system 5.13 kWp	6210				6210
PV system 4.56 kWp	5670				5670
PV system 3.99 kWp	4140				4140
ASHP F2040 12 kW	9525			9525			9525
ASHP F2040 6 kW	7235			7235			7235
GSHP F1226 12 kW	11,200			11,200			11,200
GSHPF1226 6 kW	9910			9910			9910
Vertical exchanger 12 kW	6670						6670
Vertical exchanger 6 kW	3330						3330
Balance ventilation	5325				5325
Final value of the component at the end of period—30 years				0%	50%		100%

and based on standard EN 15459-1 [16]. The calculation concentrated mainly on the energy systems of the house. Final value of system components at the end of calculation period was given as a percentage of replacement cost. For example, in a case of heat pumps they would have to be replaced in year 30 which was at the same time calculation period. Therefore, the final value was in this case 100%.

The annual maintenance costs were calculated as percentage of the investment costs related to the system component based on standard EN 15459-1 [16]. For the photovoltaic system and vertical exchanger it was 1% while for heat pumps and balanced ventilation 2%. The operation cost was calculated on a basis of final energy consumption of auxiliary systems and the ventilation unit.

4.4. Annual Costs Related to Energy Consumption

Annuals costs related to energy consumption included heating, DHW and systems operation. Theoretically they should have been zero because the house was designed at plus energy standard. In reality only part of the energy produced by PV panels would be used on site. According to measurements made in Poland [42] around 25% of the consumption is covered by the solar electrical energy. The rest has to be supplied to the grid in the case of buildings without energy storage. Owners of solar power plants with a capacity of up to 10 kWp for each 1 kWh delivered to the grid can get back 0.8 kWh for free, which results from Polish regulations [43]. Such a solution was included in the analysis and was the basis for calculations of electrical energy send back to the grid and used from the grid. The price of 1 kWh was 0.15 EUR. Precise data for each variant are presented in

Table 19. Calculation of annual cost related to the energy used from the electrical grid.

Energy Efficiency Standard	Heat Pump Type	Total Final Energy Consumption QF	Estimated Electrical Energy Production PV	Estimated On-Site Consumption	Energy Sent Back to the Grid	Paid Energy from the Grid	Annual Cost Related to Energy Used from the Grid
		kWh/year	kWh/year	kWh/year	kWh/year	kWh/year	EUR/year
WT2021	ASHP	7827	6600	1957	4643	2156	323
NF40		5203	5400	1301	4099	623	93
NF15		3982	4200	996	3205	423	63
WT2021	GSHP	6915	6600	1729	4871	1289	193
NF40		4788	4800	1197	3603	709	106
NF15		3801	4200	950	3250	251	38

.

Results showed that even for variants that met the plus energy standard (NF40 and NF15) annual cost related to energy consumption was higher than zero. It was actually the cost of storing the produced electrical energy in the grid.

4.5. Global Cost Calculation

For all the house and system variants the global cost was calculated. It was a sum of the present value of all annual costs (with reference to starting year) including investment costs. The annual costs included systems replacement and maintenance, as well as energy consumption. Final value of component or system at the end of the calculation period was considered in the analysis. The following financial data were used:

• duration of the calculation: 30 years
• inflation rate: 2%
• real interest rate: 3%
• evolution of energy prices: 2% (electricity).

The values were based on the data from Polish Office of Competition and Consumer Protection [44] constant during the analysed period. Results of global cost calculation for all variants were shown in

Table 20. Calculation of annual cost related to the energy used from the electrical grid.

Costs	Type	Present Value Factor	WT2021		NF40		NF15
			ASHP	GSHP	ASHP	GSHP	ASHP	GSHP
		-	EUR	EUR	EUR	EUR	EUR	EUR
Investment	PV	1.0	7560	7560	6210	5670	5140	5140
	heat pump	1.0	9525	11,200	7235	9910	7235	9910
	vertical exchanger	1.0		6670		3330		3330
	balanced ventilation	1.0			5325	5325	5325	5325
	construction	1.0			1010	1010	3930	3930
Replacement	lifespan 15 years	0.864	9525	11,200	7235	9910	7235	9910
	lifespan 20 years	0.823	7560	7560	11,535	10,995	10,465	10,465
	lifespan 30 years	0.746	9525	17,870	7235	13,240	7235	13,240
	final value	0.746	13,305	21,650	13,003	18,738	12,468	18,473
Maintenance	all systems	25.882 *	266	366	313	395	303	389
Energy	all systems	25.882 *	323	193	93	106	63	38
Global cost			43,959	52,980	41,732	51,708	42,048	51,963

* in a case of Maintenance and Energy sum of present value factors for the whole calculation period was presented in Table 20.

and in Figure 6.

5. Results and Discussion

After analysing all six variants differing in thermal insulation of building elements, the solution of the ventilation system and technical systems, it was possible to assess them from the point of view of economic viability. The global cost values obtained proved that the NF40 (41,732 EUR) and NF15 (42,048 EUR) variants using the air source heat pump were the most favourable. The difference between them was lower than 1%. Another option with a relatively low global cost was a building in the WT2021 standard also with ASHP (global cost higher by 5% in regard to NF40 ASHP). It should be noted, however, that it did not meet the plus energy building criterion. A ground source heat pump with vertical exchanger turned out to be more expensive in each variant. The reason is mainly higher investment costs associated with the need of the heat exchanger (global cost higher by 24%–27% depending on the variant). Investing more money in a higher energy efficiency standard—NF15, proved not entirely justified. Low demand for energy and heating load does not significantly affect the cost of systems. The selected heat pumps were oversized, because in the catalogues of the supplier company no smaller devices were available. From this perspective cost of heating system is the same in case of NF40 and NF15. Also, the cost of PV systems is only slightly different from the cost for the NF40 standard.

Increase of energy efficiency of house had visible influence on energy cost in the calculation period. Meeting the plus energy standard caused the share of energy costs in global costs to range from 6%–5% for NF40 to 4%–2% for NF15. In the case of WT2021 it was from 19% to 9%. The replacement and maintenance cost played very important roles in the global cost. Depending on the variant it was between 42% and 47%. It clearly showed that energy systems of the buildings are becoming more important that its energy efficiency. Correct selection of them is crucial from the economic and energy efficiency point of view. Investment costs had the smallest share in case of WT2021 variant.

6. Conclusions

The main objective of this paper was to propose possible requirements for plus energy building definition in the heating dominated climate of central Poland. The question was what is more cost-effective: reduction of energy demand or increase of production from renewable energy sources. The obtained analysis allowed the formulation of the following conclusions:

• It can be definitely stated that the economic sense of using renewable heat sources leaves no doubt, bearing in mind that the efficiency of these devices increases year by year (thanks to new solutions [45]), what causes higher profitability of this type of system. Moreover, the low-energy standards NF40 and NF15 allow for achieving the plus energy level in cold climate of central Poland, which was proved by the study.
• The research has shown that reaching the plus energy standard will be not possible in the case of WT2021—houses meeting only specific requirements of the building code for year 2021. The high energy consumption cannot be covered by on-site energy production.
• The global cost of the plus energy house (in standard NF40 and NF15) depended mainly on the system type (ASHP or GSHP) and only slightly on energy consumption. The maintenance, replacement and investment cost related with the energy systems had the biggest share in global cost. It clearly showed that proper selection and dimensioning of the systems is the key to plus energy standard. From the economic point of view the use of ASHP seemed to be more effective despite lower efficiency in a cold climate. Another important issue was the storage and utilization of energy produced on site [46].
• In the analysed model of the house the available roof area was limited to 35 m². Similar limitation will occur in the majority of single-family buildings in Poland. By referring the maximum energy production to the heated area—6600 kWh/year to 129 m² a coefficient of 51.2 kWh/(m² year) can be calculated. To reach a plus energy standard final energy consumption (Table 13), for heating, ventilation, DHW and auxiliary systems, has to lower than this coefficient. The final energy consumption index was 40.3 kWh/(m² year) for NF40-ASHP, 30.9 kWh/(m² year) for NF15-ASHP, 37.1 kWh/(m² year) for NF40-GSHP and 29.5 kWh/(m² year) for NF15-ASHP. In each case it was lower than maximum energy production coefficient.

The formulated conclusions can be used as a basis for proposing possible requirements for plus energy building standards in central Poland. From the three different energy types—energy need, final energy and primary energy, the final energy taking into consideration the efficiencies of the systems seemed to be most suitable. The potential indicators of the definition should be the index of final (delivered) energy demand Q_F and the index of on-site energy production Q_F,P. Based on research the proposed requirements for plus energy single-family residential buildings are as follows:

• The final (delivered) energy demand (including heating, ventilation, DHW and auxiliary systems) Q_F < 45 kWh/(m² year); and
• The on-site energy production Q_F,P > 45 kWh/(m² year).

The proposed values are in the middle between maximum energy production and maximum energy consumption. Both requirements should refer to the electrical energy and not to the heat.
